Echo CS-900EVL IPL / Parts List

Echo CS-900EVL IPL / Parts List

Echo CS-900EVL IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: CS-900EVL-Online

Source Pages

Page 1

Echo CS-900EVL IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo CS-900EVL IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo CS-900EVL IPL / Parts List source page 3

Tap or click the page image to enlarge it.

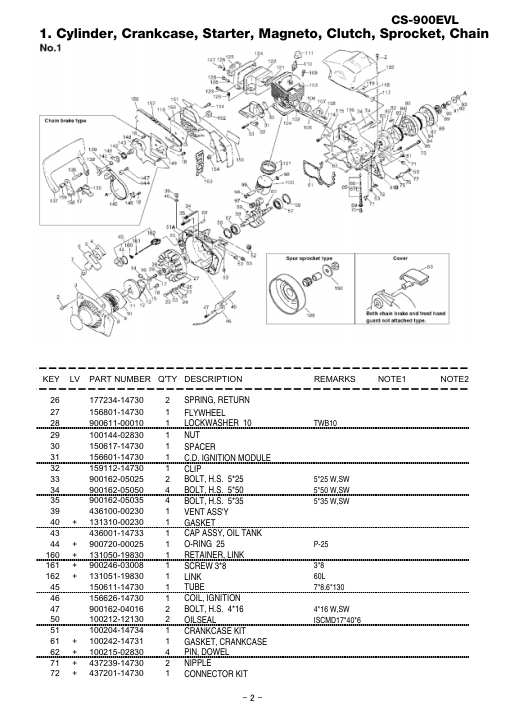

Page 4

Echo CS-900EVL IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo CS-900EVL IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo CS-900EVL IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo CS-900EVL IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo CS-900EVL IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo CS-900EVL IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo CS-900EVL IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo CS-900EVL IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo CS-900EVL IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo CS-900EVL IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo CS-900EVL IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo CS-900EVL IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo CS-900EVL IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo CS-900EVL IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

Echo CS-900EVL IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

Echo CS-900EVL IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 2 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
11Label, Echo890118-17930890118-17930-Online
27Screw101512-14730101512-14730-Online5*20
1Starter Ass'Y (Bs)177200-14730177200-14730-Online
3+1Cover, Fan (Bs)101507-14730101507-14730-Online
4+1Cap, Grip177244-10630177244-10630-Online
5+1Washer, Starter Grip177229-14730177229-14730-Online
6+1Grip, Starter177228-10631177228-10631-Online
7+1Guide, Rope177227-10630177227-10630-OnlineSus. by 177227- | 07060
7+1Guide, Rope177227-07060177227-07060-Online
8+1Plate, Starter177221-10630177221-10630-Online
9+1Spring, Rewind177220-10631177220-10631-Online
10+1Plate, Starter177242-14730177242-14730-Online
11+1Collar177216-10630177216-10630-Online
12+1Drum, Starter177215-10632177215-10632-Online
13+1Rope, Starter177226-14730177226-14730-Online5.0*1050
14+1Clip, Starter Rope177246-10631177246-10631-Online
15+1Catcher, Pawl177243-02833177243-02833-Online
16+1Washer300217-00610300217-00610-Online
17+1Bolt, H.S. 5*15900162-05015900162-05015-Online5*15 W,SW
18+2Screw 4*12900242-04012900242-04012-Online4*12
181Screw 4*12900242-04012900242-04012-Online4*12
222Bolt 6*16900100-06016900100-06016-Online6*16
234Washer 6900600-00006900600-00006-Online
242Ratchet177218-02830177218-02830-Online
252Spacer, Ratchet177247-02830177247-02830-Online

Page 4 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
262Spring, Return177234-14730177234-14730-Online
271Flywheel156801-14730156801-14730-Online
281Lockwasher 10900611-00010900611-00010-OnlineTWB10
291Part100144-02830100144-02830-Online
301Spacer150617-14730150617-14730-Online
311C.D. Ignition Module156601-14730156601-14730-Online
321Clip159112-14730159112-14730-Online
332Bolt, H.S. 5*25900162-05025900162-05025-Online5*25 W,SW
344Bolt, H.S. 5*50900162-05050900162-05050-Online5*50 W,SW
354Bolt, H.S. 5*35900162-05035900162-05035-Online5*35 W,SW
391Vent Ass'Y436100-00230436100-00230-Online
40+1Gasket131310-00230131310-00230-Online
431Cap Assy, Oil Tank436001-14733436001-14733-Online
44+1O-Ring 25900720-00025900720-00025-OnlineP-25
160+1Retainer, Link131050-19830131050-19830-Online
161+1Screw 3*8900246-03008900246-03008-Online3*8
162+1Link131051-19830131051-19830-Online
451Tube150611-14730150611-14730-Online7*8.6*130
461Coil, Ignition156626-14730156626-14730-Online
472Bolt, H.S. 4*16900162-04016900162-04016-Online4*16 W,SW
502Oilseal100212-12130100212-12130-OnlineISCMD17*40*6
511Crankcase Kit100204-14734100204-14734-Online
61+1Gasket, Crankcase100242-14731100242-14731-Online
62+4Pin, Dowel100215-02830100215-02830-Online
71+2Nipple437239-14730437239-14730-Online
72+1Connector Kit437201-14730437201-14730-Online

Page 6 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
521Bushing153110-02830153110-02830-Online
534Cushion100251-14730100251-14730-Online
551Grommet132115-01461132115-01461-Online
562Circlip 40900702-00040900702-00040-OnlineCR-40
572Bearing, Ball 6203900810-06203900810-06203-Online
581Crankshaft Assy100100-14731100100-14731-Online
591Key, Woodruff100142-12330100142-12330-Online
601Key, Woodruff 3*14900322-03014900322-03014-Online3*14
631Cover100612-12332100612-12332-Online
651Auto-Oiler Ass'Y437000-03430437000-03430-Online
66+1Spring, Oiler437019-02830437019-02830-Online
67+3O-Ring (S-5)437020-02830437020-02830-Online
691Lockwasher437059-11133437059-11133-Online
701Screw 5*10900220-05010900220-05010-Online5*10
731Bolt, H.S. 5*65900162-05065900162-05065-Online5*65 W,SW
742Stud, Guide Bar433011-10630433011-10630-Online
761Catcher Kit, Chain433000-12830433000-12830-Online
75+1Washer 5900600-00005900600-00005-Online
77+1Bolt, H.S. 5*25900105-05025900105-05025-Online5*25
801Plate175310-14730175310-14730-Online
813Screw 4*10900242-04010900242-04010-Online4*10
824Screw 5*12900218-05012900218-05012-OnlineSF-5*12
1Clutch Assy175000-14730175000-14730-Online
83+1Plate, Clutch175019-10631175019-10631-Online
84+2Spring, Clutch175018-14730175018-14730-Online
85+1Hub, Clutch175016-14730175016-14730-Online

Page 8 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
86+4Shoe, Clutch175017-14730175017-14730-Online
871Washer, Clutch (I)175015-10630175015-10630-Online
881Drum, Clutch (.404)175006-14730175006-14730-Online
891Sprocket, Rim 22270175033-10630175033-10630-Online
901Bearing, Needle175012-30830175012-30830-Online
911Spacer, Clutch Drum175013-00230175013-00230-Online
921Washer, Clutch (O)175014-10630175014-10630-Online10.2*26*1.6
931Nut100129-14730100129-14730-Online10*1.25
941Washer, Clutch175044-14730175044-14730-Online
1001Piston Kit100000-14732100000-14732-Online
97+1Bearing, Needle100012-14730100012-14730-Online
98+2Circlip, Piston Pin100015-00230100015-00230-Online
99+1Pin, Piston100013-14730100013-14730-Online7*12*34.5
101+2Ring, Piston100011-14731100011-14731-Online
1021Connector, Impulse100267-10630100267-10630-Online
1031Cylinder101011-14732101011-14732-Online
1041Gasket, Cyl. Base101010-14731101010-14731-Online
1051Pipe, Oil437228-14730437228-14730-Online
1061Adapter, Intake130510-14731130510-14731-Online
1071Holder130512-14731130512-14731-Online
1082Screw 5*14900242-05014900242-05014-Online5*14
1094Bolt, H.S. 6*20900160-06020900160-06020-Online6*20 W
1101Plug, Spark (Bpm-7A)159010-10630159010-10630-OnlineBPM-7A
1111Cap, Spark Plug159005-00331159005-00331-Online
1146Bolt, H.S. 5*15900105-05015900105-05015-Online5*15
1152Bumper, Spiked880212-14730880212-14730-Online

Page 10 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1166Nut, Lock 5900560-00005900560-00005-Online
1171Tensioner433014-10631433014-10631-Online
1181Screw, Tensioner433016-14730433016-14730-Online
1191Clip433028-14730433028-14730-Online
1211Gasket, Muffler145510-14732145510-14732-Online
1221Muffler (Bl)145806-14733145806-14733-Online
1232Bolt, H.S. 6*20900169-06020900169-06020-Online6*20
1241Muffler (B) (Bl)145807-14730145807-14730-Online
1251Lid, Muffler (Bl)145861-14730145861-14730-Online
1266Lockwasher 5900610-00005900610-00005-OnlineTWA5
1272Screw (5*8 Cu)145643-03730145643-03730-Online+-SR5*8CU
1284Screw (5*20 Cu)145643-14730145643-14730-Online+-SR5*20CU
1291Bolt, H.S. 5*15900162-05015900162-05015-Online5*15 W,SW
1321Cover, Cylinder101514-14732101514-14732-Online
11Brake Ass'Y, Chain433100-14731433100-14731-Online
18+5Screw 4*12900242-04012900242-04012-Online4*12
135+1Cover, Seal433312-12330433312-12330-Online
136+1Screw433113-12330433113-12330-Online
137+1Lever, Brake433105-14731433105-14731-Online
138+1Connector433117-14730433117-14730-Online
139+1Seal, Dust433313-14730433313-14730-Online
140+1Spacer433115-12330433115-12330-Online
141+1Stopper433119-12330433119-12330-Online
142+1Spring, Return433114-12330433114-12330-Online
143+1Bolt433134-12330433134-12330-Online
144+1Adjuster, Brake433142-14730433142-14730-Online

Page 12 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
145+1Band, Brake433123-14730433123-14730-Online
146+1Retainer, Brake Band433144-14730433144-14730-Online
147+1Screw 5*14900242-05014900242-05014-Online5*14
148+1Cover433310-14730433310-14730-Online
17+1Bolt, H.S. 5*15900162-05015900162-05015-Online5*15 W,SW
158+1Supporter, B. Lever433158-14730433158-14730-Online
159+1Hab, Brake433159-14730433159-14730-Online
1491Plate, Guide (Inner)433013-14730433013-14730-Online
1501Plate, Guide (Outer)433012-14730433012-14730-Online
1511Guard, Sprocket (Bs)433010-14731433010-14731-Online
1522Nut, Flange433019-10631433019-10631-Online
1531Part433025-14730433025-14730-Online
1541Pin, Dowel433030-14730433030-14730-Online
1551Label, Echo890118-35030890118-35030-Online
1561Bar, Guide 65H63430328-10630430328-10630-Online65H63
1571Chain, Saw 59Cp-80E431133-32930431133-32930-Online59CP-80E 65C | Sus. by X289- | 000000
1571Chain,SawX289-000000X289-000000-Online59AC-80E
1881Drum, Clutch (C.B.)175206-14730175206-14730-Online
1921Washer, Clutch Drum175214-14731175214-14731-Online

Page 14 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1921Washer, Clutch Drum175214-14731175214-14731-Online

Page 15 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1921Washer, Clutch Drum175214-14731175214-14731-Online

Page 16 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1921Washer, Clutch Drum175214-14731175214-14731-Online

Source PDF: 20130718-149_CS-900EVL_CS-900EVL_EN.pdf. Generated 2026-06-25 14:37.

×Enlarged Echo CS-900EVL IPL / Parts List source page 1
Echo CS-900EVL IPL / Parts List - source page 1
×Enlarged Echo CS-900EVL IPL / Parts List source page 2
Echo CS-900EVL IPL / Parts List - source page 2
×Enlarged Echo CS-900EVL IPL / Parts List source page 3
Echo CS-900EVL IPL / Parts List - source page 3
×Enlarged Echo CS-900EVL IPL / Parts List source page 4
Echo CS-900EVL IPL / Parts List - source page 4
×Enlarged Echo CS-900EVL IPL / Parts List source page 5
Echo CS-900EVL IPL / Parts List - source page 5
×Enlarged Echo CS-900EVL IPL / Parts List source page 6
Echo CS-900EVL IPL / Parts List - source page 6
×Enlarged Echo CS-900EVL IPL / Parts List source page 7
Echo CS-900EVL IPL / Parts List - source page 7
×Enlarged Echo CS-900EVL IPL / Parts List source page 8
Echo CS-900EVL IPL / Parts List - source page 8
×Enlarged Echo CS-900EVL IPL / Parts List source page 9
Echo CS-900EVL IPL / Parts List - source page 9
×Enlarged Echo CS-900EVL IPL / Parts List source page 10
Echo CS-900EVL IPL / Parts List - source page 10
×Enlarged Echo CS-900EVL IPL / Parts List source page 11
Echo CS-900EVL IPL / Parts List - source page 11
×Enlarged Echo CS-900EVL IPL / Parts List source page 12
Echo CS-900EVL IPL / Parts List - source page 12
×Enlarged Echo CS-900EVL IPL / Parts List source page 13
Echo CS-900EVL IPL / Parts List - source page 13
×Enlarged Echo CS-900EVL IPL / Parts List source page 14
Echo CS-900EVL IPL / Parts List - source page 14
×Enlarged Echo CS-900EVL IPL / Parts List source page 15
Echo CS-900EVL IPL / Parts List - source page 15
×Enlarged Echo CS-900EVL IPL / Parts List source page 16
Echo CS-900EVL IPL / Parts List - source page 16
×Enlarged Echo CS-900EVL IPL / Parts List source page 17
Echo CS-900EVL IPL / Parts List - source page 17
×Enlarged Echo CS-900EVL IPL / Parts List source page 18
Echo CS-900EVL IPL / Parts List - source page 18
×Enlarged Echo CS-900EVL IPL / Parts List source page 19
Echo CS-900EVL IPL / Parts List - source page 19
\n
\n
