Echo CS-310ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-310ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

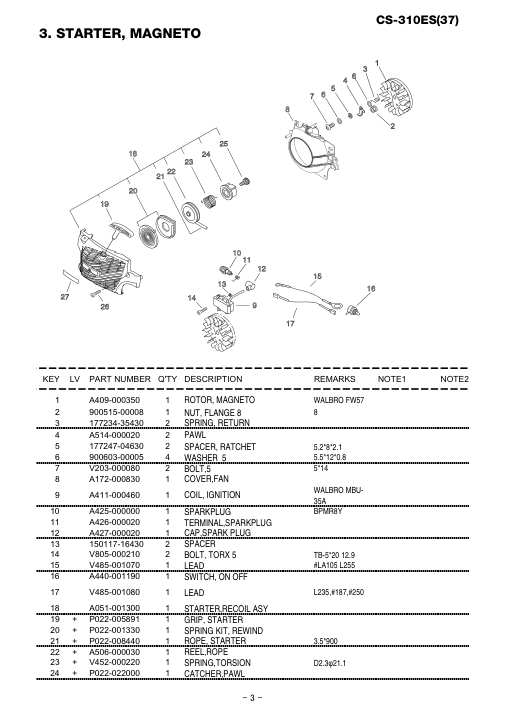

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 2 - Parts
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | TB-4*8 10.9 | |
| 2 | 1 | Guide, Exhaust | A313-000760 | A313-000760-Online | ID#1170 | |
| 3 | 1 | Screen, Arrestor | A310-000060 | A310-000060-Online | ||
| 4 | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | ||
| 5 | 1 | Muffler, Exhaust | A300-000620 | A300-000620-Online | ||
| 6 | 1 | Gasket,Exhaust | V104-000731 | V104-000731-Online | ||
| 7 | 2 | Bolt,5 | V203-000120 | V203-000120-Online | L=60 | |
| 8 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online | ||
| 9 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 10 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 11 | 1 | Tool,L Wrench | X605-000050 | X605-000050-Online | ||
| 12 | 1 | Scabbard,Chain | P021-006951 | P021-006951-Online | (ORANGE) |
Page 4 - Parts
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 26 | 3 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 27 | 1 | Label,Echo | X502-000670 | X502-000670-Online |
Page 6 - Parts
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 26 | 1 | Element,Air Filter | A226-000460 | A226-000460-Online | ||
| 27 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 28 | 1 | Pipe | V471-002190 | V471-002190-Online | 2.4*5*125 | |
| 29 | 1 | Grommet,Choke | V130-000010 | V130-000010-Online | ||
| 30 | 1 | Knob, Choke | A241-000150 | A241-000150-Online | ||
| 31 | 1 | Auto-Oiler Assembly | C022-000070 | C022-000070-Online | ||
| 32 | 2 | Cushion | V420-001790 | V420-001790-Online | ||
| 33 | 1 | Cover,Cylinder | A160-001070 | A160-001070-Online | ||
| 34 | 2 | Washer,Square | V341-000120 | V341-000120-Online | ||
| 36 | 1 | Pipe | 100927-35830 | 100927-35830-Online | 3*7*10 | |
| 37 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 38 | 1 | Label | X524-001900 | X524-001900-Online | ||
| 39 | 1 | Label,Model | X503-009270 | X503-009270-Online | CS-310ES | |
| 40 | 1 | Label, Caution | 890631-38130 | 890631-38130-Online | ||
| 41 | 1 | Ring,Snap | V582-000050 | V582-000050-Online | D2 | |
| 42 | 1 | Gasket,Intake | V103-000500 | V103-000500-Online | ASK NO.4600 | |
| 43 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online |

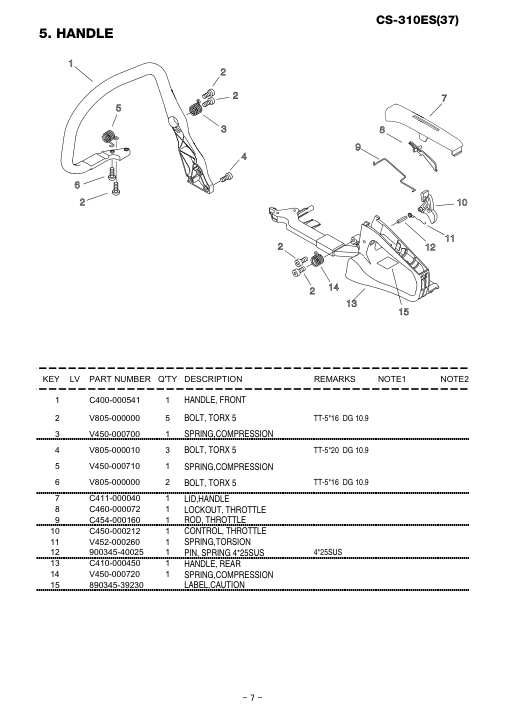

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Handle, Front | C400-000541 | C400-000541-Online | ||
| 2 | 5 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 3 | 1 | Spring,Compression | V450-000700 | V450-000700-Online | ||
| 4 | 3 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 5 | 1 | Spring,Compression | V450-000710 | V450-000710-Online | ||
| 6 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 7 | 1 | Lid,Handle | C411-000040 | C411-000040-Online | ||
| 8 | 1 | Lockout, Throttle | C460-000072 | C460-000072-Online | ||
| 9 | 1 | Rod, Throttle | C454-000160 | C454-000160-Online | ||
| 10 | 1 | Control, Throttle | C450-000212 | C450-000212-Online | ||
| 11 | 1 | Spring,Torsion | V452-000260 | V452-000260-Online | ||
| 12 | 1 | Pin, Spring 4*25Sus | 900345-40025 | 900345-40025-Online | 4*25SUS | |
| 13 | 1 | Handle, Rear | C410-000450 | C410-000450-Online | ||
| 14 | 1 | Spring,Compression | V450-000720 | V450-000720-Online | ||
| 15 | Label,Caution | 890345-39230 | 890345-39230-Online |
Page 9 - Parts
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 25 | 1 | Ring | V583-000120 | V583-000120-Online | ||
| 26 | 1 | Guard,Sprocket Kit | P021-015110 | P021-015110-Online | ||
| 27 | + | 1 | Guard, Sprocket | C300-000400 | C300-000400-Online | |
| 28 | + | 1 | Bolt,5 | V203-000110 | V203-000110-Online | |
| 29 | + | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | |
| 30 | + | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | |
| 31 | + | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | |
| 32 | + | 1 | Collar,8 | V355-000140 | V355-000140-Online | |
| 33 | + | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 |
| 34 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 35 | 1 | Gear,Worm | V652-000040 | V652-000040-Online | ||
| 36 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) |
Page 11 - Parts
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 26 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 27 | + | 1 | Cover, Fuel Pump | 123124-09520 | 123124-09520-Online | |
| 28 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 30 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 31 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 32 | + | 1 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |
| 35 | + | 1 | Spring, Start Valve | 123186-09660 | 123186-09660-Online | |
| 36 | + | 1 | Piston Assy | 123185-09660 | 123185-09660-Online | |
| 37 | + | 1 | Ball | 123136-09660 | 123136-09660-Online |
Source PDF: 20130718-228_CS-310ES(37)_P014-000360-10Ib_EN.pdf. Generated 2026-06-25 14:38.
