Echo SRM-265ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-265ES-Online
Source Pages

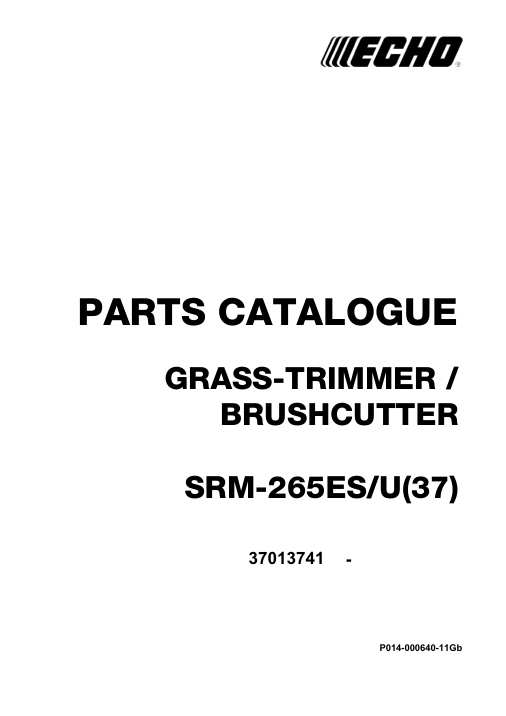

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Screw, Tapping | 900256-05016 | 900256-05016-Online | 5*16 | |
| 2 | 1 | Guard,Top | A162-000100 | A162-000100-Online | ||
| 3 | 1 | Label,Caution | X505-002310 | X505-002310-Online | HOT CAUTION | |
| 4 | 1 | Cover,Cylinder | A160-000780 | A160-000780-Online | ||
| 5 | 1 | Label,Echo | X547-000700 | X547-000700-Online | ECHO+SRM- | 265ES | |
| 6 | 1 | Bolt | 91141-05012 | 91141-05012-Online | M5*12 | |
| 7 | 1 | Guard,Top | A162-000080 | A162-000080-Online | ||
| 8 | 1 | Bolt, Flange | 91121-05016 | 91121-05016-Online | 10.9 SILVER | |
| 9 | 2 | Bolt, H.S. 5* 8 | 900106-05008 | 900106-05008-Online | 5*8 | |
| 10 | 1 | Cover,Cylinder | A160-000691 | A160-000691-Online | ||
| 11 | 1 | Cylinder | A130-000761 | A130-000761-Online | ||
| 12 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 13 | 1 | Gasket,Cyl | V100-000210 | V100-000210-Online | T0.5 38.1 | |
| 14 | 1 | Piston Kit | P021-009771 | P021-009771-Online | ||
| 15 | + | 1 | Ring, Piston | A101-000170 | A101-000170-Online | 34*1.5*1.5 |
| 16 | + | 2 | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | |
| 17 | + | 1 | Pin, Piston | 100013-35430 | 100013-35430-Online | 6*9*27.8 |
| 18 | + | 2 | Spacer, Piston Pin | 100014-53630 | 100014-53630-Online | |
| 19 | + | 1 | Bearing, Needle | 100012-16131 | 100012-16131-Online | |
| 20 | 1 | Crankshaft,Asy | A011-000434 | A011-000434-Online | ||
| 21 | 1 | Crankcase Kit | P021-010801 | P021-010801-Online | ||
| 22 | + | 1 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 23 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 24 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 26 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 40 | + | 1 | Seal,Oil 12 | V505-000050 | V505-000050-Online | |
| 27 | 1 | Lead, Ground | 156635-43130 | 156635-43130-Online | ||
| 28 | 1 | Clamp | 159116-21231 | 159116-21231-Online | ||
| 29 | 1 | Bolt | 91118-05016 | 91118-05016-Online | CM-5*16 | |
| 30 | 1 | Cover,Fan Assy | P021-013530 | P021-013530-Online | ||
| 31 | + | 1 | Drum,Clutch | A556-000040 | A556-000040-Online | |
| 32 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 33 | + | 2 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) |
| 34 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 35 | 4 | Bolt,4 | V202-000090 | V202-000090-Online | 4*16 | |
| 36 | 1 | Clip | V491-000180 | V491-000180-Online | ||
| 37 | 1 | Fixture,Main Pipe | A575-000110 | A575-000110-Online | ||
| 38 | 1 | Bolt | 91118-05028 | 91118-05028-Online | CM-5*28 | |
| 39 | 1 | Circlip 42 | 900702-00042 | 900702-00042-Online | CR-42 | |
| 41 | 1 | Cover,Dust | A127-000160 | A127-000160-Online | ||
| 42 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lead, Ground | 162010-04561 | 162010-04561-Online | ||
| 2 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 3 | 1 | Grommet,Ht Cord | V135-000030 | V135-000030-Online | ||
| 4 | 2 | Bolt,4 | V202-000130 | V202-000130-Online | CBF-4*20 | |
| 5 | 1 | Tube | V475-003380 | V475-003380-Online | ||
| 6 | 1 | Coil, Ignition | A411-000251 | A411-000251-Online | ID#C10048 | |
| 8 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 9 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 10 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 11 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 12 | 1 | Rotor, Magneto | A409-000310 | A409-000310-Online | ID:C10744G | |
| 13 | 2 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | ||
| 14 | 2 | Washer | 175049-56030 | 175049-56030-Online | 8.5*16*0.5 | |
| 15 | 2 | Arm,Clutch | A553-000010 | A553-000010-Online | ||
| 16 | 2 | Washer (I) | 175048-05530 | 175048-05530-Online | 6.2*19*1.0 | |
| 17 | 1 | Spring,Tension | V451-000400 | V451-000400-Online | ||
| 18 | 1 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | ||
| 19 | + | 1 | E-Ring | P022-002100 | P022-002100-Online | |
| 20 | + | 1 | Spring, Return | P022-006510 | P022-006510-Online | |
| 21 | + | 1 | Pawl, Starter | P022-006850 | P022-006850-Online | |
| 22 | 1 | Starter,Recoil Asy | A051-000940 | A051-000940-Online | ||
| 23 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 24 | + | 1 | Plate, Cam | P022-008280 | P022-008280-Online | |
| 25 | + | 1 | Spring,Damper | P022-008270 | P022-008270-Online | |
| 26 | + | 1 | Drum | P022-006830 | P022-006830-Online | |
| 27 | + | 1 | Rope | P022-008260 | P022-008260-Online | 3M/M |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 29 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |
| 30 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 4 | Part | 900565-00005 | 900565-00005-Online | |
| 33 | 4 | Bolt,4 | V202-000090 | V202-000090-Online | 4*16 | |
| 34 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 35 | 1 | Stand | A175-000030 | A175-000030-Online | ||
| 36 | 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 37 | 4 | Bolt | 91118-05025 | 91118-05025-Online | ||
| 38 | 2 | Washer,Circular 4 | V322-000031 | V322-000031-Online | ||
| 39 | 2 | Washer 4 | 900603-00004 | 900603-00004-Online | 4.5*10*0.8 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket,Intake | V103-000210 | V103-000210-Online | ||
| 2 | 1 | Insulator,Intake | A200-000200 | A200-000200-Online | ||
| 3 | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 4 | 1 | Gasket,Intake | V103-000270 | V103-000270-Online | T1.5-11 | |
| 27 | 1 | Carburetor,Diaphragm | A021-001741 | A021-001741-Online | ZAMA RB-K94 | |
| 6 | 1 | Case, Air Cleaner | P021-004480 | P021-004480-Online | ||
| 7 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 8 | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 5*65 | |
| 9 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 10 | 1 | Lid,Cleaner | A232-000330 | A232-000330-Online | ||
| 11 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online | ||
| 12 | 1 | Knob,Fastener | V299-000250 | V299-000250-Online | ||
| 13 | 1 | Cover,Muffler | A320-000341 | A320-000341-Online | ||
| 14 | 1 | Bolt, Flange | 91121-05016 | 91121-05016-Online | 10.9 SILVER | |
| 15 | 1 | Muffler Asy | P021-011580 | P021-011580-Online | ||
| 16 | + | 3 | Screw | 91367-04010 | 91367-04010-Online | 4*10/SW(SUS) |
| 17 | + | 1 | Guide, Exhaust | A313-000830 | A313-000830-Online | ID#1330 |
| 18 | + | 1 | Gasket,Exhaust | V104-000790 | V104-000790-Online | |
| 19 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 20 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 21 | 2 | Washer, Nord-Lock | 92280-05000 | 92280-05000-Online | NL5 5.4*9*1.8 | |
| 22 | 1 | Plate,Eye | V150-001760 | V150-001760-Online | ||
| 23 | 1 | Gasket,Exhaust | V104-000780 | V104-000780-Online | ||
| 24 | 2 | Bolt,5 | V203-000120 | V203-000120-Online | L=60 | |
| 36 | 1 | Ring, Harness Kit | P021-013580 | P021-013580-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | ||
| 2 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 3 | + | 1 | Connector,Cap | A365-000060 | A365-000060-Online | L=123 |
| 4 | 1 | Tank, Fuel | A350-000440 | A350-000440-Online | ||
| 5 | 1 | Valve,Check | A356-000031 | A356-000031-Online | ||
| 6 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 7 | 1 | Pipe | V471-001180 | V471-001180-Online | 3*6*35 NBR | |
| 8 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 9 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 10 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | ||
| 11 | 1 | Pipe | V470-000580 | V470-000580-Online | 3*5*195 | |
| 13 | 1 | Pipe 3* 6* 75 | 132010-40830 | 132010-40830-Online | 3*6*75 YL |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 19 | 1 | Fixture,Asy Handle | P021-012821 | P021-012821-Online | SRM-2655SI | |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 22 | + | 1 | Fixture,Handle | C423-000030 | C423-000030-Online | |
| 23 | + | 3 | Bolt | 91118-05030 | 91118-05030-Online | |
| 24 | + | 1 | Part | 900565-50008 | 900565-50008-Online | |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 33 | 1 | Handle,Front | C400-000211 | C400-000211-Online | ||
| 34 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 36 | 1 | Ring, Harness Kit | P021-013580 | P021-013580-Online | ||
| 37 | + | 1 | Hook | 301205-21330 | 301205-21330-Online | 38 | ++ |
| 38 | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | ||
| 39 | + | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER |
| 41 | 2 | Clip | 224924-52130 | 224924-52130-Online | 25MM | |
| 42 | 1 | Harness,Shoulder | C062-000193 | C062-000193-Online | ||
| 43 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | ||
| 44 | 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | ||
| 45 | + | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |
| 46 | + | 1 | Bolt | 91119-05030 | 91119-05030-Online | |
| 47 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 48 | 1 | Lockout, Throttle | C460-000111 | C460-000111-Online | 70MM | |
| 49 | 1 | Spring,Torsion | V452-000350 | V452-000350-Online | ||
| 50 | 1 | Control, Throttle | C450-000270 | C450-000270-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 51 | 1 | Spring,Torsion | V452-000360 | V452-000360-Online | ||
| 52 | 1 | Knob, Latch | C463-000020 | C463-000020-Online | ||
| 53 | 1 | Switch, On Off | P021-014361 | P021-014361-Online | ||
| 55 | 1 | Cable,Bowden | V430-002310 | V430-002310-Online | 870+86 | |
| 56 | 1 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 57 | 1 | Nut, Flange | 900518-00006 | 900518-00006-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | P021-012604 | P021-012604-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 6 | + | 1 | Fixture,Blade | 610313-52932 | 610313-52932-Online | 7 | ++ |
| 7 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 8 | ++ | |
| 8 | 1 | Fixture,Blade | 610313-52132 | 610313-52132-Online | ||
| 9 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 10 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 11 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 12 | + | 1 | Shaft, P.T.O. | 610310-56831 | 610310-56831-Online | |
| 13 | + | 1 | Gear Set | 610300-25531 | 610300-25531-Online | |
| 14 | + | 1 | Bearing, Ball | 94060-00626 | 94060-00626-Online | |
| 15 | + | 1 | Spring,Torsion | V452-001310 | V452-001310-Online | |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | |
| 19 | + | 1 | Bolt | 91118-06025 | 91118-06025-Online | |
| 20 | + | 1 | Bearing Ball | 94060-06900 | 94060-06900-Online | WEPON BB6900 |
| 21 | + | 1 | Bearing Ball | 94063-06900 | 94063-06900-Online | WEPON BB6900Z |
| 22 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 |
| 23 | + | 1 | Circlip 10 | 900706-00010 | 900706-00010-Online | WR-10 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Tool,L Wrench | X605-000100 | X605-000100-Online | 4MM M5㺴㺑 | |
| 2 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 3 | 1 | Tool,Bar | X606-000080 | X606-000080-Online | 5*120 | |
| 4 | 1 | Goggle | X690-000050 | X690-000050-Online | GOGGLE + NOTE | |
| 5 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Shield Kit | P021-013775 | P021-013775-Online | ||
| 7 | + | 1 | Shield,Blade | C550-000570 | C550-000570-Online | |
| 8 | + | 1 | Knife, Cord | C554-000030 | C554-000030-Online | |
| 9 | + | 1 | Bolt | 91118-05018 | 91118-05018-Online | |
| 10 | 1 | Shield Asy, Blade | P021-038570 | P021-038570-Online | ||
| 11 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 12 | + | 1 | Bolt, Flange | 91121-05025 | 91121-05025-Online | 10.9 SILVER |
| 16 | + | 1 | Nut, Lock | 900562-00005 | 900562-00005-Online | |
| 13 | 1 | Shield,Blade | C550-000551 | C550-000551-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Saw,Bush Cutter | P021-038650 | P021-038650-Online | 230*T3.0 | |
| 2 | 1 | Scabbard,Blade | X495-000270 | X495-000270-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 3 | Screw | 125344-13931 | 125344-13931-Online | |
| 2 | + | 1 | Post | P005-001240 | P005-001240-Online | |
| 4 | + | 1 | Screw,Throttleadjust | P005-000100 | P005-000100-Online | |
| 5 | + | 1 | E-Ring | P005-000190 | P005-000190-Online | |
| 6 | + | 2 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | |
| 8 | + | 3 | Screw | 125344-52130 | 125344-52130-Online | |
| 9 | + | 1 | O-Ring | P005-000280 | P005-000280-Online | |
| 10 | + | 1 | Spring, Coil | 125322-07260 | 125322-07260-Online | |
| 11 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 12 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 13 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 14 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 15 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 16 | + | 1 | Diaphragm ,Metering | P005-002230 | P005-002230-Online | |
| 17 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 18 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online | |
| 19 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 20 | + | 1 | Screw,Mainn Mixture | P005-001290 | P005-001290-Online | |
| 21 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 22 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 23 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 24 | + | 1 | Base, Asy Primer | P005-001890 | P005-001890-Online | |
| 25 | + | 1 | Screw | P005-000270 | P005-000270-Online | |
| 26 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 27 | + | 1 | Retainer | P005-000250 | P005-000250-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 4 | Screw | P005-001900 | P005-001900-Online | |
| 29 | + | 1 | Cover Asy, Rotor | P005-002070 | P005-002070-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Diaphragm ,Metering | P005-002230 | P005-002230-Online | |
| 2 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 3 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 4 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 2 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 3 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 4 | + | 1 | Spring, Coil | 125322-07260 | 125322-07260-Online | |
| 5 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 6 | + | 1 | Diaphragm ,Metering | P005-002230 | P005-002230-Online | |
| 7 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 8 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 9 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 10 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online |
Source PDF: 20130718-280_SRM-265ES_U(37)_P014-000640-11Gb_EN.pdf. Generated 2026-06-25 14:38.
