Echo CS-5100 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-5100-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

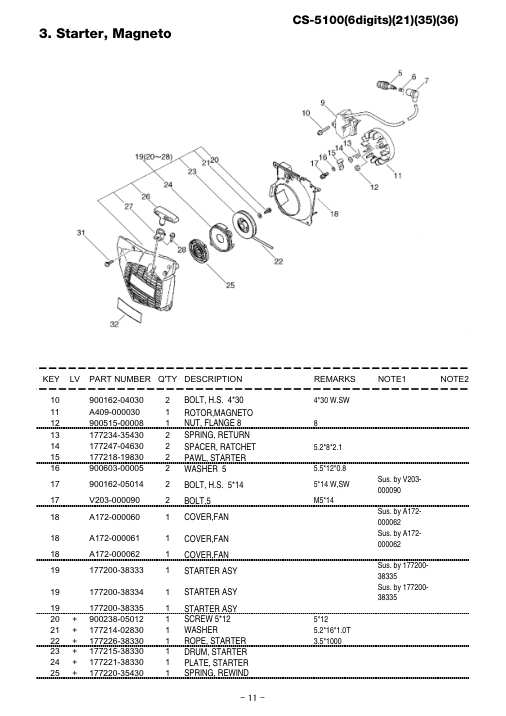

Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.

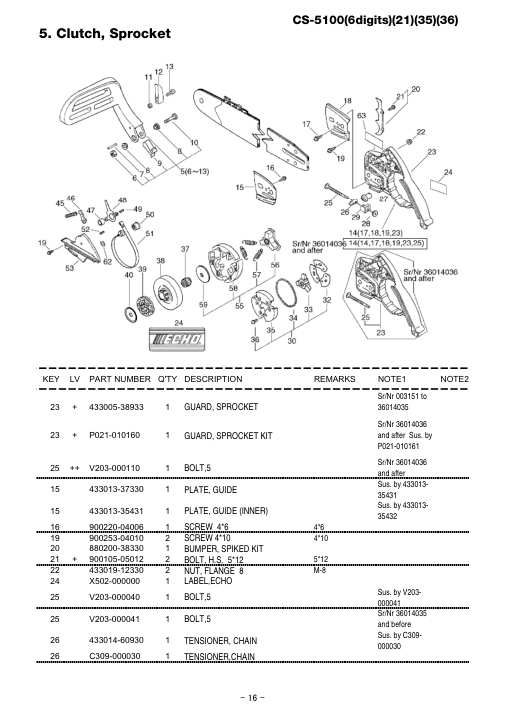

Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

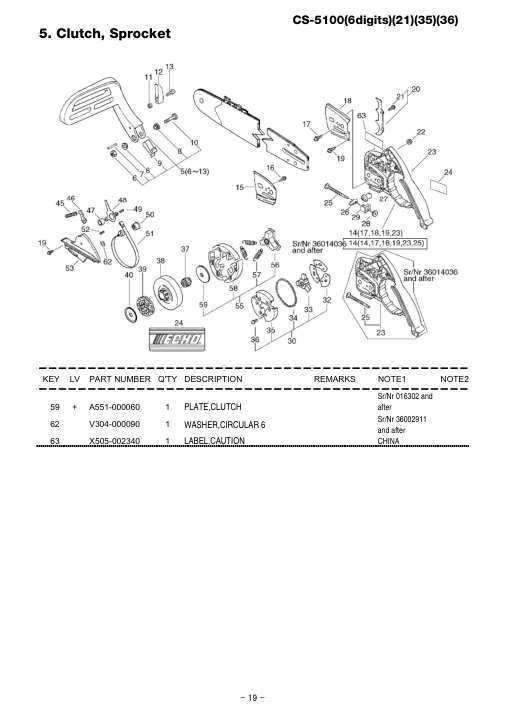

Page 20
Tap or click the page image to enlarge it.

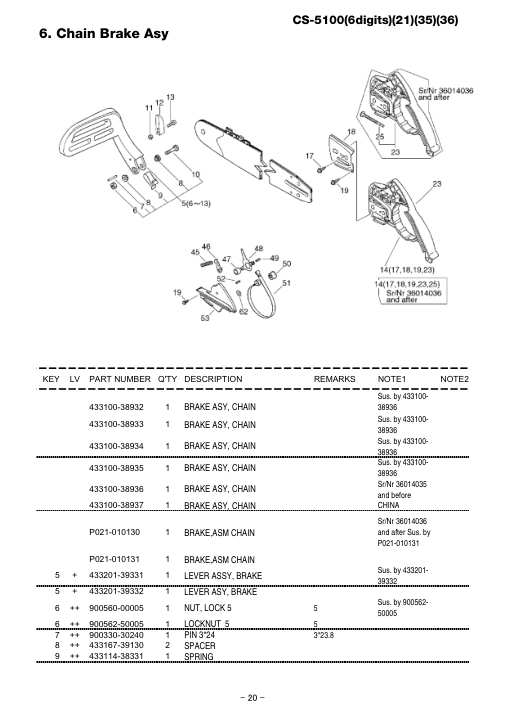

Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

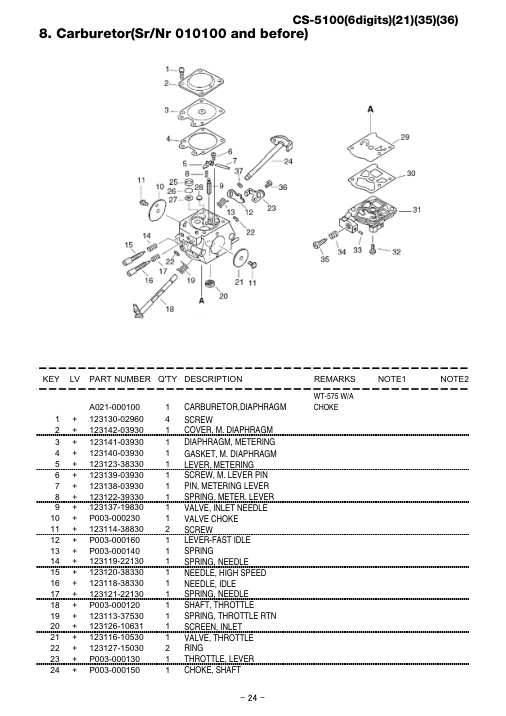

Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.

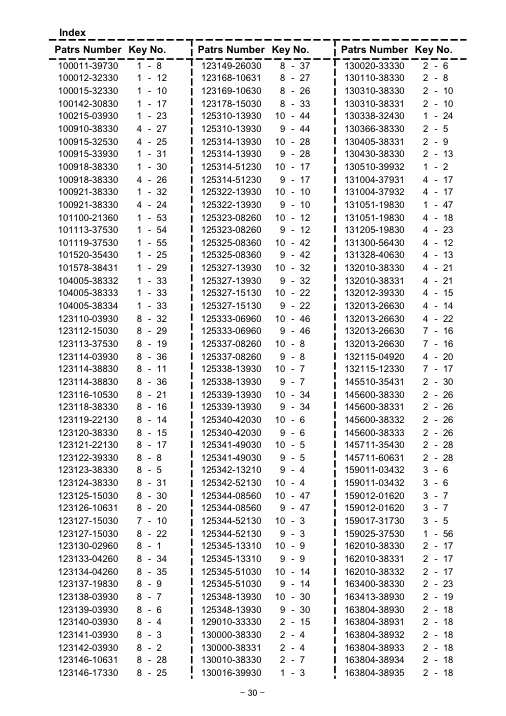

Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.
Page 35
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Screw 5*12 | 900238-05012 | 900238-05012-Online | 5*12 | |
| 2 | 1 | Adapter, Intake | 130510-39932 | 130510-39932-Online | ||
| 3 | 1 | Gasket, Intake | 130016-39930 | 130016-39930-Online | ||
| 4 | 1 | Crankcase Set | P021-004080 | P021-004080-Online | Sus. by P021- | 004082 | |
| 4 | 1 | Crankcase Set | P021-004082 | P021-004082-Online | ||
| 5 | + | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW |
| 6 | + | 4 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 |
| 7 | 1 | Piston Kit | P021-001060 | P021-001060-Online | Sus. by P021- | 001062 | |
| 7 | 1 | Piston Kit | P021-001061 | P021-001061-Online | Sus. by P021- | 001062 | |
| 7 | 1 | Piston Kit | P021-001062 | P021-001062-Online | Sus. by P021- | 001064 | |
| 8 | + | 2 | Ring, Piston | 100011-39730 | 100011-39730-Online | Sus. by 100011- | 39731 |
| 9 | + | 1 | Pin,Eng 11 | V609-000000 | V609-000000-Online | |
| 10 | + | 2 | Circlip, Piston Pin | 100015-32330 | 100015-32330-Online | |
| 11 | + | 2 | Washer,Circular 11 | V308-000000 | V308-000000-Online | Sus. by V308- | 000010 |
| 11 | + | 2 | Washer,Circular 11 | V308-000010 | V308-000010-Online | 11*19*3.1 |
| 12 | + | 1 | Bearing, Needle | 100012-32330 | 100012-32330-Online | Sus. by V556- | 000000 |
| 12 | + | 1 | Bearing,Needle 11 | V556-000000 | V556-000000-Online | KBK11*15*15.8X2 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | 1 | Crankshaft,Assy | P021-001070 | P021-001070-Online | Sus. by P021- | 001071 | |
| 14 | 1 | Crankshaft,Assy | P021-001071 | P021-001071-Online | ||
| 15 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 16 | + | 2 | Seal,Oil 15 | V508-000000 | V508-000000-Online | |
| 18 | + | 1 | Gear,Worm | V652-000000 | V652-000000-Online | |
| 17 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 19 | 1 | Cover,Cylinder | A160-000100 | A160-000100-Online | Sus. by A160- | 000101 | |
| 19 | 1 | Cover,Cylinder | A160-000101 | A160-000101-Online | Sus. by A160- | 000102 | |
| 19 | 1 | Cover,Cylinder | A160-000102 | A160-000102-Online | CHINA | |
| 20 | 1 | Lid,Cleaner | A232-000020 | A232-000020-Online | Sus. by A232- | 000021 | |
| 20 | 1 | Lid,Cleaner | A232-000021 | A232-000021-Online | Sus. by A232- | 000022 | |
| 20 | 1 | Lid,Cleaner | A232-000023 | A232-000023-Online | Sus. by A232- | 000023 | |
| 21 | 1 | Knob,Cleaner Lid | A235-000020 | A235-000020-Online | ||
| 22 | 3 | Bolt, 5 | 163890-38330 | 163890-38330-Online | ||
| 24 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | ||
| 25 | 1 | Cover | 101520-35430 | 101520-35430-Online | ||
| 26 | 3 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 27 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 28 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 29 | 1 | Plug | 101578-38431 | 101578-38431-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 30 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 31 | 2 | Screw | 100915-33930 | 100915-33930-Online | ||
| 32 | 2 | Cushion | 100921-38330 | 100921-38330-Online | ||
| 33 | 1 | Cover, Engine | 104005-38332 | 104005-38332-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | 104005-38333 | 104005-38333-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | 104005-38334 | 104005-38334-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | P021-003110 | P021-003110-Online | ||
| 23 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 34 | + | 2 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 35 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 37 | 1 | Tank, Oil (Bs) | 436005-38332 | 436005-38332-Online | ||
| 34 | + | 1 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 36 | + | 1 | Gasket, Oil Tank | 436019-38330 | 436019-38330-Online | |
| 38 | + | 3 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW |
| 39 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 40 | 1 | Grommet,Ht Cord | V135-000010 | V135-000010-Online | ||
| 41 | 1 | Label,Model | X503-000660 | X503-000660-Online | CS-5100 | |
| 41 | 1 | Label,Model | X503-005660 | X503-005660-Online | CS-5100 CHINA | CHINA | |
| 42 | 1 | Label,Caution | X505-000000 | X505-000000-Online | ||
| 43 | 1 | Label,Caution | X505-000180 | X505-000180-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 43 | 1 | Label,Caution | X505-001350 | X505-001350-Online | CHINA, Sus. by | |
| 44 | Part | X505-002490 | X505-002490-Online | |||
| 44 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 45 | 1 | Cap Assy,Tank | 436001-65630 | 436001-65630-Online | Sus. by 436001- | 39232 | |
| 45 | 1 | Cap, Oil | 436001-65631 | 436001-65631-Online | Sus. by 436001- | 39232 | |
| 45 | 1 | Cap, Oil | 436001-39232 | 436001-39232-Online | ||
| 46 | + | 1 | O-Ring | 900725-02025 | 900725-02025-Online | JASO 2025 | Sus. by 900721- | 00025 |
| 46 | + | 1 | O-Ring 25 | 900721-00025 | 900721-00025-Online | G-25 |
| 47 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 47 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 48 | 1 | Plug | 433045-38330 | 433045-38330-Online | Sus. by 433045- | 38332 | |
| 48 | 1 | Cover | 433045-38331 | 433045-38331-Online | Sus. by 433045- | 38332 | |
| 48 | 1 | Cover | 433045-38332 | 433045-38332-Online | ||
| 53 | 1 | Release Assy, Comp. | 101100-21360 | 101100-21360-Online | ||
| 54 | + | 1 | Spring | 101113-37530 | 101113-37530-Online | |
| 55 | + | 1 | Clip | 101119-37530 | 101119-37530-Online | |
| 56 | + | 1 | Gasket | 159025-37530 | 159025-37530-Online | |
| 57 | 1 | Plate,Eye | V150-001740 | V150-001740-Online | Sr/Nr 36015011 | and after |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 60 | 1 | Label,Caution | X505-001340 | X505-001340-Online | CHINA |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Insulator Kit | 130000-38330 | 130000-38330-Online | Sus. by 130000- | 38331 | |
| 4 | 1 | Insulator Asy,Intake | 130000-38331 | 130000-38331-Online | ||
| 5 | + | 1 | Cushion | 130366-38330 | 130366-38330-Online | Sus. by V420- | 001130 |
| 5 | + | 1 | Cushion | V420-001130 | V420-001130-Online | |
| 6 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 7 | + | 1 | Gasket, Intake | 130010-38330 | 130010-38330-Online | |
| 8 | 1 | Pipe, Impulse | 130110-38330 | 130110-38330-Online | 3*5*110 | |
| 9 | 1 | Bracket, Air Cleaner | 130405-38331 | 130405-38331-Online | Sus. by 130405- | 38332 | |
| 10 | 1 | Filter, Air | 130310-38330 | 130310-38330-Online | Sus. by 130310- | 38331 | |
| 10 | 1 | Filter, Air | 130310-38331 | 130310-38331-Online | ||
| 11 | 1 | Elbow,Carburetor | A204-000000 | A204-000000-Online | Sus. by A204- | 000002 | |
| 11 | 1 | Elbow,Carburetor | A204-000001 | A204-000001-Online | Sus. by A204- | 000002 | |
| 11 | 1 | Elbow,Carburetor | A204-000002 | A204-000002-Online | Sus. by A204- | 000003 | |
| 11 | 1 | Elbow,Carburetor | A204-000003 | A204-000003-Online | CHINA Sus. by | |
| 11 | Part | A204-000004 | A204-000004-Online | |||
| 11 | 1 | Elbow,Carburetor | A204-000004 | A204-000004-Online | CHINA | |
| 12 | 2 | Bolt, H.S. 5*50 | 900162-05050 | 900162-05050-Online | 5*50 W,SW | |
| 13 | 1 | Cushion | 130430-38330 | 130430-38330-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | 1 | Carburetor,Diaphragm | A021-000100 | A021-000100-Online | WT-575 W/A | CHOKE | Sr/Nr 010100 and | before | |
| 14 | 1 | Carburetor,Diaphragm | A021-000560 | A021-000560-Online | Sus. by A021- | 000561 | |
| 14 | 1 | Carburetor,Diaphragm | A021-000561 | A021-000561-Online | C1Q-K64A | Sr/Nr 010101 to | 017776 | |
| 14 | 1 | Carburetor,Diaphragm | A021-001000 | A021-001000-Online | C1Q-K79 | Sr/Nr 36001001 | and after | |
| 15 | 1 | Grommet | 129010-33330 | 129010-33330-Online | Sr/Nr 017776 and | before,CHINA | |
| 16 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 17 | 1 | Lead, Ground | 162010-38330 | 162010-38330-Online | Sus. by 162010- | 38332 | |
| 17 | 1 | Lead, Ground | 162010-38331 | 162010-38331-Online | Sus. by 162010- | 38332 | |
| 17 | 1 | Lead, Ground | 162010-38332 | 162010-38332-Online | ||
| 18 | 1 | Bracket, Switch | 163804-38930 | 163804-38930-Online | Sus. by 163804- | 38935 | |
| 18 | 1 | Bracket, Switch | 163804-38931 | 163804-38931-Online | Sus. by 163804- | 38935 | |
| 18 | 1 | Bracket, Switch | 163804-38932 | 163804-38932-Online | Sus. by 163804- | 38935 | |
| 18 | 1 | Bracket, Switch | 163804-38933 | 163804-38933-Online | Sus. by 163804- | 38935 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | 1 | Bracket, Switch | 163804-38934 | 163804-38934-Online | Sus. by 163804- | 38935 | |
| 18 | 1 | Bracket, Switch | 163804-38935 | 163804-38935-Online | ||
| 19 | + | 1 | Plate, Switch | 163413-38930 | 163413-38930-Online | |
| 20 | + | 1 | Bracket, Switch | 163810-38931 | 163810-38931-Online | Sus. by 163810- | 38933 |
| 20 | + | 1 | Bracket, Switch | 163810-38932 | 163810-38932-Online | Sus. by 163810- | 38933 |
| 20 | + | 1 | Bracket, Switch | 163810-38933 | 163810-38933-Online | |
| 21 | + | 1 | Grommet, Choke | 178810-14531 | 178810-14531-Online | Sus. by 178810- | 14534 |
| 21 | + | 1 | Grommet | 178810-14532 | 178810-14532-Online | Sus. by 178810- | 14534 |
| 21 | + | 1 | Grommet | 178810-14533 | 178810-14533-Online | Sus. by 178810- | 14534 |
| 21 | + | 1 | Grommet | 178810-14534 | 178810-14534-Online | |
| 22 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 23 | 1 | Switch, Ignition | 163400-38330 | 163400-38330-Online | ||
| 24 | 1 | Knob,Choke | A241-000000 | A241-000000-Online | Sus. by A241- | 000100 | |
| 24 | 1 | Rod, Choke | 178510-38331 | 178510-38331-Online | Sus. by A241- | 000100 | |
| 24 | 1 | Knob, Choke | A241-000100 | A241-000100-Online | Sus. by A241- | 000101 | |
| 25 | 1 | Rod,Throttle | C454-000030 | C454-000030-Online | Sus. by C454- | 000041 |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Rod,Throttle | C454-000040 | C454-000040-Online | Sus. by C454- | 000041 | |
| 25 | 1 | Rod,Throttle | C454-000041 | C454-000041-Online | ||
| 26 | 1 | Muffler Assy | 145600-38330 | 145600-38330-Online | Sus. by P021- | 008610 | |
| 26 | 1 | Muffler Asy | 145600-38331 | 145600-38331-Online | Sus. by P021- | 008610 | |
| 26 | 1 | Muffler Asy | 145600-38332 | 145600-38332-Online | Sus. by P021- | 008610 | |
| 26 | 1 | Muffler Asy | 145600-38333 | 145600-38333-Online | Sus. by P021- | 008610 | |
| 26 | 1 | Muffler Asy | P021-008610 | P021-008610-Online | ||
| 27 | + | 1 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 |
| 28 | + | 1 | Plate (Bl) | 145711-35430 | 145711-35430-Online | Sus. by 145711- | 60631 |
| 28 | + | 1 | Stay, Muffler | 145711-60631 | 145711-60631-Online | |
| 29 | + | 2 | Bolt, H.S. 5*14 | 900105-05014 | 900105-05014-Online | 5*14 |
| 30 | + | 1 | Gasket, Muffler | 145510-35431 | 145510-35431-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 6 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | Sr/Nr 36007690 | and before | |
| 6 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | Sr/Nr 36007691 | and after | |
| 7 | 1 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | Sr/Nr 36007690 | and before | |
| 7 | 1 | Cap,Spark Plug | A427-000012 | A427-000012-Online | Sr/Nr 36007691 | and after | |
| 9 | 1 | Coil,Ignition | A411-000030 | A411-000030-Online | Sus. by A411- | 000031 | |
| 9 | 1 | Coil,Ignition | A411-000031 | A411-000031-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 2 | Bolt, H.S. 4*30 | 900162-04030 | 900162-04030-Online | 4*30 W.SW | |
| 11 | 1 | Rotor,Magneto | A409-000030 | A409-000030-Online | ||
| 12 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 13 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 14 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 15 | 2 | Pawl, Starter | 177218-19830 | 177218-19830-Online | ||
| 16 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 17 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sus. by V203- | 000090 | |
| 17 | 2 | Bolt,5 | V203-000090 | V203-000090-Online | M5*14 | |
| 18 | 1 | Cover,Fan | A172-000060 | A172-000060-Online | Sus. by A172- | 000062 | |
| 18 | 1 | Cover,Fan | A172-000061 | A172-000061-Online | Sus. by A172- | 000062 | |
| 18 | 1 | Cover,Fan | A172-000062 | A172-000062-Online | ||
| 19 | 1 | Starter Asy | 177200-38333 | 177200-38333-Online | Sus. by 177200- | 38335 | |
| 19 | 1 | Starter Asy | 177200-38334 | 177200-38334-Online | Sus. by 177200- | 38335 | |
| 19 | 1 | Starter Asy | 177200-38335 | 177200-38335-Online | ||
| 20 | + | 1 | Screw 5*12 | 900238-05012 | 900238-05012-Online | 5*12 |
| 21 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 22 | + | 1 | Rope, Starter | 177226-38330 | 177226-38330-Online | 3.5*1000 |
| 23 | + | 1 | Drum, Starter | 177215-38330 | 177215-38330-Online | |
| 24 | + | 1 | Plate, Starter | 177221-38330 | 177221-38330-Online | |
| 25 | + | 1 | Spring, Rewind | 177220-35430 | 177220-35430-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Grip, Starter (Bl) | 177228-35430 | 177228-35430-Online | |
| 27 | + | 1 | Guide, Rope | 177227-37930 | 177227-37930-Online | |
| 28 | + | 1 | Screw 3*14 | 900296-03014 | 900296-03014-Online | 3*14 SUS |
| 31 | 4 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 32 | 1 | Label,Echo | X502-000010 | X502-000010-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 5 | 1 | Screw 4*14 | 900253-04014 | 900253-04014-Online | 4*14 | |
| 6 | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | ||
| 7 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 8 | 1 | Trigger,Throttle | C450-000000 | C450-000000-Online | ||
| 9 | 1 | Spring, Thr.Return | 178043-35430 | 178043-35430-Online | Sus. by V452- | 000260 | |
| 10 | 1 | Pin, Spring 4*30Sus | 900345-40030 | 900345-40030-Online | 4*30SUS | |
| 11 | 1 | Handle Asy, Rear | 351101-38332 | 351101-38332-Online | Sus. by P021- | 011470 | |
| 11 | 1 | Handle Asy, Rear | P021-011470 | P021-011470-Online | Sus. by P021- | 011471 | |
| 11 | 1 | Handle Asy, Rear | P021-011471 | P021-011471-Online | Sus. by P021- | 011472 | |
| 12 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 13 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 14 | + | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM |
| 15 | + | 1 | Pipe, W/Grommet | 132012-39330 | 132012-39330-Online | L105 NBR | Sus. by 132012- | 39331 |
| 16 | 1 | Plug | V162-000040 | V162-000040-Online | ||
| 17 | 1 | Cap Assy, Fuel Tank | 131004-37931 | 131004-37931-Online | Sus. by 131004- | 37932 | |
| 17 | 1 | Cap Asy, Fuel | 131004-37932 | 131004-37932-Online | ||
| 18 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 18 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | + | 1 | O-Ring 22 | 900720-00022 | 900720-00022-Online | P-22 |
| 20 | 1 | Grommet | 132115-04920 | 132115-04920-Online | ||
| 21 | 1 | Pipe, Fuel | 132010-38330 | 132010-38330-Online | 3*6 | Sus. by 132010- | 38331 | |
| 21 | 1 | Pipe | 132010-38331 | 132010-38331-Online | 3*6*165 | |
| 22 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 23 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | Sus. by 131205- | 19831 | |
| 24 | 2 | Cushion | 100921-38330 | 100921-38330-Online | ||
| 25 | 2 | Bolt | 100915-32530 | 100915-32530-Online | ||
| 26 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 27 | 2 | Cushion | 100910-38330 | 100910-38330-Online | ||
| 28 | 1 | Handle,Front | C400-000010 | C400-000010-Online | ||
| 29 | 2 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 5*20 | |
| 30 | 2 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | 5*16 | |
| 31 | 1 | Cover, Handle | 351155-38430 | 351155-38430-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Lever Assy, Brake | 433201-39331 | 433201-39331-Online | Sus. by 433201- | 39332 | |
| 5 | 1 | Lever Asy, Brake | 433201-39332 | 433201-39332-Online | ||
| 6 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 |
| 6 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 7 | + | 1 | Pin 3*24 | 900330-30240 | 900330-30240-Online | 3*23.8 |
| 8 | + | 2 | Spacer | 433167-39130 | 433167-39130-Online | |
| 9 | + | 1 | Spring | 433114-38331 | 433114-38331-Online | |
| 10 | + | 1 | Screw, 5*30 | 900209-05030 | 900209-05030-Online | 5*30 | Sus. by 91318- | 05032 |
| 10 | + | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 |
| 11 | + | 2 | Nut 4 | 900500-00004 | 900500-00004-Online | |
| 12 | + | 1 | Weight, Brake | 433171-39330 | 433171-39330-Online | |
| 13 | + | 2 | Screw 4*18 | 900238-04018 | 900238-04018-Online | 4*18 |
| 23 | 1 | Guard, Sprocket | 433005-38932 | 433005-38932-Online | Sus. by P021- | 001290 | |
| 14 | 1 | Guard,Sprocket Set | P021-001290 | P021-001290-Online | Sr/Nr 36014035 | and before | |
| 14 | 1 | Guard,Sprocket Set | P021-001291 | P021-001291-Online | Sr/Nr 36014036 | and after | |
| 17 | + | 1 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 |
| 18 | + | 1 | Plate,Sprocket Guard | C305-000000 | C305-000000-Online | Sus. by C305- | 000001 |
| 18 | + | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | |
| 19 | + | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | + | 1 | Guard, Sprocket | 433005-38933 | 433005-38933-Online | Sr/Nr 003151 to |
| 23 | Part | 36014035 | 36014035-Online | |||
| 23 | + | 1 | Guard, Sprocket Kit | P021-010160 | P021-010160-Online | Sr/Nr 36014036 | and after Sus. by | 25 | ++ |
| 25 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | Sr/Nr 36014036 | and after | |
| 15 | 1 | Plate, Guide | 433013-37330 | 433013-37330-Online | Sus. by 433013- | 35431 | |
| 15 | 1 | Plate, Guide (Inner) | 433013-35431 | 433013-35431-Online | Sus. by 433013- | 35432 | |
| 16 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 19 | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 20 | 1 | Bumper, Spiked Kit | 880200-38330 | 880200-38330-Online | ||
| 21 | + | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
| 22 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 24 | 1 | Label,Echo | X502-000000 | X502-000000-Online | ||
| 25 | 1 | Bolt,5 | V203-000040 | V203-000040-Online | Sus. by V203- | 000041 | |
| 25 | 1 | Bolt,5 | V203-000041 | V203-000041-Online | Sr/Nr 36014035 | and before | |
| 26 | 1 | Tensioner, Chain | 433014-60930 | 433014-60930-Online | Sus. by C309- | 000030 | |
| 26 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 1 | Gear,Bevel | V651-000000 | V651-000000-Online | Sus. by V651- | 000001 | |
| 27 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 28 | 1 | Gear,Bevel | V651-000010 | V651-000010-Online | Sus. by V651- | 000011 | |
| 28 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 29 | 1 | Collar,8 | V355-000030 | V355-000030-Online | Sus. by V355- | 000270 | |
| 29 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 30 | 1 | Clutch Assy | 175000-37531 | 175000-37531-Online | Sr/Nr 016301 and | before | |
| 32 | + | 3 | Plate, Clutch | 175019-19830 | 175019-19830-Online | Sr/Nr 016301 and | before |
| 33 | + | 1 | Hub, Clutch | 175016-19830 | 175016-19830-Online | Sr/Nr 016301 and | before |
| 34 | + | 1 | Spring, Clutch | 175018-19830 | 175018-19830-Online | Sr/Nr 016301 and | before |
| 35 | + | 1 | Shoe, Clutch | 175002-19830 | 175002-19830-Online | Sr/Nr 016301 and | before |
| 36 | + | 6 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 | Sr/Nr 016301 and | before |
| 37 | 1 | Bearing,Needle 12 | V557-000000 | V557-000000-Online | 12*15*10 | Sus. by V557- | 000010 | |
| 37 | 1 | Bearing,Needle 12 | V557-000010 | V557-000010-Online | 8Q-K12*15*10 | |
| 38 | 1 | Drum,Clutch | A556-000020 | A556-000020-Online | Sus. by A556- | 000021 |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 39 | 1 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online | ||
| 40 | 1 | Plate,Clutch | A551-000000 | A551-000000-Online | 12*24.5*2.3 | |
| 45 | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | ||
| 46 | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | ||
| 47 | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 | |
| 48 | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | ||
| 49 | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 | |
| 50 | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | ||
| 51 | 1 | Band, Brake | 433123-35430 | 433123-35430-Online | Sus. by C328- | 000060 | |
| 51 | 1 | Band,Brake | C328-000060 | C328-000060-Online | ||
| 52 | 1 | Pin, Spring 2.5*12 | 900342-25012 | 900342-25012-Online | 2.5*12 | |
| 53 | 1 | Cover, Brake | 433310-38330 | 433310-38330-Online | ||
| 55 | 1 | Clutch Asy W/Plate | P021-007070 | P021-007070-Online | Sr/Nr 016302 and | after, Sus. by P021- | 007071 | |
| 56 | + | 1 | Hub,Clutch | A552-000050 | A552-000050-Online | Sr/Nr 016302 and | after, Sus. by A552- | 000090 |
| 57 | + | 3 | Spring,Tension | V451-000500 | V451-000500-Online | Sr/Nr 016302 and | after |
| 58 | + | 1 | Clutch Shoe Set | P021-007050 | P021-007050-Online | Sr/Nr 016302 and | after |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 59 | + | 1 | Plate,Clutch | A551-000060 | A551-000060-Online | Sr/Nr 016302 and | after |
| 62 | 1 | Washer,Circular 6 | V304-000090 | V304-000090-Online | Sr/Nr 36002911 | and after | |
| 63 | 1 | Label,Caution | X505-002340 | X505-002340-Online | CHINA |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Brake,Asm Chain | P021-010130 | P021-010130-Online | Sr/Nr 36014036 | and after Sus. by | 1 | BRAKE,ASM CHAIN | ||
| 5 | + | 1 | Lever Assy, Brake | 433201-39331 | 433201-39331-Online | Sus. by 433201- | 39332 |
| 5 | + | 1 | Lever Asy, Brake | 433201-39332 | 433201-39332-Online | 6 | ++ |
| 6 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 | 6 | |
| 6 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | 5 | 7 | ++ | |
| 7 | 1 | Pin 3*24 | 900330-30240 | 900330-30240-Online | 3*23.8 | 8 | ++ | |
| 8 | 2 | Spacer | 433167-39130 | 433167-39130-Online | 9 | ++ | |
| 9 | 1 | Spring | 433114-38331 | 433114-38331-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 1 | Screw, 5*30 | 900209-05030 | 900209-05030-Online | 5*30 | Sus. by 91318- | 05032 | 10 | |
| 10 | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 | 11 | ++ | |
| 11 | 2 | Nut 4 | 900500-00004 | 900500-00004-Online | 4 | 12 | ++ | |
| 12 | 1 | Weight, Brake | 433171-39330 | 433171-39330-Online | 13 | ++ | |
| 13 | 2 | Screw 4*18 | 900238-04018 | 900238-04018-Online | 4*18 | |
| 23 | + | 1 | Guard, Sprocket | 433005-38932 | 433005-38932-Online | Sus. by P021- | 001290 |
| 14 | + | 1 | Guard,Sprocket Set | P021-001290 | P021-001290-Online | Sr/Nr 36014035 | and before |
| 14 | + | 1 | Guard,Sprocket Set | P021-001291 | P021-001291-Online | Sr/Nr 36014036 | and after | 17 | ++ |
| 17 | 1 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 | 18 | ++ | |
| 18 | 1 | Plate,Sprocket Guard | C305-000000 | C305-000000-Online | Sus. by C305- | 000001 | 18 | ++ | |
| 18 | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | 19 | ++ | |
| 19 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | 23 | ++ | |
| 23 | 1 | Guard, Sprocket | 433005-38933 | 433005-38933-Online | Sr/Nr 003151 to | |
| 23 | ++ | 36014035 | 36014035-Online | |||
| 23 | 1 | Guard, Sprocket | 433005-38934 | 433005-38934-Online | CHINA Sus. by | |
| 23 | ++ | P021-010160 | P021-010160-Online | |||
| 23 | 1 | Guard, Sprocket Kit | P021-010160 | P021-010160-Online | Sr/Nr 36014036 | and after Sus. by |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | Sr/Nr 36014036 | and after | |
| 19 | + | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
| 45 | + | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | |
| 46 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 47 | + | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 |
| 48 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 49 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 50 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 51 | + | 1 | Band, Brake | 433123-35430 | 433123-35430-Online | Sus. by C328- | 000060 |
| 51 | + | 1 | Band,Brake | C328-000060 | C328-000060-Online | |
| 52 | + | 1 | Pin, Spring 2.5*12 | 900342-25012 | 900342-25012-Online | 2.5*12 |
| 53 | + | 1 | Cover, Brake | 433310-38330 | 433310-38330-Online | |
| 62 | + | 1 | Washer,Circular 6 | V304-000090 | V304-000090-Online | Sr/Nr 36002911 | and after |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pipe | 437229-38331 | 437229-38331-Online | ||
| 6 | 1 | Auto-Oiler Assy | 437002-38330 | 437002-38330-Online | ||
| 7 | + | 1 | Needle, Adjust | 437016-38330 | 437016-38330-Online | |
| 8 | + | 1 | Washer | 437029-37330 | 437029-37330-Online | |
| 9 | + | 1 | Spring | 437015-37330 | 437015-37330-Online | |
| 10 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 11 | + | 1 | Plunger | 437024-37330 | 437024-37330-Online | |
| 12 | + | 1 | Spring | 437019-38330 | 437019-38330-Online | |
| 13 | + | 1 | Cap, Oil Pump | 437062-38330 | 437062-38330-Online | |
| 14 | 2 | Screw | 900223-04016 | 900223-04016-Online | 4*16 | |
| 15 | 1 | Plate, Seal | 175310-38330 | 175310-38330-Online | ||
| 16 | 2 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sr/Nr 006650 and | before | |
| 16 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sr/Nr 006651 and | after | |
| 17 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 18 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 19 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 30 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 31 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | Sus. by X602- | 000080 | |
| 32 | 1 | Driver, Screw 125 | 895811-00130 | 895811-00130-Online | ||
| 33 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 34 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-38330 | 123123-38330-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-39330 | 123122-39330-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Valve Choke | P003-000230 | P003-000230-Online | |
| 11 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 12 | + | 1 | Lever-Fast Idle | P003-000160 | P003-000160-Online | |
| 13 | + | 1 | Spring | P003-000140 | P003-000140-Online | |
| 14 | + | 1 | Spring, Needle | 123119-22130 | 123119-22130-Online | |
| 15 | + | 1 | Needle, High Speed | 123120-38330 | 123120-38330-Online | |
| 16 | + | 1 | Needle, Idle | 123118-38330 | 123118-38330-Online | |
| 17 | + | 1 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 18 | + | 1 | Shaft, Throttle | P003-000120 | P003-000120-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 22 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 23 | + | 1 | Throttle, Lever | P003-000130 | P003-000130-Online | |
| 24 | + | 1 | Choke, Shaft | P003-000150 | P003-000150-Online |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 26 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 27 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 28 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 29 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 30 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 31 | + | 1 | Cover, Fuel Pump | 123124-38330 | 123124-38330-Online | |
| 32 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 33 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 34 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 35 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 36 | + | 1 | Screw | 123114-03930 | 123114-03930-Online | Sus. by 123114- | 38830 |
| 36 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 37 | + | 1 | Washer | 123149-26030 | 123149-26030-Online |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 4 | + | 1 | Cover, Diaphragm | 125342-13210 | 125342-13210-Online | |
| 5 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 6 | + | 1 | Gasket, Diaphragm | 125340-42030 | 125340-42030-Online | |
| 7 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 8 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 9 | + | 1 | Plug, Welch | 125345-13310 | 125345-13310-Online | |
| 10 | + | 1 | Spring, Coil | 125322-13930 | 125322-13930-Online | |
| 12 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 13 | + | 1 | Nozzle Check Valve | P005-000770 | P005-000770-Online | |
| 14 | + | 1 | Plug, Welch | 125345-51030 | 125345-51030-Online | |
| 17 | + | 1 | Screw | 125314-51230 | 125314-51230-Online | 3*4.5 |
| 18 | + | 1 | Valve, Choke | P005-000900 | P005-000900-Online | |
| 20 | + | 1 | Needle, High Speed | P005-000850 | P005-000850-Online | |
| 21 | + | 1 | Needle, Idle | P005-000840 | P005-000840-Online | |
| 22 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 23 | + | 1 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |
| 24 | + | 1 | Shaft Asy,Throttle | P005-000780 | P005-000780-Online | |
| 26 | + | 1 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |
| 27 | + | 1 | Valve, Throttle | P005-000810 | P005-000810-Online | |
| 28 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 30 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 31 | + | 1 | Lever, Throttle | P005-000800 | P005-000800-Online |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 34 | + | 1 | Screw | 125339-13930 | 125339-13930-Online | |
| 36 | + | 1 | Shaft, Choke | P005-000870 | P005-000870-Online | Sus. by P005- | 001310 |
| 36 | + | 1 | Shaft, Choke | P005-001310 | P005-001310-Online | |
| 37 | + | 1 | Lever, Choke | P005-000890 | P005-000890-Online | Sus. by P005- | 001300 |
| 37 | + | 1 | Lever, Choke | P005-001300 | P005-001300-Online | |
| 38 | + | 1 | Spring, Choke Return | P005-000880 | P005-000880-Online | |
| 41 | + | 1 | Diaphragm, Pump | P005-000820 | P005-000820-Online | |
| 42 | + | 1 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |
| 43 | + | 1 | Cover, Pump | P005-000830 | P005-000830-Online | |
| 44 | + | 1 | Screw | 125310-13930 | 125310-13930-Online | |
| 46 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 47 | + | 1 | Screw | 125344-08560 | 125344-08560-Online |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 4 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 5 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 6 | + | 1 | Gasket, Diaphragm | 125340-42030 | 125340-42030-Online | |
| 7 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 8 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 9 | + | 1 | Plug, Welch | 125345-13310 | 125345-13310-Online | |
| 10 | + | 1 | Spring, Coil | 125322-13930 | 125322-13930-Online | |
| 12 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 13 | + | 1 | Nozzle Check Valve | P005-000770 | P005-000770-Online | |
| 14 | + | 1 | Plug, Welch | 125345-51030 | 125345-51030-Online | |
| 17 | + | 1 | Screw | 125314-51230 | 125314-51230-Online | 3*4.5 |
| 18 | + | 1 | Valve, Choke | P005-000900 | P005-000900-Online | |
| 20 | + | 1 | Screw,Mainn Mixture | P005-001830 | P005-001830-Online | |
| 21 | + | 1 | Screw, Idle Mixture | P005-001820 | P005-001820-Online | |
| 22 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 23 | + | 1 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |
| 24 | + | 1 | Shaft Asy,Throttle | P005-000780 | P005-000780-Online | |
| 26 | + | 1 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |
| 27 | + | 1 | Valve, Throttle | P005-000810 | P005-000810-Online | |
| 28 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 30 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 31 | + | 1 | Lever, Throttle | P005-000800 | P005-000800-Online | |
| 32 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 34 | + | 1 | Screw | 125339-13930 | 125339-13930-Online |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 36 | + | 1 | Shaft, Choke | P005-001310 | P005-001310-Online | |
| 37 | + | 1 | Lever, Choke | P005-001300 | P005-001300-Online | |
| 38 | + | 1 | Spring, Choke Return | P005-000880 | P005-000880-Online | |
| 41 | + | 1 | Diaphragm, Pump | P005-000820 | P005-000820-Online | |
| 42 | + | 1 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |
| 43 | + | 1 | Cover, Pump | P005-000830 | P005-000830-Online | |
| 44 | + | 1 | Screw | 125310-13930 | 125310-13930-Online | |
| 46 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 47 | + | 1 | Screw | 125344-08560 | 125344-08560-Online | |
| 48 | + | 2 | Limiter Kit | P005-001840 | P005-001840-Online |
Source PDF: 20130718-287_CS-5100(6digits)(21)(35)(36)_CS-5100(6digits)(21)(35)(36)_EN.pdf. Generated 2026-06-25 14:38.
