Echo ES-2400 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: ES-2400-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

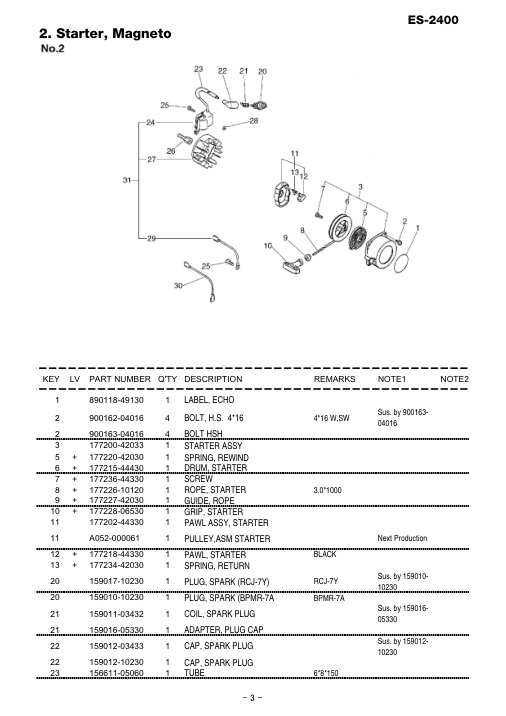

Page 4
Tap or click the page image to enlarge it.

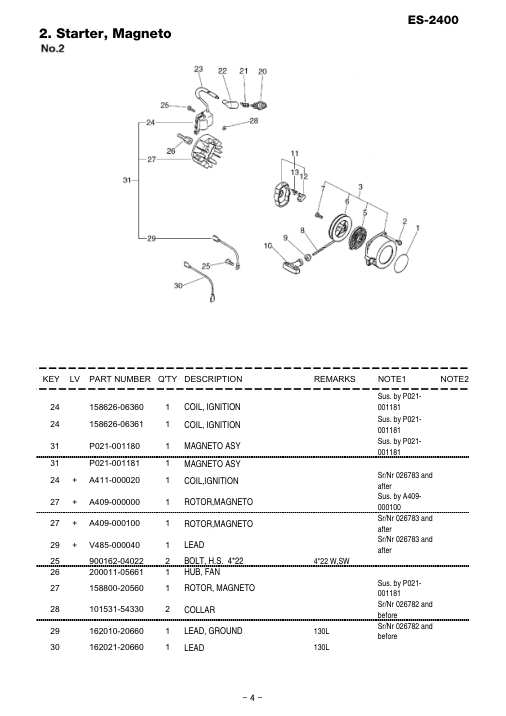

Page 5
Tap or click the page image to enlarge it.

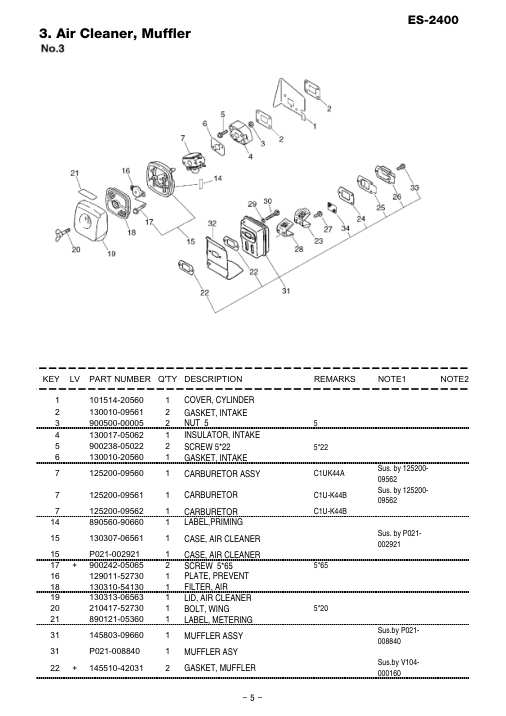

Page 6
Tap or click the page image to enlarge it.

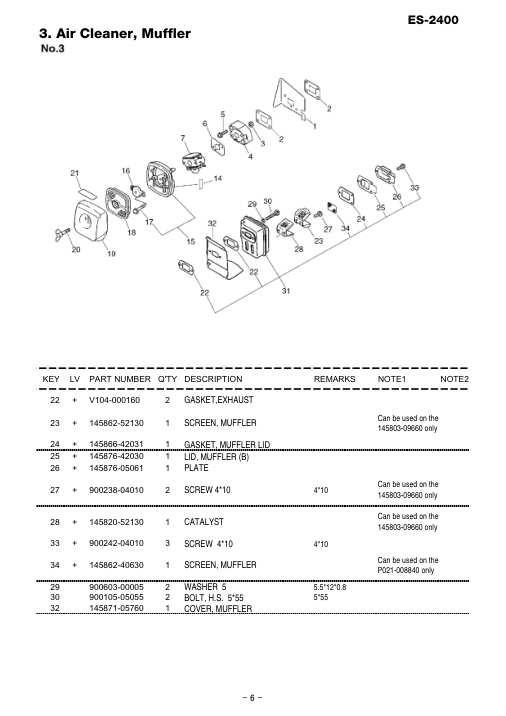

Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

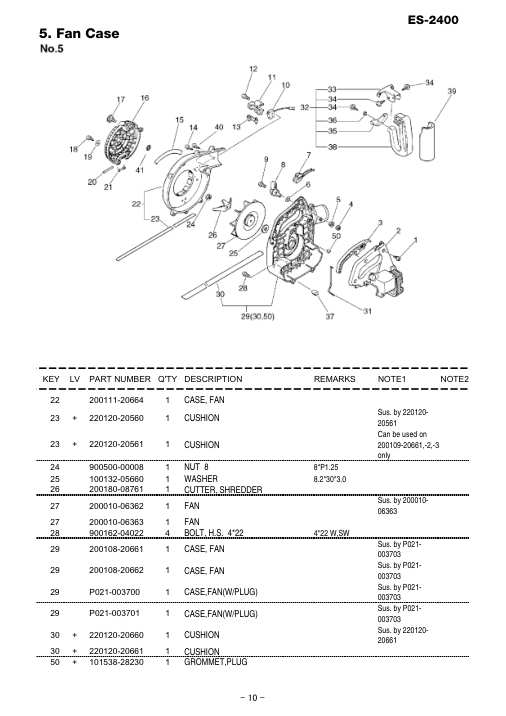

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

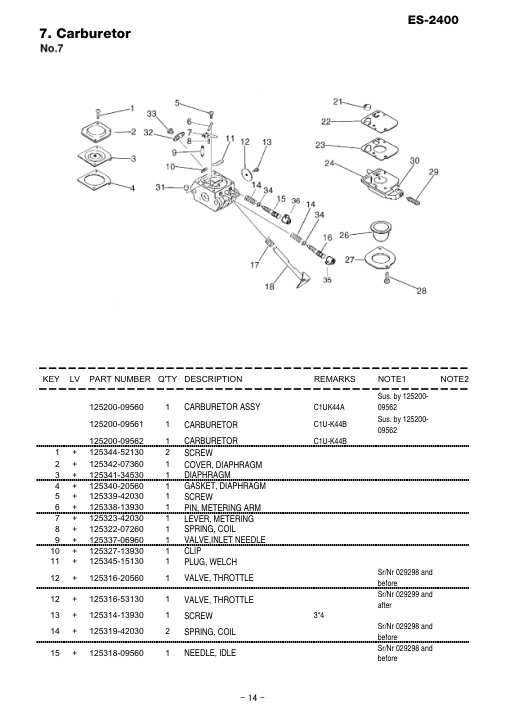

Page 13
Tap or click the page image to enlarge it.

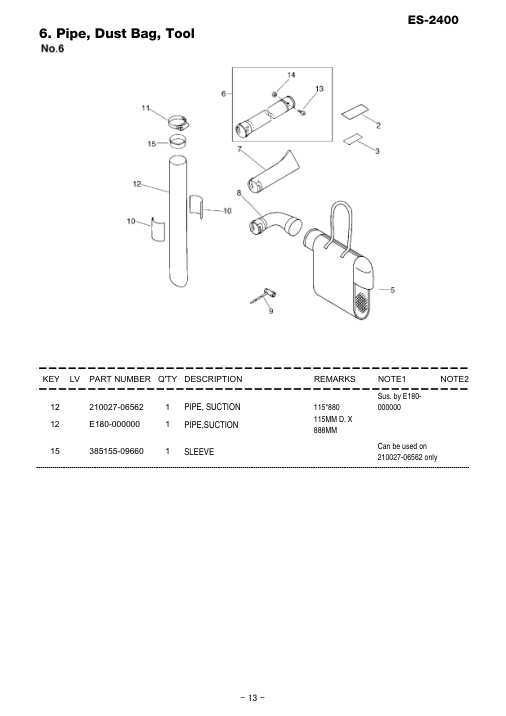

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.

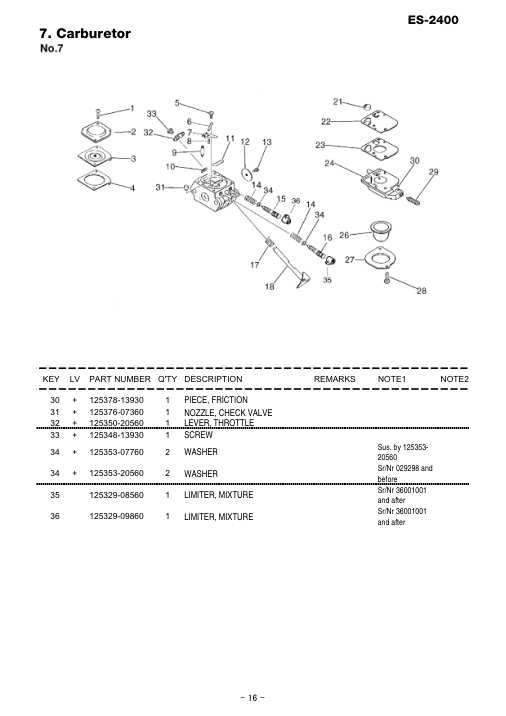

Page 17
Tap or click the page image to enlarge it.

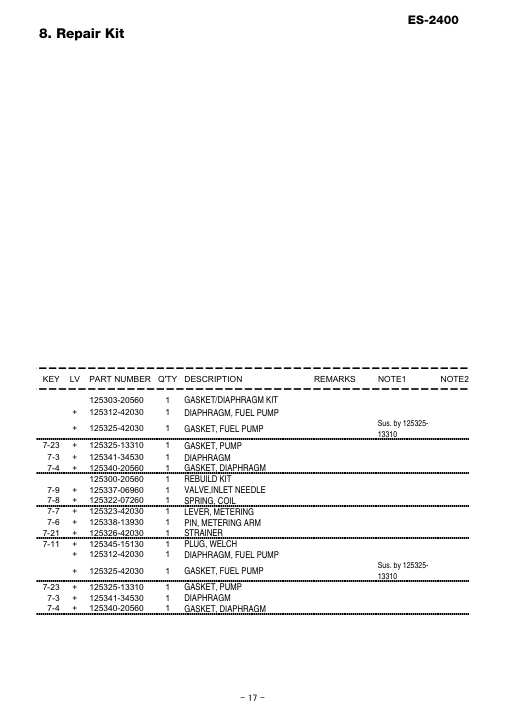

Page 18
Tap or click the page image to enlarge it.

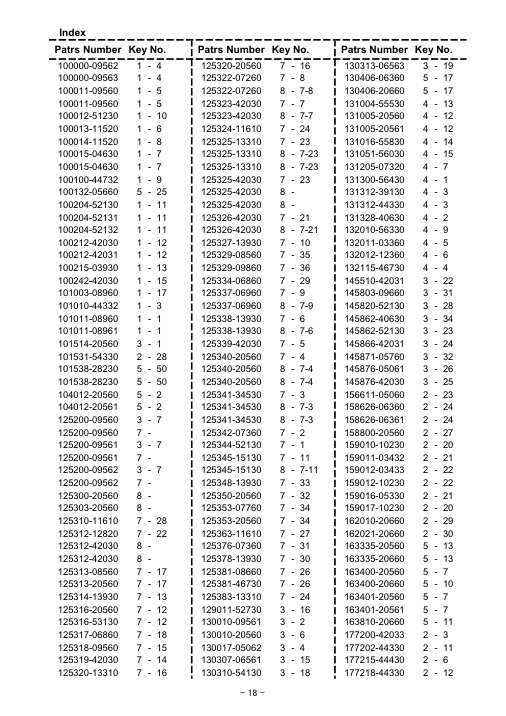

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder (Cr) | 101011-08960 | 101011-08960-Online | Sus. by 101003- | 08960 | |
| 17 | 1 | Cylinder Piston Kit | 101003-08960 | 101003-08960-Online | ||
| 1 | + | 1 | Cylinder (Cr) | 101011-08961 | 101011-08961-Online | Sr/Nr 006687 and | after |
| 5 | + | 2 | Ring, Piston | 100011-09560 | 100011-09560-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | 100000-09562 | 100000-09562-Online | Sus. by 100000- | 09563 | |
| 4 | 1 | Piston Kit | 100000-09563 | 100000-09563-Online | ||
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankshaft Assy | 100100-44732 | 100100-44732-Online | Sus. by A011- | 000160 | |
| 9 | 1 | Crankshaft,Asm | A011-000100 | A011-000100-Online | Sus. by A011- | 000160 | |
| 9 | 1 | Crankshaft,Asm | A011-000160 | A011-000160-Online | ||
| 10 | + | 1 | Bearing, Needle | 100012-51230 | 100012-51230-Online | 8*12*10 | Sus. by V553- | 000010 |
| 10 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 11 | 1 | Crankcase Kit | 100204-52130 | 100204-52130-Online | Sus. by 100204- | 52132 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | Sus. by 100204- | 52132 | |
| 11 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 12 | + | 2 | Oilseal | 100212-42030 | 100212-42030-Online | ISCD12*22*4.5 | Sus. by 100212- | 42031 |
| 12 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 13 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | 6201/C3 | Sus. by 94035- | 36201 |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 15 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | ||
| 2 | 4 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW | Sus. by 900163- | 04016 | |
| 2 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 3 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 5 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 6 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 7 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 8 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 9 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 10 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 11 | 1 | Pawl Assy, Starter | 177202-44330 | 177202-44330-Online | ||
| 11 | 1 | Pulley,Asm Starter | A052-000061 | A052-000061-Online | Next Production | |
| 12 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 13 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | |
| 20 | 1 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | RCJ-7Y | Sus. by 159010- | 10230 | |
| 20 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 21 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | Sus. by 159016- | 05330 | |
| 21 | 1 | Adapter, Plug Cap | 159016-05330 | 159016-05330-Online | ||
| 22 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | Sus. by 159012- | 10230 | |
| 22 | 1 | Cap, Spark Plug | 159012-10230 | 159012-10230-Online | ||
| 23 | 1 | Tube | 156611-05060 | 156611-05060-Online | 6*8*150 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Coil, Ignition | 158626-06360 | 158626-06360-Online | Sus. by P021- | 001181 | |
| 24 | 1 | Coil, Ignition | 158626-06361 | 158626-06361-Online | Sus. by P021- | 001181 | |
| 31 | 1 | Magneto Asy | P021-001180 | P021-001180-Online | Sus. by P021- | 001181 | |
| 31 | 1 | Magneto Asy | P021-001181 | P021-001181-Online | ||
| 24 | + | 1 | Coil,Ignition | A411-000020 | A411-000020-Online | Sr/Nr 026783 and | after |
| 27 | + | 1 | Rotor,Magneto | A409-000000 | A409-000000-Online | Sus. by A409- | 000100 |
| 27 | + | 1 | Rotor,Magneto | A409-000100 | A409-000100-Online | Sr/Nr 026783 and | after |
| 29 | + | 1 | Lead | V485-000040 | V485-000040-Online | Sr/Nr 026783 and | after |
| 25 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 26 | 1 | Hub, Fan | 200011-05661 | 200011-05661-Online | ||
| 27 | 1 | Rotor, Magneto | 158800-20560 | 158800-20560-Online | Sus. by P021- | 001181 | |
| 28 | 2 | Collar | 101531-54330 | 101531-54330-Online | Sr/Nr 026782 and | before | |
| 29 | 1 | Lead, Ground | 162010-20660 | 162010-20660-Online | 130L | Sr/Nr 026782 and | before | |
| 30 | 1 | Lead | 162021-20660 | 162021-20660-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover, Cylinder | 101514-20560 | 101514-20560-Online | ||
| 2 | 2 | Gasket, Intake | 130010-09561 | 130010-09561-Online | ||
| 3 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 4 | 1 | Insulator, Intake | 130017-05062 | 130017-05062-Online | ||
| 5 | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 | |
| 6 | 1 | Gasket, Intake | 130010-20560 | 130010-20560-Online | ||
| 7 | 1 | Carburetor Assy | 125200-09560 | 125200-09560-Online | C1UK44A | Sus. by 125200- | 09562 | |
| 7 | 1 | Carburetor | 125200-09561 | 125200-09561-Online | C1U-K44B | Sus. by 125200- | 09562 | |
| 7 | 1 | Carburetor | 125200-09562 | 125200-09562-Online | C1U-K44B | |
| 14 | 1 | Label,Priming | 890560-90660 | 890560-90660-Online | ||
| 15 | 1 | Case, Air Cleaner | 130307-06561 | 130307-06561-Online | Sus. by P021- | 002921 | |
| 15 | 1 | Case, Air Cleaner | P021-002921 | P021-002921-Online | ||
| 17 | + | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 5*65 |
| 16 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 18 | 1 | Filter, Air | 130310-54130 | 130310-54130-Online | ||
| 19 | 1 | Lid, Air Cleaner | 130313-06563 | 130313-06563-Online | ||
| 20 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 21 | 1 | Label, Metering | 890121-05360 | 890121-05360-Online | ||
| 31 | 1 | Muffler Assy | 145803-09660 | 145803-09660-Online | Sus.by P021- | 008840 | |
| 31 | 1 | Muffler Asy | P021-008840 | P021-008840-Online | ||
| 22 | + | 2 | Gasket, Muffler | 145510-42031 | 145510-42031-Online | Sus.by V104- | 000160 |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |
| 23 | + | 1 | Screen, Muffler | 145862-52130 | 145862-52130-Online | Can be used on the | 145803-09660 only |
| 24 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 25 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 26 | + | 1 | Plate | 145876-05061 | 145876-05061-Online | |
| 27 | + | 2 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | Can be used on the | 145803-09660 only |
| 28 | + | 1 | Catalyst | 145820-52130 | 145820-52130-Online | Can be used on the | 145803-09660 only |
| 33 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 34 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | Can be used on the | P021-008840 only |
| 29 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 30 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 32 | 1 | Cover, Muffler | 145871-05760 | 145871-05760-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 2 | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | ||
| 3 | 1 | Pipe, 3*5*70L | 131312-44330 | 131312-44330-Online | 3*5*70L NBR | Sus. by V471- | 001200 | |
| 3 | 1 | Pipe | 131312-39130 | 131312-39130-Online | 3*5*70(+3)NBR | |
| 3 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 4 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | Sus. by V137- | 000030 | |
| 4 | 1 | Grommet,Fuel | V137-000030 | V137-000030-Online | ||
| 5 | 1 | Connector, Fuel Pipe | 132011-03360 | 132011-03360-Online | ||
| 6 | 1 | Pipe, Fuel | 132012-12360 | 132012-12360-Online | ||
| 7 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 8 | 1 | Pipe 3*5*90 Nbr | 437210-11131 | 437210-11131-Online | 3*5*90 NBR | Sus. by V471- | 001210 | |
| 8 | 1 | Pipe | V471-001210 | V471-001210-Online | 3*5*90 NBR | |
| 9 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 10 | 2 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 11 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 12 | 1 | Tank, Fuel | 131005-20560 | 131005-20560-Online | Sus. by 131005- | 20561 | |
| 12 | 1 | Tank, Fuel | 131005-20561 | 131005-20561-Online | ||
| 13 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 14 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 15 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 5 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | Sus. by 900253- | 05020 Q'ty:7 | |
| 1 | 7 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | Can be used on | 104012-20561 only | |
| 2 | 1 | Cover | 104012-20560 | 104012-20560-Online | ||
| 2 | 1 | Cover | 104012-20561 | 104012-20561-Online | ||
| 3 | 1 | Control, Throttle | 178010-20560 | 178010-20560-Online | ||
| 4 | 1 | Nut 5 (3N) | 900502-00005 | 900502-00005-Online | 3N5 | |
| 5 | 1 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | ||
| 6 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 7 | 1 | Switch, Ignition | 163400-20560 | 163400-20560-Online | Sus. by 163401- | 20561 | |
| 7 | 1 | Switch, Ignition | 163401-20560 | 163401-20560-Online | Sus. by 163401- | 20561 | |
| 7 | 1 | Switch, Ignition | 163401-20561 | 163401-20561-Online | ||
| 8 | 1 | Control, Throttle | 178054-20560 | 178054-20560-Online | ||
| 9 | 1 | Screw 5*25 | 900238-05025 | 900238-05025-Online | 5*25 | Sus. by 91358- | 05025 | |
| 9 | 1 | Screw | 91358-05025 | 91358-05025-Online | SM-5*25 㺚㺎㺹㺠㺖㺰㺠 | 㺖 | |
| 10 | 1 | Switch, Ignition | 163400-20660 | 163400-20660-Online | ||
| 11 | 1 | Bracket, Switch | 163810-20660 | 163810-20660-Online | ||
| 12 | 2 | Screw 4*22 | 900256-04022 | 900256-04022-Online | 4*22 |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | 1 | Lever, Actuator | 163335-20660 | 163335-20660-Online | Sus. by 163335- | 20560 | |
| 13 | 1 | Lever, Actuator | 163335-20560 | 163335-20560-Online | ||
| 14 | 6 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 15 | 1 | Label, Model | 890115-09560 | 890115-09560-Online | ||
| 16 | 1 | Grid, Fan Case | 200124-20660 | 200124-20660-Online | Sus. by 200124- | 20661 | |
| 16 | 1 | Grid, Fan Case | 200124-20661 | 200124-20661-Online | ||
| 17 | 1 | Knob, Fastener | 130406-06360 | 130406-06360-Online | Sus. by V299- | 000290 | |
| 17 | 1 | Thumb | 130406-20660 | 130406-20660-Online | Sus. by V299- | 000290 | |
| 17 | 1 | Knob,Fastener | V299-000290 | V299-000290-Online | 1 KNOB M5X0.8 | |
| 18 | 1 | Screw 5*14 | 900253-05014 | 900253-05014-Online | 5*14 | |
| 19 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 20 | 1 | Shaft, Grid | 200150-05060 | 200150-05060-Online | ||
| 21 | 1 | Spring, Grid | 200152-05060 | 200152-05060-Online | ||
| 22 | 1 | Case, Fan | 200109-20660 | 200109-20660-Online | Sus. by 200111- | 20664 | |
| 22 | 1 | Case, Fan | 200109-20661 | 200109-20661-Online | Sus. by 200111- | 20664 | |
| 22 | 1 | Case, Fan | 200109-20662 | 200109-20662-Online | Sus. by 200111- | 20664 | |
| 22 | 1 | Case, Fan | 200109-20663 | 200109-20663-Online | Sus. by 200111- | 20664 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | 1 | Case, Fan | 200111-20664 | 200111-20664-Online | ||
| 23 | + | 1 | Cushion | 220120-20560 | 220120-20560-Online | Sus. by 220120- | 20561 |
| 23 | + | 1 | Cushion | 220120-20561 | 220120-20561-Online | Can be used on | 200109-20661,-2,-3 | only |
| 24 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 25 | 1 | Washer | 100132-05660 | 100132-05660-Online | 8.2*30*3.0 | |
| 26 | 1 | Cutter, Shredder | 200180-08761 | 200180-08761-Online | ||
| 27 | 1 | Fan | 200010-06362 | 200010-06362-Online | Sus. by 200010- | 06363 | |
| 27 | 1 | Part | 200010-06363 | 200010-06363-Online | ||
| 28 | 4 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 29 | 1 | Case, Fan | 200108-20661 | 200108-20661-Online | Sus. by P021- | 003703 | |
| 29 | 1 | Case, Fan | 200108-20662 | 200108-20662-Online | Sus. by P021- | 003703 | |
| 29 | 1 | Case,Fan(W/Plug) | P021-003700 | P021-003700-Online | Sus. by P021- | 003703 | |
| 29 | 1 | Case,Fan(W/Plug) | P021-003701 | P021-003701-Online | Sus. by P021- | 003703 | |
| 30 | + | 1 | Cushion | 220120-20660 | 220120-20660-Online | Sus. by 220120- | 20661 |
| 30 | + | 1 | Cushion | 220120-20661 | 220120-20661-Online | |
| 50 | + | 1 | Grommet,Plug | 101538-28230 | 101538-28230-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | 1 | Case,Fan(W/Plug) | P021-003702 | P021-003702-Online | Sus. by P021- | 003703 | |
| 29 | 1 | Case,Fan(W/Plug) | P021-003703 | P021-003703-Online | ||
| 50 | + | 1 | Grommet,Plug | 101538-28230 | 101538-28230-Online | |
| 31 | 1 | Rod, Throttle | 178011-20560 | 178011-20560-Online | Sus. by 178011- | 20561 | |
| 31 | 1 | Rod, Throttle | 178011-20561 | 178011-20561-Online | ||
| 32 | 1 | Handle Assy, Rear | 351000-05060 | 351000-05060-Online | ||
| 33 | + | 1 | Supporter Handle | 351011-05060 | 351011-05060-Online | |
| 34 | + | 3 | Screw 5*14 | 900253-05014 | 900253-05014-Online | 5*14 | Sus. by 900253- | 05016 |
| 34 | + | 3 | Screw | 900253-05016 | 900253-05016-Online | 5*16 |
| 35 | + | 1 | Supporter, Handle | 351028-05060 | 351028-05060-Online | |
| 38 | + | 1 | Handle (Bl) | 351010-05060 | 351010-05060-Online | |
| 37 | 2 | Cushion | 351335-20560 | 351335-20560-Online | ||
| 39 | 1 | Grip, Handle | 351213-54330 | 351213-54330-Online | ||
| 40 | 1 | Screw, Tapping | 900256-05010 | 900256-05010-Online | ||
| 41 | 1 | Push, Ring | 900580-00004 | 900580-00004-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Label, Caution | 890160-09460 | 890160-09460-Online | Sus. by 890160- | 09461 | |
| 2 | 1 | Label, Caution | 890160-09461 | 890160-09461-Online | ||
| 3 | 1 | Label, Caution | 890160-06360 | 890160-06360-Online | Sus. by 890160- | 06361 | |
| 3 | 1 | Label, Caution | 890160-06361 | 890160-06361-Online | ||
| 5 | 1 | Bag, Dust(W/Harness) | 880814-09460 | 880814-09460-Online | Sus. by X692- | 000021 | |
| 5 | 1 | Bag,Dust | X692-000020 | X692-000020-Online | Sus. by X692- | 000021 | |
| 5 | 1 | Bag,Dust | X692-000021 | X692-000021-Online | ECHO | |
| 6 | 1 | Pipe, Straight (Bl) | 210015-05060 | 210015-05060-Online | Sus. by 210007- | 20660 | |
| 6 | 1 | Pipe,Blower | 210007-20660 | 210007-20660-Online | ||
| 13 | + | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 |
| 14 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 7 | 1 | Pipe, Blower | 210014-20560 | 210014-20560-Online | Sus. by 210014- | 20660 | |
| 7 | 1 | Pipe, Straight | 210014-20660 | 210014-20660-Online | ||
| 8 | 1 | Connector (Bl) | 215012-05060 | 215012-05060-Online | Sus. by 215012- | 20110 | |
| 8 | 1 | Pipe,Main | 215012-20110 | 215012-20110-Online | ||
| 9 | 1 | Wrench, W/S. Driver | 895410-00430 | 895410-00430-Online | ||
| 10 | 2 | Label, Model | 890118-09460 | 890118-09460-Online | ||
| 11 | 1 | Clamp, Flexible Pipe | 210413-05060 | 210413-05060-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | 1 | Pipe, Suction | 210027-06562 | 210027-06562-Online | 115*880 | Sus. by E180- | 000000 | |
| 12 | 1 | Pipe,Suction | E180-000000 | E180-000000-Online | 115MM D. X | 888MM | |
| 15 | 1 | Sleeve | 385155-09660 | 385155-09660-Online | Can be used on | 210027-06562 only |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 2 | + | 1 | Cover, Diaphragm | 125342-07360 | 125342-07360-Online | |
| 3 | + | 1 | Diaphragm | 125341-34530 | 125341-34530-Online | |
| 4 | + | 1 | Gasket, Diaphragm | 125340-20560 | 125340-20560-Online | |
| 5 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 6 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 7 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 8 | + | 1 | Spring, Coil | 125322-07260 | 125322-07260-Online | |
| 9 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 10 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 11 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 12 | + | 1 | Valve, Throttle | 125316-20560 | 125316-20560-Online | Sr/Nr 029298 and | before |
| 12 | + | 1 | Valve, Throttle | 125316-53130 | 125316-53130-Online | Sr/Nr 029299 and | after |
| 13 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 14 | + | 2 | Spring, Coil | 125319-42030 | 125319-42030-Online | Sr/Nr 029298 and | before |
| 15 | + | 1 | Needle, Idle | 125318-09560 | 125318-09560-Online | Sr/Nr 029298 and | before |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | + | 1 | Screw Asy Idle Mix. | P005-000450 | P005-000450-Online | Sr/Nr 029299 and | after |
| 16 | + | 1 | Needle, High Speed | 125320-20560 | 125320-20560-Online | Sr/Nr 029298 and | before |
| 16 | + | 1 | Needle, High Speed | 125320-13310 | 125320-13310-Online | Sr/Nr 029299 and | after |
| 17 | + | 1 | Spring, Thrt.Return | 125313-20560 | 125313-20560-Online | Sus. by 125313- | 08560 |
| 17 | + | 1 | Spring, Thrt. Return | 125313-08560 | 125313-08560-Online | |
| 18 | + | 1 | Shaft, Throttle | 125317-06860 | 125317-06860-Online | |
| 21 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online | |
| 22 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 23 | + | 1 | Gasket, Fuel Pump | 125325-42030 | 125325-42030-Online | Sus. by 125325- | 13310 |
| 23 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online | |
| 24 | + | 1 | Cover, Pump | 125324-11610 | 125324-11610-Online | Sus. by 125383- | 13310 |
| 24 | + | 1 | Base, Primer | 125383-13310 | 125383-13310-Online | Sus. by P005- | 000990 |
| 24 | + | 1 | Base,Primer | P005-000990 | P005-000990-Online | |
| 26 | + | 1 | Pump, Priming | 125381-46730 | 125381-46730-Online | Sus. by 125381- | 08660 |
| 26 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 27 | + | 1 | Ring | 125363-11610 | 125363-11610-Online | |
| 28 | + | 1 | Screw | 125310-11610 | 125310-11610-Online | |
| 29 | + | 1 | Screw, Idle Adjust | 125334-06860 | 125334-06860-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 30 | + | 1 | Piece, Friction | 125378-13930 | 125378-13930-Online | |
| 31 | + | 1 | Nozzle, Check Valve | 125376-07360 | 125376-07360-Online | |
| 32 | + | 1 | Lever, Throttle | 125350-20560 | 125350-20560-Online | |
| 33 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 34 | + | 2 | Washer | 125353-07760 | 125353-07760-Online | Sus. by 125353- | 20560 |
| 34 | + | 2 | Washer | 125353-20560 | 125353-20560-Online | Sr/Nr 029298 and | before |
| 35 | 1 | Limiter, Mixture | 125329-08560 | 125329-08560-Online | Sr/Nr 36001001 | and after | |
| 36 | 1 | Limiter, Mixture | 125329-09860 | 125329-09860-Online | Sr/Nr 36001001 | and after |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| + | 1 | Diaphragm, Fuel Pump | 125312-42030 | 125312-42030-Online | ||
| + | 1 | Gasket, Fuel Pump | 125325-42030 | 125325-42030-Online | Sus. by 125325- | 13310 | 7-23 | + | |
| 1 | 1 | Rebuild Kit | 125300-20560 | 125300-20560-Online | 7-9 | + | 1 | VALVE,INLET NEEDLE |
Source PDF: 20130718-331_ES-2400_ES-2400_EN.pdf. Generated 2026-06-25 14:38.
