Echo CS-5000 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-5000-Online
Source Pages

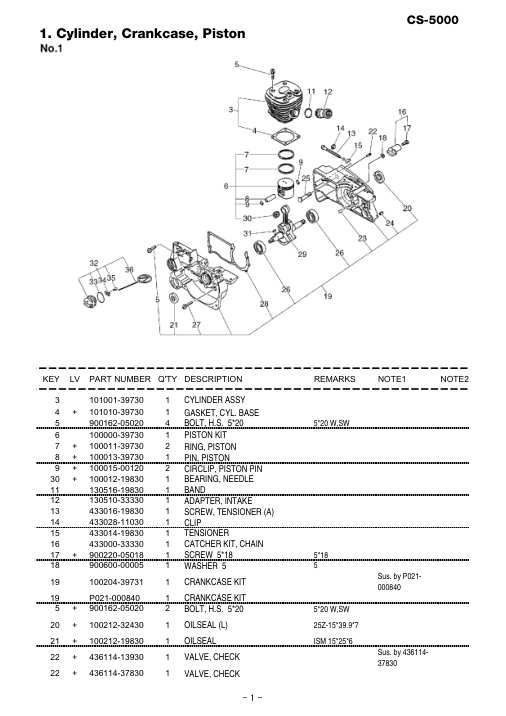

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

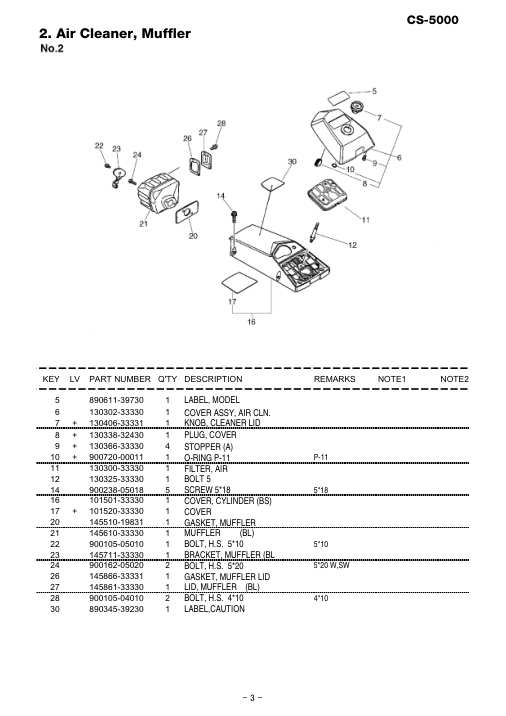

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

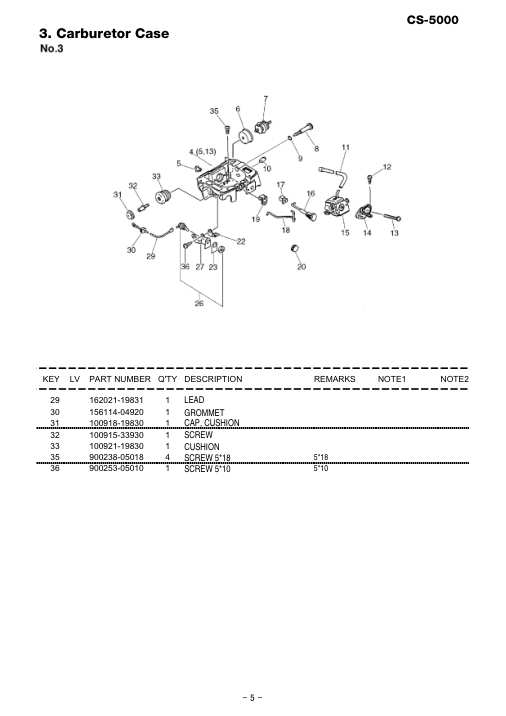

Page 6
Tap or click the page image to enlarge it.

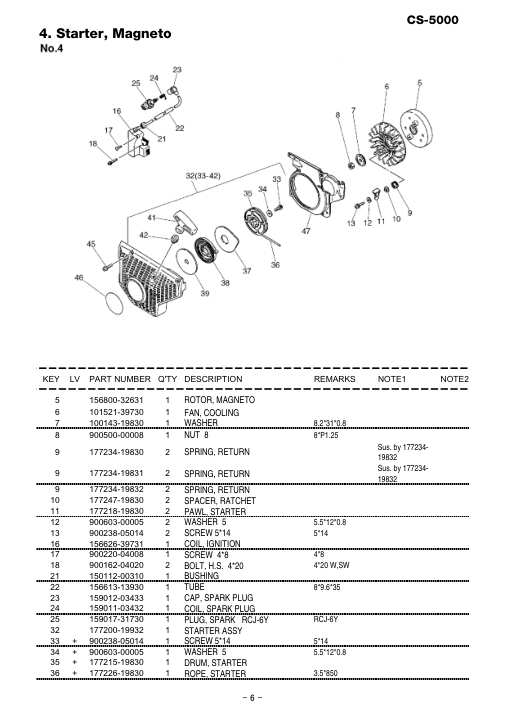

Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

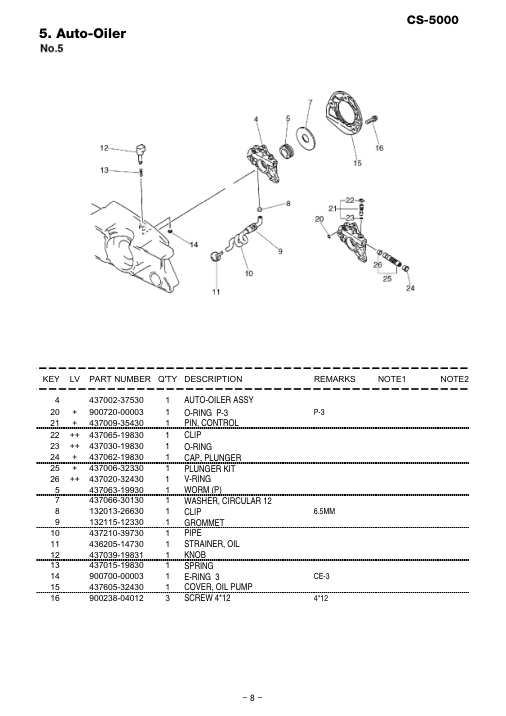

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

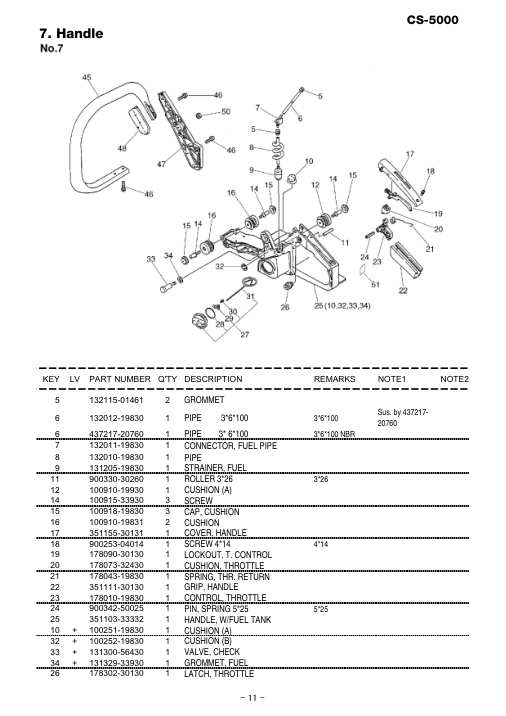

Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

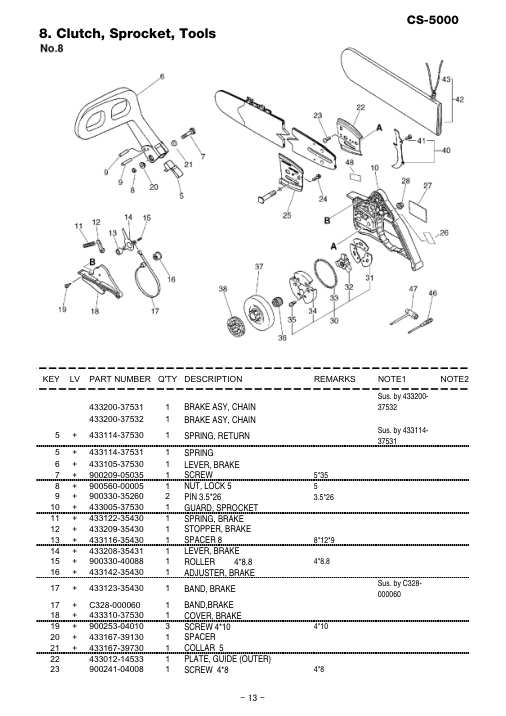

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.

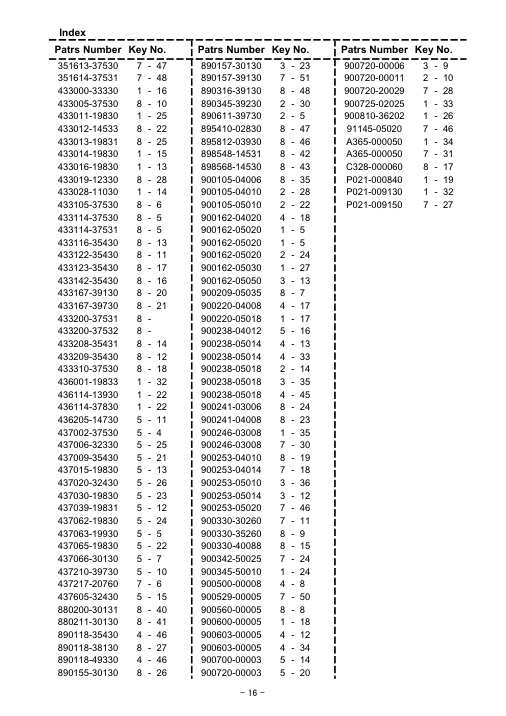

Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Cylinder Assy | 101001-39730 | 101001-39730-Online | ||
| 4 | + | 1 | Gasket, Cyl. Base | 101010-39730 | 101010-39730-Online | |
| 5 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 6 | 1 | Piston Kit | 100000-39730 | 100000-39730-Online | ||
| 7 | + | 2 | Ring, Piston | 100011-39730 | 100011-39730-Online | |
| 8 | + | 1 | Pin, Piston | 100013-39730 | 100013-39730-Online | |
| 9 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 30 | + | 1 | Bearing, Needle | 100012-19830 | 100012-19830-Online | |
| 11 | 1 | Band | 130516-19830 | 130516-19830-Online | ||
| 12 | 1 | Adapter, Intake | 130510-33330 | 130510-33330-Online | ||
| 13 | 1 | Screw, Tensioner (A) | 433016-19830 | 433016-19830-Online | ||
| 14 | 1 | Clip | 433028-11030 | 433028-11030-Online | ||
| 15 | 1 | Tensioner | 433014-19830 | 433014-19830-Online | ||
| 16 | 1 | Catcher Kit, Chain | 433000-33330 | 433000-33330-Online | ||
| 17 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 18 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 19 | 1 | Crankcase Kit | 100204-39731 | 100204-39731-Online | Sus. by P021- | 000840 | |
| 19 | 1 | Crankcase Kit | P021-000840 | P021-000840-Online | ||
| 5 | + | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
| 20 | + | 1 | Oilseal (L) | 100212-32430 | 100212-32430-Online | 25Z-15*39.9*7 |
| 21 | + | 1 | Oilseal | 100212-19830 | 100212-19830-Online | ISM 15*25*6 |
| 22 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | Sus. by 436114- | 37830 |
| 22 | + | 1 | Valve, Check | 436114-37830 | 436114-37830-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 24 | + | 1 | Pin, Spring 5*10Sus | 900345-50010 | 900345-50010-Online | 5*10SUS |
| 25 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 26 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 27 | + | 4 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW |
| 28 | + | 1 | Gasket, Crankcase | 100242-39730 | 100242-39730-Online | |
| 29 | 1 | Crankshaft Assy | 100100-33330 | 100100-33330-Online | ||
| 31 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 32 | 1 | Cap Assy, Oil Tank | 436001-19833 | 436001-19833-Online | Sus. by P021- | 009130 | |
| 32 | 1 | Oil Cap Asy | P021-009130 | P021-009130-Online | ||
| 33 | + | 1 | O-Ring | 900725-02025 | 900725-02025-Online | JASO 2025 |
| 34 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | Sus. by A365- | 000050 |
| 34 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 35 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 36 | + | 1 | Link | 131051-19830 | 131051-19830-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Label, Model | 890611-39730 | 890611-39730-Online | ||
| 6 | 1 | Cover Assy, Air Cln. | 130302-33330 | 130302-33330-Online | ||
| 7 | + | 1 | Knob, Cleaner Lid | 130406-33331 | 130406-33331-Online | |
| 8 | + | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | |
| 9 | + | 4 | Stopper (A) | 130366-33330 | 130366-33330-Online | |
| 10 | + | 1 | O-Ring P-11 | 900720-00011 | 900720-00011-Online | P-11 |
| 11 | 1 | Filter, Air | 130300-33330 | 130300-33330-Online | ||
| 12 | 1 | Bolt 5 | 130325-33330 | 130325-33330-Online | ||
| 14 | 5 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 16 | 1 | Cover, Cylinder (Bs) | 101501-33330 | 101501-33330-Online | ||
| 17 | + | 1 | Cover | 101520-33330 | 101520-33330-Online | |
| 20 | 1 | Gasket, Muffler | 145510-19831 | 145510-19831-Online | ||
| 21 | 1 | Muffler (Bl) | 145610-33330 | 145610-33330-Online | ||
| 22 | 1 | Bolt, H.S. 5*10 | 900105-05010 | 900105-05010-Online | 5*10 | |
| 23 | 1 | Bracket, Muffler (Bl | 145711-33330 | 145711-33330-Online | ||
| 24 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 26 | 1 | Gasket, Muffler Lid | 145866-33331 | 145866-33331-Online | ||
| 27 | 1 | Lid, Muffler (Bl) | 145861-33330 | 145861-33330-Online | ||
| 28 | 2 | Bolt, H.S. 4*10 | 900105-04010 | 900105-04010-Online | 4*10 | |
| 30 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Case, Carburetor | 130306-33733 | 130306-33733-Online | ||
| 5 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 13 | + | 2 | Bolt, H.S. 5*50 | 900162-05050 | 900162-05050-Online | 5*50 W,SW |
| 6 | 1 | Cushion (D) | 100927-19830 | 100927-19830-Online | ||
| 7 | 1 | Cushion | 100905-37530 | 100905-37530-Online | ||
| 8 | 1 | Screw, Idle Adjust | 129013-19830 | 129013-19830-Online | ||
| 9 | 1 | O-Ring 6 | 900720-00006 | 900720-00006-Online | P-6 | |
| 10 | 1 | Grommet | 129010-33330 | 129010-33330-Online | Sr/Nr 501005 and | before | |
| 10 | 1 | Grommet, Needle | 129010-39730 | 129010-39730-Online | Sr/Nr 501006 and | after | |
| 11 | 1 | Pipe, Impulse | 130110-19830 | 130110-19830-Online | ||
| 12 | 1 | Screw 5*14 | 900253-05014 | 900253-05014-Online | 5*14 | |
| 14 | 1 | Gasket (Bl) | 130518-33330 | 130518-33330-Online | ||
| 15 | 1 | Carburetor Assy | 123000-37530 | 123000-37530-Online | HDA-82 | |
| 16 | 1 | Rod, Choke | 178510-33330 | 178510-33330-Online | ||
| 17 | 1 | Grommet, Choke | 178810-33330 | 178810-33330-Online | Sus. by 178810- | 33331 | |
| 17 | 1 | Grommet, Choke | 178810-33331 | 178810-33331-Online | ||
| 18 | 1 | Rod, Throttle | 178011-33731 | 178011-33731-Online | ||
| 19 | 1 | Holder, Thr. Lever | 178114-33731 | 178114-33731-Online | ||
| 20 | 1 | Plug | 163911-30130 | 163911-30130-Online | ||
| 22 | 1 | Plate, Ground | 156635-33330 | 156635-33330-Online | ||
| 23 | 1 | Label, Switch | 890157-30130 | 890157-30130-Online | ||
| 26 | 1 | Switch, Ignition | 163400-30830 | 163400-30830-Online | ||
| 27 | 1 | Bracket, Switch | 163810-30130 | 163810-30130-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | 1 | Lead | 162021-19831 | 162021-19831-Online | ||
| 30 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 31 | 1 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 32 | 1 | Screw | 100915-33930 | 100915-33930-Online | ||
| 33 | 1 | Cushion | 100921-19830 | 100921-19830-Online | ||
| 35 | 4 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 36 | 1 | Screw 5*10 | 900253-05010 | 900253-05010-Online | 5*10 |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 6 | 1 | Fan, Cooling | 101521-39730 | 101521-39730-Online | ||
| 7 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 8 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 9 | 2 | Spring, Return | 177234-19830 | 177234-19830-Online | Sus. by 177234- | 19832 | |
| 9 | 2 | Spring, Return | 177234-19831 | 177234-19831-Online | Sus. by 177234- | 19832 | |
| 9 | 2 | Spring, Return | 177234-19832 | 177234-19832-Online | ||
| 10 | 2 | Spacer, Ratchet | 177247-19830 | 177247-19830-Online | ||
| 11 | 2 | Pawl, Starter | 177218-19830 | 177218-19830-Online | ||
| 12 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 13 | 2 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | |
| 16 | 1 | Coil, Ignition | 156626-39731 | 156626-39731-Online | ||
| 17 | 1 | Screw 4*8 | 900220-04008 | 900220-04008-Online | 4*8 | |
| 18 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 21 | 1 | Bushing | 150112-00310 | 150112-00310-Online | ||
| 22 | 1 | Tube | 156613-13930 | 156613-13930-Online | 8*9.6*35 | |
| 23 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 24 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 25 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 32 | 1 | Starter Assy | 177200-19932 | 177200-19932-Online | ||
| 33 | + | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 |
| 34 | + | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
| 35 | + | 1 | Drum, Starter | 177215-19830 | 177215-19830-Online | |
| 36 | + | 1 | Rope, Starter | 177226-19830 | 177226-19830-Online | 3.5*850 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 37 | + | 1 | Plate, Starter | 177242-03930 | 177242-03930-Online | |
| 38 | + | 1 | Spring, Rewind | 177220-03930 | 177220-03930-Online | |
| 39 | + | 1 | Plate, Starter | 177221-03930 | 177221-03930-Online | |
| 41 | + | 1 | Grip, Starter | 177228-19830 | 177228-19830-Online | |
| 42 | + | 1 | Guide, Rope | 177227-05020 | 177227-05020-Online | |
| 45 | 4 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 46 | 1 | Label, Echo | 890118-35430 | 890118-35430-Online | Sus. by 890118- | 49330 | |
| 46 | 1 | Label, Echo | 890118-49330 | 890118-49330-Online | ||
| 47 | 1 | Cover, Fan | 101535-39730 | 101535-39730-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Auto-Oiler Assy | 437002-37530 | 437002-37530-Online | ||
| 20 | + | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 |
| 21 | + | 1 | Pin, Control | 437009-35430 | 437009-35430-Online | 22 | ++ |
| 22 | 1 | Clip | 437065-19830 | 437065-19830-Online | 23 | ++ | |
| 23 | 1 | O-Ring | 437030-19830 | 437030-19830-Online | ||
| 24 | + | 1 | Cap, Plunger | 437062-19830 | 437062-19830-Online | |
| 25 | + | 1 | Plunger Kit | 437006-32330 | 437006-32330-Online | 26 | ++ |
| 26 | 1 | V-Ring | 437020-32430 | 437020-32430-Online | ||
| 5 | 1 | Worm (P) | 437063-19930 | 437063-19930-Online | ||
| 7 | 1 | Washer, Circular 12 | 437066-30130 | 437066-30130-Online | ||
| 8 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 9 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 10 | 1 | Pipe | 437210-39730 | 437210-39730-Online | ||
| 11 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 12 | 1 | Knob | 437039-19831 | 437039-19831-Online | ||
| 13 | 1 | Spring | 437015-19830 | 437015-19830-Online | ||
| 14 | 1 | E-Ring 3 | 900700-00003 | 900700-00003-Online | CE-3 | |
| 15 | 1 | Cover, Oil Pump | 437605-32430 | 437605-32430-Online | ||
| 16 | 3 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 2 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 3 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 4 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 5 | + | 1 | Screw | 123114-03930 | 123114-03930-Online | Sus. by 123114- | 38830 |
| 5 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 6 | + | 1 | Valve, Choke | 123132-32430 | 123132-32430-Online | |
| 7 | + | 1 | Ball, Choke Friction | 123136-10630 | 123136-10630-Online | |
| 8 | + | 1 | Spring, Choke Frict. | 123135-10630 | 123135-10630-Online | |
| 9 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 11 | + | 1 | Spring, Thrt. Return | 123113-16130 | 123113-16130-Online | |
| 12 | + | 1 | Shaft, Throttle | 123117-19830 | 123117-19830-Online | |
| 13 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 14 | + | 1 | Shaft, Choke | 123131-19830 | 123131-19830-Online | |
| 15 | + | 1 | Stop, Throttle | 123156-12330 | 123156-12330-Online | |
| 18 | + | 1 | Needle, High Speed | 123120-37530 | 123120-37530-Online | |
| 19 | + | 2 | Spring, Needle | 123121-16130 | 123121-16130-Online | |
| 20 | + | 1 | Needle, Idle | 123118-18330 | 123118-18330-Online | |
| 21 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 22 | + | 1 | Spring, Meter. Lever | 123122-03930 | 123122-03930-Online | |
| 23 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 24 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 25 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 27 | + | 1 | Gasket, M. Diaphragm | 123140-16131 | 123140-16131-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 1 | Diaphragm, Metering | 123141-16131 | 123141-16131-Online | |
| 29 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 30 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 31 | + | 1 | Screen | 123168-03930 | 123168-03930-Online | |
| 32 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 33 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 34 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 35 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 36 | + | 2 | Screw | 123114-38830 | 123114-38830-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 2 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 6 | 1 | Pipe 3*6*100 | 132012-19830 | 132012-19830-Online | 3*6*100 | Sus. by 437217- | 20760 | |
| 6 | 1 | Pipe 3* 6*100 | 437217-20760 | 437217-20760-Online | 3*6*100 NBR | |
| 7 | 1 | Connector, Fuel Pipe | 132011-19830 | 132011-19830-Online | ||
| 8 | 1 | Pipe | 132010-19830 | 132010-19830-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 11 | 1 | Roller 3*26 | 900330-30260 | 900330-30260-Online | 3*26 | |
| 12 | 1 | Cushion (A) | 100910-19930 | 100910-19930-Online | ||
| 14 | 3 | Screw | 100915-33930 | 100915-33930-Online | ||
| 15 | 3 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 16 | 2 | Cushion | 100910-19831 | 100910-19831-Online | ||
| 17 | 1 | Cover, Handle | 351155-30131 | 351155-30131-Online | ||
| 18 | 1 | Screw 4*14 | 900253-04014 | 900253-04014-Online | 4*14 | |
| 19 | 1 | Lockout, T. Control | 178090-30130 | 178090-30130-Online | ||
| 20 | 1 | Cushion, Throttle | 178073-32430 | 178073-32430-Online | ||
| 21 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 22 | 1 | Grip, Handle | 351111-30130 | 351111-30130-Online | ||
| 23 | 1 | Control, Throttle | 178010-19830 | 178010-19830-Online | ||
| 24 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 25 | 1 | Handle, W/Fuel Tank | 351103-33332 | 351103-33332-Online | ||
| 10 | + | 1 | Cushion (A) | 100251-19830 | 100251-19830-Online | |
| 32 | + | 1 | Cushion (B) | 100252-19830 | 100252-19830-Online | |
| 33 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 34 | + | 1 | Grommet, Fuel | 131329-33930 | 131329-33930-Online | |
| 26 | 1 | Latch, Throttle | 178302-30130 | 178302-30130-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 1 | Cap Assy, Fuel Tank | 131004-19831 | 131004-19831-Online | Sus. by P021- | 009150 | |
| 27 | 1 | Cover Engine | P021-009150 | P021-009150-Online | ||
| 28 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 29 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 30 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 31 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 31 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 45 | 1 | Handle, Front | 351606-37630 | 351606-37630-Online | ||
| 46 | 7 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | Sus. by 91145- | 05020 | |
| 46 | 7 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 5*20 | |
| 47 | 1 | Supporter, F. Handle | 351613-37530 | 351613-37530-Online | ||
| 48 | 1 | Bracket, Handle | 351614-37531 | 351614-37531-Online | ||
| 50 | 1 | Nut Slott | 900529-00005 | 900529-00005-Online | ||
| 51 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | + | 1 | Spring, Return | 433114-37530 | 433114-37530-Online | Sus. by 433114- | 37531 |
| 5 | + | 1 | Spring | 433114-37531 | 433114-37531-Online | |
| 6 | + | 1 | Lever, Brake | 433105-37530 | 433105-37530-Online | |
| 7 | + | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 |
| 8 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 9 | + | 2 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 |
| 10 | + | 1 | Guard, Sprocket | 433005-37530 | 433005-37530-Online | |
| 11 | + | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | |
| 12 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 13 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 14 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 15 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 16 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 17 | + | 1 | Band, Brake | 433123-35430 | 433123-35430-Online | Sus. by C328- | 000060 |
| 17 | + | 1 | Band,Brake | C328-000060 | C328-000060-Online | |
| 18 | + | 1 | Cover, Brake | 433310-37530 | 433310-37530-Online | |
| 19 | + | 3 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
| 20 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 21 | + | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | |
| 22 | 1 | Plate, Guide (Outer) | 433012-14533 | 433012-14533-Online | ||
| 23 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 25 | 1 | Plate, Guide (Inner) | 433013-19831 | 433013-19831-Online | ||
| 26 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online | ||
| 27 | 1 | Label, Echo | 890118-38130 | 890118-38130-Online | ||
| 28 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 30 | 1 | Clutch Assy | 175000-37531 | 175000-37531-Online | ||
| 31 | + | 3 | Plate, Clutch | 175019-19830 | 175019-19830-Online | |
| 32 | + | 1 | Hub, Clutch | 175016-19830 | 175016-19830-Online | |
| 33 | + | 1 | Spring, Clutch | 175018-19830 | 175018-19830-Online | |
| 34 | + | 1 | Shoe, Clutch | 175002-19830 | 175002-19830-Online | |
| 35 | + | 6 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 |
| 36 | 1 | Bearing, Needle | 175012-19830 | 175012-19830-Online | K12*15*11.8X | |
| 37 | 1 | Drum, Clutch | 175105-19930 | 175105-19930-Online | ||
| 38 | 1 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online | ||
| 40 | 1 | Bumper Kit, Spiked | 880200-30131 | 880200-30131-Online | ||
| 41 | + | 2 | Bolt | 880211-30130 | 880211-30130-Online | |
| 42 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 43 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
| 46 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 47 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 48 | 1 | Label, Caution | 890316-39130 | 890316-39130-Online |
Source PDF: 20130718-394_CS-5000_CS-5000_EN.pdf. Generated 2026-06-25 14:38.
