Echo EDR-2100 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: EDR-2100-Online
Source Pages

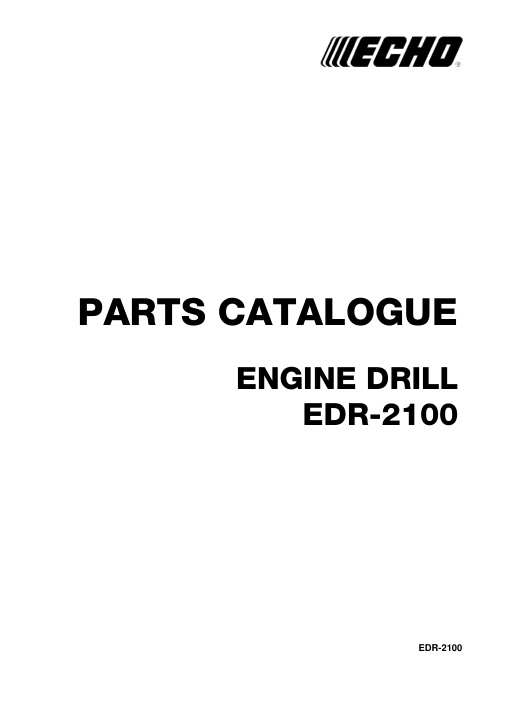

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.

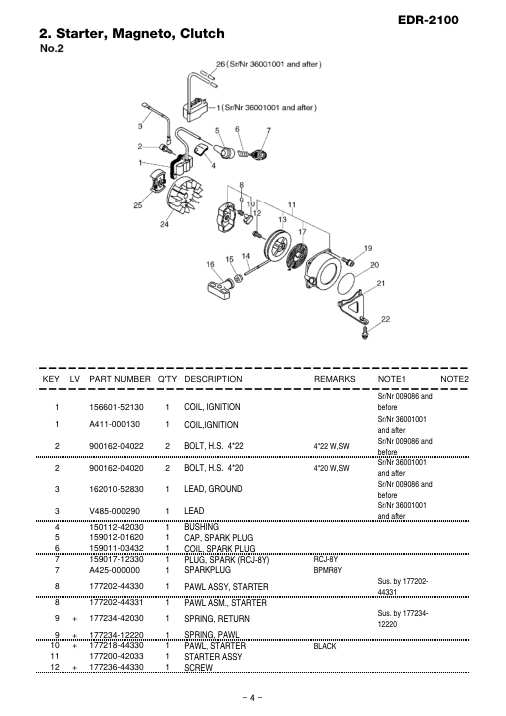

Page 5
Tap or click the page image to enlarge it.

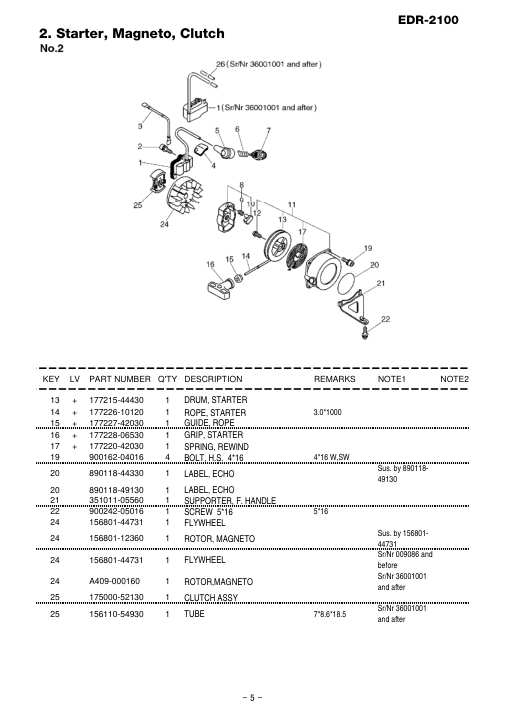

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

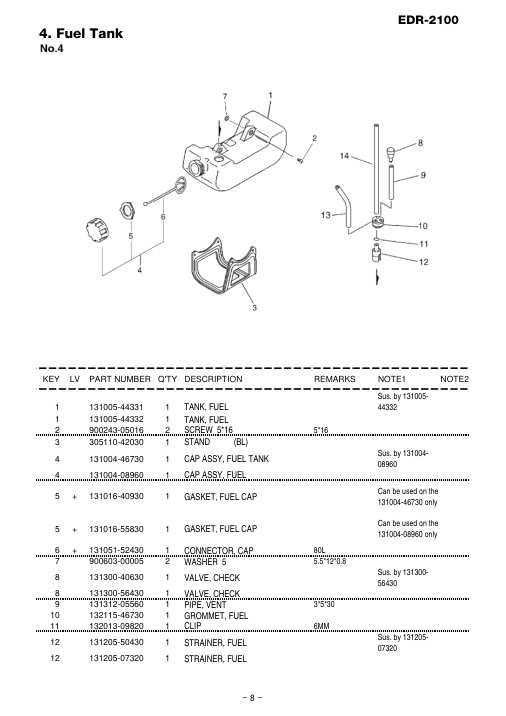

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

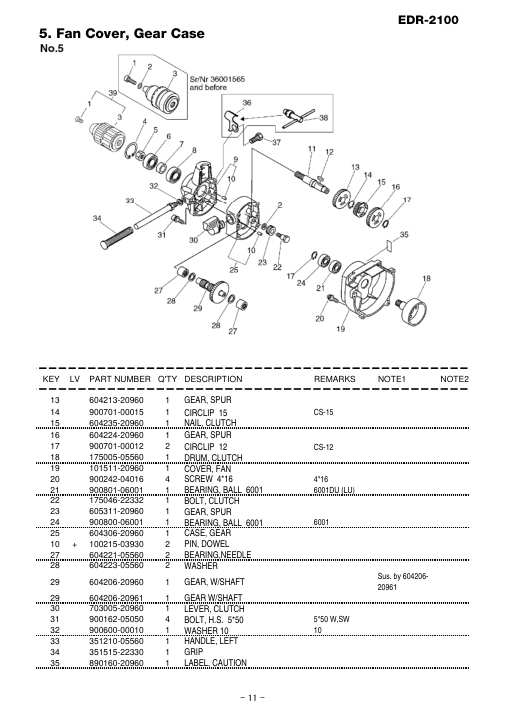

Page 12
Tap or click the page image to enlarge it.

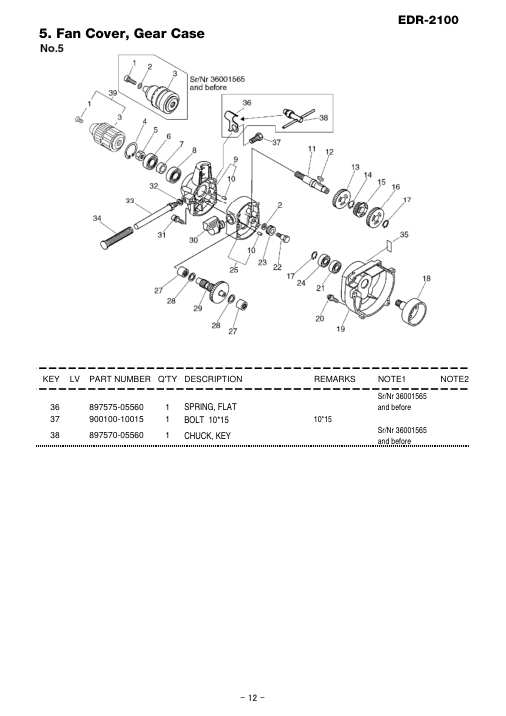

Page 13
Tap or click the page image to enlarge it.

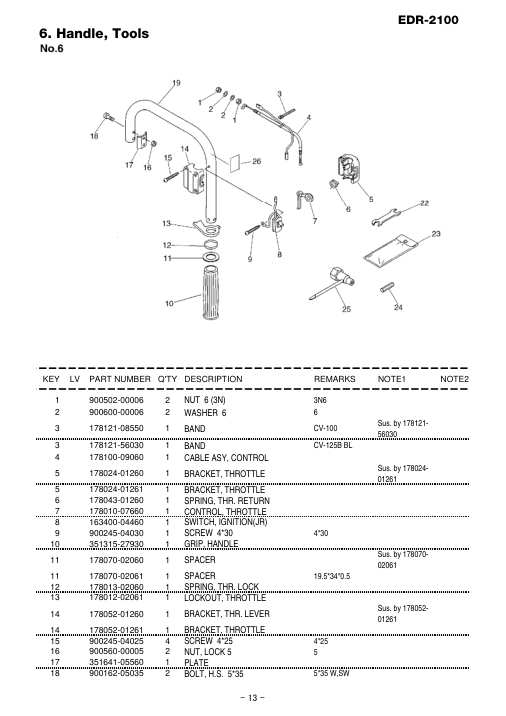

Page 14
Tap or click the page image to enlarge it.

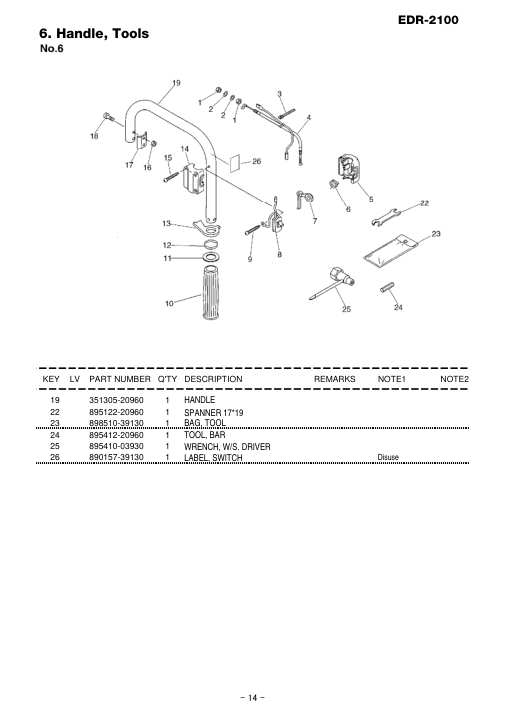

Page 15
Tap or click the page image to enlarge it.

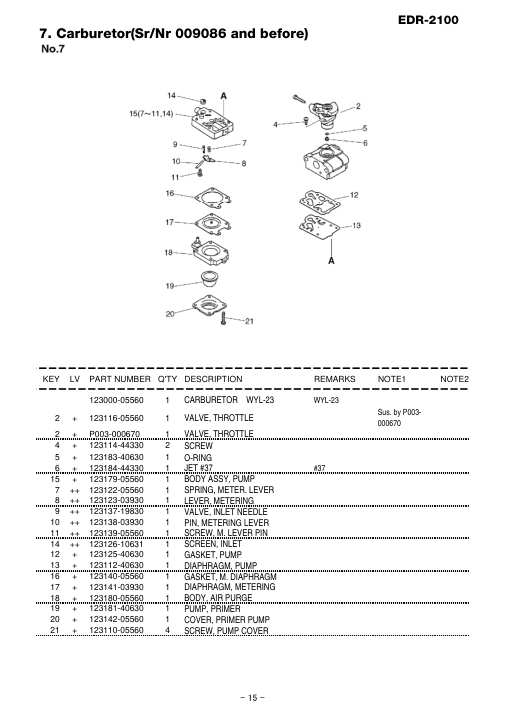

Page 16
Tap or click the page image to enlarge it.

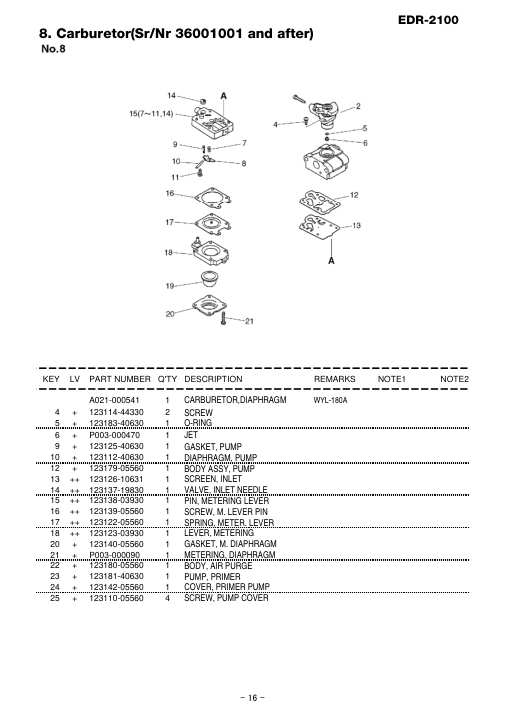

Page 17
Tap or click the page image to enlarge it.

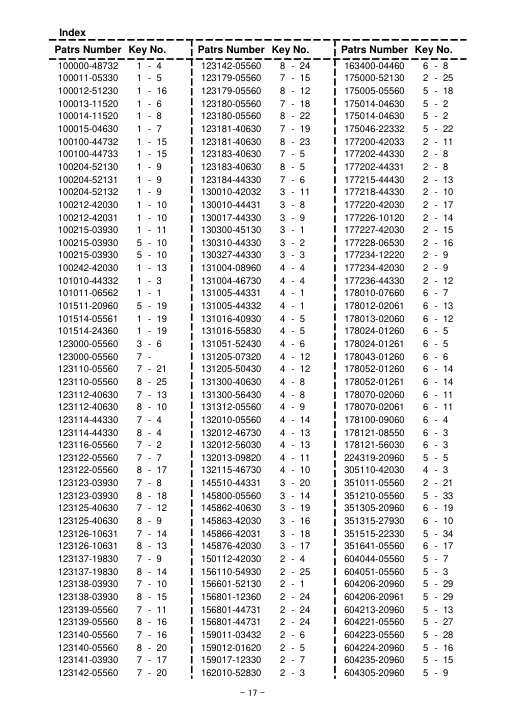

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder | 101011-06562 | 101011-06562-Online | Sr/Nr 009086 and | before | |
| 1 | 1 | Cylinder | A130-000430 | A130-000430-Online | Sr/Nr 36001001 | and after | |
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | Sr/Nr 009086 and | before | |
| 3 | 1 | Gasket,Cyl | V100-000080 | V100-000080-Online | Sr/Nr 36001001 | and after | |
| 4 | 1 | Piston Kit | 100000-48732 | 100000-48732-Online | Sr/Nr 009086 and | before | |
| 4 | 1 | Piston Kit | P021-001101 | P021-001101-Online | Sus. by P021- | 001102 | |
| 4 | 1 | Piston Kit | P021-001102 | P021-001102-Online | Sr/Nr 36001001 | and after | |
| 5 | + | 2 | Ring, Piston | 100011-05330 | 100011-05330-Online | Sr/Nr 009086 and | before |
| 5 | + | 2 | Ring,Piston | A101-000000 | A101-000000-Online | Sr/Nr 36001001 | and after |
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankcase Kit | 100204-52130 | 100204-52130-Online | Sus. by 100204- | 52132 | |
| 9 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | Sus. by 100204- | 52132 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 10 | + | 2 | Oilseal | 100212-42030 | 100212-42030-Online | ISCD12*22*4.5 | Sus. by 100212- | 42031 |
| 10 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 11 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 12 | + | 2 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | 6201/C3 | Sus. by 94035- | 36201 |
| 12 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 13 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 14 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 15 | 1 | Crankshaft Assy | 100100-44732 | 100100-44732-Online | Sus. by A011- | 000101 | |
| 15 | 1 | Crankshaft | 100100-44733 | 100100-44733-Online | Sus. by A011- | 000101 | |
| 15 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 16 | + | 1 | Bearing, Needle | 100012-51230 | 100012-51230-Online | 8*12*10 | Sus. by V553- | 000010 |
| 16 | + | 1 | Bearing,Needle 8 | V553-000030 | V553-000030-Online | Sus. by V553- | 000010 |
| 16 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 17 | 1 | Label, Model | 890310-20960 | 890310-20960-Online | ||
| 18 | 2 | Screw 4*12 | 900242-04012 | 900242-04012-Online | 4*12 | |
| 19 | 1 | Cover, Cylinder | 101514-05561 | 101514-05561-Online | Sr/Nr 009086 and | before |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | 1 | Cover, Cylinder | 101514-24360 | 101514-24360-Online | Sr/Nr 36001001 | and after | |
| 20 | 1 | Label, Caution | 890160-20960 | 890160-20960-Online | Sus. by 890160- | 20960 | |
| 21 | 1 | Label,Echo | X547-000190 | X547-000190-Online | EDR-2100 | Sr/Nr 36001566 | and after |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Coil, Ignition | 156601-52130 | 156601-52130-Online | Sr/Nr 009086 and | before | |
| 1 | 1 | Coil,Ignition | A411-000130 | A411-000130-Online | Sr/Nr 36001001 | and after | |
| 2 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | Sr/Nr 009086 and | before | |
| 2 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | Sr/Nr 36001001 | and after | |
| 3 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online | Sr/Nr 009086 and | before | |
| 3 | 1 | Lead | V485-000290 | V485-000290-Online | Sr/Nr 36001001 | and after | |
| 4 | 1 | Bushing | 150112-42030 | 150112-42030-Online | ||
| 5 | 1 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | ||
| 6 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 7 | 1 | Plug, Spark (Rcj-8Y) | 159017-12330 | 159017-12330-Online | RCJ-8Y | |
| 7 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 8 | 1 | Pawl Assy, Starter | 177202-44330 | 177202-44330-Online | Sus. by 177202- | 44331 | |
| 8 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 9 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | Sus. by 177234- | 12220 |
| 9 | + | 1 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |
| 10 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 11 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 12 | + | 1 | Screw | 177236-44330 | 177236-44330-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 14 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 15 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 16 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 17 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 19 | 4 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW | |
| 20 | 1 | Label, Echo | 890118-44330 | 890118-44330-Online | Sus. by 890118- | 49130 | |
| 20 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | ||
| 21 | 1 | Supporter, F. Handle | 351011-05560 | 351011-05560-Online | ||
| 22 | 1 | Screw 5*16 | 900242-05016 | 900242-05016-Online | 5*16 | |
| 24 | 1 | Flywheel | 156801-44731 | 156801-44731-Online | ||
| 24 | 1 | Rotor, Magneto | 156801-12360 | 156801-12360-Online | Sus. by 156801- | 44731 | |
| 24 | 1 | Rotor,Magneto | A409-000160 | A409-000160-Online | Sr/Nr 36001001 | and after | |
| 25 | 1 | Clutch Assy | 175000-52130 | 175000-52130-Online | ||
| 25 | 1 | Tube | 156110-54930 | 156110-54930-Online | 7*8.6*18.5 | Sr/Nr 36001001 | and after |

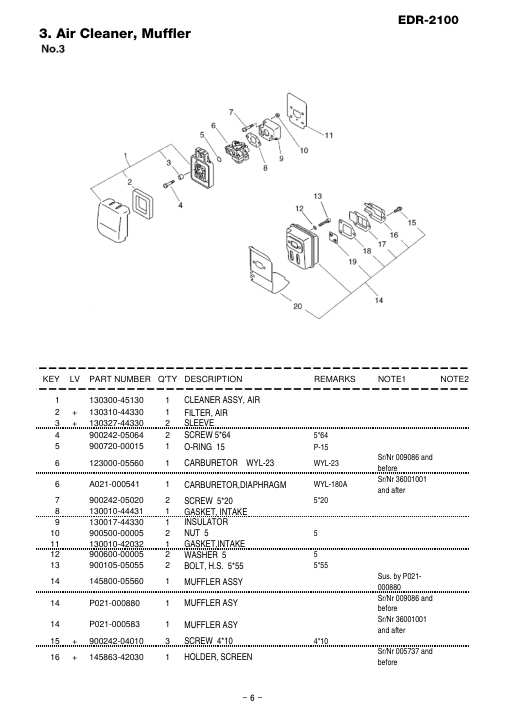

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cleaner Assy, Air | 130300-45130 | 130300-45130-Online | ||
| 2 | + | 1 | Filter, Air | 130310-44330 | 130310-44330-Online | |
| 3 | + | 2 | Sleeve | 130327-44330 | 130327-44330-Online | |
| 4 | 2 | Screw 5*64 | 900242-05064 | 900242-05064-Online | 5*64 | |
| 5 | 1 | O-Ring 15 | 900720-00015 | 900720-00015-Online | P-15 | |
| 6 | 1 | Carburetor Wyl-23 | 123000-05560 | 123000-05560-Online | WYL-23 | Sr/Nr 009086 and | before | |
| 6 | 1 | Carburetor,Diaphragm | A021-000541 | A021-000541-Online | WYL-180A | Sr/Nr 36001001 | and after | |
| 7 | 2 | Screw 5*20 | 900242-05020 | 900242-05020-Online | 5*20 | |
| 8 | 1 | Gasket, Intake | 130010-44431 | 130010-44431-Online | ||
| 9 | 1 | Insulator | 130017-44330 | 130017-44330-Online | ||
| 10 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 11 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 12 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 13 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 14 | 1 | Muffler Assy | 145800-05560 | 145800-05560-Online | Sus. by P021- | 000880 | |
| 14 | 1 | Muffler Asy | P021-000880 | P021-000880-Online | Sr/Nr 009086 and | before | |
| 14 | 1 | Muffler Asy | P021-000583 | P021-000583-Online | Sr/Nr 36001001 | and after | |
| 15 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 16 | + | 1 | Holder, Screen | 145863-42030 | 145863-42030-Online | Sr/Nr 005737 and | before |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | + | 1 | Guide,Exh | A313-000041 | A313-000041-Online | Sr/Nr 005738 and | after |
| 17 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 18 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | Sr/Nr 009086 and | before |
| 18 | + | 1 | Gasket,Exhaust | V104-000003 | V104-000003-Online | Sr/Nr 36001001 | and after |
| 19 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 20 | + | 1 | Gasket, Muffler | 145510-44331 | 145510-44331-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Tank, Fuel | 131005-44331 | 131005-44331-Online | Sus. by 131005- | 44332 | |
| 1 | 1 | Tank, Fuel | 131005-44332 | 131005-44332-Online | ||
| 2 | 2 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 5*16 | |
| 3 | 1 | Stand (Bl) | 305110-42030 | 305110-42030-Online | ||
| 4 | 1 | Cap Assy, Fuel Tank | 131004-46730 | 131004-46730-Online | Sus. by 131004- | 08960 | |
| 4 | 1 | Cap Assy, Fuel | 131004-08960 | 131004-08960-Online | ||
| 5 | + | 1 | Gasket, Fuel Cap | 131016-40930 | 131016-40930-Online | Can be used on the | 131004-46730 only |
| 5 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | Can be used on the | 131004-08960 only |
| 6 | + | 1 | Connector, Cap | 131051-52430 | 131051-52430-Online | |
| 7 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 8 | 1 | Valve, Check | 131300-40630 | 131300-40630-Online | Sus. by 131300- | 56430 | |
| 8 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 9 | 1 | Pipe, Vent | 131312-05560 | 131312-05560-Online | 3*5*30 | |
| 10 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 11 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 12 | 1 | Strainer, Fuel | 131205-50430 | 131205-50430-Online | Sus. by 131205- | 07320 | |
| 12 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online |

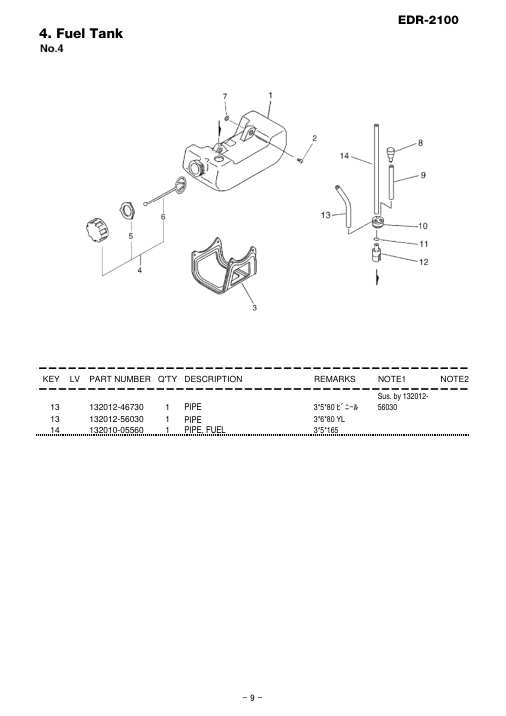

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | 1 | Pipe | 132012-46730 | 132012-46730-Online | 3*5*80 ﾋﾞﾆｰﾙ | Sus. by 132012- | 56030 | |
| 13 | 1 | Pipe | 132012-56030 | 132012-56030-Online | 3*6*80 YL | |
| 14 | 1 | Pipe, Fuel | 132010-05560 | 132010-05560-Online | 3*5*165 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Bolt, H.S. 6*20 | 900105-06020 | 900105-06020-Online | 6*20 | Sr/Nr 36001565 | and before | |
| 2 | 2 | Washer, Clutch | 175014-04630 | 175014-04630-Online | Sr/Nr 36001565 | and before Q'TY:1 | |
| 3 | 1 | Chuck | 604051-05560 | 604051-05560-Online | Sr/Nr 36001565 | and before | |
| 39 | 1 | Chuck Set | P021-009880 | P021-009880-Online | Sr/Nr 36001566 | and after | |
| 1 | + | 1 | Bolt Hsh | 91103-06020 | 91103-06020-Online | 6*20 | Can be used on | P021-009880 only |
| 3 | + | 1 | Chuck | X460-000000 | X460-000000-Online | Can be used on | P021-009880 only |
| 2 | 1 | Washer, Clutch | 175014-04630 | 175014-04630-Online | Sr/Nr 36001566 | and after | |
| 4 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 5 | 1 | Nut, 12 | 224319-20960 | 224319-20960-Online | ||
| 6 | 1 | Bearing, Ball 6002 | 900802-06002 | 900802-06002-Online | 6002DDU(LLU) | |
| 7 | 1 | Collar | 604044-05560 | 604044-05560-Online | ||
| 8 | 1 | Bearing, Ball 6002 | 900800-36002 | 900800-36002-Online | ||
| 9 | 1 | Housing, Gear | 604305-20960 | 604305-20960-Online | ||
| 10 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 11 | 1 | Shaft, Axle | 606021-20960 | 606021-20960-Online | ||
| 12 | 1 | Key, Feather 4*16 | 900325-04016 | 900325-04016-Online | 4*16 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | 1 | Gear, Spur | 604213-20960 | 604213-20960-Online | ||
| 14 | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 | |
| 15 | 1 | Nail, Clutch | 604235-20960 | 604235-20960-Online | ||
| 16 | 1 | Gear, Spur | 604224-20960 | 604224-20960-Online | ||
| 17 | 2 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 18 | 1 | Drum, Clutch | 175005-05560 | 175005-05560-Online | ||
| 19 | 1 | Cover, Fan | 101511-20960 | 101511-20960-Online | ||
| 20 | 4 | Screw 4*16 | 900242-04016 | 900242-04016-Online | 4*16 | |
| 21 | 1 | Bearing, Ball 6001 | 900801-06001 | 900801-06001-Online | 6001DU (LU) | |
| 22 | 1 | Bolt, Clutch | 175046-22332 | 175046-22332-Online | ||
| 23 | 1 | Gear, Spur | 605311-20960 | 605311-20960-Online | ||
| 24 | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | ||
| 25 | 1 | Case, Gear | 604306-20960 | 604306-20960-Online | ||
| 10 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 27 | 2 | Bearing,Needle | 604221-05560 | 604221-05560-Online | ||
| 28 | 2 | Washer | 604223-05560 | 604223-05560-Online | ||
| 29 | 1 | Gear, W/Shaft | 604206-20960 | 604206-20960-Online | Sus. by 604206- | 20961 | |
| 29 | 1 | Gear W/Shaft | 604206-20961 | 604206-20961-Online | ||
| 30 | 1 | Lever, Clutch | 703005-20960 | 703005-20960-Online | ||
| 31 | 4 | Bolt, H.S. 5*50 | 900162-05050 | 900162-05050-Online | 5*50 W,SW | |
| 32 | 1 | Washer 10 | 900600-00010 | 900600-00010-Online | ||
| 33 | 1 | Handle, Left | 351210-05560 | 351210-05560-Online | ||
| 34 | 1 | Grip | 351515-22330 | 351515-22330-Online | ||
| 35 | 1 | Label, Caution | 890160-20960 | 890160-20960-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 36 | 1 | Spring, Flat | 897575-05560 | 897575-05560-Online | Sr/Nr 36001565 | and before | |
| 37 | 1 | Bolt 10*15 | 900100-10015 | 900100-10015-Online | 10*15 | |
| 38 | 1 | Chuck, Key | 897570-05560 | 897570-05560-Online | Sr/Nr 36001565 | and before |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 2 | 2 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 3 | 1 | Band | 178121-08550 | 178121-08550-Online | CV-100 | Sus. by 178121- | 56030 | |
| 3 | 1 | Band | 178121-56030 | 178121-56030-Online | CV-125B BL | |
| 4 | 1 | Cable Asy, Control | 178100-09060 | 178100-09060-Online | ||
| 5 | 1 | Bracket, Throttle | 178024-01260 | 178024-01260-Online | Sus. by 178024- | 01261 | |
| 5 | 1 | Bracket, Throttle | 178024-01261 | 178024-01261-Online | ||
| 6 | 1 | Spring, Thr. Return | 178043-01260 | 178043-01260-Online | ||
| 7 | 1 | Control, Throttle | 178010-07660 | 178010-07660-Online | ||
| 8 | 1 | Switch, Ignition(Jr) | 163400-04460 | 163400-04460-Online | ||
| 9 | 1 | Screw 4*30 | 900245-04030 | 900245-04030-Online | 4*30 | |
| 10 | 1 | Grip, Handle | 351315-27930 | 351315-27930-Online | ||
| 11 | 1 | Spacer | 178070-02060 | 178070-02060-Online | Sus. by 178070- | 02061 | |
| 11 | 1 | Spacer | 178070-02061 | 178070-02061-Online | 19.5*34*0.5 | |
| 12 | 1 | Spring, Thr. Lock | 178013-02060 | 178013-02060-Online | ||
| 13 | 1 | Lockout, Throttle | 178012-02061 | 178012-02061-Online | ||
| 14 | 1 | Bracket, Thr. Lever | 178052-01260 | 178052-01260-Online | Sus. by 178052- | 01261 | |
| 14 | 1 | Bracket, Throttle | 178052-01261 | 178052-01261-Online | ||
| 15 | 4 | Screw 4*25 | 900245-04025 | 900245-04025-Online | 4*25 | |
| 16 | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 17 | 1 | Plate | 351641-05560 | 351641-05560-Online | ||
| 18 | 2 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | 1 | Handle | 351305-20960 | 351305-20960-Online | ||
| 22 | 1 | Spanner 17*19 | 895122-20960 | 895122-20960-Online | ||
| 23 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 24 | 1 | Tool, Bar | 895412-20960 | 895412-20960-Online | ||
| 25 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | ||
| 26 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | Disuse |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Valve, Throttle | 123116-05560 | 123116-05560-Online | Sus. by P003- | 000670 |
| 2 | + | 1 | Valve, Throttle | P003-000670 | P003-000670-Online | |
| 4 | + | 2 | Screw | 123114-44330 | 123114-44330-Online | |
| 5 | + | 1 | O-Ring | 123183-40630 | 123183-40630-Online | |
| 6 | + | 1 | Jet #37 | 123184-44330 | 123184-44330-Online | #37 |
| 15 | + | 1 | Body Assy, Pump | 123179-05560 | 123179-05560-Online | 7 | ++ |
| 7 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 8 | ++ | |
| 8 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 9 | ++ | |
| 9 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 10 | ++ | |
| 10 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 11 | ++ | |
| 11 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | 14 | ++ | |
| 14 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | ||
| 12 | + | 1 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |
| 13 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 16 | + | 1 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |
| 17 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 18 | + | 1 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |
| 19 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 20 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |
| 21 | + | 4 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | + | 2 | Screw | 123114-44330 | 123114-44330-Online | |
| 5 | + | 1 | O-Ring | 123183-40630 | 123183-40630-Online | |
| 6 | + | 1 | Part | P003-000470 | P003-000470-Online | |
| 9 | + | 1 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |
| 10 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 12 | + | 1 | Body Assy, Pump | 123179-05560 | 123179-05560-Online | 13 | ++ |
| 13 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 14 | ++ | |
| 14 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 15 | ++ | |
| 15 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 16 | ++ | |
| 16 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | 17 | ++ | |
| 17 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 18 | ++ | |
| 18 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | ||
| 20 | + | 1 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |
| 21 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 22 | + | 1 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |
| 23 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 24 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |
| 25 | + | 4 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online |
Source PDF: 20130718-498_EDR-2100_EDR-2100_EN.pdf. Generated 2026-06-25 14:38.
