Echo PB-2155 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PB-2155-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder | A130-000021 | A130-000021-Online | ||
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | P021-001102 | P021-001102-Online | ||
| 5 | + | 2 | Ring,Piston | A101-000000 | A101-000000-Online | |
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankshaft,Asm | A011-000150 | A011-000150-Online | ||
| 11 | 1 | Crankcase Kit | 100204-52133 | 100204-52133-Online | ||
| 12 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 13 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 15 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |

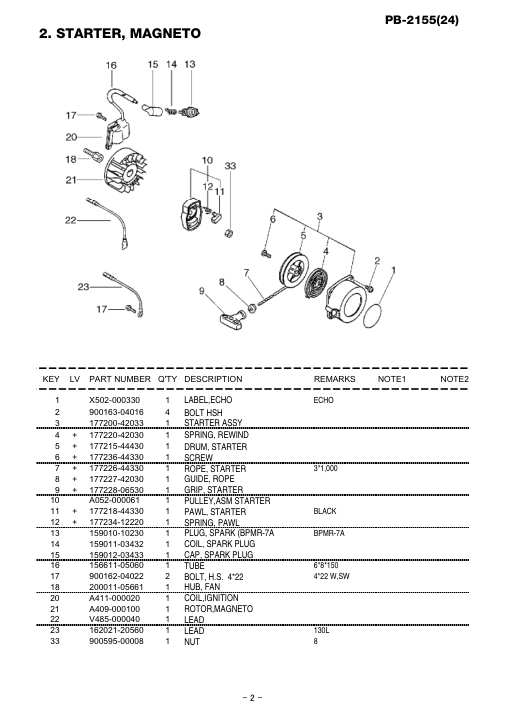

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 2 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 3 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 4 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 5 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 6 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 7 | + | 1 | Rope, Starter | 177226-44330 | 177226-44330-Online | 3*1,000 |
| 8 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 9 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 10 | 1 | Pulley,Asm Starter | A052-000061 | A052-000061-Online | ||
| 11 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 12 | + | 1 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |
| 13 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 14 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 15 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 16 | 1 | Tube | 156611-05060 | 156611-05060-Online | 6*8*150 | |
| 17 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 18 | 1 | Hub, Fan | 200011-05661 | 200011-05661-Online | ||
| 20 | 1 | Coil,Ignition | A411-000020 | A411-000020-Online | ||
| 21 | 1 | Rotor,Magneto | A409-000100 | A409-000100-Online | ||
| 22 | 1 | Lead | V485-000040 | V485-000040-Online | ||
| 23 | 1 | Lead | 162021-20560 | 162021-20560-Online | ||
| 33 | 1 | Part | 900595-00008 | 900595-00008-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover, Cylinder | 101514-20560 | 101514-20560-Online | ||
| 2 | 2 | Gasket, Intake | 130010-09561 | 130010-09561-Online | ||
| 3 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 4 | 1 | Insulator, Intake | 130017-05062 | 130017-05062-Online | ||
| 5 | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 | |
| 6 | 1 | Gasket, Intake | 130010-20560 | 130010-20560-Online | ||
| 7 | 1 | Carburetor | 125200-20663 | 125200-20663-Online | C1U-K43B EMI | |
| 8 | 1 | Case, Air Cleaner | P021-004260 | P021-004260-Online | ||
| 9 | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 5*65 | |
| 10 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 11 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 12 | 1 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | ||
| 13 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 14 | 1 | Label, Metering | 890121-05360 | 890121-05360-Online | ||
| 15 | 1 | Muffler Asy | P021-000973 | P021-000973-Online | ||
| 16 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |
| 17 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 18 | + | 1 | Gasket,Exhaust | V104-000003 | V104-000003-Online | |
| 19 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 20 | + | 1 | Guide,Exh | A313-000020 | A313-000020-Online | |
| 21 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 22 | 1 | Cover, Muffler | 145871-05760 | 145871-05760-Online | ||
| 23 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 24 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 |

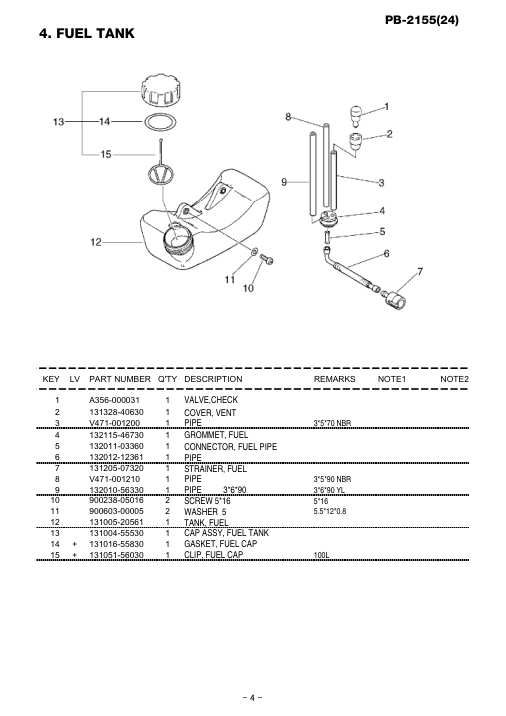

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Valve,Check | A356-000031 | A356-000031-Online | ||
| 2 | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | ||
| 3 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 4 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 5 | 1 | Connector, Fuel Pipe | 132011-03360 | 132011-03360-Online | ||
| 6 | 1 | Pipe | 132012-12361 | 132012-12361-Online | ||
| 7 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 8 | 1 | Pipe | V471-001210 | V471-001210-Online | 3*5*90 NBR | |
| 9 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 10 | 2 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 11 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 12 | 1 | Tank, Fuel | 131005-20561 | 131005-20561-Online | ||
| 13 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 14 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 15 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online |

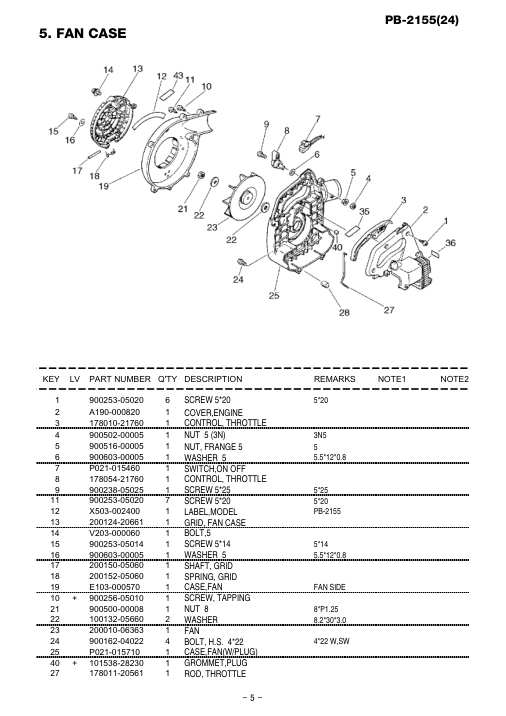

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 6 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 2 | 1 | Cover,Engine | A190-000820 | A190-000820-Online | ||
| 3 | 1 | Control, Throttle | 178010-21760 | 178010-21760-Online | ||
| 4 | 1 | Nut 5 (3N) | 900502-00005 | 900502-00005-Online | 3N5 | |
| 5 | 1 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | ||
| 6 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 7 | 1 | Switch,On Off | P021-015460 | P021-015460-Online | ||
| 8 | 1 | Control, Throttle | 178054-21760 | 178054-21760-Online | ||
| 9 | 1 | Screw 5*25 | 900238-05025 | 900238-05025-Online | 5*25 | |
| 11 | 7 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 12 | 1 | Label,Model | X503-002400 | X503-002400-Online | PB-2155 | |
| 13 | 1 | Grid, Fan Case | 200124-20661 | 200124-20661-Online | ||
| 14 | 1 | Bolt,5 | V203-000060 | V203-000060-Online | ||
| 15 | 1 | Screw 5*14 | 900253-05014 | 900253-05014-Online | 5*14 | |
| 16 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 17 | 1 | Shaft, Grid | 200150-05060 | 200150-05060-Online | ||
| 18 | 1 | Spring, Grid | 200152-05060 | 200152-05060-Online | ||
| 19 | 1 | Case,Fan | E103-000570 | E103-000570-Online | FAN SIDE | |
| 10 | + | 1 | Screw, Tapping | 900256-05010 | 900256-05010-Online | |
| 21 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 22 | 2 | Washer | 100132-05660 | 100132-05660-Online | 8.2*30*3.0 | |
| 23 | 1 | Part | 200010-06363 | 200010-06363-Online | ||
| 24 | 4 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 25 | 1 | Case,Fan(W/Plug) | P021-015710 | P021-015710-Online | ||
| 40 | + | 1 | Grommet,Plug | 101538-28230 | 101538-28230-Online | |
| 27 | 1 | Rod, Throttle | 178011-20561 | 178011-20561-Online |

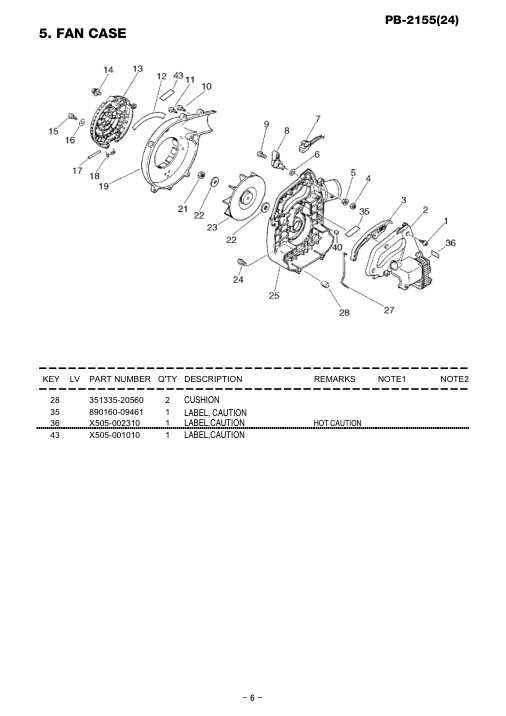

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | 2 | Cushion | 351335-20560 | 351335-20560-Online | ||
| 35 | 1 | Label, Caution | 890160-09461 | 890160-09461-Online | ||
| 36 | 1 | Label,Caution | X505-002310 | X505-002310-Online | HOT CAUTION | |
| 43 | 1 | Label,Caution | X505-001010 | X505-001010-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Pipe,Blower | 210007-20660 | 210007-20660-Online | ||
| 4 | + | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 |
| 5 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 6 | 1 | Pipe, Straight | 210014-20661 | 210014-20661-Online | ||
| 7 | 1 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online |

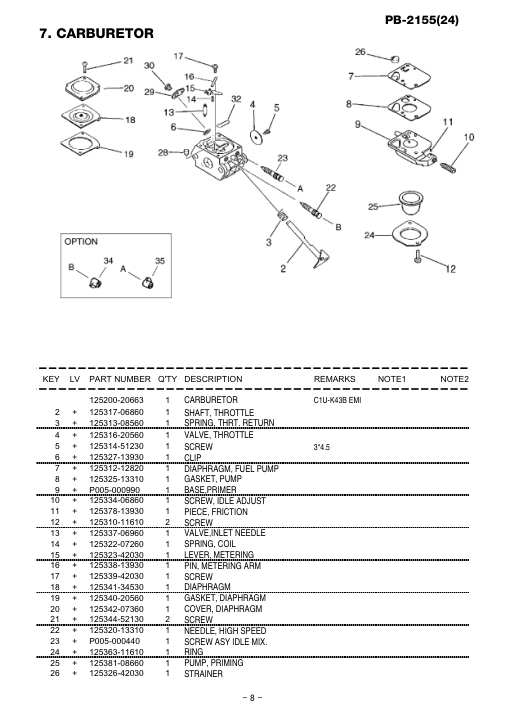

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Shaft, Throttle | 125317-06860 | 125317-06860-Online | |
| 3 | + | 1 | Spring, Thrt. Return | 125313-08560 | 125313-08560-Online | |
| 4 | + | 1 | Valve, Throttle | 125316-20560 | 125316-20560-Online | |
| 5 | + | 1 | Screw | 125314-51230 | 125314-51230-Online | 3*4.5 |
| 6 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 7 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 8 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online | |
| 9 | + | 1 | Base,Primer | P005-000990 | P005-000990-Online | |
| 10 | + | 1 | Screw, Idle Adjust | 125334-06860 | 125334-06860-Online | |
| 11 | + | 1 | Piece, Friction | 125378-13930 | 125378-13930-Online | |
| 12 | + | 2 | Screw | 125310-11610 | 125310-11610-Online | |
| 13 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 14 | + | 1 | Spring, Coil | 125322-07260 | 125322-07260-Online | |
| 15 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 16 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 17 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 18 | + | 1 | Diaphragm | 125341-34530 | 125341-34530-Online | |
| 19 | + | 1 | Gasket, Diaphragm | 125340-20560 | 125340-20560-Online | |
| 20 | + | 1 | Cover, Diaphragm | 125342-07360 | 125342-07360-Online | |
| 21 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 22 | + | 1 | Needle, High Speed | 125320-13310 | 125320-13310-Online | |
| 23 | + | 1 | Screw Asy Idle Mix. | P005-000440 | P005-000440-Online | |
| 24 | + | 1 | Ring | 125363-11610 | 125363-11610-Online | |
| 25 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 26 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online |

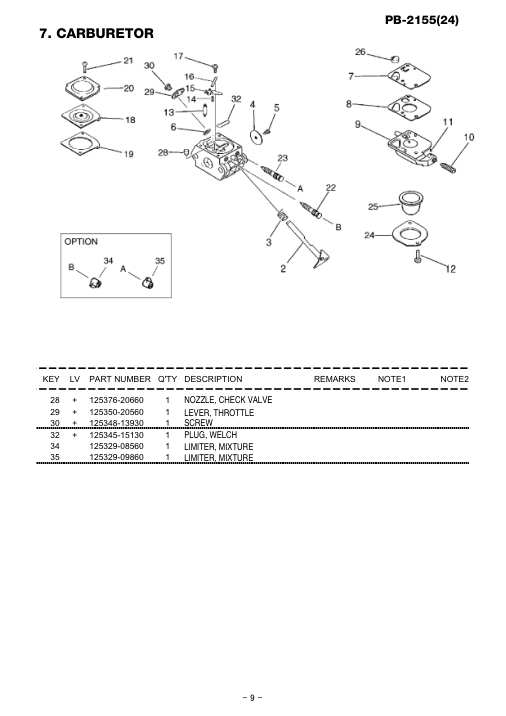

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 1 | Nozzle, Check Valve | 125376-20660 | 125376-20660-Online | |
| 29 | + | 1 | Lever, Throttle | 125350-20560 | 125350-20560-Online | |
| 30 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 32 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 34 | 1 | Limiter, Mixture | 125329-08560 | 125329-08560-Online | ||
| 35 | 1 | Limiter, Mixture | 125329-09860 | 125329-09860-Online |
