Echo SRS-2100 IPL / Parts List

Echo SRS-2100 IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: SRS-2100-Online

Source Pages

Page 1

Echo SRS-2100 IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo SRS-2100 IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo SRS-2100 IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo SRS-2100 IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo SRS-2100 IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo SRS-2100 IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo SRS-2100 IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo SRS-2100 IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo SRS-2100 IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo SRS-2100 IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo SRS-2100 IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo SRS-2100 IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

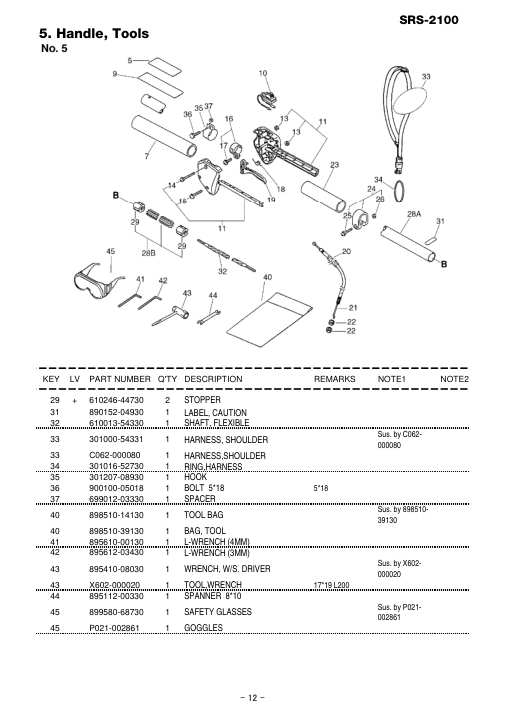

Echo SRS-2100 IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

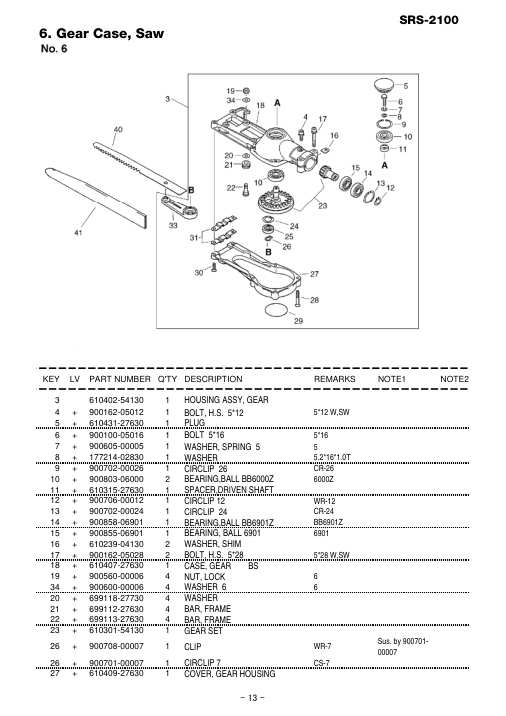

Echo SRS-2100 IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo SRS-2100 IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo SRS-2100 IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo SRS-2100 IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

Echo SRS-2100 IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

Echo SRS-2100 IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 20

Echo SRS-2100 IPL / Parts List source page 20

Tap or click the page image to enlarge it.

Page 21

Echo SRS-2100 IPL / Parts List source page 21

Tap or click the page image to enlarge it.

Page 22

Echo SRS-2100 IPL / Parts List source page 22

Tap or click the page image to enlarge it.

Page 23

Echo SRS-2100 IPL / Parts List source page 23

Tap or click the page image to enlarge it.

Page 24

Echo SRS-2100 IPL / Parts List source page 24

Tap or click the page image to enlarge it.

Page 2 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Cylinder	101011-47630	101011-47630-Online	Sus. by 101011- \| 48730
5		1	Cylinder	101011-48730	101011-48730-Online
6		2	Bolt, H.S. 5*22	900162-05022	900162-05022-Online	5*22 W,SW
7		1	Gasket, Cyl. Base	101010-44331	101010-44331-Online	Sus. by 101010- \| 44332
7		1	Gasket, Cyl. Base	101010-44332	101010-44332-Online
8		1	Piston Kit	100000-44330	100000-44330-Online	Sus. by 100000- \| 44331
8		1	Piston Kit	100000-44331	100000-44331-Online
9	+	1	Ring, Piston	100011-05330	100011-05330-Online
10	+	1	Pin, Piston	100013-11520	100013-11520-Online
11	+	2	Circlip, Piston Pin	100015-04630	100015-04630-Online
12	+	2	Spacer, Piston Pin	100014-11520	100014-11520-Online
14		1	Crankcase Kit	100204-51030	100204-51030-Online	Sus. by 100204- \| 51031
14		1	Crankcase Kit	100204-51031	100204-51031-Online
13	+	2	Oilseal	100212-42030	100212-42030-Online	ISCD12224.5 \| Sus. by 100212- \| 42031
13	+	2	Oilseal	100212-42031	100212-42031-Online	ISCD 12224.5
15	+	2	Pin, Dowel	100215-03930	100215-03930-Online	Sus. by V622- \| 000020
15	+	2	Pin,Straight 4	V622-000020	V622-000020-Online	4*7.8
16	+	2	Bearing, Ball 6201	900810-36201	900810-36201-Online	6201/C3 \| Sus. by 94035- \| 36201

Page 3 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
16	+	2	Bearing Ball	94035-36201	94035-36201-Online	6201X3JR2C3
18	+	1	Gasket, Crankcase	100242-42030	100242-42030-Online
19	+	3	Bolt, H.S. 5*28	900162-05028	900162-05028-Online	5*28 W,SW
17		1	Crankshaft Assy	100100-44732	100100-44732-Online	Sus. by A011- \| 000101
17		1	Crankshaft	100100-44733	100100-44733-Online	Sus. by A011- \| 000101
17		1	Crankshaft,Asm	A011-000101	A011-000101-Online
4	+	1	Bearing, Needle	100012-51230	100012-51230-Online	81210 \| Sus. by V553- \| 000010
4	+	1	Bearing,Needle 8	V553-000010	V553-000010-Online	HK0810
20		2	Bolt, H.S. 4*22	900162-04022	900162-04022-Online	4*22 W,SW
21		1	Screw 5*16	900238-05016	900238-05016-Online	5*16
22		1	Guard, Top	159912-54130	159912-54130-Online
23		1	Cover, Cylinder	101514-48930	101514-48930-Online
24		1	Label, Model	890115-54330	890115-54330-Online
25		1	Cover Assy, Fan	101503-52131	101503-52131-Online
26		4	Bolt, H.S. 4*16	900162-04016	900162-04016-Online	4*16 W,SW
33		1	Drum, Clutch	175005-48930	175005-48930-Online	Sus. by 175005- \| 48931
33		1	Drum, Clutch	175005-48931	175005-48931-Online
34		1	Circlip 28	900702-00028	900702-00028-Online	CR-28
35		2	Bearing, Ball 6001	900807-06001	900807-06001-Online	6001V(LB)
36		1	Circlip 12	900701-00012	900701-00012-Online	CS-12
37		1	Cushion	610910-55230	610910-55230-Online
39		1	Holder Kit	610903-55230	610903-55230-Online

Page 4 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
40	+	1	Holder	610923-55230	610923-55230-Online
41	+	1	Holder	610922-27432	610922-27432-Online
42	+	2	Bolt 5*25 (W/W,Sw)	900142-05025	900142-05025-Online	5*25
45		1	Label, Caution	890194-06360	890194-06360-Online	Sus. by 890160- \| 06361
45		1	Label, Caution	890160-06360	890160-06360-Online	Sus. by 890160- \| 06361
45		1	Label, Caution	890160-06361	890160-06361-Online

Page 5 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
6		1	Clutch Assy	175000-42031	175000-42031-Online	Sus. by 175000- \| 56830
6		1	Clutch Assy	175000-49030	175000-49030-Online	Sus. by 175000- \| 56830
6		1	Clutch Assy	175000-56830	175000-56830-Online
7		1	Flywheel	156801-44730	156801-44730-Online	Sus. by 156801- \| 44731
7		1	Flywheel	156801-44731	156801-44731-Online
8		2	Bolt, H.S. 4*22	900162-04022	900162-04022-Online	4*22 W,SW
9		1	Coil, Ignition	156601-44730	156601-44730-Online	Sus. by 156601- \| 44731
9		1	Coil, Ignition	156601-44731	156601-44731-Online
9		1	Coil, Ignition	156601-52130	156601-52130-Online	Sus. by set of \| 156601-52130 and
5		1	Lead, Ground	162010-52830	162010-52830-Online
10		1	Cap, Spark Plug	159012-01620	159012-01620-Online
11		1	Coil, Spark Plug	159011-03432	159011-03432-Online
12		1	Plug, Spark (Bpm-7A)	159010-10630	159010-10630-Online	BPM-7A
13		1	Grommet	156112-40630	156112-40630-Online
20		1	Pawl Assy, Starter	177202-44330	177202-44330-Online	Sus. by 177202- \| 44331
20		1	Pawl Asm., Starter	177202-44331	177202-44331-Online
23	+	1	Spring, Return	177234-42030	177234-42030-Online	Sus. by 177234- \| 12220

Page 6 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
23	+	1	Spring, Pawl	177234-12220	177234-12220-Online
24	+	1	Pawl, Starter	177218-44330	177218-44330-Online	BLACK
26		1	Starter Assy	177200-42032	177200-42032-Online	Sus. by 177200- \| 42033
26		1	Starter Assy	177200-42033	177200-42033-Online
27	+	1	Screw	177236-44330	177236-44330-Online
29	+	1	Drum, Starter	177215-42030	177215-42030-Online	Sus. by 177215- \| 44430
29	+	1	Drum, Starter	177215-44430	177215-44430-Online
30	+	1	Rope, Starter	177226-10120	177226-10120-Online	3.0*1000
31	+	1	Guide, Rope	177227-42030	177227-42030-Online
32	+	1	Grip, Starter	177228-06530	177228-06530-Online
33	+	1	Spring, Rewind	177220-42030	177220-42030-Online
35		2	Bolt, H.S. 4*22	900162-04022	900162-04022-Online	4*22 W,SW
36		1	Label, Echo	890118-49130	890118-49130-Online	Sus. by X502- \| 000310
36		1	Label,Echo	X502-000310	X502-000310-Online	47.5MM DIA.
41		1	Handle (Bl)	351010-05060	351010-05060-Online
42		1	Supporter, F. Handle	351011-54330	351011-54330-Online
43		1	Bracket, Handle	351028-54330	351028-54330-Online
44		3	Screw 5*14	900252-05014	900252-05014-Online	5*14
45		1	Grip, Handle	351213-54330	351213-54330-Online
46		1	Collar	101531-09460	101531-09460-Online
47		1	Collar	101531-54330	101531-54330-Online

Page 7 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Gasket,Intake	130010-42032	130010-42032-Online
6		2	Nut 5	900500-00005	900500-00005-Online
7		2	Screw 5*20	900238-05020	900238-05020-Online	5*20
8		1	Insulator, Intake	130017-42031	130017-42031-Online
9		1	Gasket,Intake	V103-000111	V103-000111-Online	Sus. by 130016- \| 42031
9		1	Gasket, Intake	130016-42031	130016-42031-Online
10		1	Carburetor Assy	125200-50631	125200-50631-Online	C1U-K16A \| Sus. by 125200- \| 50633
10		1	Carburetor	125200-50632	125200-50632-Online	C1U-K16A \| Sus. by 125200- \| 50633
10		1	Carburetor C1U-K16A	125200-50633	125200-50633-Online	C1U-K16A
14		1	Case, Air Cleaner	130307-05360	130307-05360-Online
14		1	Case, Air Cleaner	130307-06561	130307-06561-Online	Sus. by P021- \| 002921
14		1	Case, Air Cleaner	P021-002921	P021-002921-Online
17	+	2	Screw 5*65	900242-05065	900242-05065-Online	5*65
15		1	Label, Choke	890121-06360	890121-06360-Online	Sus. by 890121- \| 05360
15		1	Label, Metering	890121-05360	890121-05360-Online
16		1	Plate	129011-05060	129011-05060-Online
16		1	Plate, Prevent	129011-06360	129011-06360-Online	Sus. by 129011- \| 06361
16		1	Plate, Prevent	129011-06361	129011-06361-Online
19		1	Filter, Air	130310-06560	130310-06560-Online
19		1	Filter, Air	130310-54130	130310-54130-Online

Page 8 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
21		1	Cover, Air Cleaner	130313-06560	130313-06560-Online
21		1	Cover, Air Cleaner	130313-06561	130313-06561-Online
21		1	Lid, Air Cleaner	130313-06563	130313-06563-Online
22		1	Part	900528-00005	900528-00005-Online
22		1	Bolt, Wing	210417-52730	210417-52730-Online	5*20
23		2	Bolt, H.S. 5*55	900105-05055	900105-05055-Online	5*55
24		2	Washer 5	900600-00005	900600-00005-Online
32		1	Muffler Assy	145800-42031	145800-42031-Online	Sus. by 145800- \| 42034
32		1	Muffler Asy (Sam)	145800-42033	145800-42033-Online	Sus. by 145800- \| 42034
32		1	Muffler Asy (Sam)	145800-42034	145800-42034-Online
25	+	1	Gasket, Muffler Lid	145866-42031	145866-42031-Online
33	+	1	Lid, Muffler	145809-42030	145809-42030-Online	26 \| ++
26		1	Lid, Muffler (B)	145876-42030	145876-42030-Online	29 \| ++
29		1	Holder, Screen	145863-42030	145863-42030-Online
27	+	3	Screw 4*10	900238-04010	900238-04010-Online	4*10
28	+	1	Screen, Muffler	145862-40630	145862-40630-Online
30	+	2	Gasket, Muffler	145510-42031	145510-42031-Online	Sus. by V104- \| 000160
30	+	2	Gasket,Exhaust	V104-000160	V104-000160-Online
31	+	1	Cover, Muffler	145871-44331	145871-44331-Online	Sus. by A320- \| 000251
31	+	1	Cover, Muffler	145631-42030	145631-42030-Online	Sus. by A320- \| 000251

Page 9 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
31	+	1	Cover,Muffler	A320-000250	A320-000250-Online	Sus. by A320- \| 000251
31	+	1	Cover,Muffler	A320-000251	A320-000251-Online

Page 10 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Valve, Check	131300-40630	131300-40630-Online	Sus. by A356- \| 000030
5		1	Valve, Check	131300-56430	131300-56430-Online	Sus. by A356- \| 000030
5		1	Valve,Check	A356-000030	A356-000030-Online
6		1	Pipe 35 90	132012-51030	132012-51030-Online	3590 ﾋﾞﾆｰﾙ \| Sus.by 132010- \| 56330
6		1	Pipe 3690	132010-56330	132010-56330-Online	3690 YL
7		1	Pipe, 3570L	131312-44330	131312-44330-Online	3570L NBR \| Sus.by V471- \| 001200
7		1	Pipe	131312-39130	131312-39130-Online	3570(+3)NBR \| Sus.by V471- \| 001200
7		1	Pipe	V471-001200	V471-001200-Online	3570 NBR
8		1	Grommet, Fuel	132115-46730	132115-46730-Online	Sus.by V137- \| 000030
8		1	Grommet,Fuel	V137-000030	V137-000030-Online
9		1	Clip	132013-09820	132013-09820-Online	6MM
10		1	Strainer, Fuel	131205-07320	131205-07320-Online
11		1	Pipe, Fuel	132010-13930	132010-13930-Online	35180L NBR \| Sus. by V471- \| 001190
11		1	Pipe	V471-001190	V471-001190-Online	35180 NBR
12		2	Screw 5*16	900238-05016	900238-05016-Online	5*16
14		2	Washer 5	900603-00005	900603-00005-Online	5.5120.8
15		1	Tank, Fuel	131005-44330	131005-44330-Online	Sus. by 131005- \| 46831

Page 11 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
15		1	Tank, Fuel	131005-44331	131005-44331-Online	Sus. by 131005- \| 46831
15		1	Tank, Fuel	131005-46830	131005-46830-Online	Sus. by 131005- \| 46831
15		1	Tank, Fuel	131005-46831	131005-46831-Online
16		1	Cap Assy, Fuel Tank	131004-55730	131004-55730-Online	Sus. by 131004- \| 55830
16		1	Cap Assy, Fuel Tank	131004-55830	131004-55830-Online
17	+	1	Gasket, Fuel Cap	131016-40930	131016-40930-Online	Can be used on the \| 131004-55730 only
17	+	1	Gasket, Fuel Cap	131016-55830	131016-55830-Online	Can be used on the \| 131004-55830 only
18		1	Stand (Bl)	305110-42030	305110-42030-Online

Page 12 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Label, Caution	890178-54331	890178-54331-Online
7		1	Grip	351012-54330	351012-54330-Online
9		1	Label, Caution	890160-54331	890160-54331-Online
10		1	Switch, Ignition	163400-49230	163400-49230-Online	Sus. by 163401- \| 55631
10		1	Switch, Ignition	163401-55631	163401-55631-Online
11		1	Bracket Set,Throttle	178003-52130	178003-52130-Online
13	+	2	Nut 5	900500-00005	900500-00005-Online
14	+	1	Screw 5*35	900242-05035	900242-05035-Online	5*35
15	+	1	Screw 5*25	900242-05025	900242-05025-Online	5*25
16		1	Band Assy	301200-29430	301200-29430-Online
17	+	1	Screw 5*12	900242-05012	900242-05012-Online	5*12 \| Sus. by 900242- \| 05014
17	+	1	Screw 5*14	900242-05014	900242-05014-Online	5*14
18		1	Spring, Thr. Return	178043-42230	178043-42230-Online
19		1	Control, Throttle	178010-52130	178010-52130-Online
20		1	Tube	178127-50330	178127-50330-Online	1011140
21		1	Wire, Throttle	178001-44430	178001-44430-Online	Sus. by 178001- \| 56730
21		1	Cable, Throttle	178001-56730	178001-56730-Online
22		2	Nut 6 (3N)	900502-00006	900502-00006-Online	3N6
23		1	Grip	351213-52130	351213-52130-Online
24		1	Band	610272-52130	610272-52130-Online
25	+	1	Screw 5*28	900242-05028	900242-05028-Online	5*28
26	+	1	Nut 5	900500-00005	900500-00005-Online
28		1	Housing Assy, D.Shft	610206-54330	610206-54330-Online

Page 13 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
29	+	2	Stopper	610246-44730	610246-44730-Online
31		1	Label, Caution	890152-04930	890152-04930-Online
32		1	Shaft, Flexible	610013-54330	610013-54330-Online
33		1	Harness, Shoulder	301000-54331	301000-54331-Online	Sus. by C062- \| 000080
33		1	Harness,Shoulder	C062-000080	C062-000080-Online
34		1	Ring,Harness	301016-52730	301016-52730-Online
35		1	Hook	301207-08930	301207-08930-Online
36		1	Bolt 5*18	900100-05018	900100-05018-Online	5*18
37		1	Spacer	699012-03330	699012-03330-Online
40		1	Tool Bag	898510-14130	898510-14130-Online	Sus. by 898510- \| 39130
40		1	Bag, Tool	898510-39130	898510-39130-Online
41		1	L-Wrench (4Mm)	895610-00130	895610-00130-Online
42		1	L-Wrench (3Mm)	895612-03430	895612-03430-Online
43		1	Wrench, W/S. Driver	895410-08030	895410-08030-Online	Sus. by X602- \| 000020
43		1	Tool,Wrench	X602-000020	X602-000020-Online	17*19 L200
44		1	Spanner 8*10	895112-00330	895112-00330-Online
45		1	Safety Glasses	899580-68730	899580-68730-Online	Sus. by P021- \| 002861
45		1	Goggles	P021-002861	P021-002861-Online

Page 14 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
3		1	Housing Assy, Gear	610402-54130	610402-54130-Online
4	+	1	Bolt, H.S. 5*12	900162-05012	900162-05012-Online	5*12 W,SW
5	+	1	Plug	610431-27630	610431-27630-Online
6	+	1	Bolt 5*16	900100-05016	900100-05016-Online	5*16
7	+	1	Washer, Spring 5	900605-00005	900605-00005-Online
8	+	1	Washer	177214-02830	177214-02830-Online	5.2161.0T
9	+	1	Circlip 26	900702-00026	900702-00026-Online	CR-26
10	+	2	Bearing,Ball Bb6000Z	900803-06000	900803-06000-Online
11	+	1	Spacer,Driven Shaft	610315-27630	610315-27630-Online
12	+	1	Circlip 12	900706-00012	900706-00012-Online	WR-12
13	+	1	Circlip 24	900702-00024	900702-00024-Online	CR-24
14	+	1	Bearing,Ball Bb6901Z	900858-06901	900858-06901-Online	BB6901Z
15	+	1	Bearing, Ball 6901	900855-06901	900855-06901-Online
16	+	2	Washer, Shim	610239-04130	610239-04130-Online
17	+	2	Bolt, H.S. 5*28	900162-05028	900162-05028-Online	5*28 W,SW
18	+	1	Case, Gear Bs	610407-27630	610407-27630-Online
19	+	4	Nut, Lock	900560-00006	900560-00006-Online
34	+	4	Washer 6	900600-00006	900600-00006-Online
20	+	4	Washer	699118-27730	699118-27730-Online
21	+	4	Bar, Frame	699112-27630	699112-27630-Online
22	+	4	Bar, Frame	699113-27630	699113-27630-Online
23	+	1	Gear Set	610301-54130	610301-54130-Online
26	+	1	Clip	900708-00007	900708-00007-Online	WR-7 \| Sus. by 900701- \| 00007
26	+	1	Circlip 7	900701-00007	900701-00007-Online	CS-7
27	+	1	Cover, Gear Housing	610409-27630	610409-27630-Online

Page 15 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
28	+	4	Bolt, H.S. 5*30	900175-05030	900175-05030-Online	5*30
29	+	1	Label, Echo	890118-49330	890118-49330-Online
30	+	2	Bolt, H.S. 5*18	900175-05018	900175-05018-Online	5*18
31	+	2	Bar, Frame	699110-27630	699110-27630-Online
33	+	1	Con-Rod Assy	610302-27630	610302-27630-Online
24	+	1	Circlip 19	900702-00019	900702-00019-Online	CR-19
25	+	1	Bearing, Ball 607	900804-00607	900804-00607-Online	607ZZ
40		2	Saw, Band	697020-54130	697020-54130-Online	Sus. by 697020- \| 54131
40		2	Saw, Band (Q'Ty-2)	697020-54131	697020-54131-Online
41		1	Scabbard, Blade	898523-54330	898523-54330-Online

Page 16 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1	+	2	Screw	125344-52130	125344-52130-Online
2	+	1	Cover, Diaphragm	125342-52130	125342-52130-Online	Sus. by 125342- \| 13210
2	+	1	Cover, Diaphragm	125342-13210	125342-13210-Online
3	+	1	Diaphragm	125341-42030	125341-42030-Online
4	+	1	Gasket, Diaphragm	125340-42030	125340-42030-Online
5	+	1	Screw	125339-42030	125339-42030-Online
6	+	1	Pin, Metering Arm	125338-13930	125338-13930-Online
7	+	1	Lever, Metering	125323-42030	125323-42030-Online
8	+	1	Spring, Coil	125322-42030	125322-42030-Online
9	+	1	Valve,Inlet Needle	125337-06960	125337-06960-Online
10	+	1	Clip	125327-15130	125327-15130-Online
11	+	1	Plug, Welch	125345-15130	125345-15130-Online
12	+	1	Valve, Throttle	125316-42030	125316-42030-Online
13	+	1	Screw	125314-13930	125314-13930-Online	3*4
14	+	2	Spring, Coil	125319-42030	125319-42030-Online
15	+	1	Needle, High Speed	125320-47630	125320-47630-Online
16	+	1	Needle, Idle	125318-42030	125318-42030-Online
17	+	1	Spring, Thrt. Return	125313-42030	125313-42030-Online
18	+	1	Shaft, Throttle	125317-42030	125317-42030-Online
19	+	1	Clip	125327-13930	125327-13930-Online

Page 17 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
20	+	1	Swivel	125372-42030	125372-42030-Online
21	+	1	Strainer	125326-42030	125326-42030-Online
22	+	1	Diaphragm, Fuel Pump	125312-42030	125312-42030-Online	Can be used on the \| 125200-50631 only
22	+	1	Diaphragm, Fuel Pump	125312-12820	125312-12820-Online	Can be used on the \| 125200-50632 only
23	+	1	Gasket, Fuel Pump	125325-42030	125325-42030-Online	Sus. by 125325- \| 13310
23	+	1	Gasket, Pump	125325-13310	125325-13310-Online
24	+	1	Cover, Pump	125324-11610	125324-11610-Online	Can be used on the \| 125200-50631 and \| 50632
24	+	1	Base, Primer	125383-13310	125383-13310-Online	Can be used on the \| 125200-50631 and \| 50632
24	+	1	Base,Primer	P005-000990	P005-000990-Online	Can be used on the \| 125200-50631 and \| 50632
26	+	1	Pump, Priming	125381-46730	125381-46730-Online	Sus. by 125381- \| 08660
26	+	1	Pump, Priming	125381-08660	125381-08660-Online

Page 18 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
27	+	1	Ring	125363-11610	125363-11610-Online
28	+	2	Screw	125310-11610	125310-11610-Online
29	+	1	Screw, Idle Adjust	125334-13930	125334-13930-Online	Can be used on the \| 125200-50631 only
29	+	1	Screw	125344-08560	125344-08560-Online	Can be used on the \| 125200-50632 only
30	+	1	Piece, Friction	125378-13930	125378-13930-Online	Can be used on the \| 125200-50631 only
30	+	1	Spring,Adjust Screw	125333-08560	125333-08560-Online	Can be used on the \| 125200-50632 only
31	+	1	Nozzle, Check Valve	125376-11610	125376-11610-Online
1		1	Gasket/Diaphragm Kit	125303-42030	125303-42030-Online
1		1	Rebuild Kit	125300-42030	125300-42030-Online

Page 19 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
	+	1	Gasket, Cyl. Base	101010-44332	101010-44332-Online
	+	1	Gasket, Crankcase	100242-42030	100242-42030-Online
	+	1	Gasket, Intake	130016-42031	130016-42031-Online
	+	1	Gasket,Intake	130010-42032	130010-42032-Online
	+	1	Gasket, Muffler	145510-42031	145510-42031-Online	Sus. by V104- \| 000160 \| + \| 1
1		1	Gasket/Diaphragm Kit	125303-42030	125303-42030-Online
	+	1	Diaphragm, Fuel Pump	125312-42030	125312-42030-Online
	+	1	Gasket, Fuel Pump	125325-42030	125325-42030-Online	Sus. by 125325- \| 13310 \| 7-23 \| +
1		1	Rebuild Kit	125300-42030	125300-42030-Online

Source PDF: 20130718-687_SRS-2100_SRS-2100_EN.pdf. Generated 2026-06-25 14:38.

\n

\n
