Echo CLS-5810 IPL / Parts List

Echo CLS-5810 IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: CLS-5810-Online

Source Pages

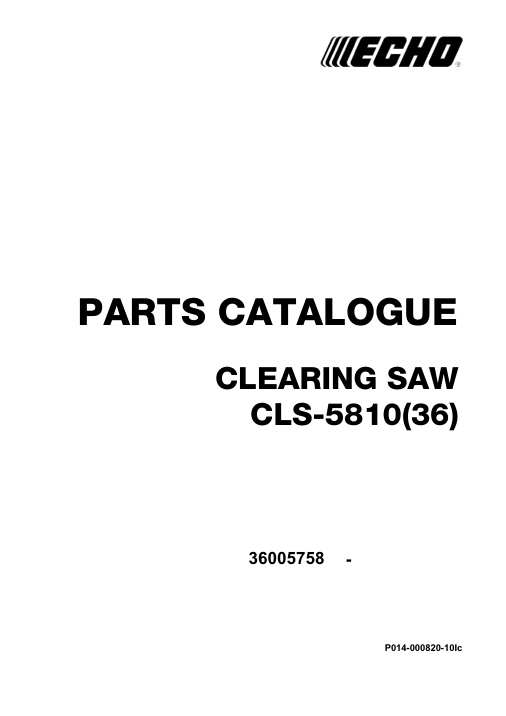

Page 1

Echo CLS-5810 IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo CLS-5810 IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo CLS-5810 IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo CLS-5810 IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo CLS-5810 IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo CLS-5810 IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo CLS-5810 IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo CLS-5810 IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo CLS-5810 IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo CLS-5810 IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo CLS-5810 IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo CLS-5810 IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo CLS-5810 IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo CLS-5810 IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo CLS-5810 IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo CLS-5810 IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 2 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		4	Bolt, H.S. 5*22	900162-05022	900162-05022-Online	5*22 W,SW
2		1	Gasket, Cyl. Base	101010-54430	101010-54430-Online
6		1	Cylinder	A130-000590	A130-000590-Online
7		1	Piston Kit	P021-034160	P021-034160-Online	Sus. by P021- \| 034161
7		1	Piston Kit	P021-034161	P021-034161-Online
8	+	2	Ring, Piston	100011-32330	100011-32330-Online
9	+	1	Pin, Piston	100013-54430	100013-54430-Online
10	+	2	Circlip, Piston Pin	100015-00120	100015-00120-Online
10	+	2	Ring,End	V580-000010	V580-000010-Online	ĳ0.8 \| Can be used on the
11	+	1	Bearing, Needle	100012-12331	100012-12331-Online
12		1	Crankshaft	100100-54432	100100-54432-Online
13		1	Key Woodruff	900323-03014	900323-03014-Online	3*14
14		1	Bolt, H.S. 5*16	900105-05016	900105-05016-Online	5*16
15		1	Holder,Throttle Wire	178112-54432	178112-54432-Online
20		1	Crankcase Kit	100204-54431	100204-54431-Online
21	+	1	Oilseal	100212-19830	100212-19830-Online	ISM 15256
22	+	2	Pin, Dowel	100215-03930	100215-03930-Online
23	+	2	Bearing, Ball 6202	900810-36202	900810-36202-Online	6202/C3
24	+	1	Gasket, Crankcase	100242-54430	100242-54430-Online
25	+	4	Bolt, H.S. 5*35	900162-05035	900162-05035-Online	5*35 W,SW
26	+	1	Oilseal	100213-02830	100213-02830-Online	ISMX15,35,6
27	+	1	Circlip 35	900702-00035	900702-00035-Online	CR㺎35
28		1	Cover, Cylinder	P021-007442	P021-007442-Online

Page 3 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
29	+	1	Pin 4*29.8	900330-40298	900330-40298-Online	4*29.8
30	+	1	Bolt, 5	163890-38330	163890-38330-Online
31	+	1	Cover, Plug Cap	159015-54430	159015-54430-Online
32	+	1	Rod, Choke	178510-54430	178510-54430-Online
33	+	1	Pin, Spring 2*10	900342-20010	900342-20010-Online	2*10
34	+	1	End, Lever	178522-54430	178522-54430-Online
40		1	Grommet	178215-54431	178215-54431-Online
41		1	Label,Echo	X547-001120	X547-001120-Online	ECHO+CLS-5800
42		1	Seal	V541-000110	V541-000110-Online
43		1	Seal	V541-000120	V541-000120-Online
44		1	Plate,Angle	V152-001420	V152-001420-Online
45		2	Screw 4*16	900253-04016	900253-04016-Online	4*16
46		4	Bolt	91118-05022	91118-05022-Online

Page 4 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
3		1	Label,Echo	X502-000640	X502-000640-Online	79.5*29.5
4		4	Bolt	91118-05022	91118-05022-Online
5		1	Starter Assembly	177200-54432	177200-54432-Online
7	+	1	Spring, Rewind	177220-00220	177220-00220-Online
8	+	1	Drum, Starter	177215-06230	177215-06230-Online
9	+	1	Rope, Starter	177226-06230	177226-06230-Online
10	+	1	Guide, Rope	177227-05530	177227-05530-Online
11	+	1	Spring, Return	177234-54430	177234-54430-Online
12	+	1	Pawl, Starter	177218-54430	177218-54430-Online
13	+	1	Grip, Starter	177228-11120	177228-11120-Online
14	+	1	Spring, Friction	177233-54430	177233-54430-Online
15	+	1	Plate, Friction	177211-06230	177211-06230-Online
16	+	1	Bolt 6*12	900100-06012	900100-06012-Online	6*12
18		1	Cover, Fan	101511-54431	101511-54431-Online
19		1	Lead	V485-000160	V485-000160-Online	L;640
22		2	Bolt, H.S. 5*22	900162-05022	900162-05022-Online	5*22 W,SW
23		1	Cap, Spark Plug	159012-01620	159012-01620-Online
24		1	Coil, Spark Plug	159011-03432	159011-03432-Online
25		1	Sparkplug	A425-000000	A425-000000-Online	BPMR8Y
26		1	Rotor,Magneto	A409-000221	A409-000221-Online	ID#9483
27		1	Part	900517-00010	900517-00010-Online
28		1	Tube	V475-001610	V475-001610-Online	78.655 HST-10
29		1	Tube	150623-16130	150623-16130-Online
30		1	Clutch Assy	175000-54431	175000-54431-Online
31	+	1	Hub, Clutch	175016-54430	175016-54430-Online

Page 5 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
32	+	4	Washer, Clutch	175014-11231	175014-11231-Online
33	+	1	Shoe, Clutch	175009-54430	175009-54430-Online	36 \| ++
36		2	Metal	175030-54430	175030-54430-Online
34	+	1	Spring, Clutch	175018-54430	175018-54430-Online
35	+	2	Shaft, Clutch	175046-54430	175046-54430-Online
39		1	Coil,Ignition	A411-000191	A411-000191-Online	ID#C9478
40		1	Coil,Exciter	A410-000000	A410-000000-Online
41		1	Lead, Ground	162010-04561	162010-04561-Online
42		1	Lead	V485-000510	V485-000510-Online
43		1	Tube	V475-003570	V475-003570-Online	6790
44		1	Tube	178016-47430	178016-47430-Online	6720 BL

Page 6 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Gasket, Intake	130010-54430	130010-54430-Online
3		1	Insulator	130007-54430	130007-54430-Online
4		1	Seal	130012-54430	130012-54430-Online
5		1	Gasket, Intake	130016-54430	130016-54430-Online
6		1	Carburetor,Diaphragm	A021-000951	A021-000951-Online	C3M-K80
7		1	Case, Cleaner	130314-54430	130314-54430-Online
8		1	Bracket, Air Cleaner	130420-54430	130420-54430-Online
9		1	Filter, Air	130310-54430	130310-54430-Online
10		1	Cover Asy, A.Cleaner	130302-54431	130302-54431-Online
11	+	1	Screw	130415-40630	130415-40630-Online
12	+	1	O-Ring (P-4)	900720-00004	900720-00004-Online	P-4
13		2	Bolt, H.S. 5*55	900105-05055	900105-05055-Online	5*55
14		2	Bolt, H.S. 5*30	900162-05030	900162-05030-Online	5*30 W,SW
15		1	Pipe, Impulse	130110-54430	130110-54430-Online	36105 NBR

Page 7 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Cover, Muffler	145906-54431	145906-54431-Online
2		1	Muffler, Exhaust	P021-008640	P021-008640-Online
3		1	Insulator, Muffler	145910-54430	145910-54430-Online
4		1	Gasket, Muffler	145510-54431	145510-54431-Online
5		3	Bolt	91118-05018	91118-05018-Online
6		1	Bolt, H.S. 5*16	900105-05016	900105-05016-Online	5*16
7		2	Bolt, H.S. 5*10	900105-05010	900105-05010-Online	5*10
8		2	Bolt, H.S. 5*75	900162-05075	900162-05075-Online	5*75 W,SW
10		1	Cap Asy, Fuel	131004-16432	131004-16432-Online
11	+	1	O-Ring 32	900720-00032	900720-00032-Online
12	+	1	Screw 3*8	900246-03008	900246-03008-Online	3*8
13	+	1	Chain, Ball	131023-14730	131023-14730-Online
14	+	1	Spring, Closs	131042-14730	131042-14730-Online
15		1	Tank, Fuel	131005-54430	131005-54430-Online
16		4	Washer 5	900600-00005	900600-00005-Online
17		2	Washer	130031-10230	130031-10230-Online
20		1	Valve, Check	131300-56430	131300-56430-Online
21		1	Clip	132013-09820	132013-09820-Online	6MM
22		1	Pipe, Fuel	132010-02960	132010-02960-Online	3630
23		1	Grommet	132115-44330	132115-44330-Online
24		1	Strainer, Fuel	131205-19831	131205-19831-Online	Sus. by A369- \| 000000
24		1	Strainer, Fuel	A369-000000	A369-000000-Online
1		25	Part	125-528	125-528-Online
25		1	Pipe	132010-54430	132010-54430-Online	36140 NBR
26		1	Clip	132013-26630	132013-26630-Online	6.5MM
27		6	Bolt	91119-05016	91119-05016-Online	10.9 SILVER

Page 8 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Shaft, Drive	610011-51530	610011-51530-Online
6		1	Label,Caution	890617-43130	890617-43130-Online
8		1	Pipe, Main	C050-000610	C050-000610-Online	35*1530
11		1	Hook	P021-012710	P021-012710-Online
12	+	1	Bolt	91118-05020	91118-05020-Online	CM-5*20
14		1	Pipe W/Cable Guide	610603-54430	610603-54430-Online
20		1	Bolt	91118-05035	91118-05035-Online
21		1	Flange, D.S. Housing	610223-54430	610223-54430-Online
22		2	Bolt	91118-05030	91118-05030-Online
23		1	Circlip 15	900701-00015	900701-00015-Online	CS-15
24		2	Bearing, Ball 6202	900819-06202	900819-06202-Online	6202VV(LLB)
25		1	Circlip 35	900702-00035	900702-00035-Online	CR㺎35
26		1	Drum, Clutch	175005-54430	175005-54430-Online
27		1	Stand	305110-54430	305110-54430-Online
28		2	Bolt	91118-05020	91118-05020-Online	CM-5*20
29		4	Bolt	91118-05025	91118-05025-Online
30		2	Cushion	100905-51530	100905-51530-Online
31		1	Holder	610922-54430	610922-54430-Online
32		2	Bolt	91118-05014	91118-05014-Online
35		1	Harness, Shoulder	301000-51530	301000-51530-Online

Page 9 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
2		1	Knob,Latch	C463-000000	C463-000000-Online
3		1	Spring,Torsion	V452-000060	V452-000060-Online
5		1	Grip Asy,F-Handle	P021-013570	P021-013570-Online
6	+	3	Screw 4*16	900253-04016	900253-04016-Online	4*16
7	+	1	Screw 5*30	900220-05030	900220-05030-Online	5*30
8	+	1	Nut 5	900500-00005	900500-00005-Online
9		1	Lockout,Throttle	C460-000011	C460-000011-Online
10		1	Spring,Torsion	V452-000130	V452-000130-Online
11		1	Trigger,Throttle	C450-000022	C450-000022-Online
12		1	Switch, Ignition	163401-54530	163401-54530-Online
14		1	Cable,Bowden	V430-002030	V430-002030-Online
15		1	Tube 710130	178127-54530	178127-54530-Online	710130
16		1	Bracket Asy, Handle	P021-012730	P021-012730-Online
17	+	4	Bolt	91118-05025	91118-05025-Online
18		1	Handle, Rear	351210-47530	351210-47530-Online
19		1	Bracket, Handle Asy	P021-012690	P021-012690-Online
20	+	6	Bolt	91118-05035	91118-05035-Online
21	+	2	Bolt	91118-05014	91118-05014-Online
22		2	Cushion	100905-51530	100905-51530-Online
23		1	Handle, Front	351110-54430	351110-54430-Online
24		1	Grip, Handle	351213-47531	351213-47531-Online
25		1	Tube	V475-002930	V475-002930-Online	7*450
26		2	Band	V495-000000	V495-000000-Online	CV-200

Page 10 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
9		1	Case Asy,Gear	P021-017200	P021-017200-Online
9		1	Case Asy,Gear	P021-017201	P021-017201-Online
10	+	1	Circlip 15	900701-00015	900701-00015-Online	CS-15
11	+	2	Circlip 35	900702-00035	900702-00035-Online	CR㺎35
12	+	2	Bearing, Ball	94060-06202	94060-06202-Online	BB6202
13	+	1	Gear Set	610300-47530	610300-47530-Online
14	+	2	Bolt	91118-05035	91118-05035-Online
15	+	1	Bolt	91119-05012	91119-05012-Online
16	+	1	Bolt 8* 8	610434-50031	610434-50031-Online	M8*8
17	+	1	Bearing, Ball	94060-06001	94060-06001-Online	BB6001
18	+	1	Shaft, Gear	C534-000520	C534-000520-Online
19	+	1	Bearing, Ball	94063-06202	94063-06202-Online	BB6202Z
20	+	1	Spacer, Oilseal	610334-06230	610334-06230-Online
21	+	1	Oilseal Is 20 35 7	610413-47530	610413-47530-Online
22	+	1	Fixture, Blade	C535-000440	C535-000440-Online	Sus. by C535- \| 000441
22	+	1	Fixture, Blade	C535-000441	C535-000441-Online	26 \| ++
26		1	Plate, Cup	610352-56830	610352-56830-Online
23	+	1	Fixture, Blade	C535-000460	C535-000460-Online
24	+	1	Plate,Cup	V151-000040	V151-000040-Online
25	+	1	Nut, Lock	610320-47530	610320-47530-Online
27	+	1	Circlip 12	900701-00012	900701-00012-Online	CS-12
42		1	Tool,Bar	X606-000080	X606-000080-Online	5*120
43		1	L-Wrench (4Mm)	895610-00130	895610-00130-Online
44		1	Tool,Wrench	X602-000020	X602-000020-Online	17*19 L200

Page 11 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
45		1	Goggle	X690-000050	X690-000050-Online	GOGGLE + NOTE
46		1	Band	178121-43230	178121-43230-Online	CV-150 BL
47		1	Bag, Tool	898510-07130	898510-07130-Online
65		1	Scabbard,Blade	P021-007470	P021-007470-Online
67		1	Shield Kit	P021-013772	P021-013772-Online
68	+	1	Shield,Blade	C550-000080	C550-000080-Online
69	+	1	Knife, Cord	C554-000030	C554-000030-Online
70	+	1	Screw 5*12	900252-05012	900252-05012-Online
71		1	Shield,Blade	C550-000100	C550-000100-Online
72	+	1	Part	900565-00005	900565-00005-Online
73		1	Screw 5*18	900242-05018	900242-05018-Online	5*18
74		1	Shield,Blade	C550-000090	C550-000090-Online
75		1	Plate, Shield	699013-56830	699013-56830-Online
76		4	Bolt	91118-05025	91118-05025-Online

Page 12 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1	+	1	Screw	125310-13930	125310-13930-Online
2	+	1	Cover, Pump	125324-54430	125324-54430-Online
3	+	1	Gasket, Pump	P005-001430	P005-001430-Online
4	+	1	Diaphragm, Pump	P005-001420	P005-001420-Online
5	+	1	Valve, Throttle	125316-54430	125316-54430-Online
6	+	2	Screw	125314-51230	125314-51230-Online	3*4.5
7	+	1	Spring, Thrt. Return	125313-54430	125313-54430-Online
8	+	1	Shaft Asy,Throttle	P005-001610	P005-001610-Online
9	+	1	Clip	125327-13930	125327-13930-Online
10	+	1	Swivel	P005-001860	P005-001860-Online	Can be used on the \| A021-000951 only
11	+	1	Shaft, Choke	P005-001490	P005-001490-Online
12	+	1	Screw,Throttleadjust	P005-001480	P005-001480-Online
13	+	2	Washer	125353-20560	125353-20560-Online
14	+	1	Screw, Idle Mixture	P005-001460	P005-001460-Online
15	+	1	Screw,Mainn Mixture	P005-001450	P005-001450-Online
16	+	1	Spring, Coil	125322-11520	125322-11520-Online
17	+	1	Pin, Metering Arm	125338-13930	125338-13930-Online
18	+	1	Screw	125339-13930	125339-13930-Online
19	+	1	Arm, Valve	125323-08260	125323-08260-Online
20	+	1	Valve, Inlet Needle	125337-08260	125337-08260-Online
21	+	1	Ball, Steel	125336-33330	125336-33330-Online
22	+	1	Springt, Friction	125335-33330	125335-33330-Online
23	+	1	Valve, Choke	125332-33330	125332-33330-Online

Page 13 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
26	+	1	Strainer	125326-08360	125326-08360-Online
27	+	1	Diaphragm	125341-54430	125341-54430-Online
28	+	1	Cover, Diaphragm	P005-001850	P005-001850-Online
29	+	4	Screw	125344-52130	125344-52130-Online
30	+	1	Gasket, Metering	P005-001440	P005-001440-Online
31	+	1	Clip	125327-15130	125327-15130-Online
32	+	1	Plug, Welch	125345-15130	125345-15130-Online
33	+	1	Nozzle, Check Valve	P005-001470	P005-001470-Online
34	+	1	Piece, Friction	125378-13930	125378-13930-Online
35	+	1	Retainer, Limit Cap	P005-001510	P005-001510-Online
36	+	1	Screw, Boot Adjust	P005-001500	P005-001500-Online
37	+	1	Spring, Choke Return	P005-001560	P005-001560-Online
39	+	1	Spring,Adjust Screw	125333-08560	125333-08560-Online
40	+	1	Limiter, Temper	P005-001530	P005-001530-Online
41	+	1	Limiter, Temper	P005-001520	P005-001520-Online
42	+	1	Washer	P005-001870	P005-001870-Online	Can be used on the \| A021-000951 only

Source PDF: 20130718-808_CLS-5810(36)_P014-000820-10Ic_EN.pdf. Generated 2026-06-25 14:39.

\n

\n
