Echo HCR-165ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HCR-165ES-Online
Source Pages

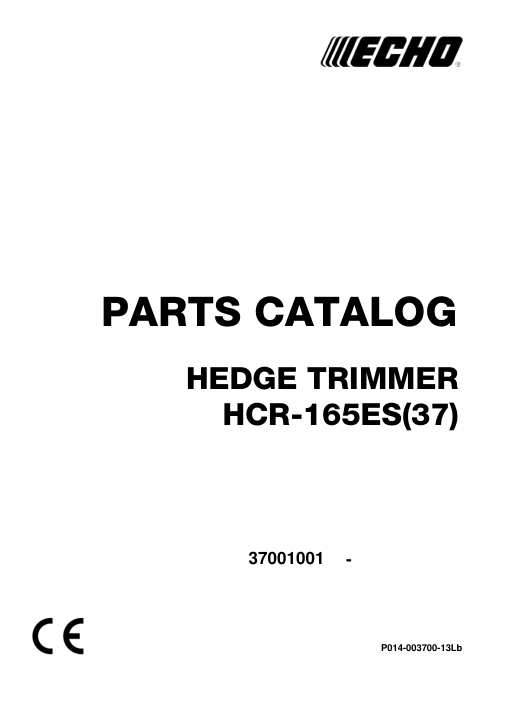

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

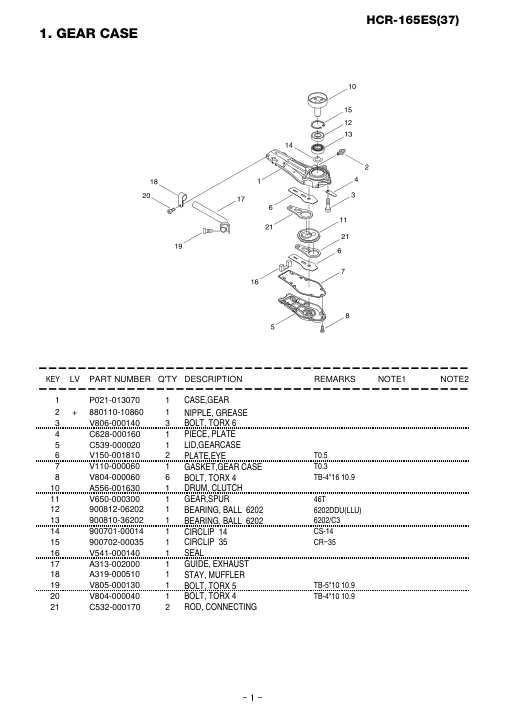

Page 2 - Parts
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cutter,Asm | X041-000490 | X041-000490-Online | ||
| 2 | + | 2 | Cutter | X412-000640 | X412-000640-Online | |
| 3 | + | 1 | Support,Cutter | X425-000840 | X425-000840-Online | |
| 4 | + | 1 | Support,Cutter | X425-000900 | X425-000900-Online | |
| 5 | + | 1 | Plate,Eye | V150-001800 | V150-001800-Online | T2.0 |
| 6 | + | 4 | C0Llar | V353-000250 | V353-000250-Online | 9*7.45*5.3 |
| 7 | + | 4 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | TB-5*25 10.9 |
| 8 | + | 1 | Washer | 177214-21860 | 177214-21860-Online | 5.2*16*1.6T |
| 9 | + | 3 | Bolt | V204-000510 | V204-000510-Online | |
| 10 | + | 3 | Washer | V304-000240 | V304-000240-Online | |
| 12 | + | 3 | Part | 433022-06460 | 433022-06460-Online | |
| 13 | + | 2 | Nut, Flange | 92108-05000 | 92108-05000-Online |

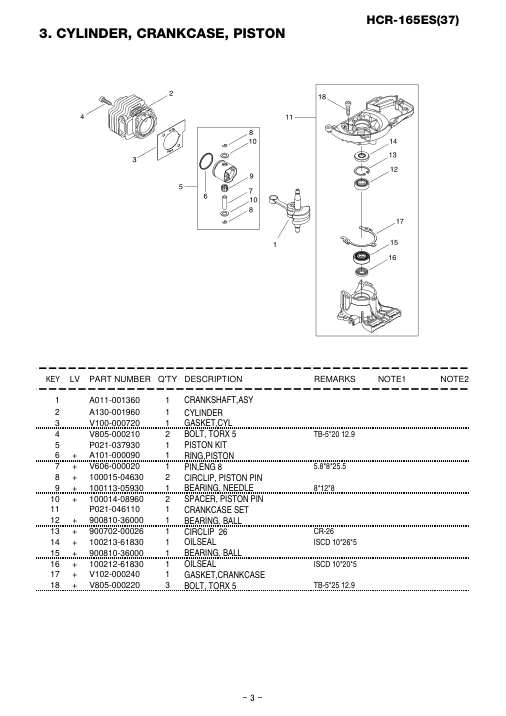

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankshaft,Asy | A011-001360 | A011-001360-Online | ||
| 2 | 1 | Cylinder | A130-001960 | A130-001960-Online | ||
| 3 | 1 | Gasket,Cyl | V100-000720 | V100-000720-Online | ||
| 4 | 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | TB-5*20 12.9 | |
| 5 | 1 | Piston Kit | P021-037930 | P021-037930-Online | ||
| 6 | + | 1 | Ring,Piston | A101-000090 | A101-000090-Online | |
| 7 | + | 1 | Pin,Eng 8 | V606-000020 | V606-000020-Online | 5.8*8*25.5 |
| 8 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 9 | + | 1 | Bearing, Needle | 100113-05930 | 100113-05930-Online | 8*12*8 |
| 10 | + | 2 | Spacer, Piston Pin | 100014-08960 | 100014-08960-Online | |
| 11 | 1 | Crankcase Set | P021-046110 | P021-046110-Online | ||
| 12 | + | 1 | Bearing, Ball | 900810-36000 | 900810-36000-Online | |
| 13 | + | 1 | Circlip 26 | 900702-00026 | 900702-00026-Online | CR-26 |
| 14 | + | 1 | Oilseal | 100213-61830 | 100213-61830-Online | ISCD 10*26*5 |
| 15 | + | 1 | Bearing, Ball | 900810-36000 | 900810-36000-Online | |
| 16 | + | 1 | Oilseal | 100212-61830 | 100212-61830-Online | ISCD 10*20*5 |
| 17 | + | 1 | Gasket,Crankcase | V102-000240 | V102-000240-Online | |
| 18 | + | 3 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | TB-5*25 12.9 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor, Magneto | A409-001120 | A409-001120-Online | ||
| 2 | 1 | Coil, Ignition | A411-001490 | A411-001490-Online | ||
| 3 | 1 | Nut, Flange | 92105-06000 | 92105-06000-Online | M6*1.0 L | |
| 4 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online | ||
| 5 | 2 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | TB-4*16 10.9 | |
| 6 | 2 | Pawl | A514-000260 | A514-000260-Online | ||
| 7 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 8 | 2 | Washer | 131911-03460 | 131911-03460-Online | ||
| 9 | 2 | Spacer | 178070-10860 | 178070-10860-Online | ||
| 10 | 2 | Bolt,5 | V203-000080 | V203-000080-Online | 5*14 | |
| 11 | 2 | Spring,Torsion | V452-001370 | V452-001370-Online | ||
| 12 | 1 | Lead | V485-001220 | V485-001220-Online | L:85 | |
| 13 | 1 | Grommet,Ht Cord | V135-000150 | V135-000150-Online | ||
| 15 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 16 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 17 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover,Cylinder | A160-002940 | A160-002940-Online | ||
| 2 | 1 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | TB-5*16 10.9 | |
| 3 | 1 | Cover,Fan | A172-002610 | A172-002610-Online | ||
| 5 | 1 | Starter,Recoil Asy | A051-002372 | A051-002372-Online | ||
| 6 | 1 | Case, Starter | P022-036940 | P022-036940-Online | ||
| 7 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 8 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 9 | + | 1 | Drum, Starter | P022-027980 | P022-027980-Online | |
| 10 | + | 1 | Cam Plate | A525-000010 | A525-000010-Online | A543 081 735 01 |
| 11 | + | 1 | Spring,Damper | P022-008270 | P022-008270-Online | |
| 12 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 13 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 14 | + | 1 | Rope, Starter | P022-006800 | P022-006800-Online | 3.0*880 |
| 15 | + | 1 | Grip, Starter | 177228-44330 | 177228-44330-Online | |
| 20 | 4 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | TB-4*16 10.9 | |
| 21 | 1 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | TT-4*16 DG 10.9 | |
| 23 | 1 | Label,Echo | X502-000890 | X502-000890-Online | ||
| 24 | 1 | Label,Model | X543-004320 | X543-004320-Online |

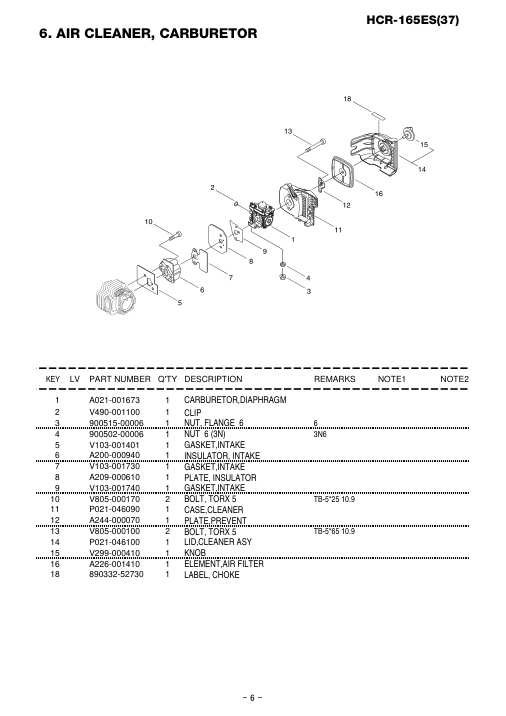

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Carburetor,Diaphragm | A021-001673 | A021-001673-Online | ||
| 2 | 1 | Clip | V490-001100 | V490-001100-Online | ||
| 3 | 1 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | ||
| 4 | 1 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 5 | 1 | Gasket,Intake | V103-001401 | V103-001401-Online | ||
| 6 | 1 | Insulator, Intake | A200-000940 | A200-000940-Online | ||
| 7 | 1 | Gasket,Intake | V103-001730 | V103-001730-Online | ||
| 8 | 1 | Plate, Insulator | A209-000610 | A209-000610-Online | ||
| 9 | 1 | Gasket,Intake | V103-001740 | V103-001740-Online | ||
| 10 | 2 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | TB-5*25 10.9 | |
| 11 | 1 | Case,Cleaner | P021-046090 | P021-046090-Online | ||
| 12 | 1 | Plate,Prevent | A244-000070 | A244-000070-Online | ||
| 13 | 2 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | TB-5*65 10.9 | |
| 14 | 1 | Lid,Cleaner Asy | P021-046100 | P021-046100-Online | ||
| 15 | 1 | Knob | V299-000410 | V299-000410-Online | ||
| 16 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 18 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online |
Page 8 - Parts

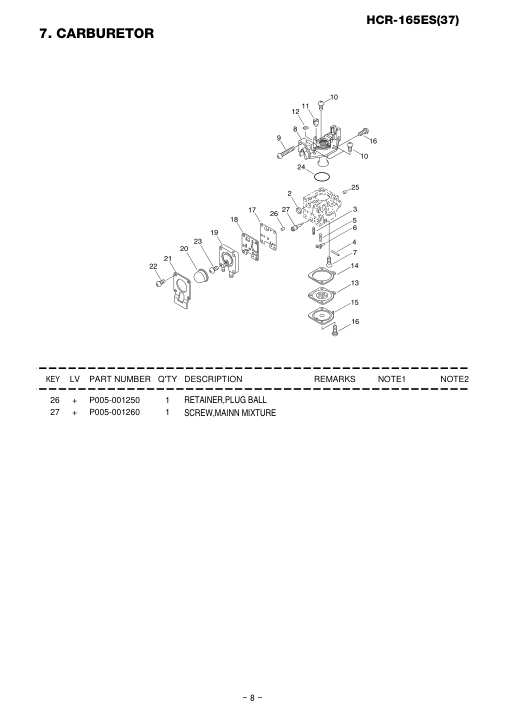

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 27 | + | 1 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Tank, Fuel | A350-001880 | A350-001880-Online | ||
| 2 | 4 | Cushion | V420-004490 | V420-004490-Online | ||
| 3 | 1 | Fuel Cap Asy | P021-046080 | P021-046080-Online | ||
| 4 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 5 | + | 1 | Connector,Cap | A365-000060 | A365-000060-Online | L=123 |
| 6 | 1 | Grommet | 132115-44330 | 132115-44330-Online | ||
| 7 | 1 | Grommet,Fuel | V137-000000 | V137-000000-Online | ||
| 8 | 1 | Valve,Check | A356-000031 | A356-000031-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | ||
| 10 | 1 | Pipe | V471-003510 | V471-003510-Online | L=125 | |
| 11 | 1 | Clip | V490-000500 | V490-000500-Online | ||
| 12 | 1 | Joint,Pipe | V186-000270 | V186-000270-Online | ||
| 13 | 1 | Pipe | V471-003500 | V471-003500-Online | L=92 | |
| 14 | 1 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | 3*6*85 YL |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Muffler, Exhaust | A300-001860 | A300-001860-Online | ||
| 2 | 2 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | TB-5*55 12.9 | |
| 3 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 4 | 1 | Guide, Exhaust | A313-001990 | A313-001990-Online | ||
| 5 | 1 | Screen, Arrestor | A310-000470 | A310-000470-Online | ||
| 6 | 1 | Gasket,Exhaust | V104-002180 | V104-002180-Online | ||
| 7 | 3 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | TB-4*8 10.9 | |
| 8 | 1 | Gasket,Exhaust | V104-002190 | V104-002190-Online | ||
| 10 | 1 | Cover,Muffler | A320-001120 | A320-001120-Online | ||
| 11 | 2 | Bolt, Torx 5 | V805-000320 | V805-000320-Online | ||
| 13 | 1 | Label,Caution | X505-002310 | X505-002310-Online | HOT CAUTION |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clutch Asy | A056-000750 | A056-000750-Online | ||
| 2 | + | 1 | Hub, Clutch | A552-000400 | A552-000400-Online | |
| 3 | + | 1 | Clutch Shoe Set | P021-046120 | P021-046120-Online | |
| 4 | + | 2 | Spring, Clutch | A566-000000 | A566-000000-Online | |
| 5 | 1 | Case,Clutch | A570-000320 | A570-000320-Online | ||
| 6 | 1 | Part | 900565-00005 | 900565-00005-Online |

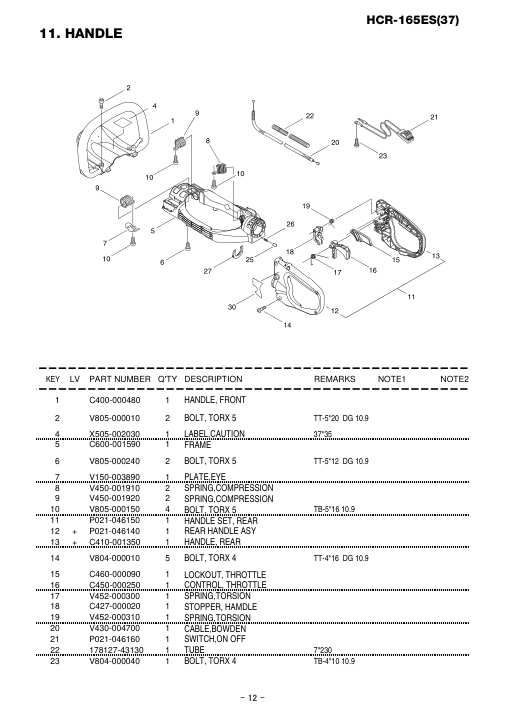

Page 13 - Parts
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Part | 605611-13360 | 605611-13360-Online | ||
| 26 | 1 | Spring,Compression | V450-000630 | V450-000630-Online | 5.1/3.5 | |
| 27 | 1 | Fixture, Handle | C423-000980 | C423-000980-Online | ||
| 30 | 1 | Label,Operation | X532-000740 | X532-000740-Online |

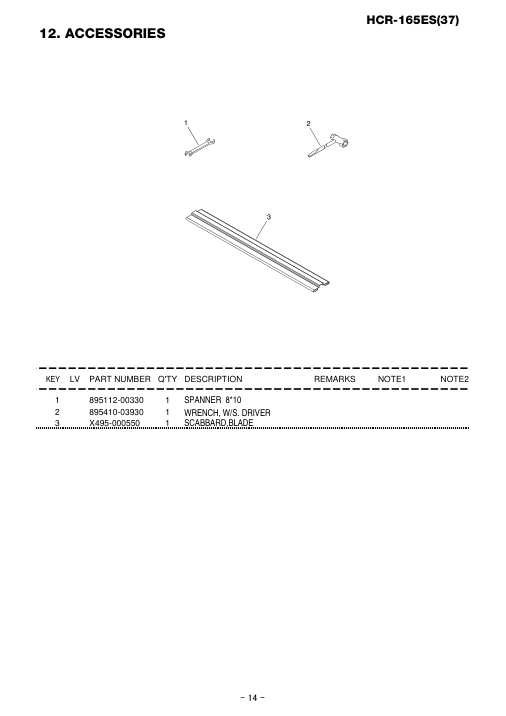

Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | ||
| 2 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | ||
| 3 | 1 | Scabbard,Blade | X495-000550 | X495-000550-Online |
Source PDF: 20141009-495_HCR-165ES(37).pdf. Generated 2026-06-25 14:39.
