Echo ES-250ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: ES-250ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.

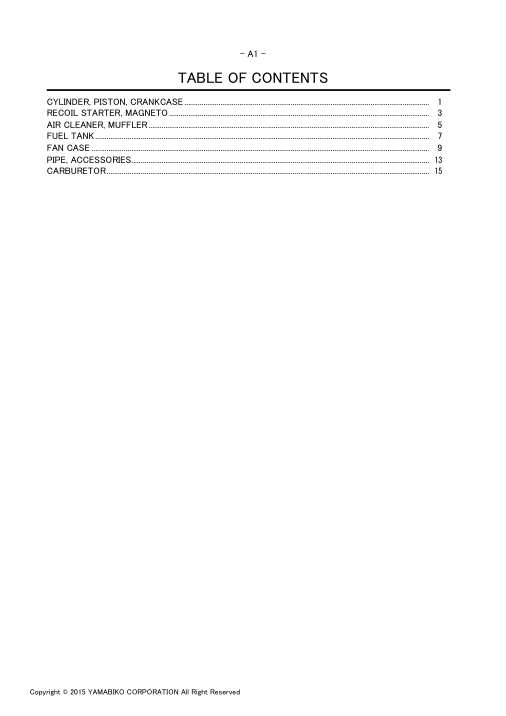

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, Torx 5 | V805-000120 | V805-000120-Online | 2 TB-5*8 10.9 | ||
| 2 | Cover,Cylinder | A160-001260 | A160-001260-Online | |||
| 3 | Cylinder | A130-001020 | A130-001020-Online | |||
| 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 4 5*25 W,SW | ||
| 5 | Gasket,Cyl | V100-000190 | V100-000190-Online | |||
| 6 | Piston Kit | P021-017410 | P021-017410-Online | 1 | 7 | + A101-000140 | RING, PISTON | ||
| 11 | Crankshaft,Asy | A011-000590 | A011-000590-Online | |||
| 13 | Crankcase Kit | P021-008231 | P021-008231-Online | 1 | 14 | + 100212-42031 | OILSEAL | ||
| 19 | Plate,Eye | V150-002400 | V150-002400-Online | |||
| 20 | Bolt, Torx 5 | V805-000120 | V805-000120-Online | 1 TB-5*8 10.9 | CYLINDER, PISTON, CRANKCASE | ES-250ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

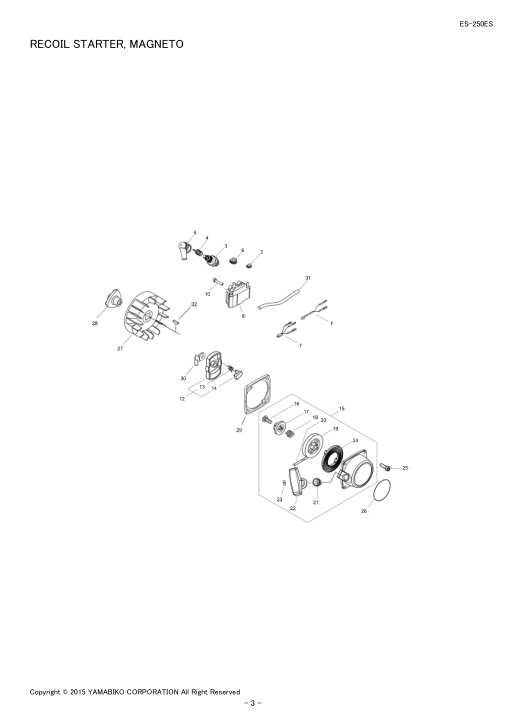

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lead | V485-002220 | V485-002220-Online | |||
| 2 | Bushing | 152115-05530 | 152115-05530-Online | |||
| 3 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 4 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 5 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 6 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 7 | Lead | V485-002210 | V485-002210-Online | |||
| 8 | Coil, Ignition | A411-000500 | A411-000500-Online | |||
| 10 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | 2 TB-4*20 12.9 | ||
| 12 | Pulley,Asm Starter | A052-000440 | A052-000440-Online | 1 | 13 | + P022-006510 | SPRING, RETURN | ||
| 15 | Starter,Recoil | A051-000740 | A051-000740-Online | 1 | 16 | + 177236-61830 | SCREW | ||
| 25 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 4 TB-4*16 10.9 | ||
| 26 | Label,Echo | X502-000330 | X502-000330-Online | 1 ECHO | ||
| 27 | Rotor,Magneto | A409-000210 | A409-000210-Online | |||
| 27 | Rotor, Magneto | A409-001250 | A409-001250-Online | 1 ID:R10024 | (C1330) | ||
| 28 | Hub,Fan | E101-000071 | E101-000071-Online | 1 M8*1.25 | ||
| 29 | Spacer | V376-001750 | V376-001750-Online | |||
| 30 | Weight,Balance | A115-000000 | A115-000000-Online | |||
| 31 | Tube | V475-006820 | V475-006820-Online | 1 L120 | ||
| 32 | Key, Woodruff | 100142-12330 | 100142-12330-Online | 1 | RECOIL STARTER, MAGNETO | ES-250ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 1 5*20 | ||
| 2 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | |||
| 3 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 4 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | 2 TB-5*65 10.9 | ||
| 5 | Plate, Prevent | 129011-52730 | 129011-52730-Online | |||
| 6 | Case, Air Cleaner | P021-004480 | P021-004480-Online | |||
| 8 | Carburetor, | A021-001881 | A021-001881-Online | DIAPHRAGM | 1 WTA-33 | ||
| 9 | Gasket,Intake | V103-000550 | V103-000550-Online | |||
| 10 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | 2 TB-5*25 12.9 | ||
| 11 | Insulator, Intake | A200-000370 | A200-000370-Online | |||
| 12 | Gasket,Intake | V103-000540 | V103-000540-Online | |||
| 13 | Gasket,Exhaust | V104-000960 | V104-000960-Online | |||
| 14 | Muffler, Exhaust | A300-000810 | A300-000810-Online | |||
| 15 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 16 | Bolt,5 | V203-000190 | V203-000190-Online | 2 AN A2-70 | ||
| 17 | Screen, Arrestor | A310-000070 | A310-000070-Online | 1 22*28*3 | ||
| 18 | Gasket,Exhaust | V104-000940 | V104-000940-Online | 1 T:0.5 | ||
| 19 | Guide, Exhaust | A313-001070 | A313-001070-Online | |||
| 20 | Guide, Exhaust | A313-000840 | A313-000840-Online | 1 20.5*3 | ||
| 21 | Guide, Exhaust | A313-001091 | A313-001091-Online | |||
| 22 | Bolt, Torx 4 | V804-000080 | V804-000080-Online | 5 TB4*8 | ||
| 23 | Label, Choke | 890332-52730 | 890332-52730-Online | 1 | AIR CLEANER, MUFFLER | ES-250ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

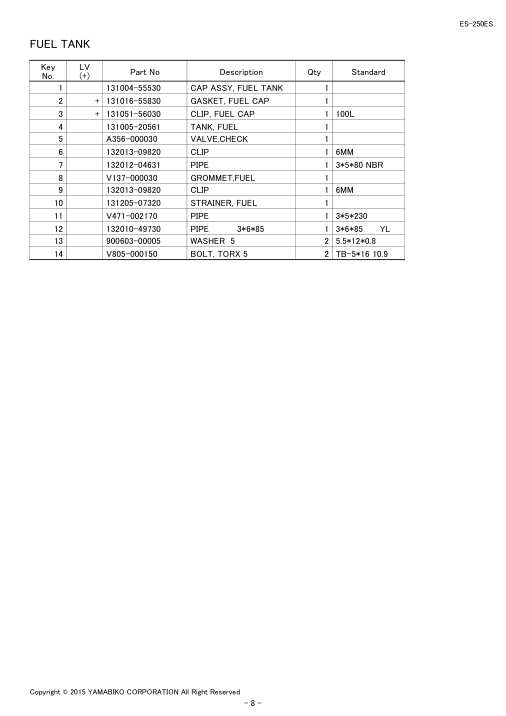

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 2 | + 131016-55830 | GASKET, FUEL CAP | ||
| 4 | Tank, Fuel | 131005-20561 | 131005-20561-Online | |||
| 5 | Valve,Check | A356-000030 | A356-000030-Online | |||
| 6 | Clip | 132013-09820 | 132013-09820-Online | 1 6MM | ||
| 7 | Pipe | 132012-04631 | 132012-04631-Online | 1 3*5*80 NBR | ||
| 8 | Grommet,Fuel | V137-000030 | V137-000030-Online | |||
| 9 | Clip | 132013-09820 | 132013-09820-Online | 1 6MM | ||
| 10 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 11 | Pipe | V471-002170 | V471-002170-Online | 1 3*5*230 | ||
| 12 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | 1 3*6*85 YL | ||
| 13 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 14 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | FUEL TANK | ES-250ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

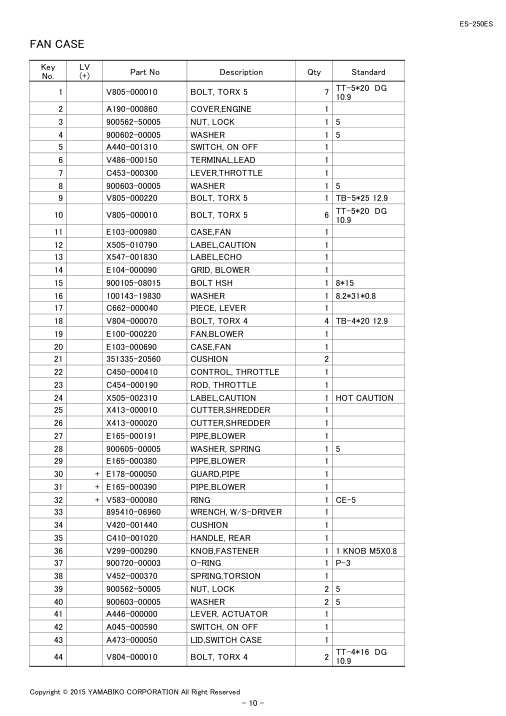

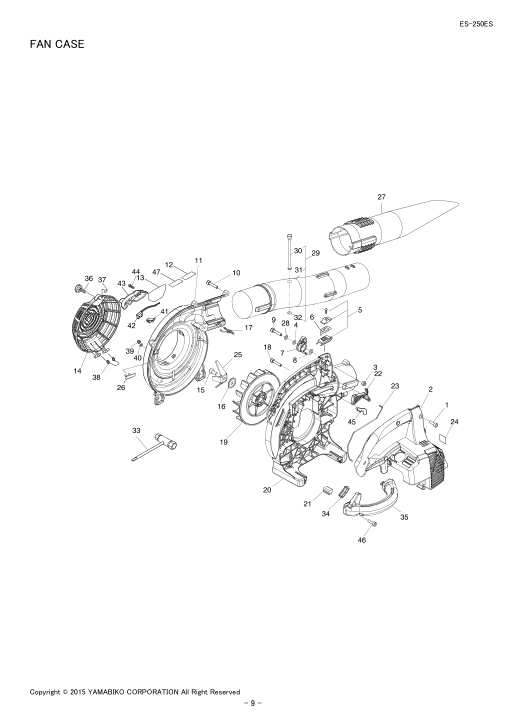

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 7 TT-5*20 DG | 10.9 | ||
| 2 | Cover,Engine | A190-000860 | A190-000860-Online | |||
| 3 | Nut, Lock | 900562-50005 | 900562-50005-Online | 1 5 | ||
| 4 | Washer | 900602-00005 | 900602-00005-Online | 1 5 | ||
| 5 | Switch, On Off | A440-001310 | A440-001310-Online | |||
| 6 | Terminal,Lead | V486-000150 | V486-000150-Online | |||
| 7 | Lever,Throttle | C453-000300 | C453-000300-Online | |||
| 8 | Washer | 900603-00005 | 900603-00005-Online | 1 5 | ||
| 9 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | 1 TB-5*25 12.9 | ||
| 10 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 6 TT-5*20 DG | 10.9 | ||
| 11 | Case,Fan | E103-000980 | E103-000980-Online | |||
| 12 | Label,Caution | X505-010790 | X505-010790-Online | |||
| 13 | Label,Echo | X547-001830 | X547-001830-Online | |||
| 14 | Grid, Blower | E104-000090 | E104-000090-Online | |||
| 15 | Bolt Hsh | 900105-08015 | 900105-08015-Online | 1 8*15 | ||
| 16 | Washer | 100143-19830 | 100143-19830-Online | 1 8.2*31*0.8 | ||
| 17 | Piece, Lever | C662-000040 | C662-000040-Online | |||
| 18 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | 4 TB-4*20 12.9 | ||
| 19 | Fan,Blower | E100-000220 | E100-000220-Online | |||
| 20 | Case,Fan | E103-000690 | E103-000690-Online | |||
| 21 | Cushion | 351335-20560 | 351335-20560-Online | |||
| 22 | Control, Throttle | C450-000410 | C450-000410-Online | |||
| 23 | Rod, Throttle | C454-000190 | C454-000190-Online | |||
| 24 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | ||
| 25 | Cutter,Shredder | X413-000010 | X413-000010-Online | |||
| 26 | Cutter,Shredder | X413-000020 | X413-000020-Online | |||
| 27 | Pipe,Blower | E165-000191 | E165-000191-Online | |||
| 28 | Washer, Spring | 900605-00005 | 900605-00005-Online | 1 5 | ||
| 29 | Pipe,Blower | E165-000380 | E165-000380-Online | 1 | 30 | + E178-000050 | GUARD,PIPE | ||
| 33 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online | |||
| 34 | Cushion | V420-001440 | V420-001440-Online | |||
| 35 | Handle, Rear | C410-001020 | C410-001020-Online | |||
| 36 | Knob,Fastener | V299-000290 | V299-000290-Online | 1 1 KNOB M5X0.8 | ||
| 37 | O-Ring | 900720-00003 | 900720-00003-Online | 1 P-3 | ||
| 38 | Spring,Torsion | V452-000370 | V452-000370-Online | |||
| 39 | Nut, Lock | 900562-50005 | 900562-50005-Online | 2 5 | ||
| 40 | Washer | 900603-00005 | 900603-00005-Online | 2 5 | ||
| 41 | Lever, Actuator | A446-000000 | A446-000000-Online | |||
| 42 | Switch, On Off | A045-000590 | A045-000590-Online | |||
| 43 | Lid,Switch Case | A473-000050 | A473-000050-Online | |||
| 44 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | 2 TT-4*16 DG | 10.9 | FAN CASE | ES-250ES |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 45 | Plug | V162-000580 | V162-000580-Online | |||
| 46 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | 2 TT-5*25 DG | 10.9 | ||
| 47 | Label,Caution | X505-007910 | X505-007910-Online | 1 | FAN CASE | ES-250ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pipe,Main | E160-000170 | E160-000170-Online | |||
| 2 | Pipe,Suction | E180-000011 | E180-000011-Online | |||
| 3 | Label,Model | X503-008950 | X503-008950-Online | |||
| 4 | Bag,Dust | X692-000022 | X692-000022-Online | 1 ECHO BAG - | BLACK | PIPE, ACCESSORIES | ES-250ES |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 4 | Washer | 100143-19830 | 100143-19830-Online | |||
| 10 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 2 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 2 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 16 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |||
| 16 | Screw | 123114-38830 | 123114-38830-Online | |||
| 16 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 16 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 16 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 16 | Ring | 123127-15030 | 123127-15030-Online | |||
| 16 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 16 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 16 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 16 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 16 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |||
| 16 | Screw | 123144-02960 | 123144-02960-Online | |||
| 16 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 16 | Pump, Primer | 123181-40630 | 123181-40630-Online | |||
| 16 | Plate, Prevent | 129011-52730 | 129011-52730-Online | |||
| 6 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | |||
| 6 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 8 | Tank, Fuel | 131005-20561 | 131005-20561-Online | |||
| 8 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 8 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 8 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 8 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | |||
| 8 | Pipe | 132012-04631 | 132012-04631-Online | |||
| 8 | Clip | 132013-09820 | 132013-09820-Online | |||
| 8 | Bushing | 152115-05530 | 152115-05530-Online | |||
| 4 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 4 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 4 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 4 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |||
| 4 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 4 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 4 | Screw | 177236-61830 | 177236-61830-Online | |||
| 4 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |||
| 4 | Bolt, Wing | 210417-52730 | 210417-52730-Online | |||
| 6 | Cushion | 351335-20560 | 351335-20560-Online | |||
| 10 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 6 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 2 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | |||
| 2 | Nut, Lock | 900562-50005 | 900562-50005-Online | |||
| 10 | Washer | 900602-00005 | 900602-00005-Online | |||
| 10 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 6 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 8 | Washer | 900603-00005 | 900603-00005-Online | |||
| 10 | Washer, Spring | 900605-00005 | 900605-00005-Online | |||
| 10 | O-Ring | 900720-00003 | 900720-00003-Online | |||
| 10 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Crankshaft,Asy | A011-000590 | A011-000590-Online | |||
| 2 | Carburetor, | A021-001881 | A021-001881-Online | DIAPHRAGM | ||
| 6 | Carburetor, | A021-001881 | A021-001881-Online | DIAPHRAGM | ||
| 16 | Switch, On Off | A045-000590 | A045-000590-Online | |||
| 10 | Starter,Recoil | A051-000740 | A051-000740-Online | |||
| 4 | Pulley,Asm Starter | A052-000440 | A052-000440-Online | |||
| 4 | Ring, Piston | A101-000140 | A101-000140-Online | |||
| 2 | Weight,Balance | A115-000000 | A115-000000-Online | |||
| 4 | Cylinder | A130-001020 | A130-001020-Online | |||
| 2 | Cover,Cylinder | A160-001260 | A160-001260-Online | |||
| 2 | Cover,Engine | A190-000860 | A190-000860-Online | |||
| 10 | Insulator, Intake | A200-000370 | A200-000370-Online | |||
| 6 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 6 | Muffler, Exhaust | A300-000810 | A300-000810-Online | |||
| 6 | Screen, Arrestor | A310-000070 | A310-000070-Online | |||
| 6 | Guide, Exhaust | A313-000840 | A313-000840-Online | |||
| 6 | Guide, Exhaust | A313-001070 | A313-001070-Online | |||
| 6 | Guide, Exhaust | A313-001091 | A313-001091-Online | |||
| 6 | Valve,Check | A356-000030 | A356-000030-Online | |||
| 8 | Rotor,Magneto | A409-000210 | A409-000210-Online | |||
| 4 | Rotor, Magneto | A409-001250 | A409-001250-Online | |||
| 4 | Coil, Ignition | A411-000500 | A411-000500-Online | |||
| 4 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 4 | Switch, On Off | A440-001310 | A440-001310-Online | |||
| 10 | Lever, Actuator | A446-000000 | A446-000000-Online | |||
| 10 | Lid,Switch Case | A473-000050 | A473-000050-Online | |||
| 10 | Handle, Rear | C410-001020 | C410-001020-Online | |||
| 10 | Control, Throttle | C450-000410 | C450-000410-Online | |||
| 10 | Lever,Throttle | C453-000300 | C453-000300-Online | |||
| 10 | Rod, Throttle | C454-000190 | C454-000190-Online | |||
| 10 | Piece, Lever | C662-000040 | C662-000040-Online | |||
| 10 | Fan,Blower | E100-000220 | E100-000220-Online | |||
| 10 | Hub,Fan | E101-000071 | E101-000071-Online | 4 | Part No | Part descrition | Page | ||
| 10 | Case,Fan | E103-000980 | E103-000980-Online | |||
| 10 | Grid, Blower | E104-000090 | E104-000090-Online | |||
| 10 | Pipe,Main | E160-000170 | E160-000170-Online | |||
| 14 | Pipe,Blower | E165-000191 | E165-000191-Online | |||
| 10 | Pipe,Blower | E165-000380 | E165-000380-Online | |||
| 10 | Pipe,Blower | E165-000390 | E165-000390-Online | |||
| 10 | Guard,Pipe | E178-000050 | E178-000050-Online | |||
| 10 | Pipe,Suction | E180-000011 | E180-000011-Online | |||
| 14 | Screw, Idle Adjust | P003-001400 | P003-001400-Online | |||
| 16 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |||
| 16 | Cover Pump | P003-003830 | P003-003830-Online | |||
| 16 | Gasket, M. Diaphragm | P003-003840 | P003-003840-Online | |||
| 16 | Body, Air Purge | P003-003850 | P003-003850-Online | |||
| 16 | Spring | P003-003860 | P003-003860-Online | |||
| 16 | Shaft Asy,Throttle | P003-003880 | P003-003880-Online | |||
| 16 | Spring | P003-003890 | P003-003890-Online | |||
| 16 | Valve, Throttle | P003-003900 | P003-003900-Online | |||
| 16 | Throttle, Lever | P003-003910 | P003-003910-Online | |||
| 16 | Needle | P003-004010 | P003-004010-Online | |||
| 16 | Needle | P003-004020 | P003-004020-Online | |||
| 16 | Case, Air Cleaner | P021-004480 | P021-004480-Online | |||
| 6 | Crankcase Kit | P021-008231 | P021-008231-Online | |||
| 2 | Piston Kit | P021-017410 | P021-017410-Online | |||
| 2 | Spring, Return | P022-006510 | P022-006510-Online | |||
| 4 | Drum | P022-006830 | P022-006830-Online | |||
| 4 | Rope | P022-008260 | P022-008260-Online | |||
| 4 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 4 | Plate, Cam(Ti12-511) | P022-008280 | P022-008280-Online | |||
| 4 | Pawl, Starter | P022-020030 | P022-020030-Online | |||
| 4 | Gasket,Cyl | V100-000190 | V100-000190-Online | |||
| 2 | Gasket,Intake | V103-000540 | V103-000540-Online | |||
| 6 | Gasket,Intake | V103-000550 | V103-000550-Online | |||
| 6 | Gasket,Exhaust | V104-000940 | V104-000940-Online | |||
| 6 | Gasket,Exhaust | V104-000960 | V104-000960-Online | |||
| 6 | Grommet,Fuel | V137-000030 | V137-000030-Online | |||
| 8 | Plate,Eye | V150-002400 | V150-002400-Online | |||
| 2 | Plug | V162-000580 | V162-000580-Online | |||
| 12 | Bolt,5 | V203-000190 | V203-000190-Online | |||
| 6 | Knob,Fastener | V299-000290 | V299-000290-Online | |||
| 10 | Spacer | V376-001750 | V376-001750-Online | |||
| 4 | Cushion | V420-001440 | V420-001440-Online | |||
| 10 | Spring,Torsion | V452-000370 | V452-000370-Online | |||
| 10 | Pipe | V471-002170 | V471-002170-Online | |||
| 8 | Tube | V475-006820 | V475-006820-Online | 4 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Lead | V485-002220 | V485-002220-Online | |||
| 4 | Terminal,Lead | V486-000150 | V486-000150-Online | |||
| 10 | Ring | V583-000080 | V583-000080-Online | |||
| 10 | Pin,Eng 8 | V606-000000 | V606-000000-Online | |||
| 2 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 10 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 4 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | |||
| 10 | Bolt, Torx 4 | V804-000080 | V804-000080-Online | |||
| 6 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 10 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | |||
| 6 | Bolt, Torx 5 | V805-000120 | V805-000120-Online | |||
| 2 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 8 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 6 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 10 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | |||
| 12 | Cutter,Shredder | X413-000010 | X413-000010-Online | |||
| 10 | Cutter,Shredder | X413-000020 | X413-000020-Online | |||
| 10 | Label,Echo | X502-000330 | X502-000330-Online | |||
| 4 | Label,Model | X503-008950 | X503-008950-Online | |||
| 14 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 10 | Label,Caution | X505-007910 | X505-007910-Online | |||
| 12 | Label,Caution | X505-010790 | X505-010790-Online | |||
| 10 | Label,Echo | X547-001830 | X547-001830-Online | |||
| 10 | Bag,Dust | X692-000022 | X692-000022-Online | 14 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-120_ES-250ES_37_37000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
