Illustrated Parts List
Shindaiwa Edger Attachment Edger IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: Edger Attachment
Type: Edger
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

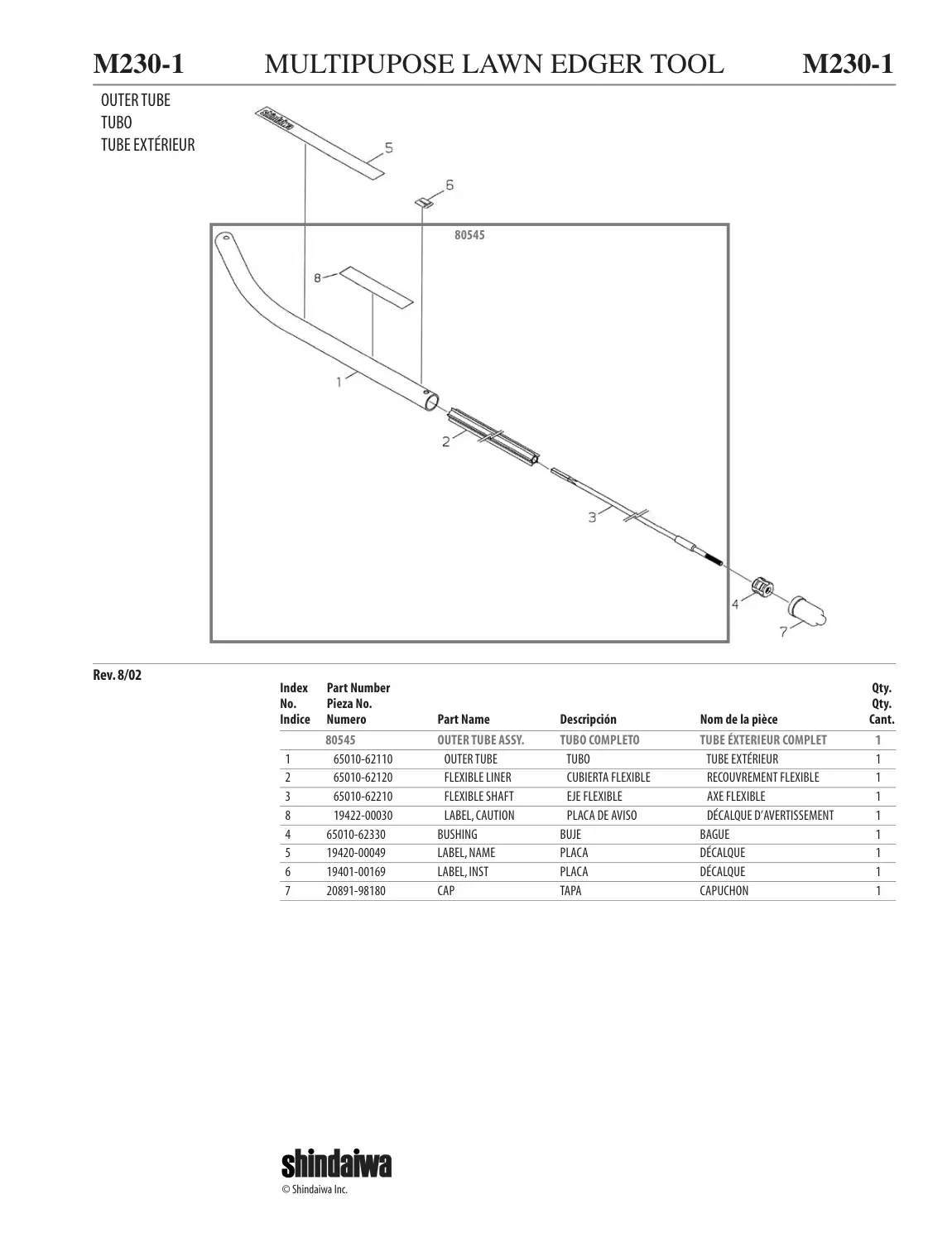

| 2 | MULTIPUPOSE LAWN EDGER TOOL | OUTER TUBE ASSY. | 80545 | 80545-Online | |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 1 | OUTER TUBE | 65010-62110 | 65010-62110-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 1 | MULTIPUPOSE LAWN EDGER TOOL | 80545 | 80545-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 2 | FLEXIBLE LINER | 65010-62120 | 65010-62120-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 3 | FLEXIBLE SHAFT | 65010-62210 | 65010-62210-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 4 | BUSHING | 65010-62330 | 65010-62330-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 5 | LABEL, NAME | 19420-00049 | 19420-00049-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 6 | LABEL, INST | 19401-00169 | 19401-00169-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 7 | CAP | 20891-98180 | 20891-98180-Online |
| 2 | MULTIPUPOSE LAWN EDGER TOOL | 8 | LABEL, CAUTION | 19422-00030 | 19422-00030-Online |

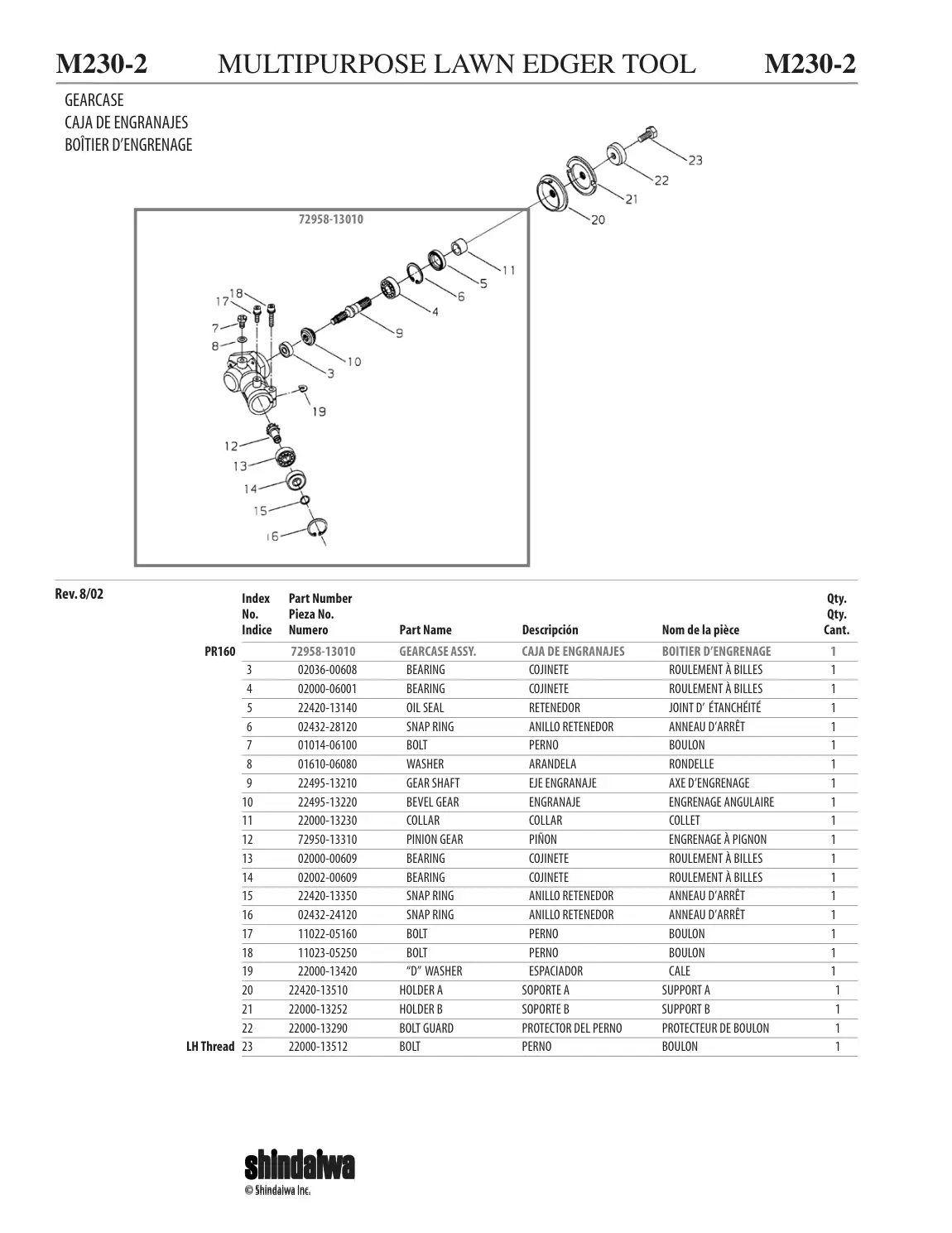

| 3 | GEARCASE | GEARCASE ASSY. | 72958-13010 | 72958-13010-Online | |
| 3 | GEARCASE | LH Thread | PR160 | PR160-Online | |
| 3 | GEARCASE | 1 | LH Thread | 72958-13010 | 72958-13010-Online |
| 3 | GEARCASE | 10 | BEVEL GEAR | 22495-13220 | 22495-13220-Online |
| 3 | GEARCASE | 11 | COLLAR | 22000-13230 | 22000-13230-Online |
| 3 | GEARCASE | 12 | PINION GEAR | 72950-13310 | 72950-13310-Online |
| 3 | GEARCASE | 13 | BEARING | 02000-00609 | 02000-00609-Online |
| 3 | GEARCASE | 14 | BEARING | 02002-00609 | 02002-00609-Online |
| 3 | GEARCASE | 15 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 3 | GEARCASE | 16 | SNAP RING | 02432-24120 | 02432-24120-Online |
| 3 | GEARCASE | 17 | BOLT | 11022-05160 | 11022-05160-Online |
| 3 | GEARCASE | 18 | BOLT | 11023-05250 | 11023-05250-Online |
| 3 | GEARCASE | 19 | “D” WASHER | 22000-13420 | 22000-13420-Online |
| 3 | GEARCASE | 20 | HOLDER A | 22420-13510 | 22420-13510-Online |
| 3 | GEARCASE | 21 | HOLDER B | 22000-13252 | 22000-13252-Online |
| 3 | GEARCASE | 22 | BOLT GUARD | 22000-13290 | 22000-13290-Online |
| 3 | GEARCASE | 23 | BOLT | 22000-13512 | 22000-13512-Online |
| 3 | GEARCASE | 3 | BEARING | 02036-00608 | 02036-00608-Online |
| 3 | GEARCASE | 4 | BEARING | 02000-06001 | 02000-06001-Online |
| 3 | GEARCASE | 5 | OIL SEAL | 22420-13140 | 22420-13140-Online |
| 3 | GEARCASE | 6 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 3 | GEARCASE | 7 | BOLT | 01014-06100 | 01014-06100-Online |
| 3 | GEARCASE | 8 | WASHER | 01610-06080 | 01610-06080-Online |
| 3 | GEARCASE | 9 | GEAR SHAFT | 22495-13210 | 22495-13210-Online |

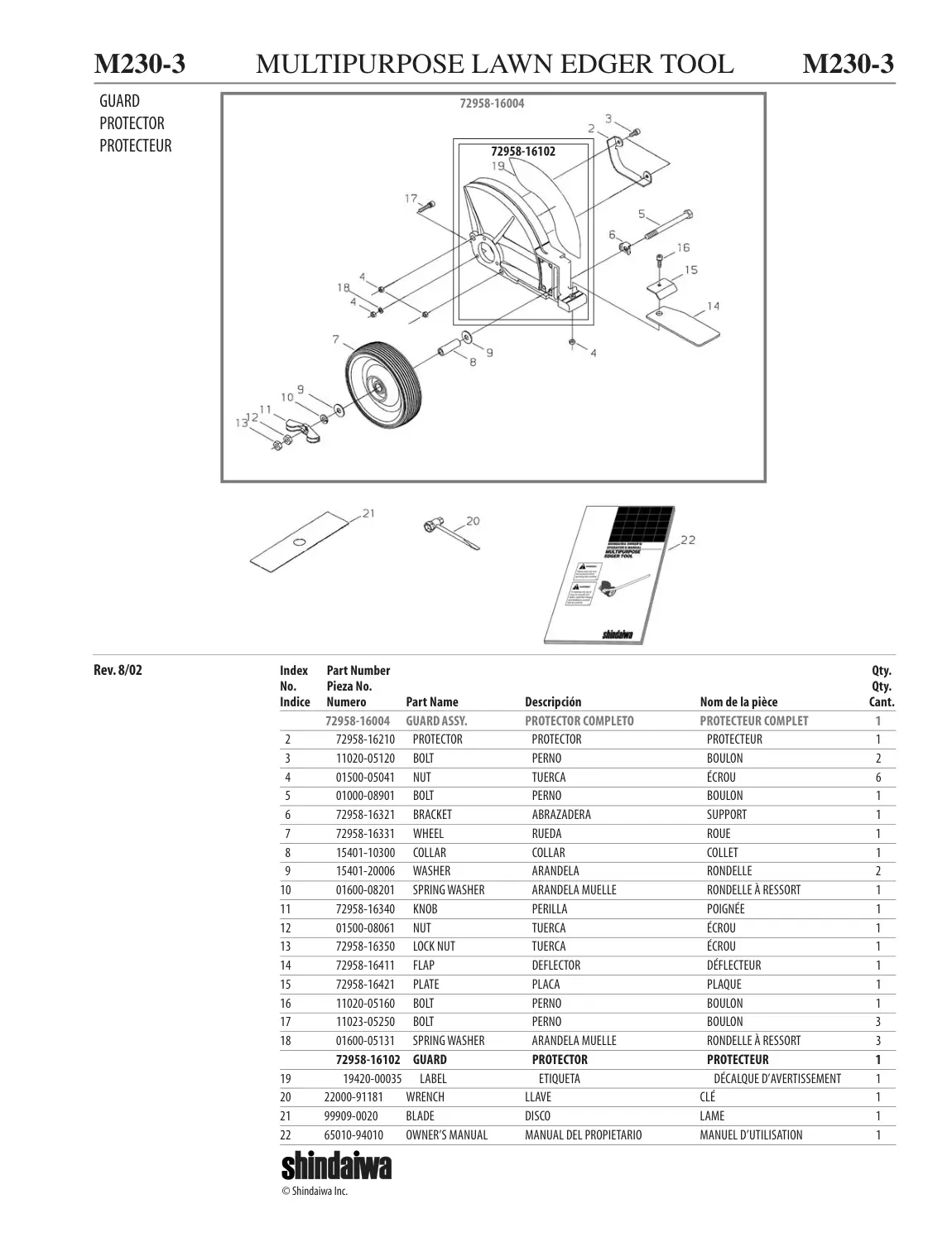

| 4 | MULTIPURPOSE LAWN EDGER TOOL | GUARD ASSY. | 72958-16004 | 72958-16004-Online | |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 1 | MULTIPURPOSE LAWN EDGER TOOL | 72958-16004 | 72958-16004-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 10 | SPRING WASHER | 01600-08201 | 01600-08201-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 11 | KNOB | 72958-16340 | 72958-16340-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 12 | NUT | 01500-08061 | 01500-08061-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 13 | LOCK NUT | 72958-16350 | 72958-16350-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 15 | PLATE | 72958-16421 | 72958-16421-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 16 | BOLT | 11020-05160 | 11020-05160-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 17 | BOLT | 11023-05250 | 11023-05250-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 18 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 19 | LABEL | 19420-00035 | 19420-00035-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 2 | PROTECTOR | 72958-16210 | 72958-16210-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 20 | WRENCH | 22000-91181 | 22000-91181-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 21 | BLADE | 99909-0020 | 99909-0020-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 22 | OWNER’S MANUAL | 65010-94010 | 65010-94010-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 3 | BOLT | 11020-05120 | 11020-05120-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 3 | GUARD | 72958-16102 | 72958-16102-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 4 | NUT | 01500-05041 | 01500-05041-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 5 | BOLT | 01000-08901 | 01000-08901-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 6 | BRACKET | 72958-16321 | 72958-16321-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 8 | COLLAR | 15401-10300 | 15401-10300-Online |
| 4 | MULTIPURPOSE LAWN EDGER TOOL | 9 | WASHER | 15401-20006 | 15401-20006-Online |
Source file: 20111012-945_edger-attach.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
