Illustrated Parts List
Shindaiwa T270 AUS Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: T270 AUS
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.

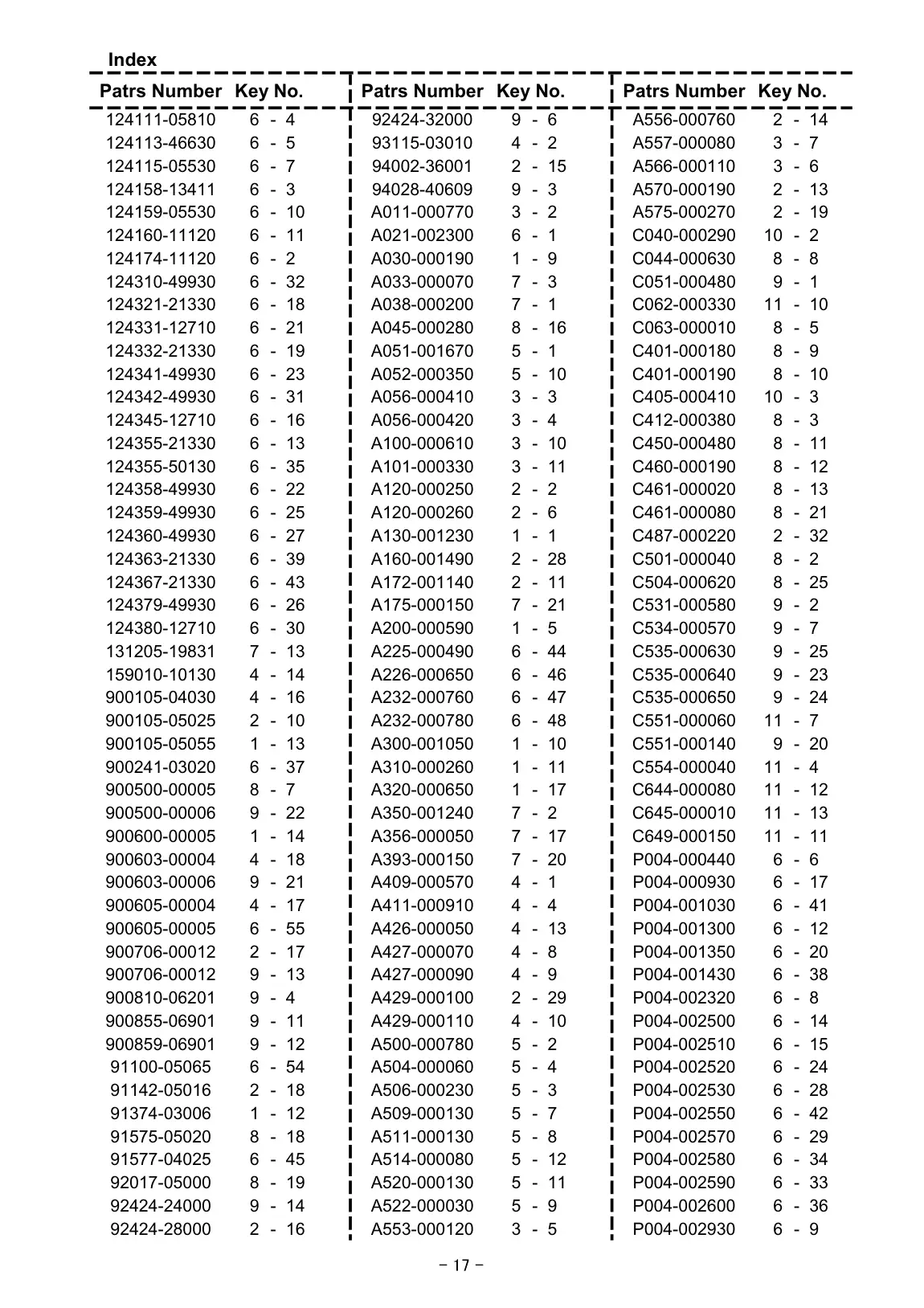

| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

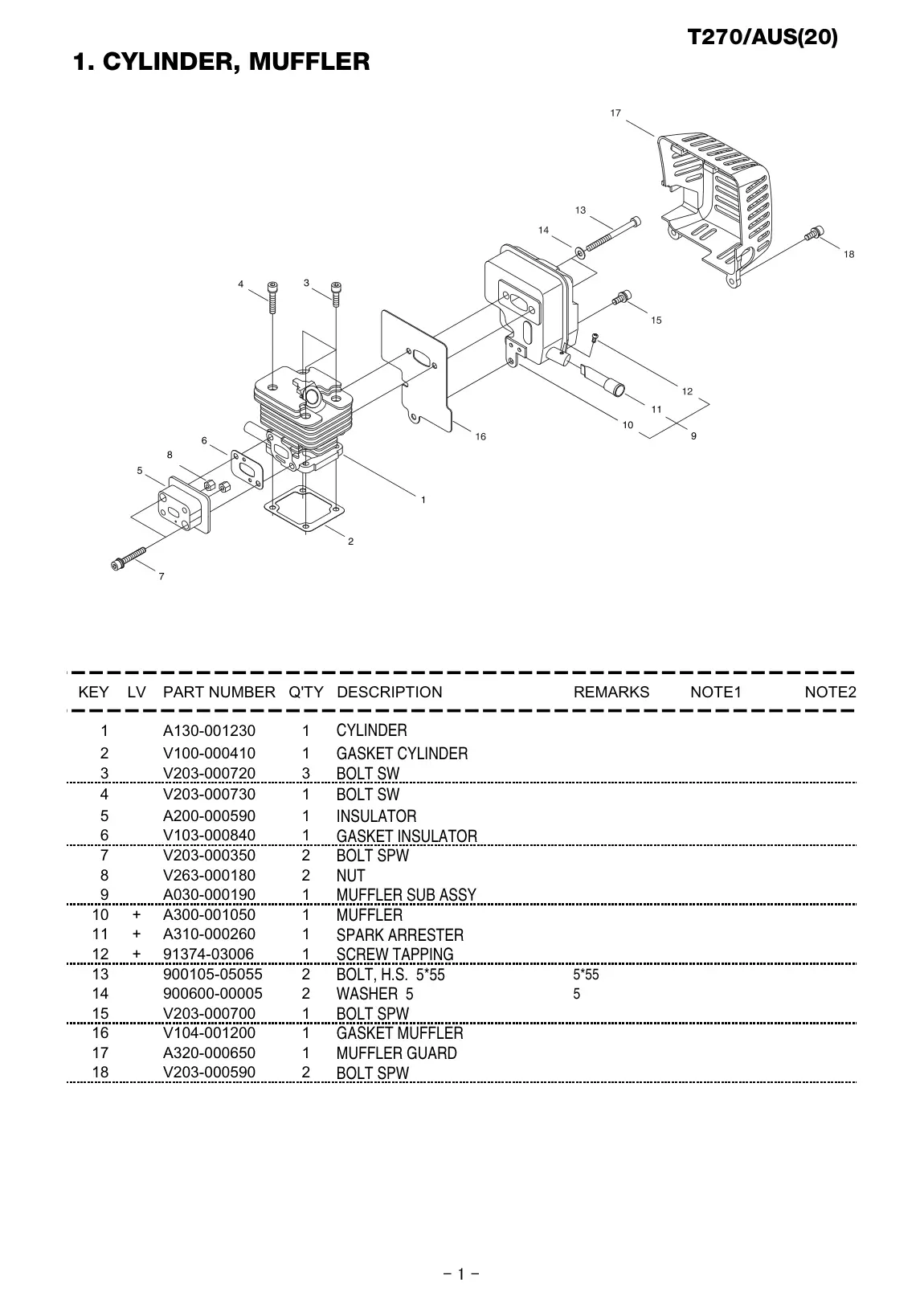

| 2 | BOLT SPW | 1 | CYLINDER | A130-001230 | A130-001230-Online |
| 2 | BOLT SPW | 10 | MUFFLER | A300-001050 | A300-001050-Online |
| 2 | BOLT SPW | 11 | SPARK ARRESTER | A310-000260 | A310-000260-Online |
| 2 | BOLT SPW | 12 | SCREW TAPPING | 91374-03006 | 91374-03006-Online |
| 2 | BOLT SPW | 13 | BOLT, H.S. 5*55 | 900105-05055 | 900105-05055-Online |
| 2 | BOLT SPW | 14 | WASHER | 900600-00005 | 900600-00005-Online |
| 2 | BOLT SPW | 15 | BOLT SPW | V203-000700 | V203-000700-Online |
| 2 | BOLT SPW | 16 | GASKET MUFFLER | V104-001200 | V104-001200-Online |
| 2 | BOLT SPW | 17 | MUFFLER GUARD | A320-000650 | A320-000650-Online |
| 2 | BOLT SPW | 18 | BOLT SPW | V203-000590 | V203-000590-Online |
| 2 | BOLT SPW | 2 | GASKET CYLINDER | V100-000410 | V100-000410-Online |
| 2 | BOLT SPW | 3 | BOLT SW | V203-000720 | V203-000720-Online |
| 2 | BOLT SPW | 4 | BOLT SW | V203-000730 | V203-000730-Online |
| 2 | BOLT SPW | 5 | INSULATOR | A200-000590 | A200-000590-Online |
| 2 | BOLT SPW | 6 | GASKET INSULATOR | V103-000840 | V103-000840-Online |
| 2 | BOLT SPW | 7 | BOLT SPW | V203-000350 | V203-000350-Online |
| 2 | BOLT SPW | 8 | NUT | V263-000180 | V263-000180-Online |
| 2 | BOLT SPW | 9 | MUFFLER SUB ASSY | A030-000190 | A030-000190-Online |
| 3 | CYLINDER COVER | 1 | CRANK CASE S COMP | P021-027910 | P021-027910-Online |
| 3 | CYLINDER COVER | 10 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 3 | CYLINDER COVER | 11 | FAN COVER | A172-001140 | A172-001140-Online |
| 3 | CYLINDER COVER | 12 | GROMMET | V136-000030 | V136-000030-Online |
| 3 | CYLINDER COVER | 13 | CLUTCH CASE | A570-000190 | A570-000190-Online |
| 3 | CYLINDER COVER | 14 | CLUTCH DRUM | A556-000760 | A556-000760-Online |
| 3 | CYLINDER COVER | 15 | BEARING, BALL | 94002-36001 | 94002-36001-Online |
| 3 | CYLINDER COVER | 16 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 3 | CYLINDER COVER | 17 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 3 | CYLINDER COVER | 18 | SCREW BUTTON | 91142-05016 | 91142-05016-Online |
| 3 | CYLINDER COVER | 19 | JOINT | A575-000270 | A575-000270-Online |
| 3 | CYLINDER COVER | 2 | CRANK CASE S | A120-000250 | A120-000250-Online |
| 3 | CYLINDER COVER | 20 | FRONT CUSHION | V423-000040 | V423-000040-Online |
| 3 | CYLINDER COVER | 21 | REAR CUSHION | V423-000050 | V423-000050-Online |
| 3 | CYLINDER COVER | 22 | BOLT SPW | V203-000590 | V203-000590-Online |
| 3 | CYLINDER COVER | 23 | BOLT SPW | V204-000410 | V204-000410-Online |
| 3 | CYLINDER COVER | 25 | BOLT SW | V203-000710 | V203-000710-Online |
| 3 | CYLINDER COVER | 26 | BOLT,5 | V203-000580 | V203-000580-Online |
| 3 | CYLINDER COVER | 28 | CYLINDER COVER | A160-001490 | A160-001490-Online |
| 3 | CYLINDER COVER | 3 | BEARING, BALL | V592-000330 | V592-000330-Online |
| 3 | CYLINDER COVER | 4 | OIL SEAL | V505-000080 | V505-000080-Online |
| 3 | CYLINDER COVER | 5 | CRANK CASE M COMP | P021-027920 | P021-027920-Online |
| 3 | CYLINDER COVER | 6 | CRANK CASE M | A120-000260 | A120-000260-Online |
| 3 | CYLINDER COVER | 7 | BEARING, BALL | V592-000330 | V592-000330-Online |
| 3 | CYLINDER COVER | 8 | OIL SEAL | V505-000080 | V505-000080-Online |
| 3 | CYLINDER COVER | 9 | ROLLER | V623-000060 | V623-000060-Online |

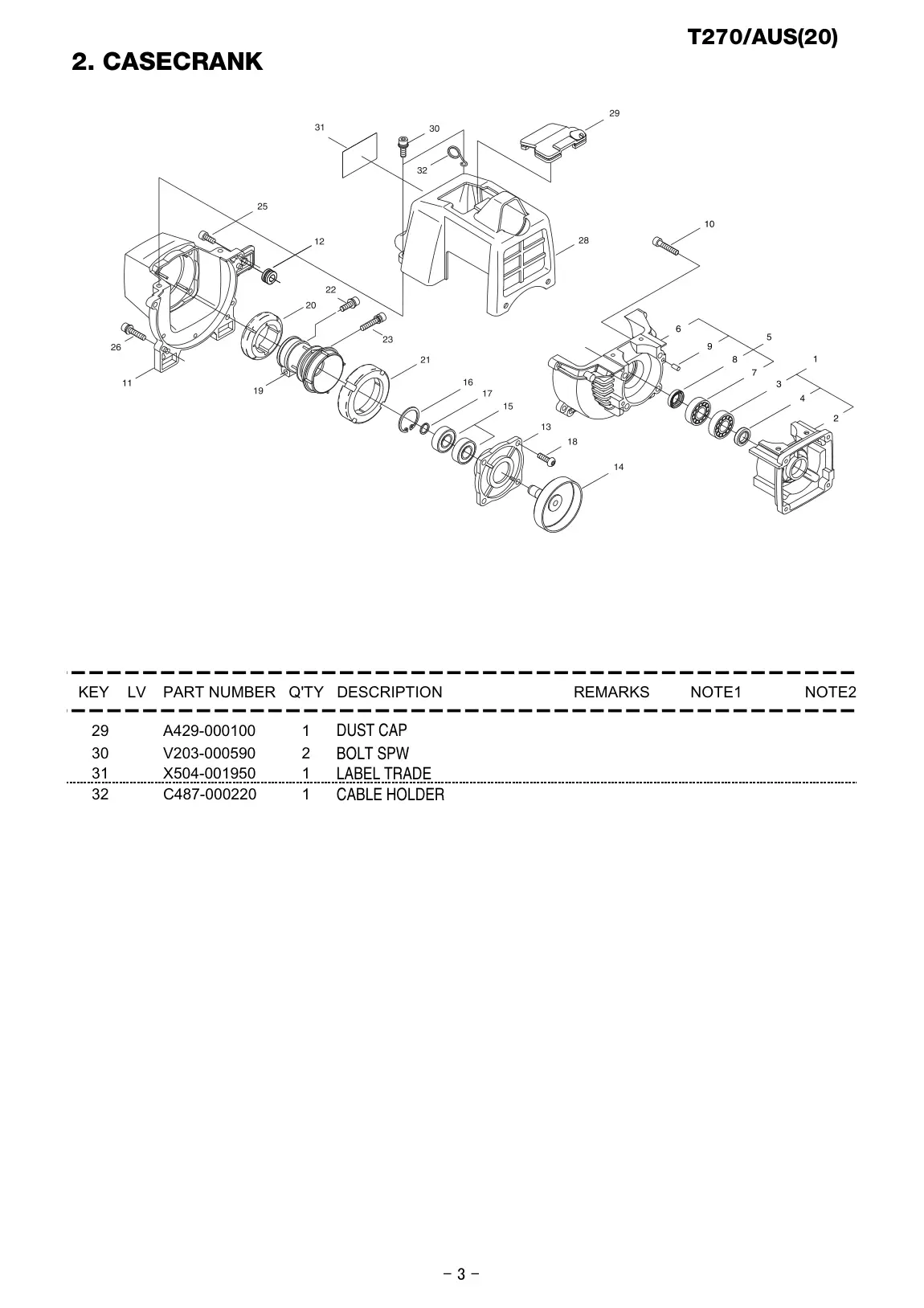

| 4 | CABLE HOLDER | 29 | DUST CAP | A429-000100 | A429-000100-Online |
| 4 | CABLE HOLDER | 30 | BOLT SPW | V203-000590 | V203-000590-Online |
| 4 | CABLE HOLDER | 31 | LABEL TRADE | X504-001950 | X504-001950-Online |
| 4 | CABLE HOLDER | 32 | CABLE HOLDER | C487-000220 | C487-000220-Online |

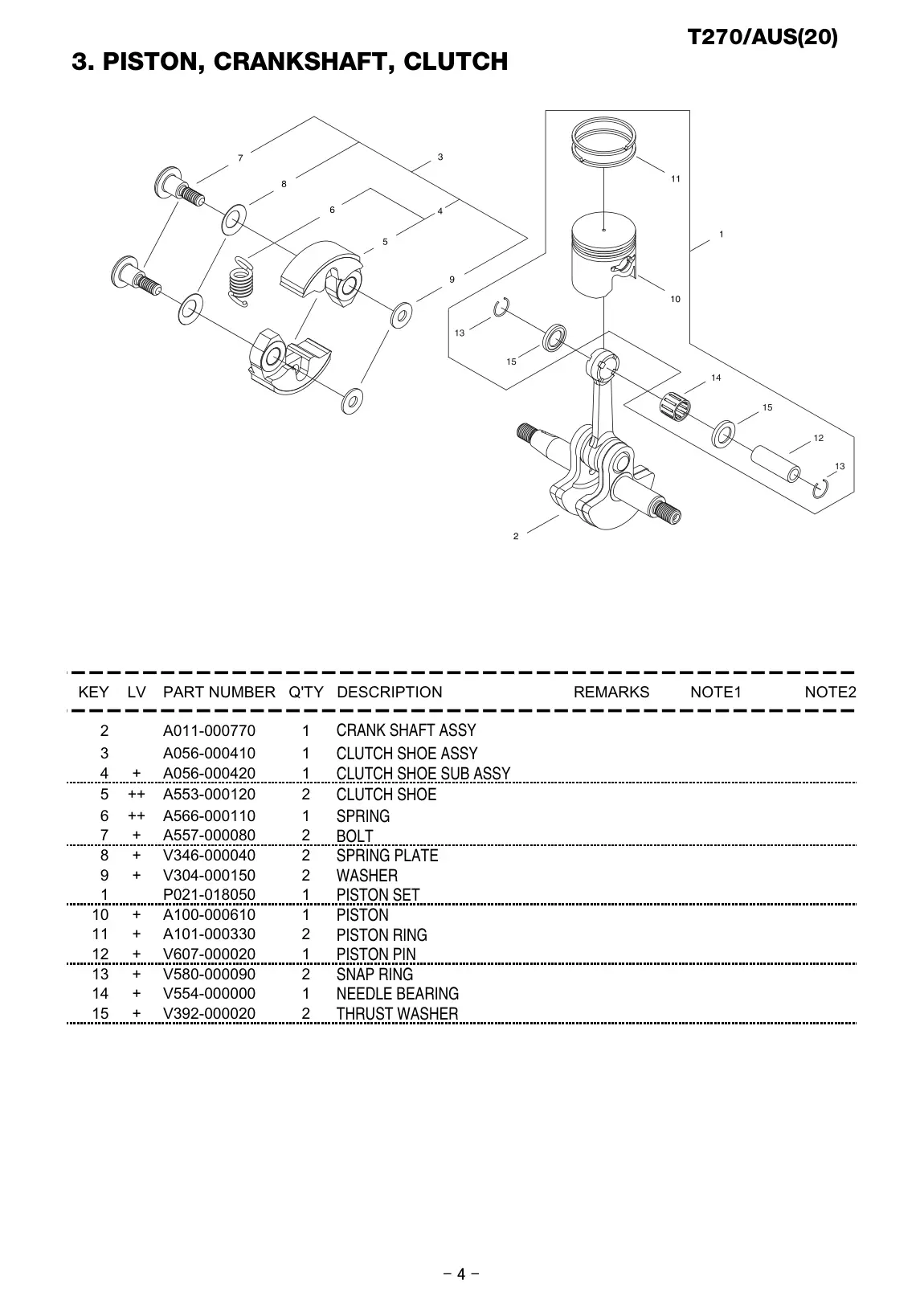

| 5 | THRUST WASHER | 1 | PISTON SET | P021-018050 | P021-018050-Online |
| 5 | THRUST WASHER | 10 | PISTON | A100-000610 | A100-000610-Online |
| 5 | THRUST WASHER | 11 | PISTON RING | A101-000330 | A101-000330-Online |
| 5 | THRUST WASHER | 12 | PISTON PIN | V607-000020 | V607-000020-Online |
| 5 | THRUST WASHER | 13 | SNAP RING | V580-000090 | V580-000090-Online |
| 5 | THRUST WASHER | 14 | NEEDLE BEARING | V554-000000 | V554-000000-Online |
| 5 | THRUST WASHER | 15 | THRUST WASHER | V392-000020 | V392-000020-Online |
| 5 | THRUST WASHER | 2 | CRANK SHAFT ASSY | A011-000770 | A011-000770-Online |
| 5 | THRUST WASHER | 3 | CLUTCH SHOE ASSY | A056-000410 | A056-000410-Online |
| 5 | THRUST WASHER | 4 | CLUTCH SHOE SUB ASSY | A056-000420 | A056-000420-Online |
| 5 | THRUST WASHER | 5 | CLUTCH SHOE | A553-000120 | A553-000120-Online |
| 5 | THRUST WASHER | 6 | SPRING | A566-000110 | A566-000110-Online |
| 5 | THRUST WASHER | 7 | BOLT | A557-000080 | A557-000080-Online |
| 5 | THRUST WASHER | 8 | SPRING PLATE | V346-000040 | V346-000040-Online |
| 5 | THRUST WASHER | 9 | WASHER | V304-000150 | V304-000150-Online |

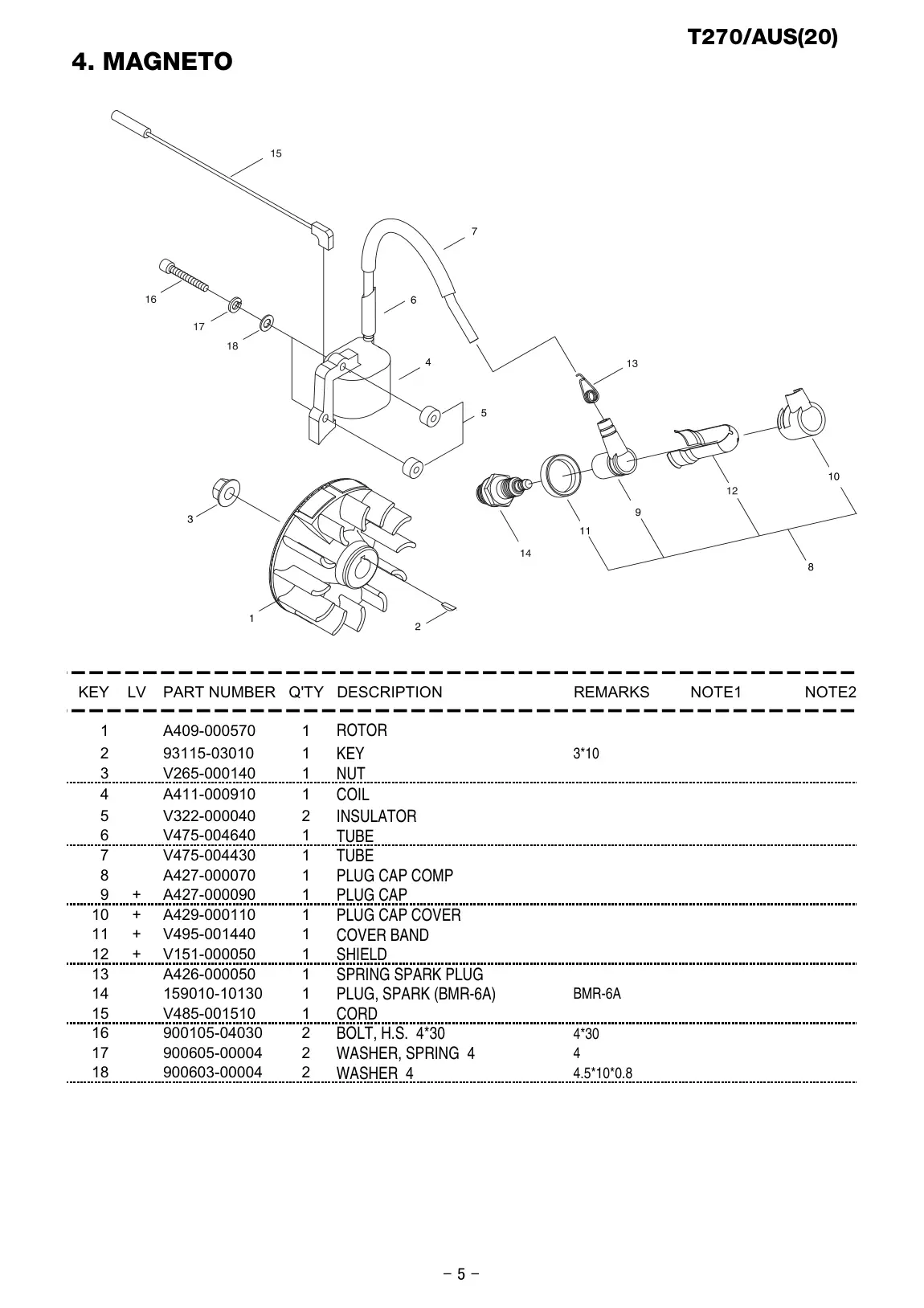

| 6 | WASHER 4 | 10 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 6 | WASHER 4 | 11 | COVER BAND | V495-001440 | V495-001440-Online |
| 6 | WASHER 4 | 12 | SHIELD | V151-000050 | V151-000050-Online |
| 6 | WASHER 4 | 13 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 6 | WASHER 4 | 14 | PLUG, SPARK (BMR-6A) | 159010-10130 | 159010-10130-Online |
| 6 | WASHER 4 | 16 | BOLT, H.S. 4*30 | 900105-04030 | 900105-04030-Online |
| 6 | WASHER 4 | 17 | WASHER, SPRING | 900605-00004 | 900605-00004-Online |
| 6 | WASHER 4 | 18 | WASHER | 900603-00004 | 900603-00004-Online |
| 6 | WASHER 4 | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | WASHER 4 | 3 | NUT | V265-000140 | V265-000140-Online |
| 6 | WASHER 4 | 4 | COIL | A411-000910 | A411-000910-Online |
| 6 | WASHER 4 | 5 | INSULATOR | V322-000040 | V322-000040-Online |
| 6 | WASHER 4 | 6 | TUBE | V475-004640 | V475-004640-Online |
| 6 | WASHER 4 | 7 | TUBE | V475-004430 | V475-004430-Online |
| 6 | WASHER 4 | 8 | PLUG CAP COMP | A427-000070 | A427-000070-Online |
| 6 | WASHER 4 | 9 | PLUG CAP | A427-000090 | A427-000090-Online |

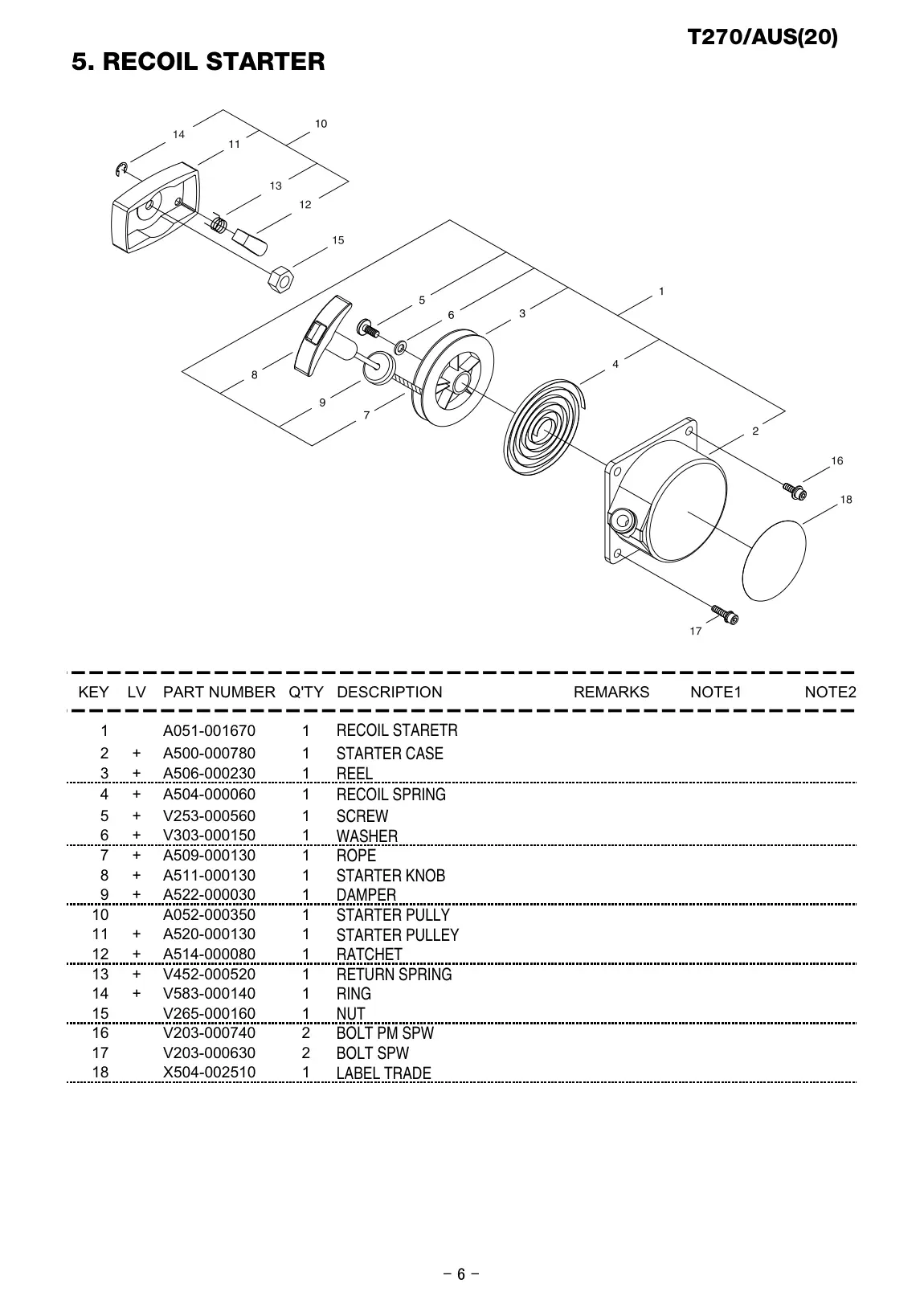

| 7 | LABEL TRADE | 1 | RECOIL STARETR | A051-001670 | A051-001670-Online |
| 7 | LABEL TRADE | 10 | STARTER PULLY | A052-000350 | A052-000350-Online |
| 7 | LABEL TRADE | 11 | STARTER PULLEY | A520-000130 | A520-000130-Online |
| 7 | LABEL TRADE | 12 | RATCHET | A514-000080 | A514-000080-Online |
| 7 | LABEL TRADE | 13 | RETURN SPRING | V452-000520 | V452-000520-Online |
| 7 | LABEL TRADE | 14 | RING | V583-000140 | V583-000140-Online |
| 7 | LABEL TRADE | 15 | NUT | V265-000160 | V265-000160-Online |
| 7 | LABEL TRADE | 16 | BOLT PM SPW | V203-000740 | V203-000740-Online |
| 7 | LABEL TRADE | 17 | BOLT SPW | V203-000630 | V203-000630-Online |
| 7 | LABEL TRADE | 18 | LABEL TRADE | X504-002510 | X504-002510-Online |
| 7 | LABEL TRADE | 2 | STARTER CASE | A500-000780 | A500-000780-Online |
| 7 | LABEL TRADE | 3 | REEL | A506-000230 | A506-000230-Online |
| 7 | LABEL TRADE | 4 | RECOIL SPRING | A504-000060 | A504-000060-Online |
| 7 | LABEL TRADE | 5 | SCREW | V253-000560 | V253-000560-Online |
| 7 | LABEL TRADE | 6 | WASHER | V303-000150 | V303-000150-Online |
| 7 | LABEL TRADE | 7 | ROPE | A509-000130 | A509-000130-Online |
| 7 | LABEL TRADE | 8 | STARTER KNOB | A511-000130 | A511-000130-Online |
| 7 | LABEL TRADE | 9 | DAMPER | A522-000030 | A522-000030-Online |

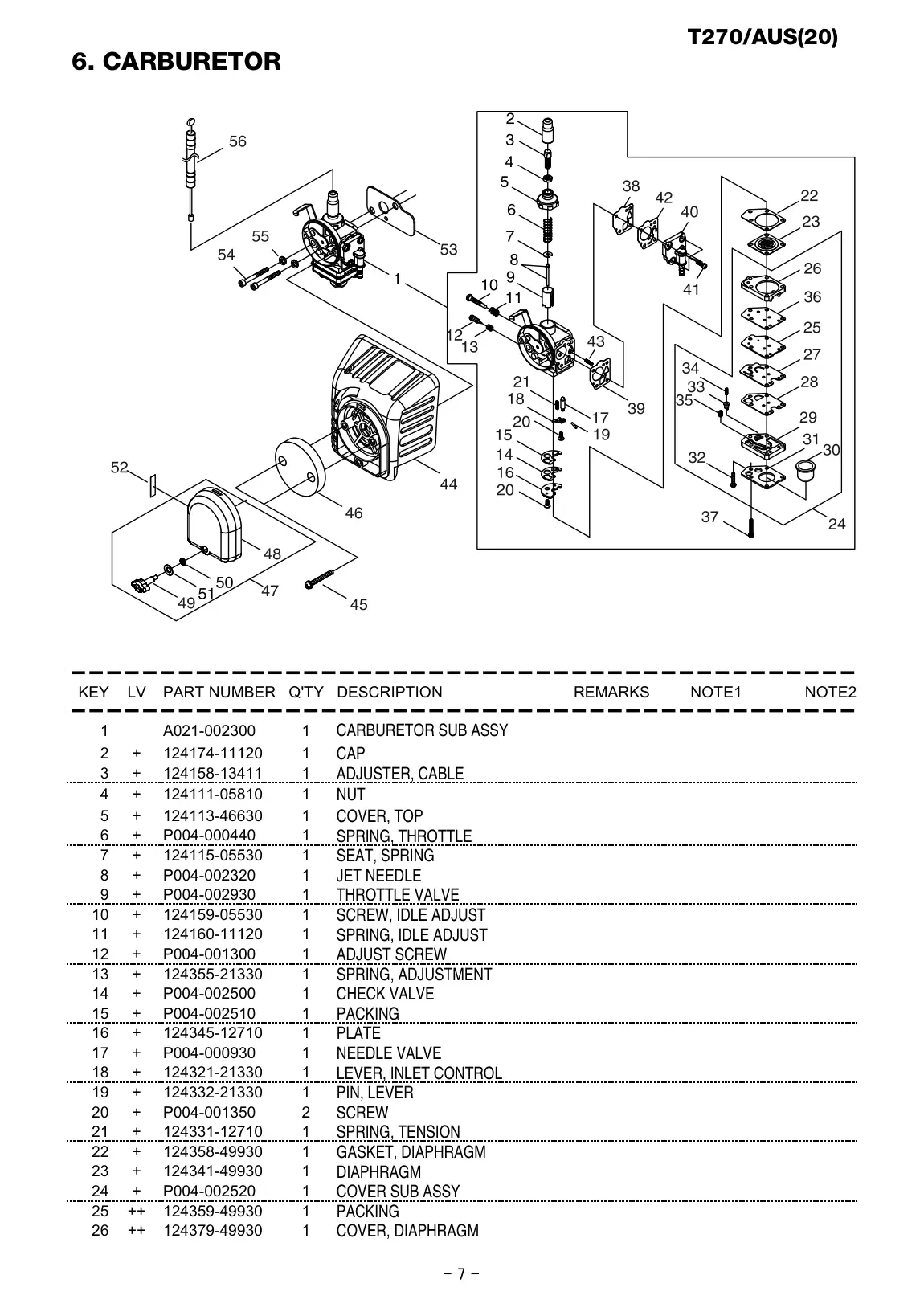

| 8 | COVER, DIAPHRAGM | 1 | CARBURETOR SUB ASSY | A021-002300 | A021-002300-Online |
| 8 | COVER, DIAPHRAGM | 10 | SCREW, IDLE ADJUST | 124159-05530 | 124159-05530-Online |
| 8 | COVER, DIAPHRAGM | 11 | SPRING, IDLE ADJUST | 124160-11120 | 124160-11120-Online |
| 8 | COVER, DIAPHRAGM | 12 | ADJUST SCREW | P004-001300 | P004-001300-Online |
| 8 | COVER, DIAPHRAGM | 13 | SPRING, ADJUSTMENT | 124355-21330 | 124355-21330-Online |
| 8 | COVER, DIAPHRAGM | 14 | CHECK VALVE | P004-002500 | P004-002500-Online |
| 8 | COVER, DIAPHRAGM | 15 | PACKING | P004-002510 | P004-002510-Online |
| 8 | COVER, DIAPHRAGM | 16 | PLATE | 124345-12710 | 124345-12710-Online |
| 8 | COVER, DIAPHRAGM | 17 | NEEDLE VALVE | P004-000930 | P004-000930-Online |
| 8 | COVER, DIAPHRAGM | 18 | LEVER, INLET CONTROL | 124321-21330 | 124321-21330-Online |
| 8 | COVER, DIAPHRAGM | 19 | PIN, LEVER | 124332-21330 | 124332-21330-Online |
| 8 | COVER, DIAPHRAGM | 2 | CAP | 124174-11120 | 124174-11120-Online |
| 8 | COVER, DIAPHRAGM | 20 | SCREW | P004-001350 | P004-001350-Online |
| 8 | COVER, DIAPHRAGM | 21 | SPRING, TENSION | 124331-12710 | 124331-12710-Online |
| 8 | COVER, DIAPHRAGM | 22 | GASKET, DIAPHRAGM | 124358-49930 | 124358-49930-Online |
| 8 | COVER, DIAPHRAGM | 23 | DIAPHRAGM | 124341-49930 | 124341-49930-Online |
| 8 | COVER, DIAPHRAGM | 24 | COVER SUB ASSY | P004-002520 | P004-002520-Online |
| 8 | COVER, DIAPHRAGM | 25 | PACKING | 124359-49930 | 124359-49930-Online |
| 8 | COVER, DIAPHRAGM | 26 | COVER, DIAPHRAGM | 124379-49930 | 124379-49930-Online |
| 8 | COVER, DIAPHRAGM | 3 | ADJUSTER, CABLE | 124158-13411 | 124158-13411-Online |
| 8 | COVER, DIAPHRAGM | 4 | NUT | 124111-05810 | 124111-05810-Online |
| 8 | COVER, DIAPHRAGM | 5 | COVER, TOP | 124113-46630 | 124113-46630-Online |
| 8 | COVER, DIAPHRAGM | 6 | SPRING, THROTTLE | P004-000440 | P004-000440-Online |
| 8 | COVER, DIAPHRAGM | 7 | SEAT, SPRING | 124115-05530 | 124115-05530-Online |
| 8 | COVER, DIAPHRAGM | 8 | JET NEEDLE | P004-002320 | P004-002320-Online |
| 8 | COVER, DIAPHRAGM | 9 | THROTTLE VALVE | P004-002930 | P004-002930-Online |

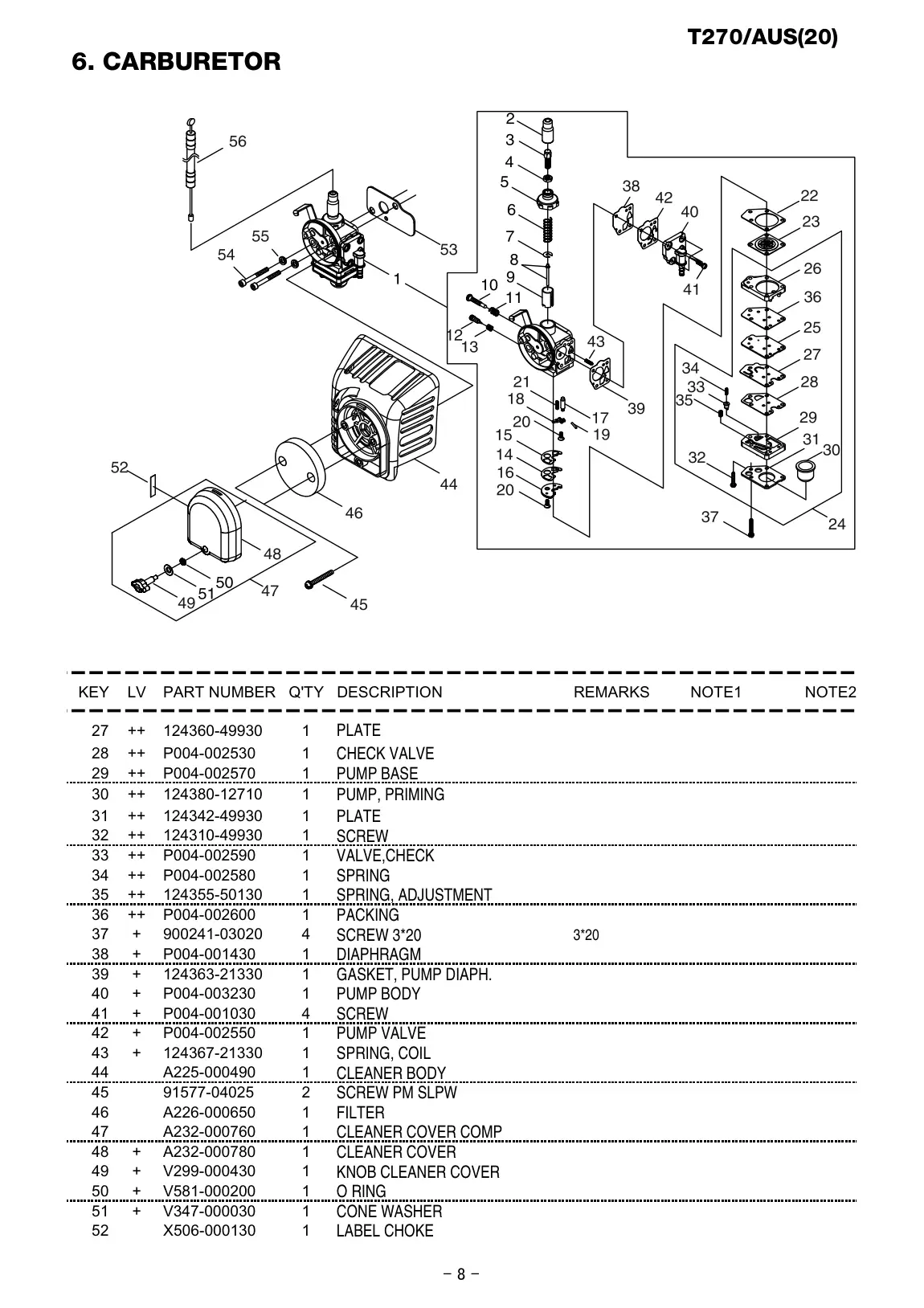

| 9 | LABEL CHOKE | 27 | PLATE | 124360-49930 | 124360-49930-Online |
| 9 | LABEL CHOKE | 28 | CHECK VALVE | P004-002530 | P004-002530-Online |
| 9 | LABEL CHOKE | 29 | PUMP BASE | P004-002570 | P004-002570-Online |
| 9 | LABEL CHOKE | 30 | PUMP, PRIMING | 124380-12710 | 124380-12710-Online |
| 9 | LABEL CHOKE | 31 | PLATE | 124342-49930 | 124342-49930-Online |
| 9 | LABEL CHOKE | 32 | SCREW | 124310-49930 | 124310-49930-Online |
| 9 | LABEL CHOKE | 33 | VALVE,CHECK | P004-002590 | P004-002590-Online |
| 9 | LABEL CHOKE | 34 | SPRING | P004-002580 | P004-002580-Online |
| 9 | LABEL CHOKE | 35 | SPRING, ADJUSTMENT | 124355-50130 | 124355-50130-Online |
| 9 | LABEL CHOKE | 36 | PACKING | P004-002600 | P004-002600-Online |
| 9 | LABEL CHOKE | 37 | SCREW 3*20 | 900241-03020 | 900241-03020-Online |
| 9 | LABEL CHOKE | 38 | DIAPHRAGM | P004-001430 | P004-001430-Online |
| 9 | LABEL CHOKE | 39 | GASKET, PUMP DIAPH. | 124363-21330 | 124363-21330-Online |
| 9 | LABEL CHOKE | 40 | PUMP BODY | P004-003230 | P004-003230-Online |
| 9 | LABEL CHOKE | 41 | SCREW | P004-001030 | P004-001030-Online |
| 9 | LABEL CHOKE | 42 | PUMP VALVE | P004-002550 | P004-002550-Online |
| 9 | LABEL CHOKE | 43 | SPRING, COIL | 124367-21330 | 124367-21330-Online |
| 9 | LABEL CHOKE | 44 | CLEANER BODY | A225-000490 | A225-000490-Online |
| 9 | LABEL CHOKE | 45 | SCREW PM SLPW | 91577-04025 | 91577-04025-Online |
| 9 | LABEL CHOKE | 46 | FILTER | A226-000650 | A226-000650-Online |
| 9 | LABEL CHOKE | 47 | CLEANER COVER COMP | A232-000760 | A232-000760-Online |
| 9 | LABEL CHOKE | 48 | CLEANER COVER | A232-000780 | A232-000780-Online |
| 9 | LABEL CHOKE | 49 | KNOB CLEANER COVER | V299-000430 | V299-000430-Online |
| 9 | LABEL CHOKE | 50 | O RING | V581-000200 | V581-000200-Online |
| 9 | LABEL CHOKE | 51 | CONE WASHER | V347-000030 | V347-000030-Online |
| 9 | LABEL CHOKE | 52 | LABEL CHOKE | X506-000130 | X506-000130-Online |

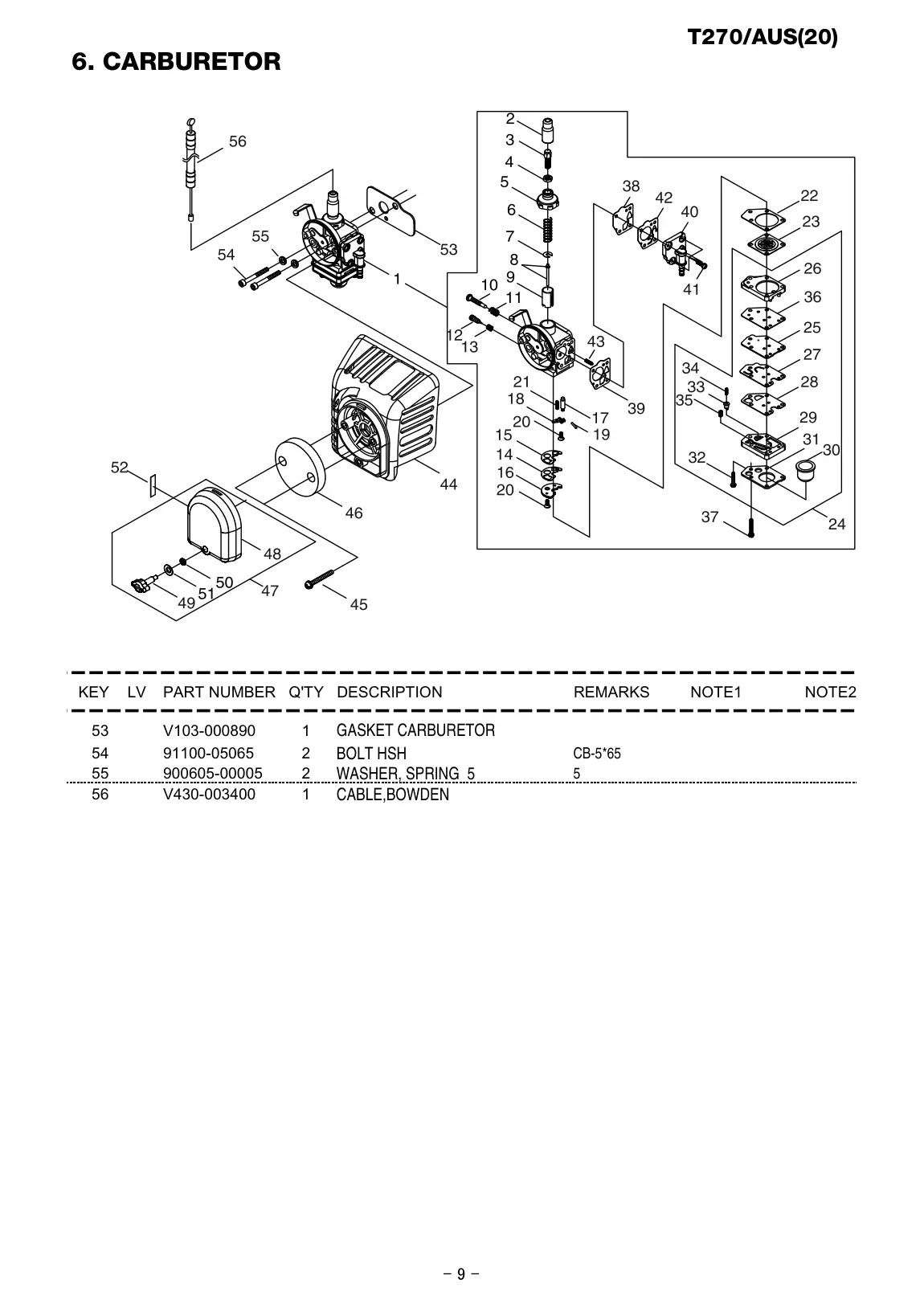

| 10 | CABLE,BOWDEN | 53 | GASKET CARBURETOR | V103-000890 | V103-000890-Online |
| 10 | CABLE,BOWDEN | 54 | BOLT HSH | 91100-05065 | 91100-05065-Online |
| 10 | CABLE,BOWDEN | 55 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 10 | CABLE,BOWDEN | 56 | CABLE,BOWDEN | V430-003400 | V430-003400-Online |

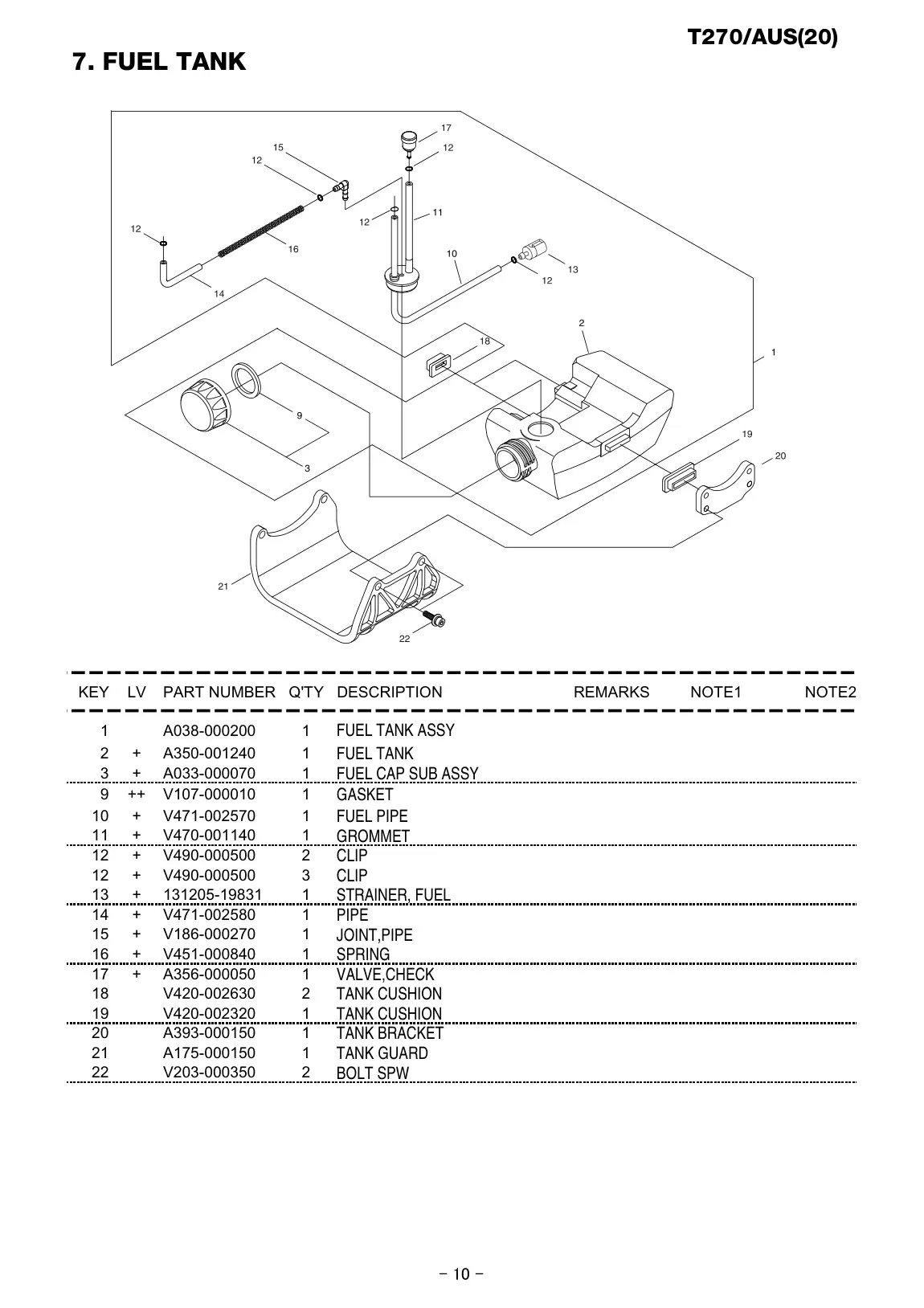

| 11 | BOLT SPW | 1 | FUEL TANK ASSY | A038-000200 | A038-000200-Online |
| 11 | BOLT SPW | 10 | FUEL PIPE | V471-002570 | V471-002570-Online |
| 11 | BOLT SPW | 11 | GROMMET | V470-001140 | V470-001140-Online |
| 11 | BOLT SPW | 12 | CLIP | V490-000500 | V490-000500-Online |
| 11 | BOLT SPW | 13 | STRAINER, FUEL | 131205-19831 | 131205-19831-Online |
| 11 | BOLT SPW | 14 | PIPE | V471-002580 | V471-002580-Online |
| 11 | BOLT SPW | 15 | JOINT,PIPE | V186-000270 | V186-000270-Online |
| 11 | BOLT SPW | 16 | SPRING | V451-000840 | V451-000840-Online |
| 11 | BOLT SPW | 17 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 11 | BOLT SPW | 18 | TANK CUSHION | V420-002630 | V420-002630-Online |
| 11 | BOLT SPW | 19 | TANK CUSHION | V420-002320 | V420-002320-Online |
| 11 | BOLT SPW | 2 | FUEL TANK | A350-001240 | A350-001240-Online |
| 11 | BOLT SPW | 20 | TANK BRACKET | A393-000150 | A393-000150-Online |
| 11 | BOLT SPW | 21 | TANK GUARD | A175-000150 | A175-000150-Online |
| 11 | BOLT SPW | 22 | BOLT SPW | V203-000350 | V203-000350-Online |
| 11 | BOLT SPW | 3 | FUEL CAP SUB ASSY | A033-000070 | A033-000070-Online |
| 11 | BOLT SPW | 9 | GASKET | V107-000010 | V107-000010-Online |
| 12 | LABEL INST | 1 | OUTER PIPE SUB ASSY | P021-021380 | P021-021380-Online |
| 12 | LABEL INST | 10 | BODY LEFT | C401-000190 | C401-000190-Online |
| 12 | LABEL INST | 11 | LEVER | C450-000480 | C450-000480-Online |
| 12 | LABEL INST | 12 | LOCK LEVER | C460-000190 | C460-000190-Online |
| 12 | LABEL INST | 13 | HOLDER | C461-000020 | C461-000020-Online |
| 12 | LABEL INST | 14 | COIL SPRING | V452-000700 | V452-000700-Online |
| 12 | LABEL INST | 15 | COIL SPRING | V452-000500 | V452-000500-Online |
| 12 | LABEL INST | 16 | SWITCH | A045-000280 | A045-000280-Online |
| 12 | LABEL INST | 17 | SCREW TAPPING | V252-000380 | V252-000380-Online |
| 12 | LABEL INST | 18 | SCREW PM SPW | 91575-05020 | 91575-05020-Online |
| 12 | LABEL INST | 19 | NUT | 92017-05000 | 92017-05000-Online |
| 12 | LABEL INST | 20 | PLUG | V162-000350 | V162-000350-Online |
| 12 | LABEL INST | 21 | BUTTON | C461-000080 | C461-000080-Online |
| 12 | LABEL INST | 22 | COIL SPRING | V450-001010 | V450-001010-Online |
| 12 | LABEL INST | 24 | TUBE | V475-004670 | V475-004670-Online |
| 12 | LABEL INST | 25 | MAIN SHAFT | C504-000620 | C504-000620-Online |
| 12 | LABEL INST | 27 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 12 | LABEL INST | 28 | LABEL,CAUTION | X505-005890 | X505-005890-Online |
| 12 | LABEL INST | 29 | LABEL INST | X505-002850 | X505-002850-Online |
| 12 | LABEL INST | 3 | GRIP | C412-000380 | C412-000380-Online |
| 12 | LABEL INST | 5 | HANGER | C063-000010 | C063-000010-Online |
| 12 | LABEL INST | 6 | BOLT SPW | V203-000700 | V203-000700-Online |
| 12 | LABEL INST | 7 | NUT | 900500-00005 | 900500-00005-Online |
| 12 | LABEL INST | 8 | THROTTLE LEVER ASSY | C044-000630 | C044-000630-Online |
| 12 | LABEL INST | 9 | BODY RIGHT | C401-000180 | C401-000180-Online |

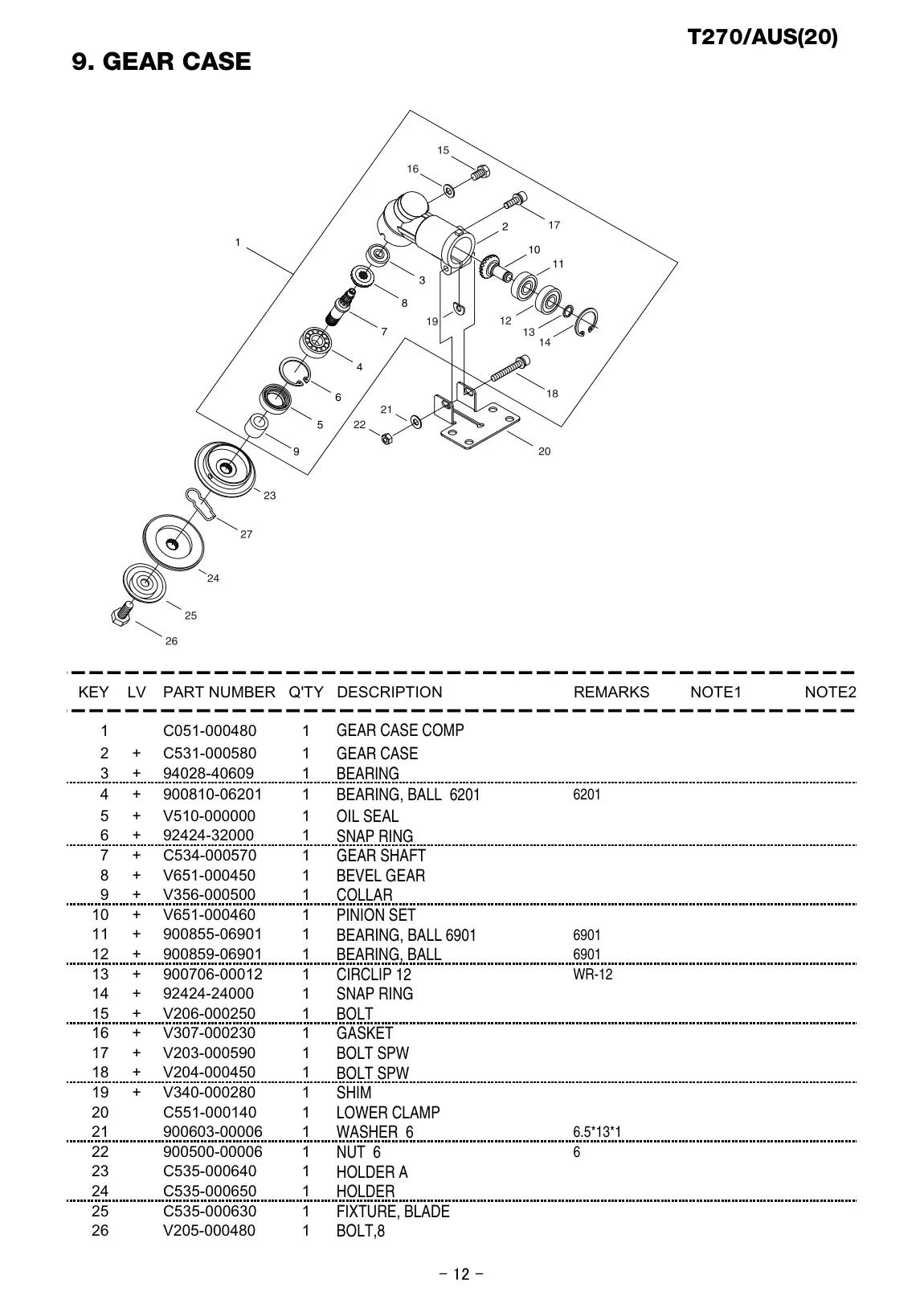

| 13 | BOLT,8 | 1 | GEAR CASE COMP | C051-000480 | C051-000480-Online |
| 13 | BOLT,8 | 10 | PINION SET | V651-000460 | V651-000460-Online |
| 13 | BOLT,8 | 11 | BEARING, BALL | 900855-06901 | 900855-06901-Online |
| 13 | BOLT,8 | 12 | BEARING, BALL | 900859-06901 | 900859-06901-Online |
| 13 | BOLT,8 | 13 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 13 | BOLT,8 | 14 | SNAP RING | 92424-24000 | 92424-24000-Online |
| 13 | BOLT,8 | 15 | BOLT | V206-000250 | V206-000250-Online |
| 13 | BOLT,8 | 16 | GASKET | V307-000230 | V307-000230-Online |
| 13 | BOLT,8 | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 13 | BOLT,8 | 18 | BOLT SPW | V204-000450 | V204-000450-Online |
| 13 | BOLT,8 | 19 | SHIM | V340-000280 | V340-000280-Online |
| 13 | BOLT,8 | 2 | GEAR CASE | C531-000580 | C531-000580-Online |
| 13 | BOLT,8 | 20 | LOWER CLAMP | C551-000140 | C551-000140-Online |
| 13 | BOLT,8 | 21 | WASHER | 900603-00006 | 900603-00006-Online |
| 13 | BOLT,8 | 22 | NUT | 900500-00006 | 900500-00006-Online |
| 13 | BOLT,8 | 23 | HOLDER A | C535-000640 | C535-000640-Online |
| 13 | BOLT,8 | 24 | HOLDER | C535-000650 | C535-000650-Online |
| 13 | BOLT,8 | 25 | FIXTURE, BLADE | C535-000630 | C535-000630-Online |
| 13 | BOLT,8 | 26 | BOLT,8 | V205-000480 | V205-000480-Online |
| 13 | BOLT,8 | 3 | BEARING | 94028-40609 | 94028-40609-Online |
| 13 | BOLT,8 | 4 | BEARING, BALL | 900810-06201 | 900810-06201-Online |
| 13 | BOLT,8 | 5 | OIL SEAL | V510-000000 | V510-000000-Online |
| 13 | BOLT,8 | 6 | SNAP RING | 92424-32000 | 92424-32000-Online |
| 13 | BOLT,8 | 7 | GEAR SHAFT | C534-000570 | C534-000570-Online |
| 13 | BOLT,8 | 8 | BEVEL GEAR | V651-000450 | V651-000450-Online |
| 13 | BOLT,8 | 9 | COLLAR | V356-000500 | V356-000500-Online |

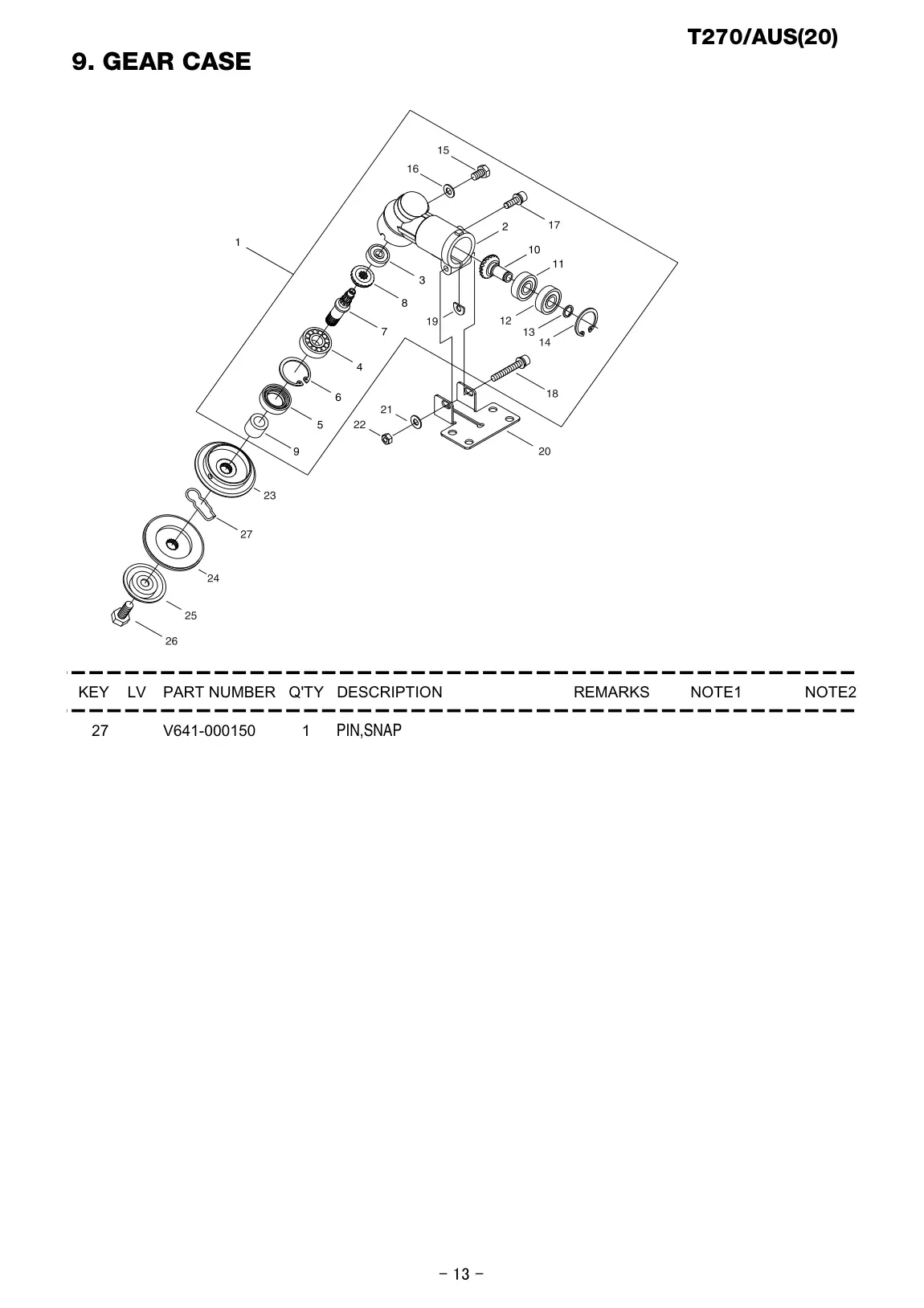

| 14 | PIN,SNAP | 27 | PIN,SNAP | V641-000150 | V641-000150-Online |

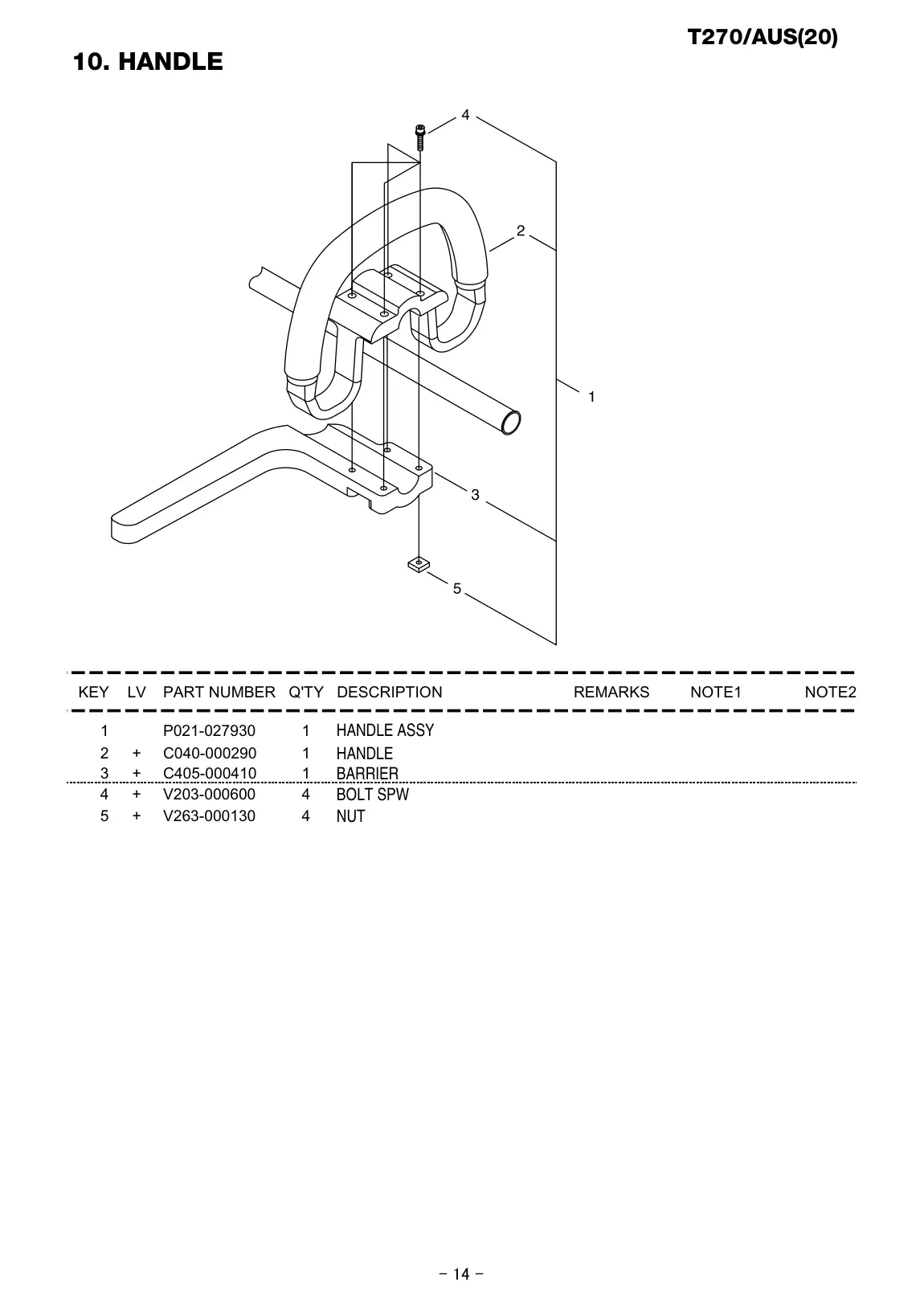

| 15 | NUT | 1 | HANDLE ASSY | P021-027930 | P021-027930-Online |
| 15 | NUT | 2 | HANDLE | C040-000290 | C040-000290-Online |
| 15 | NUT | 3 | BARRIER | C405-000410 | C405-000410-Online |
| 15 | NUT | 4 | BOLT SPW | V203-000600 | V203-000600-Online |
| 15 | NUT | 5 | NUT | V263-000130 | V263-000130-Online |
| 16 | CUSHION HARNESS | 1 | GUARD SET | P021-038410 | P021-038410-Online |
| 16 | CUSHION HARNESS | 10 | STRAP ASSY | C062-000330 | C062-000330-Online |
| 16 | CUSHION HARNESS | 12 | PROTECTOR | C644-000080 | C644-000080-Online |
| 16 | CUSHION HARNESS | 13 | CUSHION HARNESS | C645-000010 | C645-000010-Online |
| 16 | CUSHION HARNESS | 3 | GUARD ASSY | P021-028340 | P021-028340-Online |
| 16 | CUSHION HARNESS | 4 | CUTTER | C554-000040 | C554-000040-Online |
| 16 | CUSHION HARNESS | 5 | BOLT SW | V203-000720 | V203-000720-Online |
| 16 | CUSHION HARNESS | 6 | NUT | V263-000130 | V263-000130-Online |
| 16 | CUSHION HARNESS | 7 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 16 | CUSHION HARNESS | 8 | SPACER | V363-000160 | V363-000160-Online |
| 16 | CUSHION HARNESS | 9 | BOLT SPW | V203-000610 | V203-000610-Online |

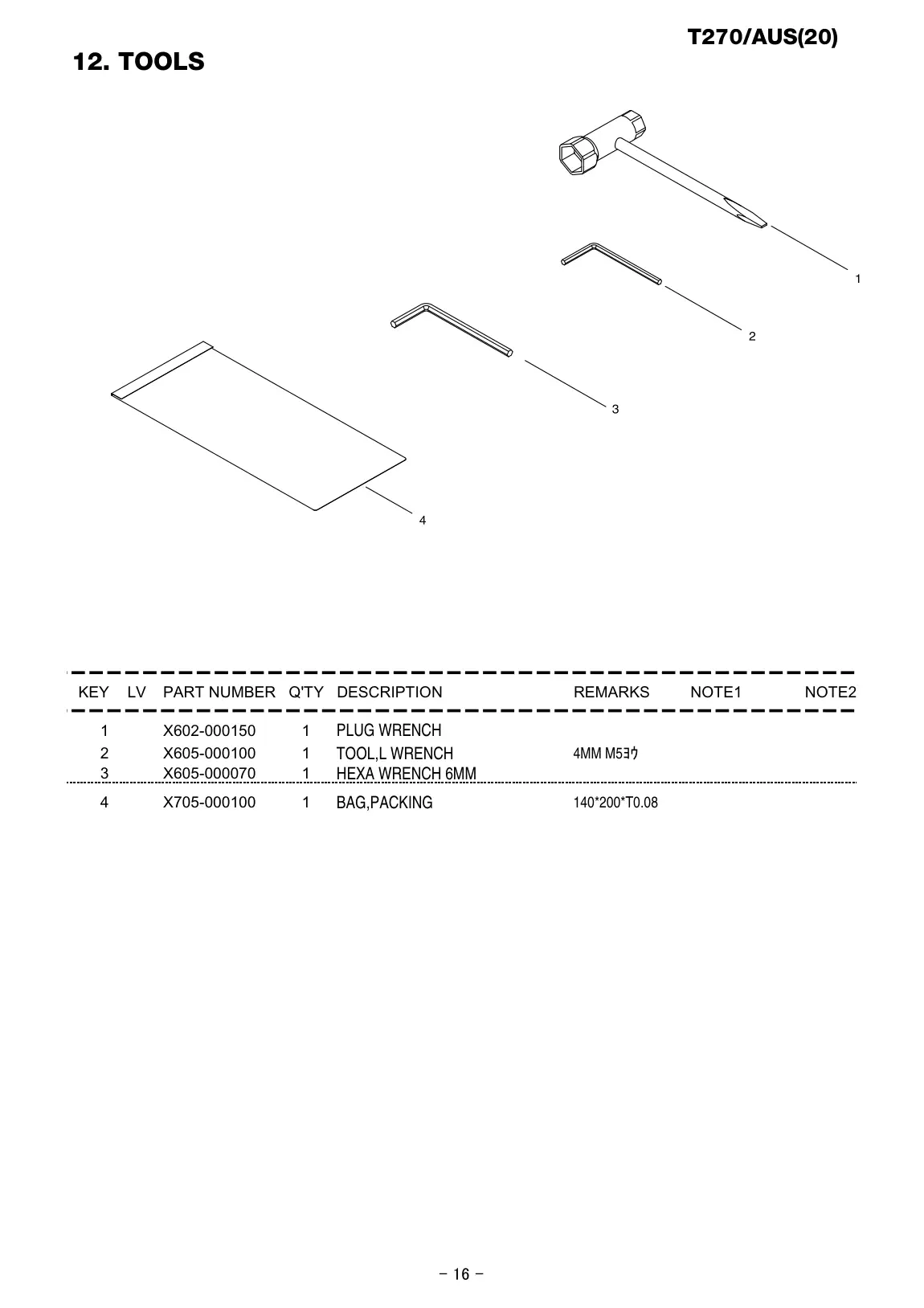

| 17 | 140*200*T0.08 | 1 | PLUG WRENCH | X602-000150 | X602-000150-Online |
| 17 | 140*200*T0.08 | 2 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 17 | 140*200*T0.08 | 3 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 17 | 140*200*T0.08 | 4 | BAG,PACKING | X705-000100 | X705-000100-Online |
Source file: 20130718-226_T270_AUS(20)_P016-000630-11Ib_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
