Illustrated Parts List
Shindaiwa T3410 EC2 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: T3410 EC2
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.

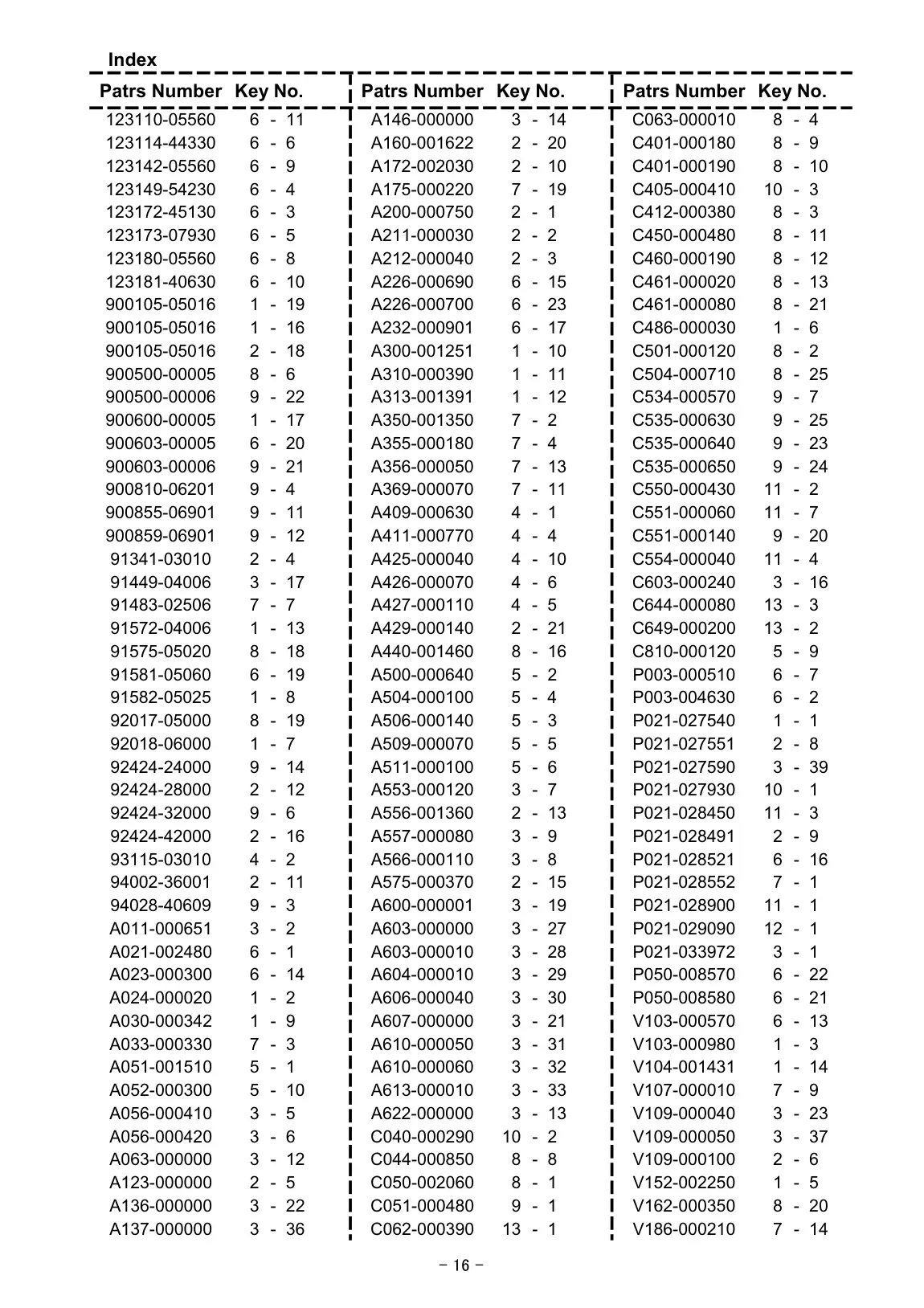

| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

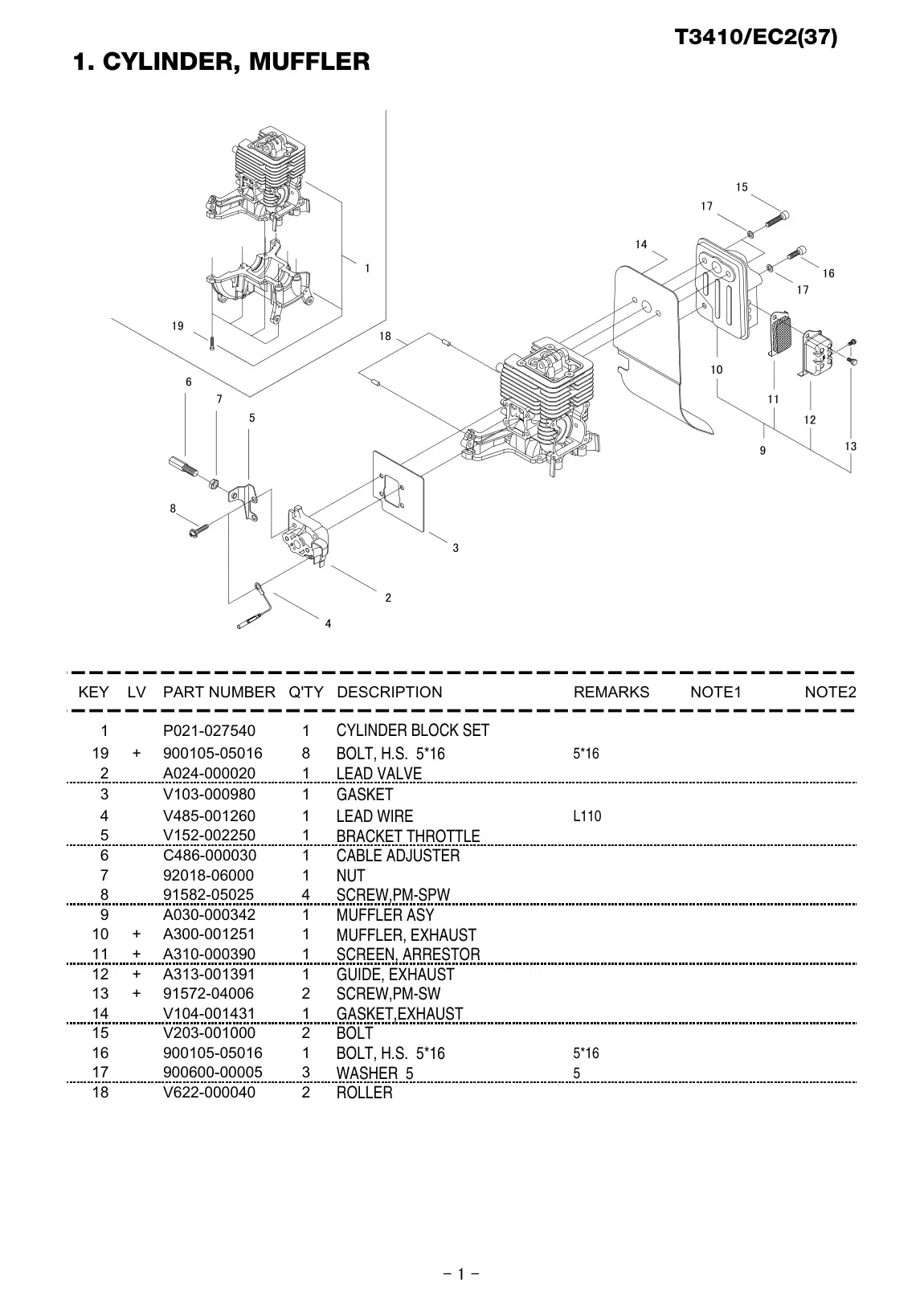

| 2 | ROLLER | 1 | CYLINDER BLOCK SET | P021-027540 | P021-027540-Online |
| 2 | ROLLER | 10 | MUFFLER, EXHAUST | A300-001251 | A300-001251-Online |
| 2 | ROLLER | 11 | SCREEN, ARRESTOR | A310-000390 | A310-000390-Online |
| 2 | ROLLER | 12 | GUIDE, EXHAUST | A313-001391 | A313-001391-Online |
| 2 | ROLLER | 13 | SCREW,PM-SW | 91572-04006 | 91572-04006-Online |
| 2 | ROLLER | 14 | GASKET,EXHAUST | V104-001431 | V104-001431-Online |
| 2 | ROLLER | 15 | BOLT | V203-001000 | V203-001000-Online |
| 2 | ROLLER | 16 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | ROLLER | 17 | WASHER | 900600-00005 | 900600-00005-Online |
| 2 | ROLLER | 18 | ROLLER | V622-000040 | V622-000040-Online |
| 2 | ROLLER | 19 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | ROLLER | 2 | LEAD VALVE | A024-000020 | A024-000020-Online |
| 2 | ROLLER | 3 | GASKET | V103-000980 | V103-000980-Online |
| 2 | ROLLER | 4 | LEAD WIRE | V485-001260 | V485-001260-Online |
| 2 | ROLLER | 5 | BRACKET THROTTLE | V152-002250 | V152-002250-Online |
| 2 | ROLLER | 6 | CABLE ADJUSTER | C486-000030 | C486-000030-Online |
| 2 | ROLLER | 7 | NUT | 92018-06000 | 92018-06000-Online |
| 2 | ROLLER | 8 | SCREW,PM-SPW | 91582-05025 | 91582-05025-Online |
| 2 | ROLLER | 9 | MUFFLER ASY | A030-000342 | A030-000342-Online |
| 3 | LABEL TRADE | 1 | INSULATOR | A200-000750 | A200-000750-Online |
| 3 | LABEL TRADE | 10 | COVER,FAN | A172-002030 | A172-002030-Online |
| 3 | LABEL TRADE | 11 | BEARING, BALL | 94002-36001 | 94002-36001-Online |
| 3 | LABEL TRADE | 12 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 3 | LABEL TRADE | 13 | DRUM, CLUTCH | A556-001360 | A556-001360-Online |
| 3 | LABEL TRADE | 14 | SNAP RING | V583-000170 | V583-000170-Online |
| 3 | LABEL TRADE | 15 | JOINT | A575-000370 | A575-000370-Online |
| 3 | LABEL TRADE | 16 | SNAP RING | 92424-42000 | 92424-42000-Online |
| 3 | LABEL TRADE | 17 | BOLT-SW | V203-000620 | V203-000620-Online |
| 3 | LABEL TRADE | 18 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 3 | LABEL TRADE | 19 | BOLT SW | V203-000530 | V203-000530-Online |
| 3 | LABEL TRADE | 2 | VALVE,REED | A211-000030 | A211-000030-Online |
| 3 | LABEL TRADE | 20 | COVER,CYLINDER | A160-001622 | A160-001622-Online |
| 3 | LABEL TRADE | 21 | GROMMET | A429-000140 | A429-000140-Online |
| 3 | LABEL TRADE | 22 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 3 | LABEL TRADE | 23 | LABEL TRADE | X504-002550 | X504-002550-Online |
| 3 | LABEL TRADE | 24 | LABEL TRADE | X504-002530 | X504-002530-Online |
| 3 | LABEL TRADE | 3 | STOPPER | A212-000040 | A212-000040-Online |
| 3 | LABEL TRADE | 4 | SCREW-SW | 91341-03010 | 91341-03010-Online |
| 3 | LABEL TRADE | 5 | COVER | A123-000000 | A123-000000-Online |
| 3 | LABEL TRADE | 6 | GASKET | V109-000100 | V109-000100-Online |
| 3 | LABEL TRADE | 7 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 3 | LABEL TRADE | 8 | FAN COVER ASSY | P021-027551 | P021-027551-Online |
| 3 | LABEL TRADE | 9 | FAN COVER COMP | P021-028491 | P021-028491-Online |

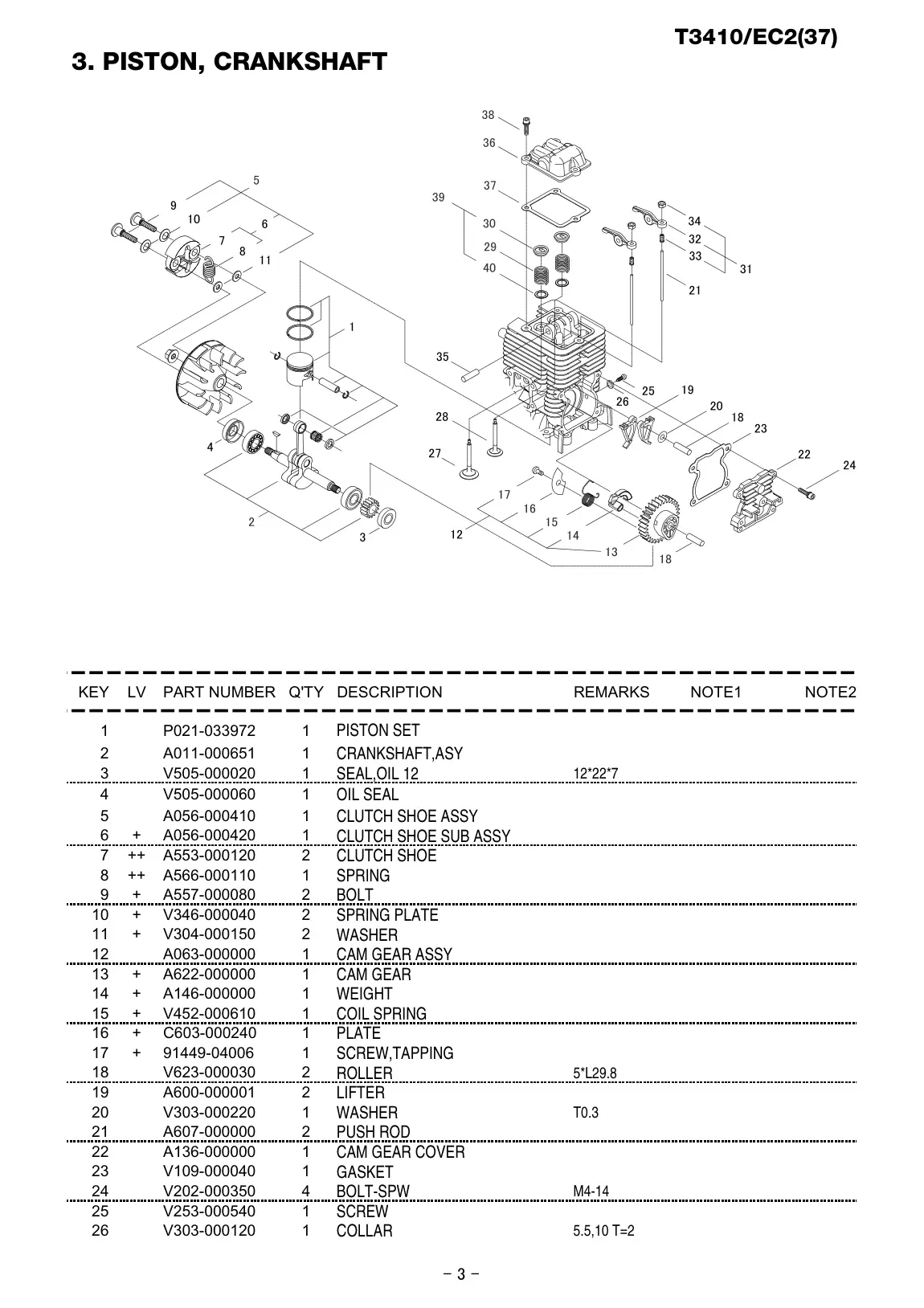

| 4 | 5.5,10 T=2 | 1 | PISTON SET | P021-033972 | P021-033972-Online |
| 4 | 5.5,10 T=2 | 10 | SPRING PLATE | V346-000040 | V346-000040-Online |
| 4 | 5.5,10 T=2 | 11 | WASHER | V304-000150 | V304-000150-Online |
| 4 | 5.5,10 T=2 | 12 | CAM GEAR ASSY | A063-000000 | A063-000000-Online |
| 4 | 5.5,10 T=2 | 13 | CAM GEAR | A622-000000 | A622-000000-Online |
| 4 | 5.5,10 T=2 | 14 | WEIGHT | A146-000000 | A146-000000-Online |
| 4 | 5.5,10 T=2 | 15 | COIL SPRING | V452-000610 | V452-000610-Online |
| 4 | 5.5,10 T=2 | 16 | PLATE | C603-000240 | C603-000240-Online |
| 4 | 5.5,10 T=2 | 17 | SCREW,TAPPING | 91449-04006 | 91449-04006-Online |
| 4 | 5.5,10 T=2 | 18 | ROLLER | V623-000030 | V623-000030-Online |
| 4 | 5.5,10 T=2 | 19 | LIFTER | A600-000001 | A600-000001-Online |
| 4 | 5.5,10 T=2 | 2 | CRANKSHAFT,ASY | A011-000651 | A011-000651-Online |
| 4 | 5.5,10 T=2 | 20 | WASHER | V303-000220 | V303-000220-Online |
| 4 | 5.5,10 T=2 | 21 | PUSH ROD | A607-000000 | A607-000000-Online |
| 4 | 5.5,10 T=2 | 22 | CAM GEAR COVER | A136-000000 | A136-000000-Online |
| 4 | 5.5,10 T=2 | 23 | GASKET | V109-000040 | V109-000040-Online |
| 4 | 5.5,10 T=2 | 24 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 4 | 5.5,10 T=2 | 25 | SCREW | V253-000540 | V253-000540-Online |
| 4 | 5.5,10 T=2 | 26 | COLLAR | V303-000120 | V303-000120-Online |
| 4 | 5.5,10 T=2 | 3 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 4 | 5.5,10 T=2 | 4 | OIL SEAL | V505-000060 | V505-000060-Online |
| 4 | 5.5,10 T=2 | 5 | CLUTCH SHOE ASSY | A056-000410 | A056-000410-Online |
| 4 | 5.5,10 T=2 | 6 | CLUTCH SHOE SUB ASSY | A056-000420 | A056-000420-Online |
| 4 | 5.5,10 T=2 | 7 | CLUTCH SHOE | A553-000120 | A553-000120-Online |
| 4 | 5.5,10 T=2 | 8 | SPRING | A566-000110 | A566-000110-Online |
| 4 | 5.5,10 T=2 | 9 | BOLT | A557-000080 | A557-000080-Online |

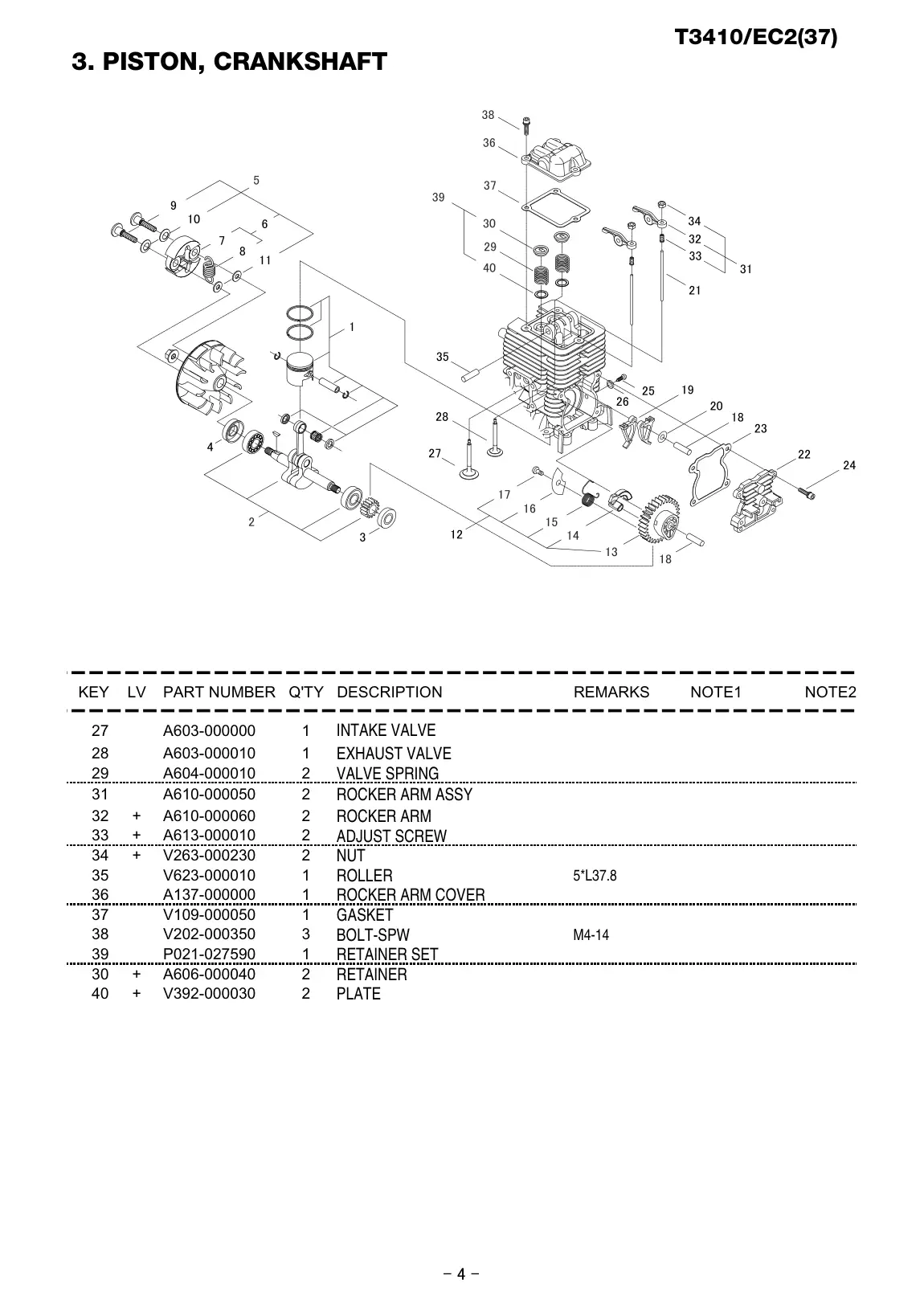

| 5 | PLATE | 27 | INTAKE VALVE | A603-000000 | A603-000000-Online |
| 5 | PLATE | 28 | EXHAUST VALVE | A603-000010 | A603-000010-Online |
| 5 | PLATE | 29 | VALVE SPRING | A604-000010 | A604-000010-Online |
| 5 | PLATE | 30 | RETAINER | A606-000040 | A606-000040-Online |
| 5 | PLATE | 31 | ROCKER ARM ASSY | A610-000050 | A610-000050-Online |
| 5 | PLATE | 32 | ROCKER ARM | A610-000060 | A610-000060-Online |
| 5 | PLATE | 33 | ADJUST SCREW | A613-000010 | A613-000010-Online |
| 5 | PLATE | 34 | NUT | V263-000230 | V263-000230-Online |
| 5 | PLATE | 35 | ROLLER | V623-000010 | V623-000010-Online |
| 5 | PLATE | 36 | ROCKER ARM COVER | A137-000000 | A137-000000-Online |
| 5 | PLATE | 37 | GASKET | V109-000050 | V109-000050-Online |
| 5 | PLATE | 38 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 5 | PLATE | 39 | RETAINER SET | P021-027590 | P021-027590-Online |
| 5 | PLATE | 40 | PLATE | V392-000030 | V392-000030-Online |

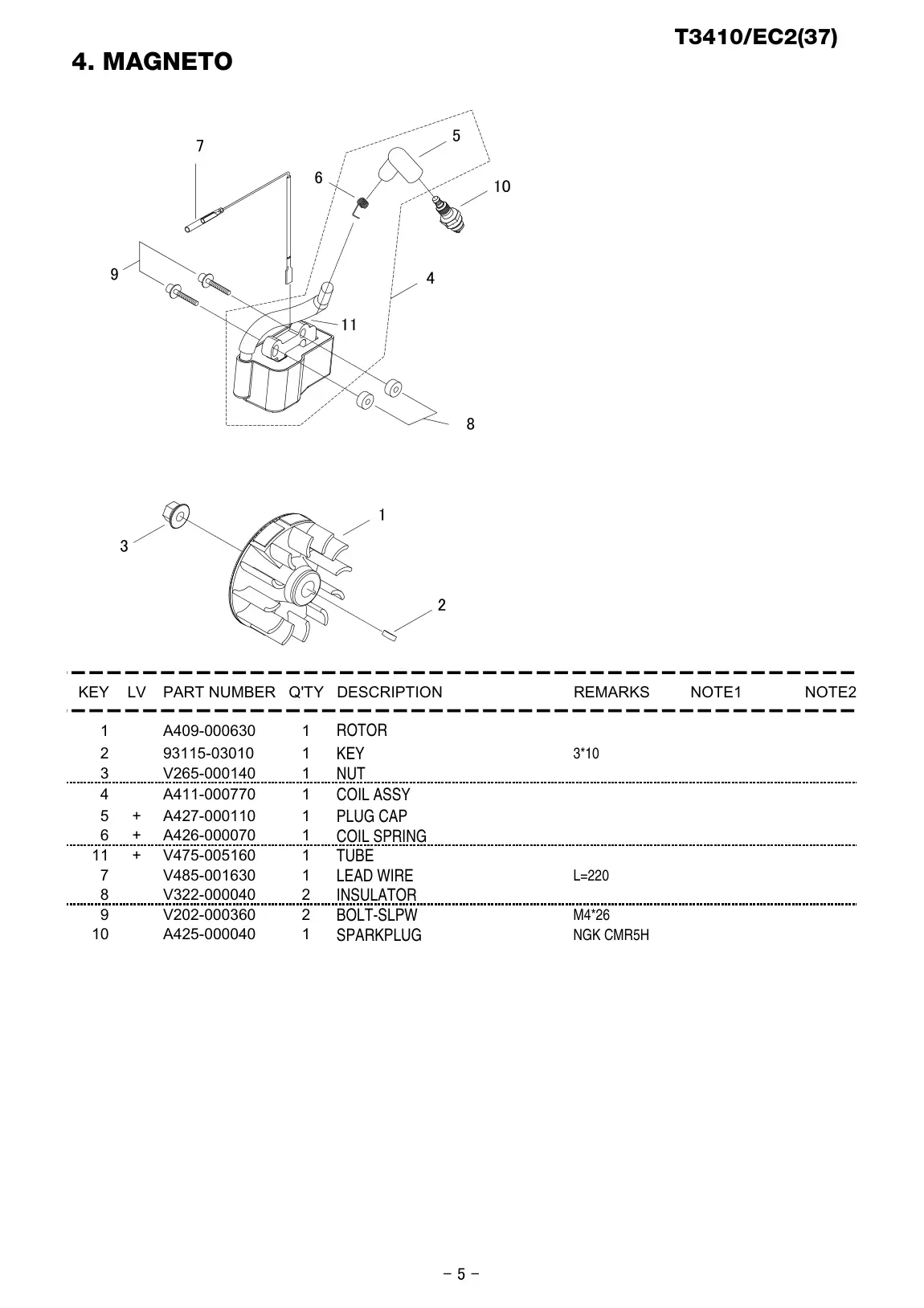

| 6 | NGK CMR5H | 10 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 6 | NGK CMR5H | 11 | TUBE | V475-005160 | V475-005160-Online |
| 6 | NGK CMR5H | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | NGK CMR5H | 3 | NUT | V265-000140 | V265-000140-Online |
| 6 | NGK CMR5H | 4 | COIL ASSY | A411-000770 | A411-000770-Online |
| 6 | NGK CMR5H | 5 | PLUG CAP | A427-000110 | A427-000110-Online |
| 6 | NGK CMR5H | 6 | COIL SPRING | A426-000070 | A426-000070-Online |
| 6 | NGK CMR5H | 7 | LEAD WIRE | V485-001630 | V485-001630-Online |
| 6 | NGK CMR5H | 8 | INSULATOR | V322-000040 | V322-000040-Online |
| 6 | NGK CMR5H | 9 | BOLT-SLPW | V202-000360 | V202-000360-Online |

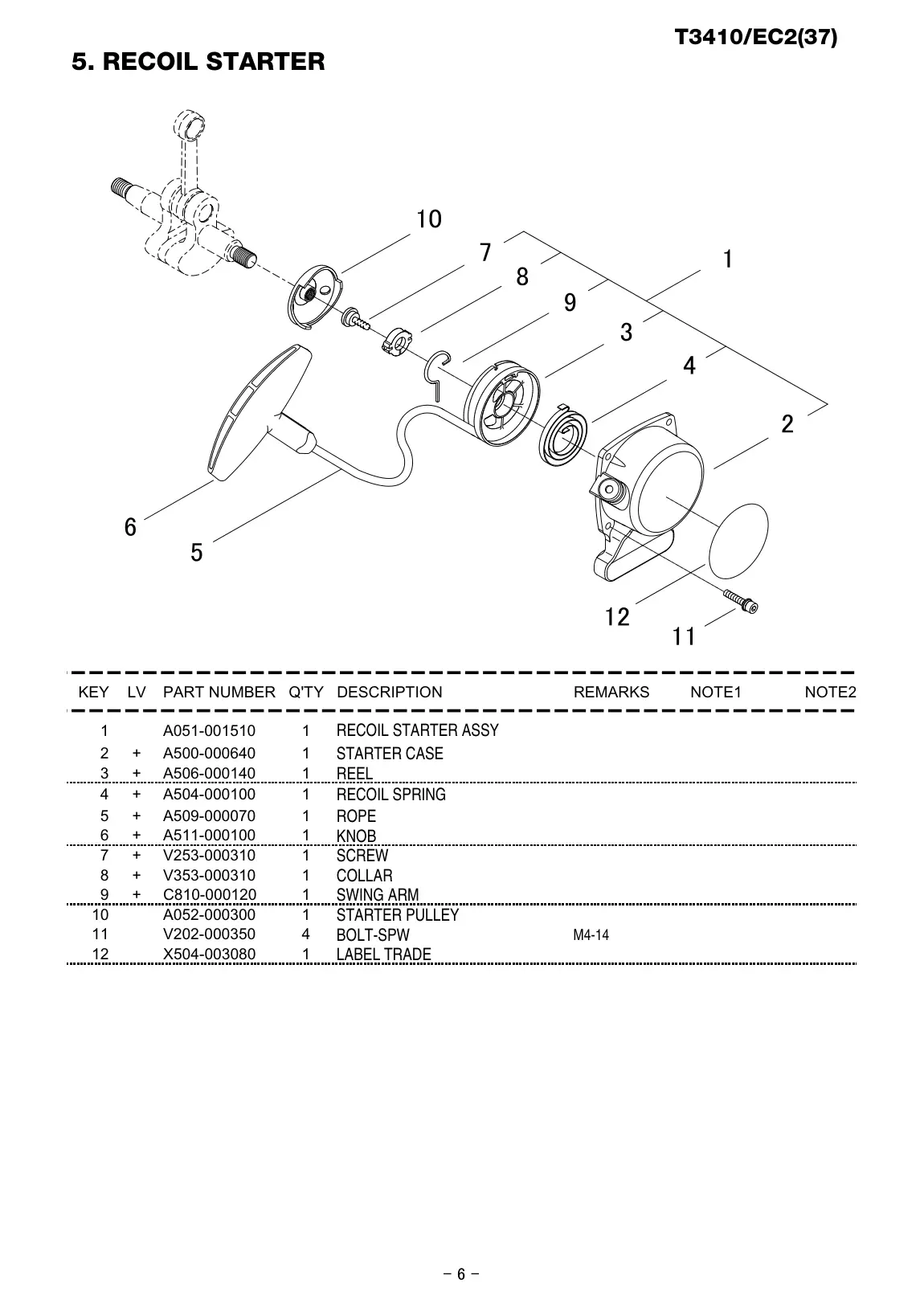

| 7 | LABEL TRADE | 1 | RECOIL STARTER ASSY | A051-001510 | A051-001510-Online |
| 7 | LABEL TRADE | 10 | STARTER PULLEY | A052-000300 | A052-000300-Online |
| 7 | LABEL TRADE | 11 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 7 | LABEL TRADE | 12 | LABEL TRADE | X504-003080 | X504-003080-Online |
| 7 | LABEL TRADE | 2 | STARTER CASE | A500-000640 | A500-000640-Online |
| 7 | LABEL TRADE | 3 | REEL | A506-000140 | A506-000140-Online |
| 7 | LABEL TRADE | 4 | RECOIL SPRING | A504-000100 | A504-000100-Online |
| 7 | LABEL TRADE | 5 | ROPE | A509-000070 | A509-000070-Online |
| 7 | LABEL TRADE | 6 | KNOB | A511-000100 | A511-000100-Online |
| 7 | LABEL TRADE | 7 | SCREW | V253-000310 | V253-000310-Online |
| 7 | LABEL TRADE | 8 | COLLAR | V353-000310 | V353-000310-Online |
| 7 | LABEL TRADE | 9 | SWING ARM | C810-000120 | C810-000120-Online |

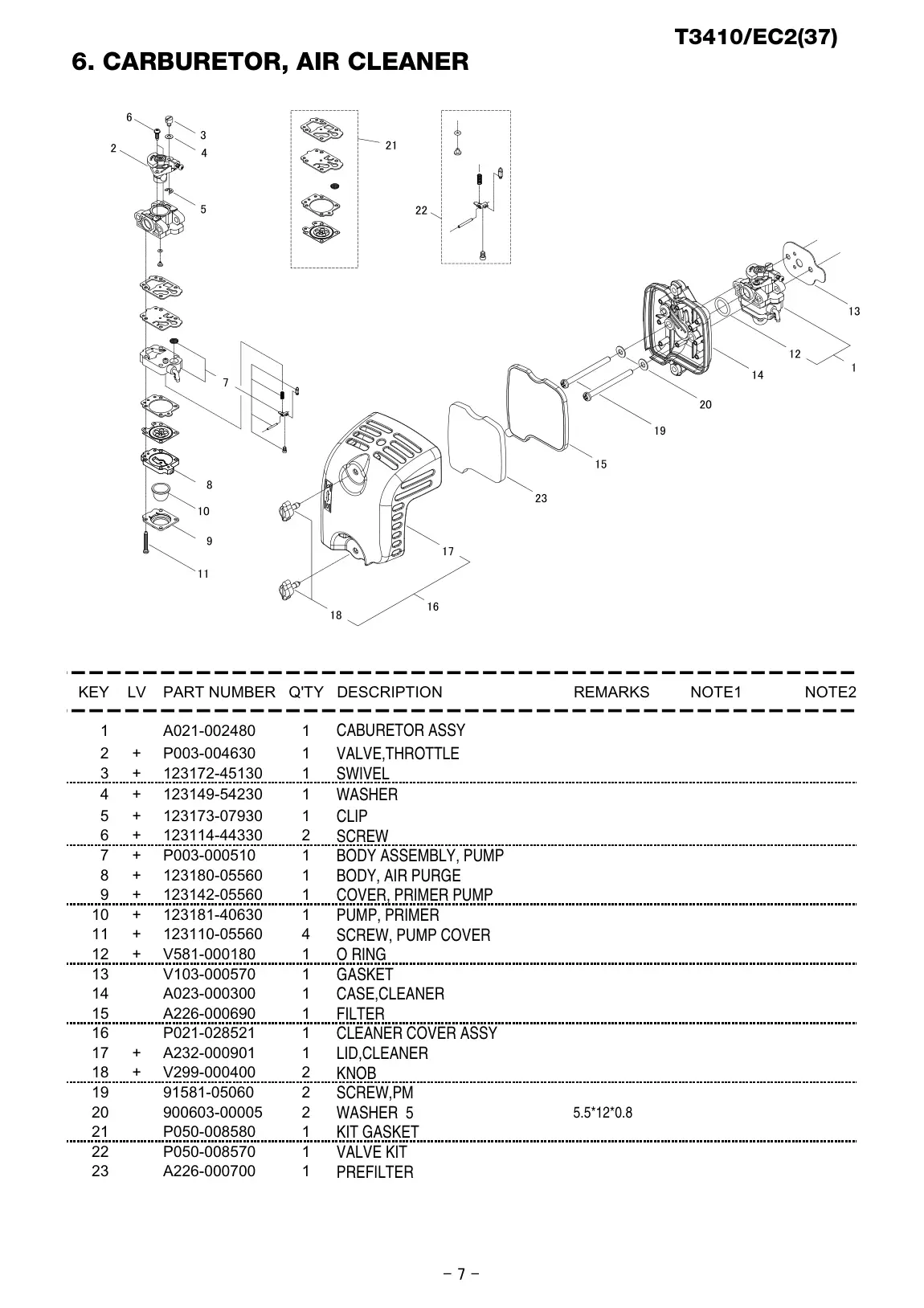

| 8 | PREFILTER | 1 | CABURETOR ASSY | A021-002480 | A021-002480-Online |
| 8 | PREFILTER | 10 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 8 | PREFILTER | 11 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 8 | PREFILTER | 12 | O RING | V581-000180 | V581-000180-Online |
| 8 | PREFILTER | 13 | GASKET | V103-000570 | V103-000570-Online |
| 8 | PREFILTER | 14 | CASE,CLEANER | A023-000300 | A023-000300-Online |
| 8 | PREFILTER | 15 | FILTER | A226-000690 | A226-000690-Online |
| 8 | PREFILTER | 16 | CLEANER COVER ASSY | P021-028521 | P021-028521-Online |
| 8 | PREFILTER | 17 | LID,CLEANER | A232-000901 | A232-000901-Online |
| 8 | PREFILTER | 18 | KNOB | V299-000400 | V299-000400-Online |
| 8 | PREFILTER | 19 | SCREW,PM | 91581-05060 | 91581-05060-Online |
| 8 | PREFILTER | 2 | VALVE,THROTTLE | P003-004630 | P003-004630-Online |
| 8 | PREFILTER | 20 | WASHER | 900603-00005 | 900603-00005-Online |
| 8 | PREFILTER | 21 | KIT GASKET | P050-008580 | P050-008580-Online |
| 8 | PREFILTER | 22 | VALVE KIT | P050-008570 | P050-008570-Online |
| 8 | PREFILTER | 23 | PREFILTER | A226-000700 | A226-000700-Online |
| 8 | PREFILTER | 3 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 8 | PREFILTER | 4 | WASHER | 123149-54230 | 123149-54230-Online |
| 8 | PREFILTER | 5 | CLIP | 123173-07930 | 123173-07930-Online |
| 8 | PREFILTER | 6 | SCREW | 123114-44330 | 123114-44330-Online |
| 8 | PREFILTER | 7 | BODY ASSEMBLY, PUMP | P003-000510 | P003-000510-Online |
| 8 | PREFILTER | 8 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 8 | PREFILTER | 9 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 9 | BOLT SPW | 1 | FUEL TANK ASSY | P021-028552 | P021-028552-Online |
| 9 | BOLT SPW | 10 | FUEL PIPE | V471-002570 | V471-002570-Online |
| 9 | BOLT SPW | 11 | FUEL FILTER | A369-000070 | A369-000070-Online |
| 9 | BOLT SPW | 12 | GROMMET | V470-000880 | V470-000880-Online |
| 9 | BOLT SPW | 13 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 9 | BOLT SPW | 14 | JOINT | V186-000210 | V186-000210-Online |
| 9 | BOLT SPW | 15 | PIPE | V471-002520 | V471-002520-Online |
| 9 | BOLT SPW | 16 | CLIP | V490-000500 | V490-000500-Online |
| 9 | BOLT SPW | 17 | CLIP | V490-000510 | V490-000510-Online |
| 9 | BOLT SPW | 18 | TANK CUSHION | V420-002220 | V420-002220-Online |
| 9 | BOLT SPW | 19 | TANK GUARD | A175-000220 | A175-000220-Online |
| 9 | BOLT SPW | 2 | FUEL TANK | A350-001350 | A350-001350-Online |
| 9 | BOLT SPW | 20 | BOLT SPW | V203-000350 | V203-000350-Online |
| 9 | BOLT SPW | 3 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 9 | BOLT SPW | 4 | FUEL CAP | A355-000180 | A355-000180-Online |
| 9 | BOLT SPW | 7 | SCREW TAPPING | 91483-02506 | 91483-02506-Online |
| 9 | BOLT SPW | 9 | GASKET | V107-000010 | V107-000010-Online |
| 10 | LABEL TRADE | 1 | PIPE, MAIN | C050-002060 | C050-002060-Online |
| 10 | LABEL TRADE | 10 | BODY LEFT | C401-000190 | C401-000190-Online |
| 10 | LABEL TRADE | 11 | LEVER | C450-000480 | C450-000480-Online |
| 10 | LABEL TRADE | 12 | LOCK LEVER | C460-000190 | C460-000190-Online |
| 10 | LABEL TRADE | 13 | HOLDER | C461-000020 | C461-000020-Online |
| 10 | LABEL TRADE | 14 | COIL SPRING | V452-000700 | V452-000700-Online |
| 10 | LABEL TRADE | 15 | COIL SPRING | V452-000500 | V452-000500-Online |
| 10 | LABEL TRADE | 16 | SWITCH | A440-001460 | A440-001460-Online |
| 10 | LABEL TRADE | 17 | SCREW TAPPING | V252-000380 | V252-000380-Online |
| 10 | LABEL TRADE | 18 | SCREW PM SPW | 91575-05020 | 91575-05020-Online |
| 10 | LABEL TRADE | 19 | NUT | 92017-05000 | 92017-05000-Online |
| 10 | LABEL TRADE | 2 | BUSHING | C501-000120 | C501-000120-Online |
| 10 | LABEL TRADE | 20 | PLUG | V162-000350 | V162-000350-Online |
| 10 | LABEL TRADE | 21 | BUTTON | C461-000080 | C461-000080-Online |
| 10 | LABEL TRADE | 22 | COIL SPRING | V450-001010 | V450-001010-Online |
| 10 | LABEL TRADE | 23 | THROTTLE CABLE | V430-002880 | V430-002880-Online |
| 10 | LABEL TRADE | 24 | TUBE | V475-004790 | V475-004790-Online |
| 10 | LABEL TRADE | 25 | MAIN SHAFT | C504-000710 | C504-000710-Online |
| 10 | LABEL TRADE | 26 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 10 | LABEL TRADE | 3 | GRIP | C412-000380 | C412-000380-Online |
| 10 | LABEL TRADE | 4 | HANGER | C063-000010 | C063-000010-Online |
| 10 | LABEL TRADE | 5 | BOLT SPW | V203-000700 | V203-000700-Online |
| 10 | LABEL TRADE | 6 | NUT | 900500-00005 | 900500-00005-Online |
| 10 | LABEL TRADE | 7 | PROTECTOR | V364-000030 | V364-000030-Online |
| 10 | LABEL TRADE | 8 | THROTTLE LEVER ASSY | C044-000850 | C044-000850-Online |
| 10 | LABEL TRADE | 9 | BODY RIGHT | C401-000180 | C401-000180-Online |
| 11 | LABEL DECIBEL | 27 | LABEL CAUTION | X505-003130 | X505-003130-Online |
| 11 | LABEL DECIBEL | 28 | LABEL CAUTION | X517-000140 | X517-000140-Online |
| 11 | LABEL DECIBEL | 29 | LABEL DECIBEL | X508-000300 | X508-000300-Online |

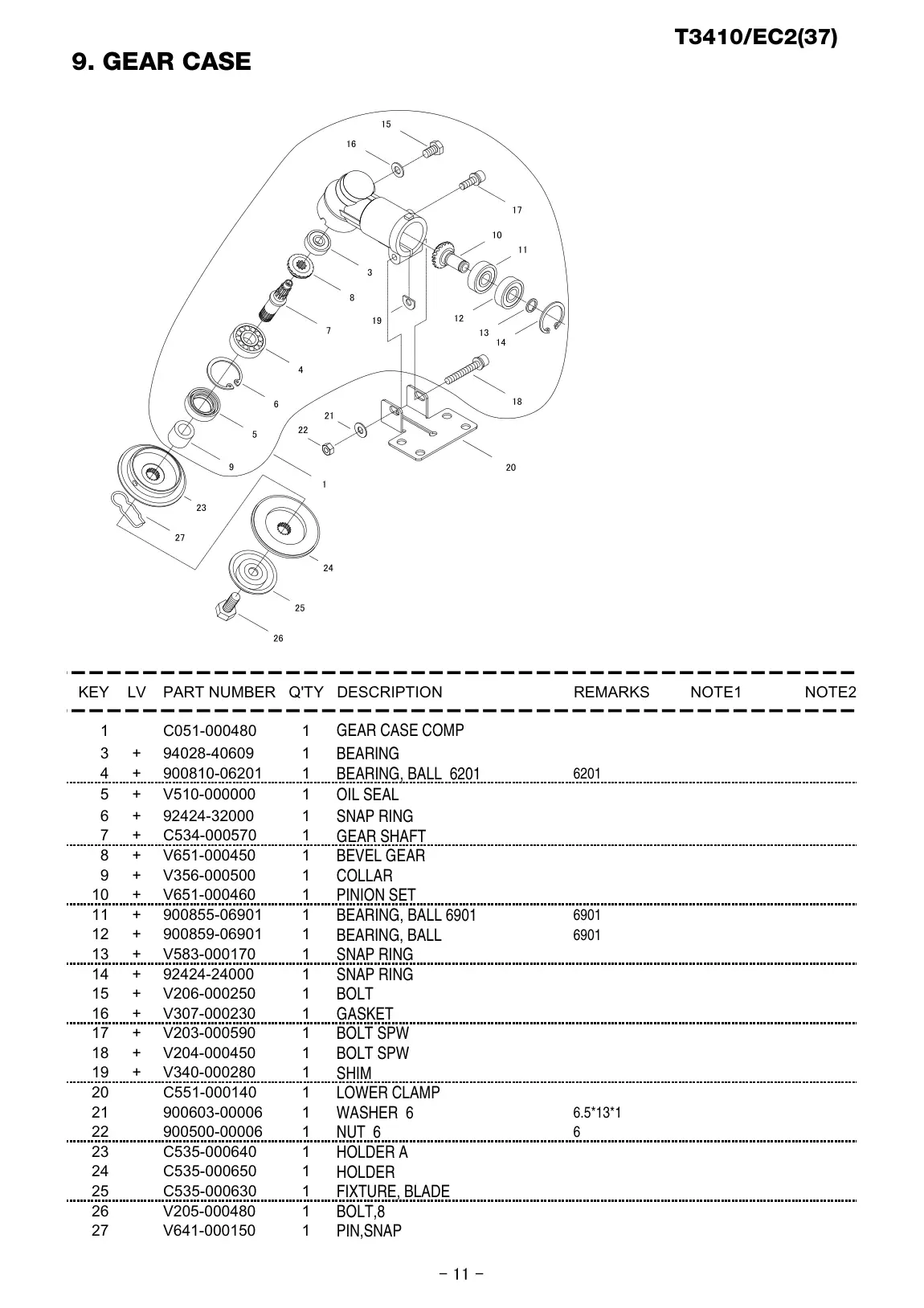

| 12 | PIN,SNAP | 1 | GEAR CASE COMP | C051-000480 | C051-000480-Online |
| 12 | PIN,SNAP | 10 | PINION SET | V651-000460 | V651-000460-Online |
| 12 | PIN,SNAP | 11 | BEARING, BALL | 900855-06901 | 900855-06901-Online |
| 12 | PIN,SNAP | 12 | BEARING, BALL | 900859-06901 | 900859-06901-Online |
| 12 | PIN,SNAP | 13 | SNAP RING | V583-000170 | V583-000170-Online |
| 12 | PIN,SNAP | 14 | SNAP RING | 92424-24000 | 92424-24000-Online |
| 12 | PIN,SNAP | 15 | BOLT | V206-000250 | V206-000250-Online |
| 12 | PIN,SNAP | 16 | GASKET | V307-000230 | V307-000230-Online |
| 12 | PIN,SNAP | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 12 | PIN,SNAP | 18 | BOLT SPW | V204-000450 | V204-000450-Online |
| 12 | PIN,SNAP | 19 | SHIM | V340-000280 | V340-000280-Online |
| 12 | PIN,SNAP | 20 | LOWER CLAMP | C551-000140 | C551-000140-Online |
| 12 | PIN,SNAP | 21 | WASHER | 900603-00006 | 900603-00006-Online |
| 12 | PIN,SNAP | 22 | NUT | 900500-00006 | 900500-00006-Online |
| 12 | PIN,SNAP | 23 | HOLDER A | C535-000640 | C535-000640-Online |
| 12 | PIN,SNAP | 24 | HOLDER | C535-000650 | C535-000650-Online |
| 12 | PIN,SNAP | 25 | FIXTURE, BLADE | C535-000630 | C535-000630-Online |
| 12 | PIN,SNAP | 26 | BOLT,8 | V205-000480 | V205-000480-Online |
| 12 | PIN,SNAP | 27 | PIN,SNAP | V641-000150 | V641-000150-Online |
| 12 | PIN,SNAP | 3 | BEARING | 94028-40609 | 94028-40609-Online |
| 12 | PIN,SNAP | 4 | BEARING, BALL | 900810-06201 | 900810-06201-Online |
| 12 | PIN,SNAP | 5 | OIL SEAL | V510-000000 | V510-000000-Online |
| 12 | PIN,SNAP | 6 | SNAP RING | 92424-32000 | 92424-32000-Online |
| 12 | PIN,SNAP | 7 | GEAR SHAFT | C534-000570 | C534-000570-Online |
| 12 | PIN,SNAP | 8 | BEVEL GEAR | V651-000450 | V651-000450-Online |
| 12 | PIN,SNAP | 9 | COLLAR | V356-000500 | V356-000500-Online |

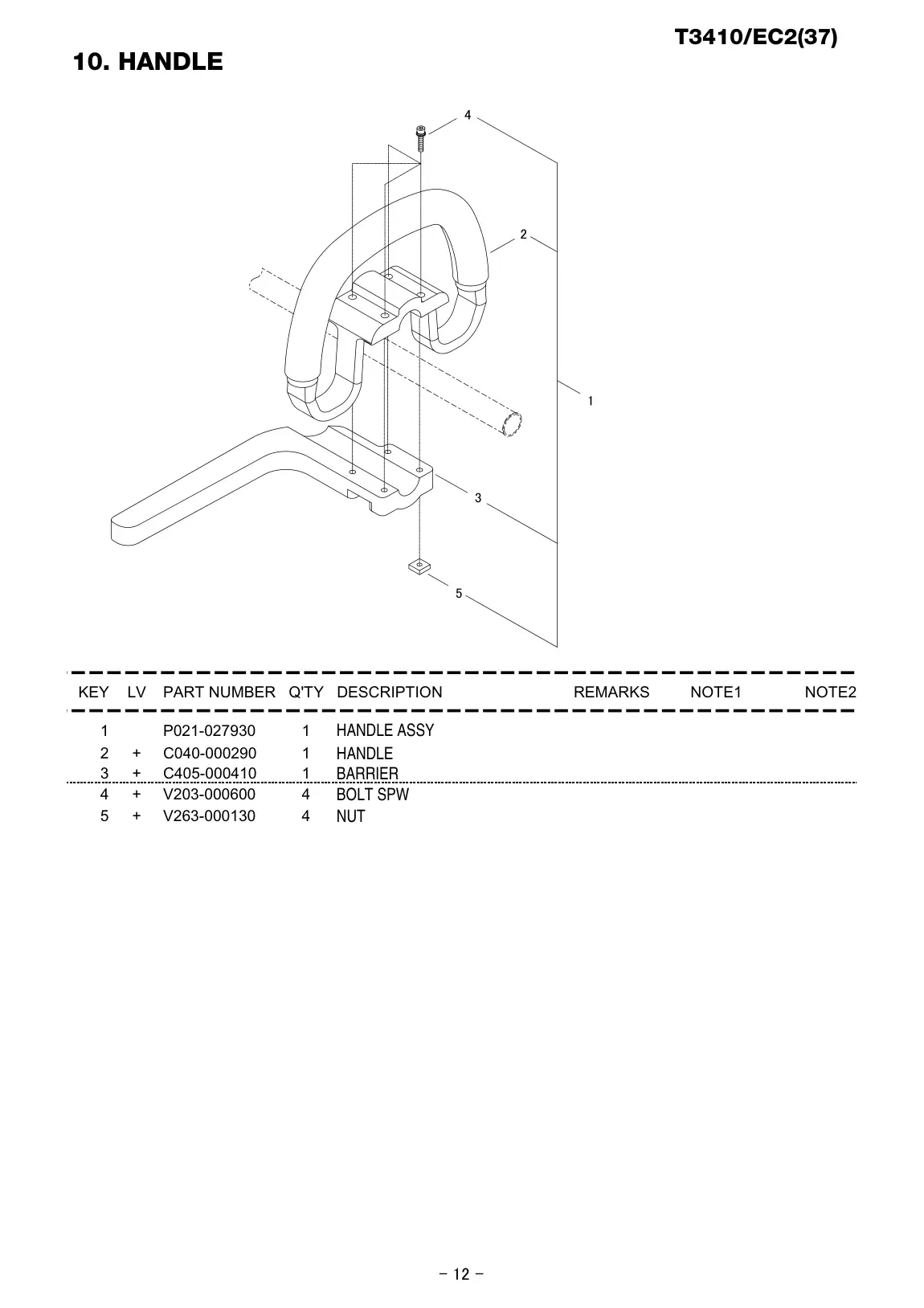

| 13 | NUT | 1 | HANDLE ASSY | P021-027930 | P021-027930-Online |
| 13 | NUT | 2 | HANDLE | C040-000290 | C040-000290-Online |
| 13 | NUT | 3 | BARRIER | C405-000410 | C405-000410-Online |
| 13 | NUT | 4 | BOLT SPW | V203-000600 | V203-000600-Online |
| 13 | NUT | 5 | NUT | V263-000130 | V263-000130-Online |

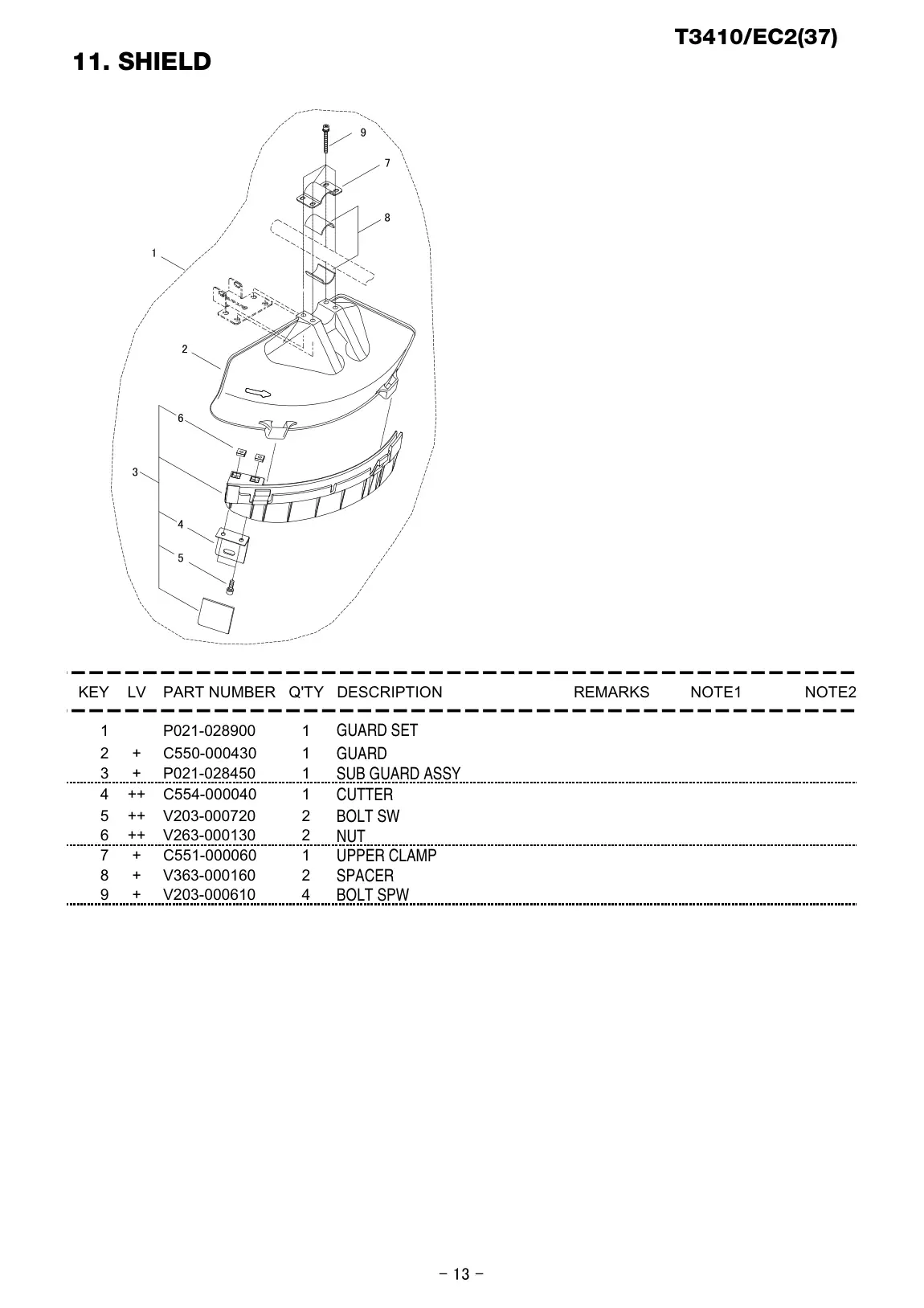

| 14 | BOLT SPW | 1 | GUARD SET | P021-028900 | P021-028900-Online |
| 14 | BOLT SPW | 2 | GUARD | C550-000430 | C550-000430-Online |
| 14 | BOLT SPW | 3 | SUB GUARD ASSY | P021-028450 | P021-028450-Online |
| 14 | BOLT SPW | 4 | CUTTER | C554-000040 | C554-000040-Online |
| 14 | BOLT SPW | 5 | BOLT SW | V203-000720 | V203-000720-Online |
| 14 | BOLT SPW | 6 | NUT | V263-000130 | V263-000130-Online |
| 14 | BOLT SPW | 7 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 14 | BOLT SPW | 8 | SPACER | V363-000160 | V363-000160-Online |
| 14 | BOLT SPW | 9 | BOLT SPW | V203-000610 | V203-000610-Online |

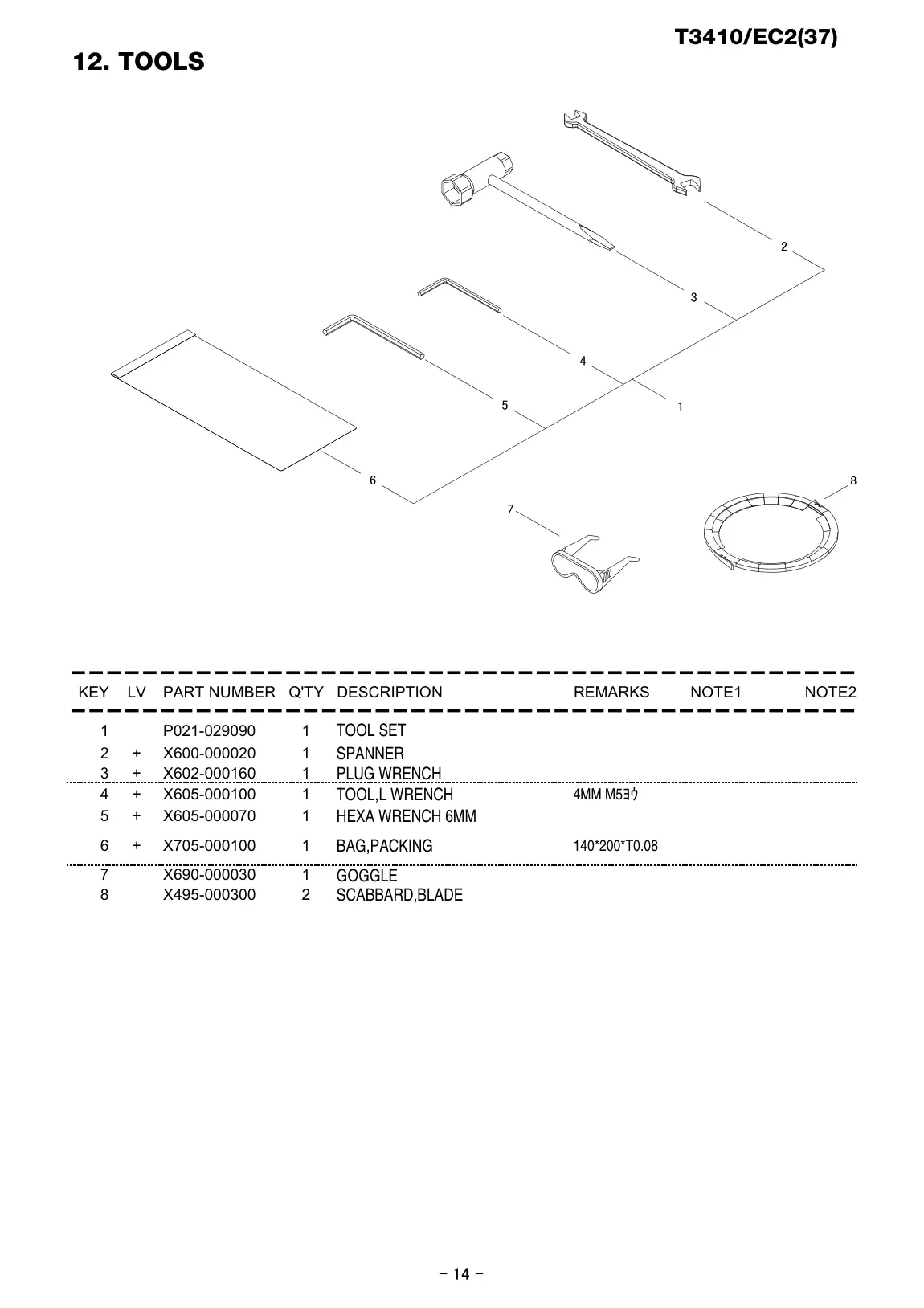

| 15 | SCABBARD,BLADE | 1 | TOOL SET | P021-029090 | P021-029090-Online |
| 15 | SCABBARD,BLADE | 2 | SPANNER | X600-000020 | X600-000020-Online |
| 15 | SCABBARD,BLADE | 3 | PLUG WRENCH | X602-000160 | X602-000160-Online |
| 15 | SCABBARD,BLADE | 4 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 15 | SCABBARD,BLADE | 5 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 15 | SCABBARD,BLADE | 6 | BAG,PACKING | X705-000100 | X705-000100-Online |
| 15 | SCABBARD,BLADE | 7 | GOGGLE | X690-000030 | X690-000030-Online |
| 15 | SCABBARD,BLADE | 8 | SCABBARD,BLADE | X495-000300 | X495-000300-Online |
| 16 | HOOK | 1 | STRAP ASSY | C062-000390 | C062-000390-Online |
| 16 | HOOK | 3 | PROTECTOR | C644-000080 | C644-000080-Online |
Source file: 20130718-316_T3410_EC2(37)_P016-000210-11Bb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
