Illustrated Parts List

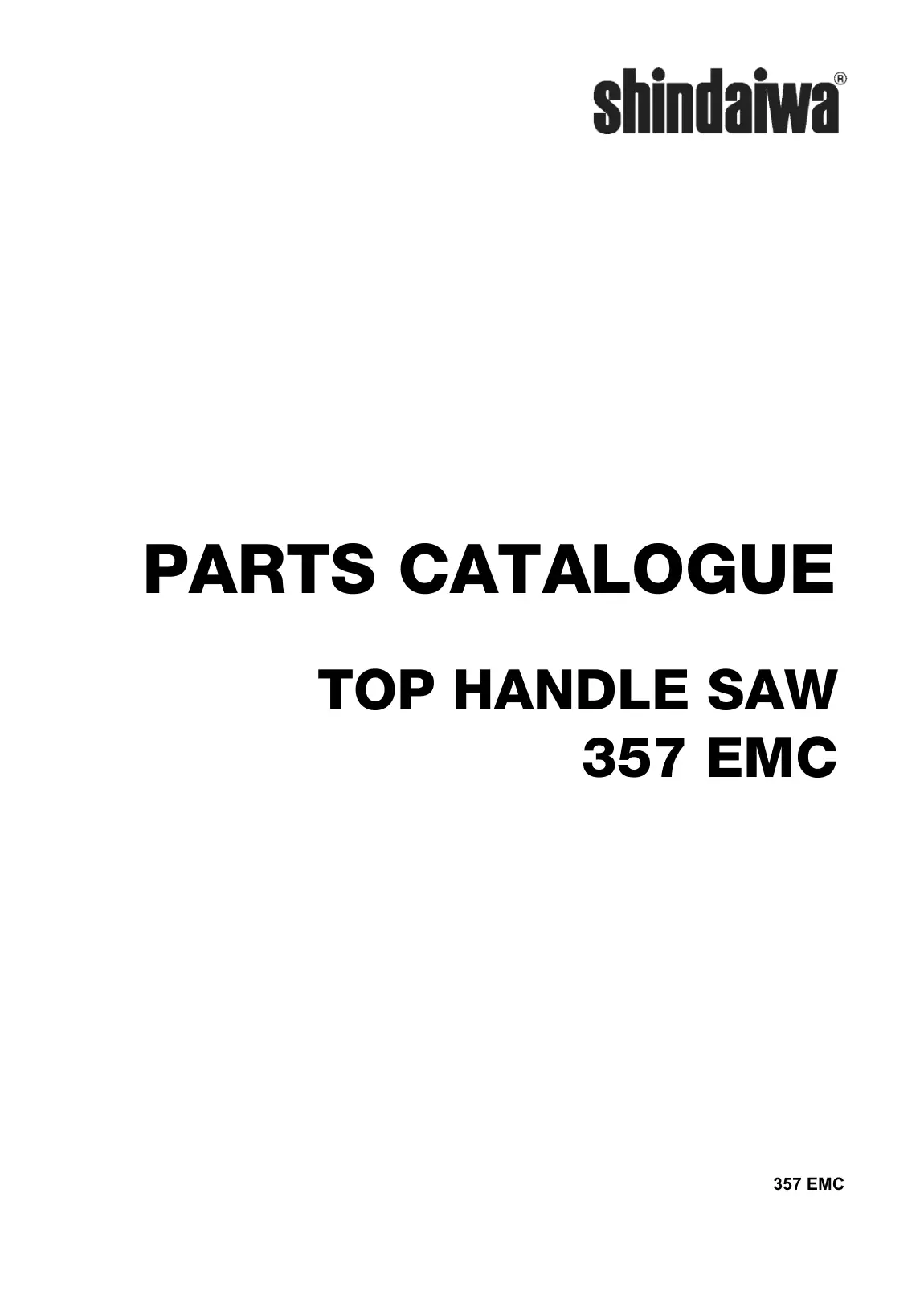

Shindaiwa 357 EMC 357 EMC Chainsaw IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: 357 EMC 357 EMC
Type: Chainsaw
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

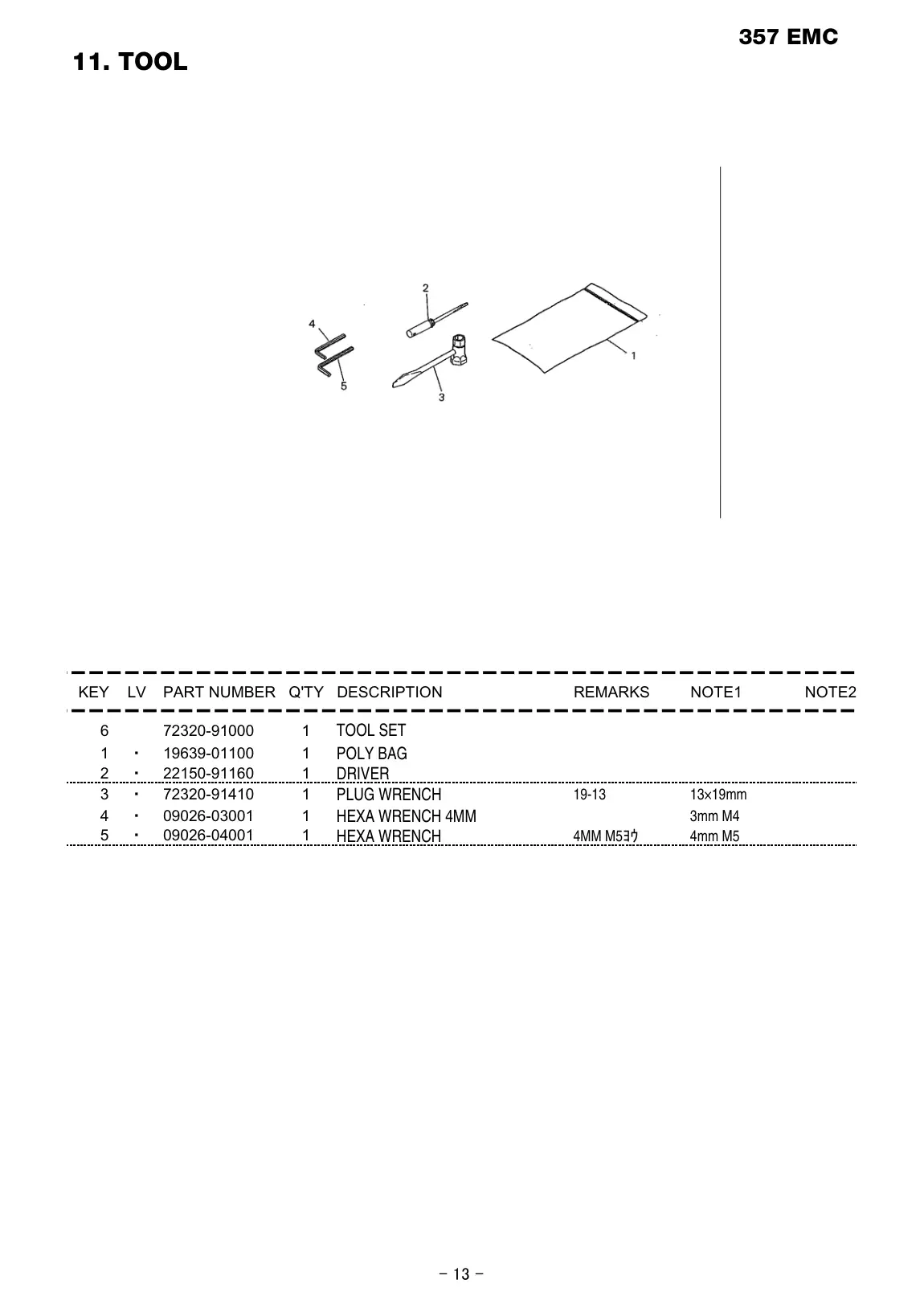

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

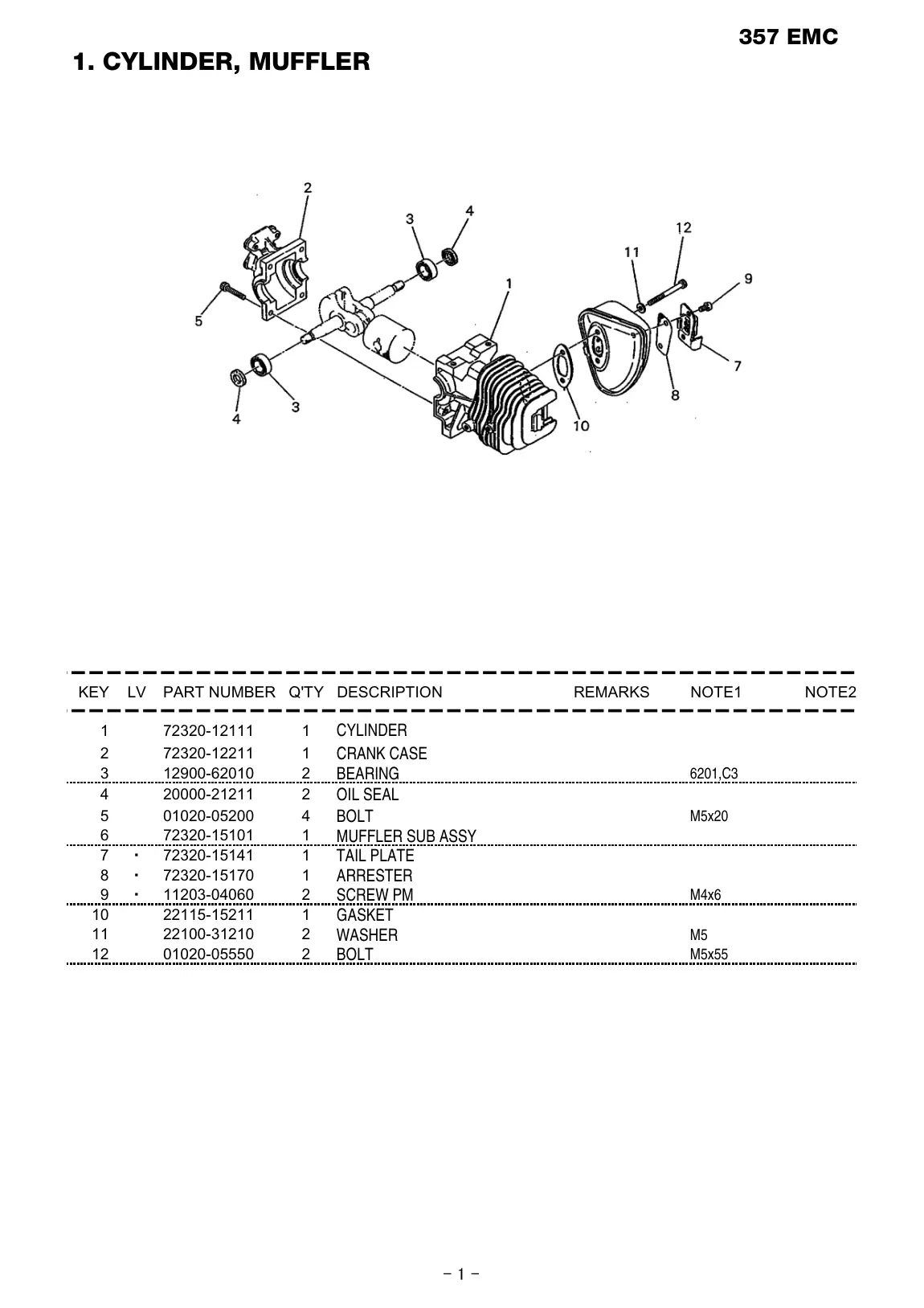

| 2 | BOLT | 1 | CYLINDER | 72320-12111 | 72320-12111-Online |
| 2 | BOLT | 10 | GASKET | 22115-15211 | 22115-15211-Online |
| 2 | BOLT | 11 | WASHER | 22100-31210 | 22100-31210-Online |
| 2 | BOLT | 12 | BOLT | 01020-05550 | 01020-05550-Online |
| 2 | BOLT | 2 | CRANK CASE | 72320-12211 | 72320-12211-Online |
| 2 | BOLT | 3 | BEARING | 12900-62010 | 12900-62010-Online |
| 2 | BOLT | 4 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 2 | BOLT | 5 | BOLT | 01020-05200 | 01020-05200-Online |
| 2 | BOLT | 6 | MUFFLER SUB ASSY | 72320-15101 | 72320-15101-Online |
| 2 | BOLT | 7 | TAIL PLATE | 72320-15141 | 72320-15141-Online |
| 2 | BOLT | 8 | ARRESTER | 72320-15170 | 72320-15170-Online |
| 2 | BOLT | 9 | SCREW PM | 11203-04060 | 11203-04060-Online |

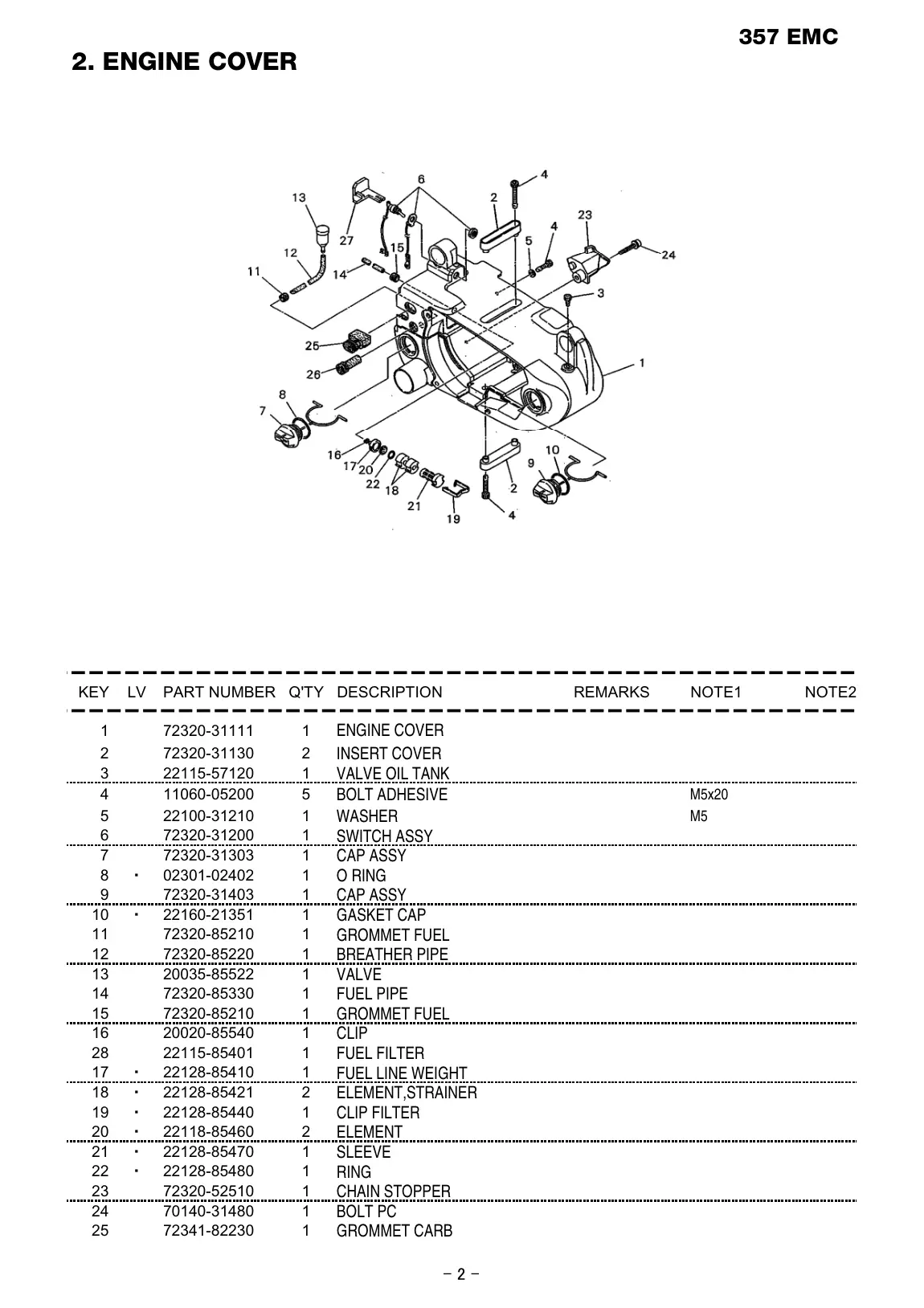

| 3 | GROMMET CARB | 1 | ENGINE COVER | 72320-31111 | 72320-31111-Online |
| 3 | GROMMET CARB | 10 | GASKET CAP | 22160-21351 | 22160-21351-Online |
| 3 | GROMMET CARB | 11 | GROMMET FUEL | 72320-85210 | 72320-85210-Online |
| 3 | GROMMET CARB | 12 | BREATHER PIPE | 72320-85220 | 72320-85220-Online |
| 3 | GROMMET CARB | 13 | VALVE | 20035-85522 | 20035-85522-Online |
| 3 | GROMMET CARB | 14 | FUEL PIPE | 72320-85330 | 72320-85330-Online |
| 3 | GROMMET CARB | 15 | GROMMET FUEL | 72320-85210 | 72320-85210-Online |
| 3 | GROMMET CARB | 16 | CLIP | 20020-85540 | 20020-85540-Online |
| 3 | GROMMET CARB | 17 | FUEL LINE WEIGHT | 22128-85410 | 22128-85410-Online |
| 3 | GROMMET CARB | 18 | ELEMENT,STRAINER | 22128-85421 | 22128-85421-Online |
| 3 | GROMMET CARB | 19 | CLIP FILTER | 22128-85440 | 22128-85440-Online |
| 3 | GROMMET CARB | 2 | INSERT COVER | 72320-31130 | 72320-31130-Online |
| 3 | GROMMET CARB | 20 | ELEMENT | 22118-85460 | 22118-85460-Online |
| 3 | GROMMET CARB | 21 | SLEEVE | 22128-85470 | 22128-85470-Online |
| 3 | GROMMET CARB | 22 | RING | 22128-85480 | 22128-85480-Online |
| 3 | GROMMET CARB | 23 | CHAIN STOPPER | 72320-52510 | 72320-52510-Online |
| 3 | GROMMET CARB | 24 | BOLT PC | 70140-31480 | 70140-31480-Online |
| 3 | GROMMET CARB | 25 | GROMMET CARB | 72341-82230 | 72341-82230-Online |
| 3 | GROMMET CARB | 28 | FUEL FILTER | 22115-85401 | 22115-85401-Online |
| 3 | GROMMET CARB | 3 | VALVE OIL TANK | 22115-57120 | 22115-57120-Online |
| 3 | GROMMET CARB | 4 | BOLT ADHESIVE | 11060-05200 | 11060-05200-Online |
| 3 | GROMMET CARB | 5 | WASHER | 22100-31210 | 22100-31210-Online |
| 3 | GROMMET CARB | 6 | SWITCH ASSY | 72320-31200 | 72320-31200-Online |
| 3 | GROMMET CARB | 7 | CAP ASSY | 72320-31303 | 72320-31303-Online |
| 3 | GROMMET CARB | 8 | O RING | 02301-02402 | 02301-02402-Online |
| 3 | GROMMET CARB | 9 | CAP ASSY | 72320-31403 | 72320-31403-Online |

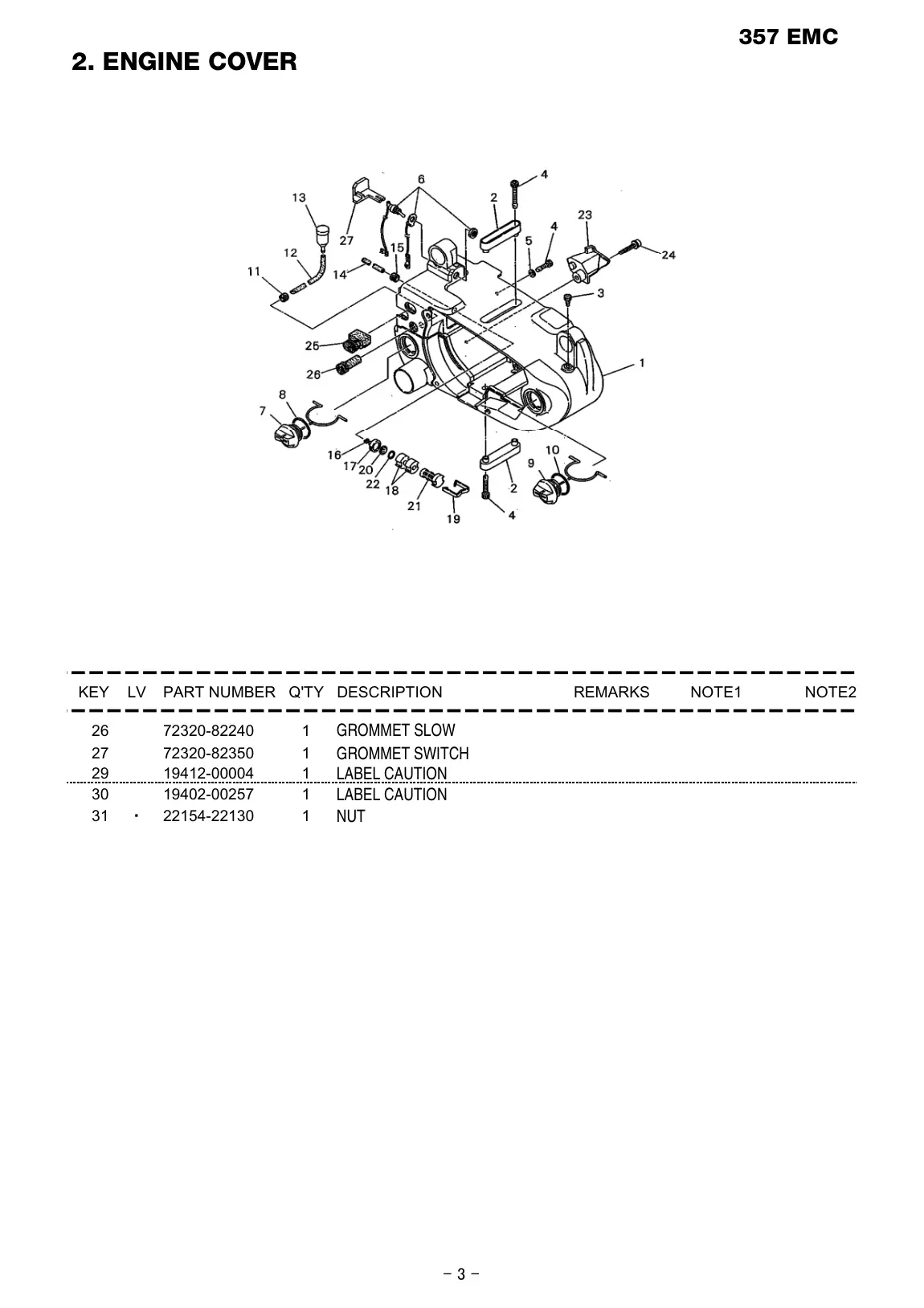

| 4 | NUT | 26 | GROMMET SLOW | 72320-82240 | 72320-82240-Online |
| 4 | NUT | 27 | GROMMET SWITCH | 72320-82350 | 72320-82350-Online |
| 4 | NUT | 29 | LABEL CAUTION | 19412-00004 | 19412-00004-Online |
| 4 | NUT | 30 | LABEL CAUTION | 19402-00257 | 19402-00257-Online |
| 4 | NUT | 31 | NUT | 22154-22130 | 22154-22130-Online |

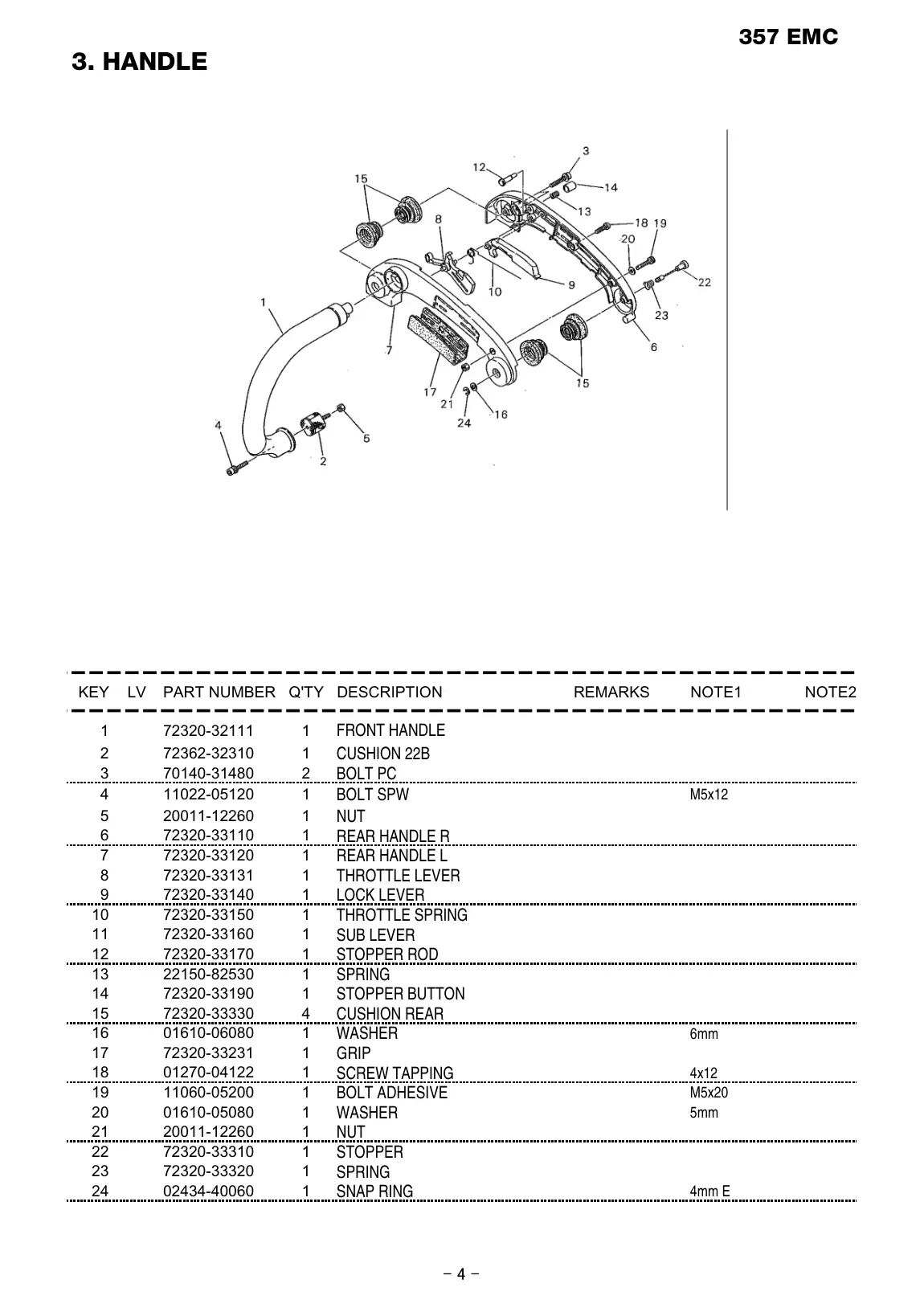

| 5 | SNAP RING | 1 | FRONT HANDLE | 72320-32111 | 72320-32111-Online |
| 5 | SNAP RING | 10 | THROTTLE SPRING | 72320-33150 | 72320-33150-Online |
| 5 | SNAP RING | 11 | SUB LEVER | 72320-33160 | 72320-33160-Online |
| 5 | SNAP RING | 12 | STOPPER ROD | 72320-33170 | 72320-33170-Online |
| 5 | SNAP RING | 13 | SPRING | 22150-82530 | 22150-82530-Online |
| 5 | SNAP RING | 14 | STOPPER BUTTON | 72320-33190 | 72320-33190-Online |
| 5 | SNAP RING | 15 | CUSHION REAR | 72320-33330 | 72320-33330-Online |
| 5 | SNAP RING | 16 | WASHER | 01610-06080 | 01610-06080-Online |
| 5 | SNAP RING | 17 | GRIP | 72320-33231 | 72320-33231-Online |
| 5 | SNAP RING | 18 | SCREW TAPPING | 01270-04122 | 01270-04122-Online |
| 5 | SNAP RING | 19 | BOLT ADHESIVE | 11060-05200 | 11060-05200-Online |
| 5 | SNAP RING | 2 | CUSHION | 72362-32310 | 72362-32310-Online |
| 5 | SNAP RING | 20 | WASHER | 01610-05080 | 01610-05080-Online |
| 5 | SNAP RING | 21 | NUT | 20011-12260 | 20011-12260-Online |
| 5 | SNAP RING | 22 | STOPPER | 72320-33310 | 72320-33310-Online |
| 5 | SNAP RING | 23 | SPRING | 72320-33320 | 72320-33320-Online |
| 5 | SNAP RING | 24 | SNAP RING | 02434-40060 | 02434-40060-Online |
| 5 | SNAP RING | 3 | BOLT PC | 70140-31480 | 70140-31480-Online |
| 5 | SNAP RING | 4 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 5 | SNAP RING | 5 | NUT | 20011-12260 | 20011-12260-Online |
| 5 | SNAP RING | 6 | REAR HANDLE R | 72320-33110 | 72320-33110-Online |
| 5 | SNAP RING | 7 | REAR HANDLE L | 72320-33120 | 72320-33120-Online |
| 5 | SNAP RING | 8 | THROTTLE LEVER | 72320-33131 | 72320-33131-Online |
| 5 | SNAP RING | 9 | LOCK LEVER | 72320-33140 | 72320-33140-Online |

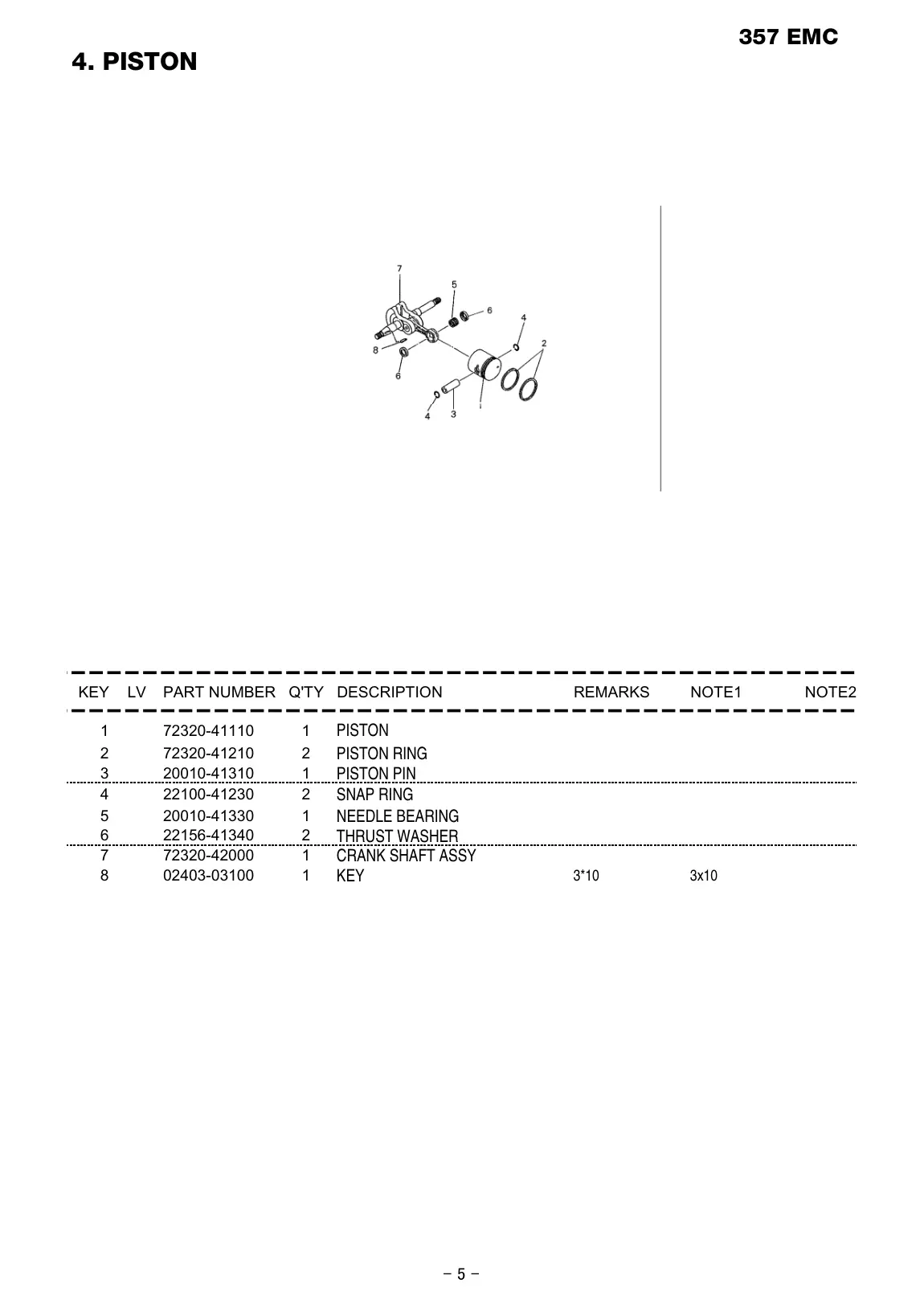

| 6 | CRANK SHAFT ASSY | 1 | PISTON | 72320-41110 | 72320-41110-Online |
| 6 | CRANK SHAFT ASSY | 2 | PISTON RING | 72320-41210 | 72320-41210-Online |
| 6 | CRANK SHAFT ASSY | 3 | PISTON PIN | 20010-41310 | 20010-41310-Online |
| 6 | CRANK SHAFT ASSY | 4 | SNAP RING | 22100-41230 | 22100-41230-Online |
| 6 | CRANK SHAFT ASSY | 5 | NEEDLE BEARING | 20010-41330 | 20010-41330-Online |
| 6 | CRANK SHAFT ASSY | 6 | THRUST WASHER | 22156-41340 | 22156-41340-Online |
| 6 | CRANK SHAFT ASSY | 7 | CRANK SHAFT ASSY | 72320-42000 | 72320-42000-Online |
| 6 | CRANK SHAFT ASSY | 8 | KEY | 02403-03100 | 02403-03100-Online |

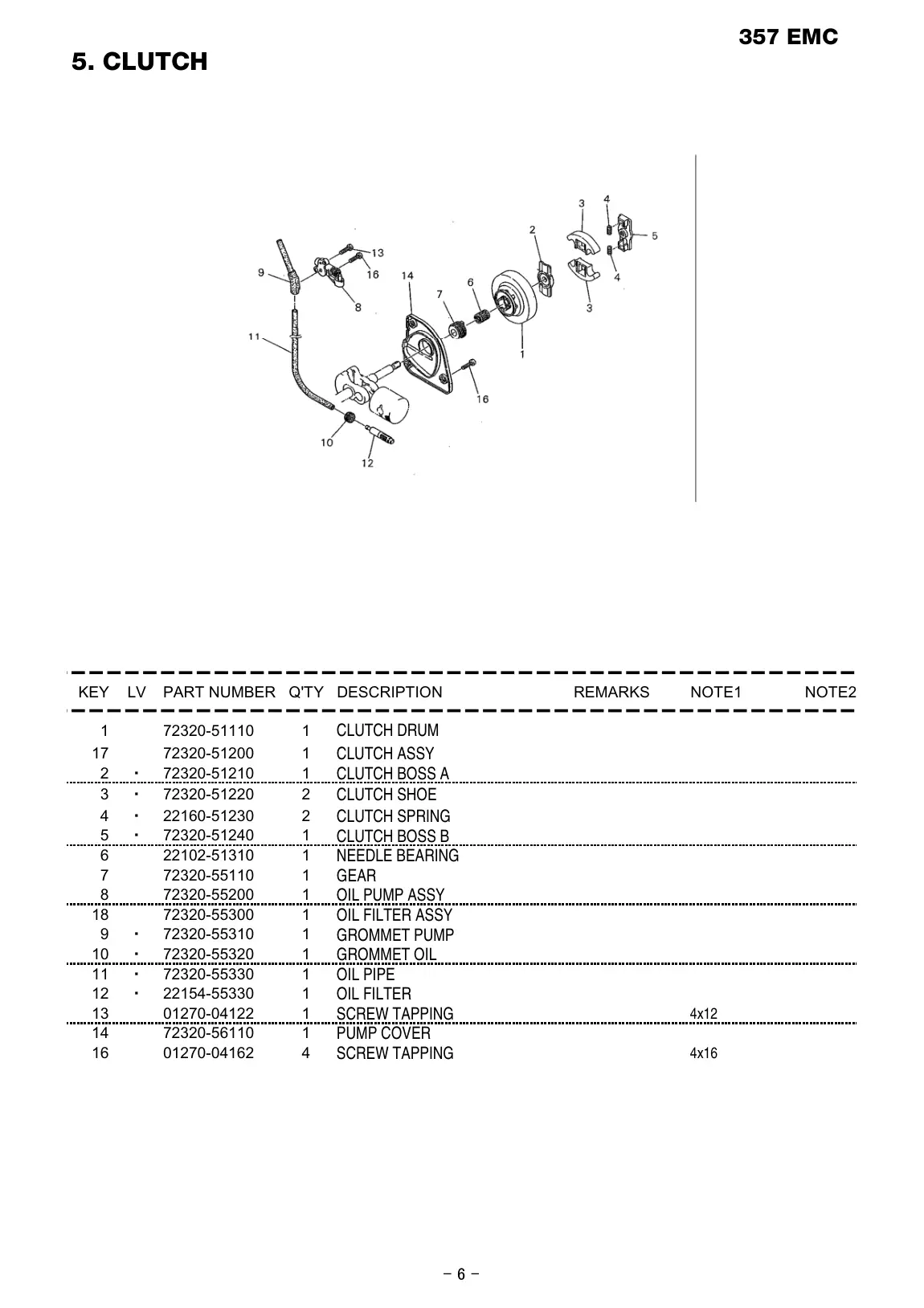

| 7 | SCREW TAPPING | 1 | CLUTCH DRUM | 72320-51110 | 72320-51110-Online |
| 7 | SCREW TAPPING | 10 | GROMMET OIL | 72320-55320 | 72320-55320-Online |
| 7 | SCREW TAPPING | 11 | OIL PIPE | 72320-55330 | 72320-55330-Online |
| 7 | SCREW TAPPING | 12 | OIL FILTER | 22154-55330 | 22154-55330-Online |
| 7 | SCREW TAPPING | 13 | SCREW TAPPING | 01270-04122 | 01270-04122-Online |
| 7 | SCREW TAPPING | 14 | PUMP COVER | 72320-56110 | 72320-56110-Online |
| 7 | SCREW TAPPING | 16 | SCREW TAPPING | 01270-04162 | 01270-04162-Online |
| 7 | SCREW TAPPING | 17 | CLUTCH ASSY | 72320-51200 | 72320-51200-Online |
| 7 | SCREW TAPPING | 18 | OIL FILTER ASSY | 72320-55300 | 72320-55300-Online |
| 7 | SCREW TAPPING | 2 | CLUTCH BOSS A | 72320-51210 | 72320-51210-Online |
| 7 | SCREW TAPPING | 3 | CLUTCH SHOE | 72320-51220 | 72320-51220-Online |
| 7 | SCREW TAPPING | 4 | CLUTCH SPRING | 22160-51230 | 22160-51230-Online |
| 7 | SCREW TAPPING | 5 | CLUTCH BOSS B | 72320-51240 | 72320-51240-Online |
| 7 | SCREW TAPPING | 6 | NEEDLE BEARING | 22102-51310 | 22102-51310-Online |
| 7 | SCREW TAPPING | 7 | GEAR | 72320-55110 | 72320-55110-Online |
| 7 | SCREW TAPPING | 8 | OIL PUMP ASSY | 72320-55200 | 72320-55200-Online |
| 7 | SCREW TAPPING | 9 | GROMMET PUMP | 72320-55310 | 72320-55310-Online |

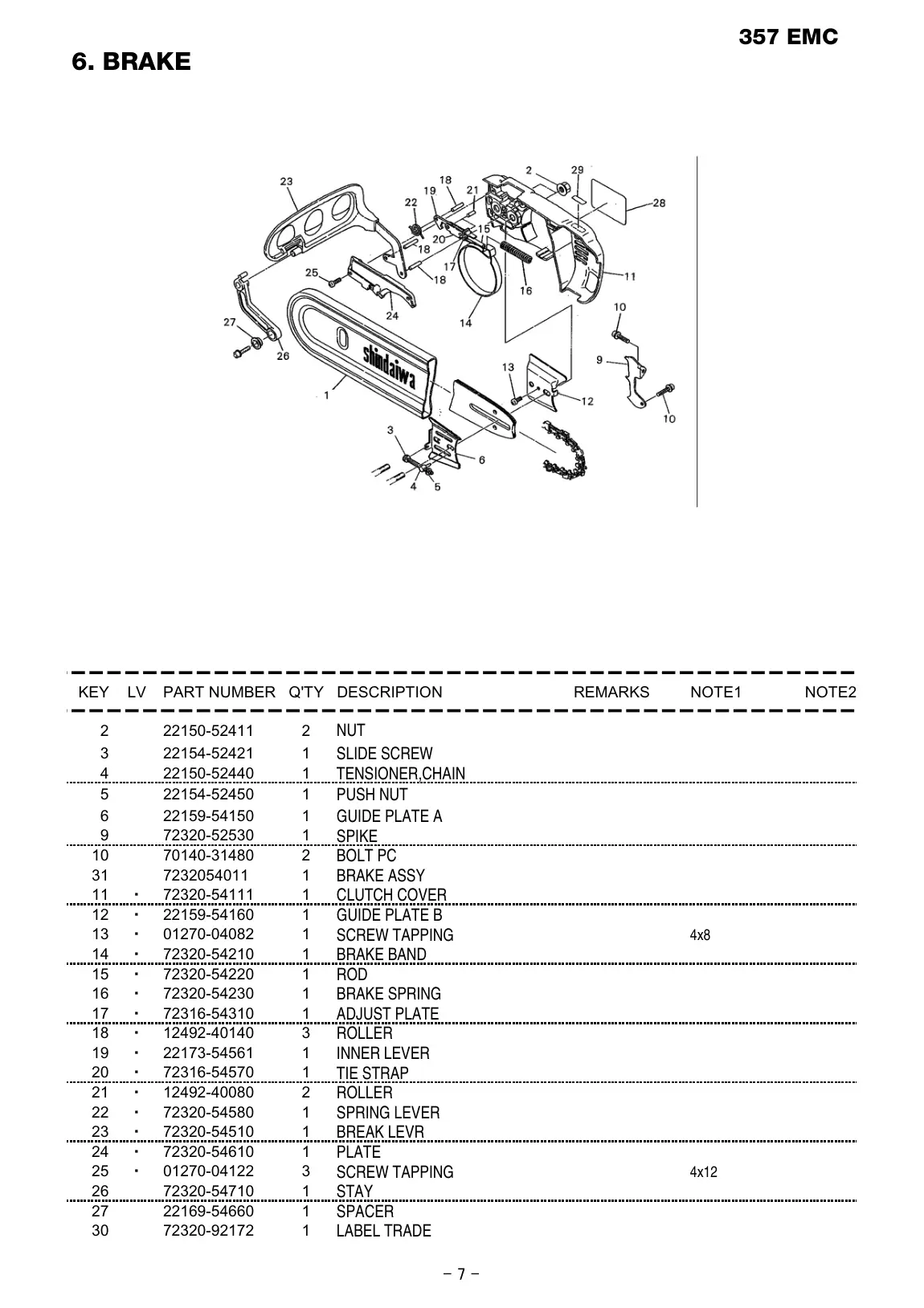

| 8 | LABEL TRADE | 10 | BOLT PC | 70140-31480 | 70140-31480-Online |
| 8 | LABEL TRADE | 11 | CLUTCH COVER | 72320-54111 | 72320-54111-Online |
| 8 | LABEL TRADE | 12 | GUIDE PLATE B | 22159-54160 | 22159-54160-Online |
| 8 | LABEL TRADE | 13 | SCREW TAPPING | 01270-04082 | 01270-04082-Online |
| 8 | LABEL TRADE | 14 | BRAKE BAND | 72320-54210 | 72320-54210-Online |
| 8 | LABEL TRADE | 15 | ROD | 72320-54220 | 72320-54220-Online |
| 8 | LABEL TRADE | 16 | BRAKE SPRING | 72320-54230 | 72320-54230-Online |
| 8 | LABEL TRADE | 17 | ADJUST PLATE | 72316-54310 | 72316-54310-Online |
| 8 | LABEL TRADE | 18 | ROLLER | 12492-40140 | 12492-40140-Online |
| 8 | LABEL TRADE | 19 | INNER LEVER | 22173-54561 | 22173-54561-Online |
| 8 | LABEL TRADE | 2 | NUT | 22150-52411 | 22150-52411-Online |
| 8 | LABEL TRADE | 20 | TIE STRAP | 72316-54570 | 72316-54570-Online |
| 8 | LABEL TRADE | 21 | ROLLER | 12492-40080 | 12492-40080-Online |
| 8 | LABEL TRADE | 22 | SPRING LEVER | 72320-54580 | 72320-54580-Online |
| 8 | LABEL TRADE | 23 | BREAK LEVR | 72320-54510 | 72320-54510-Online |
| 8 | LABEL TRADE | 24 | PLATE | 72320-54610 | 72320-54610-Online |
| 8 | LABEL TRADE | 25 | SCREW TAPPING | 01270-04122 | 01270-04122-Online |
| 8 | LABEL TRADE | 27 | SPACER | 22169-54660 | 22169-54660-Online |
| 8 | LABEL TRADE | 3 | SLIDE SCREW | 22154-52421 | 22154-52421-Online |
| 8 | LABEL TRADE | 30 | LABEL TRADE | 72320-92172 | 72320-92172-Online |
| 8 | LABEL TRADE | 31 | BRAKE ASSY | 7232054011 | 7232054011-Online |
| 8 | LABEL TRADE | 4 | TENSIONER,CHAIN | 22150-52440 | 22150-52440-Online |
| 8 | LABEL TRADE | 5 | PUSH NUT | 22154-52450 | 22154-52450-Online |
| 8 | LABEL TRADE | 6 | GUIDE PLATE A | 22159-54150 | 22159-54150-Online |

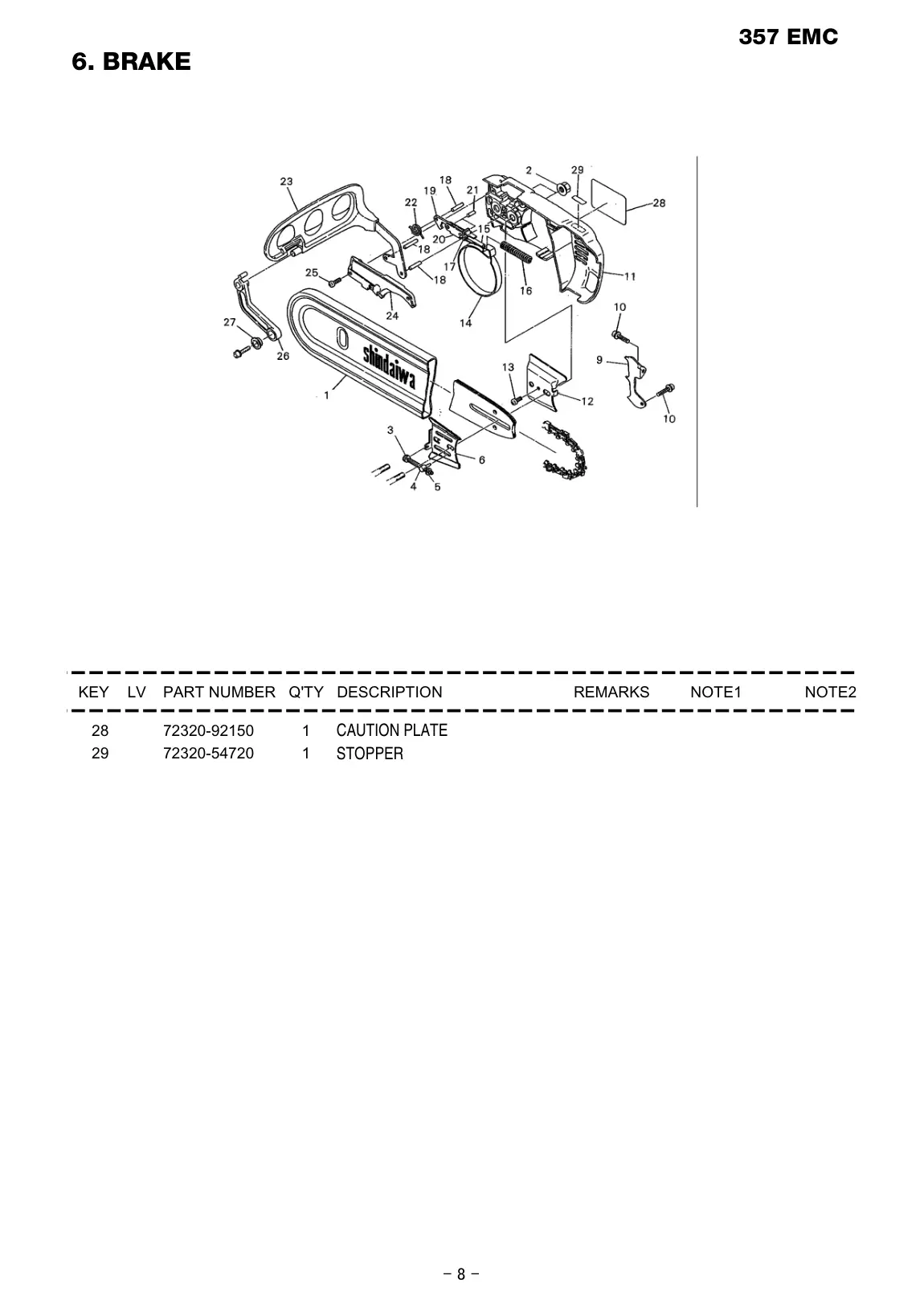

| 9 | STOPPER | 28 | CAUTION PLATE | 72320-92150 | 72320-92150-Online |
| 9 | STOPPER | 29 | STOPPER | 72320-54720 | 72320-54720-Online |

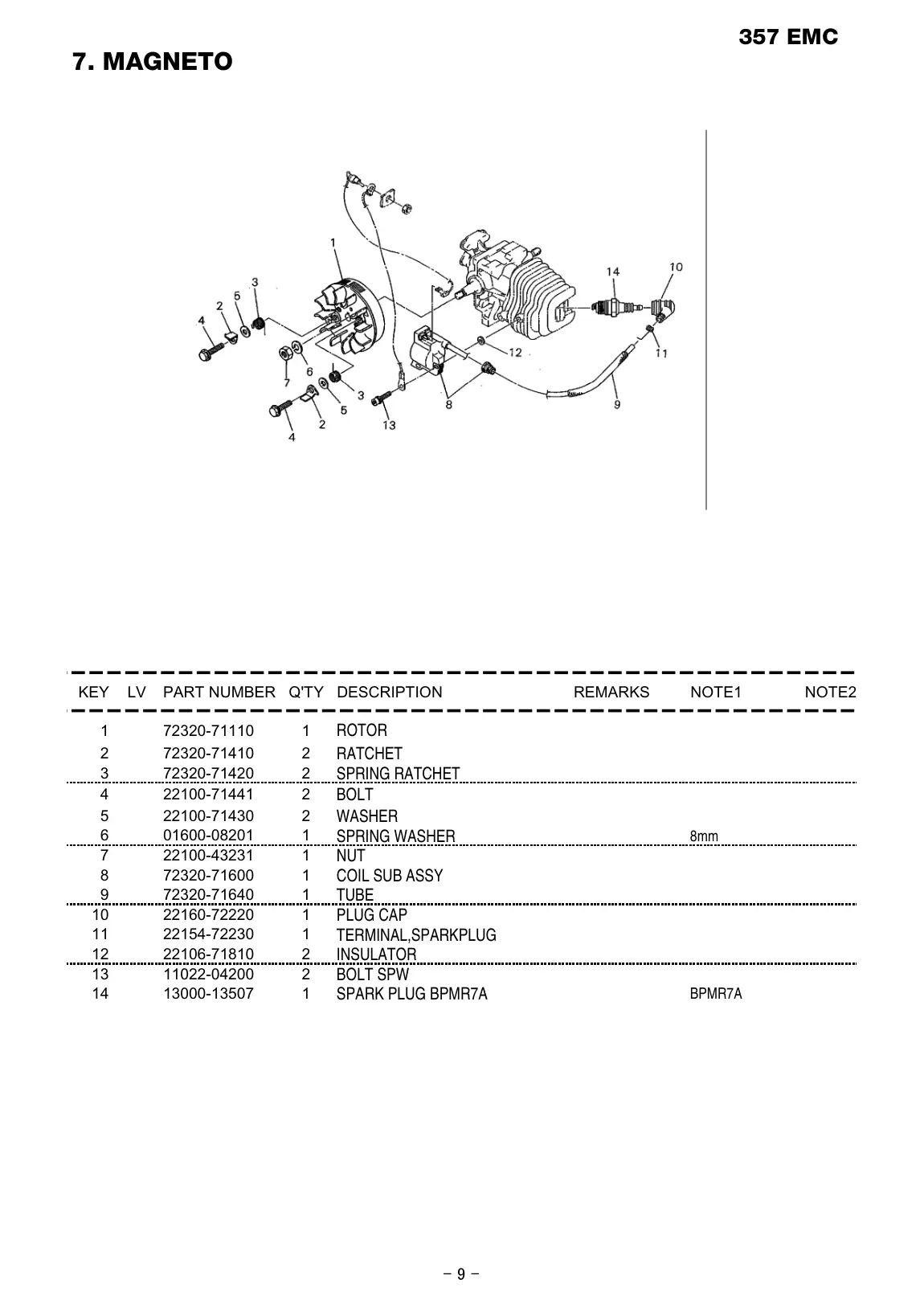

| 10 | BPMR7A | 10 | PLUG CAP | 22160-72220 | 22160-72220-Online |
| 10 | BPMR7A | 11 | TERMINAL,SPARKPLUG | 22154-72230 | 22154-72230-Online |
| 10 | BPMR7A | 12 | INSULATOR | 22106-71810 | 22106-71810-Online |
| 10 | BPMR7A | 13 | BOLT SPW | 11022-04200 | 11022-04200-Online |
| 10 | BPMR7A | 14 | SPARK PLUG BPMR7A | 13000-13507 | 13000-13507-Online |
| 10 | BPMR7A | 2 | RATCHET | 72320-71410 | 72320-71410-Online |
| 10 | BPMR7A | 3 | SPRING RATCHET | 72320-71420 | 72320-71420-Online |
| 10 | BPMR7A | 4 | BOLT | 22100-71441 | 22100-71441-Online |
| 10 | BPMR7A | 5 | WASHER | 22100-71430 | 22100-71430-Online |
| 10 | BPMR7A | 6 | SPRING WASHER | 01600-08201 | 01600-08201-Online |
| 10 | BPMR7A | 7 | NUT | 22100-43231 | 22100-43231-Online |
| 10 | BPMR7A | 8 | COIL SUB ASSY | 72320-71600 | 72320-71600-Online |
| 10 | BPMR7A | 9 | TUBE | 72320-71640 | 72320-71640-Online |

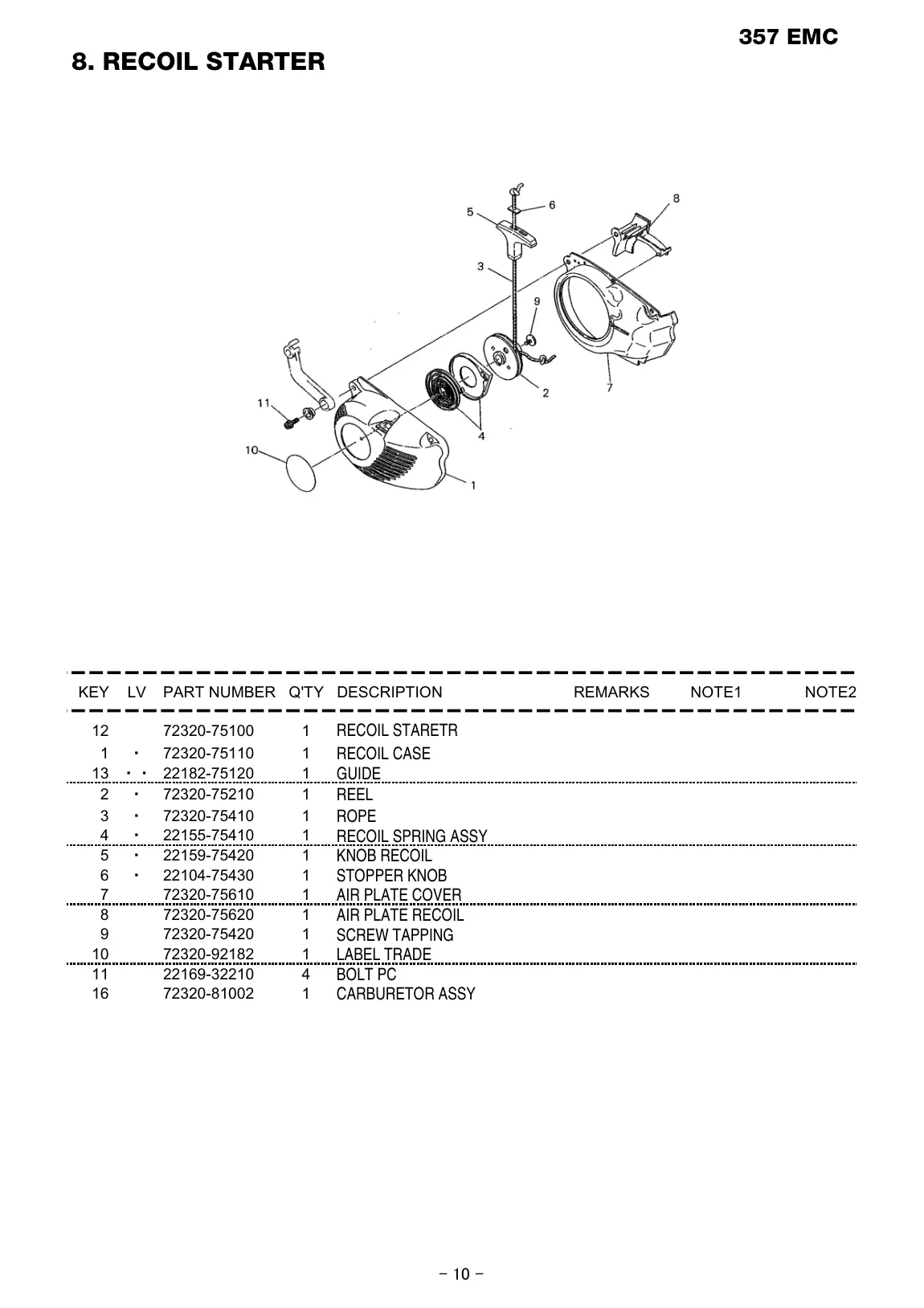

| 11 | CARBURETOR ASSY | 1 | RECOIL CASE | 72320-75110 | 72320-75110-Online |
| 11 | CARBURETOR ASSY | 10 | LABEL TRADE | 72320-92182 | 72320-92182-Online |
| 11 | CARBURETOR ASSY | 11 | BOLT PC | 22169-32210 | 22169-32210-Online |
| 11 | CARBURETOR ASSY | 12 | RECOIL STARETR | 72320-75100 | 72320-75100-Online |
| 11 | CARBURETOR ASSY | 16 | CARBURETOR ASSY | 72320-81002 | 72320-81002-Online |
| 11 | CARBURETOR ASSY | 2 | REEL | 72320-75210 | 72320-75210-Online |
| 11 | CARBURETOR ASSY | 3 | ROPE | 72320-75410 | 72320-75410-Online |
| 11 | CARBURETOR ASSY | 4 | RECOIL SPRING ASSY | 22155-75410 | 22155-75410-Online |
| 11 | CARBURETOR ASSY | 5 | KNOB RECOIL | 22159-75420 | 22159-75420-Online |
| 11 | CARBURETOR ASSY | 6 | STOPPER KNOB | 22104-75430 | 22104-75430-Online |
| 11 | CARBURETOR ASSY | 7 | AIR PLATE COVER | 72320-75610 | 72320-75610-Online |
| 11 | CARBURETOR ASSY | 8 | AIR PLATE RECOIL | 72320-75620 | 72320-75620-Online |
| 11 | CARBURETOR ASSY | 9 | SCREW TAPPING | 72320-75420 | 72320-75420-Online |

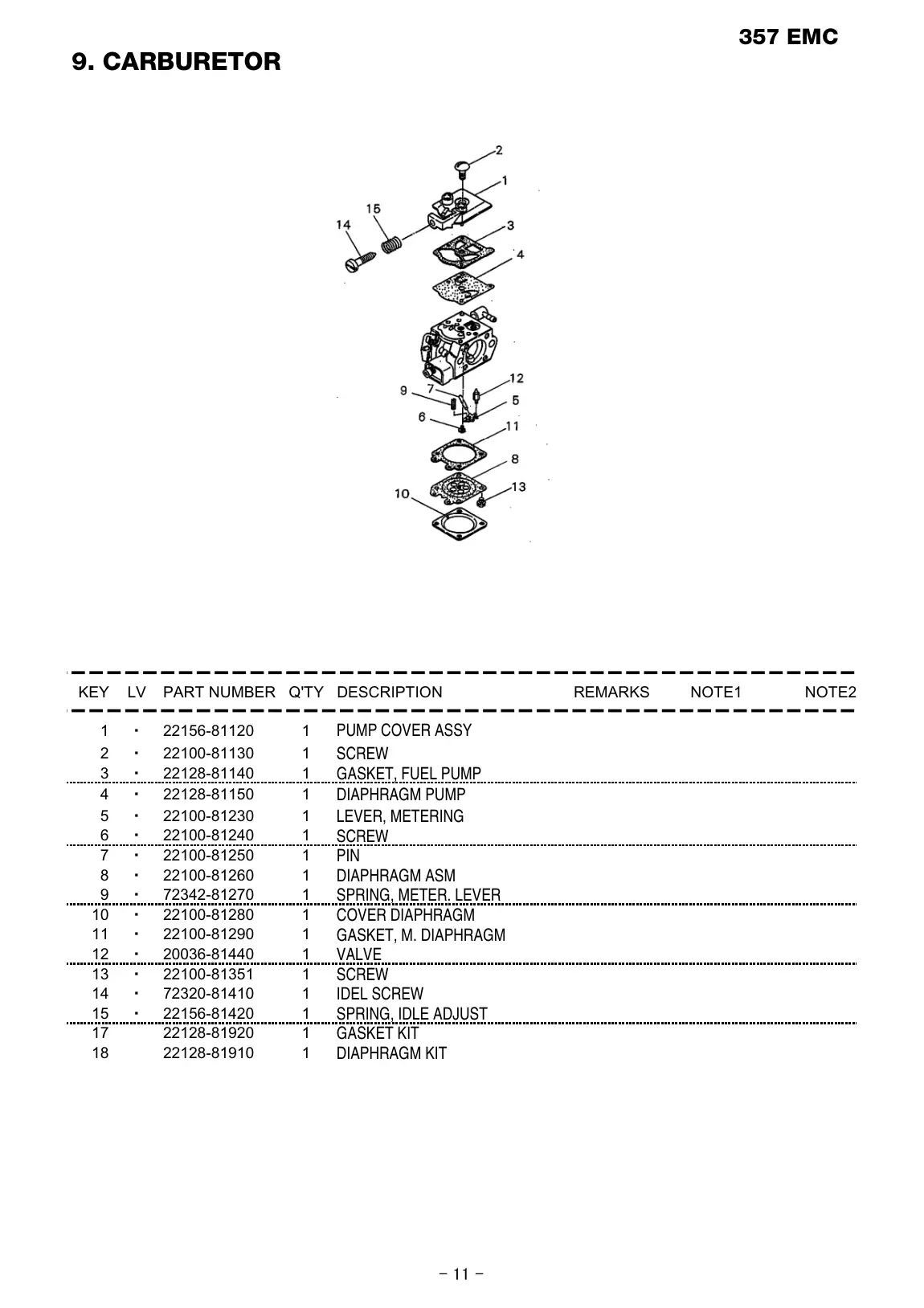

| 12 | DIAPHRAGM KIT | 1 | PUMP COVER ASSY | 22156-81120 | 22156-81120-Online |
| 12 | DIAPHRAGM KIT | 10 | COVER DIAPHRAGM | 22100-81280 | 22100-81280-Online |
| 12 | DIAPHRAGM KIT | 11 | GASKET, M. DIAPHRAGM | 22100-81290 | 22100-81290-Online |
| 12 | DIAPHRAGM KIT | 12 | VALVE | 20036-81440 | 20036-81440-Online |
| 12 | DIAPHRAGM KIT | 13 | SCREW | 22100-81351 | 22100-81351-Online |
| 12 | DIAPHRAGM KIT | 14 | IDEL SCREW | 72320-81410 | 72320-81410-Online |
| 12 | DIAPHRAGM KIT | 15 | SPRING, IDLE ADJUST | 22156-81420 | 22156-81420-Online |
| 12 | DIAPHRAGM KIT | 17 | GASKET KIT | 22128-81920 | 22128-81920-Online |
| 12 | DIAPHRAGM KIT | 18 | DIAPHRAGM KIT | 22128-81910 | 22128-81910-Online |
| 12 | DIAPHRAGM KIT | 2 | SCREW | 22100-81130 | 22100-81130-Online |
| 12 | DIAPHRAGM KIT | 3 | GASKET, FUEL PUMP | 22128-81140 | 22128-81140-Online |
| 12 | DIAPHRAGM KIT | 4 | DIAPHRAGM PUMP | 22128-81150 | 22128-81150-Online |
| 12 | DIAPHRAGM KIT | 5 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 12 | DIAPHRAGM KIT | 6 | SCREW | 22100-81240 | 22100-81240-Online |
| 12 | DIAPHRAGM KIT | 7 | PIN | 22100-81250 | 22100-81250-Online |
| 12 | DIAPHRAGM KIT | 8 | DIAPHRAGM ASM | 22100-81260 | 22100-81260-Online |
| 12 | DIAPHRAGM KIT | 9 | SPRING, METER. LEVER | 72342-81270 | 72342-81270-Online |

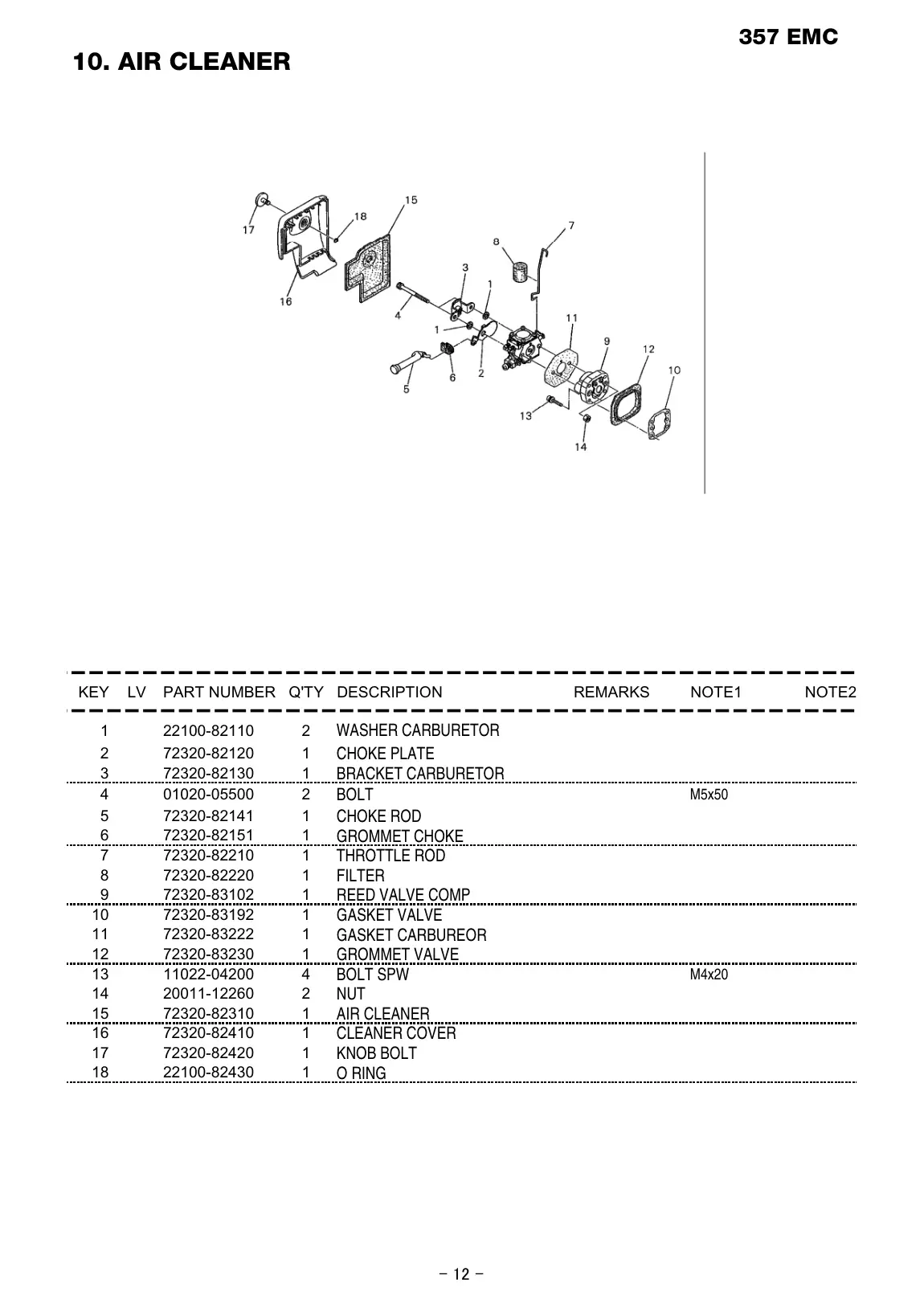

| 13 | O RING | 1 | WASHER CARBURETOR | 22100-82110 | 22100-82110-Online |
| 13 | O RING | 10 | GASKET VALVE | 72320-83192 | 72320-83192-Online |
| 13 | O RING | 11 | GASKET CARBUREOR | 72320-83222 | 72320-83222-Online |
| 13 | O RING | 12 | GROMMET VALVE | 72320-83230 | 72320-83230-Online |
| 13 | O RING | 13 | BOLT SPW | 11022-04200 | 11022-04200-Online |
| 13 | O RING | 14 | NUT | 20011-12260 | 20011-12260-Online |
| 13 | O RING | 15 | AIR CLEANER | 72320-82310 | 72320-82310-Online |
| 13 | O RING | 16 | CLEANER COVER | 72320-82410 | 72320-82410-Online |
| 13 | O RING | 17 | KNOB BOLT | 72320-82420 | 72320-82420-Online |
| 13 | O RING | 18 | O RING | 22100-82430 | 22100-82430-Online |
| 13 | O RING | 2 | CHOKE PLATE | 72320-82120 | 72320-82120-Online |
| 13 | O RING | 3 | BRACKET CARBURETOR | 72320-82130 | 72320-82130-Online |
| 13 | O RING | 4 | BOLT | 01020-05500 | 01020-05500-Online |
| 13 | O RING | 5 | CHOKE ROD | 72320-82141 | 72320-82141-Online |
| 13 | O RING | 6 | GROMMET CHOKE | 72320-82151 | 72320-82151-Online |
| 13 | O RING | 7 | THROTTLE ROD | 72320-82210 | 72320-82210-Online |
| 13 | O RING | 8 | FILTER | 72320-82220 | 72320-82220-Online |
| 13 | O RING | 9 | REED VALVE COMP | 72320-83102 | 72320-83102-Online |
| 14 | HEXA WRENCH | 1 | POLY BAG | 19639-01100 | 19639-01100-Online |
| 14 | HEXA WRENCH | 2 | DRIVER | 22150-91160 | 22150-91160-Online |
| 14 | HEXA WRENCH | 3 | PLUG WRENCH | 72320-91410 | 72320-91410-Online |
| 14 | HEXA WRENCH | 4 | HEXA WRENCH 4MM | 09026-03001 | 09026-03001-Online |
| 14 | HEXA WRENCH | 5 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 14 | HEXA WRENCH | 6 | TOOL SET | 72320-91000 | 72320-91000-Online |

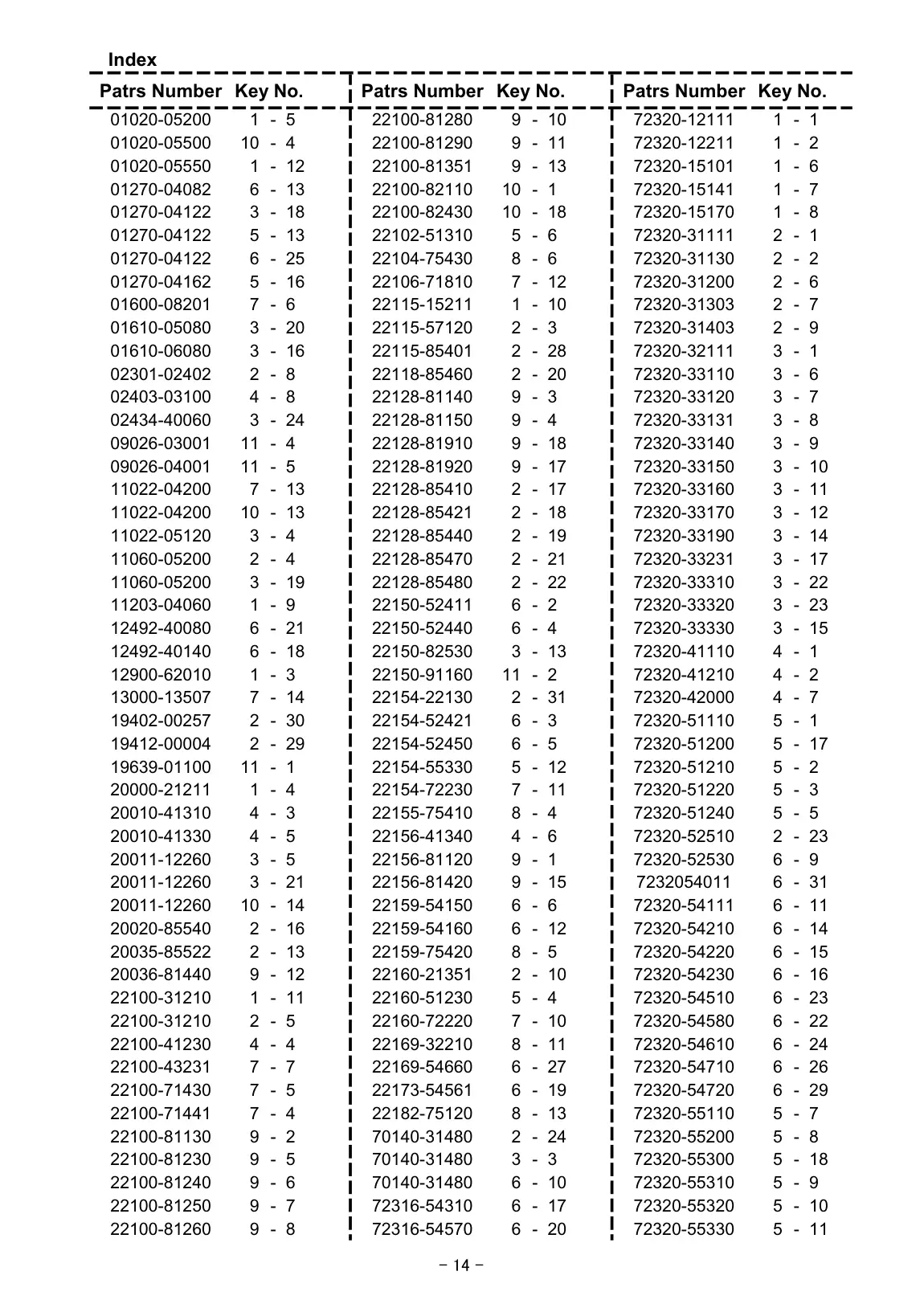

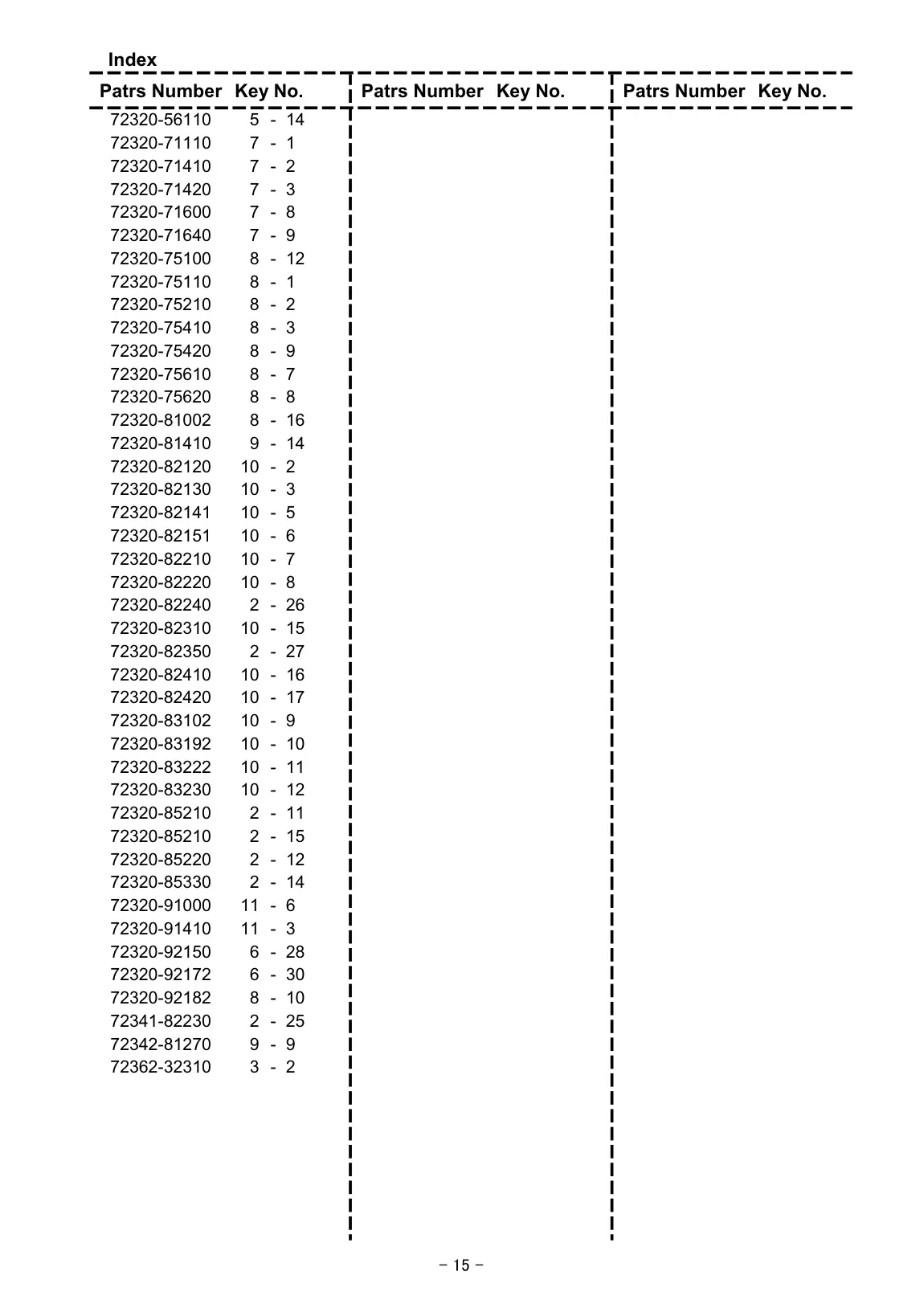

Source file: 20130718-597_357_EMC_357_EMC_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
