Illustrated Parts List

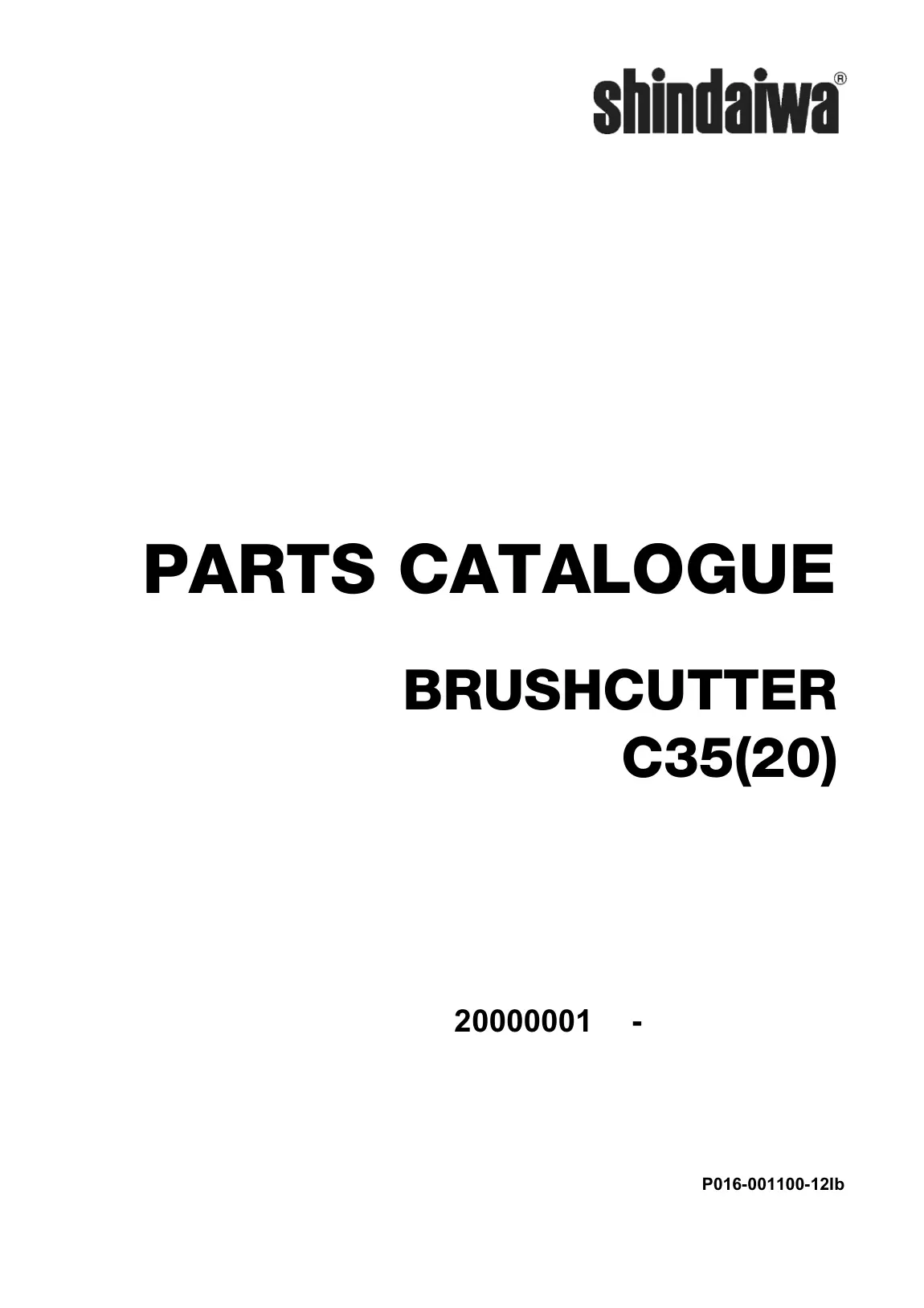

Shindaiwa C35 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C35
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

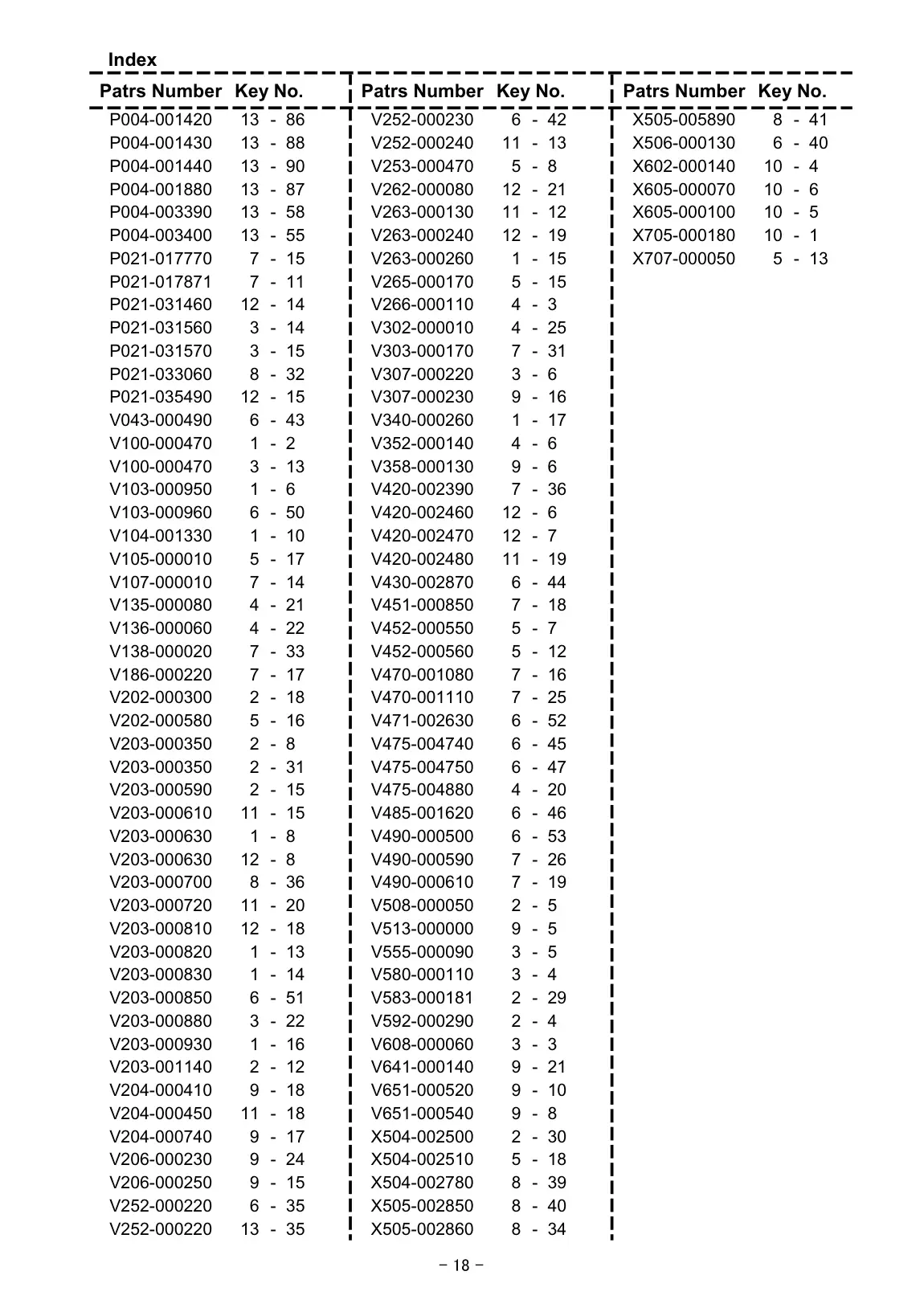

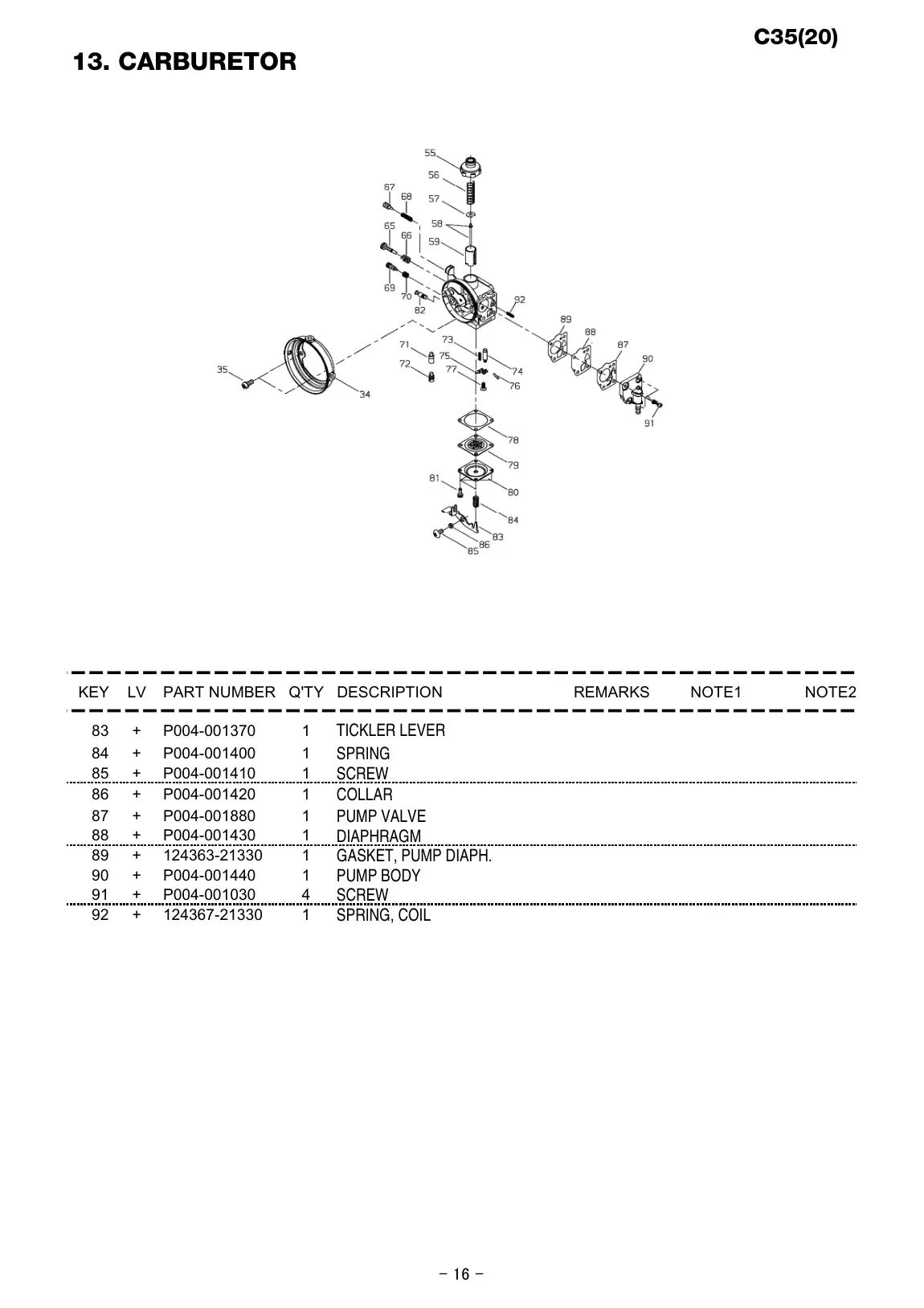

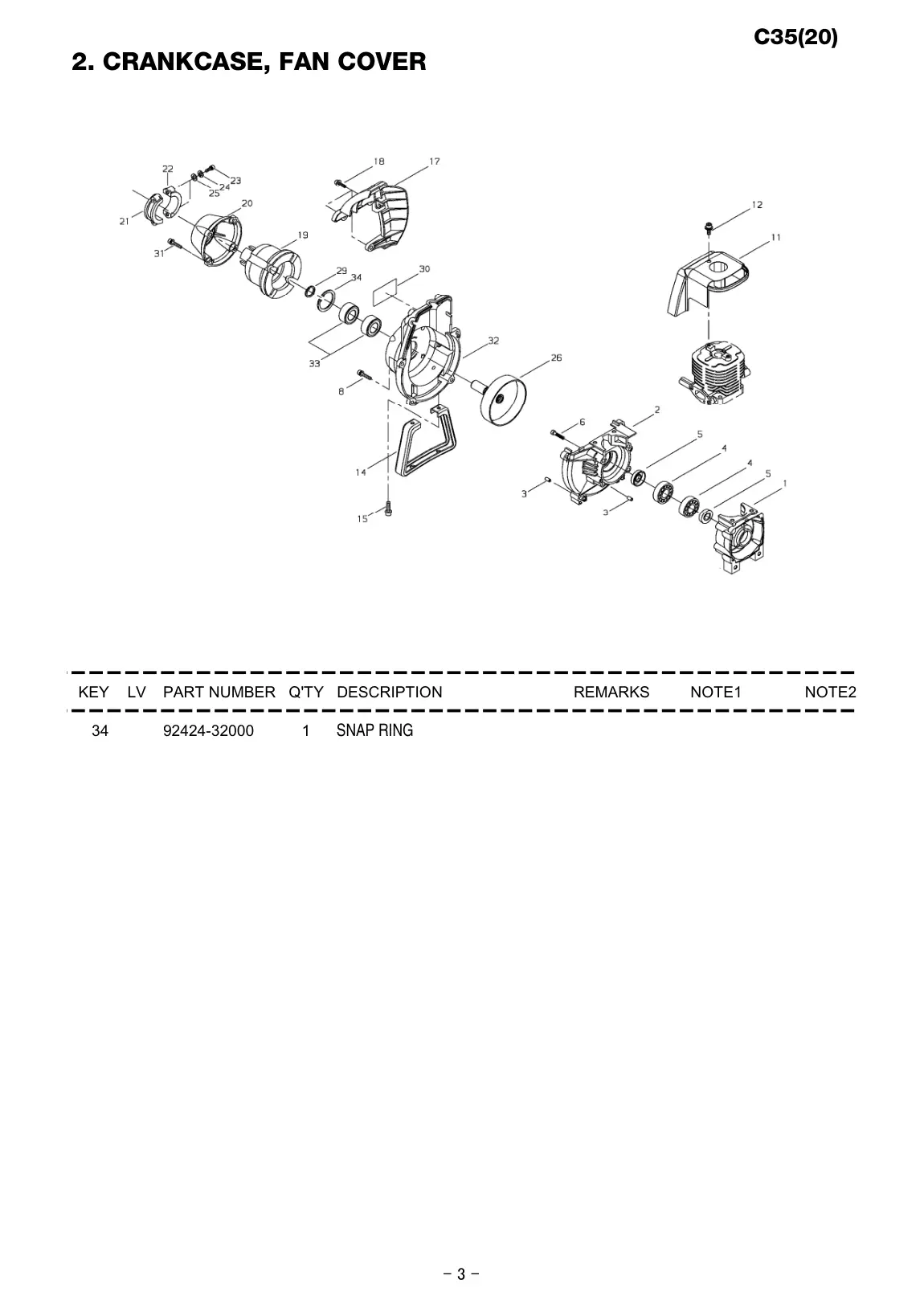

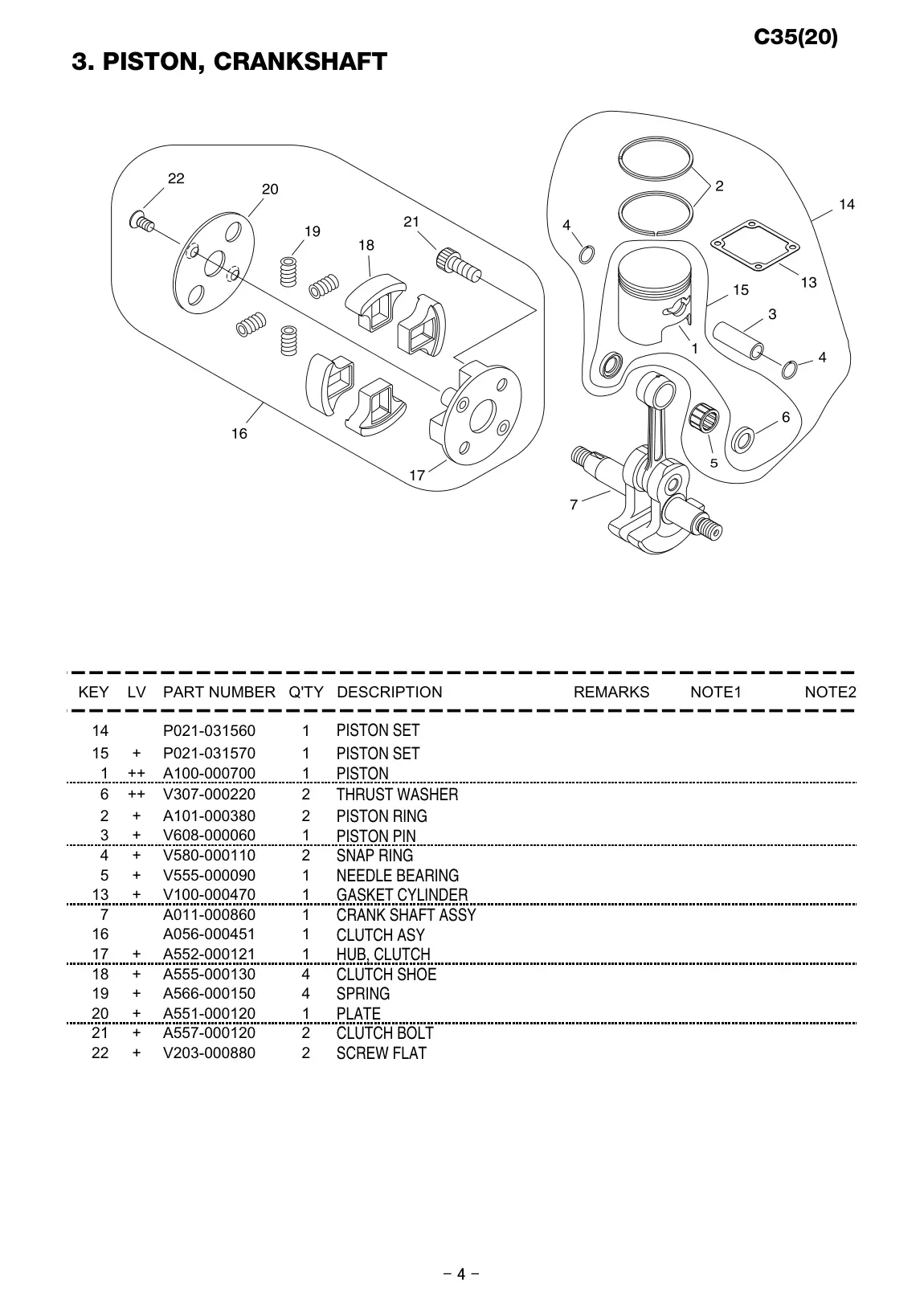

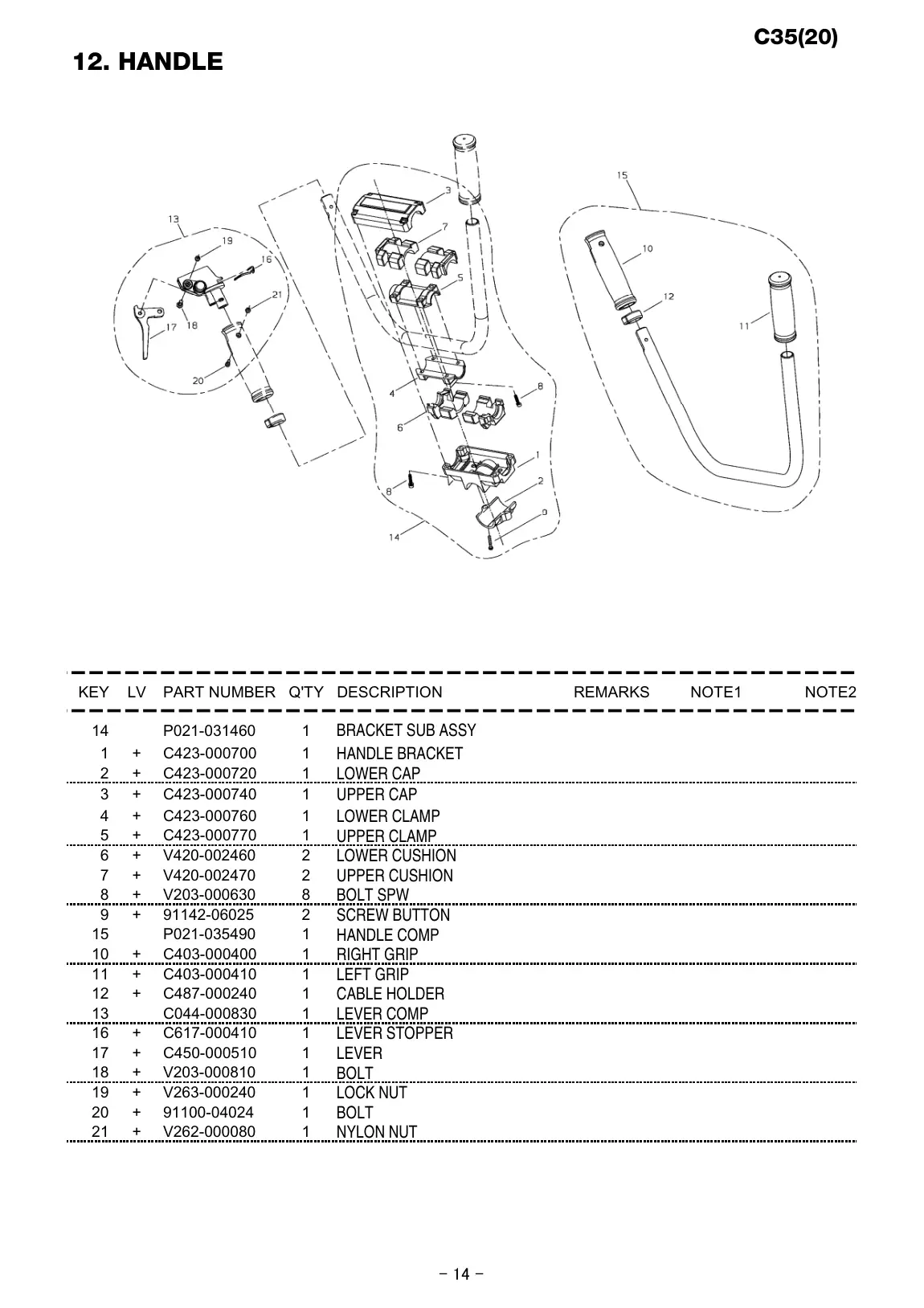

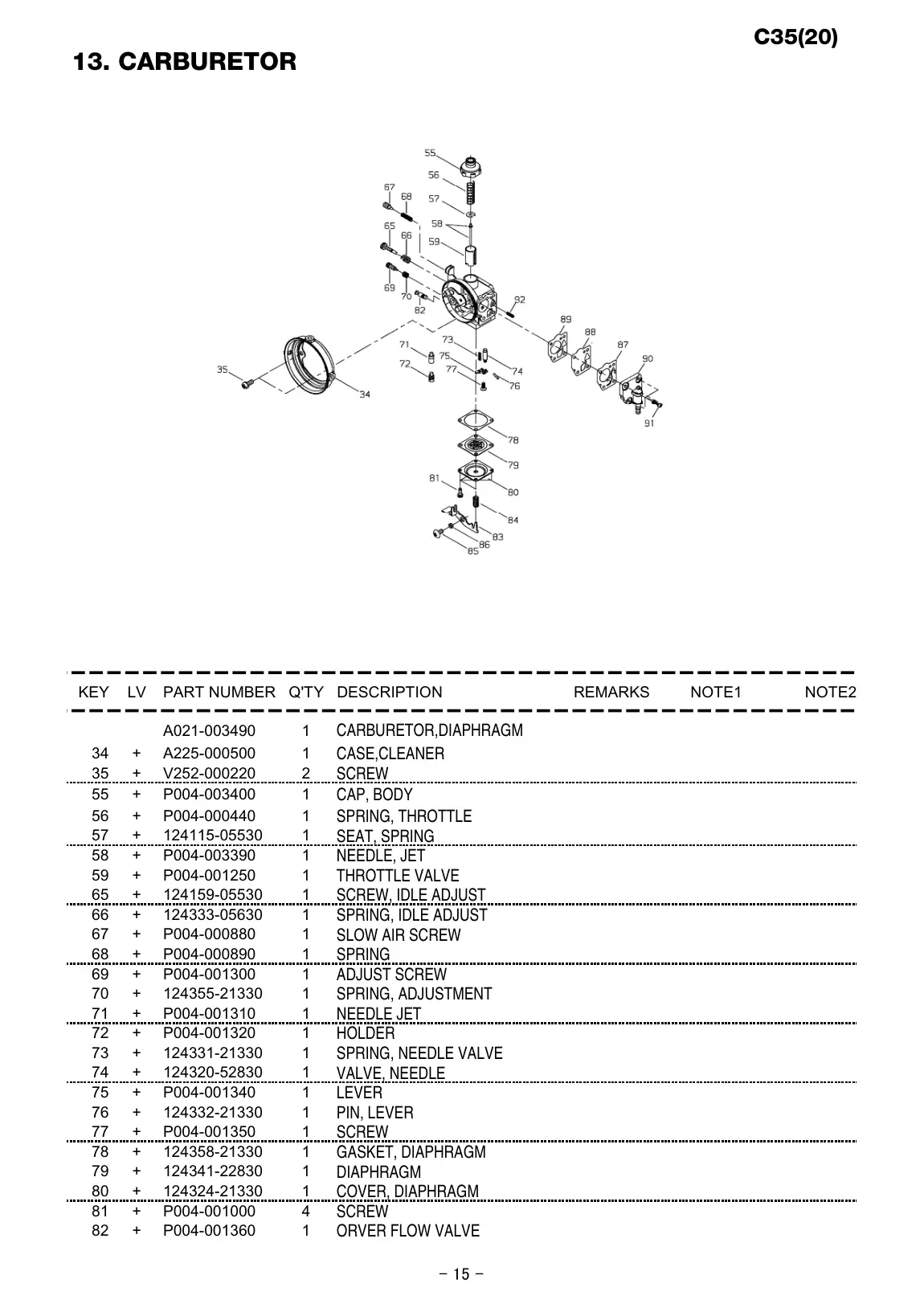

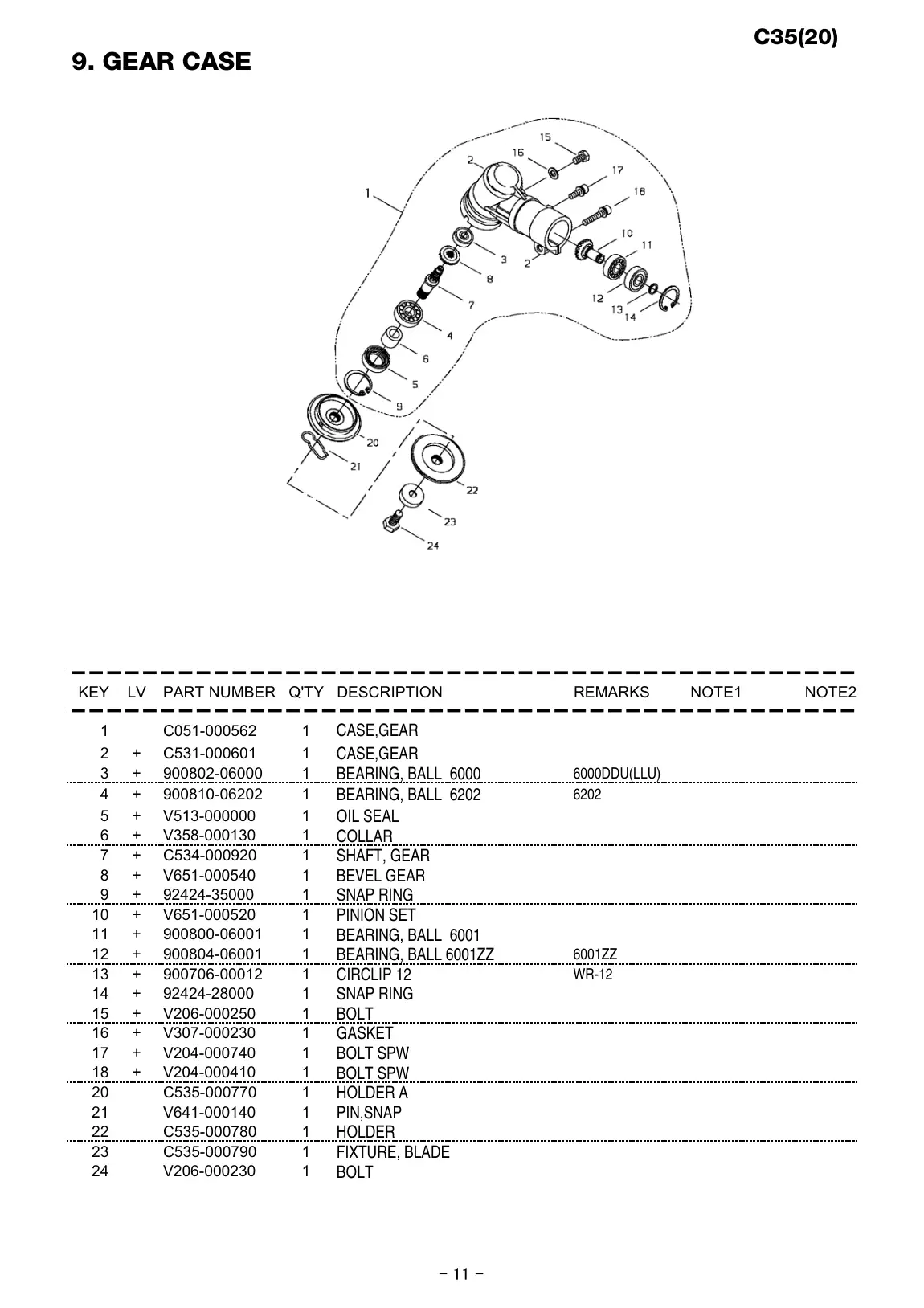

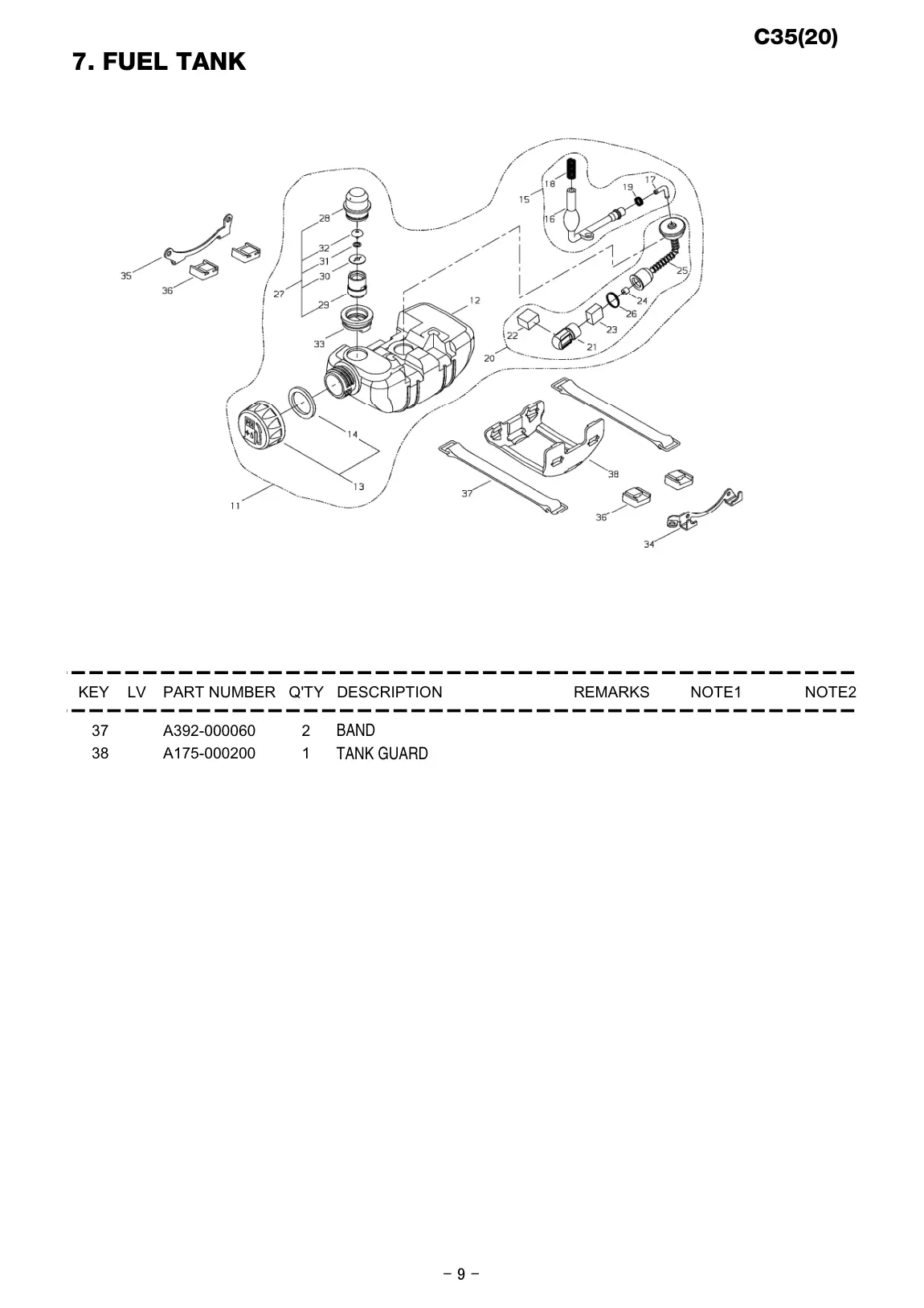

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.

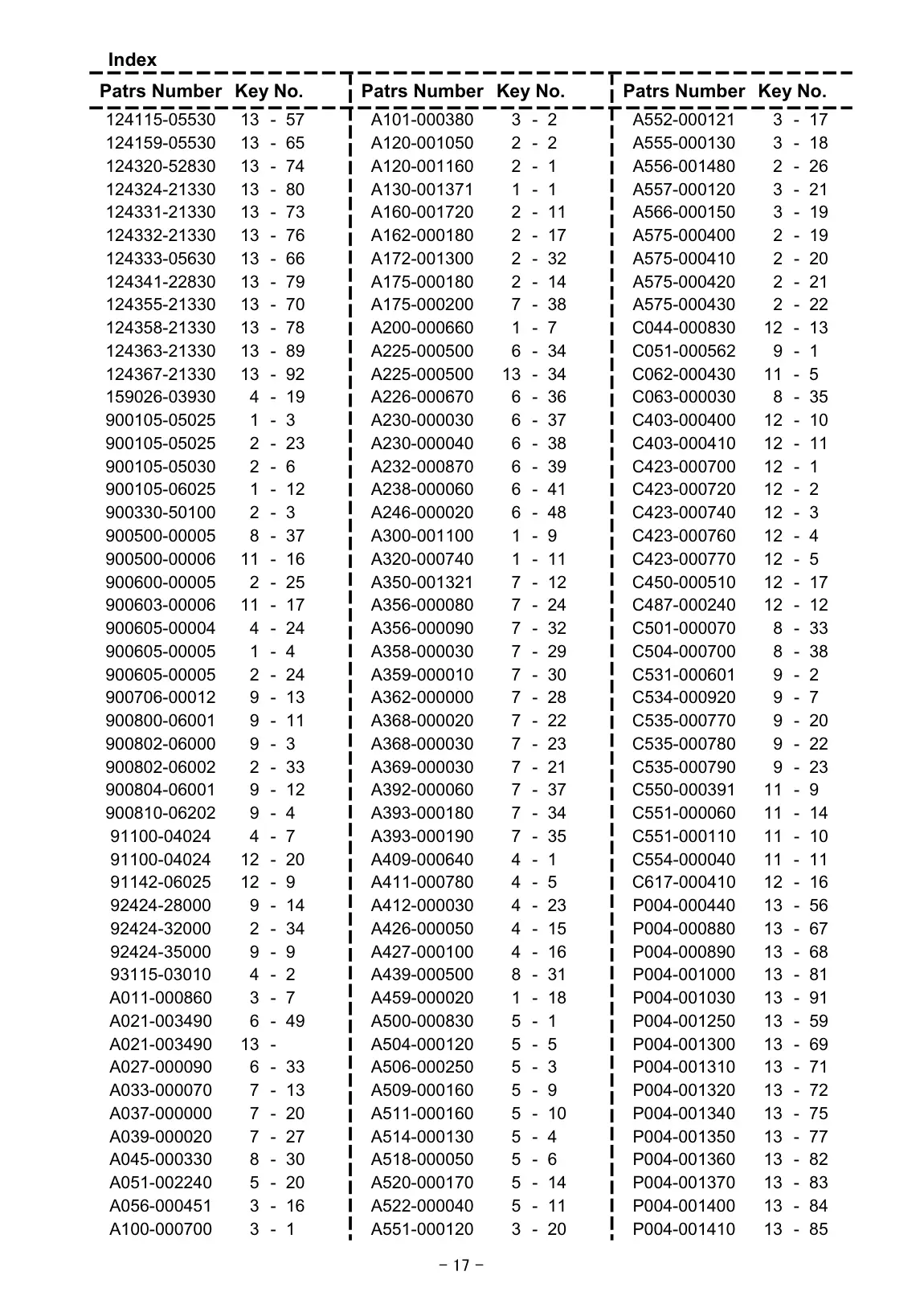

| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

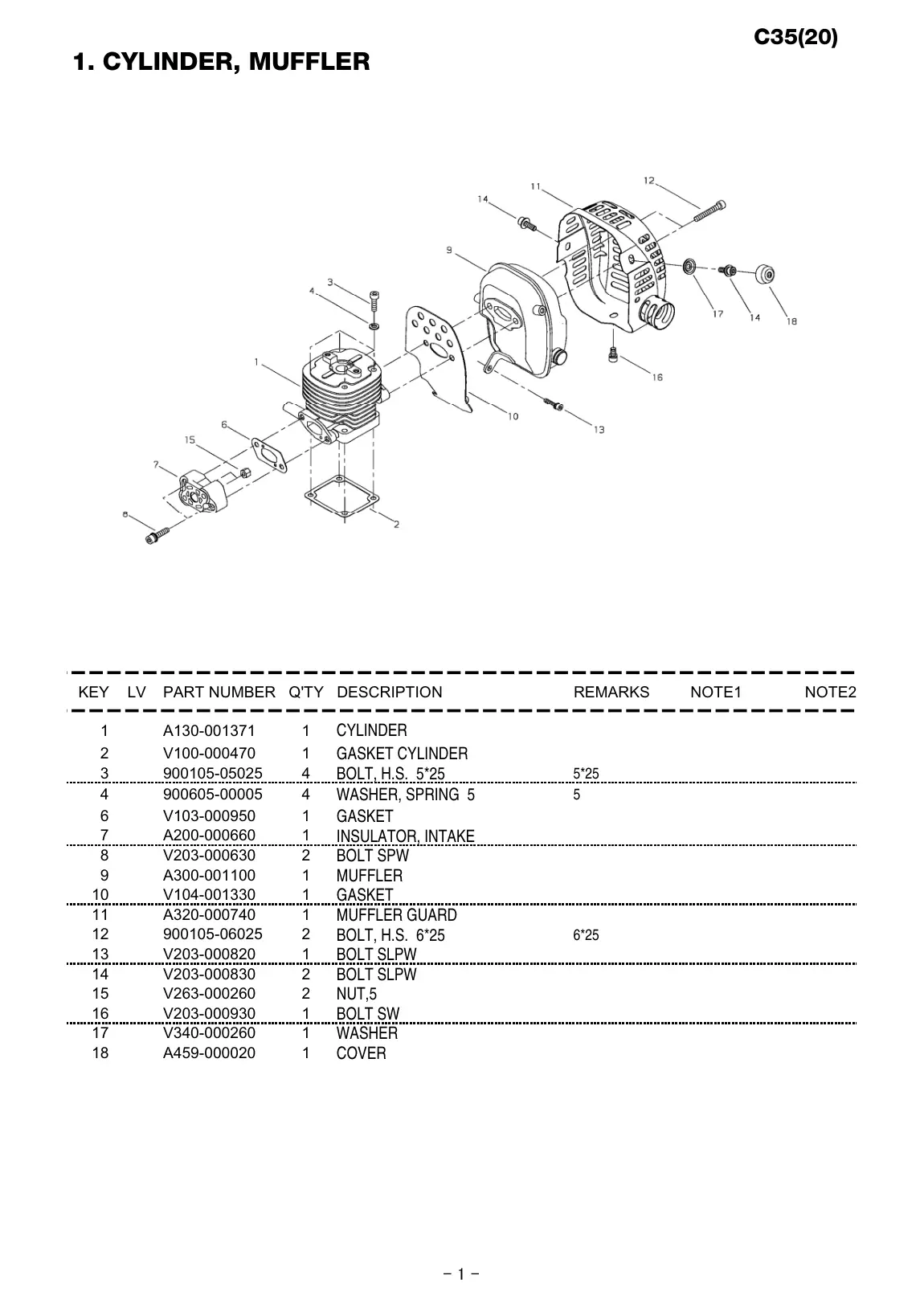

| 2 | COVER | 1 | CYLINDER | A130-001371 | A130-001371-Online |
| 2 | COVER | 10 | GASKET | V104-001330 | V104-001330-Online |
| 2 | COVER | 11 | MUFFLER GUARD | A320-000740 | A320-000740-Online |
| 2 | COVER | 12 | BOLT, H.S. 6*25 | 900105-06025 | 900105-06025-Online |
| 2 | COVER | 13 | BOLT SLPW | V203-000820 | V203-000820-Online |
| 2 | COVER | 14 | BOLT SLPW | V203-000830 | V203-000830-Online |
| 2 | COVER | 15 | NUT,5 | V263-000260 | V263-000260-Online |
| 2 | COVER | 16 | BOLT SW | V203-000930 | V203-000930-Online |
| 2 | COVER | 17 | WASHER | V340-000260 | V340-000260-Online |
| 2 | COVER | 18 | COVER | A459-000020 | A459-000020-Online |
| 2 | COVER | 2 | GASKET CYLINDER | V100-000470 | V100-000470-Online |
| 2 | COVER | 3 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 2 | COVER | 4 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 2 | COVER | 6 | GASKET | V103-000950 | V103-000950-Online |
| 2 | COVER | 7 | INSULATOR, INTAKE | A200-000660 | A200-000660-Online |
| 2 | COVER | 8 | BOLT SPW | V203-000630 | V203-000630-Online |
| 2 | COVER | 9 | MUFFLER | A300-001100 | A300-001100-Online |

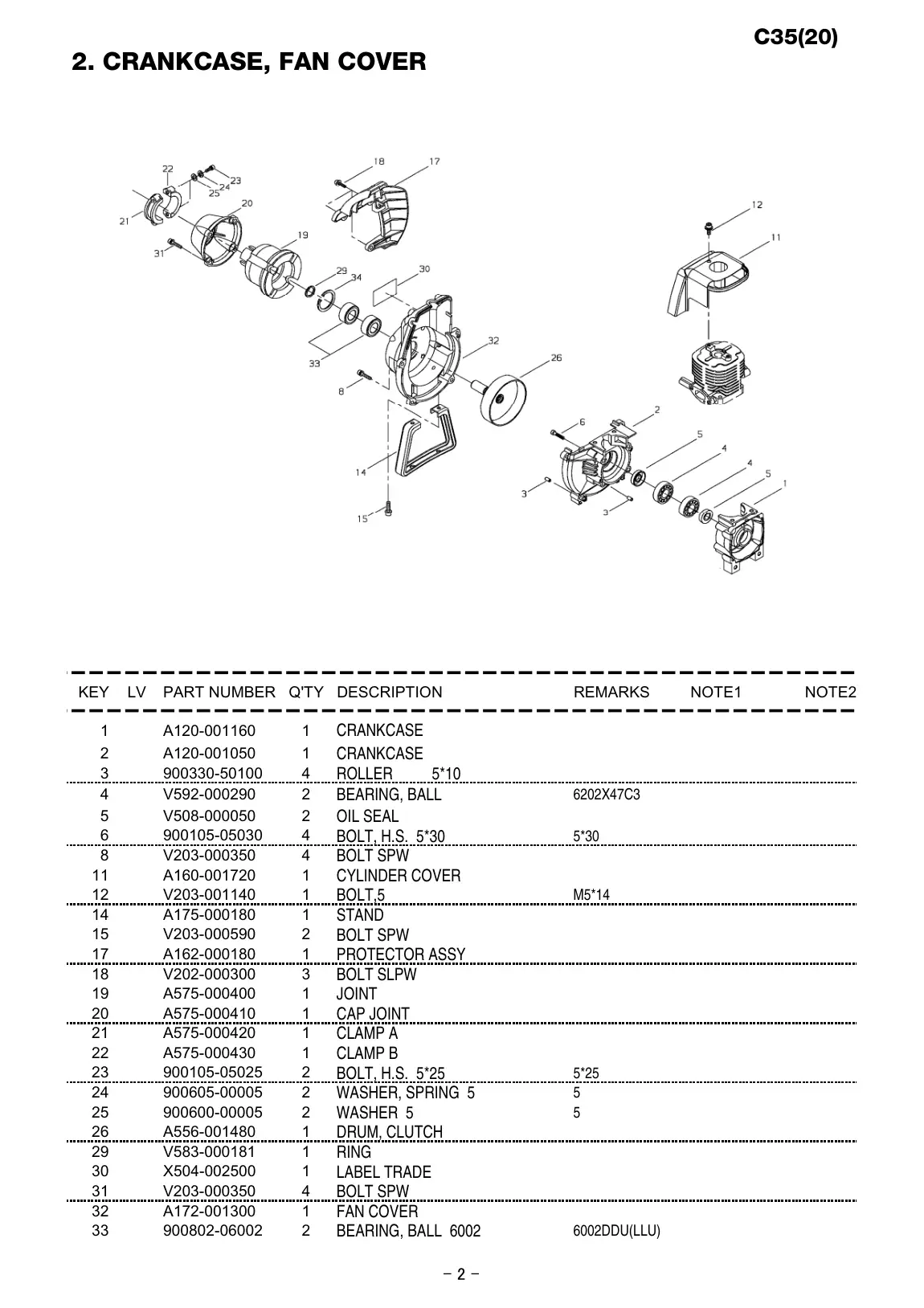

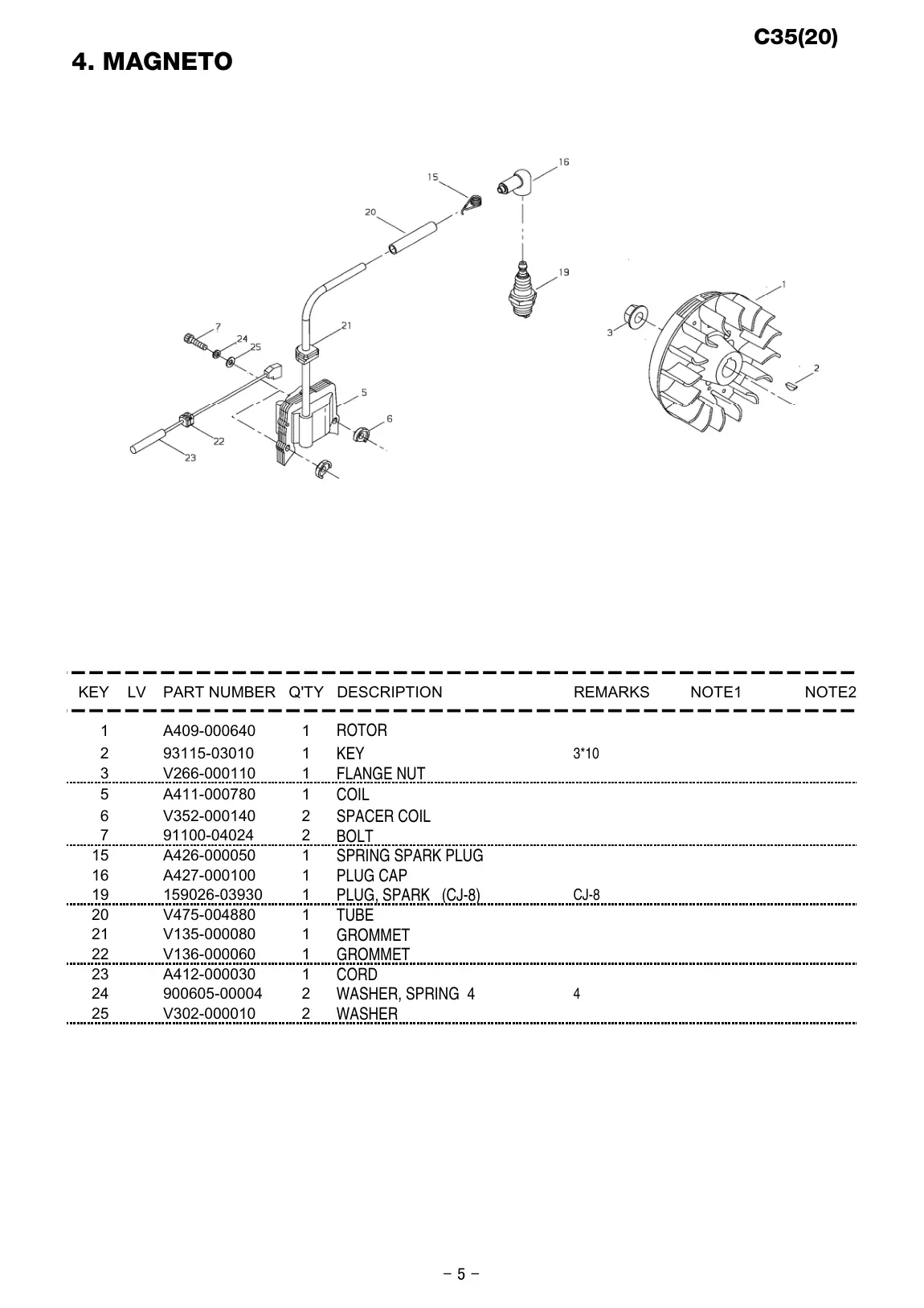

| 3 | 6002DDU(LLU) | 1 | CRANKCASE | A120-001160 | A120-001160-Online |
| 3 | 6002DDU(LLU) | 11 | CYLINDER COVER | A160-001720 | A160-001720-Online |
| 3 | 6002DDU(LLU) | 12 | BOLT,5 | V203-001140 | V203-001140-Online |
| 3 | 6002DDU(LLU) | 15 | BOLT SPW | V203-000590 | V203-000590-Online |
| 3 | 6002DDU(LLU) | 17 | PROTECTOR ASSY | A162-000180 | A162-000180-Online |
| 3 | 6002DDU(LLU) | 18 | BOLT SLPW | V202-000300 | V202-000300-Online |
| 3 | 6002DDU(LLU) | 19 | JOINT | A575-000400 | A575-000400-Online |
| 3 | 6002DDU(LLU) | 2 | CRANKCASE | A120-001050 | A120-001050-Online |
| 3 | 6002DDU(LLU) | 20 | CAP JOINT | A575-000410 | A575-000410-Online |
| 3 | 6002DDU(LLU) | 21 | CLAMP A | A575-000420 | A575-000420-Online |
| 3 | 6002DDU(LLU) | 22 | CLAMP B | A575-000430 | A575-000430-Online |
| 3 | 6002DDU(LLU) | 23 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 3 | 6002DDU(LLU) | 24 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 3 | 6002DDU(LLU) | 25 | WASHER | 900600-00005 | 900600-00005-Online |
| 3 | 6002DDU(LLU) | 26 | DRUM, CLUTCH | A556-001480 | A556-001480-Online |
| 3 | 6002DDU(LLU) | 29 | RING | V583-000181 | V583-000181-Online |
| 3 | 6002DDU(LLU) | 3 | ROLLER 5*10 | 900330-50100 | 900330-50100-Online |
| 3 | 6002DDU(LLU) | 30 | LABEL TRADE | X504-002500 | X504-002500-Online |
| 3 | 6002DDU(LLU) | 31 | BOLT SPW | V203-000350 | V203-000350-Online |
| 3 | 6002DDU(LLU) | 32 | FAN COVER | A172-001300 | A172-001300-Online |
| 3 | 6002DDU(LLU) | 33 | BEARING, BALL | 900802-06002 | 900802-06002-Online |
| 3 | 6002DDU(LLU) | 4 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 3 | 6002DDU(LLU) | 5 | OIL SEAL | V508-000050 | V508-000050-Online |
| 3 | 6002DDU(LLU) | 6 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 3 | 6002DDU(LLU) | 8 | BOLT SPW | V203-000350 | V203-000350-Online |
| 4 | SNAP RING | 34 | SNAP RING | 92424-32000 | 92424-32000-Online |
| 5 | SCREW FLAT | 1 | PISTON | A100-000700 | A100-000700-Online |
| 5 | SCREW FLAT | 13 | GASKET CYLINDER | V100-000470 | V100-000470-Online |
| 5 | SCREW FLAT | 14 | PISTON SET | P021-031560 | P021-031560-Online |
| 5 | SCREW FLAT | 15 | PISTON SET | P021-031570 | P021-031570-Online |
| 5 | SCREW FLAT | 16 | CLUTCH ASY | A056-000451 | A056-000451-Online |
| 5 | SCREW FLAT | 17 | HUB, CLUTCH | A552-000121 | A552-000121-Online |
| 5 | SCREW FLAT | 18 | CLUTCH SHOE | A555-000130 | A555-000130-Online |
| 5 | SCREW FLAT | 19 | SPRING | A566-000150 | A566-000150-Online |
| 5 | SCREW FLAT | 2 | PISTON RING | A101-000380 | A101-000380-Online |
| 5 | SCREW FLAT | 20 | PLATE | A551-000120 | A551-000120-Online |
| 5 | SCREW FLAT | 21 | CLUTCH BOLT | A557-000120 | A557-000120-Online |
| 5 | SCREW FLAT | 22 | SCREW FLAT | V203-000880 | V203-000880-Online |
| 5 | SCREW FLAT | 3 | PISTON PIN | V608-000060 | V608-000060-Online |
| 5 | SCREW FLAT | 4 | SNAP RING | V580-000110 | V580-000110-Online |
| 5 | SCREW FLAT | 5 | NEEDLE BEARING | V555-000090 | V555-000090-Online |
| 5 | SCREW FLAT | 6 | THRUST WASHER | V307-000220 | V307-000220-Online |
| 5 | SCREW FLAT | 7 | CRANK SHAFT ASSY | A011-000860 | A011-000860-Online |
| 6 | WASHER | 15 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 6 | WASHER | 16 | PLUG CAP | A427-000100 | A427-000100-Online |
| 6 | WASHER | 19 | PLUG, SPARK (CJ-8) | 159026-03930 | 159026-03930-Online |
| 6 | WASHER | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | WASHER | 20 | TUBE | V475-004880 | V475-004880-Online |
| 6 | WASHER | 21 | GROMMET | V135-000080 | V135-000080-Online |
| 6 | WASHER | 22 | GROMMET | V136-000060 | V136-000060-Online |
| 6 | WASHER | 24 | WASHER, SPRING | 900605-00004 | 900605-00004-Online |
| 6 | WASHER | 25 | WASHER | V302-000010 | V302-000010-Online |
| 6 | WASHER | 3 | FLANGE NUT | V266-000110 | V266-000110-Online |
| 6 | WASHER | 5 | COIL | A411-000780 | A411-000780-Online |
| 6 | WASHER | 6 | SPACER COIL | V352-000140 | V352-000140-Online |
| 6 | WASHER | 7 | BOLT | 91100-04024 | 91100-04024-Online |

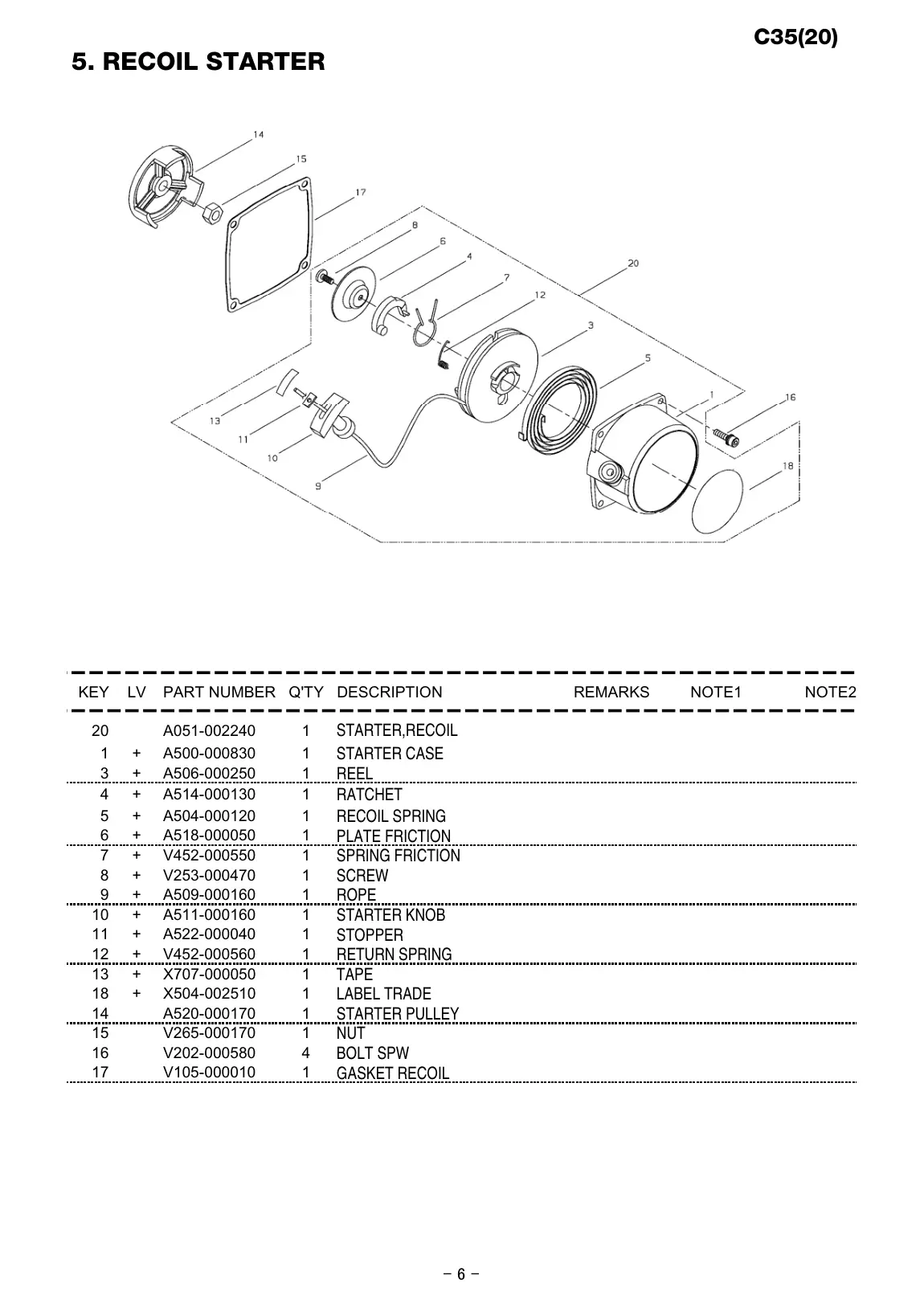

| 7 | GASKET RECOIL | 1 | STARTER CASE | A500-000830 | A500-000830-Online |
| 7 | GASKET RECOIL | 10 | STARTER KNOB | A511-000160 | A511-000160-Online |
| 7 | GASKET RECOIL | 11 | STOPPER | A522-000040 | A522-000040-Online |
| 7 | GASKET RECOIL | 12 | RETURN SPRING | V452-000560 | V452-000560-Online |
| 7 | GASKET RECOIL | 14 | STARTER PULLEY | A520-000170 | A520-000170-Online |
| 7 | GASKET RECOIL | 15 | NUT | V265-000170 | V265-000170-Online |
| 7 | GASKET RECOIL | 16 | BOLT SPW | V202-000580 | V202-000580-Online |
| 7 | GASKET RECOIL | 17 | GASKET RECOIL | V105-000010 | V105-000010-Online |
| 7 | GASKET RECOIL | 18 | LABEL TRADE | X504-002510 | X504-002510-Online |
| 7 | GASKET RECOIL | 20 | STARTER,RECOIL | A051-002240 | A051-002240-Online |
| 7 | GASKET RECOIL | 3 | REEL | A506-000250 | A506-000250-Online |
| 7 | GASKET RECOIL | 4 | RATCHET | A514-000130 | A514-000130-Online |
| 7 | GASKET RECOIL | 5 | RECOIL SPRING | A504-000120 | A504-000120-Online |
| 7 | GASKET RECOIL | 6 | PLATE FRICTION | A518-000050 | A518-000050-Online |
| 7 | GASKET RECOIL | 7 | SPRING FRICTION | V452-000550 | V452-000550-Online |
| 7 | GASKET RECOIL | 8 | SCREW | V253-000470 | V253-000470-Online |
| 7 | GASKET RECOIL | 9 | ROPE | A509-000160 | A509-000160-Online |

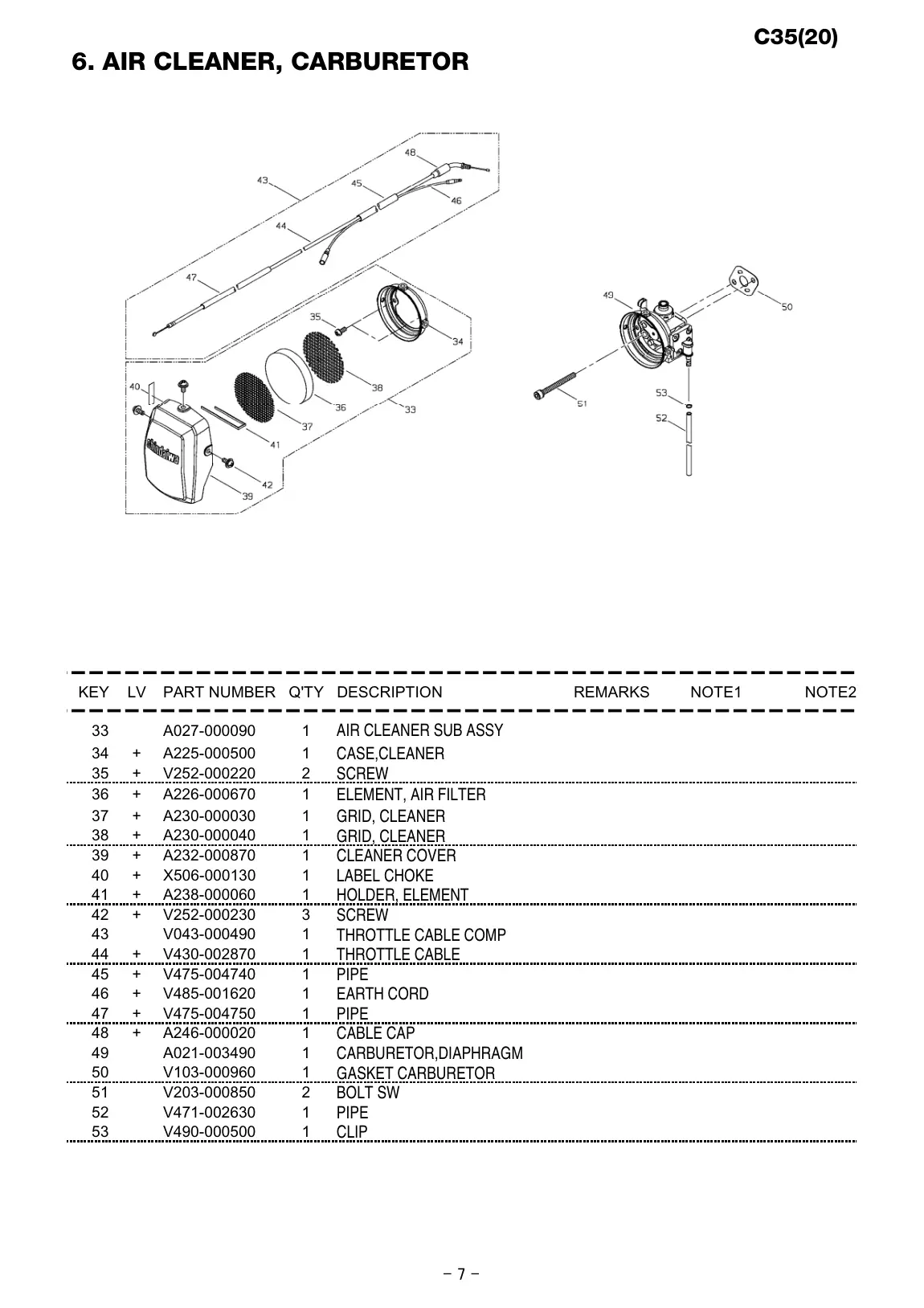

| 8 | CLIP | 33 | AIR CLEANER SUB ASSY | A027-000090 | A027-000090-Online |
| 8 | CLIP | 34 | CASE,CLEANER | A225-000500 | A225-000500-Online |
| 8 | CLIP | 35 | SCREW | V252-000220 | V252-000220-Online |
| 8 | CLIP | 36 | ELEMENT, AIR FILTER | A226-000670 | A226-000670-Online |
| 8 | CLIP | 37 | GRID, CLEANER | A230-000030 | A230-000030-Online |
| 8 | CLIP | 38 | GRID, CLEANER | A230-000040 | A230-000040-Online |
| 8 | CLIP | 39 | CLEANER COVER | A232-000870 | A232-000870-Online |
| 8 | CLIP | 40 | LABEL CHOKE | X506-000130 | X506-000130-Online |
| 8 | CLIP | 41 | HOLDER, ELEMENT | A238-000060 | A238-000060-Online |
| 8 | CLIP | 42 | SCREW | V252-000230 | V252-000230-Online |
| 8 | CLIP | 43 | THROTTLE CABLE COMP | V043-000490 | V043-000490-Online |
| 8 | CLIP | 44 | THROTTLE CABLE | V430-002870 | V430-002870-Online |
| 8 | CLIP | 45 | PIPE | V475-004740 | V475-004740-Online |
| 8 | CLIP | 46 | EARTH CORD | V485-001620 | V485-001620-Online |
| 8 | CLIP | 47 | PIPE | V475-004750 | V475-004750-Online |
| 8 | CLIP | 48 | CABLE CAP | A246-000020 | A246-000020-Online |
| 8 | CLIP | 49 | CARBURETOR,DIAPHRAGM | A021-003490 | A021-003490-Online |
| 8 | CLIP | 50 | GASKET CARBURETOR | V103-000960 | V103-000960-Online |
| 8 | CLIP | 51 | BOLT SW | V203-000850 | V203-000850-Online |
| 8 | CLIP | 52 | PIPE | V471-002630 | V471-002630-Online |
| 8 | CLIP | 53 | CLIP | V490-000500 | V490-000500-Online |

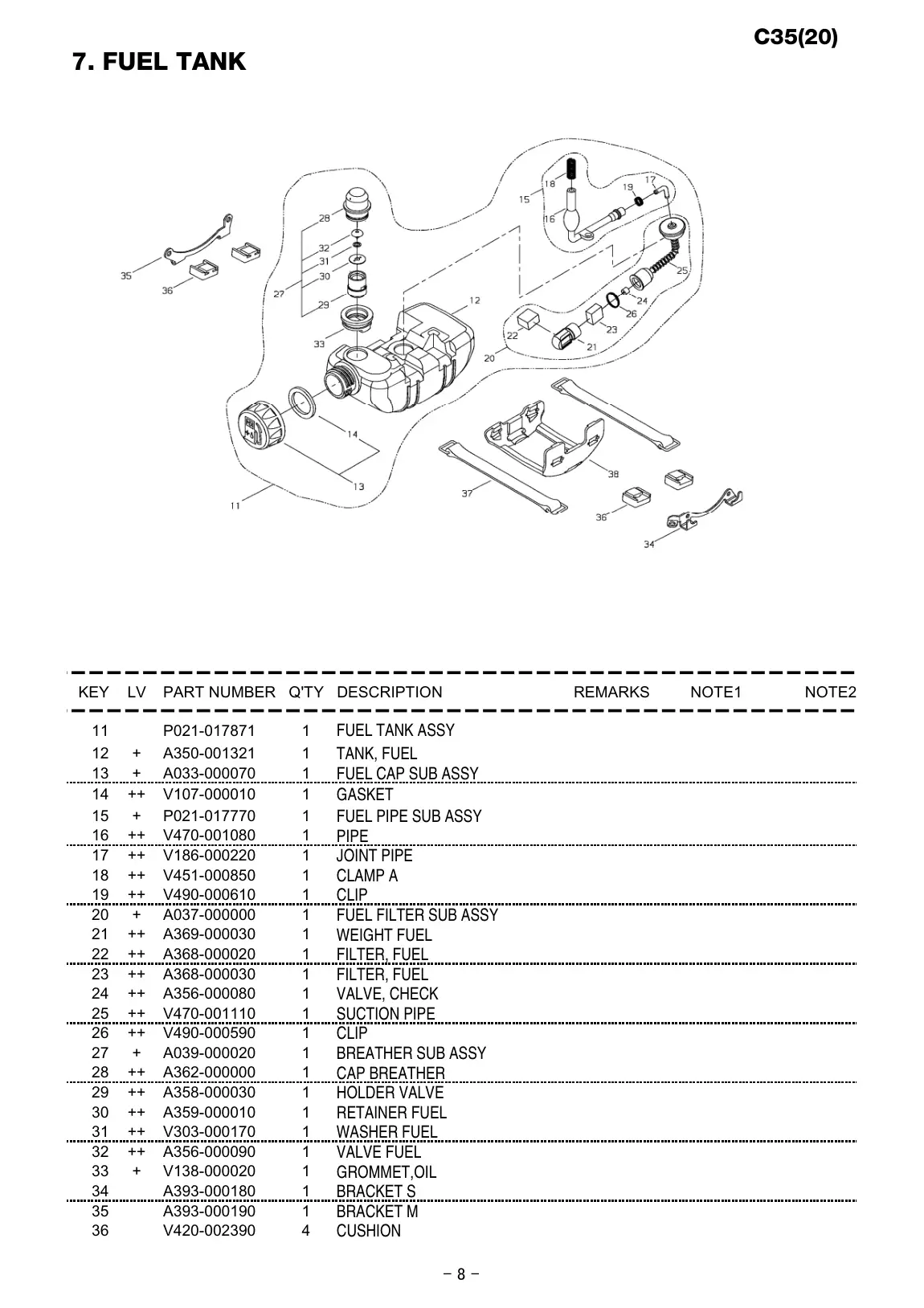

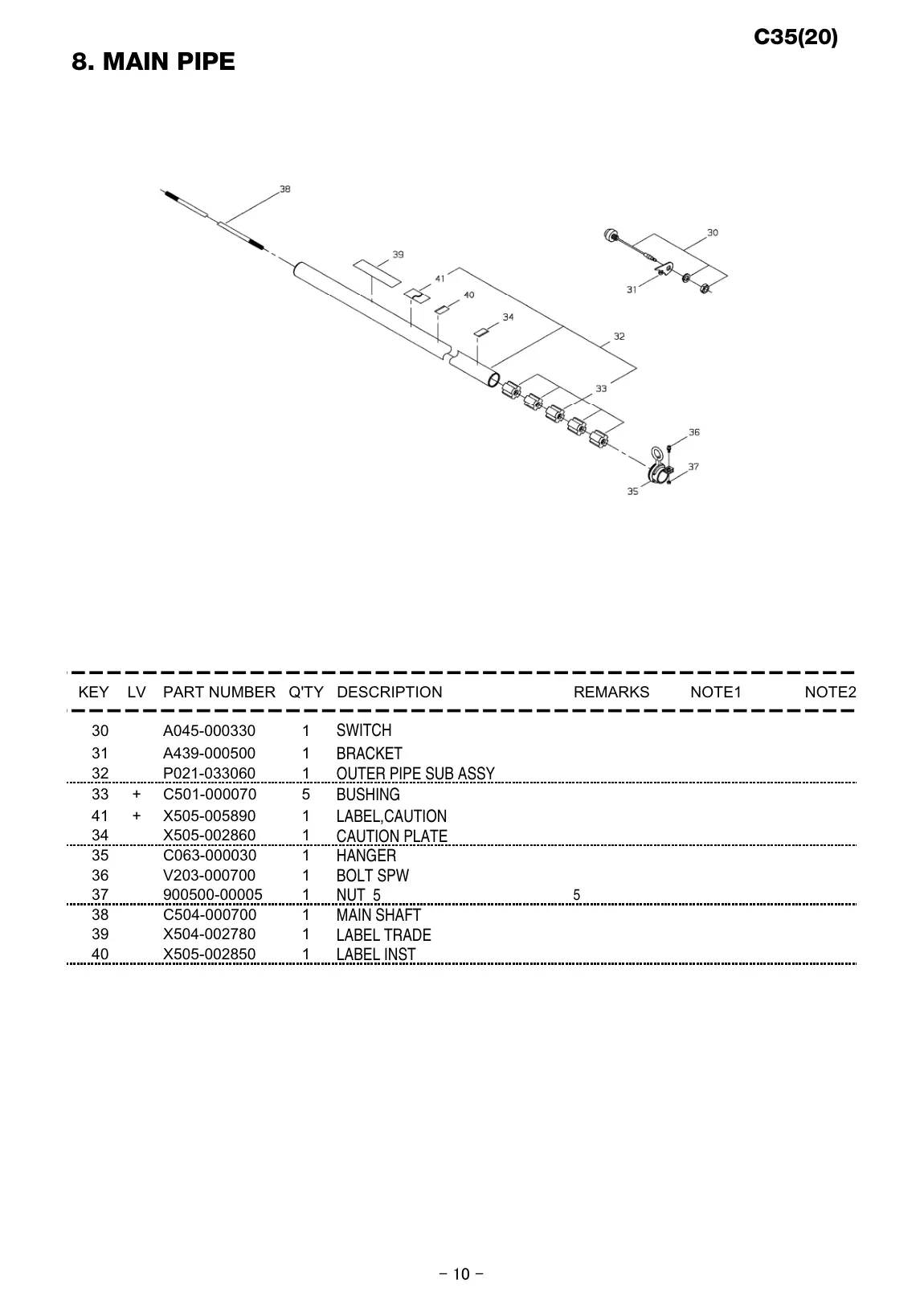

| 9 | CUSHION | 11 | FUEL TANK ASSY | P021-017871 | P021-017871-Online |
| 9 | CUSHION | 12 | TANK, FUEL | A350-001321 | A350-001321-Online |
| 9 | CUSHION | 13 | FUEL CAP SUB ASSY | A033-000070 | A033-000070-Online |
| 9 | CUSHION | 14 | GASKET | V107-000010 | V107-000010-Online |
| 9 | CUSHION | 15 | FUEL PIPE SUB ASSY | P021-017770 | P021-017770-Online |
| 9 | CUSHION | 16 | PIPE | V470-001080 | V470-001080-Online |
| 9 | CUSHION | 17 | JOINT PIPE | V186-000220 | V186-000220-Online |
| 9 | CUSHION | 18 | CLAMP A | V451-000850 | V451-000850-Online |
| 9 | CUSHION | 19 | CLIP | V490-000610 | V490-000610-Online |
| 9 | CUSHION | 20 | FUEL FILTER SUB ASSY | A037-000000 | A037-000000-Online |
| 9 | CUSHION | 21 | WEIGHT FUEL | A369-000030 | A369-000030-Online |
| 9 | CUSHION | 22 | FILTER, FUEL | A368-000020 | A368-000020-Online |
| 9 | CUSHION | 23 | FILTER, FUEL | A368-000030 | A368-000030-Online |
| 9 | CUSHION | 24 | VALVE, CHECK | A356-000080 | A356-000080-Online |
| 9 | CUSHION | 25 | SUCTION PIPE | V470-001110 | V470-001110-Online |
| 9 | CUSHION | 26 | CLIP | V490-000590 | V490-000590-Online |
| 9 | CUSHION | 27 | BREATHER SUB ASSY | A039-000020 | A039-000020-Online |
| 9 | CUSHION | 28 | CAP BREATHER | A362-000000 | A362-000000-Online |
| 9 | CUSHION | 29 | HOLDER VALVE | A358-000030 | A358-000030-Online |
| 9 | CUSHION | 30 | RETAINER FUEL | A359-000010 | A359-000010-Online |
| 9 | CUSHION | 31 | WASHER FUEL | V303-000170 | V303-000170-Online |
| 9 | CUSHION | 32 | VALVE FUEL | A356-000090 | A356-000090-Online |
| 9 | CUSHION | 33 | GROMMET,OIL | V138-000020 | V138-000020-Online |
| 9 | CUSHION | 34 | BRACKET S | A393-000180 | A393-000180-Online |
| 9 | CUSHION | 35 | BRACKET M | A393-000190 | A393-000190-Online |
| 9 | CUSHION | 36 | CUSHION | V420-002390 | V420-002390-Online |
| 10 | TANK GUARD | 37 | BAND | A392-000060 | A392-000060-Online |
| 10 | TANK GUARD | 38 | TANK GUARD | A175-000200 | A175-000200-Online |
| 11 | LABEL INST | 30 | SWITCH | A045-000330 | A045-000330-Online |
| 11 | LABEL INST | 31 | BRACKET | A439-000500 | A439-000500-Online |
| 11 | LABEL INST | 32 | OUTER PIPE SUB ASSY | P021-033060 | P021-033060-Online |
| 11 | LABEL INST | 33 | BUSHING | C501-000070 | C501-000070-Online |
| 11 | LABEL INST | 34 | CAUTION PLATE | X505-002860 | X505-002860-Online |
| 11 | LABEL INST | 35 | HANGER | C063-000030 | C063-000030-Online |
| 11 | LABEL INST | 36 | BOLT SPW | V203-000700 | V203-000700-Online |
| 11 | LABEL INST | 37 | NUT | 900500-00005 | 900500-00005-Online |
| 11 | LABEL INST | 38 | MAIN SHAFT | C504-000700 | C504-000700-Online |
| 11 | LABEL INST | 39 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 11 | LABEL INST | 40 | LABEL INST | X505-002850 | X505-002850-Online |
| 11 | LABEL INST | 41 | LABEL,CAUTION | X505-005890 | X505-005890-Online |
| 12 | BOLT | 1 | CASE,GEAR | C051-000562 | C051-000562-Online |
| 12 | BOLT | 10 | PINION SET | V651-000520 | V651-000520-Online |
| 12 | BOLT | 11 | BEARING, BALL | 900800-06001 | 900800-06001-Online |
| 12 | BOLT | 12 | BEARING, BALL 6001ZZ | 900804-06001 | 900804-06001-Online |
| 12 | BOLT | 13 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 12 | BOLT | 14 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 12 | BOLT | 15 | BOLT | V206-000250 | V206-000250-Online |
| 12 | BOLT | 16 | GASKET | V307-000230 | V307-000230-Online |
| 12 | BOLT | 17 | BOLT SPW | V204-000740 | V204-000740-Online |
| 12 | BOLT | 18 | BOLT SPW | V204-000410 | V204-000410-Online |
| 12 | BOLT | 2 | CASE,GEAR | C531-000601 | C531-000601-Online |
| 12 | BOLT | 20 | HOLDER A | C535-000770 | C535-000770-Online |
| 12 | BOLT | 21 | PIN,SNAP | V641-000140 | V641-000140-Online |
| 12 | BOLT | 22 | HOLDER | C535-000780 | C535-000780-Online |
| 12 | BOLT | 23 | FIXTURE, BLADE | C535-000790 | C535-000790-Online |
| 12 | BOLT | 24 | BOLT | V206-000230 | V206-000230-Online |
| 12 | BOLT | 3 | BEARING, BALL | 900802-06000 | 900802-06000-Online |
| 12 | BOLT | 4 | BEARING, BALL | 900810-06202 | 900810-06202-Online |
| 12 | BOLT | 5 | OIL SEAL | V513-000000 | V513-000000-Online |
| 12 | BOLT | 6 | COLLAR | V358-000130 | V358-000130-Online |
| 12 | BOLT | 7 | SHAFT, GEAR | C534-000920 | C534-000920-Online |
| 12 | BOLT | 8 | BEVEL GEAR | V651-000540 | V651-000540-Online |
| 12 | BOLT | 9 | SNAP RING | 92424-35000 | 92424-35000-Online |

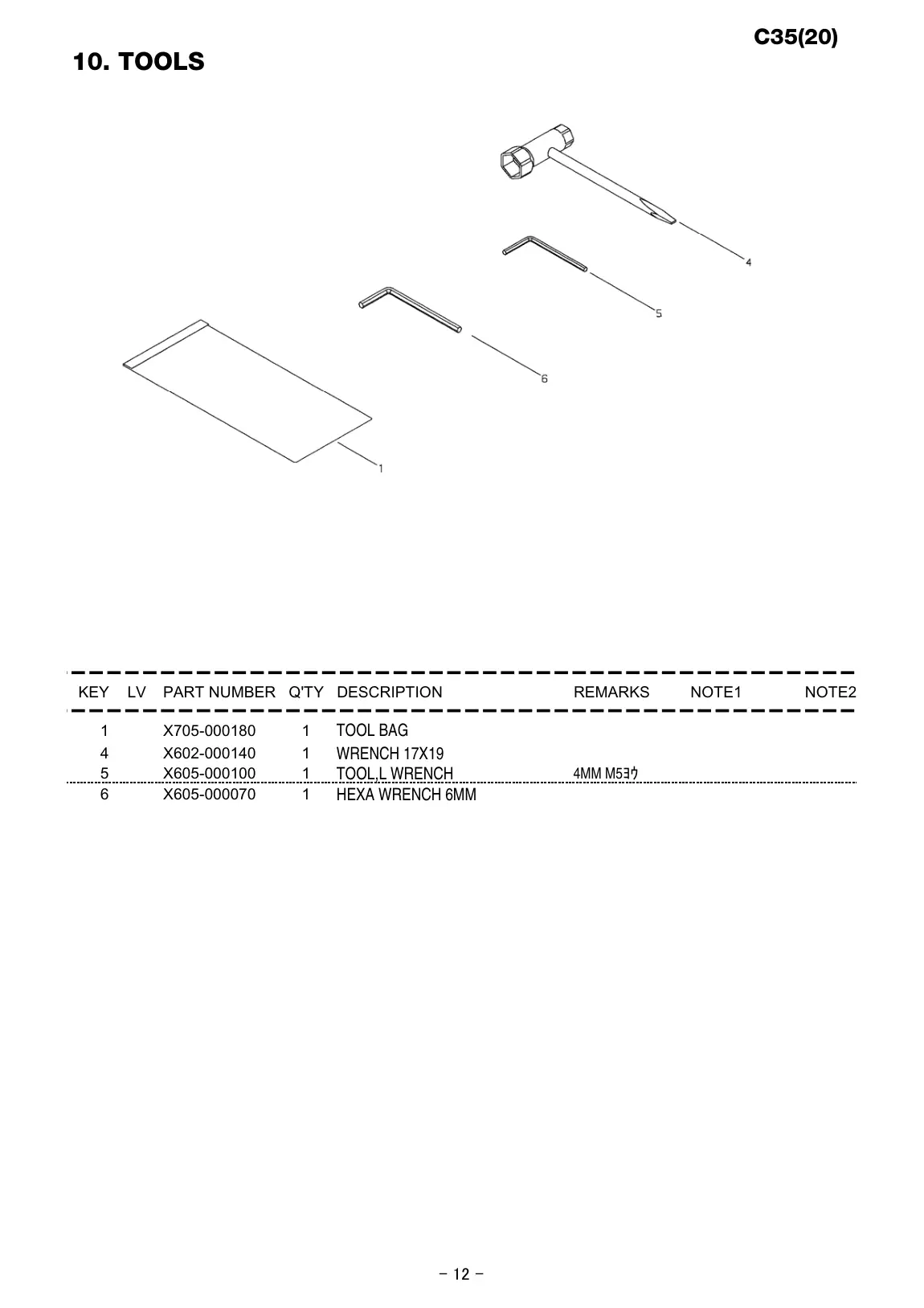

| 13 | HEXA WRENCH 6MM | 1 | TOOL BAG | X705-000180 | X705-000180-Online |
| 13 | HEXA WRENCH 6MM | 4 | WRENCH 17X19 | X602-000140 | X602-000140-Online |
| 13 | HEXA WRENCH 6MM | 5 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 13 | HEXA WRENCH 6MM | 6 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |

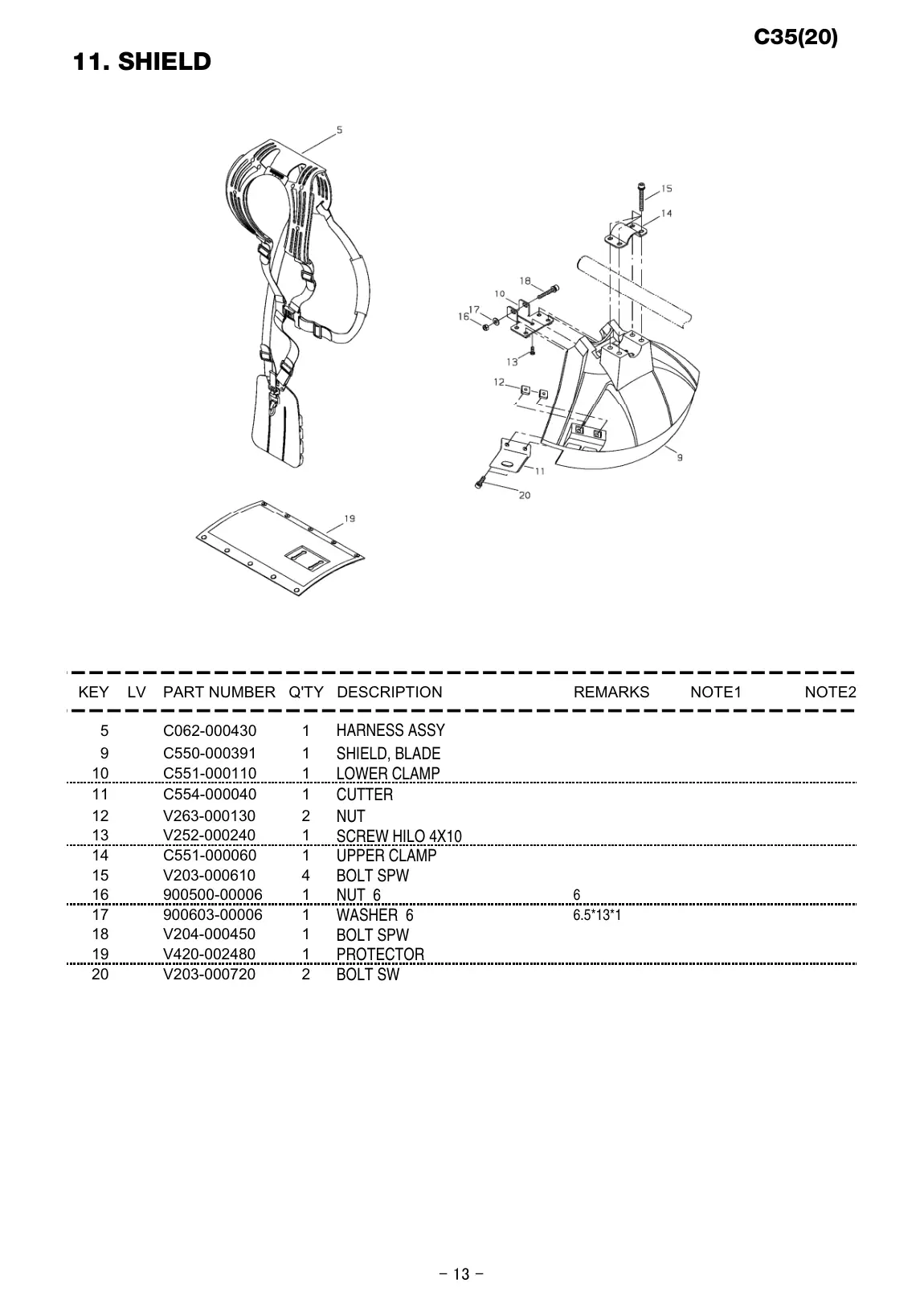

| 14 | BOLT SW | 10 | LOWER CLAMP | C551-000110 | C551-000110-Online |
| 14 | BOLT SW | 11 | CUTTER | C554-000040 | C554-000040-Online |
| 14 | BOLT SW | 12 | NUT | V263-000130 | V263-000130-Online |
| 14 | BOLT SW | 13 | SCREW HILO 4X10 | V252-000240 | V252-000240-Online |
| 14 | BOLT SW | 14 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 14 | BOLT SW | 15 | BOLT SPW | V203-000610 | V203-000610-Online |
| 14 | BOLT SW | 16 | NUT | 900500-00006 | 900500-00006-Online |
| 14 | BOLT SW | 17 | WASHER | 900603-00006 | 900603-00006-Online |
| 14 | BOLT SW | 18 | BOLT SPW | V204-000450 | V204-000450-Online |
| 14 | BOLT SW | 19 | PROTECTOR | V420-002480 | V420-002480-Online |
| 14 | BOLT SW | 20 | BOLT SW | V203-000720 | V203-000720-Online |
| 14 | BOLT SW | 5 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 14 | BOLT SW | 9 | SHIELD, BLADE | C550-000391 | C550-000391-Online |
| 15 | NYLON NUT | 1 | HANDLE BRACKET | C423-000700 | C423-000700-Online |
| 15 | NYLON NUT | 10 | RIGHT GRIP | C403-000400 | C403-000400-Online |
| 15 | NYLON NUT | 11 | LEFT GRIP | C403-000410 | C403-000410-Online |
| 15 | NYLON NUT | 12 | CABLE HOLDER | C487-000240 | C487-000240-Online |
| 15 | NYLON NUT | 13 | LEVER COMP | C044-000830 | C044-000830-Online |
| 15 | NYLON NUT | 14 | BRACKET SUB ASSY | P021-031460 | P021-031460-Online |
| 15 | NYLON NUT | 15 | HANDLE COMP | P021-035490 | P021-035490-Online |
| 15 | NYLON NUT | 16 | LEVER STOPPER | C617-000410 | C617-000410-Online |
| 15 | NYLON NUT | 17 | LEVER | C450-000510 | C450-000510-Online |
| 15 | NYLON NUT | 18 | BOLT | V203-000810 | V203-000810-Online |
| 15 | NYLON NUT | 19 | LOCK NUT | V263-000240 | V263-000240-Online |
| 15 | NYLON NUT | 2 | LOWER CAP | C423-000720 | C423-000720-Online |
| 15 | NYLON NUT | 20 | BOLT | 91100-04024 | 91100-04024-Online |
| 15 | NYLON NUT | 21 | NYLON NUT | V262-000080 | V262-000080-Online |
| 15 | NYLON NUT | 3 | UPPER CAP | C423-000740 | C423-000740-Online |
| 15 | NYLON NUT | 4 | LOWER CLAMP | C423-000760 | C423-000760-Online |
| 15 | NYLON NUT | 5 | UPPER CLAMP | C423-000770 | C423-000770-Online |
| 15 | NYLON NUT | 6 | LOWER CUSHION | V420-002460 | V420-002460-Online |
| 15 | NYLON NUT | 7 | UPPER CUSHION | V420-002470 | V420-002470-Online |
| 15 | NYLON NUT | 8 | BOLT SPW | V203-000630 | V203-000630-Online |
| 15 | NYLON NUT | 9 | SCREW BUTTON | 91142-06025 | 91142-06025-Online |
| 16 | ORVER FLOW VALVE | CARBURETOR,DIAPHRAGM | A021-003490 | A021-003490-Online | |
| 16 | ORVER FLOW VALVE | 34 | CASE,CLEANER | A225-000500 | A225-000500-Online |
| 16 | ORVER FLOW VALVE | 35 | SCREW | V252-000220 | V252-000220-Online |
| 16 | ORVER FLOW VALVE | 55 | CAP, BODY | P004-003400 | P004-003400-Online |
| 16 | ORVER FLOW VALVE | 56 | SPRING, THROTTLE | P004-000440 | P004-000440-Online |
| 16 | ORVER FLOW VALVE | 57 | SEAT, SPRING | 124115-05530 | 124115-05530-Online |
| 16 | ORVER FLOW VALVE | 58 | NEEDLE, JET | P004-003390 | P004-003390-Online |
| 16 | ORVER FLOW VALVE | 59 | THROTTLE VALVE | P004-001250 | P004-001250-Online |
| 16 | ORVER FLOW VALVE | 65 | SCREW, IDLE ADJUST | 124159-05530 | 124159-05530-Online |
| 16 | ORVER FLOW VALVE | 66 | SPRING, IDLE ADJUST | 124333-05630 | 124333-05630-Online |
| 16 | ORVER FLOW VALVE | 67 | SLOW AIR SCREW | P004-000880 | P004-000880-Online |
| 16 | ORVER FLOW VALVE | 68 | SPRING | P004-000890 | P004-000890-Online |
| 16 | ORVER FLOW VALVE | 69 | ADJUST SCREW | P004-001300 | P004-001300-Online |
| 16 | ORVER FLOW VALVE | 70 | SPRING, ADJUSTMENT | 124355-21330 | 124355-21330-Online |
| 16 | ORVER FLOW VALVE | 71 | NEEDLE JET | P004-001310 | P004-001310-Online |
| 16 | ORVER FLOW VALVE | 72 | HOLDER | P004-001320 | P004-001320-Online |
| 16 | ORVER FLOW VALVE | 73 | SPRING, NEEDLE VALVE | 124331-21330 | 124331-21330-Online |
| 16 | ORVER FLOW VALVE | 74 | VALVE, NEEDLE | 124320-52830 | 124320-52830-Online |
| 16 | ORVER FLOW VALVE | 75 | LEVER | P004-001340 | P004-001340-Online |
| 16 | ORVER FLOW VALVE | 76 | PIN, LEVER | 124332-21330 | 124332-21330-Online |
| 16 | ORVER FLOW VALVE | 77 | SCREW | P004-001350 | P004-001350-Online |
| 16 | ORVER FLOW VALVE | 78 | GASKET, DIAPHRAGM | 124358-21330 | 124358-21330-Online |
| 16 | ORVER FLOW VALVE | 79 | DIAPHRAGM | 124341-22830 | 124341-22830-Online |
| 16 | ORVER FLOW VALVE | 80 | COVER, DIAPHRAGM | 124324-21330 | 124324-21330-Online |
| 16 | ORVER FLOW VALVE | 81 | SCREW | P004-001000 | P004-001000-Online |
| 16 | ORVER FLOW VALVE | 82 | ORVER FLOW VALVE | P004-001360 | P004-001360-Online |
| 17 | SPRING, COIL | 83 | TICKLER LEVER | P004-001370 | P004-001370-Online |
| 17 | SPRING, COIL | 84 | SPRING | P004-001400 | P004-001400-Online |
| 17 | SPRING, COIL | 85 | SCREW | P004-001410 | P004-001410-Online |
| 17 | SPRING, COIL | 86 | COLLAR | P004-001420 | P004-001420-Online |
| 17 | SPRING, COIL | 87 | PUMP VALVE | P004-001880 | P004-001880-Online |
| 17 | SPRING, COIL | 88 | DIAPHRAGM | P004-001430 | P004-001430-Online |
| 17 | SPRING, COIL | 89 | GASKET, PUMP DIAPH. | 124363-21330 | 124363-21330-Online |
| 17 | SPRING, COIL | 90 | PUMP BODY | P004-001440 | P004-001440-Online |
| 17 | SPRING, COIL | 91 | SCREW | P004-001030 | P004-001030-Online |
| 17 | SPRING, COIL | 92 | SPRING, COIL | 124367-21330 | 124367-21330-Online |
Source file: 20130718-76_C35(20)_P016-001100-12Ib_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
