Shindaiwa P230S Pole Pruner IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: P230S
Type: Pole Pruner
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

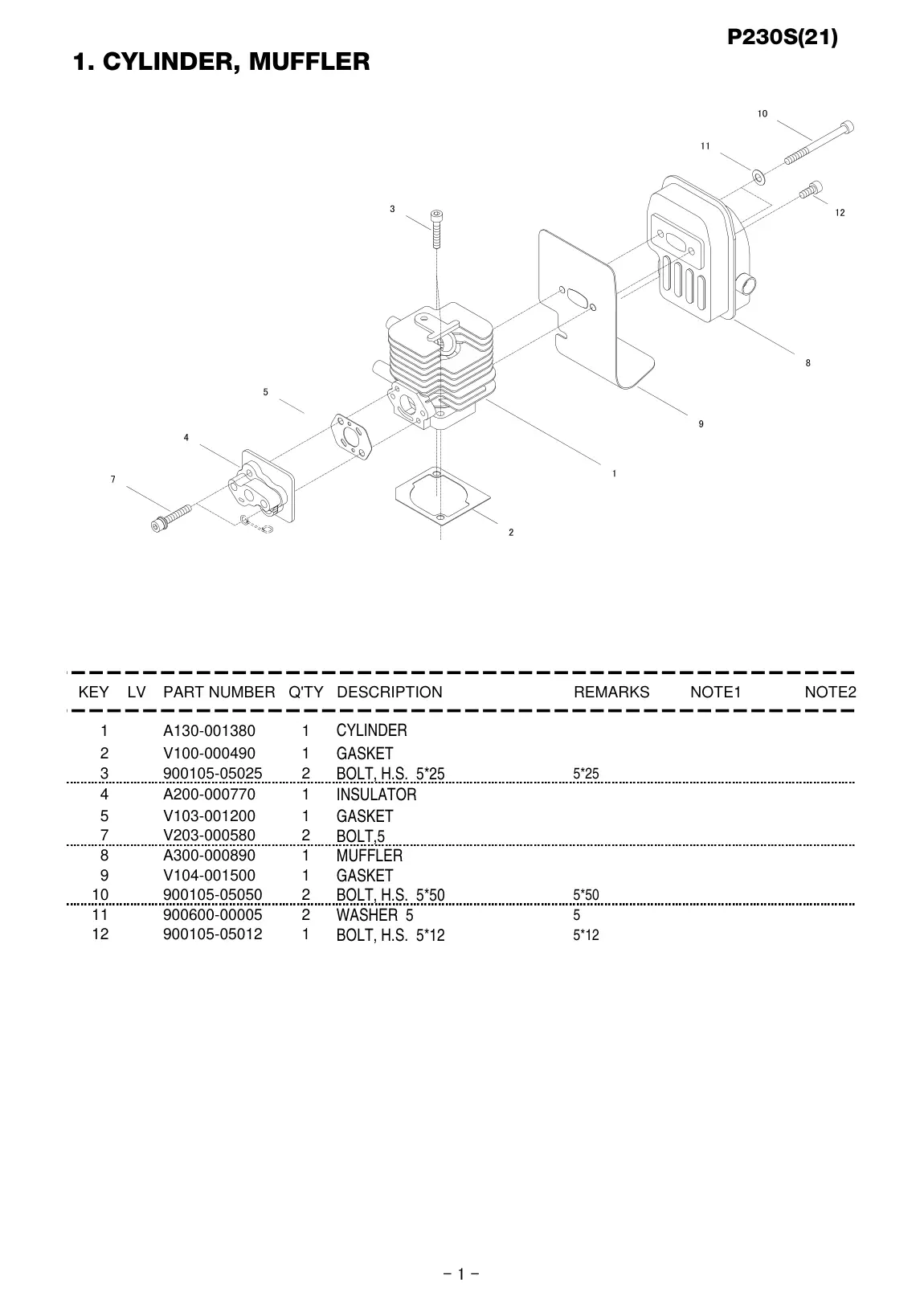

| 2 | BOLT, H.S. 5*12 | 1 | CYLINDER | A130-001380 | A130-001380-Online |
| 2 | BOLT, H.S. 5*12 | 10 | BOLT, H.S. 5*50 | 900105-05050 | 900105-05050-Online |
| 2 | BOLT, H.S. 5*12 | 11 | WASHER | 900600-00005 | 900600-00005-Online |
| 2 | BOLT, H.S. 5*12 | 12 | BOLT, H.S. 5*12 | 900105-05012 | 900105-05012-Online |
| 2 | BOLT, H.S. 5*12 | 2 | GASKET | V100-000490 | V100-000490-Online |
| 2 | BOLT, H.S. 5*12 | 3 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 2 | BOLT, H.S. 5*12 | 4 | INSULATOR | A200-000770 | A200-000770-Online |
| 2 | BOLT, H.S. 5*12 | 5 | GASKET | V103-001200 | V103-001200-Online |
| 2 | BOLT, H.S. 5*12 | 7 | BOLT,5 | V203-000580 | V203-000580-Online |
| 2 | BOLT, H.S. 5*12 | 8 | MUFFLER | A300-000890 | A300-000890-Online |
| 2 | BOLT, H.S. 5*12 | 9 | GASKET | V104-001500 | V104-001500-Online |

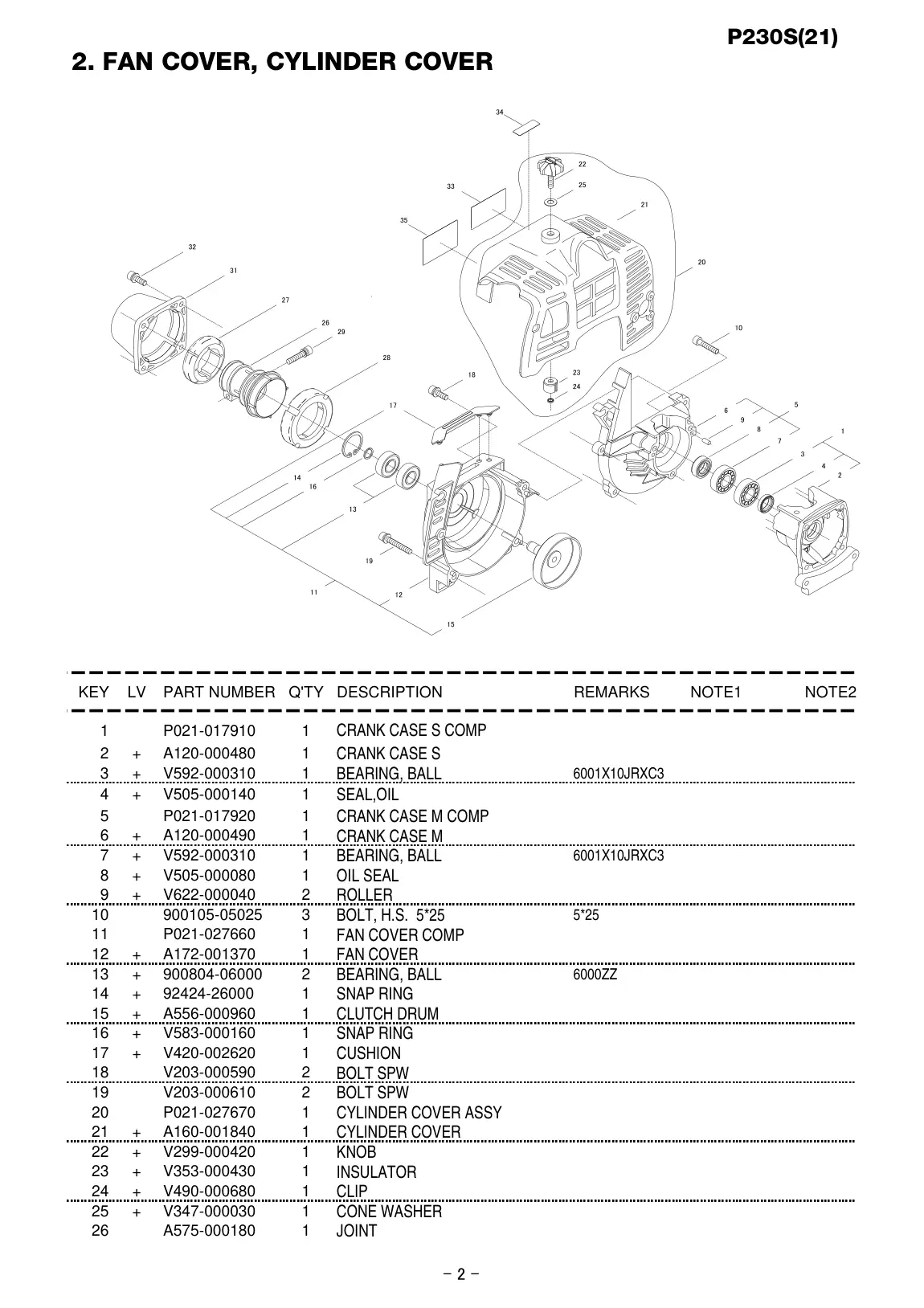

| 3 | JOINT | 1 | CRANK CASE S COMP | P021-017910 | P021-017910-Online |
| 3 | JOINT | 10 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 3 | JOINT | 11 | FAN COVER COMP | P021-027660 | P021-027660-Online |
| 3 | JOINT | 12 | FAN COVER | A172-001370 | A172-001370-Online |
| 3 | JOINT | 13 | BEARING, BALL | 900804-06000 | 900804-06000-Online |
| 3 | JOINT | 14 | SNAP RING | 92424-26000 | 92424-26000-Online |
| 3 | JOINT | 15 | CLUTCH DRUM | A556-000960 | A556-000960-Online |
| 3 | JOINT | 16 | SNAP RING | V583-000160 | V583-000160-Online |
| 3 | JOINT | 17 | CUSHION | V420-002620 | V420-002620-Online |
| 3 | JOINT | 18 | BOLT SPW | V203-000590 | V203-000590-Online |
| 3 | JOINT | 19 | BOLT SPW | V203-000610 | V203-000610-Online |
| 3 | JOINT | 2 | CRANK CASE S | A120-000480 | A120-000480-Online |
| 3 | JOINT | 20 | CYLINDER COVER ASSY | P021-027670 | P021-027670-Online |
| 3 | JOINT | 21 | CYLINDER COVER | A160-001840 | A160-001840-Online |
| 3 | JOINT | 22 | KNOB | V299-000420 | V299-000420-Online |
| 3 | JOINT | 23 | INSULATOR | V353-000430 | V353-000430-Online |
| 3 | JOINT | 24 | CLIP | V490-000680 | V490-000680-Online |
| 3 | JOINT | 25 | CONE WASHER | V347-000030 | V347-000030-Online |
| 3 | JOINT | 26 | JOINT | A575-000180 | A575-000180-Online |
| 3 | JOINT | 3 | BEARING, BALL | V592-000310 | V592-000310-Online |
| 3 | JOINT | 4 | SEAL,OIL | V505-000140 | V505-000140-Online |
| 3 | JOINT | 5 | CRANK CASE M COMP | P021-017920 | P021-017920-Online |
| 3 | JOINT | 6 | CRANK CASE M | A120-000490 | A120-000490-Online |
| 3 | JOINT | 7 | BEARING, BALL | V592-000310 | V592-000310-Online |
| 3 | JOINT | 8 | OIL SEAL | V505-000080 | V505-000080-Online |
| 3 | JOINT | 9 | ROLLER | V622-000040 | V622-000040-Online |

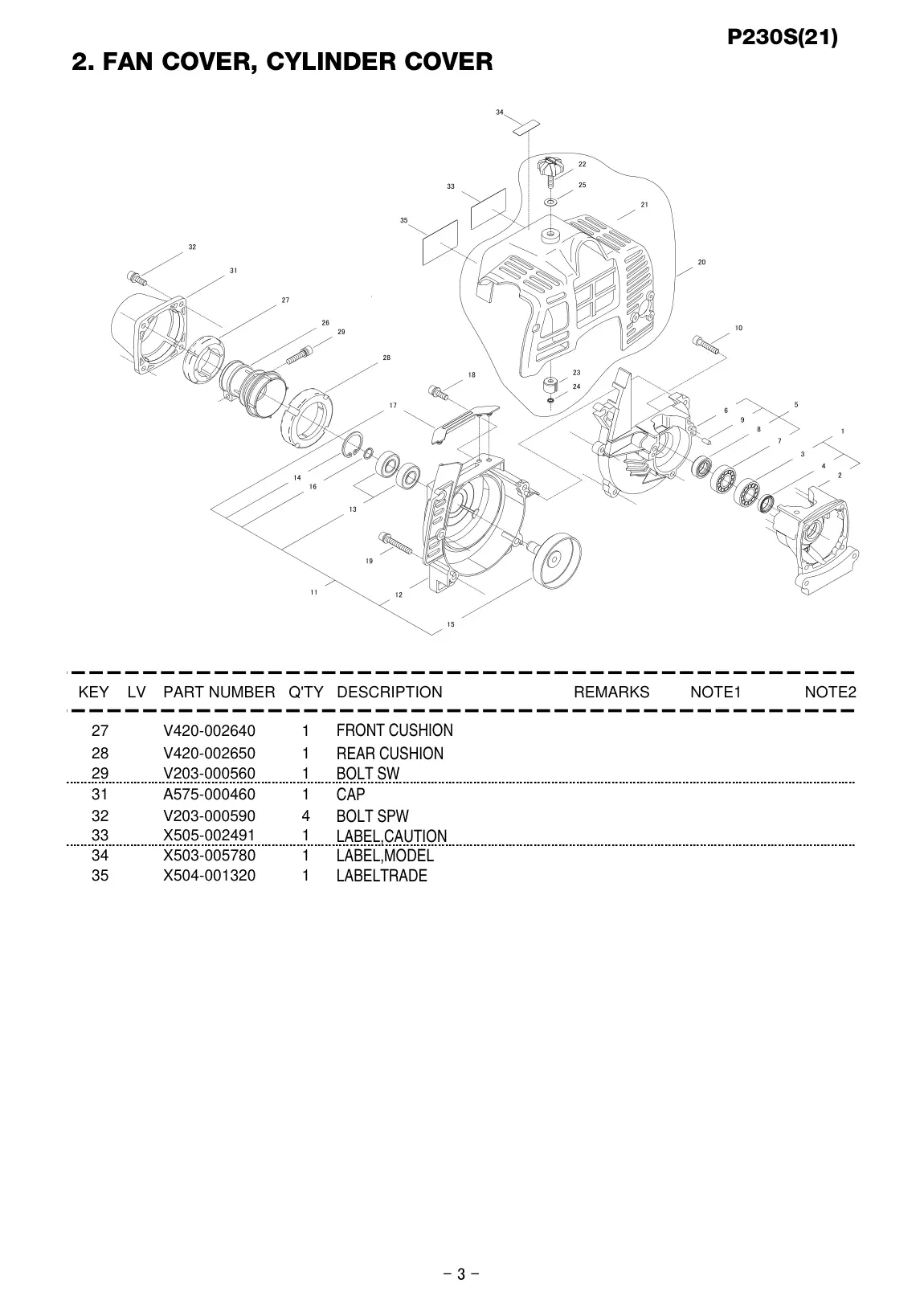

| 4 | LABELTRADE | 27 | FRONT CUSHION | V420-002640 | V420-002640-Online |
| 4 | LABELTRADE | 28 | REAR CUSHION | V420-002650 | V420-002650-Online |
| 4 | LABELTRADE | 29 | BOLT SW | V203-000560 | V203-000560-Online |
| 4 | LABELTRADE | 31 | CAP | A575-000460 | A575-000460-Online |
| 4 | LABELTRADE | 32 | BOLT SPW | V203-000590 | V203-000590-Online |
| 4 | LABELTRADE | 33 | LABEL,CAUTION | X505-002491 | X505-002491-Online |
| 4 | LABELTRADE | 34 | LABEL,MODEL | X503-005780 | X503-005780-Online |
| 4 | LABELTRADE | 35 | LABELTRADE | X504-001320 | X504-001320-Online |

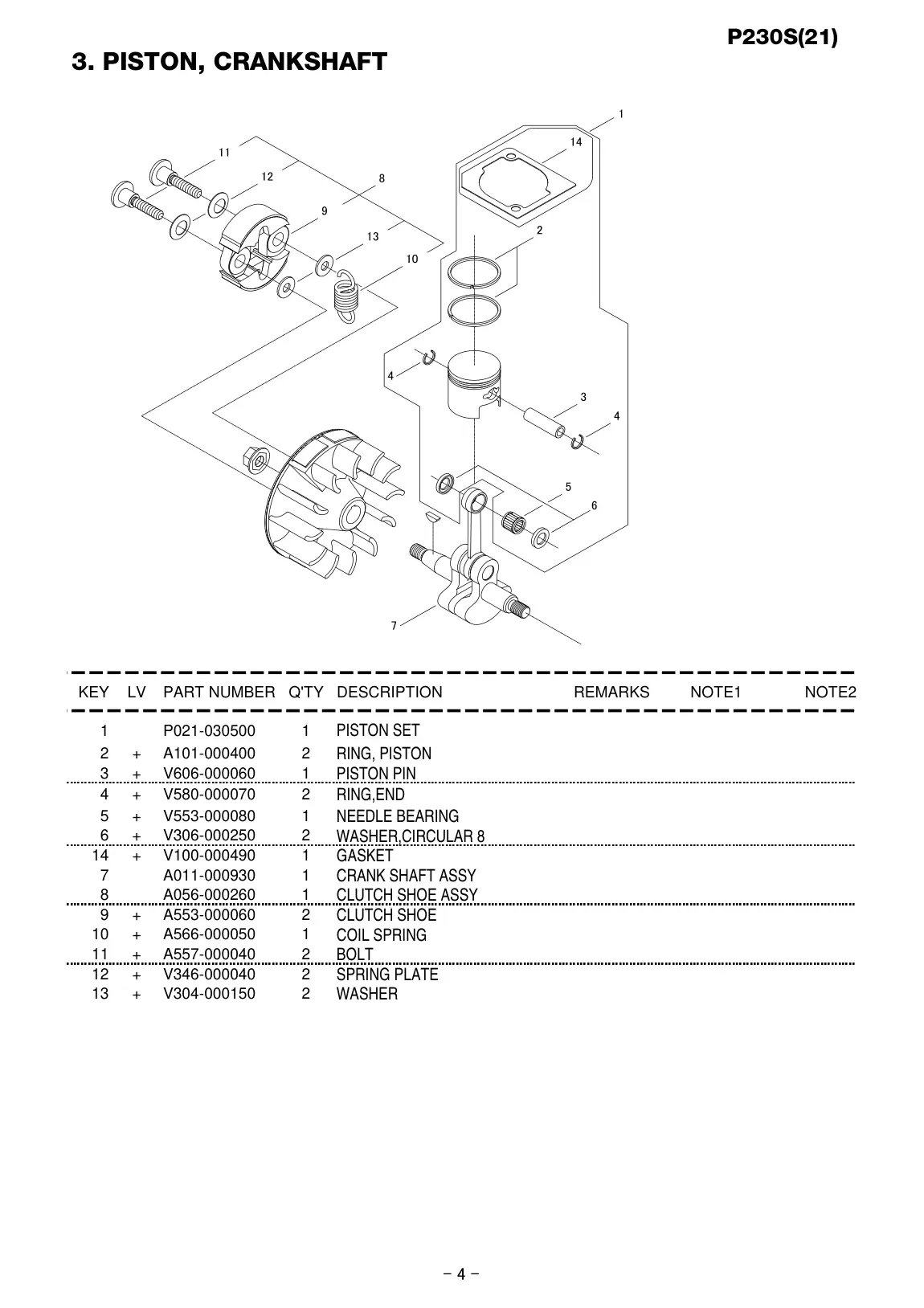

| 5 | WASHER | 1 | PISTON SET | P021-030500 | P021-030500-Online |
| 5 | WASHER | 10 | COIL SPRING | A566-000050 | A566-000050-Online |
| 5 | WASHER | 11 | BOLT | A557-000040 | A557-000040-Online |
| 5 | WASHER | 12 | SPRING PLATE | V346-000040 | V346-000040-Online |
| 5 | WASHER | 13 | WASHER | V304-000150 | V304-000150-Online |
| 5 | WASHER | 14 | GASKET | V100-000490 | V100-000490-Online |
| 5 | WASHER | 2 | RING, PISTON | A101-000400 | A101-000400-Online |
| 5 | WASHER | 3 | PISTON PIN | V606-000060 | V606-000060-Online |
| 5 | WASHER | 4 | RING,END | V580-000070 | V580-000070-Online |
| 5 | WASHER | 5 | NEEDLE BEARING | V553-000080 | V553-000080-Online |
| 5 | WASHER | 6 | WASHER,CIRCULAR | V306-000250 | V306-000250-Online |
| 5 | WASHER | 7 | CRANK SHAFT ASSY | A011-000930 | A011-000930-Online |
| 5 | WASHER | 8 | CLUTCH SHOE ASSY | A056-000260 | A056-000260-Online |
| 5 | WASHER | 9 | CLUTCH SHOE | A553-000060 | A553-000060-Online |

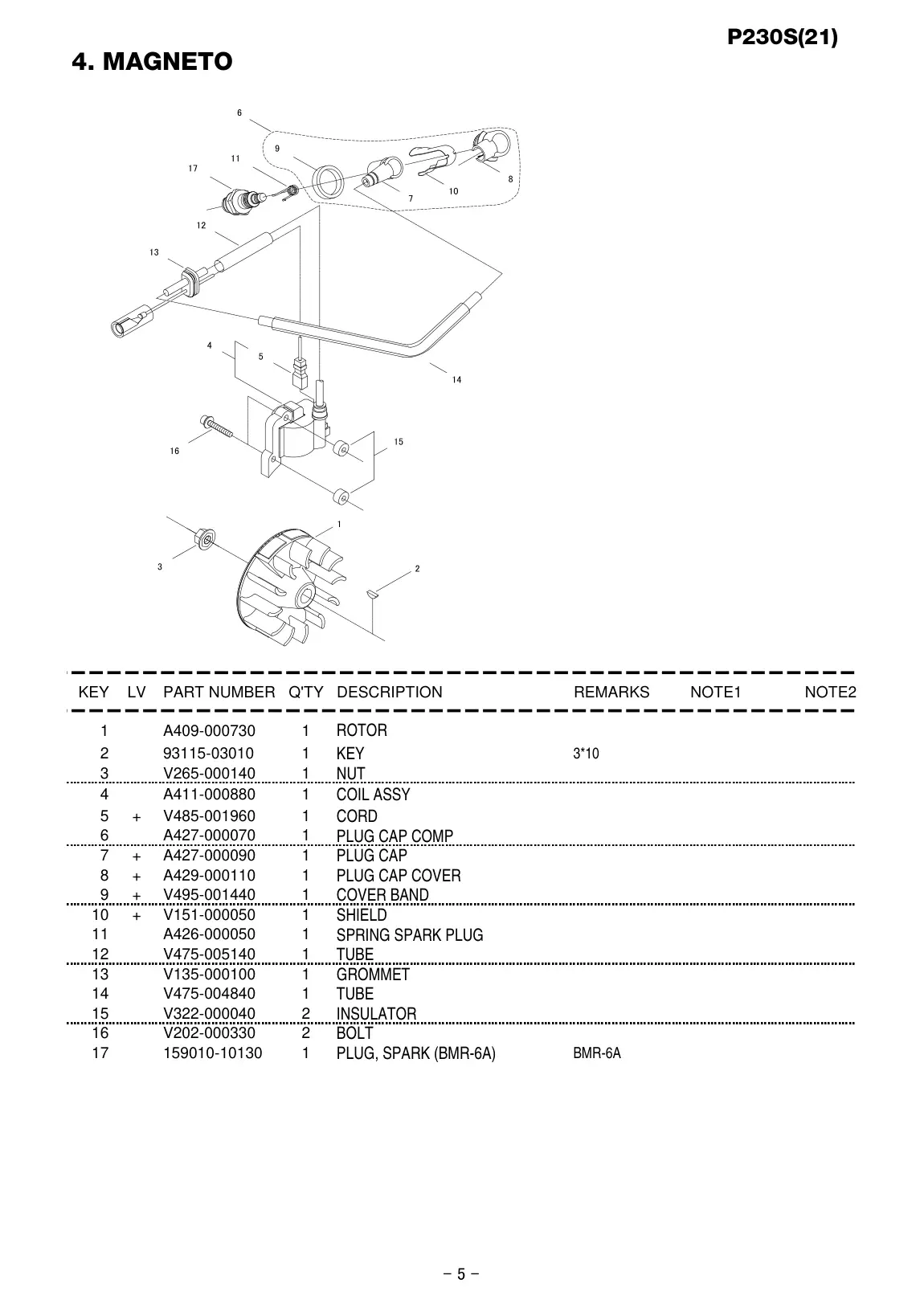

| 6 | BMR-6A | 10 | SHIELD | V151-000050 | V151-000050-Online |
| 6 | BMR-6A | 11 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 6 | BMR-6A | 12 | TUBE | V475-005140 | V475-005140-Online |
| 6 | BMR-6A | 13 | GROMMET | V135-000100 | V135-000100-Online |
| 6 | BMR-6A | 14 | TUBE | V475-004840 | V475-004840-Online |
| 6 | BMR-6A | 15 | INSULATOR | V322-000040 | V322-000040-Online |
| 6 | BMR-6A | 16 | BOLT | V202-000330 | V202-000330-Online |
| 6 | BMR-6A | 17 | PLUG, SPARK (BMR-6A) | 159010-10130 | 159010-10130-Online |
| 6 | BMR-6A | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | BMR-6A | 3 | NUT | V265-000140 | V265-000140-Online |
| 6 | BMR-6A | 4 | COIL ASSY | A411-000880 | A411-000880-Online |
| 6 | BMR-6A | 6 | PLUG CAP COMP | A427-000070 | A427-000070-Online |
| 6 | BMR-6A | 7 | PLUG CAP | A427-000090 | A427-000090-Online |
| 6 | BMR-6A | 8 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 6 | BMR-6A | 9 | COVER BAND | V495-001440 | V495-001440-Online |

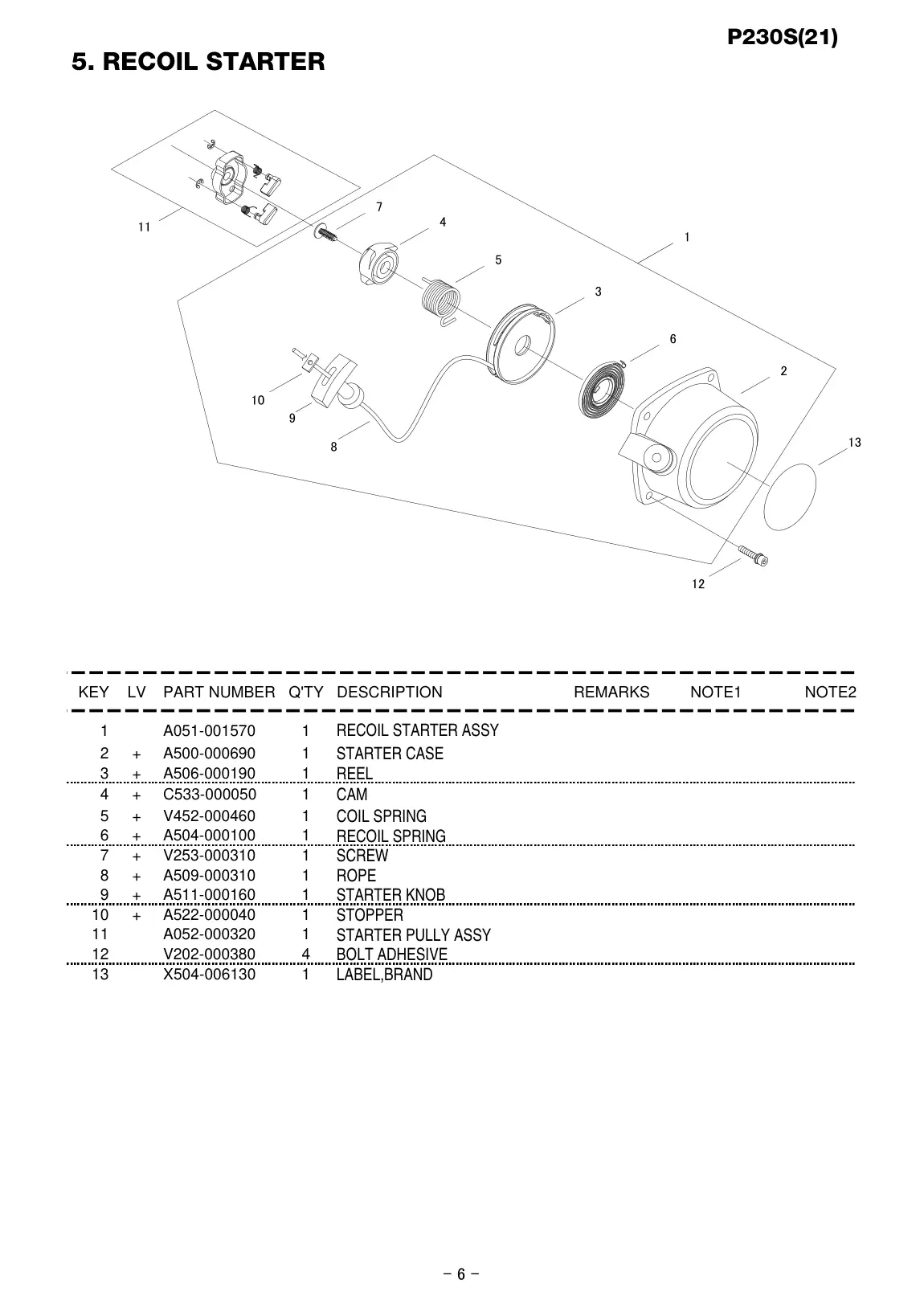

| 7 | LABEL,BRAND | 1 | RECOIL STARTER ASSY | A051-001570 | A051-001570-Online |
| 7 | LABEL,BRAND | 10 | STOPPER | A522-000040 | A522-000040-Online |
| 7 | LABEL,BRAND | 11 | STARTER PULLY ASSY | A052-000320 | A052-000320-Online |
| 7 | LABEL,BRAND | 12 | BOLT ADHESIVE | V202-000380 | V202-000380-Online |
| 7 | LABEL,BRAND | 13 | LABEL,BRAND | X504-006130 | X504-006130-Online |
| 7 | LABEL,BRAND | 2 | STARTER CASE | A500-000690 | A500-000690-Online |
| 7 | LABEL,BRAND | 3 | REEL | A506-000190 | A506-000190-Online |
| 7 | LABEL,BRAND | 5 | COIL SPRING | V452-000460 | V452-000460-Online |
| 7 | LABEL,BRAND | 6 | RECOIL SPRING | A504-000100 | A504-000100-Online |
| 7 | LABEL,BRAND | 7 | SCREW | V253-000310 | V253-000310-Online |
| 7 | LABEL,BRAND | 8 | ROPE | A509-000310 | A509-000310-Online |
| 7 | LABEL,BRAND | 9 | STARTER KNOB | A511-000160 | A511-000160-Online |

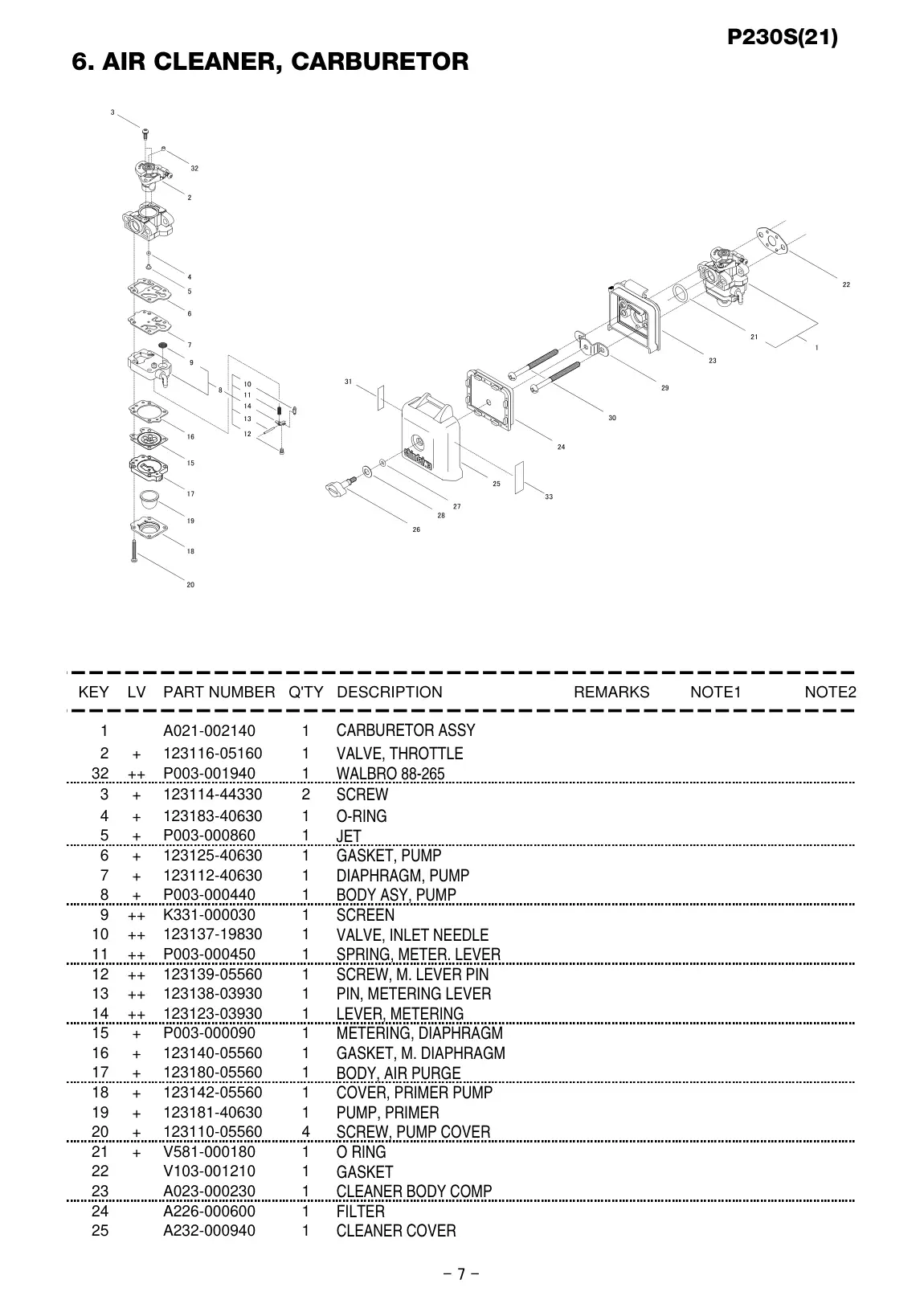

| 8 | CLEANER COVER | 1 | CARBURETOR ASSY | A021-002140 | A021-002140-Online |
| 8 | CLEANER COVER | 10 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 8 | CLEANER COVER | 11 | SPRING, METER. LEVER | P003-000450 | P003-000450-Online |
| 8 | CLEANER COVER | 12 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 8 | CLEANER COVER | 13 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 8 | CLEANER COVER | 14 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 8 | CLEANER COVER | 15 | METERING, DIAPHRAGM | P003-000090 | P003-000090-Online |
| 8 | CLEANER COVER | 16 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 8 | CLEANER COVER | 17 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 8 | CLEANER COVER | 18 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 8 | CLEANER COVER | 19 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 8 | CLEANER COVER | 2 | VALVE, THROTTLE | 123116-05160 | 123116-05160-Online |
| 8 | CLEANER COVER | 20 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 8 | CLEANER COVER | 21 | O RING | V581-000180 | V581-000180-Online |
| 8 | CLEANER COVER | 22 | GASKET | V103-001210 | V103-001210-Online |
| 8 | CLEANER COVER | 23 | CLEANER BODY COMP | A023-000230 | A023-000230-Online |
| 8 | CLEANER COVER | 24 | FILTER | A226-000600 | A226-000600-Online |
| 8 | CLEANER COVER | 25 | CLEANER COVER | A232-000940 | A232-000940-Online |
| 8 | CLEANER COVER | 3 | SCREW | 123114-44330 | 123114-44330-Online |
| 8 | CLEANER COVER | 32 | WALBRO 88-265 | P003-001940 | P003-001940-Online |
| 8 | CLEANER COVER | 4 | O-RING | 123183-40630 | 123183-40630-Online |
| 8 | CLEANER COVER | 5 | JET | P003-000860 | P003-000860-Online |
| 8 | CLEANER COVER | 6 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 8 | CLEANER COVER | 7 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 8 | CLEANER COVER | 8 | BODY ASY, PUMP | P003-000440 | P003-000440-Online |
| 8 | CLEANER COVER | 9 | SCREEN | K331-000030 | K331-000030-Online |

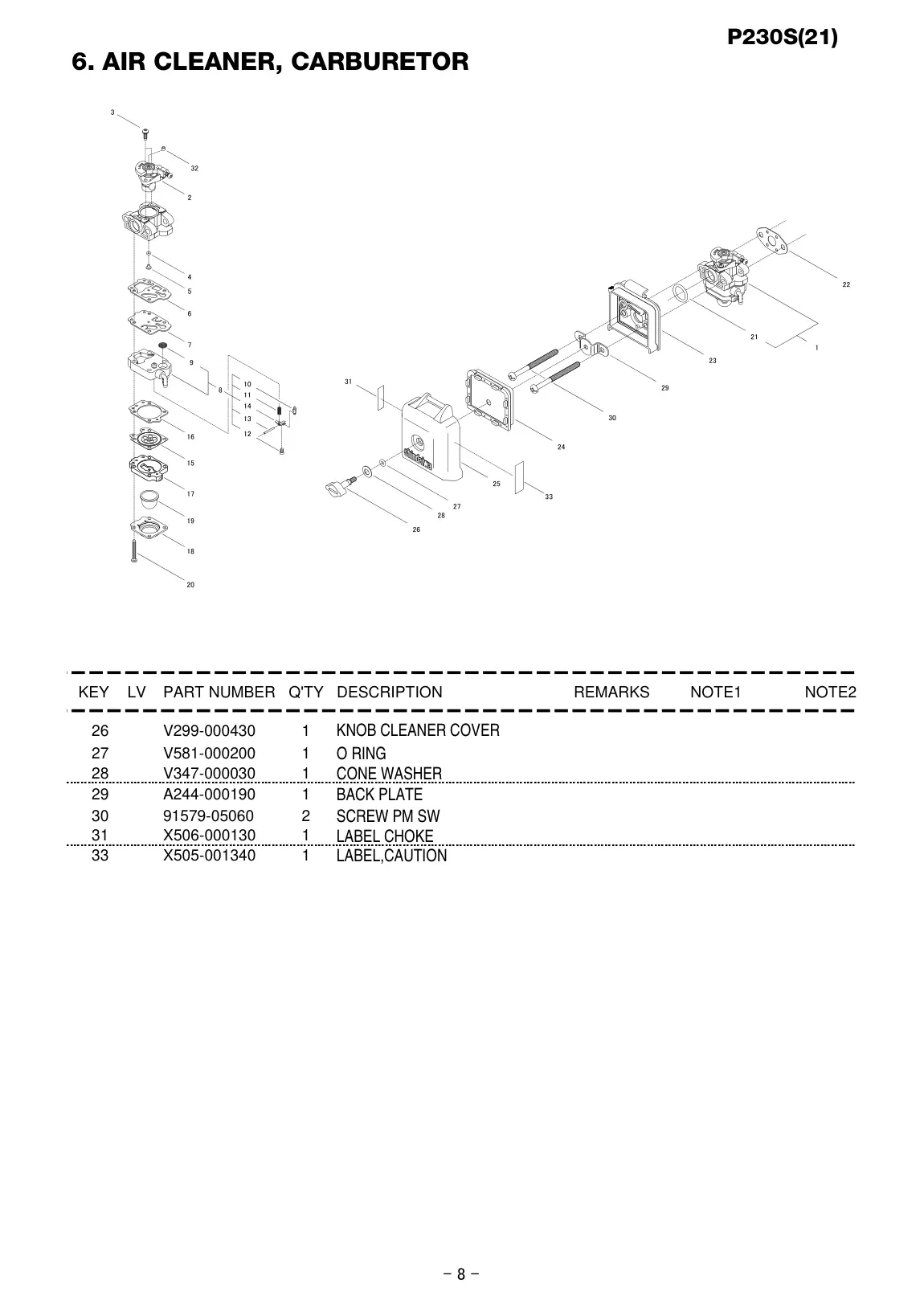

| 9 | LABEL,CAUTION | 26 | KNOB CLEANER COVER | V299-000430 | V299-000430-Online |
| 9 | LABEL,CAUTION | 27 | O RING | V581-000200 | V581-000200-Online |
| 9 | LABEL,CAUTION | 28 | CONE WASHER | V347-000030 | V347-000030-Online |
| 9 | LABEL,CAUTION | 29 | BACK PLATE | A244-000190 | A244-000190-Online |
| 9 | LABEL,CAUTION | 30 | SCREW PM SW | 91579-05060 | 91579-05060-Online |
| 9 | LABEL,CAUTION | 31 | LABEL CHOKE | X506-000130 | X506-000130-Online |
| 9 | LABEL,CAUTION | 33 | LABEL,CAUTION | X505-001340 | X505-001340-Online |

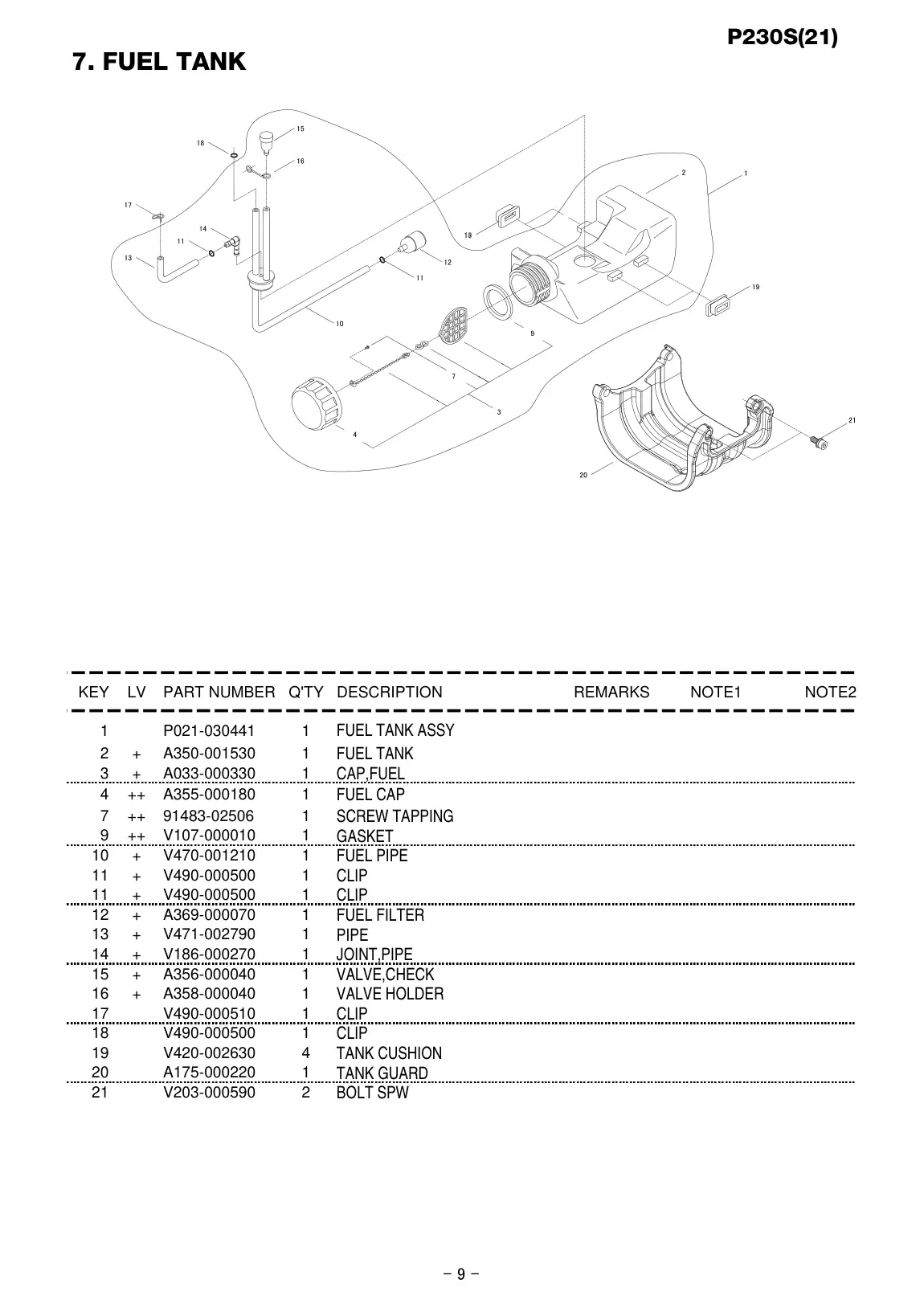

| 10 | BOLT SPW | 1 | FUEL TANK ASSY | P021-030441 | P021-030441-Online |
| 10 | BOLT SPW | 10 | FUEL PIPE | V470-001210 | V470-001210-Online |
| 10 | BOLT SPW | 11 | CLIP | V490-000500 | V490-000500-Online |
| 10 | BOLT SPW | 12 | FUEL FILTER | A369-000070 | A369-000070-Online |
| 10 | BOLT SPW | 13 | PIPE | V471-002790 | V471-002790-Online |
| 10 | BOLT SPW | 14 | JOINT,PIPE | V186-000270 | V186-000270-Online |
| 10 | BOLT SPW | 15 | VALVE,CHECK | A356-000040 | A356-000040-Online |
| 10 | BOLT SPW | 16 | VALVE HOLDER | A358-000040 | A358-000040-Online |
| 10 | BOLT SPW | 17 | CLIP | V490-000510 | V490-000510-Online |
| 10 | BOLT SPW | 18 | CLIP | V490-000500 | V490-000500-Online |
| 10 | BOLT SPW | 19 | TANK CUSHION | V420-002630 | V420-002630-Online |
| 10 | BOLT SPW | 2 | FUEL TANK | A350-001530 | A350-001530-Online |
| 10 | BOLT SPW | 20 | TANK GUARD | A175-000220 | A175-000220-Online |
| 10 | BOLT SPW | 21 | BOLT SPW | V203-000590 | V203-000590-Online |
| 10 | BOLT SPW | 3 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 10 | BOLT SPW | 4 | FUEL CAP | A355-000180 | A355-000180-Online |
| 10 | BOLT SPW | 7 | SCREW TAPPING | 91483-02506 | 91483-02506-Online |
| 10 | BOLT SPW | 9 | GASKET | V107-000010 | V107-000010-Online |

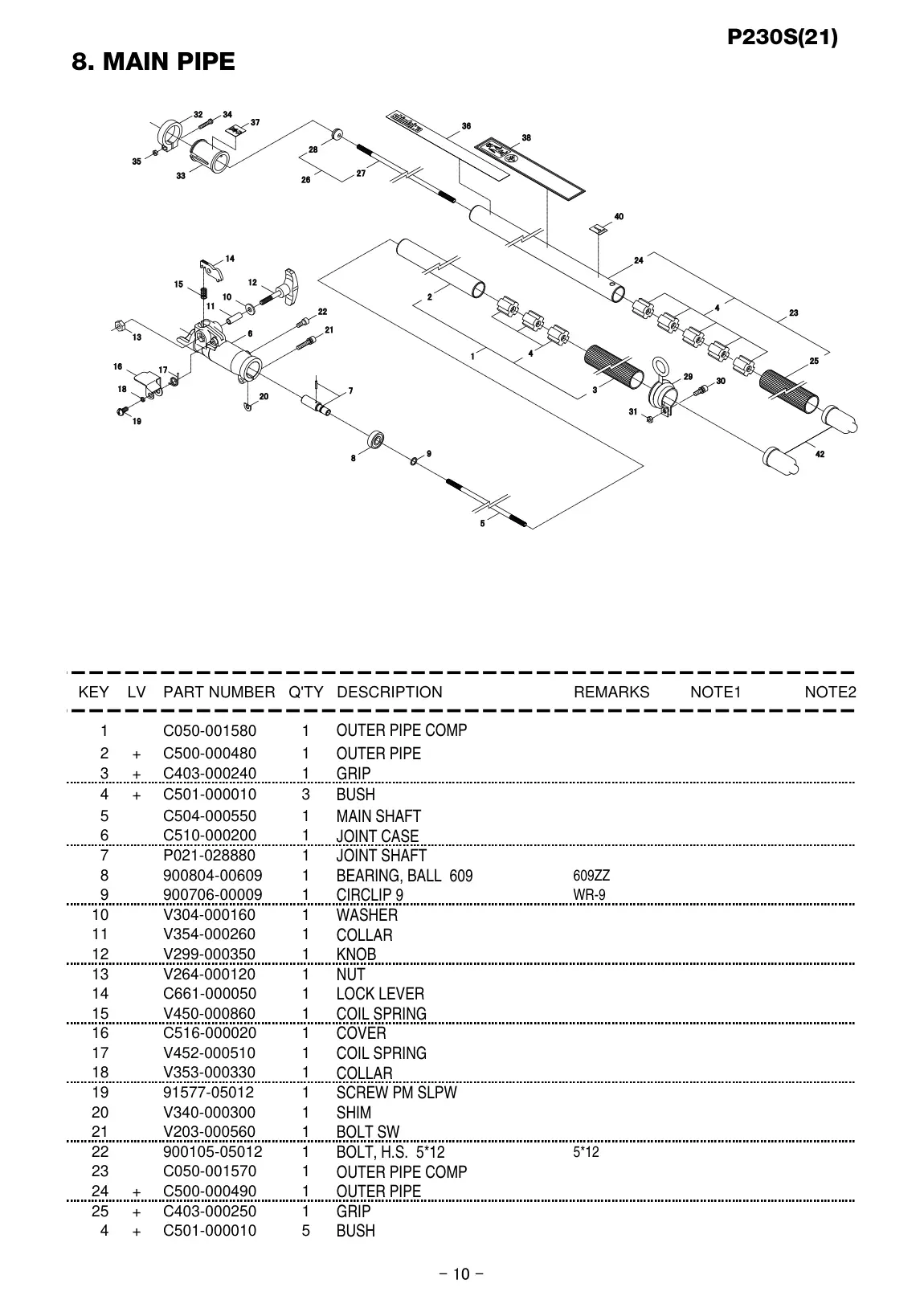

| 11 | BUSH | 1 | OUTER PIPE COMP | C050-001580 | C050-001580-Online |
| 11 | BUSH | 10 | WASHER | V304-000160 | V304-000160-Online |
| 11 | BUSH | 11 | COLLAR | V354-000260 | V354-000260-Online |
| 11 | BUSH | 12 | KNOB | V299-000350 | V299-000350-Online |
| 11 | BUSH | 13 | NUT | V264-000120 | V264-000120-Online |
| 11 | BUSH | 14 | LOCK LEVER | C661-000050 | C661-000050-Online |
| 11 | BUSH | 15 | COIL SPRING | V450-000860 | V450-000860-Online |
| 11 | BUSH | 16 | COVER | C516-000020 | C516-000020-Online |
| 11 | BUSH | 17 | COIL SPRING | V452-000510 | V452-000510-Online |
| 11 | BUSH | 18 | COLLAR | V353-000330 | V353-000330-Online |
| 11 | BUSH | 19 | SCREW PM SLPW | 91577-05012 | 91577-05012-Online |
| 11 | BUSH | 2 | OUTER PIPE | C500-000480 | C500-000480-Online |
| 11 | BUSH | 20 | SHIM | V340-000300 | V340-000300-Online |
| 11 | BUSH | 21 | BOLT SW | V203-000560 | V203-000560-Online |
| 11 | BUSH | 22 | BOLT, H.S. 5*12 | 900105-05012 | 900105-05012-Online |
| 11 | BUSH | 23 | OUTER PIPE COMP | C050-001570 | C050-001570-Online |
| 11 | BUSH | 24 | OUTER PIPE | C500-000490 | C500-000490-Online |
| 11 | BUSH | 25 | GRIP | C403-000250 | C403-000250-Online |
| 11 | BUSH | 3 | GRIP | C403-000240 | C403-000240-Online |
| 11 | BUSH | 5 | MAIN SHAFT | C504-000550 | C504-000550-Online |
| 11 | BUSH | 6 | JOINT CASE | C510-000200 | C510-000200-Online |
| 11 | BUSH | 7 | JOINT SHAFT | P021-028880 | P021-028880-Online |
| 11 | BUSH | 8 | BEARING, BALL | 900804-00609 | 900804-00609-Online |
| 11 | BUSH | 9 | CIRCLIP | 900706-00009 | 900706-00009-Online |

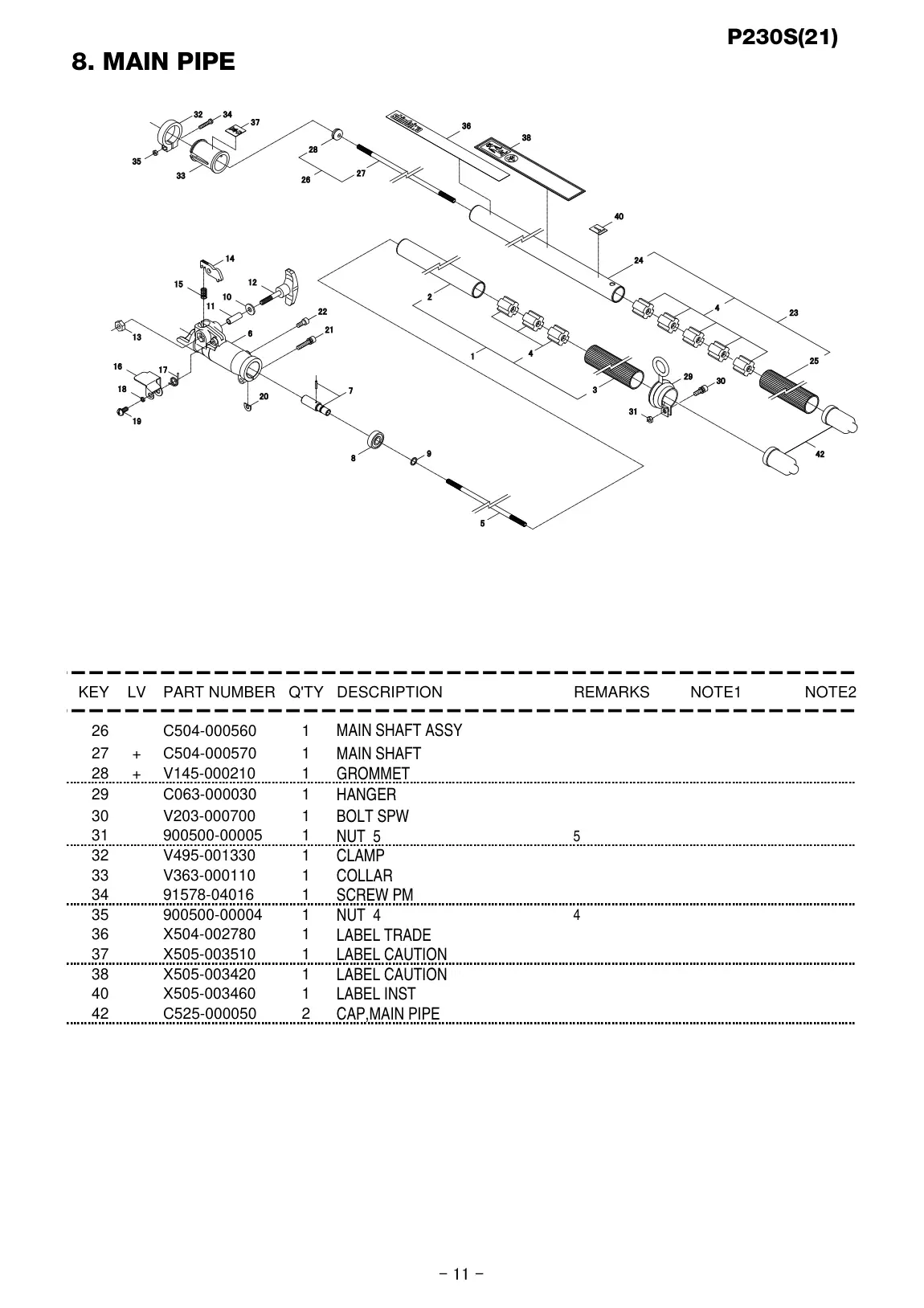

| 12 | CAP,MAIN PIPE | 26 | MAIN SHAFT ASSY | C504-000560 | C504-000560-Online |
| 12 | CAP,MAIN PIPE | 27 | MAIN SHAFT | C504-000570 | C504-000570-Online |
| 12 | CAP,MAIN PIPE | 28 | GROMMET | V145-000210 | V145-000210-Online |
| 12 | CAP,MAIN PIPE | 29 | HANGER | C063-000030 | C063-000030-Online |
| 12 | CAP,MAIN PIPE | 30 | BOLT SPW | V203-000700 | V203-000700-Online |
| 12 | CAP,MAIN PIPE | 31 | NUT | 900500-00005 | 900500-00005-Online |
| 12 | CAP,MAIN PIPE | 33 | COLLAR | V363-000110 | V363-000110-Online |
| 12 | CAP,MAIN PIPE | 34 | SCREW PM | 91578-04016 | 91578-04016-Online |
| 12 | CAP,MAIN PIPE | 35 | NUT | 900500-00004 | 900500-00004-Online |
| 12 | CAP,MAIN PIPE | 36 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 12 | CAP,MAIN PIPE | 37 | LABEL CAUTION | X505-003510 | X505-003510-Online |
| 12 | CAP,MAIN PIPE | 38 | LABEL CAUTION | X505-003420 | X505-003420-Online |
| 12 | CAP,MAIN PIPE | 40 | LABEL INST | X505-003460 | X505-003460-Online |
| 12 | CAP,MAIN PIPE | 42 | CAP,MAIN PIPE | C525-000050 | C525-000050-Online |

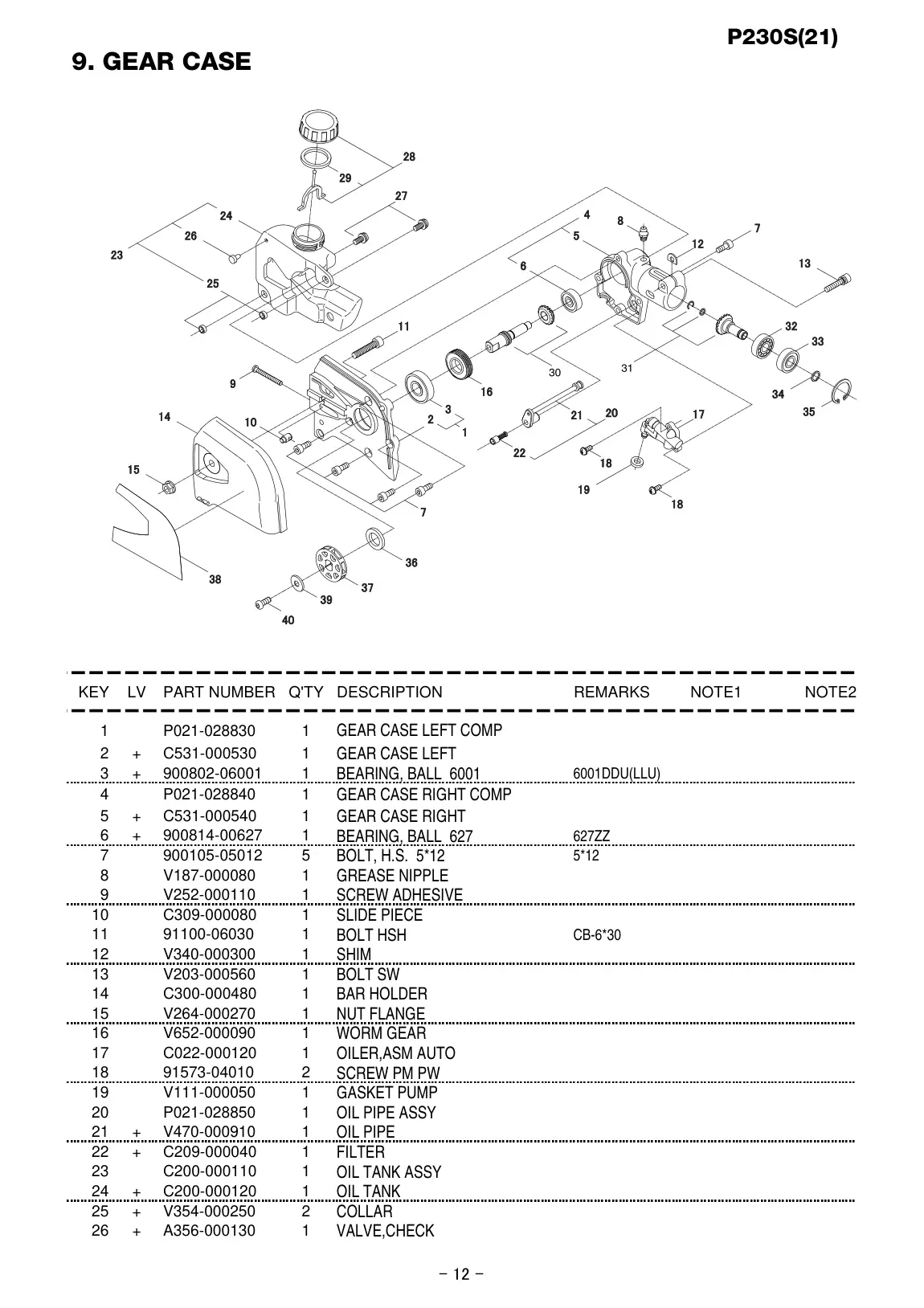

| 13 | VALVE,CHECK | 1 | GEAR CASE LEFT COMP | P021-028830 | P021-028830-Online |
| 13 | VALVE,CHECK | 10 | SLIDE PIECE | C309-000080 | C309-000080-Online |
| 13 | VALVE,CHECK | 11 | BOLT HSH | 91100-06030 | 91100-06030-Online |
| 13 | VALVE,CHECK | 12 | SHIM | V340-000300 | V340-000300-Online |
| 13 | VALVE,CHECK | 13 | BOLT SW | V203-000560 | V203-000560-Online |
| 13 | VALVE,CHECK | 14 | BAR HOLDER | C300-000480 | C300-000480-Online |
| 13 | VALVE,CHECK | 15 | NUT FLANGE | V264-000270 | V264-000270-Online |
| 13 | VALVE,CHECK | 16 | WORM GEAR | V652-000090 | V652-000090-Online |
| 13 | VALVE,CHECK | 17 | OILER,ASM AUTO | C022-000120 | C022-000120-Online |
| 13 | VALVE,CHECK | 18 | SCREW PM PW | 91573-04010 | 91573-04010-Online |
| 13 | VALVE,CHECK | 19 | GASKET PUMP | V111-000050 | V111-000050-Online |
| 13 | VALVE,CHECK | 2 | GEAR CASE LEFT | C531-000530 | C531-000530-Online |
| 13 | VALVE,CHECK | 20 | OIL PIPE ASSY | P021-028850 | P021-028850-Online |
| 13 | VALVE,CHECK | 21 | OIL PIPE | V470-000910 | V470-000910-Online |
| 13 | VALVE,CHECK | 22 | FILTER | C209-000040 | C209-000040-Online |
| 13 | VALVE,CHECK | 23 | OIL TANK ASSY | C200-000110 | C200-000110-Online |
| 13 | VALVE,CHECK | 24 | OIL TANK | C200-000120 | C200-000120-Online |
| 13 | VALVE,CHECK | 25 | COLLAR | V354-000250 | V354-000250-Online |
| 13 | VALVE,CHECK | 26 | VALVE,CHECK | A356-000130 | A356-000130-Online |
| 13 | VALVE,CHECK | 3 | BEARING, BALL | 900802-06001 | 900802-06001-Online |
| 13 | VALVE,CHECK | 4 | GEAR CASE RIGHT COMP | P021-028840 | P021-028840-Online |
| 13 | VALVE,CHECK | 5 | GEAR CASE RIGHT | C531-000540 | C531-000540-Online |
| 13 | VALVE,CHECK | 6 | BEARING, BALL | 900814-00627 | 900814-00627-Online |
| 13 | VALVE,CHECK | 7 | BOLT, H.S. 5*12 | 900105-05012 | 900105-05012-Online |
| 13 | VALVE,CHECK | 8 | GREASE NIPPLE | V187-000080 | V187-000080-Online |
| 13 | VALVE,CHECK | 9 | SCREW ADHESIVE | V252-000110 | V252-000110-Online |

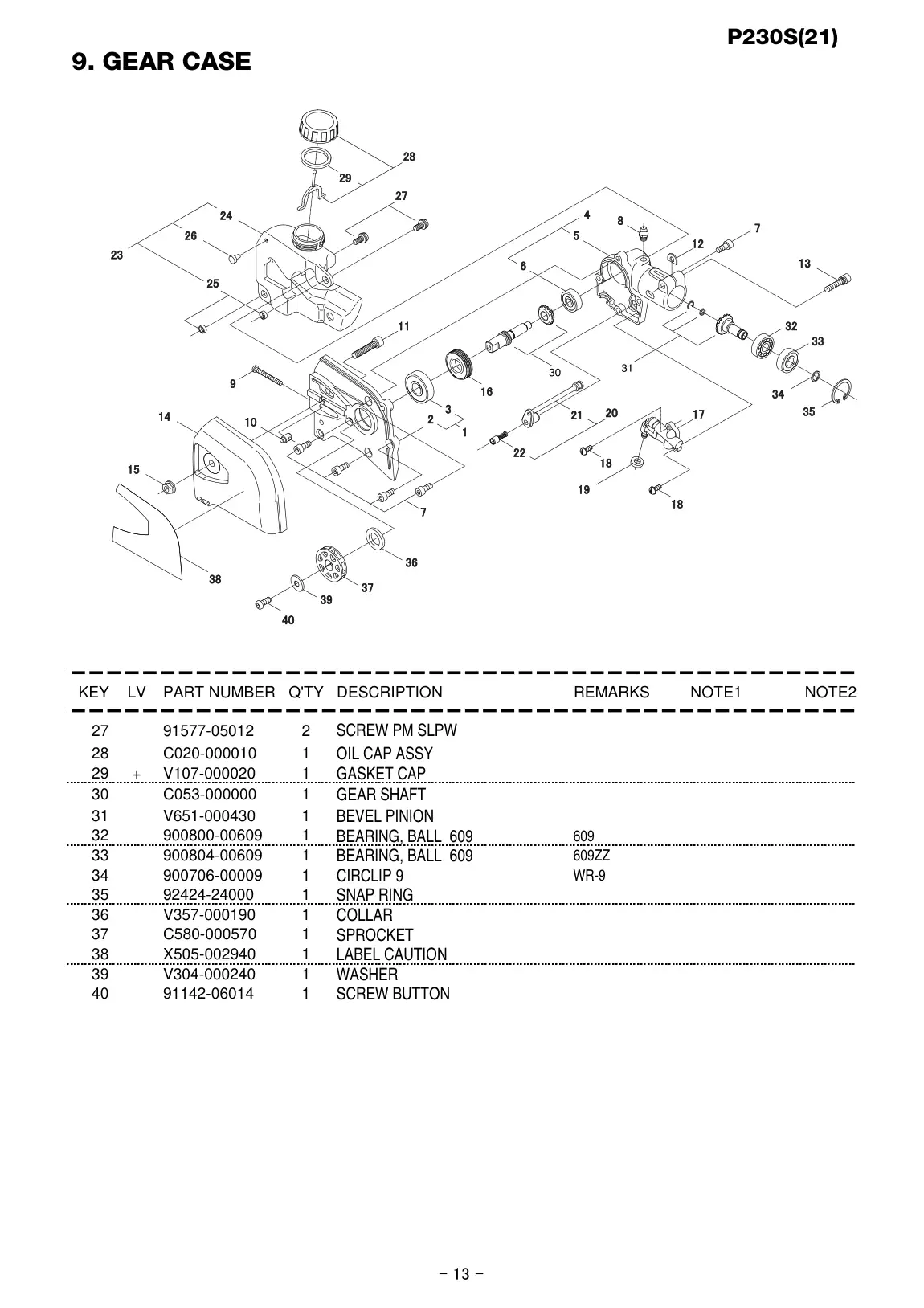

| 14 | SCREW BUTTON | 27 | SCREW PM SLPW | 91577-05012 | 91577-05012-Online |
| 14 | SCREW BUTTON | 28 | OIL CAP ASSY | C020-000010 | C020-000010-Online |
| 14 | SCREW BUTTON | 29 | GASKET CAP | V107-000020 | V107-000020-Online |
| 14 | SCREW BUTTON | 30 | GEAR SHAFT | C053-000000 | C053-000000-Online |
| 14 | SCREW BUTTON | 31 | BEVEL PINION | V651-000430 | V651-000430-Online |
| 14 | SCREW BUTTON | 32 | BEARING, BALL | 900800-00609 | 900800-00609-Online |
| 14 | SCREW BUTTON | 33 | BEARING, BALL | 900804-00609 | 900804-00609-Online |
| 14 | SCREW BUTTON | 34 | CIRCLIP | 900706-00009 | 900706-00009-Online |
| 14 | SCREW BUTTON | 35 | SNAP RING | 92424-24000 | 92424-24000-Online |
| 14 | SCREW BUTTON | 36 | COLLAR | V357-000190 | V357-000190-Online |
| 14 | SCREW BUTTON | 37 | SPROCKET | C580-000570 | C580-000570-Online |
| 14 | SCREW BUTTON | 38 | LABEL CAUTION | X505-002940 | X505-002940-Online |
| 14 | SCREW BUTTON | 39 | WASHER | V304-000240 | V304-000240-Online |
| 14 | SCREW BUTTON | 40 | SCREW BUTTON | 91142-06014 | 91142-06014-Online |

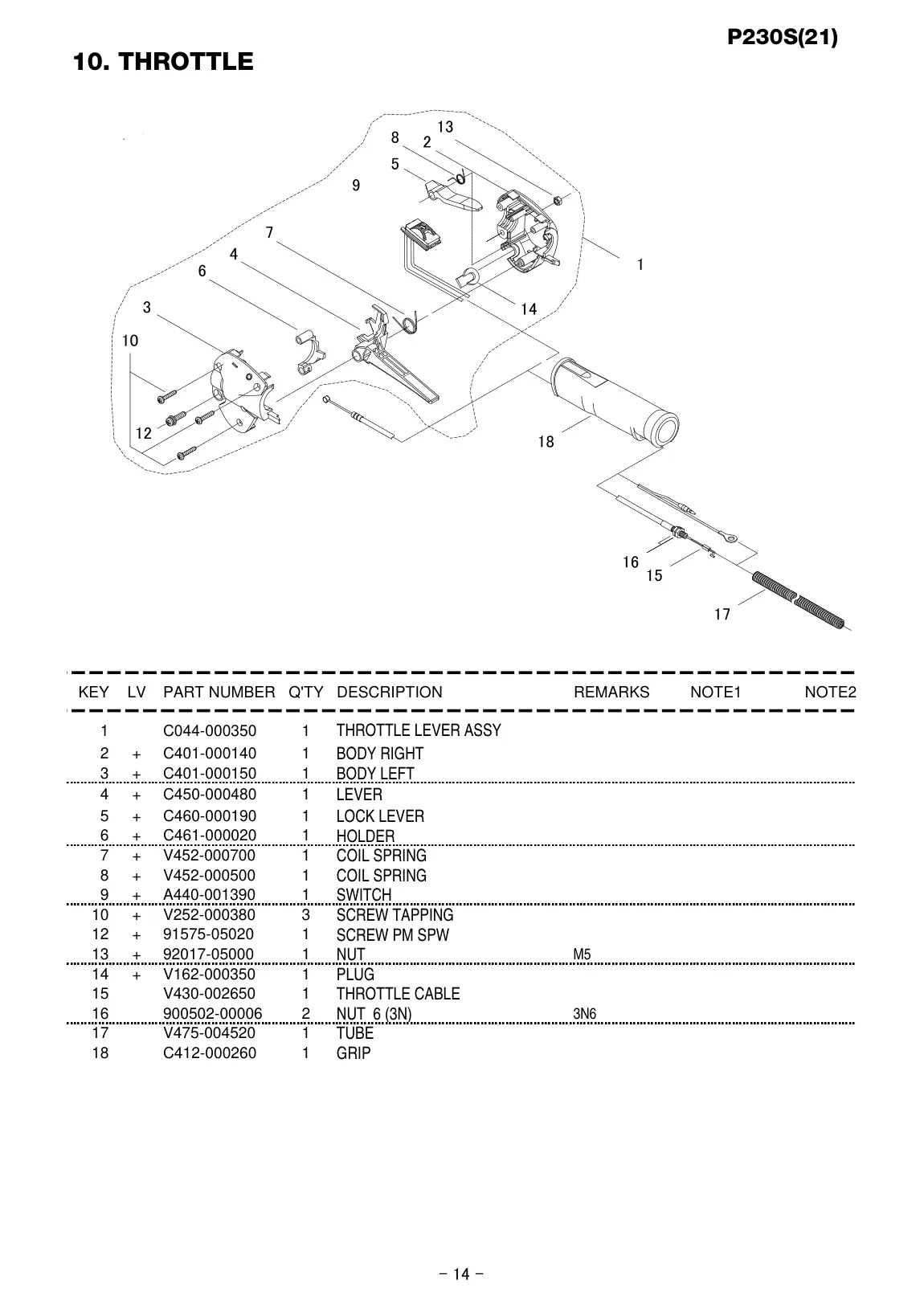

| 15 | GRIP | 1 | THROTTLE LEVER ASSY | C044-000350 | C044-000350-Online |
| 15 | GRIP | 10 | SCREW TAPPING | V252-000380 | V252-000380-Online |
| 15 | GRIP | 12 | SCREW PM SPW | 91575-05020 | 91575-05020-Online |
| 15 | GRIP | 13 | NUT | 92017-05000 | 92017-05000-Online |
| 15 | GRIP | 14 | PLUG | V162-000350 | V162-000350-Online |
| 15 | GRIP | 15 | THROTTLE CABLE | V430-002650 | V430-002650-Online |
| 15 | GRIP | 16 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 15 | GRIP | 17 | TUBE | V475-004520 | V475-004520-Online |
| 15 | GRIP | 18 | GRIP | C412-000260 | C412-000260-Online |
| 15 | GRIP | 2 | BODY RIGHT | C401-000140 | C401-000140-Online |
| 15 | GRIP | 3 | BODY LEFT | C401-000150 | C401-000150-Online |
| 15 | GRIP | 4 | LEVER | C450-000480 | C450-000480-Online |
| 15 | GRIP | 5 | LOCK LEVER | C460-000190 | C460-000190-Online |
| 15 | GRIP | 6 | HOLDER | C461-000020 | C461-000020-Online |
| 15 | GRIP | 7 | COIL SPRING | V452-000700 | V452-000700-Online |
| 15 | GRIP | 8 | COIL SPRING | V452-000500 | V452-000500-Online |
| 15 | GRIP | 9 | SWITCH | A440-001390 | A440-001390-Online |

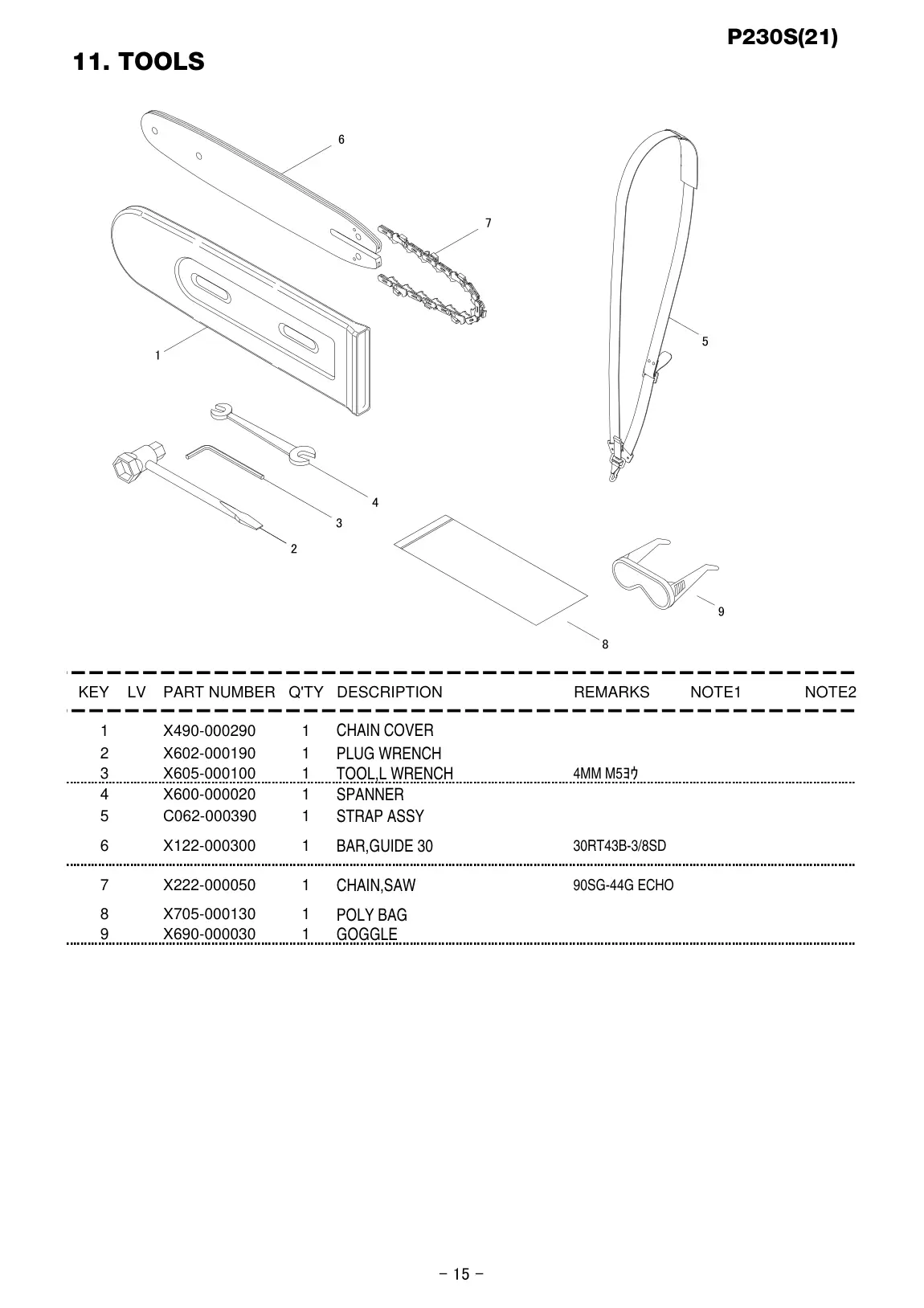

| 16 | GOGGLE | 1 | CHAIN COVER | X490-000290 | X490-000290-Online |
| 16 | GOGGLE | 2 | PLUG WRENCH | X602-000190 | X602-000190-Online |
| 16 | GOGGLE | 3 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 16 | GOGGLE | 4 | SPANNER | X600-000020 | X600-000020-Online |
| 16 | GOGGLE | 5 | STRAP ASSY | C062-000390 | C062-000390-Online |
| 16 | GOGGLE | 6 | BAR,GUIDE | X122-000300 | X122-000300-Online |
| 16 | GOGGLE | 7 | CHAIN,SAW | X222-000050 | X222-000050-Online |
| 16 | GOGGLE | 8 | POLY BAG | X705-000130 | X705-000130-Online |
| 16 | GOGGLE | 9 | GOGGLE | X690-000030 | X690-000030-Online |

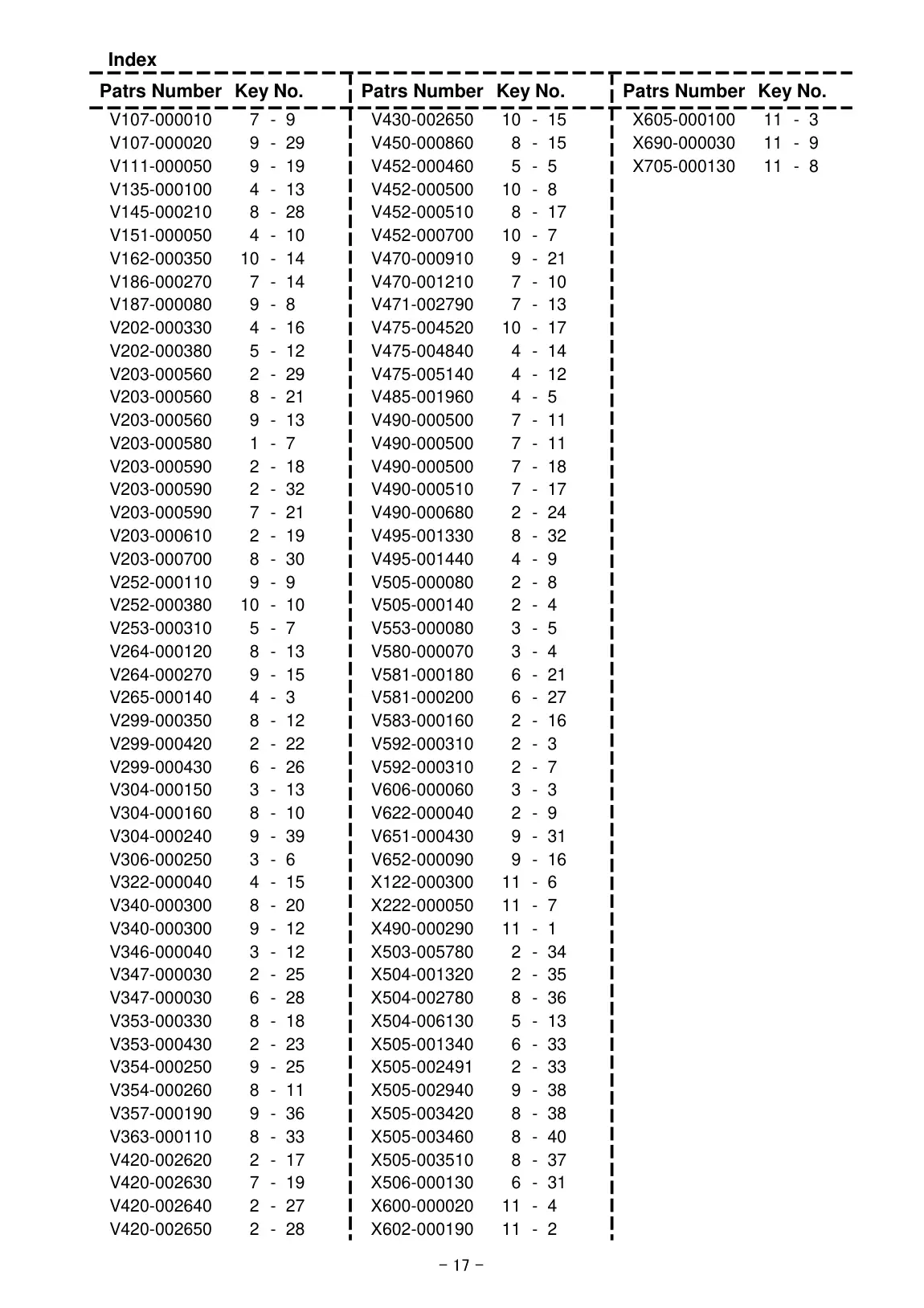

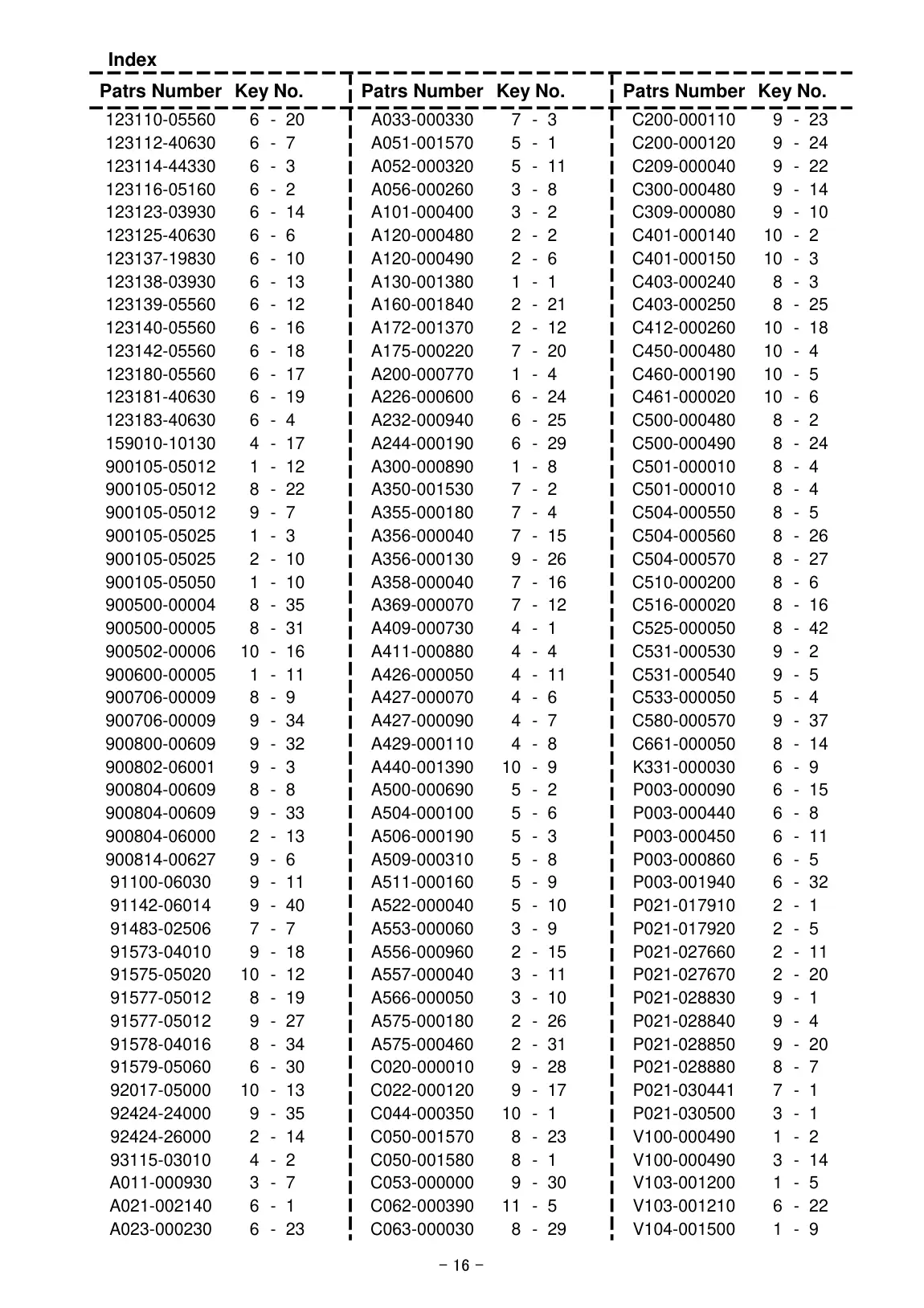

Source file: 20130718-867_P230S(21)_P016-000160_10Mb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
