Illustrated Parts List

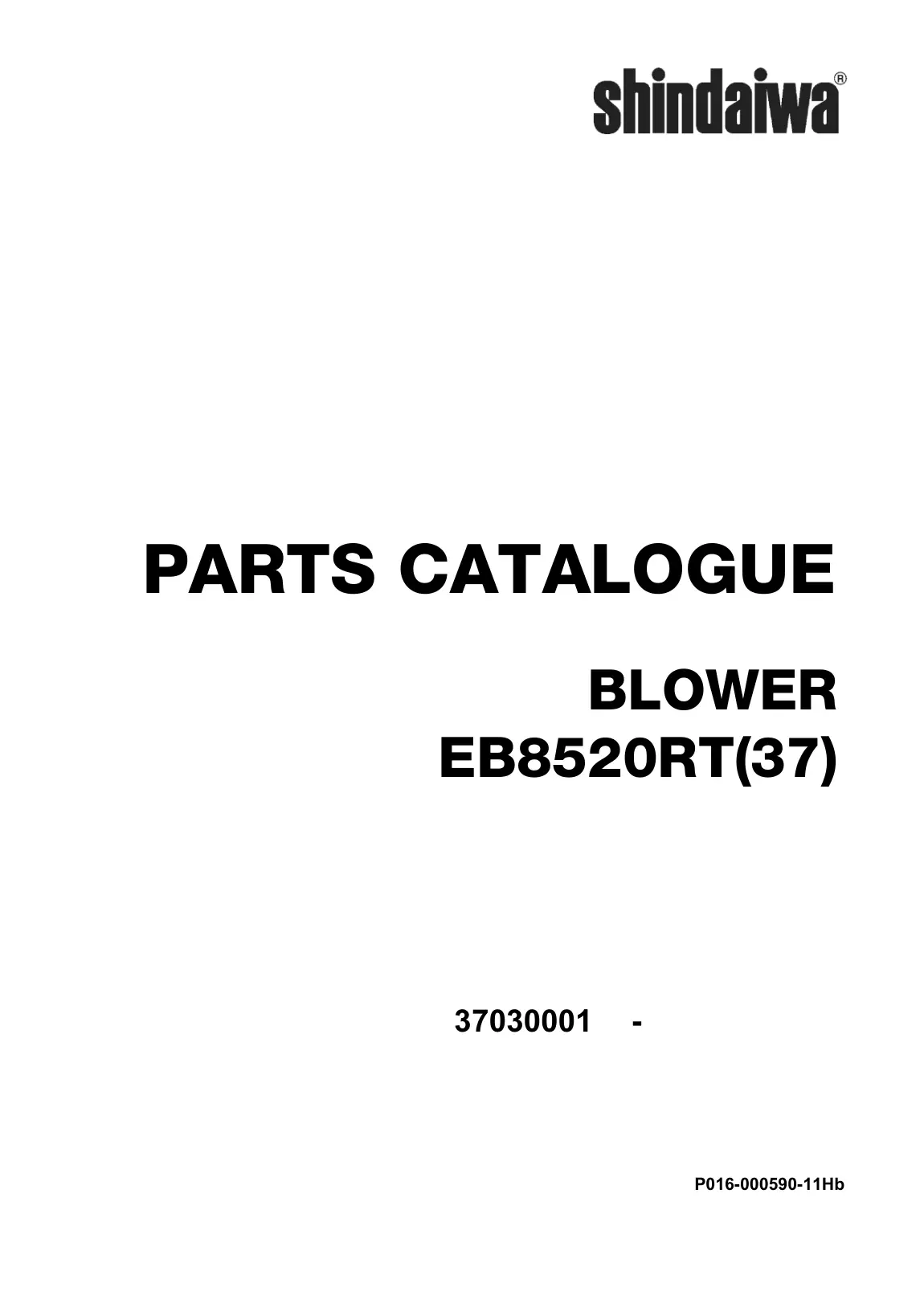

Shindaiwa EB8520RT Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB8520RT
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

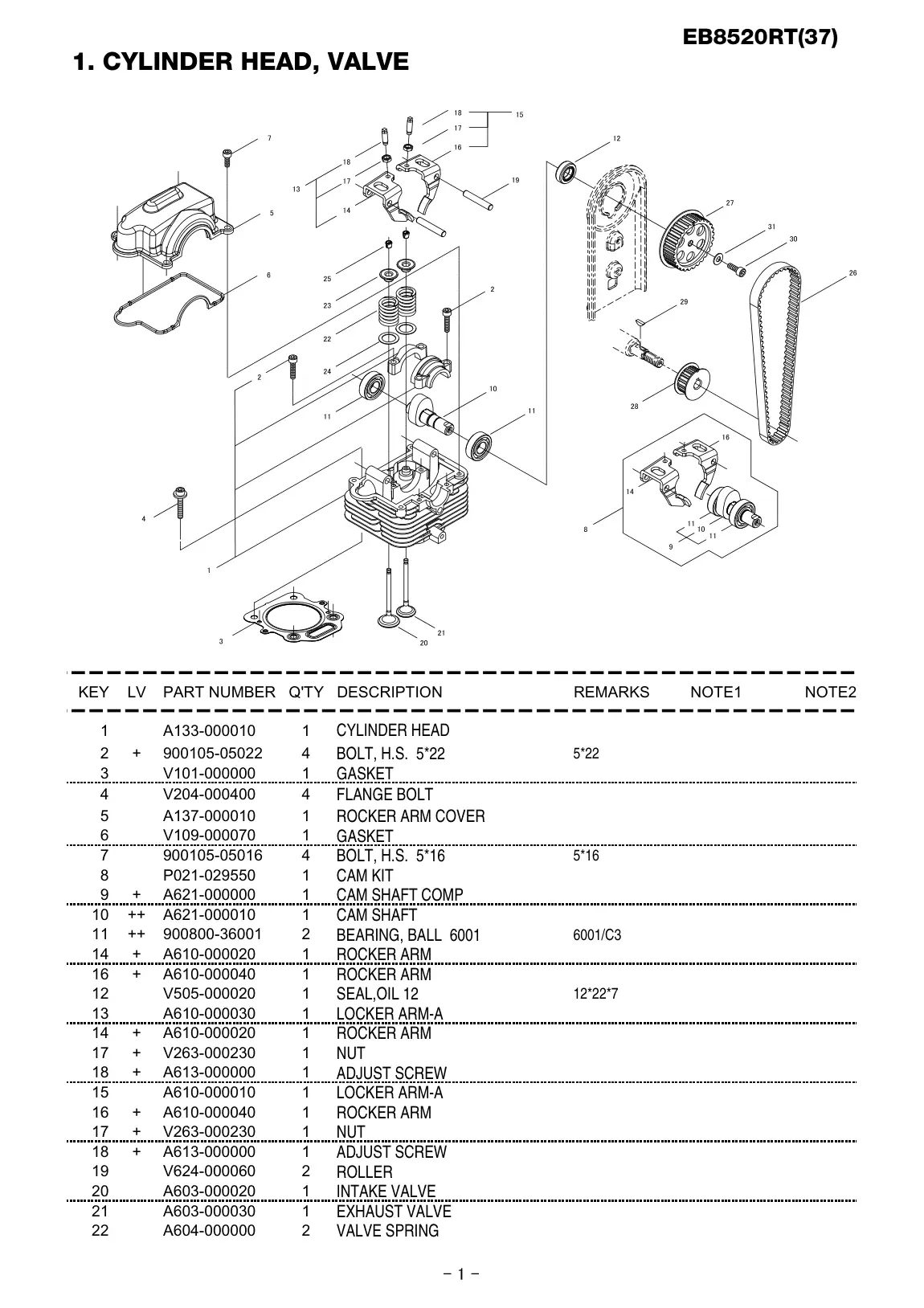

| 2 | VALVE SPRING | 1 | CYLINDER HEAD | A133-000010 | A133-000010-Online |
| 2 | VALVE SPRING | 10 | CAM SHAFT | A621-000010 | A621-000010-Online |
| 2 | VALVE SPRING | 11 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 2 | VALVE SPRING | 12 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 2 | VALVE SPRING | 13 | LOCKER ARM-A | A610-000030 | A610-000030-Online |
| 2 | VALVE SPRING | 14 | ROCKER ARM | A610-000020 | A610-000020-Online |
| 2 | VALVE SPRING | 15 | LOCKER ARM-A | A610-000010 | A610-000010-Online |
| 2 | VALVE SPRING | 16 | ROCKER ARM | A610-000040 | A610-000040-Online |
| 2 | VALVE SPRING | 17 | NUT | V263-000230 | V263-000230-Online |
| 2 | VALVE SPRING | 18 | ADJUST SCREW | A613-000000 | A613-000000-Online |
| 2 | VALVE SPRING | 19 | ROLLER | V624-000060 | V624-000060-Online |
| 2 | VALVE SPRING | 2 | BOLT, H.S. 5*22 | 900105-05022 | 900105-05022-Online |
| 2 | VALVE SPRING | 20 | INTAKE VALVE | A603-000020 | A603-000020-Online |
| 2 | VALVE SPRING | 21 | EXHAUST VALVE | A603-000030 | A603-000030-Online |
| 2 | VALVE SPRING | 22 | VALVE SPRING | A604-000000 | A604-000000-Online |
| 2 | VALVE SPRING | 3 | GASKET | V101-000000 | V101-000000-Online |
| 2 | VALVE SPRING | 4 | FLANGE BOLT | V204-000400 | V204-000400-Online |
| 2 | VALVE SPRING | 5 | ROCKER ARM COVER | A137-000010 | A137-000010-Online |
| 2 | VALVE SPRING | 6 | GASKET | V109-000070 | V109-000070-Online |
| 2 | VALVE SPRING | 7 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | VALVE SPRING | 8 | CAM KIT | P021-029550 | P021-029550-Online |
| 2 | VALVE SPRING | 9 | CAM SHAFT COMP | A621-000000 | A621-000000-Online |

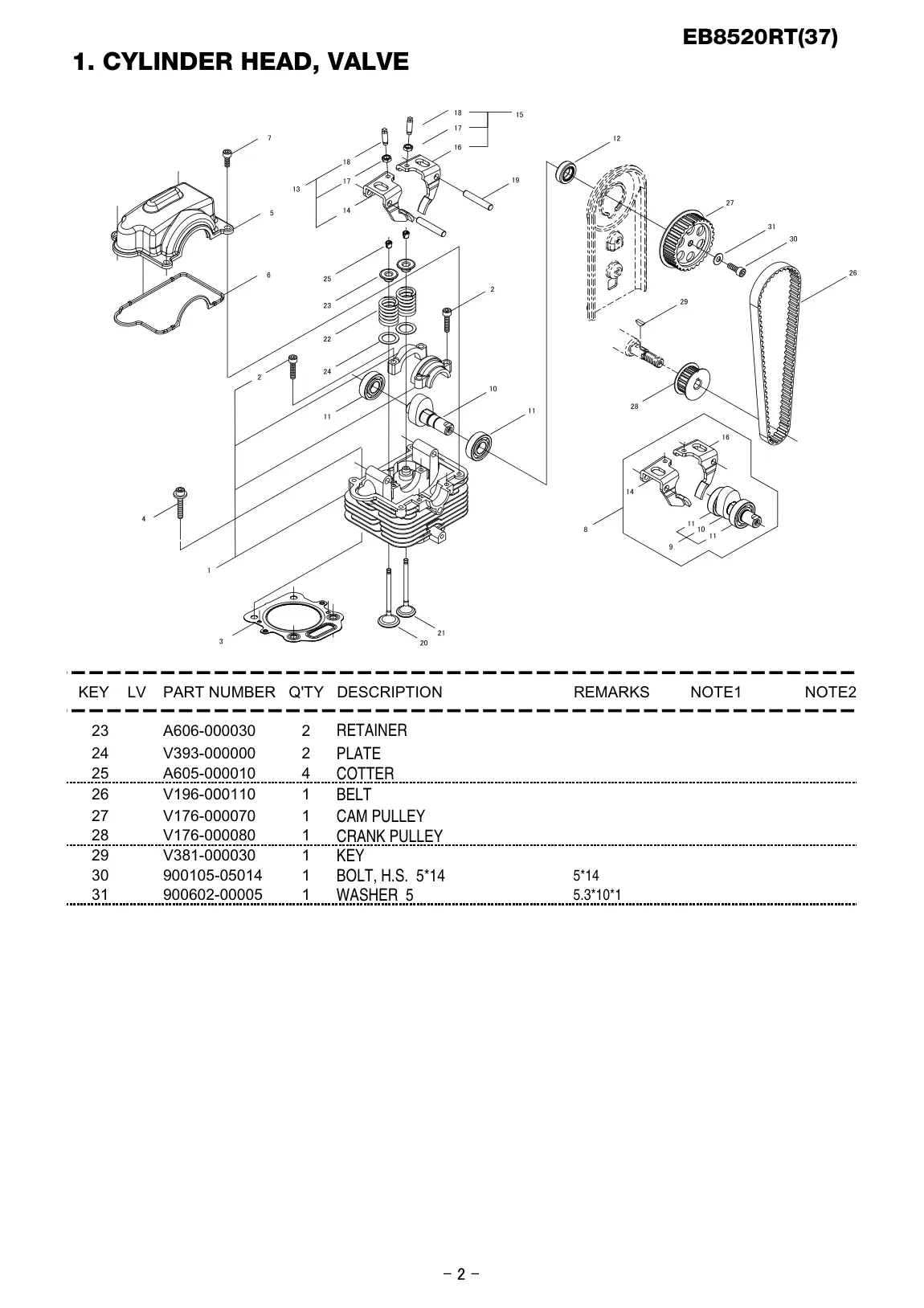

| 3 | WASHER 5 | 23 | RETAINER | A606-000030 | A606-000030-Online |
| 3 | WASHER 5 | 24 | PLATE | V393-000000 | V393-000000-Online |
| 3 | WASHER 5 | 25 | COTTER | A605-000010 | A605-000010-Online |
| 3 | WASHER 5 | 27 | CAM PULLEY | V176-000070 | V176-000070-Online |
| 3 | WASHER 5 | 28 | CRANK PULLEY | V176-000080 | V176-000080-Online |
| 3 | WASHER 5 | 29 | KEY | V381-000030 | V381-000030-Online |
| 3 | WASHER 5 | 30 | BOLT, H.S. 5*14 | 900105-05014 | 900105-05014-Online |
| 3 | WASHER 5 | 31 | WASHER | 900602-00005 | 900602-00005-Online |

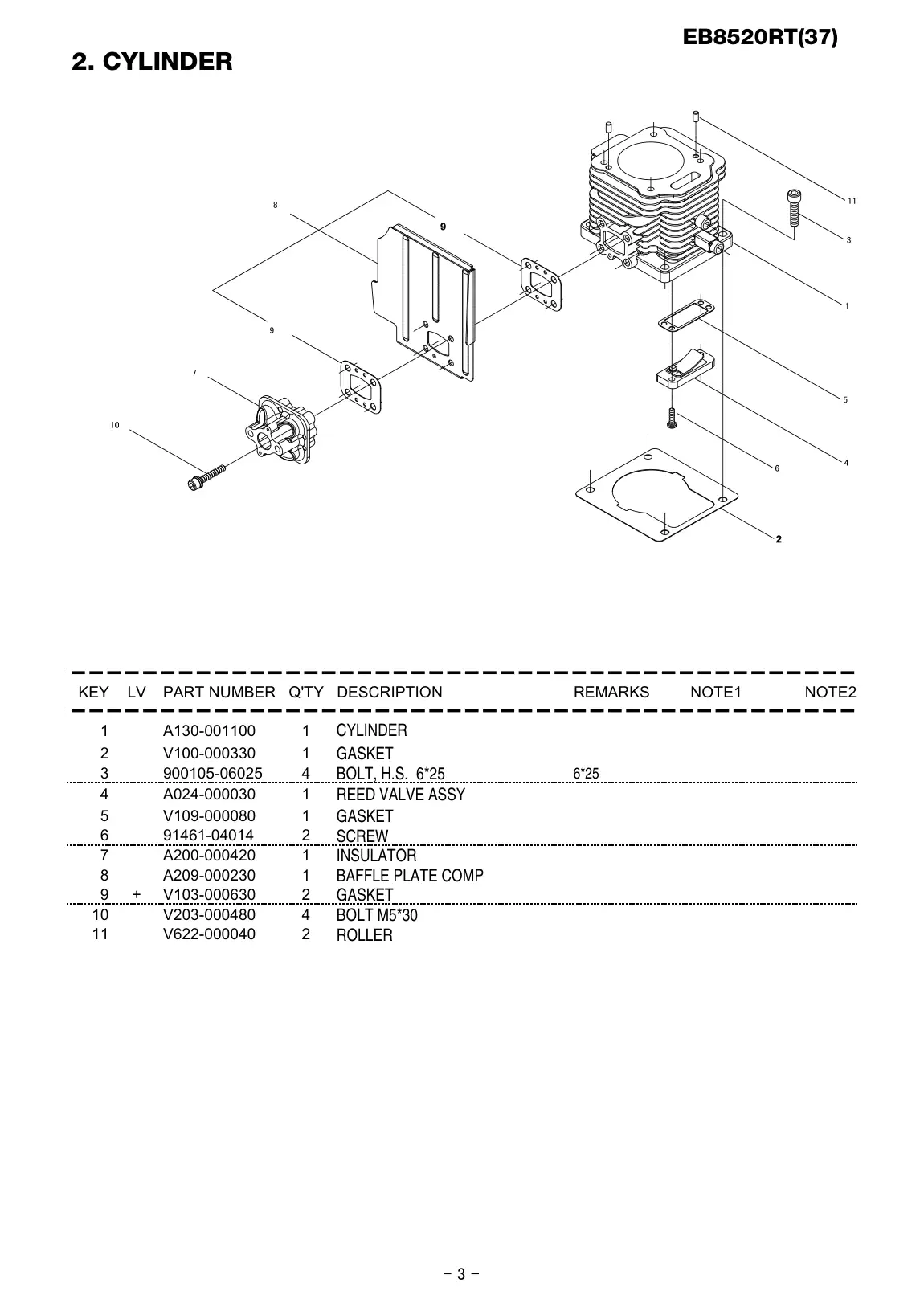

| 4 | ROLLER | 1 | CYLINDER | A130-001100 | A130-001100-Online |
| 4 | ROLLER | 10 | BOLT M5*30 | V203-000480 | V203-000480-Online |
| 4 | ROLLER | 11 | ROLLER | V622-000040 | V622-000040-Online |
| 4 | ROLLER | 2 | GASKET | V100-000330 | V100-000330-Online |
| 4 | ROLLER | 3 | BOLT, H.S. 6*25 | 900105-06025 | 900105-06025-Online |
| 4 | ROLLER | 4 | REED VALVE ASSY | A024-000030 | A024-000030-Online |
| 4 | ROLLER | 5 | GASKET | V109-000080 | V109-000080-Online |
| 4 | ROLLER | 6 | SCREW | 91461-04014 | 91461-04014-Online |
| 4 | ROLLER | 7 | INSULATOR | A200-000420 | A200-000420-Online |
| 4 | ROLLER | 8 | BAFFLE PLATE COMP | A209-000230 | A209-000230-Online |
| 4 | ROLLER | 9 | GASKET | V103-000630 | V103-000630-Online |

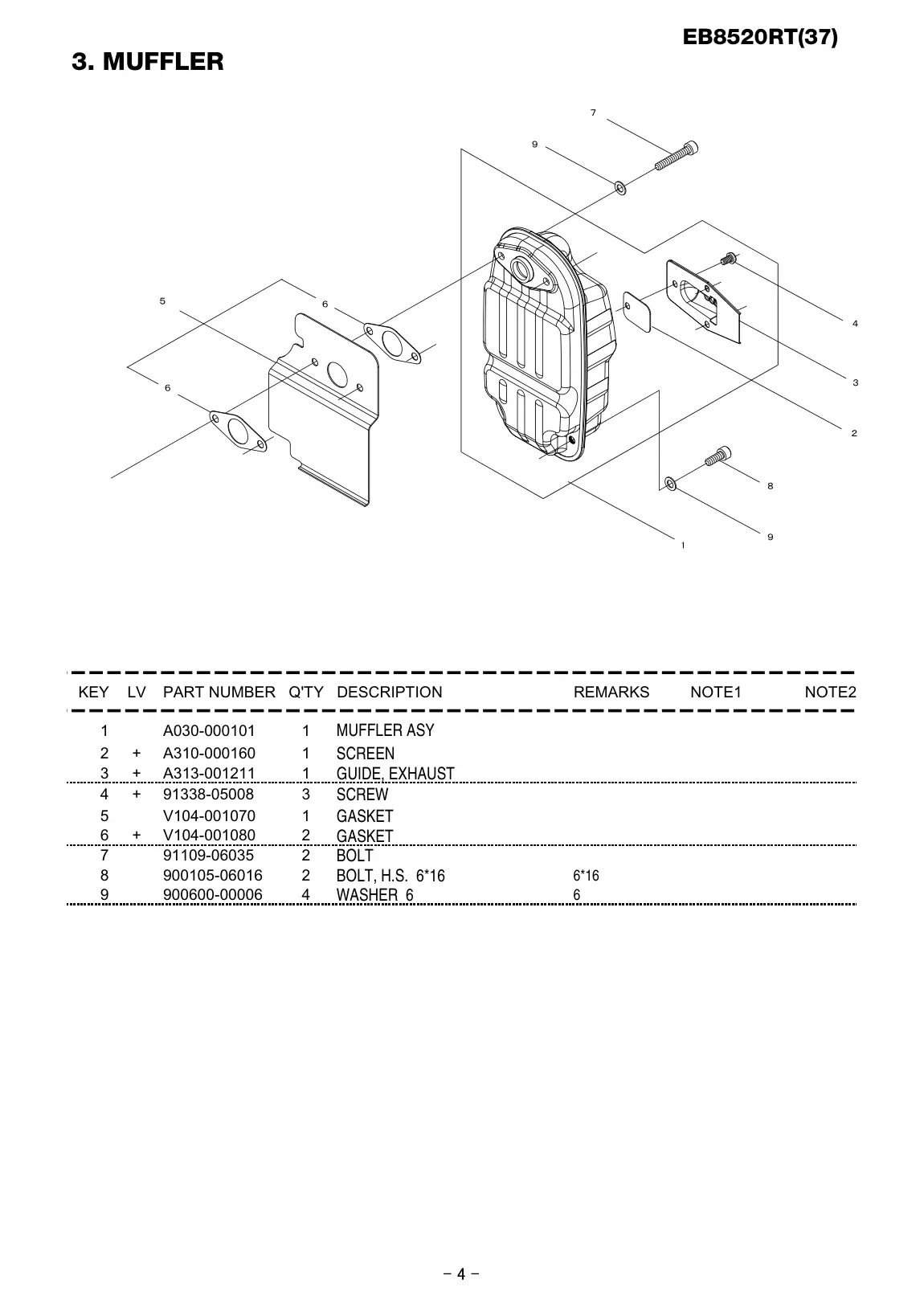

| 5 | WASHER 6 | 1 | MUFFLER ASY | A030-000101 | A030-000101-Online |
| 5 | WASHER 6 | 2 | SCREEN | A310-000160 | A310-000160-Online |
| 5 | WASHER 6 | 3 | GUIDE, EXHAUST | A313-001211 | A313-001211-Online |
| 5 | WASHER 6 | 4 | SCREW | 91338-05008 | 91338-05008-Online |
| 5 | WASHER 6 | 5 | GASKET | V104-001070 | V104-001070-Online |
| 5 | WASHER 6 | 6 | GASKET | V104-001080 | V104-001080-Online |
| 5 | WASHER 6 | 7 | BOLT | 91109-06035 | 91109-06035-Online |
| 5 | WASHER 6 | 8 | BOLT, H.S. 6*16 | 900105-06016 | 900105-06016-Online |
| 5 | WASHER 6 | 9 | WASHER | 900600-00006 | 900600-00006-Online |

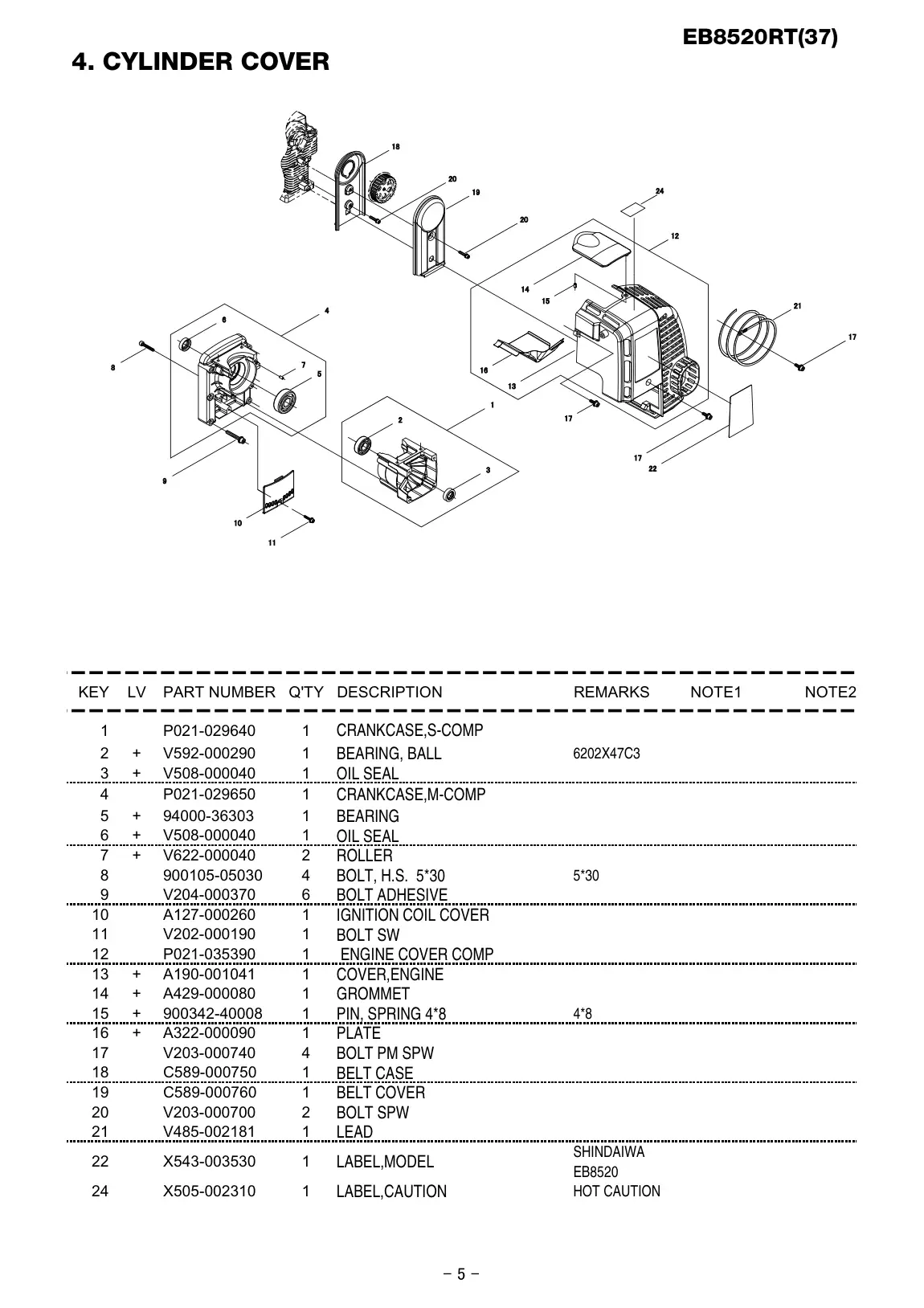

| 6 | HOT CAUTION | 1 | LABEL,CAUTION | EB8520 | EB8520-Online |
| 6 | HOT CAUTION | 1 | CRANKCASE,S-COMP | P021-029640 | P021-029640-Online |
| 6 | HOT CAUTION | 10 | IGNITION COIL COVER | A127-000260 | A127-000260-Online |
| 6 | HOT CAUTION | 11 | BOLT SW | V202-000190 | V202-000190-Online |
| 6 | HOT CAUTION | 12 | ENGINE COVER COMP | P021-035390 | P021-035390-Online |
| 6 | HOT CAUTION | 13 | COVER,ENGINE | A190-001041 | A190-001041-Online |
| 6 | HOT CAUTION | 14 | GROMMET | A429-000080 | A429-000080-Online |
| 6 | HOT CAUTION | 15 | PIN, SPRING 4*8 | 900342-40008 | 900342-40008-Online |
| 6 | HOT CAUTION | 16 | PLATE | A322-000090 | A322-000090-Online |
| 6 | HOT CAUTION | 17 | BOLT PM SPW | V203-000740 | V203-000740-Online |
| 6 | HOT CAUTION | 18 | BELT CASE | C589-000750 | C589-000750-Online |
| 6 | HOT CAUTION | 19 | BELT COVER | C589-000760 | C589-000760-Online |
| 6 | HOT CAUTION | 2 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 6 | HOT CAUTION | 20 | BOLT SPW | V203-000700 | V203-000700-Online |
| 6 | HOT CAUTION | 21 | LEAD | V485-002181 | V485-002181-Online |
| 6 | HOT CAUTION | 22 | LABEL,MODEL | X543-003530 | X543-003530-Online |
| 6 | HOT CAUTION | 24 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 6 | HOT CAUTION | 3 | OIL SEAL | V508-000040 | V508-000040-Online |
| 6 | HOT CAUTION | 4 | CRANKCASE,M-COMP | P021-029650 | P021-029650-Online |
| 6 | HOT CAUTION | 5 | BEARING | 94000-36303 | 94000-36303-Online |
| 6 | HOT CAUTION | 6 | OIL SEAL | V508-000040 | V508-000040-Online |
| 6 | HOT CAUTION | 7 | ROLLER | V622-000040 | V622-000040-Online |
| 6 | HOT CAUTION | 8 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 6 | HOT CAUTION | 9 | BOLT ADHESIVE | V204-000370 | V204-000370-Online |

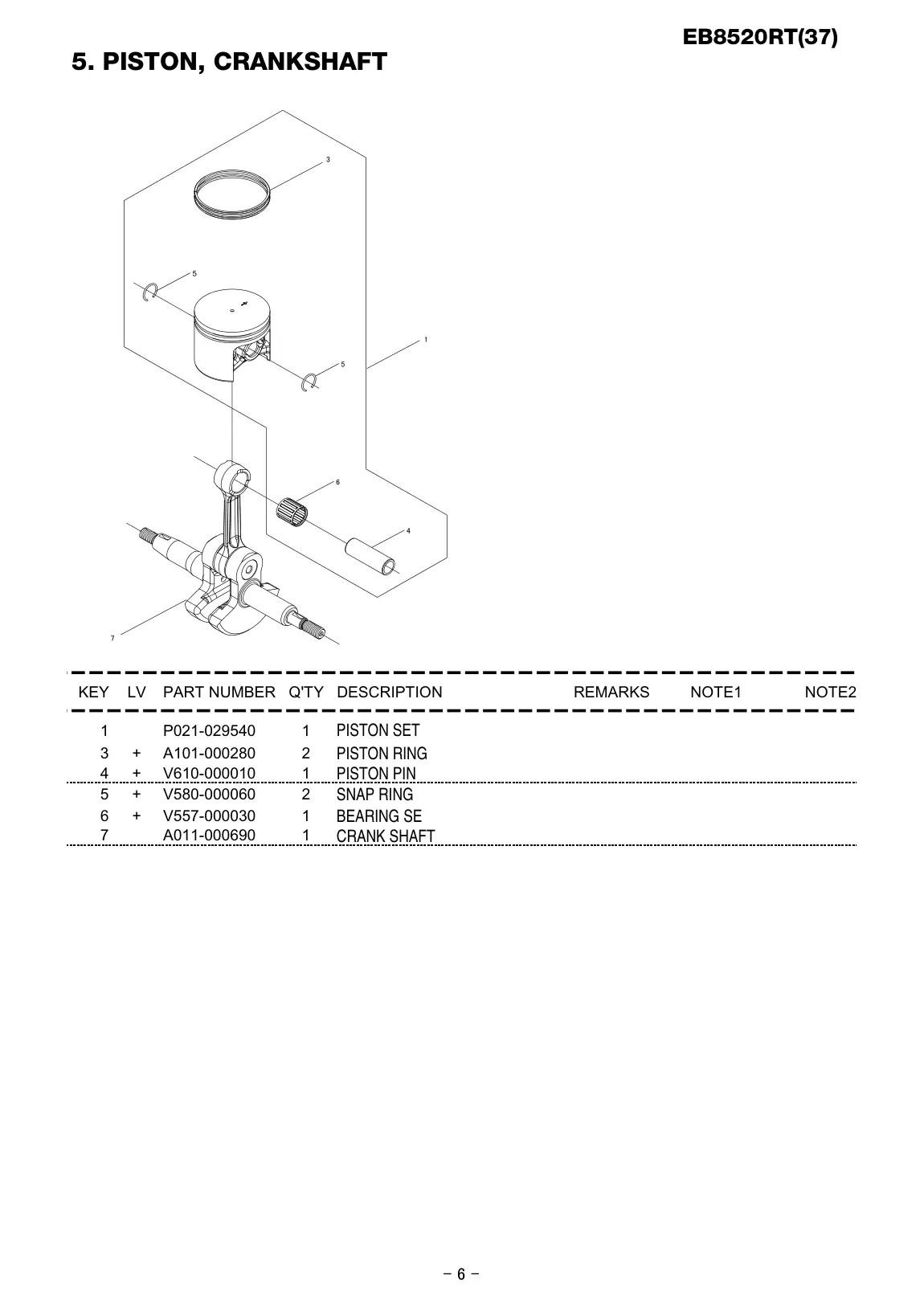

| 7 | CRANK SHAFT | 1 | PISTON SET | P021-029540 | P021-029540-Online |
| 7 | CRANK SHAFT | 3 | PISTON RING | A101-000280 | A101-000280-Online |
| 7 | CRANK SHAFT | 4 | PISTON PIN | V610-000010 | V610-000010-Online |
| 7 | CRANK SHAFT | 5 | SNAP RING | V580-000060 | V580-000060-Online |
| 7 | CRANK SHAFT | 6 | BEARING SE | V557-000030 | V557-000030-Online |
| 7 | CRANK SHAFT | 7 | CRANK SHAFT | A011-000690 | A011-000690-Online |

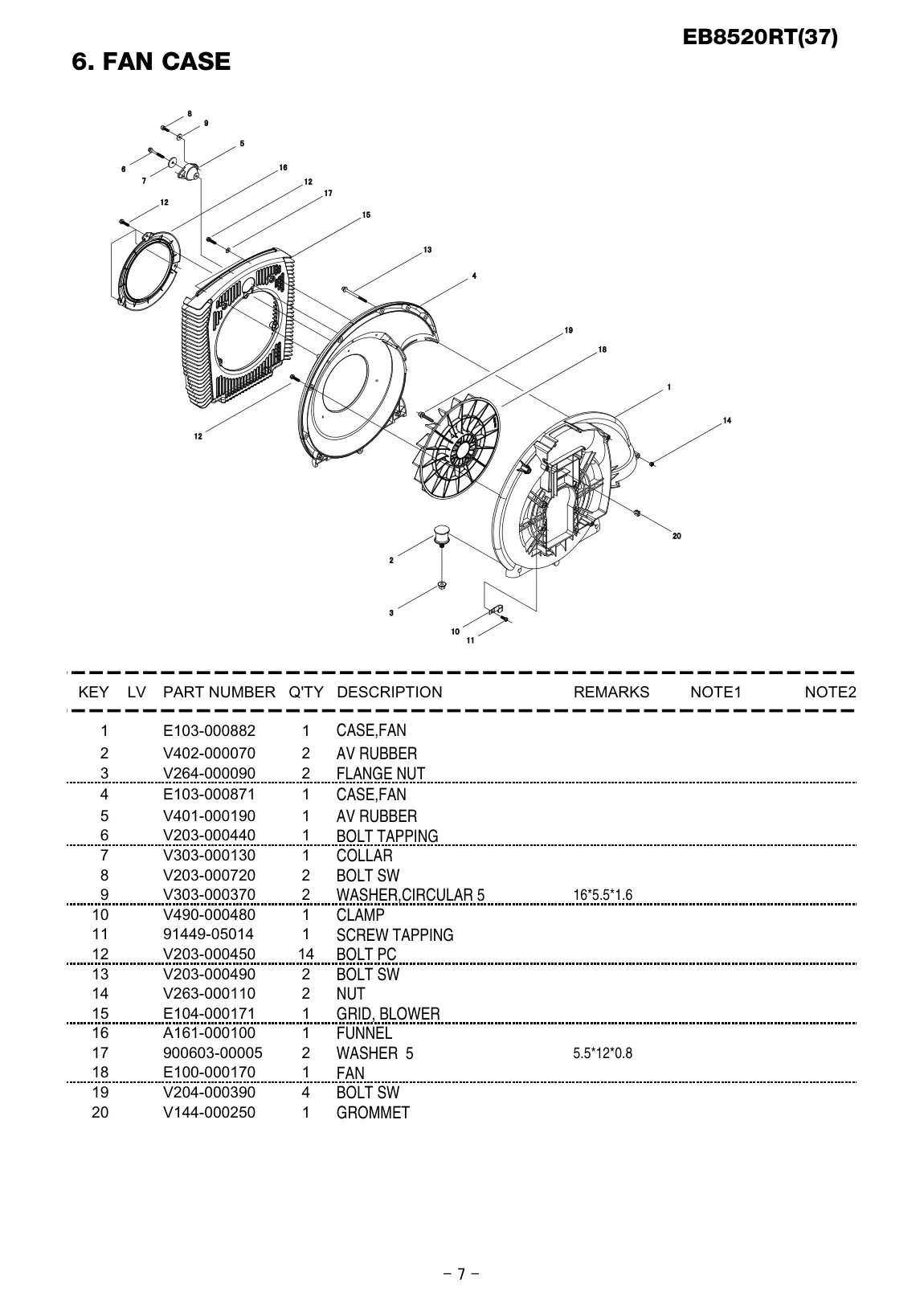

| 8 | GROMMET | 1 | CASE,FAN | E103-000882 | E103-000882-Online |
| 8 | GROMMET | 11 | SCREW TAPPING | 91449-05014 | 91449-05014-Online |
| 8 | GROMMET | 12 | BOLT PC | V203-000450 | V203-000450-Online |
| 8 | GROMMET | 13 | BOLT SW | V203-000490 | V203-000490-Online |
| 8 | GROMMET | 14 | NUT | V263-000110 | V263-000110-Online |
| 8 | GROMMET | 15 | GRID, BLOWER | E104-000171 | E104-000171-Online |
| 8 | GROMMET | 16 | FUNNEL | A161-000100 | A161-000100-Online |
| 8 | GROMMET | 17 | WASHER | 900603-00005 | 900603-00005-Online |
| 8 | GROMMET | 18 | FAN | E100-000170 | E100-000170-Online |
| 8 | GROMMET | 19 | BOLT SW | V204-000390 | V204-000390-Online |
| 8 | GROMMET | 2 | AV RUBBER | V402-000070 | V402-000070-Online |
| 8 | GROMMET | 20 | GROMMET | V144-000250 | V144-000250-Online |
| 8 | GROMMET | 3 | FLANGE NUT | V264-000090 | V264-000090-Online |
| 8 | GROMMET | 4 | CASE,FAN | E103-000871 | E103-000871-Online |
| 8 | GROMMET | 5 | AV RUBBER | V401-000190 | V401-000190-Online |
| 8 | GROMMET | 6 | BOLT TAPPING | V203-000440 | V203-000440-Online |
| 8 | GROMMET | 7 | COLLAR | V303-000130 | V303-000130-Online |
| 8 | GROMMET | 8 | BOLT SW | V203-000720 | V203-000720-Online |
| 8 | GROMMET | 9 | WASHER,CIRCULAR | V303-000370 | V303-000370-Online |

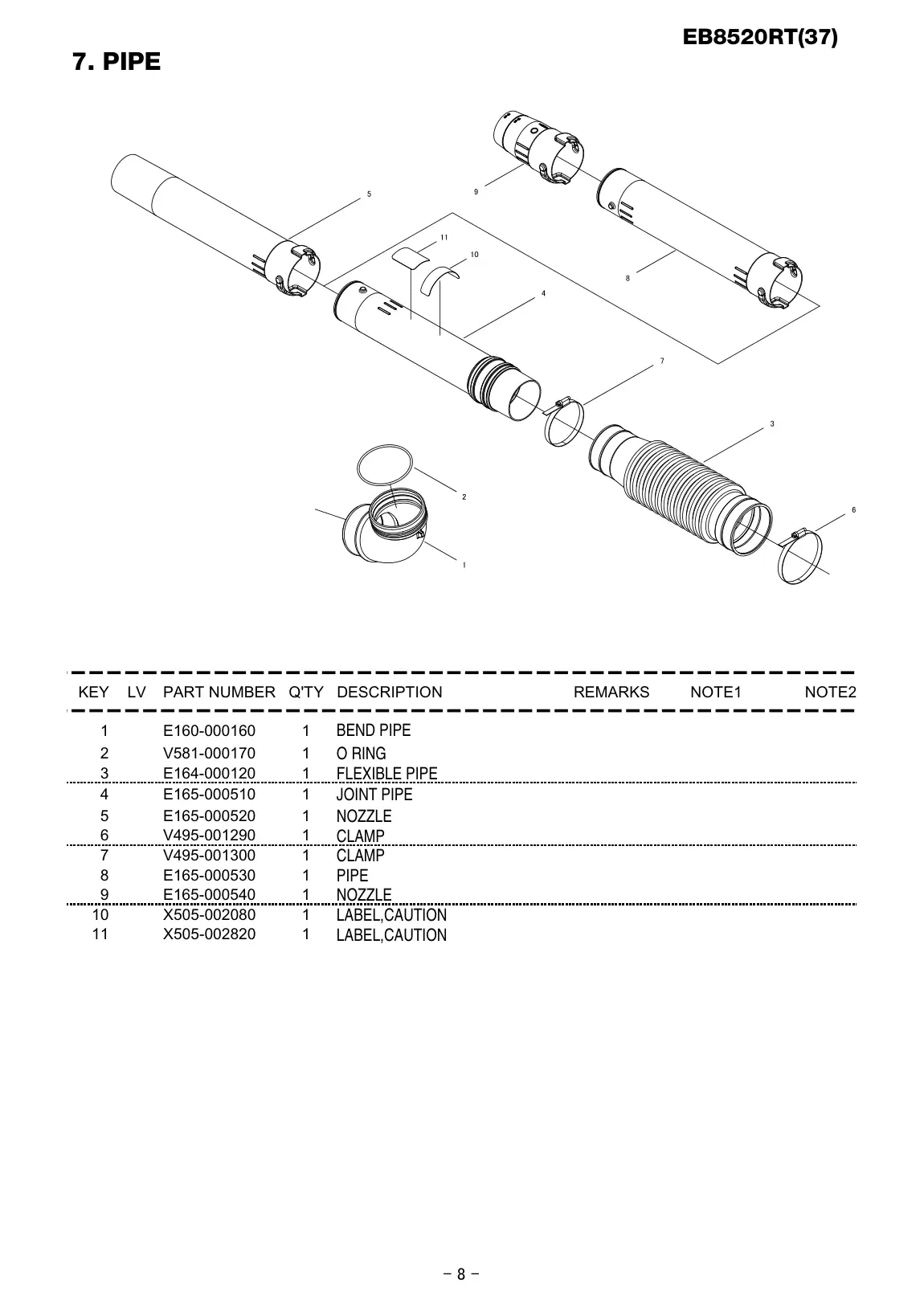

| 9 | LABEL,CAUTION | 1 | BEND PIPE | E160-000160 | E160-000160-Online |
| 9 | LABEL,CAUTION | 10 | LABEL,CAUTION | X505-002080 | X505-002080-Online |
| 9 | LABEL,CAUTION | 11 | LABEL,CAUTION | X505-002820 | X505-002820-Online |
| 9 | LABEL,CAUTION | 2 | O RING | V581-000170 | V581-000170-Online |
| 9 | LABEL,CAUTION | 3 | FLEXIBLE PIPE | E164-000120 | E164-000120-Online |
| 9 | LABEL,CAUTION | 4 | JOINT PIPE | E165-000510 | E165-000510-Online |
| 9 | LABEL,CAUTION | 5 | NOZZLE | E165-000520 | E165-000520-Online |
| 9 | LABEL,CAUTION | 8 | PIPE | E165-000530 | E165-000530-Online |
| 9 | LABEL,CAUTION | 9 | NOZZLE | E165-000540 | E165-000540-Online |

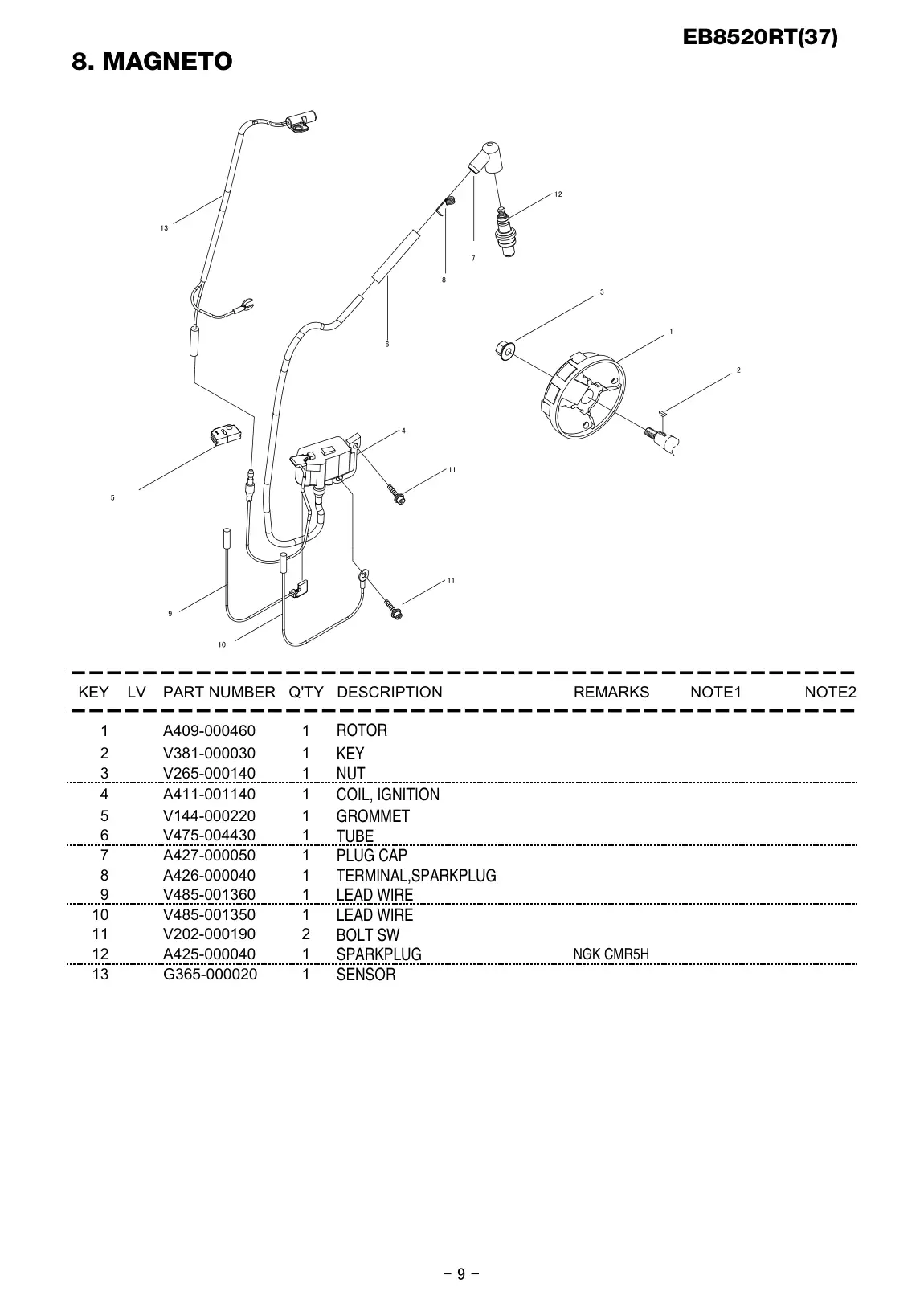

| 10 | SENSOR | 10 | LEAD WIRE | V485-001350 | V485-001350-Online |
| 10 | SENSOR | 11 | BOLT SW | V202-000190 | V202-000190-Online |
| 10 | SENSOR | 12 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 10 | SENSOR | 13 | SENSOR | G365-000020 | G365-000020-Online |
| 10 | SENSOR | 2 | KEY | V381-000030 | V381-000030-Online |
| 10 | SENSOR | 3 | NUT | V265-000140 | V265-000140-Online |
| 10 | SENSOR | 4 | COIL, IGNITION | A411-001140 | A411-001140-Online |
| 10 | SENSOR | 5 | GROMMET | V144-000220 | V144-000220-Online |
| 10 | SENSOR | 6 | TUBE | V475-004430 | V475-004430-Online |
| 10 | SENSOR | 7 | PLUG CAP | A427-000050 | A427-000050-Online |
| 10 | SENSOR | 8 | TERMINAL,SPARKPLUG | A426-000040 | A426-000040-Online |
| 10 | SENSOR | 9 | LEAD WIRE | V485-001360 | V485-001360-Online |

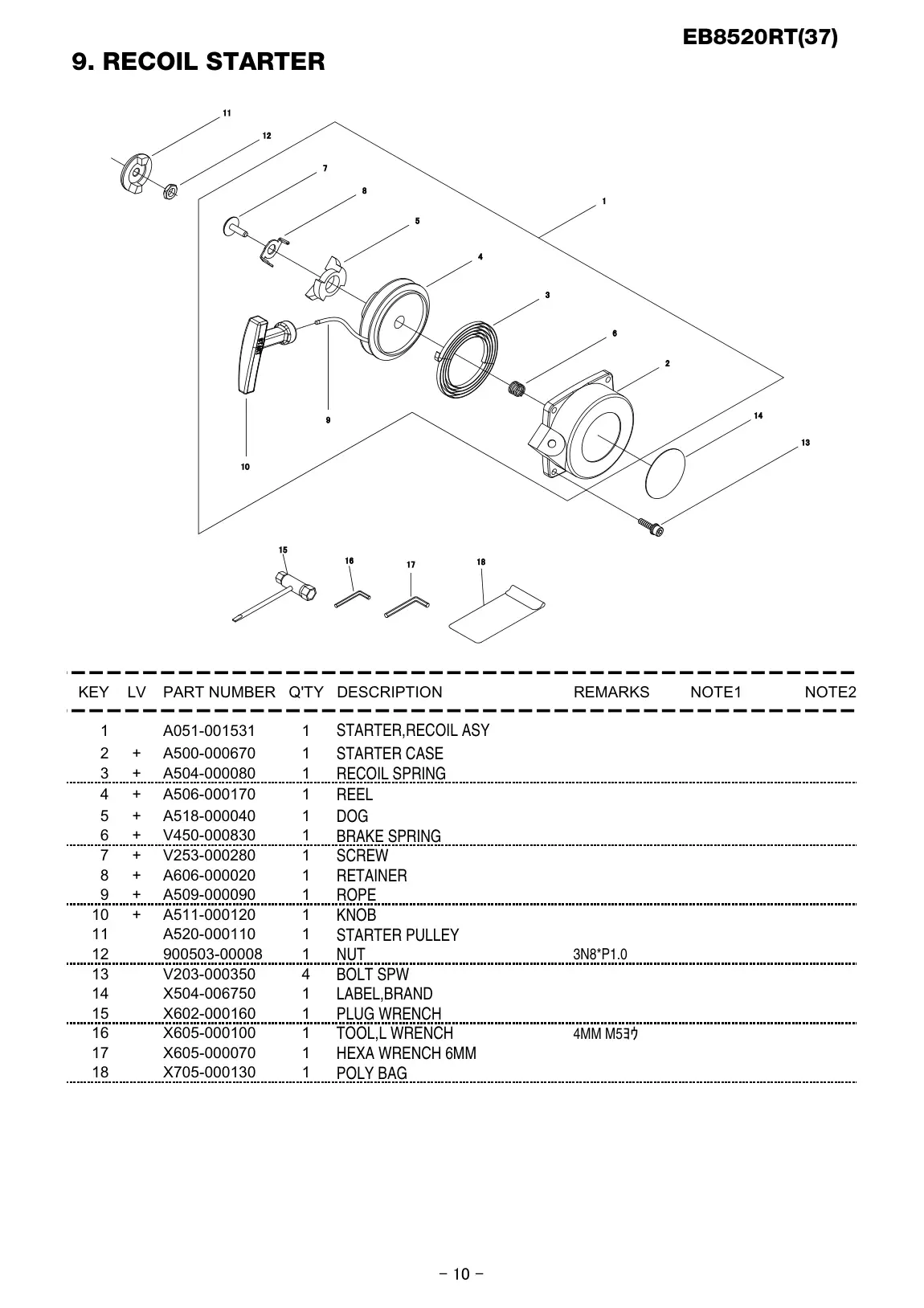

| 11 | POLY BAG | 1 | STARTER,RECOIL ASY | A051-001531 | A051-001531-Online |
| 11 | POLY BAG | 10 | KNOB | A511-000120 | A511-000120-Online |
| 11 | POLY BAG | 11 | STARTER PULLEY | A520-000110 | A520-000110-Online |
| 11 | POLY BAG | 12 | NUT | 900503-00008 | 900503-00008-Online |
| 11 | POLY BAG | 13 | BOLT SPW | V203-000350 | V203-000350-Online |
| 11 | POLY BAG | 14 | LABEL,BRAND | X504-006750 | X504-006750-Online |
| 11 | POLY BAG | 15 | PLUG WRENCH | X602-000160 | X602-000160-Online |
| 11 | POLY BAG | 16 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 11 | POLY BAG | 17 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 11 | POLY BAG | 18 | POLY BAG | X705-000130 | X705-000130-Online |
| 11 | POLY BAG | 2 | STARTER CASE | A500-000670 | A500-000670-Online |
| 11 | POLY BAG | 3 | RECOIL SPRING | A504-000080 | A504-000080-Online |
| 11 | POLY BAG | 4 | REEL | A506-000170 | A506-000170-Online |
| 11 | POLY BAG | 6 | BRAKE SPRING | V450-000830 | V450-000830-Online |
| 11 | POLY BAG | 7 | SCREW | V253-000280 | V253-000280-Online |
| 11 | POLY BAG | 8 | RETAINER | A606-000020 | A606-000020-Online |
| 11 | POLY BAG | 9 | ROPE | A509-000090 | A509-000090-Online |

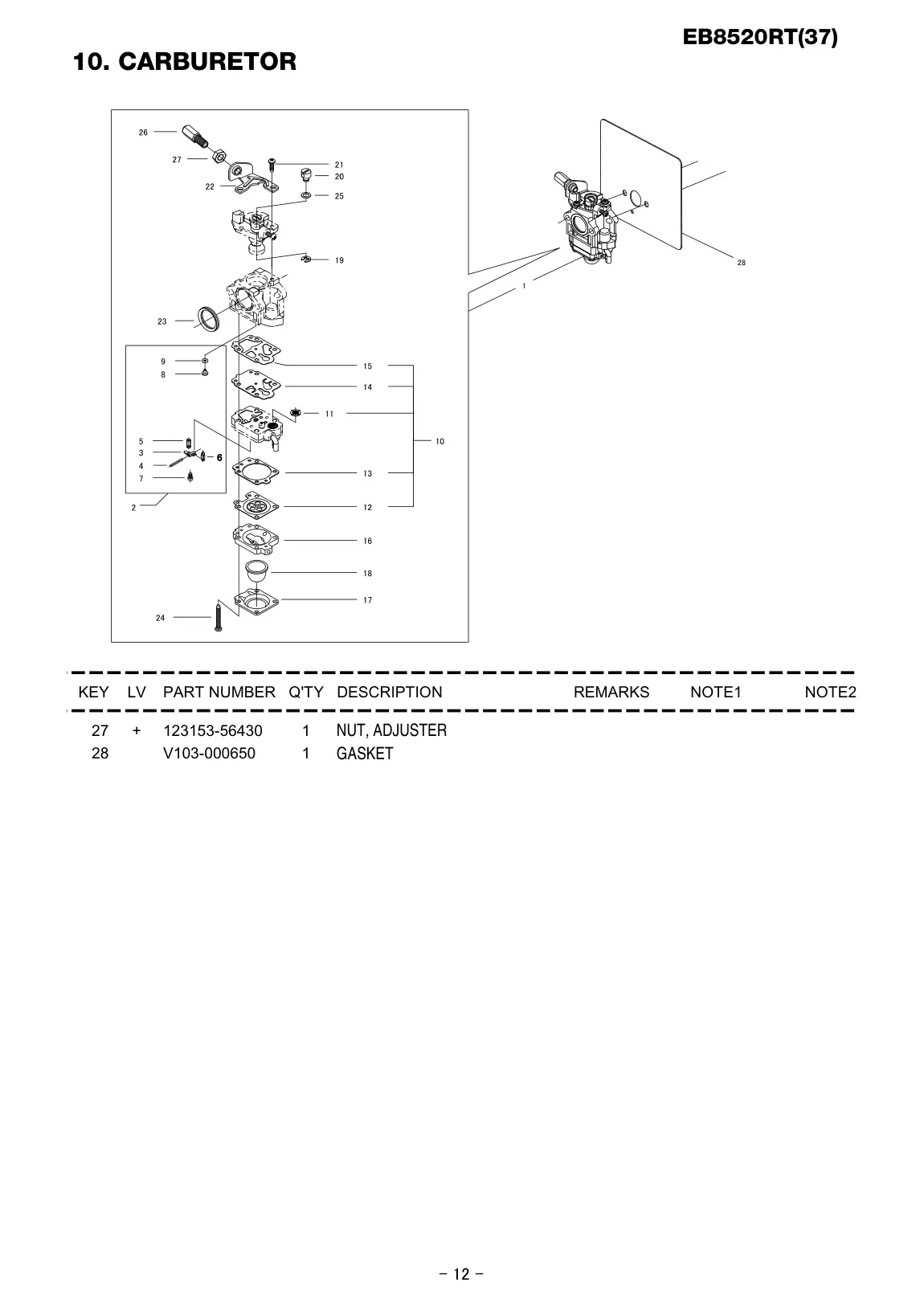

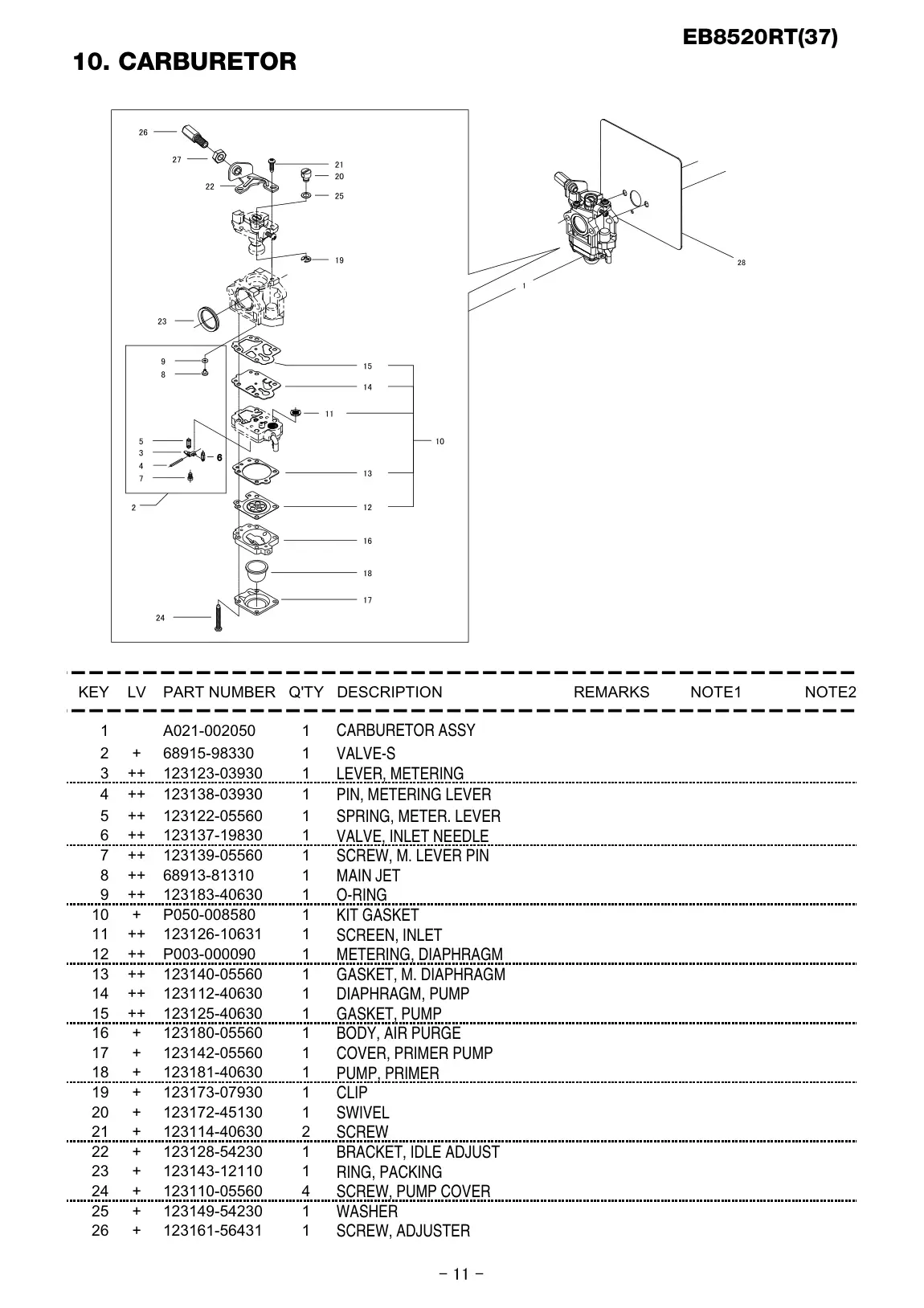

| 12 | SCREW, ADJUSTER | 1 | CARBURETOR ASSY | A021-002050 | A021-002050-Online |
| 12 | SCREW, ADJUSTER | 10 | KIT GASKET | P050-008580 | P050-008580-Online |
| 12 | SCREW, ADJUSTER | 11 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 12 | SCREW, ADJUSTER | 12 | METERING, DIAPHRAGM | P003-000090 | P003-000090-Online |
| 12 | SCREW, ADJUSTER | 13 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 12 | SCREW, ADJUSTER | 14 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 12 | SCREW, ADJUSTER | 15 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 12 | SCREW, ADJUSTER | 16 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 12 | SCREW, ADJUSTER | 17 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 12 | SCREW, ADJUSTER | 18 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 12 | SCREW, ADJUSTER | 19 | CLIP | 123173-07930 | 123173-07930-Online |
| 12 | SCREW, ADJUSTER | 2 | VALVE-S | 68915-98330 | 68915-98330-Online |
| 12 | SCREW, ADJUSTER | 20 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 12 | SCREW, ADJUSTER | 21 | SCREW | 123114-40630 | 123114-40630-Online |
| 12 | SCREW, ADJUSTER | 22 | BRACKET, IDLE ADJUST | 123128-54230 | 123128-54230-Online |
| 12 | SCREW, ADJUSTER | 23 | RING, PACKING | 123143-12110 | 123143-12110-Online |
| 12 | SCREW, ADJUSTER | 24 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 12 | SCREW, ADJUSTER | 25 | WASHER | 123149-54230 | 123149-54230-Online |
| 12 | SCREW, ADJUSTER | 26 | SCREW, ADJUSTER | 123161-56431 | 123161-56431-Online |
| 12 | SCREW, ADJUSTER | 3 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 12 | SCREW, ADJUSTER | 4 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 12 | SCREW, ADJUSTER | 5 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 12 | SCREW, ADJUSTER | 6 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 12 | SCREW, ADJUSTER | 7 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 12 | SCREW, ADJUSTER | 8 | MAIN JET | 68913-81310 | 68913-81310-Online |
| 12 | SCREW, ADJUSTER | 9 | O-RING | 123183-40630 | 123183-40630-Online |
| 13 | GASKET | 27 | NUT, ADJUSTER | 123153-56430 | 123153-56430-Online |
| 13 | GASKET | 28 | GASKET | V103-000650 | V103-000650-Online |

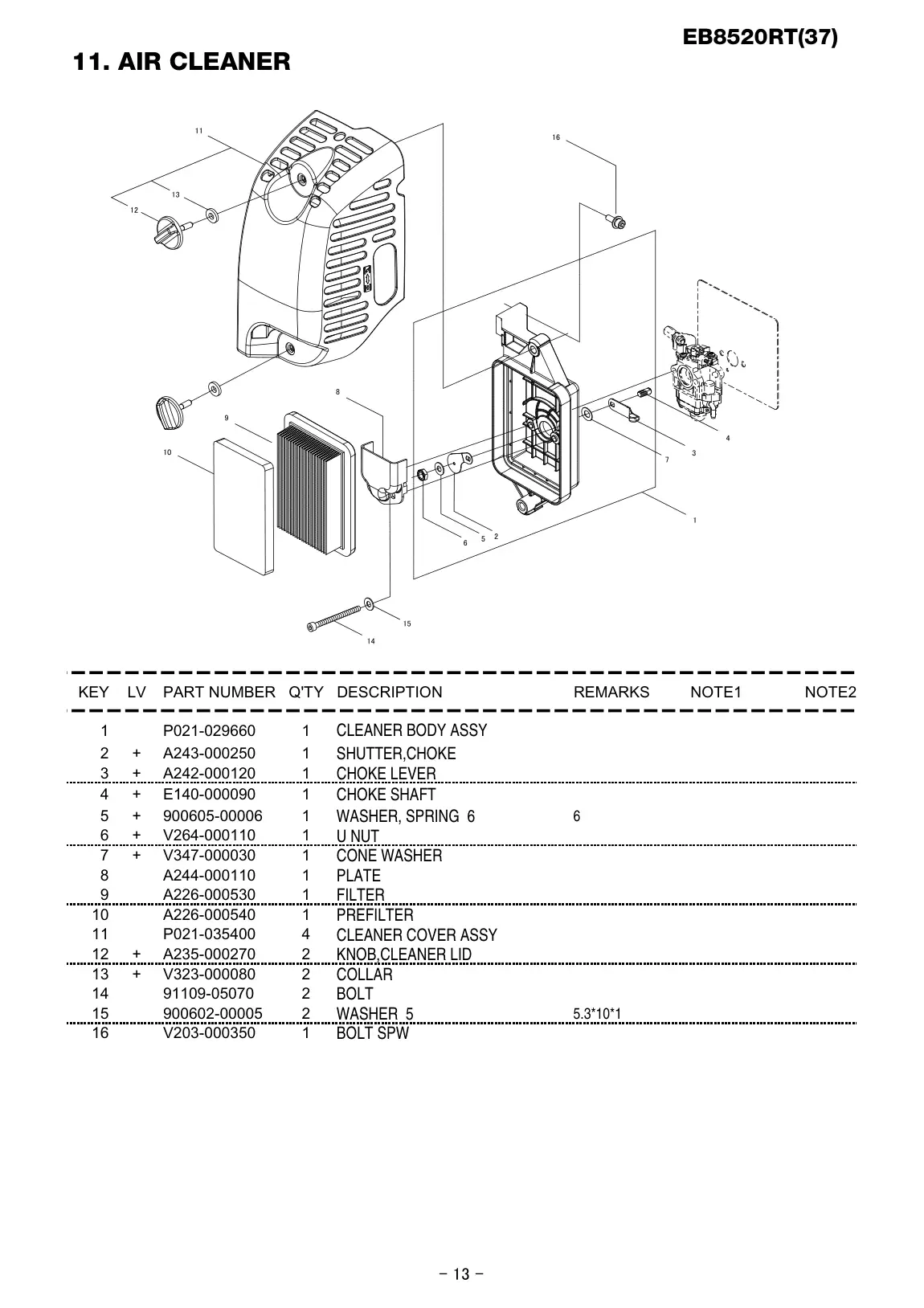

| 14 | BOLT SPW | 1 | CLEANER BODY ASSY | P021-029660 | P021-029660-Online |
| 14 | BOLT SPW | 10 | PREFILTER | A226-000540 | A226-000540-Online |
| 14 | BOLT SPW | 11 | CLEANER COVER ASSY | P021-035400 | P021-035400-Online |
| 14 | BOLT SPW | 12 | KNOB,CLEANER LID | A235-000270 | A235-000270-Online |
| 14 | BOLT SPW | 13 | COLLAR | V323-000080 | V323-000080-Online |
| 14 | BOLT SPW | 14 | BOLT | 91109-05070 | 91109-05070-Online |
| 14 | BOLT SPW | 15 | WASHER | 900602-00005 | 900602-00005-Online |
| 14 | BOLT SPW | 16 | BOLT SPW | V203-000350 | V203-000350-Online |
| 14 | BOLT SPW | 2 | SHUTTER,CHOKE | A243-000250 | A243-000250-Online |
| 14 | BOLT SPW | 3 | CHOKE LEVER | A242-000120 | A242-000120-Online |
| 14 | BOLT SPW | 4 | CHOKE SHAFT | E140-000090 | E140-000090-Online |
| 14 | BOLT SPW | 5 | WASHER, SPRING | 900605-00006 | 900605-00006-Online |
| 14 | BOLT SPW | 6 | U NUT | V264-000110 | V264-000110-Online |
| 14 | BOLT SPW | 7 | CONE WASHER | V347-000030 | V347-000030-Online |
| 14 | BOLT SPW | 8 | PLATE | A244-000110 | A244-000110-Online |
| 14 | BOLT SPW | 9 | FILTER | A226-000530 | A226-000530-Online |
| 15 | CLIP | 1 | TANK ASY, FUEL | A038-000501 | A038-000501-Online |
| 15 | CLIP | 14 | CLIP | V490-000500 | V490-000500-Online |
| 15 | CLIP | 15 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |
| 15 | CLIP | 16 | PIPE | V471-003070 | V471-003070-Online |
| 15 | CLIP | 17 | PIPE | V471-003060 | V471-003060-Online |
| 15 | CLIP | 18 | JOINT | V186-000210 | V186-000210-Online |
| 15 | CLIP | 2 | TANK,FUEL | A350-001781 | A350-001781-Online |
| 15 | CLIP | 20 | CLIP | V490-000500 | V490-000500-Online |
| 15 | CLIP | 21 | CLIP | V490-000510 | V490-000510-Online |
| 15 | CLIP | 23 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 15 | CLIP | 3 | CAP,FUER ASSY | P021-014060 | P021-014060-Online |
| 15 | CLIP | 4 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 15 | CLIP | 5 | GROMMET | V470-000890 | V470-000890-Online |
| 15 | CLIP | 6 | FUEL PIPE | V471-002410 | V471-002410-Online |
| 15 | CLIP | 7 | STRAINER, FUEL | A369-000000 | A369-000000-Online |

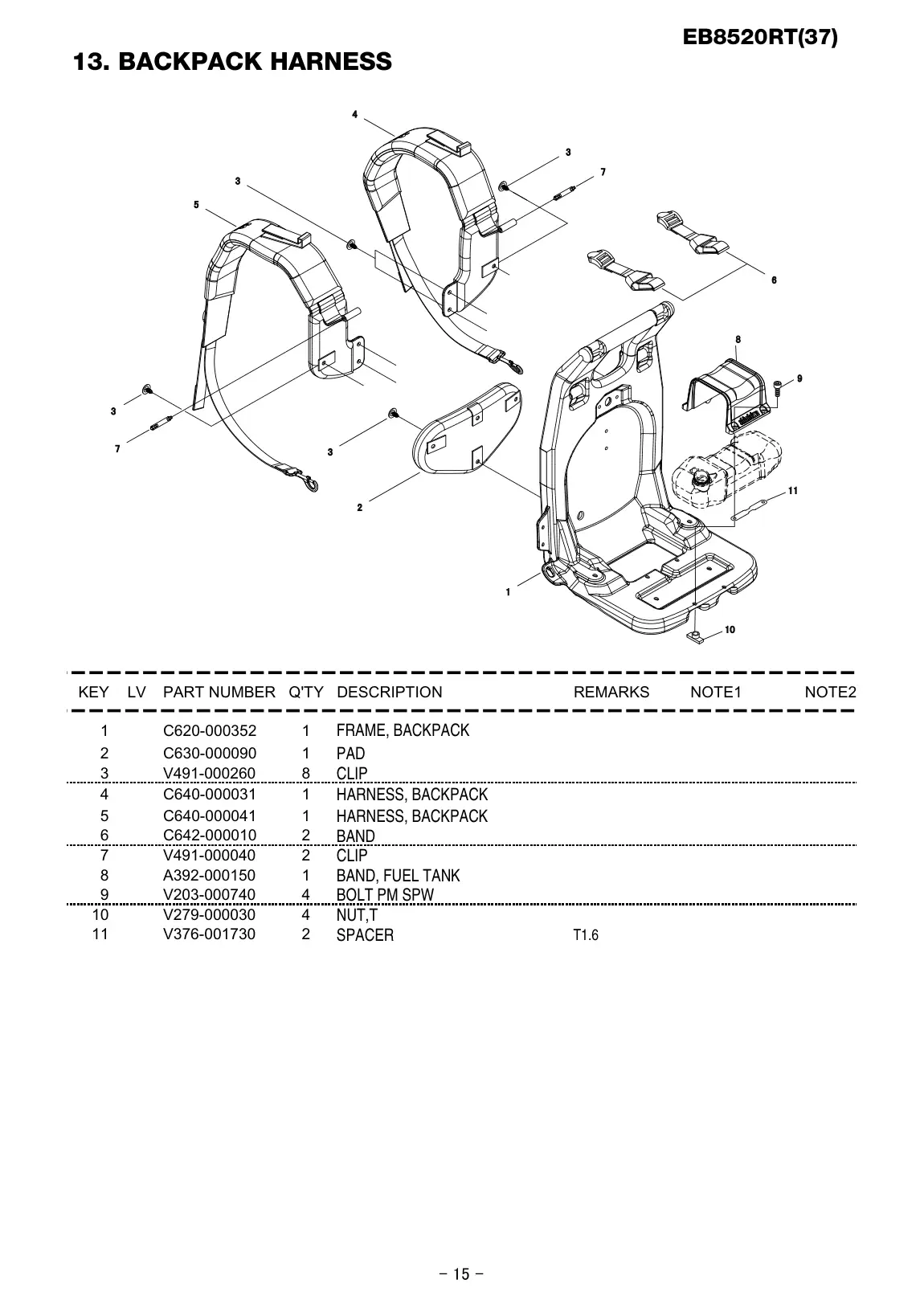

| 16 | T1.6 | 1 | FRAME, BACKPACK | C620-000352 | C620-000352-Online |
| 16 | T1.6 | 10 | NUT,T | V279-000030 | V279-000030-Online |
| 16 | T1.6 | 11 | SPACER | V376-001730 | V376-001730-Online |
| 16 | T1.6 | 3 | CLIP | V491-000260 | V491-000260-Online |
| 16 | T1.6 | 4 | HARNESS, BACKPACK | C640-000031 | C640-000031-Online |
| 16 | T1.6 | 5 | HARNESS, BACKPACK | C640-000041 | C640-000041-Online |
| 16 | T1.6 | 6 | BAND | C642-000010 | C642-000010-Online |
| 16 | T1.6 | 7 | CLIP | V491-000040 | V491-000040-Online |
| 16 | T1.6 | 8 | BAND, FUEL TANK | A392-000150 | A392-000150-Online |
| 16 | T1.6 | 9 | BOLT PM SPW | V203-000740 | V203-000740-Online |

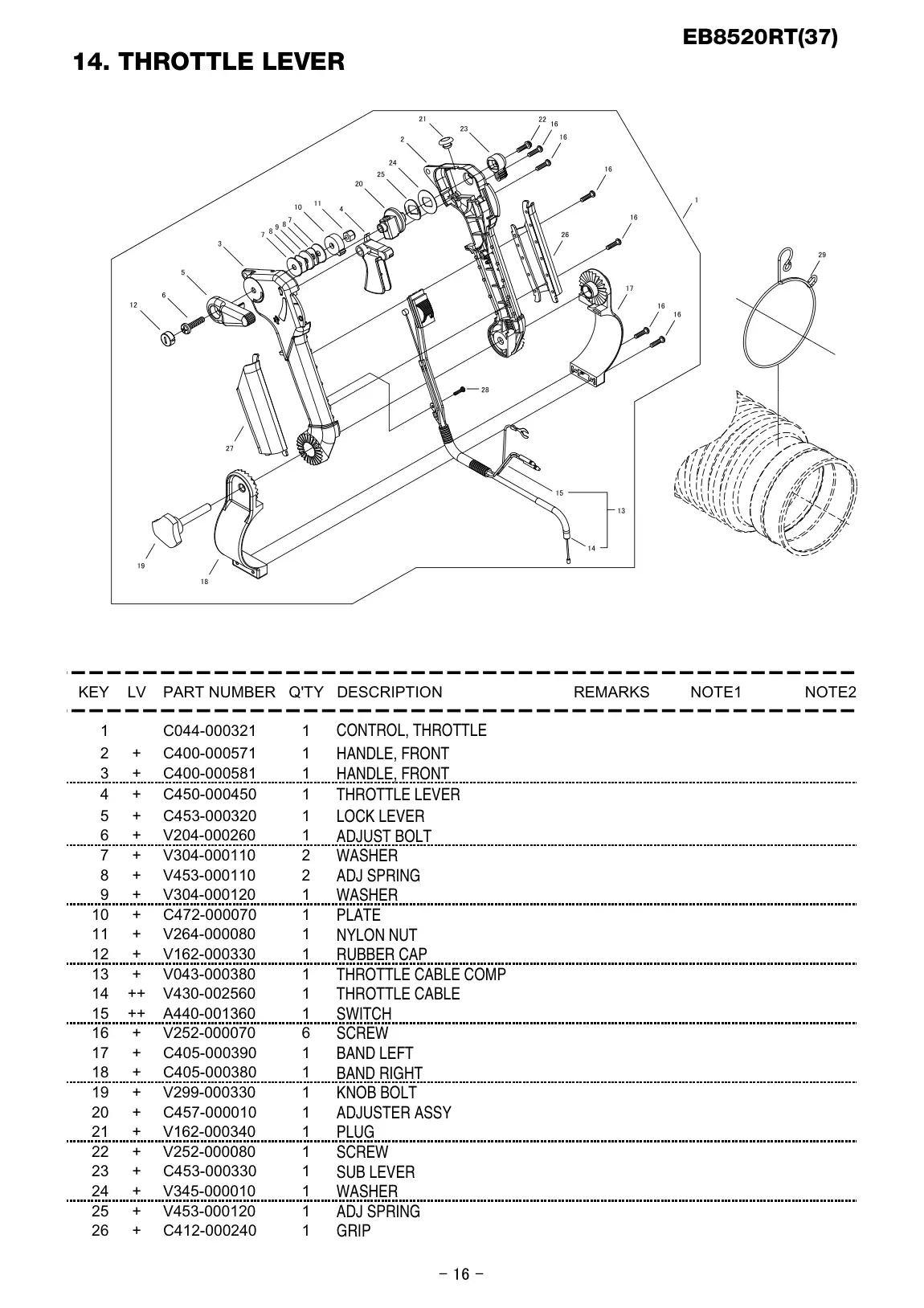

| 17 | GRIP | 1 | CONTROL, THROTTLE | C044-000321 | C044-000321-Online |
| 17 | GRIP | 10 | PLATE | C472-000070 | C472-000070-Online |
| 17 | GRIP | 11 | NYLON NUT | V264-000080 | V264-000080-Online |
| 17 | GRIP | 12 | RUBBER CAP | V162-000330 | V162-000330-Online |
| 17 | GRIP | 13 | THROTTLE CABLE COMP | V043-000380 | V043-000380-Online |
| 17 | GRIP | 14 | THROTTLE CABLE | V430-002560 | V430-002560-Online |
| 17 | GRIP | 15 | SWITCH | A440-001360 | A440-001360-Online |
| 17 | GRIP | 16 | SCREW | V252-000070 | V252-000070-Online |
| 17 | GRIP | 17 | BAND LEFT | C405-000390 | C405-000390-Online |
| 17 | GRIP | 18 | BAND RIGHT | C405-000380 | C405-000380-Online |
| 17 | GRIP | 19 | KNOB BOLT | V299-000330 | V299-000330-Online |
| 17 | GRIP | 2 | HANDLE, FRONT | C400-000571 | C400-000571-Online |
| 17 | GRIP | 20 | ADJUSTER ASSY | C457-000010 | C457-000010-Online |
| 17 | GRIP | 21 | PLUG | V162-000340 | V162-000340-Online |
| 17 | GRIP | 22 | SCREW | V252-000080 | V252-000080-Online |
| 17 | GRIP | 23 | SUB LEVER | C453-000330 | C453-000330-Online |
| 17 | GRIP | 24 | WASHER | V345-000010 | V345-000010-Online |
| 17 | GRIP | 25 | ADJ SPRING | V453-000120 | V453-000120-Online |
| 17 | GRIP | 26 | GRIP | C412-000240 | C412-000240-Online |
| 17 | GRIP | 3 | HANDLE, FRONT | C400-000581 | C400-000581-Online |
| 17 | GRIP | 4 | THROTTLE LEVER | C450-000450 | C450-000450-Online |
| 17 | GRIP | 5 | LOCK LEVER | C453-000320 | C453-000320-Online |
| 17 | GRIP | 6 | ADJUST BOLT | V204-000260 | V204-000260-Online |
| 17 | GRIP | 7 | WASHER | V304-000110 | V304-000110-Online |
| 17 | GRIP | 8 | ADJ SPRING | V453-000110 | V453-000110-Online |
| 17 | GRIP | 9 | WASHER | V304-000120 | V304-000120-Online |

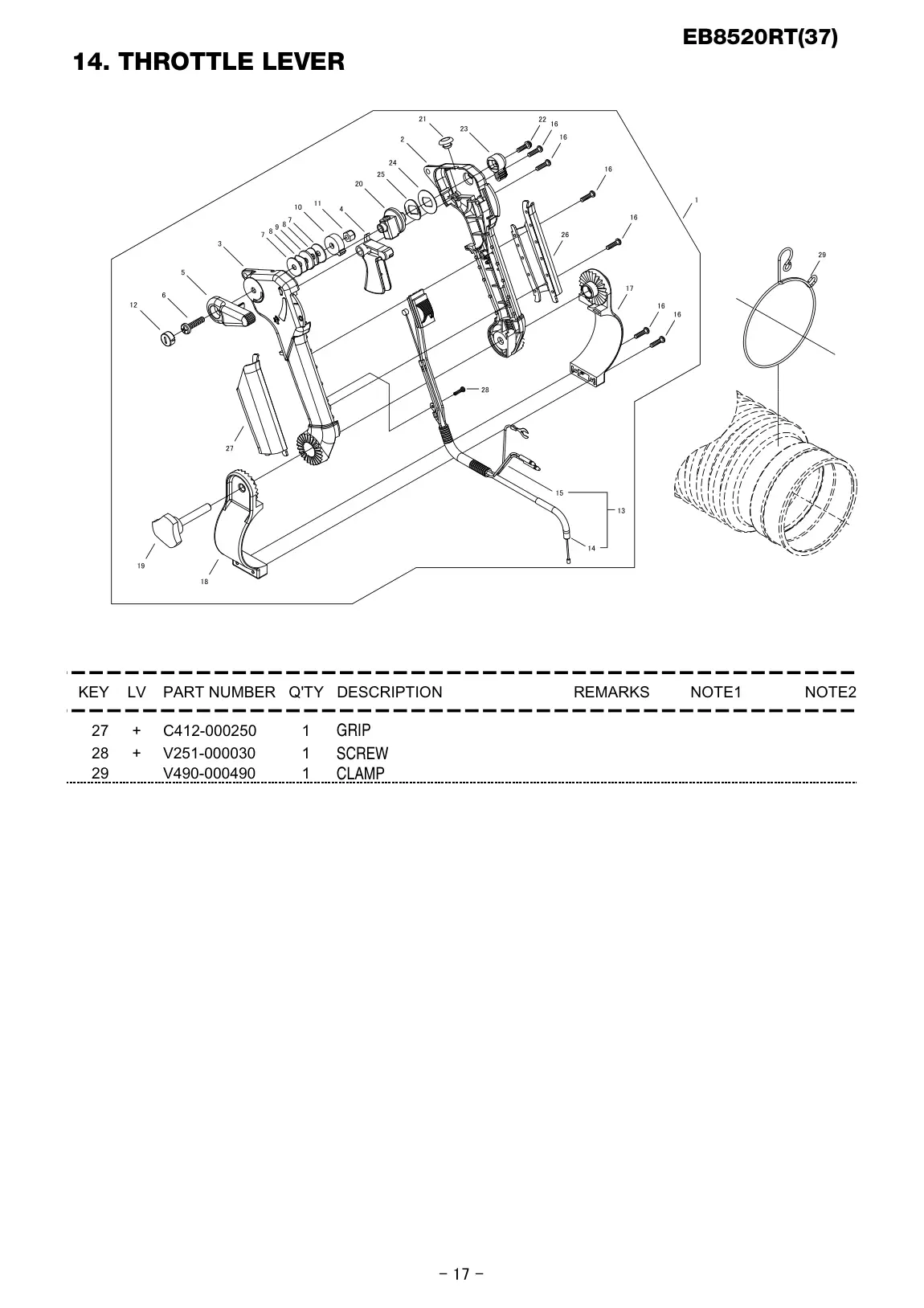

| 18 | CLAMP | 27 | GRIP | C412-000250 | C412-000250-Online |
| 18 | CLAMP | 28 | SCREW | V251-000030 | V251-000030-Online |
Source file: 20130718-964_EB8520RT(37)_P016-000590-11Hb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
