Illustrated Parts List
Shindaiwa B450R Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: B450R
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 4 | CYLINDER, MUFFLER | 1 | CYLINDER | A130-001340 | A130-001340-Online |
| 4 | CYLINDER, MUFFLER | 10 | GASKET | V104-001330 | V104-001330-Online |
| 4 | CYLINDER, MUFFLER | 11 | MUFFLER GUARD | A320-000760 | A320-000760-Online |
| 4 | CYLINDER, MUFFLER | 12 | BOLT | V204-000440 | V204-000440-Online |
| 4 | CYLINDER, MUFFLER | 13 | BOLT | V203-000900 | V203-000900-Online |
| 4 | CYLINDER, MUFFLER | 14 | BOLT, H.S, | 900109-05010 | 900109-05010-Online |
| 4 | CYLINDER, MUFFLER | 15 | SPRING WASHER | 900605-00005 | 900605-00005-Online |
| 4 | CYLINDER, MUFFLER | 18 | WASHER | 900603-00005 | 900603-00005-Online |
| 4 | CYLINDER, MUFFLER | 2 | GASKET CYLINDER | V100-000470 | V100-000470-Online |
| 4 | CYLINDER, MUFFLER | 3 | BOLT | 91122-05025 | 91122-05025-Online |
| 4 | CYLINDER, MUFFLER | 5 | INSULATOR | A200-000640 | A200-000640-Online |
| 4 | CYLINDER, MUFFLER | 6 | GASKET | V103-000950 | V103-000950-Online |
| 4 | CYLINDER, MUFFLER | 7 | BOLT,5 | V203-000631 | V203-000631-Online |
| 4 | CYLINDER, MUFFLER | 8 | NUT | V263-000180 | V263-000180-Online |
| 4 | CYLINDER, MUFFLER | 9 | MUFFLER ASSY | A030-000250 | A030-000250-Online |

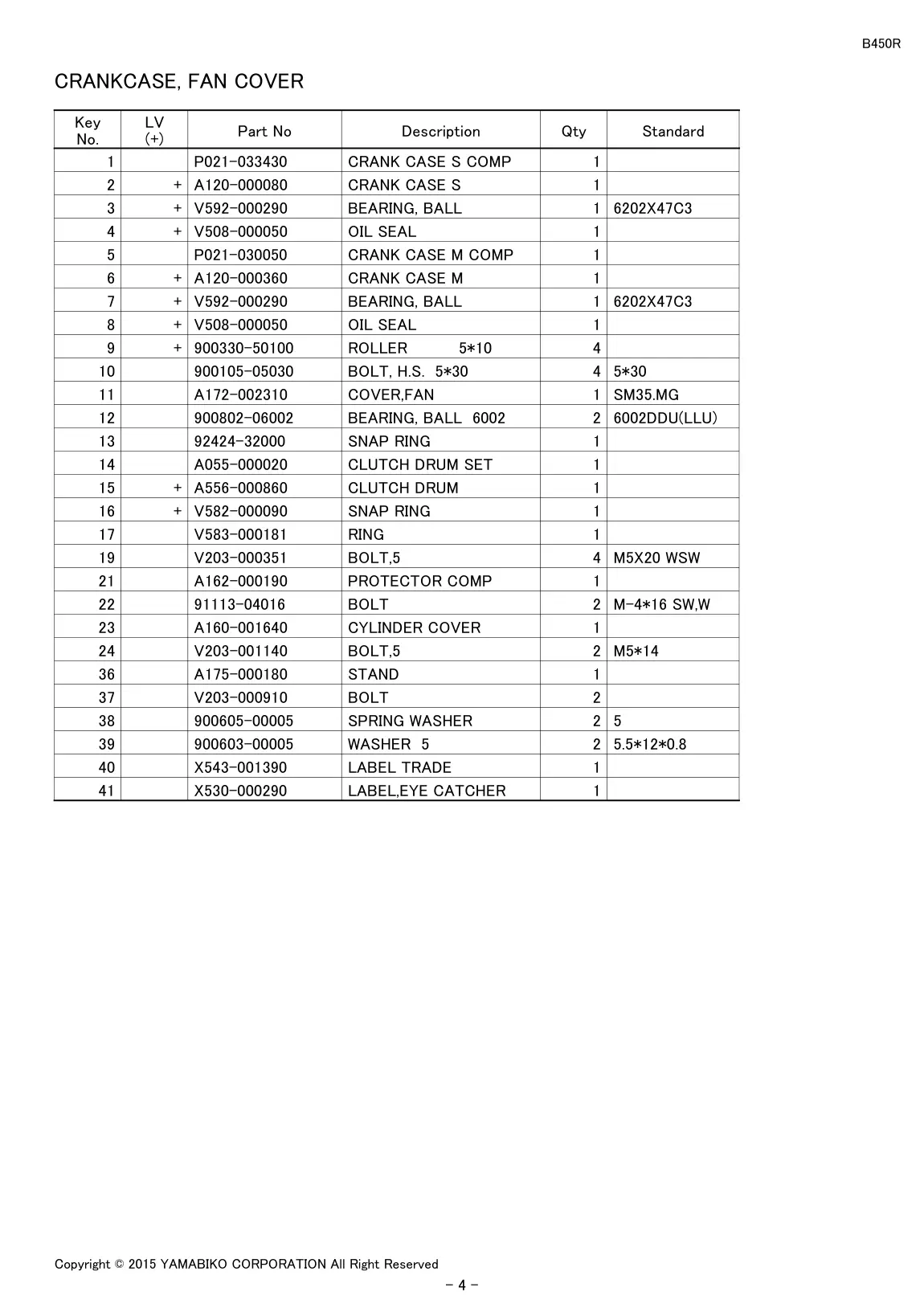

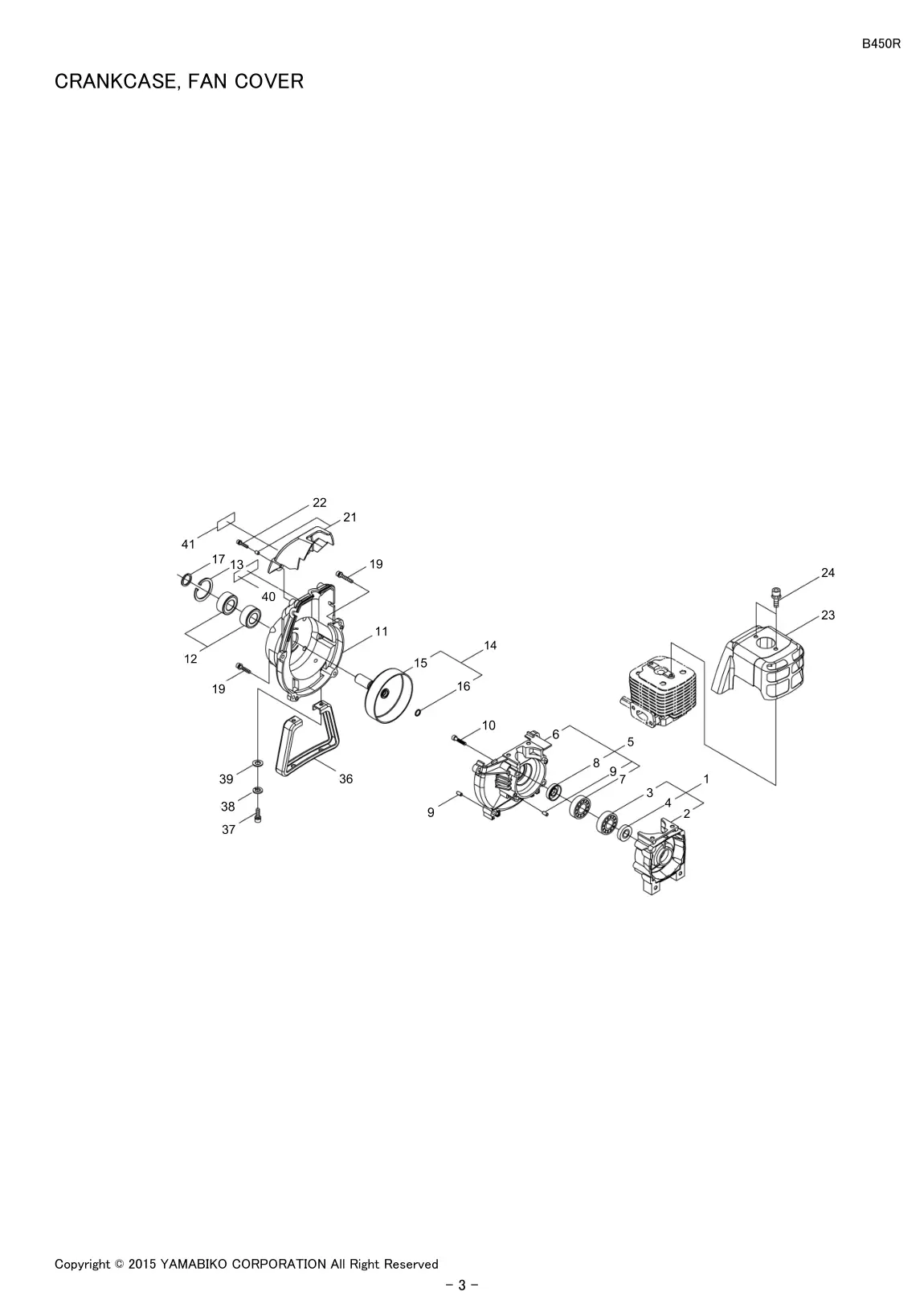

| 6 | CRANKCASE, FAN COVER | 1 | CRANK CASE S COMP | P021-033430 | P021-033430-Online |
| 6 | CRANKCASE, FAN COVER | 10 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 6 | CRANKCASE, FAN COVER | 11 | COVER,FAN | A172-002310 | A172-002310-Online |
| 6 | CRANKCASE, FAN COVER | 12 | BEARING, BALL | 900802-06002 | 900802-06002-Online |
| 6 | CRANKCASE, FAN COVER | 13 | SNAP RING | 92424-32000 | 92424-32000-Online |
| 6 | CRANKCASE, FAN COVER | 14 | CLUTCH DRUM SET | A055-000020 | A055-000020-Online |
| 6 | CRANKCASE, FAN COVER | 15 | CLUTCH DRUM | A556-000860 | A556-000860-Online |
| 6 | CRANKCASE, FAN COVER | 16 | SNAP RING | V582-000090 | V582-000090-Online |
| 6 | CRANKCASE, FAN COVER | 17 | RING | V583-000181 | V583-000181-Online |
| 6 | CRANKCASE, FAN COVER | 19 | BOLT,5 | V203-000351 | V203-000351-Online |
| 6 | CRANKCASE, FAN COVER | 2 | CRANK CASE S | A120-000080 | A120-000080-Online |
| 6 | CRANKCASE, FAN COVER | 21 | PROTECTOR COMP | A162-000190 | A162-000190-Online |
| 6 | CRANKCASE, FAN COVER | 22 | BOLT | 91113-04016 | 91113-04016-Online |
| 6 | CRANKCASE, FAN COVER | 23 | CYLINDER COVER | A160-001640 | A160-001640-Online |
| 6 | CRANKCASE, FAN COVER | 24 | BOLT,5 | V203-001140 | V203-001140-Online |
| 6 | CRANKCASE, FAN COVER | 3 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 6 | CRANKCASE, FAN COVER | 37 | BOLT | V203-000910 | V203-000910-Online |
| 6 | CRANKCASE, FAN COVER | 38 | SPRING WASHER | 900605-00005 | 900605-00005-Online |
| 6 | CRANKCASE, FAN COVER | 39 | WASHER | 900603-00005 | 900603-00005-Online |
| 6 | CRANKCASE, FAN COVER | 4 | OIL SEAL | V508-000050 | V508-000050-Online |
| 6 | CRANKCASE, FAN COVER | 40 | LABEL TRADE | X543-001390 | X543-001390-Online |
| 6 | CRANKCASE, FAN COVER | 41 | LABEL,EYE CATCHER | X530-000290 | X530-000290-Online |
| 6 | CRANKCASE, FAN COVER | 5 | CRANK CASE M COMP | P021-030050 | P021-030050-Online |
| 6 | CRANKCASE, FAN COVER | 6 | CRANK CASE M | A120-000360 | A120-000360-Online |
| 6 | CRANKCASE, FAN COVER | 7 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 6 | CRANKCASE, FAN COVER | 8 | OIL SEAL | V508-000050 | V508-000050-Online |
| 6 | CRANKCASE, FAN COVER | 9 | ROLLER 5*10 | 900330-50100 | 900330-50100-Online |

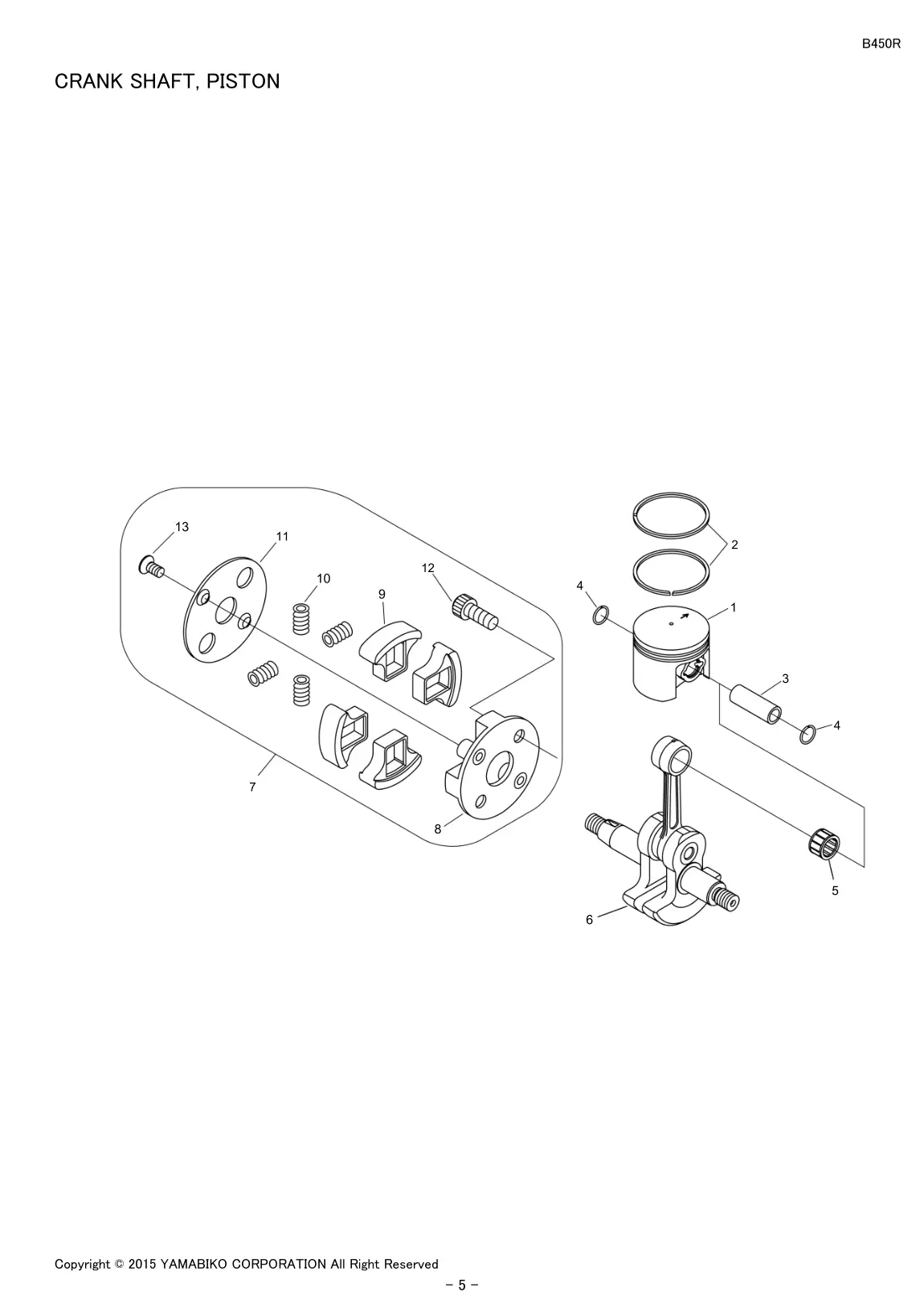

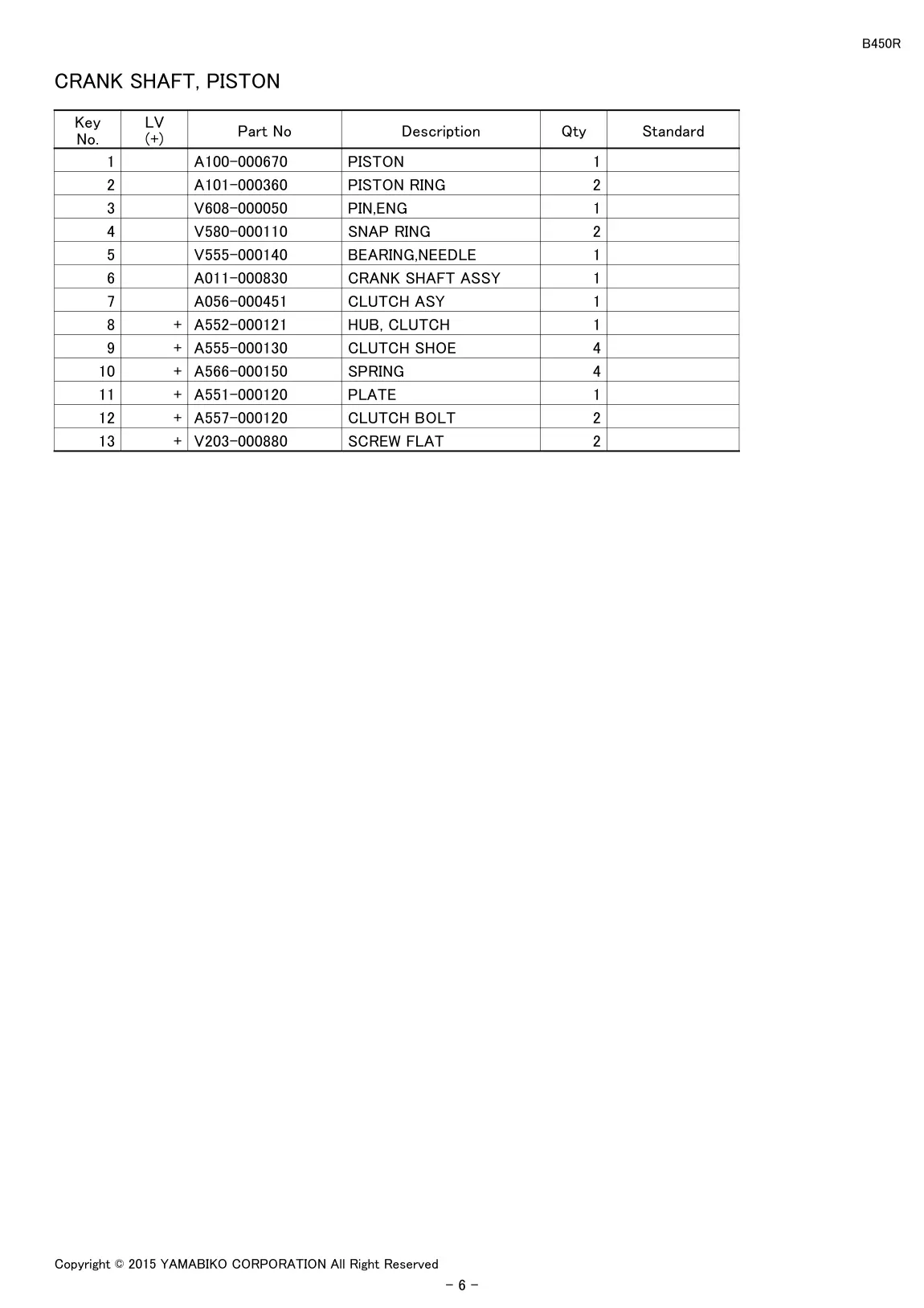

| 8 | CRANK SHAFT, PISTON | 1 | PISTON | A100-000670 | A100-000670-Online |
| 8 | CRANK SHAFT, PISTON | 10 | SPRING | A566-000150 | A566-000150-Online |
| 8 | CRANK SHAFT, PISTON | 11 | PLATE | A551-000120 | A551-000120-Online |
| 8 | CRANK SHAFT, PISTON | 12 | CLUTCH BOLT | A557-000120 | A557-000120-Online |
| 8 | CRANK SHAFT, PISTON | 13 | SCREW FLAT | V203-000880 | V203-000880-Online |
| 8 | CRANK SHAFT, PISTON | 2 | PISTON RING | A101-000360 | A101-000360-Online |
| 8 | CRANK SHAFT, PISTON | 3 | PIN,ENG | V608-000050 | V608-000050-Online |
| 8 | CRANK SHAFT, PISTON | 4 | SNAP RING | V580-000110 | V580-000110-Online |
| 8 | CRANK SHAFT, PISTON | 5 | BEARING,NEEDLE | V555-000140 | V555-000140-Online |
| 8 | CRANK SHAFT, PISTON | 6 | CRANK SHAFT ASSY | A011-000830 | A011-000830-Online |
| 8 | CRANK SHAFT, PISTON | 7 | CLUTCH ASY | A056-000451 | A056-000451-Online |
| 8 | CRANK SHAFT, PISTON | 8 | HUB, CLUTCH | A552-000121 | A552-000121-Online |
| 8 | CRANK SHAFT, PISTON | 9 | CLUTCH SHOE | A555-000130 | A555-000130-Online |

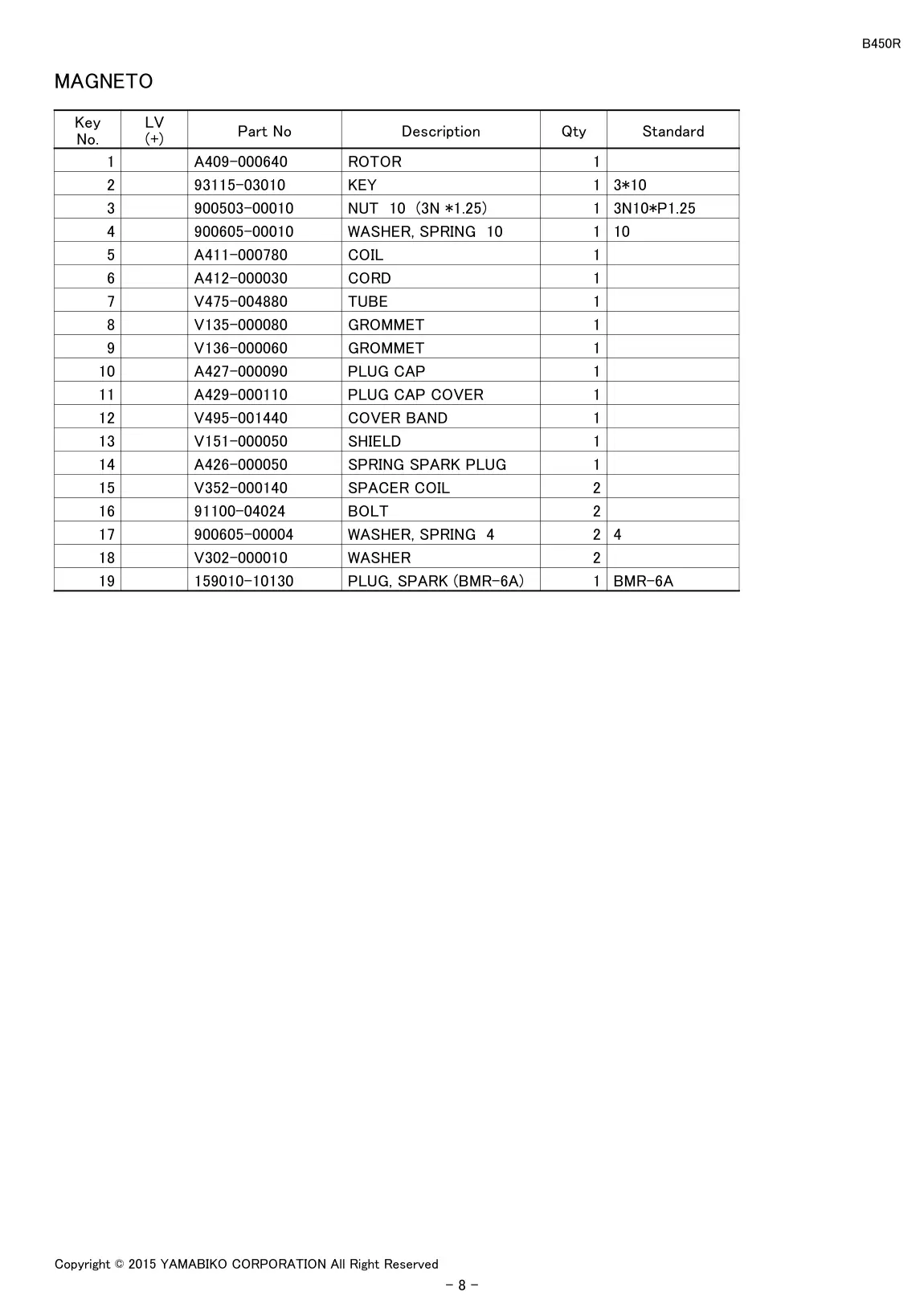

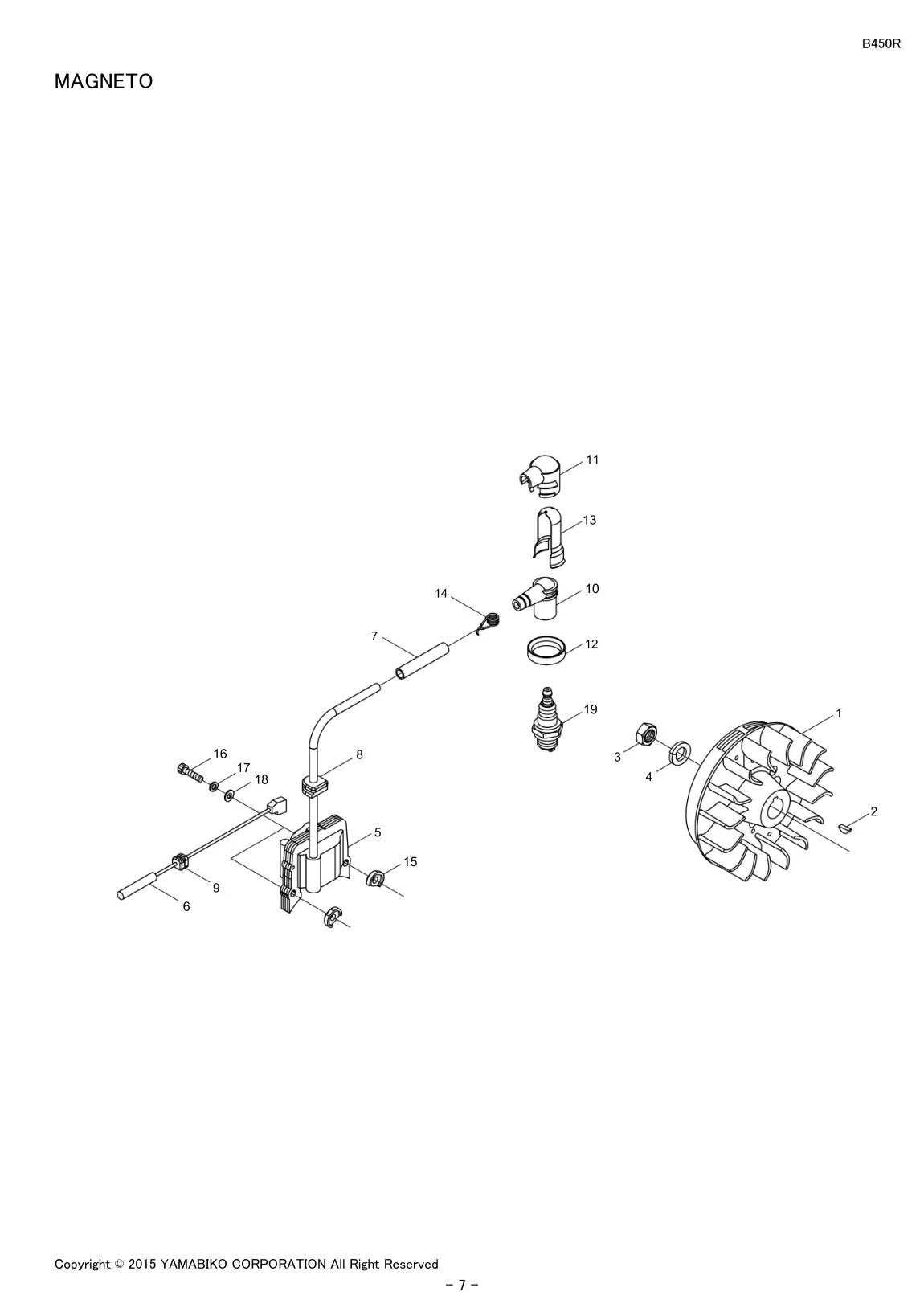

| 10 | MAGNETO | 10 | PLUG CAP | A427-000090 | A427-000090-Online |
| 10 | MAGNETO | 11 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 10 | MAGNETO | 12 | COVER BAND | V495-001440 | V495-001440-Online |
| 10 | MAGNETO | 13 | SHIELD | V151-000050 | V151-000050-Online |
| 10 | MAGNETO | 14 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 10 | MAGNETO | 15 | SPACER COIL | V352-000140 | V352-000140-Online |
| 10 | MAGNETO | 16 | BOLT | 91100-04024 | 91100-04024-Online |
| 10 | MAGNETO | 17 | WASHER, SPRING | 900605-00004 | 900605-00004-Online |
| 10 | MAGNETO | 18 | WASHER | V302-000010 | V302-000010-Online |
| 10 | MAGNETO | 19 | PLUG, SPARK (BMR-6A) | 159010-10130 | 159010-10130-Online |
| 10 | MAGNETO | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 10 | MAGNETO | 3 | NUT 10 (3N *1.25) | 900503-00010 | 900503-00010-Online |
| 10 | MAGNETO | 4 | WASHER, SPRING | 900605-00010 | 900605-00010-Online |
| 10 | MAGNETO | 5 | COIL | A411-000780 | A411-000780-Online |
| 10 | MAGNETO | 7 | TUBE | V475-004880 | V475-004880-Online |
| 10 | MAGNETO | 8 | GROMMET | V135-000080 | V135-000080-Online |
| 10 | MAGNETO | 9 | GROMMET | V136-000060 | V136-000060-Online |

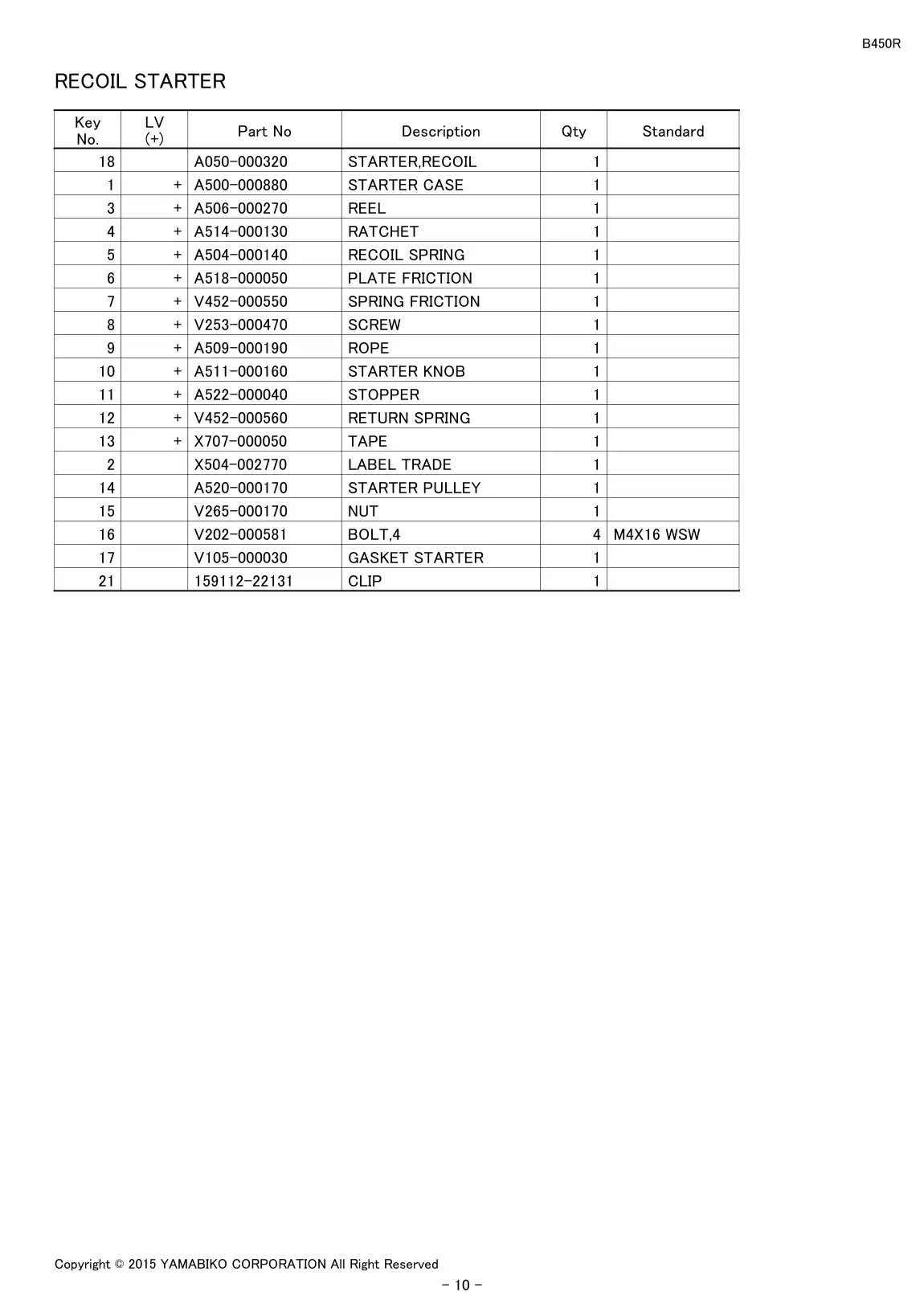

| 12 | RECOIL STARTER | 1 | STARTER CASE | A500-000880 | A500-000880-Online |
| 12 | RECOIL STARTER | 10 | STARTER KNOB | A511-000160 | A511-000160-Online |
| 12 | RECOIL STARTER | 11 | STOPPER | A522-000040 | A522-000040-Online |
| 12 | RECOIL STARTER | 12 | RETURN SPRING | V452-000560 | V452-000560-Online |
| 12 | RECOIL STARTER | 14 | STARTER PULLEY | A520-000170 | A520-000170-Online |
| 12 | RECOIL STARTER | 15 | NUT | V265-000170 | V265-000170-Online |
| 12 | RECOIL STARTER | 16 | BOLT,4 | V202-000581 | V202-000581-Online |
| 12 | RECOIL STARTER | 17 | GASKET STARTER | V105-000030 | V105-000030-Online |
| 12 | RECOIL STARTER | 18 | STARTER,RECOIL | A050-000320 | A050-000320-Online |
| 12 | RECOIL STARTER | 2 | LABEL TRADE | X504-002770 | X504-002770-Online |
| 12 | RECOIL STARTER | 21 | CLIP | 159112-22131 | 159112-22131-Online |
| 12 | RECOIL STARTER | 3 | REEL | A506-000270 | A506-000270-Online |
| 12 | RECOIL STARTER | 4 | RATCHET | A514-000130 | A514-000130-Online |
| 12 | RECOIL STARTER | 5 | RECOIL SPRING | A504-000140 | A504-000140-Online |
| 12 | RECOIL STARTER | 6 | PLATE FRICTION | A518-000050 | A518-000050-Online |
| 12 | RECOIL STARTER | 7 | SPRING FRICTION | V452-000550 | V452-000550-Online |
| 12 | RECOIL STARTER | 8 | SCREW | V253-000470 | V253-000470-Online |
| 12 | RECOIL STARTER | 9 | ROPE | A509-000190 | A509-000190-Online |

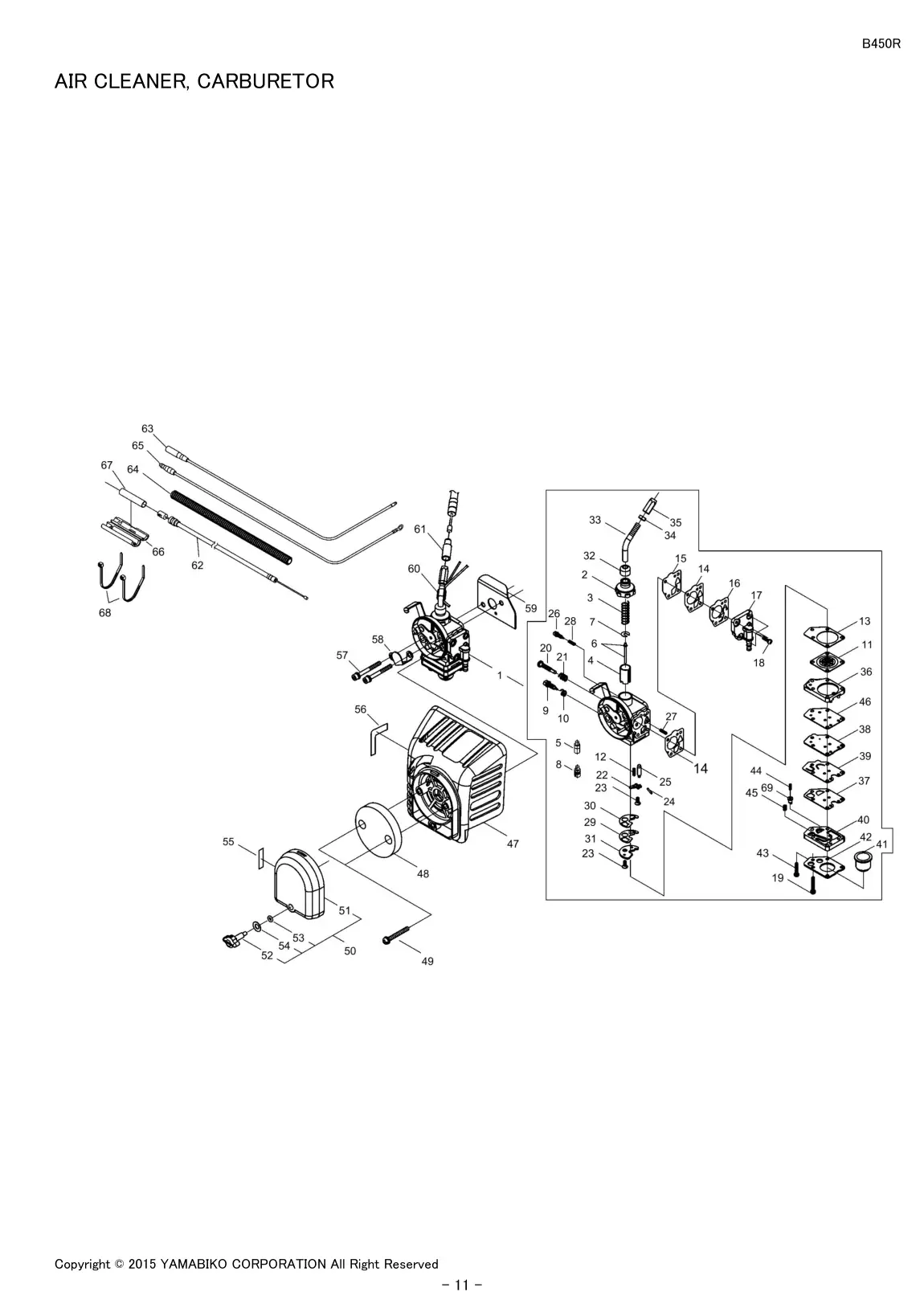

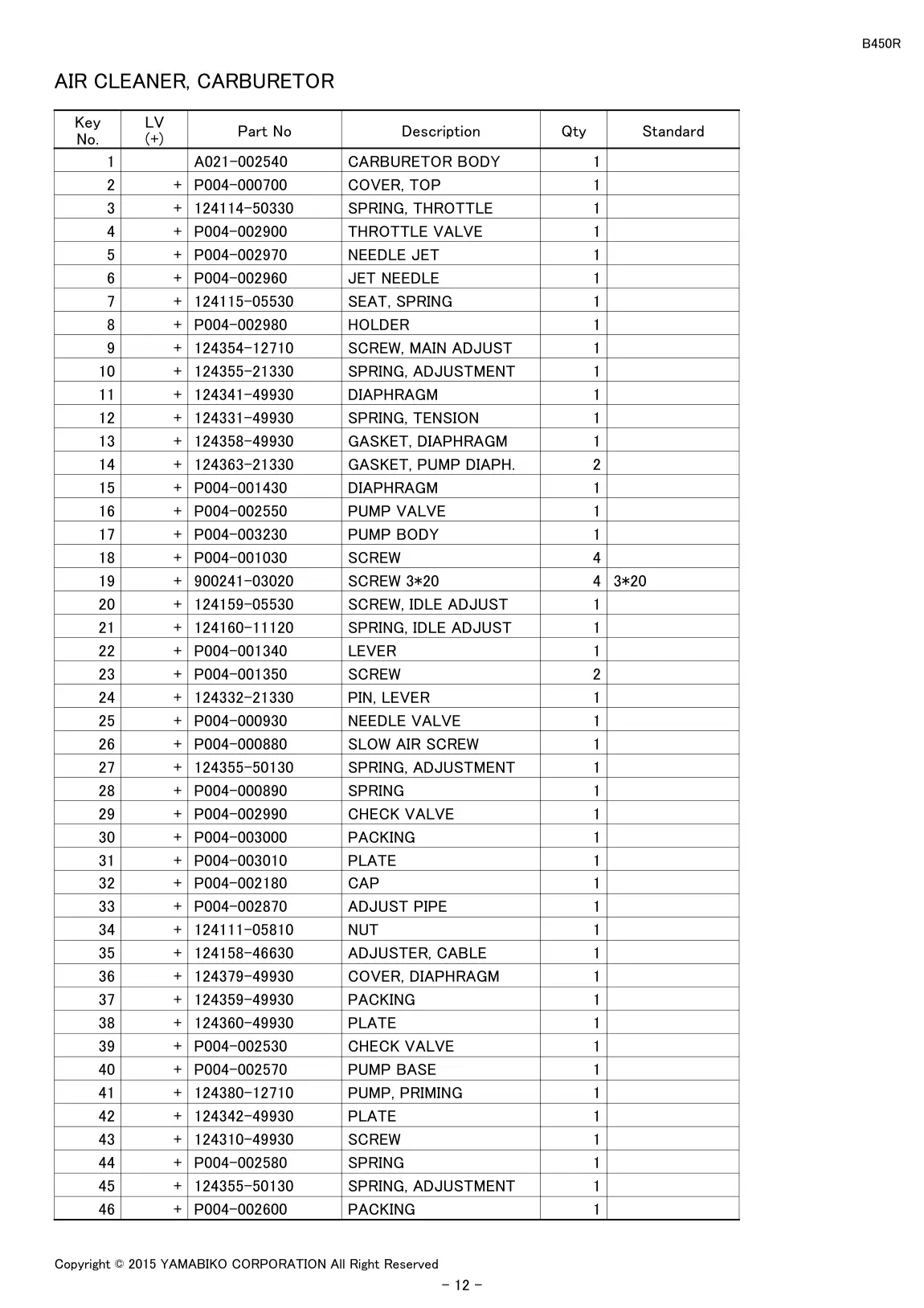

| 14 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR BODY | A021-002540 | A021-002540-Online |
| 14 | AIR CLEANER, CARBURETOR | 10 | SPRING, ADJUSTMENT | 124355-21330 | 124355-21330-Online |
| 14 | AIR CLEANER, CARBURETOR | 11 | DIAPHRAGM | 124341-49930 | 124341-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 12 | SPRING, TENSION | 124331-49930 | 124331-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 13 | GASKET, DIAPHRAGM | 124358-49930 | 124358-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 14 | GASKET, PUMP DIAPH. | 124363-21330 | 124363-21330-Online |
| 14 | AIR CLEANER, CARBURETOR | 15 | DIAPHRAGM | P004-001430 | P004-001430-Online |
| 14 | AIR CLEANER, CARBURETOR | 16 | PUMP VALVE | P004-002550 | P004-002550-Online |
| 14 | AIR CLEANER, CARBURETOR | 17 | PUMP BODY | P004-003230 | P004-003230-Online |
| 14 | AIR CLEANER, CARBURETOR | 18 | SCREW | P004-001030 | P004-001030-Online |
| 14 | AIR CLEANER, CARBURETOR | 19 | SCREW 3*20 | 900241-03020 | 900241-03020-Online |
| 14 | AIR CLEANER, CARBURETOR | 2 | COVER, TOP | P004-000700 | P004-000700-Online |
| 14 | AIR CLEANER, CARBURETOR | 20 | SCREW, IDLE ADJUST | 124159-05530 | 124159-05530-Online |
| 14 | AIR CLEANER, CARBURETOR | 21 | SPRING, IDLE ADJUST | 124160-11120 | 124160-11120-Online |
| 14 | AIR CLEANER, CARBURETOR | 22 | LEVER | P004-001340 | P004-001340-Online |
| 14 | AIR CLEANER, CARBURETOR | 23 | SCREW | P004-001350 | P004-001350-Online |
| 14 | AIR CLEANER, CARBURETOR | 24 | PIN, LEVER | 124332-21330 | 124332-21330-Online |
| 14 | AIR CLEANER, CARBURETOR | 25 | NEEDLE VALVE | P004-000930 | P004-000930-Online |
| 14 | AIR CLEANER, CARBURETOR | 26 | SLOW AIR SCREW | P004-000880 | P004-000880-Online |
| 14 | AIR CLEANER, CARBURETOR | 27 | SPRING, ADJUSTMENT | 124355-50130 | 124355-50130-Online |
| 14 | AIR CLEANER, CARBURETOR | 28 | SPRING | P004-000890 | P004-000890-Online |
| 14 | AIR CLEANER, CARBURETOR | 29 | CHECK VALVE | P004-002990 | P004-002990-Online |
| 14 | AIR CLEANER, CARBURETOR | 3 | SPRING, THROTTLE | 124114-50330 | 124114-50330-Online |
| 14 | AIR CLEANER, CARBURETOR | 30 | PACKING | P004-003000 | P004-003000-Online |
| 14 | AIR CLEANER, CARBURETOR | 31 | PLATE | P004-003010 | P004-003010-Online |
| 14 | AIR CLEANER, CARBURETOR | 32 | CAP | P004-002180 | P004-002180-Online |
| 14 | AIR CLEANER, CARBURETOR | 33 | ADJUST PIPE | P004-002870 | P004-002870-Online |
| 14 | AIR CLEANER, CARBURETOR | 34 | NUT | 124111-05810 | 124111-05810-Online |
| 14 | AIR CLEANER, CARBURETOR | 35 | ADJUSTER, CABLE | 124158-46630 | 124158-46630-Online |
| 14 | AIR CLEANER, CARBURETOR | 36 | COVER, DIAPHRAGM | 124379-49930 | 124379-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 37 | PACKING | 124359-49930 | 124359-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 38 | PLATE | 124360-49930 | 124360-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 39 | CHECK VALVE | P004-002530 | P004-002530-Online |
| 14 | AIR CLEANER, CARBURETOR | 4 | THROTTLE VALVE | P004-002900 | P004-002900-Online |
| 14 | AIR CLEANER, CARBURETOR | 40 | PUMP BASE | P004-002570 | P004-002570-Online |
| 14 | AIR CLEANER, CARBURETOR | 41 | PUMP, PRIMING | 124380-12710 | 124380-12710-Online |
| 14 | AIR CLEANER, CARBURETOR | 42 | PLATE | 124342-49930 | 124342-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 43 | SCREW | 124310-49930 | 124310-49930-Online |
| 14 | AIR CLEANER, CARBURETOR | 44 | SPRING | P004-002580 | P004-002580-Online |
| 14 | AIR CLEANER, CARBURETOR | 45 | SPRING, ADJUSTMENT | 124355-50130 | 124355-50130-Online |
| 14 | AIR CLEANER, CARBURETOR | 46 | PACKING | P004-002600 | P004-002600-Online |
| 14 | AIR CLEANER, CARBURETOR | 5 | NEEDLE JET | P004-002970 | P004-002970-Online |
| 14 | AIR CLEANER, CARBURETOR | 6 | JET NEEDLE | P004-002960 | P004-002960-Online |
| 14 | AIR CLEANER, CARBURETOR | 7 | SEAT, SPRING | 124115-05530 | 124115-05530-Online |
| 14 | AIR CLEANER, CARBURETOR | 8 | HOLDER | P004-002980 | P004-002980-Online |
| 14 | AIR CLEANER, CARBURETOR | 9 | SCREW, MAIN ADJUST | 124354-12710 | 124354-12710-Online |

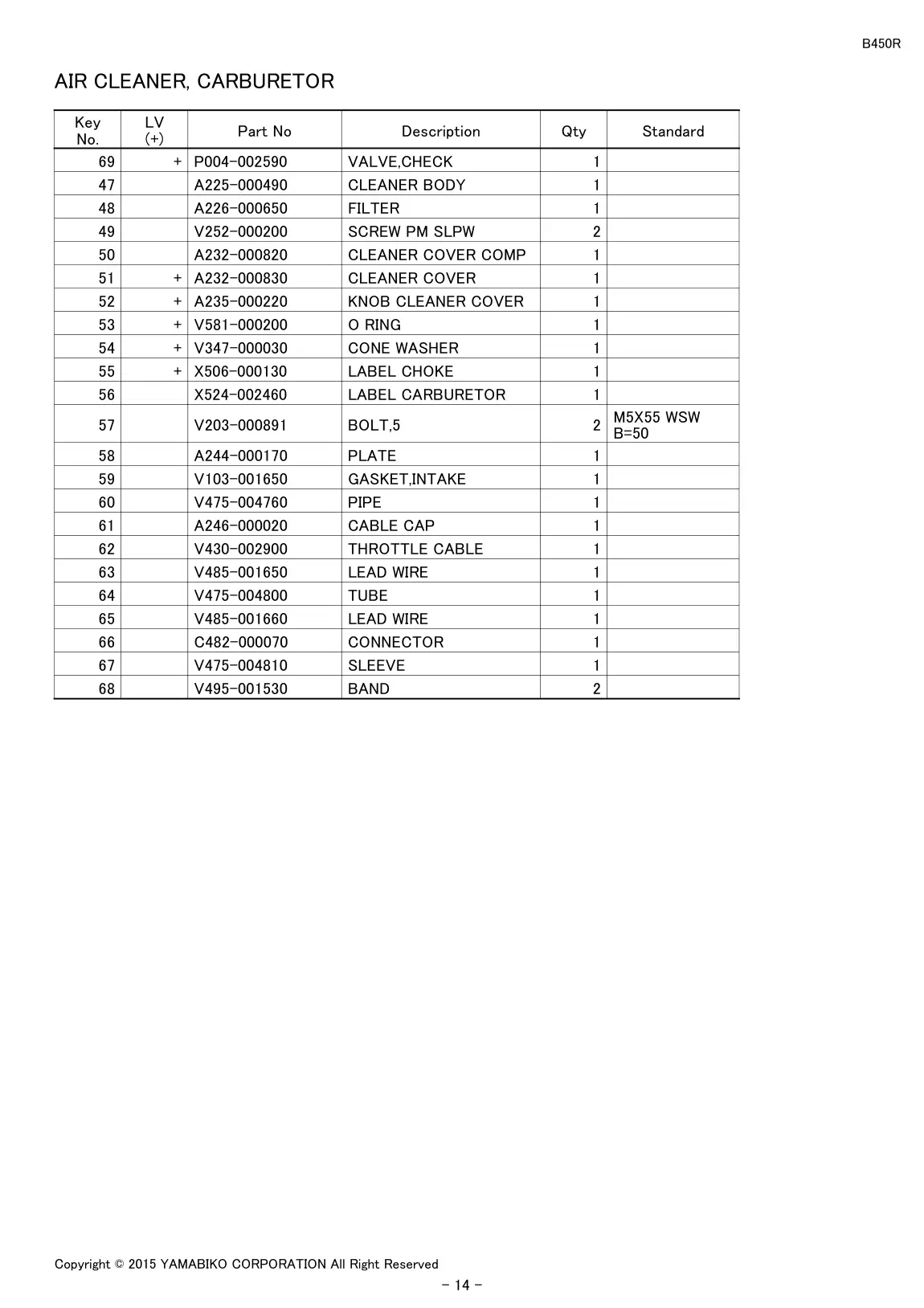

| 16 | AIR CLEANER, CARBURETOR | 47 | CLEANER BODY | A225-000490 | A225-000490-Online |
| 16 | AIR CLEANER, CARBURETOR | 48 | FILTER | A226-000650 | A226-000650-Online |
| 16 | AIR CLEANER, CARBURETOR | 49 | SCREW PM SLPW | V252-000200 | V252-000200-Online |
| 16 | AIR CLEANER, CARBURETOR | 50 | CLEANER COVER COMP | A232-000820 | A232-000820-Online |
| 16 | AIR CLEANER, CARBURETOR | 51 | CLEANER COVER | A232-000830 | A232-000830-Online |
| 16 | AIR CLEANER, CARBURETOR | 52 | KNOB CLEANER COVER | A235-000220 | A235-000220-Online |
| 16 | AIR CLEANER, CARBURETOR | 53 | O RING | V581-000200 | V581-000200-Online |
| 16 | AIR CLEANER, CARBURETOR | 54 | CONE WASHER | V347-000030 | V347-000030-Online |
| 16 | AIR CLEANER, CARBURETOR | 55 | LABEL CHOKE | X506-000130 | X506-000130-Online |
| 16 | AIR CLEANER, CARBURETOR | 56 | LABEL CARBURETOR | X524-002460 | X524-002460-Online |
| 16 | AIR CLEANER, CARBURETOR | 57 | BOLT,5 | V203-000891 | V203-000891-Online |
| 16 | AIR CLEANER, CARBURETOR | 58 | PLATE | A244-000170 | A244-000170-Online |
| 16 | AIR CLEANER, CARBURETOR | 59 | GASKET,INTAKE | V103-001650 | V103-001650-Online |
| 16 | AIR CLEANER, CARBURETOR | 60 | PIPE | V475-004760 | V475-004760-Online |
| 16 | AIR CLEANER, CARBURETOR | 61 | CABLE CAP | A246-000020 | A246-000020-Online |
| 16 | AIR CLEANER, CARBURETOR | 62 | THROTTLE CABLE | V430-002900 | V430-002900-Online |
| 16 | AIR CLEANER, CARBURETOR | 63 | LEAD WIRE | V485-001650 | V485-001650-Online |
| 16 | AIR CLEANER, CARBURETOR | 64 | TUBE | V475-004800 | V475-004800-Online |
| 16 | AIR CLEANER, CARBURETOR | 65 | LEAD WIRE | V485-001660 | V485-001660-Online |
| 16 | AIR CLEANER, CARBURETOR | 66 | CONNECTOR | C482-000070 | C482-000070-Online |
| 16 | AIR CLEANER, CARBURETOR | 67 | SLEEVE | V475-004810 | V475-004810-Online |
| 16 | AIR CLEANER, CARBURETOR | 68 | BAND | V495-001530 | V495-001530-Online |
| 16 | AIR CLEANER, CARBURETOR | 69 | VALVE,CHECK | P004-002590 | P004-002590-Online |

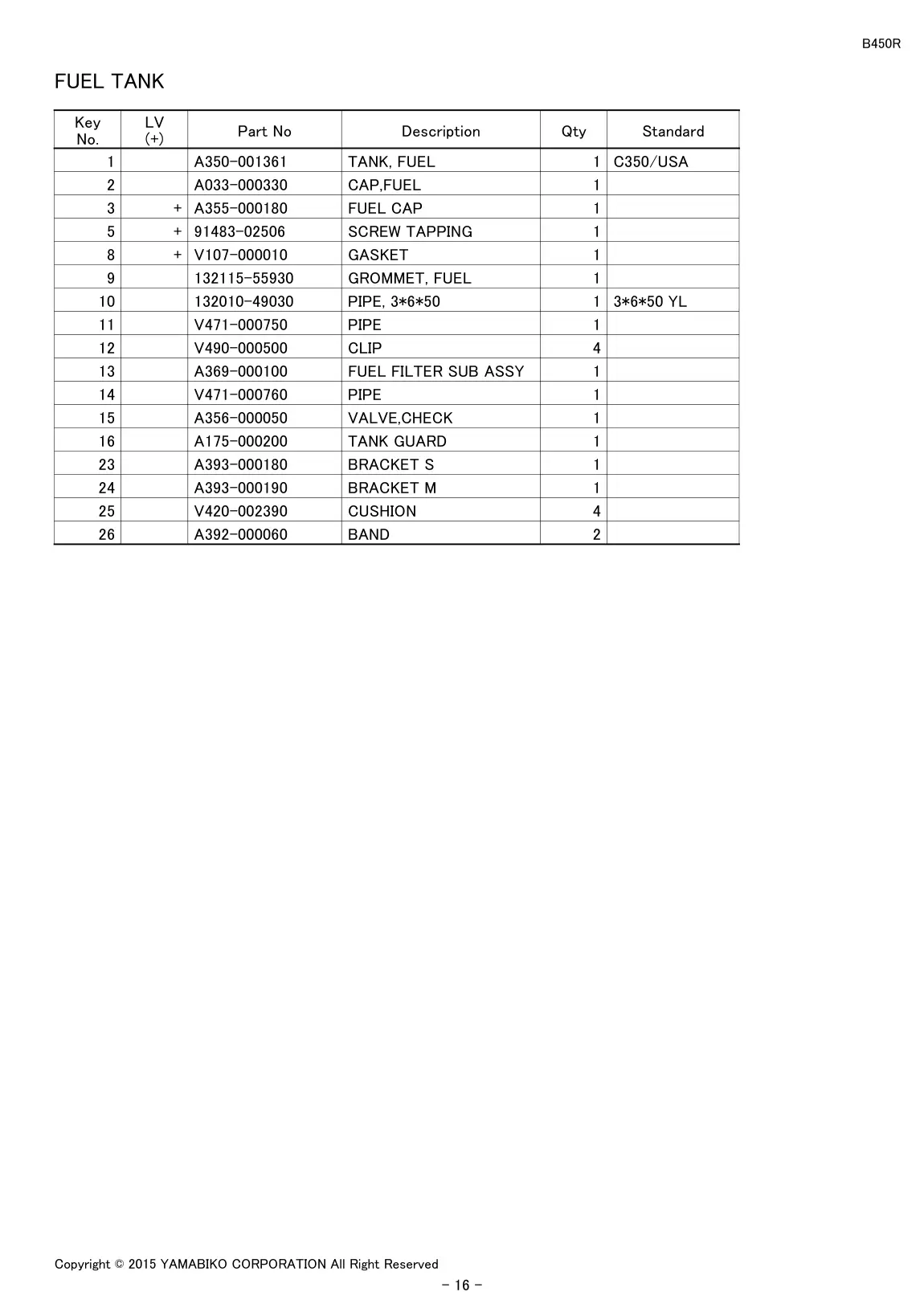

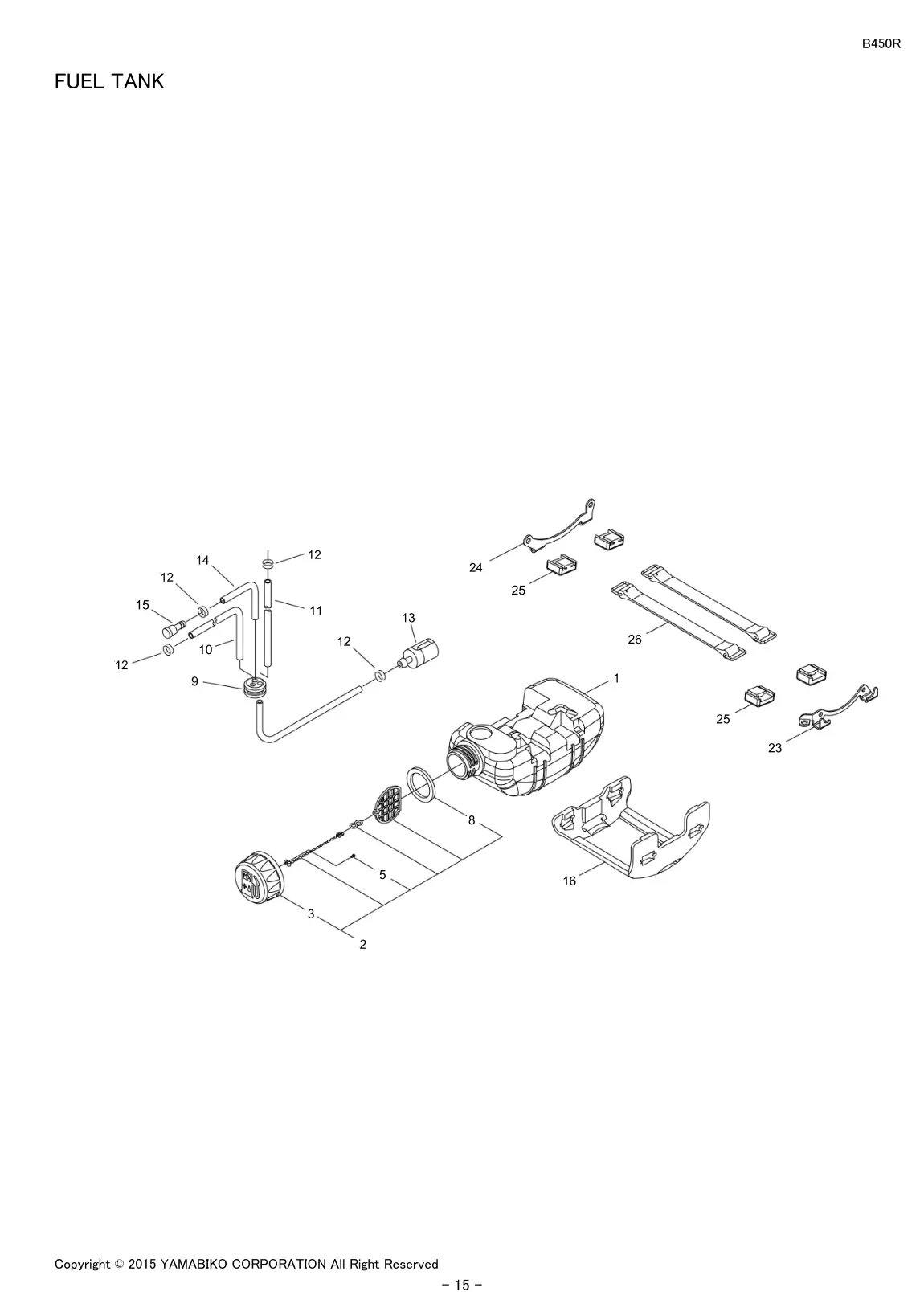

| 18 | FUEL TANK | 1 | TANK, FUEL | A350-001361 | A350-001361-Online |
| 18 | FUEL TANK | 10 | PIPE, 3*6*50 | 132010-49030 | 132010-49030-Online |
| 18 | FUEL TANK | 11 | PIPE | V471-000750 | V471-000750-Online |
| 18 | FUEL TANK | 12 | CLIP | V490-000500 | V490-000500-Online |
| 18 | FUEL TANK | 13 | FUEL FILTER SUB ASSY | A369-000100 | A369-000100-Online |
| 18 | FUEL TANK | 14 | PIPE | V471-000760 | V471-000760-Online |
| 18 | FUEL TANK | 15 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 18 | FUEL TANK | 16 | TANK GUARD | A175-000200 | A175-000200-Online |
| 18 | FUEL TANK | 2 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 18 | FUEL TANK | 23 | BRACKET S | A393-000180 | A393-000180-Online |
| 18 | FUEL TANK | 24 | BRACKET M | A393-000190 | A393-000190-Online |
| 18 | FUEL TANK | 25 | CUSHION | V420-002390 | V420-002390-Online |
| 18 | FUEL TANK | 26 | BAND | A392-000060 | A392-000060-Online |
| 18 | FUEL TANK | 3 | FUEL CAP | A355-000180 | A355-000180-Online |
| 18 | FUEL TANK | 5 | SCREW TAPPING | 91483-02506 | 91483-02506-Online |
| 18 | FUEL TANK | 8 | GASKET | V107-000010 | V107-000010-Online |
| 18 | FUEL TANK | 9 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |

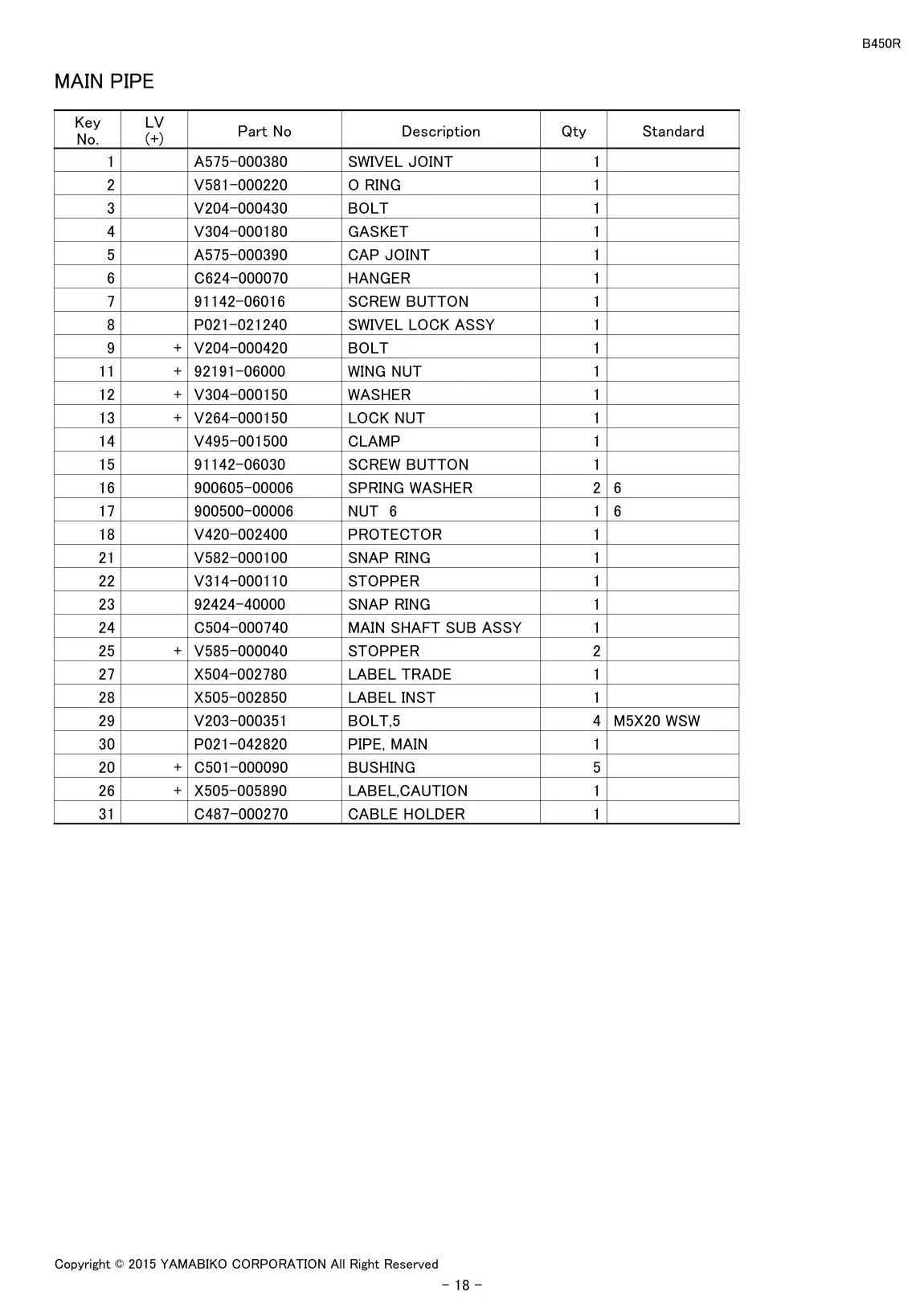

| 20 | MAIN PIPE | 1 | SWIVEL JOINT | A575-000380 | A575-000380-Online |
| 20 | MAIN PIPE | 11 | WING NUT | 92191-06000 | 92191-06000-Online |
| 20 | MAIN PIPE | 12 | WASHER | V304-000150 | V304-000150-Online |
| 20 | MAIN PIPE | 13 | LOCK NUT | V264-000150 | V264-000150-Online |
| 20 | MAIN PIPE | 15 | SCREW BUTTON | 91142-06030 | 91142-06030-Online |
| 20 | MAIN PIPE | 16 | SPRING WASHER | 900605-00006 | 900605-00006-Online |
| 20 | MAIN PIPE | 17 | NUT | 900500-00006 | 900500-00006-Online |
| 20 | MAIN PIPE | 18 | PROTECTOR | V420-002400 | V420-002400-Online |
| 20 | MAIN PIPE | 2 | O RING | V581-000220 | V581-000220-Online |
| 20 | MAIN PIPE | 20 | BUSHING | C501-000090 | C501-000090-Online |
| 20 | MAIN PIPE | 21 | SNAP RING | V582-000100 | V582-000100-Online |
| 20 | MAIN PIPE | 22 | STOPPER | V314-000110 | V314-000110-Online |
| 20 | MAIN PIPE | 23 | SNAP RING | 92424-40000 | 92424-40000-Online |
| 20 | MAIN PIPE | 24 | MAIN SHAFT SUB ASSY | C504-000740 | C504-000740-Online |
| 20 | MAIN PIPE | 25 | STOPPER | V585-000040 | V585-000040-Online |
| 20 | MAIN PIPE | 26 | LABEL,CAUTION | X505-005890 | X505-005890-Online |
| 20 | MAIN PIPE | 27 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 20 | MAIN PIPE | 28 | LABEL INST | X505-002850 | X505-002850-Online |
| 20 | MAIN PIPE | 29 | BOLT,5 | V203-000351 | V203-000351-Online |
| 20 | MAIN PIPE | 3 | BOLT | V204-000430 | V204-000430-Online |
| 20 | MAIN PIPE | 30 | PIPE, MAIN | P021-042820 | P021-042820-Online |
| 20 | MAIN PIPE | 31 | CABLE HOLDER | C487-000270 | C487-000270-Online |
| 20 | MAIN PIPE | 4 | GASKET | V304-000180 | V304-000180-Online |
| 20 | MAIN PIPE | 5 | CAP JOINT | A575-000390 | A575-000390-Online |
| 20 | MAIN PIPE | 6 | HANGER | C624-000070 | C624-000070-Online |
| 20 | MAIN PIPE | 7 | SCREW BUTTON | 91142-06016 | 91142-06016-Online |
| 20 | MAIN PIPE | 8 | SWIVEL LOCK ASSY | P021-021240 | P021-021240-Online |
| 20 | MAIN PIPE | 9 | BOLT | V204-000420 | V204-000420-Online |

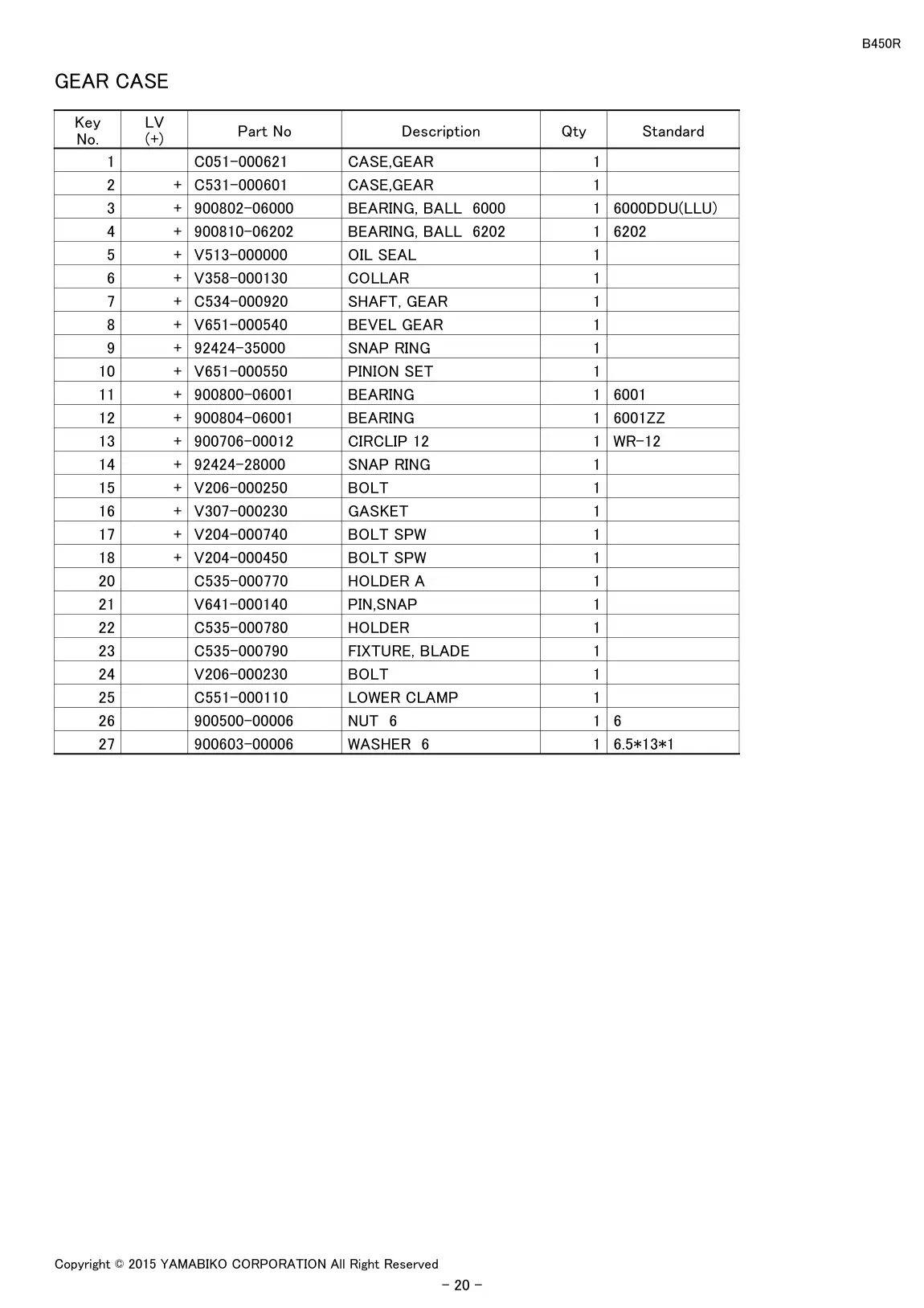

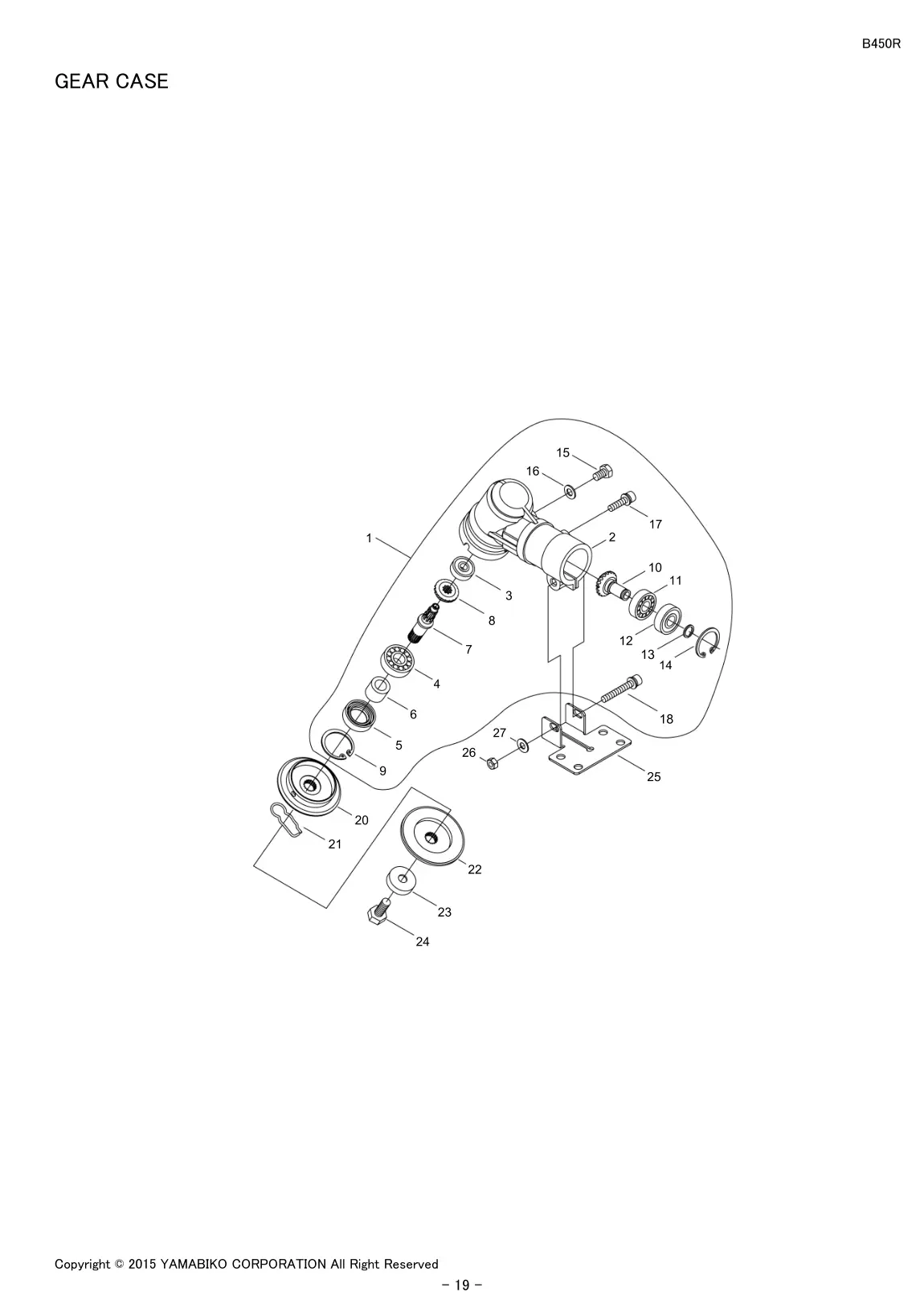

| 22 | GEAR CASE | 1 | CASE,GEAR | C051-000621 | C051-000621-Online |
| 22 | GEAR CASE | 10 | PINION SET | V651-000550 | V651-000550-Online |
| 22 | GEAR CASE | 11 | BEARING | 900800-06001 | 900800-06001-Online |
| 22 | GEAR CASE | 12 | BEARING | 900804-06001 | 900804-06001-Online |
| 22 | GEAR CASE | 13 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 22 | GEAR CASE | 14 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 22 | GEAR CASE | 15 | BOLT | V206-000250 | V206-000250-Online |
| 22 | GEAR CASE | 16 | GASKET | V307-000230 | V307-000230-Online |
| 22 | GEAR CASE | 17 | BOLT SPW | V204-000740 | V204-000740-Online |
| 22 | GEAR CASE | 18 | BOLT SPW | V204-000450 | V204-000450-Online |
| 22 | GEAR CASE | 2 | CASE,GEAR | C531-000601 | C531-000601-Online |
| 22 | GEAR CASE | 20 | HOLDER A | C535-000770 | C535-000770-Online |
| 22 | GEAR CASE | 21 | PIN,SNAP | V641-000140 | V641-000140-Online |
| 22 | GEAR CASE | 22 | HOLDER | C535-000780 | C535-000780-Online |
| 22 | GEAR CASE | 23 | FIXTURE, BLADE | C535-000790 | C535-000790-Online |
| 22 | GEAR CASE | 24 | BOLT | V206-000230 | V206-000230-Online |
| 22 | GEAR CASE | 25 | LOWER CLAMP | C551-000110 | C551-000110-Online |
| 22 | GEAR CASE | 26 | NUT | 900500-00006 | 900500-00006-Online |
| 22 | GEAR CASE | 27 | WASHER | 900603-00006 | 900603-00006-Online |
| 22 | GEAR CASE | 3 | BEARING, BALL | 900802-06000 | 900802-06000-Online |
| 22 | GEAR CASE | 4 | BEARING, BALL | 900810-06202 | 900810-06202-Online |
| 22 | GEAR CASE | 5 | OIL SEAL | V513-000000 | V513-000000-Online |
| 22 | GEAR CASE | 6 | COLLAR | V358-000130 | V358-000130-Online |
| 22 | GEAR CASE | 7 | SHAFT, GEAR | C534-000920 | C534-000920-Online |
| 22 | GEAR CASE | 8 | BEVEL GEAR | V651-000540 | V651-000540-Online |
| 22 | GEAR CASE | 9 | SNAP RING | 92424-35000 | 92424-35000-Online |

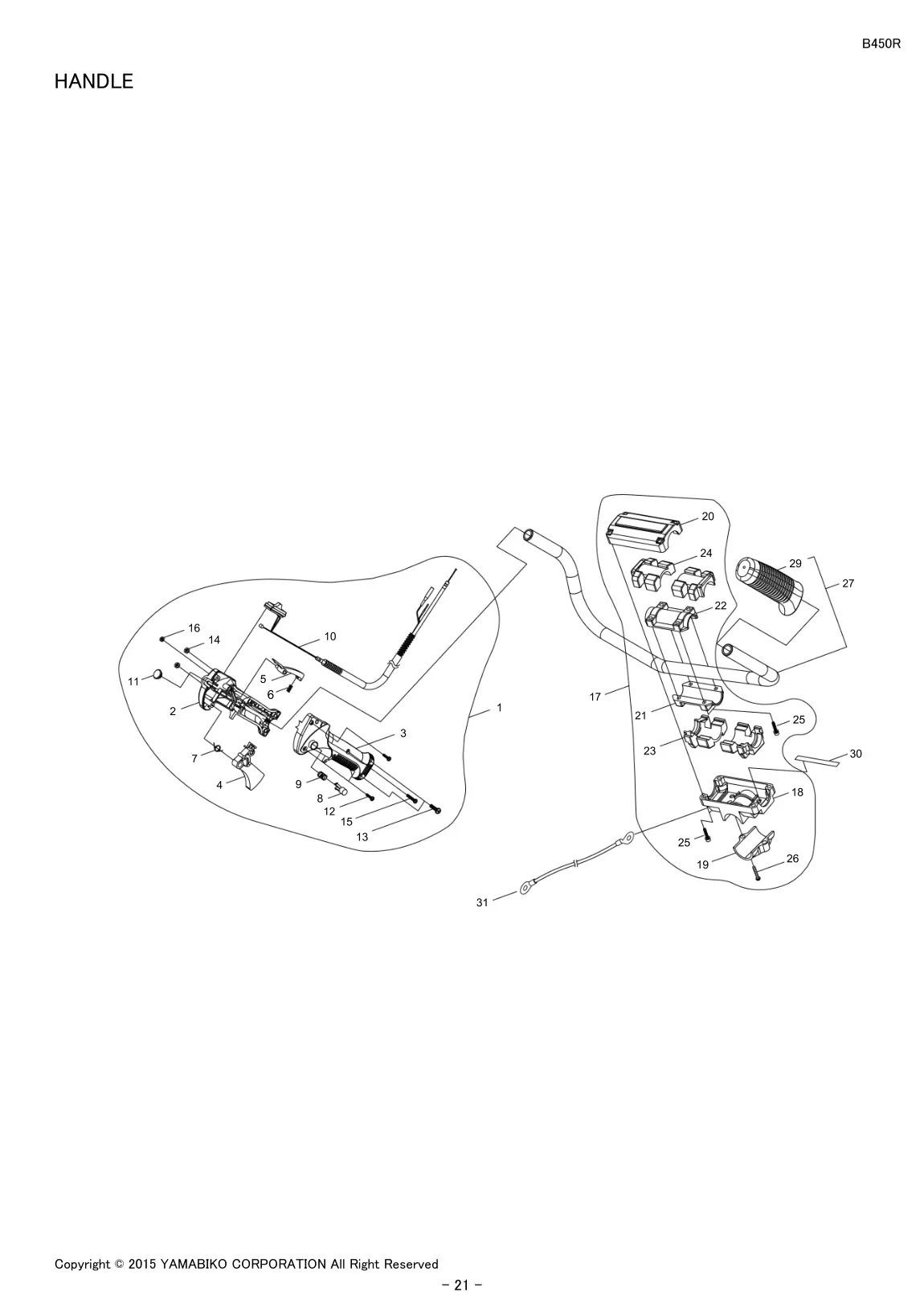

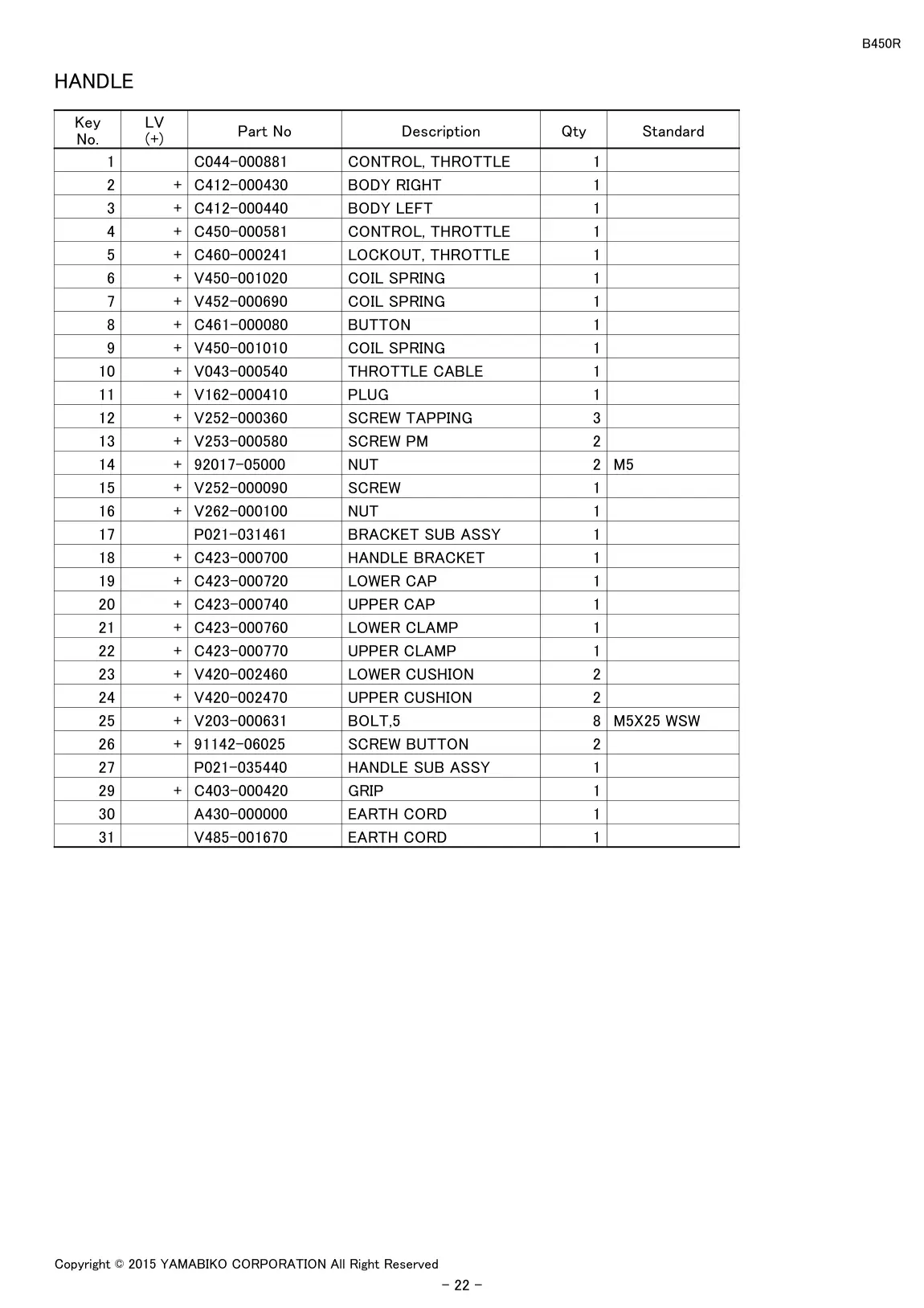

| 24 | HANDLE | 1 | CONTROL, THROTTLE | C044-000881 | C044-000881-Online |
| 24 | HANDLE | 10 | THROTTLE CABLE | V043-000540 | V043-000540-Online |
| 24 | HANDLE | 11 | PLUG | V162-000410 | V162-000410-Online |
| 24 | HANDLE | 12 | SCREW TAPPING | V252-000360 | V252-000360-Online |
| 24 | HANDLE | 13 | SCREW PM | V253-000580 | V253-000580-Online |
| 24 | HANDLE | 14 | NUT | 92017-05000 | 92017-05000-Online |
| 24 | HANDLE | 15 | SCREW | V252-000090 | V252-000090-Online |
| 24 | HANDLE | 16 | NUT | V262-000100 | V262-000100-Online |
| 24 | HANDLE | 17 | BRACKET SUB ASSY | P021-031461 | P021-031461-Online |
| 24 | HANDLE | 18 | HANDLE BRACKET | C423-000700 | C423-000700-Online |
| 24 | HANDLE | 19 | LOWER CAP | C423-000720 | C423-000720-Online |
| 24 | HANDLE | 2 | BODY RIGHT | C412-000430 | C412-000430-Online |
| 24 | HANDLE | 20 | UPPER CAP | C423-000740 | C423-000740-Online |
| 24 | HANDLE | 21 | LOWER CLAMP | C423-000760 | C423-000760-Online |
| 24 | HANDLE | 22 | UPPER CLAMP | C423-000770 | C423-000770-Online |
| 24 | HANDLE | 23 | LOWER CUSHION | V420-002460 | V420-002460-Online |
| 24 | HANDLE | 24 | UPPER CUSHION | V420-002470 | V420-002470-Online |
| 24 | HANDLE | 25 | BOLT,5 | V203-000631 | V203-000631-Online |
| 24 | HANDLE | 26 | SCREW BUTTON | 91142-06025 | 91142-06025-Online |
| 24 | HANDLE | 27 | HANDLE SUB ASSY | P021-035440 | P021-035440-Online |
| 24 | HANDLE | 29 | GRIP | C403-000420 | C403-000420-Online |
| 24 | HANDLE | 3 | BODY LEFT | C412-000440 | C412-000440-Online |
| 24 | HANDLE | 30 | EARTH CORD | A430-000000 | A430-000000-Online |
| 24 | HANDLE | 31 | EARTH CORD | V485-001670 | V485-001670-Online |
| 24 | HANDLE | 4 | CONTROL, THROTTLE | C450-000581 | C450-000581-Online |
| 24 | HANDLE | 5 | LOCKOUT, THROTTLE | C460-000241 | C460-000241-Online |
| 24 | HANDLE | 6 | COIL SPRING | V450-001020 | V450-001020-Online |
| 24 | HANDLE | 7 | COIL SPRING | V452-000690 | V452-000690-Online |
| 24 | HANDLE | 8 | BUTTON | C461-000080 | C461-000080-Online |
| 24 | HANDLE | 9 | COIL SPRING | V450-001010 | V450-001010-Online |

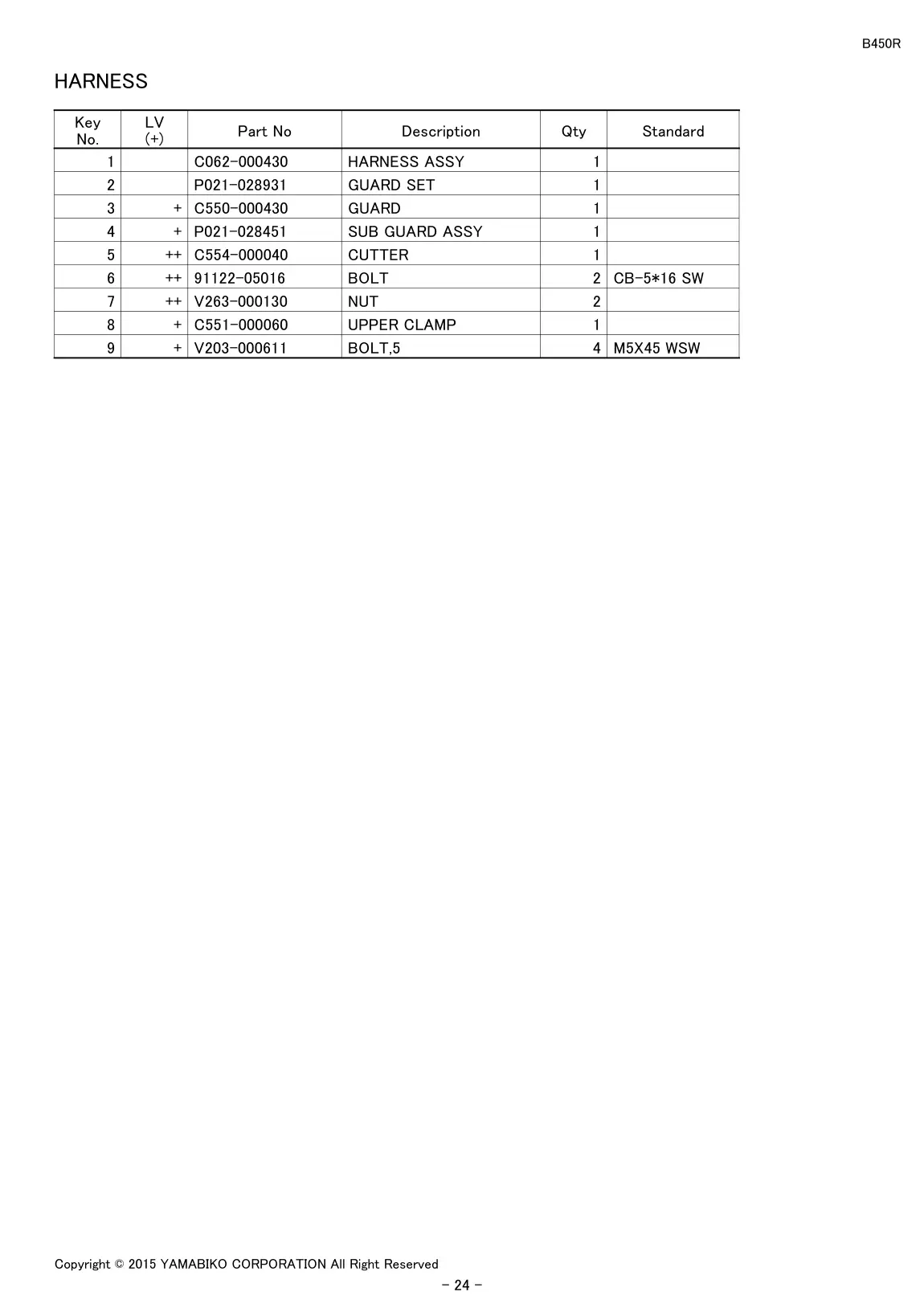

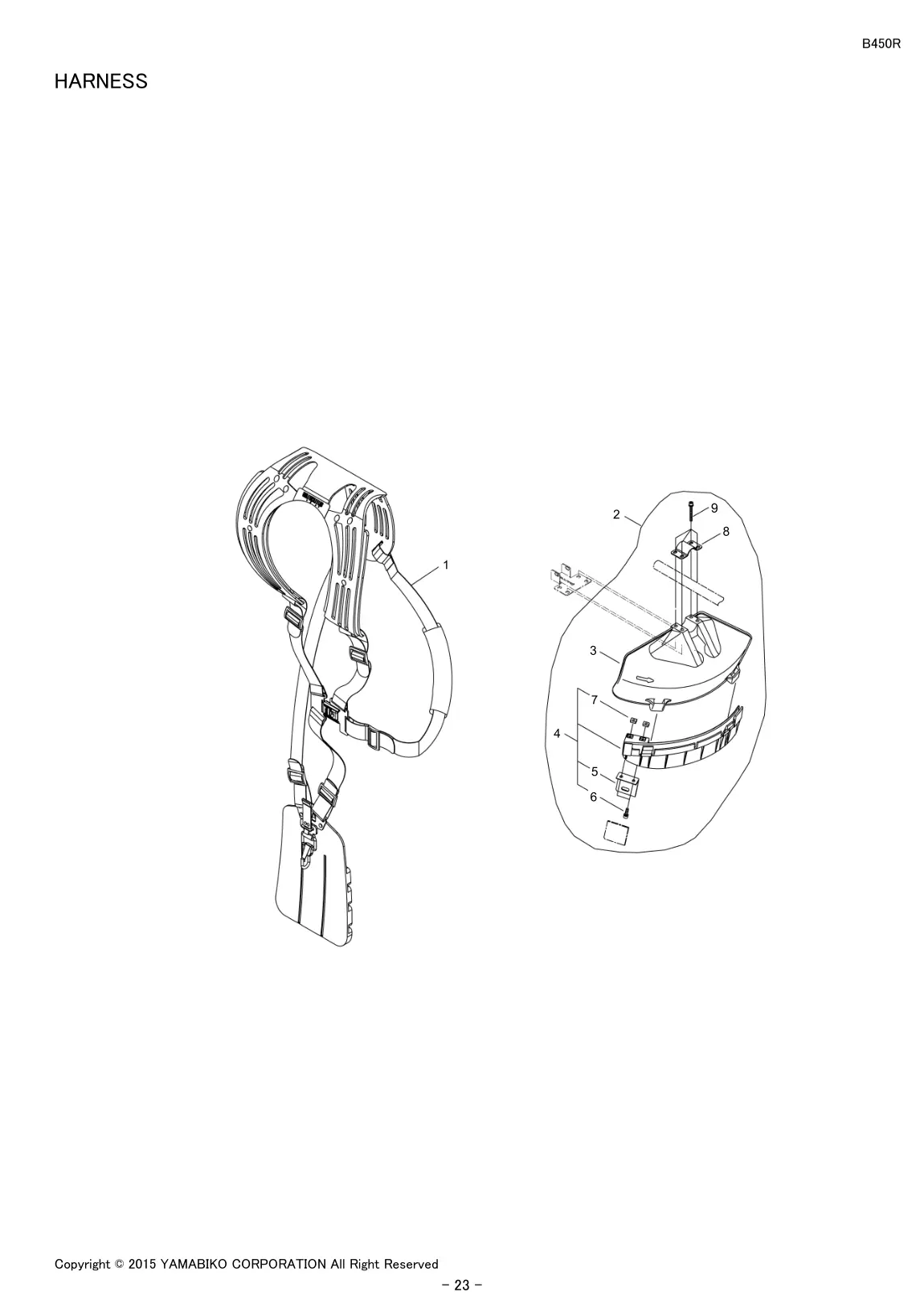

| 26 | HARNESS | 1 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 26 | HARNESS | 2 | GUARD SET | P021-028931 | P021-028931-Online |
| 26 | HARNESS | 3 | GUARD | C550-000430 | C550-000430-Online |
| 26 | HARNESS | 4 | SUB GUARD ASSY | P021-028451 | P021-028451-Online |
| 26 | HARNESS | 5 | CUTTER | C554-000040 | C554-000040-Online |
| 26 | HARNESS | 6 | BOLT | 91122-05016 | 91122-05016-Online |
| 26 | HARNESS | 7 | NUT | V263-000130 | V263-000130-Online |
| 26 | HARNESS | 8 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 26 | HARNESS | 9 | BOLT,5 | V203-000611 | V203-000611-Online |

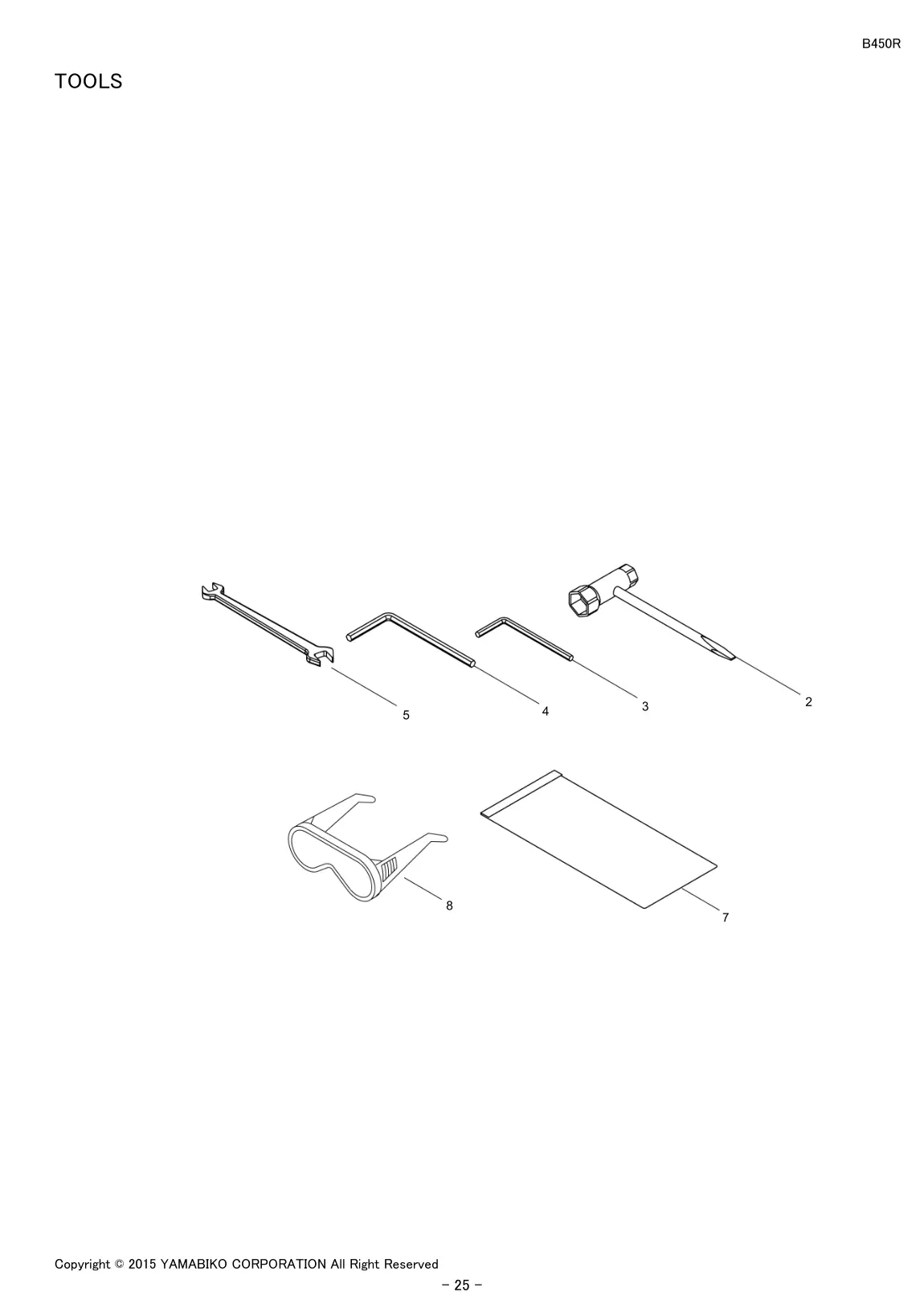

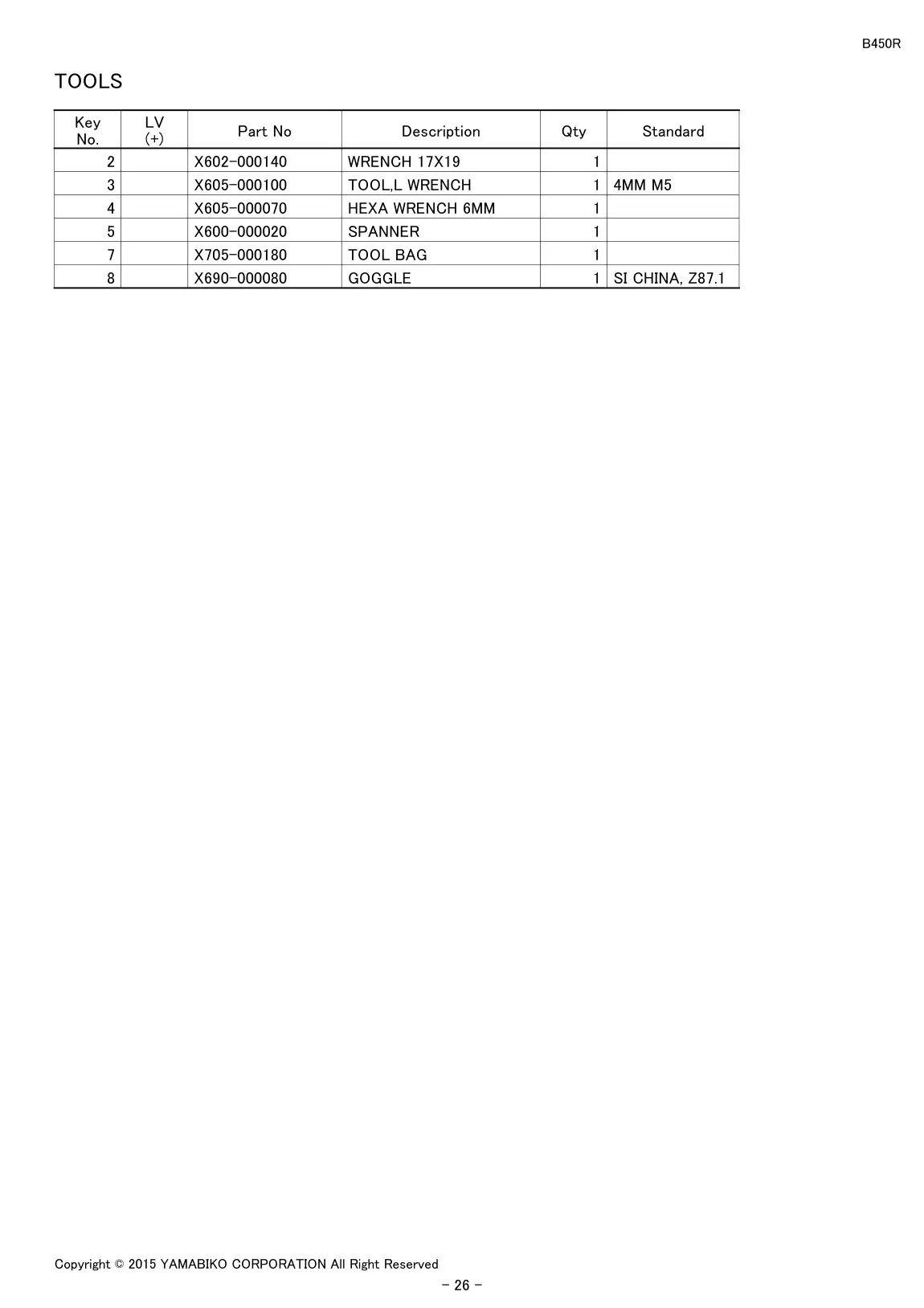

| 28 | TOOLS | 2 | WRENCH 17X19 | X602-000140 | X602-000140-Online |
| 28 | TOOLS | 3 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 28 | TOOLS | 4 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 28 | TOOLS | 5 | SPANNER | X600-000020 | X600-000020-Online |
| 28 | TOOLS | 7 | TOOL BAG | X705-000180 | X705-000180-Online |
| 28 | TOOLS | 8 | GOGGLE | X690-000080 | X690-000080-Online |
| 29 | MAIN SHAFT SUB ASSY | NUT | 124111-05810 | 124111-05810-Online | |
| 29 | MAIN SHAFT SUB ASSY | 10 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | CLUTCH DRUM SET | A055-000020 | A055-000020-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | RECOIL SPRING | A504-000140 | A504-000140-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | REEL | A506-000270 | A506-000270-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | ROPE | A509-000190 | A509-000190-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | STARTER KNOB | A511-000160 | A511-000160-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | RATCHET | A514-000130 | A514-000130-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | PLATE FRICTION | A518-000050 | A518-000050-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | STARTER PULLEY | A520-000170 | A520-000170-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | STOPPER | A522-000040 | A522-000040-Online |
| 29 | MAIN SHAFT SUB ASSY | 10 | PLATE | A551-000120 | A551-000120-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SPRING, THROTTLE | 124114-50330 | 124114-50330-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SEAT, SPRING | 124115-05530 | 124115-05530-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | ADJUSTER, CABLE | 124158-46630 | 124158-46630-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SCREW, IDLE ADJUST | 124159-05530 | 124159-05530-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SPRING, IDLE ADJUST | 124160-11120 | 124160-11120-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SCREW | 124310-49930 | 124310-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SPRING, TENSION | 124331-49930 | 124331-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | PIN, LEVER | 124332-21330 | 124332-21330-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | DIAPHRAGM | 124341-49930 | 124341-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | PLATE | 124342-49930 | 124342-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SCREW, MAIN ADJUST | 124354-12710 | 124354-12710-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SPRING, ADJUSTMENT | 124355-21330 | 124355-21330-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | SPRING, ADJUSTMENT | 124355-50130 | 124355-50130-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | GASKET, DIAPHRAGM | 124358-49930 | 124358-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | PACKING | 124359-49930 | 124359-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | PLATE | 124360-49930 | 124360-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | GASKET, PUMP DIAPH. | 124363-21330 | 124363-21330-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | COVER, DIAPHRAGM | 124379-49930 | 124379-49930-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | PUMP, PRIMING | 124380-12710 | 124380-12710-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | PIPE, 3*6*50 | 132010-49030 | 132010-49030-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | ROLLER 5*10 | 900330-50100 | 900330-50100-Online |
| 29 | MAIN SHAFT SUB ASSY | 12 | MUFFLER ASSY | A030-000250 | A030-000250-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | FILTER | A226-000650 | A226-000650-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | CLEANER COVER COMP | A232-000820 | A232-000820-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | CLEANER COVER | A232-000830 | A232-000830-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | KNOB CLEANER COVER | A235-000220 | A235-000220-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | PLATE | A244-000170 | A244-000170-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | CABLE CAP | A246-000020 | A246-000020-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | MUFFLER GUARD | A320-000760 | A320-000760-Online |
| 29 | MAIN SHAFT SUB ASSY | 14 | CABLE HOLDER | C487-000270 | C487-000270-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | PLUG, SPARK (BMR-6A) | 159010-10130 | 159010-10130-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | NUT | 92017-05000 | 92017-05000-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | STARTER,RECOIL | A050-000320 | A050-000320-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | INSULATOR | A200-000640 | A200-000640-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | FUEL CAP | A355-000180 | A355-000180-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | FUEL FILTER SUB ASSY | A369-000100 | A369-000100-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | BAND | A392-000060 | A392-000060-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | BRACKET S | A393-000180 | A393-000180-Online |
| 29 | MAIN SHAFT SUB ASSY | 16 | BRACKET M | A393-000190 | A393-000190-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | NUT | 900500-00006 | 900500-00006-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | WASHER, SPRING | 900605-00010 | 900605-00010-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | SCREW BUTTON | 91142-06025 | 91142-06025-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | SCREW TAPPING | 91483-02506 | 91483-02506-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | KEY | 93115-03010 | 93115-03010-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | CAP JOINT | A575-000390 | A575-000390-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | CONTROL, THROTTLE | C044-000881 | C044-000881-Online |
| 29 | MAIN SHAFT SUB ASSY | 18 | BUSHING | C501-000090 | C501-000090-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | SCREW 3*20 | 900241-03020 | 900241-03020-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | WASHER | 900603-00005 | 900603-00005-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | SPRING WASHER | 900605-00005 | 900605-00005-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | SCREW BUTTON | 91142-06016 | 91142-06016-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | CYLINDER COVER | A160-001640 | A160-001640-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | CLEANER BODY | A225-000490 | A225-000490-Online |
| 29 | MAIN SHAFT SUB ASSY | 2 | TANK, FUEL | A350-001361 | A350-001361-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | NUT 10 (3N *1.25) | 900503-00010 | 900503-00010-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | WASHER, SPRING | 900605-00004 | 900605-00004-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | BEARING | 900800-06001 | 900800-06001-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | BEARING, BALL | 900802-06000 | 900802-06000-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | BEARING, BALL | 900802-06002 | 900802-06002-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | BEARING, BALL | 900810-06202 | 900810-06202-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | BOLT | 91100-04024 | 91100-04024-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | SNAP RING | 92424-32000 | 92424-32000-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | SNAP RING | 92424-40000 | 92424-40000-Online |
| 29 | MAIN SHAFT SUB ASSY | 20 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | SCREW BUTTON | 91142-06030 | 91142-06030-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | WING NUT | 92191-06000 | 92191-06000-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | STARTER CASE | A500-000880 | A500-000880-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | CASE,GEAR | C051-000621 | C051-000621-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | BODY RIGHT | C412-000430 | C412-000430-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | BODY LEFT | C412-000440 | C412-000440-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | HANDLE BRACKET | C423-000700 | C423-000700-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | LOWER CAP | C423-000720 | C423-000720-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | UPPER CAP | C423-000740 | C423-000740-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | LOWER CLAMP | C423-000760 | C423-000760-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | UPPER CLAMP | C423-000770 | C423-000770-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | CONTROL, THROTTLE | C450-000581 | C450-000581-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | LOCKOUT, THROTTLE | C460-000241 | C460-000241-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | BUTTON | C461-000080 | C461-000080-Online |
| 29 | MAIN SHAFT SUB ASSY | 22 | CONNECTOR | C482-000070 | C482-000070-Online |
| 29 | MAIN SHAFT SUB ASSY | 24 | BOLT | 91122-05025 | 91122-05025-Online |
| 29 | MAIN SHAFT SUB ASSY | 24 | GRIP | C403-000420 | C403-000420-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | BOLT, H.S, | 900109-05010 | 900109-05010-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | NUT | 900500-00006 | 900500-00006-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | WASHER | 900603-00006 | 900603-00006-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | SPRING WASHER | 900605-00006 | 900605-00006-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | BEARING | 900804-06001 | 900804-06001-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | BOLT | 91122-05016 | 91122-05016-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | SNAP RING | 92424-35000 | 92424-35000-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | CLUTCH ASY | A056-000451 | A056-000451-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | CRANK CASE M | A120-000360 | A120-000360-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | CYLINDER | A130-001340 | A130-001340-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | PROTECTOR COMP | A162-000190 | A162-000190-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | COVER,FAN | A172-002310 | A172-002310-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | TANK GUARD | A175-000200 | A175-000200-Online |
| 29 | MAIN SHAFT SUB ASSY | 4 | CLUTCH BOLT | A557-000120 | A557-000120-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | CARBURETOR BODY | A021-002540 | A021-002540-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | PISTON | A100-000670 | A100-000670-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | PISTON RING | A101-000360 | A101-000360-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | CRANK CASE S | A120-000080 | A120-000080-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | HUB, CLUTCH | A552-000121 | A552-000121-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | CLUTCH SHOE | A555-000130 | A555-000130-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | CLUTCH DRUM | A556-000860 | A556-000860-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | SPRING | A566-000150 | A566-000150-Online |
| 29 | MAIN SHAFT SUB ASSY | 6 | SWIVEL JOINT | A575-000380 | A575-000380-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | CLIP | 159112-22131 | 159112-22131-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | WASHER | 900603-00005 | 900603-00005-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | SPRING WASHER | 900605-00005 | 900605-00005-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | BOLT | 91113-04016 | 91113-04016-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | CRANK SHAFT ASSY | A011-000830 | A011-000830-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | COIL | A411-000780 | A411-000780-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | PLUG CAP | A427-000090 | A427-000090-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 29 | MAIN SHAFT SUB ASSY | 8 | EARTH CORD | A430-000000 | A430-000000-Online |

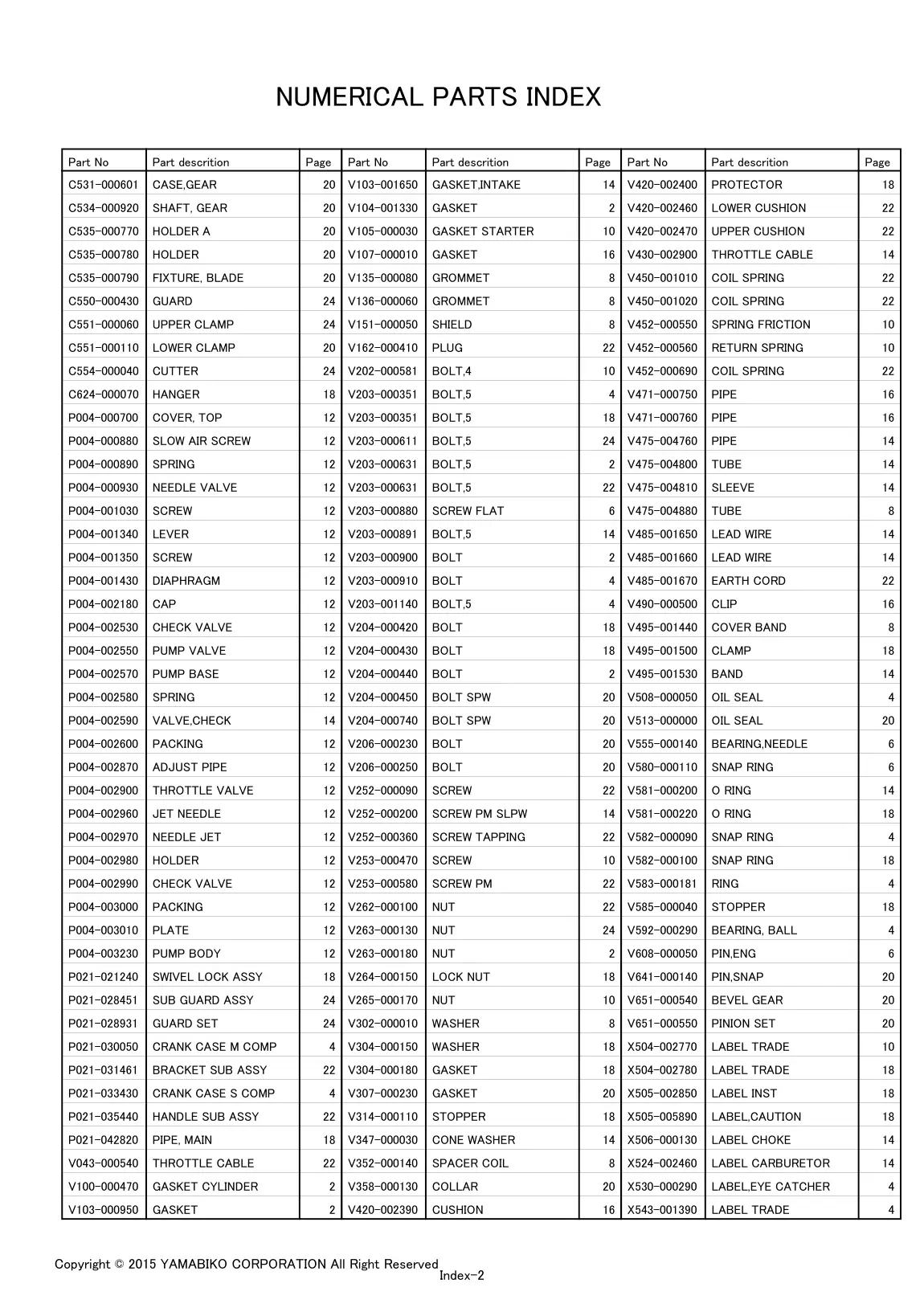

| 30 | LABEL TRADE | CASE,GEAR | C531-000601 | C531-000601-Online | |
| 30 | LABEL TRADE | 10 | GASKET | V107-000010 | V107-000010-Online |
| 30 | LABEL TRADE | 10 | BOLT,5 | V203-000351 | V203-000351-Online |
| 30 | LABEL TRADE | 10 | SCREW PM | V253-000580 | V253-000580-Online |
| 30 | LABEL TRADE | 10 | WASHER | V302-000010 | V302-000010-Online |
| 30 | LABEL TRADE | 10 | RETURN SPRING | V452-000560 | V452-000560-Online |
| 30 | LABEL TRADE | 10 | COIL SPRING | V452-000690 | V452-000690-Online |
| 30 | LABEL TRADE | 10 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 30 | LABEL TRADE | 12 | SLOW AIR SCREW | P004-000880 | P004-000880-Online |
| 30 | LABEL TRADE | 12 | SPRING | P004-000890 | P004-000890-Online |
| 30 | LABEL TRADE | 12 | NEEDLE VALVE | P004-000930 | P004-000930-Online |
| 30 | LABEL TRADE | 12 | SCREW | P004-001030 | P004-001030-Online |
| 30 | LABEL TRADE | 12 | LEVER | P004-001340 | P004-001340-Online |
| 30 | LABEL TRADE | 12 | SCREW | P004-001350 | P004-001350-Online |
| 30 | LABEL TRADE | 12 | DIAPHRAGM | P004-001430 | P004-001430-Online |
| 30 | LABEL TRADE | 12 | CAP | P004-002180 | P004-002180-Online |
| 30 | LABEL TRADE | 12 | CHECK VALVE | P004-002530 | P004-002530-Online |
| 30 | LABEL TRADE | 12 | PUMP VALVE | P004-002550 | P004-002550-Online |
| 30 | LABEL TRADE | 12 | PUMP BASE | P004-002570 | P004-002570-Online |
| 30 | LABEL TRADE | 12 | SPRING | P004-002580 | P004-002580-Online |
| 30 | LABEL TRADE | 12 | VALVE,CHECK | P004-002590 | P004-002590-Online |
| 30 | LABEL TRADE | 12 | ADJUST PIPE | P004-002870 | P004-002870-Online |
| 30 | LABEL TRADE | 12 | THROTTLE VALVE | P004-002900 | P004-002900-Online |
| 30 | LABEL TRADE | 12 | JET NEEDLE | P004-002960 | P004-002960-Online |
| 30 | LABEL TRADE | 12 | NEEDLE JET | P004-002970 | P004-002970-Online |
| 30 | LABEL TRADE | 12 | HOLDER | P004-002980 | P004-002980-Online |
| 30 | LABEL TRADE | 12 | CHECK VALVE | P004-002990 | P004-002990-Online |
| 30 | LABEL TRADE | 12 | PACKING | P004-003000 | P004-003000-Online |
| 30 | LABEL TRADE | 12 | PLATE | P004-003010 | P004-003010-Online |
| 30 | LABEL TRADE | 12 | PUMP BODY | P004-003230 | P004-003230-Online |
| 30 | LABEL TRADE | 12 | SWIVEL LOCK ASSY | P021-021240 | P021-021240-Online |
| 30 | LABEL TRADE | 14 | PACKING | P004-002600 | P004-002600-Online |
| 30 | LABEL TRADE | 14 | GASKET | V104-001330 | V104-001330-Online |
| 30 | LABEL TRADE | 14 | BOLT | V203-000900 | V203-000900-Online |
| 30 | LABEL TRADE | 14 | SCREW TAPPING | V252-000360 | V252-000360-Online |
| 30 | LABEL TRADE | 14 | SPACER COIL | V352-000140 | V352-000140-Online |
| 30 | LABEL TRADE | 14 | COIL SPRING | V450-001010 | V450-001010-Online |
| 30 | LABEL TRADE | 14 | TUBE | V475-004800 | V475-004800-Online |
| 30 | LABEL TRADE | 14 | SLEEVE | V475-004810 | V475-004810-Online |
| 30 | LABEL TRADE | 14 | TUBE | V475-004880 | V475-004880-Online |
| 30 | LABEL TRADE | 14 | LEAD WIRE | V485-001660 | V485-001660-Online |
| 30 | LABEL TRADE | 14 | EARTH CORD | V485-001670 | V485-001670-Online |
| 30 | LABEL TRADE | 14 | OIL SEAL | V508-000050 | V508-000050-Online |
| 30 | LABEL TRADE | 14 | O RING | V581-000220 | V581-000220-Online |
| 30 | LABEL TRADE | 14 | LABEL CARBURETOR | X524-002460 | X524-002460-Online |
| 30 | LABEL TRADE | 14 | LABEL,EYE CATCHER | X530-000290 | X530-000290-Online |
| 30 | LABEL TRADE | 16 | GROMMET | V135-000080 | V135-000080-Online |
| 30 | LABEL TRADE | 16 | PROTECTOR | V420-002400 | V420-002400-Online |
| 30 | LABEL TRADE | 16 | PIPE | V471-000760 | V471-000760-Online |
| 30 | LABEL TRADE | 16 | PIPE | V475-004760 | V475-004760-Online |
| 30 | LABEL TRADE | 16 | COVER BAND | V495-001440 | V495-001440-Online |
| 30 | LABEL TRADE | 18 | COVER, TOP | P004-000700 | P004-000700-Online |
| 30 | LABEL TRADE | 18 | SUB GUARD ASSY | P021-028451 | P021-028451-Online |
| 30 | LABEL TRADE | 18 | THROTTLE CABLE | V043-000540 | V043-000540-Online |
| 30 | LABEL TRADE | 18 | BOLT,5 | V203-000611 | V203-000611-Online |
| 30 | LABEL TRADE | 18 | BOLT | V204-000430 | V204-000430-Online |
| 30 | LABEL TRADE | 18 | BOLT | V204-000440 | V204-000440-Online |
| 30 | LABEL TRADE | 18 | NUT | V265-000170 | V265-000170-Online |
| 30 | LABEL TRADE | 18 | GASKET | V304-000180 | V304-000180-Online |
| 30 | LABEL TRADE | 18 | GASKET | V307-000230 | V307-000230-Online |
| 30 | LABEL TRADE | 18 | CONE WASHER | V347-000030 | V347-000030-Online |
| 30 | LABEL TRADE | 18 | LOWER CUSHION | V420-002460 | V420-002460-Online |
| 30 | LABEL TRADE | 18 | BAND | V495-001530 | V495-001530-Online |
| 30 | LABEL TRADE | 18 | SNAP RING | V582-000090 | V582-000090-Online |
| 30 | LABEL TRADE | 18 | RING | V583-000181 | V583-000181-Online |
| 30 | LABEL TRADE | 18 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 30 | LABEL TRADE | 18 | LABEL INST | X505-002850 | X505-002850-Online |
| 30 | LABEL TRADE | 18 | LABEL,CAUTION | X505-005890 | X505-005890-Online |
| 30 | LABEL TRADE | 18 | LABEL CHOKE | X506-000130 | X506-000130-Online |
| 30 | LABEL TRADE | 2 | GASKET | V103-000950 | V103-000950-Online |
| 30 | LABEL TRADE | 2 | GASKET,INTAKE | V103-001650 | V103-001650-Online |
| 30 | LABEL TRADE | 2 | GASKET STARTER | V105-000030 | V105-000030-Online |
| 30 | LABEL TRADE | 2 | BOLT,5 | V203-000631 | V203-000631-Online |
| 30 | LABEL TRADE | 2 | BOLT | V203-000910 | V203-000910-Online |
| 30 | LABEL TRADE | 2 | BOLT SPW | V204-000450 | V204-000450-Online |
| 30 | LABEL TRADE | 2 | LOCK NUT | V264-000150 | V264-000150-Online |
| 30 | LABEL TRADE | 20 | SHAFT, GEAR | C534-000920 | C534-000920-Online |
| 30 | LABEL TRADE | 20 | HOLDER A | C535-000770 | C535-000770-Online |
| 30 | LABEL TRADE | 20 | HOLDER | C535-000780 | C535-000780-Online |
| 30 | LABEL TRADE | 20 | FIXTURE, BLADE | C535-000790 | C535-000790-Online |
| 30 | LABEL TRADE | 20 | GUARD | C550-000430 | C550-000430-Online |
| 30 | LABEL TRADE | 20 | CUTTER | C554-000040 | C554-000040-Online |
| 30 | LABEL TRADE | 20 | BOLT SPW | V204-000740 | V204-000740-Online |
| 30 | LABEL TRADE | 20 | BOLT | V206-000230 | V206-000230-Online |
| 30 | LABEL TRADE | 20 | BOLT | V206-000250 | V206-000250-Online |
| 30 | LABEL TRADE | 20 | SCREW | V252-000090 | V252-000090-Online |
| 30 | LABEL TRADE | 20 | STOPPER | V314-000110 | V314-000110-Online |
| 30 | LABEL TRADE | 20 | CUSHION | V420-002390 | V420-002390-Online |
| 30 | LABEL TRADE | 20 | BEARING,NEEDLE | V555-000140 | V555-000140-Online |
| 30 | LABEL TRADE | 20 | BEVEL GEAR | V651-000540 | V651-000540-Online |
| 30 | LABEL TRADE | 20 | PINION SET | V651-000550 | V651-000550-Online |
| 30 | LABEL TRADE | 20 | LABEL TRADE | X504-002770 | X504-002770-Online |
| 30 | LABEL TRADE | 22 | CRANK CASE S COMP | P021-033430 | P021-033430-Online |
| 30 | LABEL TRADE | 22 | PIPE, MAIN | P021-042820 | P021-042820-Online |
| 30 | LABEL TRADE | 22 | GASKET CYLINDER | V100-000470 | V100-000470-Online |
| 30 | LABEL TRADE | 22 | BOLT,4 | V202-000581 | V202-000581-Online |
| 30 | LABEL TRADE | 22 | SCREW FLAT | V203-000880 | V203-000880-Online |
| 30 | LABEL TRADE | 22 | SCREW PM SLPW | V252-000200 | V252-000200-Online |
| 30 | LABEL TRADE | 22 | SCREW | V253-000470 | V253-000470-Online |
| 30 | LABEL TRADE | 22 | NUT | V262-000100 | V262-000100-Online |
| 30 | LABEL TRADE | 22 | NUT | V263-000130 | V263-000130-Online |
| 30 | LABEL TRADE | 22 | UPPER CUSHION | V420-002470 | V420-002470-Online |
| 30 | LABEL TRADE | 22 | THROTTLE CABLE | V430-002900 | V430-002900-Online |
| 30 | LABEL TRADE | 22 | COIL SPRING | V450-001020 | V450-001020-Online |
| 30 | LABEL TRADE | 22 | SPRING FRICTION | V452-000550 | V452-000550-Online |
| 30 | LABEL TRADE | 22 | PIPE | V471-000750 | V471-000750-Online |
| 30 | LABEL TRADE | 22 | CLIP | V490-000500 | V490-000500-Online |
| 30 | LABEL TRADE | 24 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 30 | LABEL TRADE | 24 | LOWER CLAMP | C551-000110 | C551-000110-Online |
| 30 | LABEL TRADE | 24 | HANGER | C624-000070 | C624-000070-Online |
| 30 | LABEL TRADE | 24 | GUARD SET | P021-028931 | P021-028931-Online |
| 30 | LABEL TRADE | 24 | CRANK CASE M COMP | P021-030050 | P021-030050-Online |
| 30 | LABEL TRADE | 24 | BOLT,5 | V203-000631 | V203-000631-Online |
| 30 | LABEL TRADE | 24 | NUT | V263-000180 | V263-000180-Online |
| 30 | LABEL TRADE | 4 | BRACKET SUB ASSY | P021-031461 | P021-031461-Online |
| 30 | LABEL TRADE | 4 | HANDLE SUB ASSY | P021-035440 | P021-035440-Online |
| 30 | LABEL TRADE | 4 | BOLT,5 | V203-000351 | V203-000351-Online |
| 30 | LABEL TRADE | 4 | BOLT,5 | V203-001140 | V203-001140-Online |
| 30 | LABEL TRADE | 4 | BOLT | V204-000420 | V204-000420-Online |
| 30 | LABEL TRADE | 4 | OIL SEAL | V513-000000 | V513-000000-Online |
| 30 | LABEL TRADE | 4 | SNAP RING | V582-000100 | V582-000100-Online |
| 30 | LABEL TRADE | 4 | STOPPER | V585-000040 | V585-000040-Online |
| 30 | LABEL TRADE | 4 | PIN,ENG | V608-000050 | V608-000050-Online |
| 30 | LABEL TRADE | 6 | BOLT,5 | V203-000891 | V203-000891-Online |
| 30 | LABEL TRADE | 6 | SNAP RING | V580-000110 | V580-000110-Online |
| 30 | LABEL TRADE | 6 | O RING | V581-000200 | V581-000200-Online |
| 30 | LABEL TRADE | 6 | PIN,SNAP | V641-000140 | V641-000140-Online |
| 30 | LABEL TRADE | 8 | GROMMET | V136-000060 | V136-000060-Online |
| 30 | LABEL TRADE | 8 | SHIELD | V151-000050 | V151-000050-Online |
| 30 | LABEL TRADE | 8 | PLUG | V162-000410 | V162-000410-Online |
| 30 | LABEL TRADE | 8 | WASHER | V304-000150 | V304-000150-Online |
| 30 | LABEL TRADE | 8 | COLLAR | V358-000130 | V358-000130-Online |
| 30 | LABEL TRADE | 8 | LEAD WIRE | V485-001650 | V485-001650-Online |
| 31 | TAPE | SPANNER | X600-000020 | X600-000020-Online | |
| 31 | TAPE | 26 | WRENCH 17X19 | X602-000140 | X602-000140-Online |
| 31 | TAPE | 26 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 31 | TAPE | 26 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 31 | TAPE | 26 | GOGGLE | X690-000080 | X690-000080-Online |
| 31 | TAPE | 26 | TOOL BAG | X705-000180 | X705-000180-Online |
Source file: 20200226-183_B450R_25_25000001_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
