Illustrated Parts List
Shindaiwa SBA-TX24 EU Parts Diagram IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: SBA-TX24 EU
Type: Parts Diagram
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

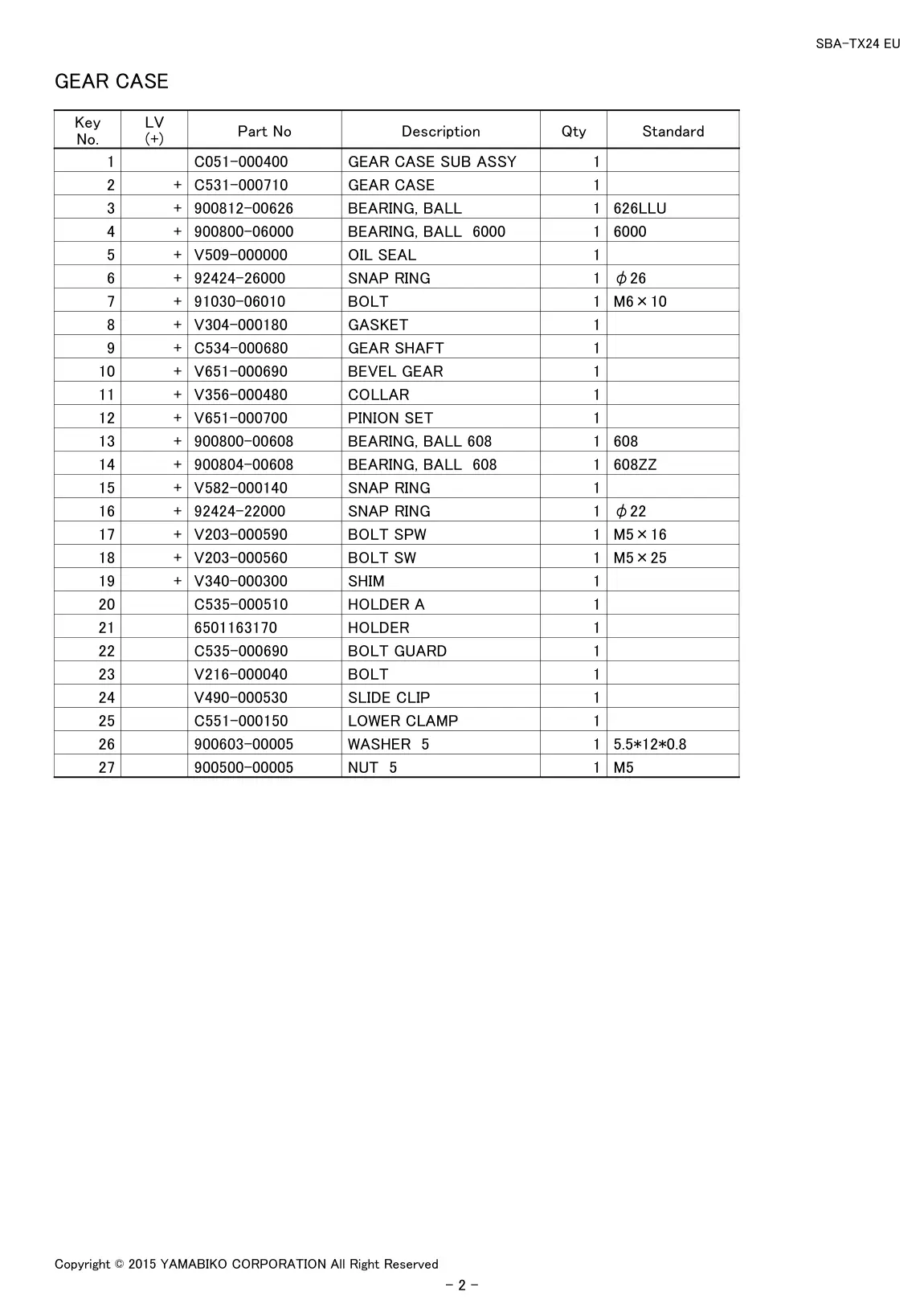

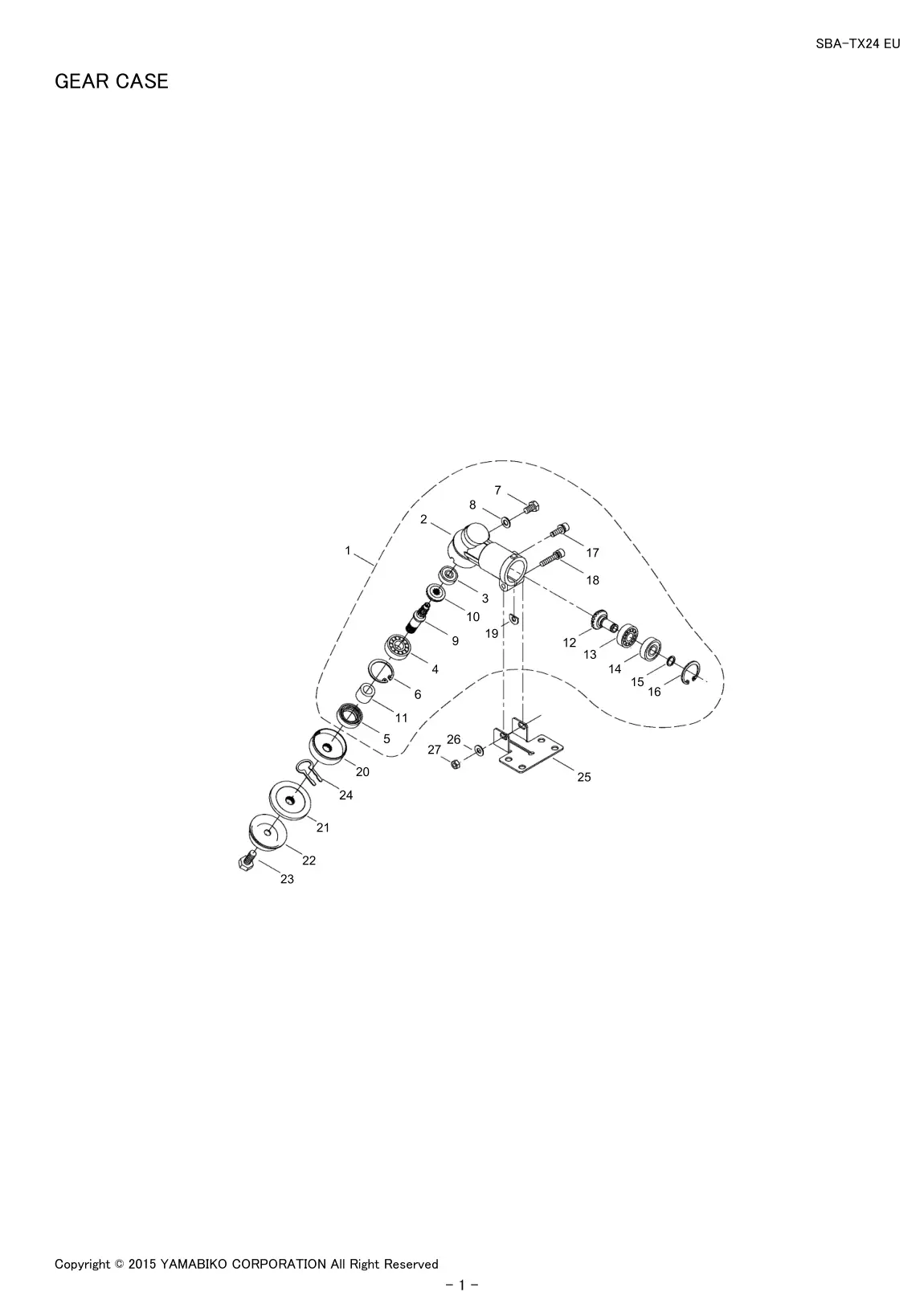

| 4 | GEAR CASE | 1 | GEAR CASE SUB ASSY | C051-000400 | C051-000400-Online |
| 4 | GEAR CASE | 10 | BEVEL GEAR | V651-000690 | V651-000690-Online |
| 4 | GEAR CASE | 11 | COLLAR | V356-000480 | V356-000480-Online |
| 4 | GEAR CASE | 12 | PINION SET | V651-000700 | V651-000700-Online |
| 4 | GEAR CASE | 13 | BEARING, BALL | 900800-00608 | 900800-00608-Online |
| 4 | GEAR CASE | 14 | BEARING, BALL | 900804-00608 | 900804-00608-Online |
| 4 | GEAR CASE | 15 | SNAP RING | V582-000140 | V582-000140-Online |
| 4 | GEAR CASE | 16 | SNAP RING | 92424-22000 | 92424-22000-Online |
| 4 | GEAR CASE | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 4 | GEAR CASE | 18 | BOLT SW | V203-000560 | V203-000560-Online |
| 4 | GEAR CASE | 19 | SHIM | V340-000300 | V340-000300-Online |
| 4 | GEAR CASE | 2 | GEAR CASE | C531-000710 | C531-000710-Online |
| 4 | GEAR CASE | 20 | HOLDER A | C535-000510 | C535-000510-Online |
| 4 | GEAR CASE | 21 | HOLDER | 6501163170 | 6501163170-Online |
| 4 | GEAR CASE | 22 | BOLT GUARD | C535-000690 | C535-000690-Online |
| 4 | GEAR CASE | 23 | BOLT | V216-000040 | V216-000040-Online |
| 4 | GEAR CASE | 24 | SLIDE CLIP | V490-000530 | V490-000530-Online |
| 4 | GEAR CASE | 25 | LOWER CLAMP | C551-000150 | C551-000150-Online |
| 4 | GEAR CASE | 26 | WASHER | 900603-00005 | 900603-00005-Online |
| 4 | GEAR CASE | 27 | NUT | 900500-00005 | 900500-00005-Online |
| 4 | GEAR CASE | 3 | BEARING, BALL | 900812-00626 | 900812-00626-Online |
| 4 | GEAR CASE | 4 | BEARING, BALL | 900800-06000 | 900800-06000-Online |
| 4 | GEAR CASE | 5 | OIL SEAL | V509-000000 | V509-000000-Online |
| 4 | GEAR CASE | 6 | SNAP RING | 92424-26000 | 92424-26000-Online |
| 4 | GEAR CASE | 7 | BOLT | 91030-06010 | 91030-06010-Online |
| 4 | GEAR CASE | 8 | GASKET | V304-000180 | V304-000180-Online |
| 4 | GEAR CASE | 9 | GEAR SHAFT | C534-000680 | C534-000680-Online |

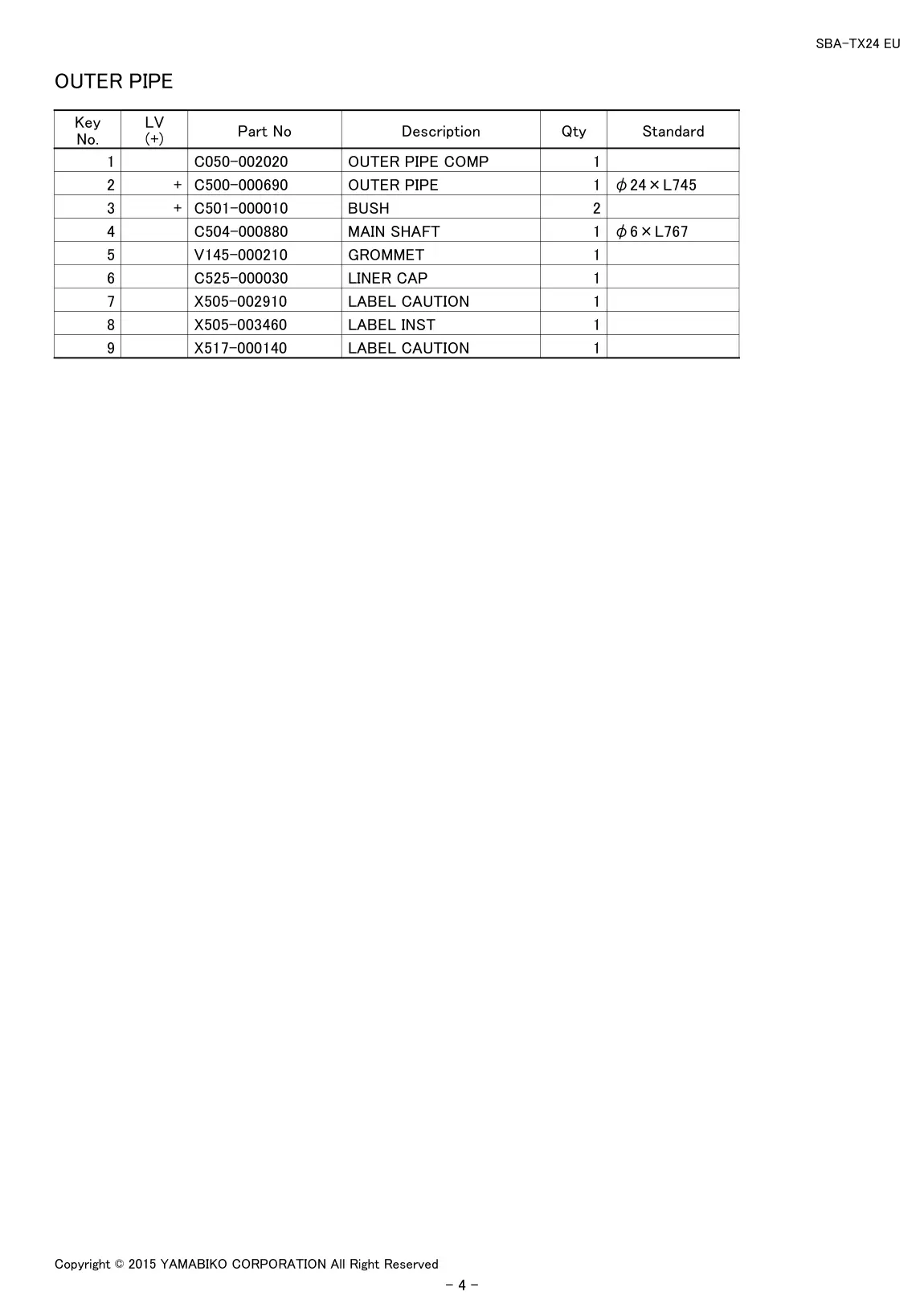

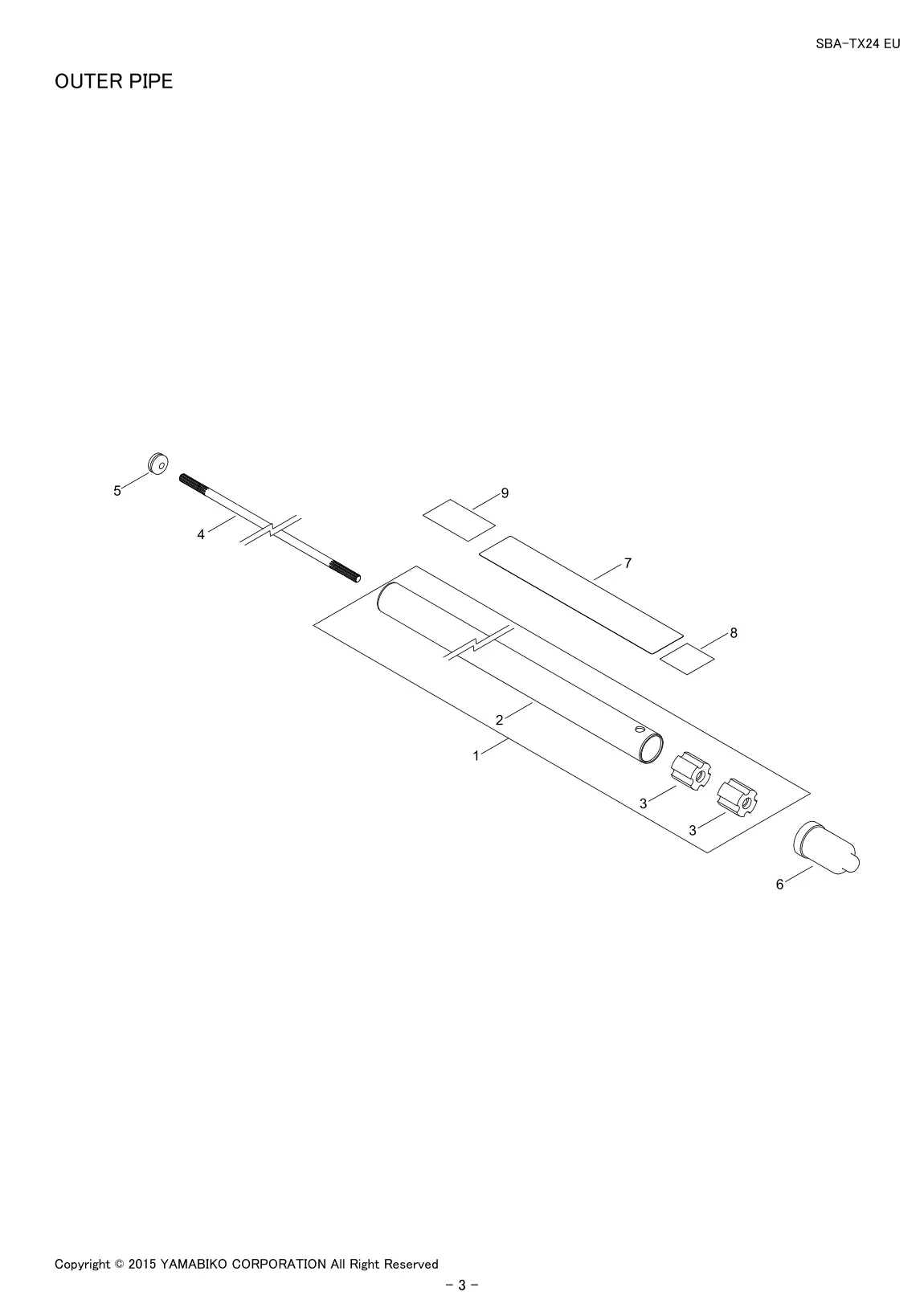

| 6 | OUTER PIPE | 1 | OUTER PIPE COMP | C050-002020 | C050-002020-Online |
| 6 | OUTER PIPE | 2 | OUTER PIPE | C500-000690 | C500-000690-Online |
| 6 | OUTER PIPE | 4 | MAIN SHAFT | C504-000880 | C504-000880-Online |
| 6 | OUTER PIPE | 5 | GROMMET | V145-000210 | V145-000210-Online |
| 6 | OUTER PIPE | 6 | LINER CAP | C525-000030 | C525-000030-Online |
| 6 | OUTER PIPE | 7 | LABEL CAUTION | X505-002910 | X505-002910-Online |
| 6 | OUTER PIPE | 8 | LABEL INST | X505-003460 | X505-003460-Online |
| 6 | OUTER PIPE | 9 | LABEL CAUTION | X517-000140 | X517-000140-Online |

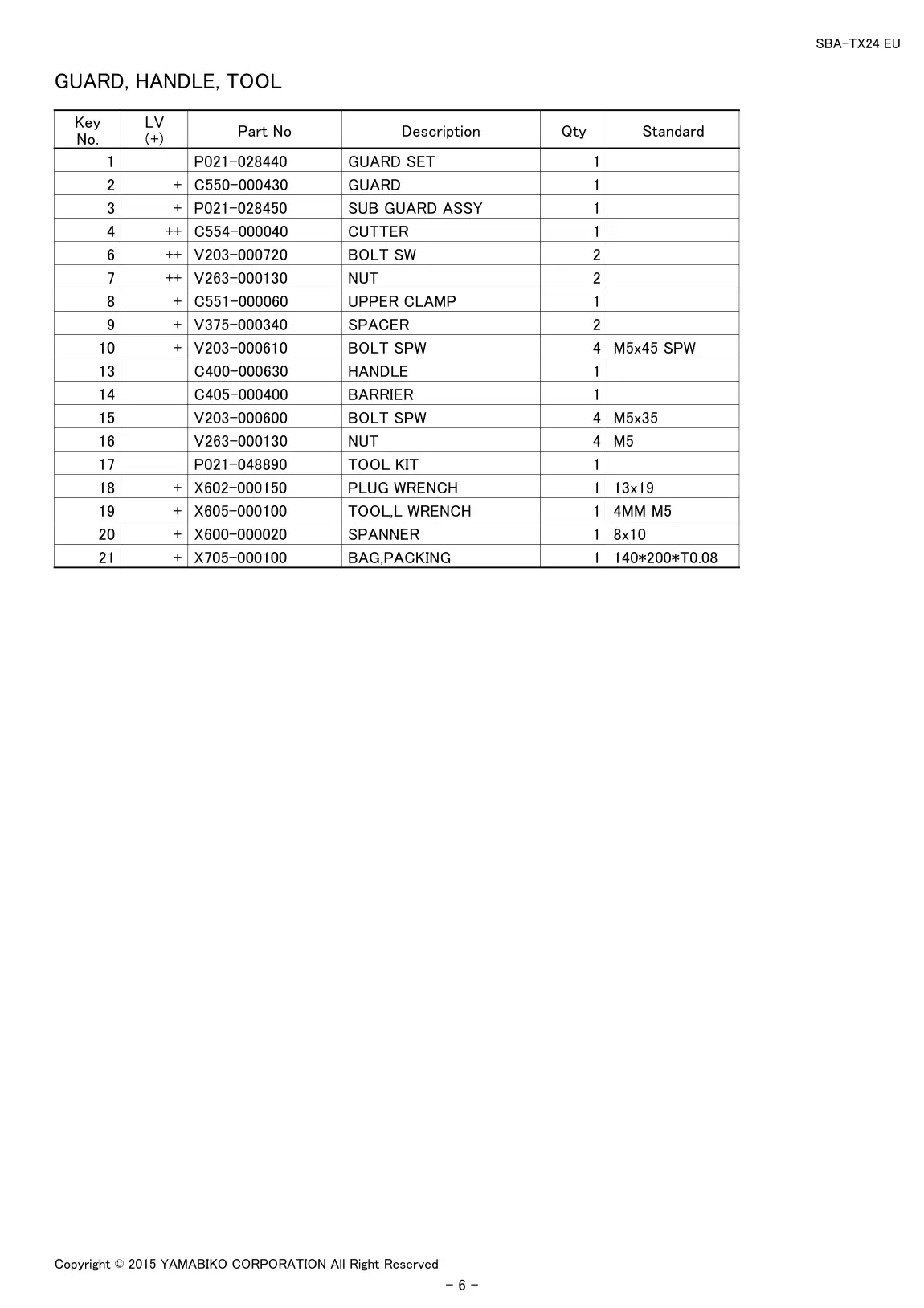

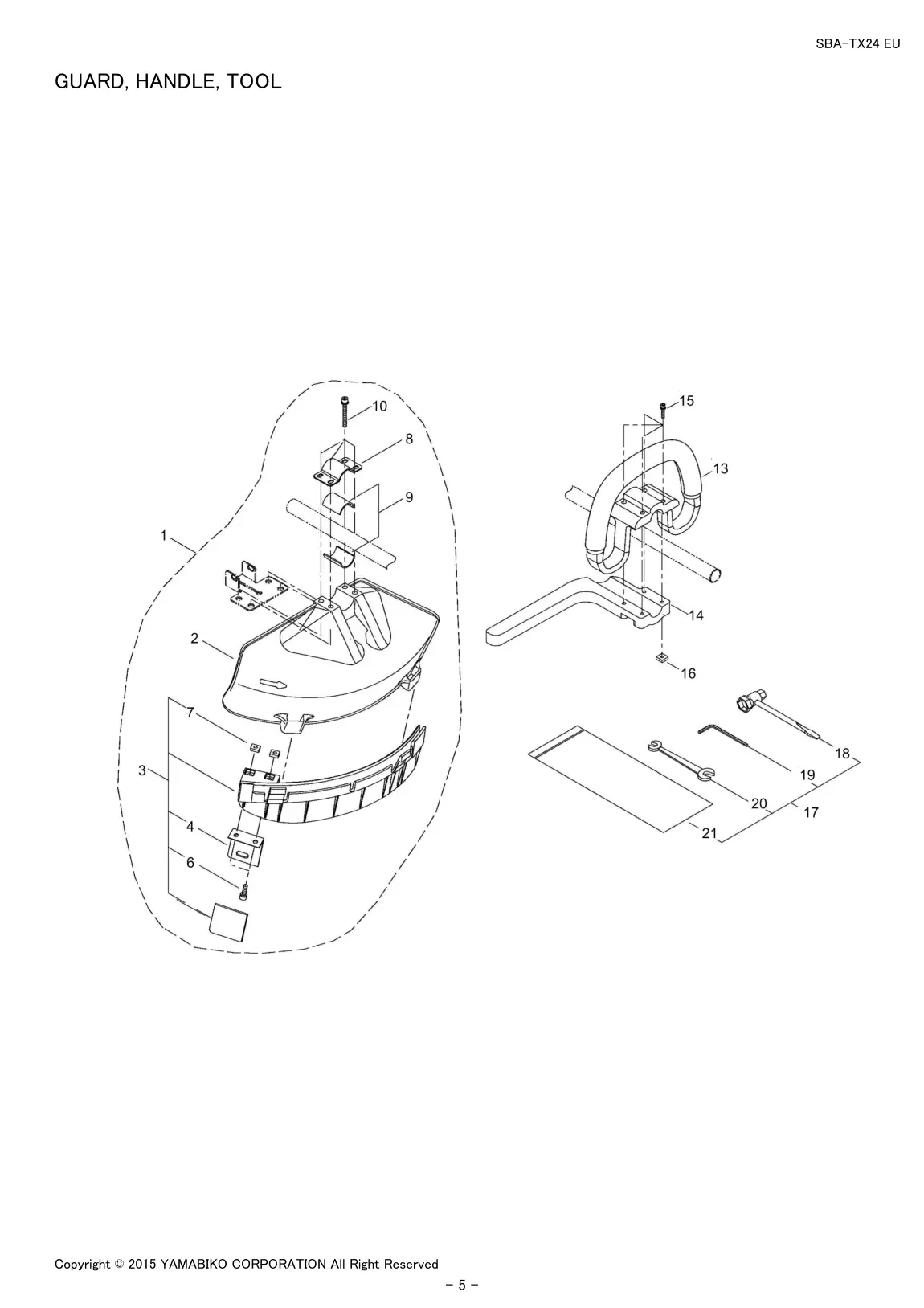

| 8 | GUARD, HANDLE, TOOL | 1 | GUARD SET | P021-028440 | P021-028440-Online |
| 8 | GUARD, HANDLE, TOOL | 10 | BOLT SPW | V203-000610 | V203-000610-Online |
| 8 | GUARD, HANDLE, TOOL | 13 | HANDLE | C400-000630 | C400-000630-Online |
| 8 | GUARD, HANDLE, TOOL | 14 | BARRIER | C405-000400 | C405-000400-Online |
| 8 | GUARD, HANDLE, TOOL | 15 | BOLT SPW | V203-000600 | V203-000600-Online |
| 8 | GUARD, HANDLE, TOOL | 16 | NUT | V263-000130 | V263-000130-Online |
| 8 | GUARD, HANDLE, TOOL | 17 | TOOL KIT | P021-048890 | P021-048890-Online |
| 8 | GUARD, HANDLE, TOOL | 18 | PLUG WRENCH | X602-000150 | X602-000150-Online |
| 8 | GUARD, HANDLE, TOOL | 19 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 8 | GUARD, HANDLE, TOOL | 2 | GUARD | C550-000430 | C550-000430-Online |
| 8 | GUARD, HANDLE, TOOL | 20 | SPANNER | X600-000020 | X600-000020-Online |
| 8 | GUARD, HANDLE, TOOL | 21 | BAG,PACKING | X705-000100 | X705-000100-Online |
| 8 | GUARD, HANDLE, TOOL | 3 | SUB GUARD ASSY | P021-028450 | P021-028450-Online |
| 8 | GUARD, HANDLE, TOOL | 4 | CUTTER | C554-000040 | C554-000040-Online |
| 8 | GUARD, HANDLE, TOOL | 6 | BOLT SW | V203-000720 | V203-000720-Online |
| 8 | GUARD, HANDLE, TOOL | 7 | NUT | V263-000130 | V263-000130-Online |
| 8 | GUARD, HANDLE, TOOL | 8 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 8 | GUARD, HANDLE, TOOL | 9 | SPACER | V375-000340 | V375-000340-Online |

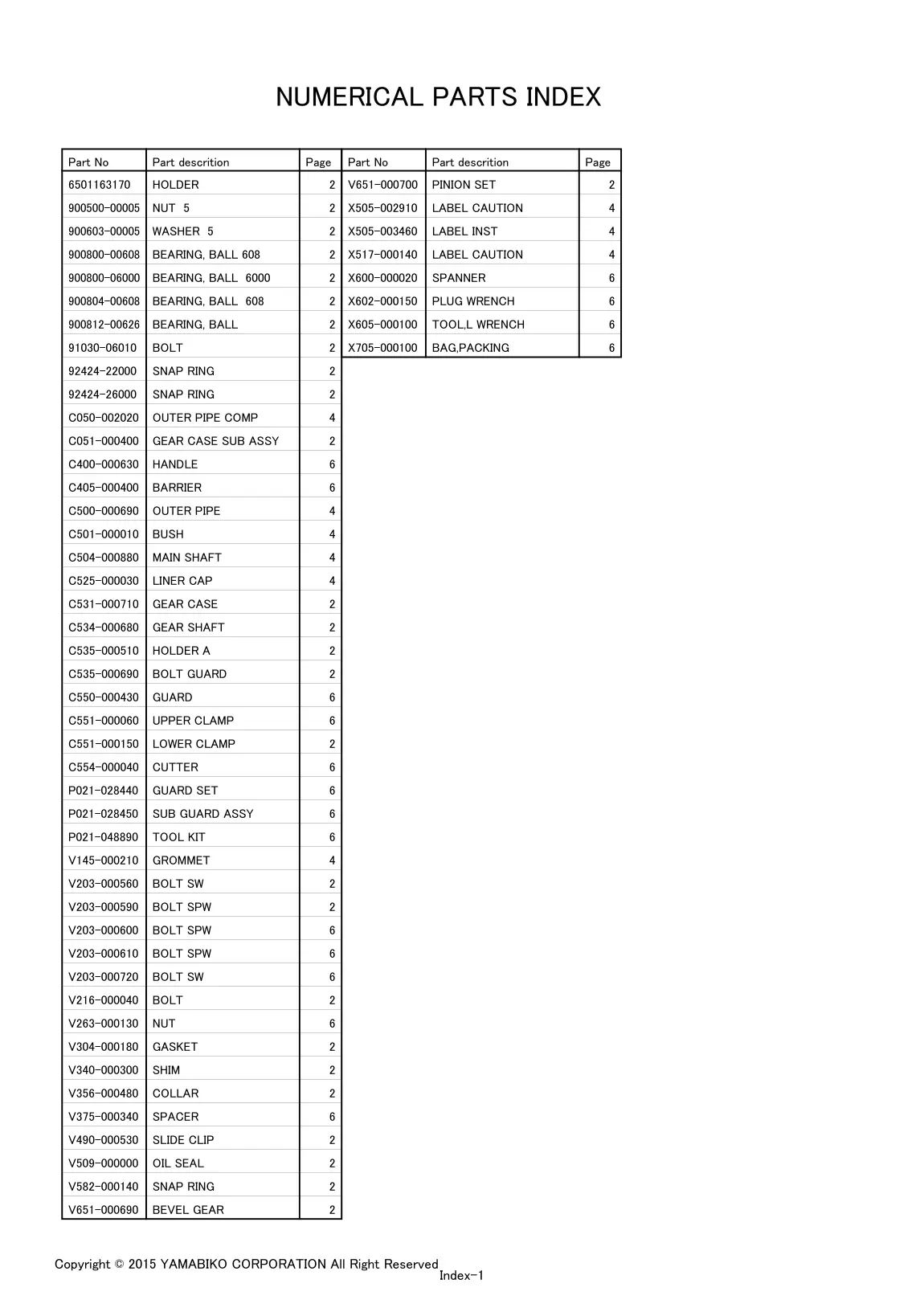

| 9 | BAG,PACKING | HOLDER | 6501163170 | 6501163170-Online | |
| 9 | BAG,PACKING | 2 | NUT | 900500-00005 | 900500-00005-Online |
| 9 | BAG,PACKING | 2 | WASHER | 900603-00005 | 900603-00005-Online |
| 9 | BAG,PACKING | 2 | BEARING, BALL | 900800-00608 | 900800-00608-Online |
| 9 | BAG,PACKING | 2 | BEARING, BALL | 900800-06000 | 900800-06000-Online |
| 9 | BAG,PACKING | 2 | BEARING, BALL | 900804-00608 | 900804-00608-Online |
| 9 | BAG,PACKING | 2 | BEARING, BALL | 900812-00626 | 900812-00626-Online |
| 9 | BAG,PACKING | 2 | BOLT | 91030-06010 | 91030-06010-Online |
| 9 | BAG,PACKING | 2 | SNAP RING | 92424-22000 | 92424-22000-Online |
| 9 | BAG,PACKING | 2 | SNAP RING | 92424-26000 | 92424-26000-Online |
| 9 | BAG,PACKING | 2 | OUTER PIPE COMP | C050-002020 | C050-002020-Online |
| 9 | BAG,PACKING | 2 | HANDLE | C400-000630 | C400-000630-Online |
| 9 | BAG,PACKING | 2 | GEAR SHAFT | C534-000680 | C534-000680-Online |
| 9 | BAG,PACKING | 2 | HOLDER A | C535-000510 | C535-000510-Online |
| 9 | BAG,PACKING | 2 | BOLT GUARD | C535-000690 | C535-000690-Online |
| 9 | BAG,PACKING | 2 | GUARD | C550-000430 | C550-000430-Online |
| 9 | BAG,PACKING | 2 | CUTTER | C554-000040 | C554-000040-Online |
| 9 | BAG,PACKING | 2 | BOLT SPW | V203-000590 | V203-000590-Online |
| 9 | BAG,PACKING | 2 | BOLT SPW | V203-000600 | V203-000600-Online |
| 9 | BAG,PACKING | 2 | NUT | V263-000130 | V263-000130-Online |
| 9 | BAG,PACKING | 2 | SHIM | V340-000300 | V340-000300-Online |
| 9 | BAG,PACKING | 2 | COLLAR | V356-000480 | V356-000480-Online |
| 9 | BAG,PACKING | 2 | SPACER | V375-000340 | V375-000340-Online |
| 9 | BAG,PACKING | 2 | OIL SEAL | V509-000000 | V509-000000-Online |
| 9 | BAG,PACKING | 2 | SNAP RING | V582-000140 | V582-000140-Online |
| 9 | BAG,PACKING | 2 | BEVEL GEAR | V651-000690 | V651-000690-Online |
| 9 | BAG,PACKING | 2 | PINION SET | V651-000700 | V651-000700-Online |
| 9 | BAG,PACKING | 2 | LABEL CAUTION | X505-002910 | X505-002910-Online |
| 9 | BAG,PACKING | 4 | GEAR CASE SUB ASSY | C051-000400 | C051-000400-Online |
| 9 | BAG,PACKING | 4 | MAIN SHAFT | C504-000880 | C504-000880-Online |
| 9 | BAG,PACKING | 4 | LINER CAP | C525-000030 | C525-000030-Online |
| 9 | BAG,PACKING | 4 | GEAR CASE | C531-000710 | C531-000710-Online |
| 9 | BAG,PACKING | 4 | BOLT SW | V203-000560 | V203-000560-Online |
| 9 | BAG,PACKING | 4 | LABEL INST | X505-003460 | X505-003460-Online |
| 9 | BAG,PACKING | 4 | LABEL CAUTION | X517-000140 | X517-000140-Online |
| 9 | BAG,PACKING | 4 | SPANNER | X600-000020 | X600-000020-Online |
| 9 | BAG,PACKING | 6 | BARRIER | C405-000400 | C405-000400-Online |
| 9 | BAG,PACKING | 6 | OUTER PIPE | C500-000690 | C500-000690-Online |
| 9 | BAG,PACKING | 6 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 9 | BAG,PACKING | 6 | LOWER CLAMP | C551-000150 | C551-000150-Online |
| 9 | BAG,PACKING | 6 | GUARD SET | P021-028440 | P021-028440-Online |
| 9 | BAG,PACKING | 6 | SUB GUARD ASSY | P021-028450 | P021-028450-Online |
| 9 | BAG,PACKING | 6 | TOOL KIT | P021-048890 | P021-048890-Online |
| 9 | BAG,PACKING | 6 | GROMMET | V145-000210 | V145-000210-Online |
| 9 | BAG,PACKING | 6 | BOLT SPW | V203-000610 | V203-000610-Online |
| 9 | BAG,PACKING | 6 | BOLT SW | V203-000720 | V203-000720-Online |
| 9 | BAG,PACKING | 6 | BOLT | V216-000040 | V216-000040-Online |
| 9 | BAG,PACKING | 6 | GASKET | V304-000180 | V304-000180-Online |
| 9 | BAG,PACKING | 6 | SLIDE CLIP | V490-000530 | V490-000530-Online |
| 9 | BAG,PACKING | 6 | PLUG WRENCH | X602-000150 | X602-000150-Online |
| 9 | BAG,PACKING | 6 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
Source file: 20200226-29_SBA-TX24_EU_AA_00000000_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
