Illustrated Parts List
Shindaiwa C302TS Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C302TS
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

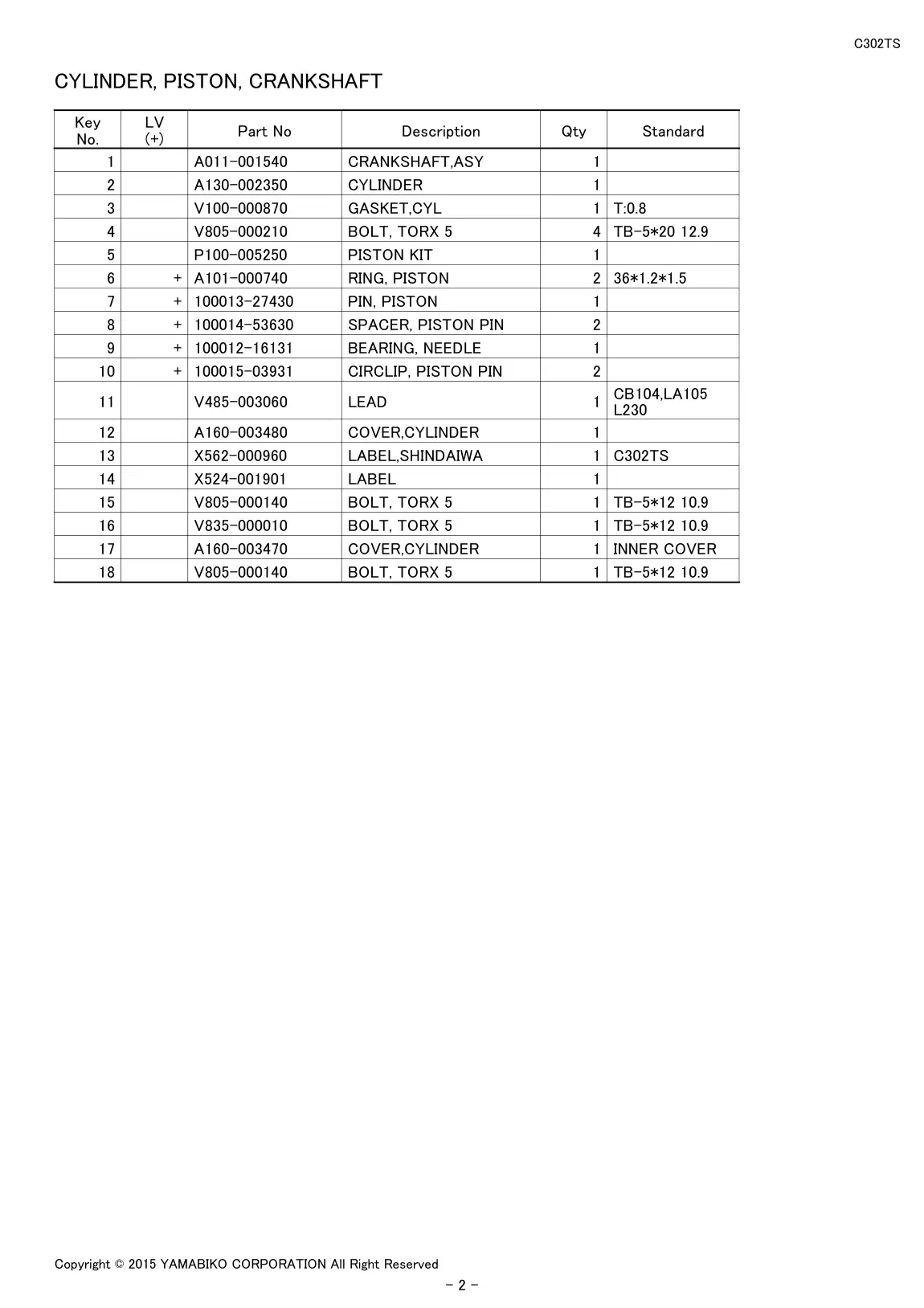

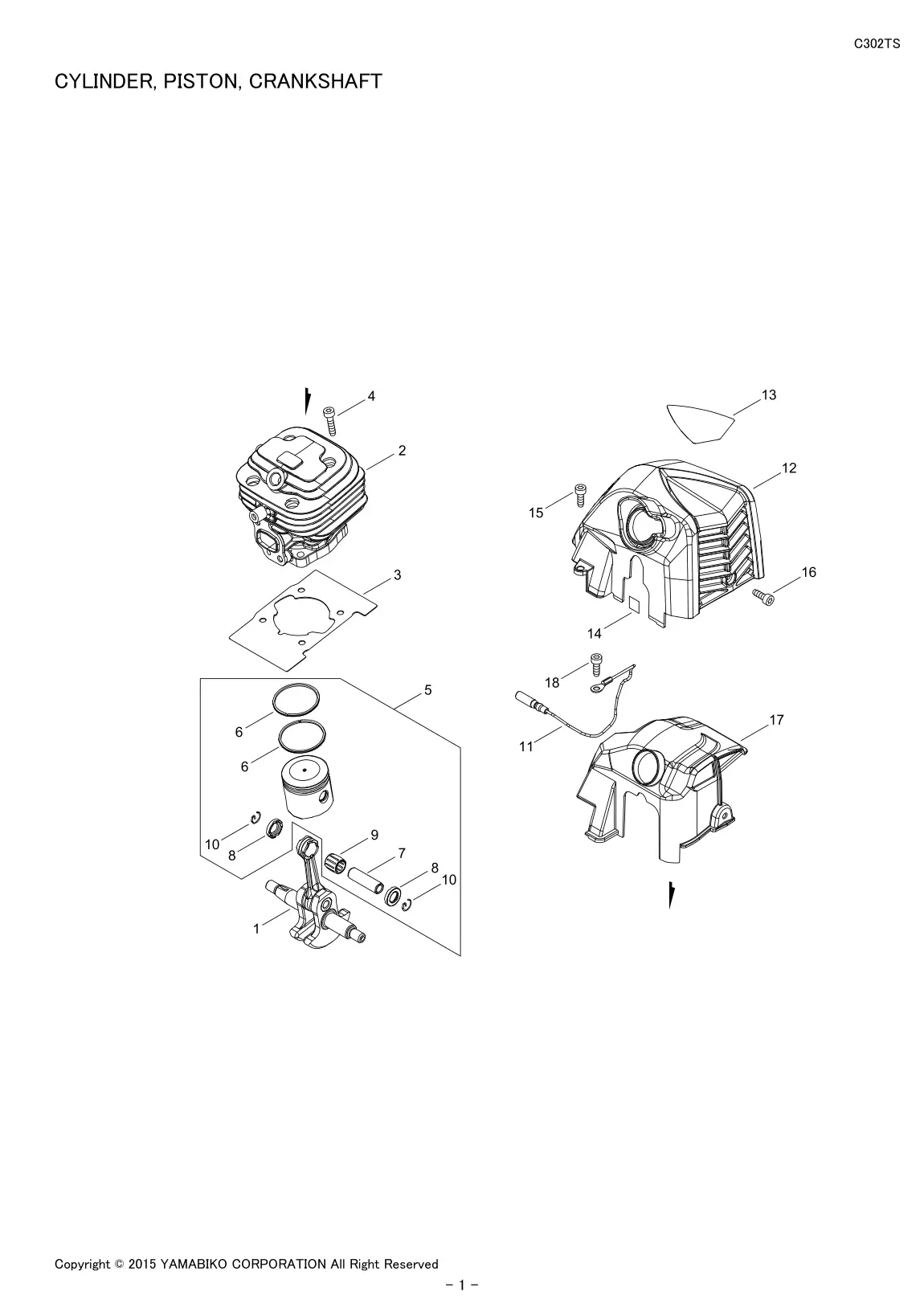

| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001540 | A011-001540-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | CB104 | CB104-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | LA105 | LA105-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | LEAD | V485-003060 | V485-003060-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | COVER,CYLINDER | A160-003480 | A160-003480-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,SHINDAIWA | X562-000960 | X562-000960-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 14 | LABEL | X524-001901 | X524-001901-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 15 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 16 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 17 | COVER,CYLINDER | A160-003470 | A160-003470-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002350 | A130-002350-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000870 | V100-000870-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P100-005250 | P100-005250-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING, PISTON | A101-000740 | A101-000740-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-27430 | 100013-27430-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING, NEEDLE | 100012-16131 | 100012-16131-Online |

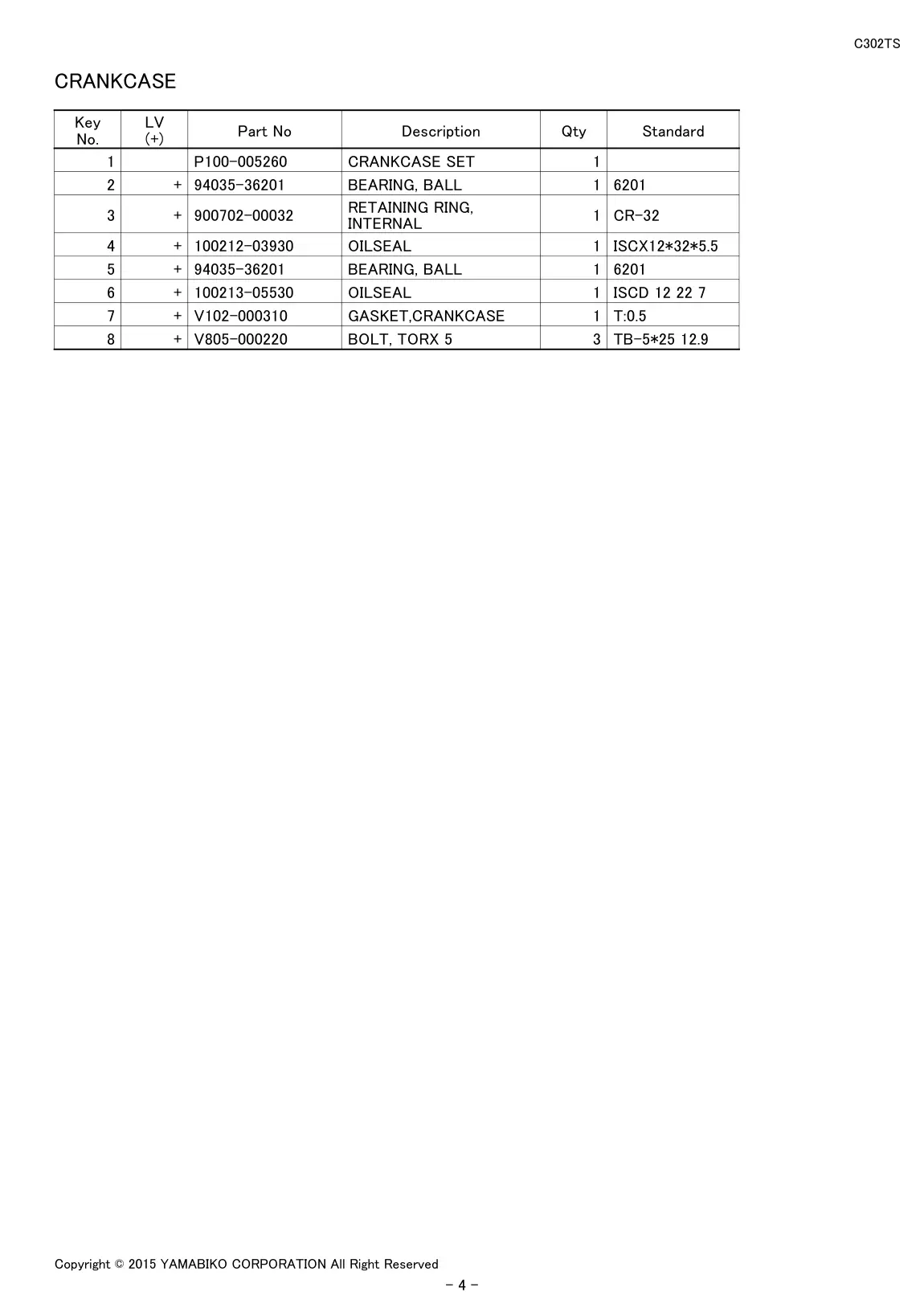

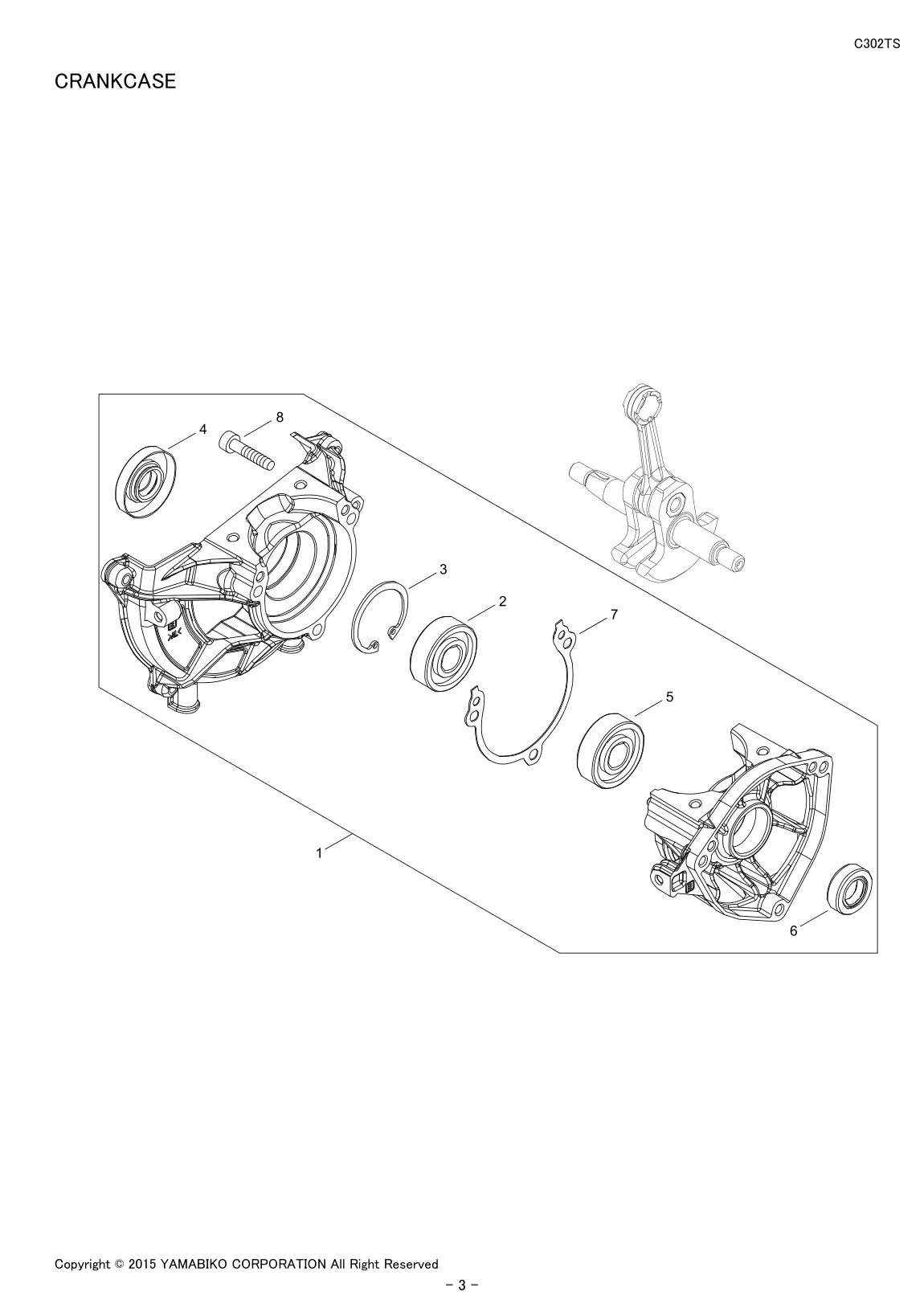

| 6 | CRANKCASE | 1 | CRANKCASE SET | P100-005260 | P100-005260-Online |
| 6 | CRANKCASE | 2 | BEARING, BALL | 94035-36201 | 94035-36201-Online |
| 6 | CRANKCASE | 3 | RETAINING RING, | 900702-00032 | 900702-00032-Online |
| 6 | CRANKCASE | 4 | OILSEAL | 100212-03930 | 100212-03930-Online |
| 6 | CRANKCASE | 4 | BEARING, BALL | ISCX12 | ISCX12-Online |
| 6 | CRANKCASE | 5 | BEARING, BALL | 94035-36201 | 94035-36201-Online |
| 6 | CRANKCASE | 6 | OILSEAL | 100213-05530 | 100213-05530-Online |
| 6 | CRANKCASE | 7 | GASKET,CRANKCASE | V102-000310 | V102-000310-Online |
| 6 | CRANKCASE | 8 | BOLT, TORX | V805-000220 | V805-000220-Online |

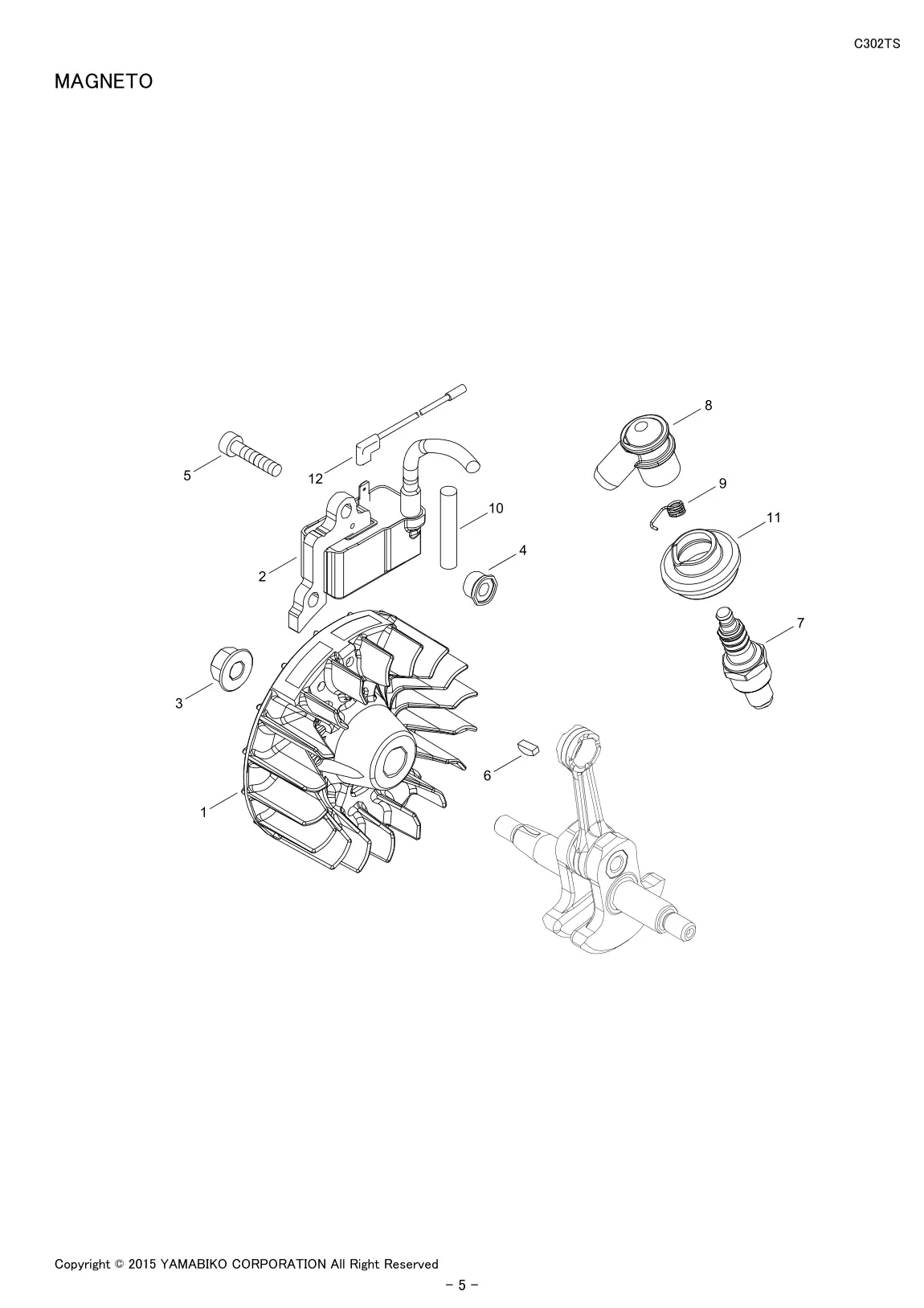

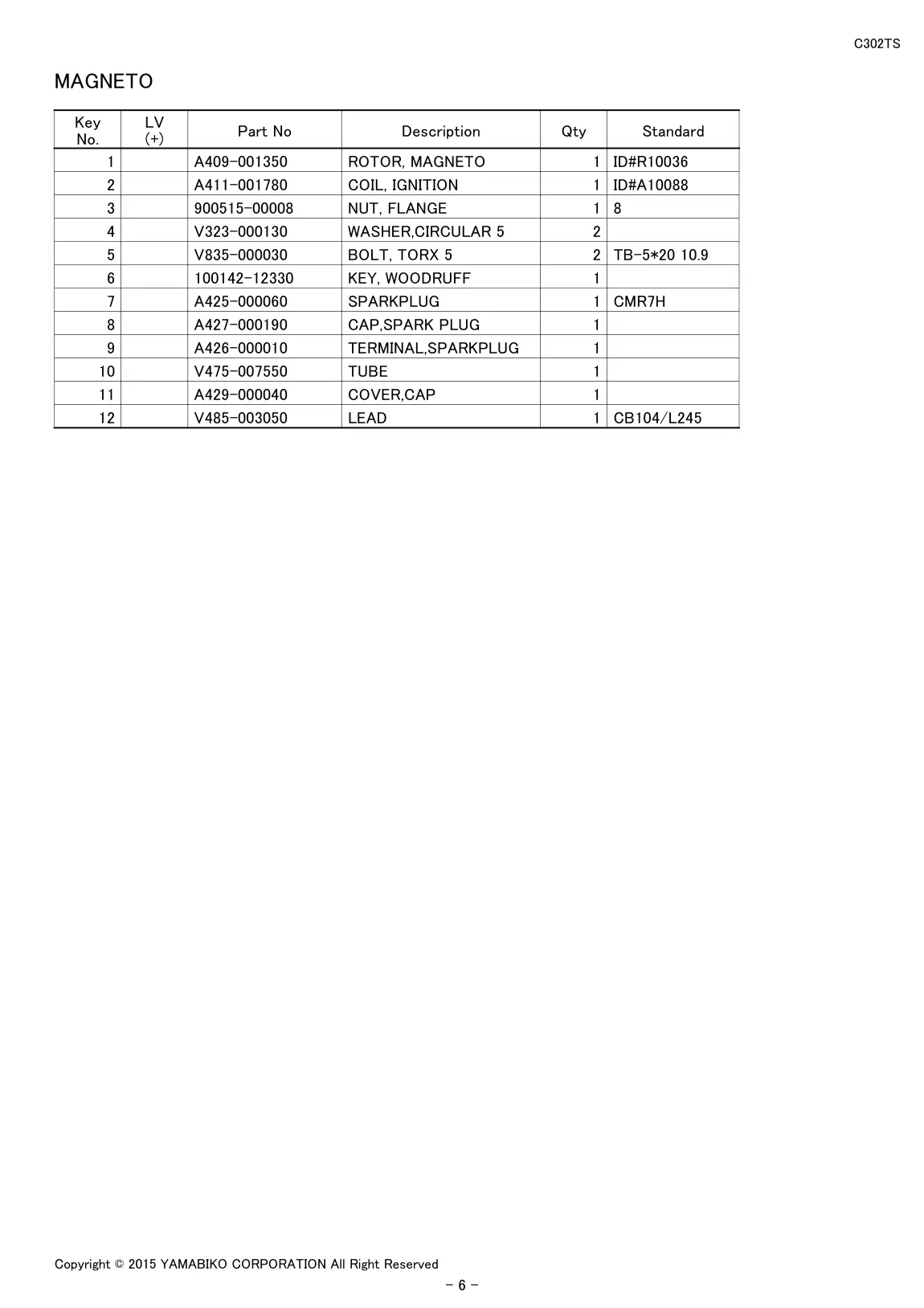

| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001350 | A409-001350-Online |
| 8 | MAGNETO | 1 | COIL, IGNITION | R10036 | R10036-Online |
| 8 | MAGNETO | 10 | TUBE | V475-007550 | V475-007550-Online |
| 8 | MAGNETO | 11 | COVER,CAP | A429-000040 | A429-000040-Online |
| 8 | MAGNETO | 12 | LEAD | V485-003050 | V485-003050-Online |
| 8 | MAGNETO | 2 | NUT, FLANGE | A10088 | A10088-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001780 | A411-001780-Online |
| 8 | MAGNETO | 3 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 4 | WASHER,CIRCULAR | V323-000130 | V323-000130-Online |
| 8 | MAGNETO | 5 | BOLT, TORX | V835-000030 | V835-000030-Online |
| 8 | MAGNETO | 6 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 8 | MAGNETO | 7 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 8 | MAGNETO | 8 | CAP,SPARK PLUG | A427-000190 | A427-000190-Online |
| 8 | MAGNETO | 9 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |

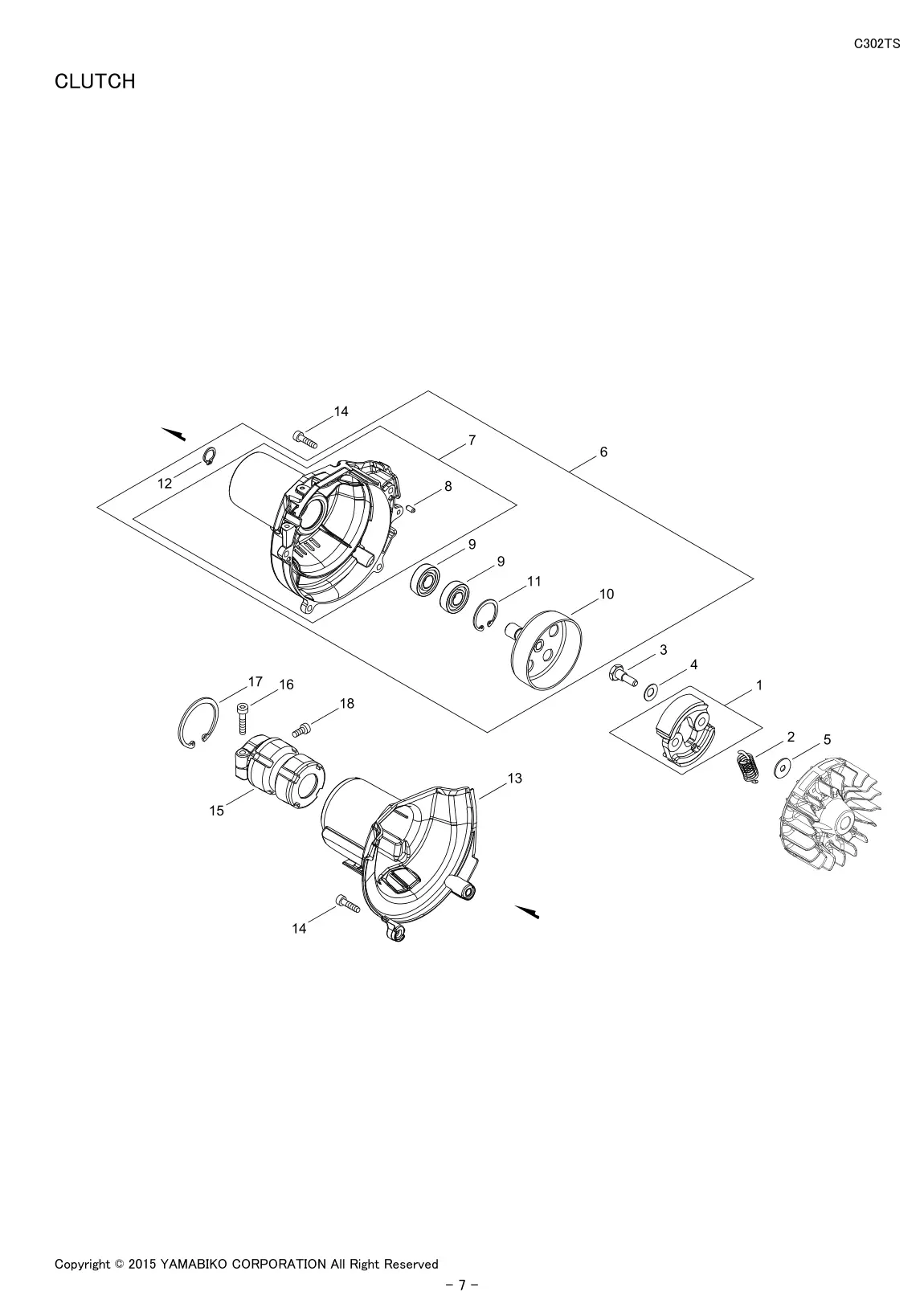

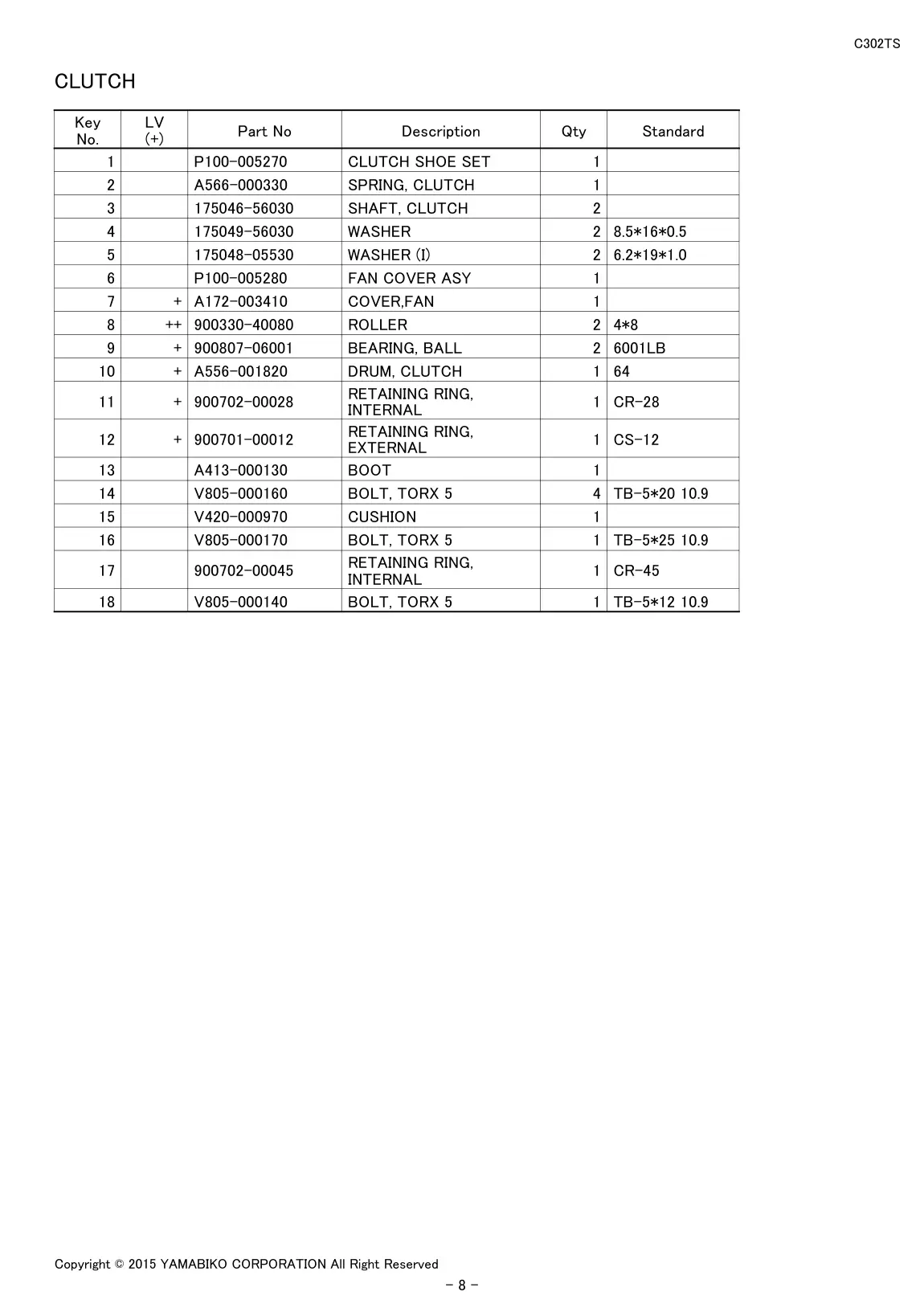

| 10 | CLUTCH | 1 | CLUTCH SHOE SET | P100-005270 | P100-005270-Online |
| 10 | CLUTCH | 10 | DRUM, CLUTCH | A556-001820 | A556-001820-Online |
| 10 | CLUTCH | 11 | RETAINING RING, | 900702-00028 | 900702-00028-Online |
| 10 | CLUTCH | 12 | RETAINING RING, | 900701-00012 | 900701-00012-Online |
| 10 | CLUTCH | 14 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 10 | CLUTCH | 15 | CUSHION | V420-000970 | V420-000970-Online |
| 10 | CLUTCH | 16 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 10 | CLUTCH | 17 | RETAINING RING, | 900702-00045 | 900702-00045-Online |
| 10 | CLUTCH | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 10 | CLUTCH | 2 | SPRING, CLUTCH | A566-000330 | A566-000330-Online |
| 10 | CLUTCH | 3 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 10 | CLUTCH | 4 | WASHER | 175049-56030 | 175049-56030-Online |
| 10 | CLUTCH | 5 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 10 | CLUTCH | 6 | FAN COVER ASY | P100-005280 | P100-005280-Online |
| 10 | CLUTCH | 7 | COVER,FAN | A172-003410 | A172-003410-Online |
| 10 | CLUTCH | 8 | ROLLER | 900330-40080 | 900330-40080-Online |
| 10 | CLUTCH | 9 | BEARING, BALL | 900807-06001 | 900807-06001-Online |

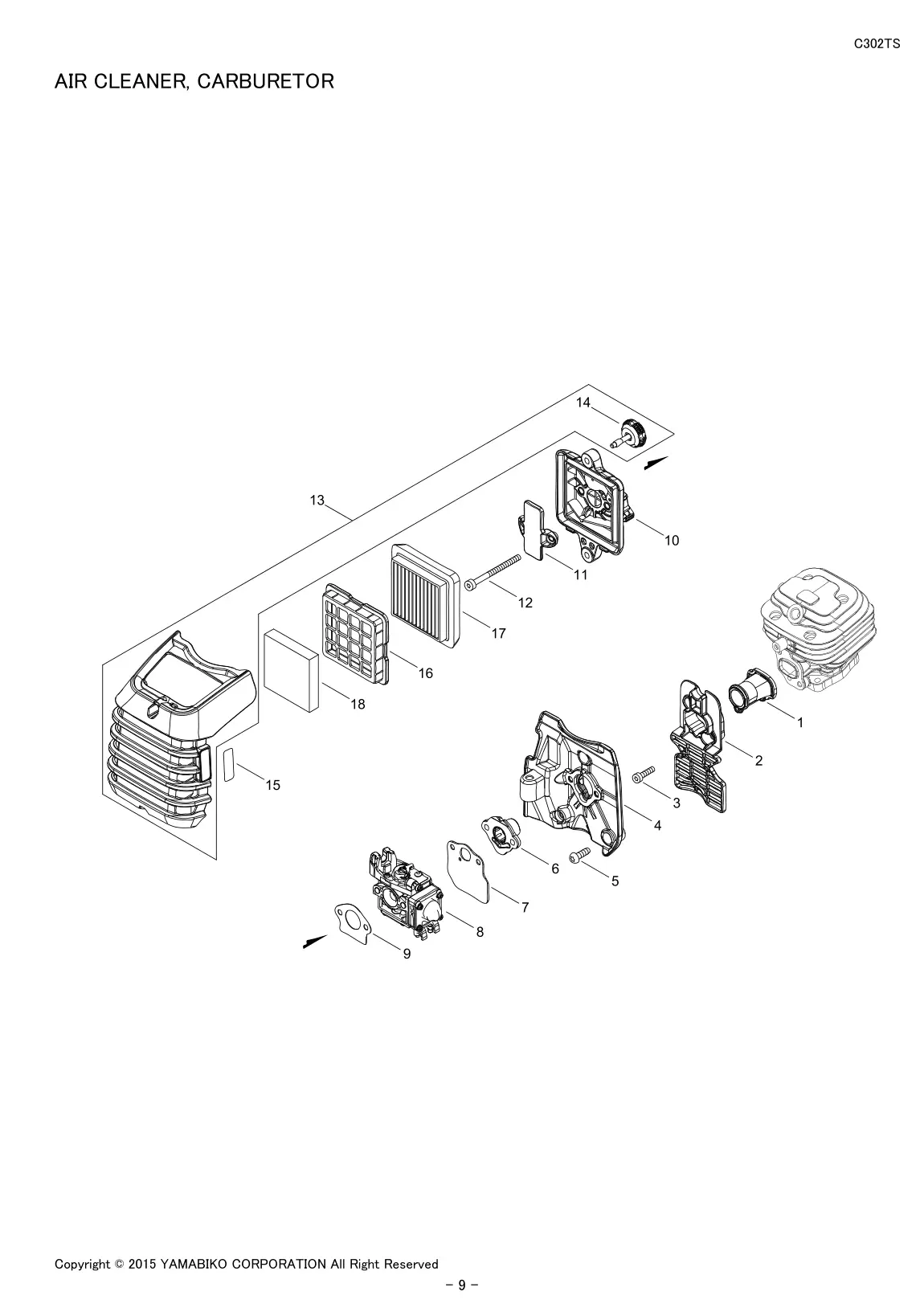

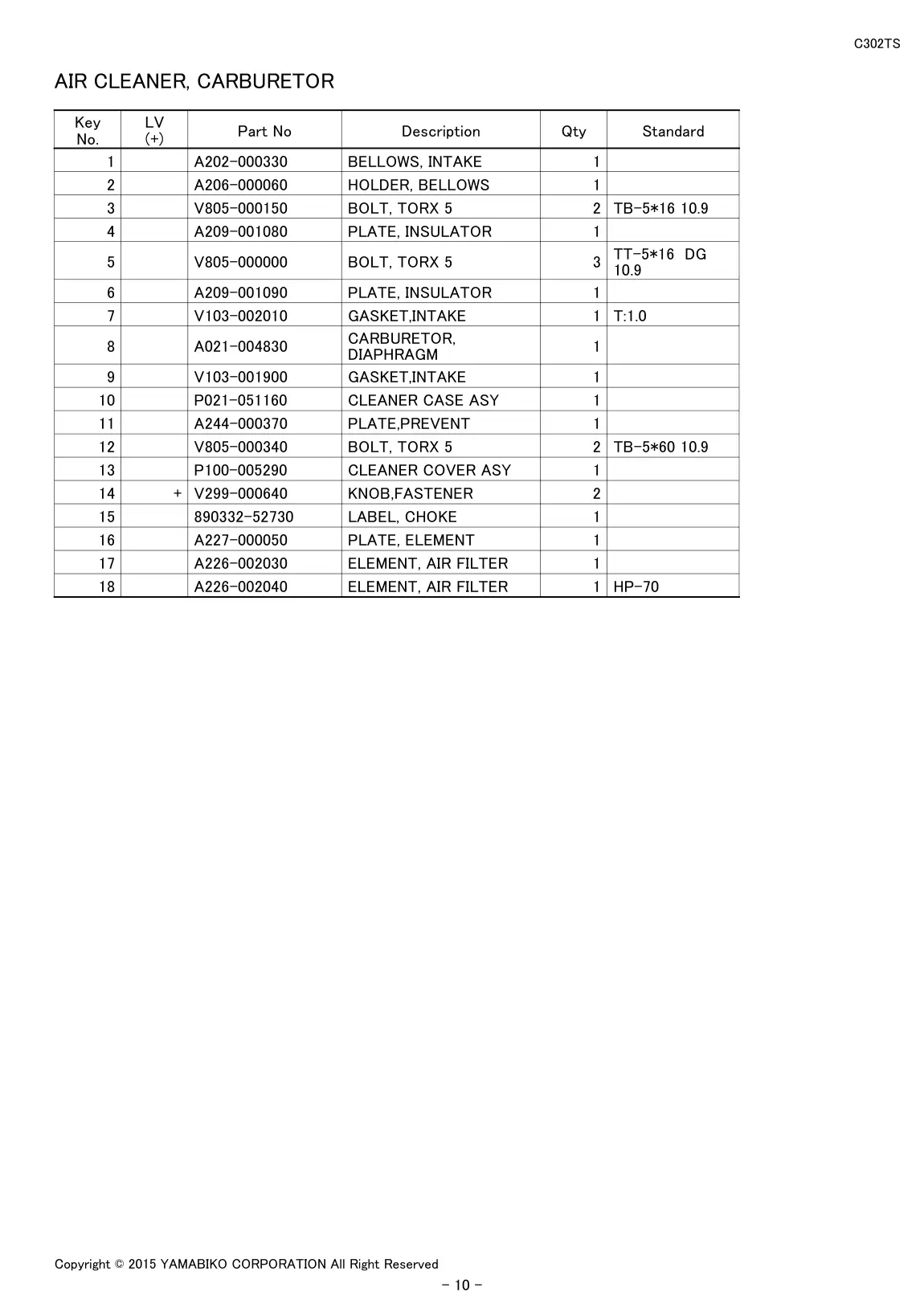

| 12 | AIR CLEANER, CARBURETOR | 1 | BELLOWS, INTAKE | A202-000330 | A202-000330-Online |
| 12 | AIR CLEANER, CARBURETOR | 10 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 12 | AIR CLEANER, CARBURETOR | 11 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 12 | AIR CLEANER, CARBURETOR | 12 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 12 | AIR CLEANER, CARBURETOR | 13 | CLEANER COVER ASY | P100-005290 | P100-005290-Online |
| 12 | AIR CLEANER, CARBURETOR | 14 | KNOB,FASTENER | V299-000640 | V299-000640-Online |
| 12 | AIR CLEANER, CARBURETOR | 15 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 16 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 12 | AIR CLEANER, CARBURETOR | 17 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 12 | AIR CLEANER, CARBURETOR | 18 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 12 | AIR CLEANER, CARBURETOR | 2 | HOLDER, BELLOWS | A206-000060 | A206-000060-Online |
| 12 | AIR CLEANER, CARBURETOR | 3 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 4 | PLATE, INSULATOR | A209-001080 | A209-001080-Online |
| 12 | AIR CLEANER, CARBURETOR | 5 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 12 | AIR CLEANER, CARBURETOR | 6 | PLATE, INSULATOR | A209-001090 | A209-001090-Online |
| 12 | AIR CLEANER, CARBURETOR | 7 | GASKET,INTAKE | V103-002010 | V103-002010-Online |
| 12 | AIR CLEANER, CARBURETOR | 8 | CARBURETOR, | A021-004830 | A021-004830-Online |
| 12 | AIR CLEANER, CARBURETOR | 9 | GASKET,INTAKE | V103-001900 | V103-001900-Online |

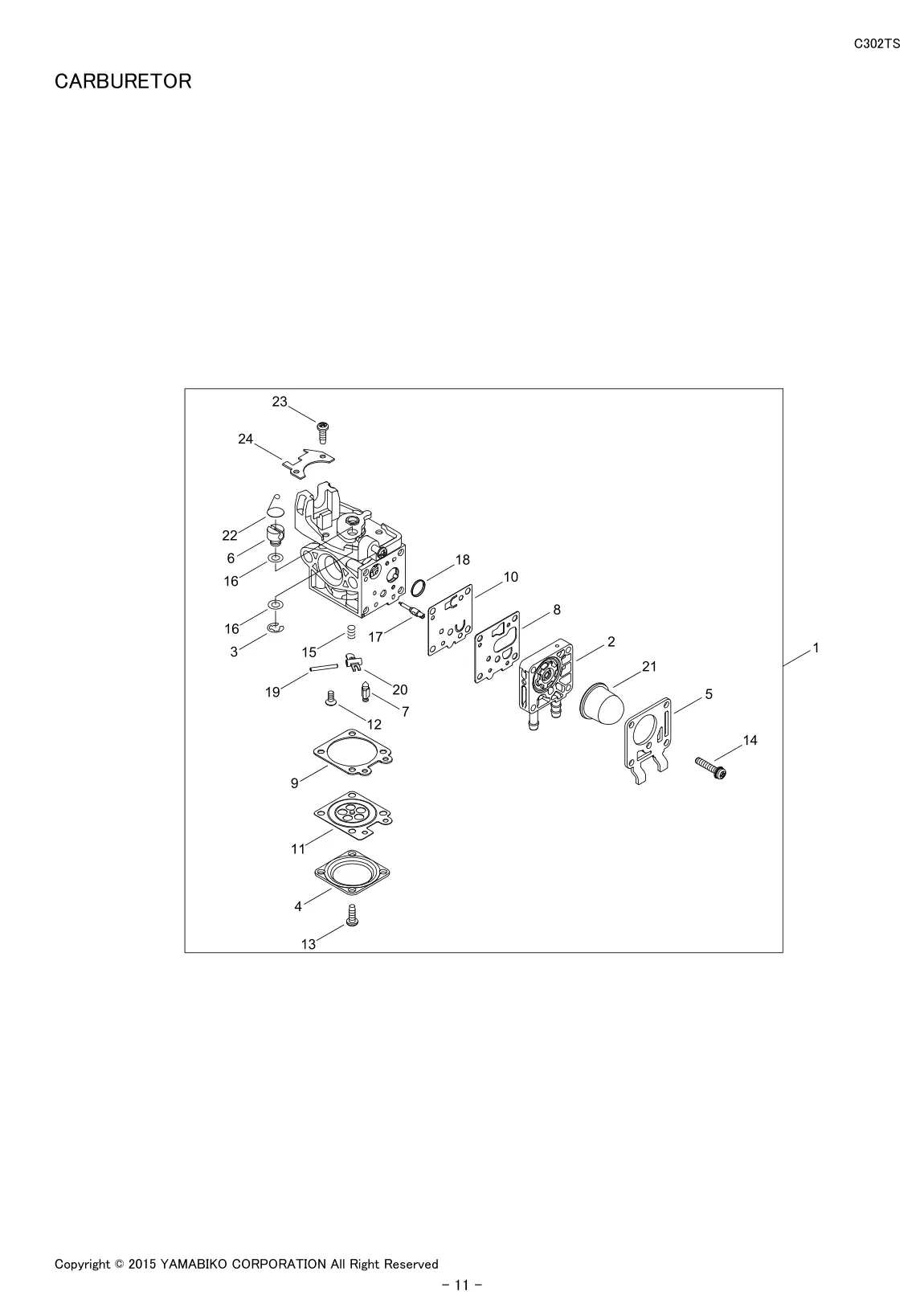

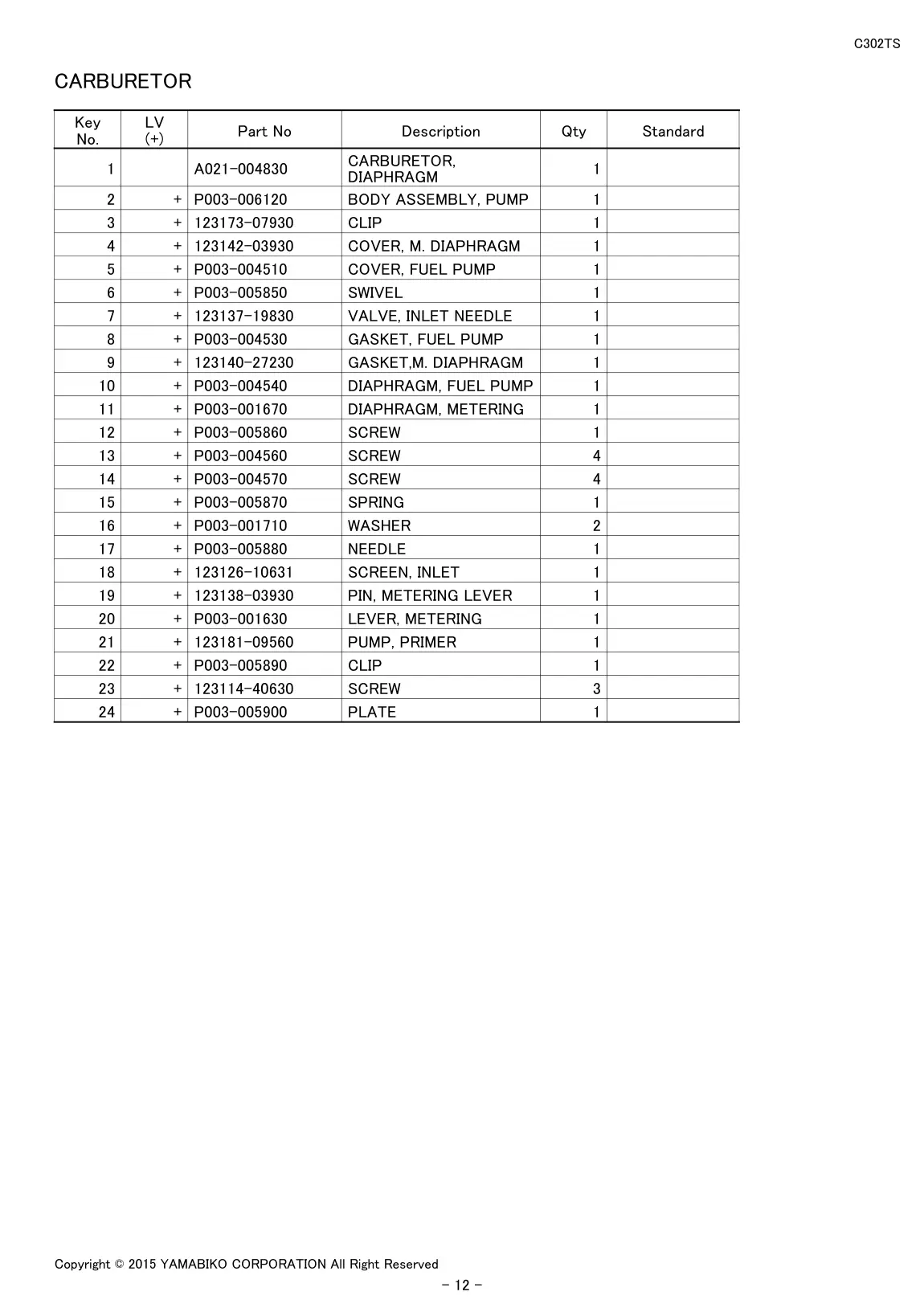

| 14 | CARBURETOR | 1 | CARBURETOR, | A021-004830 | A021-004830-Online |
| 14 | CARBURETOR | 10 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 14 | CARBURETOR | 11 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 14 | CARBURETOR | 12 | SCREW | P003-005860 | P003-005860-Online |
| 14 | CARBURETOR | 13 | SCREW | P003-004560 | P003-004560-Online |
| 14 | CARBURETOR | 14 | SCREW | P003-004570 | P003-004570-Online |
| 14 | CARBURETOR | 15 | SPRING | P003-005870 | P003-005870-Online |
| 14 | CARBURETOR | 16 | WASHER | P003-001710 | P003-001710-Online |
| 14 | CARBURETOR | 17 | NEEDLE | P003-005880 | P003-005880-Online |
| 14 | CARBURETOR | 18 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 14 | CARBURETOR | 19 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 14 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006120 | P003-006120-Online |
| 14 | CARBURETOR | 20 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 14 | CARBURETOR | 21 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 14 | CARBURETOR | 22 | CLIP | P003-005890 | P003-005890-Online |
| 14 | CARBURETOR | 23 | SCREW | 123114-40630 | 123114-40630-Online |
| 14 | CARBURETOR | 24 | PLATE | P003-005900 | P003-005900-Online |
| 14 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 14 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 14 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 14 | CARBURETOR | 6 | SWIVEL | P003-005850 | P003-005850-Online |
| 14 | CARBURETOR | 7 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 14 | CARBURETOR | 8 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 14 | CARBURETOR | 9 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |

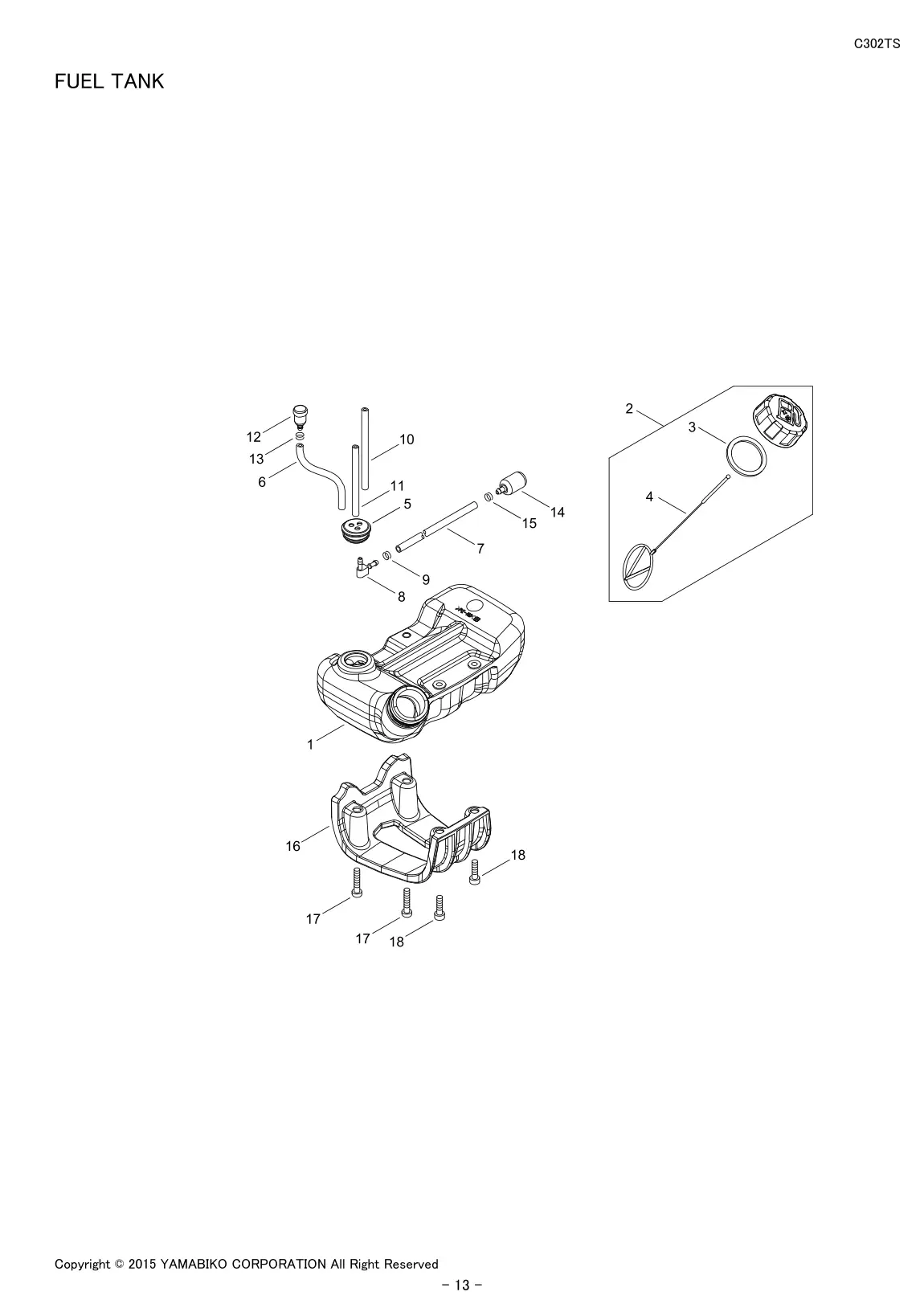

| 16 | FUEL TANK | 1 | TANK, FUEL | A350-002500 | A350-002500-Online |
| 16 | FUEL TANK | 10 | PIPE | V471-003321 | V471-003321-Online |
| 16 | FUEL TANK | 11 | PIPE 3*6*85 | 132010-49730 | 132010-49730-Online |
| 16 | FUEL TANK | 12 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 16 | FUEL TANK | 13 | CLIP | V490-001230 | V490-001230-Online |
| 16 | FUEL TANK | 14 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 16 | FUEL TANK | 15 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 17 | BOLT, TORX | V805-000230 | V805-000230-Online |
| 16 | FUEL TANK | 18 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 16 | FUEL TANK | 2 | FUEL CAP ASY | P021-035681 | P021-035681-Online |
| 16 | FUEL TANK | 3 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 16 | FUEL TANK | 4 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 16 | FUEL TANK | 5 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 16 | FUEL TANK | 6 | PIPE | V471-001201 | V471-001201-Online |
| 16 | FUEL TANK | 7 | PIPE | V470-002360 | V470-002360-Online |
| 16 | FUEL TANK | 8 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 16 | FUEL TANK | 9 | CLIP | V490-001240 | V490-001240-Online |

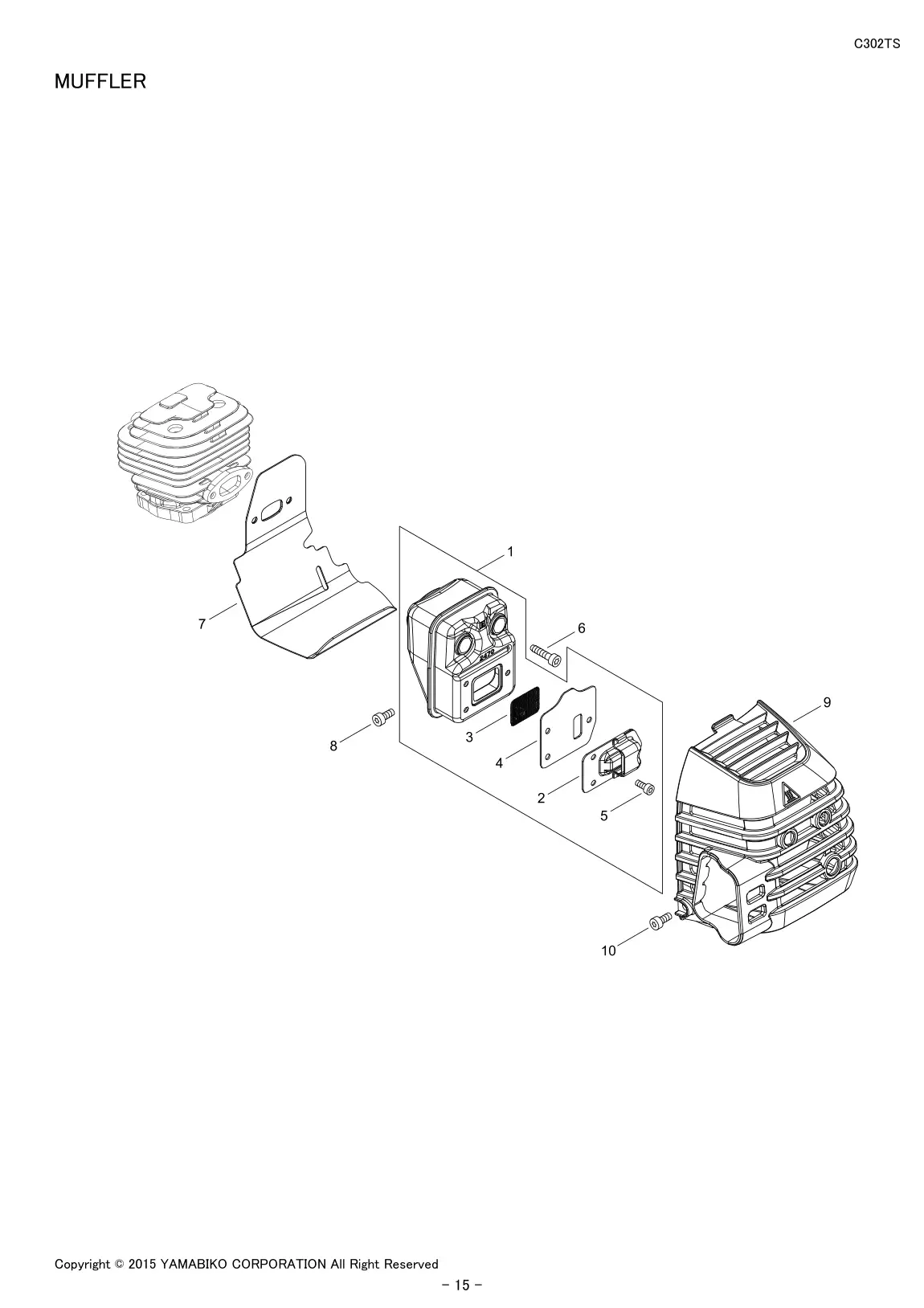

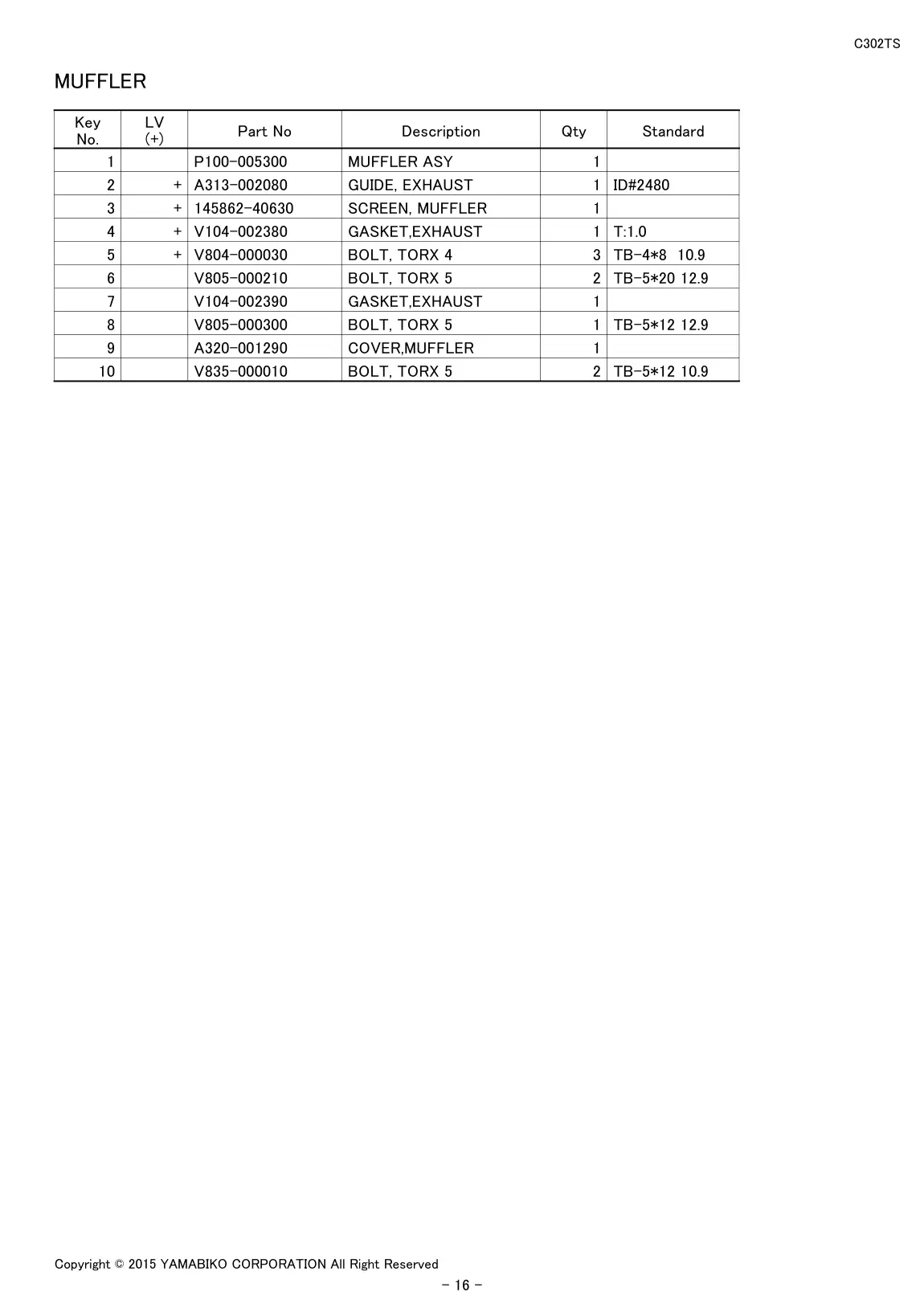

| 18 | MUFFLER | 1 | MUFFLER ASY | P100-005300 | P100-005300-Online |
| 18 | MUFFLER | 10 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 18 | MUFFLER | 2 | GUIDE, EXHAUST | A313-002080 | A313-002080-Online |
| 18 | MUFFLER | 3 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 18 | MUFFLER | 4 | GASKET,EXHAUST | V104-002380 | V104-002380-Online |
| 18 | MUFFLER | 5 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 18 | MUFFLER | 6 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 18 | MUFFLER | 7 | GASKET,EXHAUST | V104-002390 | V104-002390-Online |
| 18 | MUFFLER | 8 | BOLT, TORX | V805-000300 | V805-000300-Online |
| 18 | MUFFLER | 9 | COVER,MUFFLER | A320-001290 | A320-001290-Online |

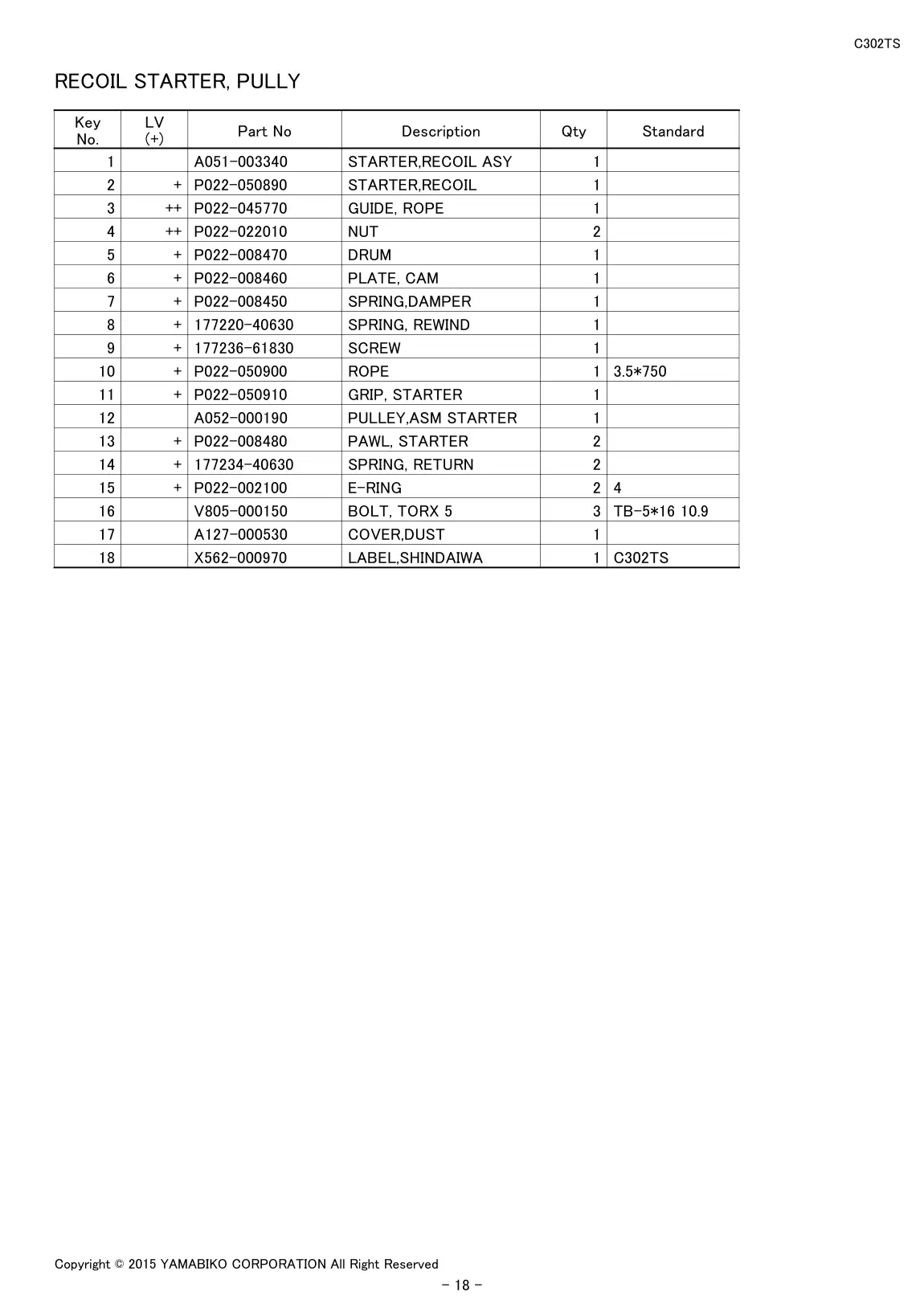

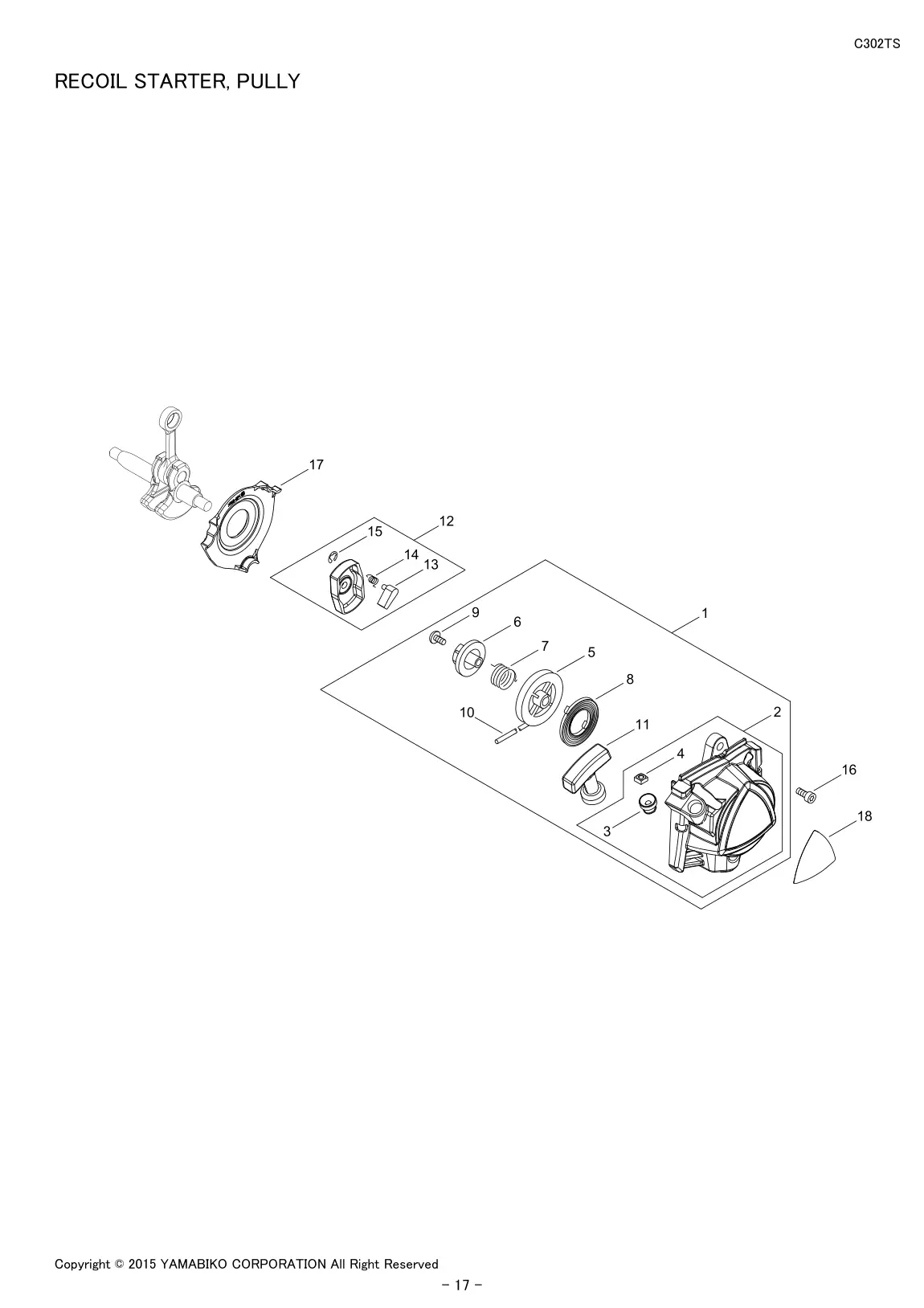

| 20 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-003340 | A051-003340-Online |
| 20 | RECOIL STARTER, PULLY | 10 | ROPE | P022-050900 | P022-050900-Online |
| 20 | RECOIL STARTER, PULLY | 11 | GRIP, STARTER | P022-050910 | P022-050910-Online |
| 20 | RECOIL STARTER, PULLY | 12 | PULLEY,ASM STARTER | A052-000190 | A052-000190-Online |
| 20 | RECOIL STARTER, PULLY | 13 | PAWL, STARTER | P022-008480 | P022-008480-Online |
| 20 | RECOIL STARTER, PULLY | 14 | SPRING, RETURN | 177234-40630 | 177234-40630-Online |
| 20 | RECOIL STARTER, PULLY | 15 | E-RING | P022-002100 | P022-002100-Online |
| 20 | RECOIL STARTER, PULLY | 16 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 20 | RECOIL STARTER, PULLY | 17 | COVER,DUST | A127-000530 | A127-000530-Online |
| 20 | RECOIL STARTER, PULLY | 18 | LABEL,SHINDAIWA | X562-000970 | X562-000970-Online |
| 20 | RECOIL STARTER, PULLY | 2 | STARTER,RECOIL | P022-050890 | P022-050890-Online |
| 20 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 20 | RECOIL STARTER, PULLY | 4 | NUT | P022-022010 | P022-022010-Online |
| 20 | RECOIL STARTER, PULLY | 5 | DRUM | P022-008470 | P022-008470-Online |
| 20 | RECOIL STARTER, PULLY | 6 | PLATE, CAM | P022-008460 | P022-008460-Online |
| 20 | RECOIL STARTER, PULLY | 7 | SPRING,DAMPER | P022-008450 | P022-008450-Online |
| 20 | RECOIL STARTER, PULLY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 20 | RECOIL STARTER, PULLY | 9 | SCREW | 177236-61830 | 177236-61830-Online |

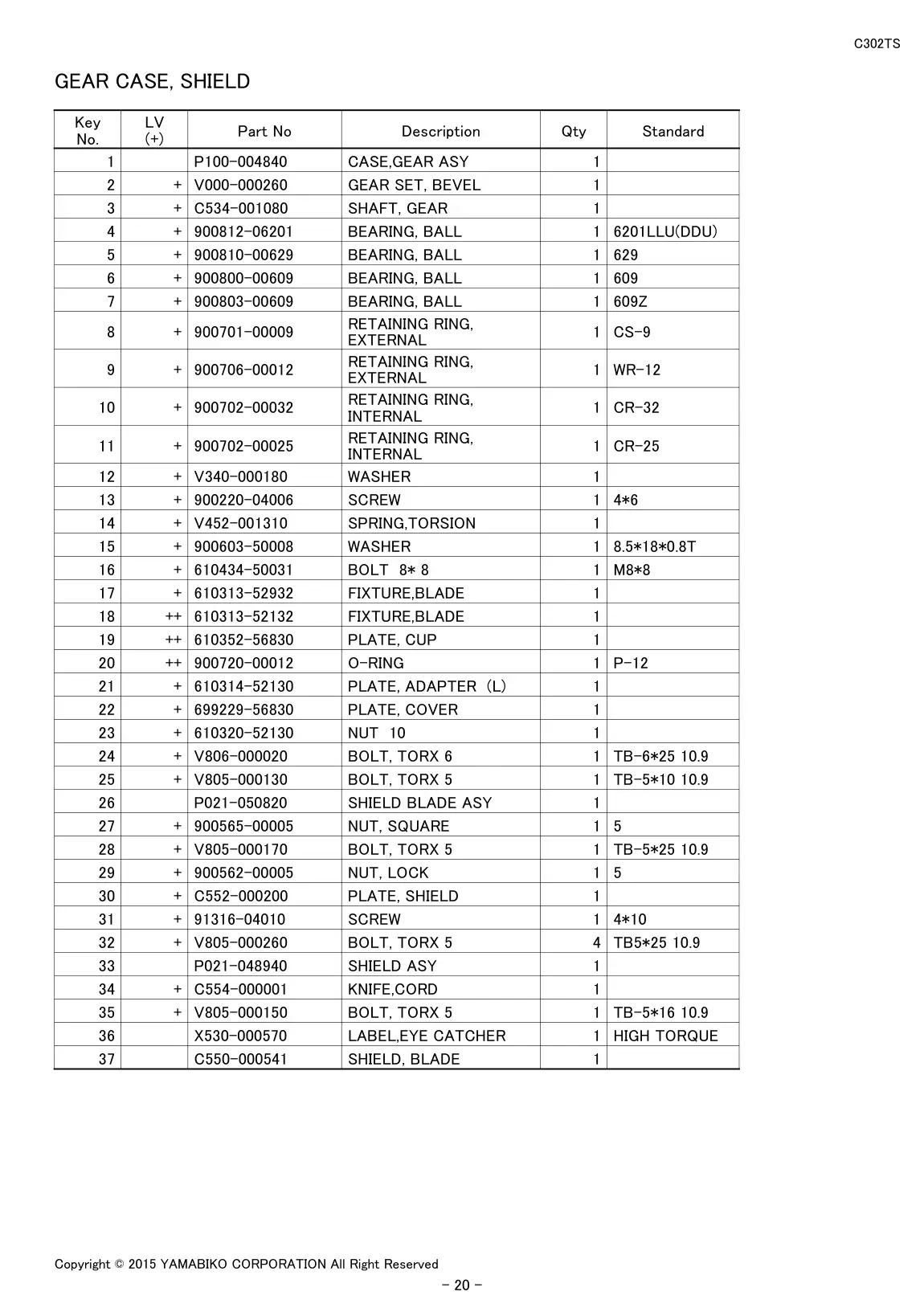

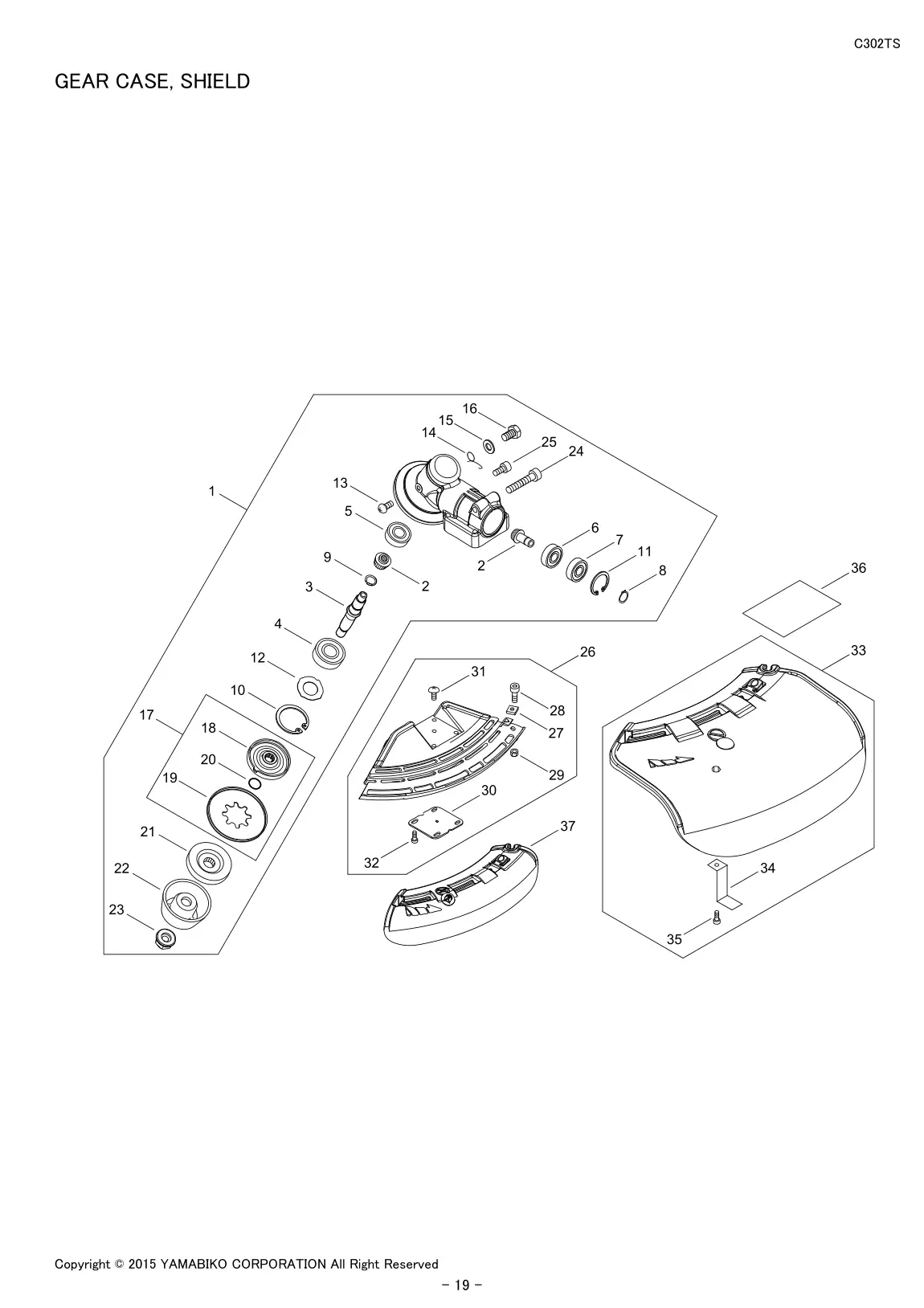

| 22 | GEAR CASE, SHIELD | 1 | CASE,GEAR ASY | P100-004840 | P100-004840-Online |
| 22 | GEAR CASE, SHIELD | 10 | RETAINING RING, | 900702-00032 | 900702-00032-Online |
| 22 | GEAR CASE, SHIELD | 11 | RETAINING RING, | 900702-00025 | 900702-00025-Online |
| 22 | GEAR CASE, SHIELD | 12 | WASHER | V340-000180 | V340-000180-Online |
| 22 | GEAR CASE, SHIELD | 13 | SCREW | 900220-04006 | 900220-04006-Online |
| 22 | GEAR CASE, SHIELD | 14 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 22 | GEAR CASE, SHIELD | 15 | WASHER | 900603-50008 | 900603-50008-Online |
| 22 | GEAR CASE, SHIELD | 16 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 22 | GEAR CASE, SHIELD | 17 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 22 | GEAR CASE, SHIELD | 18 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 22 | GEAR CASE, SHIELD | 19 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 22 | GEAR CASE, SHIELD | 2 | GEAR SET, BEVEL | V000-000260 | V000-000260-Online |
| 22 | GEAR CASE, SHIELD | 20 | O-RING | 900720-00012 | 900720-00012-Online |
| 22 | GEAR CASE, SHIELD | 21 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 22 | GEAR CASE, SHIELD | 22 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 22 | GEAR CASE, SHIELD | 23 | NUT | 610320-52130 | 610320-52130-Online |
| 22 | GEAR CASE, SHIELD | 24 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 22 | GEAR CASE, SHIELD | 25 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 22 | GEAR CASE, SHIELD | 26 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 22 | GEAR CASE, SHIELD | 27 | NUT, SQUARE | 900565-00005 | 900565-00005-Online |
| 22 | GEAR CASE, SHIELD | 28 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 22 | GEAR CASE, SHIELD | 29 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 22 | GEAR CASE, SHIELD | 3 | SHAFT, GEAR | C534-001080 | C534-001080-Online |
| 22 | GEAR CASE, SHIELD | 30 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 22 | GEAR CASE, SHIELD | 31 | SCREW | 91316-04010 | 91316-04010-Online |
| 22 | GEAR CASE, SHIELD | 32 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 22 | GEAR CASE, SHIELD | 33 | SHIELD ASY | P021-048940 | P021-048940-Online |
| 22 | GEAR CASE, SHIELD | 34 | KNIFE,CORD | C554-000001 | C554-000001-Online |
| 22 | GEAR CASE, SHIELD | 35 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 22 | GEAR CASE, SHIELD | 36 | LABEL,EYE CATCHER | X530-000570 | X530-000570-Online |
| 22 | GEAR CASE, SHIELD | 37 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 22 | GEAR CASE, SHIELD | 4 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 22 | GEAR CASE, SHIELD | 5 | BEARING, BALL | 900810-00629 | 900810-00629-Online |
| 22 | GEAR CASE, SHIELD | 6 | BEARING, BALL | 900800-00609 | 900800-00609-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING, BALL | 900803-00609 | 900803-00609-Online |
| 22 | GEAR CASE, SHIELD | 8 | RETAINING RING, | 900701-00009 | 900701-00009-Online |
| 22 | GEAR CASE, SHIELD | 9 | RETAINING RING, | 900706-00012 | 900706-00012-Online |

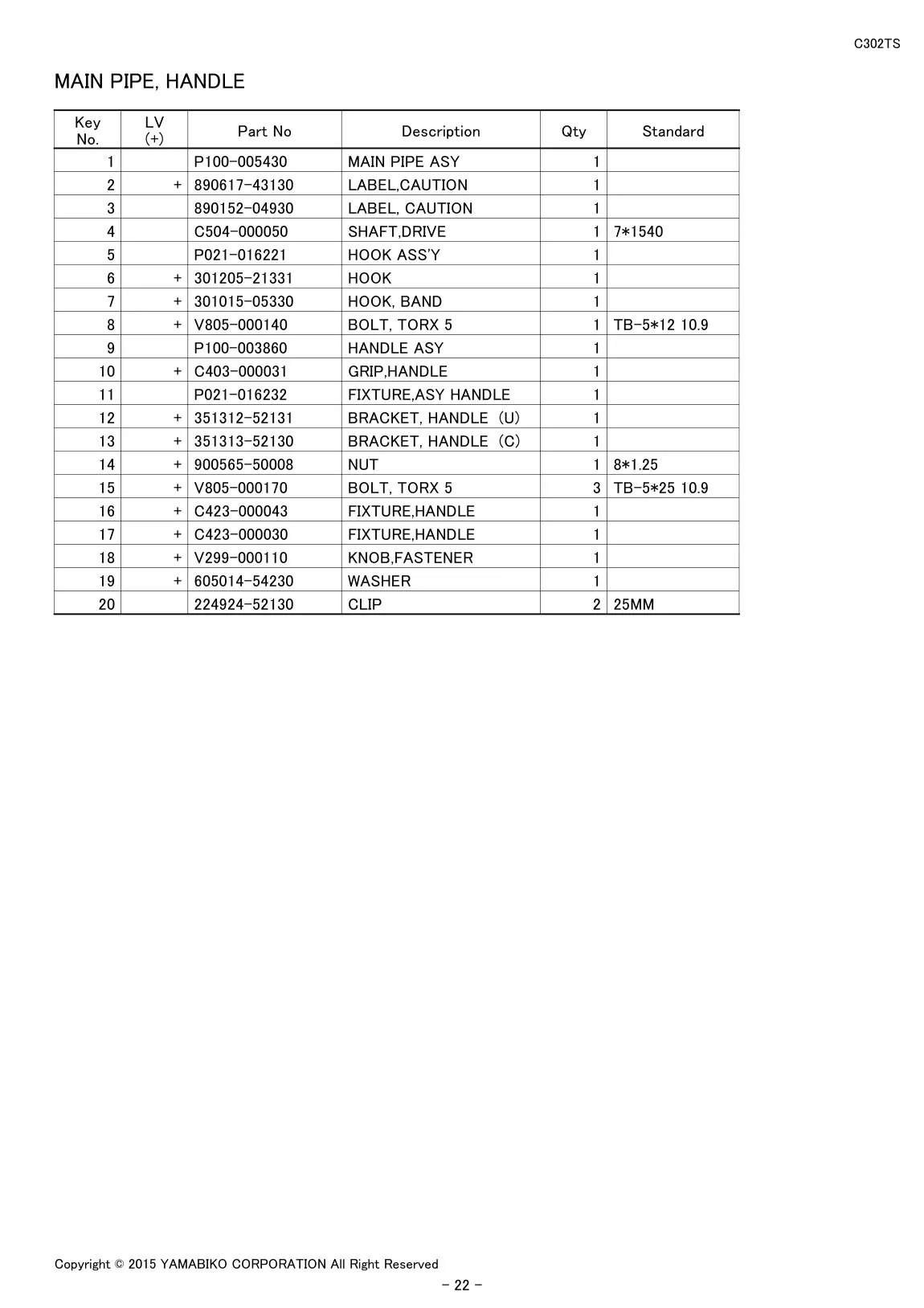

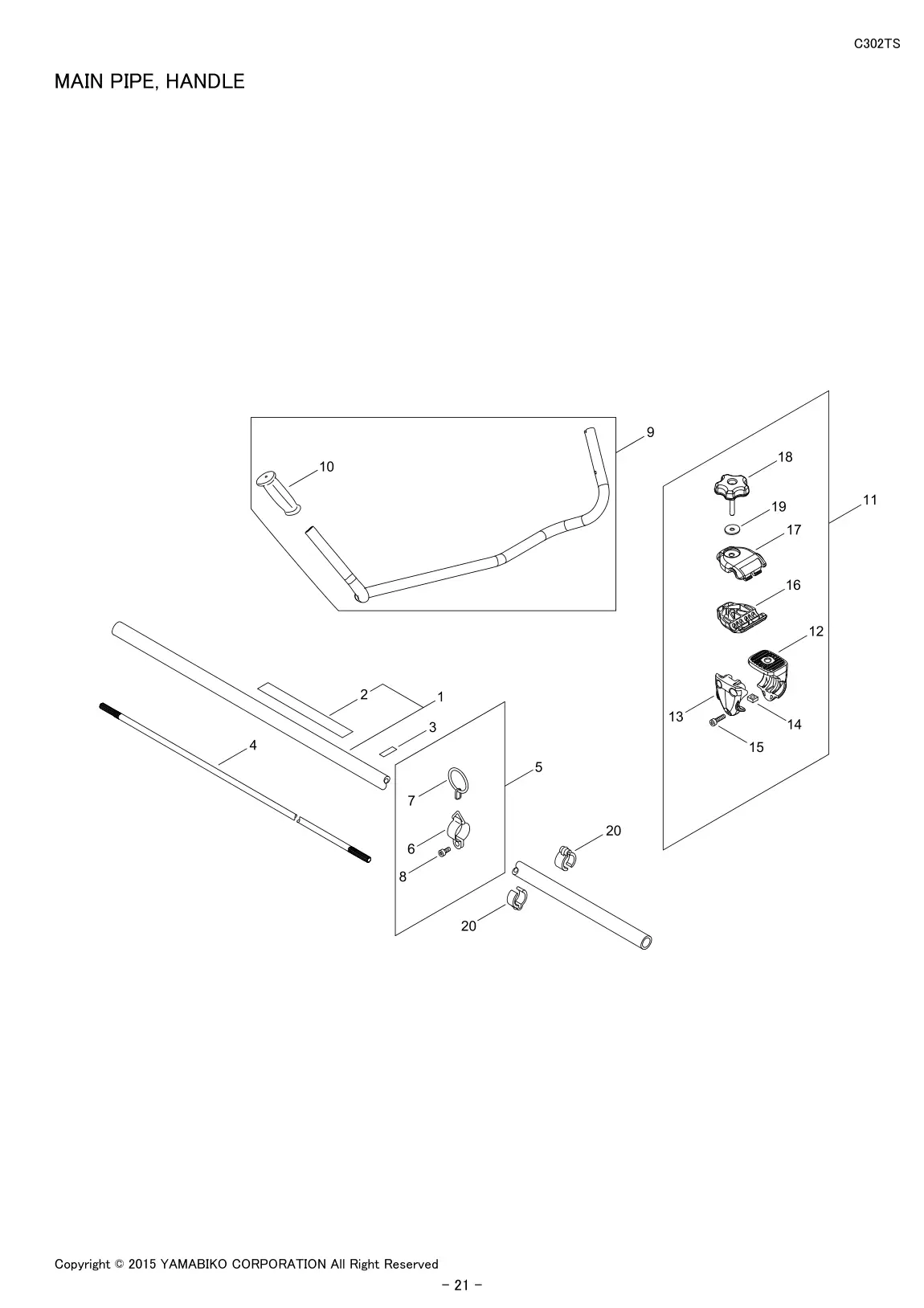

| 24 | MAIN PIPE, HANDLE | 1 | MAIN PIPE ASY | P100-005430 | P100-005430-Online |
| 24 | MAIN PIPE, HANDLE | 10 | GRIP,HANDLE | C403-000031 | C403-000031-Online |
| 24 | MAIN PIPE, HANDLE | 11 | FIXTURE,ASY HANDLE | P021-016232 | P021-016232-Online |
| 24 | MAIN PIPE, HANDLE | 12 | BRACKET, HANDLE (U) | 351312-52131 | 351312-52131-Online |
| 24 | MAIN PIPE, HANDLE | 13 | BRACKET, HANDLE (C) | 351313-52130 | 351313-52130-Online |
| 24 | MAIN PIPE, HANDLE | 14 | NUT | 900565-50008 | 900565-50008-Online |
| 24 | MAIN PIPE, HANDLE | 15 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 24 | MAIN PIPE, HANDLE | 16 | FIXTURE,HANDLE | C423-000043 | C423-000043-Online |
| 24 | MAIN PIPE, HANDLE | 17 | FIXTURE,HANDLE | C423-000030 | C423-000030-Online |
| 24 | MAIN PIPE, HANDLE | 18 | KNOB,FASTENER | V299-000110 | V299-000110-Online |
| 24 | MAIN PIPE, HANDLE | 19 | WASHER | 605014-54230 | 605014-54230-Online |
| 24 | MAIN PIPE, HANDLE | 2 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 24 | MAIN PIPE, HANDLE | 20 | CLIP | 224924-52130 | 224924-52130-Online |
| 24 | MAIN PIPE, HANDLE | 3 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 24 | MAIN PIPE, HANDLE | 4 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 24 | MAIN PIPE, HANDLE | 5 | HOOK ASS'Y | P021-016221 | P021-016221-Online |
| 24 | MAIN PIPE, HANDLE | 7 | HOOK, BAND | 301015-05330 | 301015-05330-Online |
| 24 | MAIN PIPE, HANDLE | 8 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 24 | MAIN PIPE, HANDLE | 9 | HANDLE ASY | P100-003860 | P100-003860-Online |

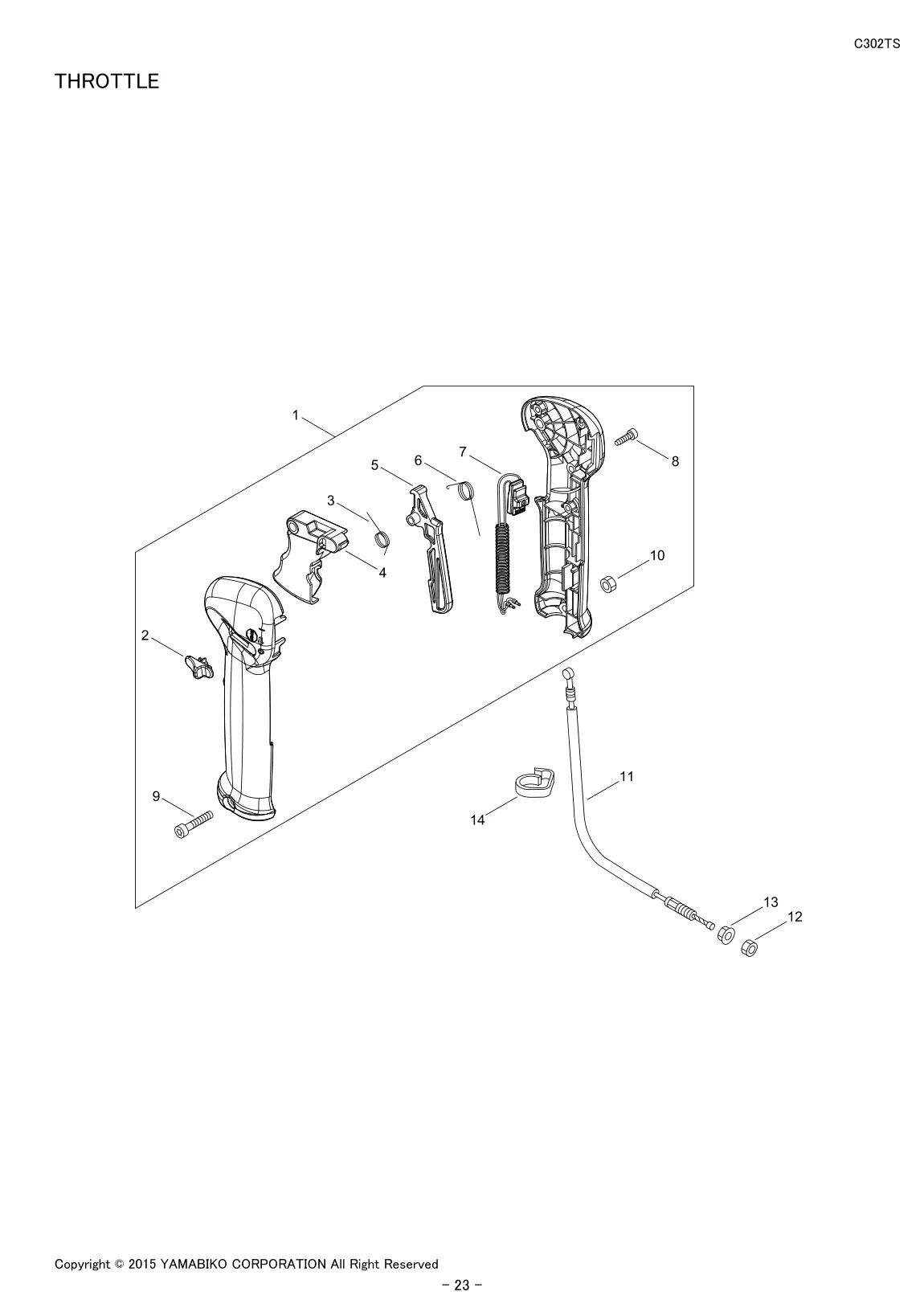

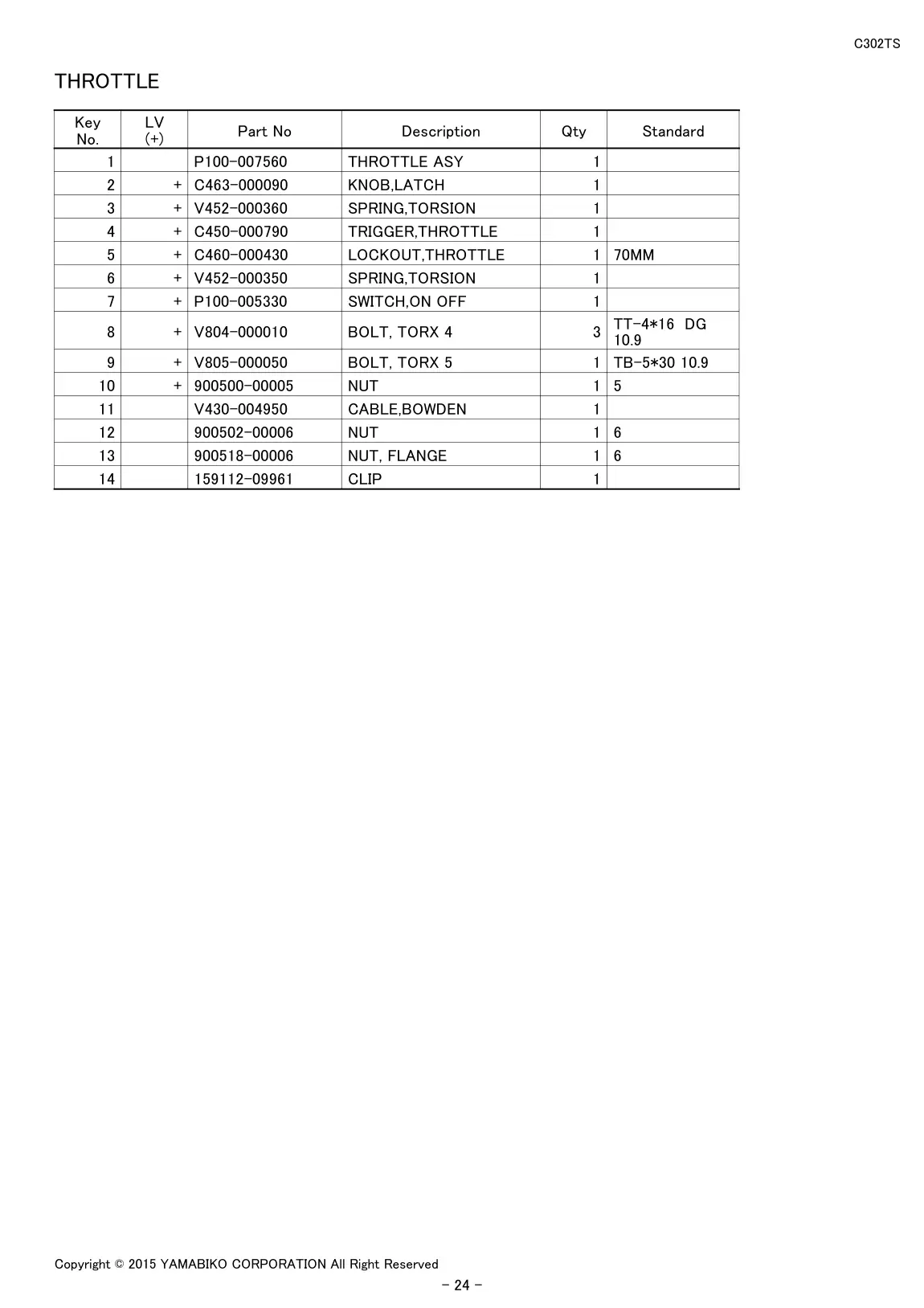

| 26 | THROTTLE | 1 | THROTTLE ASY | P100-007560 | P100-007560-Online |
| 26 | THROTTLE | 10 | NUT | 900500-00005 | 900500-00005-Online |
| 26 | THROTTLE | 11 | CABLE,BOWDEN | V430-004950 | V430-004950-Online |
| 26 | THROTTLE | 12 | NUT | 900502-00006 | 900502-00006-Online |
| 26 | THROTTLE | 13 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 26 | THROTTLE | 14 | CLIP | 159112-09961 | 159112-09961-Online |
| 26 | THROTTLE | 2 | KNOB,LATCH | C463-000090 | C463-000090-Online |
| 26 | THROTTLE | 3 | SPRING,TORSION | V452-000360 | V452-000360-Online |
| 26 | THROTTLE | 4 | TRIGGER,THROTTLE | C450-000790 | C450-000790-Online |
| 26 | THROTTLE | 5 | LOCKOUT,THROTTLE | C460-000430 | C460-000430-Online |
| 26 | THROTTLE | 6 | SPRING,TORSION | V452-000350 | V452-000350-Online |
| 26 | THROTTLE | 7 | SWITCH,ON OFF | P100-005330 | P100-005330-Online |
| 26 | THROTTLE | 8 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 26 | THROTTLE | 9 | BOLT, TORX | V805-000050 | V805-000050-Online |

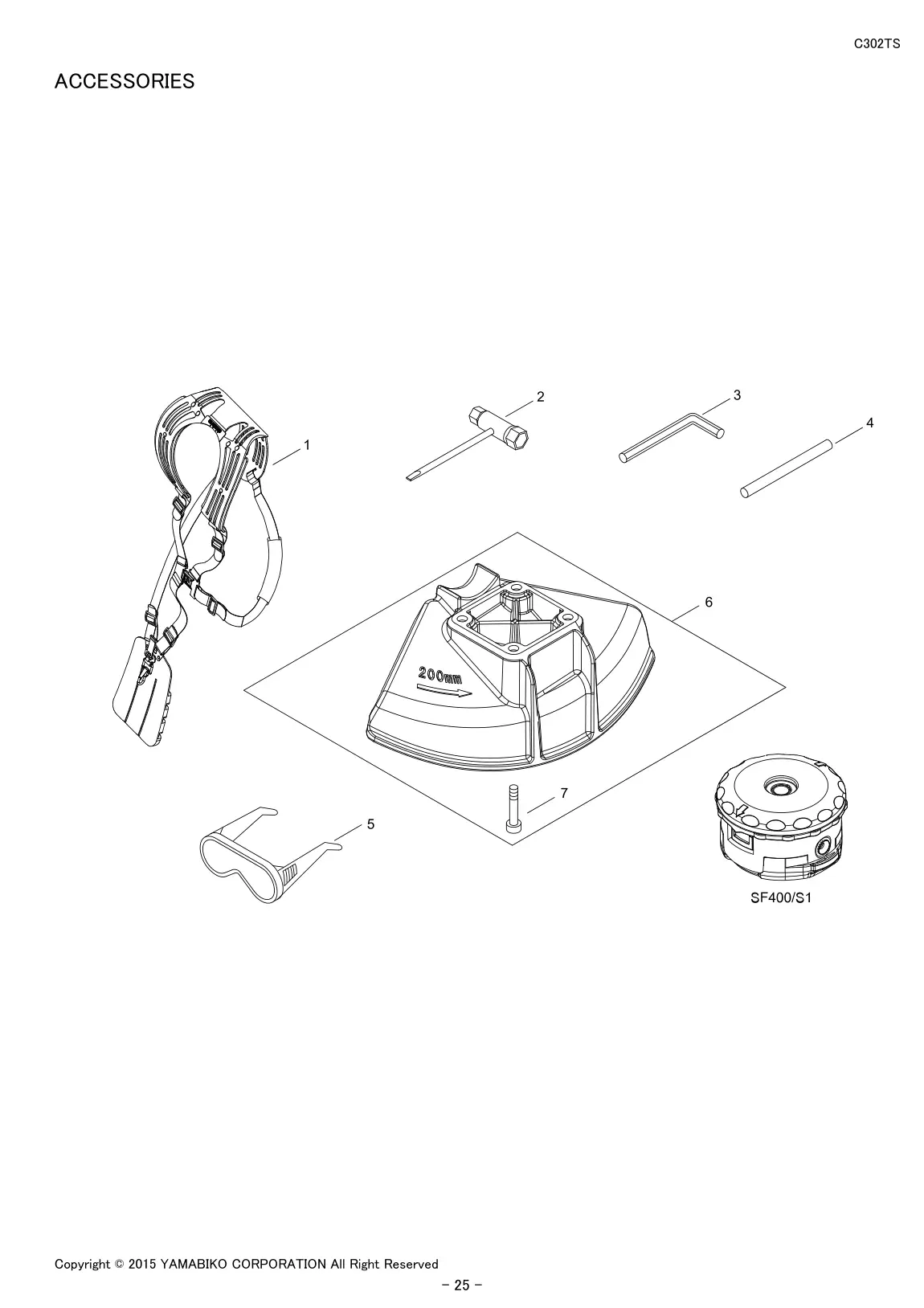

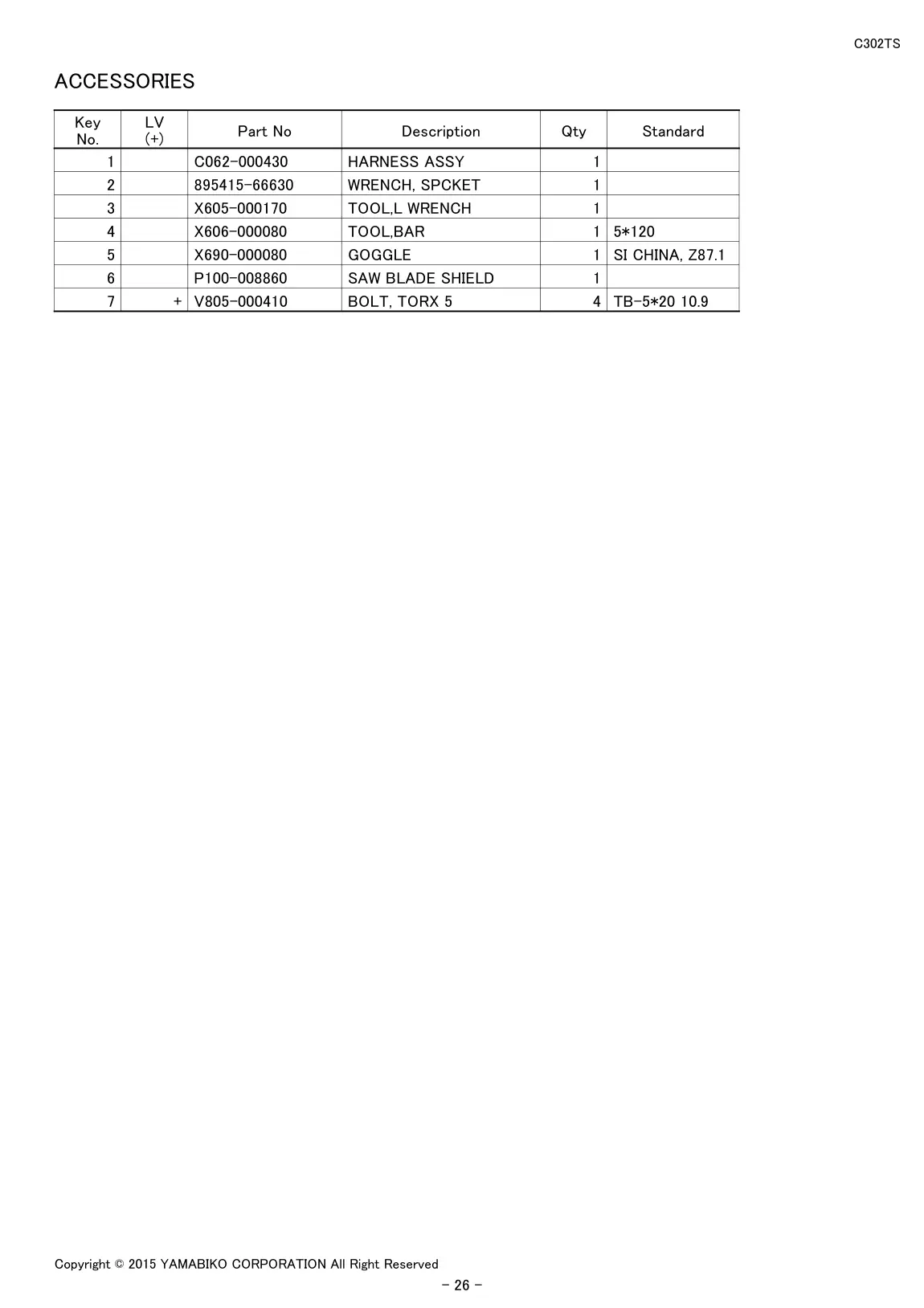

| 28 | ACCESSORIES | 1 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 28 | ACCESSORIES | 2 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 28 | ACCESSORIES | 3 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 28 | ACCESSORIES | 4 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 28 | ACCESSORIES | 5 | GOGGLE | X690-000080 | X690-000080-Online |
| 28 | ACCESSORIES | 6 | SAW BLADE SHIELD | P100-008860 | P100-008860-Online |
| 28 | ACCESSORIES | 7 | BOLT, TORX | V805-000410 | V805-000410-Online |

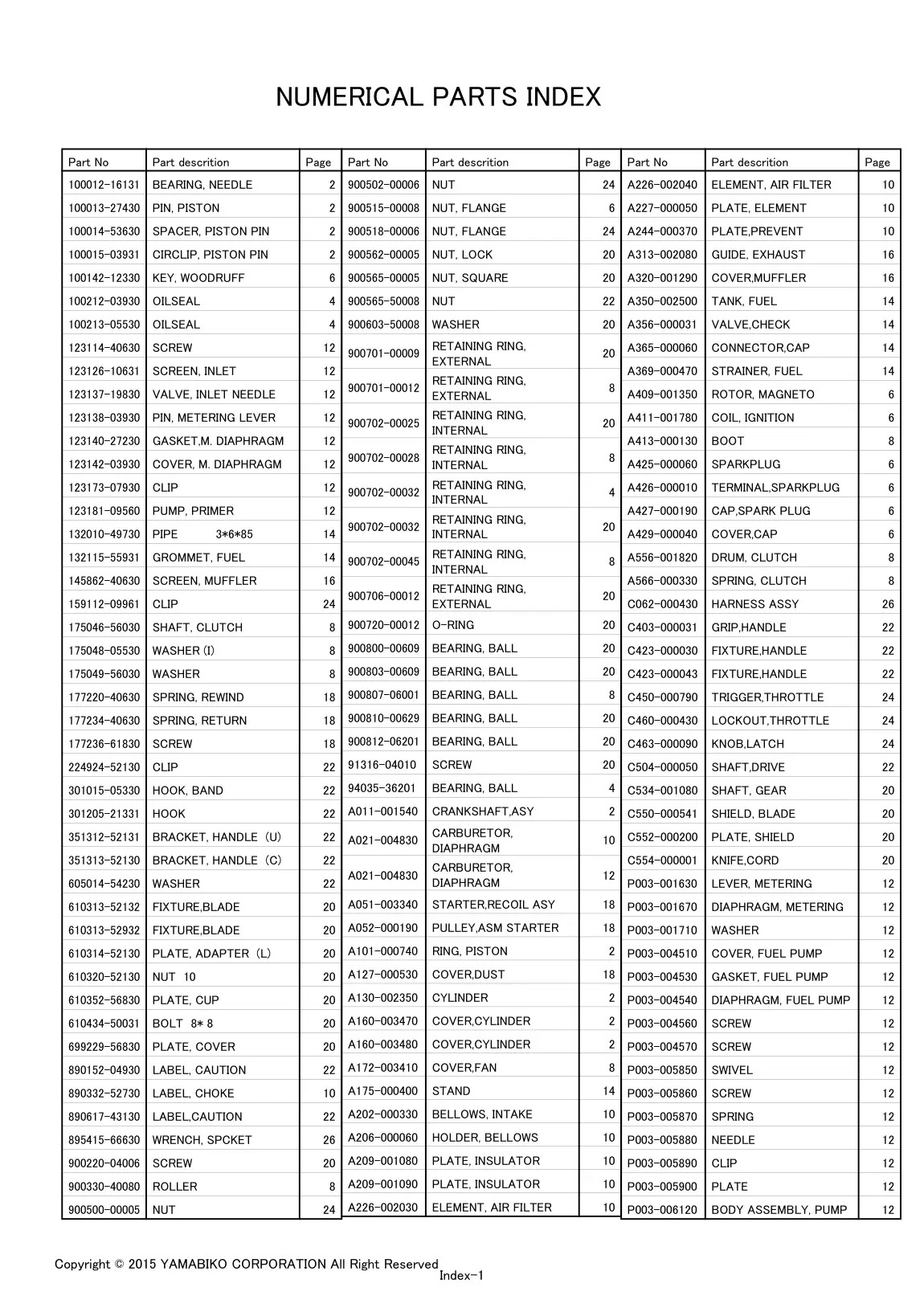

| 29 | BODY ASSEMBLY, PUMP | BEARING, NEEDLE | 100012-16131 | 100012-16131-Online | |
| 29 | BODY ASSEMBLY, PUMP | 10 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | CARBURETOR, | A021-004830 | A021-004830-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | HOLDER, BELLOWS | A206-000060 | A206-000060-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | PLATE, INSULATOR | A209-001080 | A209-001080-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | PLATE, INSULATOR | A209-001090 | A209-001090-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 29 | BODY ASSEMBLY, PUMP | 10 | GUIDE, EXHAUST | A313-002080 | A313-002080-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | CLIP | 123173-07930 | 123173-07930-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | PIPE 3*6*85 | 132010-49730 | 132010-49730-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | STARTER,RECOIL ASY | A051-003340 | A051-003340-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | WASHER | P003-001710 | P003-001710-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | SCREW | P003-004560 | P003-004560-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | SCREW | P003-004570 | P003-004570-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | SWIVEL | P003-005850 | P003-005850-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | SCREW | P003-005860 | P003-005860-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | SPRING | P003-005870 | P003-005870-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | NEEDLE | P003-005880 | P003-005880-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | CLIP | P003-005890 | P003-005890-Online |
| 29 | BODY ASSEMBLY, PUMP | 12 | PLATE | P003-005900 | P003-005900-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | BELLOWS, INTAKE | A202-000330 | A202-000330-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 29 | BODY ASSEMBLY, PUMP | 14 | ROTOR, MAGNETO | A409-001350 | A409-001350-Online |
| 29 | BODY ASSEMBLY, PUMP | 16 | CLIP | 159112-09961 | 159112-09961-Online |
| 29 | BODY ASSEMBLY, PUMP | 16 | COVER,MUFFLER | A320-001290 | A320-001290-Online |
| 29 | BODY ASSEMBLY, PUMP | 16 | TANK, FUEL | A350-002500 | A350-002500-Online |
| 29 | BODY ASSEMBLY, PUMP | 18 | SPRING, RETURN | 177234-40630 | 177234-40630-Online |
| 29 | BODY ASSEMBLY, PUMP | 18 | SCREW | 177236-61830 | 177236-61830-Online |
| 29 | BODY ASSEMBLY, PUMP | 18 | CLIP | 224924-52130 | 224924-52130-Online |
| 29 | BODY ASSEMBLY, PUMP | 18 | PULLEY,ASM STARTER | A052-000190 | A052-000190-Online |
| 29 | BODY ASSEMBLY, PUMP | 18 | RING, PISTON | A101-000740 | A101-000740-Online |
| 29 | BODY ASSEMBLY, PUMP | 18 | CYLINDER | A130-002350 | A130-002350-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | PIN, PISTON | 100013-27430 | 100013-27430-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | CARBURETOR, | A021-004830 | A021-004830-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | COVER,DUST | A127-000530 | A127-000530-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | COVER,CYLINDER | A160-003470 | A160-003470-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | COVER,CYLINDER | A160-003480 | A160-003480-Online |
| 29 | BODY ASSEMBLY, PUMP | 2 | COVER,FAN | A172-003410 | A172-003410-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | NUT | 610320-52130 | 610320-52130-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | ROLLER | 900330-40080 | 900330-40080-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | NUT, SQUARE | 900565-00005 | 900565-00005-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | NUT | 900565-50008 | 900565-50008-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | RETAINING RING, | 900701-00009 | 900701-00009-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | RETAINING RING, | 900701-00012 | 900701-00012-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | RETAINING RING, | 900702-00028 | 900702-00028-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | RETAINING RING, | 900702-00045 | 900702-00045-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | O-RING | 900720-00012 | 900720-00012-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 900800-00609 | 900800-00609-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 900803-00609 | 900803-00609-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | SCREW | 91316-04010 | 91316-04010-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 94035-36201 | 94035-36201-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | KNIFE,CORD | C554-000001 | C554-000001-Online |
| 29 | BODY ASSEMBLY, PUMP | 20 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | HOOK, BAND | 301015-05330 | 301015-05330-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | BRACKET, HANDLE (U) | 351312-52131 | 351312-52131-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | BRACKET, HANDLE (C) | 351313-52130 | 351313-52130-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | WASHER | 605014-54230 | 605014-54230-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | WASHER | 900603-50008 | 900603-50008-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | FIXTURE,HANDLE | C423-000030 | C423-000030-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | FIXTURE,HANDLE | C423-000043 | C423-000043-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | TRIGGER,THROTTLE | C450-000790 | C450-000790-Online |
| 29 | BODY ASSEMBLY, PUMP | 22 | SHAFT, GEAR | C534-001080 | C534-001080-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | NUT | 900502-00006 | 900502-00006-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | LOCKOUT,THROTTLE | C460-000430 | C460-000430-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | KNOB,LATCH | C463-000090 | C463-000090-Online |
| 29 | BODY ASSEMBLY, PUMP | 24 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 29 | BODY ASSEMBLY, PUMP | 26 | SCREW | 900220-04006 | 900220-04006-Online |
| 29 | BODY ASSEMBLY, PUMP | 26 | GRIP,HANDLE | C403-000031 | C403-000031-Online |
| 29 | BODY ASSEMBLY, PUMP | 4 | OILSEAL | 100213-05530 | 100213-05530-Online |
| 29 | BODY ASSEMBLY, PUMP | 4 | SCREW | 123114-40630 | 123114-40630-Online |
| 29 | BODY ASSEMBLY, PUMP | 4 | RETAINING RING, | 900702-00032 | 900702-00032-Online |
| 29 | BODY ASSEMBLY, PUMP | 4 | CRANKSHAFT,ASY | A011-001540 | A011-001540-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | OILSEAL | 100212-03930 | 100212-03930-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | COIL, IGNITION | A411-001780 | A411-001780-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | CAP,SPARK PLUG | A427-000190 | A427-000190-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | COVER,CAP | A429-000040 | A429-000040-Online |
| 29 | BODY ASSEMBLY, PUMP | 6 | DRUM, CLUTCH | A556-001820 | A556-001820-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | WASHER | 175049-56030 | 175049-56030-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | NUT | 900500-00005 | 900500-00005-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | RETAINING RING, | 900702-00025 | 900702-00025-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | RETAINING RING, | 900702-00032 | 900702-00032-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | RETAINING RING, | 900706-00012 | 900706-00012-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | BEARING, BALL | 900810-00629 | 900810-00629-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | SPRING, CLUTCH | A566-000330 | A566-000330-Online |
| 29 | BODY ASSEMBLY, PUMP | 8 | HARNESS ASSY | C062-000430 | C062-000430-Online |

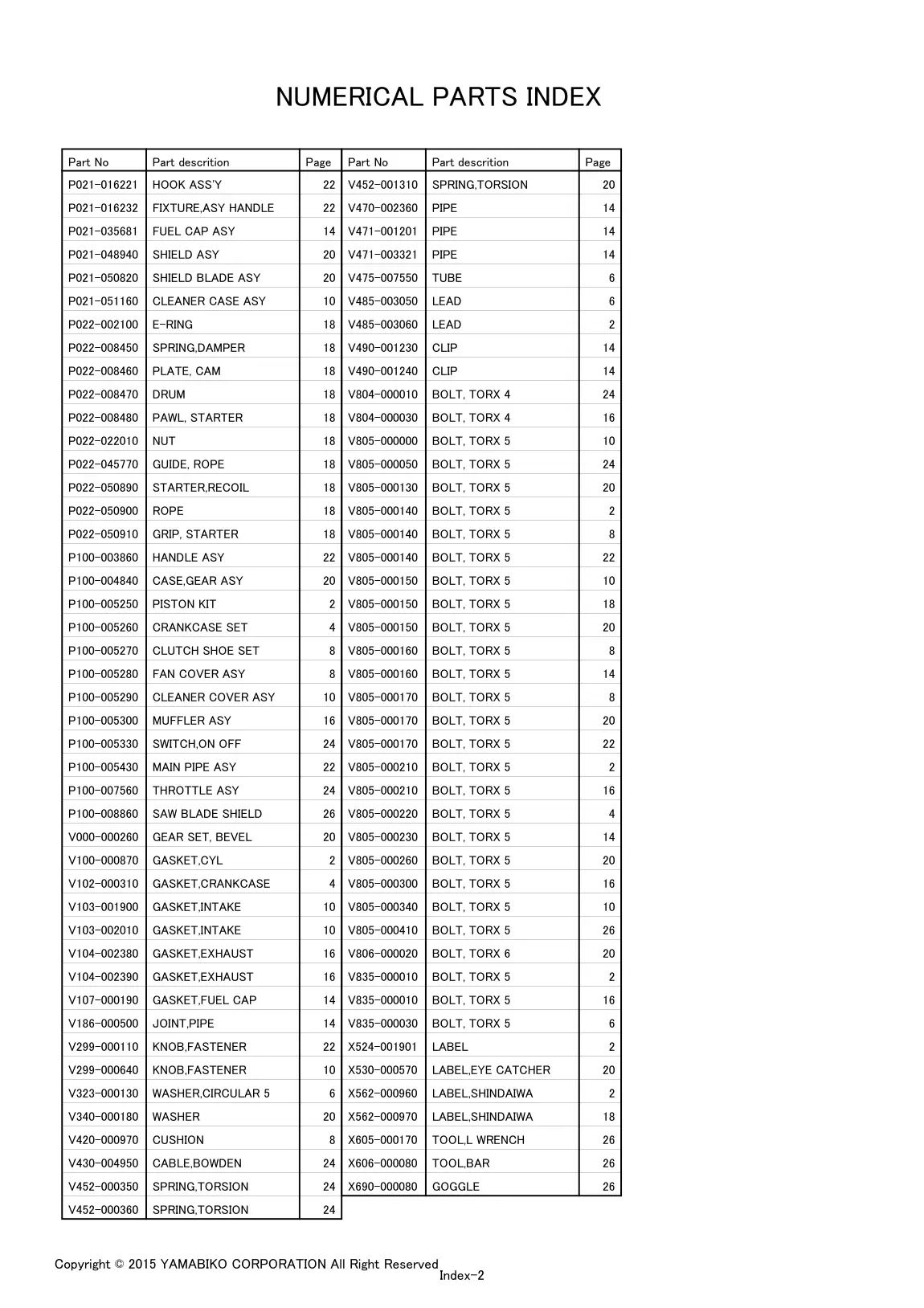

| 30 | GOGGLE | HOOK ASS'Y | P021-016221 | P021-016221-Online | |
| 30 | GOGGLE | 10 | E-RING | P022-002100 | P022-002100-Online |
| 30 | GOGGLE | 10 | MUFFLER ASY | P100-005300 | P100-005300-Online |
| 30 | GOGGLE | 10 | GASKET,INTAKE | V103-002010 | V103-002010-Online |
| 30 | GOGGLE | 10 | GASKET,EXHAUST | V104-002380 | V104-002380-Online |
| 30 | GOGGLE | 10 | WASHER,CIRCULAR | V323-000130 | V323-000130-Online |
| 30 | GOGGLE | 10 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 30 | GOGGLE | 10 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 30 | GOGGLE | 10 | BOLT, TORX | V805-000410 | V805-000410-Online |
| 30 | GOGGLE | 14 | SHIELD ASY | P021-048940 | P021-048940-Online |
| 30 | GOGGLE | 14 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 30 | GOGGLE | 14 | KNOB,FASTENER | V299-000110 | V299-000110-Online |
| 30 | GOGGLE | 14 | PIPE | V471-001201 | V471-001201-Online |
| 30 | GOGGLE | 14 | PIPE | V471-003321 | V471-003321-Online |
| 30 | GOGGLE | 14 | TUBE | V475-007550 | V475-007550-Online |
| 30 | GOGGLE | 14 | CLIP | V490-001240 | V490-001240-Online |
| 30 | GOGGLE | 14 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 30 | GOGGLE | 14 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 30 | GOGGLE | 14 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 30 | GOGGLE | 16 | SWITCH,ON OFF | P100-005330 | P100-005330-Online |
| 30 | GOGGLE | 16 | GASKET,EXHAUST | V104-002390 | V104-002390-Online |
| 30 | GOGGLE | 16 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 30 | GOGGLE | 16 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 30 | GOGGLE | 16 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 30 | GOGGLE | 16 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 30 | GOGGLE | 16 | BOLT, TORX | V835-000030 | V835-000030-Online |
| 30 | GOGGLE | 18 | SPRING,DAMPER | P022-008450 | P022-008450-Online |
| 30 | GOGGLE | 18 | PLATE, CAM | P022-008460 | P022-008460-Online |
| 30 | GOGGLE | 18 | DRUM | P022-008470 | P022-008470-Online |
| 30 | GOGGLE | 18 | PAWL, STARTER | P022-008480 | P022-008480-Online |
| 30 | GOGGLE | 18 | NUT | P022-022010 | P022-022010-Online |
| 30 | GOGGLE | 18 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 30 | GOGGLE | 18 | STARTER,RECOIL | P022-050890 | P022-050890-Online |
| 30 | GOGGLE | 18 | ROPE | P022-050900 | P022-050900-Online |
| 30 | GOGGLE | 18 | GRIP, STARTER | P022-050910 | P022-050910-Online |
| 30 | GOGGLE | 18 | HANDLE ASY | P100-003860 | P100-003860-Online |
| 30 | GOGGLE | 18 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 30 | GOGGLE | 18 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 30 | GOGGLE | 2 | CRANKCASE SET | P100-005260 | P100-005260-Online |
| 30 | GOGGLE | 2 | GASKET,CRANKCASE | V102-000310 | V102-000310-Online |
| 30 | GOGGLE | 2 | CLIP | V490-001230 | V490-001230-Online |
| 30 | GOGGLE | 2 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 30 | GOGGLE | 2 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 30 | GOGGLE | 2 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 30 | GOGGLE | 2 | LABEL,EYE CATCHER | X530-000570 | X530-000570-Online |
| 30 | GOGGLE | 2 | LABEL,SHINDAIWA | X562-000970 | X562-000970-Online |
| 30 | GOGGLE | 20 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 30 | GOGGLE | 20 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 30 | GOGGLE | 20 | PISTON KIT | P100-005250 | P100-005250-Online |
| 30 | GOGGLE | 20 | GASKET,CYL | V100-000870 | V100-000870-Online |
| 30 | GOGGLE | 20 | CUSHION | V420-000970 | V420-000970-Online |
| 30 | GOGGLE | 20 | PIPE | V470-002360 | V470-002360-Online |
| 30 | GOGGLE | 20 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 30 | GOGGLE | 20 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 30 | GOGGLE | 20 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 30 | GOGGLE | 20 | BOLT, TORX | V805-000300 | V805-000300-Online |
| 30 | GOGGLE | 20 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 30 | GOGGLE | 20 | LABEL,SHINDAIWA | X562-000960 | X562-000960-Online |
| 30 | GOGGLE | 22 | FIXTURE,ASY HANDLE | P021-016232 | P021-016232-Online |
| 30 | GOGGLE | 22 | FUEL CAP ASY | P021-035681 | P021-035681-Online |
| 30 | GOGGLE | 22 | CASE,GEAR ASY | P100-004840 | P100-004840-Online |
| 30 | GOGGLE | 22 | THROTTLE ASY | P100-007560 | P100-007560-Online |
| 30 | GOGGLE | 22 | KNOB,FASTENER | V299-000640 | V299-000640-Online |
| 30 | GOGGLE | 22 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 30 | GOGGLE | 22 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 30 | GOGGLE | 24 | MAIN PIPE ASY | P100-005430 | P100-005430-Online |
| 30 | GOGGLE | 24 | SAW BLADE SHIELD | P100-008860 | P100-008860-Online |
| 30 | GOGGLE | 24 | SPRING,TORSION | V452-000350 | V452-000350-Online |
| 30 | GOGGLE | 24 | SPRING,TORSION | V452-000360 | V452-000360-Online |
| 30 | GOGGLE | 24 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 30 | GOGGLE | 24 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 30 | GOGGLE | 24 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 30 | GOGGLE | 26 | GEAR SET, BEVEL | V000-000260 | V000-000260-Online |
| 30 | GOGGLE | 26 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 30 | GOGGLE | 26 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 30 | GOGGLE | 4 | CLUTCH SHOE SET | P100-005270 | P100-005270-Online |
| 30 | GOGGLE | 4 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 30 | GOGGLE | 4 | BOLT, TORX | V805-000230 | V805-000230-Online |
| 30 | GOGGLE | 6 | WASHER | V340-000180 | V340-000180-Online |
| 30 | GOGGLE | 6 | LEAD | V485-003050 | V485-003050-Online |
| 30 | GOGGLE | 6 | LEAD | V485-003060 | V485-003060-Online |
| 30 | GOGGLE | 6 | LABEL | X524-001901 | X524-001901-Online |
| 30 | GOGGLE | 8 | FAN COVER ASY | P100-005280 | P100-005280-Online |
| 30 | GOGGLE | 8 | CLEANER COVER ASY | P100-005290 | P100-005290-Online |
| 30 | GOGGLE | 8 | CABLE,BOWDEN | V430-004950 | V430-004950-Online |
| 30 | GOGGLE | 8 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 30 | GOGGLE | 8 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 30 | GOGGLE | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
Source file: 20200226-821_C302TS_38_38000001_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
