Illustrated Parts List
Shindaiwa EB240S AUS Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB240S AUS
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

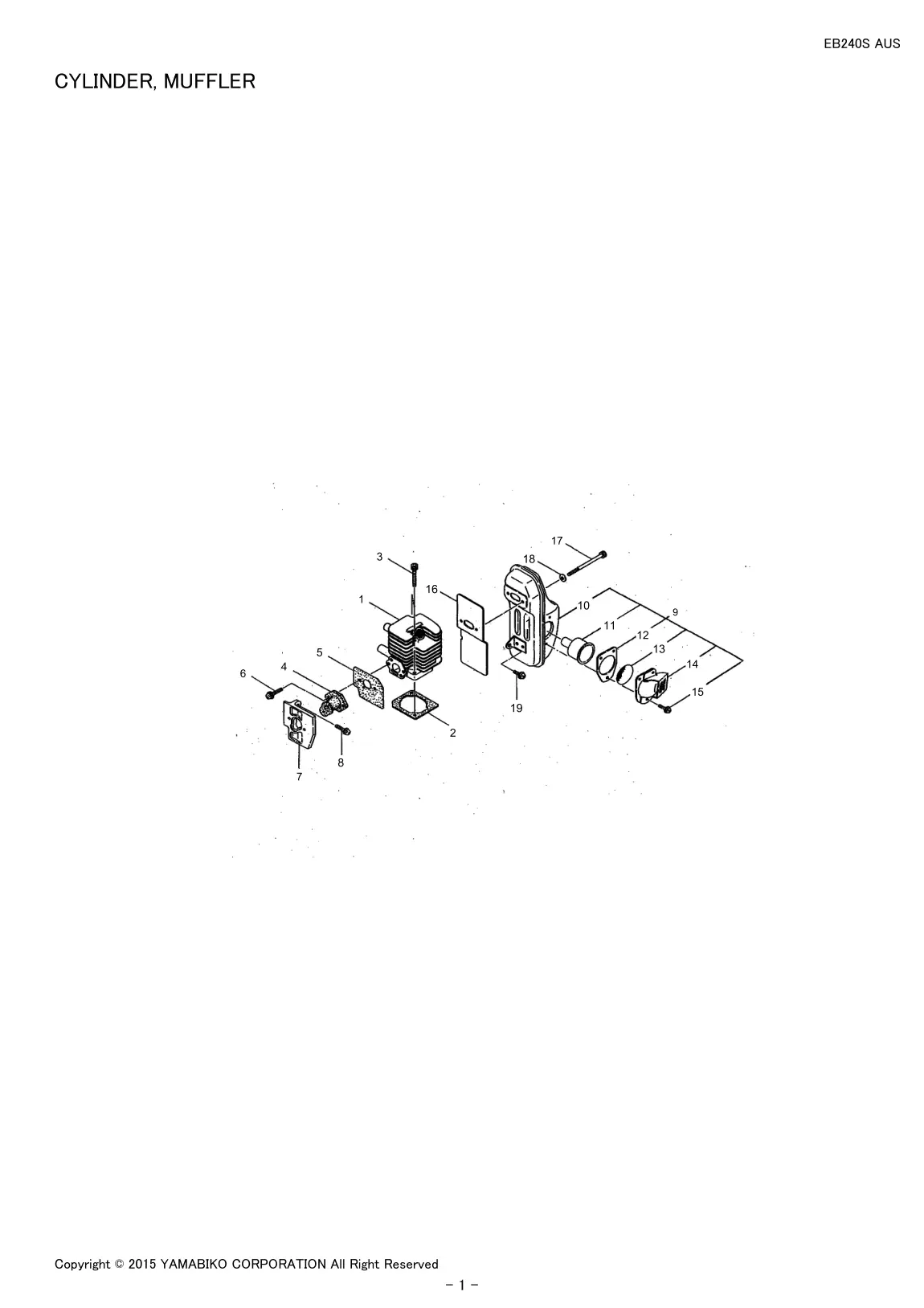

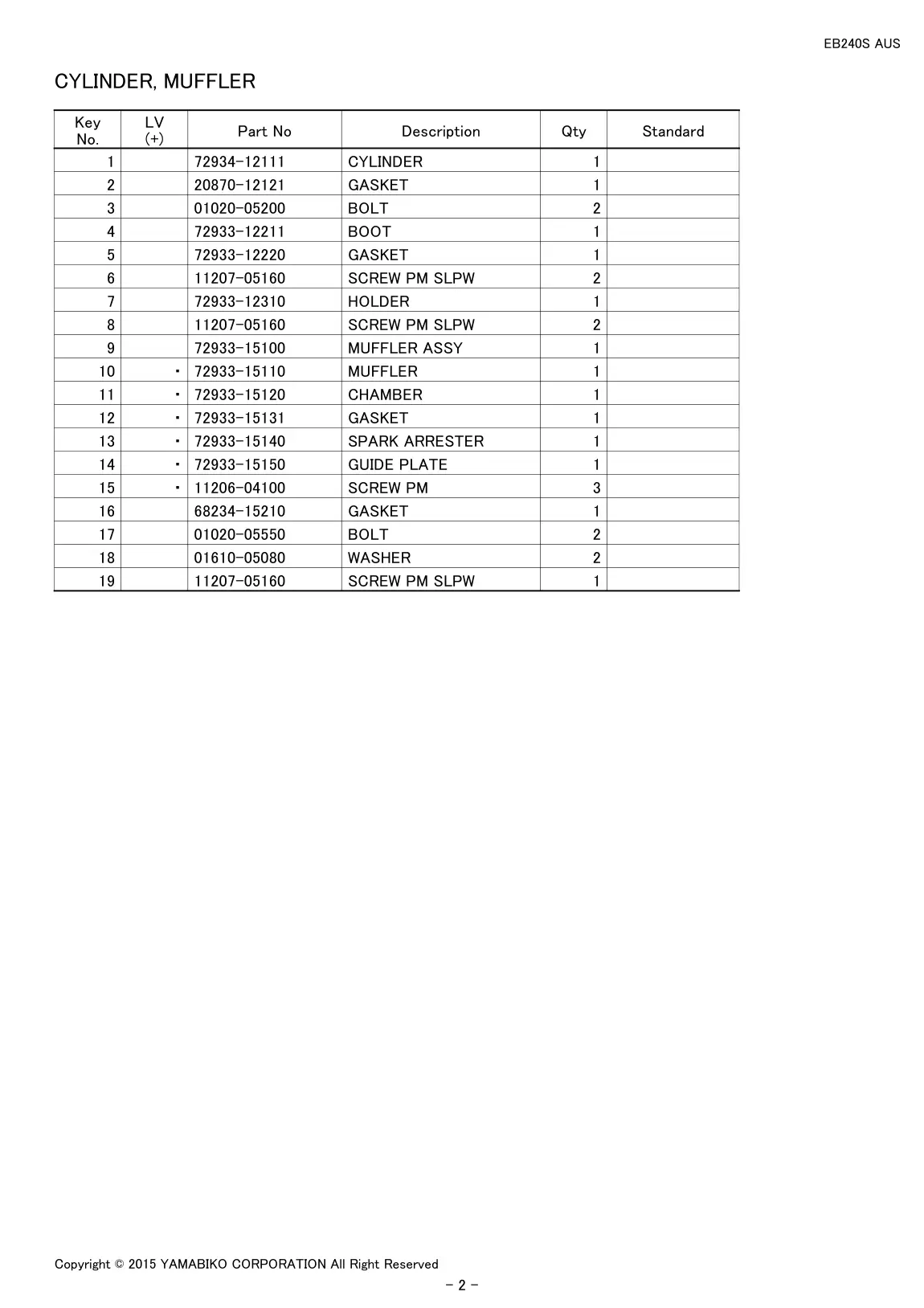

| 4 | CYLINDER, MUFFLER | 1 | CYLINDER | 72934-12111 | 72934-12111-Online |
| 4 | CYLINDER, MUFFLER | 10 | MUFFLER | 72933-15110 | 72933-15110-Online |
| 4 | CYLINDER, MUFFLER | 11 | CHAMBER | 72933-15120 | 72933-15120-Online |
| 4 | CYLINDER, MUFFLER | 12 | GASKET | 72933-15131 | 72933-15131-Online |
| 4 | CYLINDER, MUFFLER | 13 | SPARK ARRESTER | 72933-15140 | 72933-15140-Online |
| 4 | CYLINDER, MUFFLER | 14 | GUIDE PLATE | 72933-15150 | 72933-15150-Online |
| 4 | CYLINDER, MUFFLER | 15 | SCREW PM | 11206-04100 | 11206-04100-Online |
| 4 | CYLINDER, MUFFLER | 16 | GASKET | 68234-15210 | 68234-15210-Online |
| 4 | CYLINDER, MUFFLER | 17 | BOLT | 01020-05550 | 01020-05550-Online |
| 4 | CYLINDER, MUFFLER | 18 | WASHER | 01610-05080 | 01610-05080-Online |
| 4 | CYLINDER, MUFFLER | 19 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 4 | CYLINDER, MUFFLER | 2 | GASKET | 20870-12121 | 20870-12121-Online |
| 4 | CYLINDER, MUFFLER | 3 | BOLT | 01020-05200 | 01020-05200-Online |
| 4 | CYLINDER, MUFFLER | 5 | GASKET | 72933-12220 | 72933-12220-Online |
| 4 | CYLINDER, MUFFLER | 6 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 4 | CYLINDER, MUFFLER | 7 | HOLDER | 72933-12310 | 72933-12310-Online |
| 4 | CYLINDER, MUFFLER | 8 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 4 | CYLINDER, MUFFLER | 9 | MUFFLER ASSY | 72933-15100 | 72933-15100-Online |

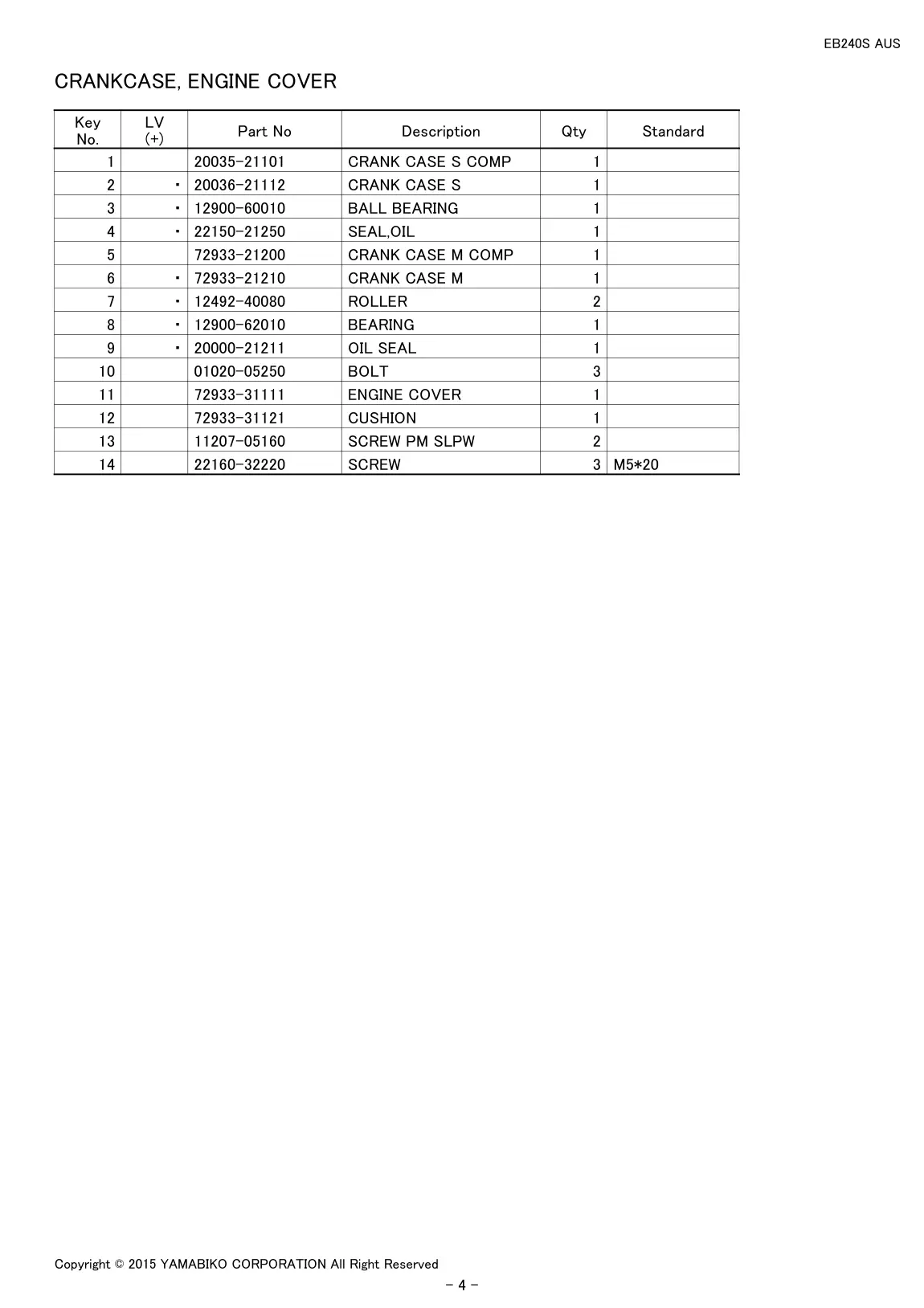

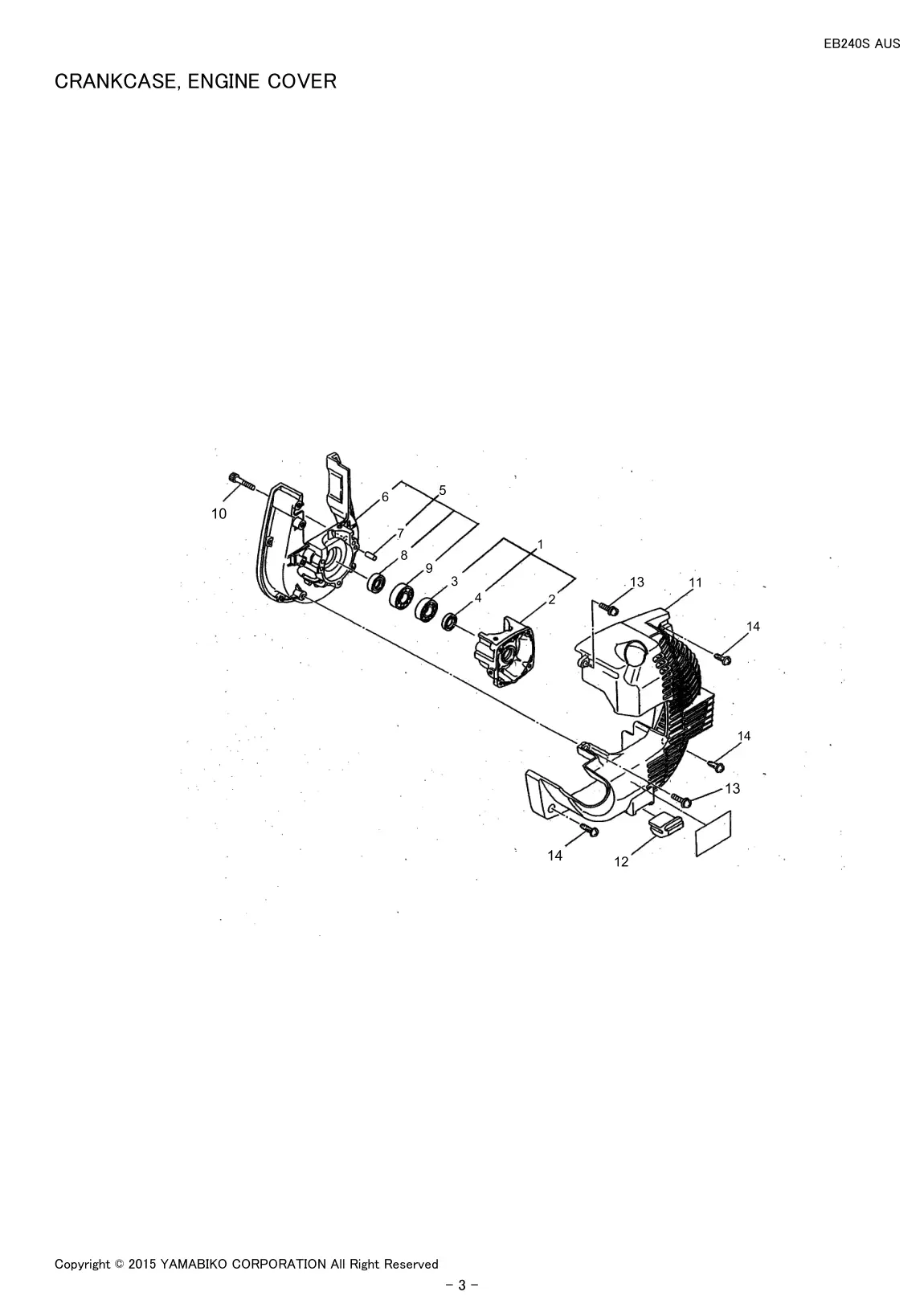

| 6 | CRANKCASE, ENGINE COVER | 1 | CRANK CASE S COMP | 20035-21101 | 20035-21101-Online |
| 6 | CRANKCASE, ENGINE COVER | 10 | BOLT | 01020-05250 | 01020-05250-Online |
| 6 | CRANKCASE, ENGINE COVER | 11 | ENGINE COVER | 72933-31111 | 72933-31111-Online |
| 6 | CRANKCASE, ENGINE COVER | 12 | CUSHION | 72933-31121 | 72933-31121-Online |
| 6 | CRANKCASE, ENGINE COVER | 13 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 6 | CRANKCASE, ENGINE COVER | 14 | SCREW | 22160-32220 | 22160-32220-Online |
| 6 | CRANKCASE, ENGINE COVER | 2 | CRANK CASE S | 20036-21112 | 20036-21112-Online |
| 6 | CRANKCASE, ENGINE COVER | 3 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 6 | CRANKCASE, ENGINE COVER | 4 | SEAL,OIL | 22150-21250 | 22150-21250-Online |
| 6 | CRANKCASE, ENGINE COVER | 5 | CRANK CASE M COMP | 72933-21200 | 72933-21200-Online |
| 6 | CRANKCASE, ENGINE COVER | 6 | CRANK CASE M | 72933-21210 | 72933-21210-Online |
| 6 | CRANKCASE, ENGINE COVER | 7 | ROLLER | 12492-40080 | 12492-40080-Online |
| 6 | CRANKCASE, ENGINE COVER | 8 | BEARING | 12900-62010 | 12900-62010-Online |
| 6 | CRANKCASE, ENGINE COVER | 9 | OIL SEAL | 20000-21211 | 20000-21211-Online |

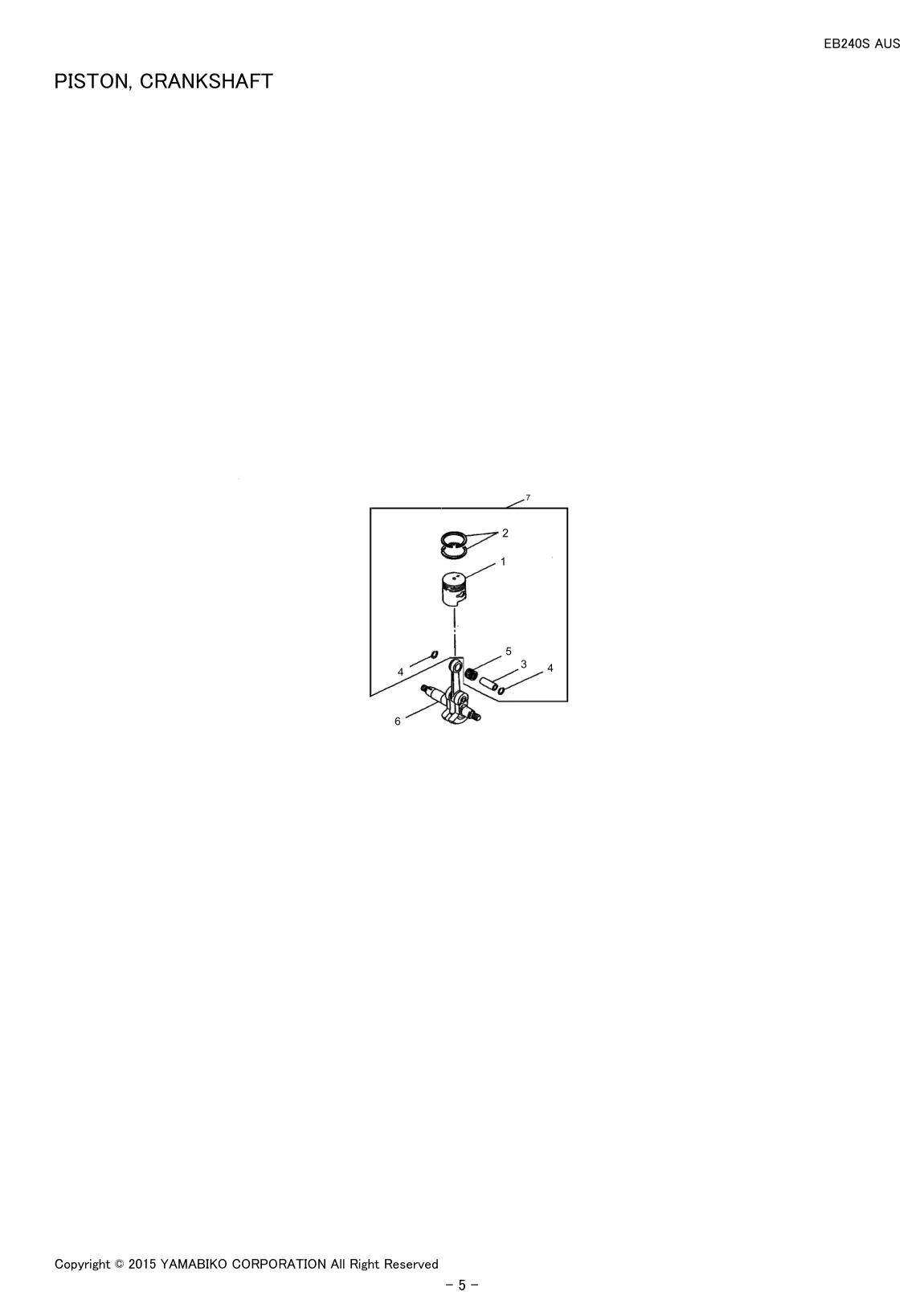

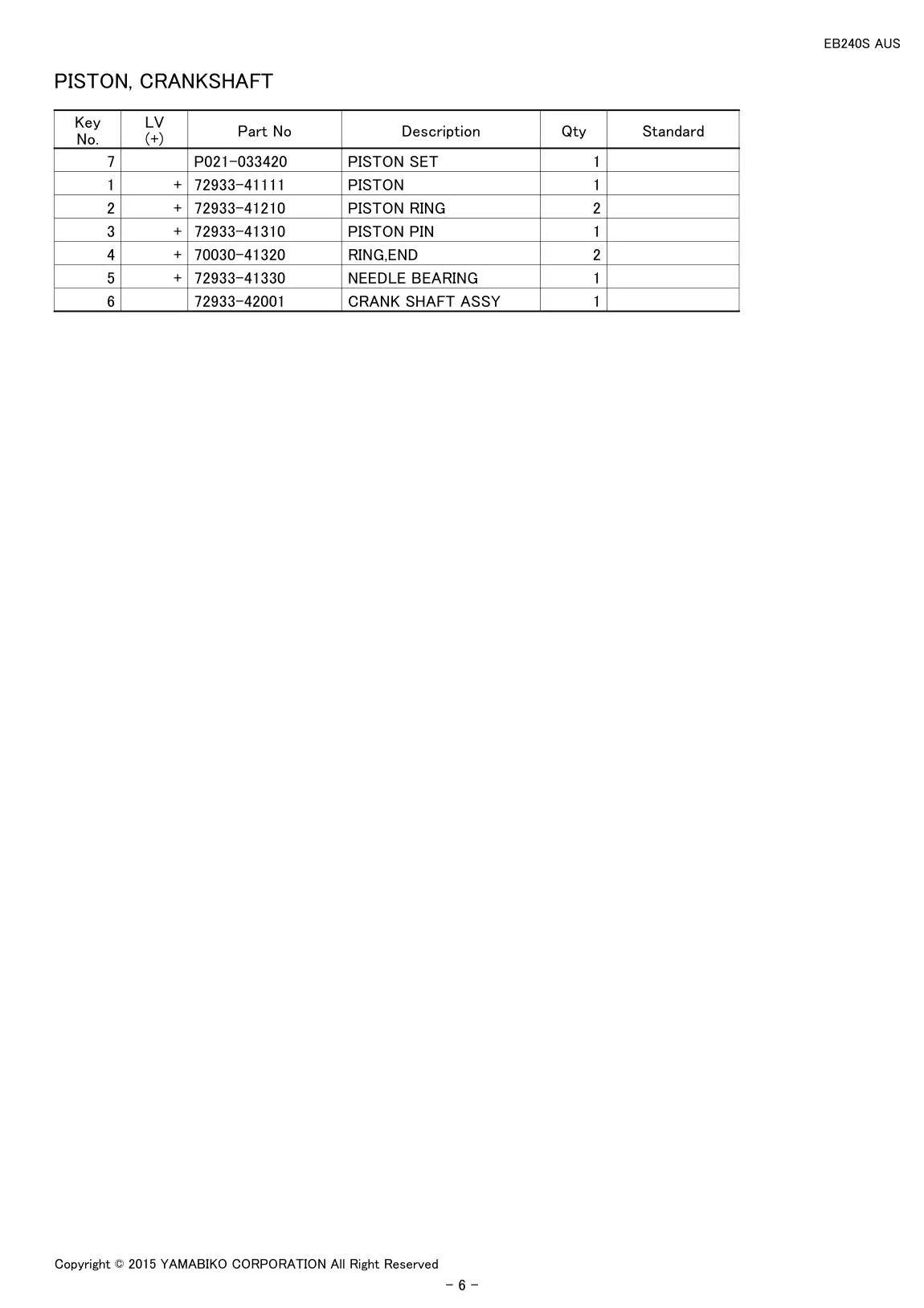

| 8 | PISTON, CRANKSHAFT | 1 | PISTON | 72933-41111 | 72933-41111-Online |
| 8 | PISTON, CRANKSHAFT | 2 | PISTON RING | 72933-41210 | 72933-41210-Online |
| 8 | PISTON, CRANKSHAFT | 3 | PISTON PIN | 72933-41310 | 72933-41310-Online |
| 8 | PISTON, CRANKSHAFT | 4 | RING,END | 70030-41320 | 70030-41320-Online |
| 8 | PISTON, CRANKSHAFT | 5 | NEEDLE BEARING | 72933-41330 | 72933-41330-Online |
| 8 | PISTON, CRANKSHAFT | 6 | CRANK SHAFT ASSY | 72933-42001 | 72933-42001-Online |
| 8 | PISTON, CRANKSHAFT | 7 | PISTON SET | P021-033420 | P021-033420-Online |

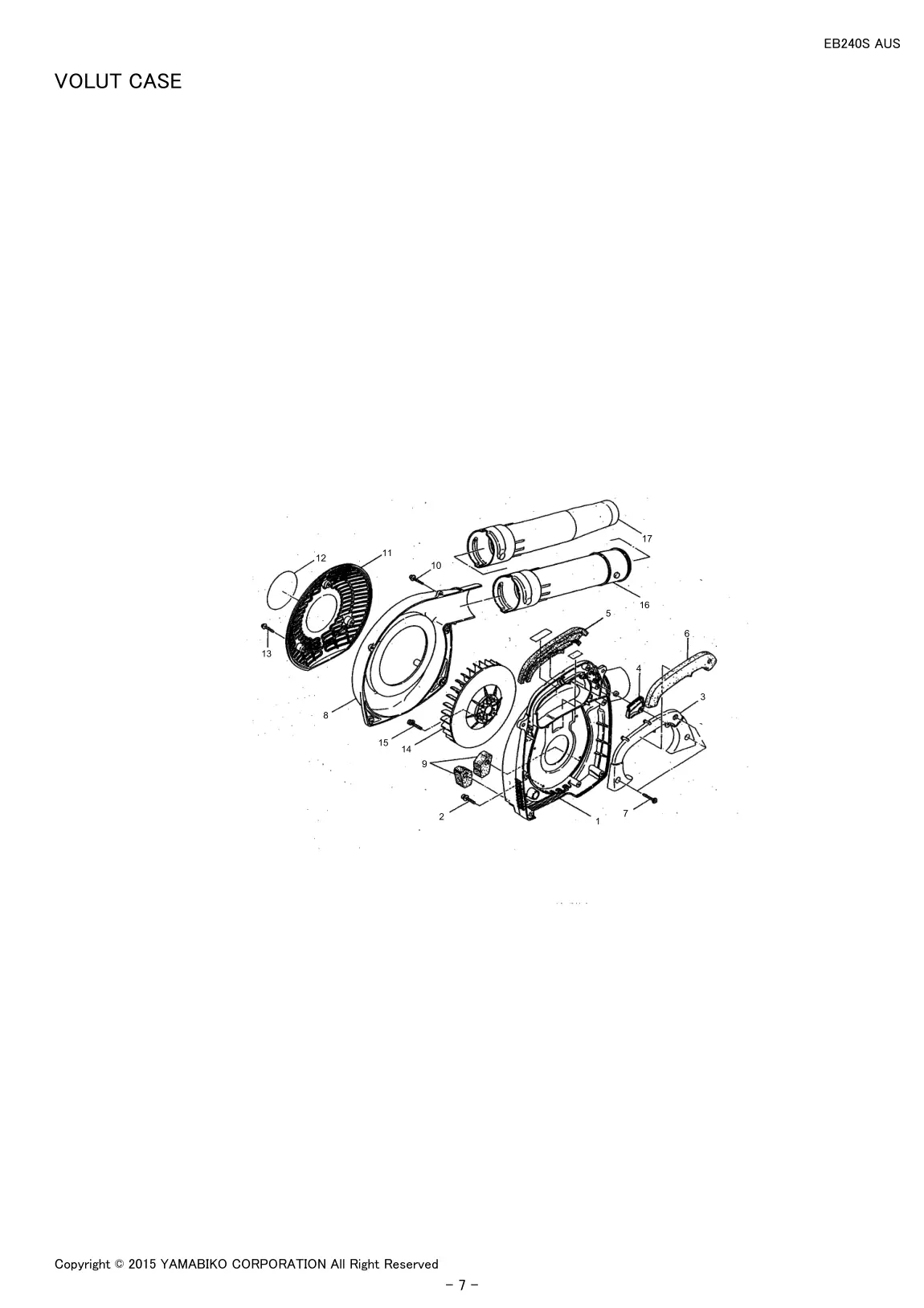

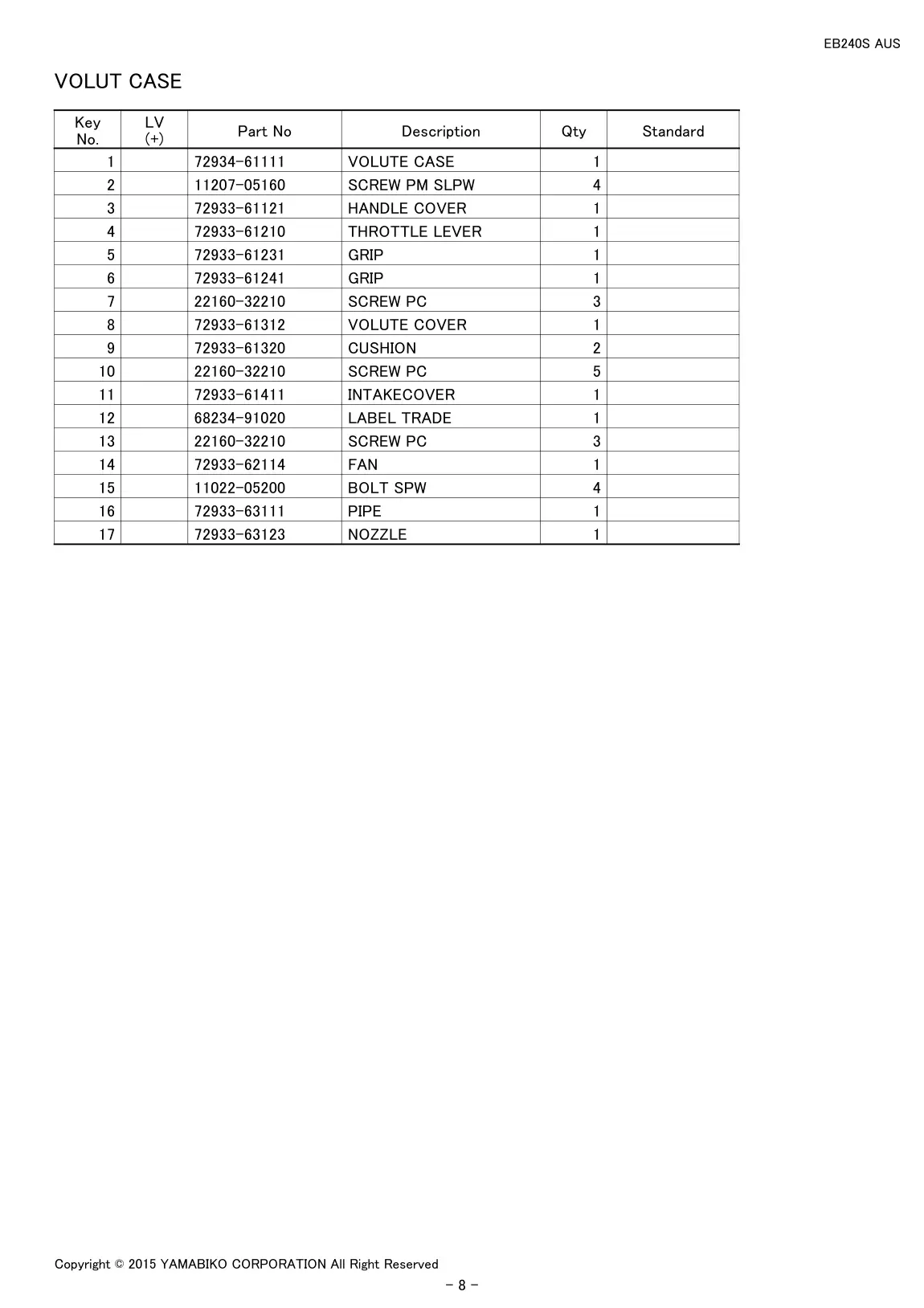

| 10 | VOLUT CASE | 1 | VOLUTE CASE | 72934-61111 | 72934-61111-Online |
| 10 | VOLUT CASE | 10 | SCREW PC | 22160-32210 | 22160-32210-Online |
| 10 | VOLUT CASE | 11 | INTAKECOVER | 72933-61411 | 72933-61411-Online |
| 10 | VOLUT CASE | 12 | LABEL TRADE | 68234-91020 | 68234-91020-Online |
| 10 | VOLUT CASE | 13 | SCREW PC | 22160-32210 | 22160-32210-Online |
| 10 | VOLUT CASE | 14 | FAN | 72933-62114 | 72933-62114-Online |
| 10 | VOLUT CASE | 15 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 10 | VOLUT CASE | 16 | PIPE | 72933-63111 | 72933-63111-Online |
| 10 | VOLUT CASE | 17 | NOZZLE | 72933-63123 | 72933-63123-Online |
| 10 | VOLUT CASE | 2 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 10 | VOLUT CASE | 3 | HANDLE COVER | 72933-61121 | 72933-61121-Online |
| 10 | VOLUT CASE | 4 | THROTTLE LEVER | 72933-61210 | 72933-61210-Online |
| 10 | VOLUT CASE | 5 | GRIP | 72933-61231 | 72933-61231-Online |
| 10 | VOLUT CASE | 6 | GRIP | 72933-61241 | 72933-61241-Online |
| 10 | VOLUT CASE | 7 | SCREW PC | 22160-32210 | 22160-32210-Online |
| 10 | VOLUT CASE | 8 | VOLUTE COVER | 72933-61312 | 72933-61312-Online |
| 10 | VOLUT CASE | 9 | CUSHION | 72933-61320 | 72933-61320-Online |

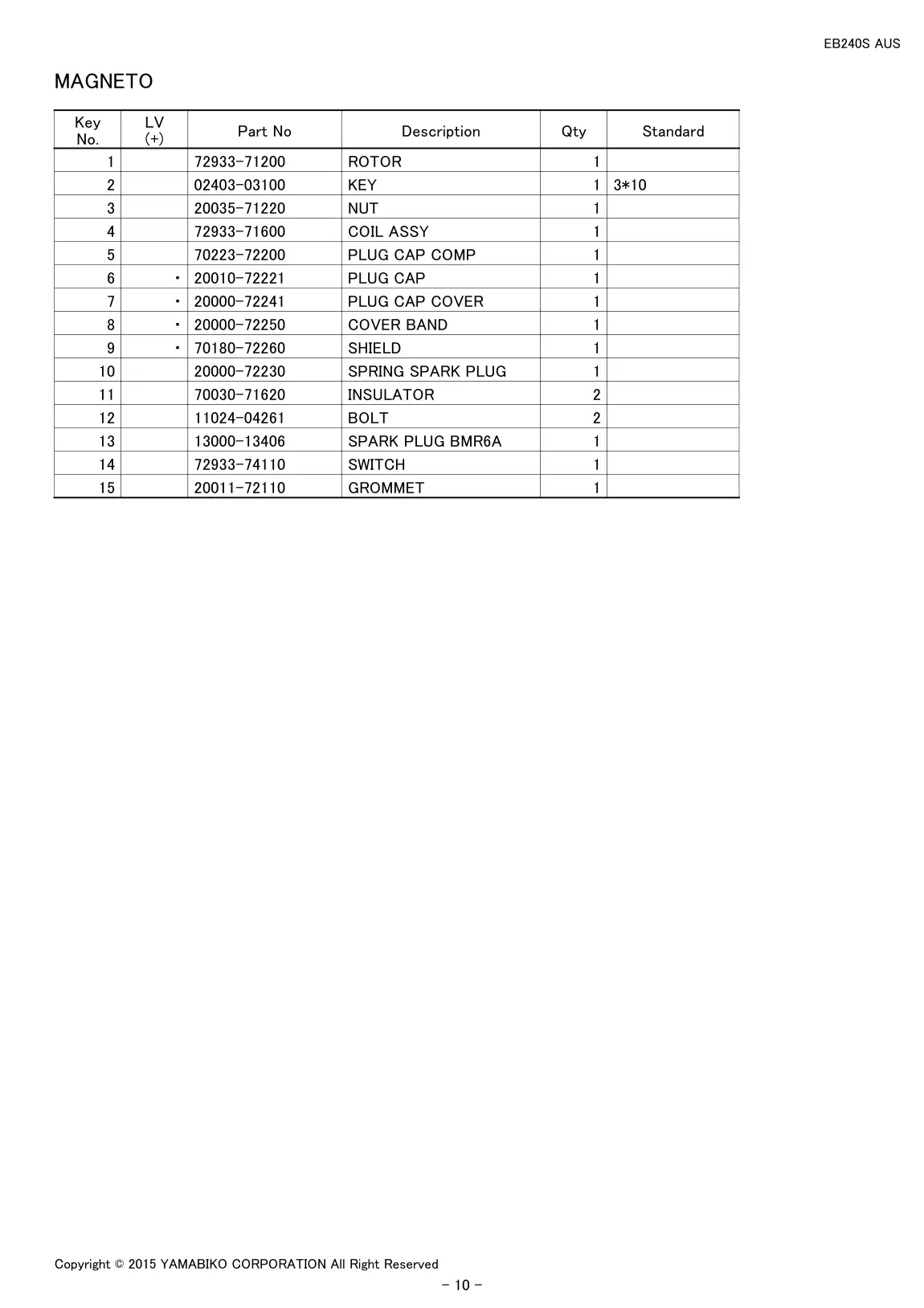

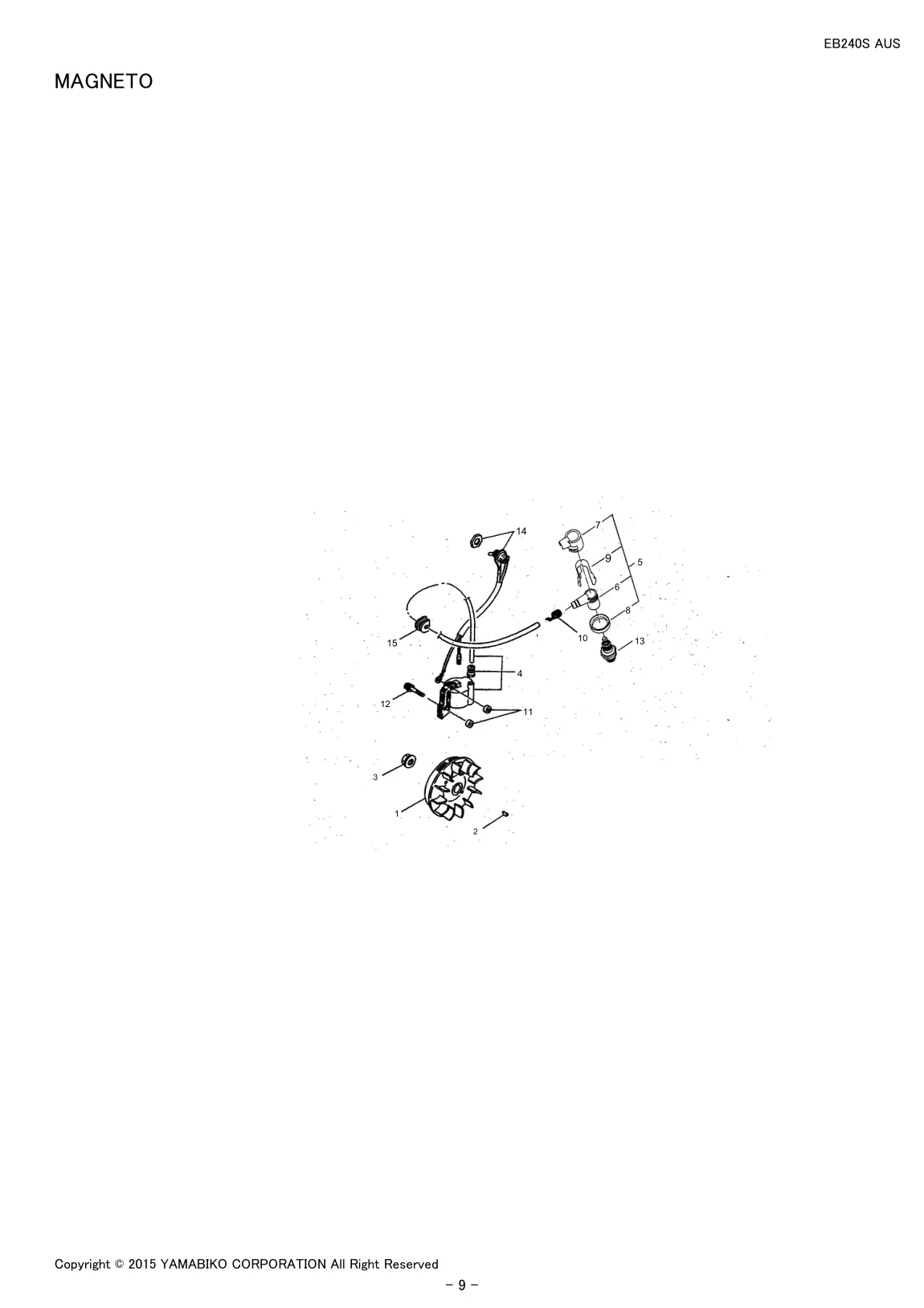

| 12 | MAGNETO | 10 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 12 | MAGNETO | 11 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 12 | MAGNETO | 12 | BOLT | 11024-04261 | 11024-04261-Online |
| 12 | MAGNETO | 13 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 12 | MAGNETO | 14 | SWITCH | 72933-74110 | 72933-74110-Online |
| 12 | MAGNETO | 15 | GROMMET | 20011-72110 | 20011-72110-Online |
| 12 | MAGNETO | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 12 | MAGNETO | 3 | NUT | 20035-71220 | 20035-71220-Online |
| 12 | MAGNETO | 4 | COIL ASSY | 72933-71600 | 72933-71600-Online |
| 12 | MAGNETO | 5 | PLUG CAP COMP | 70223-72200 | 70223-72200-Online |
| 12 | MAGNETO | 6 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 12 | MAGNETO | 7 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 12 | MAGNETO | 8 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 12 | MAGNETO | 9 | SHIELD | 70180-72260 | 70180-72260-Online |

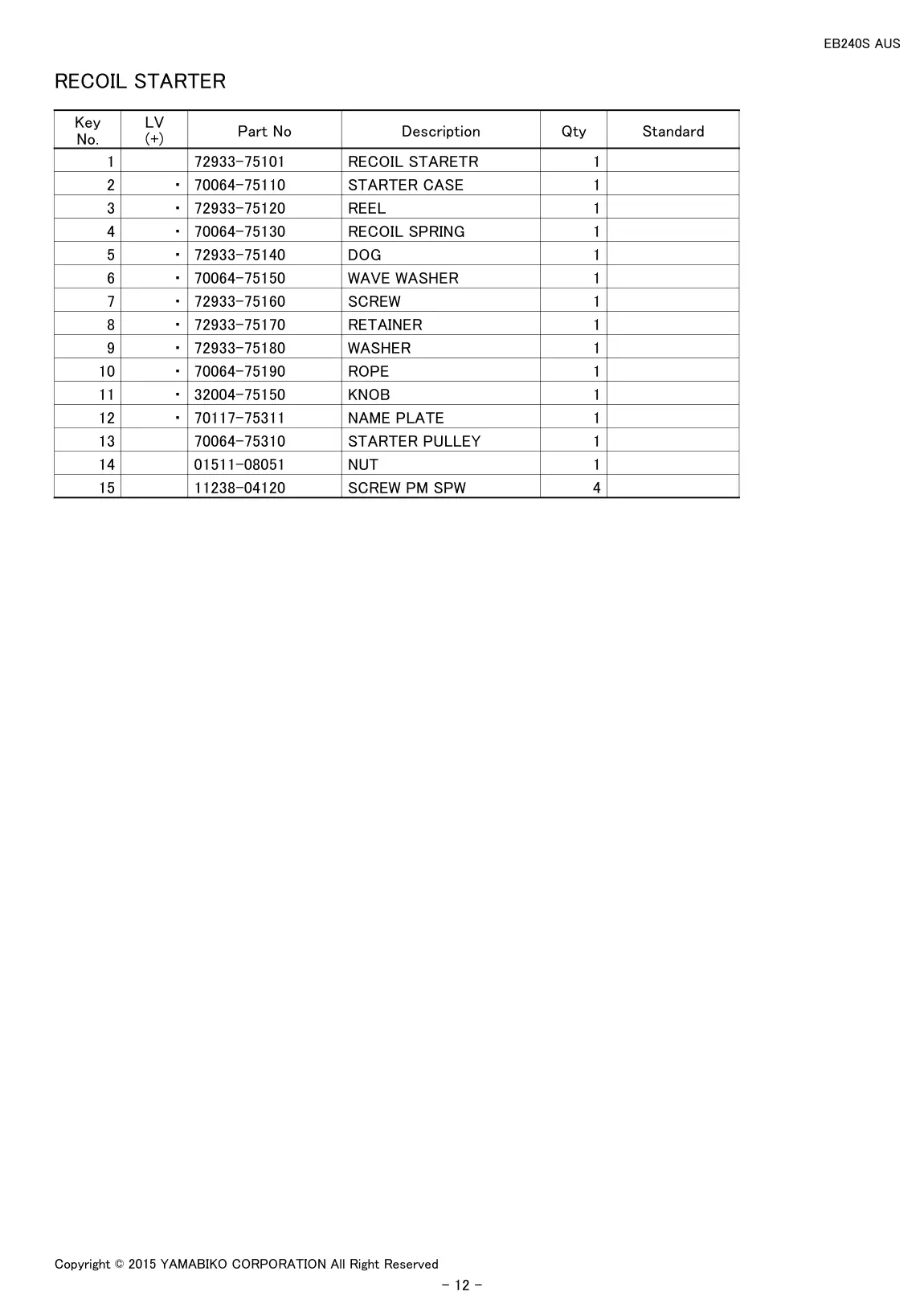

| 14 | RECOIL STARTER | 1 | RECOIL STARETR | 72933-75101 | 72933-75101-Online |
| 14 | RECOIL STARTER | 10 | ROPE | 70064-75190 | 70064-75190-Online |
| 14 | RECOIL STARTER | 11 | KNOB | 32004-75150 | 32004-75150-Online |
| 14 | RECOIL STARTER | 12 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 14 | RECOIL STARTER | 13 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 14 | RECOIL STARTER | 14 | NUT | 01511-08051 | 01511-08051-Online |
| 14 | RECOIL STARTER | 15 | SCREW PM SPW | 11238-04120 | 11238-04120-Online |
| 14 | RECOIL STARTER | 2 | STARTER CASE | 70064-75110 | 70064-75110-Online |
| 14 | RECOIL STARTER | 3 | REEL | 72933-75120 | 72933-75120-Online |
| 14 | RECOIL STARTER | 4 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 14 | RECOIL STARTER | 6 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 14 | RECOIL STARTER | 7 | SCREW | 72933-75160 | 72933-75160-Online |
| 14 | RECOIL STARTER | 8 | RETAINER | 72933-75170 | 72933-75170-Online |
| 14 | RECOIL STARTER | 9 | WASHER | 72933-75180 | 72933-75180-Online |

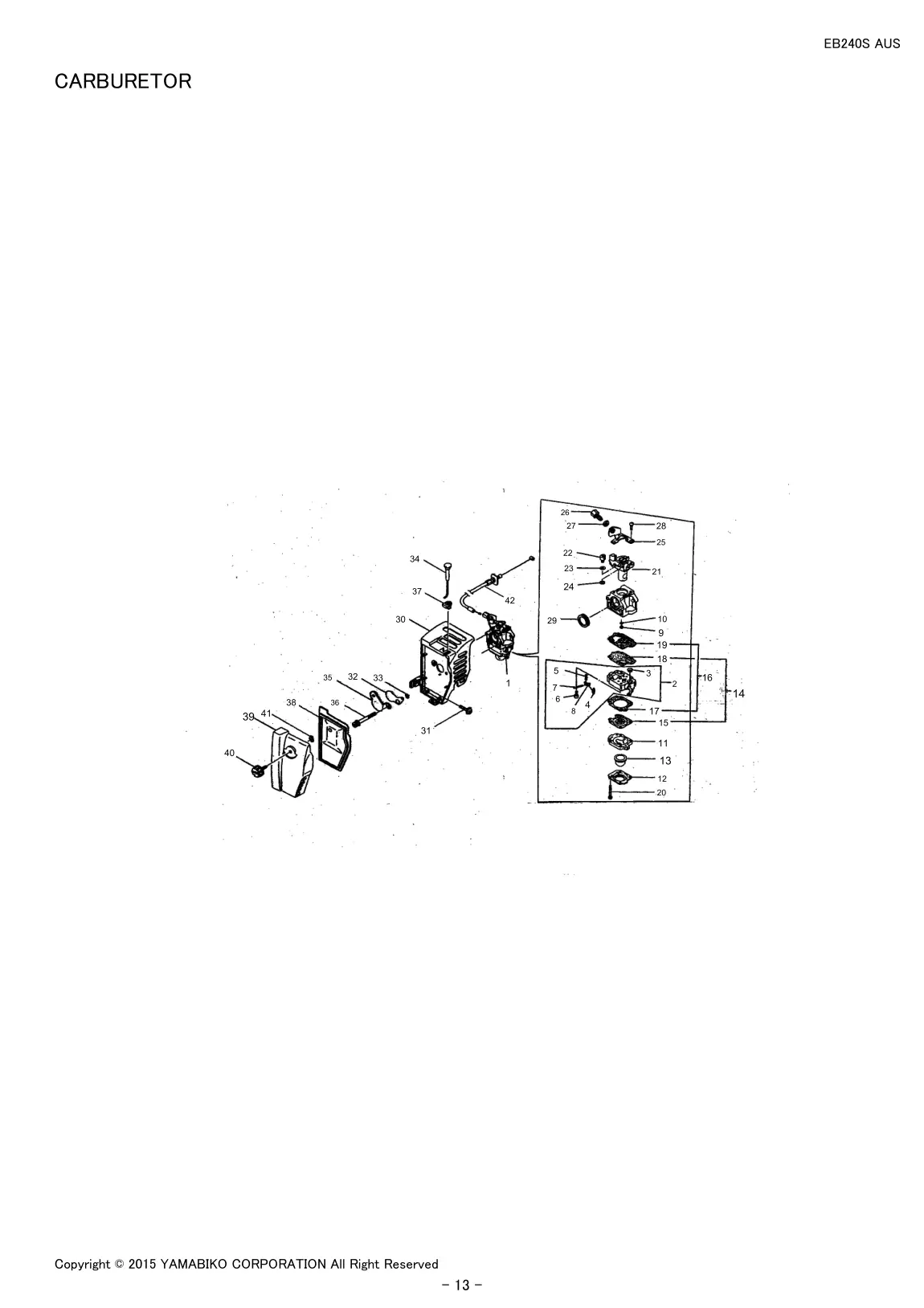

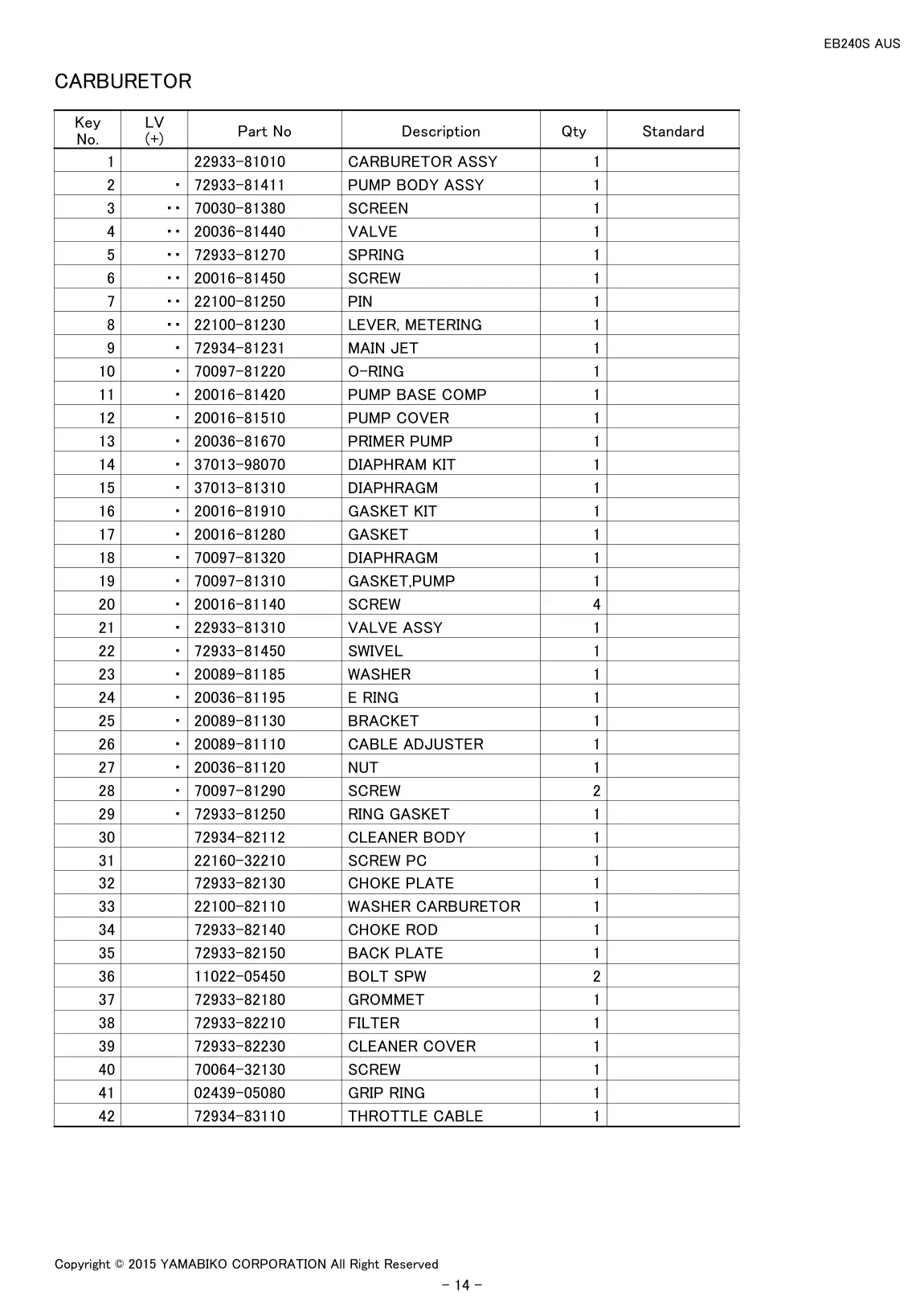

| 16 | CARBURETOR | 1 | CARBURETOR ASSY | 22933-81010 | 22933-81010-Online |
| 16 | CARBURETOR | 10 | O-RING | 70097-81220 | 70097-81220-Online |
| 16 | CARBURETOR | 11 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 16 | CARBURETOR | 12 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 16 | CARBURETOR | 13 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 16 | CARBURETOR | 14 | DIAPHRAM KIT | 37013-98070 | 37013-98070-Online |
| 16 | CARBURETOR | 15 | DIAPHRAGM | 37013-81310 | 37013-81310-Online |
| 16 | CARBURETOR | 16 | GASKET KIT | 20016-81910 | 20016-81910-Online |
| 16 | CARBURETOR | 17 | GASKET | 20016-81280 | 20016-81280-Online |
| 16 | CARBURETOR | 18 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 16 | CARBURETOR | 19 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 16 | CARBURETOR | 2 | PUMP BODY ASSY | 72933-81411 | 72933-81411-Online |
| 16 | CARBURETOR | 20 | SCREW | 20016-81140 | 20016-81140-Online |
| 16 | CARBURETOR | 21 | VALVE ASSY | 22933-81310 | 22933-81310-Online |
| 16 | CARBURETOR | 22 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 16 | CARBURETOR | 23 | WASHER | 20089-81185 | 20089-81185-Online |
| 16 | CARBURETOR | 24 | E RING | 20036-81195 | 20036-81195-Online |
| 16 | CARBURETOR | 25 | BRACKET | 20089-81130 | 20089-81130-Online |
| 16 | CARBURETOR | 26 | CABLE ADJUSTER | 20089-81110 | 20089-81110-Online |
| 16 | CARBURETOR | 27 | NUT | 20036-81120 | 20036-81120-Online |
| 16 | CARBURETOR | 28 | SCREW | 70097-81290 | 70097-81290-Online |
| 16 | CARBURETOR | 29 | RING GASKET | 72933-81250 | 72933-81250-Online |
| 16 | CARBURETOR | 3 | SCREEN | 70030-81380 | 70030-81380-Online |
| 16 | CARBURETOR | 30 | CLEANER BODY | 72934-82112 | 72934-82112-Online |
| 16 | CARBURETOR | 31 | SCREW PC | 22160-32210 | 22160-32210-Online |
| 16 | CARBURETOR | 32 | CHOKE PLATE | 72933-82130 | 72933-82130-Online |
| 16 | CARBURETOR | 33 | WASHER CARBURETOR | 22100-82110 | 22100-82110-Online |
| 16 | CARBURETOR | 34 | CHOKE ROD | 72933-82140 | 72933-82140-Online |
| 16 | CARBURETOR | 35 | BACK PLATE | 72933-82150 | 72933-82150-Online |
| 16 | CARBURETOR | 36 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 16 | CARBURETOR | 37 | GROMMET | 72933-82180 | 72933-82180-Online |
| 16 | CARBURETOR | 38 | FILTER | 72933-82210 | 72933-82210-Online |
| 16 | CARBURETOR | 39 | CLEANER COVER | 72933-82230 | 72933-82230-Online |
| 16 | CARBURETOR | 4 | VALVE | 20036-81440 | 20036-81440-Online |
| 16 | CARBURETOR | 40 | SCREW | 70064-32130 | 70064-32130-Online |
| 16 | CARBURETOR | 41 | GRIP RING | 02439-05080 | 02439-05080-Online |
| 16 | CARBURETOR | 42 | THROTTLE CABLE | 72934-83110 | 72934-83110-Online |
| 16 | CARBURETOR | 5 | SPRING | 72933-81270 | 72933-81270-Online |
| 16 | CARBURETOR | 6 | SCREW | 20016-81450 | 20016-81450-Online |
| 16 | CARBURETOR | 7 | PIN | 22100-81250 | 22100-81250-Online |
| 16 | CARBURETOR | 8 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 16 | CARBURETOR | 9 | MAIN JET | 72934-81231 | 72934-81231-Online |

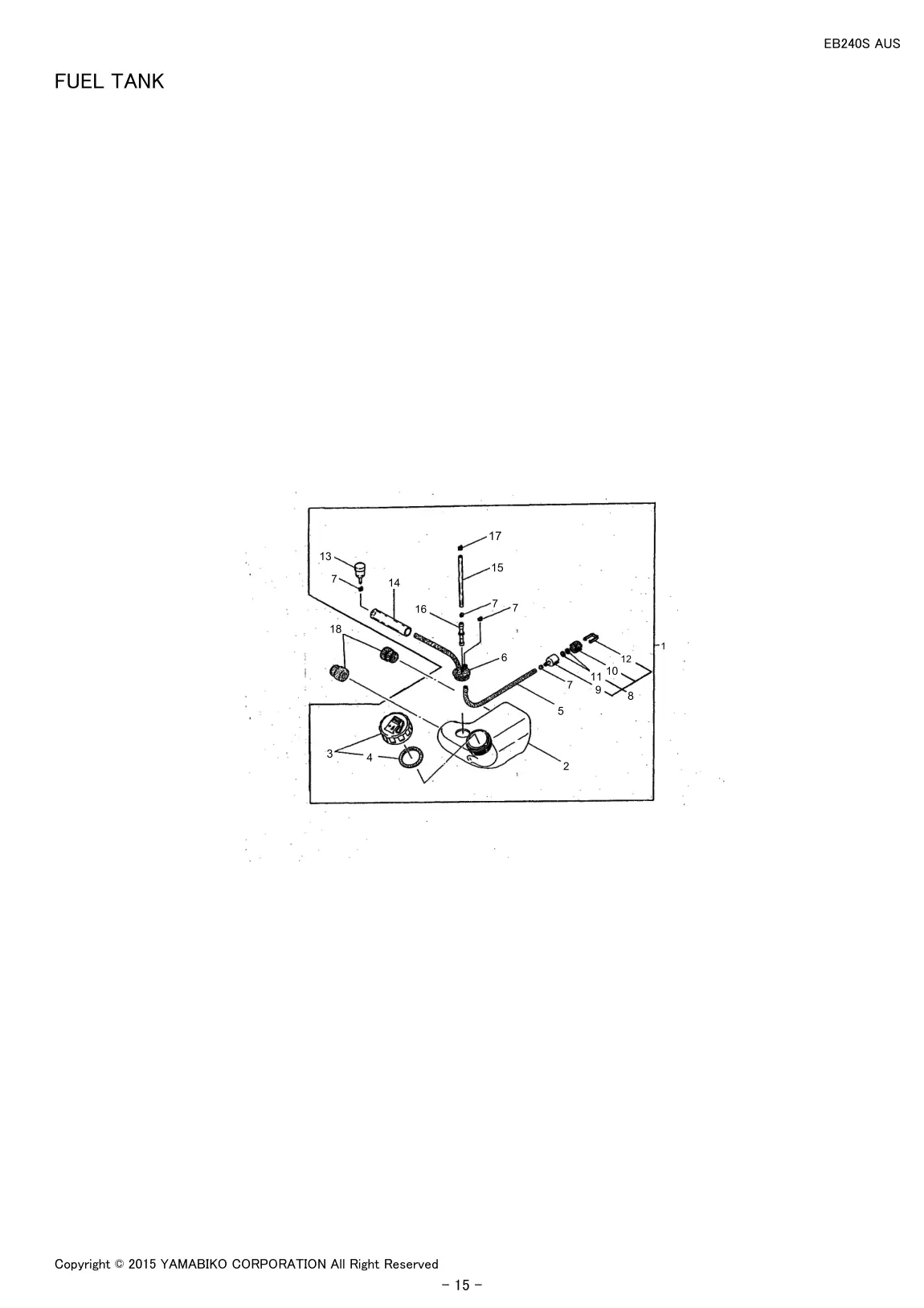

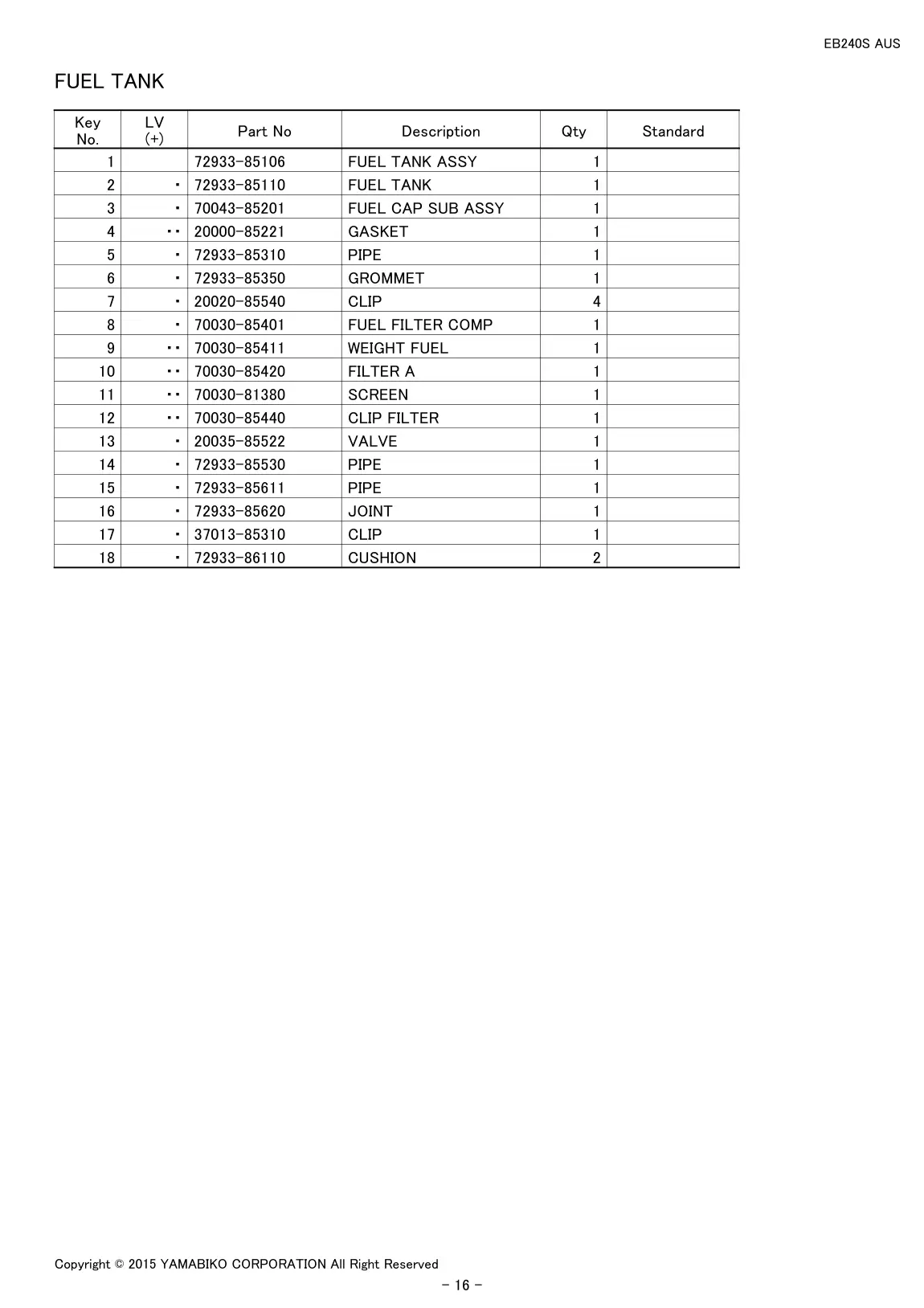

| 18 | FUEL TANK | 1 | FUEL TANK ASSY | 72933-85106 | 72933-85106-Online |
| 18 | FUEL TANK | 10 | FILTER A | 70030-85420 | 70030-85420-Online |
| 18 | FUEL TANK | 11 | SCREEN | 70030-81380 | 70030-81380-Online |
| 18 | FUEL TANK | 12 | CLIP FILTER | 70030-85440 | 70030-85440-Online |
| 18 | FUEL TANK | 13 | VALVE | 20035-85522 | 20035-85522-Online |
| 18 | FUEL TANK | 14 | PIPE | 72933-85530 | 72933-85530-Online |
| 18 | FUEL TANK | 15 | PIPE | 72933-85611 | 72933-85611-Online |
| 18 | FUEL TANK | 16 | JOINT | 72933-85620 | 72933-85620-Online |
| 18 | FUEL TANK | 17 | CLIP | 37013-85310 | 37013-85310-Online |
| 18 | FUEL TANK | 18 | CUSHION | 72933-86110 | 72933-86110-Online |
| 18 | FUEL TANK | 2 | FUEL TANK | 72933-85110 | 72933-85110-Online |
| 18 | FUEL TANK | 3 | FUEL CAP SUB ASSY | 70043-85201 | 70043-85201-Online |
| 18 | FUEL TANK | 4 | GASKET | 20000-85221 | 20000-85221-Online |
| 18 | FUEL TANK | 5 | PIPE | 72933-85310 | 72933-85310-Online |
| 18 | FUEL TANK | 6 | GROMMET | 72933-85350 | 72933-85350-Online |
| 18 | FUEL TANK | 7 | CLIP | 20020-85540 | 20020-85540-Online |
| 18 | FUEL TANK | 8 | FUEL FILTER COMP | 70030-85401 | 70030-85401-Online |
| 18 | FUEL TANK | 9 | WEIGHT FUEL | 70030-85411 | 70030-85411-Online |
| 20 | TOOL | 1 | TOOL SET | 72490-91000 | 72490-91000-Online |

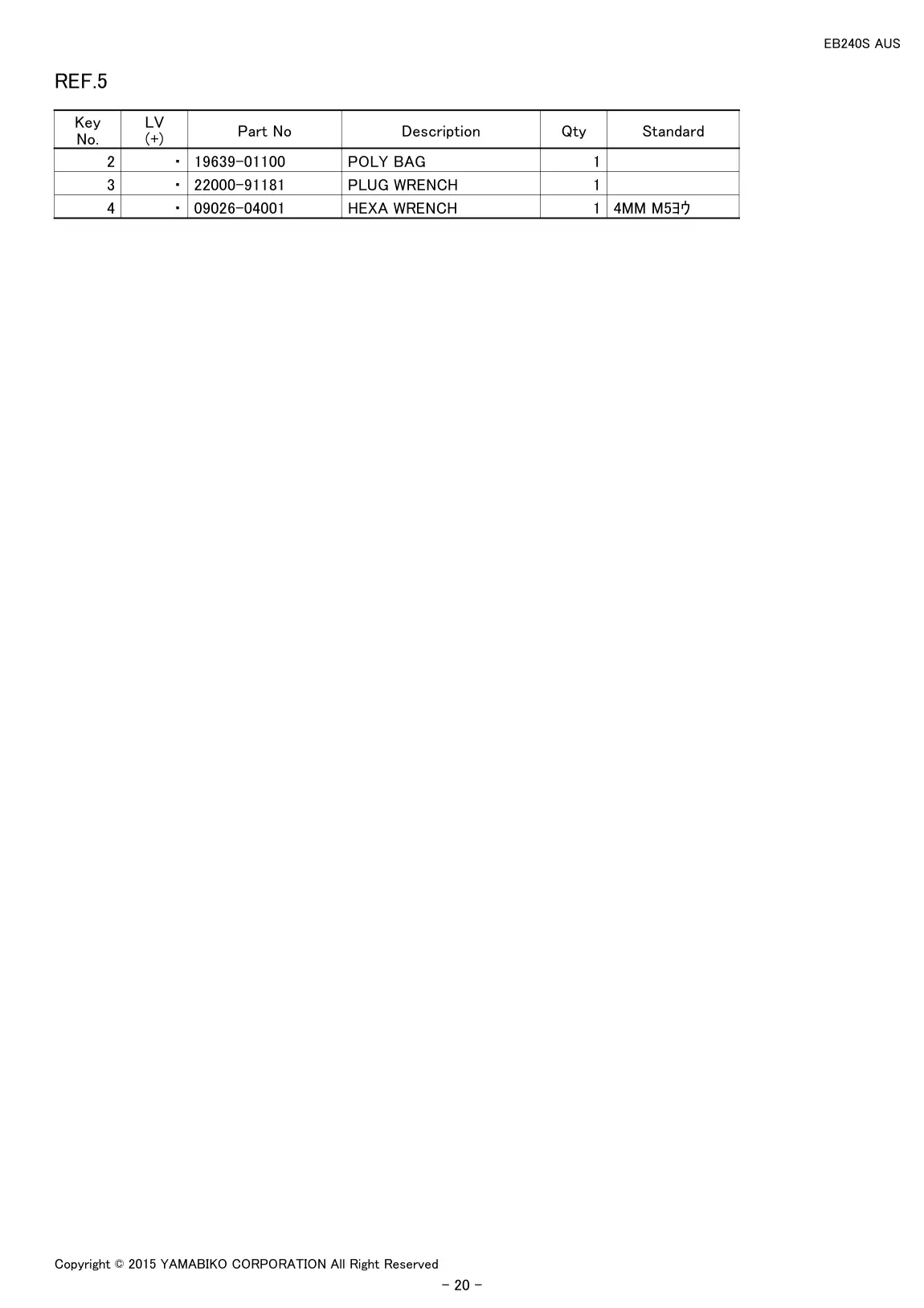

| 22 | REF.5 | 2 | POLY BAG | 19639-01100 | 19639-01100-Online |
| 22 | REF.5 | 3 | PLUG WRENCH | 22000-91181 | 22000-91181-Online |
| 22 | REF.5 | 4 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |

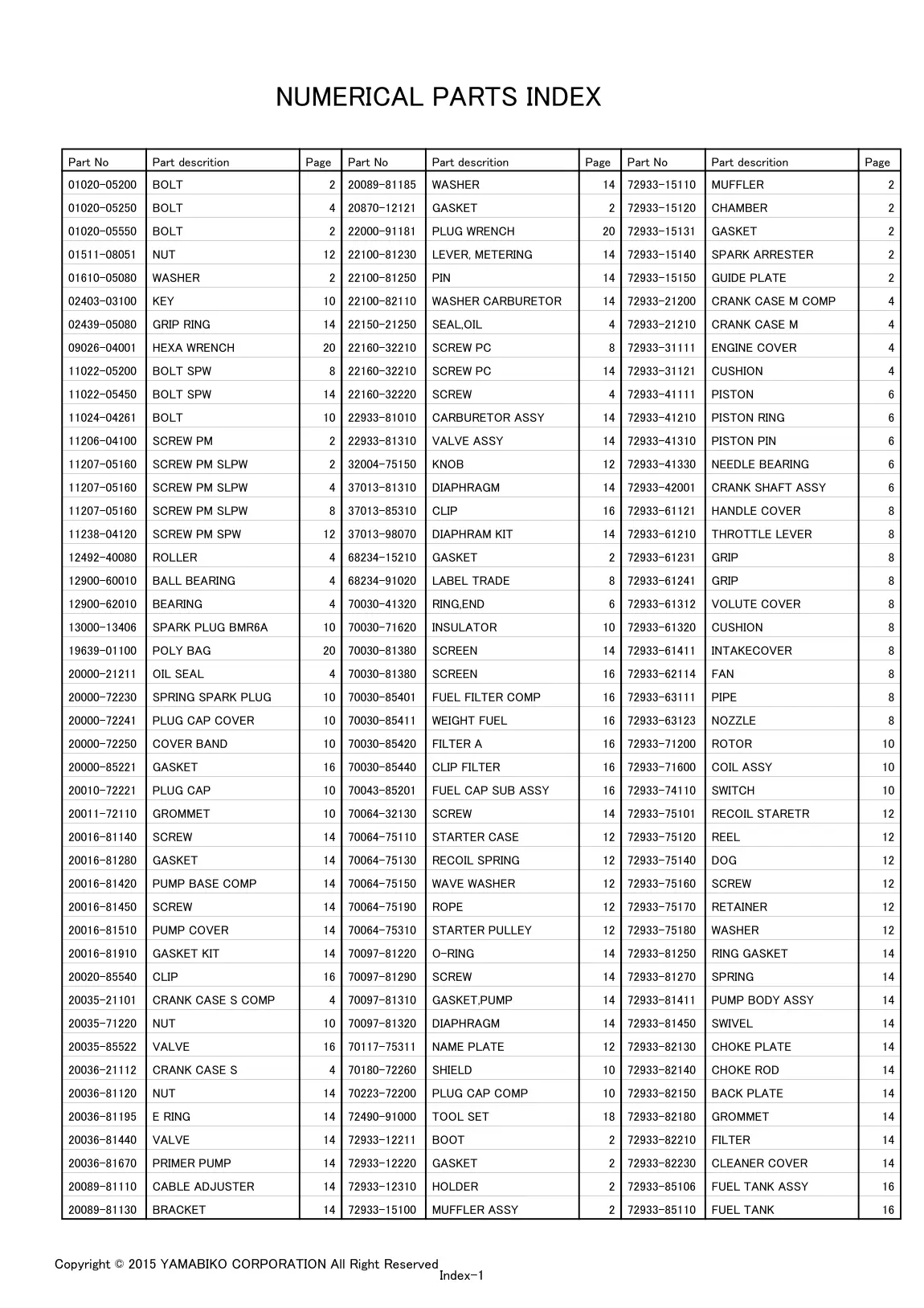

| 23 | FUEL TANK | BOLT | 01020-05200 | 01020-05200-Online | |
| 23 | FUEL TANK | 10 | GRIP RING | 02439-05080 | 02439-05080-Online |
| 23 | FUEL TANK | 10 | SCREW PM | 11206-04100 | 11206-04100-Online |
| 23 | FUEL TANK | 10 | POLY BAG | 19639-01100 | 19639-01100-Online |
| 23 | FUEL TANK | 10 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 23 | FUEL TANK | 10 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 23 | FUEL TANK | 10 | GASKET | 20000-85221 | 20000-85221-Online |
| 23 | FUEL TANK | 10 | GROMMET | 20011-72110 | 20011-72110-Online |
| 23 | FUEL TANK | 10 | SCREW | 20016-81140 | 20016-81140-Online |
| 23 | FUEL TANK | 10 | VALVE | 20035-85522 | 20035-85522-Online |
| 23 | FUEL TANK | 10 | SCREEN | 70030-81380 | 70030-81380-Online |
| 23 | FUEL TANK | 10 | PLUG CAP COMP | 70223-72200 | 70223-72200-Online |
| 23 | FUEL TANK | 10 | TOOL SET | 72490-91000 | 72490-91000-Online |
| 23 | FUEL TANK | 10 | COIL ASSY | 72933-71600 | 72933-71600-Online |
| 23 | FUEL TANK | 10 | SWITCH | 72933-74110 | 72933-74110-Online |
| 23 | FUEL TANK | 10 | RECOIL STARETR | 72933-75101 | 72933-75101-Online |
| 23 | FUEL TANK | 12 | WASHER | 01610-05080 | 01610-05080-Online |
| 23 | FUEL TANK | 12 | ROLLER | 12492-40080 | 12492-40080-Online |
| 23 | FUEL TANK | 12 | DIAPHRAGM | 37013-81310 | 37013-81310-Online |
| 23 | FUEL TANK | 12 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 23 | FUEL TANK | 12 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 23 | FUEL TANK | 12 | ROPE | 70064-75190 | 70064-75190-Online |
| 23 | FUEL TANK | 12 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 23 | FUEL TANK | 12 | O-RING | 70097-81220 | 70097-81220-Online |
| 23 | FUEL TANK | 12 | SHIELD | 70180-72260 | 70180-72260-Online |
| 23 | FUEL TANK | 12 | REEL | 72933-75120 | 72933-75120-Online |
| 23 | FUEL TANK | 12 | SCREW | 72933-75160 | 72933-75160-Online |
| 23 | FUEL TANK | 12 | RETAINER | 72933-75170 | 72933-75170-Online |
| 23 | FUEL TANK | 12 | WASHER | 72933-75180 | 72933-75180-Online |
| 23 | FUEL TANK | 12 | RING GASKET | 72933-81250 | 72933-81250-Online |
| 23 | FUEL TANK | 14 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 23 | FUEL TANK | 14 | BOLT | 11024-04261 | 11024-04261-Online |
| 23 | FUEL TANK | 14 | GASKET | 20016-81280 | 20016-81280-Online |
| 23 | FUEL TANK | 14 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 23 | FUEL TANK | 14 | SCREW | 20016-81450 | 20016-81450-Online |
| 23 | FUEL TANK | 14 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 23 | FUEL TANK | 14 | GASKET KIT | 20016-81910 | 20016-81910-Online |
| 23 | FUEL TANK | 14 | CLIP | 20020-85540 | 20020-85540-Online |
| 23 | FUEL TANK | 14 | E RING | 20036-81195 | 20036-81195-Online |
| 23 | FUEL TANK | 14 | VALVE | 20036-81440 | 20036-81440-Online |
| 23 | FUEL TANK | 14 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 23 | FUEL TANK | 14 | CABLE ADJUSTER | 20089-81110 | 20089-81110-Online |
| 23 | FUEL TANK | 14 | BRACKET | 20089-81130 | 20089-81130-Online |
| 23 | FUEL TANK | 14 | WASHER | 20089-81185 | 20089-81185-Online |
| 23 | FUEL TANK | 14 | GASKET | 20870-12121 | 20870-12121-Online |
| 23 | FUEL TANK | 14 | PIN | 22100-81250 | 22100-81250-Online |
| 23 | FUEL TANK | 14 | WASHER CARBURETOR | 22100-82110 | 22100-82110-Online |
| 23 | FUEL TANK | 14 | SEAL,OIL | 22150-21250 | 22150-21250-Online |
| 23 | FUEL TANK | 14 | SCREW | 22160-32220 | 22160-32220-Online |
| 23 | FUEL TANK | 14 | VALVE ASSY | 22933-81310 | 22933-81310-Online |
| 23 | FUEL TANK | 14 | KNOB | 32004-75150 | 32004-75150-Online |
| 23 | FUEL TANK | 14 | CLIP | 37013-85310 | 37013-85310-Online |
| 23 | FUEL TANK | 14 | GASKET | 68234-15210 | 68234-15210-Online |
| 23 | FUEL TANK | 14 | SCREEN | 70030-81380 | 70030-81380-Online |
| 23 | FUEL TANK | 14 | STARTER CASE | 70064-75110 | 70064-75110-Online |
| 23 | FUEL TANK | 14 | SCREW | 70097-81290 | 70097-81290-Online |
| 23 | FUEL TANK | 14 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 23 | FUEL TANK | 14 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 23 | FUEL TANK | 14 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 23 | FUEL TANK | 14 | SPRING | 72933-81270 | 72933-81270-Online |
| 23 | FUEL TANK | 14 | PUMP BODY ASSY | 72933-81411 | 72933-81411-Online |
| 23 | FUEL TANK | 14 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 23 | FUEL TANK | 14 | CHOKE PLATE | 72933-82130 | 72933-82130-Online |
| 23 | FUEL TANK | 14 | CHOKE ROD | 72933-82140 | 72933-82140-Online |
| 23 | FUEL TANK | 14 | BACK PLATE | 72933-82150 | 72933-82150-Online |
| 23 | FUEL TANK | 14 | GROMMET | 72933-82180 | 72933-82180-Online |
| 23 | FUEL TANK | 14 | FILTER | 72933-82210 | 72933-82210-Online |
| 23 | FUEL TANK | 14 | CLEANER COVER | 72933-82230 | 72933-82230-Online |
| 23 | FUEL TANK | 14 | FUEL TANK ASSY | 72933-85106 | 72933-85106-Online |
| 23 | FUEL TANK | 16 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 23 | FUEL TANK | 16 | CRANK CASE S COMP | 20035-21101 | 20035-21101-Online |
| 23 | FUEL TANK | 16 | CRANK CASE S | 20036-21112 | 20036-21112-Online |
| 23 | FUEL TANK | 16 | DIAPHRAM KIT | 37013-98070 | 37013-98070-Online |
| 23 | FUEL TANK | 16 | FUEL FILTER COMP | 70030-85401 | 70030-85401-Online |
| 23 | FUEL TANK | 16 | WEIGHT FUEL | 70030-85411 | 70030-85411-Online |
| 23 | FUEL TANK | 16 | FILTER A | 70030-85420 | 70030-85420-Online |
| 23 | FUEL TANK | 16 | CLIP FILTER | 70030-85440 | 70030-85440-Online |
| 23 | FUEL TANK | 16 | FUEL CAP SUB ASSY | 70043-85201 | 70043-85201-Online |
| 23 | FUEL TANK | 16 | SCREW | 70064-32130 | 70064-32130-Online |
| 23 | FUEL TANK | 2 | BOLT | 01020-05250 | 01020-05250-Online |
| 23 | FUEL TANK | 2 | NUT | 01511-08051 | 01511-08051-Online |
| 23 | FUEL TANK | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 23 | FUEL TANK | 2 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 23 | FUEL TANK | 2 | PLUG WRENCH | 22000-91181 | 22000-91181-Online |
| 23 | FUEL TANK | 2 | LABEL TRADE | 68234-91020 | 68234-91020-Online |
| 23 | FUEL TANK | 2 | GASKET | 72933-12220 | 72933-12220-Online |
| 23 | FUEL TANK | 2 | HOLDER | 72933-12310 | 72933-12310-Online |
| 23 | FUEL TANK | 2 | MUFFLER ASSY | 72933-15100 | 72933-15100-Online |
| 23 | FUEL TANK | 2 | MUFFLER | 72933-15110 | 72933-15110-Online |
| 23 | FUEL TANK | 2 | CHAMBER | 72933-15120 | 72933-15120-Online |
| 23 | FUEL TANK | 2 | GASKET | 72933-15131 | 72933-15131-Online |
| 23 | FUEL TANK | 2 | SPARK ARRESTER | 72933-15140 | 72933-15140-Online |
| 23 | FUEL TANK | 2 | GUIDE PLATE | 72933-15150 | 72933-15150-Online |
| 23 | FUEL TANK | 2 | CRANK CASE M COMP | 72933-21200 | 72933-21200-Online |
| 23 | FUEL TANK | 20 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 23 | FUEL TANK | 20 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 23 | FUEL TANK | 20 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 23 | FUEL TANK | 4 | BOLT | 01020-05550 | 01020-05550-Online |
| 23 | FUEL TANK | 4 | SCREW PM SLPW | 11207-05160 | 11207-05160-Online |
| 23 | FUEL TANK | 4 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 23 | FUEL TANK | 4 | BEARING | 12900-62010 | 12900-62010-Online |
| 23 | FUEL TANK | 4 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 23 | FUEL TANK | 4 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 23 | FUEL TANK | 4 | NUT | 20035-71220 | 20035-71220-Online |
| 23 | FUEL TANK | 4 | NUT | 20036-81120 | 20036-81120-Online |
| 23 | FUEL TANK | 4 | SCREW PC | 22160-32210 | 22160-32210-Online |
| 23 | FUEL TANK | 4 | CARBURETOR ASSY | 22933-81010 | 22933-81010-Online |
| 23 | FUEL TANK | 4 | CRANK CASE M | 72933-21210 | 72933-21210-Online |
| 23 | FUEL TANK | 4 | ENGINE COVER | 72933-31111 | 72933-31111-Online |
| 23 | FUEL TANK | 4 | CUSHION | 72933-31121 | 72933-31121-Online |
| 23 | FUEL TANK | 4 | PISTON | 72933-41111 | 72933-41111-Online |
| 23 | FUEL TANK | 6 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 23 | FUEL TANK | 6 | PISTON RING | 72933-41210 | 72933-41210-Online |
| 23 | FUEL TANK | 6 | PISTON PIN | 72933-41310 | 72933-41310-Online |
| 23 | FUEL TANK | 6 | NEEDLE BEARING | 72933-41330 | 72933-41330-Online |
| 23 | FUEL TANK | 6 | CRANK SHAFT ASSY | 72933-42001 | 72933-42001-Online |
| 23 | FUEL TANK | 6 | HANDLE COVER | 72933-61121 | 72933-61121-Online |
| 23 | FUEL TANK | 8 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 23 | FUEL TANK | 8 | SCREW PM SPW | 11238-04120 | 11238-04120-Online |
| 23 | FUEL TANK | 8 | SCREW PC | 22160-32210 | 22160-32210-Online |
| 23 | FUEL TANK | 8 | RING,END | 70030-41320 | 70030-41320-Online |
| 23 | FUEL TANK | 8 | THROTTLE LEVER | 72933-61210 | 72933-61210-Online |
| 23 | FUEL TANK | 8 | GRIP | 72933-61231 | 72933-61231-Online |
| 23 | FUEL TANK | 8 | GRIP | 72933-61241 | 72933-61241-Online |
| 23 | FUEL TANK | 8 | VOLUTE COVER | 72933-61312 | 72933-61312-Online |
| 23 | FUEL TANK | 8 | CUSHION | 72933-61320 | 72933-61320-Online |
| 23 | FUEL TANK | 8 | INTAKECOVER | 72933-61411 | 72933-61411-Online |
| 23 | FUEL TANK | 8 | FAN | 72933-62114 | 72933-62114-Online |
| 23 | FUEL TANK | 8 | PIPE | 72933-63111 | 72933-63111-Online |
| 23 | FUEL TANK | 8 | NOZZLE | 72933-63123 | 72933-63123-Online |
| 24 | PISTON SET | PIPE | 72933-85310 | 72933-85310-Online | |
| 24 | PISTON SET | 14 | CLEANER BODY | 72934-82112 | 72934-82112-Online |
| 24 | PISTON SET | 14 | THROTTLE CABLE | 72934-83110 | 72934-83110-Online |
| 24 | PISTON SET | 16 | GROMMET | 72933-85350 | 72933-85350-Online |
| 24 | PISTON SET | 16 | PIPE | 72933-85530 | 72933-85530-Online |
| 24 | PISTON SET | 16 | PIPE | 72933-85611 | 72933-85611-Online |
| 24 | PISTON SET | 16 | JOINT | 72933-85620 | 72933-85620-Online |
| 24 | PISTON SET | 16 | CUSHION | 72933-86110 | 72933-86110-Online |
| 24 | PISTON SET | 16 | CYLINDER | 72934-12111 | 72934-12111-Online |
| 24 | PISTON SET | 2 | VOLUTE CASE | 72934-61111 | 72934-61111-Online |
| 24 | PISTON SET | 8 | MAIN JET | 72934-81231 | 72934-81231-Online |
Source file: 20200226-911_EB240S_AUS_AA_00000000_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
