Illustrated Parts List
Shindaiwa C262S Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C262S
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

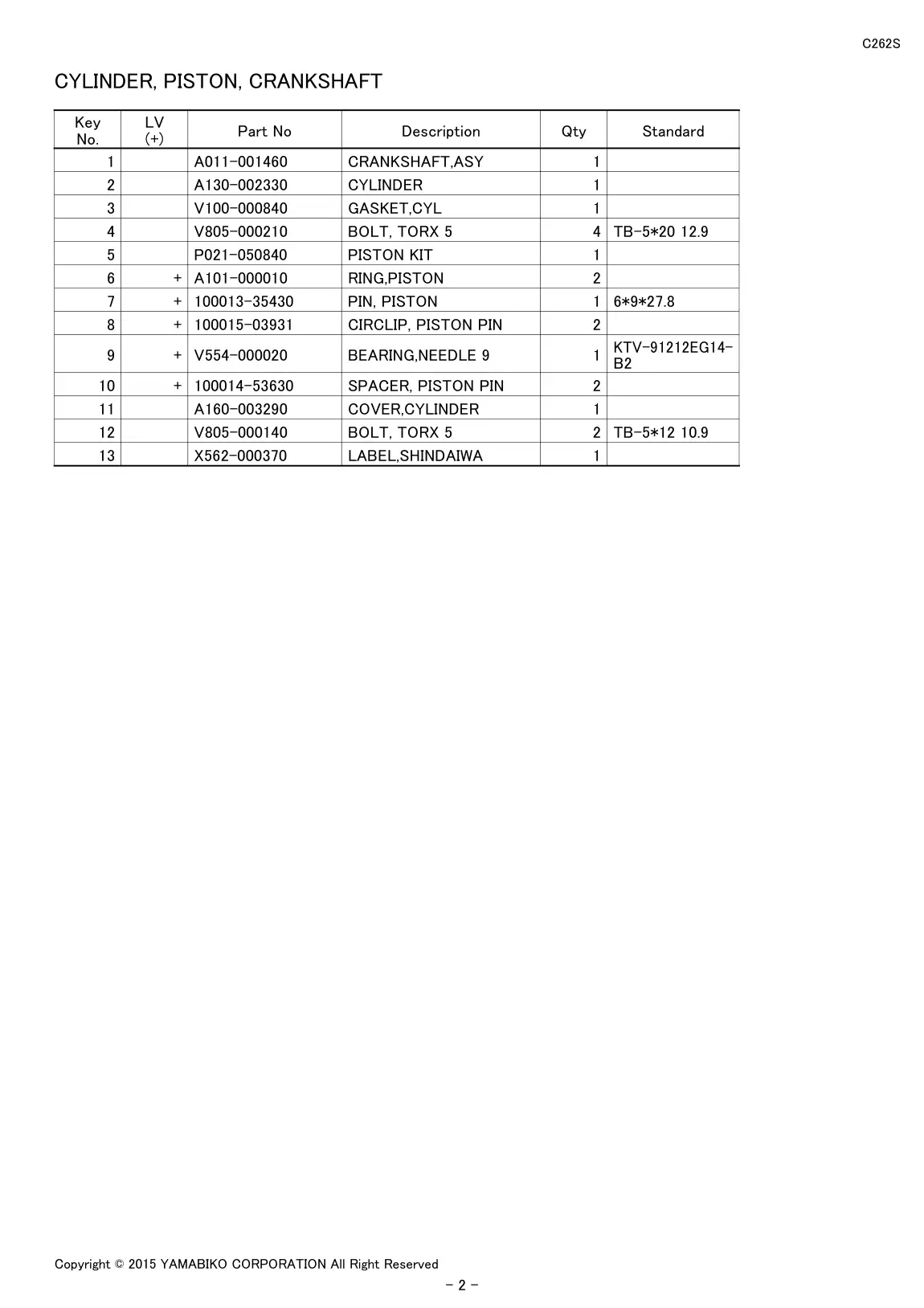

| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,SHINDAIWA | X562-000370 | X562-000370-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002330 | A130-002330-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-050840 | P021-050840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000010 | A101-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-35430 | 100013-35430-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |

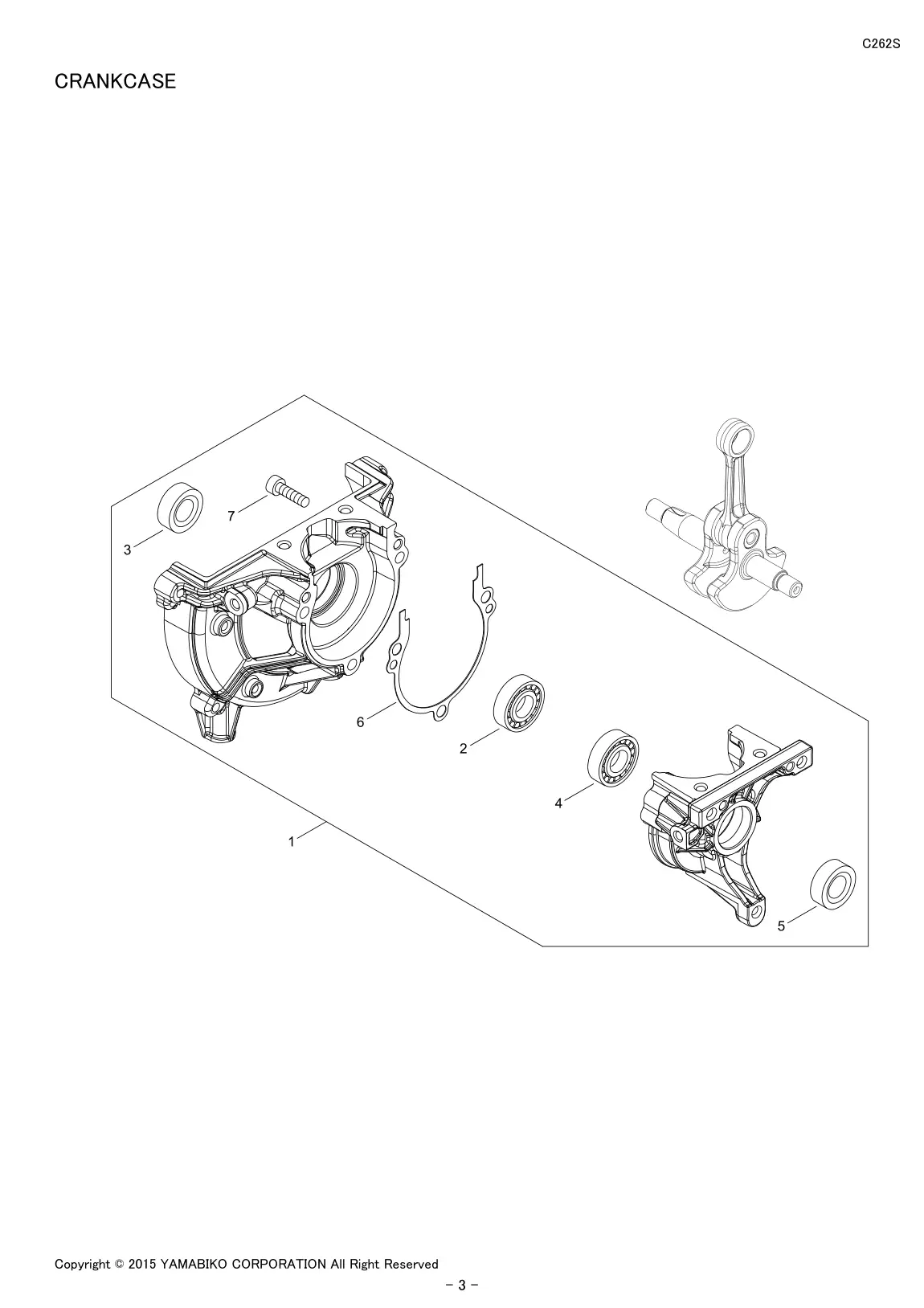

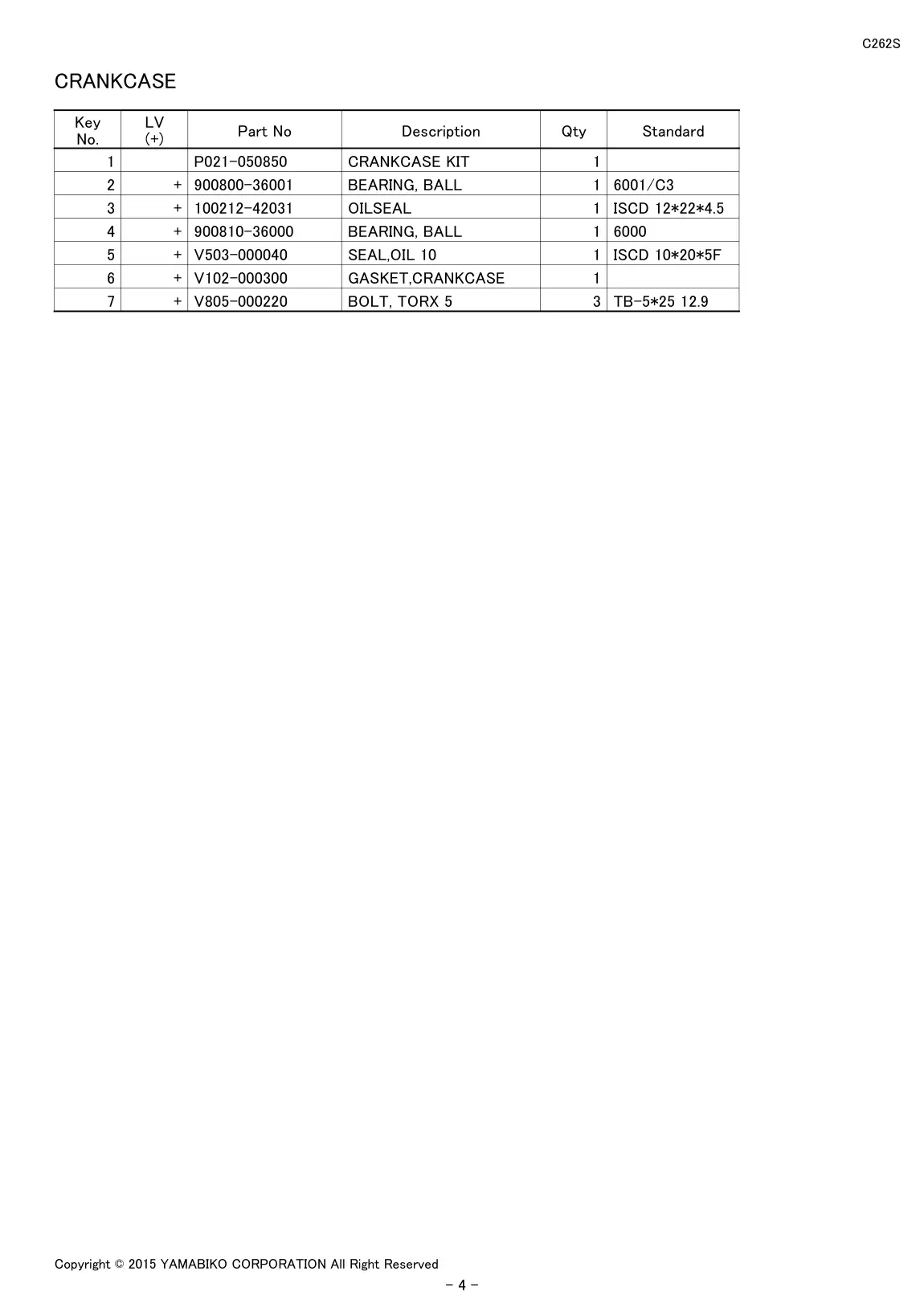

| 6 | CRANKCASE | 1 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 6 | CRANKCASE | 2 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 6 | CRANKCASE | 3 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 6 | CRANKCASE | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 6 | CRANKCASE | 5 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 6 | CRANKCASE | 6 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 6 | CRANKCASE | 7 | BOLT, TORX | V805-000220 | V805-000220-Online |

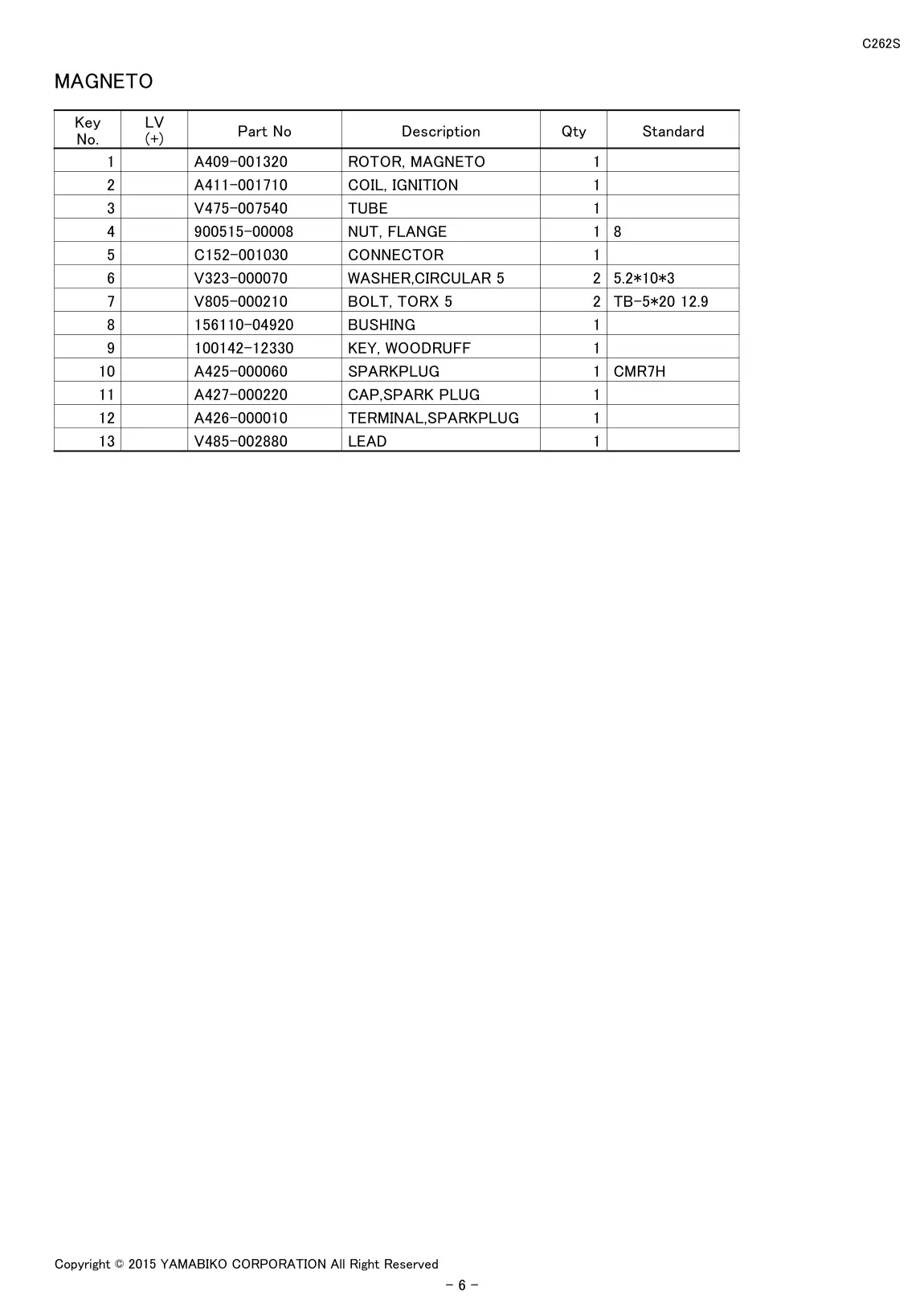

| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 8 | MAGNETO | 10 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 8 | MAGNETO | 11 | CAP,SPARK PLUG | A427-000220 | A427-000220-Online |
| 8 | MAGNETO | 12 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 8 | MAGNETO | 13 | LEAD | V485-002880 | V485-002880-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001710 | A411-001710-Online |
| 8 | MAGNETO | 3 | TUBE | V475-007540 | V475-007540-Online |
| 8 | MAGNETO | 4 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 5 | CONNECTOR | C152-001030 | C152-001030-Online |
| 8 | MAGNETO | 6 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 8 | MAGNETO | 7 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 8 | MAGNETO | 8 | BUSHING | 156110-04920 | 156110-04920-Online |
| 8 | MAGNETO | 9 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 10 | CLUTCH | 1 | CLUTCH ASY | P021-050860 | P021-050860-Online |
| 10 | CLUTCH | 10 | DRUM, CLUTCH | A556-001750 | A556-001750-Online |
| 10 | CLUTCH | 11 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 10 | CLUTCH | 12 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 10 | CLUTCH | 13 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 10 | CLUTCH | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 10 | CLUTCH | 16 | FIXTURE, MAIN PIPE | A575-000690 | A575-000690-Online |
| 10 | CLUTCH | 17 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 10 | CLUTCH | 18 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 10 | CLUTCH | 2 | ARM, CLUTCH | A553-000190 | A553-000190-Online |
| 10 | CLUTCH | 3 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 10 | CLUTCH | 4 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 10 | CLUTCH | 5 | WASHER | 175049-56030 | 175049-56030-Online |
| 10 | CLUTCH | 6 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 10 | CLUTCH | 7 | FAN COVER ASY | P021-051000 | P021-051000-Online |
| 10 | CLUTCH | 8 | COVER,FAN | A172-003140 | A172-003140-Online |
| 10 | CLUTCH | 9 | BEARING, BALL | 900807-06001 | 900807-06001-Online |

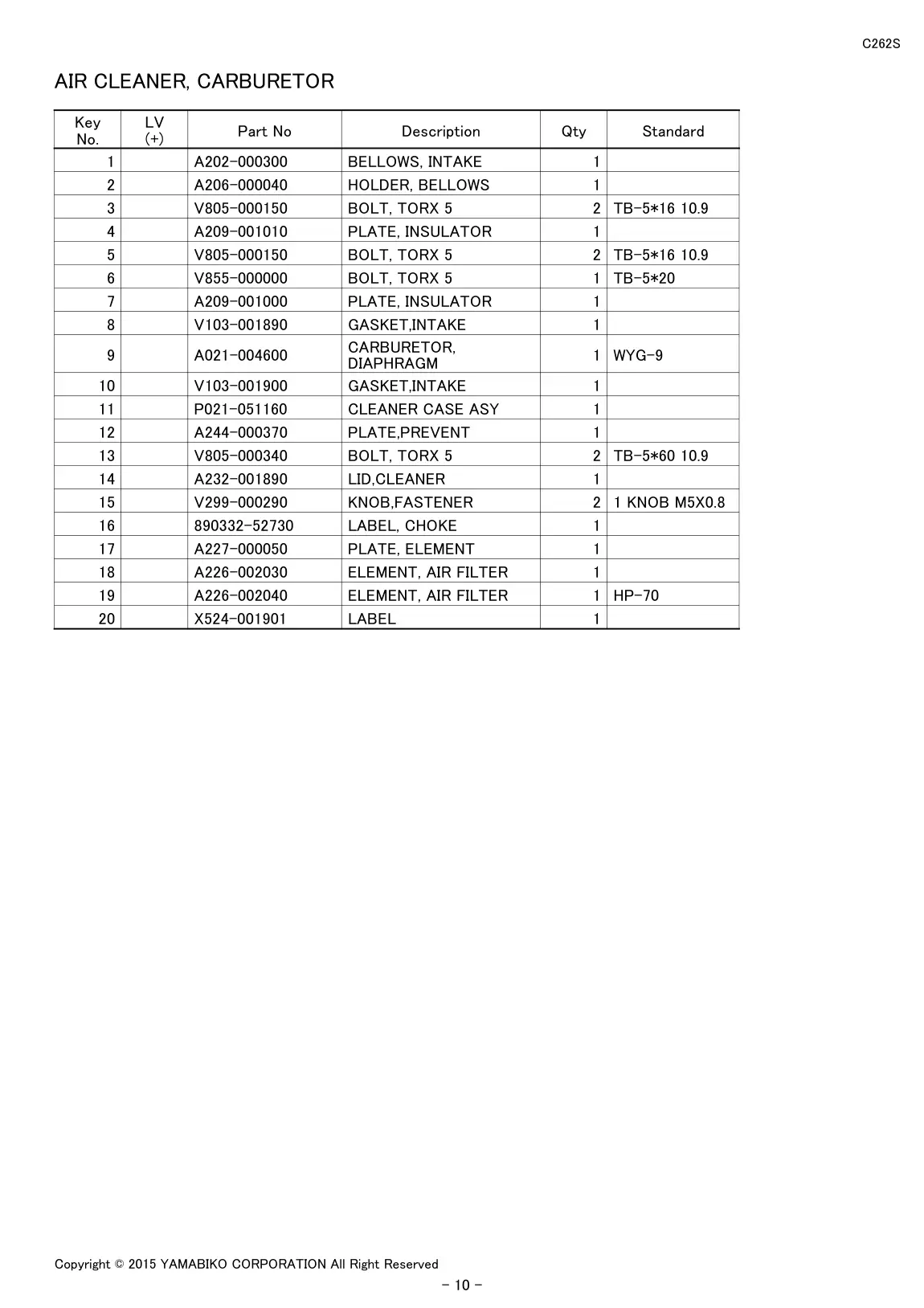

| 12 | AIR CLEANER, CARBURETOR | 1 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 12 | AIR CLEANER, CARBURETOR | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 12 | AIR CLEANER, CARBURETOR | 11 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 12 | AIR CLEANER, CARBURETOR | 12 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 12 | AIR CLEANER, CARBURETOR | 13 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 12 | AIR CLEANER, CARBURETOR | 14 | LID,CLEANER | A232-001890 | A232-001890-Online |
| 12 | AIR CLEANER, CARBURETOR | 15 | KNOB,FASTENER | V299-000290 | V299-000290-Online |
| 12 | AIR CLEANER, CARBURETOR | 16 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 17 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 12 | AIR CLEANER, CARBURETOR | 18 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 12 | AIR CLEANER, CARBURETOR | 19 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 12 | AIR CLEANER, CARBURETOR | 2 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 12 | AIR CLEANER, CARBURETOR | 20 | LABEL | X524-001901 | X524-001901-Online |
| 12 | AIR CLEANER, CARBURETOR | 3 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 4 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 12 | AIR CLEANER, CARBURETOR | 5 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 12 | AIR CLEANER, CARBURETOR | 7 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 12 | AIR CLEANER, CARBURETOR | 8 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 12 | AIR CLEANER, CARBURETOR | 9 | CARBURETOR, | A021-004600 | A021-004600-Online |

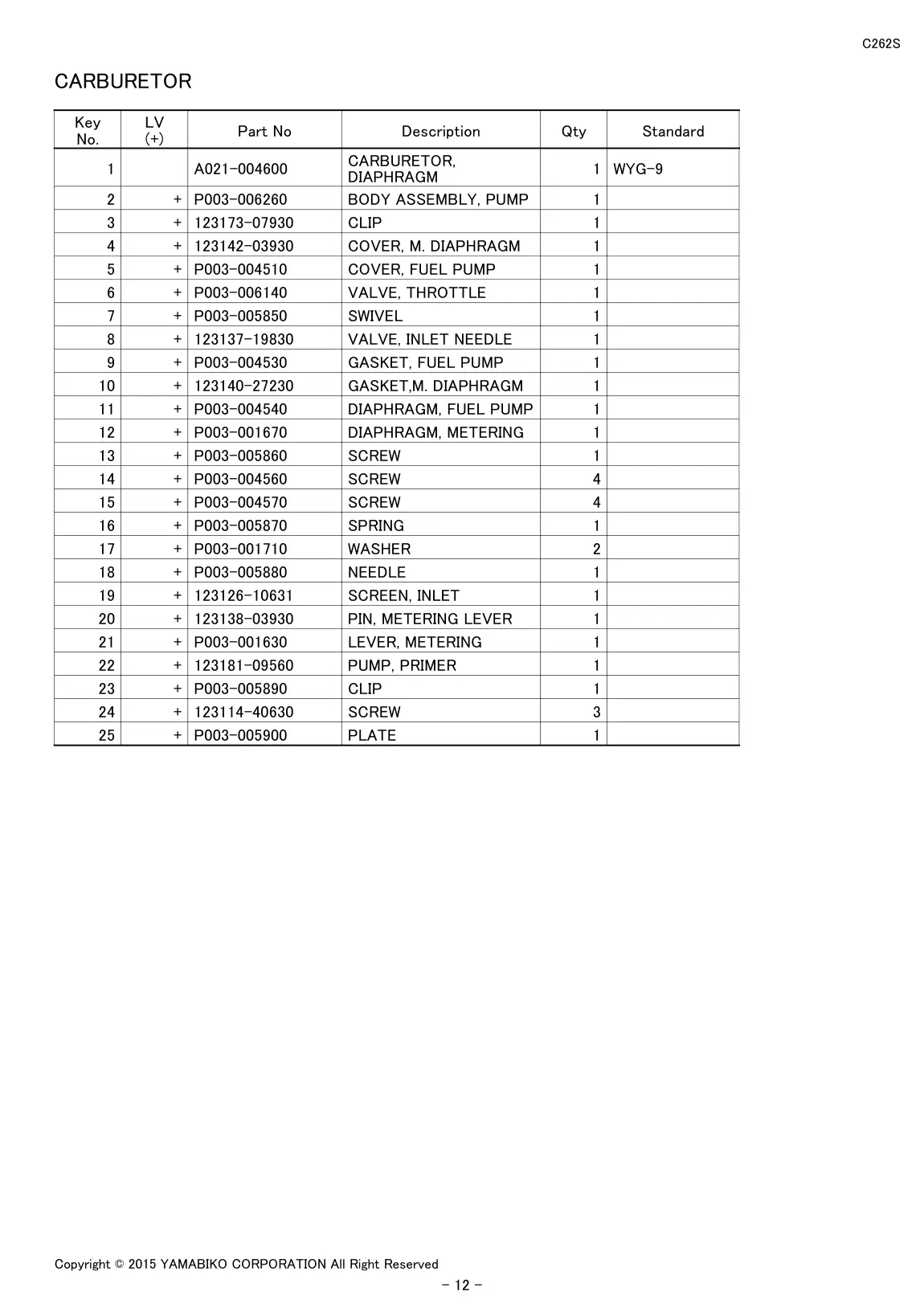

| 14 | CARBURETOR | 1 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 14 | CARBURETOR | 10 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 14 | CARBURETOR | 11 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 14 | CARBURETOR | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 14 | CARBURETOR | 13 | SCREW | P003-005860 | P003-005860-Online |
| 14 | CARBURETOR | 14 | SCREW | P003-004560 | P003-004560-Online |
| 14 | CARBURETOR | 15 | SCREW | P003-004570 | P003-004570-Online |
| 14 | CARBURETOR | 16 | SPRING | P003-005870 | P003-005870-Online |
| 14 | CARBURETOR | 17 | WASHER | P003-001710 | P003-001710-Online |
| 14 | CARBURETOR | 18 | NEEDLE | P003-005880 | P003-005880-Online |
| 14 | CARBURETOR | 19 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 14 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006260 | P003-006260-Online |
| 14 | CARBURETOR | 20 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 14 | CARBURETOR | 21 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 14 | CARBURETOR | 22 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 14 | CARBURETOR | 23 | CLIP | P003-005890 | P003-005890-Online |
| 14 | CARBURETOR | 24 | SCREW | 123114-40630 | 123114-40630-Online |
| 14 | CARBURETOR | 25 | PLATE | P003-005900 | P003-005900-Online |
| 14 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 14 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 14 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 14 | CARBURETOR | 6 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 14 | CARBURETOR | 7 | SWIVEL | P003-005850 | P003-005850-Online |
| 14 | CARBURETOR | 8 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 14 | CARBURETOR | 9 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |

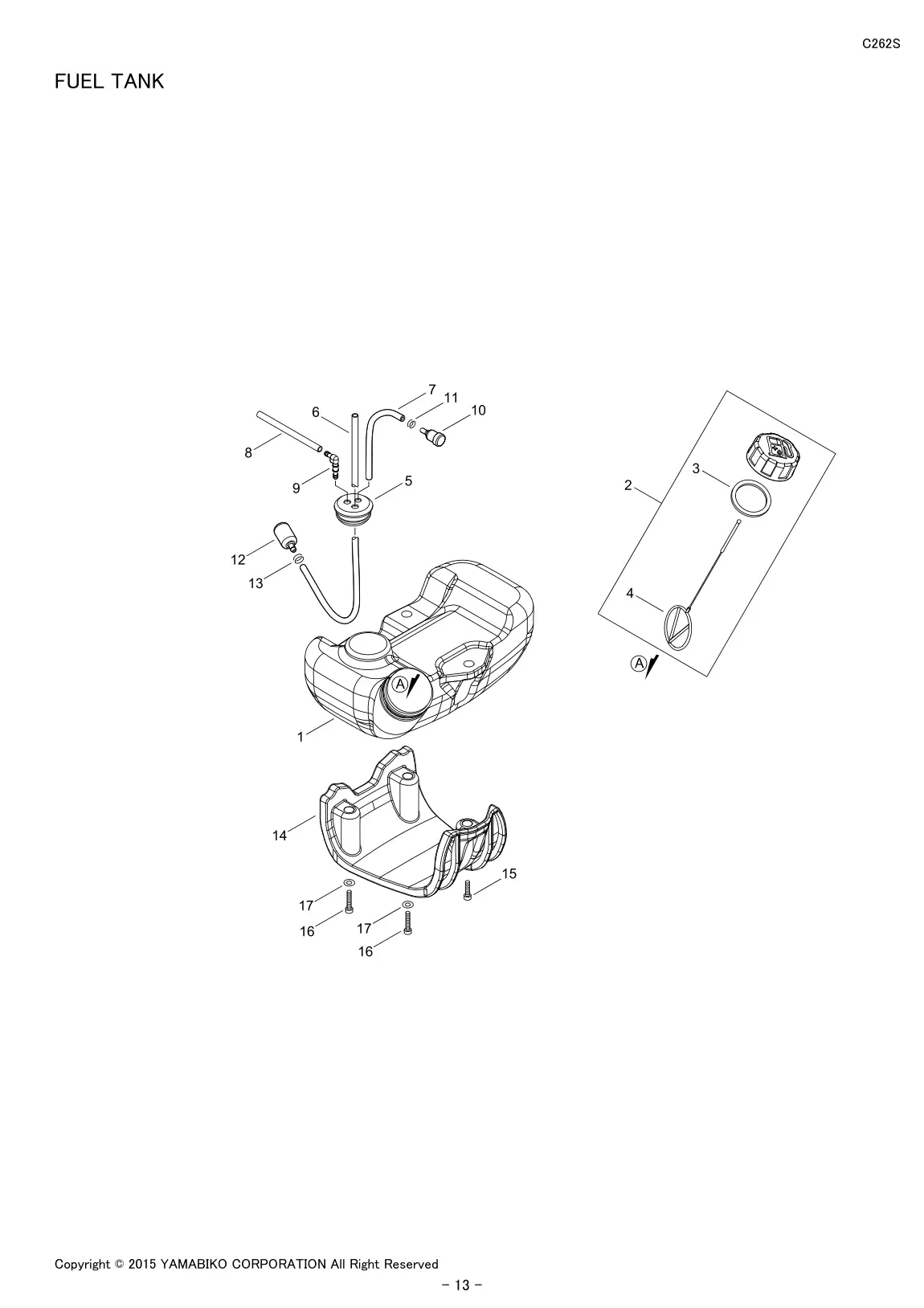

| 16 | FUEL TANK | 1 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 16 | FUEL TANK | 10 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 16 | FUEL TANK | 11 | CLIP | V490-001230 | V490-001230-Online |
| 16 | FUEL TANK | 12 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 16 | FUEL TANK | 13 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 16 | FUEL TANK | 16 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 16 | FUEL TANK | 17 | WASHER | 900602-00005 | 900602-00005-Online |
| 16 | FUEL TANK | 2 | FUEL CAP ASY | P021-035680 | P021-035680-Online |
| 16 | FUEL TANK | 3 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 16 | FUEL TANK | 4 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 16 | FUEL TANK | 5 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 16 | FUEL TANK | 6 | PIPE | V471-001230 | V471-001230-Online |
| 16 | FUEL TANK | 7 | PIPE 3*6* | 132010-06530 | 132010-06530-Online |
| 16 | FUEL TANK | 8 | PIPE | 132012-56030 | 132012-56030-Online |
| 16 | FUEL TANK | 9 | JOINT,PIPE | V186-000500 | V186-000500-Online |

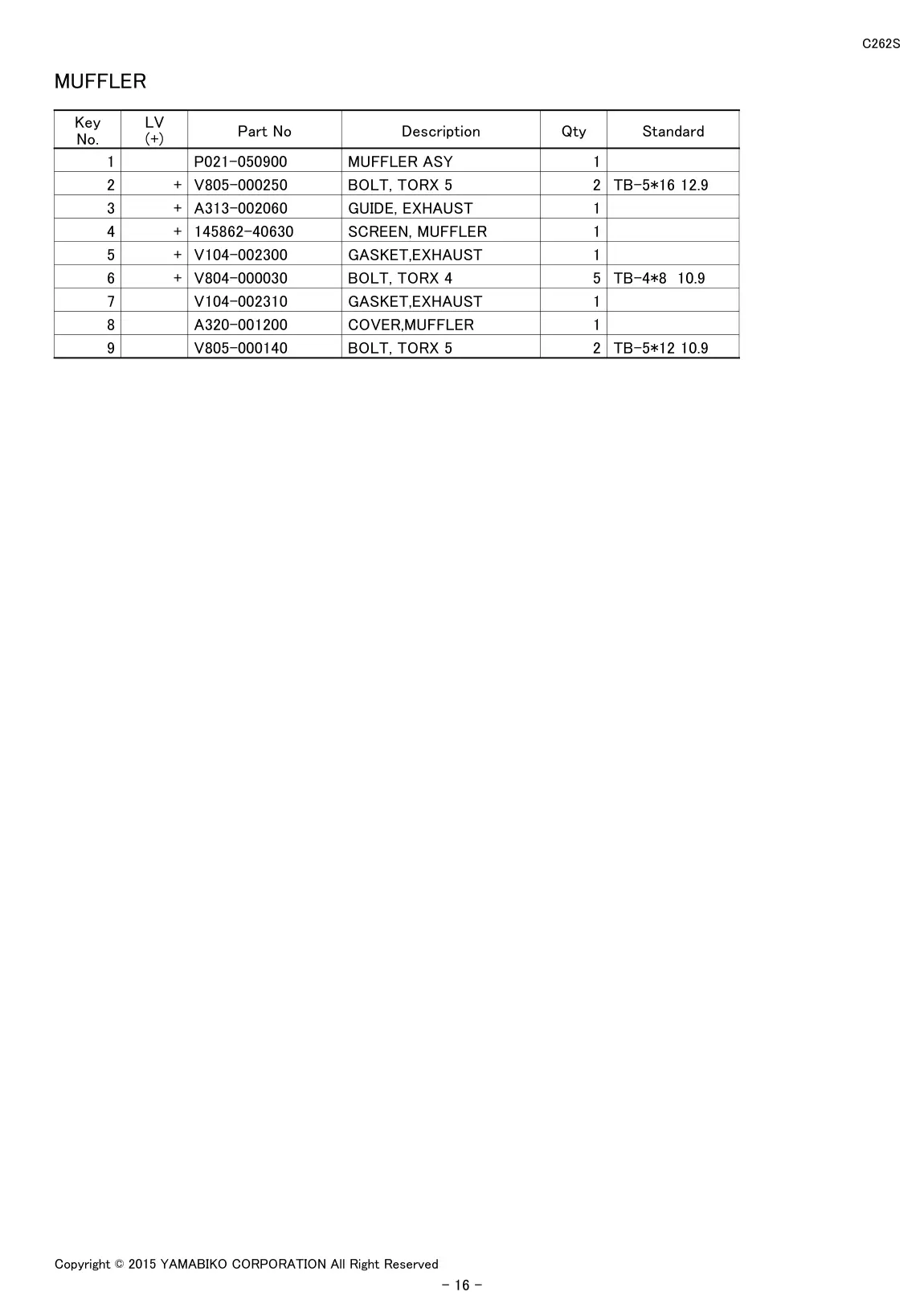

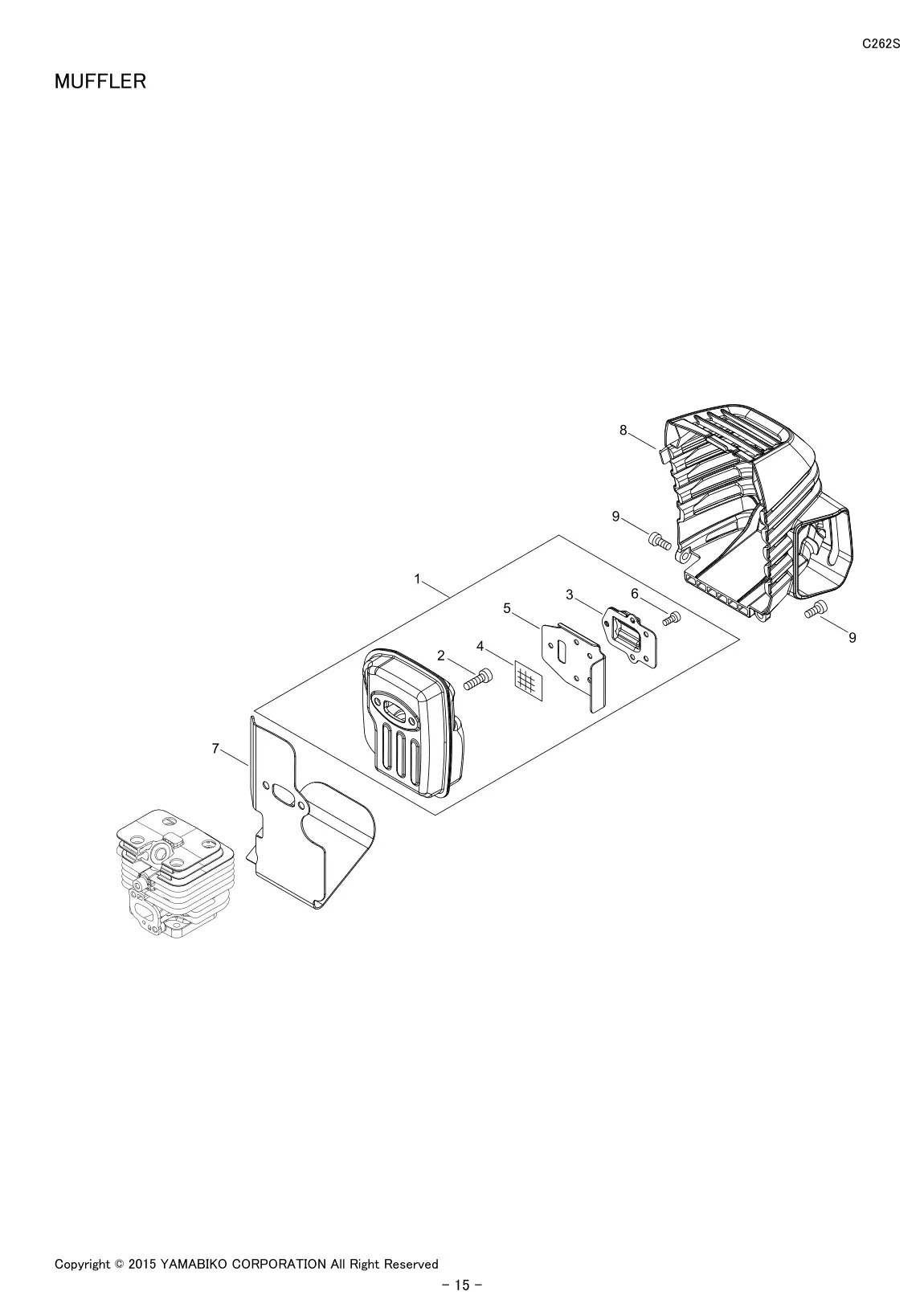

| 18 | MUFFLER | 1 | MUFFLER ASY | P021-050900 | P021-050900-Online |
| 18 | MUFFLER | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 18 | MUFFLER | 3 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 18 | MUFFLER | 4 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 18 | MUFFLER | 5 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 18 | MUFFLER | 6 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 18 | MUFFLER | 7 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 18 | MUFFLER | 8 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 18 | MUFFLER | 9 | BOLT, TORX | V805-000140 | V805-000140-Online |

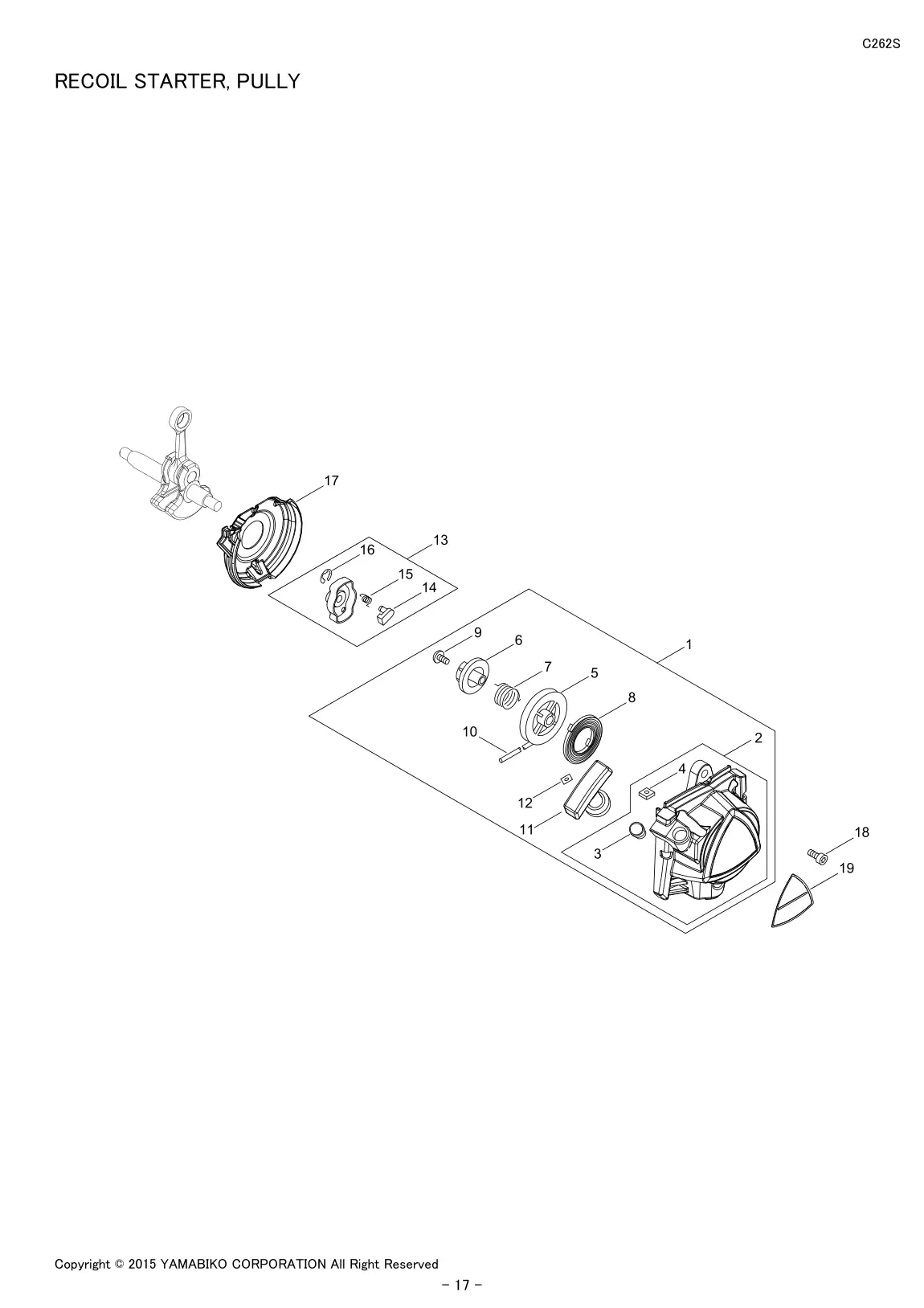

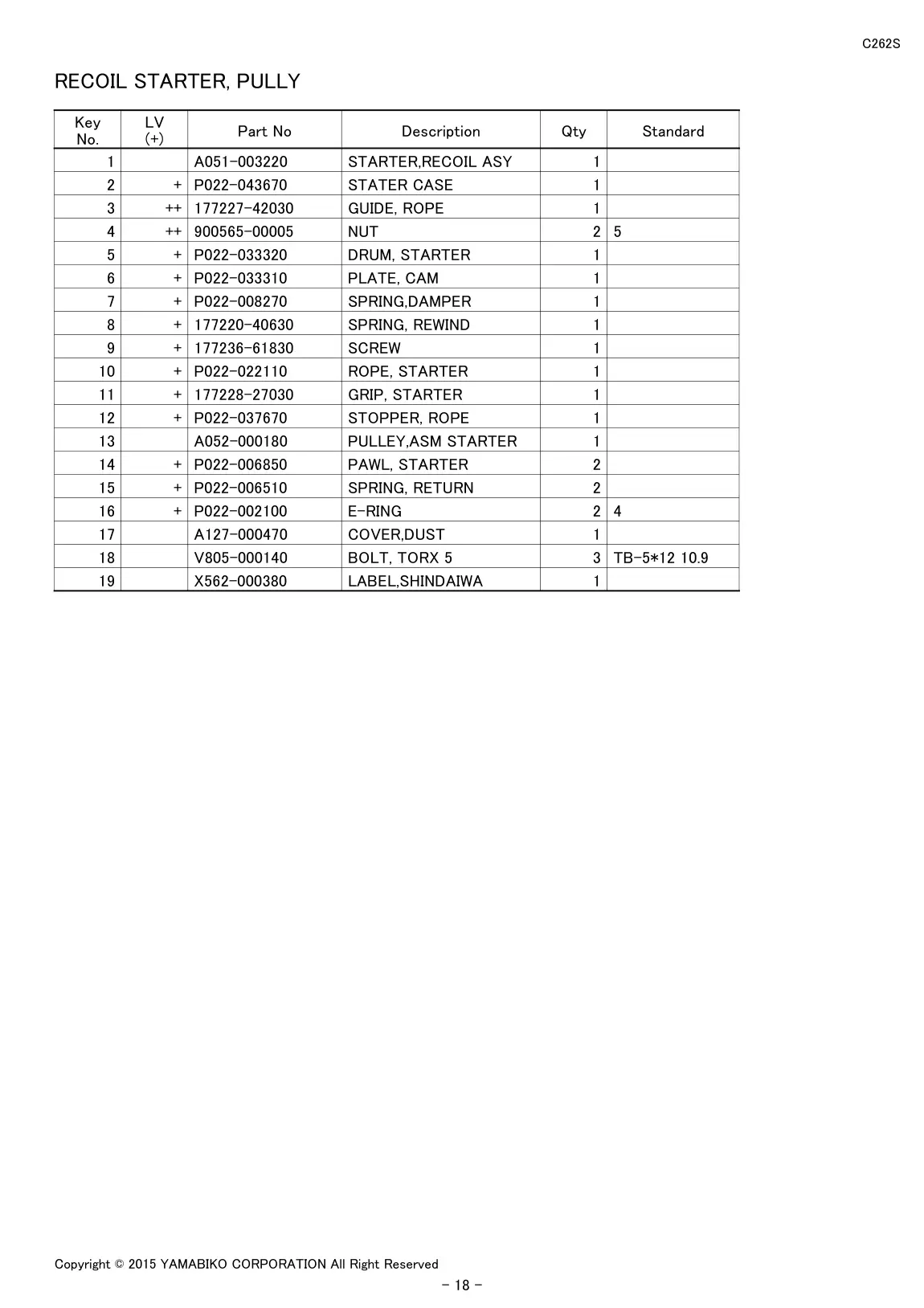

| 20 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 20 | RECOIL STARTER, PULLY | 10 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 20 | RECOIL STARTER, PULLY | 11 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 20 | RECOIL STARTER, PULLY | 12 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 20 | RECOIL STARTER, PULLY | 13 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 20 | RECOIL STARTER, PULLY | 14 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 20 | RECOIL STARTER, PULLY | 15 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 20 | RECOIL STARTER, PULLY | 16 | E-RING | P022-002100 | P022-002100-Online |
| 20 | RECOIL STARTER, PULLY | 17 | COVER,DUST | A127-000470 | A127-000470-Online |
| 20 | RECOIL STARTER, PULLY | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 20 | RECOIL STARTER, PULLY | 19 | LABEL,SHINDAIWA | X562-000380 | X562-000380-Online |
| 20 | RECOIL STARTER, PULLY | 2 | STATER CASE | P022-043670 | P022-043670-Online |
| 20 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | 177227-42030 | 177227-42030-Online |
| 20 | RECOIL STARTER, PULLY | 4 | NUT | 900565-00005 | 900565-00005-Online |
| 20 | RECOIL STARTER, PULLY | 5 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 20 | RECOIL STARTER, PULLY | 6 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 20 | RECOIL STARTER, PULLY | 7 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 20 | RECOIL STARTER, PULLY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 20 | RECOIL STARTER, PULLY | 9 | SCREW | 177236-61830 | 177236-61830-Online |

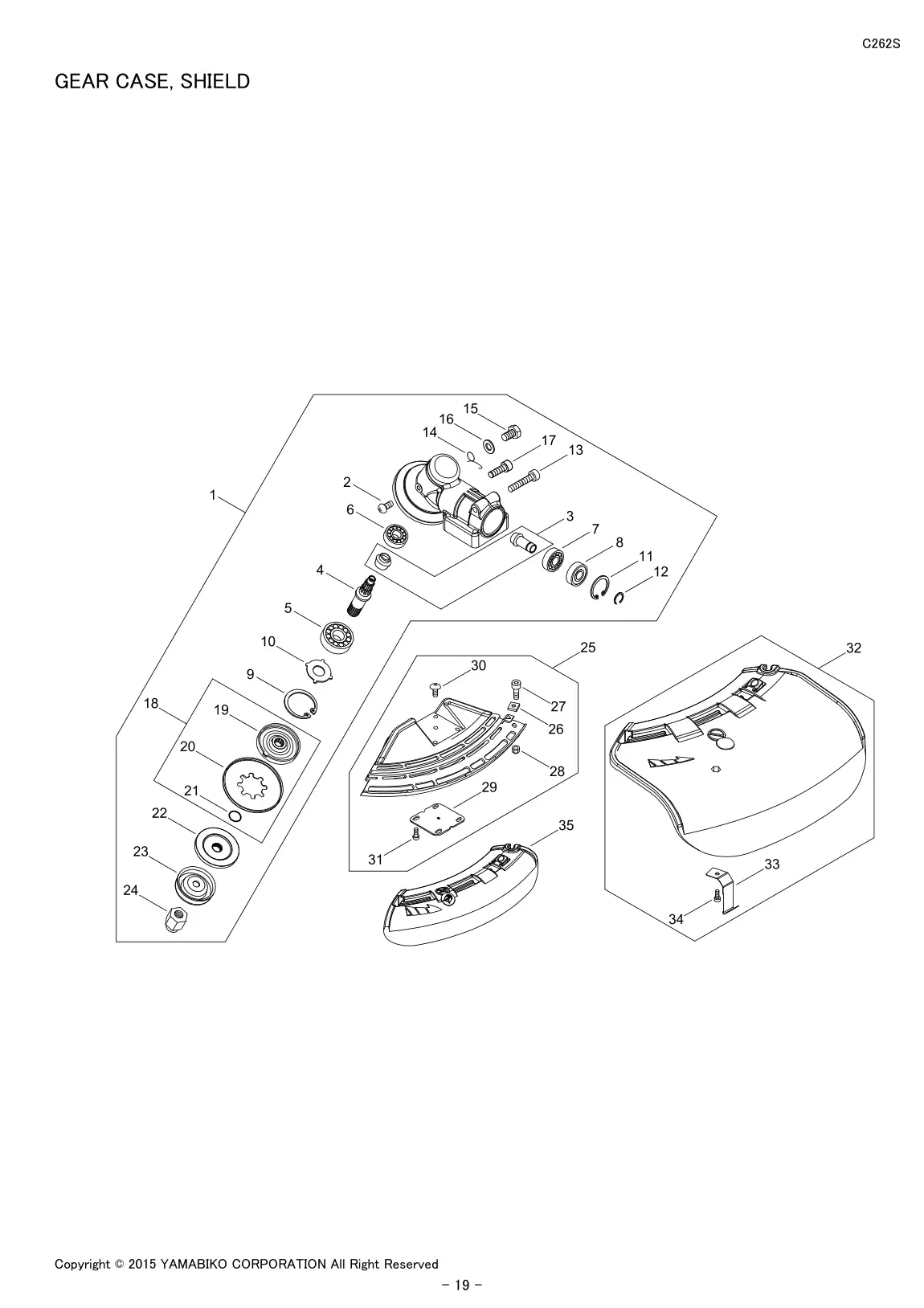

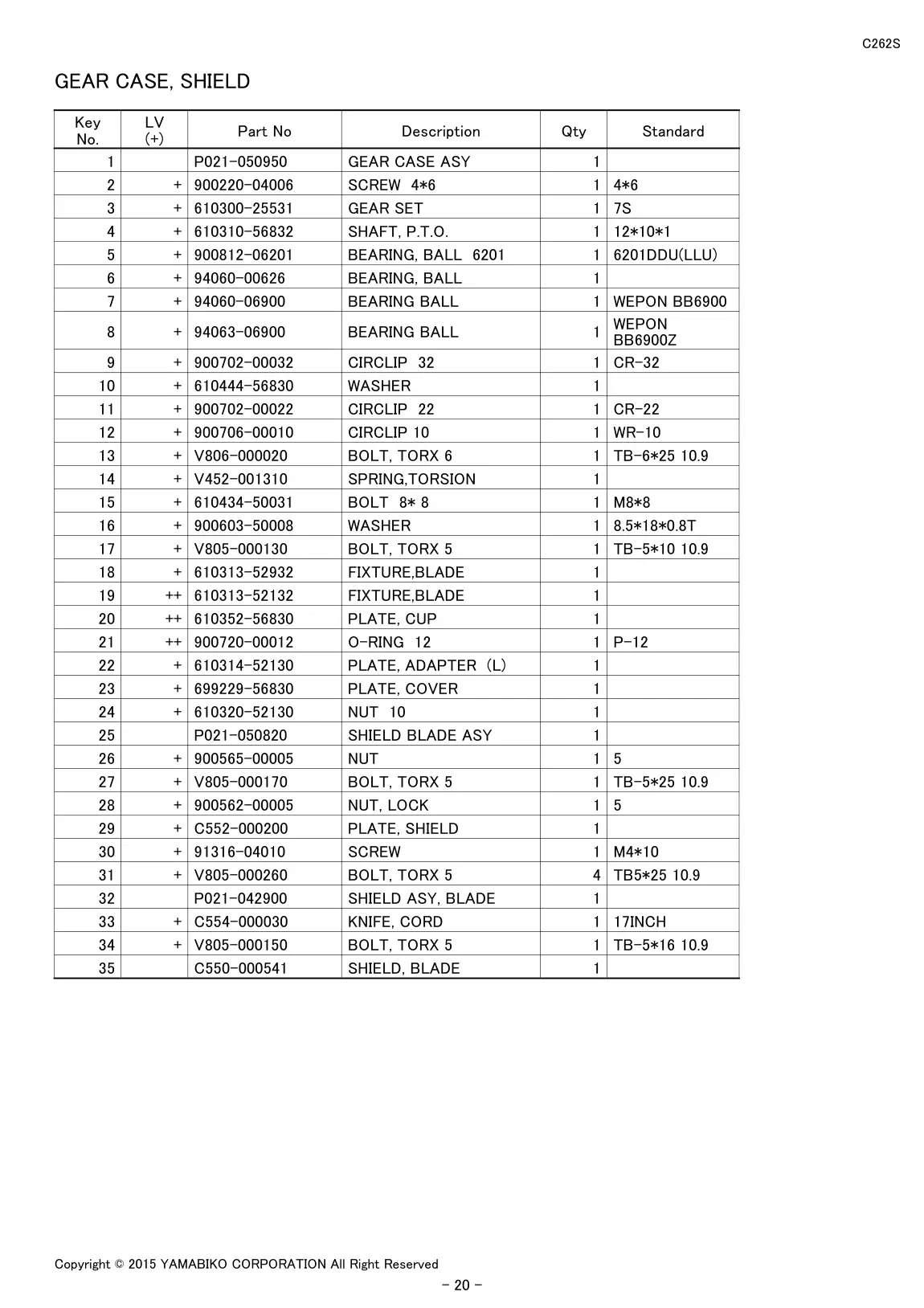

| 22 | GEAR CASE, SHIELD | 1 | GEAR CASE ASY | P021-050950 | P021-050950-Online |
| 22 | GEAR CASE, SHIELD | 10 | WASHER | 610444-56830 | 610444-56830-Online |
| 22 | GEAR CASE, SHIELD | 11 | CIRCLIP | 900702-00022 | 900702-00022-Online |
| 22 | GEAR CASE, SHIELD | 12 | CIRCLIP | 900706-00010 | 900706-00010-Online |
| 22 | GEAR CASE, SHIELD | 13 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 22 | GEAR CASE, SHIELD | 14 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 22 | GEAR CASE, SHIELD | 15 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 22 | GEAR CASE, SHIELD | 16 | WASHER | 900603-50008 | 900603-50008-Online |
| 22 | GEAR CASE, SHIELD | 17 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 22 | GEAR CASE, SHIELD | 18 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 22 | GEAR CASE, SHIELD | 19 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 22 | GEAR CASE, SHIELD | 2 | SCREW 4*6 | 900220-04006 | 900220-04006-Online |
| 22 | GEAR CASE, SHIELD | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 22 | GEAR CASE, SHIELD | 21 | O-RING | 900720-00012 | 900720-00012-Online |
| 22 | GEAR CASE, SHIELD | 22 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 22 | GEAR CASE, SHIELD | 23 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 22 | GEAR CASE, SHIELD | 24 | NUT | 610320-52130 | 610320-52130-Online |
| 22 | GEAR CASE, SHIELD | 25 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 22 | GEAR CASE, SHIELD | 26 | NUT | 900565-00005 | 900565-00005-Online |
| 22 | GEAR CASE, SHIELD | 27 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 22 | GEAR CASE, SHIELD | 28 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 22 | GEAR CASE, SHIELD | 29 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 22 | GEAR CASE, SHIELD | 3 | GEAR SET | 610300-25531 | 610300-25531-Online |
| 22 | GEAR CASE, SHIELD | 30 | SCREW | 91316-04010 | 91316-04010-Online |
| 22 | GEAR CASE, SHIELD | 31 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 22 | GEAR CASE, SHIELD | 32 | SHIELD ASY, BLADE | P021-042900 | P021-042900-Online |
| 22 | GEAR CASE, SHIELD | 33 | KNIFE, CORD | C554-000030 | C554-000030-Online |
| 22 | GEAR CASE, SHIELD | 34 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 22 | GEAR CASE, SHIELD | 35 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 22 | GEAR CASE, SHIELD | 4 | SHAFT, P.T.O. | 610310-56832 | 610310-56832-Online |
| 22 | GEAR CASE, SHIELD | 5 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 22 | GEAR CASE, SHIELD | 6 | BEARING, BALL | 94060-00626 | 94060-00626-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING BALL | 94060-06900 | 94060-06900-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING BALL | BB6900 | BB6900-Online |
| 22 | GEAR CASE, SHIELD | 8 | BEARING BALL | 94063-06900 | 94063-06900-Online |
| 22 | GEAR CASE, SHIELD | 9 | CIRCLIP | 900702-00032 | 900702-00032-Online |

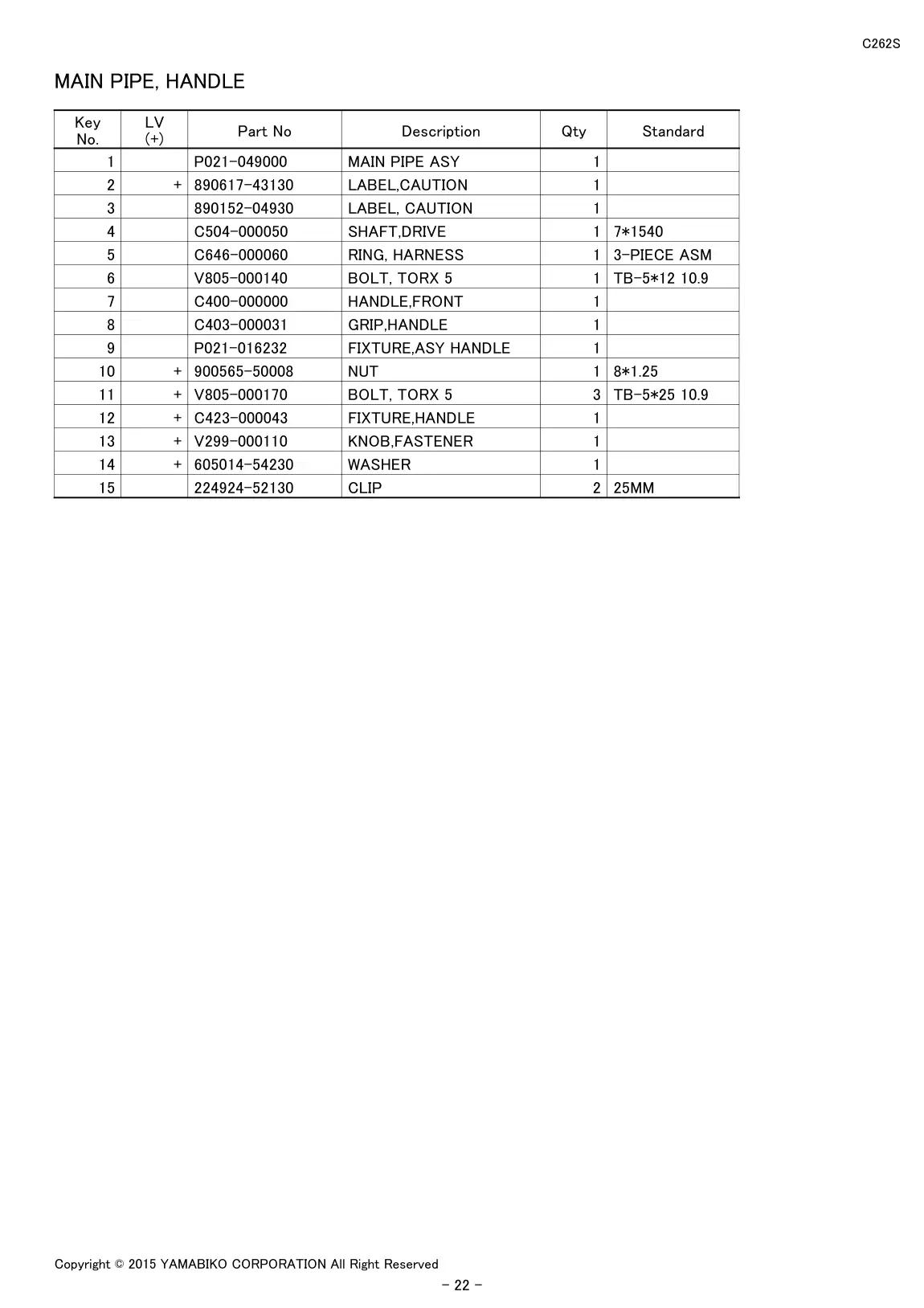

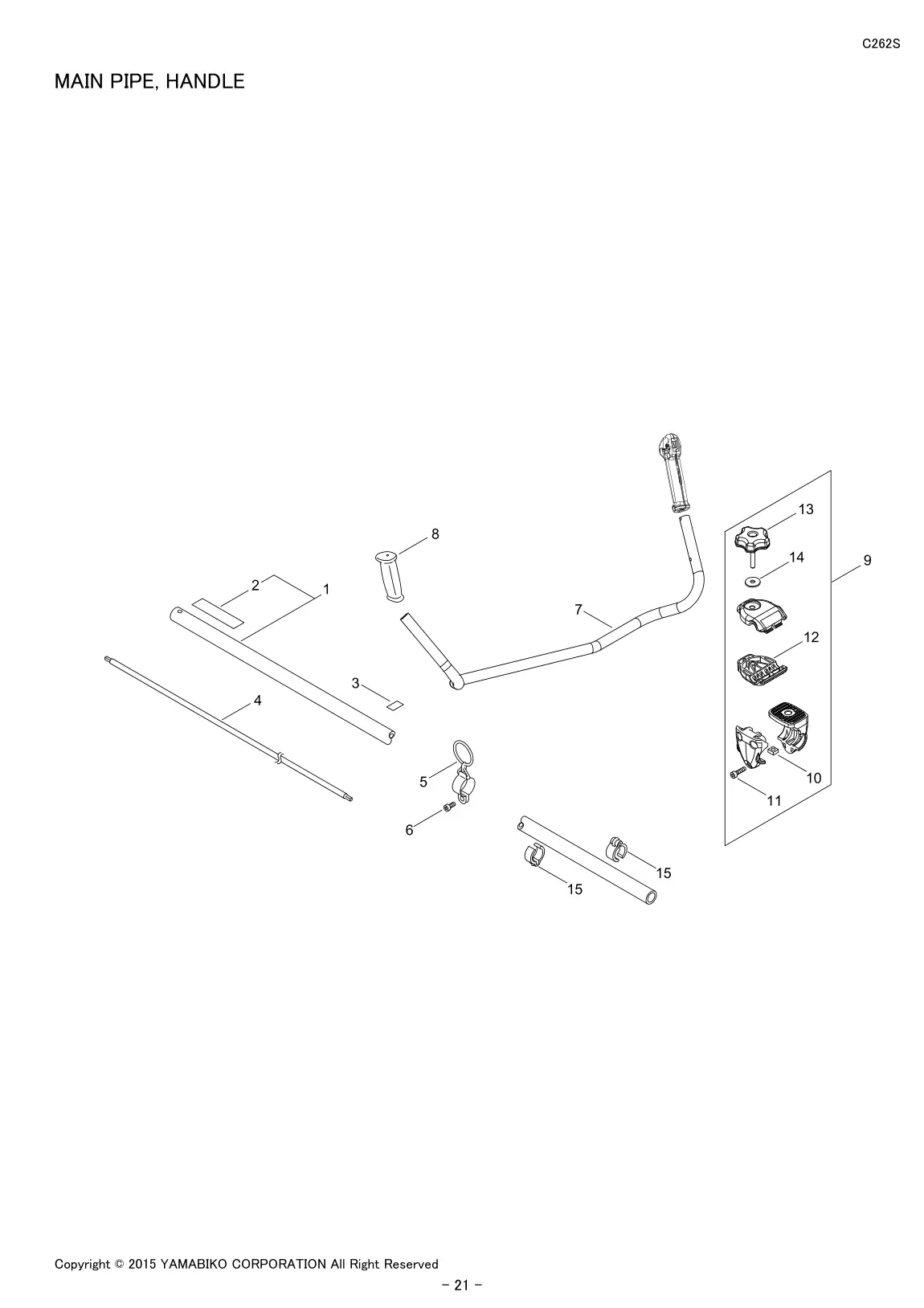

| 24 | MAIN PIPE, HANDLE | 1 | MAIN PIPE ASY | P021-049000 | P021-049000-Online |
| 24 | MAIN PIPE, HANDLE | 10 | NUT | 900565-50008 | 900565-50008-Online |
| 24 | MAIN PIPE, HANDLE | 11 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 24 | MAIN PIPE, HANDLE | 12 | FIXTURE,HANDLE | C423-000043 | C423-000043-Online |
| 24 | MAIN PIPE, HANDLE | 13 | KNOB,FASTENER | V299-000110 | V299-000110-Online |
| 24 | MAIN PIPE, HANDLE | 14 | WASHER | 605014-54230 | 605014-54230-Online |
| 24 | MAIN PIPE, HANDLE | 15 | CLIP | 224924-52130 | 224924-52130-Online |
| 24 | MAIN PIPE, HANDLE | 2 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 24 | MAIN PIPE, HANDLE | 3 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 24 | MAIN PIPE, HANDLE | 4 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 24 | MAIN PIPE, HANDLE | 5 | RING, HARNESS | C646-000060 | C646-000060-Online |
| 24 | MAIN PIPE, HANDLE | 6 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 24 | MAIN PIPE, HANDLE | 7 | HANDLE,FRONT | C400-000000 | C400-000000-Online |
| 24 | MAIN PIPE, HANDLE | 8 | GRIP,HANDLE | C403-000031 | C403-000031-Online |
| 24 | MAIN PIPE, HANDLE | 9 | FIXTURE,ASY HANDLE | P021-016232 | P021-016232-Online |

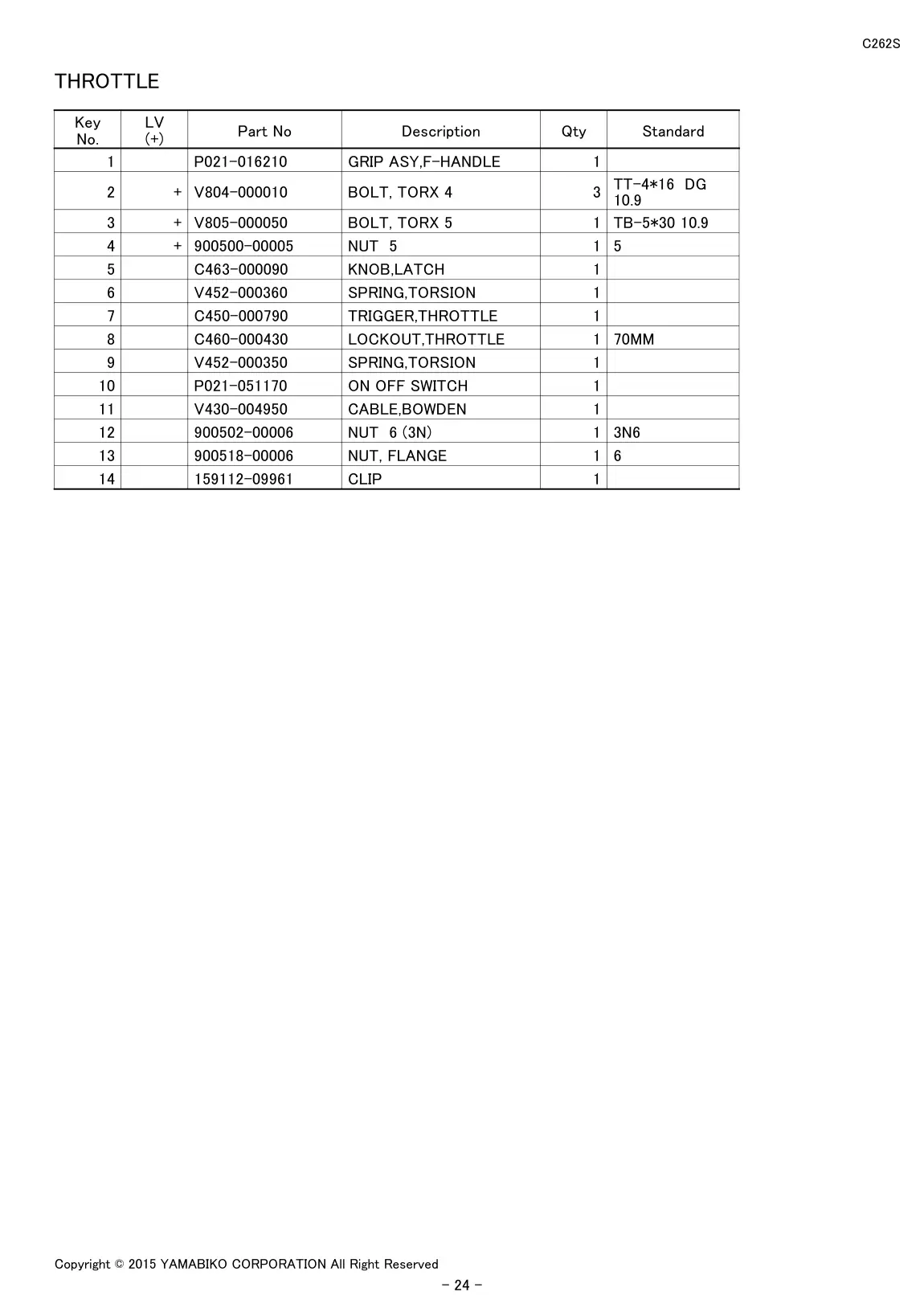

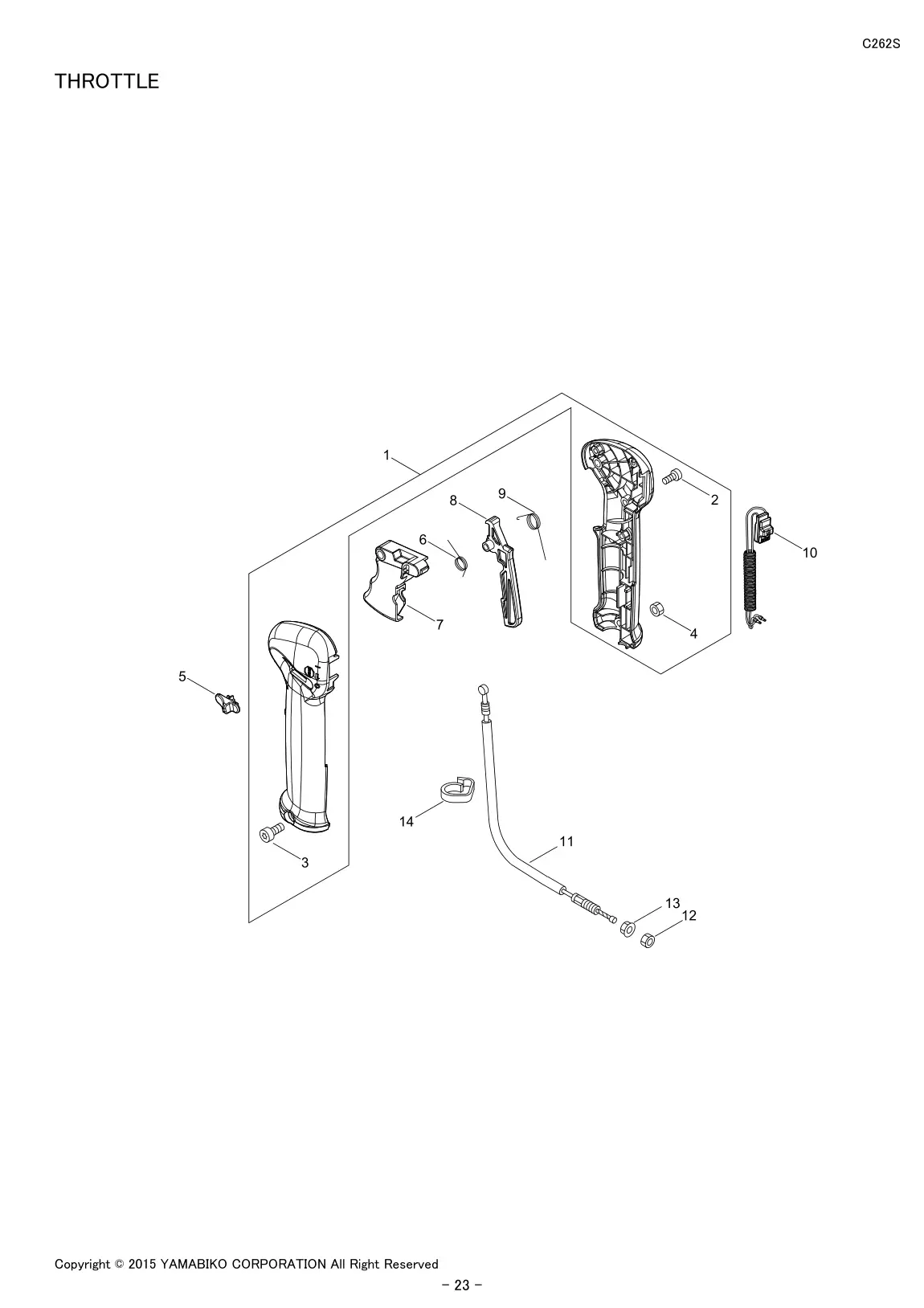

| 26 | THROTTLE | 1 | GRIP ASY,F-HANDLE | P021-016210 | P021-016210-Online |
| 26 | THROTTLE | 10 | ON OFF SWITCH | P021-051170 | P021-051170-Online |
| 26 | THROTTLE | 11 | CABLE,BOWDEN | V430-004950 | V430-004950-Online |
| 26 | THROTTLE | 12 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 26 | THROTTLE | 13 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 26 | THROTTLE | 14 | CLIP | 159112-09961 | 159112-09961-Online |
| 26 | THROTTLE | 2 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 26 | THROTTLE | 3 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 26 | THROTTLE | 4 | NUT | 900500-00005 | 900500-00005-Online |
| 26 | THROTTLE | 5 | KNOB,LATCH | C463-000090 | C463-000090-Online |
| 26 | THROTTLE | 6 | SPRING,TORSION | V452-000360 | V452-000360-Online |
| 26 | THROTTLE | 7 | TRIGGER,THROTTLE | C450-000790 | C450-000790-Online |
| 26 | THROTTLE | 8 | LOCKOUT,THROTTLE | C460-000430 | C460-000430-Online |
| 26 | THROTTLE | 9 | SPRING,TORSION | V452-000350 | V452-000350-Online |

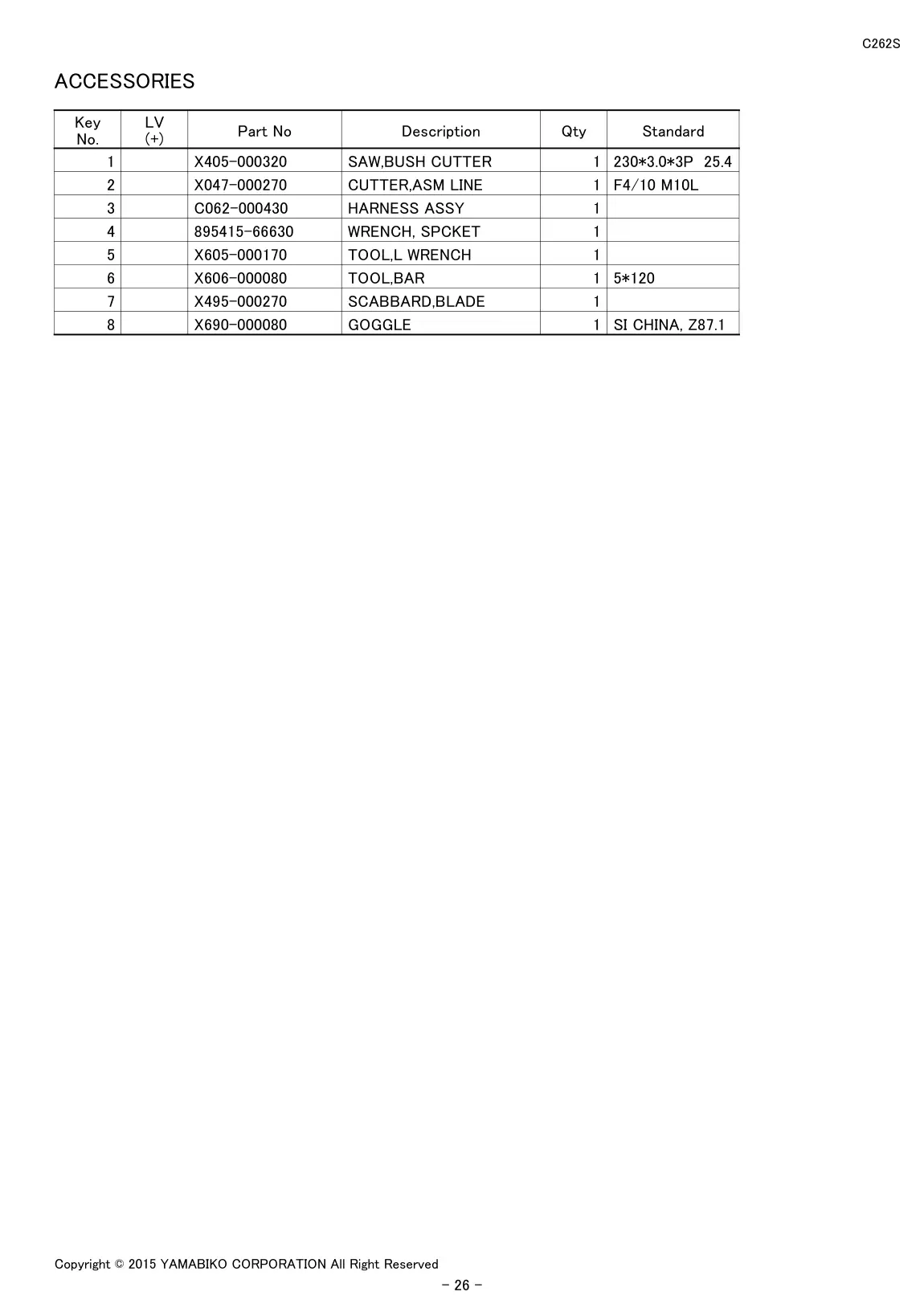

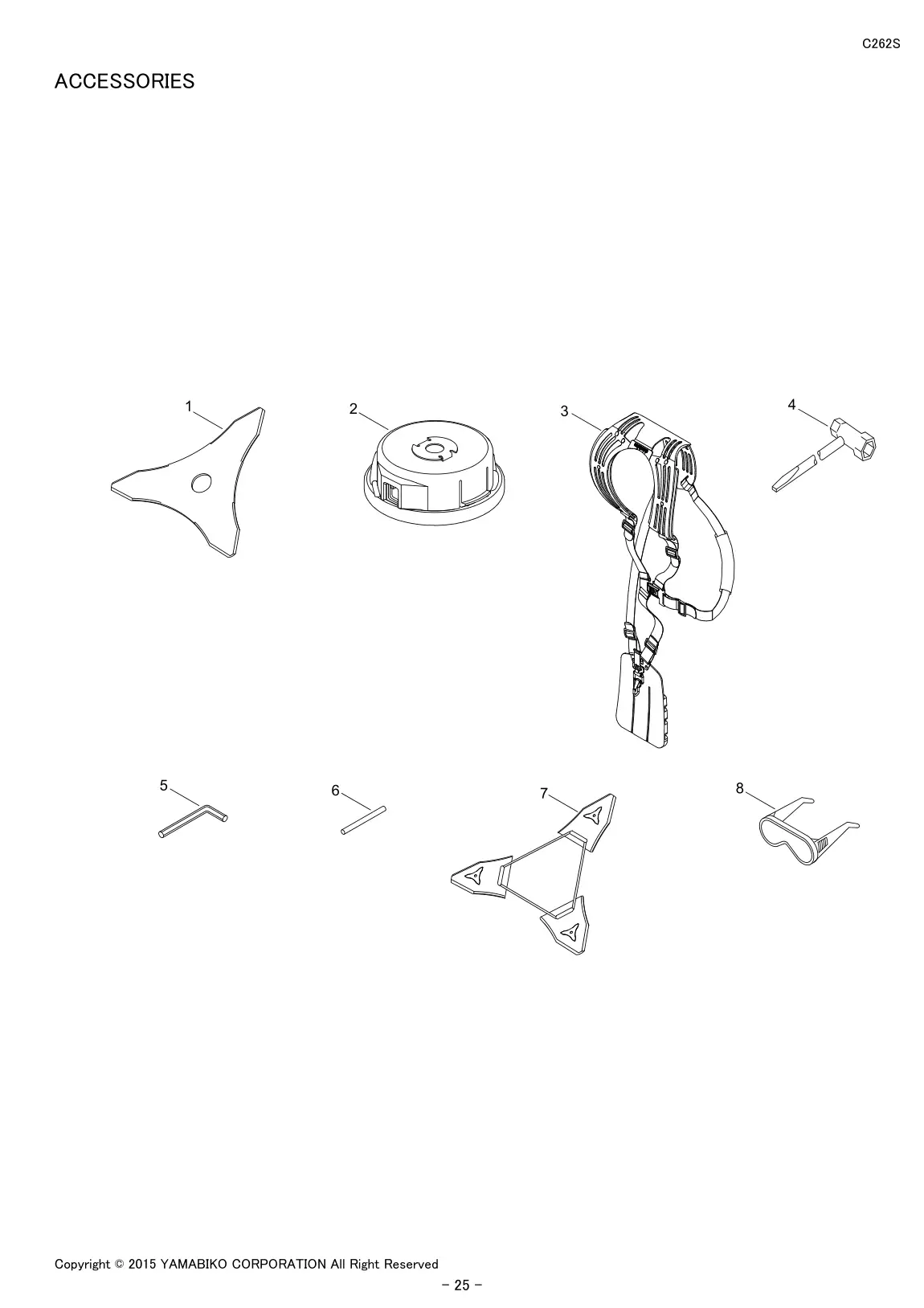

| 28 | ACCESSORIES | 1 | SAW,BUSH CUTTER | X405-000320 | X405-000320-Online |
| 28 | ACCESSORIES | 2 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 28 | ACCESSORIES | 3 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 28 | ACCESSORIES | 4 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 28 | ACCESSORIES | 5 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 28 | ACCESSORIES | 6 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 28 | ACCESSORIES | 7 | SCABBARD,BLADE | X495-000270 | X495-000270-Online |
| 28 | ACCESSORIES | 8 | GOGGLE | X690-000080 | X690-000080-Online |
| 30 | NYLON LINE CUTTER | 1 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 30 | NYLON LINE CUTTER | 2 | NUT | P022-001220 | P022-001220-Online |
| 30 | NYLON LINE CUTTER | 3 | HOUSING | P022-003310 | P022-003310-Online |
| 30 | NYLON LINE CUTTER | 4 | EYELET | P022-000710 | P022-000710-Online |
| 30 | NYLON LINE CUTTER | 5 | NYLON CODE | P022-006190 | P022-006190-Online |
| 30 | NYLON LINE CUTTER | 6 | COVER | P022-003330 | P022-003330-Online |
| 30 | NYLON LINE CUTTER | 7 | SPRING | P022-001250 | P022-001250-Online |
| 30 | NYLON LINE CUTTER | 8 | BOBBIN | P022-001260 | P022-001260-Online |
| 30 | NYLON LINE CUTTER | 9 | WASHER | P022-022050 | P022-022050-Online |

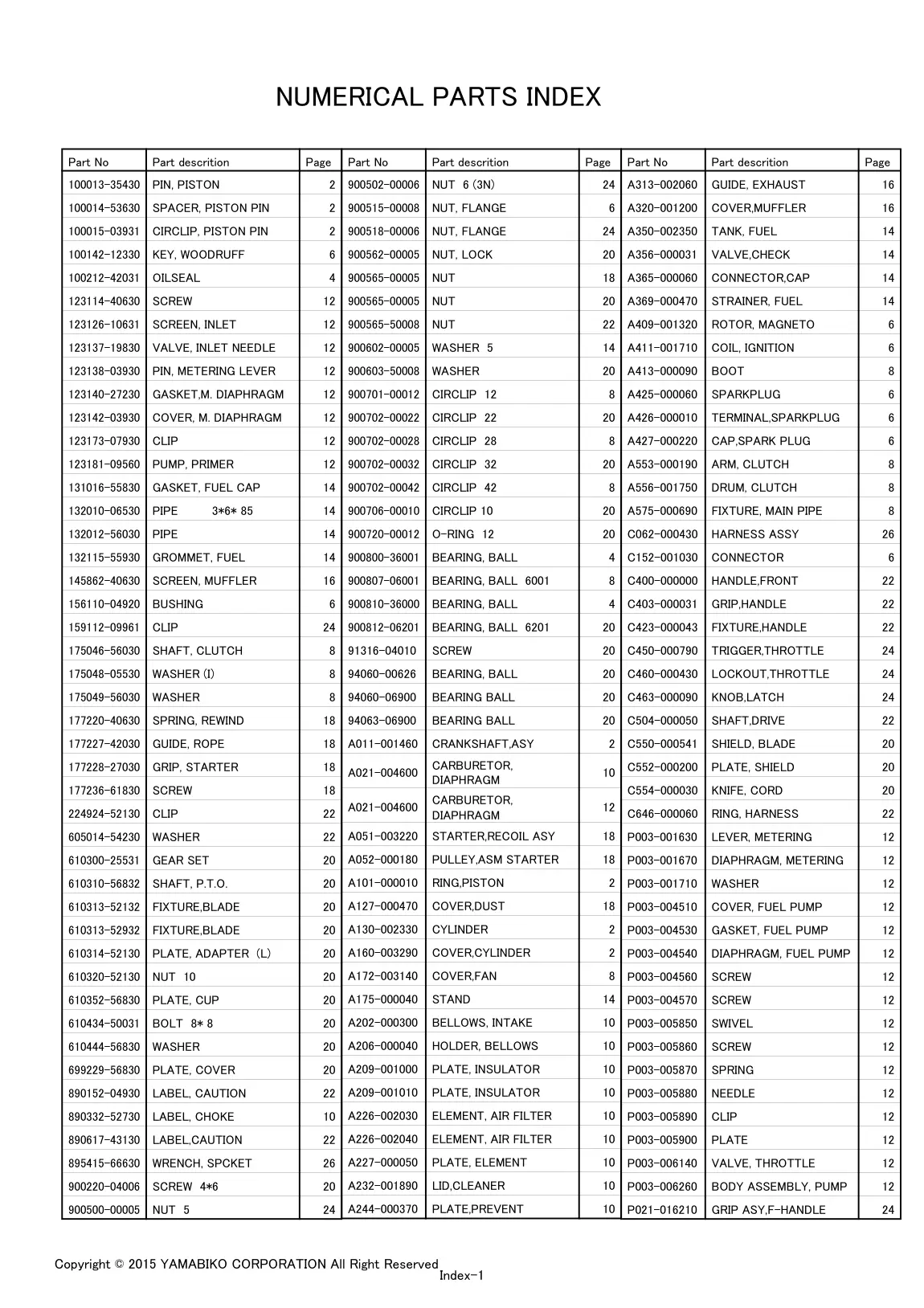

| 31 | GRIP ASY,F-HANDLE | PIN, PISTON | 100013-35430 | 100013-35430-Online | |
| 31 | GRIP ASY,F-HANDLE | 10 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | LID,CLEANER | A232-001890 | A232-001890-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 31 | GRIP ASY,F-HANDLE | 10 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | CLIP | 123173-07930 | 123173-07930-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | WASHER | P003-001710 | P003-001710-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | SCREW | P003-004560 | P003-004560-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | SCREW | P003-004570 | P003-004570-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | SWIVEL | P003-005850 | P003-005850-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | SCREW | P003-005860 | P003-005860-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | SPRING | P003-005870 | P003-005870-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | NEEDLE | P003-005880 | P003-005880-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | CLIP | P003-005890 | P003-005890-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | PLATE | P003-005900 | P003-005900-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 31 | GRIP ASY,F-HANDLE | 12 | BODY ASSEMBLY, PUMP | P003-006260 | P003-006260-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | PIPE 3*6* | 132010-06530 | 132010-06530-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | PIPE | 132012-56030 | 132012-56030-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | WASHER | 900603-50008 | 900603-50008-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 31 | GRIP ASY,F-HANDLE | 14 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 31 | GRIP ASY,F-HANDLE | 16 | BUSHING | 156110-04920 | 156110-04920-Online |
| 31 | GRIP ASY,F-HANDLE | 16 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 31 | GRIP ASY,F-HANDLE | 16 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | GUIDE, ROPE | 177227-42030 | 177227-42030-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | SCREW | 177236-61830 | 177236-61830-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | CLIP | 224924-52130 | 224924-52130-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | NUT | 900565-00005 | 900565-00005-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | RING,PISTON | A101-000010 | A101-000010-Online |
| 31 | GRIP ASY,F-HANDLE | 18 | CYLINDER | A130-002330 | A130-002330-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | COVER,DUST | A127-000470 | A127-000470-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 31 | GRIP ASY,F-HANDLE | 2 | COVER,FAN | A172-003140 | A172-003140-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | SHAFT, P.T.O. | 610310-56832 | 610310-56832-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | NUT | 610320-52130 | 610320-52130-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | WASHER | 610444-56830 | 610444-56830-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | NUT | 900500-00005 | 900500-00005-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | NUT | 900565-00005 | 900565-00005-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | NUT | 900565-50008 | 900565-50008-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | O-RING | 900720-00012 | 900720-00012-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | SCREW | 91316-04010 | 91316-04010-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | BEARING, BALL | 94060-00626 | 94060-00626-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | BEARING BALL | 94060-06900 | 94060-06900-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | BEARING BALL | 94063-06900 | 94063-06900-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | KNIFE, CORD | C554-000030 | C554-000030-Online |
| 31 | GRIP ASY,F-HANDLE | 20 | RING, HARNESS | C646-000060 | C646-000060-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | WASHER | 605014-54230 | 605014-54230-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | GEAR SET | 610300-25531 | 610300-25531-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | WASHER | 900602-00005 | 900602-00005-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | GRIP,HANDLE | C403-000031 | C403-000031-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | FIXTURE,HANDLE | C423-000043 | C423-000043-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | TRIGGER,THROTTLE | C450-000790 | C450-000790-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 31 | GRIP ASY,F-HANDLE | 22 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | LOCKOUT,THROTTLE | C460-000430 | C460-000430-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | KNOB,LATCH | C463-000090 | C463-000090-Online |
| 31 | GRIP ASY,F-HANDLE | 24 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 31 | GRIP ASY,F-HANDLE | 26 | SCREW 4*6 | 900220-04006 | 900220-04006-Online |
| 31 | GRIP ASY,F-HANDLE | 26 | CONNECTOR | C152-001030 | C152-001030-Online |
| 31 | GRIP ASY,F-HANDLE | 4 | SCREW | 123114-40630 | 123114-40630-Online |
| 31 | GRIP ASY,F-HANDLE | 4 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 31 | GRIP ASY,F-HANDLE | 4 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | CLIP | 159112-09961 | 159112-09961-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | COIL, IGNITION | A411-001710 | A411-001710-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | CAP,SPARK PLUG | A427-000220 | A427-000220-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | ARM, CLUTCH | A553-000190 | A553-000190-Online |
| 31 | GRIP ASY,F-HANDLE | 6 | HANDLE,FRONT | C400-000000 | C400-000000-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | WASHER | 175049-56030 | 175049-56030-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | CIRCLIP | 900702-00022 | 900702-00022-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | CIRCLIP | 900702-00032 | 900702-00032-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | CIRCLIP | 900706-00010 | 900706-00010-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | DRUM, CLUTCH | A556-001750 | A556-001750-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | FIXTURE, MAIN PIPE | A575-000690 | A575-000690-Online |
| 31 | GRIP ASY,F-HANDLE | 8 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 32 | GOGGLE | FIXTURE,ASY HANDLE | P021-016232 | P021-016232-Online | |
| 32 | GOGGLE | 10 | ON OFF SWITCH | P021-051170 | P021-051170-Online |
| 32 | GOGGLE | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 32 | GOGGLE | 10 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 32 | GOGGLE | 10 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 32 | GOGGLE | 10 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 32 | GOGGLE | 10 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 32 | GOGGLE | 10 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 32 | GOGGLE | 10 | LABEL,SHINDAIWA | X562-000370 | X562-000370-Online |
| 32 | GOGGLE | 14 | SHIELD ASY, BLADE | P021-042900 | P021-042900-Online |
| 32 | GOGGLE | 14 | KNOB,FASTENER | V299-000110 | V299-000110-Online |
| 32 | GOGGLE | 14 | TUBE | V475-007540 | V475-007540-Online |
| 32 | GOGGLE | 14 | CLIP | V490-001240 | V490-001240-Online |
| 32 | GOGGLE | 14 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 32 | GOGGLE | 14 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 32 | GOGGLE | 16 | GEAR CASE ASY | P021-050950 | P021-050950-Online |
| 32 | GOGGLE | 16 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 32 | GOGGLE | 16 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 32 | GOGGLE | 16 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 32 | GOGGLE | 16 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 16 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 32 | GOGGLE | 18 | HOUSING | P022-003310 | P022-003310-Online |
| 32 | GOGGLE | 18 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 32 | GOGGLE | 18 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 32 | GOGGLE | 18 | WASHER | P022-022050 | P022-022050-Online |
| 32 | GOGGLE | 18 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 32 | GOGGLE | 18 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 32 | GOGGLE | 18 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 32 | GOGGLE | 18 | STATER CASE | P022-043670 | P022-043670-Online |
| 32 | GOGGLE | 18 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 32 | GOGGLE | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 18 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 32 | GOGGLE | 2 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 32 | GOGGLE | 2 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 32 | GOGGLE | 2 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 32 | GOGGLE | 2 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 2 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 32 | GOGGLE | 2 | LABEL,SHINDAIWA | X562-000380 | X562-000380-Online |
| 32 | GOGGLE | 20 | MAIN PIPE ASY | P021-049000 | P021-049000-Online |
| 32 | GOGGLE | 20 | PISTON KIT | P021-050840 | P021-050840-Online |
| 32 | GOGGLE | 20 | FAN COVER ASY | P021-051000 | P021-051000-Online |
| 32 | GOGGLE | 20 | PIPE | V471-001230 | V471-001230-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 32 | GOGGLE | 22 | FUEL CAP ASY | P021-035680 | P021-035680-Online |
| 32 | GOGGLE | 22 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 32 | GOGGLE | 22 | KNOB,FASTENER | V299-000290 | V299-000290-Online |
| 32 | GOGGLE | 22 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 32 | GOGGLE | 22 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 32 | GOGGLE | 24 | EYELET | P022-000710 | P022-000710-Online |
| 32 | GOGGLE | 24 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 32 | GOGGLE | 24 | SPRING,TORSION | V452-000360 | V452-000360-Online |
| 32 | GOGGLE | 24 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 32 | GOGGLE | 24 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 32 | GOGGLE | 24 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 32 | GOGGLE | 26 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 32 | GOGGLE | 26 | SCABBARD,BLADE | X495-000270 | X495-000270-Online |
| 32 | GOGGLE | 26 | LABEL | X524-001901 | X524-001901-Online |
| 32 | GOGGLE | 26 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 32 | GOGGLE | 28 | NUT | P022-001220 | P022-001220-Online |
| 32 | GOGGLE | 28 | SPRING | P022-001250 | P022-001250-Online |
| 32 | GOGGLE | 28 | BOBBIN | P022-001260 | P022-001260-Online |
| 32 | GOGGLE | 28 | E-RING | P022-002100 | P022-002100-Online |
| 32 | GOGGLE | 28 | COVER | P022-003330 | P022-003330-Online |
| 32 | GOGGLE | 28 | NYLON CODE | P022-006190 | P022-006190-Online |
| 32 | GOGGLE | 28 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 32 | GOGGLE | 28 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 32 | GOGGLE | 28 | SAW,BUSH CUTTER | X405-000320 | X405-000320-Online |
| 32 | GOGGLE | 4 | CLUTCH ASY | P021-050860 | P021-050860-Online |
| 32 | GOGGLE | 4 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 32 | GOGGLE | 4 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 32 | GOGGLE | 4 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 32 | GOGGLE | 6 | CABLE,BOWDEN | V430-004950 | V430-004950-Online |
| 32 | GOGGLE | 6 | LEAD | V485-002880 | V485-002880-Online |
| 32 | GOGGLE | 6 | CLIP | V490-001230 | V490-001230-Online |
| 32 | GOGGLE | 6 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 32 | GOGGLE | 8 | MUFFLER ASY | P021-050900 | P021-050900-Online |
| 32 | GOGGLE | 8 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 32 | GOGGLE | 8 | SPRING,TORSION | V452-000350 | V452-000350-Online |
| 32 | GOGGLE | 8 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 32 | GOGGLE | 8 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 32 | GOGGLE | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
Source file: 20200226-916_C262S_37_37000001_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
