Illustrated Parts List
Shindaiwa DH230 EPA2-30 Hedge Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: DH230 EPA2-30
Type: Hedge Trimmer
SKU format: xxxx-Online

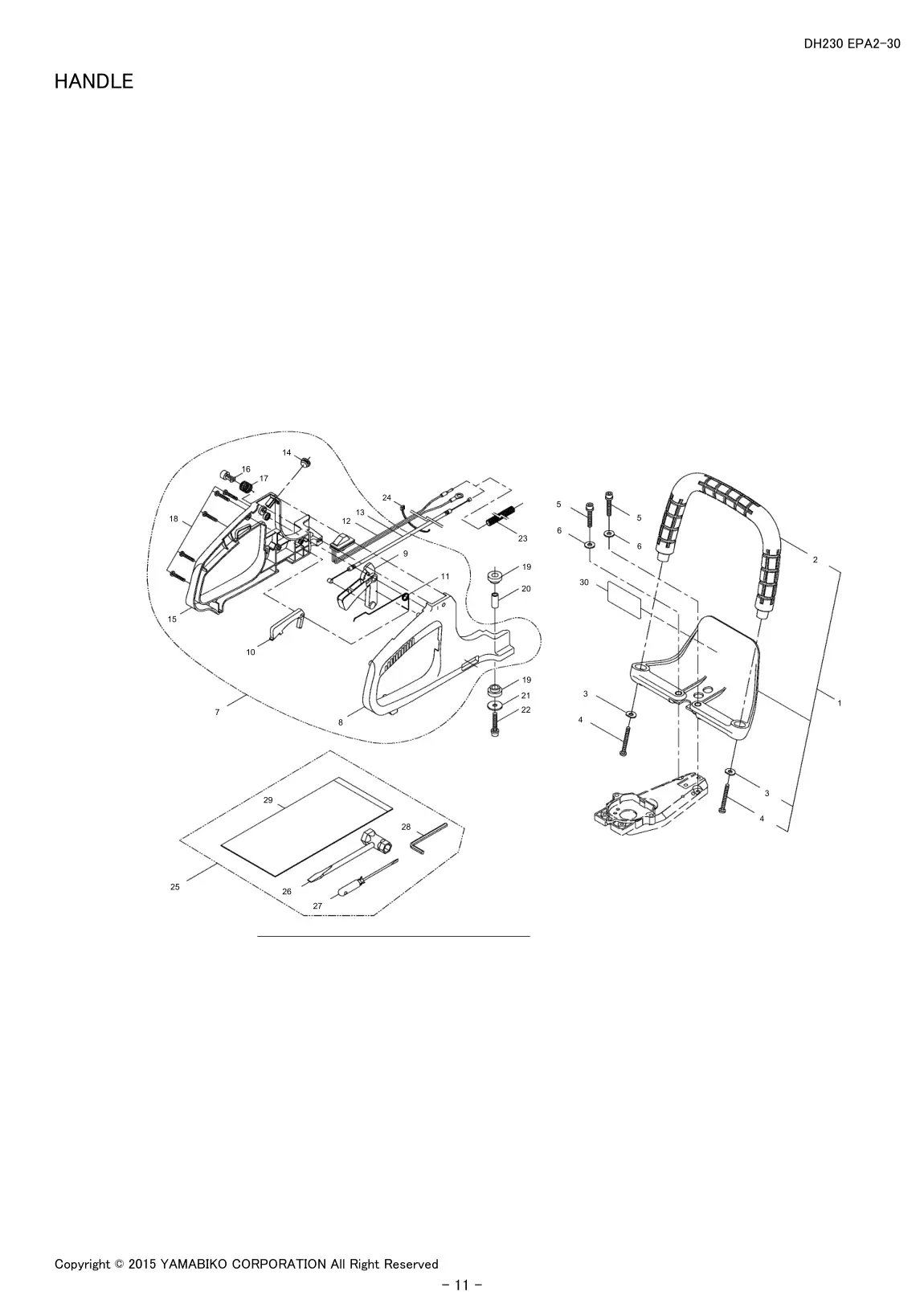

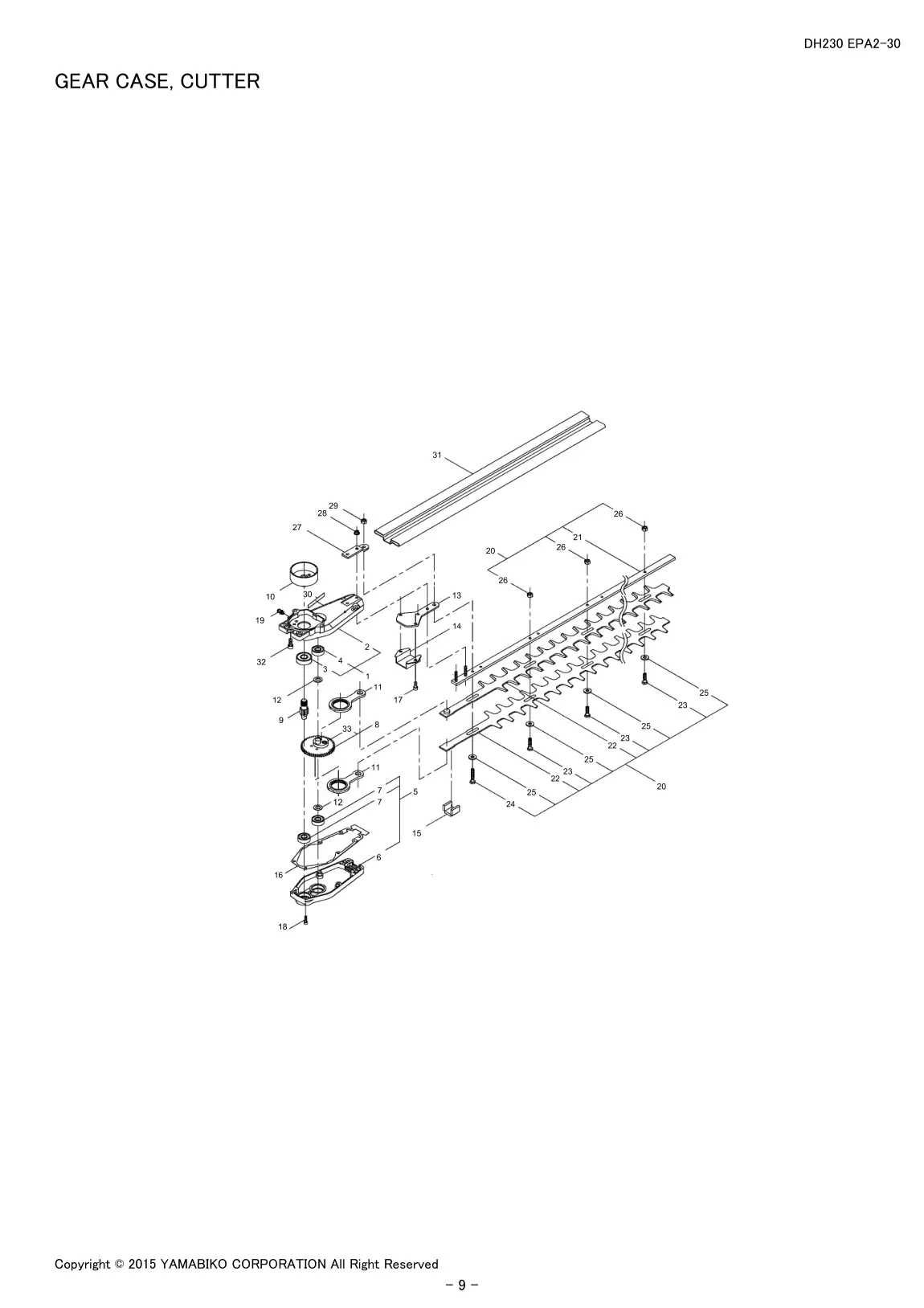

How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

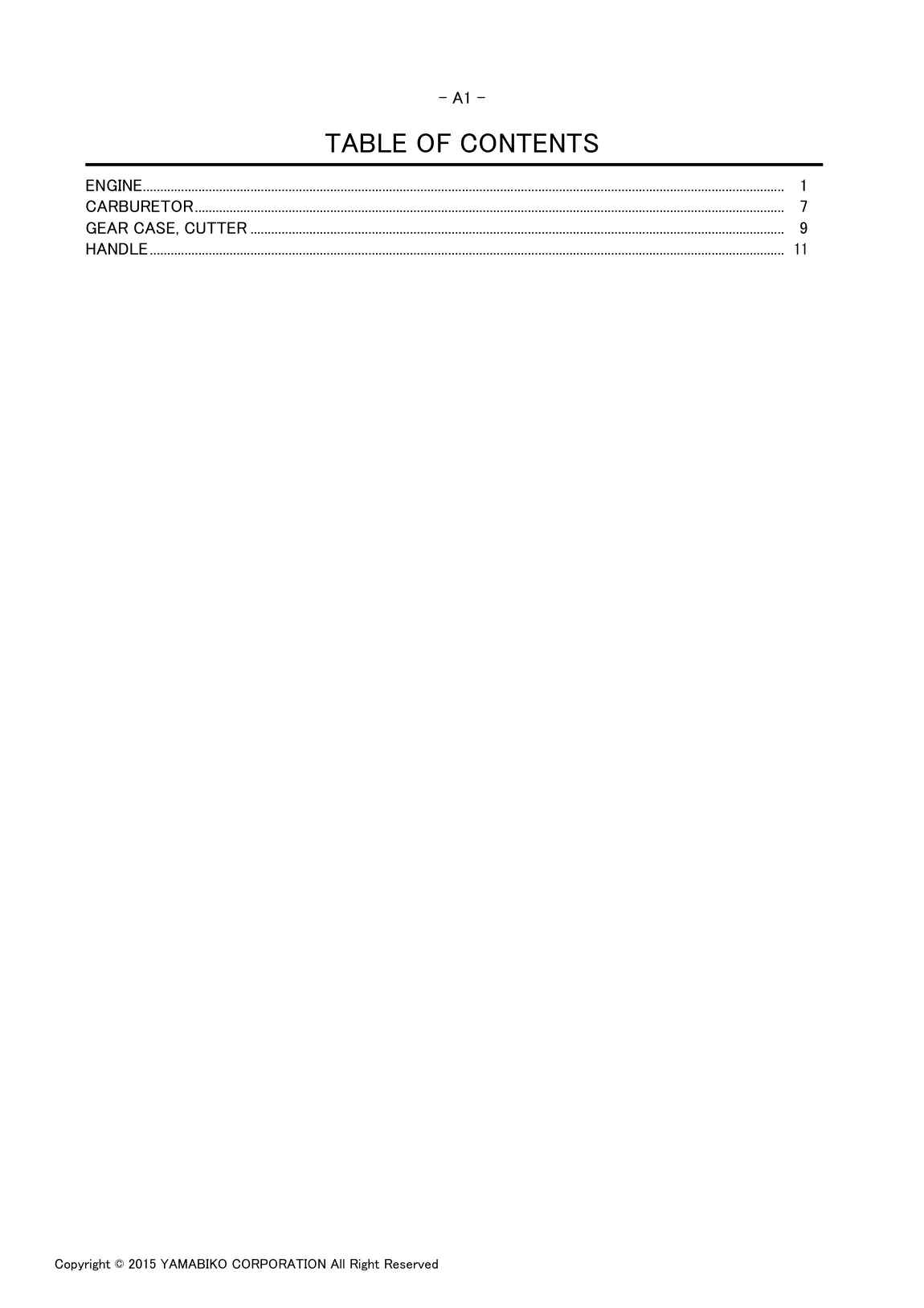

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

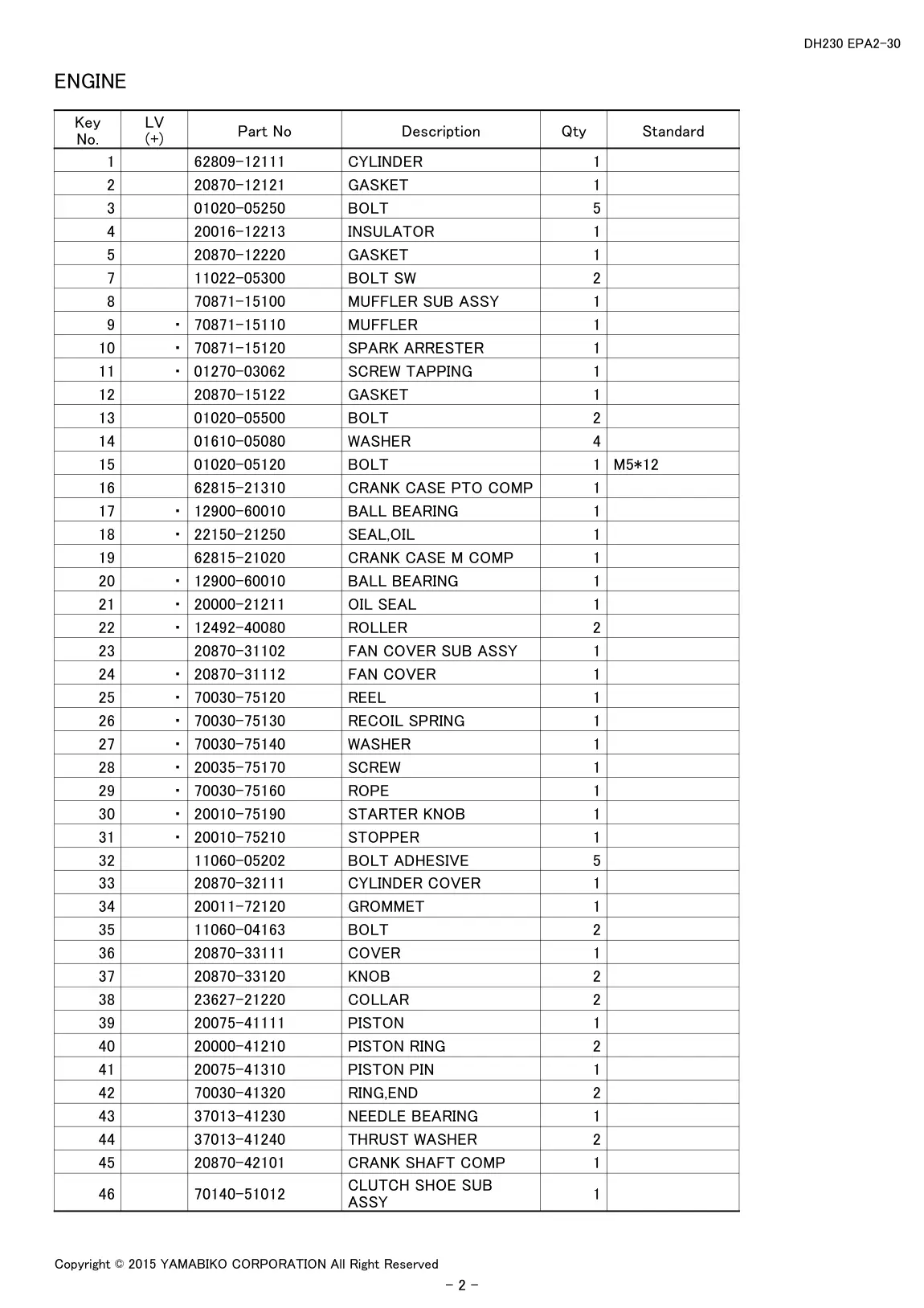

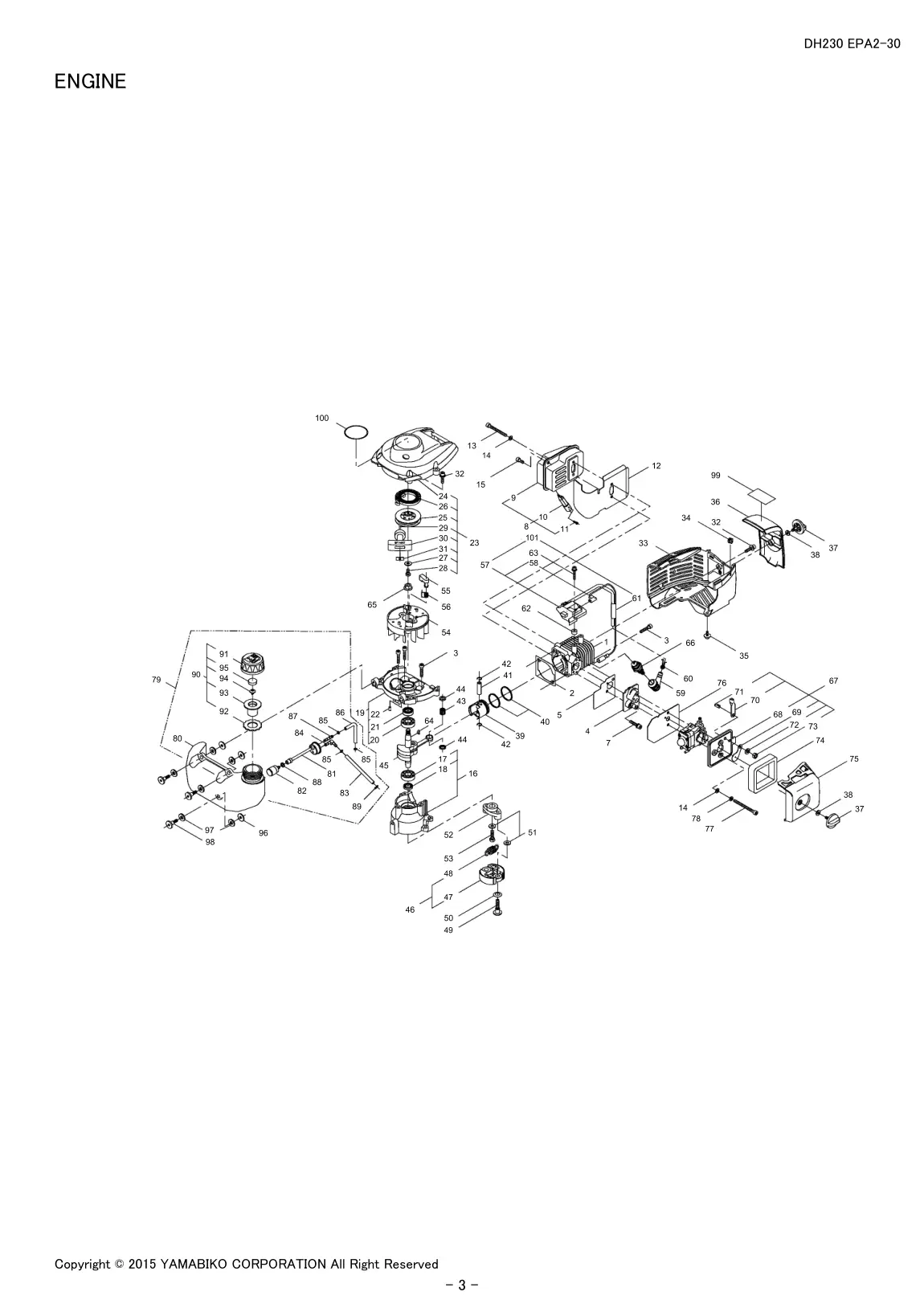

| 4 | ENGINE | 1 | CYLINDER | 62809-12111 | 62809-12111-Online |
| 4 | ENGINE | 10 | SPARK ARRESTER | 70871-15120 | 70871-15120-Online |
| 4 | ENGINE | 11 | SCREW TAPPING | 01270-03062 | 01270-03062-Online |
| 4 | ENGINE | 12 | GASKET | 20870-15122 | 20870-15122-Online |
| 4 | ENGINE | 13 | BOLT | 01020-05500 | 01020-05500-Online |
| 4 | ENGINE | 14 | WASHER | 01610-05080 | 01610-05080-Online |
| 4 | ENGINE | 15 | BOLT | 01020-05120 | 01020-05120-Online |
| 4 | ENGINE | 16 | CRANK CASE PTO COMP | 62815-21310 | 62815-21310-Online |
| 4 | ENGINE | 17 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 4 | ENGINE | 18 | SEAL,OIL | 22150-21250 | 22150-21250-Online |
| 4 | ENGINE | 19 | CRANK CASE M COMP | 62815-21020 | 62815-21020-Online |
| 4 | ENGINE | 2 | GASKET | 20870-12121 | 20870-12121-Online |
| 4 | ENGINE | 20 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 4 | ENGINE | 21 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 4 | ENGINE | 22 | ROLLER | 12492-40080 | 12492-40080-Online |
| 4 | ENGINE | 23 | FAN COVER SUB ASSY | 20870-31102 | 20870-31102-Online |
| 4 | ENGINE | 24 | FAN COVER | 20870-31112 | 20870-31112-Online |
| 4 | ENGINE | 25 | REEL | 70030-75120 | 70030-75120-Online |
| 4 | ENGINE | 26 | RECOIL SPRING | 70030-75130 | 70030-75130-Online |
| 4 | ENGINE | 27 | WASHER | 70030-75140 | 70030-75140-Online |
| 4 | ENGINE | 28 | SCREW | 20035-75170 | 20035-75170-Online |
| 4 | ENGINE | 29 | ROPE | 70030-75160 | 70030-75160-Online |
| 4 | ENGINE | 3 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | ENGINE | 30 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 4 | ENGINE | 31 | STOPPER | 20010-75210 | 20010-75210-Online |
| 4 | ENGINE | 32 | BOLT ADHESIVE | 11060-05202 | 11060-05202-Online |
| 4 | ENGINE | 33 | CYLINDER COVER | 20870-32111 | 20870-32111-Online |
| 4 | ENGINE | 34 | GROMMET | 20011-72120 | 20011-72120-Online |
| 4 | ENGINE | 35 | BOLT | 11060-04163 | 11060-04163-Online |
| 4 | ENGINE | 36 | COVER | 20870-33111 | 20870-33111-Online |
| 4 | ENGINE | 37 | KNOB | 20870-33120 | 20870-33120-Online |
| 4 | ENGINE | 38 | COLLAR | 23627-21220 | 23627-21220-Online |
| 4 | ENGINE | 39 | PISTON | 20075-41111 | 20075-41111-Online |
| 4 | ENGINE | 4 | INSULATOR | 20016-12213 | 20016-12213-Online |
| 4 | ENGINE | 40 | PISTON RING | 20000-41210 | 20000-41210-Online |
| 4 | ENGINE | 41 | PISTON PIN | 20075-41310 | 20075-41310-Online |
| 4 | ENGINE | 42 | RING,END | 70030-41320 | 70030-41320-Online |
| 4 | ENGINE | 43 | NEEDLE BEARING | 37013-41230 | 37013-41230-Online |
| 4 | ENGINE | 44 | THRUST WASHER | 37013-41240 | 37013-41240-Online |
| 4 | ENGINE | 45 | CRANK SHAFT COMP | 20870-42101 | 20870-42101-Online |
| 4 | ENGINE | 46 | CLUTCH SHOE SUB | 70140-51012 | 70140-51012-Online |
| 4 | ENGINE | 5 | GASKET | 20870-12220 | 20870-12220-Online |
| 4 | ENGINE | 7 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 4 | ENGINE | 8 | MUFFLER SUB ASSY | 70871-15100 | 70871-15100-Online |
| 4 | ENGINE | 9 | MUFFLER | 70871-15110 | 70871-15110-Online |
| 6 | ENGINE | 47 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |
| 6 | ENGINE | 48 | COIL SPRING | 37013-51310 | 37013-51310-Online |
| 6 | ENGINE | 49 | BOLT | 20087-51210 | 20087-51210-Online |
| 6 | ENGINE | 50 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 6 | ENGINE | 51 | WASHER | 22100-71430 | 22100-71430-Online |
| 6 | ENGINE | 52 | CLUTCH BOSS | 20870-51211 | 20870-51211-Online |
| 6 | ENGINE | 53 | BOLT | 20870-51220 | 20870-51220-Online |
| 6 | ENGINE | 55 | RATCHET | 20870-71120 | 20870-71120-Online |
| 6 | ENGINE | 56 | COIL SPRING | 20870-71130 | 20870-71130-Online |
| 6 | ENGINE | 57 | COIL SUB ASSY | 20870-71202 | 20870-71202-Online |
| 6 | ENGINE | 59 | PLUG CAP | 22160-72220 | 22160-72220-Online |
| 6 | ENGINE | 60 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 6 | ENGINE | 61 | TUBE | 20016-71651 | 20016-71651-Online |
| 6 | ENGINE | 62 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 6 | ENGINE | 63 | BOLT | 11024-04261 | 11024-04261-Online |
| 6 | ENGINE | 64 | KEY | 02403-03100 | 02403-03100-Online |
| 6 | ENGINE | 65 | NUT | 20035-71220 | 20035-71220-Online |
| 6 | ENGINE | 66 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 6 | ENGINE | 67 | CLEANER BODY | 20870-82100 | 20870-82100-Online |
| 6 | ENGINE | 68 | CLEANER BODY | 20870-82111 | 20870-82111-Online |
| 6 | ENGINE | 69 | CHOKE PLATE | 20115-82120 | 20115-82120-Online |
| 6 | ENGINE | 70 | CHOKE LEVER | 20870-82120 | 20870-82120-Online |
| 6 | ENGINE | 71 | CHOKE SHAFT | 20110-82140 | 20110-82140-Online |
| 6 | ENGINE | 72 | SPRING WASHER | 01600-06151 | 01600-06151-Online |
| 6 | ENGINE | 73 | U NUT | 11524-06211 | 11524-06211-Online |
| 6 | ENGINE | 74 | FILTER | 20870-82210 | 20870-82210-Online |
| 6 | ENGINE | 75 | CLEANER COVER | 20870-82312 | 20870-82312-Online |
| 6 | ENGINE | 76 | GASKET | 20870-82411 | 20870-82411-Online |
| 6 | ENGINE | 77 | BOLT | 01020-05550 | 01020-05550-Online |
| 6 | ENGINE | 78 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 6 | ENGINE | 79 | FUEL TANK SUB ASSY | 20870-85104 | 20870-85104-Online |
| 6 | ENGINE | 80 | FUEL TANK | 20870-85251 | 20870-85251-Online |
| 6 | ENGINE | 81 | FUEL PIPE | 20870-85121 | 20870-85121-Online |
| 6 | ENGINE | 82 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 6 | ENGINE | 83 | PIPE | 20870-85132 | 20870-85132-Online |
| 6 | ENGINE | 84 | JOINT,PIPE | 20087-85340 | 20087-85340-Online |
| 6 | ENGINE | 85 | CLIP | 20020-85540 | 20020-85540-Online |
| 6 | ENGINE | 86 | PIPE | 20870-85140 | 20870-85140-Online |
| 6 | ENGINE | 87 | JOINT | 72933-85620 | 72933-85620-Online |
| 6 | ENGINE | 88 | CLAMP B | 20000-85350 | 20000-85350-Online |
| 6 | ENGINE | 89 | CLIP | 37013-85310 | 37013-85310-Online |
| 6 | ENGINE | 90 | FUEL CAP ASSY | 20870-85151 | 20870-85151-Online |
| 6 | ENGINE | 91 | FUEL CAP | 20870-85310 | 20870-85310-Online |
| 6 | ENGINE | 92 | GASKET | 20870-85160 | 20870-85160-Online |

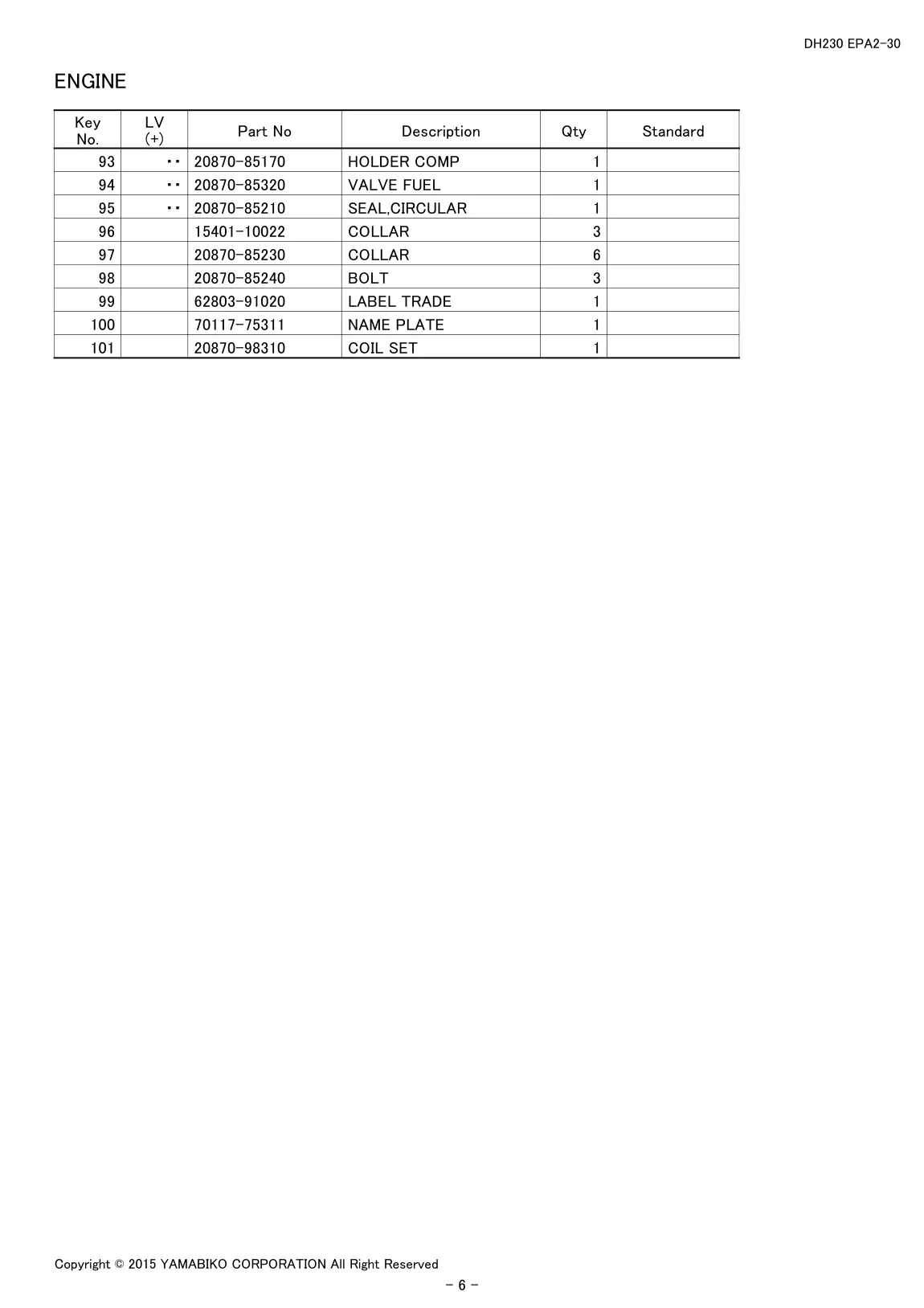

| 8 | ENGINE | 100 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 8 | ENGINE | 101 | COIL SET | 20870-98310 | 20870-98310-Online |
| 8 | ENGINE | 93 | HOLDER COMP | 20870-85170 | 20870-85170-Online |
| 8 | ENGINE | 94 | VALVE FUEL | 20870-85320 | 20870-85320-Online |
| 8 | ENGINE | 95 | SEAL,CIRCULAR | 20870-85210 | 20870-85210-Online |
| 8 | ENGINE | 96 | COLLAR | 15401-10022 | 15401-10022-Online |
| 8 | ENGINE | 97 | COLLAR | 20870-85230 | 20870-85230-Online |
| 8 | ENGINE | 98 | BOLT | 20870-85240 | 20870-85240-Online |
| 8 | ENGINE | 99 | LABEL TRADE | 62803-91020 | 62803-91020-Online |

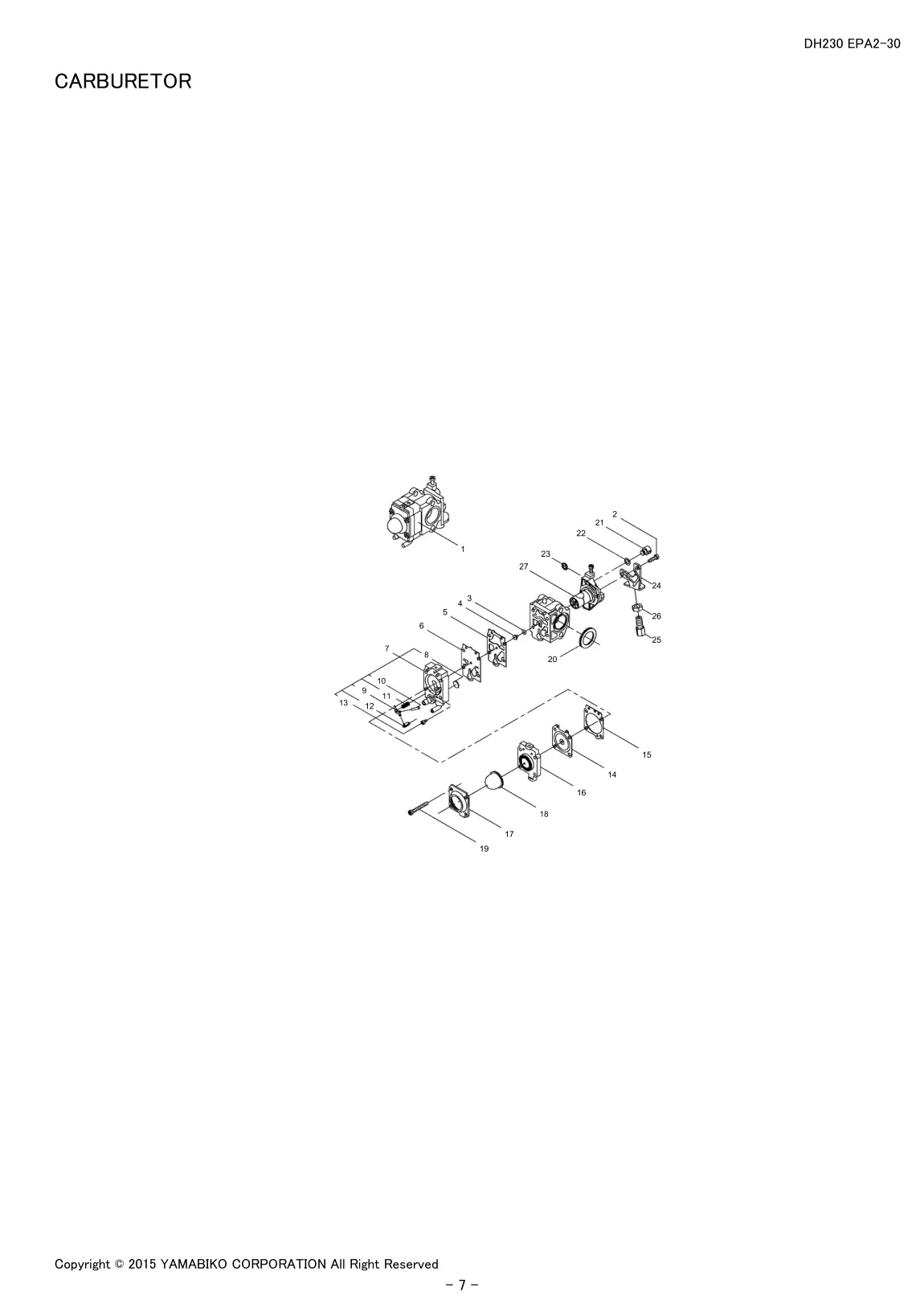

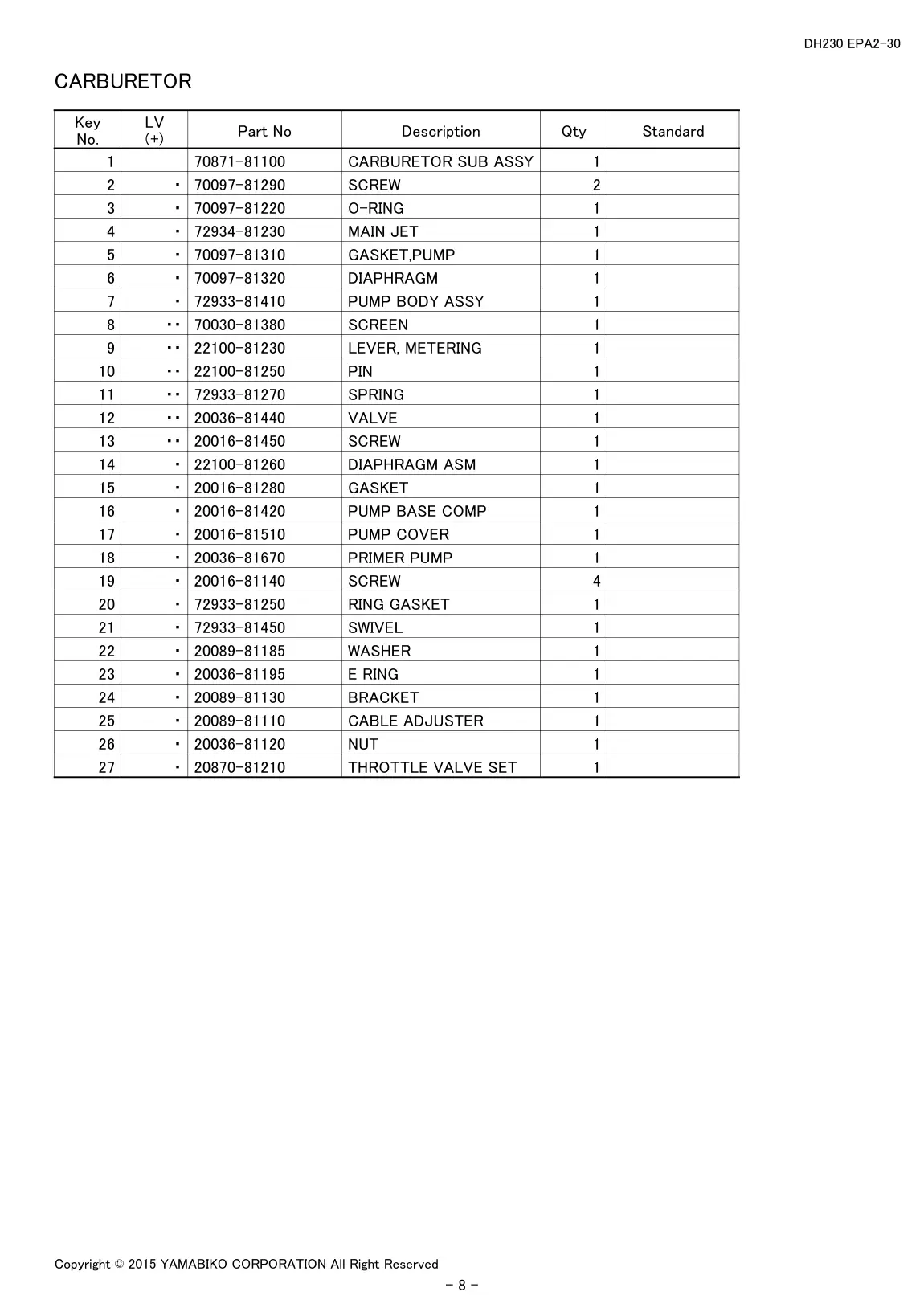

| 10 | CARBURETOR | 1 | CARBURETOR SUB ASSY | 70871-81100 | 70871-81100-Online |
| 10 | CARBURETOR | 10 | PIN | 22100-81250 | 22100-81250-Online |
| 10 | CARBURETOR | 11 | SPRING | 72933-81270 | 72933-81270-Online |
| 10 | CARBURETOR | 12 | VALVE | 20036-81440 | 20036-81440-Online |
| 10 | CARBURETOR | 13 | SCREW | 20016-81450 | 20016-81450-Online |
| 10 | CARBURETOR | 14 | DIAPHRAGM ASM | 22100-81260 | 22100-81260-Online |
| 10 | CARBURETOR | 15 | GASKET | 20016-81280 | 20016-81280-Online |
| 10 | CARBURETOR | 16 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 10 | CARBURETOR | 17 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 10 | CARBURETOR | 18 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 10 | CARBURETOR | 19 | SCREW | 20016-81140 | 20016-81140-Online |
| 10 | CARBURETOR | 2 | SCREW | 70097-81290 | 70097-81290-Online |
| 10 | CARBURETOR | 20 | RING GASKET | 72933-81250 | 72933-81250-Online |
| 10 | CARBURETOR | 21 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 10 | CARBURETOR | 22 | WASHER | 20089-81185 | 20089-81185-Online |
| 10 | CARBURETOR | 23 | E RING | 20036-81195 | 20036-81195-Online |
| 10 | CARBURETOR | 24 | BRACKET | 20089-81130 | 20089-81130-Online |
| 10 | CARBURETOR | 25 | CABLE ADJUSTER | 20089-81110 | 20089-81110-Online |
| 10 | CARBURETOR | 26 | NUT | 20036-81120 | 20036-81120-Online |
| 10 | CARBURETOR | 27 | THROTTLE VALVE SET | 20870-81210 | 20870-81210-Online |
| 10 | CARBURETOR | 3 | O-RING | 70097-81220 | 70097-81220-Online |
| 10 | CARBURETOR | 4 | MAIN JET | 72934-81230 | 72934-81230-Online |
| 10 | CARBURETOR | 5 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 10 | CARBURETOR | 6 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 10 | CARBURETOR | 7 | PUMP BODY ASSY | 72933-81410 | 72933-81410-Online |
| 10 | CARBURETOR | 8 | SCREEN | 70030-81380 | 70030-81380-Online |
| 10 | CARBURETOR | 9 | LEVER, METERING | 22100-81230 | 22100-81230-Online |

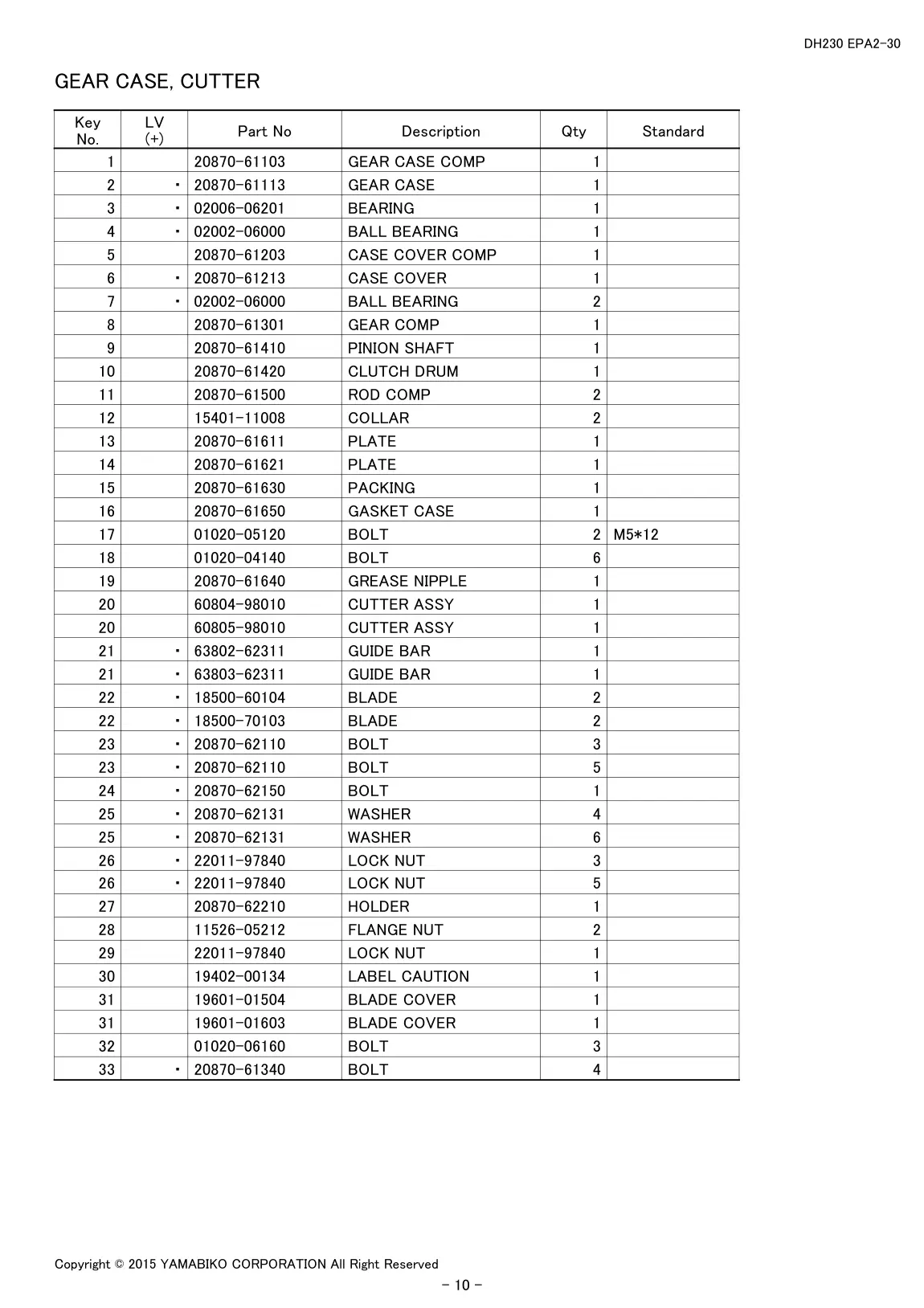

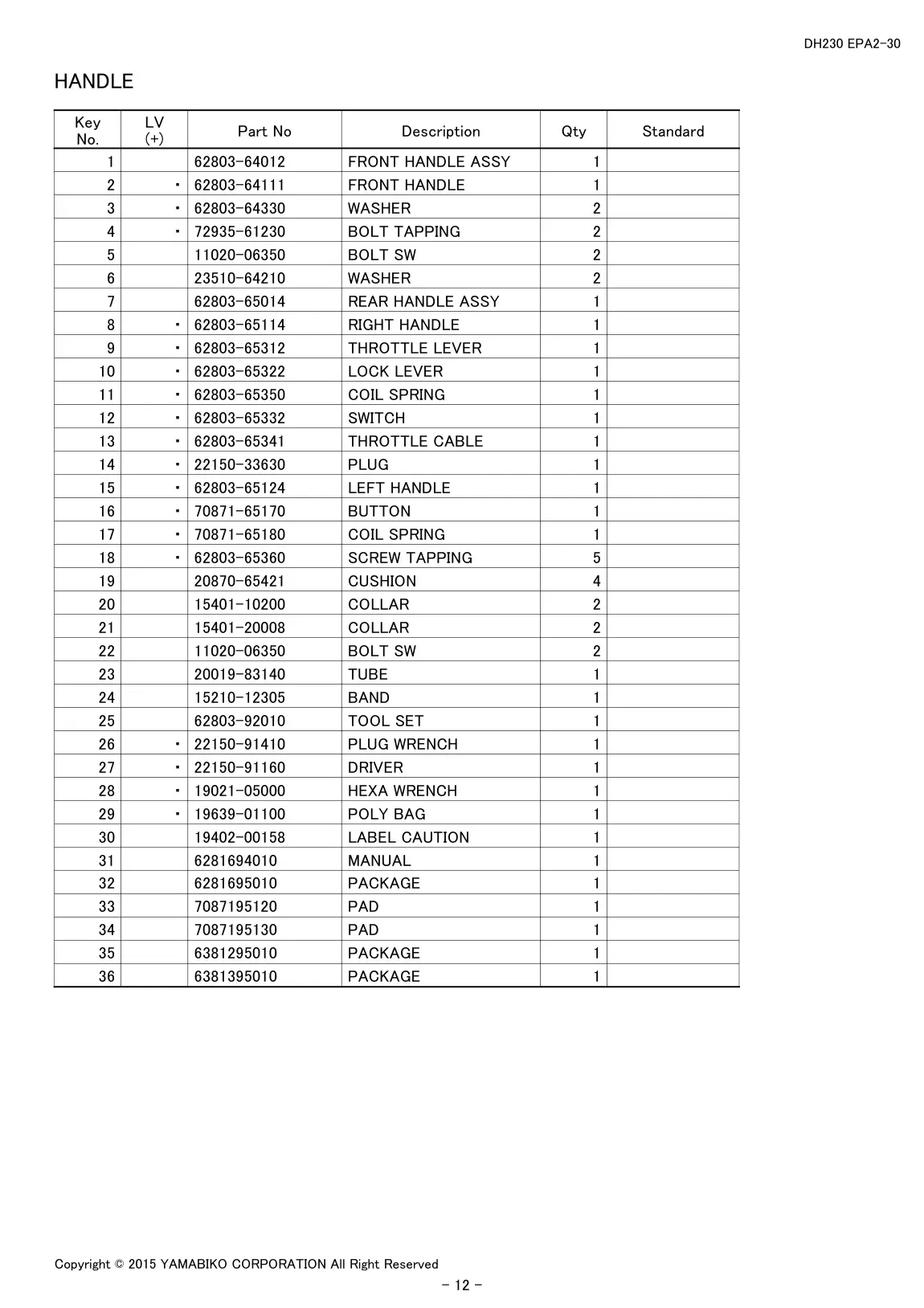

| 12 | GEAR CASE, CUTTER | 1 | GEAR CASE COMP | 20870-61103 | 20870-61103-Online |
| 12 | GEAR CASE, CUTTER | 10 | CLUTCH DRUM | 20870-61420 | 20870-61420-Online |
| 12 | GEAR CASE, CUTTER | 11 | ROD COMP | 20870-61500 | 20870-61500-Online |
| 12 | GEAR CASE, CUTTER | 12 | COLLAR | 15401-11008 | 15401-11008-Online |
| 12 | GEAR CASE, CUTTER | 13 | PLATE | 20870-61611 | 20870-61611-Online |
| 12 | GEAR CASE, CUTTER | 14 | PLATE | 20870-61621 | 20870-61621-Online |
| 12 | GEAR CASE, CUTTER | 15 | PACKING | 20870-61630 | 20870-61630-Online |
| 12 | GEAR CASE, CUTTER | 16 | GASKET CASE | 20870-61650 | 20870-61650-Online |
| 12 | GEAR CASE, CUTTER | 17 | BOLT | 01020-05120 | 01020-05120-Online |
| 12 | GEAR CASE, CUTTER | 18 | BOLT | 01020-04140 | 01020-04140-Online |
| 12 | GEAR CASE, CUTTER | 19 | GREASE NIPPLE | 20870-61640 | 20870-61640-Online |
| 12 | GEAR CASE, CUTTER | 2 | GEAR CASE | 20870-61113 | 20870-61113-Online |
| 12 | GEAR CASE, CUTTER | 20 | CUTTER ASSY | 60804-98010 | 60804-98010-Online |
| 12 | GEAR CASE, CUTTER | 20 | CUTTER ASSY | 60805-98010 | 60805-98010-Online |
| 12 | GEAR CASE, CUTTER | 21 | GUIDE BAR | 63802-62311 | 63802-62311-Online |
| 12 | GEAR CASE, CUTTER | 21 | GUIDE BAR | 63803-62311 | 63803-62311-Online |
| 12 | GEAR CASE, CUTTER | 22 | BLADE | 18500-60104 | 18500-60104-Online |
| 12 | GEAR CASE, CUTTER | 22 | BLADE | 18500-70103 | 18500-70103-Online |
| 12 | GEAR CASE, CUTTER | 23 | BOLT | 20870-62110 | 20870-62110-Online |
| 12 | GEAR CASE, CUTTER | 24 | BOLT | 20870-62150 | 20870-62150-Online |
| 12 | GEAR CASE, CUTTER | 25 | WASHER | 20870-62131 | 20870-62131-Online |
| 12 | GEAR CASE, CUTTER | 26 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 12 | GEAR CASE, CUTTER | 27 | HOLDER | 20870-62210 | 20870-62210-Online |
| 12 | GEAR CASE, CUTTER | 28 | FLANGE NUT | 11526-05212 | 11526-05212-Online |
| 12 | GEAR CASE, CUTTER | 29 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 12 | GEAR CASE, CUTTER | 3 | BEARING | 02006-06201 | 02006-06201-Online |
| 12 | GEAR CASE, CUTTER | 30 | LABEL CAUTION | 19402-00134 | 19402-00134-Online |
| 12 | GEAR CASE, CUTTER | 31 | BLADE COVER | 19601-01504 | 19601-01504-Online |
| 12 | GEAR CASE, CUTTER | 31 | BLADE COVER | 19601-01603 | 19601-01603-Online |
| 12 | GEAR CASE, CUTTER | 32 | BOLT | 01020-06160 | 01020-06160-Online |
| 12 | GEAR CASE, CUTTER | 33 | BOLT | 20870-61340 | 20870-61340-Online |
| 12 | GEAR CASE, CUTTER | 4 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 12 | GEAR CASE, CUTTER | 5 | CASE COVER COMP | 20870-61203 | 20870-61203-Online |
| 12 | GEAR CASE, CUTTER | 6 | CASE COVER | 20870-61213 | 20870-61213-Online |
| 12 | GEAR CASE, CUTTER | 7 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 12 | GEAR CASE, CUTTER | 8 | GEAR COMP | 20870-61301 | 20870-61301-Online |
| 12 | GEAR CASE, CUTTER | 9 | PINION SHAFT | 20870-61410 | 20870-61410-Online |
| 14 | HANDLE | 1 | FRONT HANDLE ASSY | 62803-64012 | 62803-64012-Online |
| 14 | HANDLE | 10 | LOCK LEVER | 62803-65322 | 62803-65322-Online |
| 14 | HANDLE | 11 | COIL SPRING | 62803-65350 | 62803-65350-Online |
| 14 | HANDLE | 12 | SWITCH | 62803-65332 | 62803-65332-Online |
| 14 | HANDLE | 13 | THROTTLE CABLE | 62803-65341 | 62803-65341-Online |
| 14 | HANDLE | 14 | PLUG | 22150-33630 | 22150-33630-Online |
| 14 | HANDLE | 15 | LEFT HANDLE | 62803-65124 | 62803-65124-Online |
| 14 | HANDLE | 16 | BUTTON | 70871-65170 | 70871-65170-Online |
| 14 | HANDLE | 17 | COIL SPRING | 70871-65180 | 70871-65180-Online |
| 14 | HANDLE | 18 | SCREW TAPPING | 62803-65360 | 62803-65360-Online |
| 14 | HANDLE | 19 | CUSHION | 20870-65421 | 20870-65421-Online |
| 14 | HANDLE | 2 | FRONT HANDLE | 62803-64111 | 62803-64111-Online |
| 14 | HANDLE | 20 | COLLAR | 15401-10200 | 15401-10200-Online |
| 14 | HANDLE | 21 | COLLAR | 15401-20008 | 15401-20008-Online |
| 14 | HANDLE | 22 | BOLT SW | 11020-06350 | 11020-06350-Online |
| 14 | HANDLE | 23 | TUBE | 20019-83140 | 20019-83140-Online |
| 14 | HANDLE | 24 | BAND | 15210-12305 | 15210-12305-Online |
| 14 | HANDLE | 25 | TOOL SET | 62803-92010 | 62803-92010-Online |
| 14 | HANDLE | 26 | PLUG WRENCH | 22150-91410 | 22150-91410-Online |
| 14 | HANDLE | 27 | DRIVER | 22150-91160 | 22150-91160-Online |
| 14 | HANDLE | 28 | HEXA WRENCH | 19021-05000 | 19021-05000-Online |
| 14 | HANDLE | 29 | POLY BAG | 19639-01100 | 19639-01100-Online |
| 14 | HANDLE | 3 | WASHER | 62803-64330 | 62803-64330-Online |
| 14 | HANDLE | 30 | LABEL CAUTION | 19402-00158 | 19402-00158-Online |
| 14 | HANDLE | 31 | MANUAL | 6281694010 | 6281694010-Online |
| 14 | HANDLE | 32 | PACKAGE | 6281695010 | 6281695010-Online |
| 14 | HANDLE | 35 | PACKAGE | 6381295010 | 6381295010-Online |
| 14 | HANDLE | 36 | PACKAGE | 6381395010 | 6381395010-Online |
| 14 | HANDLE | 4 | BOLT TAPPING | 72935-61230 | 72935-61230-Online |
| 14 | HANDLE | 5 | BOLT SW | 11020-06350 | 11020-06350-Online |
| 14 | HANDLE | 6 | WASHER | 23510-64210 | 23510-64210-Online |
| 14 | HANDLE | 7 | REAR HANDLE ASSY | 62803-65014 | 62803-65014-Online |
| 14 | HANDLE | 8 | RIGHT HANDLE | 62803-65114 | 62803-65114-Online |
| 14 | HANDLE | 9 | THROTTLE LEVER | 62803-65312 | 62803-65312-Online |

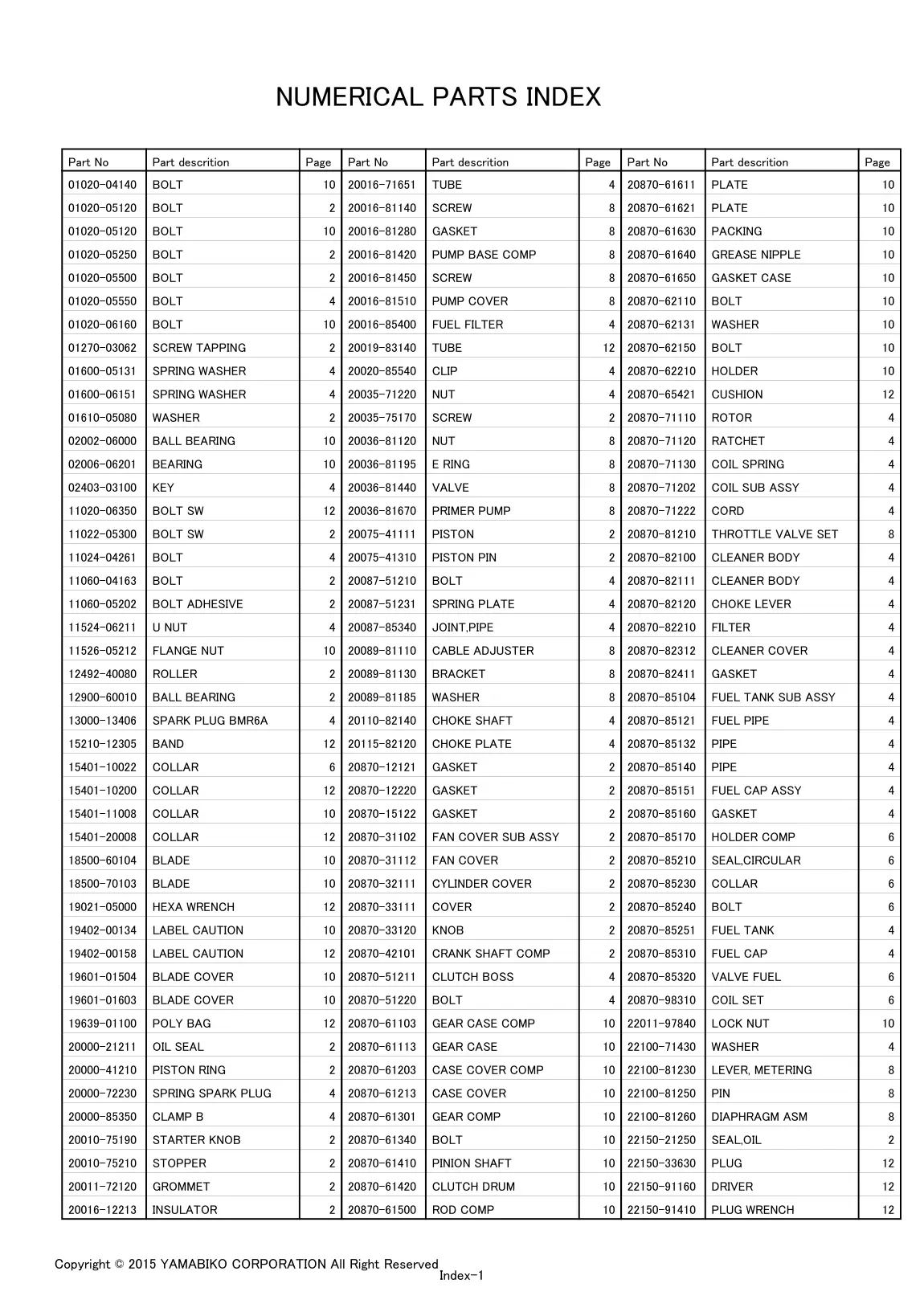

| 15 | PLUG WRENCH | BOLT | 01020-04140 | 01020-04140-Online | |
| 15 | PLUG WRENCH | 10 | BOLT | 01020-05120 | 01020-05120-Online |
| 15 | PLUG WRENCH | 10 | BOLT | 01020-05250 | 01020-05250-Online |
| 15 | PLUG WRENCH | 10 | SCREW TAPPING | 01270-03062 | 01270-03062-Online |
| 15 | PLUG WRENCH | 10 | BEARING | 02006-06201 | 02006-06201-Online |
| 15 | PLUG WRENCH | 10 | KEY | 02403-03100 | 02403-03100-Online |
| 15 | PLUG WRENCH | 10 | ROLLER | 12492-40080 | 12492-40080-Online |
| 15 | PLUG WRENCH | 10 | COLLAR | 15401-20008 | 15401-20008-Online |
| 15 | PLUG WRENCH | 10 | BLADE | 18500-70103 | 18500-70103-Online |
| 15 | PLUG WRENCH | 10 | HEXA WRENCH | 19021-05000 | 19021-05000-Online |
| 15 | PLUG WRENCH | 10 | LABEL CAUTION | 19402-00158 | 19402-00158-Online |
| 15 | PLUG WRENCH | 10 | BLADE COVER | 19601-01603 | 19601-01603-Online |
| 15 | PLUG WRENCH | 10 | POLY BAG | 19639-01100 | 19639-01100-Online |
| 15 | PLUG WRENCH | 10 | GEAR CASE | 20870-61113 | 20870-61113-Online |
| 15 | PLUG WRENCH | 10 | CASE COVER COMP | 20870-61203 | 20870-61203-Online |
| 15 | PLUG WRENCH | 10 | CASE COVER | 20870-61213 | 20870-61213-Online |
| 15 | PLUG WRENCH | 10 | GEAR COMP | 20870-61301 | 20870-61301-Online |
| 15 | PLUG WRENCH | 10 | BOLT | 20870-61340 | 20870-61340-Online |
| 15 | PLUG WRENCH | 10 | PINION SHAFT | 20870-61410 | 20870-61410-Online |
| 15 | PLUG WRENCH | 10 | CLUTCH DRUM | 20870-61420 | 20870-61420-Online |
| 15 | PLUG WRENCH | 10 | ROD COMP | 20870-61500 | 20870-61500-Online |
| 15 | PLUG WRENCH | 10 | PLATE | 20870-61611 | 20870-61611-Online |
| 15 | PLUG WRENCH | 10 | PLATE | 20870-61621 | 20870-61621-Online |
| 15 | PLUG WRENCH | 10 | PACKING | 20870-61630 | 20870-61630-Online |
| 15 | PLUG WRENCH | 10 | GREASE NIPPLE | 20870-61640 | 20870-61640-Online |
| 15 | PLUG WRENCH | 10 | GASKET CASE | 20870-61650 | 20870-61650-Online |
| 15 | PLUG WRENCH | 10 | BOLT | 20870-62110 | 20870-62110-Online |
| 15 | PLUG WRENCH | 10 | WASHER | 20870-62131 | 20870-62131-Online |
| 15 | PLUG WRENCH | 10 | BOLT | 20870-62150 | 20870-62150-Online |
| 15 | PLUG WRENCH | 10 | HOLDER | 20870-62210 | 20870-62210-Online |
| 15 | PLUG WRENCH | 10 | CUSHION | 20870-65421 | 20870-65421-Online |
| 15 | PLUG WRENCH | 10 | WASHER | 22100-71430 | 22100-71430-Online |
| 15 | PLUG WRENCH | 12 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 15 | PLUG WRENCH | 12 | COLLAR | 15401-10022 | 15401-10022-Online |
| 15 | PLUG WRENCH | 12 | COLLAR | 15401-11008 | 15401-11008-Online |
| 15 | PLUG WRENCH | 12 | BLADE | 18500-60104 | 18500-60104-Online |
| 15 | PLUG WRENCH | 12 | LABEL CAUTION | 19402-00134 | 19402-00134-Online |
| 15 | PLUG WRENCH | 12 | BLADE COVER | 19601-01504 | 19601-01504-Online |
| 15 | PLUG WRENCH | 12 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 15 | PLUG WRENCH | 12 | CLIP | 20020-85540 | 20020-85540-Online |
| 15 | PLUG WRENCH | 12 | DRIVER | 22150-91160 | 22150-91160-Online |
| 15 | PLUG WRENCH | 2 | BOLT | 01020-05120 | 01020-05120-Online |
| 15 | PLUG WRENCH | 2 | BOLT | 01020-05500 | 01020-05500-Online |
| 15 | PLUG WRENCH | 2 | BOLT | 01020-05550 | 01020-05550-Online |
| 15 | PLUG WRENCH | 2 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 15 | PLUG WRENCH | 2 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 15 | PLUG WRENCH | 2 | BOLT | 11024-04261 | 11024-04261-Online |
| 15 | PLUG WRENCH | 2 | BOLT ADHESIVE | 11060-05202 | 11060-05202-Online |
| 15 | PLUG WRENCH | 2 | U NUT | 11524-06211 | 11524-06211-Online |
| 15 | PLUG WRENCH | 2 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 15 | PLUG WRENCH | 2 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 15 | PLUG WRENCH | 2 | PISTON RING | 20000-41210 | 20000-41210-Online |
| 15 | PLUG WRENCH | 2 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 15 | PLUG WRENCH | 2 | STOPPER | 20010-75210 | 20010-75210-Online |
| 15 | PLUG WRENCH | 2 | GROMMET | 20011-72120 | 20011-72120-Online |
| 15 | PLUG WRENCH | 2 | INSULATOR | 20016-12213 | 20016-12213-Online |
| 15 | PLUG WRENCH | 2 | TUBE | 20016-71651 | 20016-71651-Online |
| 15 | PLUG WRENCH | 2 | NUT | 20036-81120 | 20036-81120-Online |
| 15 | PLUG WRENCH | 2 | PISTON PIN | 20075-41310 | 20075-41310-Online |
| 15 | PLUG WRENCH | 2 | BOLT | 20087-51210 | 20087-51210-Online |
| 15 | PLUG WRENCH | 2 | GASKET | 20870-12220 | 20870-12220-Online |
| 15 | PLUG WRENCH | 2 | GASKET | 20870-15122 | 20870-15122-Online |
| 15 | PLUG WRENCH | 2 | FAN COVER SUB ASSY | 20870-31102 | 20870-31102-Online |
| 15 | PLUG WRENCH | 2 | FAN COVER | 20870-31112 | 20870-31112-Online |
| 15 | PLUG WRENCH | 2 | CYLINDER COVER | 20870-32111 | 20870-32111-Online |
| 15 | PLUG WRENCH | 2 | COVER | 20870-33111 | 20870-33111-Online |
| 15 | PLUG WRENCH | 2 | KNOB | 20870-33120 | 20870-33120-Online |
| 15 | PLUG WRENCH | 2 | CRANK SHAFT COMP | 20870-42101 | 20870-42101-Online |
| 15 | PLUG WRENCH | 2 | CLUTCH BOSS | 20870-51211 | 20870-51211-Online |
| 15 | PLUG WRENCH | 2 | PLUG | 22150-33630 | 22150-33630-Online |
| 15 | PLUG WRENCH | 4 | BOLT | 01020-06160 | 01020-06160-Online |
| 15 | PLUG WRENCH | 4 | SPRING WASHER | 01600-06151 | 01600-06151-Online |
| 15 | PLUG WRENCH | 4 | WASHER | 01610-05080 | 01610-05080-Online |
| 15 | PLUG WRENCH | 4 | BOLT SW | 11020-06350 | 11020-06350-Online |
| 15 | PLUG WRENCH | 4 | BOLT | 11060-04163 | 11060-04163-Online |
| 15 | PLUG WRENCH | 4 | FLANGE NUT | 11526-05212 | 11526-05212-Online |
| 15 | PLUG WRENCH | 4 | BAND | 15210-12305 | 15210-12305-Online |
| 15 | PLUG WRENCH | 4 | CLAMP B | 20000-85350 | 20000-85350-Online |
| 15 | PLUG WRENCH | 4 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 15 | PLUG WRENCH | 4 | SCREW | 20016-81140 | 20016-81140-Online |
| 15 | PLUG WRENCH | 4 | TUBE | 20019-83140 | 20019-83140-Online |
| 15 | PLUG WRENCH | 4 | NUT | 20035-71220 | 20035-71220-Online |
| 15 | PLUG WRENCH | 4 | SCREW | 20035-75170 | 20035-75170-Online |
| 15 | PLUG WRENCH | 4 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 15 | PLUG WRENCH | 4 | JOINT,PIPE | 20087-85340 | 20087-85340-Online |
| 15 | PLUG WRENCH | 4 | CABLE ADJUSTER | 20089-81110 | 20089-81110-Online |
| 15 | PLUG WRENCH | 4 | CHOKE PLATE | 20115-82120 | 20115-82120-Online |
| 15 | PLUG WRENCH | 4 | GASKET | 20870-12121 | 20870-12121-Online |
| 15 | PLUG WRENCH | 4 | BOLT | 20870-51220 | 20870-51220-Online |
| 15 | PLUG WRENCH | 4 | GEAR CASE COMP | 20870-61103 | 20870-61103-Online |
| 15 | PLUG WRENCH | 4 | RATCHET | 20870-71120 | 20870-71120-Online |
| 15 | PLUG WRENCH | 4 | COIL SPRING | 20870-71130 | 20870-71130-Online |
| 15 | PLUG WRENCH | 4 | COIL SUB ASSY | 20870-71202 | 20870-71202-Online |
| 15 | PLUG WRENCH | 4 | THROTTLE VALVE SET | 20870-81210 | 20870-81210-Online |
| 15 | PLUG WRENCH | 4 | CLEANER BODY | 20870-82111 | 20870-82111-Online |
| 15 | PLUG WRENCH | 4 | CHOKE LEVER | 20870-82120 | 20870-82120-Online |
| 15 | PLUG WRENCH | 4 | FILTER | 20870-82210 | 20870-82210-Online |
| 15 | PLUG WRENCH | 4 | CLEANER COVER | 20870-82312 | 20870-82312-Online |
| 15 | PLUG WRENCH | 4 | GASKET | 20870-82411 | 20870-82411-Online |
| 15 | PLUG WRENCH | 4 | FUEL TANK SUB ASSY | 20870-85104 | 20870-85104-Online |
| 15 | PLUG WRENCH | 4 | FUEL PIPE | 20870-85121 | 20870-85121-Online |
| 15 | PLUG WRENCH | 4 | PIPE | 20870-85132 | 20870-85132-Online |
| 15 | PLUG WRENCH | 4 | PIPE | 20870-85140 | 20870-85140-Online |
| 15 | PLUG WRENCH | 4 | FUEL CAP ASSY | 20870-85151 | 20870-85151-Online |
| 15 | PLUG WRENCH | 4 | GASKET | 20870-85160 | 20870-85160-Online |
| 15 | PLUG WRENCH | 4 | HOLDER COMP | 20870-85170 | 20870-85170-Online |
| 15 | PLUG WRENCH | 4 | FUEL CAP | 20870-85310 | 20870-85310-Online |
| 15 | PLUG WRENCH | 4 | VALVE FUEL | 20870-85320 | 20870-85320-Online |
| 15 | PLUG WRENCH | 4 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 15 | PLUG WRENCH | 6 | COLLAR | 15401-10200 | 15401-10200-Online |
| 15 | PLUG WRENCH | 6 | SEAL,CIRCULAR | 20870-85210 | 20870-85210-Online |
| 15 | PLUG WRENCH | 6 | COLLAR | 20870-85230 | 20870-85230-Online |
| 15 | PLUG WRENCH | 6 | BOLT | 20870-85240 | 20870-85240-Online |
| 15 | PLUG WRENCH | 6 | FUEL TANK | 20870-85251 | 20870-85251-Online |
| 15 | PLUG WRENCH | 6 | COIL SET | 20870-98310 | 20870-98310-Online |
| 15 | PLUG WRENCH | 6 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 15 | PLUG WRENCH | 8 | GASKET | 20016-81280 | 20016-81280-Online |
| 15 | PLUG WRENCH | 8 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 15 | PLUG WRENCH | 8 | SCREW | 20016-81450 | 20016-81450-Online |
| 15 | PLUG WRENCH | 8 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 15 | PLUG WRENCH | 8 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 15 | PLUG WRENCH | 8 | E RING | 20036-81195 | 20036-81195-Online |
| 15 | PLUG WRENCH | 8 | VALVE | 20036-81440 | 20036-81440-Online |
| 15 | PLUG WRENCH | 8 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 15 | PLUG WRENCH | 8 | PISTON | 20075-41111 | 20075-41111-Online |
| 15 | PLUG WRENCH | 8 | BRACKET | 20089-81130 | 20089-81130-Online |
| 15 | PLUG WRENCH | 8 | WASHER | 20089-81185 | 20089-81185-Online |
| 15 | PLUG WRENCH | 8 | CHOKE SHAFT | 20110-82140 | 20110-82140-Online |
| 15 | PLUG WRENCH | 8 | CLEANER BODY | 20870-82100 | 20870-82100-Online |
| 15 | PLUG WRENCH | 8 | PIN | 22100-81250 | 22100-81250-Online |
| 15 | PLUG WRENCH | 8 | DIAPHRAGM ASM | 22100-81260 | 22100-81260-Online |
| 15 | PLUG WRENCH | 8 | SEAL,OIL | 22150-21250 | 22150-21250-Online |

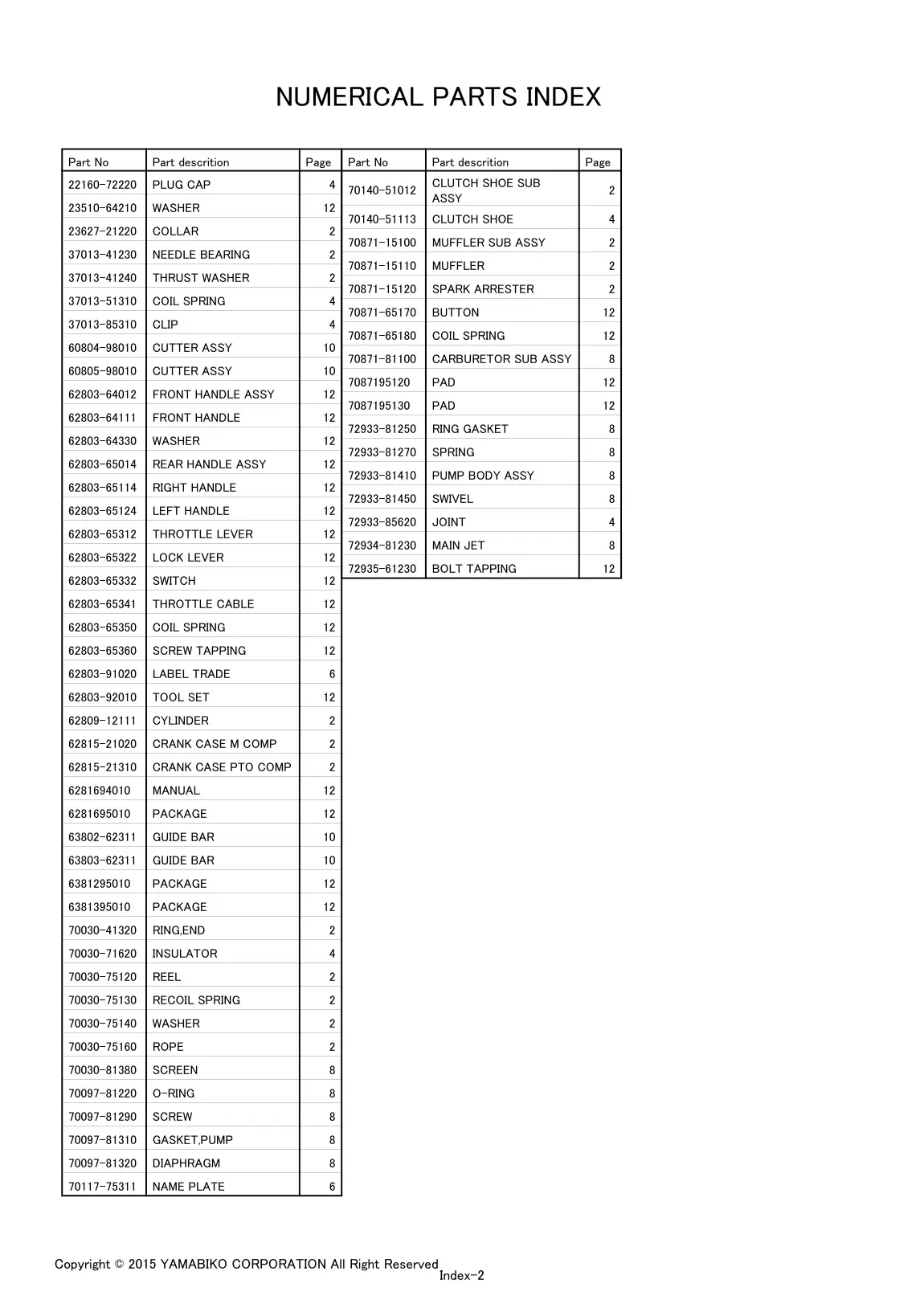

| 16 | BOLT TAPPING | PLUG CAP | 22160-72220 | 22160-72220-Online | |
| 16 | BOLT TAPPING | 10 | CUTTER ASSY | 60805-98010 | 60805-98010-Online |
| 16 | BOLT TAPPING | 10 | FRONT HANDLE ASSY | 62803-64012 | 62803-64012-Online |
| 16 | BOLT TAPPING | 10 | GUIDE BAR | 63803-62311 | 63803-62311-Online |
| 16 | BOLT TAPPING | 10 | PACKAGE | 6381295010 | 6381295010-Online |
| 16 | BOLT TAPPING | 12 | COLLAR | 23627-21220 | 23627-21220-Online |
| 16 | BOLT TAPPING | 12 | FRONT HANDLE | 62803-64111 | 62803-64111-Online |
| 16 | BOLT TAPPING | 12 | WASHER | 62803-64330 | 62803-64330-Online |
| 16 | BOLT TAPPING | 12 | REAR HANDLE ASSY | 62803-65014 | 62803-65014-Online |
| 16 | BOLT TAPPING | 12 | RIGHT HANDLE | 62803-65114 | 62803-65114-Online |
| 16 | BOLT TAPPING | 12 | LEFT HANDLE | 62803-65124 | 62803-65124-Online |
| 16 | BOLT TAPPING | 12 | THROTTLE LEVER | 62803-65312 | 62803-65312-Online |
| 16 | BOLT TAPPING | 12 | LOCK LEVER | 62803-65322 | 62803-65322-Online |
| 16 | BOLT TAPPING | 12 | SWITCH | 62803-65332 | 62803-65332-Online |
| 16 | BOLT TAPPING | 12 | THROTTLE CABLE | 62803-65341 | 62803-65341-Online |
| 16 | BOLT TAPPING | 12 | COIL SPRING | 62803-65350 | 62803-65350-Online |
| 16 | BOLT TAPPING | 12 | SCREW TAPPING | 62803-65360 | 62803-65360-Online |
| 16 | BOLT TAPPING | 12 | LABEL TRADE | 62803-91020 | 62803-91020-Online |
| 16 | BOLT TAPPING | 12 | CYLINDER | 62809-12111 | 62809-12111-Online |
| 16 | BOLT TAPPING | 12 | PACKAGE | 6281695010 | 6281695010-Online |
| 16 | BOLT TAPPING | 12 | GUIDE BAR | 63802-62311 | 63802-62311-Online |
| 16 | BOLT TAPPING | 12 | PACKAGE | 6381395010 | 6381395010-Online |
| 16 | BOLT TAPPING | 12 | RING,END | 70030-41320 | 70030-41320-Online |
| 16 | BOLT TAPPING | 12 | COIL SPRING | 70871-65180 | 70871-65180-Online |
| 16 | BOLT TAPPING | 12 | CARBURETOR SUB ASSY | 70871-81100 | 70871-81100-Online |
| 16 | BOLT TAPPING | 12 | RING GASKET | 72933-81250 | 72933-81250-Online |
| 16 | BOLT TAPPING | 2 | NEEDLE BEARING | 37013-41230 | 37013-41230-Online |
| 16 | BOLT TAPPING | 2 | THRUST WASHER | 37013-41240 | 37013-41240-Online |
| 16 | BOLT TAPPING | 2 | COIL SPRING | 37013-51310 | 37013-51310-Online |
| 16 | BOLT TAPPING | 2 | CRANK CASE M COMP | 62815-21020 | 62815-21020-Online |
| 16 | BOLT TAPPING | 2 | CRANK CASE PTO COMP | 62815-21310 | 62815-21310-Online |
| 16 | BOLT TAPPING | 2 | MANUAL | 6281694010 | 6281694010-Online |
| 16 | BOLT TAPPING | 2 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 16 | BOLT TAPPING | 2 | RECOIL SPRING | 70030-75130 | 70030-75130-Online |
| 16 | BOLT TAPPING | 2 | WASHER | 70030-75140 | 70030-75140-Online |
| 16 | BOLT TAPPING | 2 | ROPE | 70030-75160 | 70030-75160-Online |
| 16 | BOLT TAPPING | 2 | SCREEN | 70030-81380 | 70030-81380-Online |
| 16 | BOLT TAPPING | 2 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |
| 16 | BOLT TAPPING | 2 | MUFFLER | 70871-15110 | 70871-15110-Online |
| 16 | BOLT TAPPING | 2 | SPARK ARRESTER | 70871-15120 | 70871-15120-Online |
| 16 | BOLT TAPPING | 2 | BUTTON | 70871-65170 | 70871-65170-Online |
| 16 | BOLT TAPPING | 4 | WASHER | 23510-64210 | 23510-64210-Online |
| 16 | BOLT TAPPING | 4 | CLIP | 37013-85310 | 37013-85310-Online |
| 16 | BOLT TAPPING | 4 | CUTTER ASSY | 60804-98010 | 60804-98010-Online |
| 16 | BOLT TAPPING | 4 | REEL | 70030-75120 | 70030-75120-Online |
| 16 | BOLT TAPPING | 4 | MUFFLER SUB ASSY | 70871-15100 | 70871-15100-Online |
| 16 | BOLT TAPPING | 4 | MAIN JET | 72934-81230 | 72934-81230-Online |
| 16 | BOLT TAPPING | 6 | TOOL SET | 62803-92010 | 62803-92010-Online |
| 16 | BOLT TAPPING | 6 | CLUTCH SHOE SUB | 70140-51012 | 70140-51012-Online |
| 16 | BOLT TAPPING | 8 | O-RING | 70097-81220 | 70097-81220-Online |
| 16 | BOLT TAPPING | 8 | SCREW | 70097-81290 | 70097-81290-Online |
| 16 | BOLT TAPPING | 8 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 16 | BOLT TAPPING | 8 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 16 | BOLT TAPPING | 8 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 16 | BOLT TAPPING | 8 | SPRING | 72933-81270 | 72933-81270-Online |
| 16 | BOLT TAPPING | 8 | PUMP BODY ASSY | 72933-81410 | 72933-81410-Online |
| 16 | BOLT TAPPING | 8 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 16 | BOLT TAPPING | 8 | JOINT | 72933-85620 | 72933-85620-Online |
Source file: 20200226-994_DH230_EPA2-30_AA_00000000_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
