Illustrated Parts List
Shindaiwa M262S Multi-tool IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: M262S
Type: Multi-tool
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

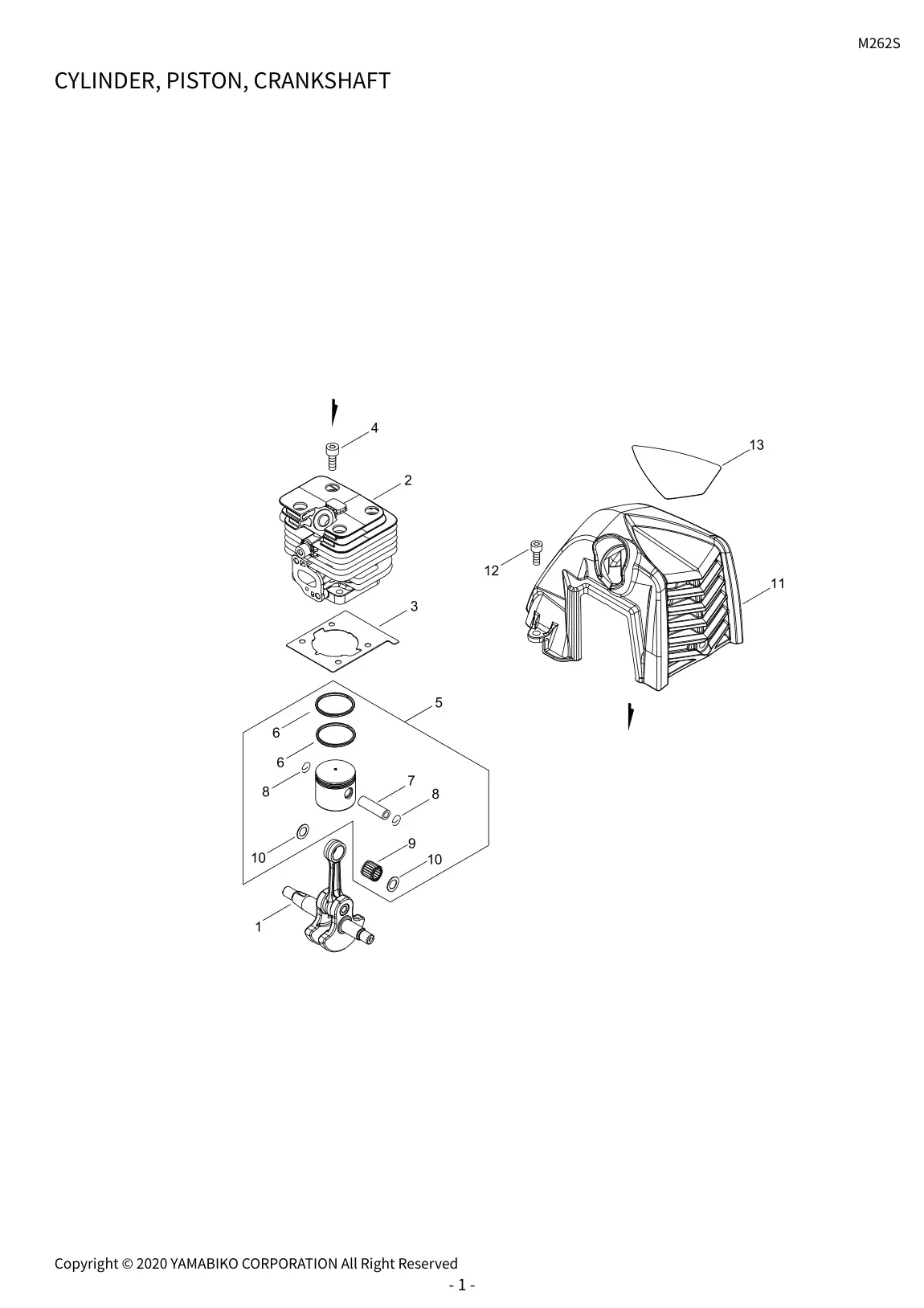

| 5 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 10 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,SHINDAIWA | X562-001100 | X562-001100-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002330 | A130-002330-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-050840 | P021-050840-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000010 | A101-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-35430 | 100013-35430-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 8 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |

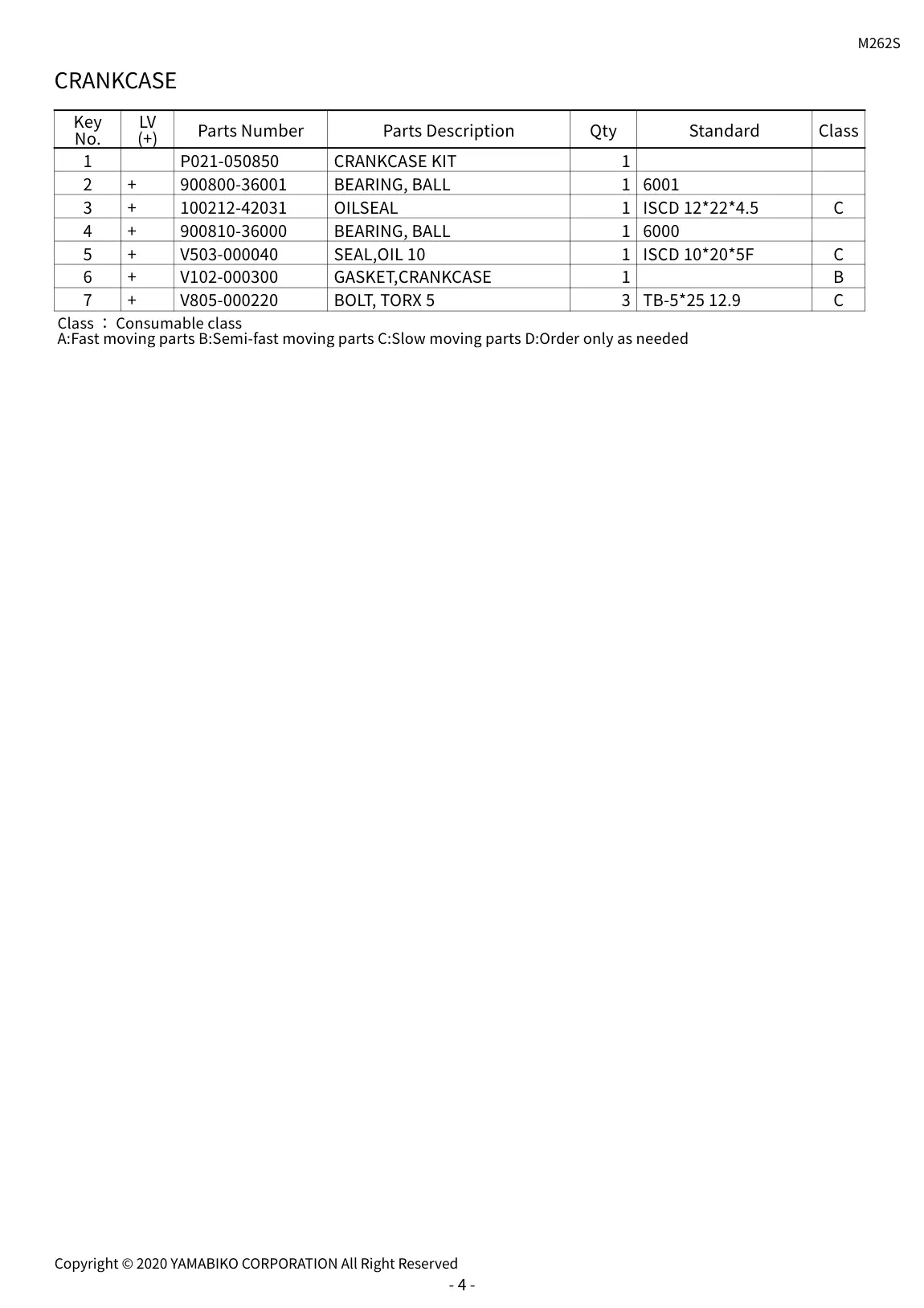

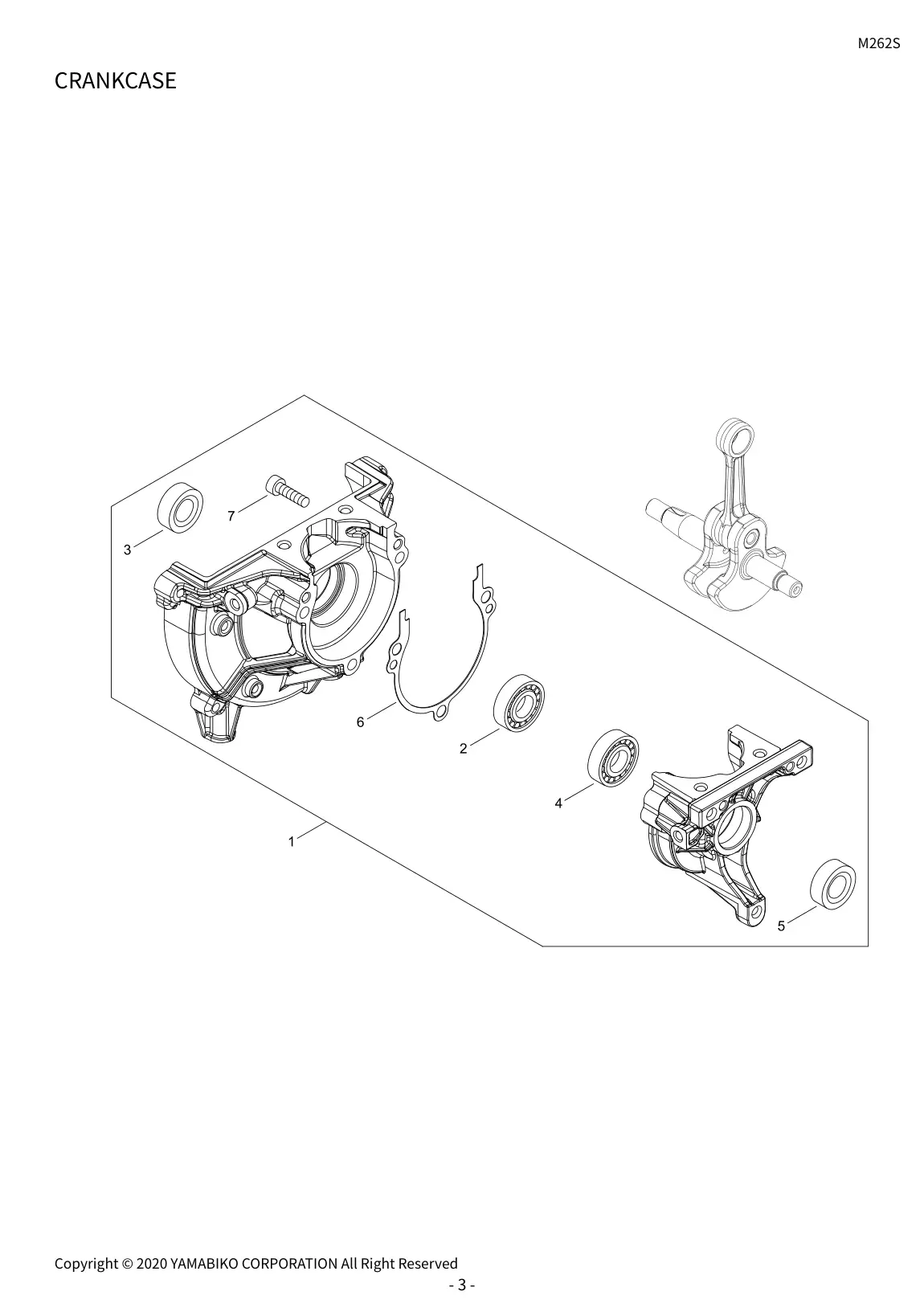

| 7 | CRANKCASE | 1 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 7 | CRANKCASE | 2 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 7 | CRANKCASE | 3 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 7 | CRANKCASE | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 7 | CRANKCASE | 5 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 7 | CRANKCASE | 6 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 7 | CRANKCASE | 7 | BOLT, TORX | V805-000220 | V805-000220-Online |

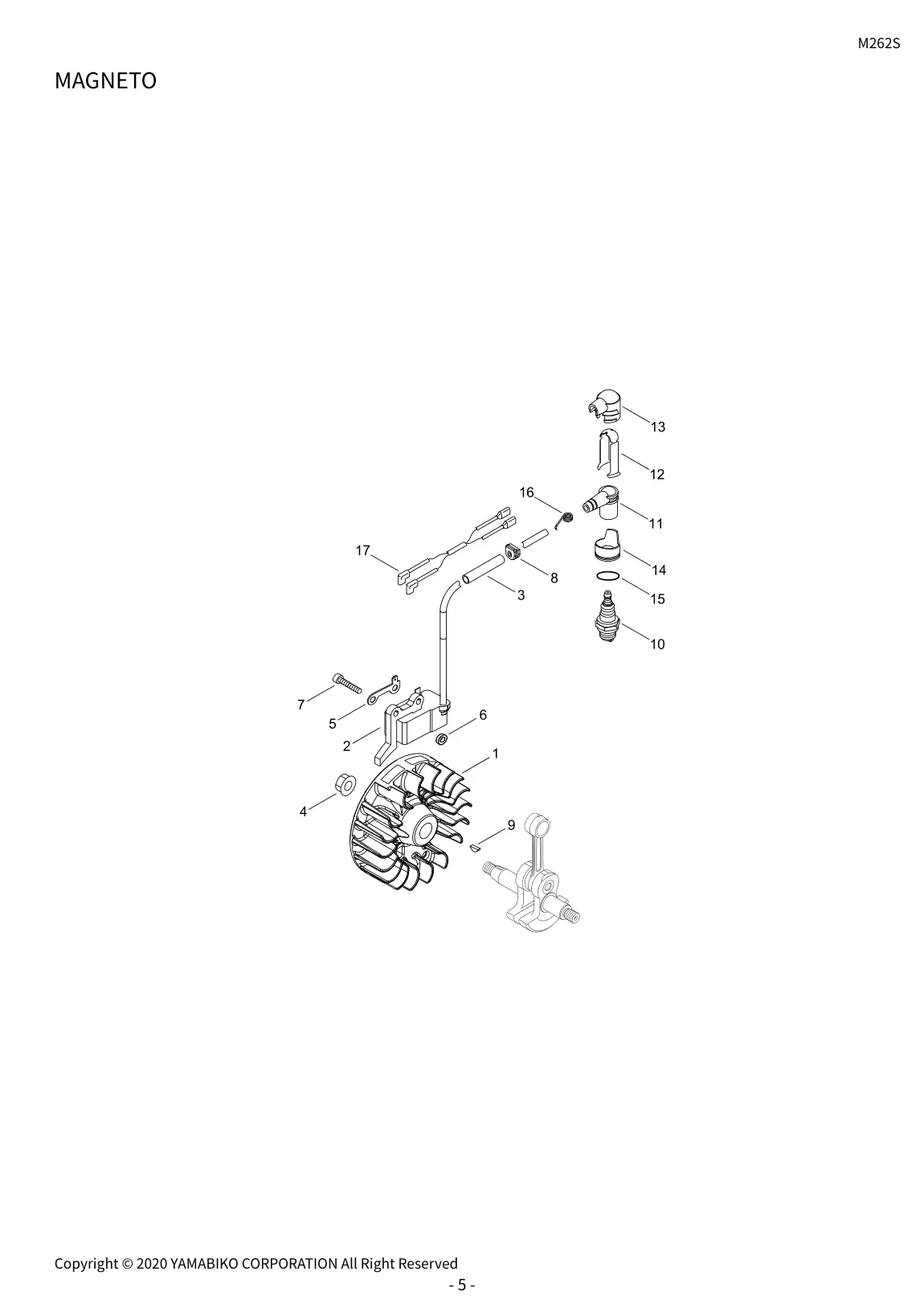

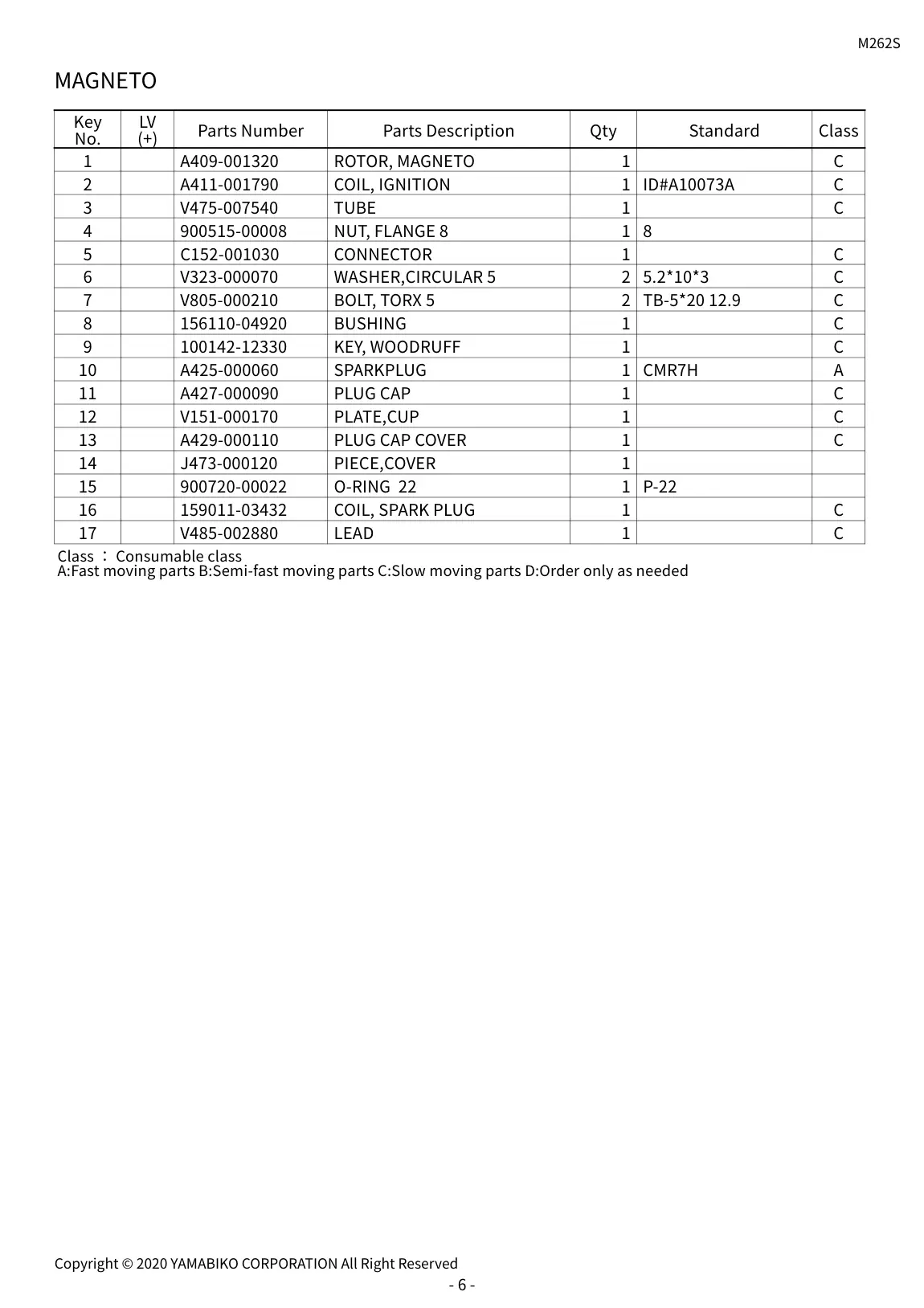

| 9 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 9 | MAGNETO | 10 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 9 | MAGNETO | 11 | PLUG CAP | A427-000090 | A427-000090-Online |
| 9 | MAGNETO | 12 | PLATE,CUP | V151-000170 | V151-000170-Online |
| 9 | MAGNETO | 13 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 9 | MAGNETO | 14 | PIECE,COVER | J473-000120 | J473-000120-Online |
| 9 | MAGNETO | 15 | O-RING | 900720-00022 | 900720-00022-Online |
| 9 | MAGNETO | 16 | COIL, SPARK PLUG | 159011-03432 | 159011-03432-Online |
| 9 | MAGNETO | 17 | LEAD | V485-002880 | V485-002880-Online |
| 9 | MAGNETO | 2 | COIL, IGNITION | A411-001790 | A411-001790-Online |
| 9 | MAGNETO | 3 | TUBE | V475-007540 | V475-007540-Online |
| 9 | MAGNETO | 4 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 9 | MAGNETO | 5 | CONNECTOR | C152-001030 | C152-001030-Online |
| 9 | MAGNETO | 6 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 9 | MAGNETO | 7 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 9 | MAGNETO | 8 | BUSHING | 156110-04920 | 156110-04920-Online |
| 9 | MAGNETO | 9 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |

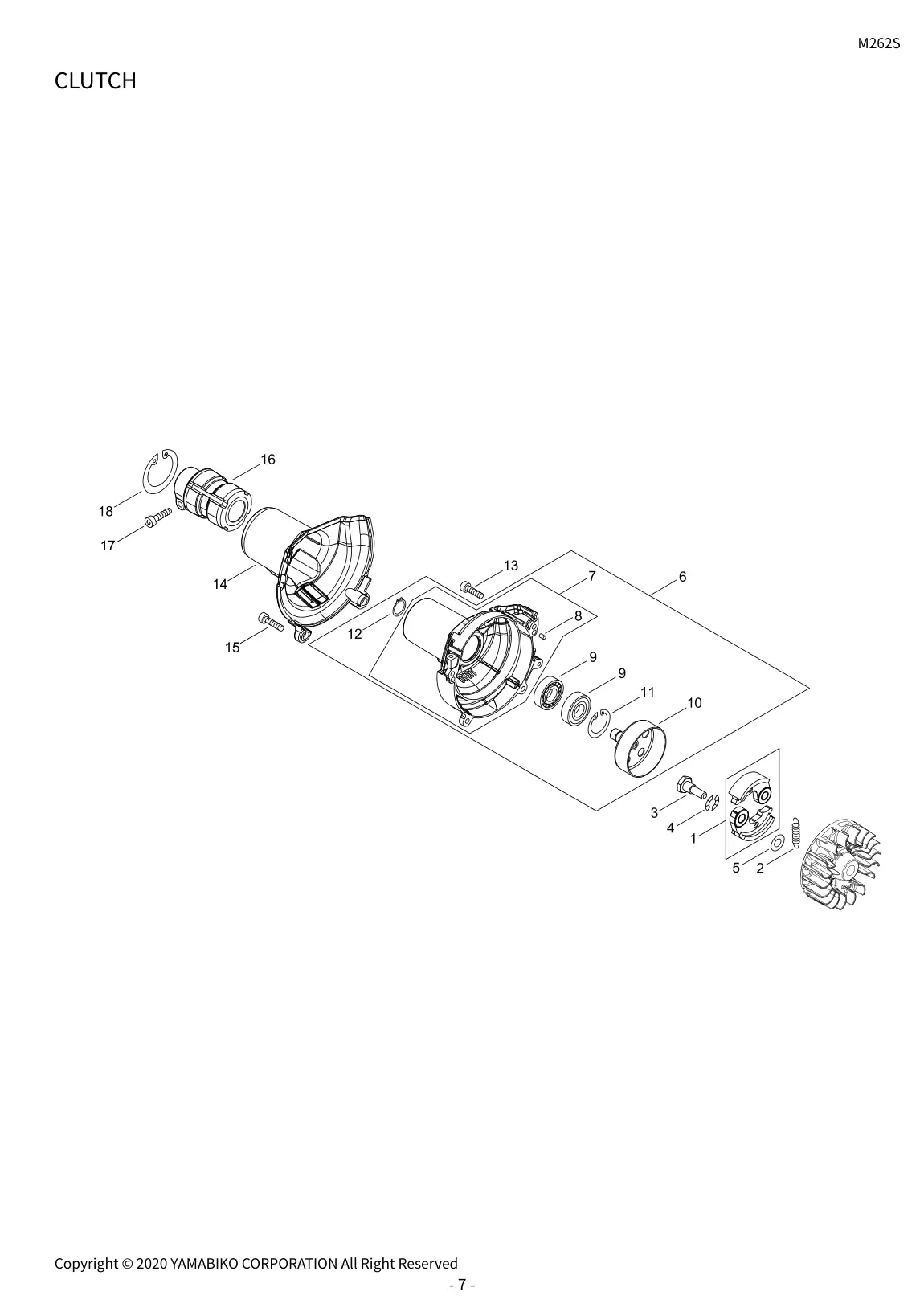

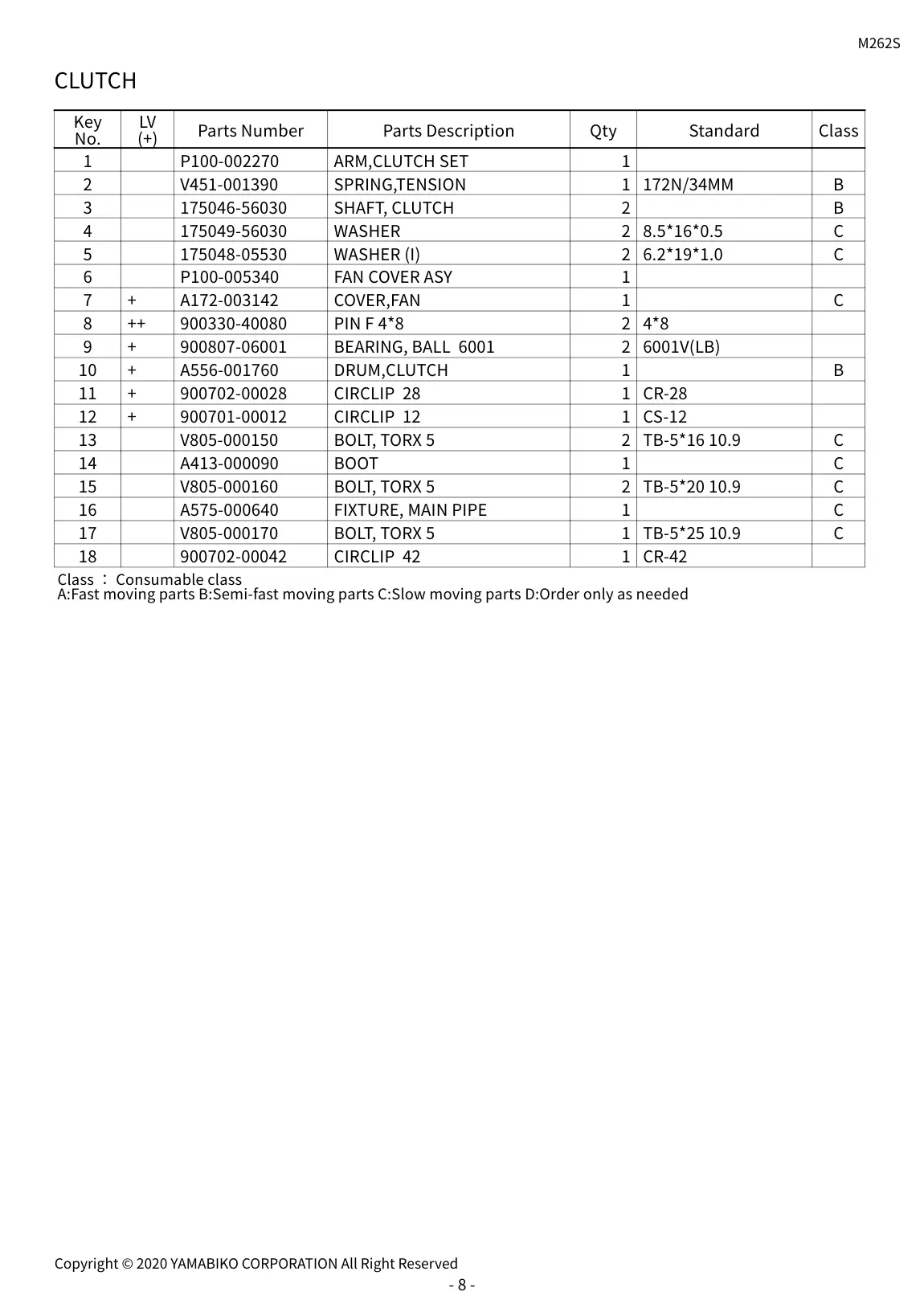

| 11 | CLUTCH | 1 | ARM,CLUTCH SET | P100-002270 | P100-002270-Online |
| 11 | CLUTCH | 10 | DRUM,CLUTCH | A556-001760 | A556-001760-Online |
| 11 | CLUTCH | 11 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 11 | CLUTCH | 12 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 11 | CLUTCH | 13 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 11 | CLUTCH | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 11 | CLUTCH | 16 | FIXTURE, MAIN PIPE | A575-000640 | A575-000640-Online |
| 11 | CLUTCH | 17 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 11 | CLUTCH | 18 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 11 | CLUTCH | 2 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 11 | CLUTCH | 3 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 11 | CLUTCH | 4 | WASHER | 175049-56030 | 175049-56030-Online |
| 11 | CLUTCH | 5 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 11 | CLUTCH | 6 | FAN COVER ASY | P100-005340 | P100-005340-Online |
| 11 | CLUTCH | 7 | COVER,FAN | A172-003142 | A172-003142-Online |
| 11 | CLUTCH | 8 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 11 | CLUTCH | 9 | BEARING, BALL | 900807-06001 | 900807-06001-Online |

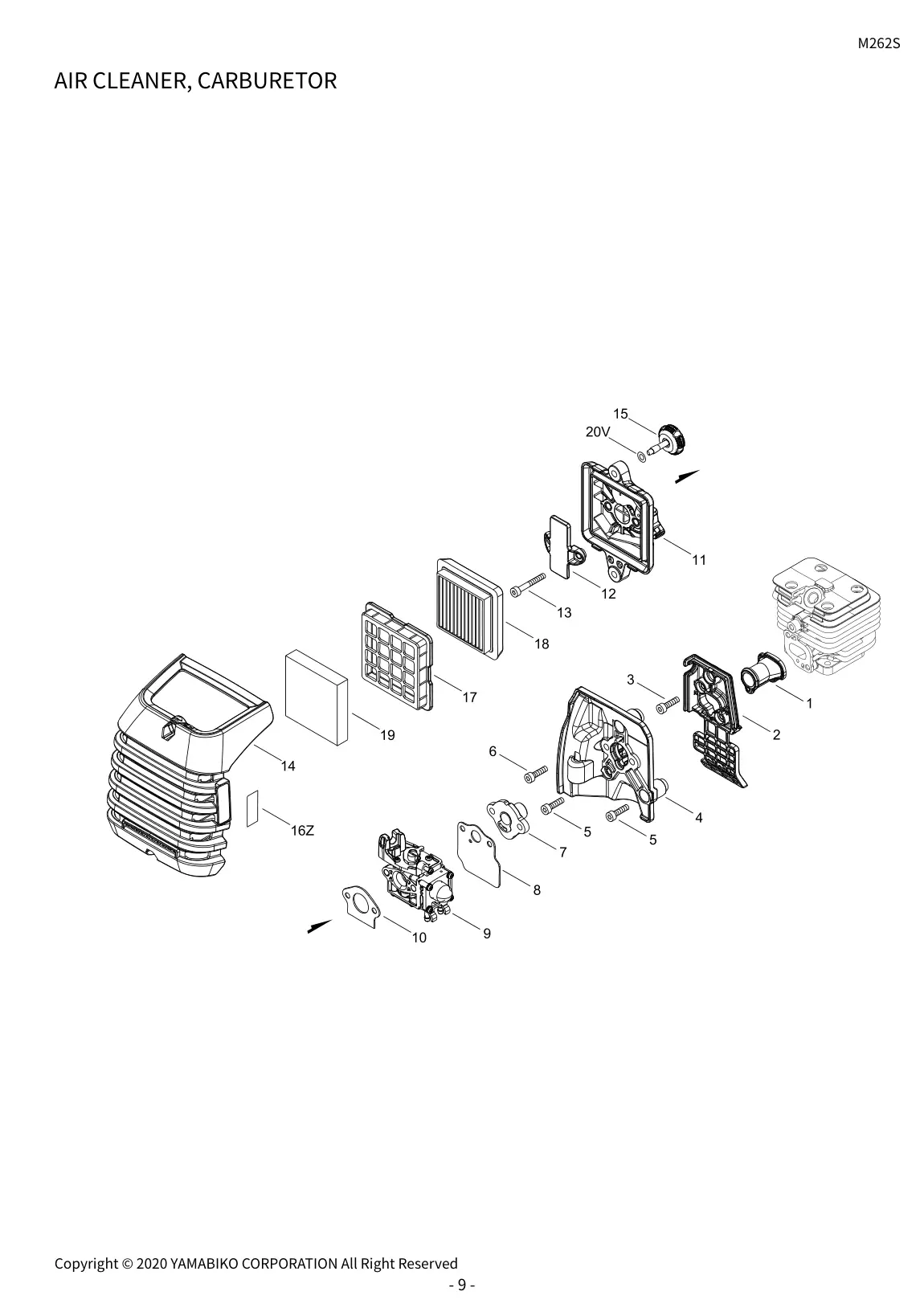

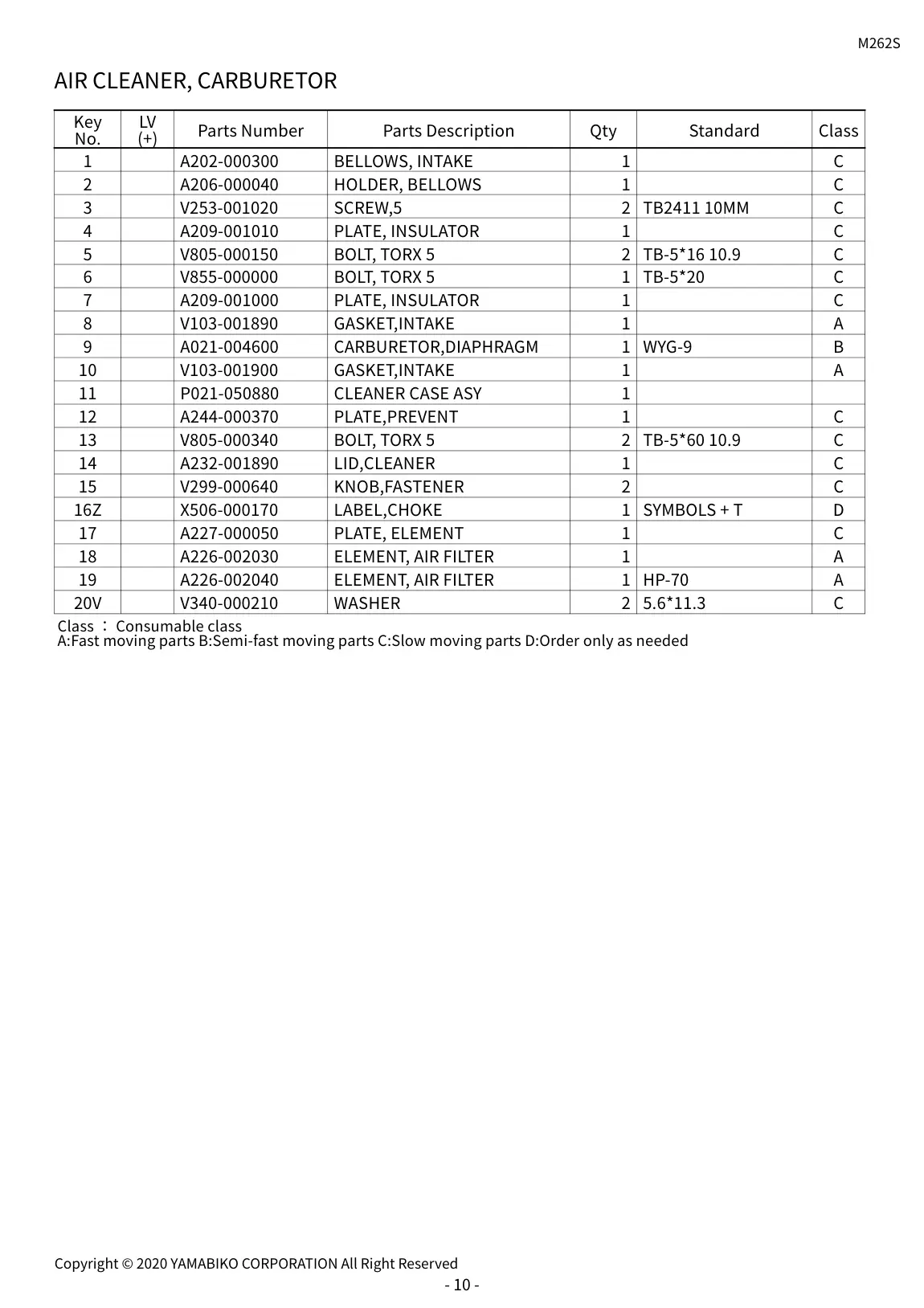

| 13 | AIR CLEANER, CARBURETOR | 1 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 13 | AIR CLEANER, CARBURETOR | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 13 | AIR CLEANER, CARBURETOR | 11 | CLEANER CASE ASY | P021-050880 | P021-050880-Online |
| 13 | AIR CLEANER, CARBURETOR | 12 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 13 | AIR CLEANER, CARBURETOR | 13 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 13 | AIR CLEANER, CARBURETOR | 14 | LID,CLEANER | A232-001890 | A232-001890-Online |
| 13 | AIR CLEANER, CARBURETOR | 15 | KNOB,FASTENER | V299-000640 | V299-000640-Online |
| 13 | AIR CLEANER, CARBURETOR | 16Z | LABEL,CHOKE | X506-000170 | X506-000170-Online |
| 13 | AIR CLEANER, CARBURETOR | 17 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 13 | AIR CLEANER, CARBURETOR | 18 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 13 | AIR CLEANER, CARBURETOR | 19 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 13 | AIR CLEANER, CARBURETOR | 2 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 13 | AIR CLEANER, CARBURETOR | 20V | WASHER | V340-000210 | V340-000210-Online |
| 13 | AIR CLEANER, CARBURETOR | 3 | SCREW,5 | V253-001020 | V253-001020-Online |
| 13 | AIR CLEANER, CARBURETOR | 4 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 13 | AIR CLEANER, CARBURETOR | 5 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 13 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 13 | AIR CLEANER, CARBURETOR | 7 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 13 | AIR CLEANER, CARBURETOR | 8 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 13 | AIR CLEANER, CARBURETOR | 9 | CARBURETOR,DIAPHRAGM | A021-004600 | A021-004600-Online |

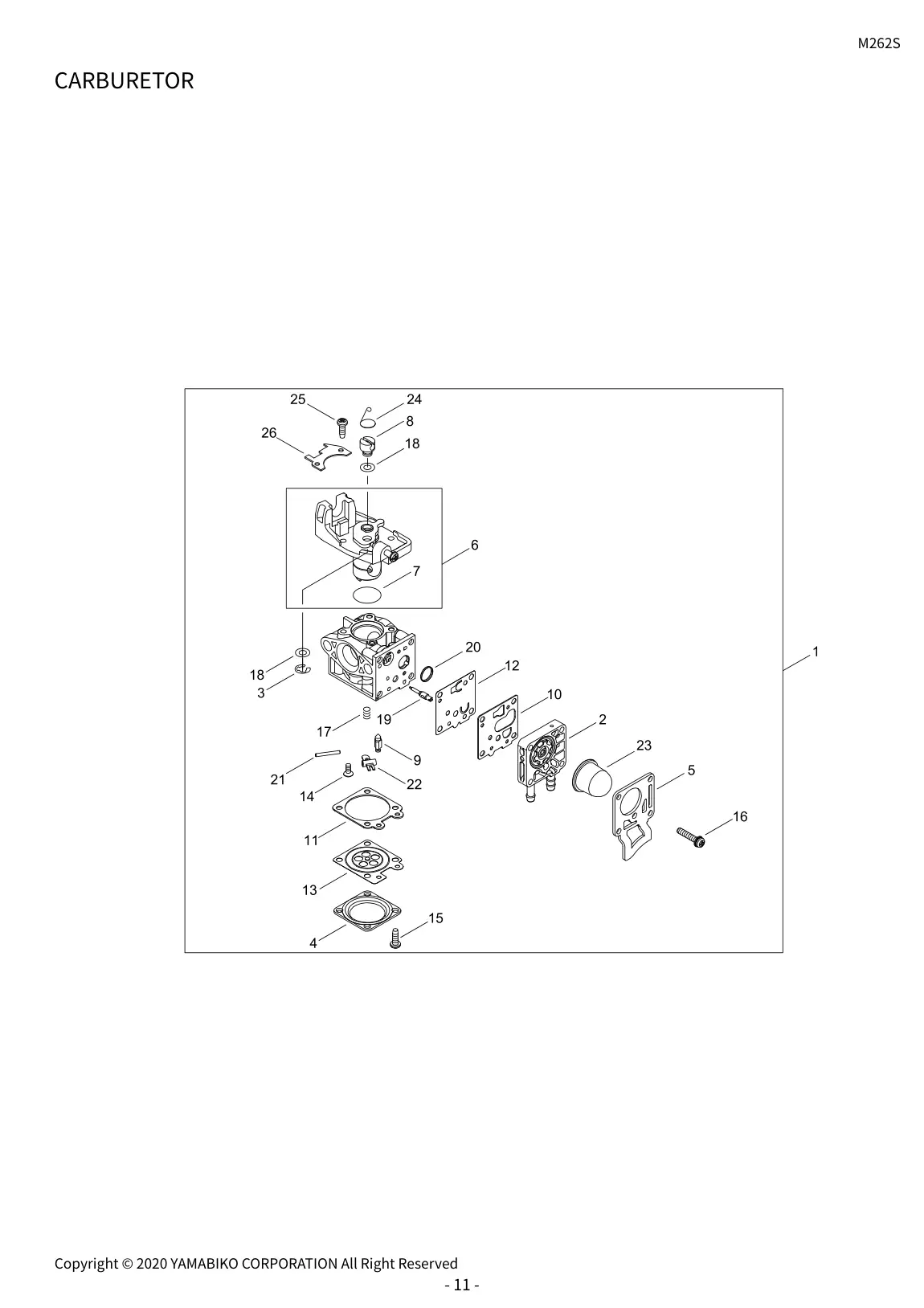

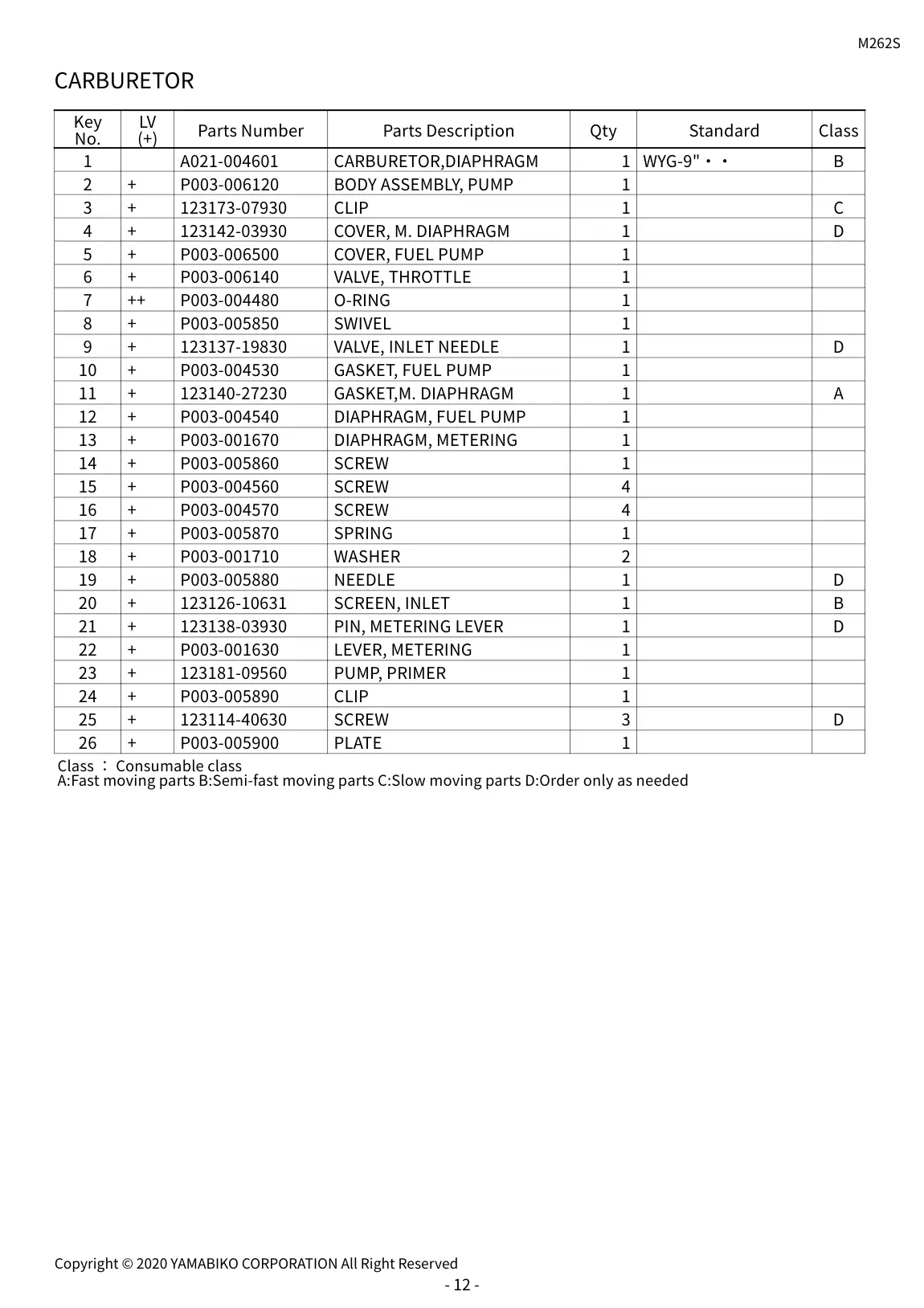

| 15 | CARBURETOR | 1 | CARBURETOR,DIAPHRAGM | A021-004601 | A021-004601-Online |
| 15 | CARBURETOR | 10 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 15 | CARBURETOR | 11 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 15 | CARBURETOR | 12 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 15 | CARBURETOR | 13 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 15 | CARBURETOR | 14 | SCREW | P003-005860 | P003-005860-Online |
| 15 | CARBURETOR | 15 | SCREW | P003-004560 | P003-004560-Online |
| 15 | CARBURETOR | 16 | SCREW | P003-004570 | P003-004570-Online |
| 15 | CARBURETOR | 17 | SPRING | P003-005870 | P003-005870-Online |
| 15 | CARBURETOR | 18 | WASHER | P003-001710 | P003-001710-Online |
| 15 | CARBURETOR | 19 | NEEDLE | P003-005880 | P003-005880-Online |
| 15 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006120 | P003-006120-Online |
| 15 | CARBURETOR | 20 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 15 | CARBURETOR | 21 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 15 | CARBURETOR | 22 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 15 | CARBURETOR | 23 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 15 | CARBURETOR | 24 | CLIP | P003-005890 | P003-005890-Online |
| 15 | CARBURETOR | 25 | SCREW | 123114-40630 | 123114-40630-Online |
| 15 | CARBURETOR | 26 | PLATE | P003-005900 | P003-005900-Online |
| 15 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 15 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 15 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-006500 | P003-006500-Online |
| 15 | CARBURETOR | 6 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 15 | CARBURETOR | 7 | O-RING | P003-004480 | P003-004480-Online |
| 15 | CARBURETOR | 8 | SWIVEL | P003-005850 | P003-005850-Online |
| 15 | CARBURETOR | 9 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |

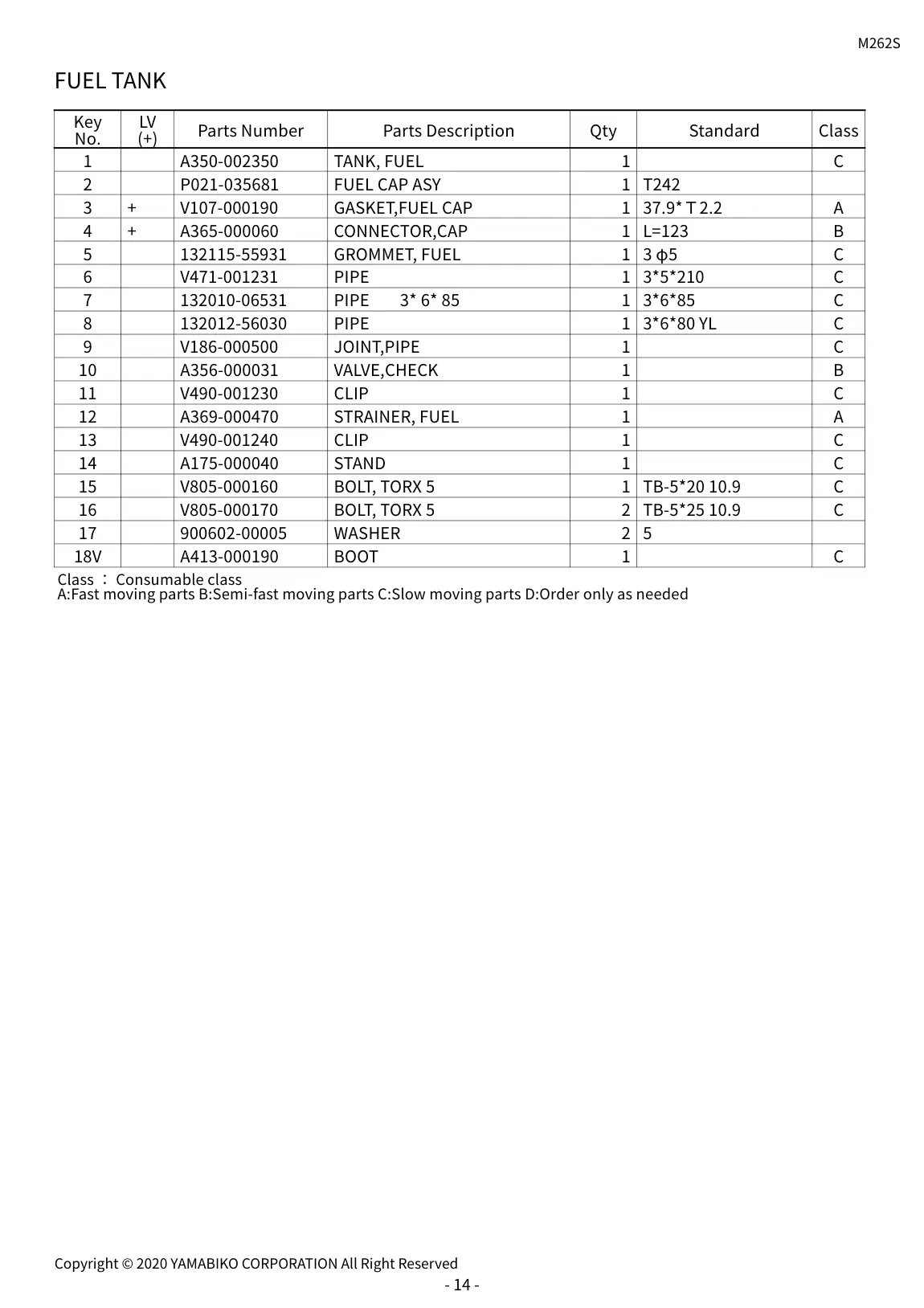

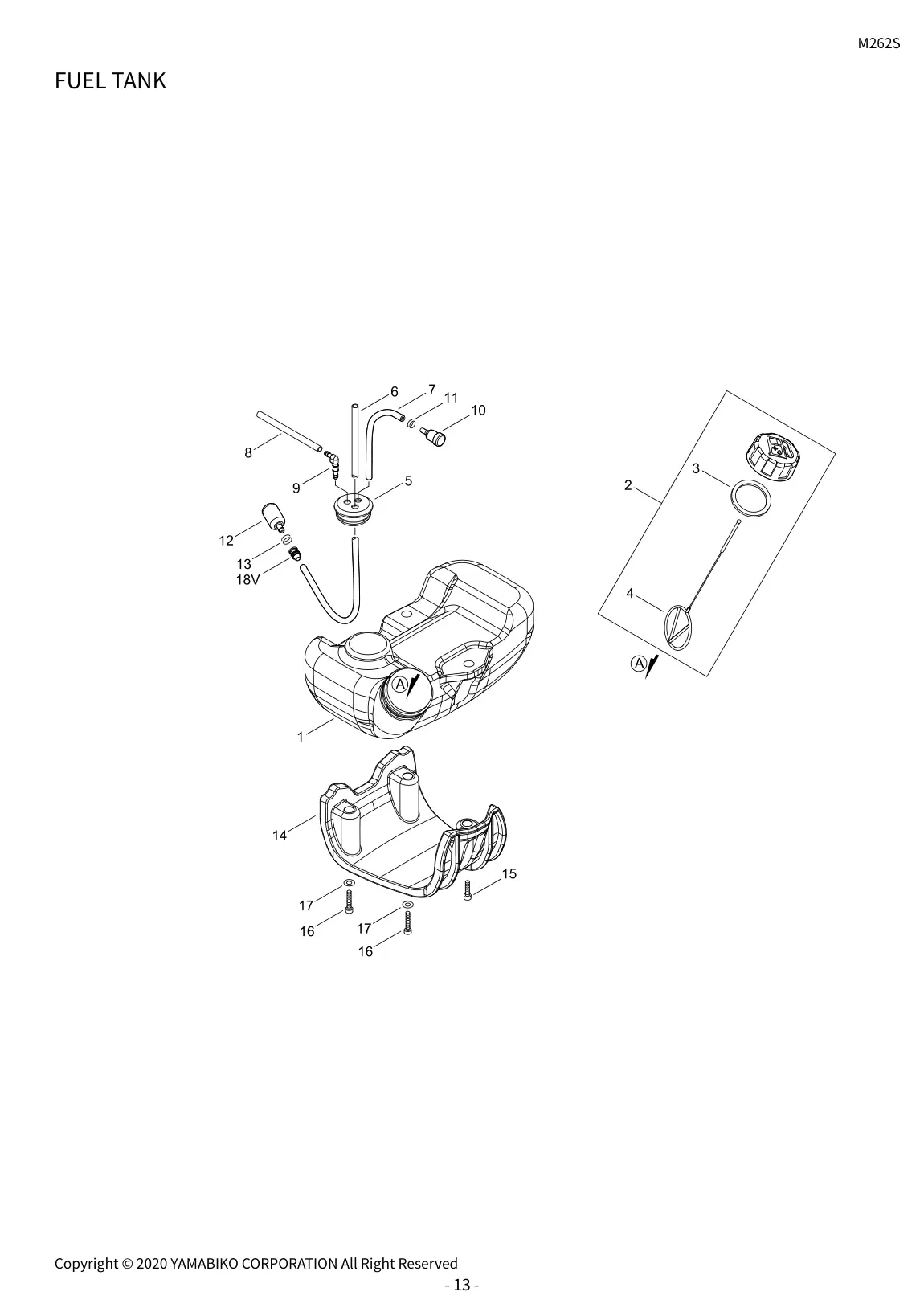

| 17 | FUEL TANK | 1 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 17 | FUEL TANK | 10 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 17 | FUEL TANK | 11 | CLIP | V490-001230 | V490-001230-Online |
| 17 | FUEL TANK | 12 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 17 | FUEL TANK | 13 | CLIP | V490-001240 | V490-001240-Online |
| 17 | FUEL TANK | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 17 | FUEL TANK | 16 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 17 | FUEL TANK | 17 | WASHER | 900602-00005 | 900602-00005-Online |
| 17 | FUEL TANK | 2 | FUEL CAP ASY | P021-035681 | P021-035681-Online |
| 17 | FUEL TANK | 3 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 17 | FUEL TANK | 4 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 17 | FUEL TANK | 5 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 17 | FUEL TANK | 6 | PIPE | V471-001231 | V471-001231-Online |
| 17 | FUEL TANK | 7 | PIPE 3* 6* | 132010-06531 | 132010-06531-Online |
| 17 | FUEL TANK | 8 | PIPE | 132012-56030 | 132012-56030-Online |
| 17 | FUEL TANK | 9 | JOINT,PIPE | V186-000500 | V186-000500-Online |

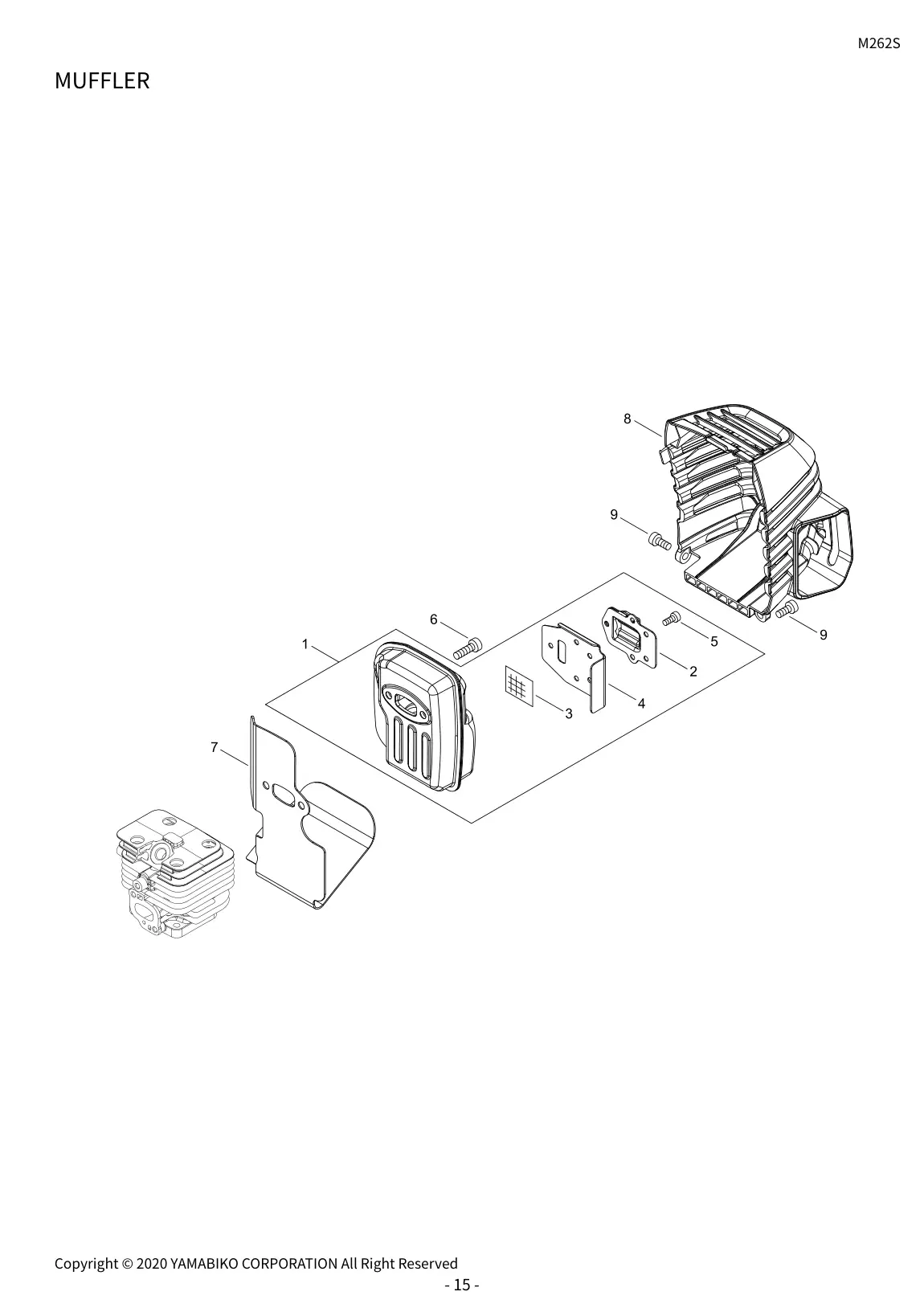

| 19 | MUFFLER | 1 | MUFFLER ASY | P100-004021 | P100-004021-Online |
| 19 | MUFFLER | 2 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 19 | MUFFLER | 3 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 19 | MUFFLER | 4 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 19 | MUFFLER | 5 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 19 | MUFFLER | 6 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 19 | MUFFLER | 7 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 19 | MUFFLER | 8 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 19 | MUFFLER | 9 | BOLT, TORX | V835-000010 | V835-000010-Online |

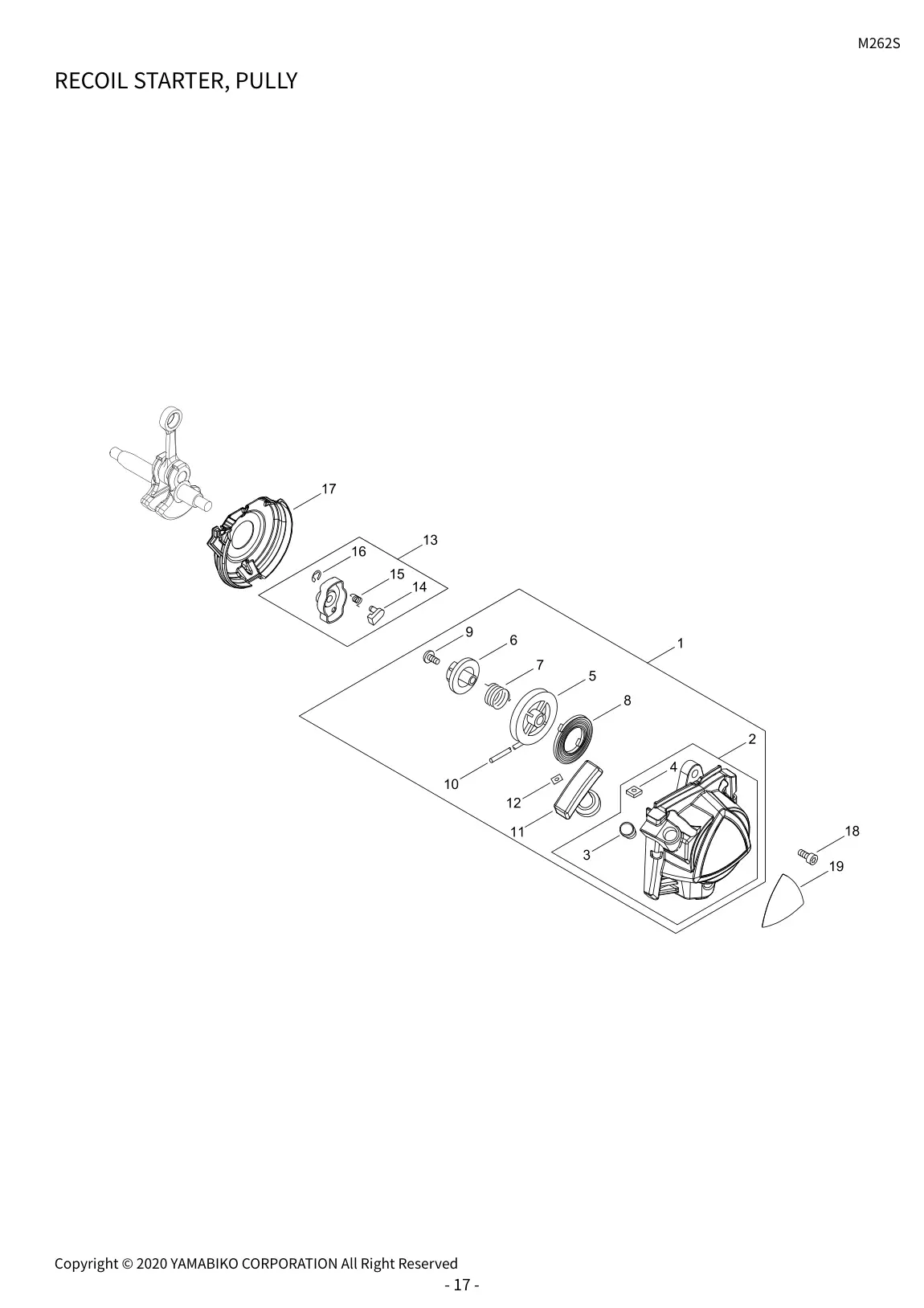

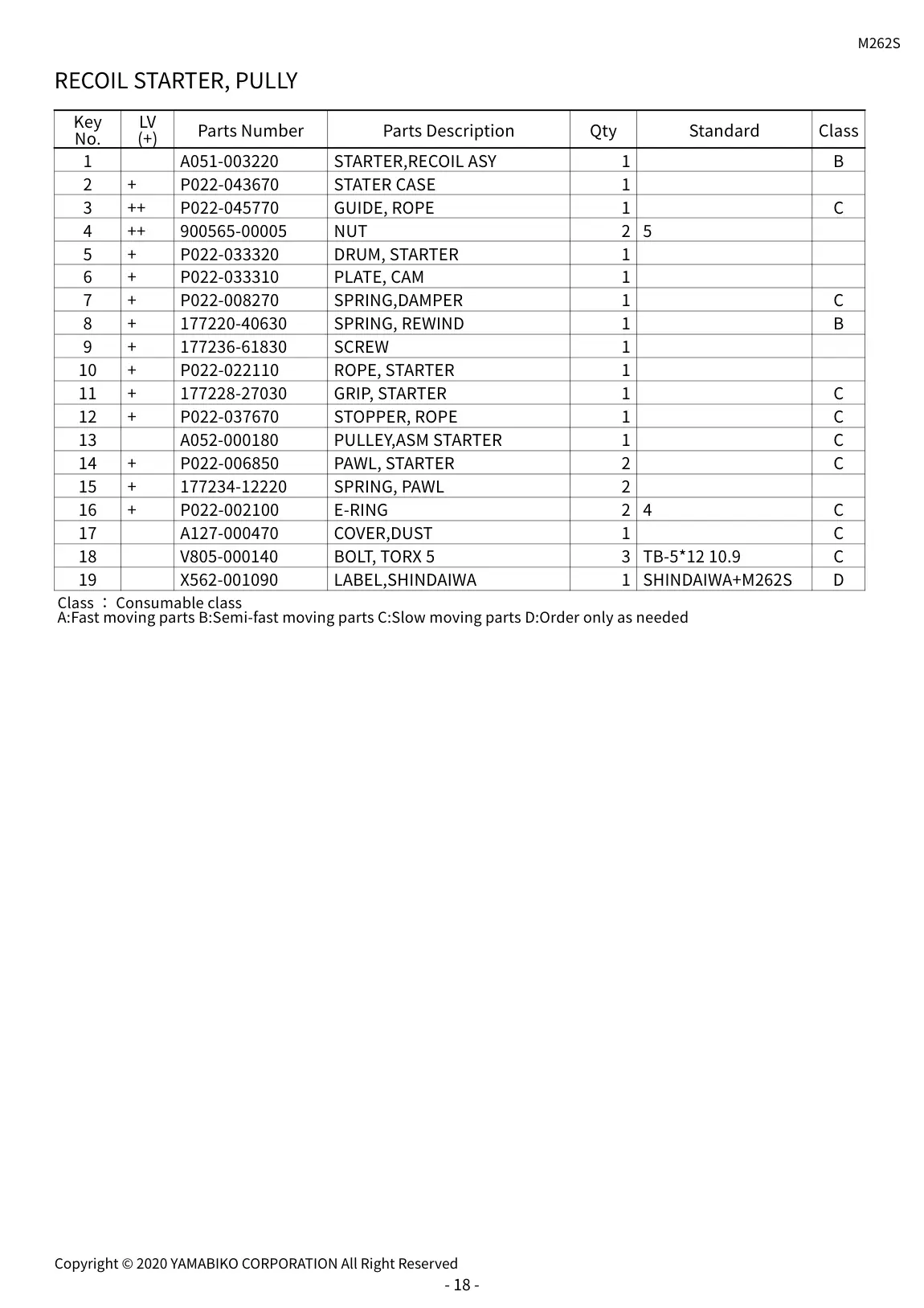

| 21 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 21 | RECOIL STARTER, PULLY | 10 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 21 | RECOIL STARTER, PULLY | 11 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 21 | RECOIL STARTER, PULLY | 12 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 21 | RECOIL STARTER, PULLY | 13 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 21 | RECOIL STARTER, PULLY | 14 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 21 | RECOIL STARTER, PULLY | 15 | SPRING, PAWL | 177234-12220 | 177234-12220-Online |
| 21 | RECOIL STARTER, PULLY | 16 | E-RING | P022-002100 | P022-002100-Online |
| 21 | RECOIL STARTER, PULLY | 17 | COVER,DUST | A127-000470 | A127-000470-Online |
| 21 | RECOIL STARTER, PULLY | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 21 | RECOIL STARTER, PULLY | 19 | LABEL,SHINDAIWA | X562-001090 | X562-001090-Online |
| 21 | RECOIL STARTER, PULLY | 2 | STATER CASE | P022-043670 | P022-043670-Online |
| 21 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 21 | RECOIL STARTER, PULLY | 4 | NUT | 900565-00005 | 900565-00005-Online |
| 21 | RECOIL STARTER, PULLY | 5 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 21 | RECOIL STARTER, PULLY | 6 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 21 | RECOIL STARTER, PULLY | 7 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 21 | RECOIL STARTER, PULLY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 21 | RECOIL STARTER, PULLY | 9 | SCREW | 177236-61830 | 177236-61830-Online |

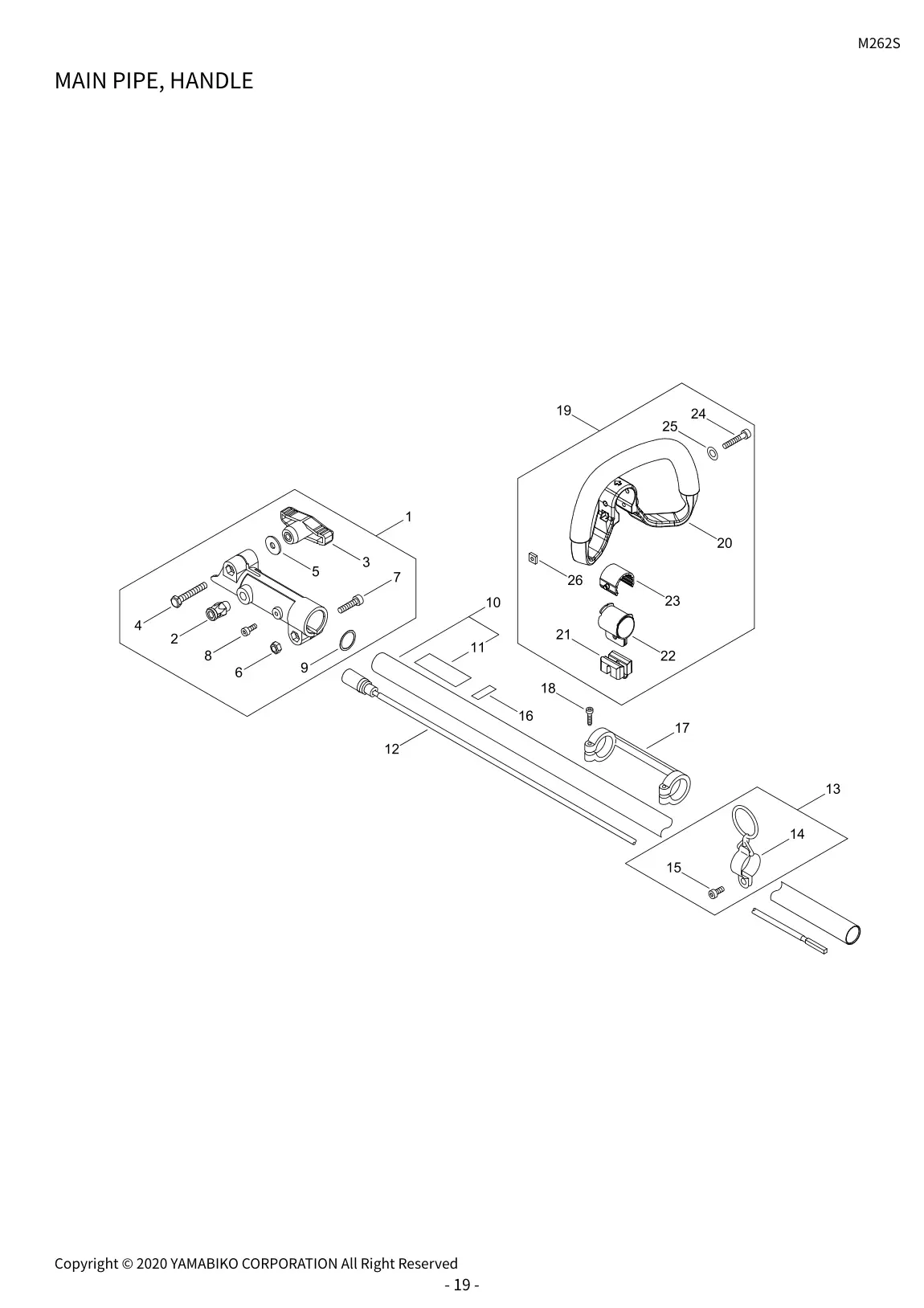

| 23 | MAIN PIPE, HANDLE | 1 | COUPLING, MAIN PIPE | C510-000330 | C510-000330-Online |
| 23 | MAIN PIPE, HANDLE | 10 | MAIN PIPE ASY | P100-005860 | P100-005860-Online |
| 23 | MAIN PIPE, HANDLE | 11 | LABEL,CAUTION | X505-006800 | X505-006800-Online |
| 23 | MAIN PIPE, HANDLE | 12 | SHAFT, FLEXIBLE | C506-000550 | C506-000550-Online |
| 23 | MAIN PIPE, HANDLE | 13 | HOOK ASY | P021-051240 | P021-051240-Online |
| 23 | MAIN PIPE, HANDLE | 14 | RING, HARNESS | C646-000060 | C646-000060-Online |
| 23 | MAIN PIPE, HANDLE | 15 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 23 | MAIN PIPE, HANDLE | 16 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 23 | MAIN PIPE, HANDLE | 17 | COLLAR,24 | V363-000320 | V363-000320-Online |
| 23 | MAIN PIPE, HANDLE | 18 | BOLT, TORX | V804-000020 | V804-000020-Online |
| 23 | MAIN PIPE, HANDLE | 19 | HANDLE ASY | P021-047681 | P021-047681-Online |
| 23 | MAIN PIPE, HANDLE | 2 | LATCH ASY | P100-005150 | P100-005150-Online |
| 23 | MAIN PIPE, HANDLE | 20 | HANDLE,FRONT | C400-001021 | C400-001021-Online |
| 23 | MAIN PIPE, HANDLE | 21 | PIECE,HANDLE | C401-000280 | C401-000280-Online |
| 23 | MAIN PIPE, HANDLE | 22 | FIXTURE, CUSHION | C610-000050 | C610-000050-Online |
| 23 | MAIN PIPE, HANDLE | 23 | CUSHION | V420-003700 | V420-003700-Online |
| 23 | MAIN PIPE, HANDLE | 24 | BOLT, TORX | V805-000280 | V805-000280-Online |
| 23 | MAIN PIPE, HANDLE | 25 | WASHER | 900603-00005 | 900603-00005-Online |
| 23 | MAIN PIPE, HANDLE | 26 | NUT | V263-000130 | V263-000130-Online |
| 23 | MAIN PIPE, HANDLE | 3 | KNOB,FASTENER | V299-000660 | V299-000660-Online |
| 23 | MAIN PIPE, HANDLE | 4 | BOLT | 91085-06040 | 91085-06040-Online |
| 23 | MAIN PIPE, HANDLE | 5 | WASHER,CIRCULAR | V304-000040 | V304-000040-Online |
| 23 | MAIN PIPE, HANDLE | 6 | NUT | 900514-00006 | 900514-00006-Online |
| 23 | MAIN PIPE, HANDLE | 7 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 23 | MAIN PIPE, HANDLE | 8 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 23 | MAIN PIPE, HANDLE | 9 | WASHER,CIRCULAR | V312-000010 | V312-000010-Online |

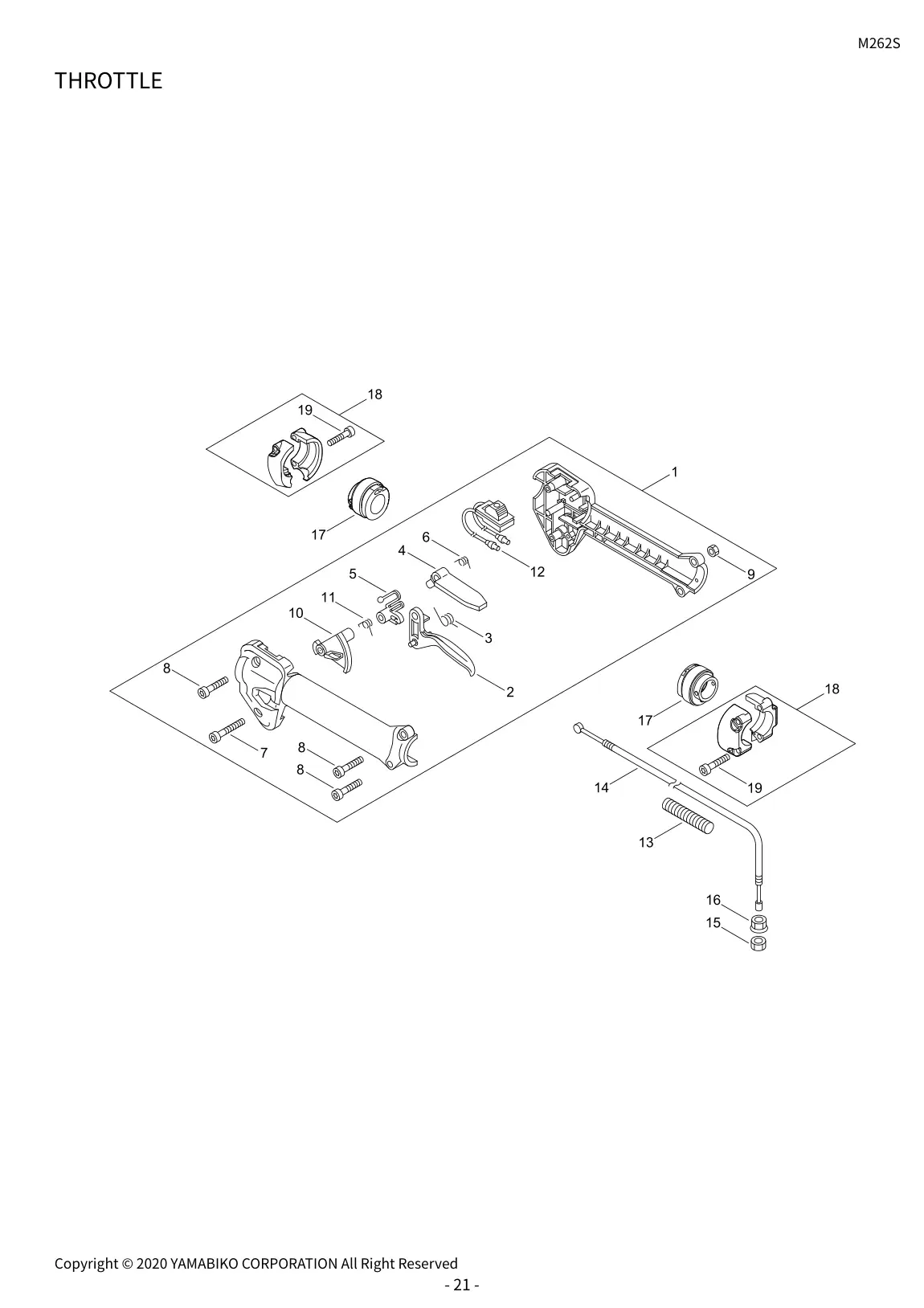

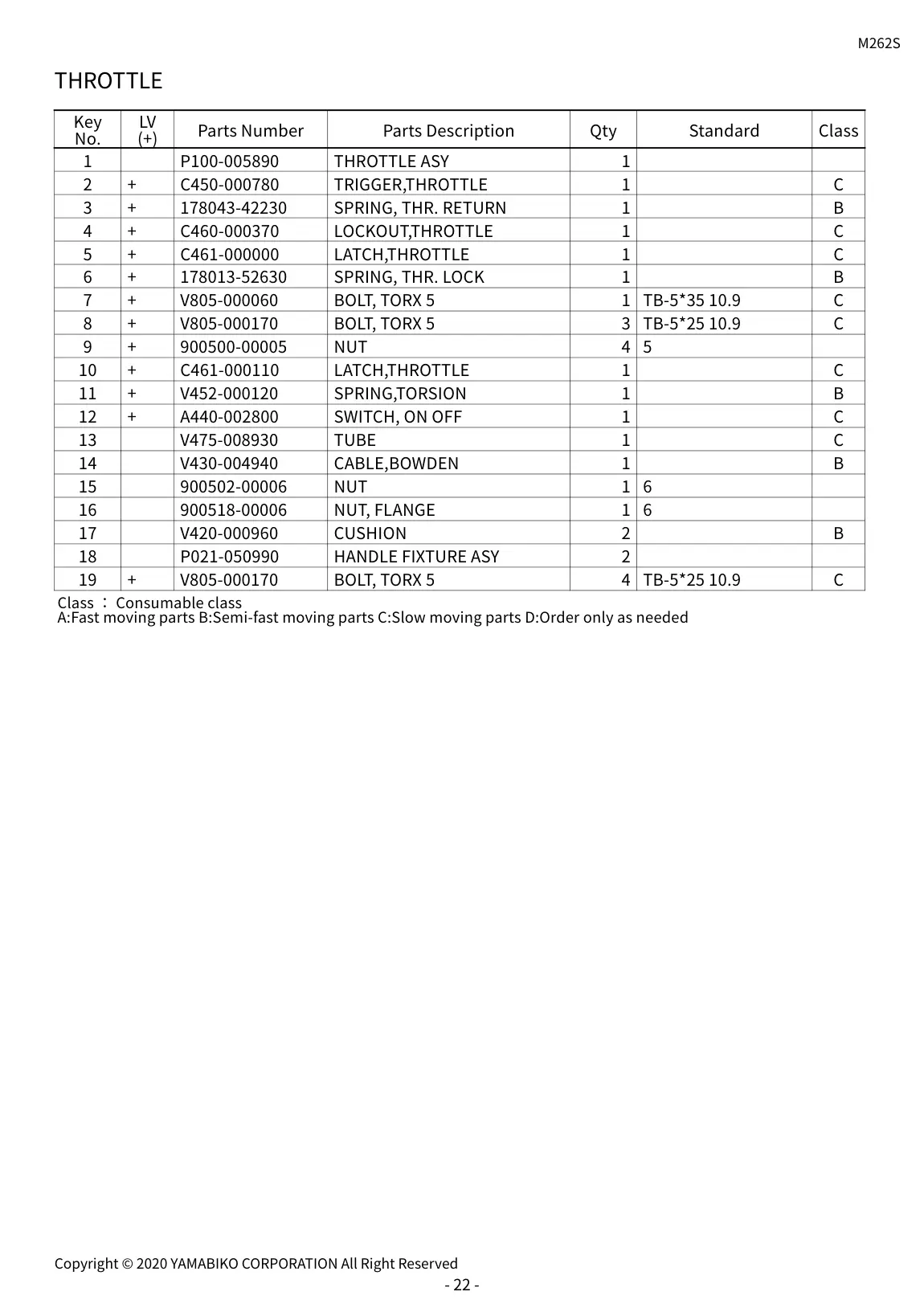

| 25 | THROTTLE | 1 | THROTTLE ASY | P100-005890 | P100-005890-Online |
| 25 | THROTTLE | 10 | LATCH,THROTTLE | C461-000110 | C461-000110-Online |
| 25 | THROTTLE | 11 | SPRING,TORSION | V452-000120 | V452-000120-Online |
| 25 | THROTTLE | 12 | SWITCH, ON OFF | A440-002800 | A440-002800-Online |
| 25 | THROTTLE | 13 | TUBE | V475-008930 | V475-008930-Online |
| 25 | THROTTLE | 14 | CABLE,BOWDEN | V430-004940 | V430-004940-Online |
| 25 | THROTTLE | 15 | NUT | 900502-00006 | 900502-00006-Online |
| 25 | THROTTLE | 16 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 25 | THROTTLE | 17 | CUSHION | V420-000960 | V420-000960-Online |
| 25 | THROTTLE | 18 | HANDLE FIXTURE ASY | P021-050990 | P021-050990-Online |
| 25 | THROTTLE | 19 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 25 | THROTTLE | 2 | TRIGGER,THROTTLE | C450-000780 | C450-000780-Online |
| 25 | THROTTLE | 3 | SPRING, THR. RETURN | 178043-42230 | 178043-42230-Online |
| 25 | THROTTLE | 4 | LOCKOUT,THROTTLE | C460-000370 | C460-000370-Online |
| 25 | THROTTLE | 5 | LATCH,THROTTLE | C461-000000 | C461-000000-Online |
| 25 | THROTTLE | 6 | SPRING, THR. LOCK | 178013-52630 | 178013-52630-Online |
| 25 | THROTTLE | 7 | BOLT, TORX | V805-000060 | V805-000060-Online |
| 25 | THROTTLE | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 25 | THROTTLE | 9 | NUT | 900500-00005 | 900500-00005-Online |

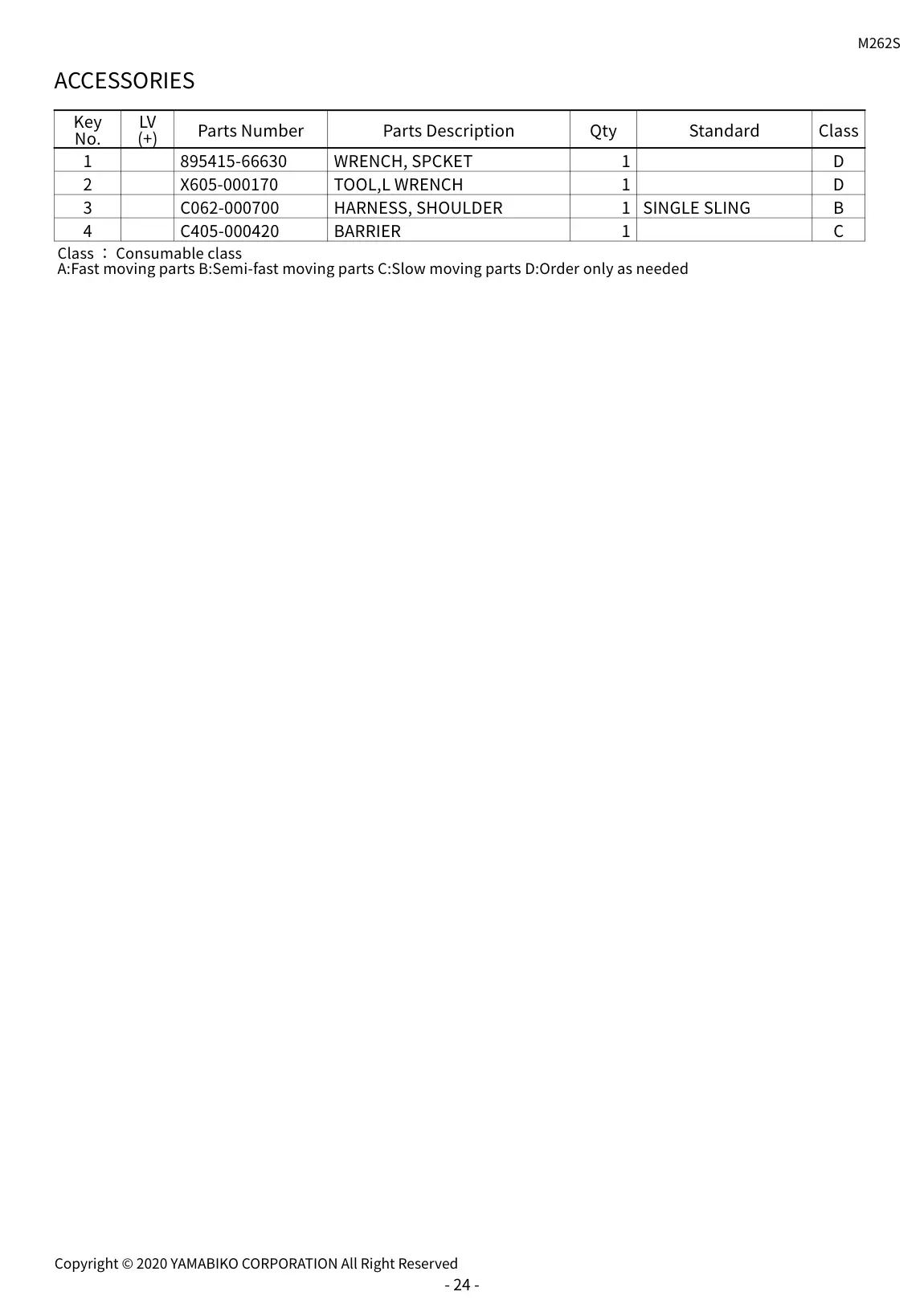

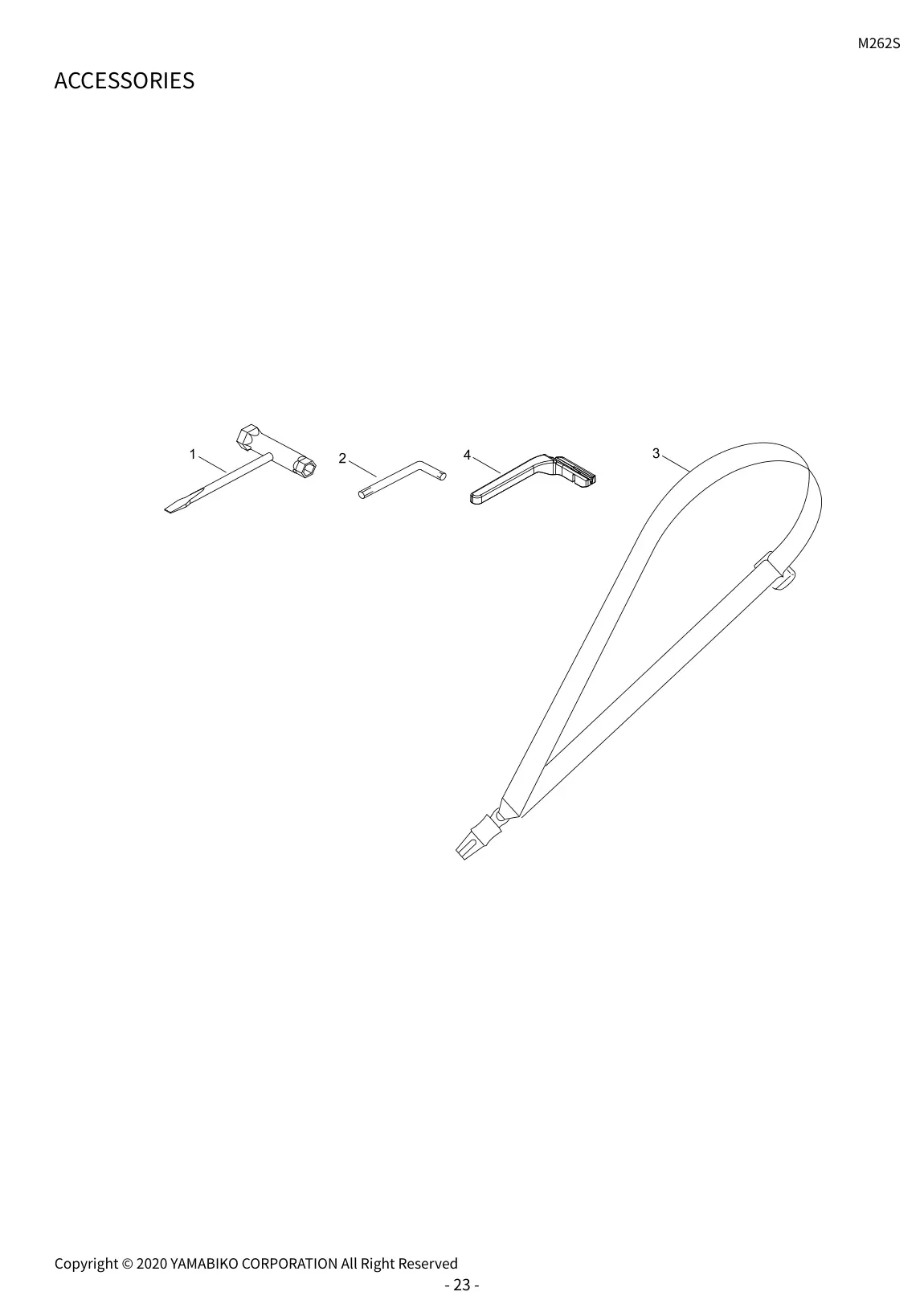

| 27 | ACCESSORIES | 1 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 27 | ACCESSORIES | 2 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 27 | ACCESSORIES | 3 | HARNESS, SHOULDER | C062-000700 | C062-000700-Online |
| 27 | ACCESSORIES | 4 | BARRIER | C405-000420 | C405-000420-Online |

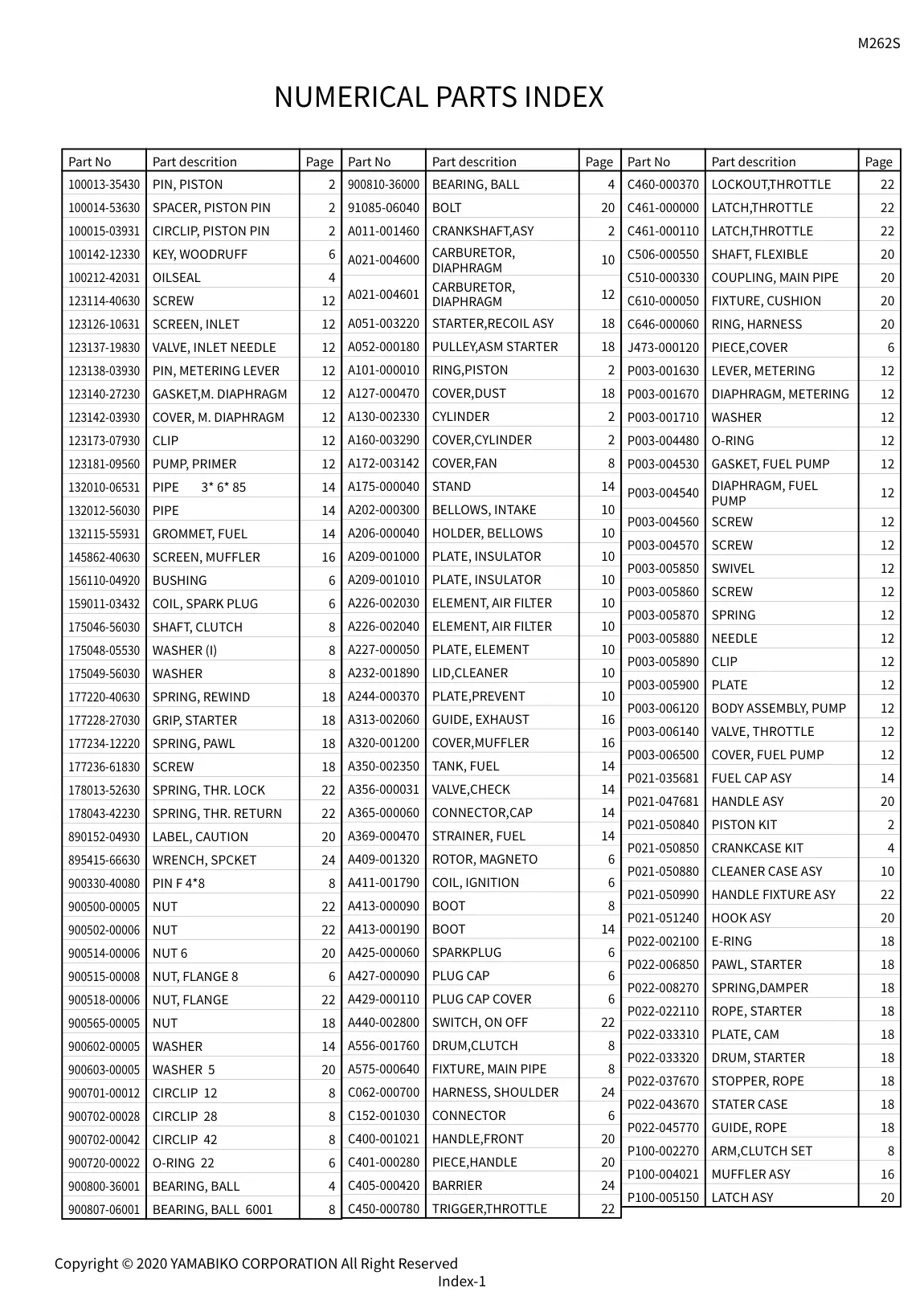

| 28 | LATCH ASY | PIN, PISTON | 100013-35430 | 100013-35430-Online | |
| 28 | LATCH ASY | 10 | CARBURETOR, | A021-004601 | A021-004601-Online |
| 28 | LATCH ASY | 10 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 28 | LATCH ASY | 10 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 28 | LATCH ASY | 10 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 28 | LATCH ASY | 10 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 28 | LATCH ASY | 10 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 28 | LATCH ASY | 10 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 28 | LATCH ASY | 10 | LID,CLEANER | A232-001890 | A232-001890-Online |
| 28 | LATCH ASY | 10 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 28 | LATCH ASY | 10 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 28 | LATCH ASY | 10 | HANDLE FIXTURE ASY | P021-050990 | P021-050990-Online |
| 28 | LATCH ASY | 12 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 28 | LATCH ASY | 12 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 28 | LATCH ASY | 12 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 28 | LATCH ASY | 12 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 28 | LATCH ASY | 12 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 28 | LATCH ASY | 12 | CLIP | 123173-07930 | 123173-07930-Online |
| 28 | LATCH ASY | 12 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 28 | LATCH ASY | 12 | PIPE 3* 6* | 132010-06531 | 132010-06531-Online |
| 28 | LATCH ASY | 12 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 28 | LATCH ASY | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 28 | LATCH ASY | 12 | WASHER | P003-001710 | P003-001710-Online |
| 28 | LATCH ASY | 12 | O-RING | P003-004480 | P003-004480-Online |
| 28 | LATCH ASY | 12 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 28 | LATCH ASY | 12 | DIAPHRAGM, FUEL | P003-004540 | P003-004540-Online |
| 28 | LATCH ASY | 12 | SCREW | P003-004560 | P003-004560-Online |
| 28 | LATCH ASY | 12 | SCREW | P003-004570 | P003-004570-Online |
| 28 | LATCH ASY | 12 | SWIVEL | P003-005850 | P003-005850-Online |
| 28 | LATCH ASY | 12 | SCREW | P003-005860 | P003-005860-Online |
| 28 | LATCH ASY | 12 | SPRING | P003-005870 | P003-005870-Online |
| 28 | LATCH ASY | 12 | NEEDLE | P003-005880 | P003-005880-Online |
| 28 | LATCH ASY | 12 | CLIP | P003-005890 | P003-005890-Online |
| 28 | LATCH ASY | 12 | PLATE | P003-005900 | P003-005900-Online |
| 28 | LATCH ASY | 12 | BODY ASSEMBLY, PUMP | P003-006120 | P003-006120-Online |
| 28 | LATCH ASY | 12 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 28 | LATCH ASY | 12 | COVER, FUEL PUMP | P003-006500 | P003-006500-Online |
| 28 | LATCH ASY | 12 | FUEL CAP ASY | P021-035681 | P021-035681-Online |
| 28 | LATCH ASY | 14 | PIPE | 132012-56030 | 132012-56030-Online |
| 28 | LATCH ASY | 14 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 28 | LATCH ASY | 14 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 28 | LATCH ASY | 14 | WASHER | 900603-00005 | 900603-00005-Online |
| 28 | LATCH ASY | 14 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 28 | LATCH ASY | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 28 | LATCH ASY | 14 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 28 | LATCH ASY | 14 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 28 | LATCH ASY | 14 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 28 | LATCH ASY | 14 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 28 | LATCH ASY | 14 | HANDLE ASY | P021-047681 | P021-047681-Online |
| 28 | LATCH ASY | 16 | BUSHING | 156110-04920 | 156110-04920-Online |
| 28 | LATCH ASY | 16 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 28 | LATCH ASY | 16 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 28 | LATCH ASY | 16 | LATCH ASY | P100-005150 | P100-005150-Online |
| 28 | LATCH ASY | 18 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 28 | LATCH ASY | 18 | SPRING, PAWL | 177234-12220 | 177234-12220-Online |
| 28 | LATCH ASY | 18 | SCREW | 177236-61830 | 177236-61830-Online |
| 28 | LATCH ASY | 18 | SPRING, THR. LOCK | 178013-52630 | 178013-52630-Online |
| 28 | LATCH ASY | 18 | WASHER | 900602-00005 | 900602-00005-Online |
| 28 | LATCH ASY | 18 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 28 | LATCH ASY | 18 | RING,PISTON | A101-000010 | A101-000010-Online |
| 28 | LATCH ASY | 18 | CYLINDER | A130-002330 | A130-002330-Online |
| 28 | LATCH ASY | 18 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 28 | LATCH ASY | 18 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 28 | LATCH ASY | 18 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 28 | LATCH ASY | 18 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 28 | LATCH ASY | 18 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 28 | LATCH ASY | 18 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 28 | LATCH ASY | 18 | STATER CASE | P022-043670 | P022-043670-Online |
| 28 | LATCH ASY | 18 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 28 | LATCH ASY | 18 | ARM,CLUTCH SET | P100-002270 | P100-002270-Online |
| 28 | LATCH ASY | 2 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 28 | LATCH ASY | 2 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 28 | LATCH ASY | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 28 | LATCH ASY | 2 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 28 | LATCH ASY | 2 | COVER,DUST | A127-000470 | A127-000470-Online |
| 28 | LATCH ASY | 2 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 28 | LATCH ASY | 2 | COVER,FAN | A172-003142 | A172-003142-Online |
| 28 | LATCH ASY | 2 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 28 | LATCH ASY | 20 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 28 | LATCH ASY | 20 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 28 | LATCH ASY | 20 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 28 | LATCH ASY | 20 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 28 | LATCH ASY | 20 | PIECE,HANDLE | C401-000280 | C401-000280-Online |
| 28 | LATCH ASY | 20 | BARRIER | C405-000420 | C405-000420-Online |
| 28 | LATCH ASY | 20 | COUPLING, MAIN PIPE | C510-000330 | C510-000330-Online |
| 28 | LATCH ASY | 20 | FIXTURE, CUSHION | C610-000050 | C610-000050-Online |
| 28 | LATCH ASY | 20 | RING, HARNESS | C646-000060 | C646-000060-Online |
| 28 | LATCH ASY | 20 | PIECE,COVER | J473-000120 | J473-000120-Online |
| 28 | LATCH ASY | 20 | PISTON KIT | P021-050840 | P021-050840-Online |
| 28 | LATCH ASY | 20 | E-RING | P022-002100 | P022-002100-Online |
| 28 | LATCH ASY | 22 | SPRING, THR. RETURN | 178043-42230 | 178043-42230-Online |
| 28 | LATCH ASY | 22 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 28 | LATCH ASY | 22 | NUT | 900502-00006 | 900502-00006-Online |
| 28 | LATCH ASY | 22 | NUT | 900514-00006 | 900514-00006-Online |
| 28 | LATCH ASY | 22 | NUT | 900565-00005 | 900565-00005-Online |
| 28 | LATCH ASY | 22 | DRUM,CLUTCH | A556-001760 | A556-001760-Online |
| 28 | LATCH ASY | 22 | LOCKOUT,THROTTLE | C460-000370 | C460-000370-Online |
| 28 | LATCH ASY | 22 | LATCH,THROTTLE | C461-000000 | C461-000000-Online |
| 28 | LATCH ASY | 22 | LATCH,THROTTLE | C461-000110 | C461-000110-Online |
| 28 | LATCH ASY | 22 | SHAFT, FLEXIBLE | C506-000550 | C506-000550-Online |
| 28 | LATCH ASY | 22 | HOOK ASY | P021-051240 | P021-051240-Online |
| 28 | LATCH ASY | 24 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 28 | LATCH ASY | 24 | CONNECTOR | C152-001030 | C152-001030-Online |
| 28 | LATCH ASY | 24 | TRIGGER,THROTTLE | C450-000780 | C450-000780-Online |
| 28 | LATCH ASY | 4 | SCREW | 123114-40630 | 123114-40630-Online |
| 28 | LATCH ASY | 4 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 28 | LATCH ASY | 4 | BOLT | 91085-06040 | 91085-06040-Online |
| 28 | LATCH ASY | 4 | CLEANER CASE ASY | P021-050880 | P021-050880-Online |
| 28 | LATCH ASY | 6 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 28 | LATCH ASY | 6 | COIL, SPARK PLUG | 159011-03432 | 159011-03432-Online |
| 28 | LATCH ASY | 6 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 28 | LATCH ASY | 6 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 28 | LATCH ASY | 6 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 28 | LATCH ASY | 6 | COIL, IGNITION | A411-001790 | A411-001790-Online |
| 28 | LATCH ASY | 6 | PLUG CAP | A427-000090 | A427-000090-Online |
| 28 | LATCH ASY | 6 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 28 | LATCH ASY | 6 | SWITCH, ON OFF | A440-002800 | A440-002800-Online |
| 28 | LATCH ASY | 6 | HANDLE,FRONT | C400-001021 | C400-001021-Online |
| 28 | LATCH ASY | 6 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 28 | LATCH ASY | 8 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 28 | LATCH ASY | 8 | WASHER | 175049-56030 | 175049-56030-Online |
| 28 | LATCH ASY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 28 | LATCH ASY | 8 | NUT | 900500-00005 | 900500-00005-Online |
| 28 | LATCH ASY | 8 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 28 | LATCH ASY | 8 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 28 | LATCH ASY | 8 | O-RING | 900720-00022 | 900720-00022-Online |
| 28 | LATCH ASY | 8 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 28 | LATCH ASY | 8 | FIXTURE, MAIN PIPE | A575-000640 | A575-000640-Online |
| 28 | LATCH ASY | 8 | HARNESS, SHOULDER | C062-000700 | C062-000700-Online |
| 28 | LATCH ASY | 8 | MUFFLER ASY | P100-004021 | P100-004021-Online |

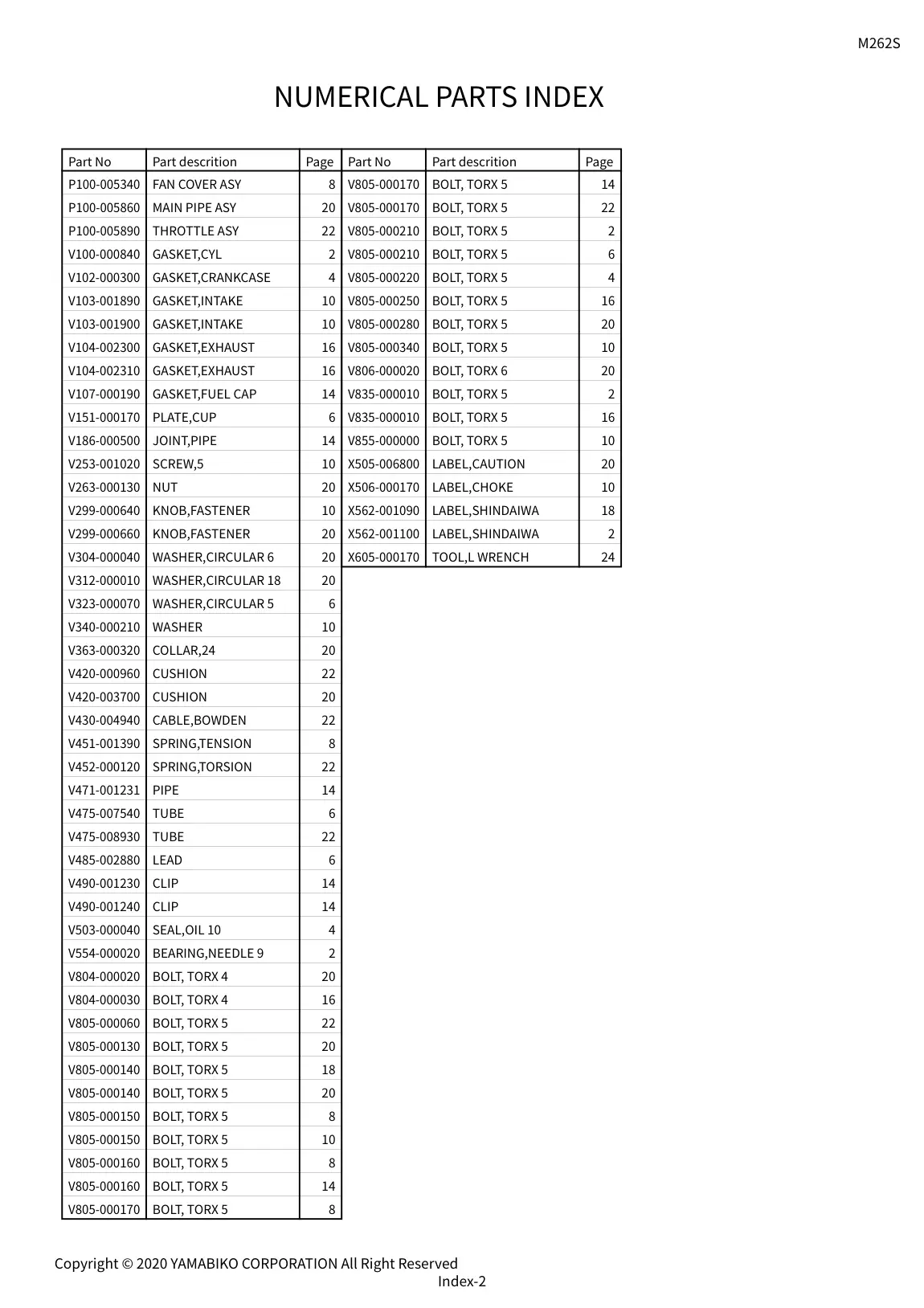

| 29 | TOOL,L WRENCH | FAN COVER ASY | P100-005340 | P100-005340-Online | |
| 29 | TOOL,L WRENCH | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 29 | TOOL,L WRENCH | 10 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 29 | TOOL,L WRENCH | 10 | NUT | V263-000130 | V263-000130-Online |
| 29 | TOOL,L WRENCH | 10 | KNOB,FASTENER | V299-000660 | V299-000660-Online |
| 29 | TOOL,L WRENCH | 10 | COLLAR,24 | V363-000320 | V363-000320-Online |
| 29 | TOOL,L WRENCH | 10 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 29 | TOOL,L WRENCH | 10 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 29 | TOOL,L WRENCH | 10 | LABEL,CAUTION | X505-006800 | X505-006800-Online |
| 29 | TOOL,L WRENCH | 10 | LABEL,SHINDAIWA | X562-001090 | X562-001090-Online |
| 29 | TOOL,L WRENCH | 14 | PLATE,CUP | V151-000170 | V151-000170-Online |
| 29 | TOOL,L WRENCH | 14 | SCREW,5 | V253-001020 | V253-001020-Online |
| 29 | TOOL,L WRENCH | 14 | TUBE | V475-007540 | V475-007540-Online |
| 29 | TOOL,L WRENCH | 14 | CLIP | V490-001240 | V490-001240-Online |
| 29 | TOOL,L WRENCH | 14 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 29 | TOOL,L WRENCH | 14 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 29 | TOOL,L WRENCH | 16 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 29 | TOOL,L WRENCH | 16 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 29 | TOOL,L WRENCH | 16 | BOLT, TORX | V805-000060 | V805-000060-Online |
| 29 | TOOL,L WRENCH | 16 | BOLT, TORX | V805-000280 | V805-000280-Online |
| 29 | TOOL,L WRENCH | 16 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 29 | TOOL,L WRENCH | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 29 | TOOL,L WRENCH | 18 | LABEL,SHINDAIWA | X562-001100 | X562-001100-Online |
| 29 | TOOL,L WRENCH | 2 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 29 | TOOL,L WRENCH | 2 | BOLT, TORX | V804-000020 | V804-000020-Online |
| 29 | TOOL,L WRENCH | 2 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 29 | TOOL,L WRENCH | 2 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 29 | TOOL,L WRENCH | 2 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 29 | TOOL,L WRENCH | 20 | THROTTLE ASY | P100-005890 | P100-005890-Online |
| 29 | TOOL,L WRENCH | 20 | KNOB,FASTENER | V299-000640 | V299-000640-Online |
| 29 | TOOL,L WRENCH | 20 | WASHER,CIRCULAR | V304-000040 | V304-000040-Online |
| 29 | TOOL,L WRENCH | 20 | WASHER,CIRCULAR | V312-000010 | V312-000010-Online |
| 29 | TOOL,L WRENCH | 20 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 29 | TOOL,L WRENCH | 20 | CUSHION | V420-000960 | V420-000960-Online |
| 29 | TOOL,L WRENCH | 20 | CABLE,BOWDEN | V430-004940 | V430-004940-Online |
| 29 | TOOL,L WRENCH | 20 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 29 | TOOL,L WRENCH | 20 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 29 | TOOL,L WRENCH | 20 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 29 | TOOL,L WRENCH | 20 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 29 | TOOL,L WRENCH | 20 | BOLT, TORX | V835-000010 | V835-000010-Online |
| 29 | TOOL,L WRENCH | 20 | LABEL,CHOKE | X506-000170 | X506-000170-Online |
| 29 | TOOL,L WRENCH | 22 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 29 | TOOL,L WRENCH | 22 | CUSHION | V420-003700 | V420-003700-Online |
| 29 | TOOL,L WRENCH | 22 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 29 | TOOL,L WRENCH | 22 | PIPE | V471-001231 | V471-001231-Online |
| 29 | TOOL,L WRENCH | 22 | LEAD | V485-002880 | V485-002880-Online |
| 29 | TOOL,L WRENCH | 22 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 29 | TOOL,L WRENCH | 22 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 29 | TOOL,L WRENCH | 4 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 29 | TOOL,L WRENCH | 4 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 29 | TOOL,L WRENCH | 4 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 29 | TOOL,L WRENCH | 6 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 29 | TOOL,L WRENCH | 6 | WASHER | V340-000210 | V340-000210-Online |
| 29 | TOOL,L WRENCH | 6 | TUBE | V475-008930 | V475-008930-Online |
| 29 | TOOL,L WRENCH | 6 | CLIP | V490-001230 | V490-001230-Online |
| 29 | TOOL,L WRENCH | 6 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 29 | TOOL,L WRENCH | 8 | MAIN PIPE ASY | P100-005860 | P100-005860-Online |
| 29 | TOOL,L WRENCH | 8 | SPRING,TORSION | V452-000120 | V452-000120-Online |
| 29 | TOOL,L WRENCH | 8 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 29 | TOOL,L WRENCH | 8 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 29 | TOOL,L WRENCH | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
Source file: 20230425-148-M262S_38_38000001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
