Illustrated Parts List
Shindaiwa EB770 Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB770
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

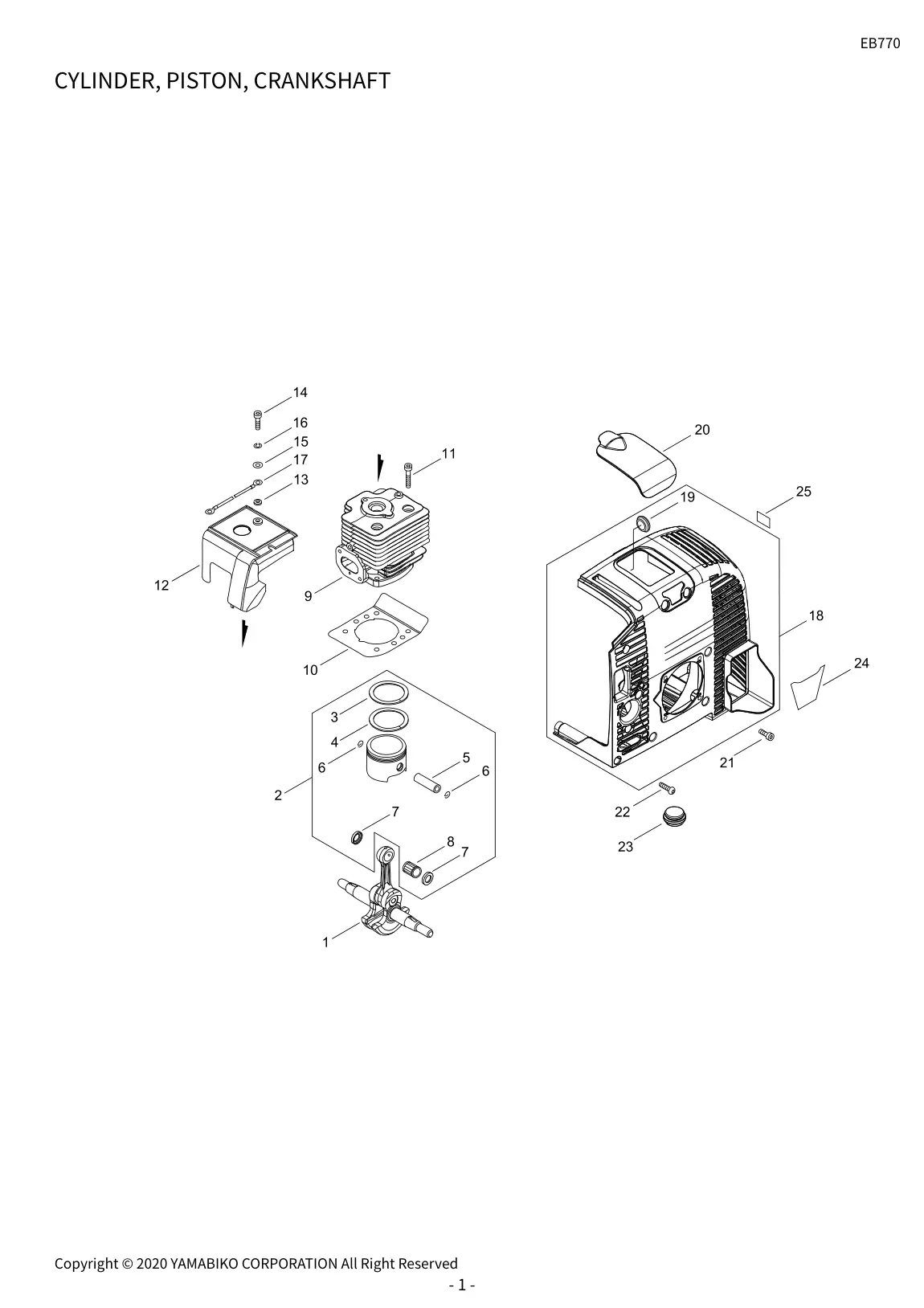

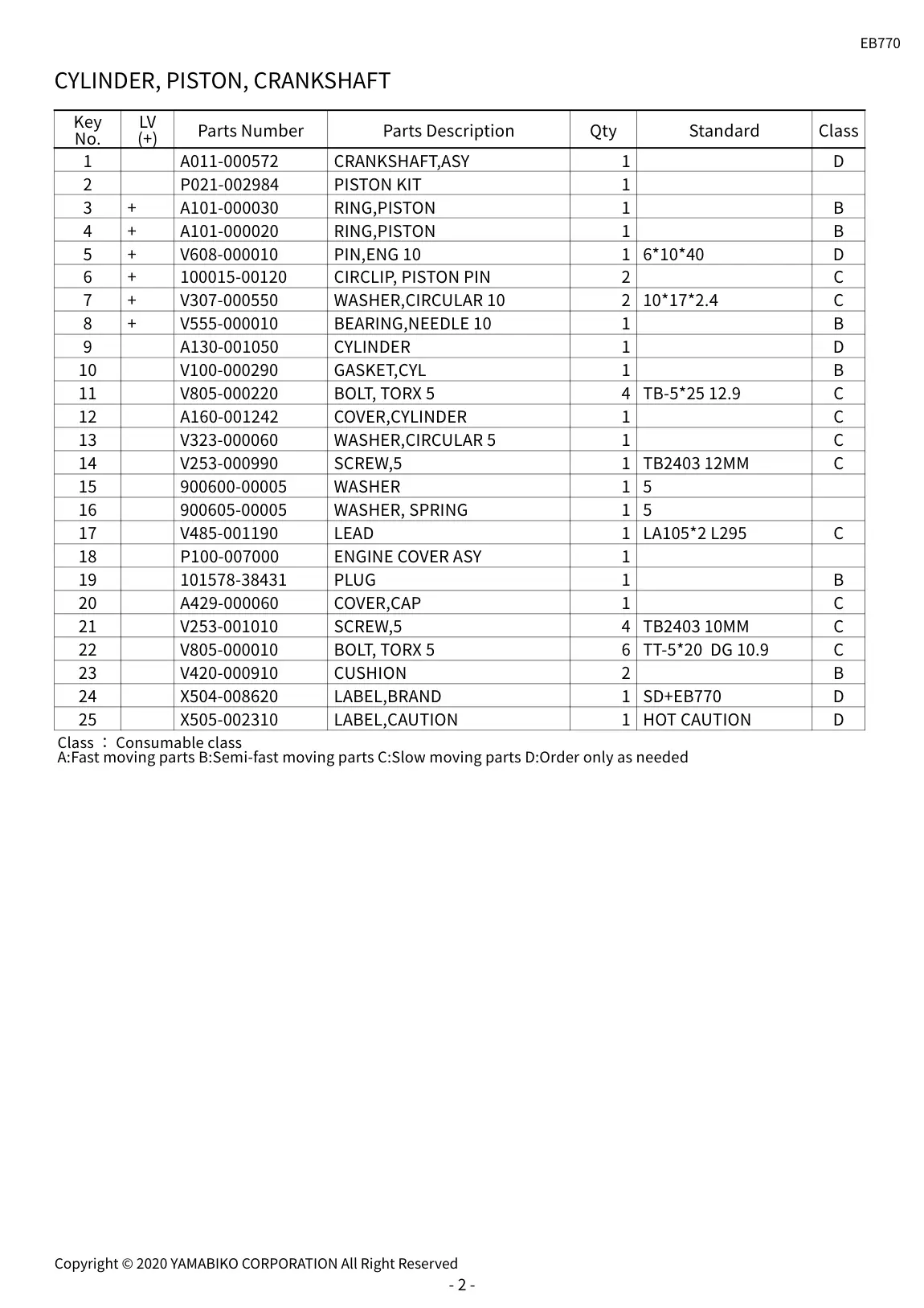

| 5 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-000572 | A011-000572-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 10 | GASKET,CYL | V100-000290 | V100-000290-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 11 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 12 | COVER,CYLINDER | A160-001242 | A160-001242-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 13 | WASHER,CIRCULAR | V323-000060 | V323-000060-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 14 | SCREW,5 | V253-000990 | V253-000990-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 15 | WASHER | 900600-00005 | 900600-00005-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 16 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 17 | ENGINE COVER ASY | LA105 | LA105-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 17 | LEAD | V485-001190 | V485-001190-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 18 | ENGINE COVER ASY | P100-007000 | P100-007000-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 19 | PLUG | 101578-38431 | 101578-38431-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 2 | PISTON KIT | P021-002984 | P021-002984-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 20 | COVER,CAP | A429-000060 | A429-000060-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 21 | SCREW,5 | V253-001010 | V253-001010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 22 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 23 | CUSHION | V420-000910 | V420-000910-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 24 | LABEL,BRAND | X504-008620 | X504-008620-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 25 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 3 | RING,PISTON | A101-000030 | A101-000030-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 4 | RING,PISTON | A101-000020 | A101-000020-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 5 | PIN,ENG | V608-000010 | V608-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 6 | CIRCLIP, PISTON PIN | 100015-00120 | 100015-00120-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 7 | WASHER,CIRCULAR | V307-000550 | V307-000550-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 8 | BEARING,NEEDLE | V555-000010 | V555-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 9 | CYLINDER | A130-001050 | A130-001050-Online |

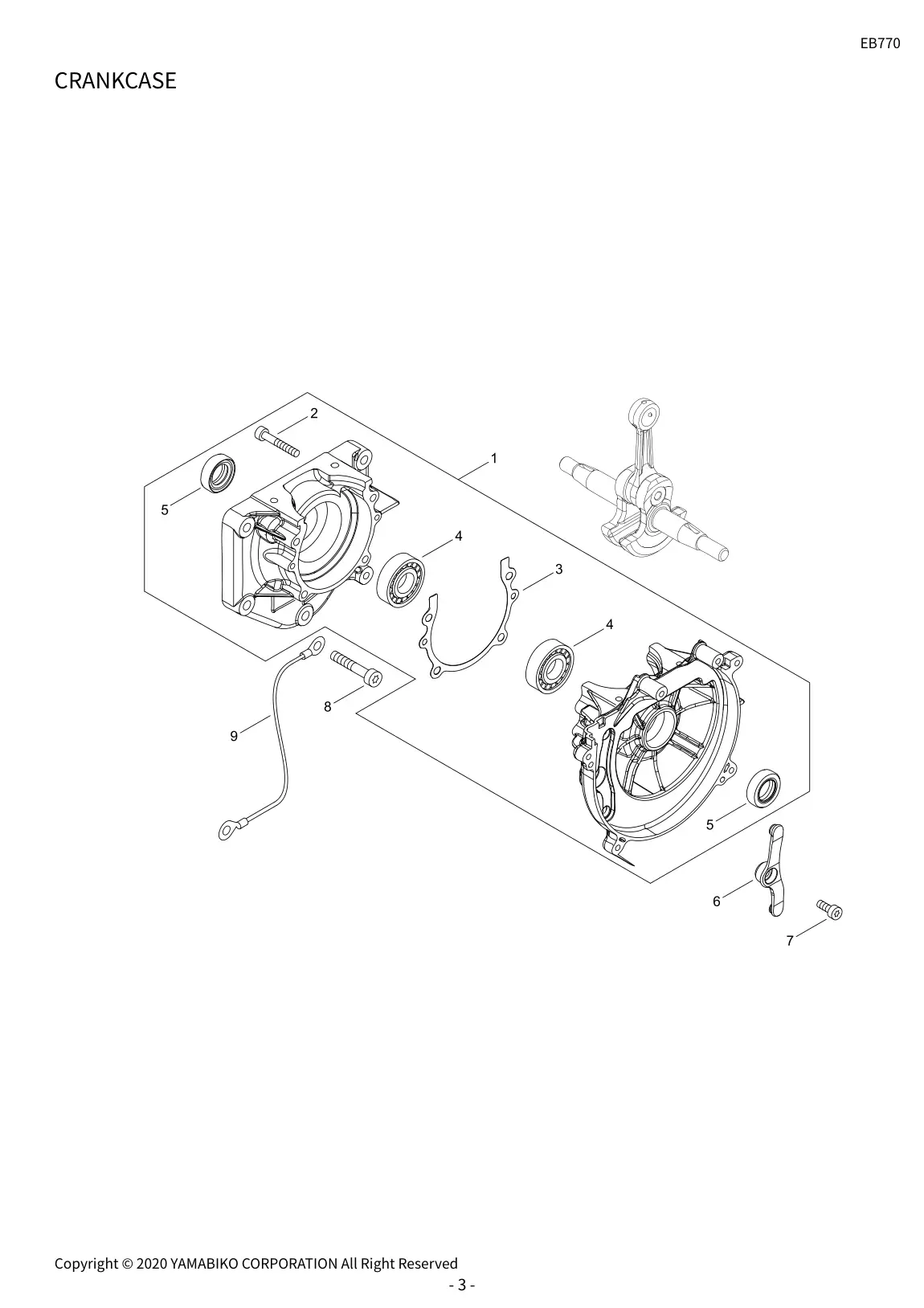

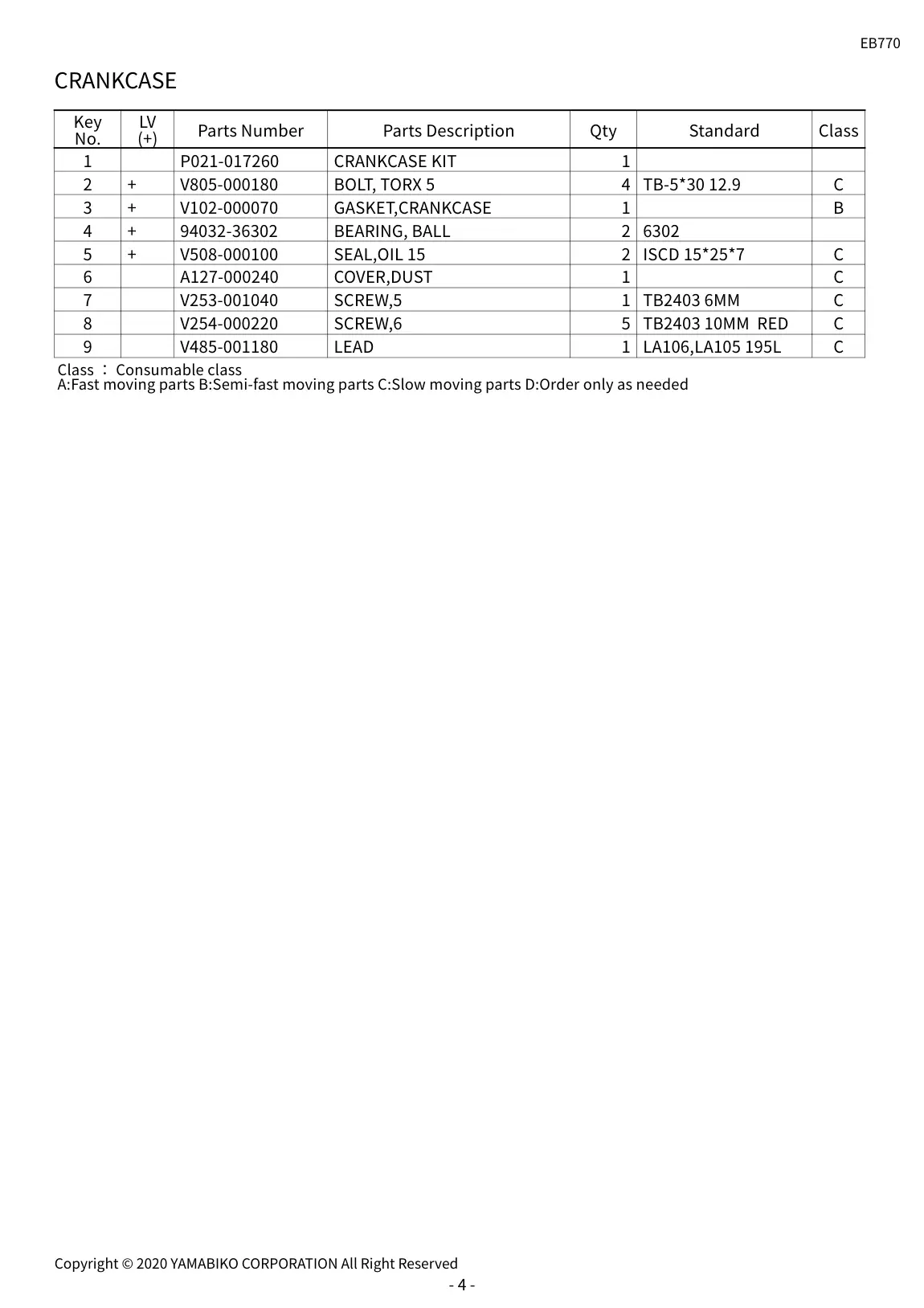

| 7 | CRANKCASE | 1 | CRANKCASE KIT | P021-017260 | P021-017260-Online |
| 7 | CRANKCASE | 2 | BOLT, TORX | V805-000180 | V805-000180-Online |
| 7 | CRANKCASE | 3 | GASKET,CRANKCASE | V102-000070 | V102-000070-Online |
| 7 | CRANKCASE | 4 | BEARING, BALL | 94032-36302 | 94032-36302-Online |
| 7 | CRANKCASE | 5 | SEAL,OIL | V508-000100 | V508-000100-Online |
| 7 | CRANKCASE | 6 | COVER,DUST | A127-000240 | A127-000240-Online |
| 7 | CRANKCASE | 7 | SCREW,5 | V253-001040 | V253-001040-Online |
| 7 | CRANKCASE | 8 | 10MM RED | TB2403 | TB2403-Online |
| 7 | CRANKCASE | 8 | SCREW,6 | V254-000220 | V254-000220-Online |
| 7 | CRANKCASE | 9 | Class ： Consumable class | LA106 | LA106-Online |
| 7 | CRANKCASE | 9 | LEAD | V485-001180 | V485-001180-Online |

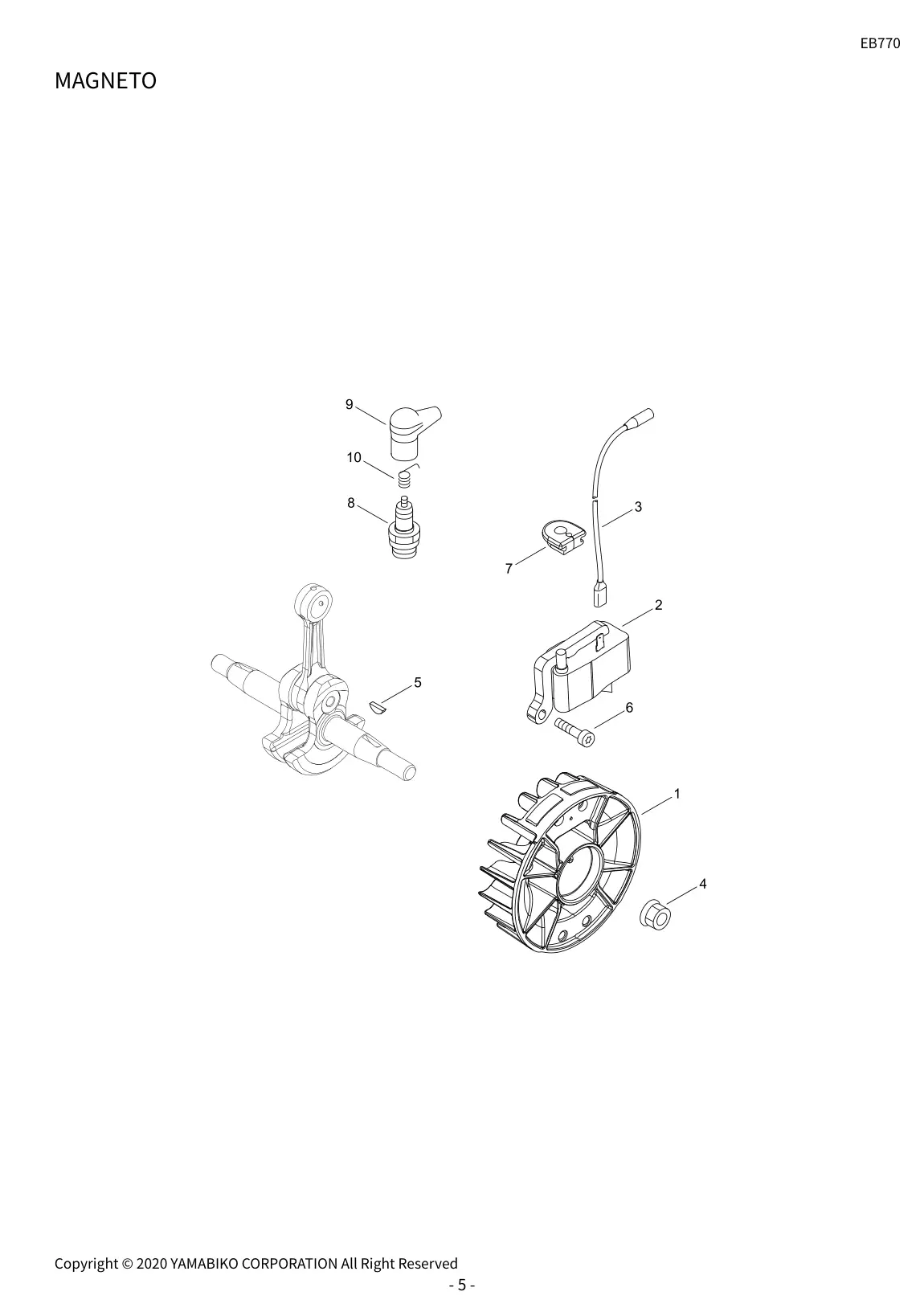

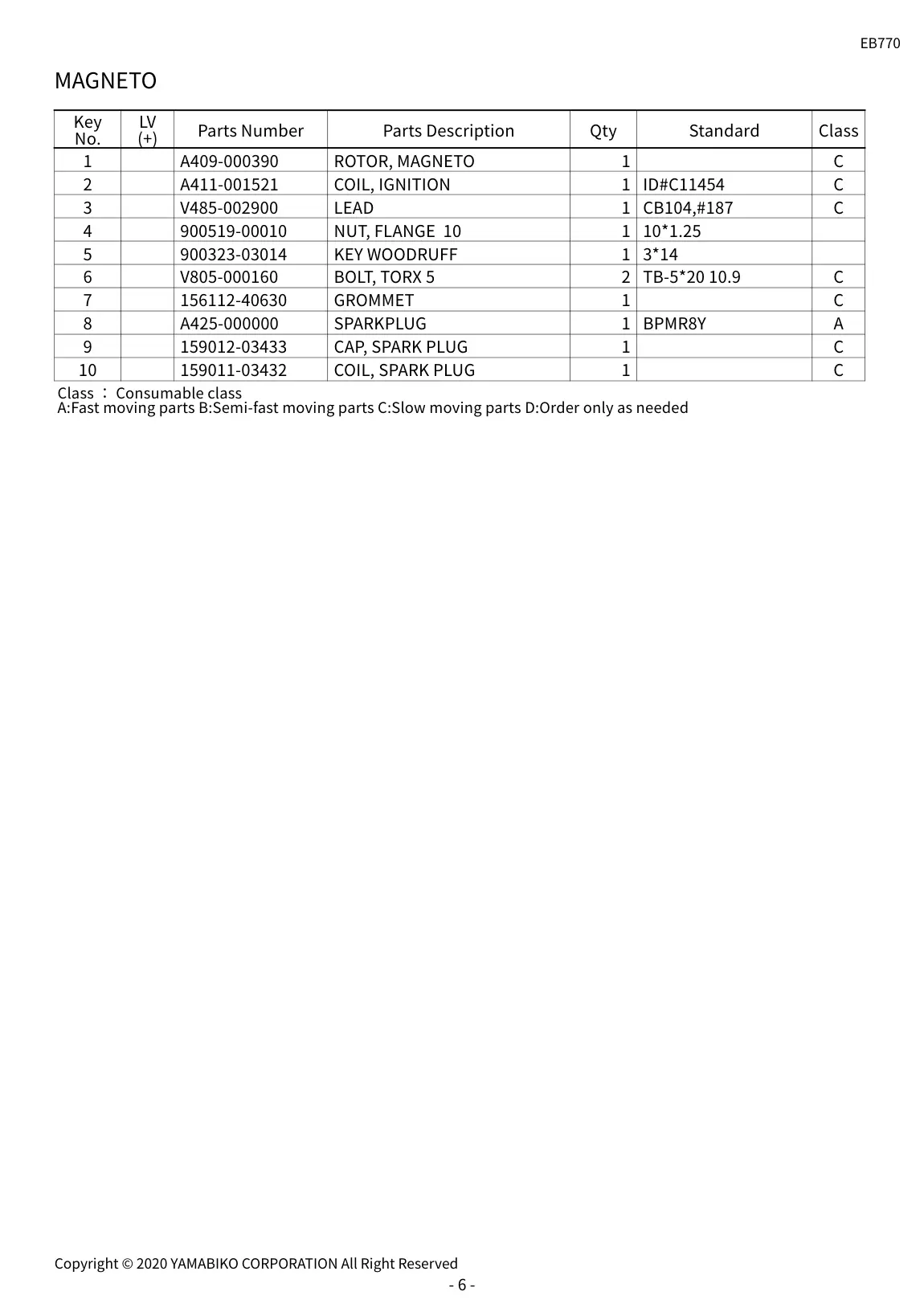

| 9 | MAGNETO | 1 | ROTOR, MAGNETO | A409-000390 | A409-000390-Online |
| 9 | MAGNETO | 10 | COIL, SPARK PLUG | 159011-03432 | 159011-03432-Online |
| 9 | MAGNETO | 2 | COIL, IGNITION | A411-001521 | A411-001521-Online |
| 9 | MAGNETO | 2 | LEAD | C11454 | C11454-Online |
| 9 | MAGNETO | 3 | NUT, FLANGE | CB104 | CB104-Online |
| 9 | MAGNETO | 3 | LEAD | V485-002900 | V485-002900-Online |
| 9 | MAGNETO | 4 | NUT, FLANGE | 900519-00010 | 900519-00010-Online |
| 9 | MAGNETO | 5 | KEY WOODRUFF | 900323-03014 | 900323-03014-Online |
| 9 | MAGNETO | 6 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 9 | MAGNETO | 7 | GROMMET | 156112-40630 | 156112-40630-Online |
| 9 | MAGNETO | 8 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 9 | MAGNETO | 9 | CAP, SPARK PLUG | 159012-03433 | 159012-03433-Online |

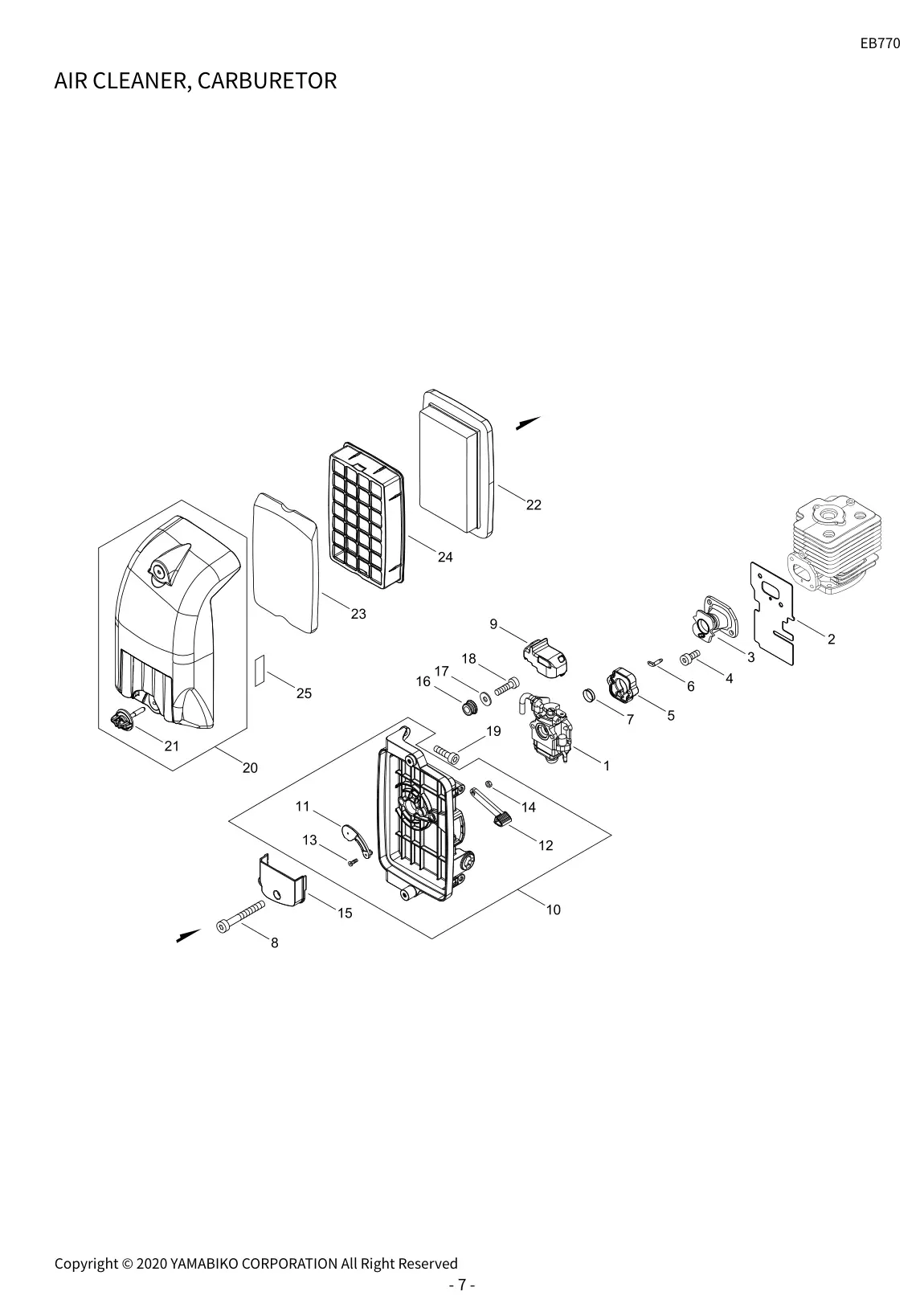

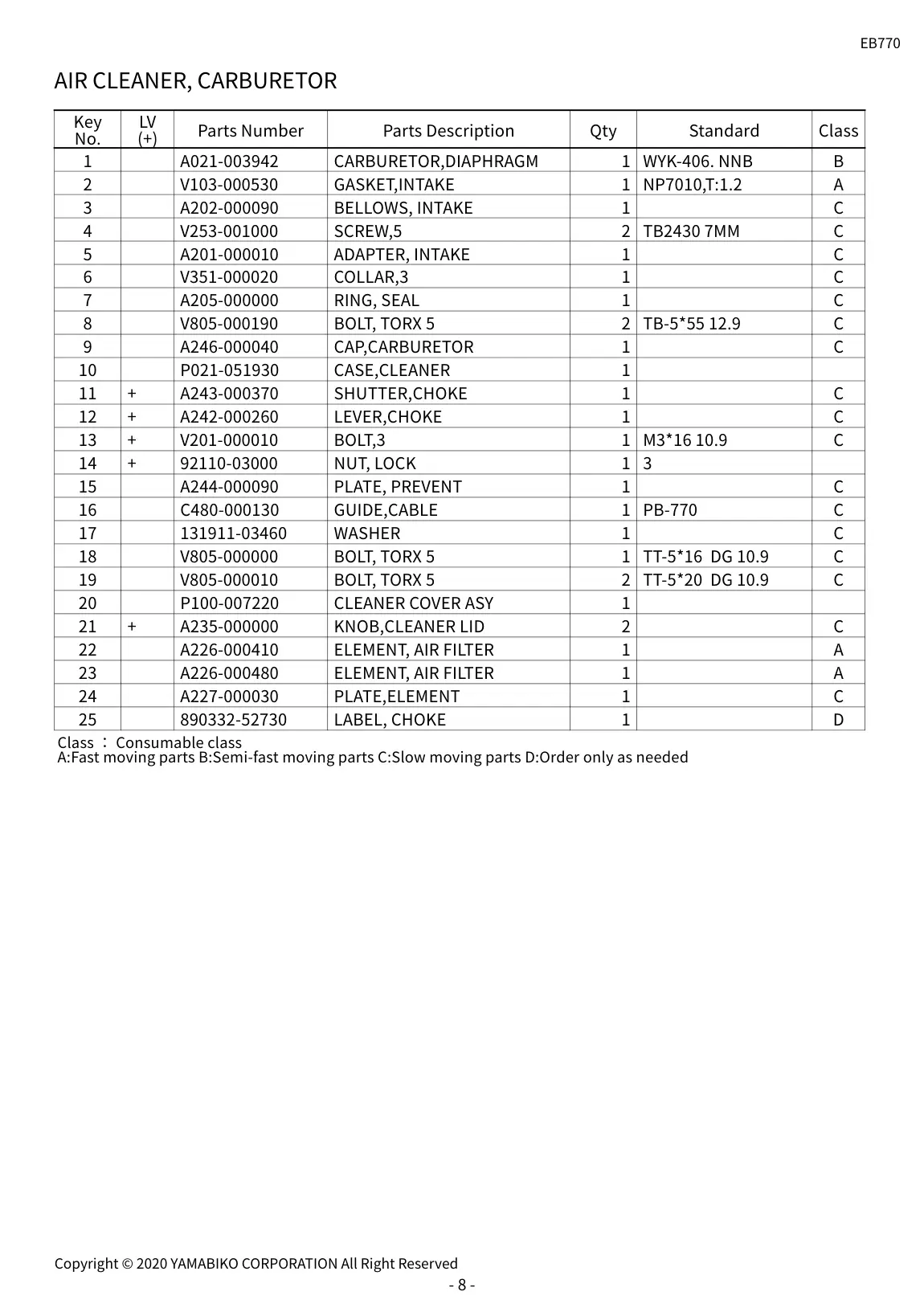

| 11 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR,DIAPHRAGM | A021-003942 | A021-003942-Online |
| 11 | AIR CLEANER, CARBURETOR | 10 | CASE,CLEANER | P021-051930 | P021-051930-Online |
| 11 | AIR CLEANER, CARBURETOR | 11 | SHUTTER,CHOKE | A243-000370 | A243-000370-Online |
| 11 | AIR CLEANER, CARBURETOR | 12 | LEVER,CHOKE | A242-000260 | A242-000260-Online |
| 11 | AIR CLEANER, CARBURETOR | 13 | BOLT,3 | V201-000010 | V201-000010-Online |
| 11 | AIR CLEANER, CARBURETOR | 14 | NUT, LOCK | 92110-03000 | 92110-03000-Online |
| 11 | AIR CLEANER, CARBURETOR | 15 | PLATE, PREVENT | A244-000090 | A244-000090-Online |
| 11 | AIR CLEANER, CARBURETOR | 16 | GUIDE,CABLE | C480-000130 | C480-000130-Online |
| 11 | AIR CLEANER, CARBURETOR | 17 | WASHER | 131911-03460 | 131911-03460-Online |
| 11 | AIR CLEANER, CARBURETOR | 18 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 11 | AIR CLEANER, CARBURETOR | 19 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 11 | AIR CLEANER, CARBURETOR | 2 | BELLOWS, INTAKE | NP7010 | NP7010-Online |
| 11 | AIR CLEANER, CARBURETOR | 2 | GASKET,INTAKE | V103-000530 | V103-000530-Online |
| 11 | AIR CLEANER, CARBURETOR | 20 | CLEANER COVER ASY | P100-007220 | P100-007220-Online |
| 11 | AIR CLEANER, CARBURETOR | 21 | KNOB,CLEANER LID | A235-000000 | A235-000000-Online |
| 11 | AIR CLEANER, CARBURETOR | 22 | ELEMENT, AIR FILTER | A226-000410 | A226-000410-Online |
| 11 | AIR CLEANER, CARBURETOR | 23 | ELEMENT, AIR FILTER | A226-000480 | A226-000480-Online |
| 11 | AIR CLEANER, CARBURETOR | 24 | PLATE,ELEMENT | A227-000030 | A227-000030-Online |
| 11 | AIR CLEANER, CARBURETOR | 25 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 11 | AIR CLEANER, CARBURETOR | 3 | BELLOWS, INTAKE | A202-000090 | A202-000090-Online |
| 11 | AIR CLEANER, CARBURETOR | 4 | SCREW,5 | V253-001000 | V253-001000-Online |
| 11 | AIR CLEANER, CARBURETOR | 5 | ADAPTER, INTAKE | A201-000010 | A201-000010-Online |
| 11 | AIR CLEANER, CARBURETOR | 6 | COLLAR,3 | V351-000020 | V351-000020-Online |
| 11 | AIR CLEANER, CARBURETOR | 7 | RING, SEAL | A205-000000 | A205-000000-Online |
| 11 | AIR CLEANER, CARBURETOR | 8 | BOLT, TORX | V805-000190 | V805-000190-Online |
| 11 | AIR CLEANER, CARBURETOR | 9 | CAP,CARBURETOR | A246-000040 | A246-000040-Online |

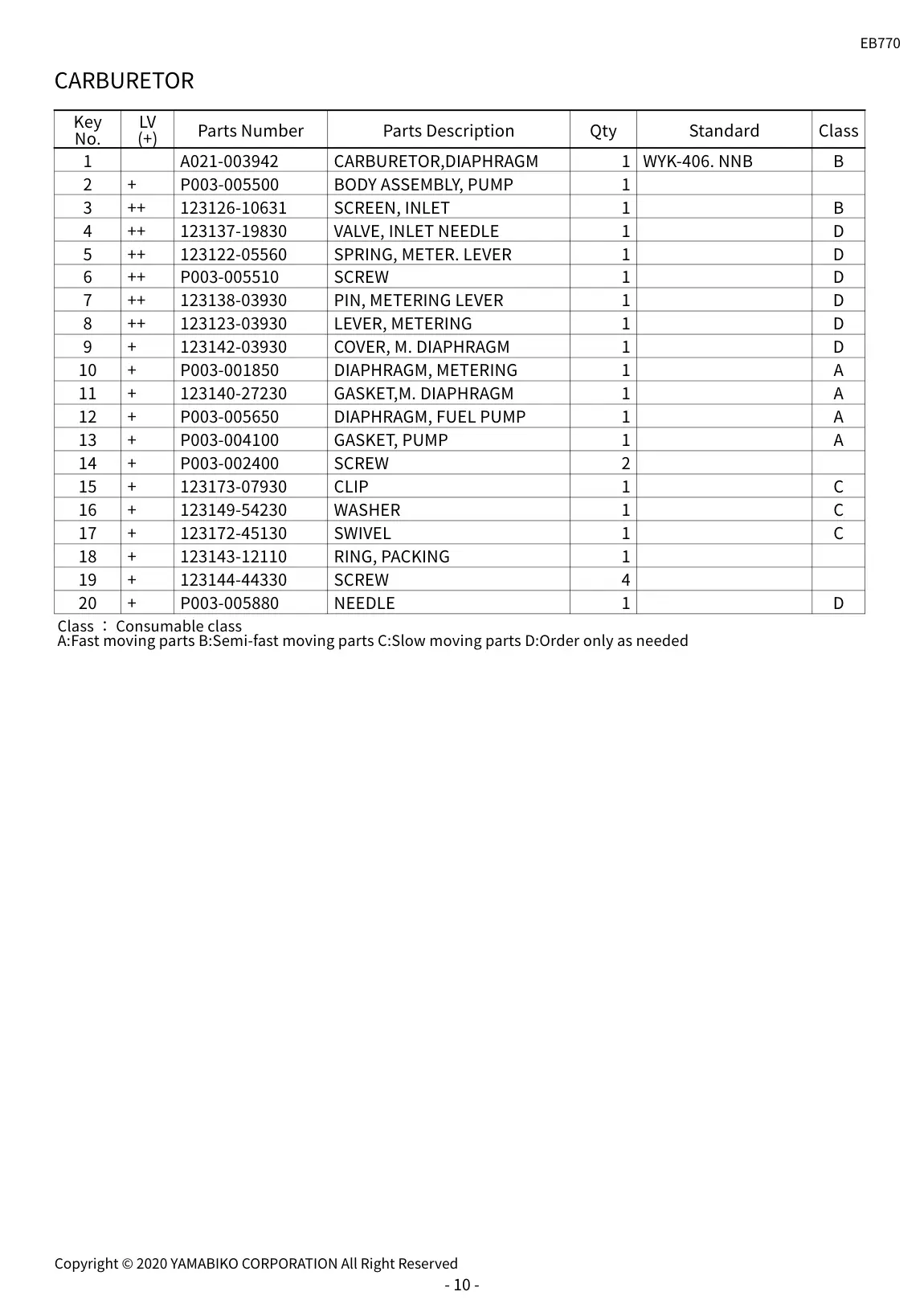

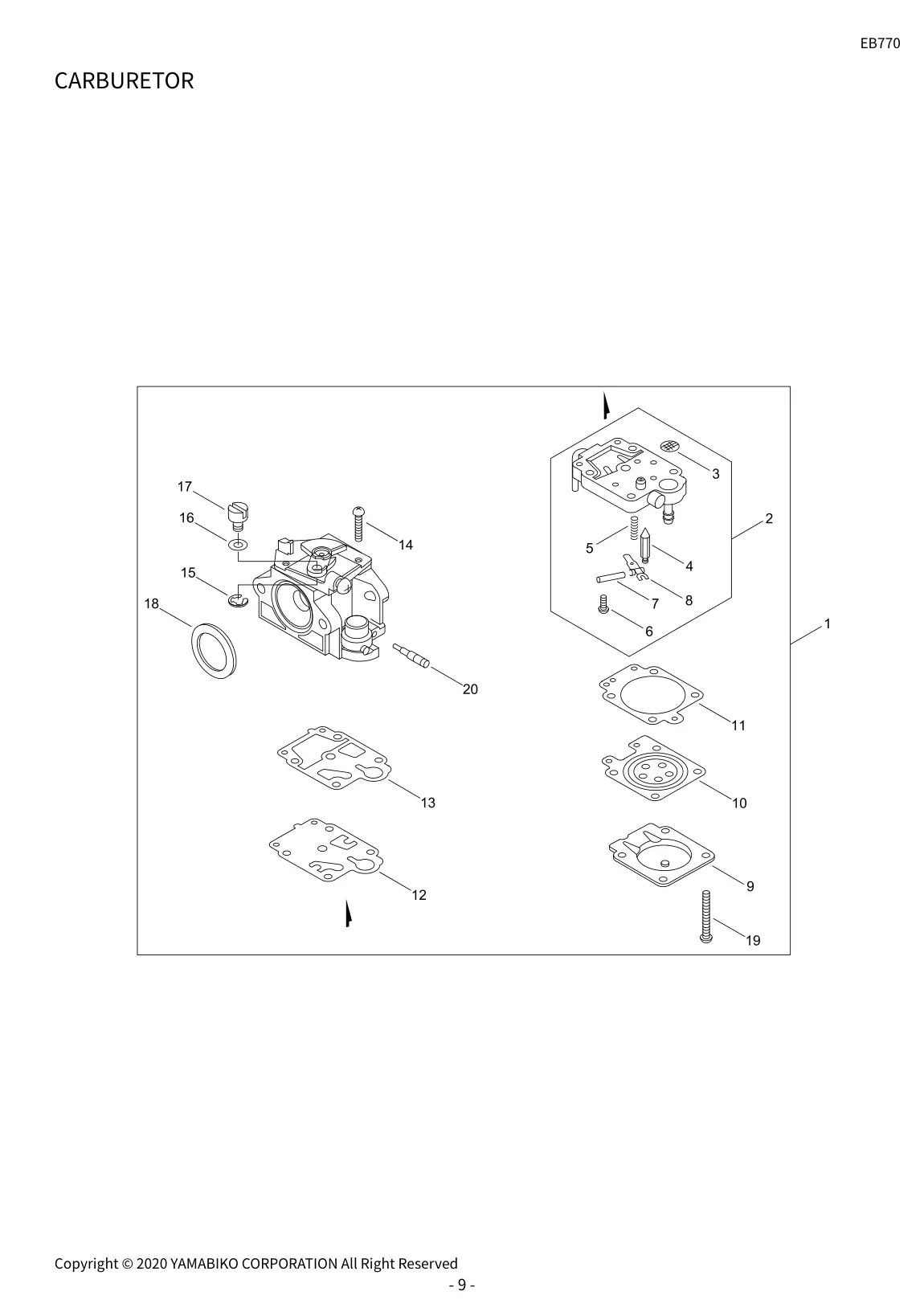

| 13 | CARBURETOR | 1 | CARBURETOR,DIAPHRAGM | A021-003942 | A021-003942-Online |
| 13 | CARBURETOR | 10 | DIAPHRAGM, METERING | P003-001850 | P003-001850-Online |
| 13 | CARBURETOR | 11 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 13 | CARBURETOR | 12 | DIAPHRAGM, FUEL PUMP | P003-005650 | P003-005650-Online |
| 13 | CARBURETOR | 13 | GASKET, PUMP | P003-004100 | P003-004100-Online |
| 13 | CARBURETOR | 14 | SCREW | P003-002400 | P003-002400-Online |
| 13 | CARBURETOR | 15 | CLIP | 123173-07930 | 123173-07930-Online |
| 13 | CARBURETOR | 16 | WASHER | 123149-54230 | 123149-54230-Online |
| 13 | CARBURETOR | 17 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 13 | CARBURETOR | 18 | RING, PACKING | 123143-12110 | 123143-12110-Online |
| 13 | CARBURETOR | 19 | SCREW | 123144-44330 | 123144-44330-Online |
| 13 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-005500 | P003-005500-Online |
| 13 | CARBURETOR | 20 | NEEDLE | P003-005880 | P003-005880-Online |
| 13 | CARBURETOR | 3 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 13 | CARBURETOR | 4 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 13 | CARBURETOR | 5 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 13 | CARBURETOR | 6 | SCREW | P003-005510 | P003-005510-Online |
| 13 | CARBURETOR | 7 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 13 | CARBURETOR | 8 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 13 | CARBURETOR | 9 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |

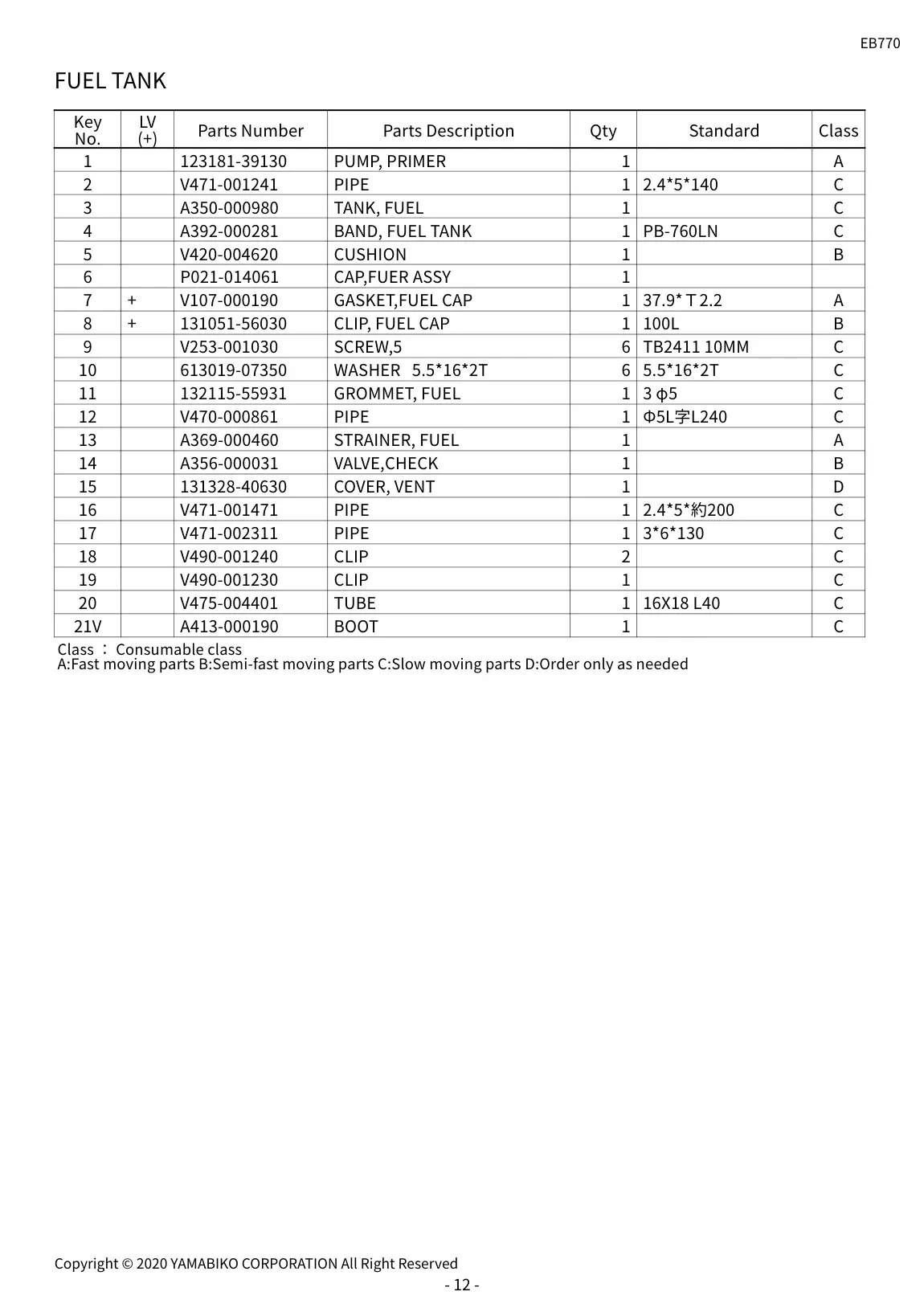

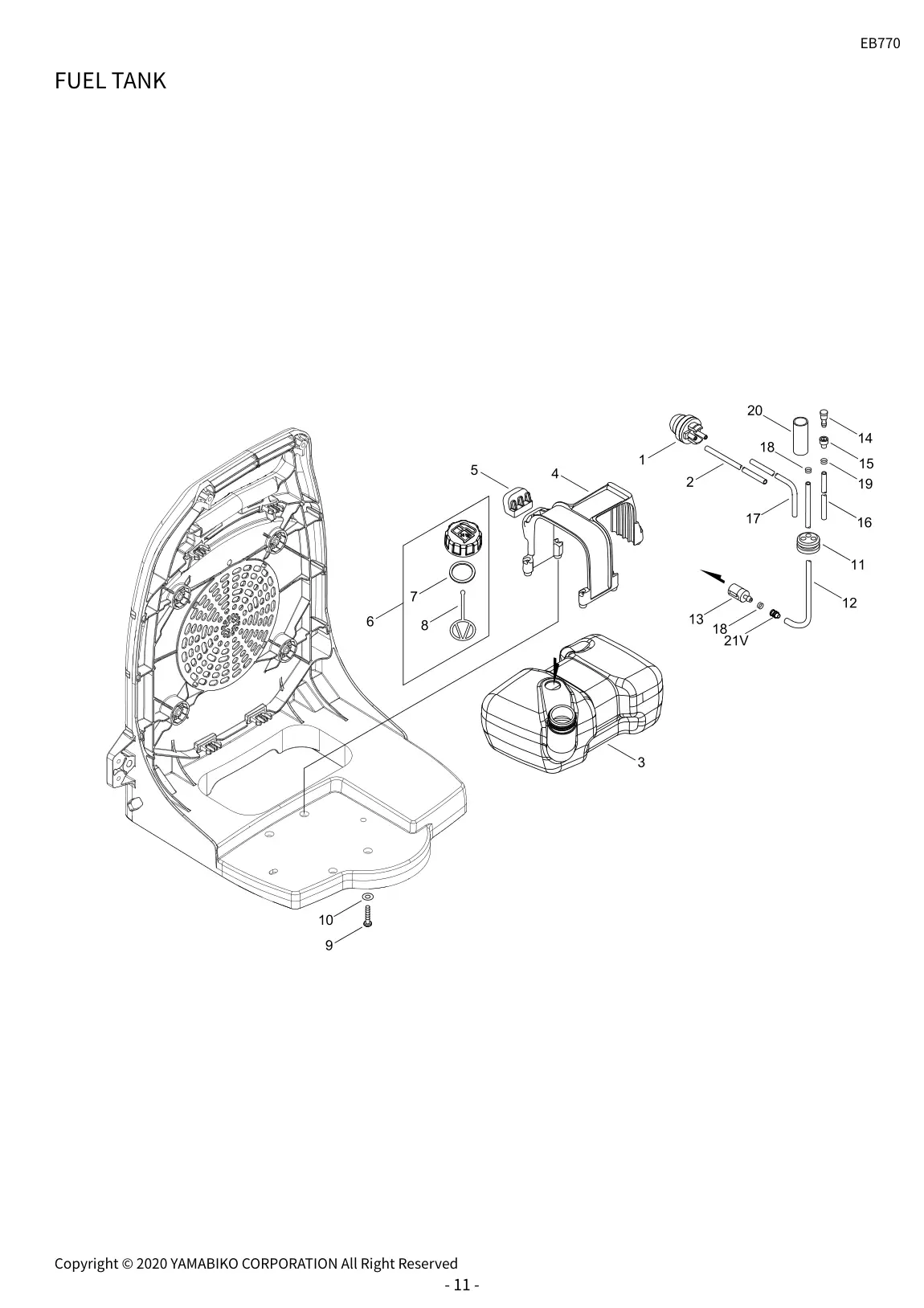

| 15 | FUEL TANK | 1 | PUMP, PRIMER | 123181-39130 | 123181-39130-Online |
| 15 | FUEL TANK | 10 | WASHER 5.5*16*2T | 613019-07350 | 613019-07350-Online |
| 15 | FUEL TANK | 11 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 15 | FUEL TANK | 12 | PIPE | V470-000861 | V470-000861-Online |
| 15 | FUEL TANK | 13 | STRAINER, FUEL | A369-000460 | A369-000460-Online |
| 15 | FUEL TANK | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 15 | FUEL TANK | 15 | COVER, VENT | 131328-40630 | 131328-40630-Online |
| 15 | FUEL TANK | 16 | PIPE | V471-001471 | V471-001471-Online |
| 15 | FUEL TANK | 17 | PIPE | V471-002311 | V471-002311-Online |
| 15 | FUEL TANK | 18 | CLIP | V490-001240 | V490-001240-Online |
| 15 | FUEL TANK | 19 | CLIP | V490-001230 | V490-001230-Online |
| 15 | FUEL TANK | 2 | PIPE | V471-001241 | V471-001241-Online |
| 15 | FUEL TANK | 20 | TUBE | V475-004401 | V475-004401-Online |
| 15 | FUEL TANK | 3 | TANK, FUEL | A350-000980 | A350-000980-Online |
| 15 | FUEL TANK | 4 | BAND, FUEL TANK | A392-000281 | A392-000281-Online |
| 15 | FUEL TANK | 5 | CUSHION | V420-004620 | V420-004620-Online |
| 15 | FUEL TANK | 6 | CAP,FUER ASSY | P021-014061 | P021-014061-Online |
| 15 | FUEL TANK | 7 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 15 | FUEL TANK | 8 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 15 | FUEL TANK | 9 | SCREW,5 | V253-001030 | V253-001030-Online |

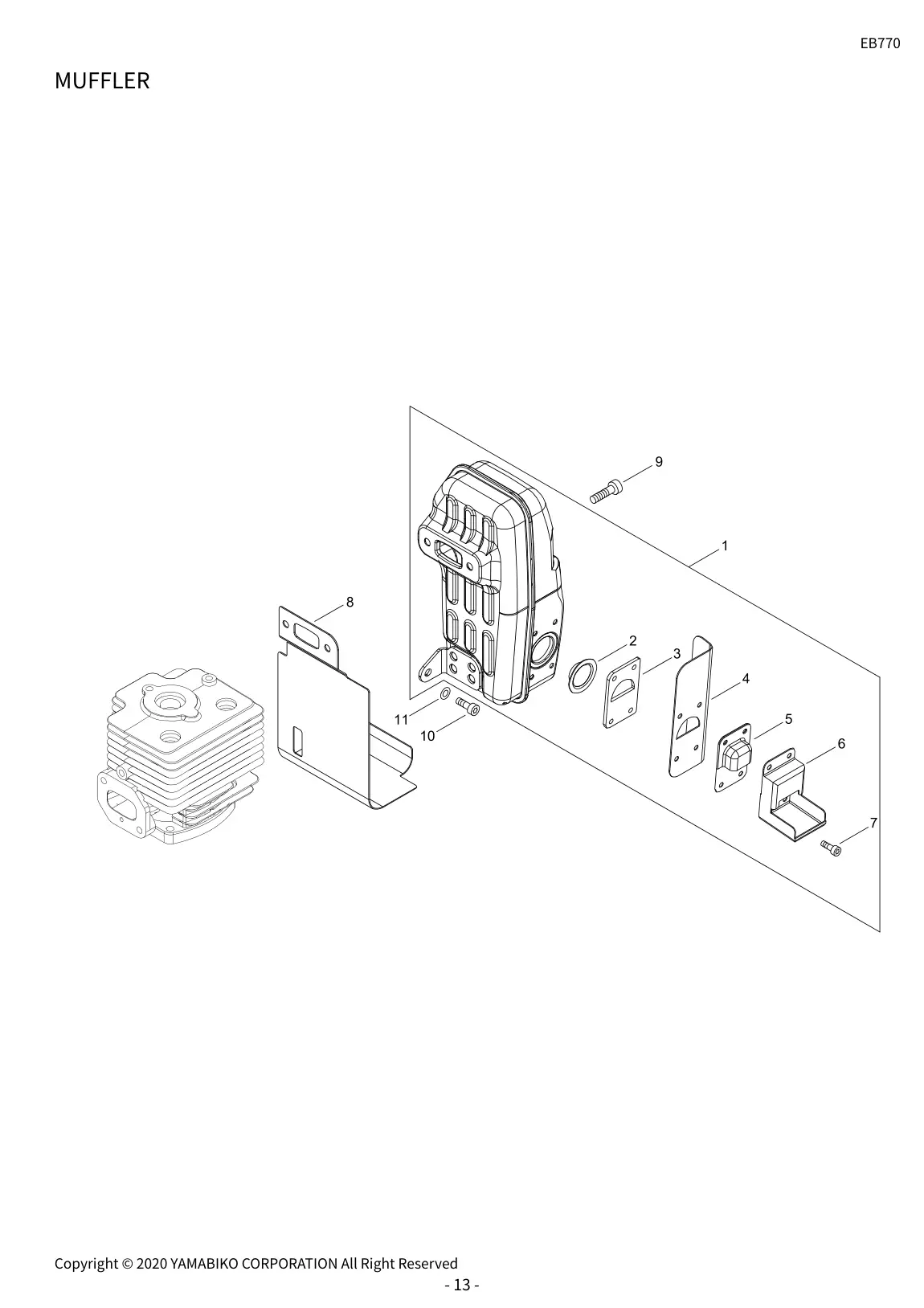

| 17 | MUFFLER | 1 | MUFFLER ASY | P021-017273 | P021-017273-Online |
| 17 | MUFFLER | 10 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 17 | MUFFLER | 11 | WASHER 5.5*16*2T | 613019-07350 | 613019-07350-Online |
| 17 | MUFFLER | 2 | SCREEN,ARRESTOR | A310-000000 | A310-000000-Online |
| 17 | MUFFLER | 3 | GASKET,EXHAUST | V104-000551 | V104-000551-Online |
| 17 | MUFFLER | 4 | GASKET,EXHAUST | V104-000560 | V104-000560-Online |
| 17 | MUFFLER | 5 | GUIDE,EXH | A313-000520 | A313-000520-Online |
| 17 | MUFFLER | 6 | GUIDE, EXHAUST | A313-001080 | A313-001080-Online |
| 17 | MUFFLER | 7 | BOLT, TORX | V804-000050 | V804-000050-Online |
| 17 | MUFFLER | 8 | GASKET,EXHAUST | V104-000950 | V104-000950-Online |
| 17 | MUFFLER | 9 | BOLT, TORX | V806-000050 | V806-000050-Online |

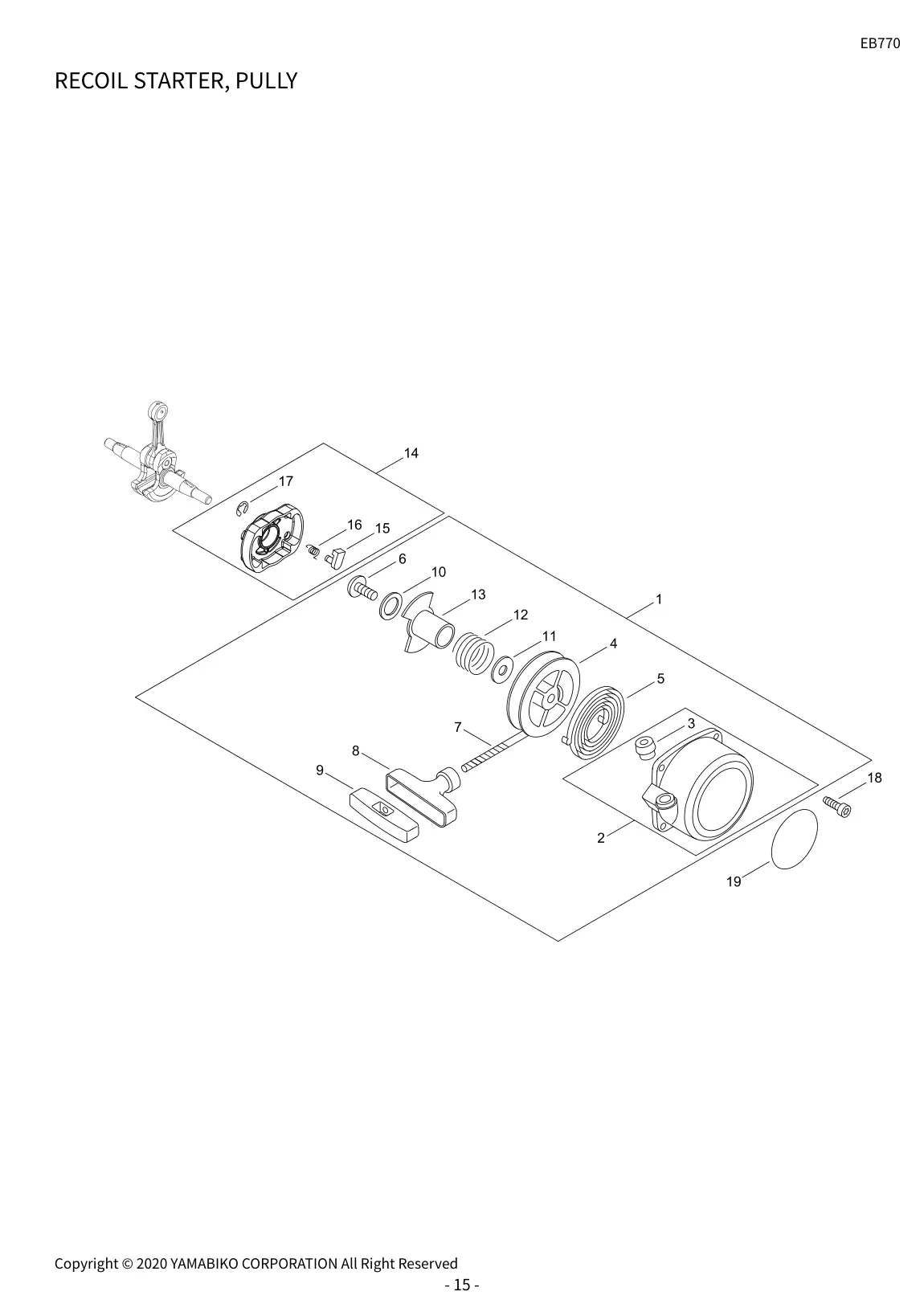

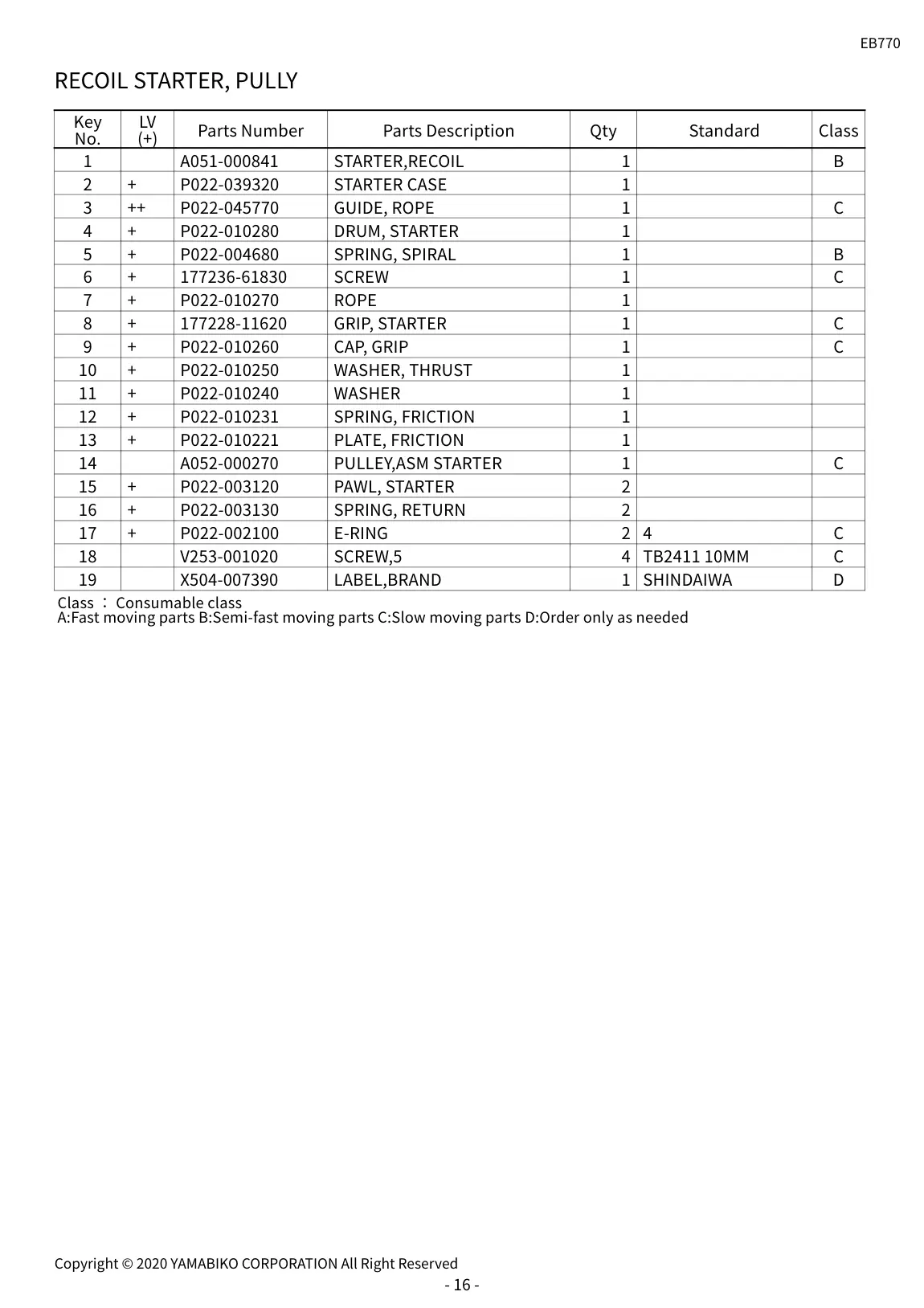

| 19 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL | A051-000841 | A051-000841-Online |
| 19 | RECOIL STARTER, PULLY | 10 | WASHER, THRUST | P022-010250 | P022-010250-Online |
| 19 | RECOIL STARTER, PULLY | 11 | WASHER | P022-010240 | P022-010240-Online |
| 19 | RECOIL STARTER, PULLY | 12 | SPRING, FRICTION | P022-010231 | P022-010231-Online |
| 19 | RECOIL STARTER, PULLY | 13 | PLATE, FRICTION | P022-010221 | P022-010221-Online |
| 19 | RECOIL STARTER, PULLY | 14 | PULLEY,ASM STARTER | A052-000270 | A052-000270-Online |
| 19 | RECOIL STARTER, PULLY | 15 | PAWL, STARTER | P022-003120 | P022-003120-Online |
| 19 | RECOIL STARTER, PULLY | 16 | SPRING, RETURN | P022-003130 | P022-003130-Online |
| 19 | RECOIL STARTER, PULLY | 17 | E-RING | P022-002100 | P022-002100-Online |
| 19 | RECOIL STARTER, PULLY | 18 | SCREW,5 | V253-001020 | V253-001020-Online |
| 19 | RECOIL STARTER, PULLY | 19 | LABEL,BRAND | X504-007390 | X504-007390-Online |
| 19 | RECOIL STARTER, PULLY | 2 | STARTER CASE | P022-039320 | P022-039320-Online |
| 19 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 19 | RECOIL STARTER, PULLY | 4 | DRUM, STARTER | P022-010280 | P022-010280-Online |
| 19 | RECOIL STARTER, PULLY | 5 | SPRING, SPIRAL | P022-004680 | P022-004680-Online |
| 19 | RECOIL STARTER, PULLY | 6 | SCREW | 177236-61830 | 177236-61830-Online |
| 19 | RECOIL STARTER, PULLY | 7 | ROPE | P022-010270 | P022-010270-Online |
| 19 | RECOIL STARTER, PULLY | 8 | GRIP, STARTER | 177228-11620 | 177228-11620-Online |
| 19 | RECOIL STARTER, PULLY | 9 | CAP, GRIP | P022-010260 | P022-010260-Online |

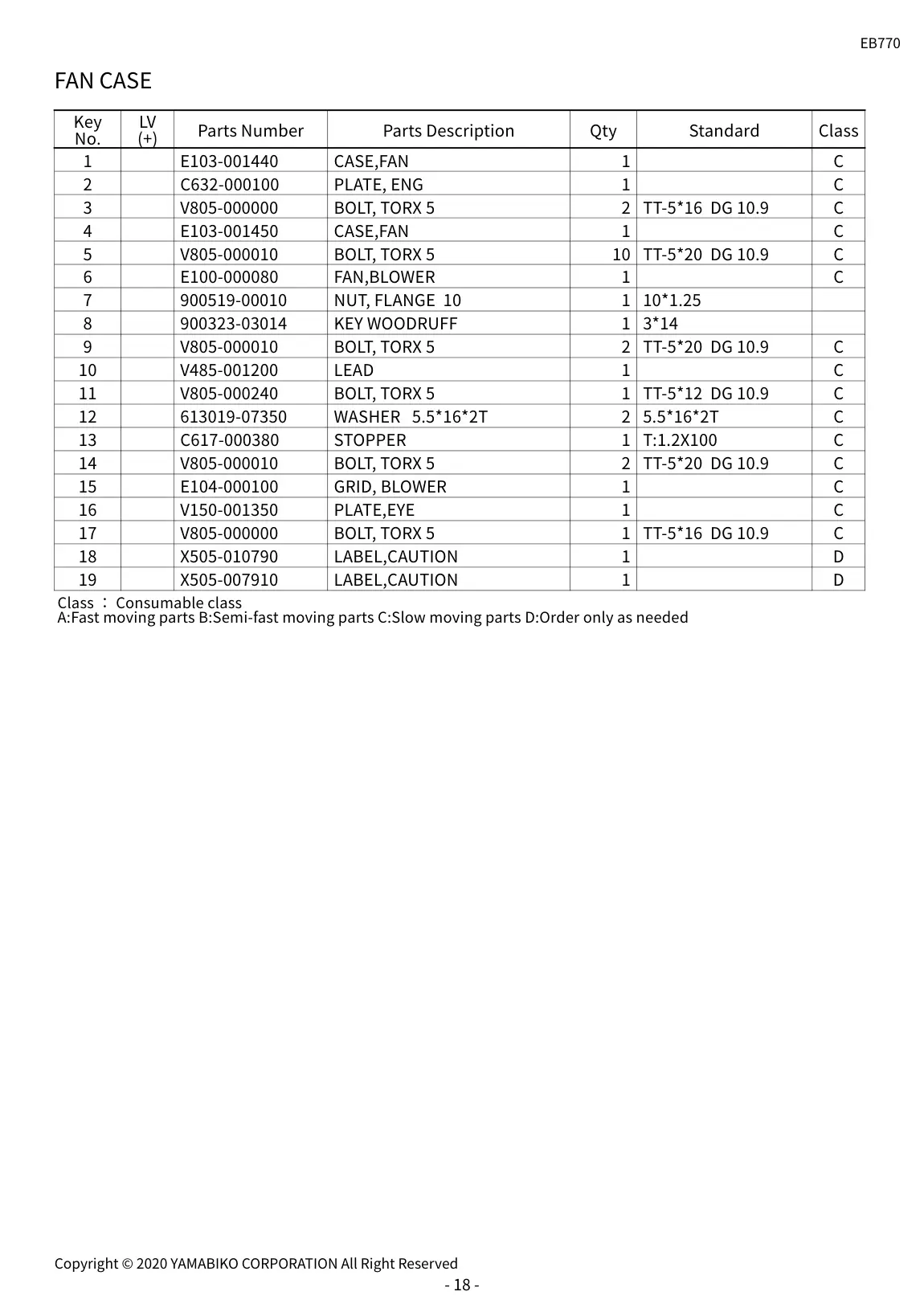

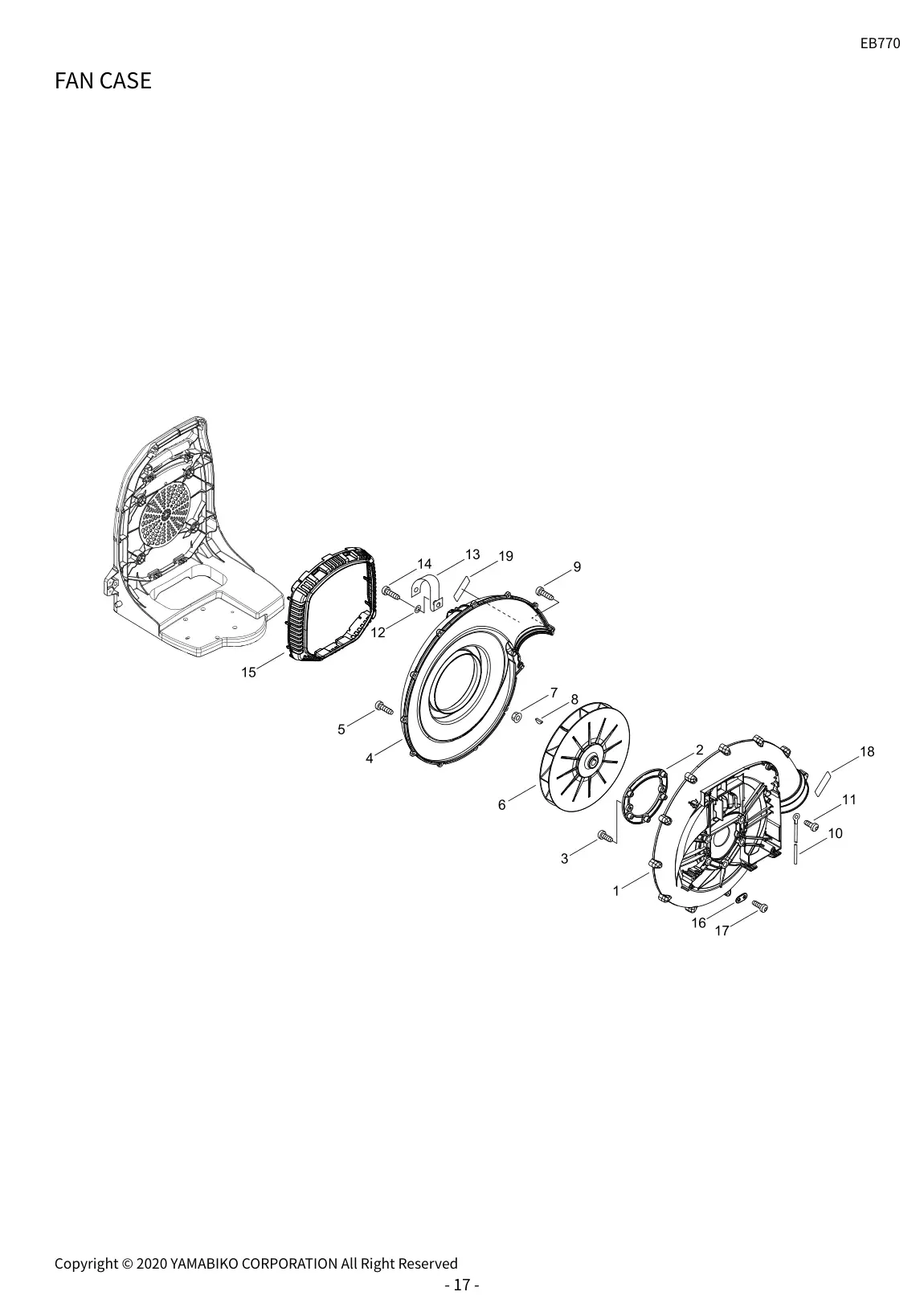

| 21 | FAN CASE | 1 | CASE,FAN | E103-001440 | E103-001440-Online |
| 21 | FAN CASE | 10 | LEAD | V485-001200 | V485-001200-Online |
| 21 | FAN CASE | 11 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 21 | FAN CASE | 12 | WASHER 5.5*16*2T | 613019-07350 | 613019-07350-Online |
| 21 | FAN CASE | 13 | STOPPER | C617-000380 | C617-000380-Online |
| 21 | FAN CASE | 14 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 21 | FAN CASE | 15 | GRID, BLOWER | E104-000100 | E104-000100-Online |
| 21 | FAN CASE | 16 | PLATE,EYE | V150-001350 | V150-001350-Online |
| 21 | FAN CASE | 17 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 21 | FAN CASE | 18 | LABEL,CAUTION | X505-010790 | X505-010790-Online |
| 21 | FAN CASE | 19 | LABEL,CAUTION | X505-007910 | X505-007910-Online |
| 21 | FAN CASE | 2 | PLATE, ENG | C632-000100 | C632-000100-Online |
| 21 | FAN CASE | 3 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 21 | FAN CASE | 4 | CASE,FAN | E103-001450 | E103-001450-Online |
| 21 | FAN CASE | 5 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 21 | FAN CASE | 6 | FAN,BLOWER | E100-000080 | E100-000080-Online |
| 21 | FAN CASE | 7 | NUT, FLANGE | 900519-00010 | 900519-00010-Online |
| 21 | FAN CASE | 8 | KEY WOODRUFF | 900323-03014 | 900323-03014-Online |
| 21 | FAN CASE | 9 | BOLT, TORX | V805-000010 | V805-000010-Online |

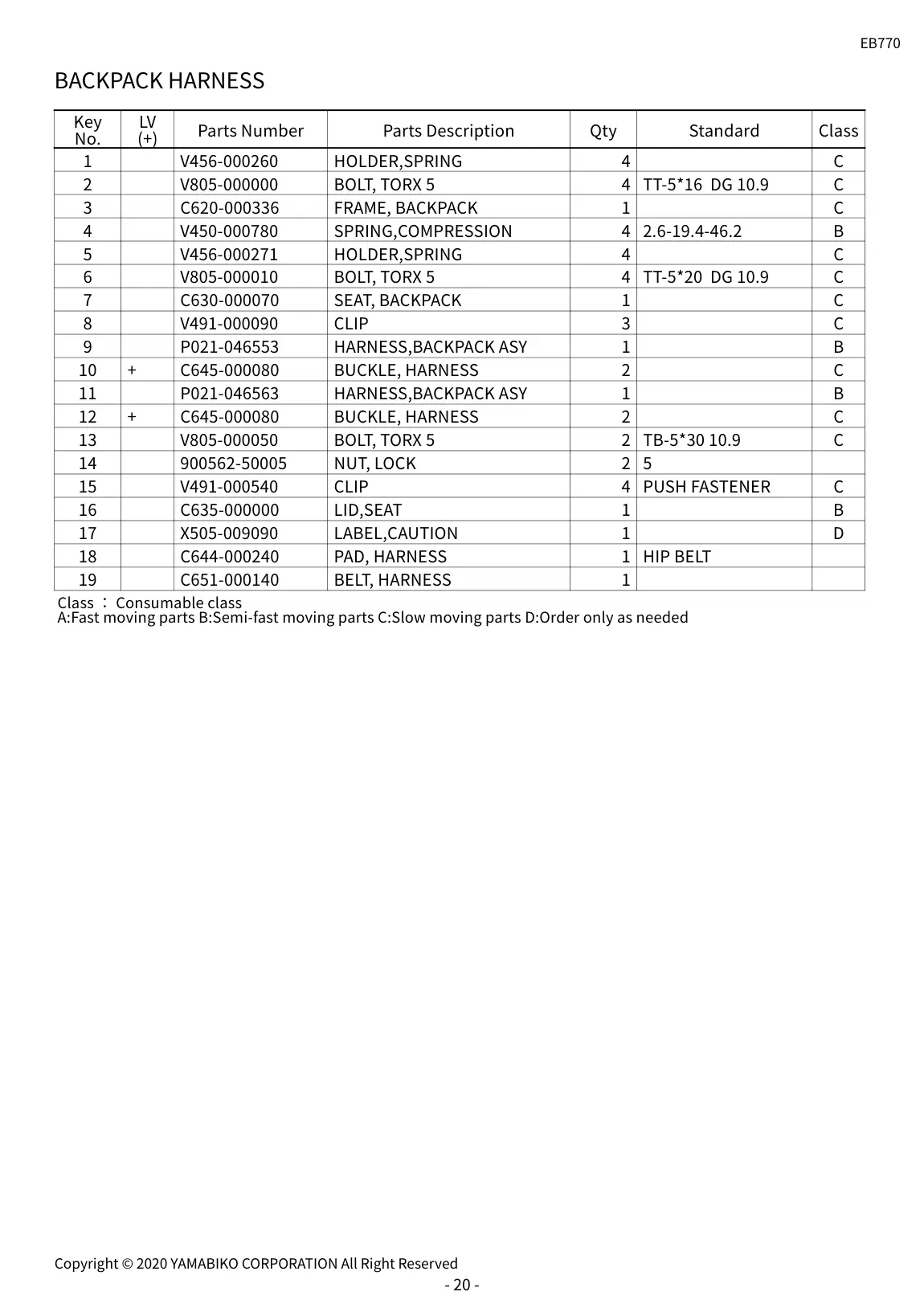

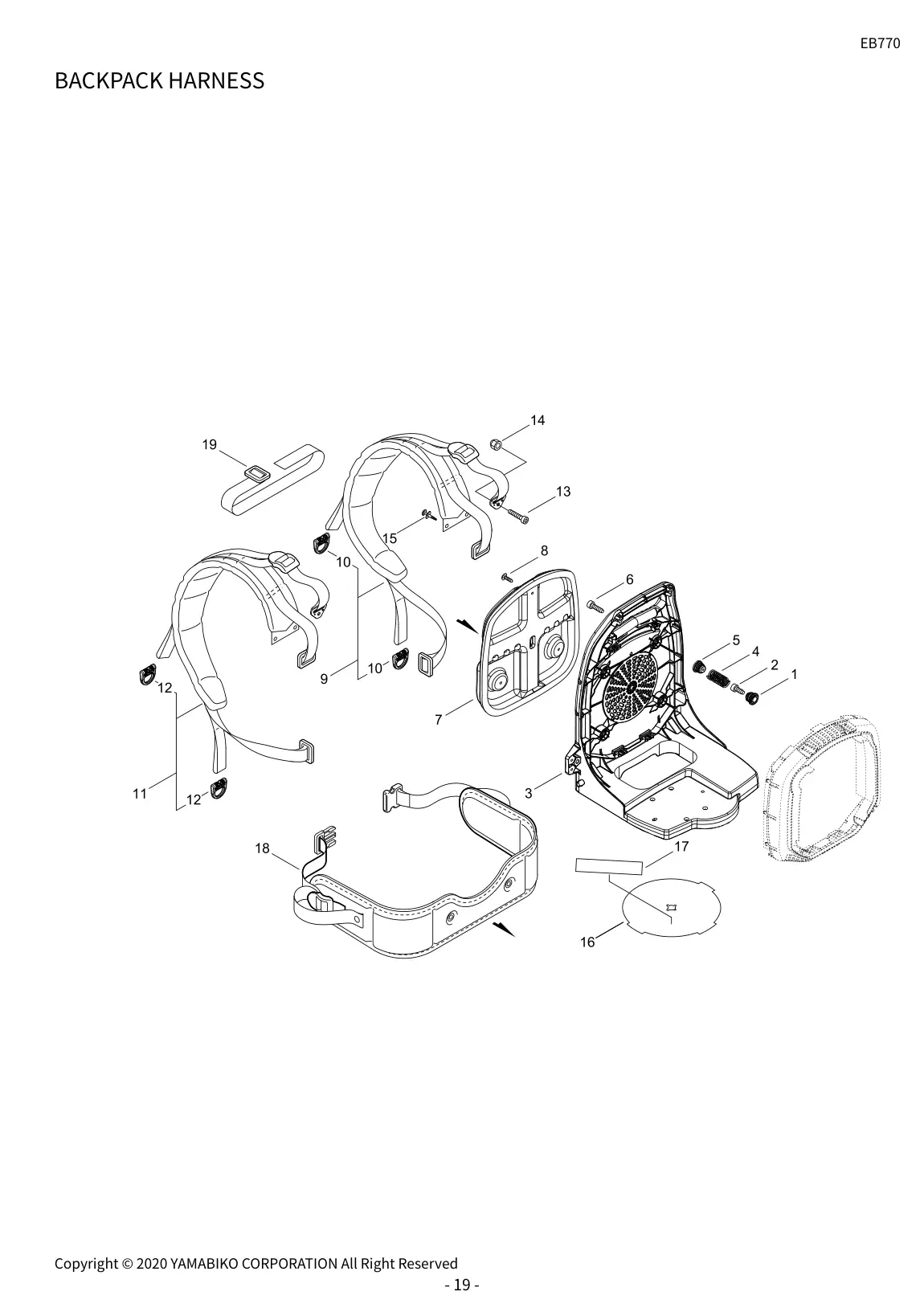

| 23 | BACKPACK HARNESS | 1 | HOLDER,SPRING | V456-000260 | V456-000260-Online |
| 23 | BACKPACK HARNESS | 10 | BUCKLE, HARNESS | C645-000080 | C645-000080-Online |
| 23 | BACKPACK HARNESS | 11 | HARNESS,BACKPACK ASY | P021-046563 | P021-046563-Online |
| 23 | BACKPACK HARNESS | 12 | BUCKLE, HARNESS | C645-000080 | C645-000080-Online |
| 23 | BACKPACK HARNESS | 13 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 23 | BACKPACK HARNESS | 14 | NUT, LOCK | 900562-50005 | 900562-50005-Online |
| 23 | BACKPACK HARNESS | 15 | CLIP | V491-000540 | V491-000540-Online |
| 23 | BACKPACK HARNESS | 16 | LID,SEAT | C635-000000 | C635-000000-Online |
| 23 | BACKPACK HARNESS | 17 | LABEL,CAUTION | X505-009090 | X505-009090-Online |
| 23 | BACKPACK HARNESS | 18 | PAD, HARNESS | C644-000240 | C644-000240-Online |
| 23 | BACKPACK HARNESS | 19 | BELT, HARNESS | C651-000140 | C651-000140-Online |
| 23 | BACKPACK HARNESS | 2 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 23 | BACKPACK HARNESS | 3 | FRAME, BACKPACK | C620-000336 | C620-000336-Online |
| 23 | BACKPACK HARNESS | 4 | SPRING,COMPRESSION | V450-000780 | V450-000780-Online |
| 23 | BACKPACK HARNESS | 5 | HOLDER,SPRING | V456-000271 | V456-000271-Online |
| 23 | BACKPACK HARNESS | 6 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 23 | BACKPACK HARNESS | 7 | SEAT, BACKPACK | C630-000070 | C630-000070-Online |
| 23 | BACKPACK HARNESS | 8 | CLIP | V491-000090 | V491-000090-Online |
| 23 | BACKPACK HARNESS | 9 | HARNESS,BACKPACK ASY | P021-046553 | P021-046553-Online |

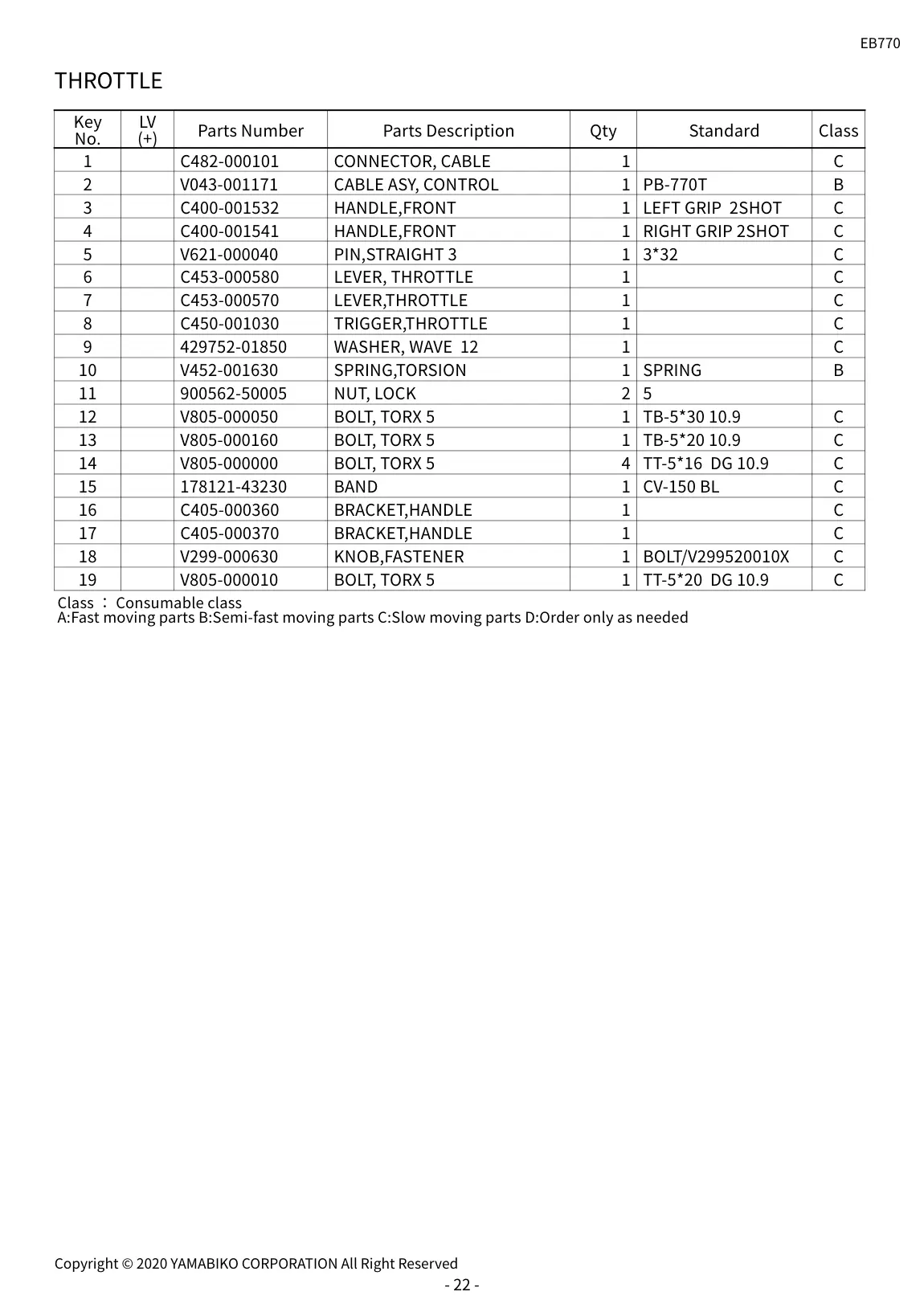

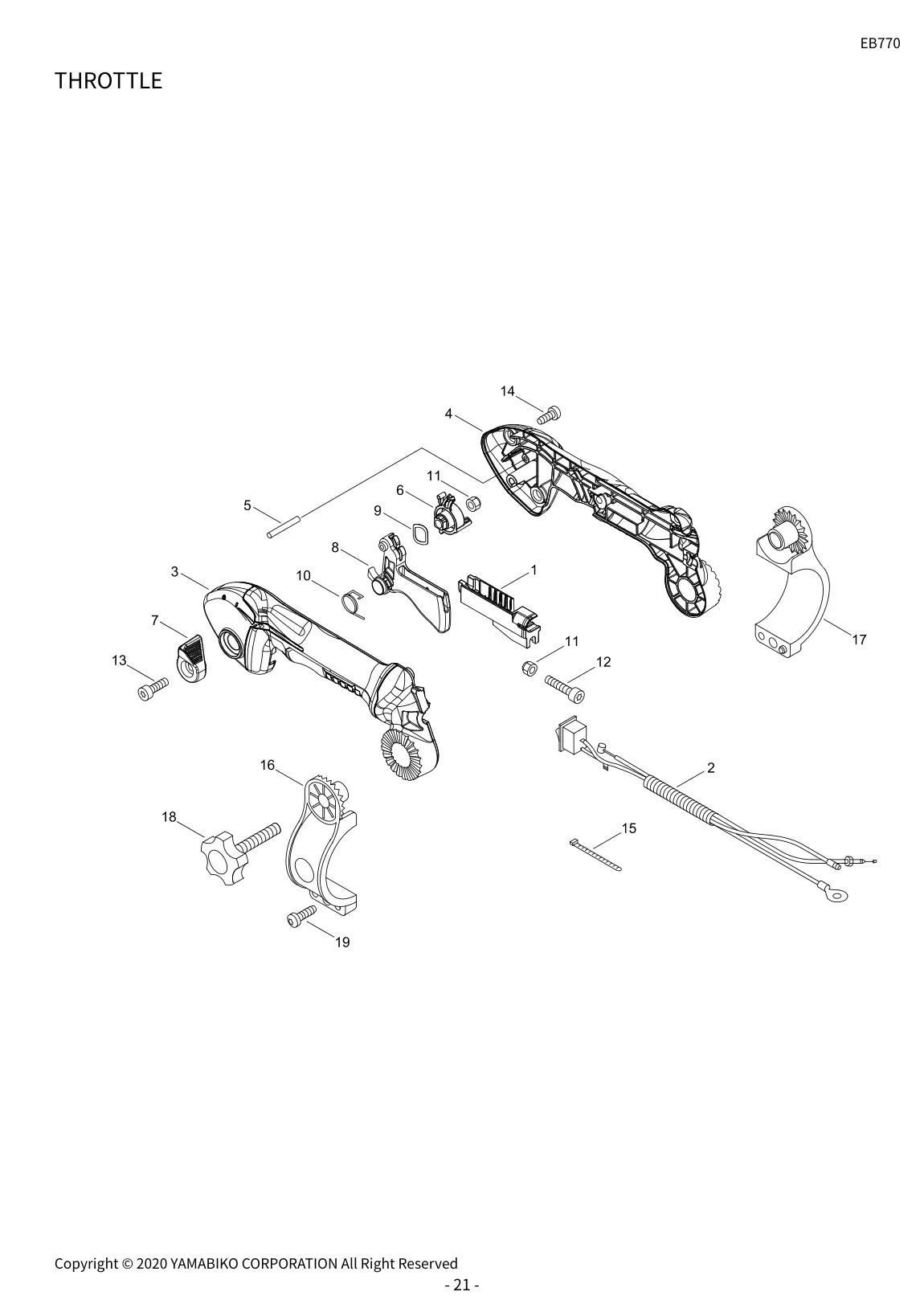

| 25 | THROTTLE | 1 | CONNECTOR, CABLE | C482-000101 | C482-000101-Online |
| 25 | THROTTLE | 10 | SPRING,TORSION | V452-001630 | V452-001630-Online |
| 25 | THROTTLE | 11 | NUT, LOCK | 900562-50005 | 900562-50005-Online |
| 25 | THROTTLE | 12 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 25 | THROTTLE | 13 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 25 | THROTTLE | 14 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 25 | THROTTLE | 15 | BAND | 178121-43230 | 178121-43230-Online |
| 25 | THROTTLE | 16 | BRACKET,HANDLE | C405-000360 | C405-000360-Online |
| 25 | THROTTLE | 17 | BRACKET,HANDLE | C405-000370 | C405-000370-Online |
| 25 | THROTTLE | 18 | KNOB,FASTENER | V299-000630 | V299-000630-Online |
| 25 | THROTTLE | 19 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 25 | THROTTLE | 2 | CABLE ASY, CONTROL | V043-001171 | V043-001171-Online |
| 25 | THROTTLE | 3 | HANDLE,FRONT | C400-001532 | C400-001532-Online |
| 25 | THROTTLE | 4 | HANDLE,FRONT | C400-001541 | C400-001541-Online |
| 25 | THROTTLE | 5 | PIN,STRAIGHT | V621-000040 | V621-000040-Online |
| 25 | THROTTLE | 6 | LEVER, THROTTLE | C453-000580 | C453-000580-Online |
| 25 | THROTTLE | 7 | LEVER,THROTTLE | C453-000570 | C453-000570-Online |
| 25 | THROTTLE | 8 | TRIGGER,THROTTLE | C450-001030 | C450-001030-Online |
| 25 | THROTTLE | 9 | WASHER, WAVE | 429752-01850 | 429752-01850-Online |

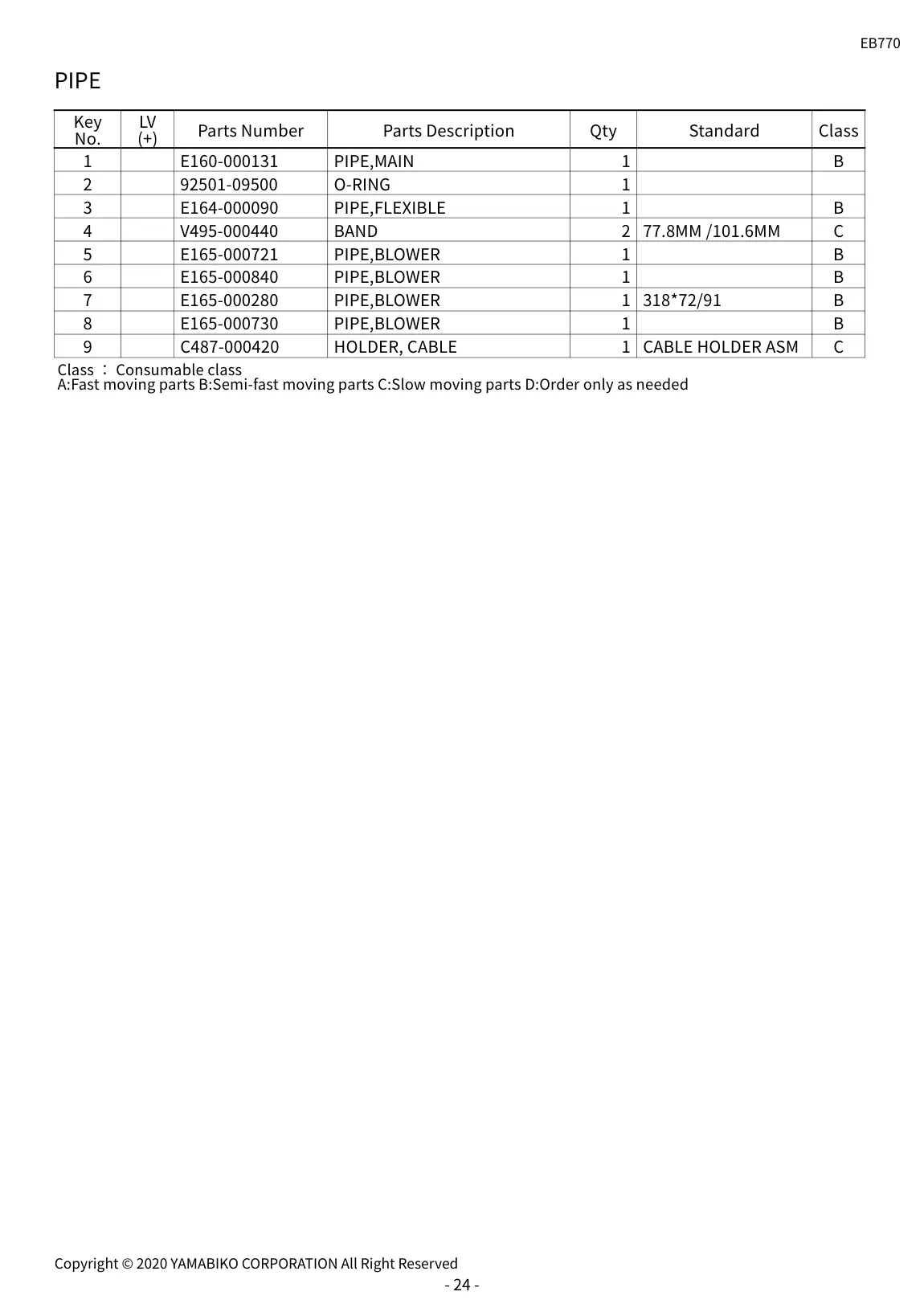

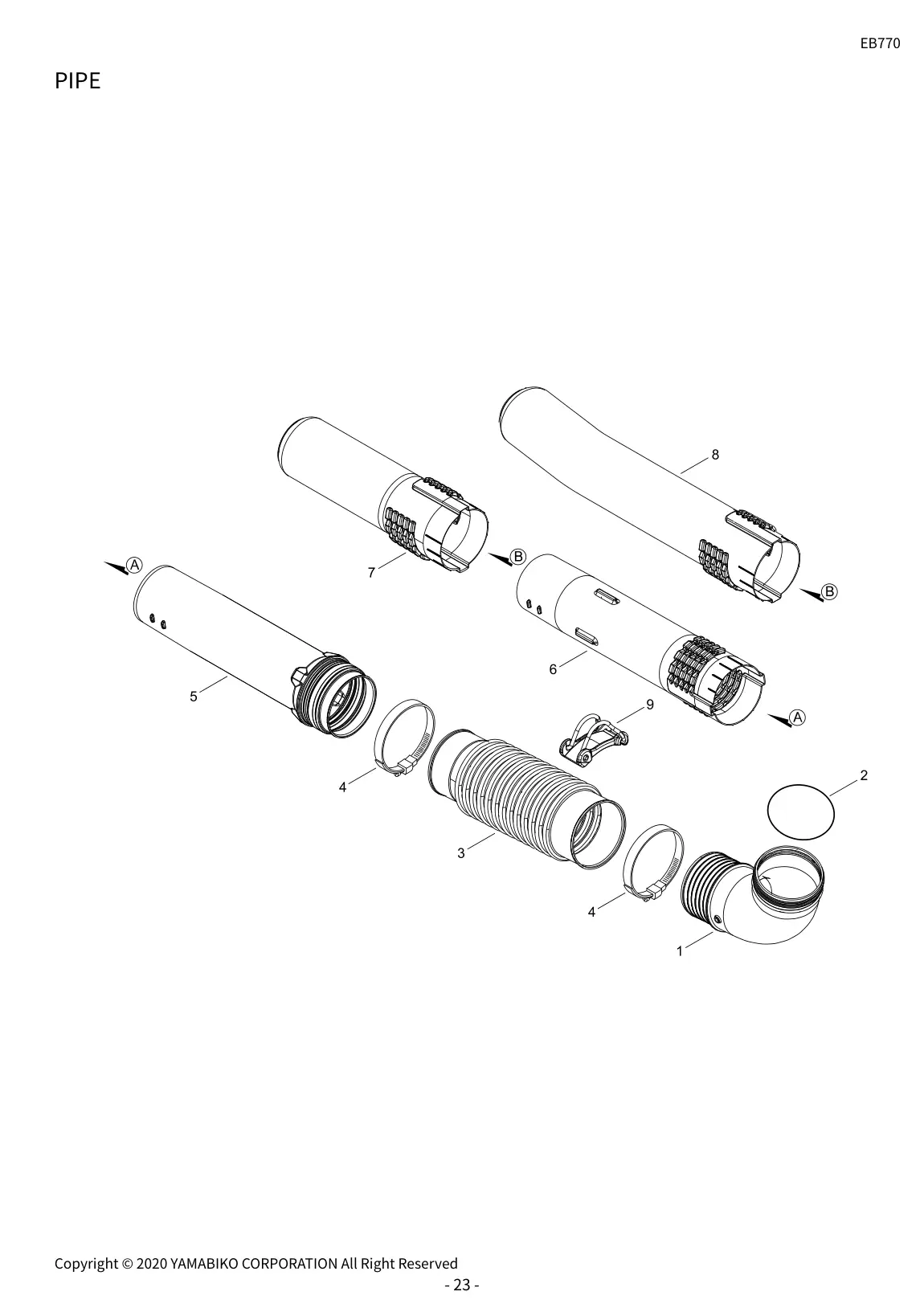

| 27 | PIPE | 1 | PIPE,MAIN | E160-000131 | E160-000131-Online |
| 27 | PIPE | 2 | O-RING | 92501-09500 | 92501-09500-Online |
| 27 | PIPE | 3 | PIPE,FLEXIBLE | E164-000090 | E164-000090-Online |
| 27 | PIPE | 4 | BAND | V495-000440 | V495-000440-Online |
| 27 | PIPE | 5 | PIPE,BLOWER | E165-000721 | E165-000721-Online |
| 27 | PIPE | 6 | PIPE,BLOWER | E165-000840 | E165-000840-Online |
| 27 | PIPE | 7 | PIPE,BLOWER | E165-000280 | E165-000280-Online |
| 27 | PIPE | 8 | PIPE,BLOWER | E165-000730 | E165-000730-Online |
| 27 | PIPE | 9 | HOLDER, CABLE | C487-000420 | C487-000420-Online |

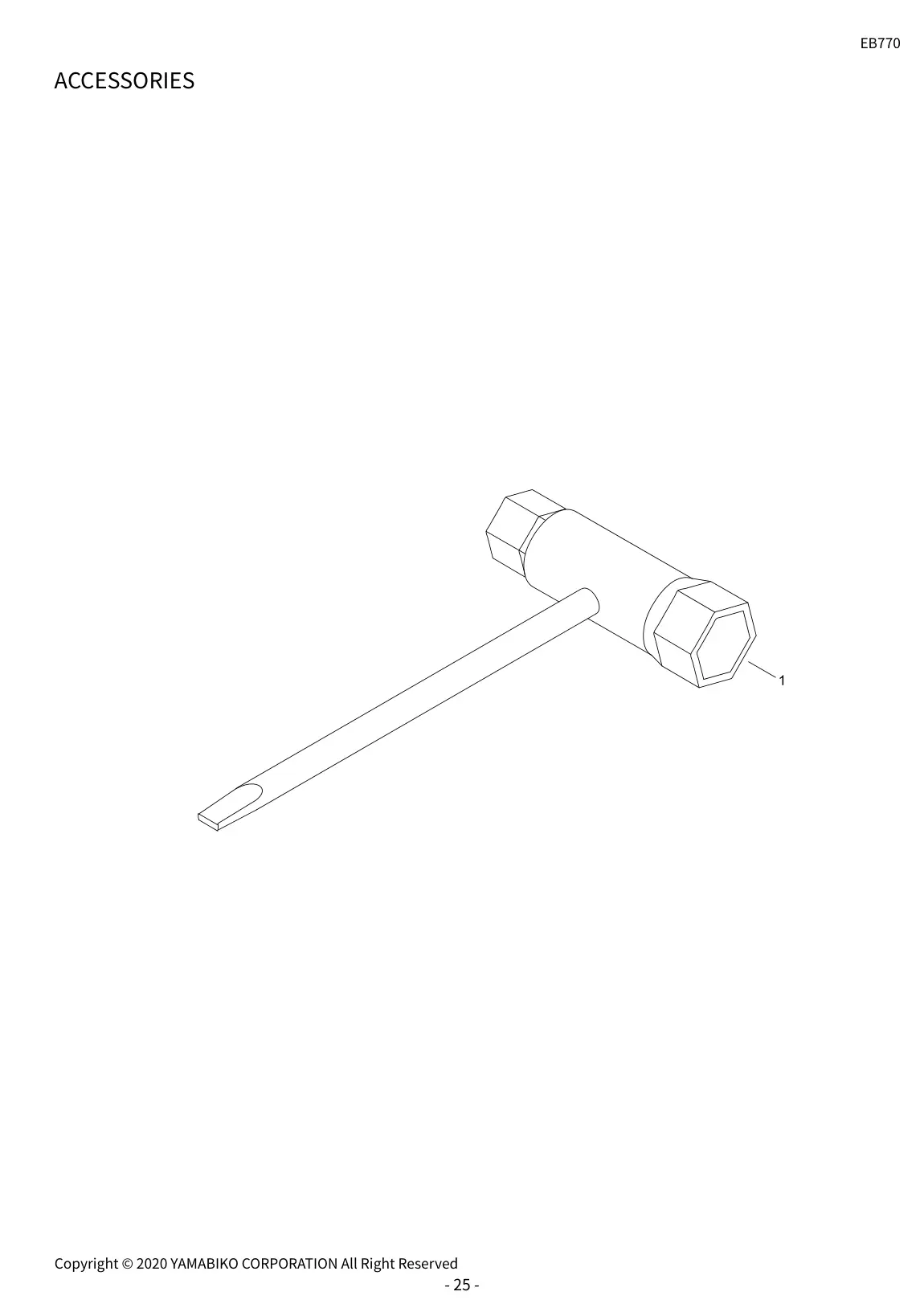

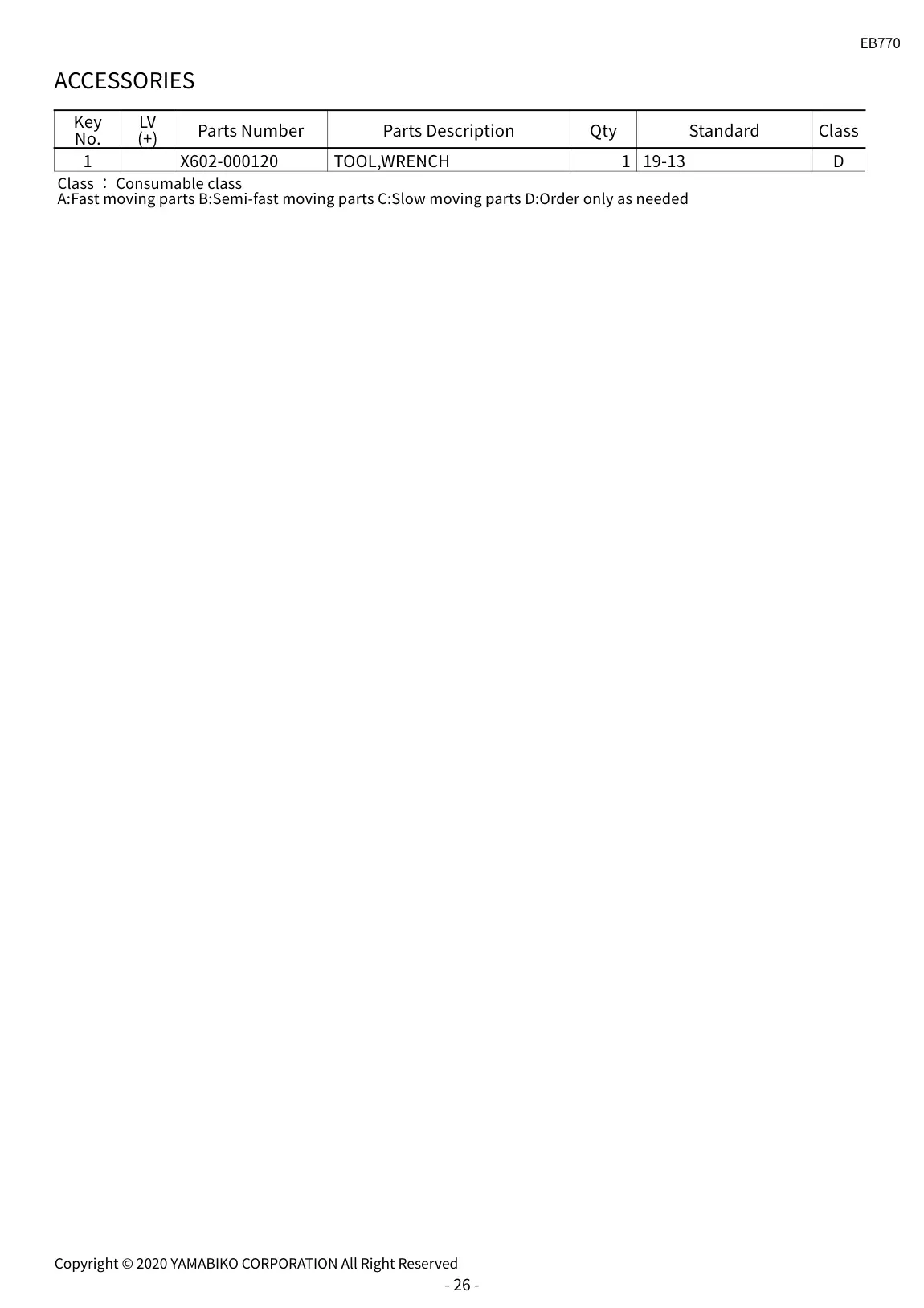

| 29 | ACCESSORIES | 1 | TOOL,WRENCH | X602-000120 | X602-000120-Online |
| 30 | GASKET,CYL | CIRCLIP, PISTON PIN | 100015-00120 | 100015-00120-Online | |
| 30 | GASKET,CYL | 10 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 30 | GASKET,CYL | 10 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 30 | GASKET,CYL | 10 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 30 | GASKET,CYL | 10 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 30 | GASKET,CYL | 10 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 30 | GASKET,CYL | 10 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 30 | GASKET,CYL | 10 | RING, PACKING | 123143-12110 | 123143-12110-Online |
| 30 | GASKET,CYL | 10 | SCREW | 123144-44330 | 123144-44330-Online |
| 30 | GASKET,CYL | 10 | WASHER | 123149-54230 | 123149-54230-Online |
| 30 | GASKET,CYL | 10 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 30 | GASKET,CYL | 10 | CLIP | 123173-07930 | 123173-07930-Online |
| 30 | GASKET,CYL | 10 | PUMP, PRIMER | 123181-39130 | 123181-39130-Online |
| 30 | GASKET,CYL | 10 | STARTER,RECOIL | A051-000841 | A051-000841-Online |
| 30 | GASKET,CYL | 10 | SCREW | P003-002400 | P003-002400-Online |
| 30 | GASKET,CYL | 10 | GASKET, PUMP | P003-004100 | P003-004100-Online |
| 30 | GASKET,CYL | 10 | BODY ASSEMBLY, PUMP | P003-005500 | P003-005500-Online |
| 30 | GASKET,CYL | 10 | SCREW | P003-005510 | P003-005510-Online |
| 30 | GASKET,CYL | 10 | DIAPHRAGM, FUEL | P003-005650 | P003-005650-Online |
| 30 | GASKET,CYL | 10 | NEEDLE | P003-005880 | P003-005880-Online |
| 30 | GASKET,CYL | 10 | PISTON KIT | P021-002984 | P021-002984-Online |
| 30 | GASKET,CYL | 12 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 30 | GASKET,CYL | 12 | COVER, VENT | 131328-40630 | 131328-40630-Online |
| 30 | GASKET,CYL | 12 | WASHER | 131911-03460 | 131911-03460-Online |
| 30 | GASKET,CYL | 12 | GROMMET | 156112-40630 | 156112-40630-Online |
| 30 | GASKET,CYL | 12 | WASHER 5.5*16*2T | 613019-07350 | 613019-07350-Online |
| 30 | GASKET,CYL | 12 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 30 | GASKET,CYL | 12 | STRAINER, FUEL | A369-000460 | A369-000460-Online |
| 30 | GASKET,CYL | 12 | BAND, FUEL TANK | A392-000281 | A392-000281-Online |
| 30 | GASKET,CYL | 12 | ROTOR, MAGNETO | A409-000390 | A409-000390-Online |
| 30 | GASKET,CYL | 12 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 30 | GASKET,CYL | 12 | CRANKCASE KIT | P021-017260 | P021-017260-Online |
| 30 | GASKET,CYL | 14 | WASHER 5.5*16*2T | 613019-07350 | 613019-07350-Online |
| 30 | GASKET,CYL | 14 | GUIDE,EXH | A313-000520 | A313-000520-Online |
| 30 | GASKET,CYL | 14 | GUIDE, EXHAUST | A313-001080 | A313-001080-Online |
| 30 | GASKET,CYL | 14 | TANK, FUEL | A350-000980 | A350-000980-Online |
| 30 | GASKET,CYL | 14 | HARNESS,BACKPACK | P021-046553 | P021-046553-Online |
| 30 | GASKET,CYL | 16 | SCREW | 177236-61830 | 177236-61830-Online |
| 30 | GASKET,CYL | 16 | BAND | 178121-43230 | 178121-43230-Online |
| 30 | GASKET,CYL | 16 | PULLEY,ASM STARTER | A052-000270 | A052-000270-Online |
| 30 | GASKET,CYL | 16 | RING,PISTON | A101-000020 | A101-000020-Online |
| 30 | GASKET,CYL | 16 | PAWL, STARTER | P022-003120 | P022-003120-Online |
| 30 | GASKET,CYL | 16 | SPRING, RETURN | P022-003130 | P022-003130-Online |
| 30 | GASKET,CYL | 16 | SPRING, SPIRAL | P022-004680 | P022-004680-Online |
| 30 | GASKET,CYL | 16 | PLATE, FRICTION | P022-010221 | P022-010221-Online |
| 30 | GASKET,CYL | 16 | SPRING, FRICTION | P022-010231 | P022-010231-Online |
| 30 | GASKET,CYL | 16 | WASHER | P022-010240 | P022-010240-Online |
| 30 | GASKET,CYL | 16 | WASHER, THRUST | P022-010250 | P022-010250-Online |
| 30 | GASKET,CYL | 16 | CAP, GRIP | P022-010260 | P022-010260-Online |
| 30 | GASKET,CYL | 16 | ROPE | P022-010270 | P022-010270-Online |
| 30 | GASKET,CYL | 16 | DRUM, STARTER | P022-010280 | P022-010280-Online |
| 30 | GASKET,CYL | 16 | STARTER CASE | P022-039320 | P022-039320-Online |
| 30 | GASKET,CYL | 16 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 30 | GASKET,CYL | 16 | ENGINE COVER ASY | P100-007000 | P100-007000-Online |
| 30 | GASKET,CYL | 18 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 30 | GASKET,CYL | 18 | NUT, FLANGE | 900519-00010 | 900519-00010-Online |
| 30 | GASKET,CYL | 18 | NUT, LOCK | 900562-50005 | 900562-50005-Online |
| 30 | GASKET,CYL | 18 | FRAME, BACKPACK | C620-000336 | C620-000336-Online |
| 30 | GASKET,CYL | 18 | LID,SEAT | C635-000000 | C635-000000-Online |
| 30 | GASKET,CYL | 18 | CASE,FAN | E103-001440 | E103-001440-Online |
| 30 | GASKET,CYL | 18 | CASE,FAN | E103-001450 | E103-001450-Online |
| 30 | GASKET,CYL | 18 | GRID, BLOWER | E104-000100 | E104-000100-Online |
| 30 | GASKET,CYL | 18 | PIPE,MAIN | E160-000131 | E160-000131-Online |
| 30 | GASKET,CYL | 2 | PLUG | 101578-38431 | 101578-38431-Online |
| 30 | GASKET,CYL | 2 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 30 | GASKET,CYL | 2 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 30 | GASKET,CYL | 2 | NUT, LOCK | 92110-03000 | 92110-03000-Online |
| 30 | GASKET,CYL | 2 | CARBURETOR, | A021-003942 | A021-003942-Online |
| 30 | GASKET,CYL | 2 | RING,PISTON | A101-000030 | A101-000030-Online |
| 30 | GASKET,CYL | 2 | COVER,DUST | A127-000240 | A127-000240-Online |
| 30 | GASKET,CYL | 2 | COVER,CYLINDER | A160-001242 | A160-001242-Online |
| 30 | GASKET,CYL | 2 | ADAPTER, INTAKE | A201-000010 | A201-000010-Online |
| 30 | GASKET,CYL | 2 | HANDLE,FRONT | C400-001532 | C400-001532-Online |
| 30 | GASKET,CYL | 2 | CAP,FUER ASSY | P021-014061 | P021-014061-Online |
| 30 | GASKET,CYL | 2 | CLEANER COVER ASY | P100-007220 | P100-007220-Online |
| 30 | GASKET,CYL | 20 | NUT, LOCK | 900562-50005 | 900562-50005-Online |
| 30 | GASKET,CYL | 20 | SEAT, BACKPACK | C630-000070 | C630-000070-Online |
| 30 | GASKET,CYL | 20 | PLATE, ENG | C632-000100 | C632-000100-Online |
| 30 | GASKET,CYL | 20 | PAD, HARNESS | C644-000240 | C644-000240-Online |
| 30 | GASKET,CYL | 20 | BUCKLE, HARNESS | C645-000080 | C645-000080-Online |
| 30 | GASKET,CYL | 20 | BELT, HARNESS | C651-000140 | C651-000140-Online |
| 30 | GASKET,CYL | 20 | FAN,BLOWER | E100-000080 | E100-000080-Online |
| 30 | GASKET,CYL | 20 | HARNESS,BACKPACK | P021-046563 | P021-046563-Online |
| 30 | GASKET,CYL | 20 | CASE,CLEANER | P021-051930 | P021-051930-Online |
| 30 | GASKET,CYL | 22 | WASHER, WAVE | 429752-01850 | 429752-01850-Online |
| 30 | GASKET,CYL | 22 | WASHER 5.5*16*2T | 613019-07350 | 613019-07350-Online |
| 30 | GASKET,CYL | 22 | WASHER | 900600-00005 | 900600-00005-Online |
| 30 | GASKET,CYL | 22 | HANDLE,FRONT | C400-001541 | C400-001541-Online |
| 30 | GASKET,CYL | 22 | BRACKET,HANDLE | C405-000360 | C405-000360-Online |
| 30 | GASKET,CYL | 22 | BRACKET,HANDLE | C405-000370 | C405-000370-Online |
| 30 | GASKET,CYL | 22 | TRIGGER,THROTTLE | C450-001030 | C450-001030-Online |
| 30 | GASKET,CYL | 22 | LEVER,THROTTLE | C453-000570 | C453-000570-Online |
| 30 | GASKET,CYL | 22 | LEVER, THROTTLE | C453-000580 | C453-000580-Online |
| 30 | GASKET,CYL | 22 | GUIDE,CABLE | C480-000130 | C480-000130-Online |
| 30 | GASKET,CYL | 22 | HOLDER, CABLE | C487-000420 | C487-000420-Online |
| 30 | GASKET,CYL | 22 | GASKET,CYL | V100-000290 | V100-000290-Online |
| 30 | GASKET,CYL | 24 | BEARING, BALL | 94032-36302 | 94032-36302-Online |
| 30 | GASKET,CYL | 24 | STOPPER | C617-000380 | C617-000380-Online |
| 30 | GASKET,CYL | 24 | PIPE,FLEXIBLE | E164-000090 | E164-000090-Online |
| 30 | GASKET,CYL | 24 | PIPE,BLOWER | E165-000280 | E165-000280-Online |
| 30 | GASKET,CYL | 24 | PIPE,BLOWER | E165-000721 | E165-000721-Online |
| 30 | GASKET,CYL | 24 | PIPE,BLOWER | E165-000730 | E165-000730-Online |
| 30 | GASKET,CYL | 24 | PIPE,BLOWER | E165-000840 | E165-000840-Online |
| 30 | GASKET,CYL | 24 | DIAPHRAGM, METERING | P003-001850 | P003-001850-Online |
| 30 | GASKET,CYL | 4 | CRANKSHAFT,ASY | A011-000572 | A011-000572-Online |
| 30 | GASKET,CYL | 4 | CYLINDER | A130-001050 | A130-001050-Online |
| 30 | GASKET,CYL | 4 | MUFFLER ASY | P021-017273 | P021-017273-Online |
| 30 | GASKET,CYL | 6 | COIL, SPARK PLUG | 159011-03432 | 159011-03432-Online |
| 30 | GASKET,CYL | 6 | CAP, SPARK PLUG | 159012-03433 | 159012-03433-Online |
| 30 | GASKET,CYL | 6 | GRIP, STARTER | 177228-11620 | 177228-11620-Online |
| 30 | GASKET,CYL | 6 | KEY WOODRUFF | 900323-03014 | 900323-03014-Online |
| 30 | GASKET,CYL | 6 | NUT, FLANGE | 900519-00010 | 900519-00010-Online |
| 30 | GASKET,CYL | 6 | COIL, IGNITION | A411-001521 | A411-001521-Online |
| 30 | GASKET,CYL | 6 | COVER,CAP | A429-000060 | A429-000060-Online |
| 30 | GASKET,CYL | 8 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 30 | GASKET,CYL | 8 | KEY WOODRUFF | 900323-03014 | 900323-03014-Online |
| 30 | GASKET,CYL | 8 | O-RING | 92501-09500 | 92501-09500-Online |
| 30 | GASKET,CYL | 8 | CARBURETOR, | A021-003942 | A021-003942-Online |
| 30 | GASKET,CYL | 8 | BELLOWS, INTAKE | A202-000090 | A202-000090-Online |
| 30 | GASKET,CYL | 8 | RING, SEAL | A205-000000 | A205-000000-Online |
| 30 | GASKET,CYL | 8 | ELEMENT, AIR FILTER | A226-000410 | A226-000410-Online |
| 30 | GASKET,CYL | 8 | ELEMENT, AIR FILTER | A226-000480 | A226-000480-Online |
| 30 | GASKET,CYL | 8 | PLATE,ELEMENT | A227-000030 | A227-000030-Online |
| 30 | GASKET,CYL | 8 | KNOB,CLEANER LID | A235-000000 | A235-000000-Online |
| 30 | GASKET,CYL | 8 | LEVER,CHOKE | A242-000260 | A242-000260-Online |
| 30 | GASKET,CYL | 8 | SHUTTER,CHOKE | A243-000370 | A243-000370-Online |
| 30 | GASKET,CYL | 8 | PLATE, PREVENT | A244-000090 | A244-000090-Online |
| 30 | GASKET,CYL | 8 | CAP,CARBURETOR | A246-000040 | A246-000040-Online |
| 30 | GASKET,CYL | 8 | SCREEN,ARRESTOR | A310-000000 | A310-000000-Online |
| 30 | GASKET,CYL | 8 | CONNECTOR, CABLE | C482-000101 | C482-000101-Online |
| 30 | GASKET,CYL | 8 | E-RING | P022-002100 | P022-002100-Online |
| 30 | GASKET,CYL | 8 | CABLE ASY, CONTROL | V043-001171 | V043-001171-Online |

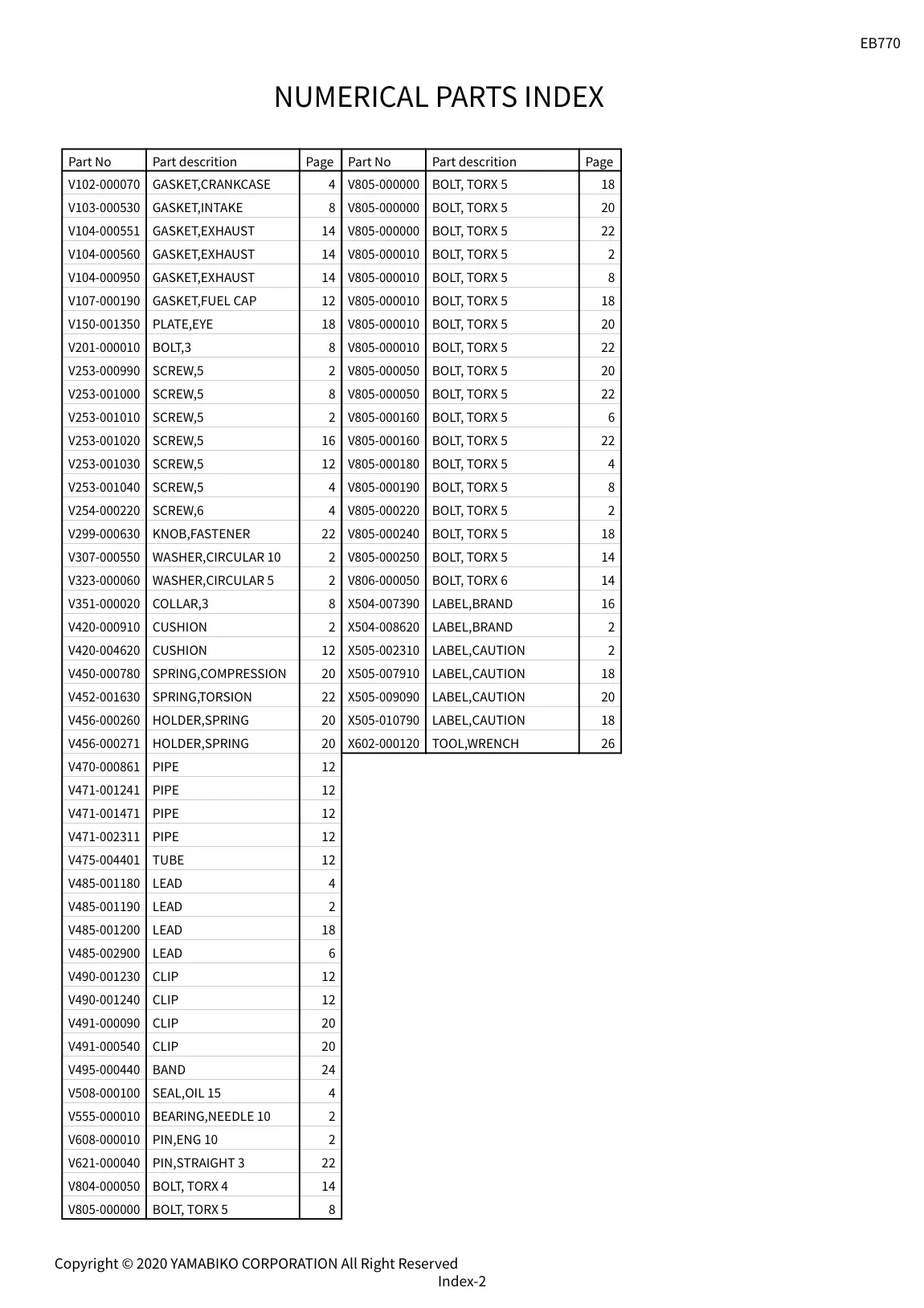

| 31 | TOOL,WRENCH | GASKET,CRANKCASE | V102-000070 | V102-000070-Online | |
| 31 | TOOL,WRENCH | 12 | PLATE,EYE | V150-001350 | V150-001350-Online |
| 31 | TOOL,WRENCH | 12 | SCREW,5 | V253-001040 | V253-001040-Online |
| 31 | TOOL,WRENCH | 12 | SPRING,COMPRESSION | V450-000780 | V450-000780-Online |
| 31 | TOOL,WRENCH | 12 | PIPE | V471-001241 | V471-001241-Online |
| 31 | TOOL,WRENCH | 12 | PIPE | V471-001471 | V471-001471-Online |
| 31 | TOOL,WRENCH | 12 | PIPE | V471-002311 | V471-002311-Online |
| 31 | TOOL,WRENCH | 12 | TUBE | V475-004401 | V475-004401-Online |
| 31 | TOOL,WRENCH | 12 | LEAD | V485-001180 | V485-001180-Online |
| 31 | TOOL,WRENCH | 12 | CLIP | V490-001240 | V490-001240-Online |
| 31 | TOOL,WRENCH | 12 | CLIP | V491-000090 | V491-000090-Online |
| 31 | TOOL,WRENCH | 14 | GASKET,EXHAUST | V104-000560 | V104-000560-Online |
| 31 | TOOL,WRENCH | 14 | GASKET,EXHAUST | V104-000950 | V104-000950-Online |
| 31 | TOOL,WRENCH | 14 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 31 | TOOL,WRENCH | 14 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 31 | TOOL,WRENCH | 14 | BOLT, TORX | V806-000050 | V806-000050-Online |
| 31 | TOOL,WRENCH | 14 | LABEL,BRAND | X504-007390 | X504-007390-Online |
| 31 | TOOL,WRENCH | 16 | SCREW,5 | V253-001030 | V253-001030-Online |
| 31 | TOOL,WRENCH | 16 | LABEL,BRAND | X504-008620 | X504-008620-Online |
| 31 | TOOL,WRENCH | 18 | BOLT,3 | V201-000010 | V201-000010-Online |
| 31 | TOOL,WRENCH | 18 | LEAD | V485-002900 | V485-002900-Online |
| 31 | TOOL,WRENCH | 18 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 31 | TOOL,WRENCH | 18 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 31 | TOOL,WRENCH | 18 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 31 | TOOL,WRENCH | 18 | LABEL,CAUTION | X505-009090 | X505-009090-Online |
| 31 | TOOL,WRENCH | 18 | TOOL,WRENCH | X602-000120 | X602-000120-Online |
| 31 | TOOL,WRENCH | 2 | SCREW,5 | V253-001000 | V253-001000-Online |
| 31 | TOOL,WRENCH | 2 | SCREW,5 | V253-001020 | V253-001020-Online |
| 31 | TOOL,WRENCH | 2 | WASHER,CIRCULAR | V323-000060 | V323-000060-Online |
| 31 | TOOL,WRENCH | 2 | COLLAR,3 | V351-000020 | V351-000020-Online |
| 31 | TOOL,WRENCH | 2 | CUSHION | V420-004620 | V420-004620-Online |
| 31 | TOOL,WRENCH | 2 | LEAD | V485-001200 | V485-001200-Online |
| 31 | TOOL,WRENCH | 2 | PIN,ENG | V608-000010 | V608-000010-Online |
| 31 | TOOL,WRENCH | 2 | PIN,STRAIGHT | V621-000040 | V621-000040-Online |
| 31 | TOOL,WRENCH | 2 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 31 | TOOL,WRENCH | 2 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 31 | TOOL,WRENCH | 2 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 31 | TOOL,WRENCH | 2 | LABEL,CAUTION | X505-007910 | X505-007910-Online |
| 31 | TOOL,WRENCH | 20 | SPRING,TORSION | V452-001630 | V452-001630-Online |
| 31 | TOOL,WRENCH | 20 | HOLDER,SPRING | V456-000271 | V456-000271-Online |
| 31 | TOOL,WRENCH | 20 | PIPE | V470-000861 | V470-000861-Online |
| 31 | TOOL,WRENCH | 20 | CLIP | V491-000540 | V491-000540-Online |
| 31 | TOOL,WRENCH | 20 | BAND | V495-000440 | V495-000440-Online |
| 31 | TOOL,WRENCH | 20 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 31 | TOOL,WRENCH | 20 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 31 | TOOL,WRENCH | 20 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 31 | TOOL,WRENCH | 20 | LABEL,CAUTION | X505-010790 | X505-010790-Online |
| 31 | TOOL,WRENCH | 22 | WASHER,CIRCULAR | V307-000550 | V307-000550-Online |
| 31 | TOOL,WRENCH | 22 | HOLDER,SPRING | V456-000260 | V456-000260-Online |
| 31 | TOOL,WRENCH | 22 | BOLT, TORX | V804-000050 | V804-000050-Online |
| 31 | TOOL,WRENCH | 22 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 31 | TOOL,WRENCH | 22 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 31 | TOOL,WRENCH | 22 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 31 | TOOL,WRENCH | 22 | BOLT, TORX | V805-000180 | V805-000180-Online |
| 31 | TOOL,WRENCH | 24 | SEAL,OIL | V508-000100 | V508-000100-Online |
| 31 | TOOL,WRENCH | 4 | GASKET,INTAKE | V103-000530 | V103-000530-Online |
| 31 | TOOL,WRENCH | 4 | SCREW,6 | V254-000220 | V254-000220-Online |
| 31 | TOOL,WRENCH | 4 | KNOB,FASTENER | V299-000630 | V299-000630-Online |
| 31 | TOOL,WRENCH | 4 | LEAD | V485-001190 | V485-001190-Online |
| 31 | TOOL,WRENCH | 4 | BEARING,NEEDLE | V555-000010 | V555-000010-Online |
| 31 | TOOL,WRENCH | 4 | BOLT, TORX | V805-000190 | V805-000190-Online |
| 31 | TOOL,WRENCH | 6 | CLIP | V490-001230 | V490-001230-Online |
| 31 | TOOL,WRENCH | 6 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 31 | TOOL,WRENCH | 8 | GASKET,EXHAUST | V104-000551 | V104-000551-Online |
| 31 | TOOL,WRENCH | 8 | SCREW,5 | V253-000990 | V253-000990-Online |
| 31 | TOOL,WRENCH | 8 | SCREW,5 | V253-001010 | V253-001010-Online |
| 31 | TOOL,WRENCH | 8 | CUSHION | V420-000910 | V420-000910-Online |
| 31 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000000 | V805-000000-Online |
| 31 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 31 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000220 | V805-000220-Online |
Source file: 20230801-70-EB770_38_38000001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
