Illustrated Parts List
34" Dash Parts Manual - 938480 - HTDSHS034BAS21R707A - 604214
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 604214Model: 938480SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

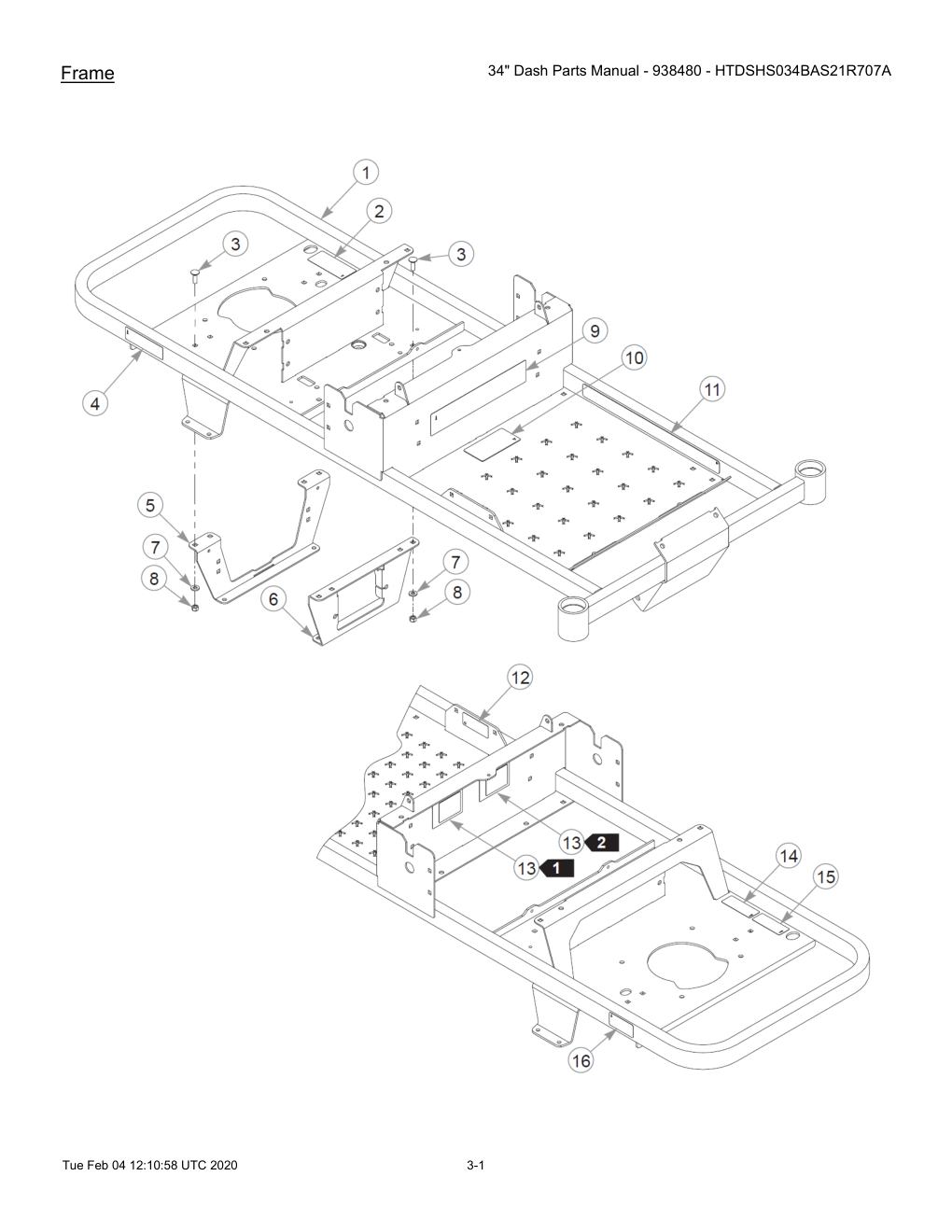

Sections
FrameFenders, Footrest, Instrument Panel & Wire HarnessBatteryTransmissions & Drive BeltTransmission Service PartsSteering & BrakeWheels & TiresFront Wheel Assembly BreakdownDrive Wheel BreakdownEngine & ClutchEngine Service Parts & Fuel TankService DeckDeck Pulleys & SpindlesSpindle Service Parts - 604214Deck Belt, Discharge Chute, Pulley Covers & BladesDeck Lift & Mounting Hardware (Multi-Page)SeatFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, FRAME | 554824 | 1 | 554824-Online |
| 2 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 3 | CB .312-18X 1.000 FUL YZ | 037887 | 6 | HT037887-Online |
| 4 | DECAL, GAS TANK WARNING | 607289 | 1 | 607289-Online |
| 5 | TRANSMISSION BRACKET | 124625-1 | 1 | 124625-1-Online |
| 6 | TRANSMISSION BRACKET | 124624-1 | 1 | 124624-1-Online |
| 7 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 8 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 9 | DECAL | 607067 | 1 | 607067-Online |
| 10 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 11 | DECAL, SAFE OPERATE-GRAY | 601981 | 1 | 601981-Online |
| 12 | DECAL, DECK HEIGHT | 605685 | 1 | 605685-Online |
| 13 | SERIAL NUMBER / SPEC DECAL | N/A | 2 | No SKU |
| 14 | DECAL, REMOVE FUEL CAP | 607296 | 1 | 607296-Online |
| 15 | DECAL, LEVEL | 607086 | 1 | 607086-Online |
| 16 | DECAL, HOT | 602041 | 1 | 602041-Online |

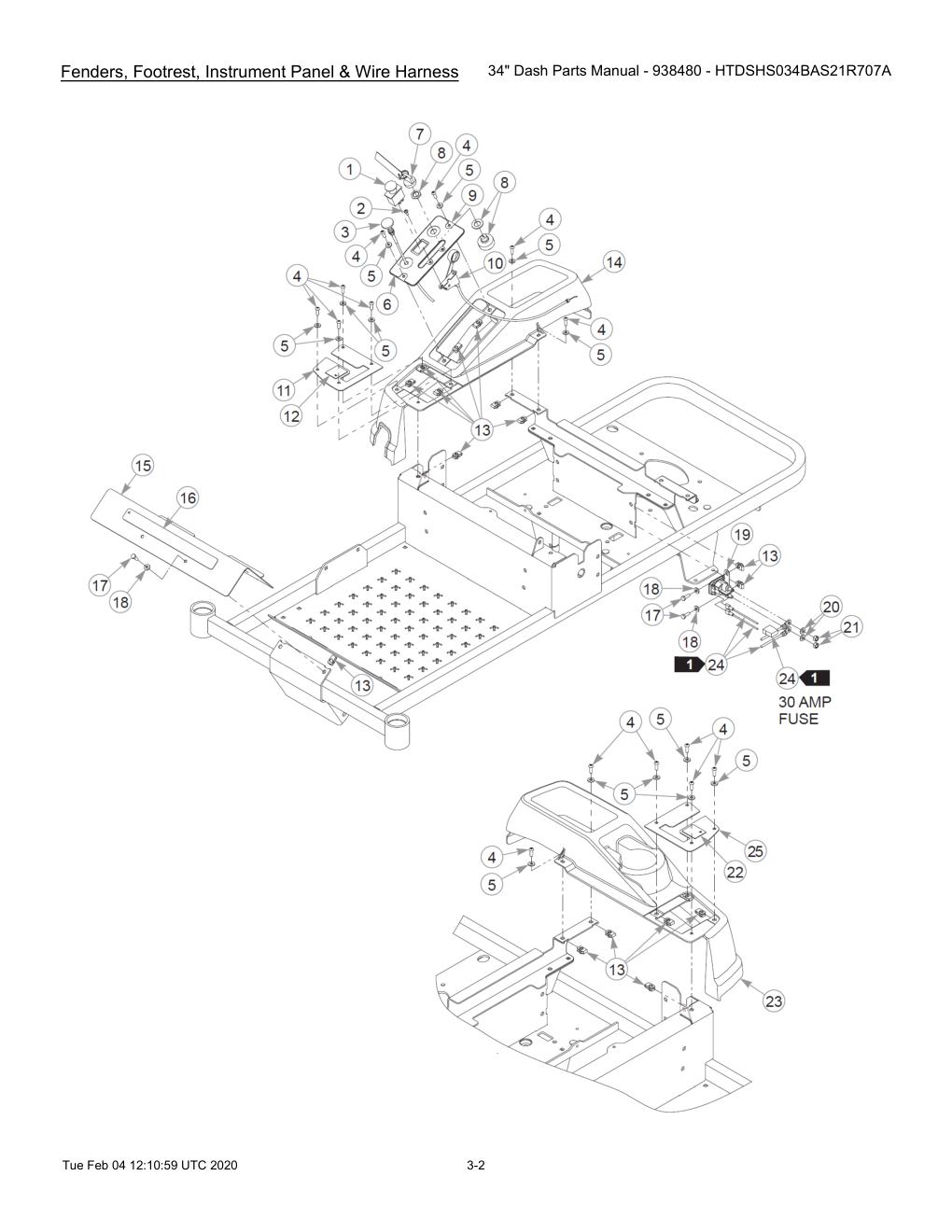

Fenders, Footrest, Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | CS 10-24X .500 PH SH ZN | 606851 | 2 | 606851-Online |
| 3 | CABLE, CHOKE CNTRL 26.5 | 607056 | 1 | 607056-Online |
| 4 | CS .250-20X0.75 BH TX BZ | 605473 | 14 | 605473-Online |
| 5 | FW 0.281X.63X.07 ZB | 605628 | 14 | 605628-Online |
| 6 | DECAL, INSTRUMENT PANEL | 607065 | 1 | 607065-Online |
| 7 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 8 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 9 | SVC, INST PANEL | 554826 | 1 | 554826-Online |
| 10 | CABLE, THROTTLE CONTROL | 607057 | 1 | 607057-Online |
| 11 | SVC, STEERING PLATE R | 554827 | 1 | 554827-Online |
| 12 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 13 | CN .250-20X .150 MAX THK | 601982 | 18 | 601982-Online |
| 14 | FENDER RH | 607063 | 1 | 607063-Online |
| 15 | SVC, FOOTREST | 554829 | 1 | 554829-Online |
| 16 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 17 | CS .250-20X0.75 HX G5 ZY | 055939 | 4 | 055939-Online |
| 18 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 19 | STARTER SOLENOID | 606445 | 1 | 606445-Online |
| 20 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 21 | NT 0.312-24 HX G8 | 041152 | 2 | HT041152-Online |
| 22 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 23 | FENDER LH | 607064 | 1 | 607064-Online |
| 24 | WIRE HARNESS | 607085 | 1 | 607085-Online |
| 25 | SVC, STEERING PLATE L | 554828 | 1 | 554828-Online |

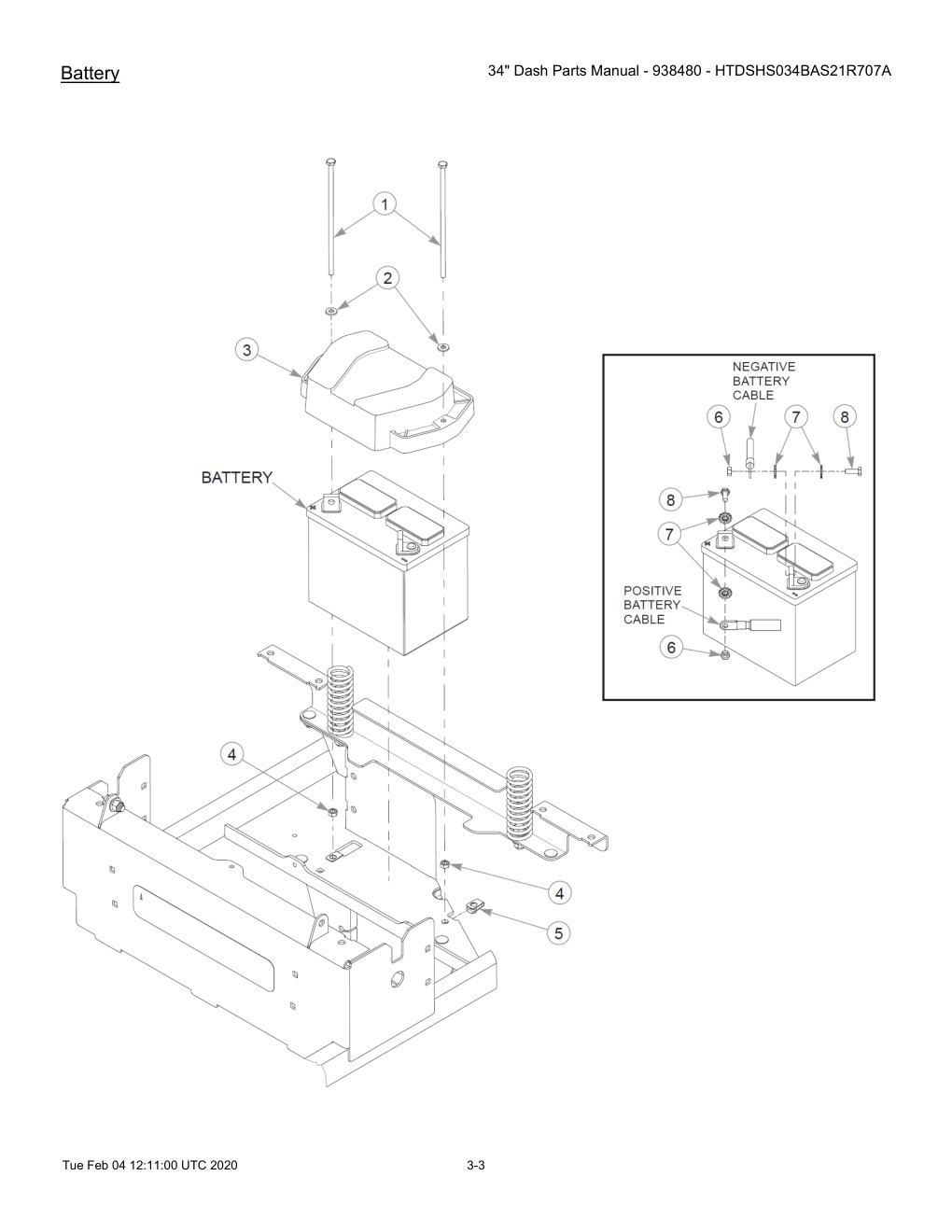

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20X7.50 HX G5 ZC | 604465 | 2 | 604465-Online |
| 2 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 3 | BATTERY COVER | 607066 | 1 | 607066-Online |
| 4 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 5 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 6 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 7 | LW .250 INTEXT ZY | 029868 | 4 | 029868-Online |
| 8 | CS .250-20X0.75 HX G5 ZY | 055939 | 2 | 055939-Online |

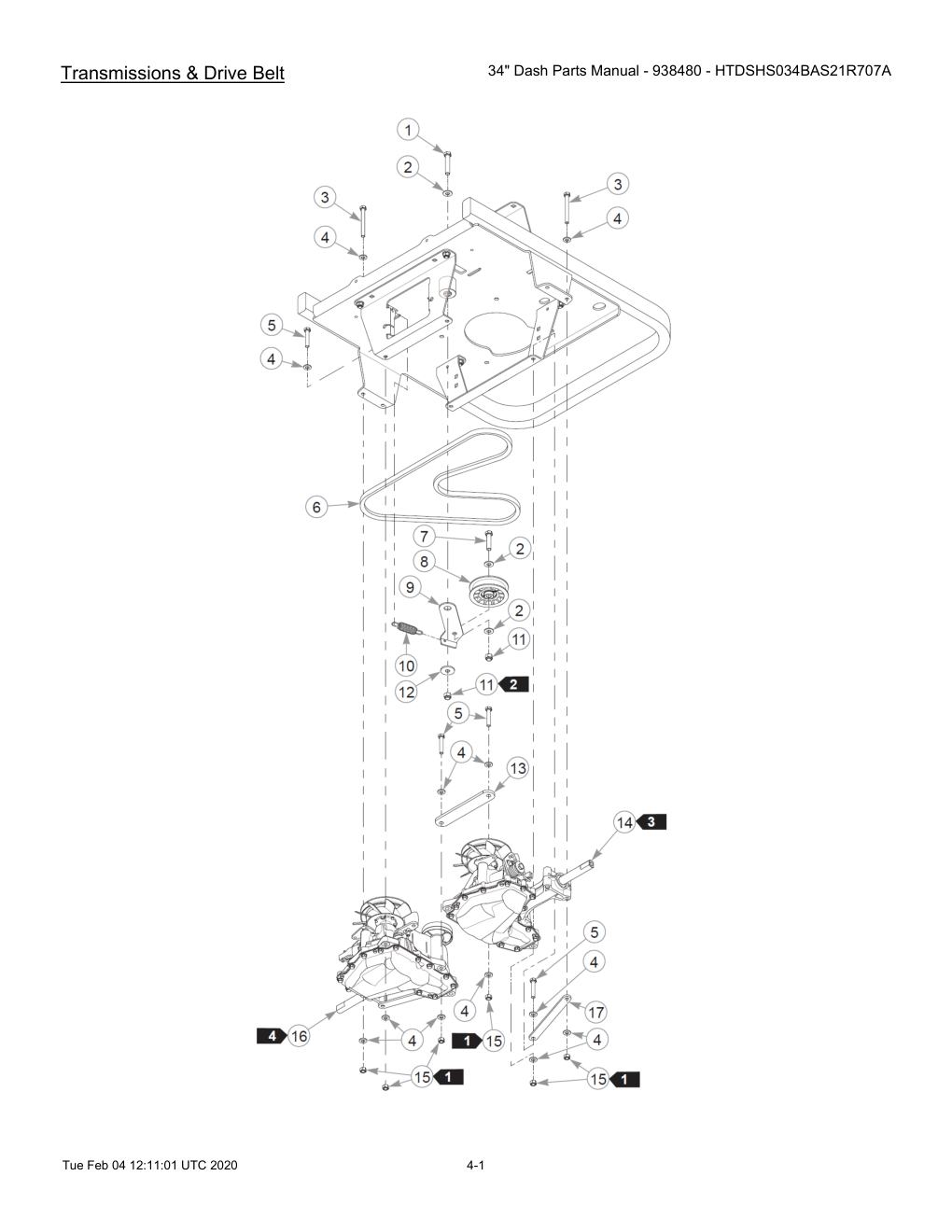

Transmissions & Drive Belt
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .375-16X2.000HXG5 | 016410 | 1 | HT016410-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 3 | HT767954-Online |
| 3 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 4 | FW 0.343SAE | 768523 | 20 | HT768523-Online |
| 5 | CS .312-18X1.750HXG5 | 050161 | 6 | 050161-Online |
| 6 | DRIVE BELT | 606997 | 1 | 606997-Online |
| 7 | CS .375-16X1.625HXG5 | 705160 | 1 | 705160-Online |
| 8 | PULLEY, 3" FLAT POLY | 607163 | 1 | 607163-Online |
| 9 | TENSIONER ARM | 124545-4 | 1 | 124545-4-Online |
| 10 | SPRING, EXTENSION | 607201 | 1 | 607201-Online |
| 11 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 12 | FW 0.406X1.25X.12 HD ZY | 712893 | 1 | HT712893-Online |
| 13 | CROSS BRACE | 124641-1 | 1 | HT124641-1-Online |
| 14 | TRANSMISSION, ZT1800 | 606995 | 1 | 606995-Online |
| 15 | NT .312-18NLG5 | 058776 | 10 | HT058776-Online |
| 16 | TRANSMISSION, ZT1800 | 606994 | 1 | 606994-Online |
| 17 | LINK | 125017-1 | 2 | HT125017-1-Online |

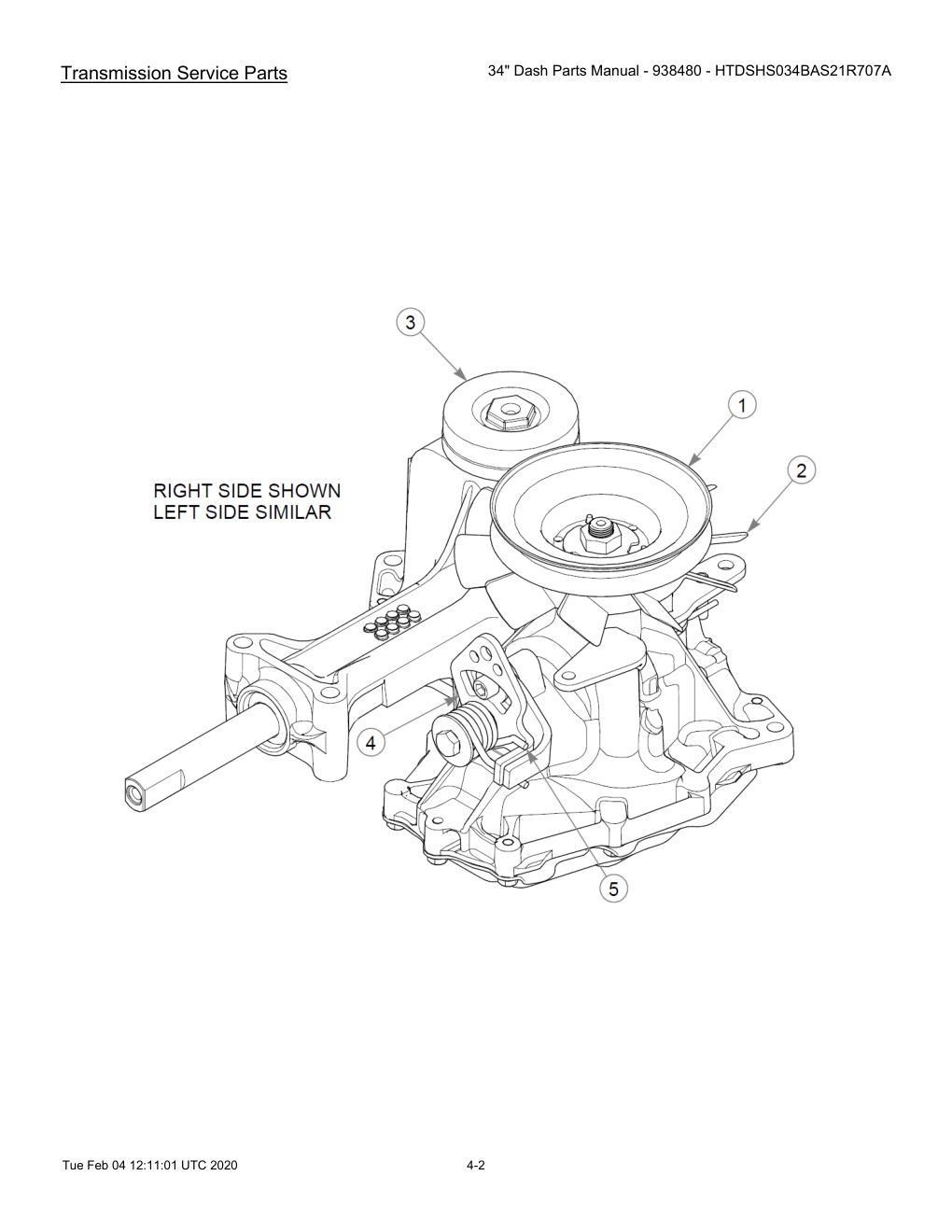

Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, FAN PULLEY | 607128 | 1 | 607128-Online |
| 2 | FAN - 7.0" (10 BLADE) | 607727 | 1 | 607727-Online |
| 3 | BREATHER ASSY | 607131 | 1 | 607131-Online |
| 4 | KIT, RTN | 607129 | 1 | 607129-Online |
| 5 | RTN SPRING | 607130 | 1 | 607130-Online |

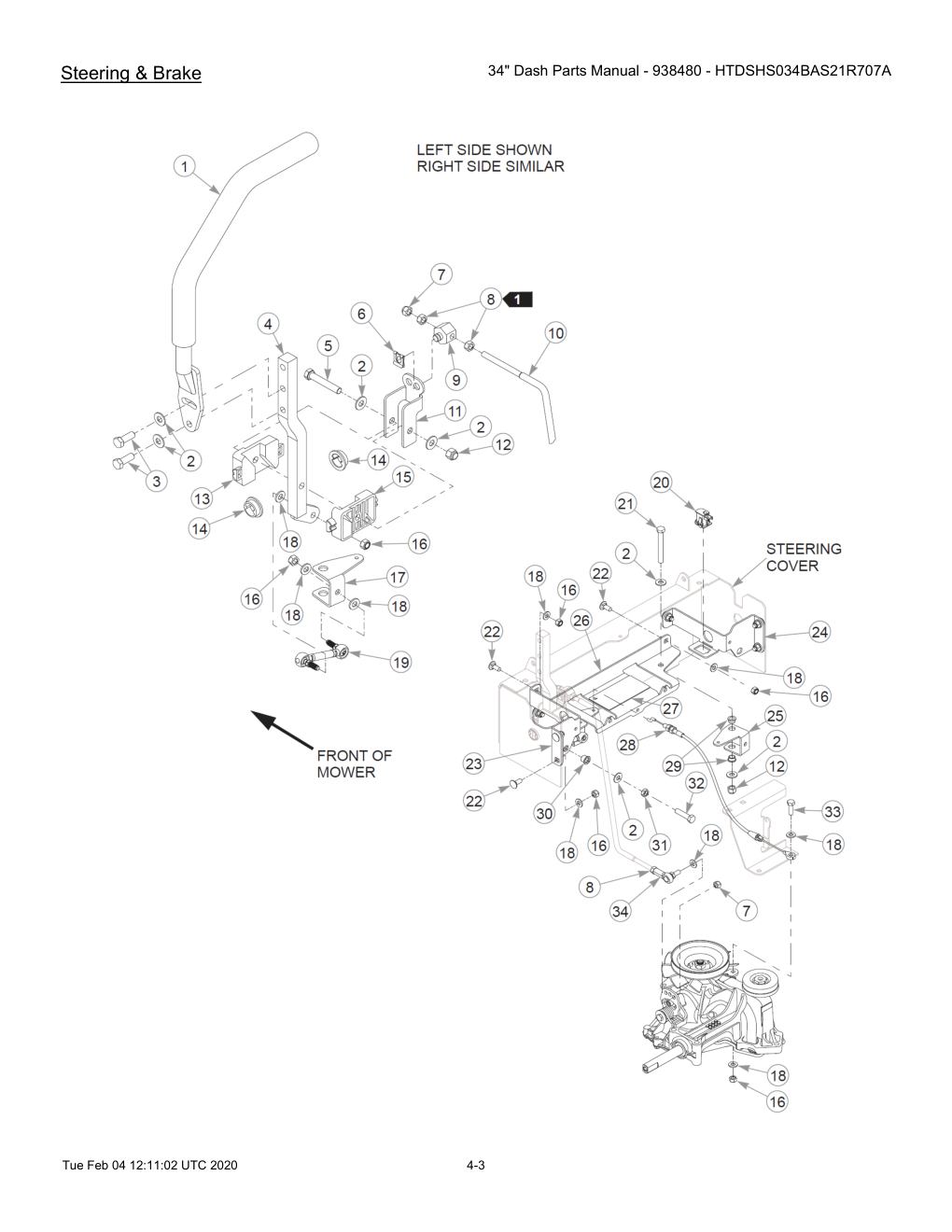

Steering & Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR W/A | 607069 | 2 | 607069-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 14 | HT767954-Online |
| 3 | CS .375-16X1.00 HX G5 ZY | 036244 | 4 | HT036244-Online |
| 4 | STEERING LEVER W/A | 607073-4 | 2 | 607073-4-Online |
| 5 | CS .375-16X2.250HXG5 | 056036 | 2 | 056036-Online |
| 6 | CLIP, SAFETY | 606575 | 2 | 606575-Online |
| 7 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 8 | NT 0.312-24 HX G8 | 041152 | 6 | HT041152-Online |
| 9 | BLOCK, STEERING CONTROL | 116144 | 2 | HT116144-Online |
| 10 | STEERING ROD | 607081-4 | 2 | 607081-4-Online |
| 11 | STEERING LINK | 124628-3 | 2 | 124628-3-Online |
| 12 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 13 | STEERING BLOCK A | 607076 | 2 | 607076-Online |
| 14 | STEERING BUSHING | 607078 | 4 | 607078-Online |
| 15 | STEERING BLOCK B | 607077 | 2 | 607077-Online |
| 16 | NT .312-18NLG5 | 058776 | 14 | HT058776-Online |
| 17 | BRAKE LINK - LH | 124621-3 | 1 | 124621-3-Online |
| 18 | FW 0.343SAE | 768523 | 20 | HT768523-Online |
| 19 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 20 | SWITCH, SNAP MOUNT | 793315 | 2 | 793315-Online |
| 21 | CS .375-16X3.000HXG5 | 016444 | 2 | 016444-Online |
| 22 | CB .312-18X .750 FUL ZN | 016253 | 8 | 016253-Online |
| 23 | SVC, STEERING BRACKET L | 554832 | 1 | 554832-Online |
| 24 | SVC, STEERING BRACKET R | 554831 | 1 | 554831-Online |
| 25 | BRAKE LINK- RH | 124622-3 | 1 | 124622-3-Online |
| 26 | SVC, BRAKE BRACKET | 554830 | 1 | 554830-Online |
| 27 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 28 | BRAKE CABLE | 607084 | 2 | 607084-Online |
| 29 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 30 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 31 | NT .375-16JAMG5 | 706168 | 2 | HT706168-Online |
| 32 | CS .375-12X1.50 HX G5 ZY | 604365 | 2 | 604365-Online |
| 33 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 34 | ROD END W/STUD FEM NYLON | 768788 | 2 | 768788-Online |

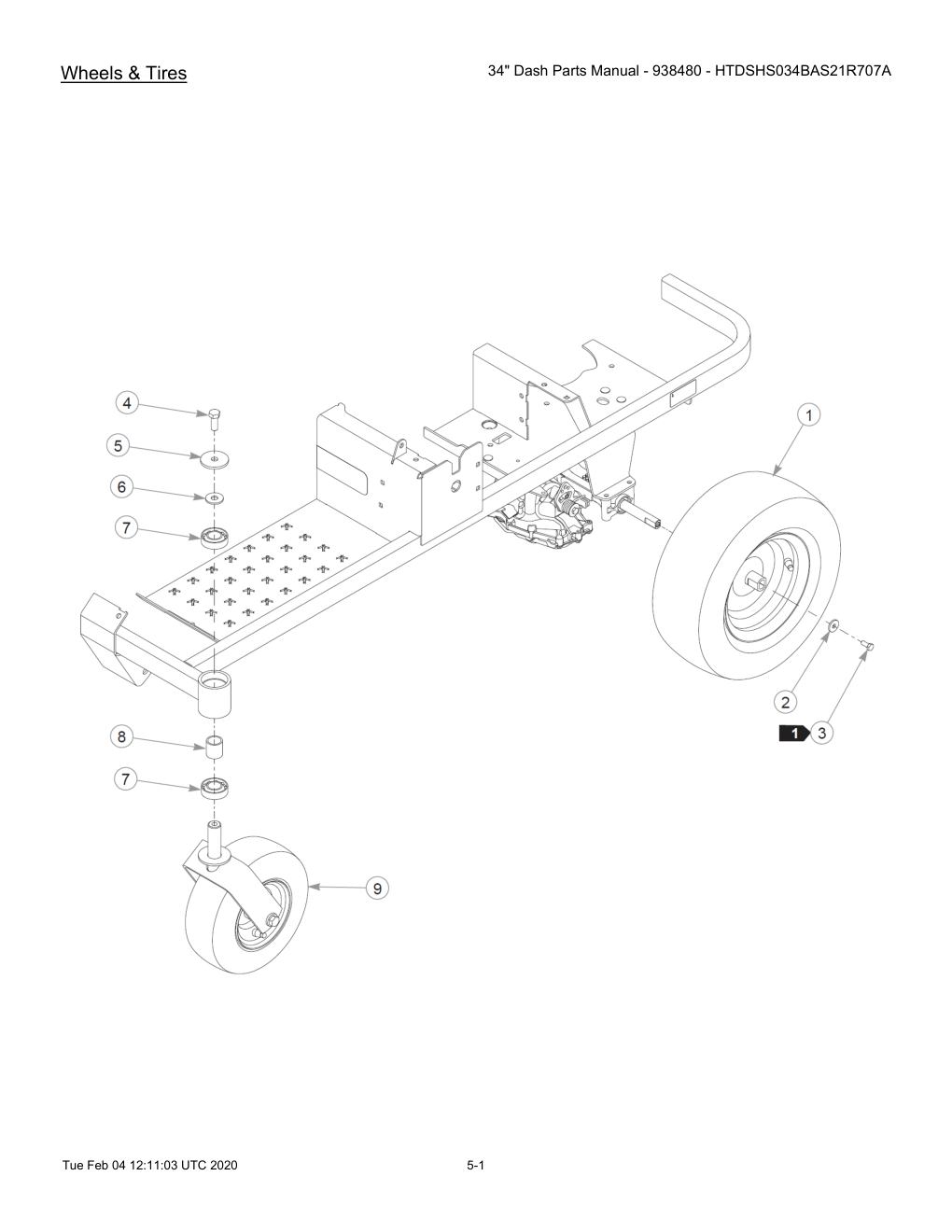

Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 16X6.50-8 SLV | 606988 | 2 | 606988-Online |
| 2 | FW 0.344X1.00X.12 HD ZY | 712927 | 2 | HT712927-Online |
| 3 | CS .312-24 X .750 HX G5 | 606989 | 2 | 606989-Online |
| 4 | CS .500-13X1.25 HX G5 ZY | 705954 | 2 | HT705954-Online |
| 5 | FW .510X2.15X.19 ZY | 344267 | 2 | HT344267-Online |
| 6 | FW 0.531X1.38X.12 ZY | 712976 | 2 | HT712976-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |

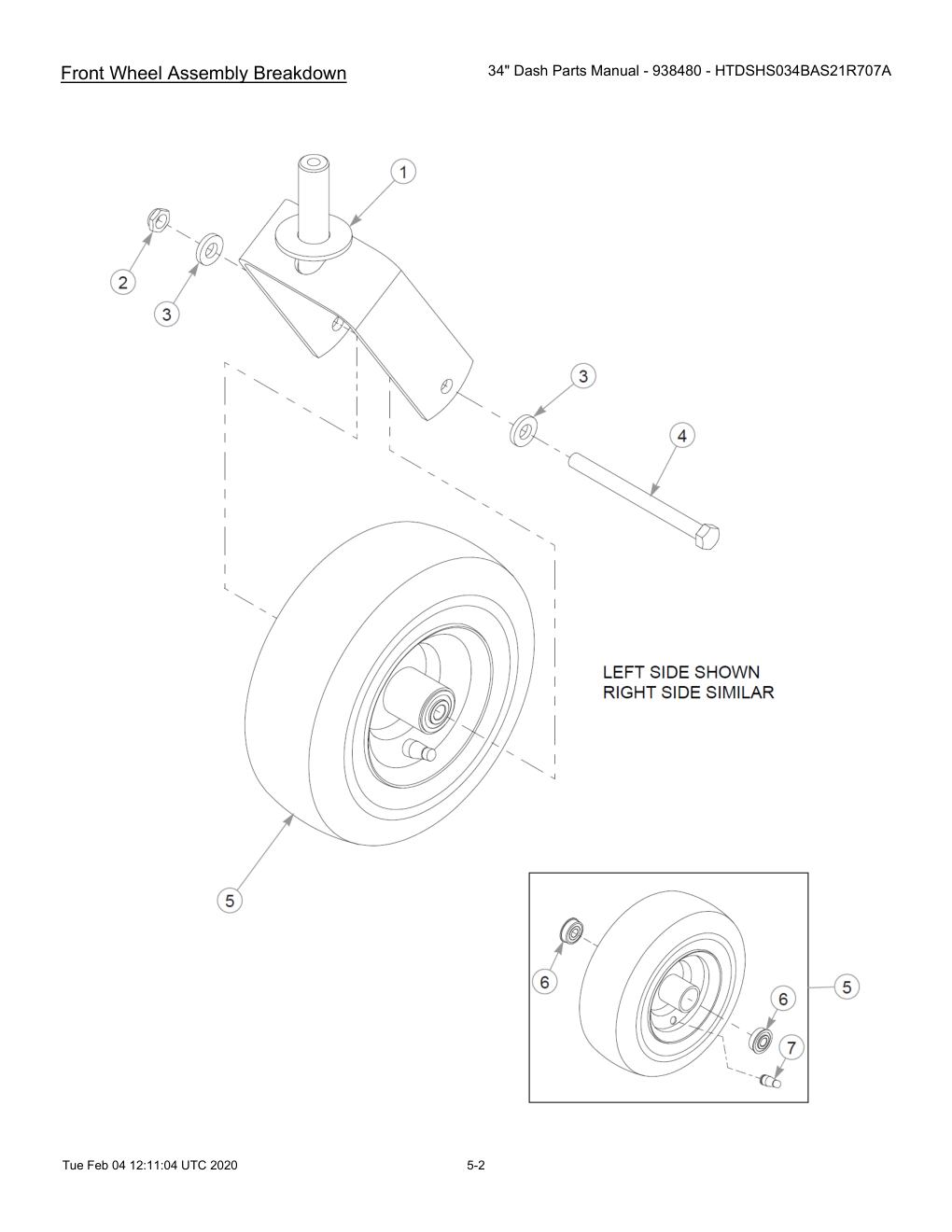

Front Wheel Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CASTER FORK W/A | 110116 | 1 | HT110116-Online |
| 2 | NT .500-13 JAM NY LK | 707398 | 1 | HT707398-Online |
| 3 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 4 | CS .500-13X6.00 HX G5 ZY | 604718 | 1 | 604718-Online |
| 5 | TIR/WHL 11X4.00-5 SLV | 607009 | 1 | 607009-Online |
| 6 | BEARING, BALL SEALED | 607026 | 2 | 607026-Online |
| 7 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

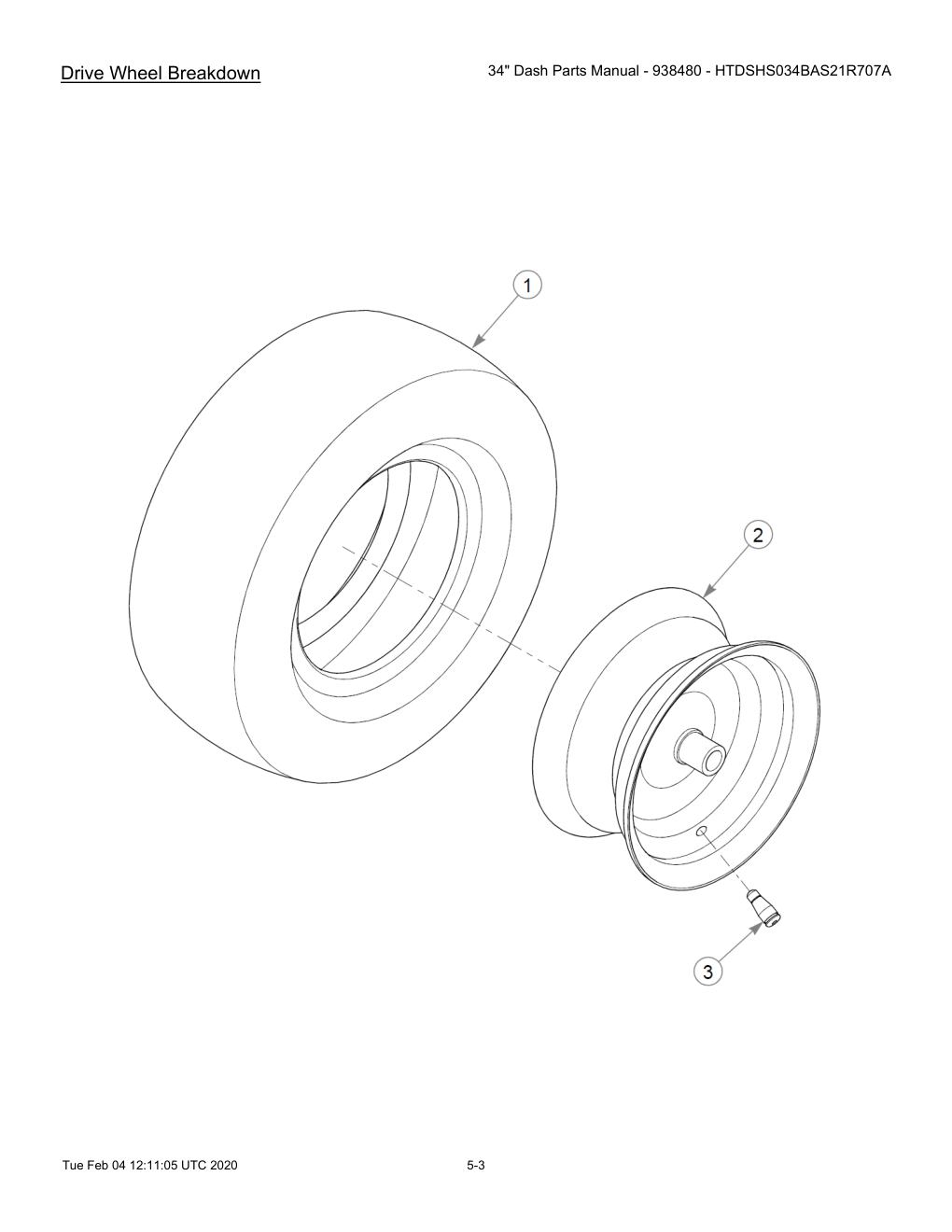

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 16X6.50-8 B4R GRMR | 607000 | 1 | 607000-Online |
| 2 | WHL 8X3.75 0X0.0 SLV | 606999 | 1 | 606999-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

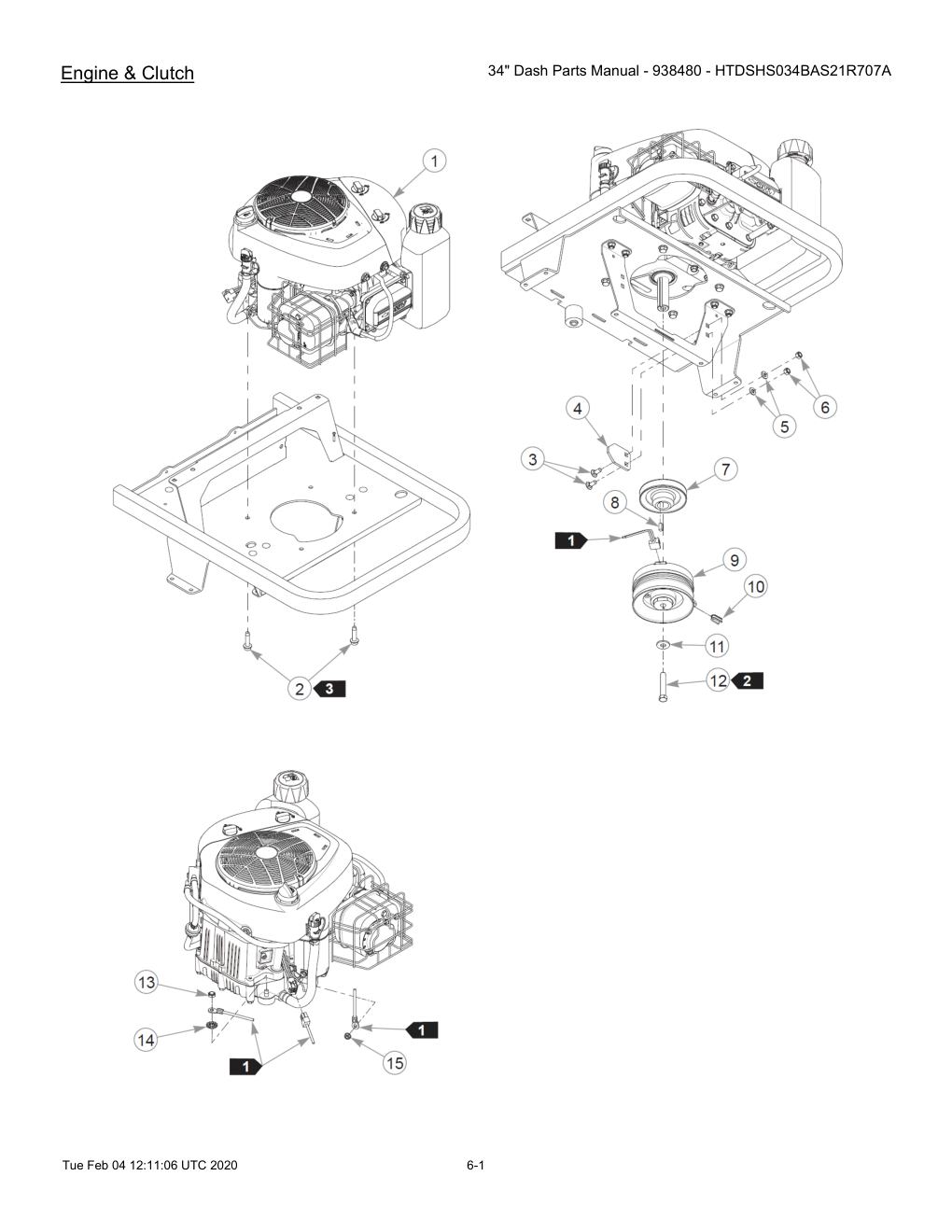

Engine & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | SC0.375-16X1.500FLG | 605997 | 4 | 605997-Online |
| 3 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 4 | CLUTCH ANCHOR, YELLOW | 124547-1 | 1 | 124547-1-Online |
| 5 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 6 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 7 | PULLEY, ENG 4.45 OP 1 | 607005 | 1 | 607005-Online |
| 8 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 9 | KIT, CLUTCH DASH | 606996K | 1 | 606996K-Online |
| 10 | BUSHING, CLUTCH ANCHOR | 607232 | 1 | 607232-Online |
| 11 | FW .453X1.12X.12 HRD ZY | 602680 | 1 | 602680-Online |
| 12 | CS .437-20X2.50 HXG5 P85 | 785659 | 1 | HT785659-Online |
| 13 | NT .375-16 HX NL JAM ZN | 603846 | 1 | 603846-Online |
| 14 | LW .375 INTEXT ZY | 793885 | 1 | 793885-Online |
| 15 | NT .250-20FLKG5 | 016816 | 1 | 016816-Online |
Engine Service Parts & Fuel Tank
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, AIR CLEANER | 607136 | 1 | 607136-Online |
| 2 | FUEL CAP, BAS M21 | 607156 | 1 | 607156-Online |
| 3 | FUEL TANK ASSY, BAS M21 | 607155 | 1 | 607155-Online |

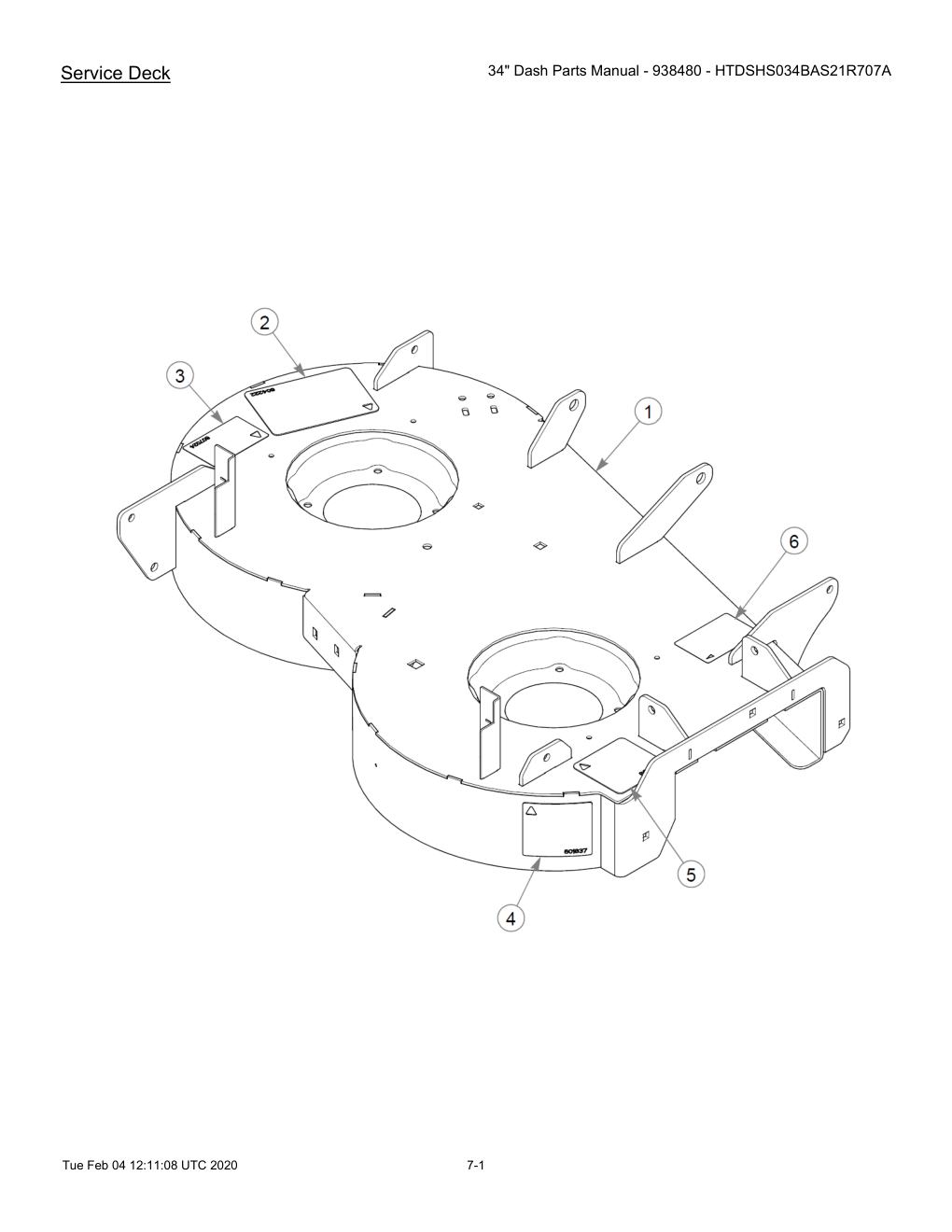

Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 34" SERVICE DECK | 554913 | 1 | 554913-Online |
| 2 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
| 3 | DECAL, 34" DECK I.D. | 607024 | 1 | 607024-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
| 5 | DECAL, DANGER CHUTE | 607316 | 1 | 607316-Online |
| 6 | DECAL, BELT ROUTING | 602243 | 1 | 602243-Online |

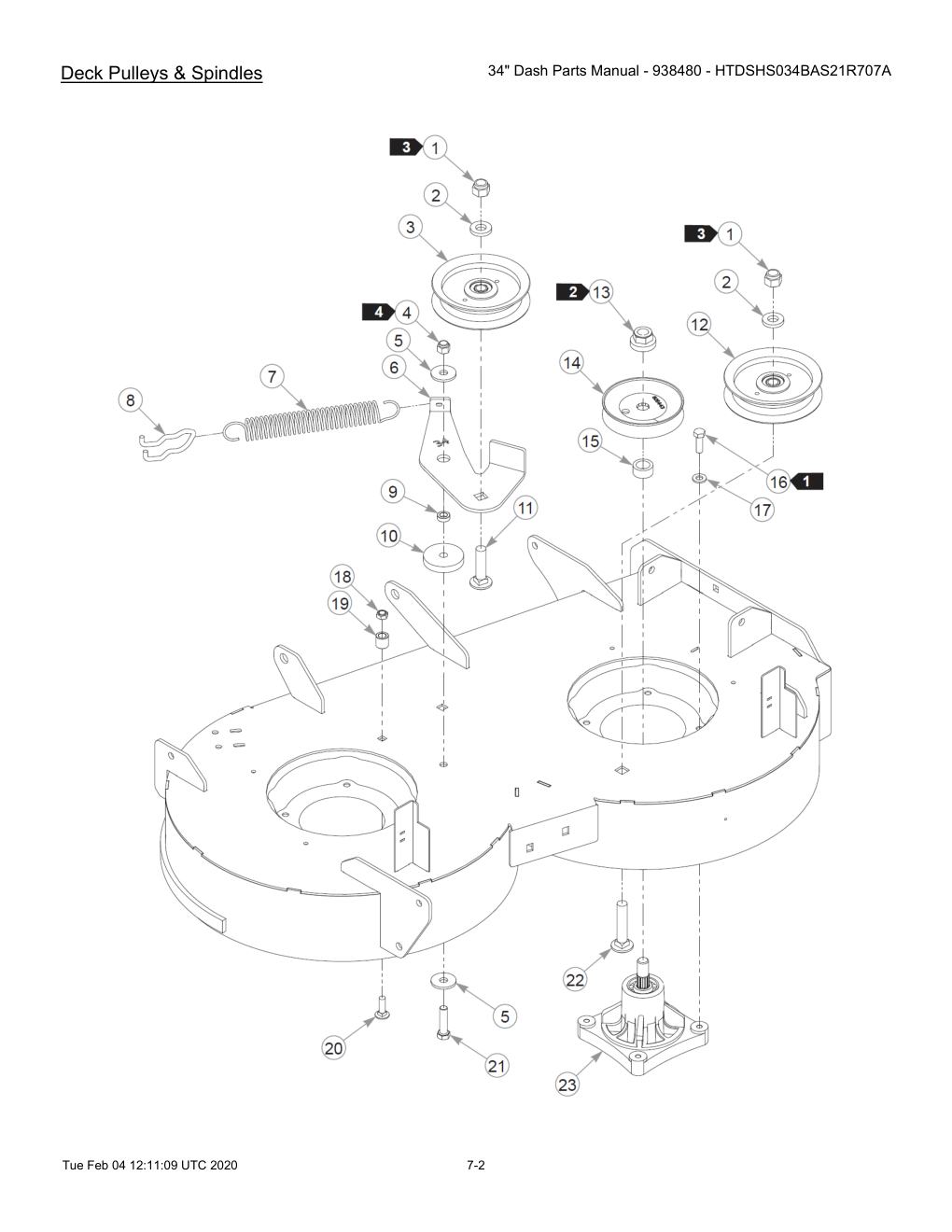

Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 2 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 5 | FW 0.406X1.25X.12 HD ZY | 712893 | 2 | HT712893-Online |
| 6 | IDLER ARM, PIVOTING 34" | 124955-4 | 1 | HT124955-4-Online |
| 7 | SPRING, EXTENSION | 605379 | 1 | 605379-Online |
| 8 | ANCHOR, SPRING TENSIONER | 604110 | 1 | 604110-Online |
| 9 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 10 | SPACER, IDLER ARM | 117539 | 1 | HT117539-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 13 | NT .562-18 HX NLG5 | 606943 | 2 | 606943-Online |
| 14 | DRIVE PULLEY-36" | 605443 | 2 | 605443-Online |
| 15 | SPACER, PULLEY | 604123 | 2 | 604123-Online |
| 16 | CS .312-18X1.000HXG5 | 036236 | 8 | 036236-Online |
| 17 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 18 | NT .312-18 HXNL JAM G2ZN | 604251 | 1 | 604251-Online |
| 19 | TENSIONING PULLEY STOP | 122398 | 1 | 122398-Online |
| 20 | CB .312-18X 1.000 FUL YZ | 037887 | 1 | HT037887-Online |
| 21 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
| 22 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 23 | SPINDLE ASSY, RAP/ALP | 604214 | 2 | 604214-Online |

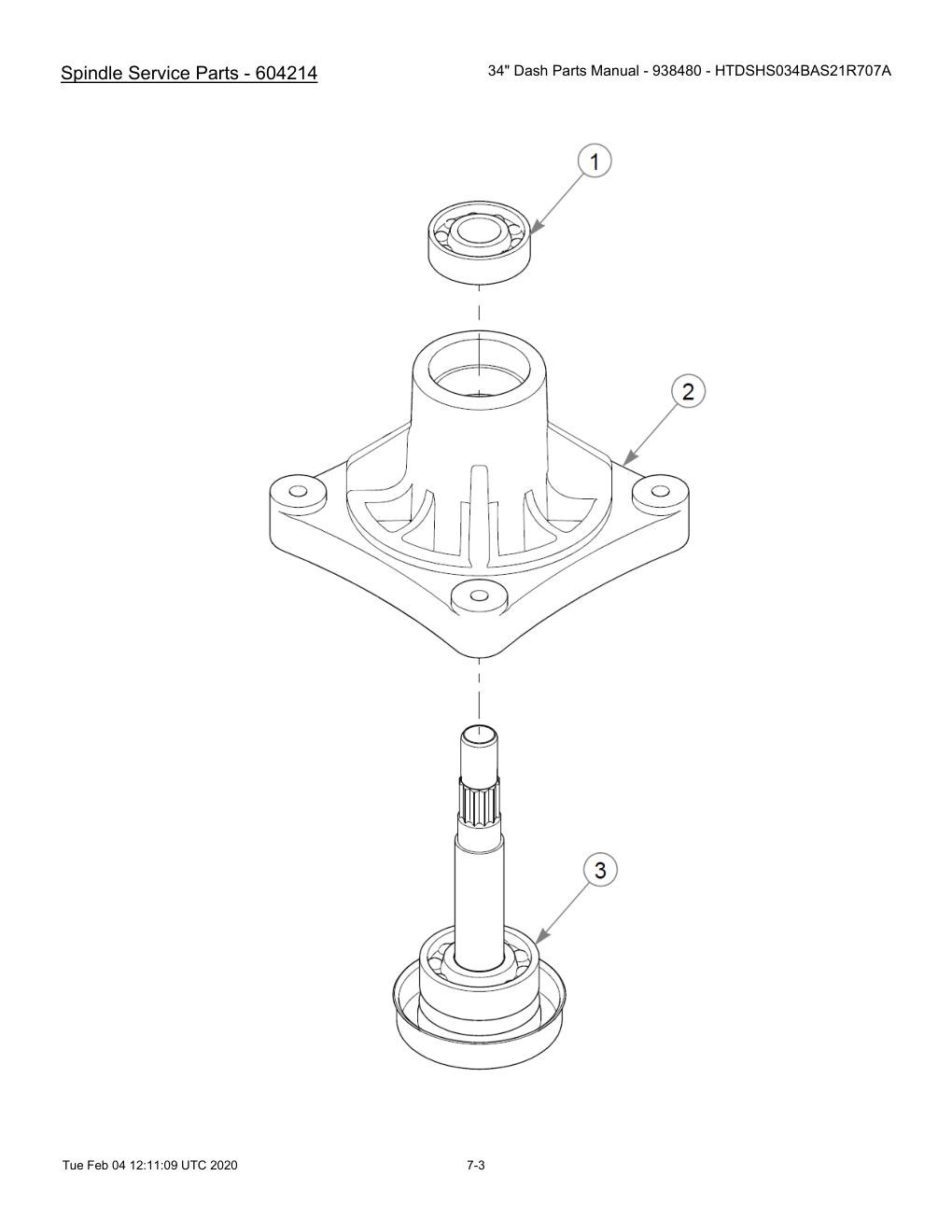

Spindle Service Parts - 604214
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BEARING, SPINDLE | 604019 | 1 | 604019-Online |
| 2 | CAST HOUSING | 604218 | 1 | 604218-Online |
| 3 | SVC SHAFT | 607274 | 1 | 607274-Online |

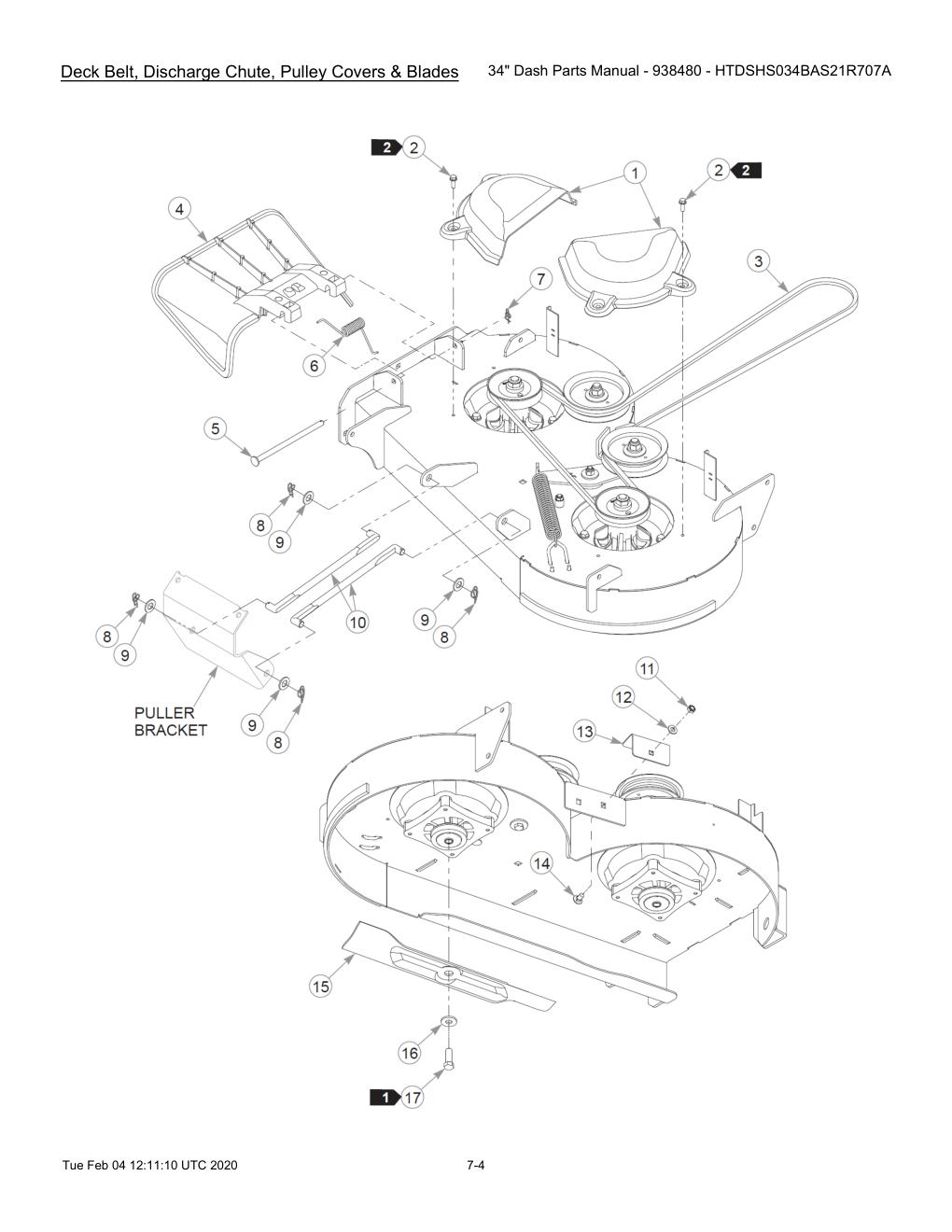

Deck Belt, Discharge Chute, Pulley Covers & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 604403 | 2 | 604403-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | DECK BELT | 607058 | 1 | 607058-Online |
| 4 | DISCHARGE CHUTE | 607145 | 1 | 607145-Online |
| 5 | PIN, DISCHARGE CHUTE | 607157 | 1 | 607157-Online |
| 6 | CHUTE SPRING | 607146 | 1 | 607146-Online |
| 7 | CP, RUE RING .054 X .392 | 607093 | 1 | 607093-Online |
| 8 | CP, RUE RING .062 X .520 | 607051 | 4 | 607051-Online |
| 9 | FW .531x1.00x.090 ZY | 004168 | 4 | HT004168-Online |
| 10 | PULLER, DECK | 607016 | 2 | 607016-Online |
| 11 | NT .312-18 HXNL JAM G2ZN | 604251 | 1 | 604251-Online |
| 12 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 13 | PLATE, WEAR | 607262-4 | 1 | 607262-4-Online |
| 14 | CB .312-18X .620 G5 ZN | 083147 | 1 | 083147-Online |
| 15 | BLADE,16.75"-M-F-CW | 607281 | 2 | 607281-Online |
| 16 | FW .453X1.12X.12 HRD ZY | 602680 | 2 | 602680-Online |
| 17 | CS .437-20X1.250HXG5 | 754101 | 2 | HT754101-Online |
Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, DECK HEIGHT STOP | 601963 | 1 | 601963-Online |
| 2 | DECK LIFT BRACKET | 124615-1 | 1 | 124615-1-Online |
| 3 | CB .312-18X 1.000 FUL YZ | 037887 | 10 | HT037887-Online |
| 4 | NT .312-18NLG5 | 058776 | 10 | HT058776-Online |
| 5 | FW 0.343SAE | 768523 | 14 | HT768523-Online |
| 6 | DECK LIFT BRACKET | 124616-1 | 1 | 124616-1-Online |
| 7 | DECK LIFT W/A | 124630-1 | 1 | 124630-1-Online |
| 8 | DECK LIFT STRAP | 124635-3 | 4 | HT124635-3-Online |
| 9 | DECK LIFT W/A | 124629-1 | 1 | 124629-1-Online |
| 10 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 11 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 12 | FW .41X.94X.25 UHMW | 605114 | 4 | 605114-Online |
| 13 | CB .375-16X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 14 | CLIP E,.625x.480x.042 Z | 791673 | 8 | HT791673-Online |
| 15 | PIVOT, DECK LIFT | 118018 | 4 | HT118018-Online |
| 16 | HANGER, DECK | 607017 | 4 | 607017-Online |
| 17 | DECK LIFT LINK | 124614-4 | 1 | 124614-4-Online |
| 18 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 19 | CP, RUE RING .054 X .392 | 607093 | 4 | 607093-Online |

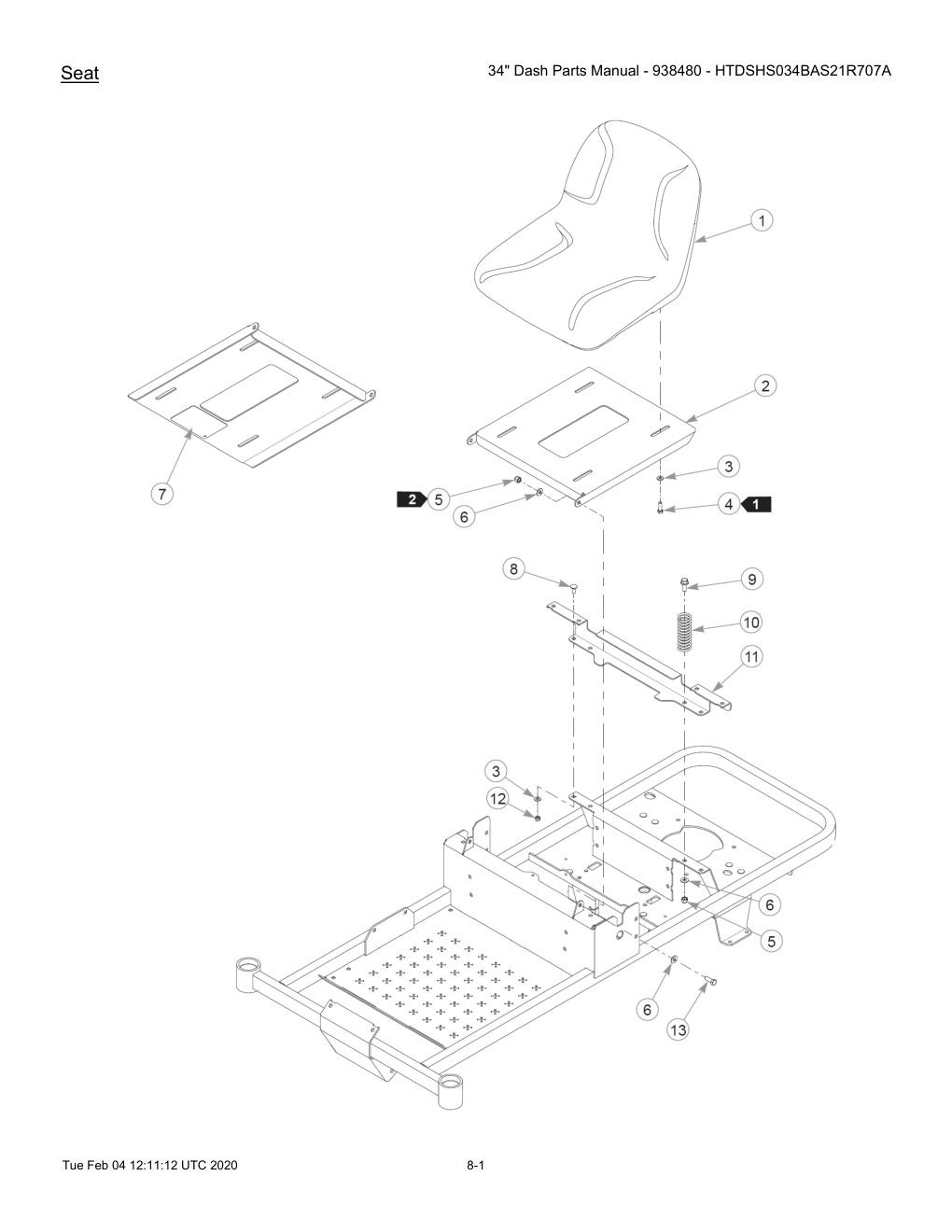

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 607083 | 1 | 607083-Online |
| 2 | SVC, SEAT PAN | 554825 | 1 | 554825-Online |
| 3 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 4 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 5 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 6 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 7 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 8 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 9 | CS .375-16X1.00 HXF G5ZY | 029751 | 2 | 029751-Online |
| 10 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 11 | SEAT SUPPORT | 124617-1 | 1 | 124617-1-Online |
| 12 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 13 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| Not Shown | SVC, OPS | 606082 | 1 | 606082-Online |
