Illustrated Parts List
Hustler® Diesel Z Parts Manual - 605696
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 605696SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

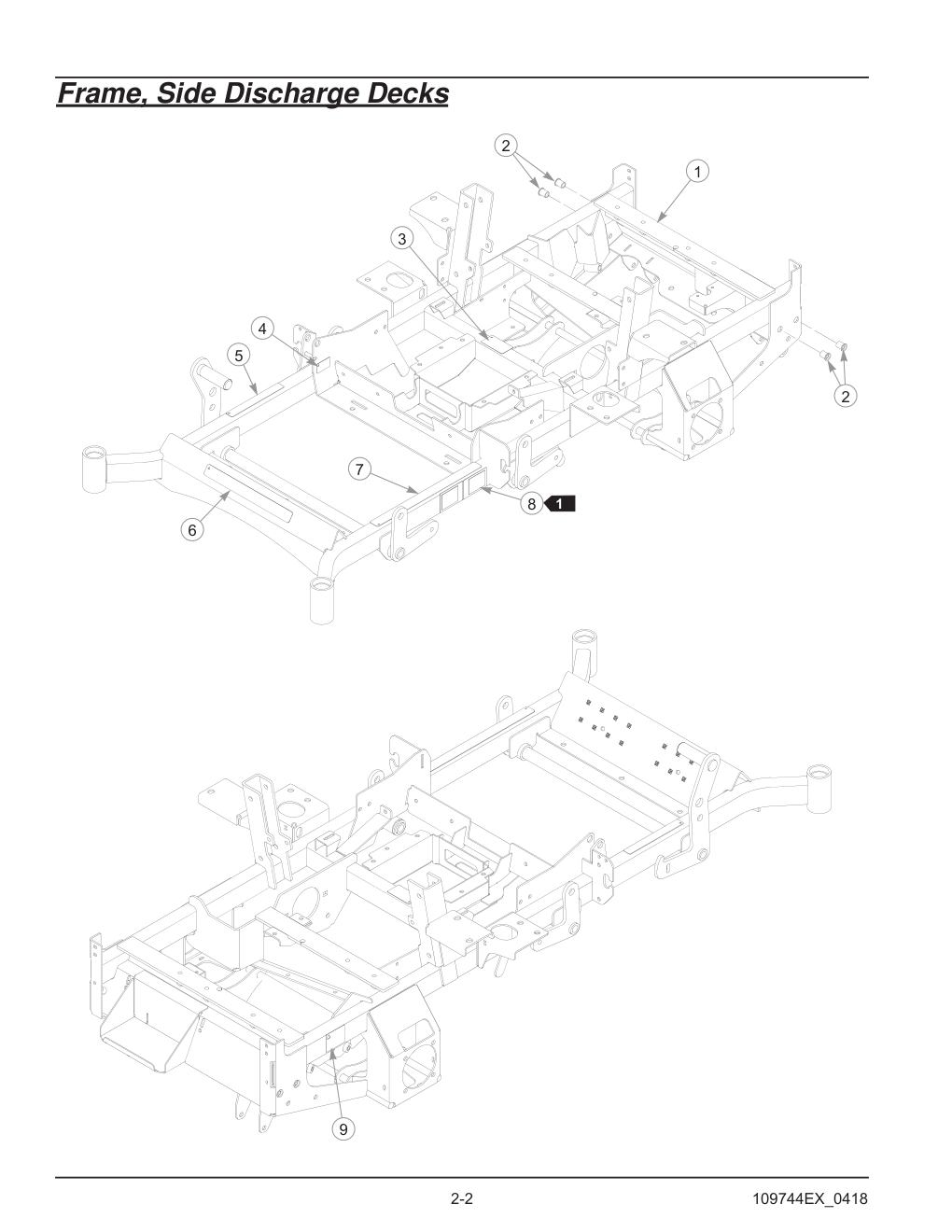

Frame, Side Discharge DecksFrame, Rear Discharge DecksEngine CoverEngine CoverRadiator, Air Cleaner SupportHydraulic SystemHydraulic SystemPump BreakdownReservoir BreakdownManifold BreakdownSteeringSteering CoverSteering CoverSteering CoverRS Steering Box AssemblyLS Steering Box AssemblyBrake-S/N 18031622 & HigherBrake-S/N Prior to 18031622Wheel & TireFront Wheel BreakdownDrive Wheel BreakdownWheel & TireFront Wheel BreakdownWheel & Tire, Flex Forks®Front Wheel Breakdown, Flex Forks®Drive Wheel BreakdownEngineEngineEngineFuel SystemAir CleanerBelt DriveInstrument Panel-S/N 16050000 & HigherInstrument Panel-S/N 13121637 to 16049999Instrument Panel-S/N Prior to 13121637Battery60" Side Discharge Deck Pulleys & Spindles60" Side Discharge Deck72" Side Discharge Deck Pulleys & Spindles72" Side Discharge Deck60" Rear Discharge Deck Pulleys60" Rear Discharge Deck Spindles60" Rear Discharge Deck60" Rear Discharge Deck60" Rear Discharge Dust Shield72" Rear Discharge Pulleys72" Rear Discharge Spindles72" Rear Discharge Deck72" Rear Discharge Deck72" Rear Discharge Deck Shield60" & 72" Deck Lift54" Side Discharge Service Deck-S/N 16060000 & Higher54" Side Discharge Service Deck-S/N Prior to 1606000054" Side Disch. Pulleys & Spindles-S/N 16060000 & Higher54" Side Disch. Pulleys & Spindles-S/N Prior to 1606000054" Deck-S/N 16060000 & Higher54" Deck54" Deck Lift54" Deck Mounting Hardware60" Side Discharge Service Deck60" Side Discharge Deck Pulleys & Spindles60" Side Discharge Deck72" Side Discharge Deck Pulleys & Spindles72" Side Discharge Deck60" Rear Discharge Service Deck60" Rear Discharge Deck Pulleys60" Rear Discharge Deck Spindles60" Rear Discharge Deck60" Rear Discharge Deck60" Rear Discharge Dust Shield72" Rear Discharge Pulleys72" Rear Discharge Spindles72" Rear Discharge Deck72" Rear Discharge Dust Shield60" & 72" Deck LiftSeat, SuspensionSeat, GrammerFrame, Side Discharge Decks
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" FRAME (WITH DECALS & RIVET NUTS) | 551232 | 1 | 551232-Online |
| 1 | 60" FRAME (WITH DECALS & RIVET NUTS) | 551153 | 1 | 551153-Online |
| 1 | 72" FRAME (WITH DECALS & RIVET NUTS) | 551154 | 1 | 551154-Online |
| 2 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 3 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 4 | ANSI COMPLIANCE DECAL | 603363 | 1 | 603363-Online |
| 5 | DECK HEIGHT INDICATOR DECAL | 781427 | 1 | 781427-Online |
| 6 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 7 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 8 | SERIAL NUMBER / SPEC. DECAL | N/A | 1 | No SKU |
| 9 | DECK BELT ROUTING DECAL | 601596 | 1 | 601596-Online |
Frame, Rear Discharge Decks
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" FRAME (WITH DECALS & RIVET NUTS) | 551155 | 1 | 551155-Online |
| 1 | 72" FRAME (WITH DECALS & RIVET NUTS) | 551156 | 1 | 551156-Online |
| 2 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 3 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 4 | ANSI COMPLIANCE DECAL | 603363 | 1 | 603363-Online |
| 5 | DECK HEIGHT INDICATOR DECAL | 781427 | 1 | 781427-Online |
| 6 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 7 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 8 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 9 | DECK BELT ROUTING DECAL | 601596 | 1 | 601596-Online |
Engine Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOOD | 601363 | 1 | 601363-Online |
| 2 | SEAL 3/8 X 3/4 X 4.5" | 713198 | 2 | 713198-Online |
| 3 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 4 | FW .281 X .625 X .051/.080H | 768515 | 10 | HT768515-Online |
| 5 | HINGE | 601364 | 2 | 601364-Online |
| 6 | CB .250-20 X .625 ZNYC | 601503 | 8 | 601503-Online |
| 7 | GAS SPRING | 601564 | 1 | 601564-Online |
| 8 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 9 | SB .375 X .500 SH .312-18 | 063297 | 1 | 063297-Online |
| 10 | SB .375 X 1.500 SH .312-18 | 601379 | 1 | 601379-Online |
| 11 | LIFT SUPPORT | 109745 | 1 | 109745-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
Engine Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 | RS SCREEN | 109341 | 1 | 109341-Online |
| 15 | LATCH | 791384 | 1 | 791384-Online |
| 16 | NT .312-18 HXZY NL | 058776 | 2 | HT058776-Online |
| 17 | STRIKER LATCH | 109722 | 1 | 109722-Online |
| 18 | BUMPER | 781880 | 2 | HT781880-Online |
| 19 | FW .344 X 1.00 X .12 HRD Z | 712927 | 2 | HT712927-Online |
| 20 | CS .312-18 X 1.000 HX G5 | 036236 | 4 | 036236-Online |
| 21 | RADIATOR SCREEN | 109137 | 1 | 109137-Online |
| 22 | WEATHERSTRIP .12 X .75 X 1.5" | 033035 | 2 | 033035-Online |
| 23 | WEATHERSTRIP .12 X .75 X 19.88" | 033035 | 1 | 033035-Online |
| 24 | WEATHERSTRIP .12 X .75 X 6.25" | 033035 | 2 | 033035-Online |
| 25 | WEATHERSTRIP .12 X .75 X 11.88" | 033035 | 1 | 033035-Online |
| 26 | FIREWALL ACCESS PANEL | 109136 | 1 | 109136-Online |
| 27 | CS .250-20 X .750 HX G5 | 055939 | 4 | 055939-Online |
| 28 | LATCH BRACKET | 124364-1 | 1 | 124364-1-Online |
| 29 | LW .250 INT-EXT TOOTH Z | 029868 | 2 | 029868-Online |
| 30 | LATCH | 601373 | 1 | 601373-Online |
| 31 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 32 | CATCH | 758821 | 1 | 758821-Online |
| 33 | REAR ENGINE COVER | 109413 | 1 | 109413-Online |
| 34 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 35 | CN .312-18 X .200 MAX THK | 601069 | 2 | HT601069-Online |
| 36 | INNER FENDER PANEL | 109559 | 1 | 109559-Online |

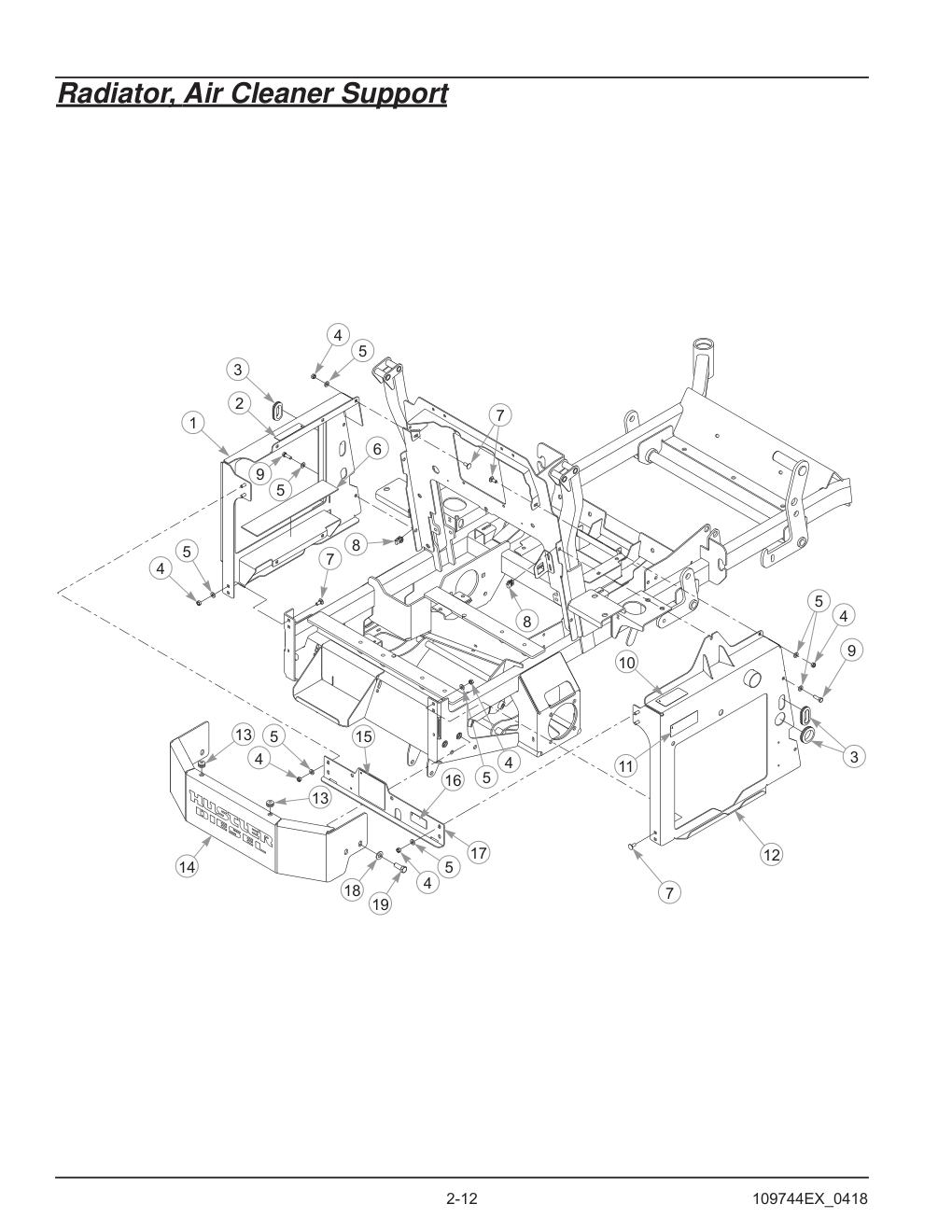

Radiator, Air Cleaner Support
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RADIATOR SCREEN PANEL (WITH DECAL) | 551141 | 1 | 551141-Online |
| 2 | FAN WARNING DECAL | 763805CE | 1 | 763805CE-Online |
| 3 | GROMMET | 794644 | 3 | 794644-Online |
| 4 | NT .312-18 HX G5 ZNYC | 034272 | 10 | HT034272-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 14 | HT768523-Online |
| 6 | RADIATOR SUPPORT PAD | 601558 | 1 | 601558-Online |
| 7 | CB .312-18 X .750 FUL ZN | 016253 | 6 | 016253-Online |
| 8 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 9 | CS .312-18 X 1.000 HX G5 | 036236 | 4 | 036236-Online |
| 10 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 11 | SPARK ARRESTER DECAL | 601908 | 1 | 601908-Online |
| 12 | AIR CLEANER MOUNTING PANEL (WITH DECALS) | 551142 | 1 | 551142-Online |
| 13 | GM .31 X .81 X .56 X .18 | 031666 | 2 | 031666-Online |
| 14 | ENGINE GUARD | 109105 | 1 | 109105-Online |
| 15 | BATTERY DECAL | 601815 | 1 | 601815-Online |
| 16 | HOT DECAL | 602041 | 1 | 602041-Online |
| 17 | HOOD SUPPORT ANGLE (WITH DECALS) | 551143 | 1 | 551143-Online |
| 18 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 19 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 4 | HT705954-Online |

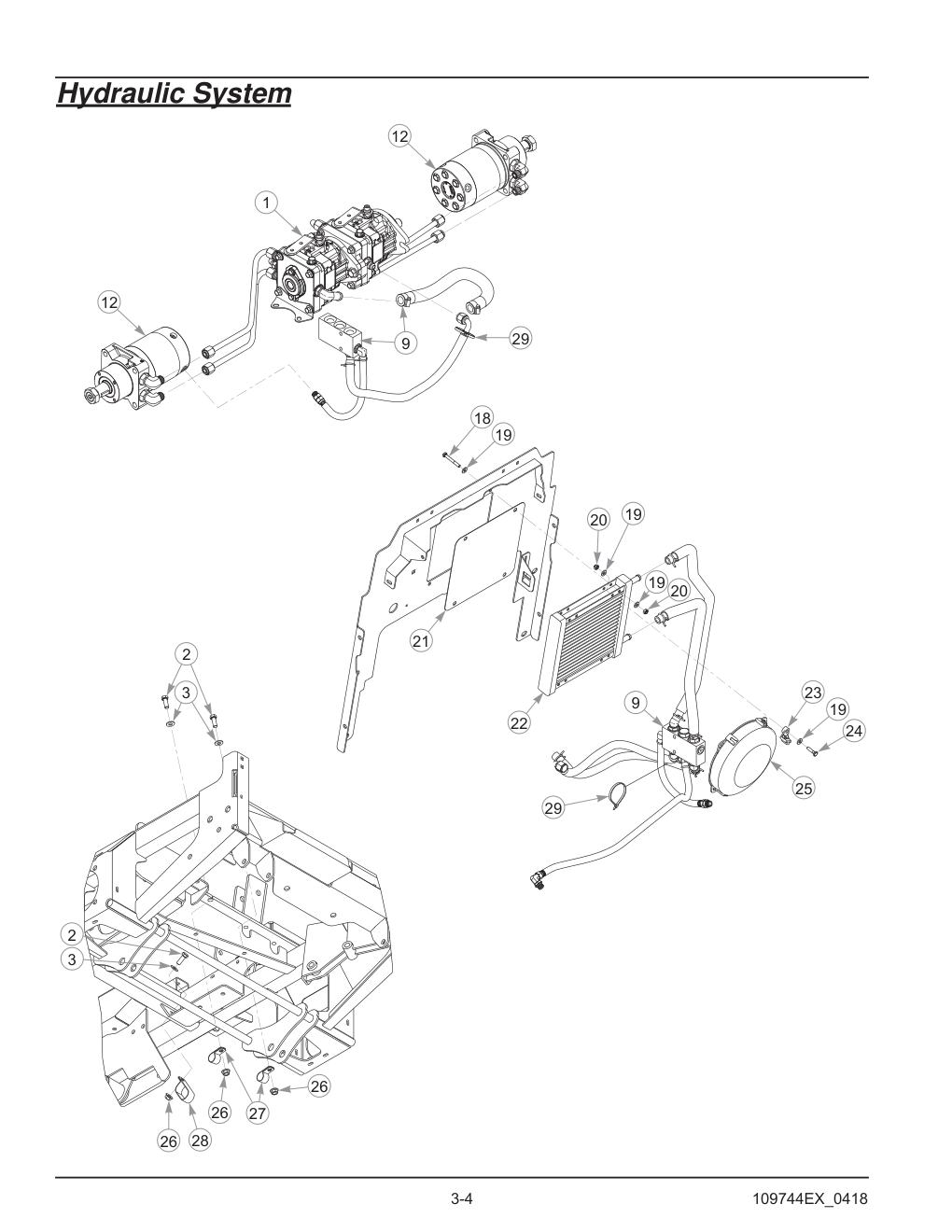

Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP ASSEMBLY | N/A | 1 | No SKU |
| 2 | CS .375-16 X 1.00 HX G5 | 036244 | 5 | HT036244-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 7 | HT767954-Online |
| 4 | RESERVOIR ASSEMBLY | N/A | 1 | No SKU |
| 5 | CS .312-18 X 1.00 HX G5 | 036236 | 4 | 036236-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 7 | NT .500-13 HX G5 ZNYC | 008193 | 2 | HT008193-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 10 | HT767962-Online |
| 9 | MANIFOLD ASSEMBLY | N/A | 1 | No SKU |
| 10 | NT .312-18 HX G5 ZNYC | 034272 | 6 | HT034272-Online |
| 11 | NT .500-13 UNT LK G8 ZN | 023317 | 8 | 023317-Online |
| 12 | MOTOR ASSEMBLY | N/A | 2 | No SKU |
| 13 | CS .312-18 X 2.00 HX G5 | 064345 | 2 | 064345-Online |
| 14 | CB .500-13 X 1.50 FULL | 028274 | 2 | 028274-Online |
| 15 | GUSSET | 115816 | 2 | 115816-Online |
| 16 | CS .500-13 X 2.50 SQ G5 | 602256 | 8 | 602256-Online |
| 17 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .250-20 X 2.00 HX G5 Z | 704163 | 4 | 704163-Online |
| 19 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 16 | HT768515-Online |
| 20 | NT .250-20 HX ZY NL | 068551 | 8 | HT068551-Online |
| 21 | OIL COOLER SCREEN | 109401 | 1 | 109401-Online |
| 22 | OIL COOLER | 601356 | 1 | 601356-Online |
| 23 | ELECTRIC FAN FOOT | 601538 | 4 | 601538-Online |
| 24 | CS .250-20 X 1.00 HX G5 | 056077 | 4 | 056077-Online |
| 25 | 8" ELECTRIC FAN | 601357 | 1 | 601357-Online |
| 26 | NT .375-16 HX FLK ZNYC | 016899 | 3 | HT016899-Online |
| 27 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 28 | HOSE CLAMP | 045088 | 1 | 045088-Online |
| 29 | WIRE TIE | 000331 | 2 | 000331-Online |
Pump Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP | 603650 | 1 | 603650-Online |
| 1 | SEAL KIT (NOT SHOWN) | 600934 | 1 | 600934-Online |
| 2 | FTG, STR-8 MORB/-8MS | 781534 | 4 | 781534-Online |
| 3 | TUBE, 1/2" | 603701 | 1 | 603701-Online |
| 4 | TUBE, 1/2" | 603700 | 1 | 603700-Online |
| 5 | TUBE, 1/2" | 603699 | 1 | 603699-Online |
| 6 | TUBE, 1/2" | 603698 | 1 | 603698-Online |
| 7 | CS M8-1.25 X 25 SH BO NY | 795377 | 2 | 795377-Online |
| 8 | PUMP ARM RETAINER | 795369 | 2 | 795369-Online |
| 9 | PUMP ARM | 109118 | 2 | 109118-Online |
| 10 | FTG, STR-8MORB/-8MJIC | 771337 | 1 | 771337-Online |
| 11 | FTG, -8MORB/-12 BEAD | 601524 | 1 | 601524-Online |
| 12 | SPRING CLAMP | 601001 | 1 | 601001-Online |
| 13 | HOSE, CASE DRAIN PUMP | 601520 | 1 | 601520-Online |

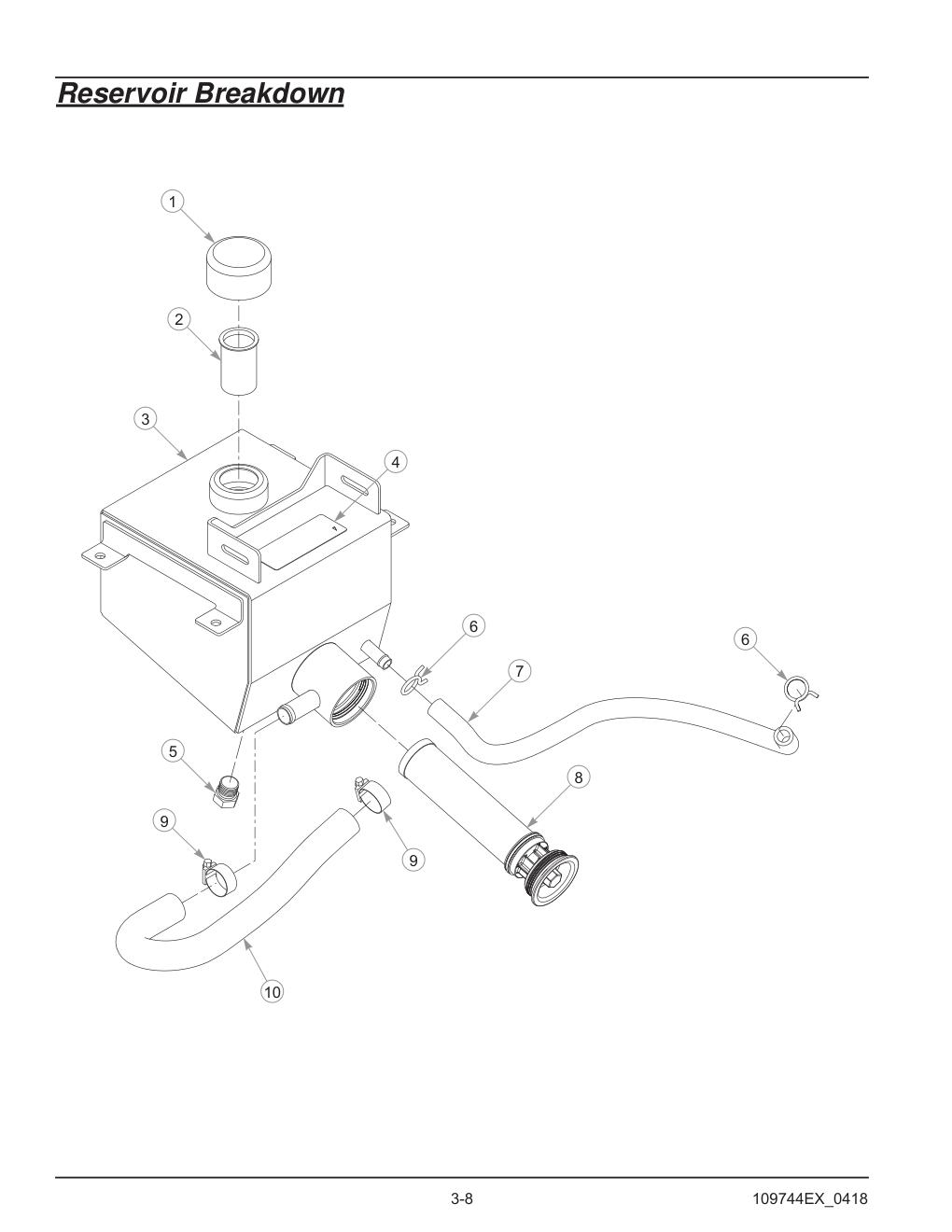

Reservoir Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BREATHER CAP | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | HYDRAULIC RESERVOIR | 109366 | 1 | 109366-Online |
| 4 | HOT & HYD OIL DECAL | 779280 | 1 | 779280-Online |
| 5 | FTG, -8 MORB HEX PLUG | 781658 | 1 | 781658-Online |
| 6 | SPRING CLAMP | 601001 | 2 | 601001-Online |
| 7 | HOSE, RETURN MAIN BLOCK | 601570 | 1 | 601570-Online |
| 8 | HYDRAULIC FILTER ELEMENT | 601413X | 1 | 601413X-Online |
| 9 | HOSE CLAMP | 700484 | 2 | 700484-Online |
| 10 | SUCTION HOSE | 601517 | 1 | 601517-Online |

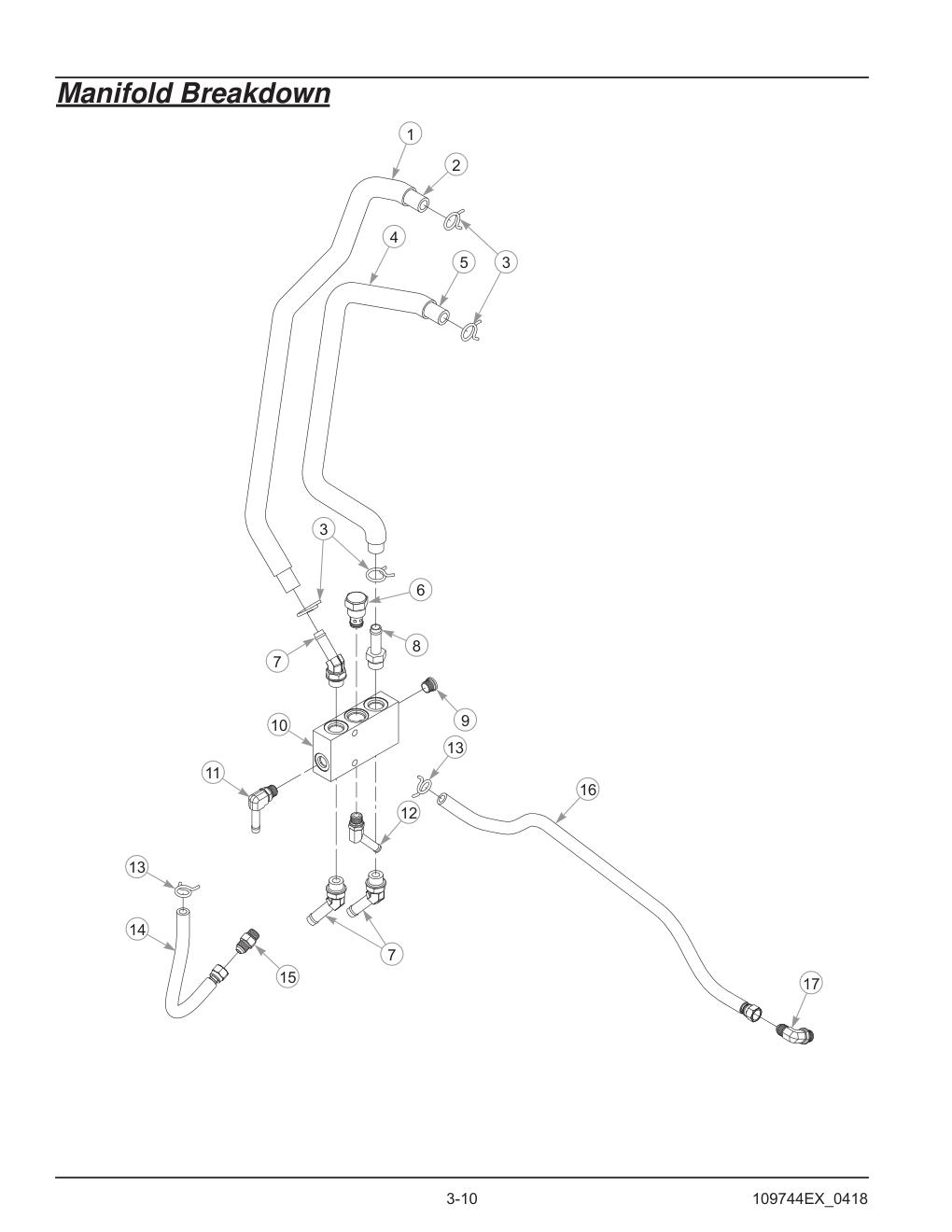

Manifold Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOSE GUARD, BLOCK TO COOLER | 601583 | 1 | 601583-Online |
| 2 | HOSE, BLOCK TO COOLER | 601521 | 1 | 601521-Online |
| 3 | SPRING CLAMP | 601001 | 4 | 601001-Online |
| 4 | HOSE GUARD, COOLER TO BLOCK | 601584 | 1 | 601584-Online |
| 5 | HOSE, COOLER TO BLOCK | 601522 | 1 | 601522-Online |
| 6 | CHECK VALVE CARTRIDGE | 601568 | 1 | 601568-Online |
| 7 | FTG, -8MORB/-8BEAD | 601592 | 3 | 601592-Online |
| 8 | FTG, -8MORB/-8BT STR | 601523 | 1 | 601523-Online |
| 9 | FTG, -8 MORB HEX PLUG | 601569 | 1 | 601569-Online |
| 10 | CASE DRAIN MANIFOLD | 601476 | 1 | 601476-Online |
| 11 | FTG, 90°-6MORB/-6BT | 787465 | 1 | 787465-Online |
| 12 | FTG, 45°-6MORB/-6BT | 784108 | 1 | 784108-Online |
| 13 | SPRING CLAMP | 601617 | 2 | 601617-Online |
| 14 | HOSE, CASE DRAIN RIGHT MOTOR | 603697 | 1 | 603697-Online |
| 15 | FTG, -6MORB/-6MJIC STR | 779132 | 1 | 779132-Online |
| 16 | HOSE, CASE DRAIN LEFT MOTOR | 603722 | 1 | 603722-Online |
| 17 | FTG, 90-6MORB/-6MJI | 795922 | 1 | HT795922-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE (WITH GRIP) | 109839 | 2 | 109839-Online |
| 1 | GRIP | 781260 | 2 | 781260-Online |
| 2 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 16 | HT767954-Online |
| 4 | CS .375-16 X .75 HX G5 | 055822 | 6 | HT055822-Online |
| 5 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
| 6 | NT .375-16 HX G5 ZNY | 054502 | 6 | HT054502-Online |
| 7 | DAMPER | 795351 | 2 | 795351-Online |
| 8 | BALL STUD | 781922 | 2 | 781922-Online |
| 9 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 10 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 11 | NT .312-18 HX FLK ZNYC | 016832 | 2 | 016832-Online |
| 12 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 13 | SWITCH | 601087 | 2 | HT601087-Online |
Steering Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|

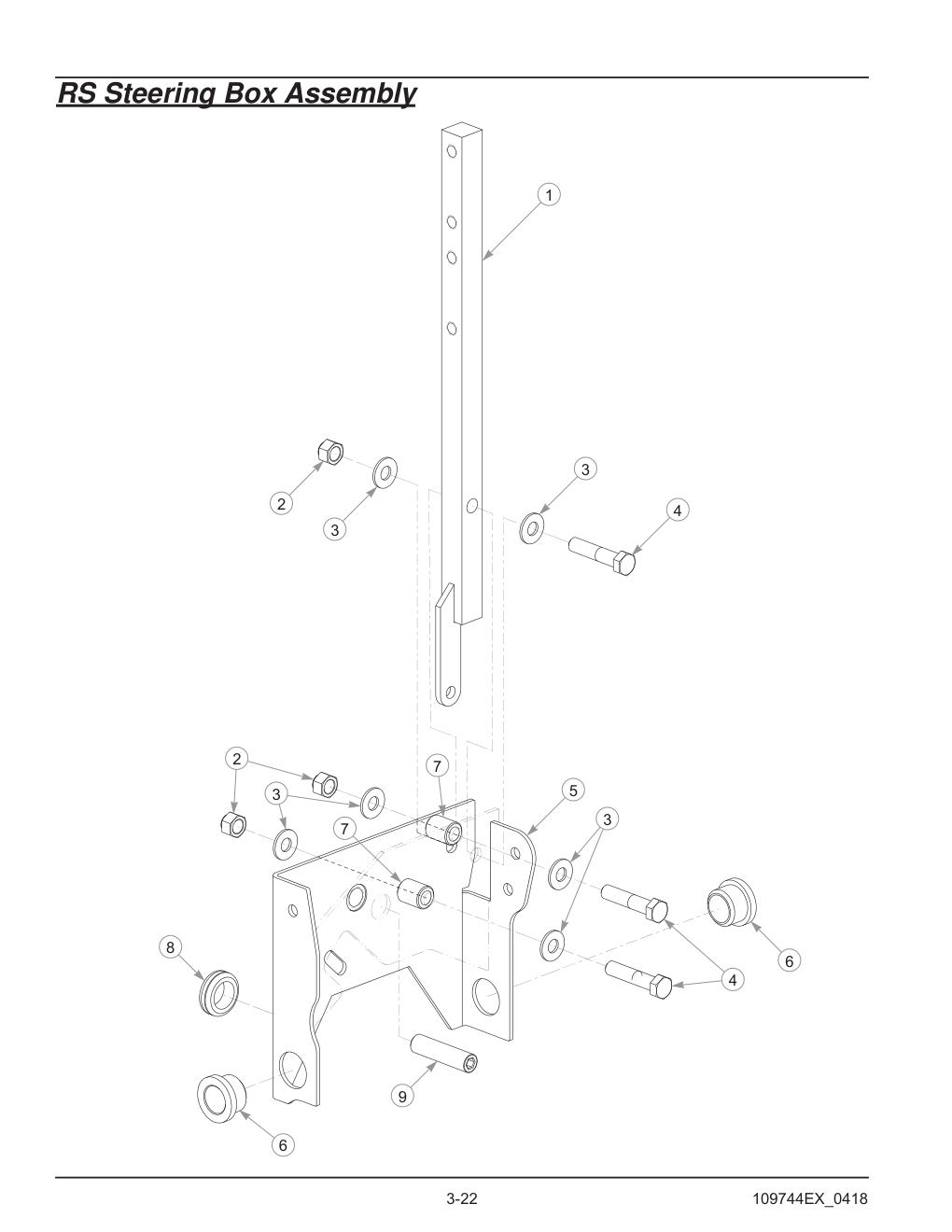

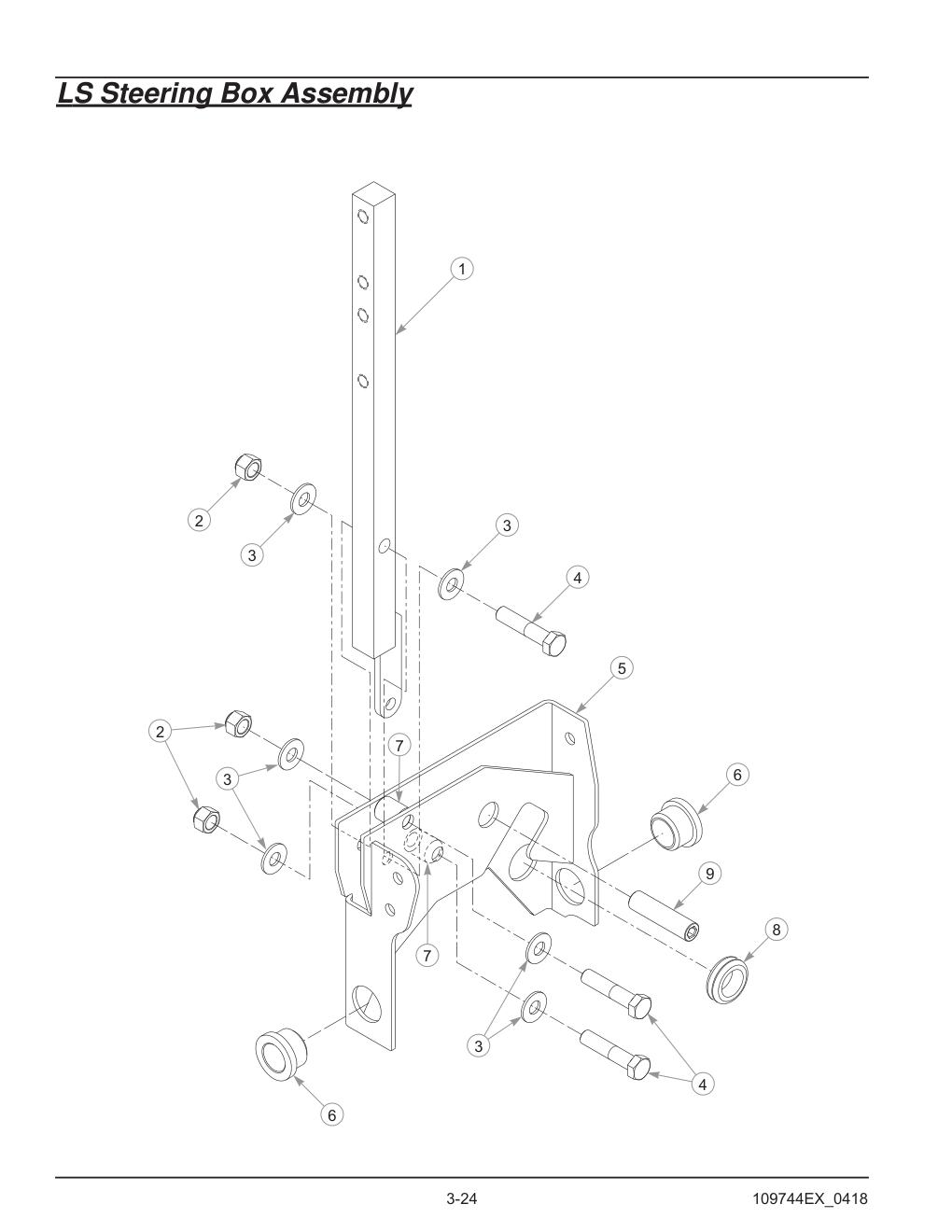

| 1 | LS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 2 | RS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 3 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 5 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW .344 X 1.00 X .12 HRD Z | 712927 | 1 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER | 781286 | 2 | HT781286-Online |

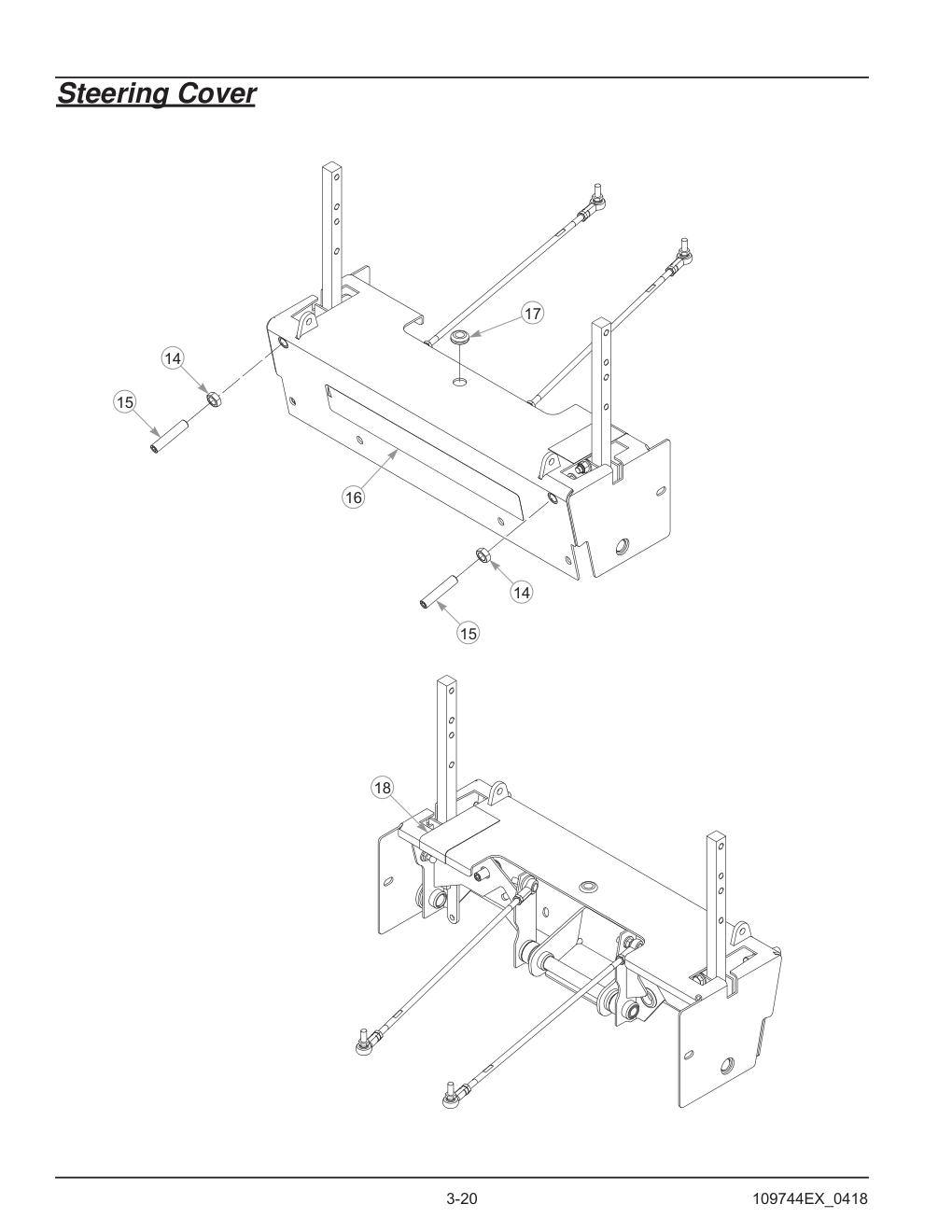

Steering Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 9 | STEERING COVER | 115080 | 1 | 115080-Online |
| 10 | BUSHING | 781153 | 2 | HT781153-Online |
| 11 | LOCK COLLAR 0.757 ID | 784439 | 2 | HT784439-Online |
| 12 | FW .750 X 1.50 X .156 ZN | 603078 | 2 | 603078-Online |
| 13 | STEER PIVOT TUBE | 108813 | 1 | 108813-Online |
Steering Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 15 | SS 1/2-13 X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 16 | ID DECAL | 605089 | 1 | 605089-Online |
| 17 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |
| 18 | WEAR TAPE | 722199 | 5.5" | 722199-Online |
RS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM | 113575 | 1 | 113575-Online |
| 2 | NT .375-16 HX G5 ZY NL | 086660 | 3 | HT086660-Online |
| 3 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16 X 1.75 HX G5 | 705178 | 3 | HT705178-Online |
| 5 | RS STEERING BOX | 112898 | 1 | 112898-Online |
| 6 | BUSHING | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING | 348862 | 2 | HT348862-Online |
| 8 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13 X 2.00 SH ZY | 797738 | 1 | 797738-Online |
LS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM | 113575 | 1 | 113575-Online |
| 2 | NT .375-16 HX G5 ZY NL | 086660 | 3 | HT086660-Online |
| 3 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16 X 1.75 HX G5 | 705178 | 3 | HT705178-Online |
| 5 | LS STEERING BOX | 112899 | 1 | 112899-Online |
| 6 | BUSHING | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING | 348862 | 2 | HT348862-Online |
| 8 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13 X 2.00 SH ZY | 797738 | 1 | 797738-Online |
Brake-S/N 18031622 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | .375-16 HXZY NL | 086660 | 6 NT | HT086660-Online |
| 2 | .406 X .812 X .060 SAE | 767954 | 12 FW | HT767954-Online |
| 3 | .312-24 HX NL ZN | 023655 | 4 NT | HT023655-Online |
| 4 | .343 X .687 X .051/.080H | 768523 | 10 FW | HT768523-Online |
| 5 | ROD ASSEMBLY | 781583 | 2 BRAKE | HT781583-Online |
| 6 | .375-16 X 1.50 HX G5 | 080655 | 4 CS | HT080655-Online |
| 8 | BRAKE BELLCRANK | 115123 | 1 LS | 115123-Online |
| 8 | BRAKE BELLCRANK (NOT SHOWN) | 115124 | 1 RS | 115124-Online |
| 9 | TURNBUCKLE | 603673 | 2 BRAKE | 603673-Online |
| 10 | .312-18 HX G5 ZNYC | 034272 | 4 NT | HT034272-Online |
| 11 | .375-16 X 4.500 HX G5 | 052514 | 2 CS | 052514-Online |
| 12 | ASSY | 602383 | 2 BRAKE | 602383-Online |
| 13 | .312-18 X .750 HX G8 FLK | 604461 | 8 CS | 604461-Online |
| 14 | ASSY (WITH STUDS) | 602384 | 2 HUB | 602384-Online |
| 15 | ARM | 111309 | 2 BRAKE | HT111309-Online |
| 16 | .312-18 X 1.000 FULL ZN | 037887 | 4 CB | HT037887-Online |
| 17 | STUD 1/2-20 X 1-1/2" | 606124 | 5 WHEEL | 606124-Online |

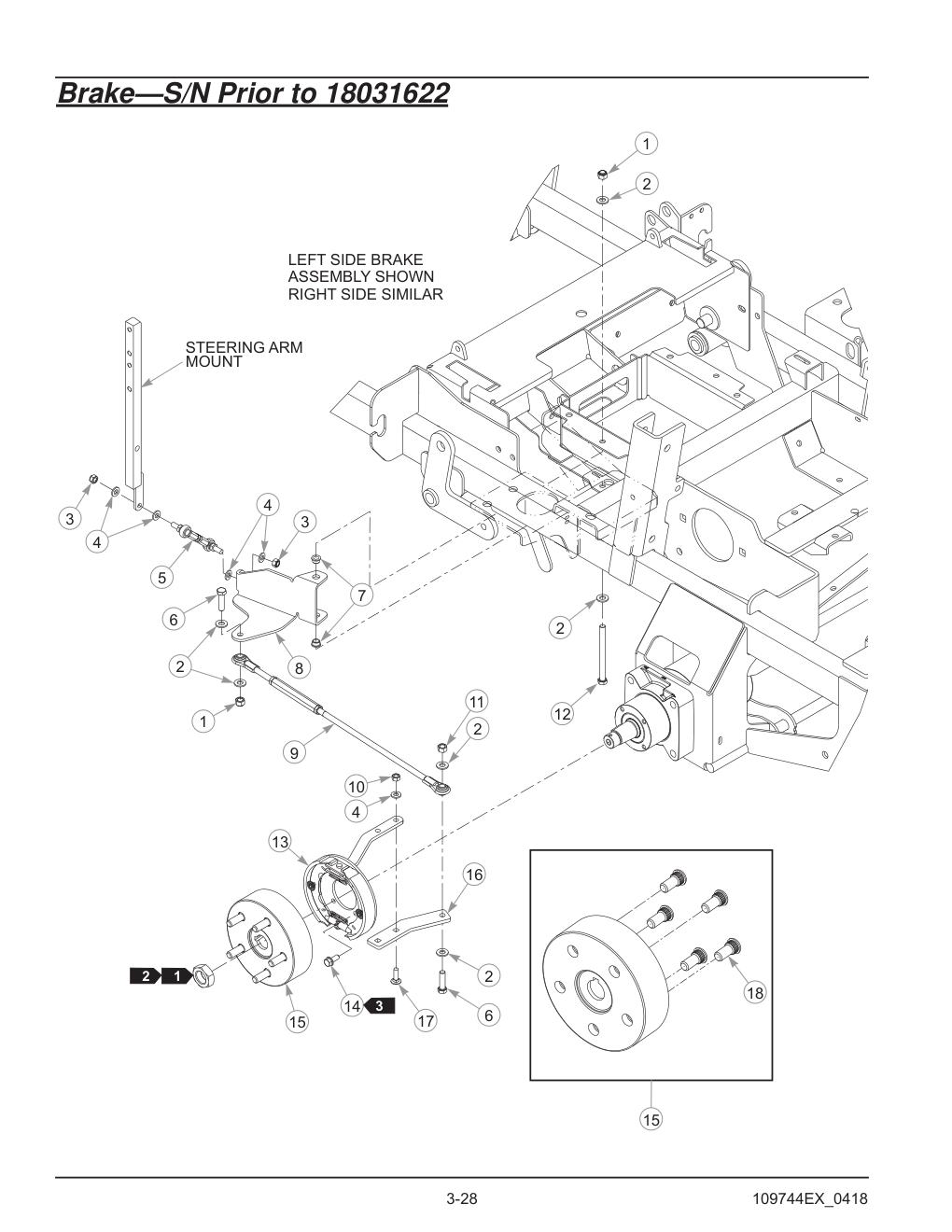

Brake-S/N Prior to 18031622
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | .375-16 HXZY NL | 086660 | 4 NT | HT086660-Online |
| 2 | .406 X .812 X .060 SAE | 767954 | 12 FW | HT767954-Online |
| 3 | .312-24 HX NL ZN | 023655 | 4 NT | HT023655-Online |
| 4 | .343 X .687 X .051/.080H | 768523 | 12 FW | HT768523-Online |
| 5 | ROD ASSEMBLY | 781583 | 2 BRAKE | HT781583-Online |
| 6 | .375-16 X 1.375 HX G5 | 005116 | 4 CS | HT005116-Online |
| 8 | BRAKE BELLCRANK | 115123 | 1 LS | 115123-Online |
| 8 | BRAKE BELLCRANK (NOT SHOWN) | 115124 | 1 RS | 115124-Online |
| 9 | TURNBUCKLE | 603673 | 2 BRAKE | 603673-Online |
| 10 | .312-18 HX G5 ZNYC | 034272 | 4 NT | HT034272-Online |
| 11 | .375-16 HX GRD 5 ZNY | 054502 | 2 NT | HT054502-Online |
| 12 | .375-16 X 4.500 HX G5 | 052514 | 2 CS | 052514-Online |
| 13 | ASSY | 602383 | 2 BRAKE | 602383-Online |
| 14 | .312-18 X .750 HX G8 FLK | 604461 | 8 CS | 604461-Online |
| 15 | ASSY (WITH STUDS) | 602384 | 2 HUB | 602384-Online |
| 16 | ARM | 111309 | 2 BRAKE | HT111309-Online |
| 17 | .312-18 X 1.000 FULL ZN | 037887 | 4 CB | HT037887-Online |
| 18 | STUD 1/2-20 X 1-1/2" (S/N 12031739 & HIGHER) | 606124 | 5 WHEEL | 606124-Online |
| 18 | LUG STUD 1/2-20 (S/N PRIOR TO 12031739) | 601085 | 5 WHEEL | HT601085-Online |

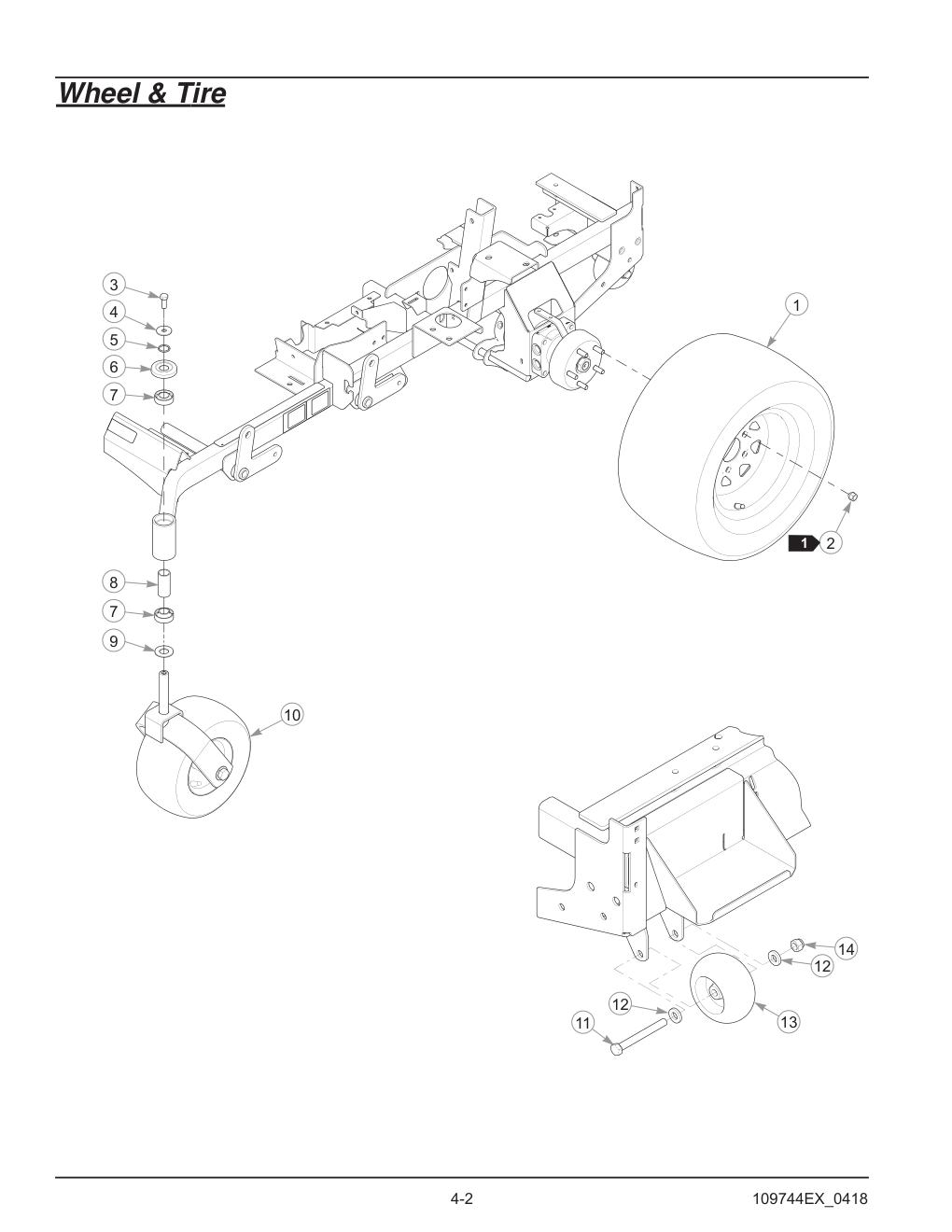

Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 061077 | NUT | 10 | WHEEL | 10-Online |

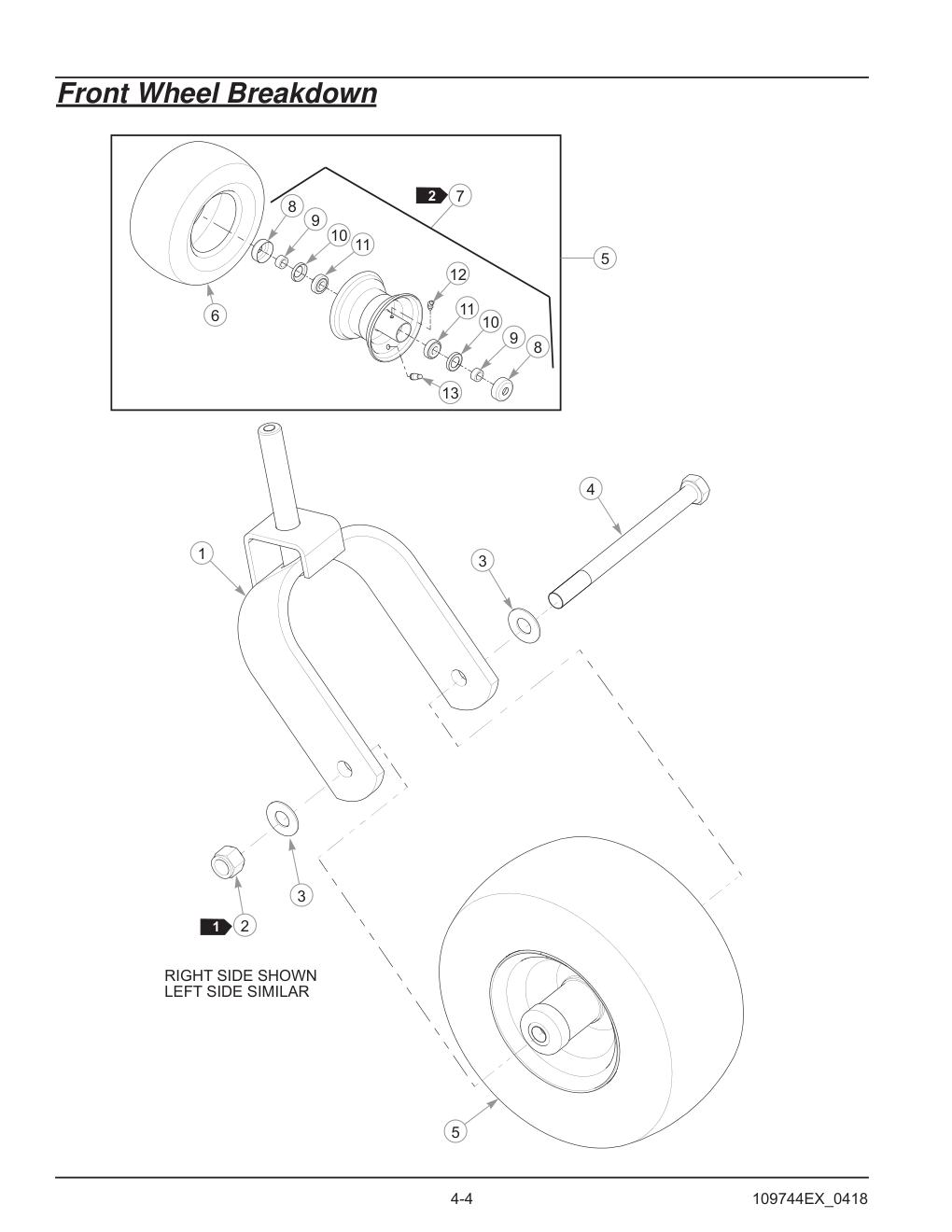

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | .750-10 HX ZY NL | 061101 | 1 NT | HT061101-Online |
| 3 | .760 X 1.625 X .08 | 025296 | 2 FW | HT025296-Online |
| 4 | .750-10 X 9.50 HX ZY | 041475 | 1 CS | HT041475-Online |
| 5 | ASSEMBLY 13 X 6.50-6 | 606744 | 1 TIRE/WHEEL | 606744-Online |
| 6 | 13 X 6.50-6 SMOOTH | 604843 | 1 TIRE | 604843-Online |
| 7 | ASSEMBLY 6 X 4.50-SILVER (INCLUDES #8-13) | 606751 | 1 WHEEL | 606751-Online |
| 8 | CAP, 0.752 ID | 606815 | 2 DUST | 606815-Online |
| 9 | 0.531 | 606778 | 2 SPACER, | 606778-Online |
| 11 | TAPERED ROLLER | 606753 | 2 BEARING, | 606753-Online |
| 12 | FITTING, M8 X 1.0 | 606126 | 1 GREASE | 606126-Online |
| 13 | VALVE | 019521 | 1 TIRE | HT019521-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE, 24 X 12-12 | 606967 | 1 | 606967-Online |
| 2 | WHEEL, 12 X 8.50 | 796250 | 1 | 796250-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
| INDEX NO. | DESCRIPTION | PARTNO. | QTY | PARTNO.-Online |
| 1 | TIRE, 24 X 12-12 | 606967 | 1 | 606967-Online |
| 2 | WHEEL, 12 X 8.50 | 784066 | 1 | HT784066-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 705954 | X 1.25 HX G5 ZN | 2CS | .500-13 | 2CS-Online |
| 798603 | 1.65 X .125 HD ZY | 2FW | .515 X | 2FW-Online |
| N/A | ASSEMBLY | 1FRONT | WHEEL | 1FRONT-Online |
| 068239 | X 4.50 HX G5 | 2CS | .500-13 | 2CS-Online |
| 767962 | 1.063 X .090 SAE | 4FW | .531 X | 4FW-Online |
| 781567 | HX G8 ZY NL | 2NT | .500-13 | 2NT-Online |

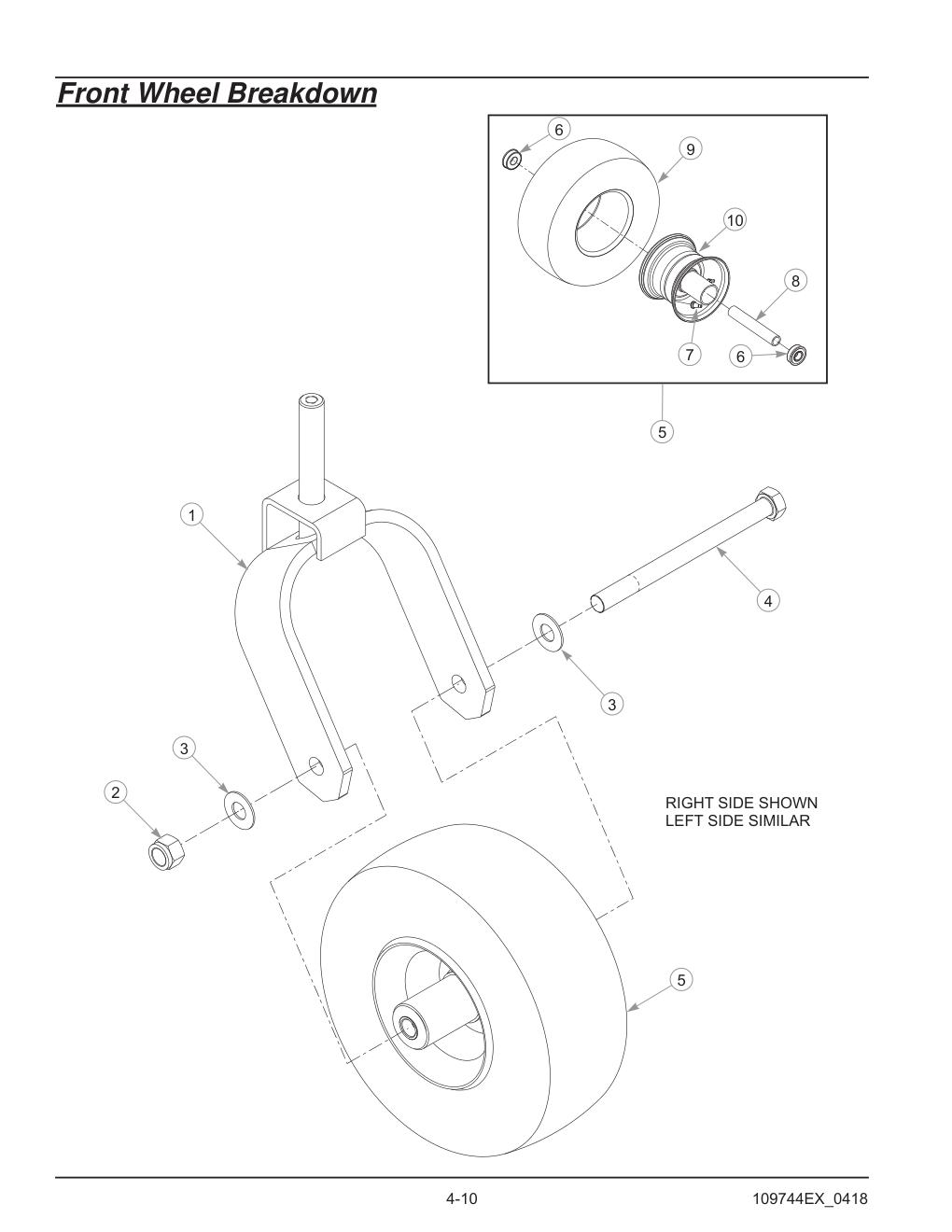

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK, HEAVY DUTY | 116890 | 1 | HT116890-Online |
| 1 | FORK | 113621 | 1 | 113621-Online |
| 2 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10 X 9.50 HX ZY | 041475 | 1 | HT041475-Online |
| 5 | TIRE/WHEEL ASSEMBLY 13 X 6.50 | 604898 | 1 | 604898-Online |
| 6 | BEARING | 039677 | 2 | HT039677-Online |
| 7 | VALVE STEM | 019521 | 1 | HT019521-Online |
| 8 | BEARING SPACER | 782771 | 1 | HT782771-Online |
| 9 | TIRE | 604843 | 1 | 604843-Online |
| 10 | WHEEL | 747832 | 1 | 747832-Online |
Wheel & Tire, Flex Forks®
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 705954 | 1.25 HX G5 ZN | 2CS.500-13 | X | 2CS.500-13-Online |
| 798603 | X .125 HD ZY | 2FW | .515 X 1.65 | 2FW-Online |
| 387035 | X 1.312 X 2.79 | 2SPACER | 1.07 | 2SPACER-Online |
| N/A | ASSEMBLY | 1FLEX | FORKS | 1FLEX-Online |
| 068239 | 4.50 HX G5 | 2CS.500-13 | X | 2CS.500-13-Online |
| 767962 | X .090 SAE | 4FW | .531 X 1.063 | 4FW-Online |
| 781567 | G8 ZY NL | 2NT.500-13 | HX | 2NT.500-13-Online |
Front Wheel Breakdown, Flex Forks®
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLEX FORKS KIT (CONTAINS TWO FORKS) | 603167 | 1 | 603167-Online |
| 2 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 4 | CS .750-10 X 9.50 HX ZY | 041475 | 2 | HT041475-Online |
| 5 | TIRE/WHEEL ASSEMBLY 13 X 6.50 | 604898 | 2 | 604898-Online |
| 6 | WHEEL BEARING | 039677 | 2 | HT039677-Online |
| 7 | VALVE STEM | 019521 | 1 | HT019521-Online |
| 8 | BEARING SPACER | 782771 | 1 | HT782771-Online |
| 9 | TIRE, 13 X 6.50-6 SMOOTH | 604843 | 1 | 604843-Online |
| 9 | TIRE, 13 X 6.50-6 RIBBED | 747741 | 1 | 747741-Online |
| 10 | WHEEL 6 X 4.50 | 747832 | 1 | 747832-Online |

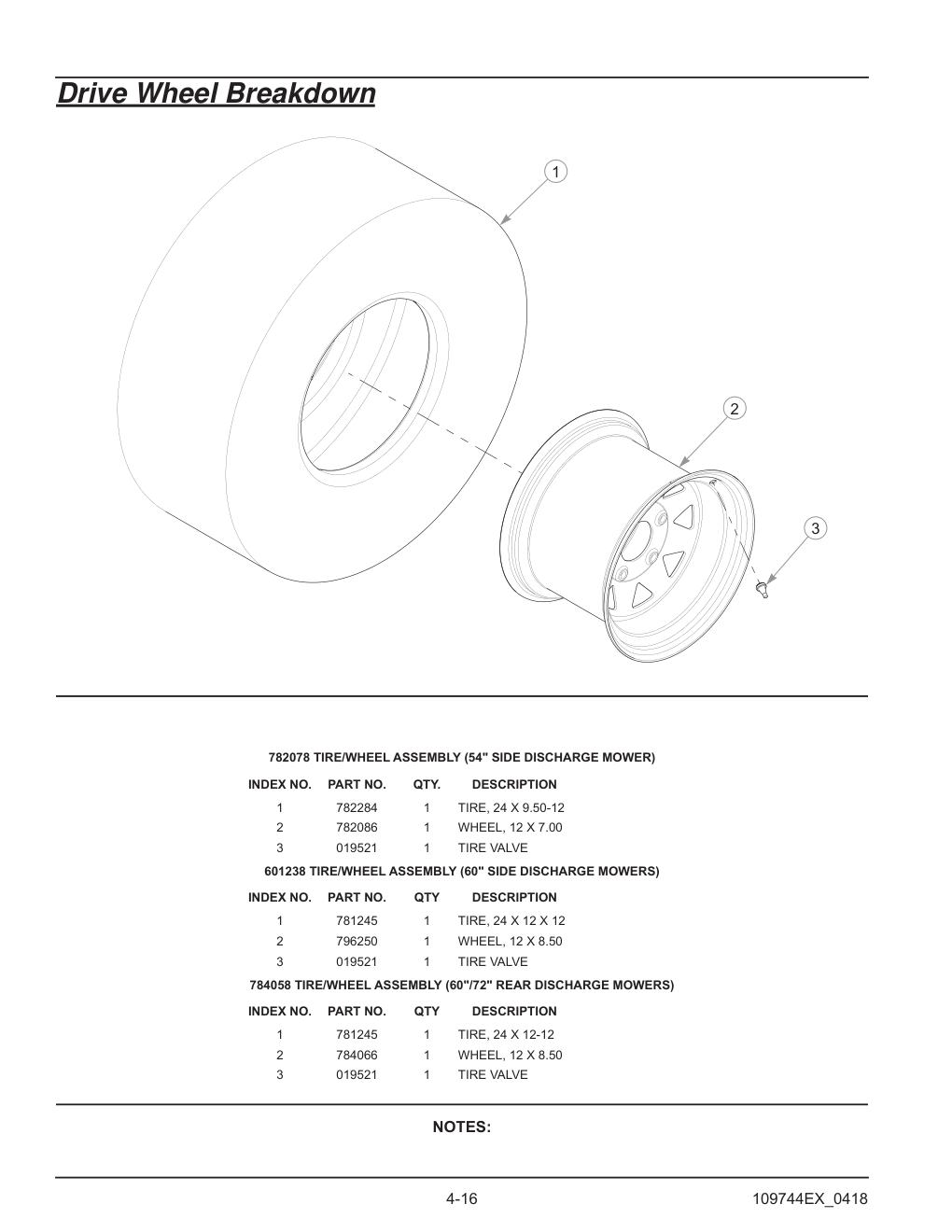

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE, 24 X 9.50-12 | 782284 | 1 | 782284-Online |
| 2 | WHEEL, 12 X 7.00 | 782086 | 1 | 782086-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
| INDEX NO. | DESCRIPTION | PARTNO. | QTY | PARTNO.-Online |
| 1 | TIRE, 24 X 12 X 12 | 781245 | 1 | HT781245-Online |
| 2 | WHEEL, 12 X 8.50 | 796250 | 1 | 796250-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
| INDEX NO. | DESCRIPTION | PARTNO. | QTY | PARTNO.-Online |
| 1 | TIRE, 24 X 12-12 | 781245 | 1 | HT781245-Online |
| 2 | WHEEL, 12 X 8.50 | 784066 | 1 | HT784066-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |

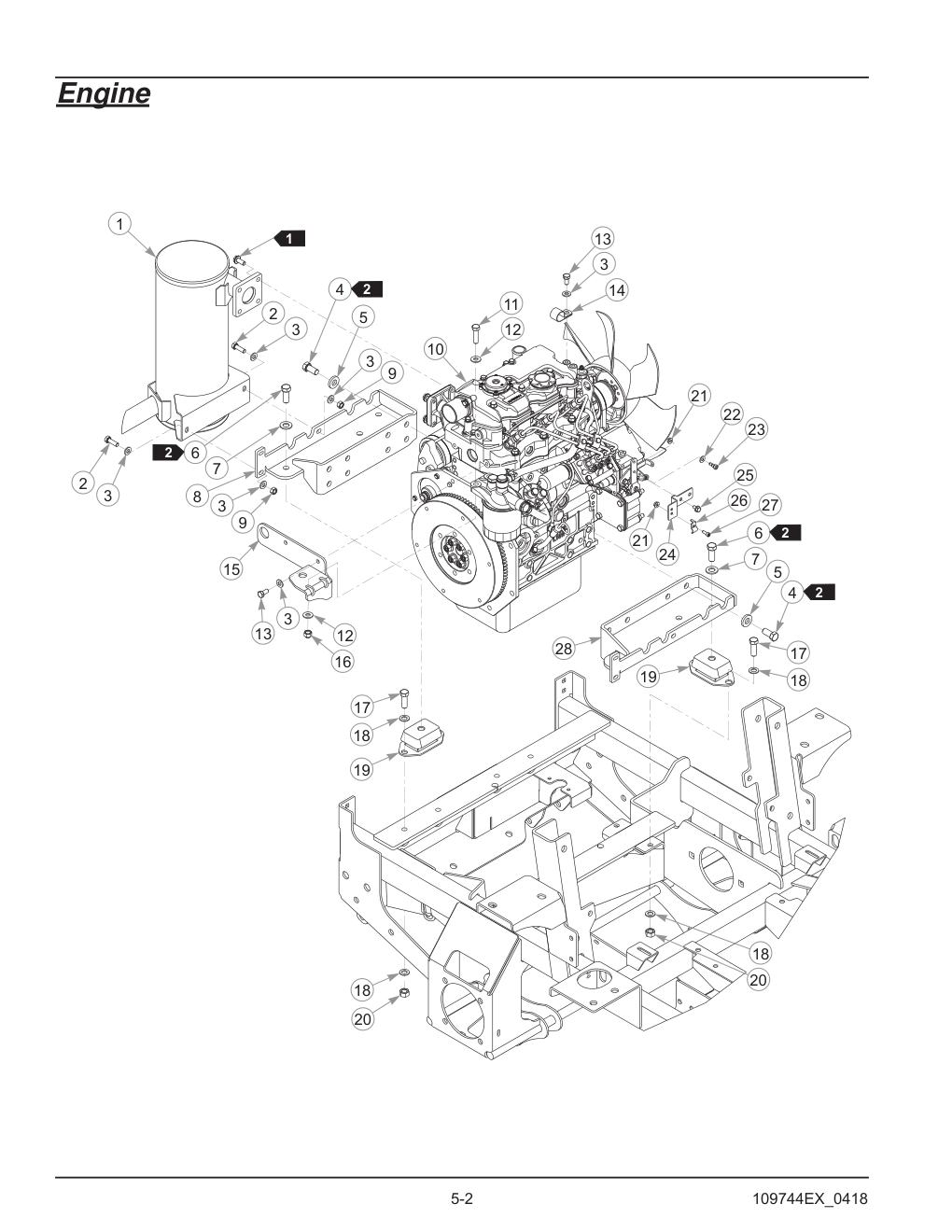

Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MUFFLER | 601361 | 1 | 601361-Online |
| 2 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 9 | HT768523-Online |
| 4 | CS M12-1.25 X 25 HX G8.8 ZN | 601428 | 16 | 601428-Online |
| 5 | FW .531 X 1.063 X .175 | 767962 | 16 | HT767962-Online |
| 6 | CS M12-1.75 X 30 HX G8.8 ZN | 602196 | 4 | 602196-Online |
| 7 | FW .500 X 1.06 X .090 SAE | 004168 | 4 | HT004168-Online |
| 8 | REAR MOTOR MOUNT | 111045 | 1 | 111045-Online |
| 9 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 10 | ENGINE | N/A | 1 | No SKU |
| 11 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 12 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 13 | CS M8-1.25 X 16 HX G8.8 | 053678 | 5 | 053678-Online |
| 14 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 15 | FUEL FILTER BRACKET | 109358 | 1 | 109358-Online |
| 16 | NT .375-16 HX G5 NL | 086660 | 2 | HT086660-Online |
| 17 | CS .437-14 X 1.25 HX G5 | 773242 | 8 | 773242-Online |
| 18 | FW .453 X .812 X .060 ZNYC | 704742 | 16 | 704742-Online |
| 19 | ISO MOUNT | 601958 | 4 | 601958-Online |
| 20 | NT .437-14 HX G5 ZNYC | 041707 | 8 | 041707-Online |
| 21 | NT #10-24 HX FLK ZN | 016774 | 2 | 016774-Online |
| 22 | FW .250 X .56 X .04 SAE Z | 017079 | 1 | 017079-Online |
| 23 | SB .250D X .250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 24 | THROTTLE BRACKET | 109419 | 1 | 109419-Online |
| 25 | CS M6-1.0 X 12 HX G10.9 | 739144 | 2 | 739144-Online |
| 26 | CONDUIT CLIP | 011841 | 1 | 011841-Online |
| 27 | CS 10-24 X .50 SKTHD Z | 794495 | 1 | 794495-Online |
| 28 | FRONT MOTOR MOUNT | 111046 | 1 | 111046-Online |
Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 29 | POSITIVE BATTERY CABLE BOOT | 601319 | 2 | 601319-Online |
| 30 | NT M6-1.0-10 HX FLG ZN | 005231 | 1 | 005231-Online |
| 31 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 32 | NEGATIVE BATTERY CABLE | 601540 | 1 | 601540-Online |
| 33 | NT M8 X 1.25 HX G8.8 ZNY | 045336 | 1 | 045336-Online |
| 34 | POSITIVE BATTERY CABLE | 601539 | 1 | 601539-Online |
| 35 | POSITIVE BATTERY BOOT | 601381 | 1 | 601381-Online |
| 36 | NT .375-16 HX GRD 5 ZNY | 054502 | 1 | HT054502-Online |
| 37 | POSITIVE BATTERY POST | 601380 | 1 | 601380-Online |
| 38 | CAUTION DECAL | 606453 | 1 | 606453-Online |
Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 39 | 5/16" FUEL LINE | 791400 | 30" | 791400-Online |
| 40 | HOSE CLAMP, 1/4" - 5/8" | 601693 | 4 | 601693-Online |
| 41 | FUEL PRIMER BULB | 601378 | 1 | 601378-Online |
| 42 | CLAMP, 3/16" (S/N 13101779 & HIGHER) | 603112 | 2 | 603112-Online |
| 42 | CLAMP, 7/16" (S/N PRIOR TO 13101779) | 041483 | 2 | 041483-Online |
| 43 | 3/16" VAPOR LINE (S/N 13101779 & HIGHER) | 603326 | 13" | 603326-Online |
| 43 | 3/16" FUEL LINE (S/N PRIOR TO 13101779) | 038398 | 13" | 038398-Online |
| 44 | O-RING | 601567 | 1 | 601567-Online |
| 45 | REMOTE OIL ADAPTER | 601526 | 1 | 601526-Online |
| 46 | HOSE CLAMP | 045088 | 1 | 045088-Online |
| 47 | CS .250-20 X .50 HX G5 | 055947 | 2 | 055947-Online |
| 48 | FW .281 X .625 X .066 | 768515 | 2 | HT768515-Online |
| 49 | FILTER HEAD | 601487 | 1 | 601487-Online |
| 50 | FITTTING, STR-6MORB/-6MS | 792150 | 2 | 792150-Online |
| 51 | FITTING, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 52 | OIL FILTER HOSE | 601546 | 1 | 601546-Online |
| 53 | OIL FILTER HOSE | 601547 | 1 | 601547-Online |
| 54 | OIL FILTER | 140517020 | 1 | HT140517020-Online |
| 55 | FUEL FILTER | 130366120 | 1 | HT130366120-Online |

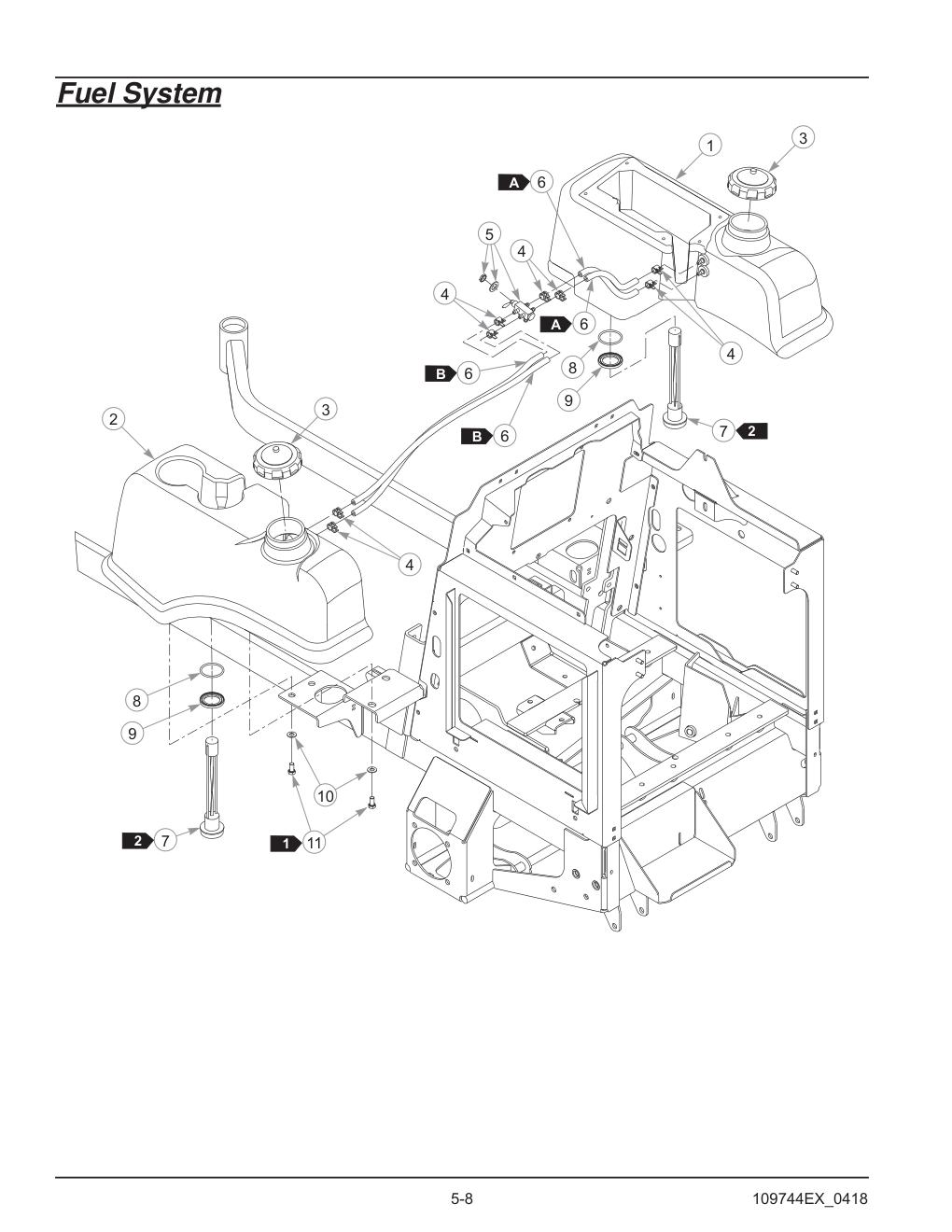

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| TANK TO FUEL VALVE | A10" | RIGHT | No SKU | |
| TANK TO FUEL VALVE | B25.5" | LEFT | No SKU |
Air Cleaner
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR CLEANER | 782763 | 1 | HT782763-Online |
| 2 | AIR FILTER INDICATOR | 795138 | 1 | 795138-Online |
| 3 | AIR CLEANER HOSE | 601359 | 1 | 601359-Online |
| 4 | HOSE CLAMP | 057661 | 5 | 057661-Online |
| 5 | AIR CLEANER INTAKE HOSE | 601360 | 1 | 601360-Online |
| 6 | CS .312-18 X 1.250 HX G5 | 079186 | 2 | 079186-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 8 | AIR CLEANER MOUNTING BAND | 785741 | 1 | 785741-Online |
| 9 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 10 | PRECLEANER | 775353 | 1 | HT775353-Online |
| 11 | SAFETY AIR FILTER | 785279 | 1 | 785279-Online |
| 12 | MAIN AIR FILTER | 785261 | 1 | 785261-Online |

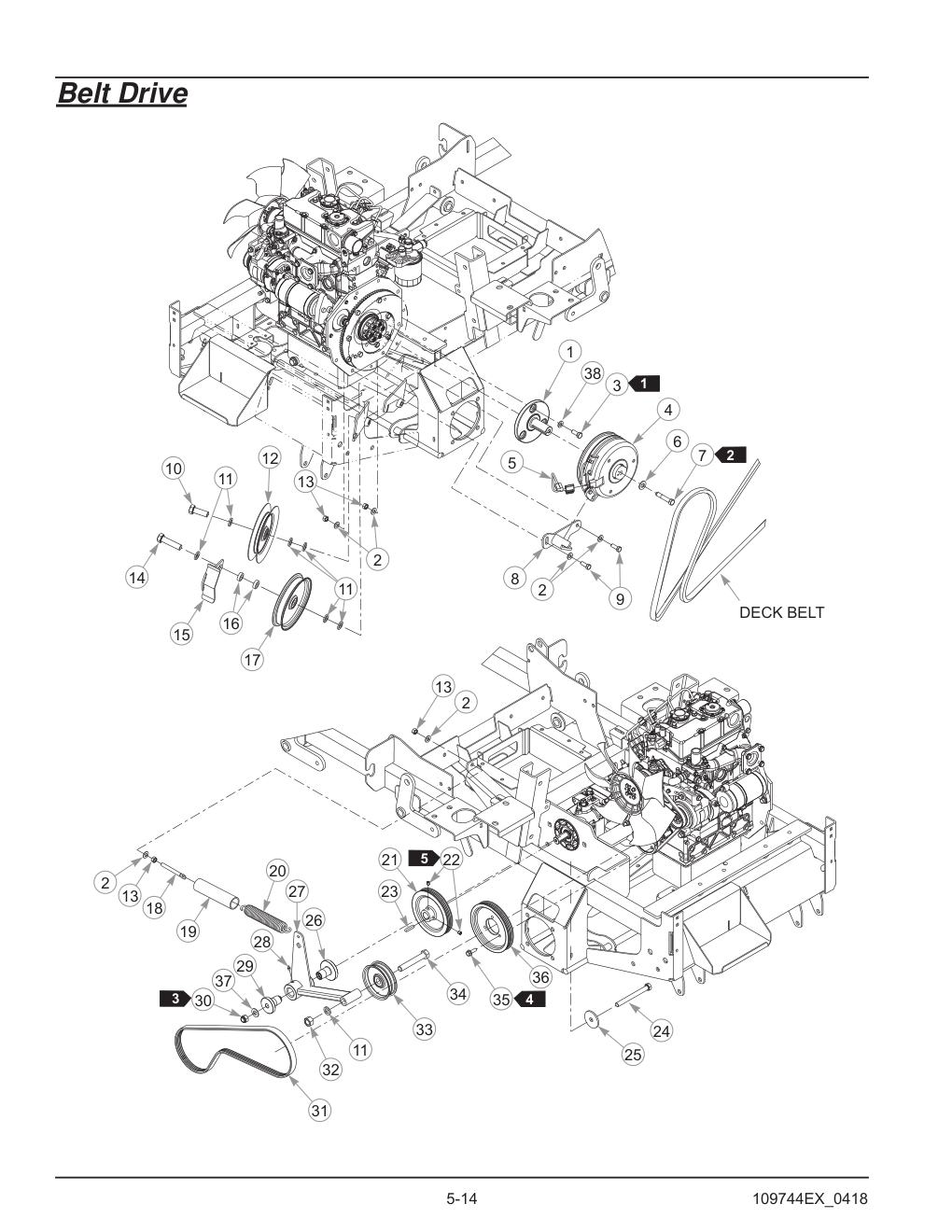

Belt Drive
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STUB SHAFT | 601279 | 1 | 601279-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 3 | CS M10-1.50 X 25 HX ZN | 038836 | 3 | 038836-Online |
| 4 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 5 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 6 | FW .531 X 1.063 X .090 SAE | 602680 | 1 | 602680-Online |
| 7 | CS .437-20 X 2.250 HXG5P85 | 778217 | 1 | 778217-Online |
| 8 | CLUTCH ANCHOR PLATE | 109725 | 1 | 109725-Online |
| 9 | CS .375-16 X 1.000 HX G5 | 036244 | 2 | HT036244-Online |
| 10 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 11 | FW .625 X 1.00 X .134 ZNYC | 028118 | 7 | HT028118-Online |
| 12 | 6" HB IDLER PULLEY | 796714 | 1 | HT796714-Online |
| 13 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 14 | CS .625-11 X 2.500 HX G5 | 025015 | 1 | HT025015-Online |
| 15 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 16 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 17 | IDLER PULLEY, NHI 6.0" | 781385 | 1 | HT781385-Online |
| 18 | EB, .375-16 X 3.00 FULL THD | 601486 | 1 | 601486-Online |
| 19 | SPRING DAMPER TUBING | 601722 | 1 | 601722-Online |
| 20 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 21 | PULLEY, 5.625" | 601422 | 1 | 601422-Online |
| 22 | SS .312-18 X .312 SH BO | 600122 | 2 | HT600122-Online |
| 23 | KEY 1/4 SQ X 1.375 LONG | 601713 | 1 | 601713-Online |
| 24 | CS .500-13 X 5.000 HX G5 | 051151 | 1 | HT051151-Online |
| 25 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 26 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 27 | IDLER ARM TENSIONER | 115117 | 1 | 115117-Online |
| 28 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 29 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 30 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 31 | BELT | 601424 | 1 | 601424-Online |
| 32 | NT .625-11 HX G5 ZNYC | 016972 | 1 | HT016972-Online |
| 33 | IDLER PULLEY | 601488 | 1 | 601488-Online |
| 34 | CS .625-11 X 4.00 HX G5 | 047712 | 1 | 047712-Online |
| 35 | CS M8-1.25 X 20 10.9 HXFLZ | 720177 | 3 | 720177-Online |
| 36 | PULLEY, 6" | 601423 | 1 | 601423-Online |
| 37 | FW .453X 1.12 X .119 HRD | 767962 | 1 | HT767962-Online |
| 38 | FW .406 X 1.00 X .12 | 712919 | 3 | HT712919-Online |

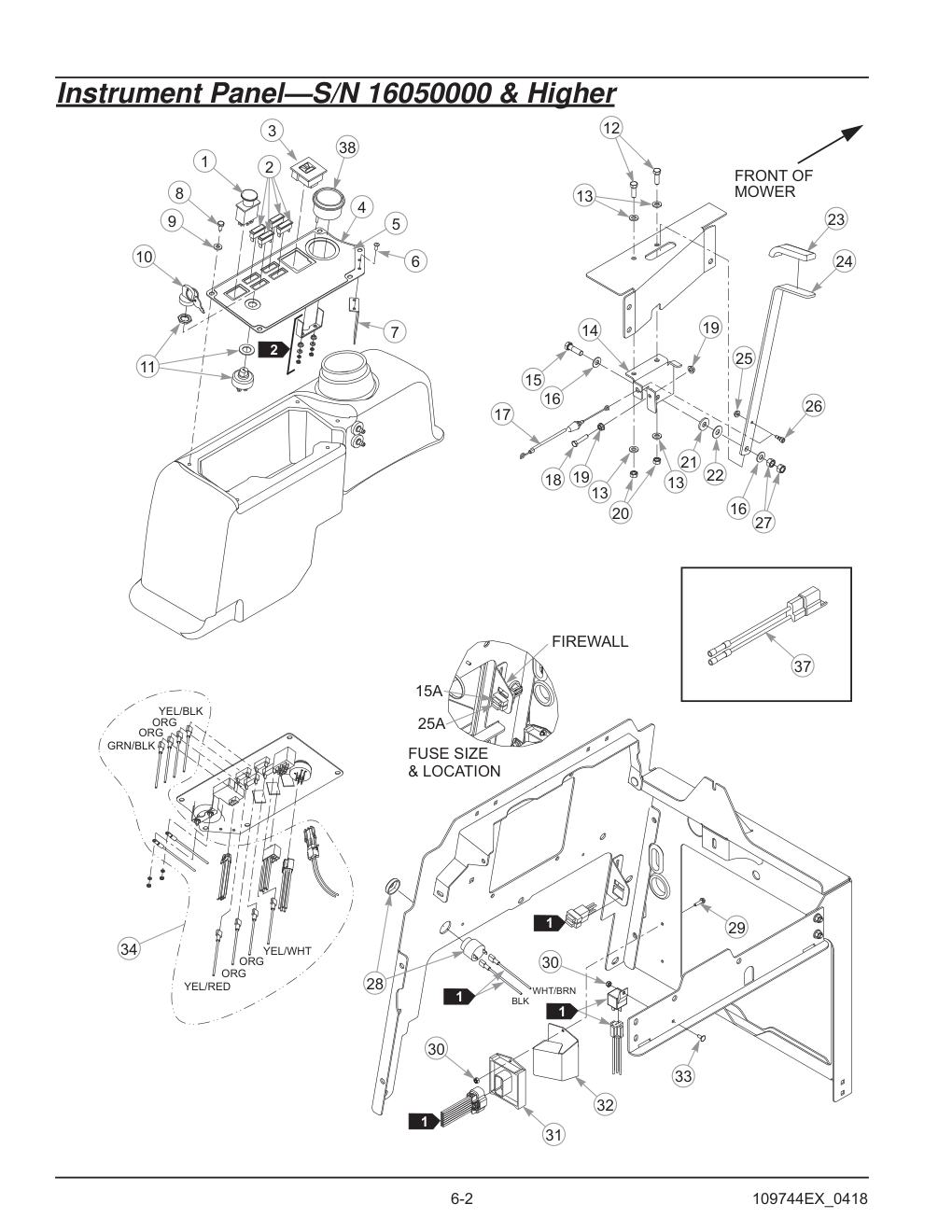

Instrument Panel-S/N 16050000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 2 | RED INDICATOR LIGHT | 712257 | 4 | HT712257-Online |
| 3 | FUEL DISPLAY/HOUR METER | 606068 | 1 | 606068-Online |
| 4 | INSTRUMENT PANEL (WITH DECAL) | 553711 | 1 | 553711-Online |
| 5 | INSTRUMENT PANEL DECAL | 606412 | 1 | 606412-Online |
| 6 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 7 | FUEL TANK COVER | 109729 | 1 | 109729-Online |
| 8 | CS .250-20 X .500 HX G5 | 055947 | 5 | 055947-Online |
| 9 | FW .281 X .625 X .051/.080H | 768515 | 5 | HT768515-Online |
| 10 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 11 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 12 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 14 | THROTTLE LEVER PLATE | 109421 | 1 | 109421-Online |
| 15 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 1 | HT052860-Online |
| 16 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 17 | THROTTLE CABLE | 601362 | 1 | 601362-Online |
| 18 | CS .250-20 X 1.250 HX G5 | 603968 | 1 | 603968-Online |
| 19 | NT .250-20 HX FL LK ZNY | 016816 | 2 | 016816-Online |
| 20 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 21 | FW .406 X 1.00 X.12 HRD Z | 712919 | 1 | HT712919-Online |
| 22 | FW .406 X 1.000 X .06 NYLON | 601507 | 1 | 601507-Online |
| 23 | GRIP | 603830 | 1 | 603830-Online |
| 24 | THROTTLE LEVER | 115151 | 1 | 115151-Online |
| 25 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 26 | SB .250D X .250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 27 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 28 | ALARM | 794347 | 1 | 794347-Online |
| 29 | CS 10-24 X .750 HXFLK ZN | 063198 | 2 | 063198-Online |
| 30 | NT #10-24 HX NL ZN | 059832 | 3 | 059832-Online |
| 31 | CONTROLLER | 601368 | 1 | 601368-Online |
| 32 | MODULE COVER | 119556 | 1 | 119556-Online |
| 33 | CB 10-24 X .500 ZYNC | 601098 | 1 | 601098-Online |
| 34 | WIRE HARNESS | 603759 | 1 | 603759-Online |
| 35 | WIRE TIE (NOT SHOWN) | 000430 | 3 | 000430-Online |
| 36 | WIRE TIE (NOT SHOWN) | 000331 | 8 | 000331-Online |
| 37 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 38 | TEMPERATURE GAUGE | 385710011 | 1 | 385710011-Online |
Instrument Panel-S/N 13121637 to 16049999
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 2 | RED INDICATOR LIGHT | 712257 | 4 | HT712257-Online |
| 3 | FUEL DISPLAY/HOUR METER | 603748 | 1 | 603748-Online |
| 4 | INSTRUMENT PANEL (WITH DECAL) | 551325 | 1 | 551325-Online |
| 5 | INSTRUMENT PANEL DECAL | 603758 | 1 | 603758-Online |
| 6 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 7 | FUEL TANK COVER | 109729 | 1 | 109729-Online |
| 8 | CS .250-20 X .500 HX G5 | 055947 | 5 | 055947-Online |
| 9 | FW .281 X .625 X .051/.080H | 768515 | 5 | HT768515-Online |
| 10 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 11 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 12 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 14 | THROTTLE LEVER PLATE | 109421 | 1 | 109421-Online |
| 15 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 1 | HT052860-Online |
| 16 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 17 | THROTTLE CABLE | 601362 | 1 | 601362-Online |
| 18 | CS .250-20 X 1.250 HX G5 | 603968 | 1 | 603968-Online |
| 19 | NT .250-20 HX FL LK ZNY | 016816 | 2 | 016816-Online |
| 20 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 21 | FW .406 X 1.00 X.12 HRD Z | 712919 | 1 | HT712919-Online |
| 22 | FW .406 X 1.000 X .06 NYLON | 601507 | 1 | 601507-Online |
| 23 | GRIP | 603830 | 1 | 603830-Online |
| 24 | THROTTLE LEVER | 115151 | 1 | 115151-Online |
| 25 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 26 | SB .250D X .250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 27 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 28 | ALARM | 794347 | 1 | 794347-Online |
| 29 | CS 10-24 X .750 HXFLK ZN | 063198 | 2 | 063198-Online |
| 30 | NT #10-24 HX NL ZN | 059832 | 3 | 059832-Online |
| 31 | CONTROLLER | 601368 | 1 | 601368-Online |
| 32 | MODULE COVER | 119556 | 1 | 119556-Online |
| 33 | CB 10-24 X .500 ZYNC | 601098 | 1 | 601098-Online |
| 34 | WIRE HARNESS | 603759 | 1 | 603759-Online |
| 35 | WIRE TIE (NOT SHOWN) | 000430 | 3 | 000430-Online |
| 36 | WIRE TIE (NOT SHOWN) | 000331 | 8 | 000331-Online |
| 37 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 38 | TEMPERATURE GAUGE | 385710011 | 1 | 385710011-Online |

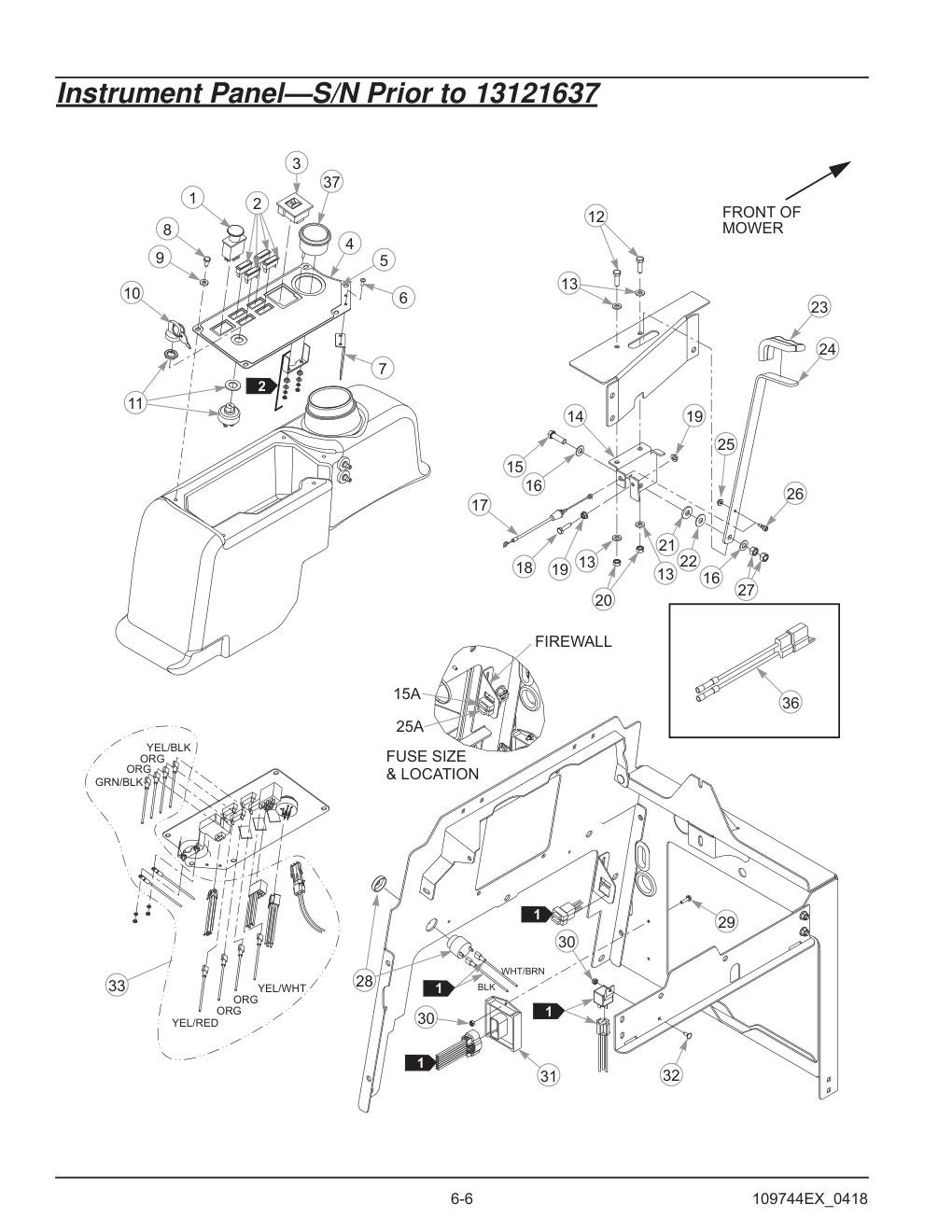

Instrument Panel-S/N Prior to 13121637
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 2 | RED INDICATOR LIGHT | 712257 | 4 | HT712257-Online |
| 3 | FUEL DISPLAY/HOUR METER | 603748 | 1 | 603748-Online |
| 4 | INSTRUMENT PANEL (WITH DECAL) | 551325 | 1 | 551325-Online |
| 5 | INSTRUMENT PANEL DECAL | 603758 | 1 | 603758-Online |
| 6 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 7 | FUEL TANK COVER | 109729 | 1 | 109729-Online |
| 8 | CS .250-20 X .500 HX G5 | 055947 | 5 | 055947-Online |
| 9 | FW .281 X .625 X .051/.080H | 768515 | 5 | HT768515-Online |
| 10 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 11 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 12 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 14 | THROTTLE LEVER PLATE | 109421 | 1 | 109421-Online |
| 15 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 1 | HT052860-Online |
| 16 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 17 | THROTTLE CABLE | 601362 | 1 | 601362-Online |
| 18 | CS .250-20 X 1.250 HX G5 | 603968 | 1 | 603968-Online |
| 19 | NT .250-20 HX FL LK ZNY | 016816 | 2 | 016816-Online |
| 20 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 21 | FW .406 X 1.00 X.12 HRD Z | 712919 | 1 | HT712919-Online |
| 22 | FW .406 X 1.000 X .06 NYLON | 601507 | 1 | 601507-Online |
| 23 | GRIP | 603830 | 1 | 603830-Online |
| 24 | THROTTLE LEVER | 115151 | 1 | 115151-Online |
| 25 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 26 | SB .250D X .250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 27 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 28 | ALARM | 794347 | 1 | 794347-Online |
| 29 | CS 10-24 X .750 HXFLK ZN | 063198 | 2 | 063198-Online |
| 30 | NT #10-24 HX NL ZN | 059832 | 3 | 059832-Online |
| 31 | CONTROLLER | 601368 | 1 | 601368-Online |
| 32 | CB 10-24 X .500 ZYNC | 601098 | 1 | 601098-Online |
| 33 | WIRE HARNESS | 603759 | 1 | 603759-Online |
| 34 | WIRE TIE (NOT SHOWN) | 000430 | 3 | 000430-Online |
| 35 | WIRE TIE (NOT SHOWN) | 000331 | 8 | 000331-Online |
| 36 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 37 | TEMPERATURE GAUGE | 385710011 | 1 | 385710011-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | POSITIVE BATTERY BOOT | 601381 | 1 | 601381-Online |
| 2 | NT .375-16 HX G5 | 054502 | 1 | HT054502-Online |
| 3 | FW .379 X .813 X .063 | 767954 | 1 | HT767954-Online |
| 4 | POSITIVE BATTERY POST | 601380 | 1 | 601380-Online |
| 5 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 6 | FW .281 X .625 X .066 | 768515 | 2 | HT768515-Online |
| 7 | BATTERY HOLDDOWN CLAMP | 109108 | 1 | 109108-Online |
| 8 | BATTERY CLAMP ROD | 793489 | 2 | 793489-Online |
| 9 | WIRE TIE (NOT SHOWN) | 000331 | 1 | 000331-Online |

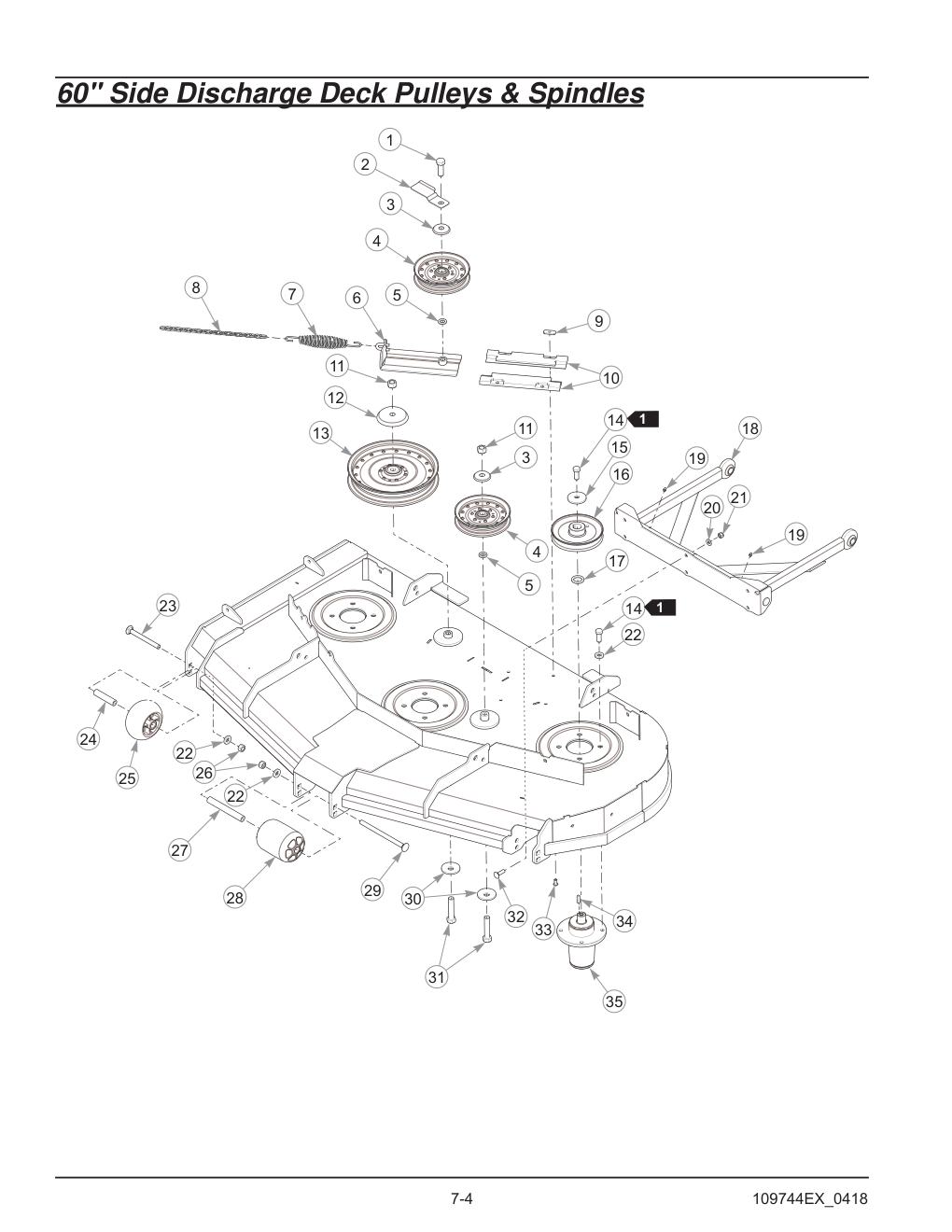

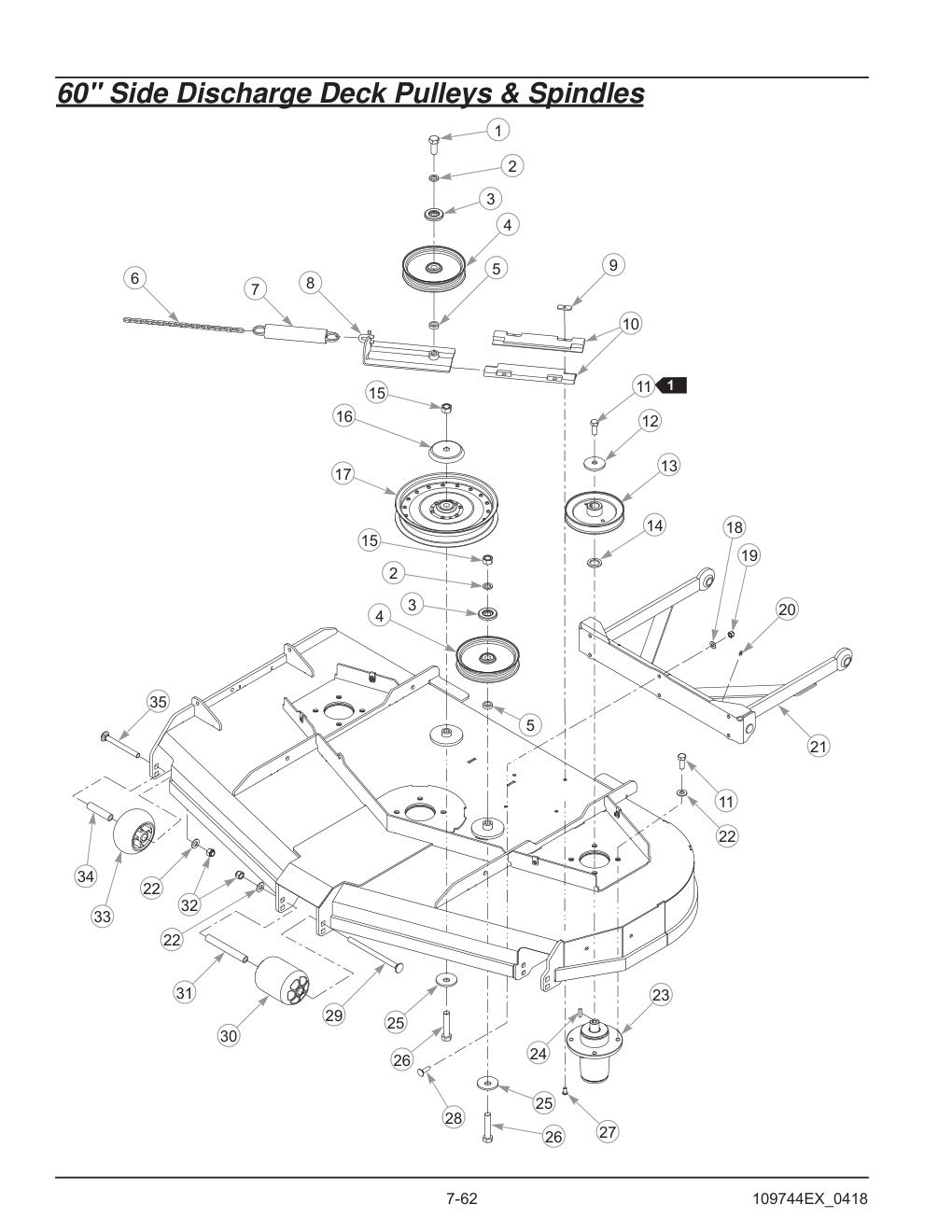

60" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 3 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 4 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 5 | FW .625 X 1.00 X .134 | 028118 | 2 | HT028118-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 13 | IDLER 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 14 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 15 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 16 | DRIVE PULLEY | 770842 | 3 | HT770842-Online |
| 17 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 18 | PUSHER | 113340 | 1 | 113340-Online |
| 19 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 20 | NT .375-16 G5 NL | 086660 | 6 | HT086660-Online |
| 21 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 22 | FW .531 X 1.063 X .175 | 767962 | 15 | HT767962-Online |
| 23 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 24 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 25 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 26 | NT .500-13 HX G5 ZNYC | 008193 | 3 | HT008193-Online |
| 27 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 28 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 29 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | CW .631 X 2.25 X .187 | 782474 | 2 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 32 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 33 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 34 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 35 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |

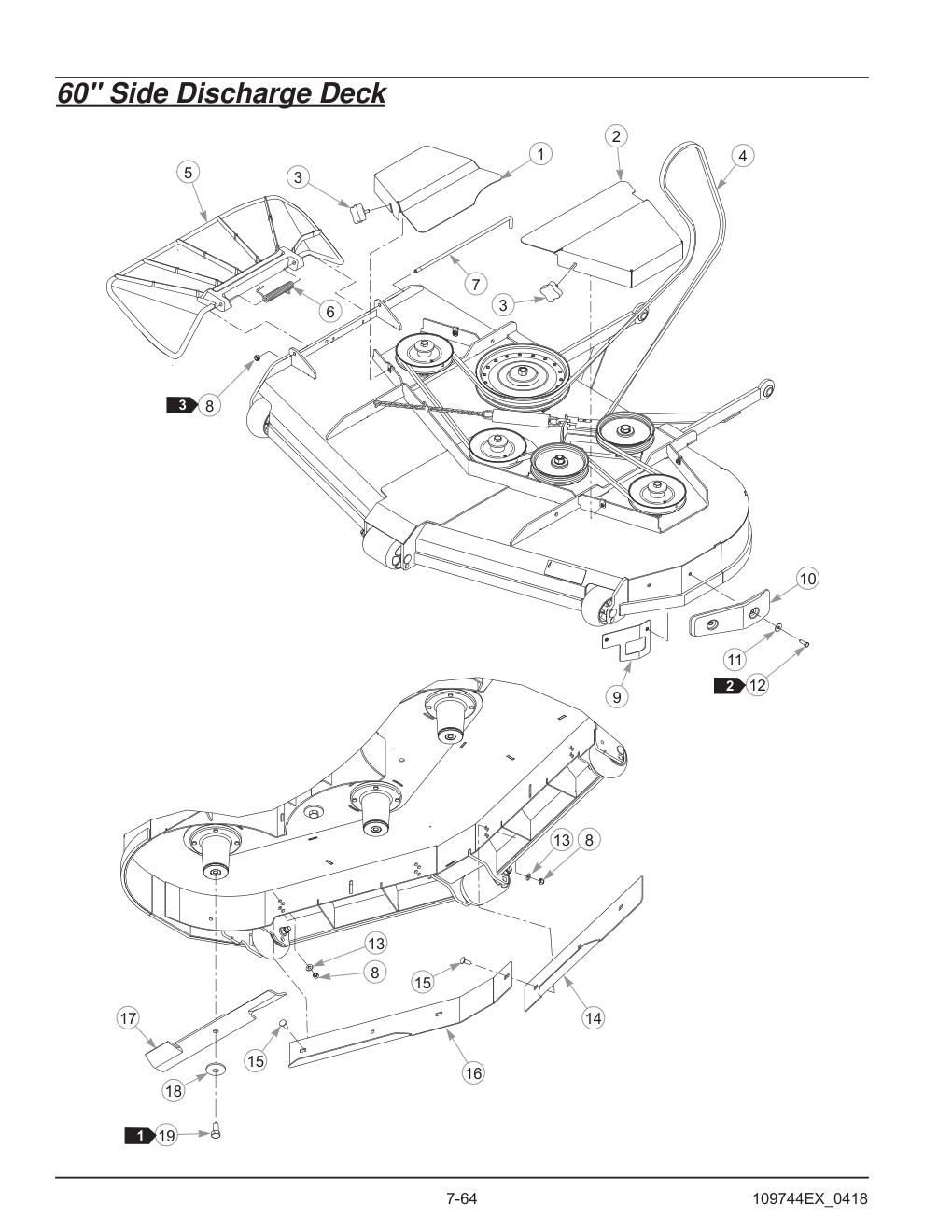

60" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 123684-1 | 1 | 123684-1-Online |
| 2 | LS PULLEY COVER | 123685-1 | 1 | 123685-1-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | BELT, B-SEC | 603688 | 1 | 603688-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | NT .375-16 G5 NL | 086660 | 7 | HT086660-Online |
| 8 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 | 064014 | 2 | 064014-Online |
| 13 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 14 | RS BAFFLE | 123961-1 | 1 | 123961-1-Online |
| 15 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 16 | LS BAFFLE | 123960-1 | 1 | 123960-1-Online |
| 17 | BLADE, F20.50" EHN-F-CW | 602771 | 3 | 602771-Online |
| 17 | BLADE, 20.50"-L-F-CW | 793794 | 3 | HT793794-Online |
| 17 | BLADE, 20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| 17 | BLADE, 20.50" -GAT-F-CW | 794230 | 3 | HT794230-Online |
| 17 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 18 | BLADE BOLT SHIELD | 114988 | 3 | HT114988-Online |
| 19 | CW .631 X 2.25 X .187 | 782474 | 3 | HT782474-Online |
| 20 | CS .625-11 X 1.25 HX G5 | 781872 | 3 | HT781872-Online |

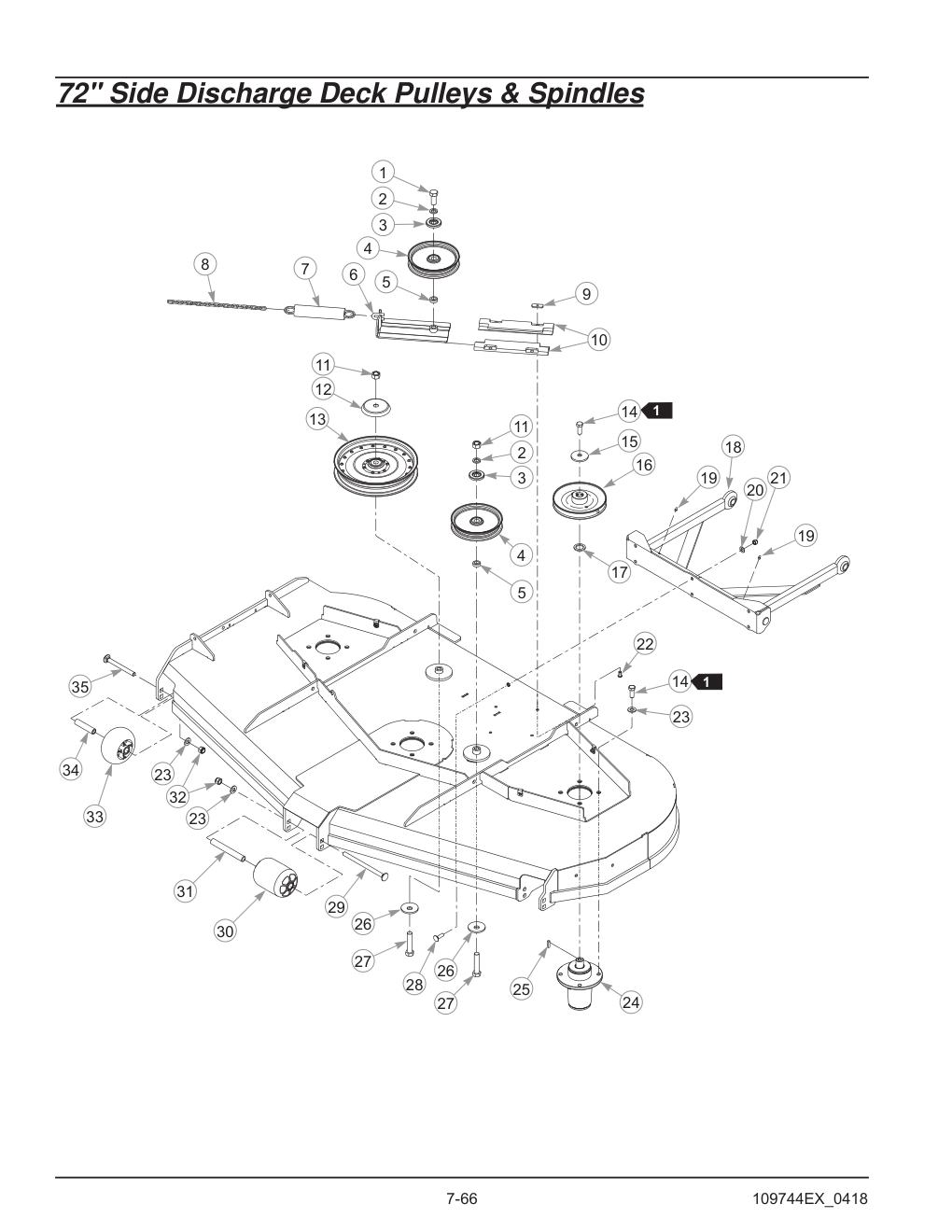

72" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 3 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 4 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 5 | FW .625 X 1.00 X .134 | 028118 | 2 | HT028118-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 13 | IDLER 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 14 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 15 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 16 | DRIVE PULLEY | 538850 | 3 | HT538850-Online |
| 17 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 18 | PUSHER | 113340 | 1 | 113340-Online |
| 19 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 20 | NT .375-16 G5 NL | 086660 | 6 | HT086660-Online |
| 21 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 22 | FW .531 X 1.063 X .175 | 767962 | 15 | HT767962-Online |
| 23 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 24 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 25 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 26 | NT .500-13 HX G5 ZNYC | 008193 | 3 | HT008193-Online |
| 27 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 28 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 29 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | CW .631 X 2.25 X .187 | 782474 | 2 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 32 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 33 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 34 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 35 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |

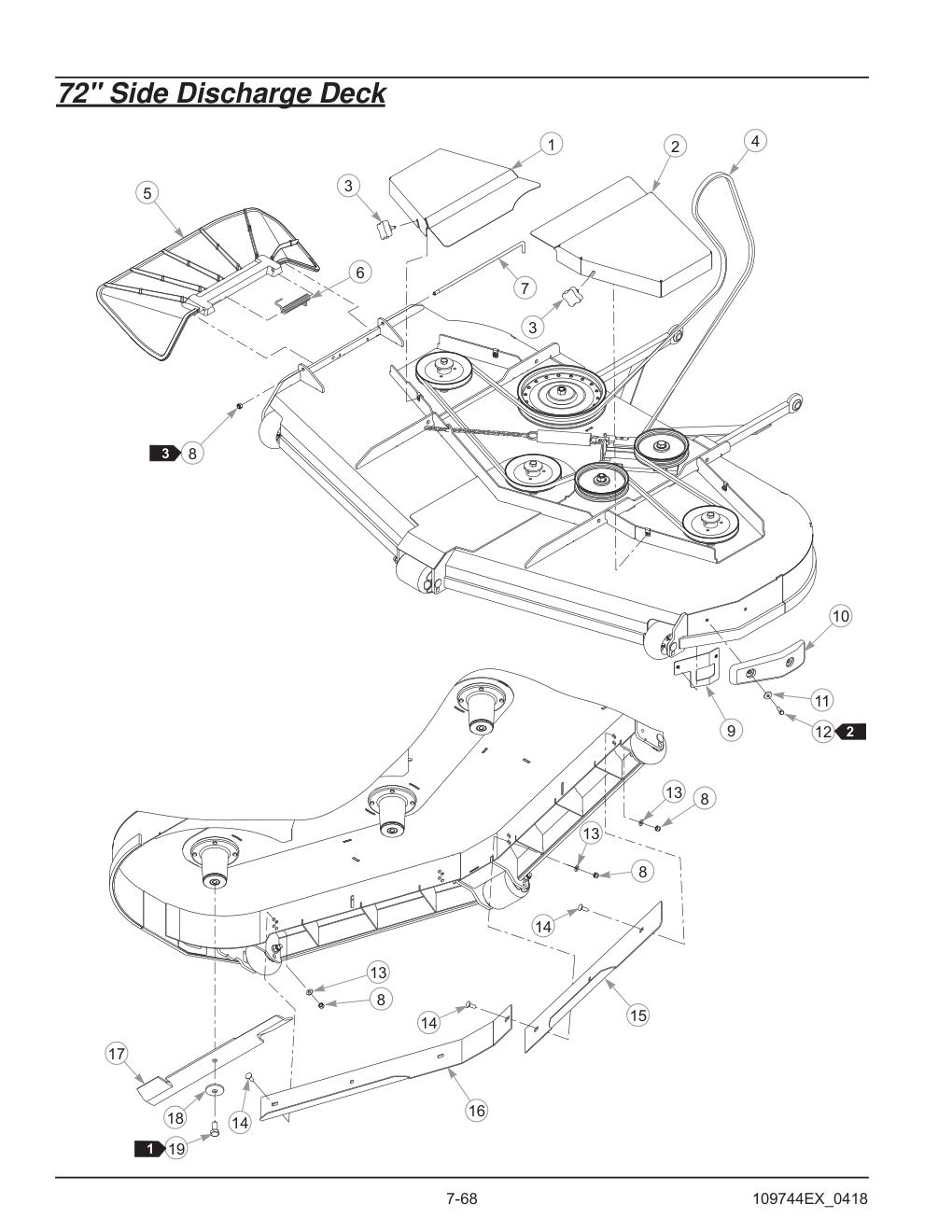

72" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 123772-1 | 1 | 123772-1-Online |
| 2 | LS PULLEY COVER | 123773-1 | 1 | 123773-1-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | B-SEC BELT | 603690 | 1 | 603690-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | NT .375-16 HX ZY NL | 086660 | 7 | HT086660-Online |
| 8 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X.06 Z | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | CB .375-16 X 1.00 STD CD | 025395 | 6 | HT025395-Online |
| 15 | RS BAFFLE ADJ. | 123964-1 | 1 | 123964-1-Online |
| 16 | LS BAFFLE ADJ. | 123965-1 | 1 | 123965-1-Online |
| 17 | BLADE, F24.50" EHN-F-CW | 602857 | 3 | 602857-Online |
| 17 | BLADE, F24.50"-H-F-CW | 798702 | 3 | 798702-Online |
| 17 | BLADE, 24.50"-MUL-F-CW | 798710 | 3 | HT798710-Online |
| 17 | BLADE, 24.50"-GAT-F-CW | 798728 | 3 | HT798728-Online |
| 18 | SHIELD | 114988 | 3 | HT114988-Online |
| 19 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 20 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |

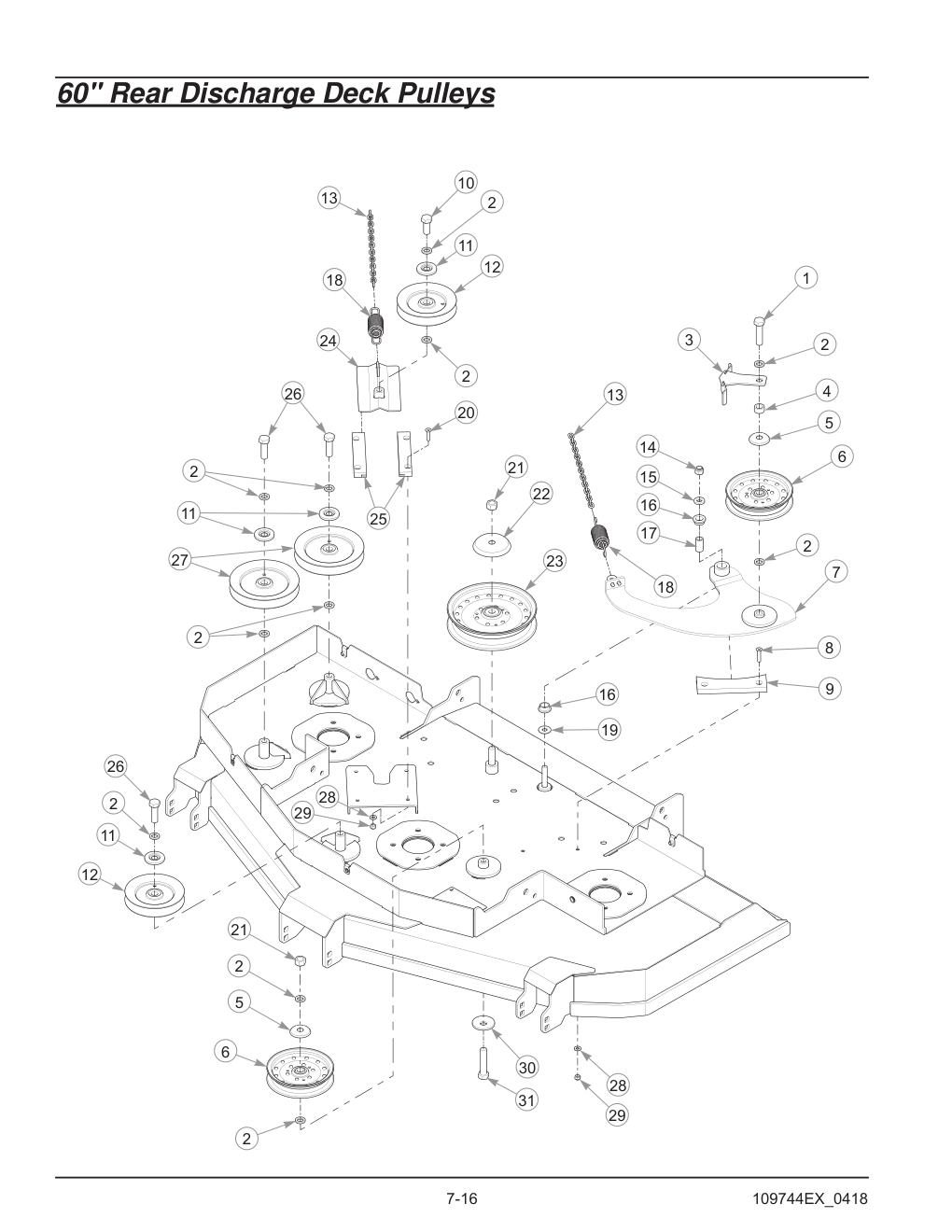

60" Rear Discharge Deck Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 11 | HT028118-Online |
| 3 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 4 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 5 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 6 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 7 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 8 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 9 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 10 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 11 | DUST SHIELD WITH OFFSET | 603057 | 4 | 603057-Online |
| 12 | PULLEY V-IDLER HBB 5.0" | 602672 | 2 | 602672-Online |
| 13 | CHAIN, 21 LINK | 373191 | 2 | HT373191-Online |
| 14 | NT .500-13 NL | 781567 | 1 | HT781567-Online |
| 15 | FW .531 X 1.063 X .175 | 767962 | 13 | HT767962-Online |
| 16 | PLASTIC BUSHING .750 X 1 | 770867 | 2 | HT770867-Online |
| 17 | IDLER PIVOT BUSHING | 109549 | 1 | HT109549-Online |
| 18 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 19 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 20 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 25 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 26 | CS .625-11 X 2.00 HX G5 Z | 016642 | 3 | 016642-Online |
| 27 | 6" HB IDLER PULLEY | 796714 | 2 | HT796714-Online |
| 28 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 29 | NT .312-18 HX G5 ZY NL | 058776 | 6 | HT058776-Online |
| 30 | CW .631 X 2.25 X .187 | 782474 | 1 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 1 | HT783738-Online |

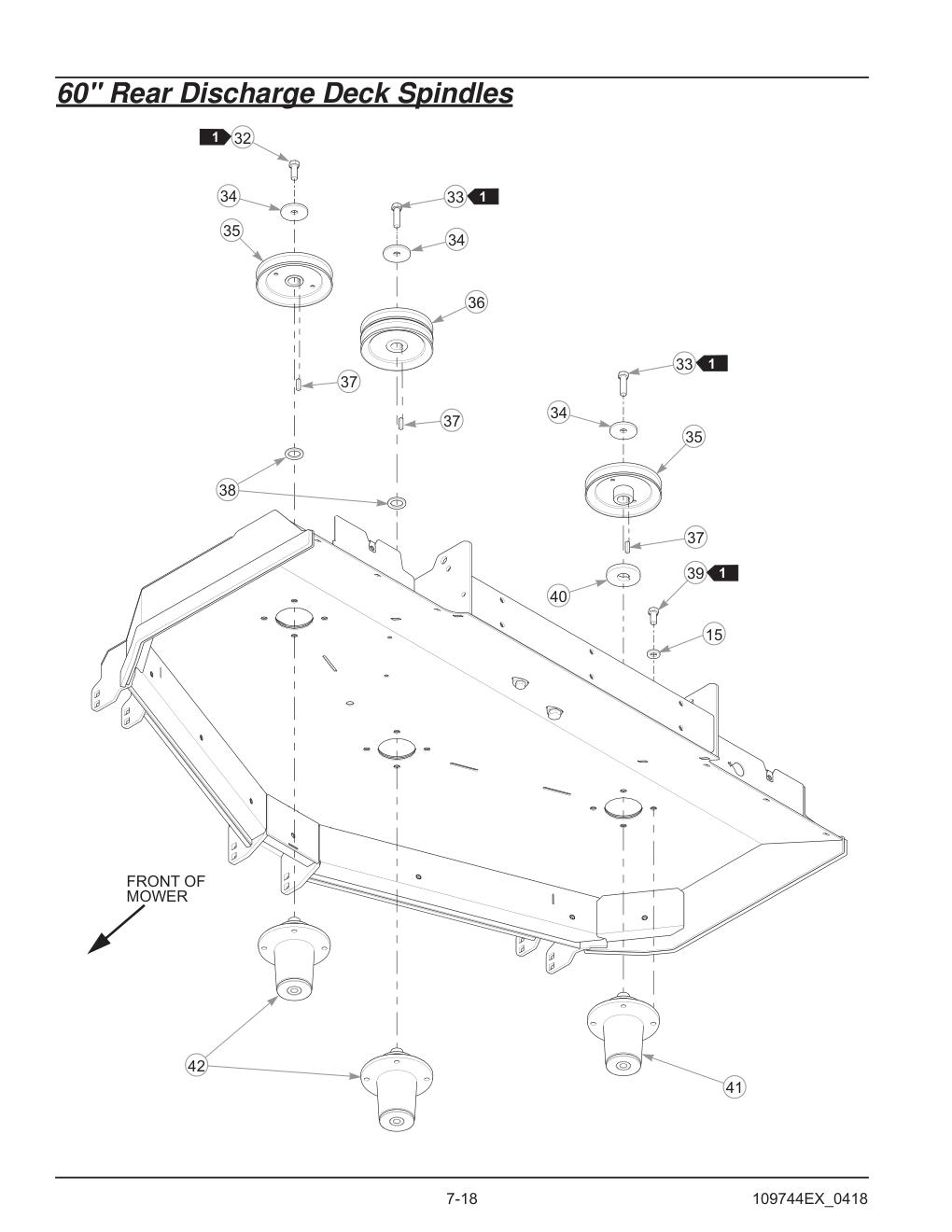

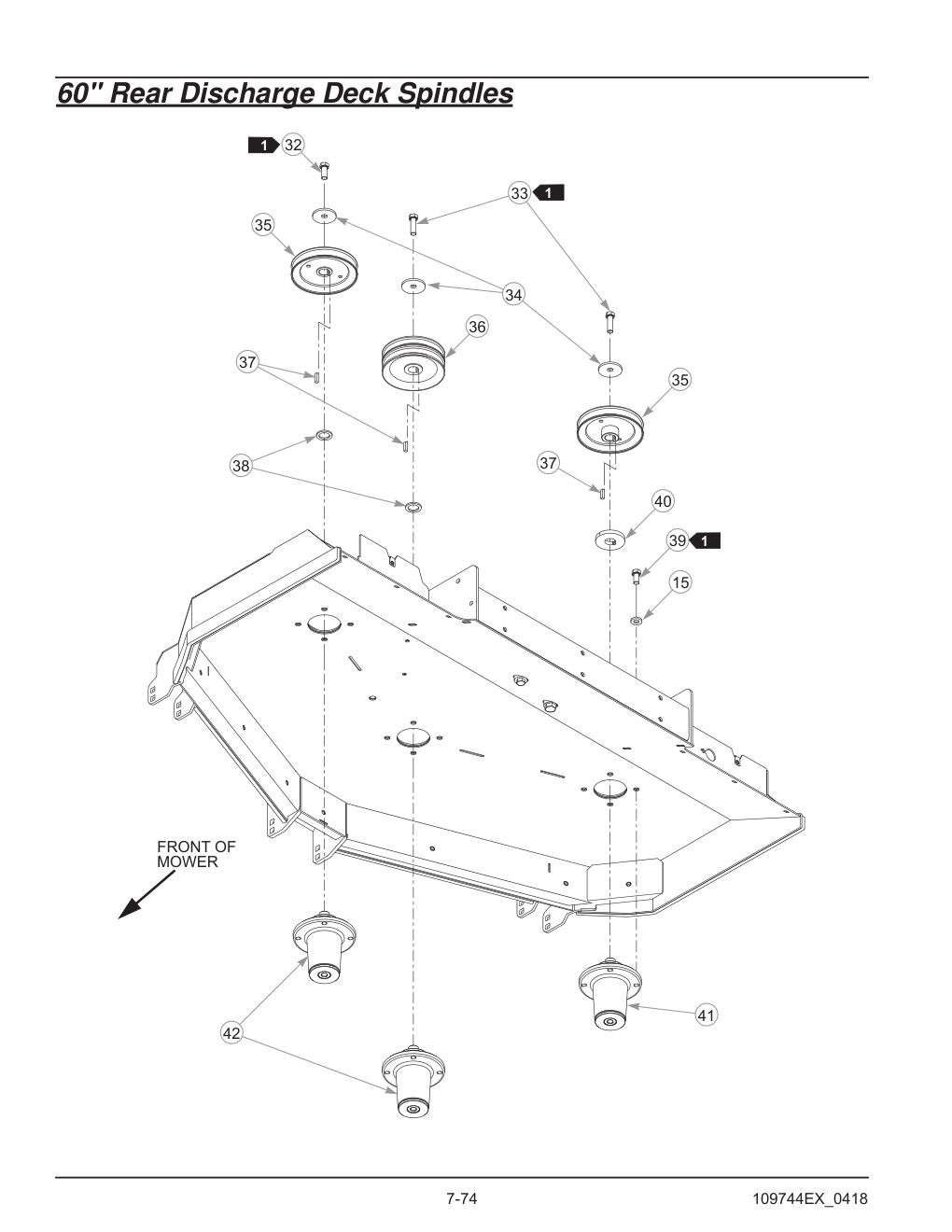

60" Rear Discharge Deck Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 | 705954 | 1 | HT705954-Online |
| 33 | CS .500-13 X 1.75 HX G5 | 017616 | 2 | HT017616-Online |
| 34 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 35 | DECK DRIVE PULLEY | 770842 | 2 | HT770842-Online |
| 36 | DOUBLE PULLEY 6.0 1.0 | 524785 | 1 | HT524785-Online |
| 37 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 38 | FW 1.030 X 1.50 X .134 | 045765 | 2 | HT045765-Online |
| 39 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |
| 42 | BLADE SPINDLE CW | 604255 | 2 | 604255-Online |

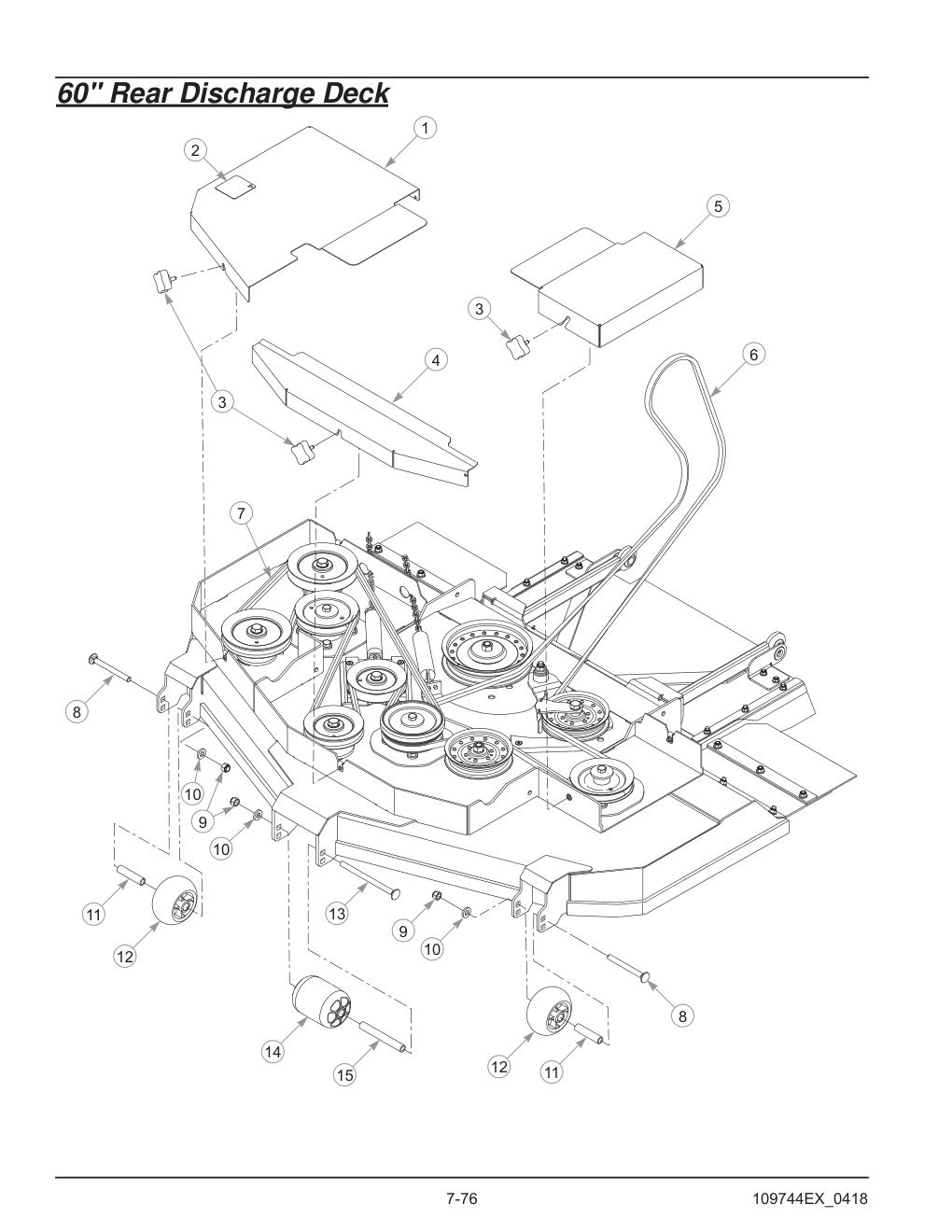

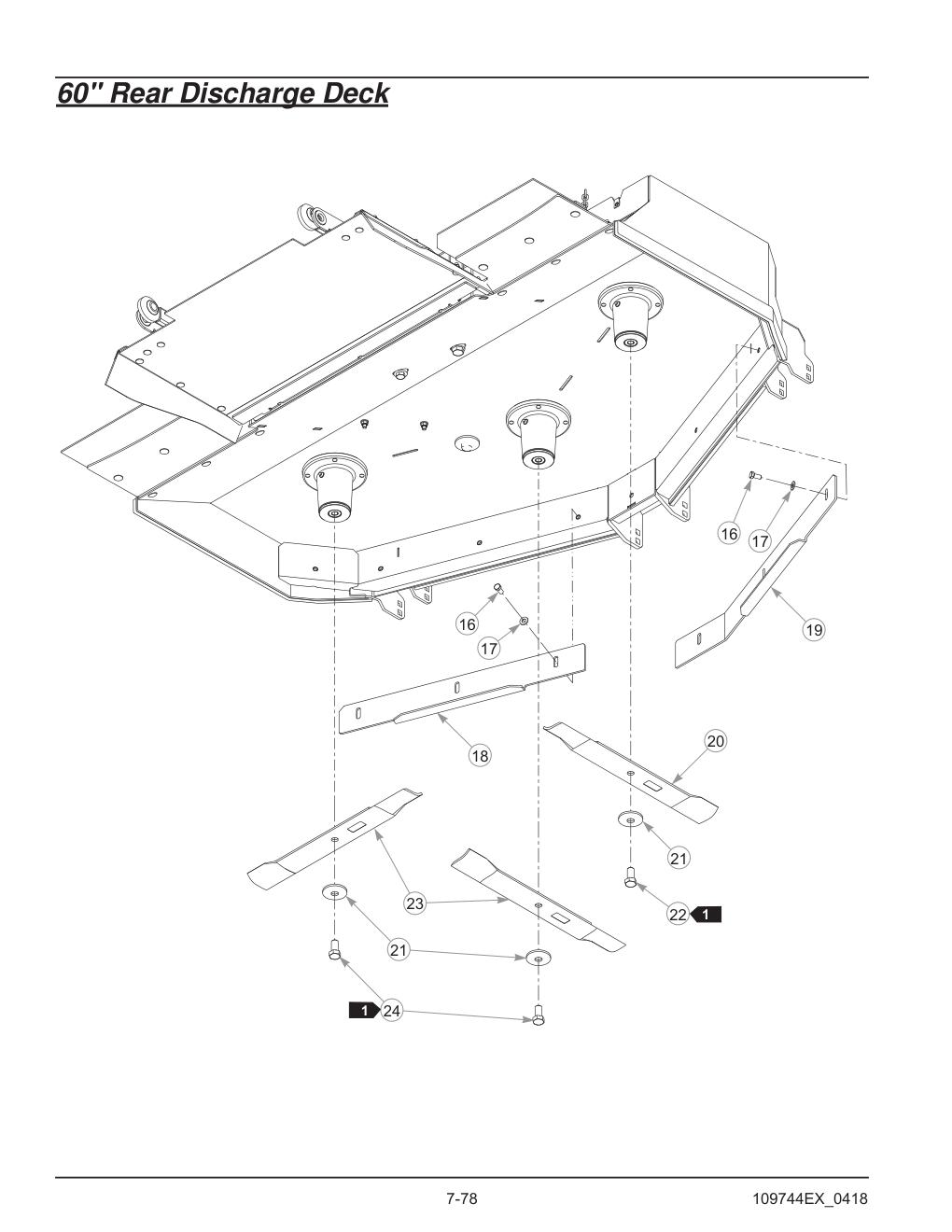

60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS RD PULLEY COVER (WITH DECAL) | 554323 | 1 | 554323-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 5 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 123705-1 | 1 | 123705-1-Online |
| 5 | LS RD PULLEY COVER | 123703-1 | 1 | 123703-1-Online |
| 6 | BELT, B-SEC | 602854 | 1 | 602854-Online |
| 7 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 11 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 12 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 13 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | .375-16 X .75 HX G5 | 055822 | 6 CS | HT055822-Online |
| 17 | .406 X .812 X .060 SAE | 767954 | 6 FW | HT767954-Online |
| 18 | 60" ADJUSTABLE BAFFLE | 114205 | 1 LS | 114205-Online |
| 19 | 60" ADJUSTABLE BAFFLE | 114204 | 1 RS | 114204-Online |
| 20 | F20.50"-L-F-CCW | 795633 | 1 BLADE, | HT795633-Online |
| 20 | 20.50"-GAT-F-CCW | 601928 | 2 BLADE, | 601928-Online |
| 21 | .631 X 2.25 X .187 PNT | 782474 | 3 CW | HT782474-Online |
| 22 | .625-11 X 1.25 HX G5 LH THREAD | 604383 | 1 CS | 604383-Online |
| 23 | F20.50"-L-F-CW | 600901 | 2 BLADE, | HT600901-Online |
| 23 | 20.50"-GAT-F-CW | 794230 | 2 BLADE, | HT794230-Online |
| 24 | .625-11 X 1.25 HX G5 Z | 781872 | 2 CS | HT781872-Online |

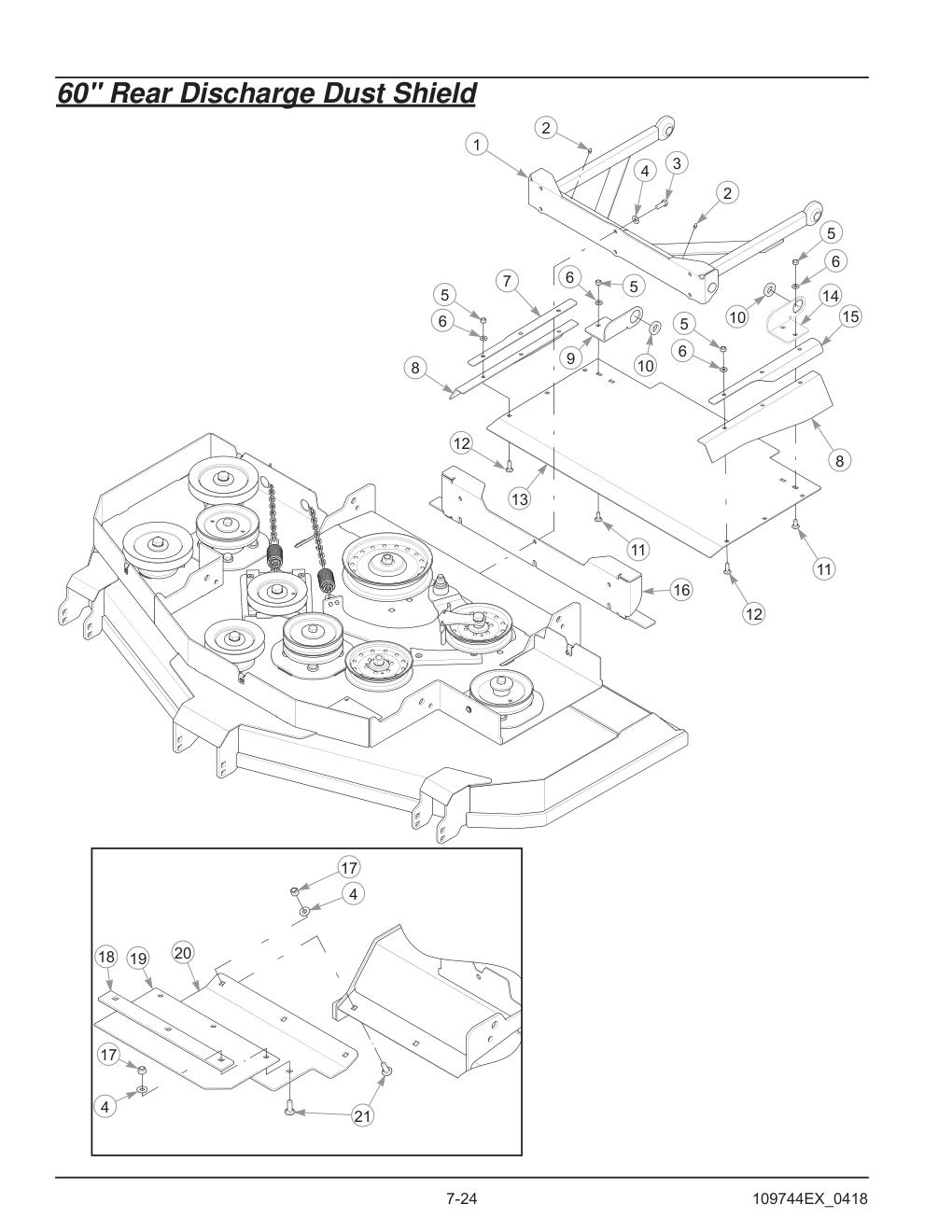

60" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUSHER | 113340 | 1 | 113340-Online |
| 2 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 3 | CS .375-16 X 1.000 HX G5 | 036244 | 6 | HT036244-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 18 | HT767954-Online |
| 5 | NT .312-18 HX G5 ZY NL | 058776 | 10 | HT058776-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 8 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 9 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | CB .312-18 X 1.000 FULL ZN | 037887 | 6 | HT037887-Online |
| 13 | DISCHARGE CHUTE | 115533 | 1 | 115533-Online |
| 14 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 15 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 16 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 17 | NT .375-16 HXZY NL | 086660 | 12 | HT086660-Online |
| 18 | FLAP HOLD DOWN | 110182 | 2 | 110182-Online |
| 19 | RUBBER DISCHARGE FLAP | 601717 | 2 | 601717-Online |
| 20 | LS FLAP EXT | 110181 | 1 | 110181-Online |
| 21 | CB .375-16 X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |
| 22 | RS FLAP EXT (NOT SHOWN) | 110180 | 1 | 110180-Online |

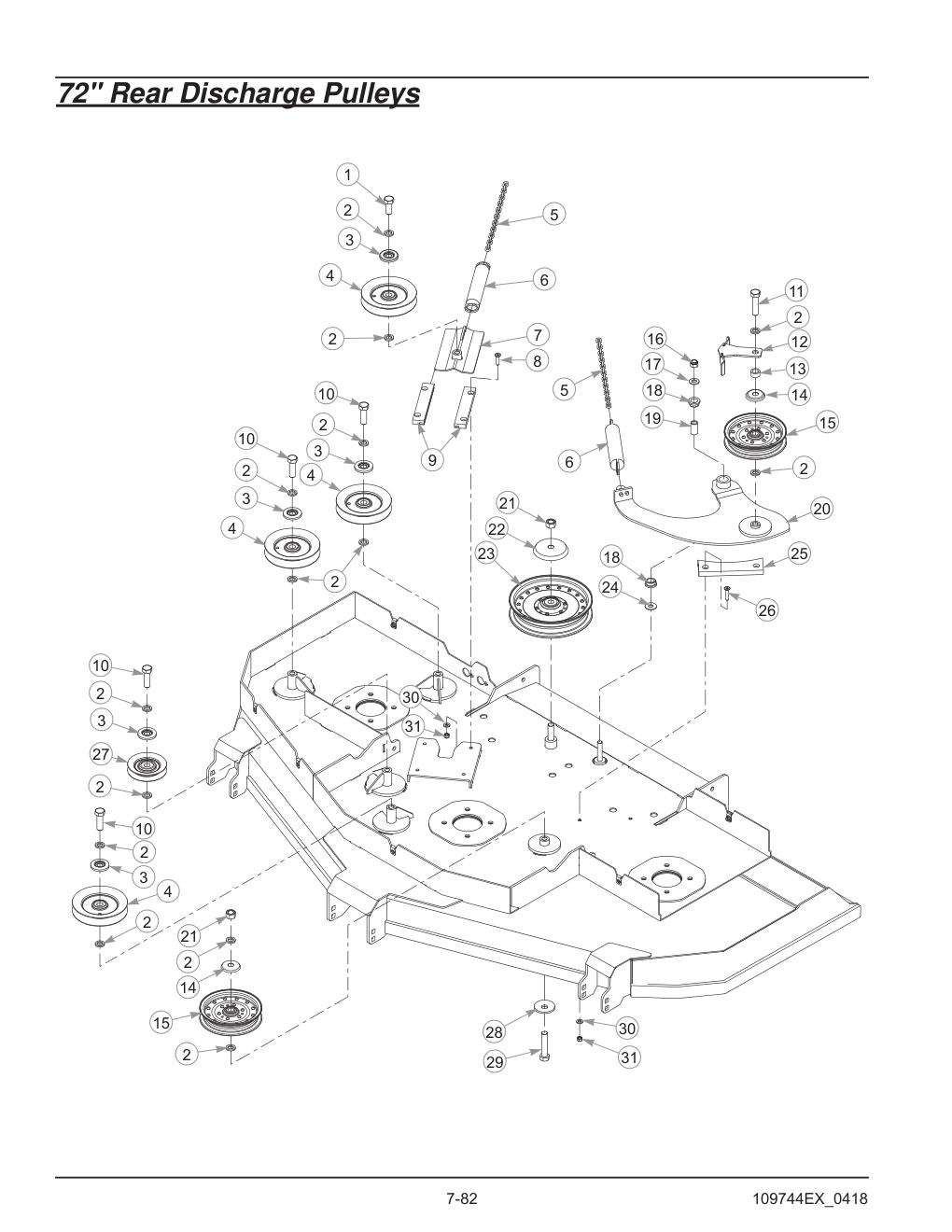

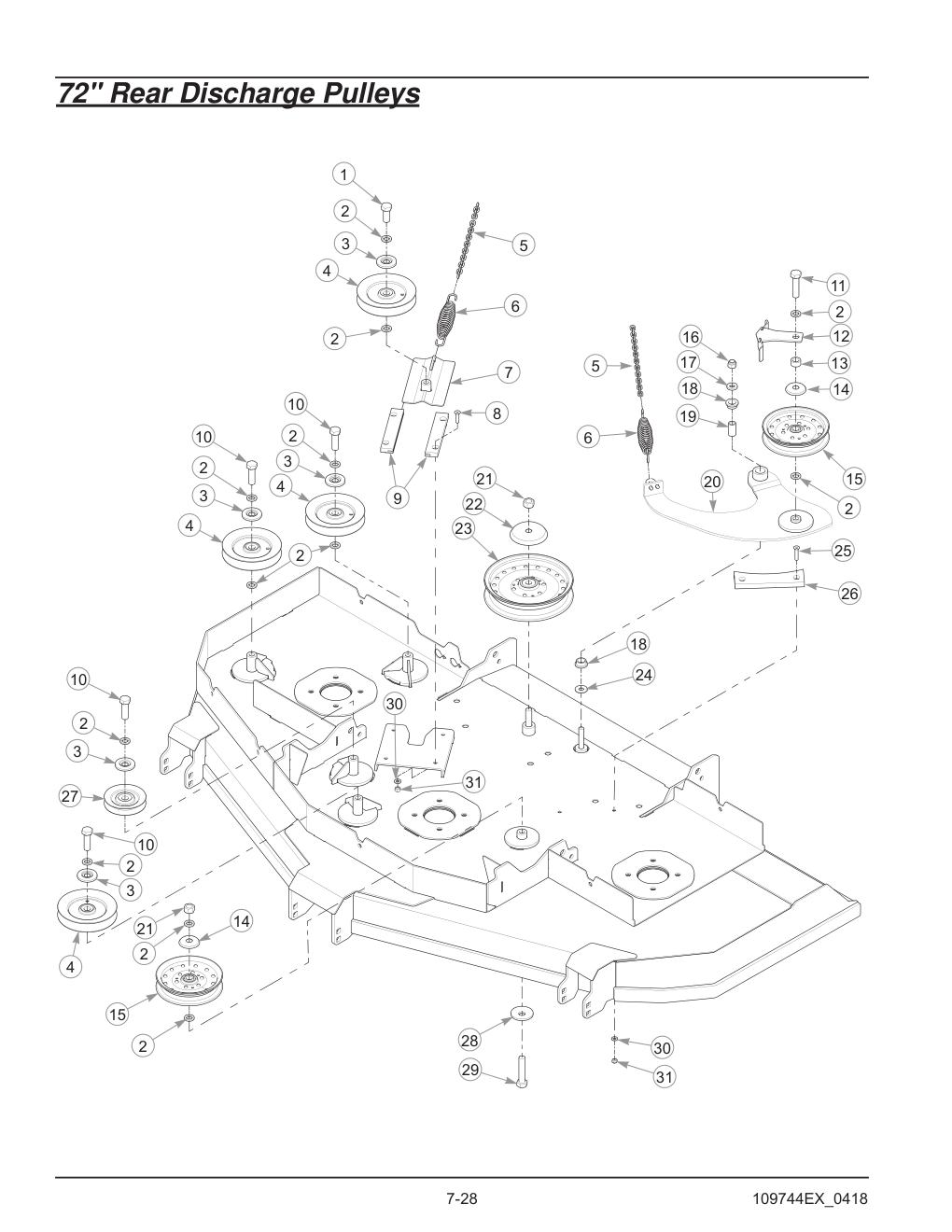

72" Rear Discharge Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 12 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 5 | 603057-Online |
| 4 | PULLEY, V-IDLER HBB 5.0" | 602672 | 4 | 602672-Online |
| 5 | CHAIN | 373191 | 2 | HT373191-Online |
| 6 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 7 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 8 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .625-11 X 2.00 HX G5 Z | 016642 | 4 | 016642-Online |
| 11 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 12 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 13 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 14 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 15 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 16 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 17 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 18 | BUSHING | 770867 | 2 | HT770867-Online |
| 19 | BUSHING | 109549 | 1 | HT109549-Online |
| 20 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 25 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 26 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 27 | IDLER PULLEY, NHI 4.288" | 788364 | 1 | 788364-Online |
| 28 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 29 | CS .625-11 X 3.00 FULL HX | 783738 | 1 | HT783738-Online |
| 30 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 31 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
72" Rear Discharge Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | PULLEY, DRIVE 7.00 EFF | 602745 | 2 | 602745-Online |
| 35 | FW 1.030 X 1.50 X .134 ZN | 045765 | 2 | HT045765-Online |
| 36 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 37 | CS .500-13 X 1.75 HX G5 | 017616 | 1 | HT017616-Online |
| 38 | PULLEY | 770388 | 1 | 770388-Online |
| 39 | CS .500-13 X 1.50 HX G5 | 074252 | 1 | HT074252-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 42 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |
| 43 | BLADE SPINDLE CW | 604255 | 2 | 604255-Online |
72" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECAL) | 554322 | 1 | 554322-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | LS PULLEY COVER | 123717-1 | 1 | 123717-1-Online |
| 4 | KNOB 5/16-18 X 3/4" | 792002 | 6 | HT792002-Online |
| 5 | CENTER PULLEY COVER | 123719-1 | 1 | 123719-1-Online |
| 6 | FLEX TRIM | 111339 | 4 | 111339-Online |
| 7 | BELT, B-SEC 192.00" | 603522 | 1 | 603522-Online |
| 8 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 9 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 10 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 11 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 12 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 13 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 16 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |

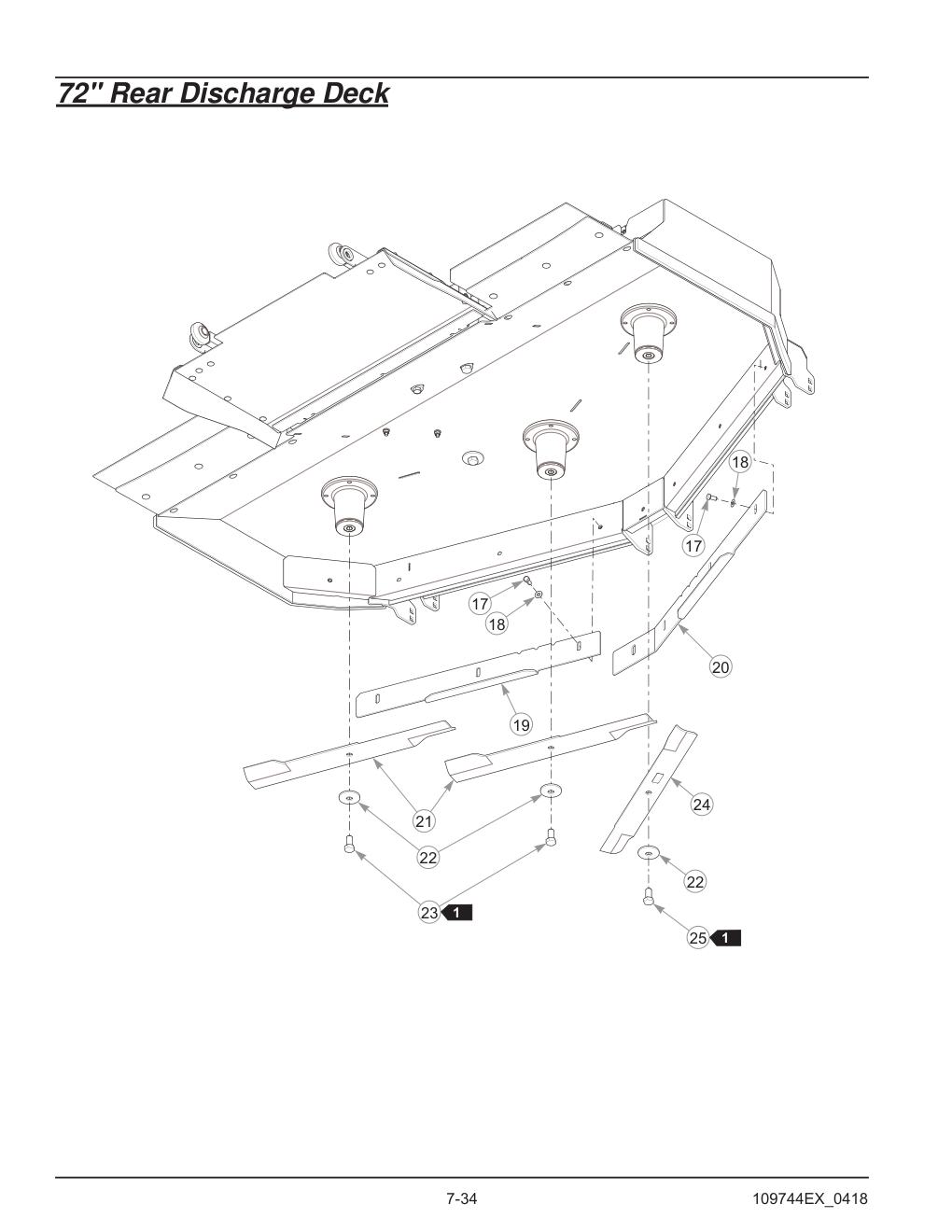

72" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | .375-16 X .75 HX G5 | 055822 | 7 CS | HT055822-Online |
| 18 | .406 X .812 X .060 SAE | 767954 | 7 FW | HT767954-Online |
| 19 | ADJUSTABLE BAFFLE | 114492 | 1 LS | 114492-Online |
| 20 | ADJUSTABLE BAFFLE | 114491 | 1 RS | 114491-Online |
| 21 | F23.86-L-F-CW | 796839 | 2 BLADE, | HT796839-Online |
| 21 | 23.86"-GAT-F-CW | 794867 | 1 BLADE, | 794867-Online |
| 22 | .631 X 2.25 X .187 PNT | 782474 | 3 CW | HT782474-Online |
| 23 | .625-11 X 1.25 HX G5 Z | 781872 | 2 CS | HT781872-Online |
| 24 | F23.86-L-F-CCW | 796508 | 1 BLADE, | HT796508-Online |
| 24 | 23.86"-GAT-F-CCW | 601929 | 1 BLADE, | 601929-Online |
| 25 | .625-11 X 1.25 HX G5 | 604383 | 1 CS | 604383-Online |

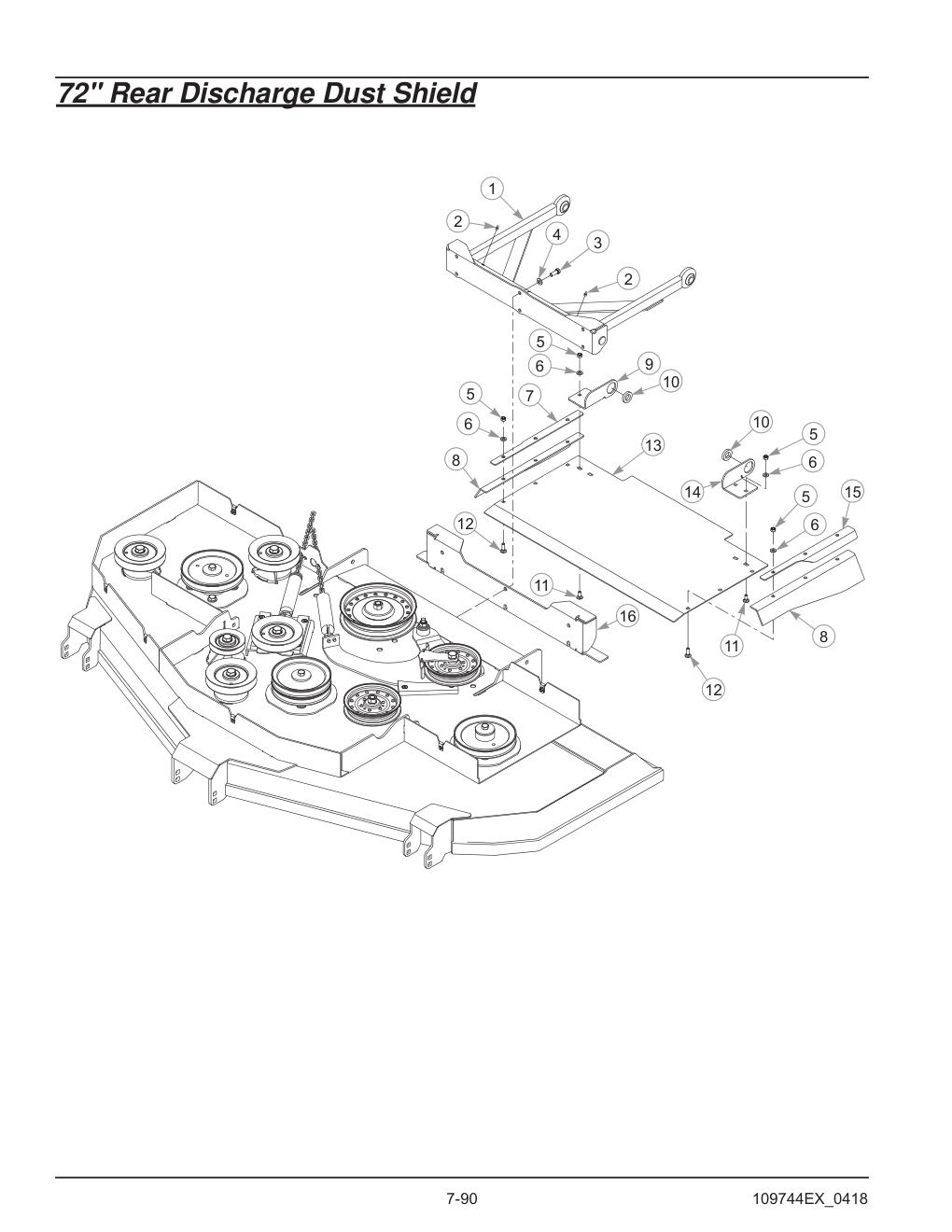

72" Rear Discharge Deck Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUSHER | 113340 | 1 | 113340-Online |
| 2 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 3 | CS .375-16 X 1.000 HX G5 | 036244 | 6 | HT036244-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 18 | HT767954-Online |
| 5 | NT .312-18 HXZY NL | 058776 | 10 | HT058776-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 8 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 9 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | CB .312-18 X 1.000 FULL ZN | 037887 | 6 | HT037887-Online |
| 13 | DISCHARGE SHIELD | 115533 | 1 | 115533-Online |
| 14 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 15 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 16 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 17 | NT .375-16 HXZY NL | 086660 | 12 | HT086660-Online |
| 18 | CLAMP BRACKET | 110473 | 2 | 110473-Online |
| 19 | RUBBER DISCHARGE FLAP | 601697 | 2 | 601697-Online |
| 20 | LS EXTENSION BRACKET | 110472 | 1 | 110472-Online |
| 21 | RS EXTENSION BRACKET (NOT SHOWN) | 110471 | 1 | 110471-Online |
| 22 | CB .375-16 X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |
60" & 72" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING | 603184 | 2 | 603184-Online |
| 6 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 7 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 9 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11 X 1.25 HX G5 | 781872 | 1 | HT781872-Online |
| 12 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 13 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18 HX G5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18 X 1.50 HX G5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14 X 1.75 HX G5 | 781831 | 1 | HT781831-Online |

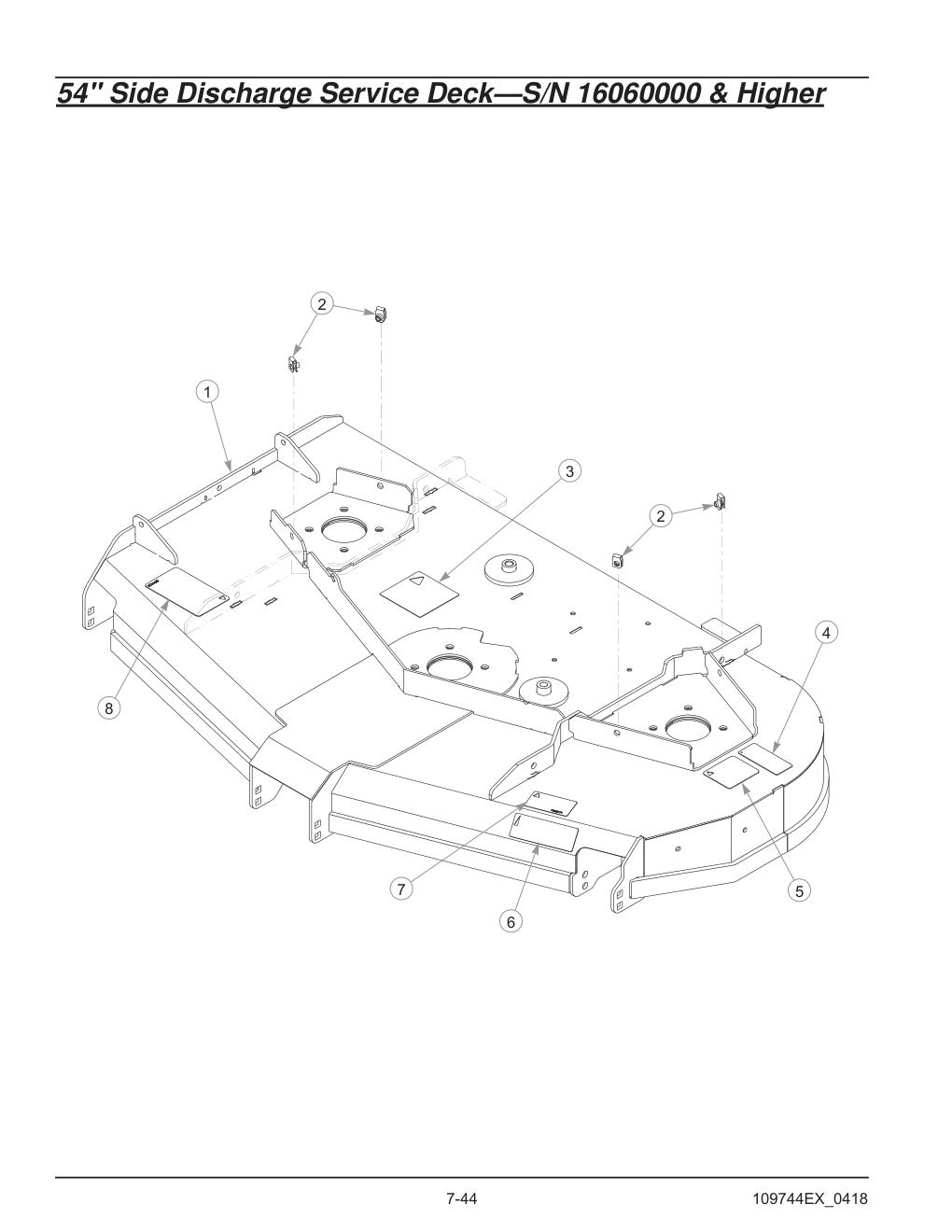

54" Side Discharge Service Deck-S/N 16060000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK (WITH DECALS & HARDWARE) | 553085 | 1 | 553085-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 5 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 6 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |
| 7 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
| 8 | DANGER/CHUTE DECAL | 604221 | 1 | 604221-Online |

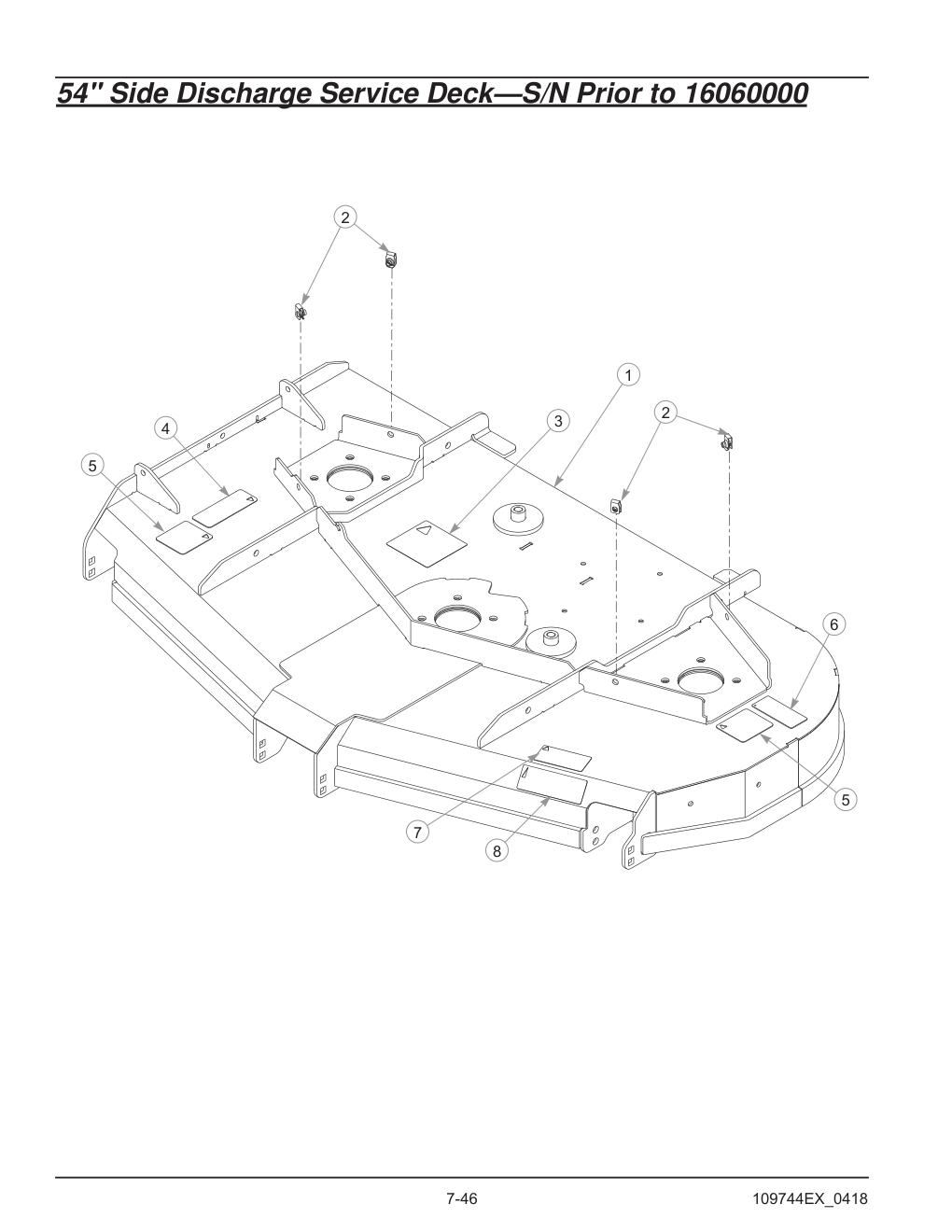

54" Side Discharge Service Deck-S/N Prior to 16060000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK (WITH DECALS & HARDWARE) | 550738 | 1 | 550738-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 5 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
| 8 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |

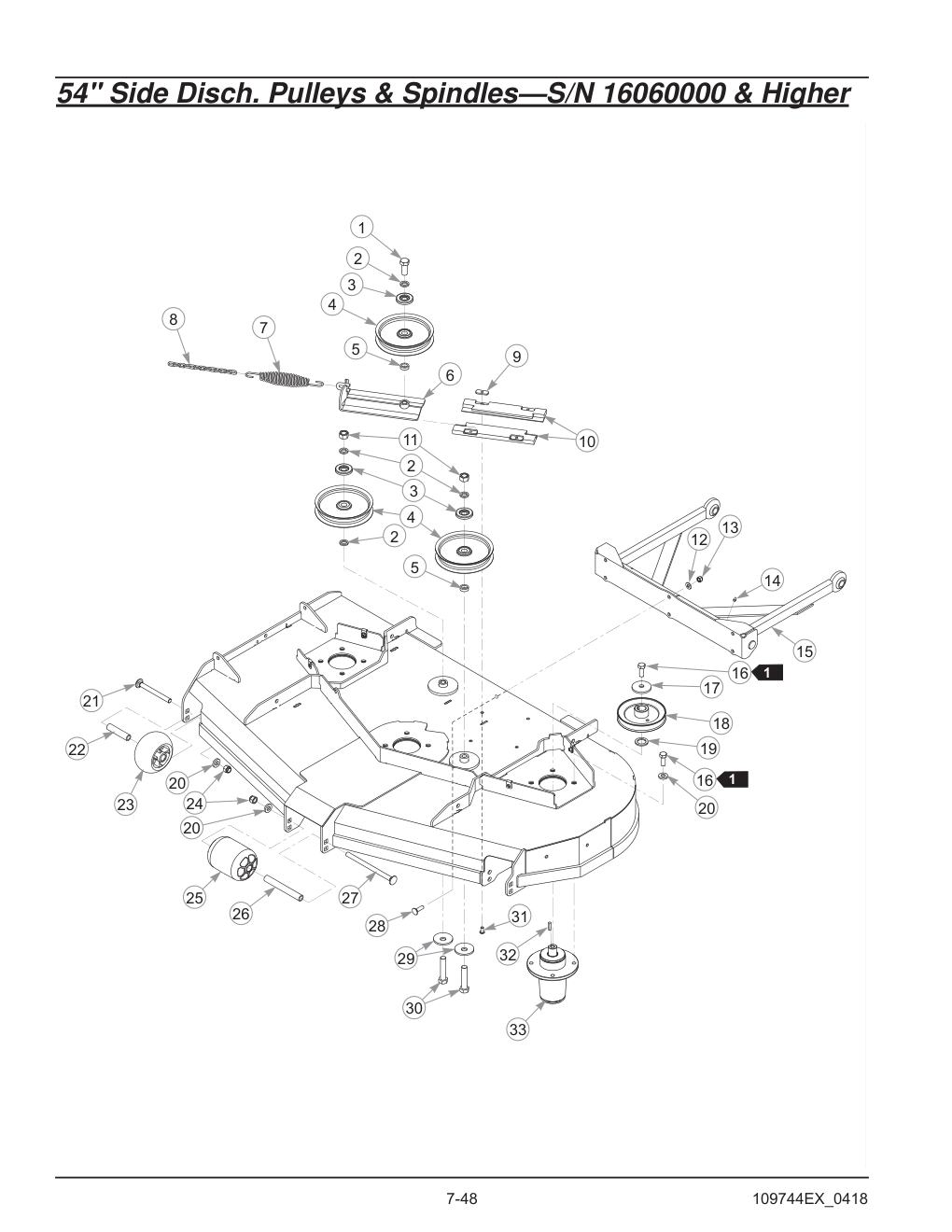

54" Side Disch. Pulleys & Spindles-S/N 16060000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY NHI 6.0" | 781385 | 3 | HT781385-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 13 | NT .375-16 HX G5 NL | 086660 | 6 | HT086660-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | PUSHER | 113340 | 1 | 113340-Online |
| 16 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 17 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 18 | B-SEC 5.44 EOD PULLEY | 798967 | 3 | HT798967-Online |
| 19 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 20 | FW .531 X 1.063 X .175 | 767962 | 15 | HT767962-Online |
| 21 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 22 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 23 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 24 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 25 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 26 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 27 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 28 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 29 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 30 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 31 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 32 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 33 | BLADE SPINDLE CW (S/N 12100664 & HIGHER) | 604255 | 3 | 604255-Online |
| 33 | SPINDLE ASSY (S/N PRIOR TO 12100664) | 601630 | 3 | 601630-Online |
54" Side Disch. Pulleys & Spindles-S/N Prior to 16060000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY, NHI 6.0" | 781385 | 3 | HT781385-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 13 LINKS | 259812 | 1 | HT259812-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | FW .531 X 1.063 X .175 | 767962 | 15 | HT767962-Online |
| 13 | PUSHER | 113340 | 1 | 113340-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 16 | NT .375-16 HX G5 ZY NL | 086660 | 6 | HT086660-Online |
| 17 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 18 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 19 | DECK DRIVE PULLEY | 798967 | 3 | HT798967-Online |
| 20 | FW 1.030 X 1.50 X .134 ZN | 045765 | 3 | HT045765-Online |
| 21 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 22 | BLADE SPINDLE CW (S/N 12092657& HIGHER) | 604255 | 3 | 604255-Online |
| 22 | BLADE SPINDLE CW (PRIOR TO S/N 12092657) | 601630 | 3 | 601630-Online |
| 23 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 24 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 25 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 26 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 27 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 28 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 29 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 30 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 31 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 32 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 33 | CB .50-13 X 4.75 STD ZN | 603049 | 2 | 603049-Online |

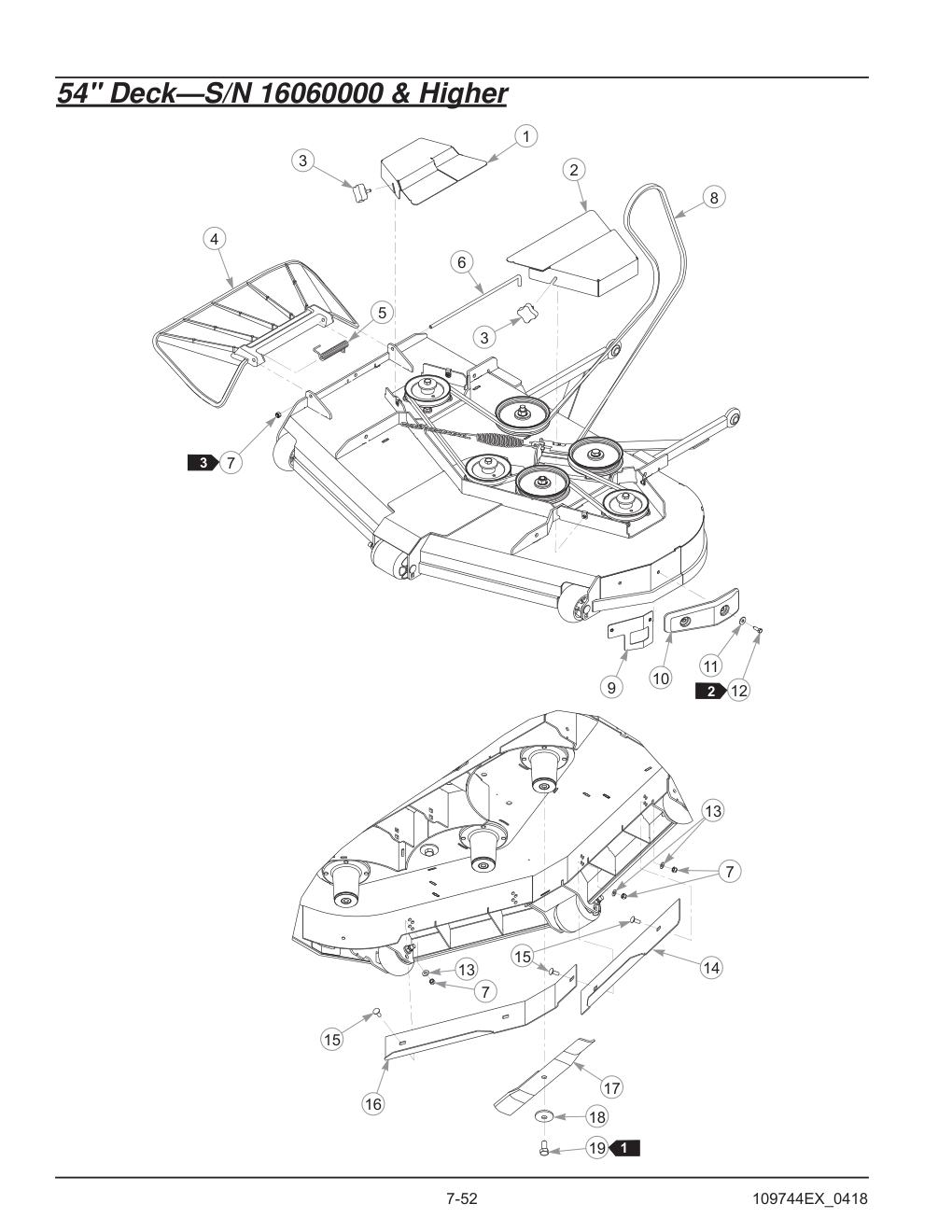

54" Deck-S/N 16060000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLLEY COVER RS | 121895 | 1 | 121895-Online |
| 2 | PULLLEY COVER LS | 121894 | 1 | 121894-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | DISCHARGE CHUTE | 602429 | 1 | 602429-Online |
| 5 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 6 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 7 | NT .375-16 HX G5 NL | 086660 | 5 | HT086660-Online |
| 8 | BELT | 603687 | 1 | 603687-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 | 064014 | 2 | 064014-Online |
| 13 | FW .379 X .813 X .063 | 767954 | 4 | HT767954-Online |
| 14 | RS ADJ INNER WALL | 113211 | 1 | 113211-Online |
| 15 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 16 | LS ADJ INNER WALL | 113210 | 1 | 113210-Online |
| 17 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 17 | BLADE, F18.50"-L-F-CW | 601012 | 3 | 601012-Online |
| 17 | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 17 | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 18 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 113241 | 1 | 113241-Online |
| 2 | LS PULLEY COVER | 113240 | 1 | 113240-Online |
| 3 | DISCHARGE CHUTE | 602429 | 1 | 602429-Online |
| 4 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 5 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 6 | NT .375-16 HX ZY NL | 086660 | 5 | HT086660-Online |
| 7 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 8 | BELT | 603687 | 1 | 603687-Online |
| 9 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 10 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 11 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 13 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 13 | BLADE, F18.50"-L-F-CW | 601012 | 3 | 601012-Online |
| 13 | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 13 | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 14 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 15 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 16 | LS ADJ INNER WALL | 113210 | 1 | 113210-Online |
| 17 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 18 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 19 | RS ADJ INNER WALL | 113211 | 1 | 113211-Online |
54" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING | 782995 | 2 | HT782995-Online |
| 6 | CS .437-14 X 1.75 HX G5 | 055749 | 3 | HT055749-Online |
| 7 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 9 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 12 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 13 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18 HX G5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18 X 1.50 HX G5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14 X 1.75 HX G5 | 781831 | 1 | HT781831-Online |

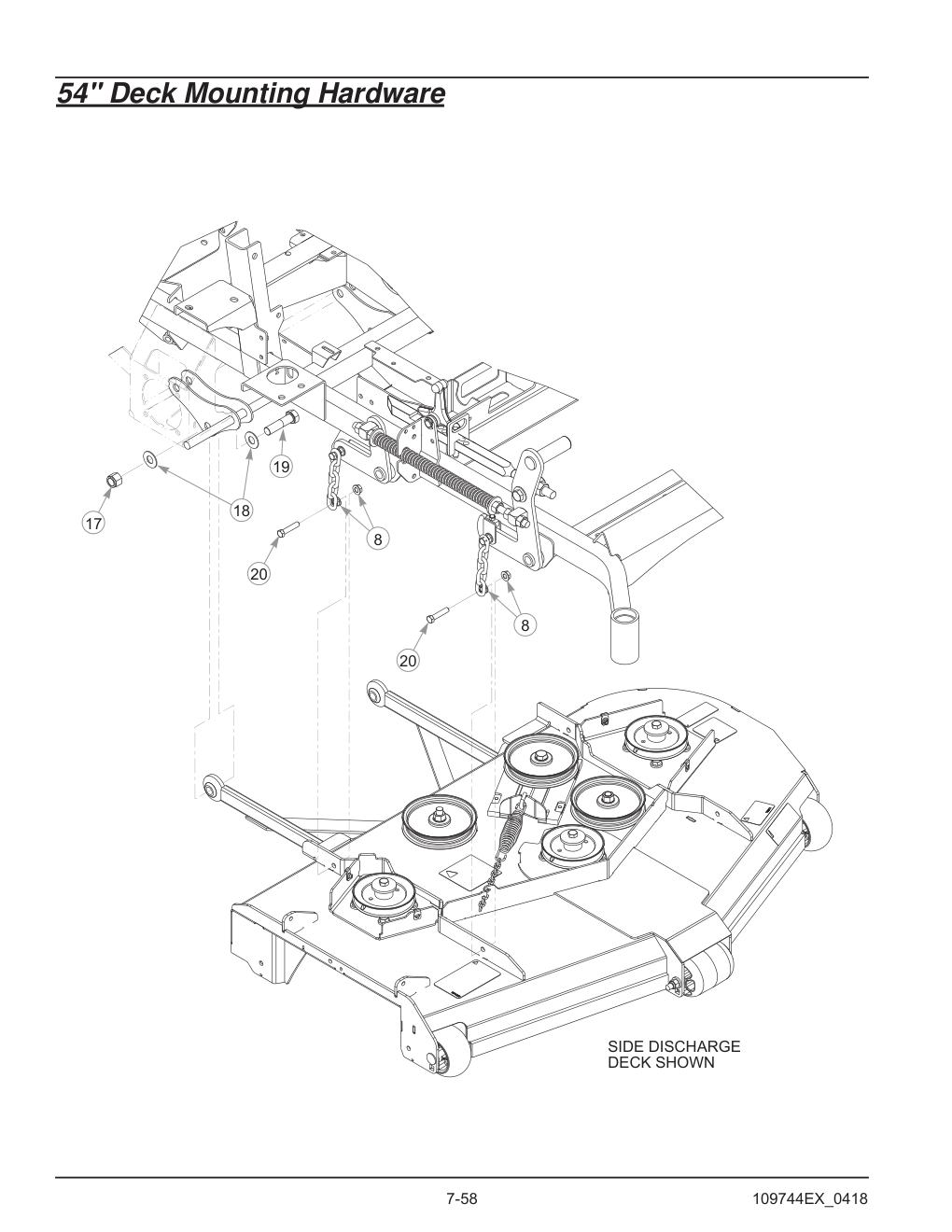

54" Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 18 | FW .760 X 1.625 X .08 | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10 X 3.00 HX G5 | 051169 | 2 | 051169-Online |
| 20 | CS .437-14 X 2.00 HX G5 ZN | 778324 | 4 | 778324-Online |

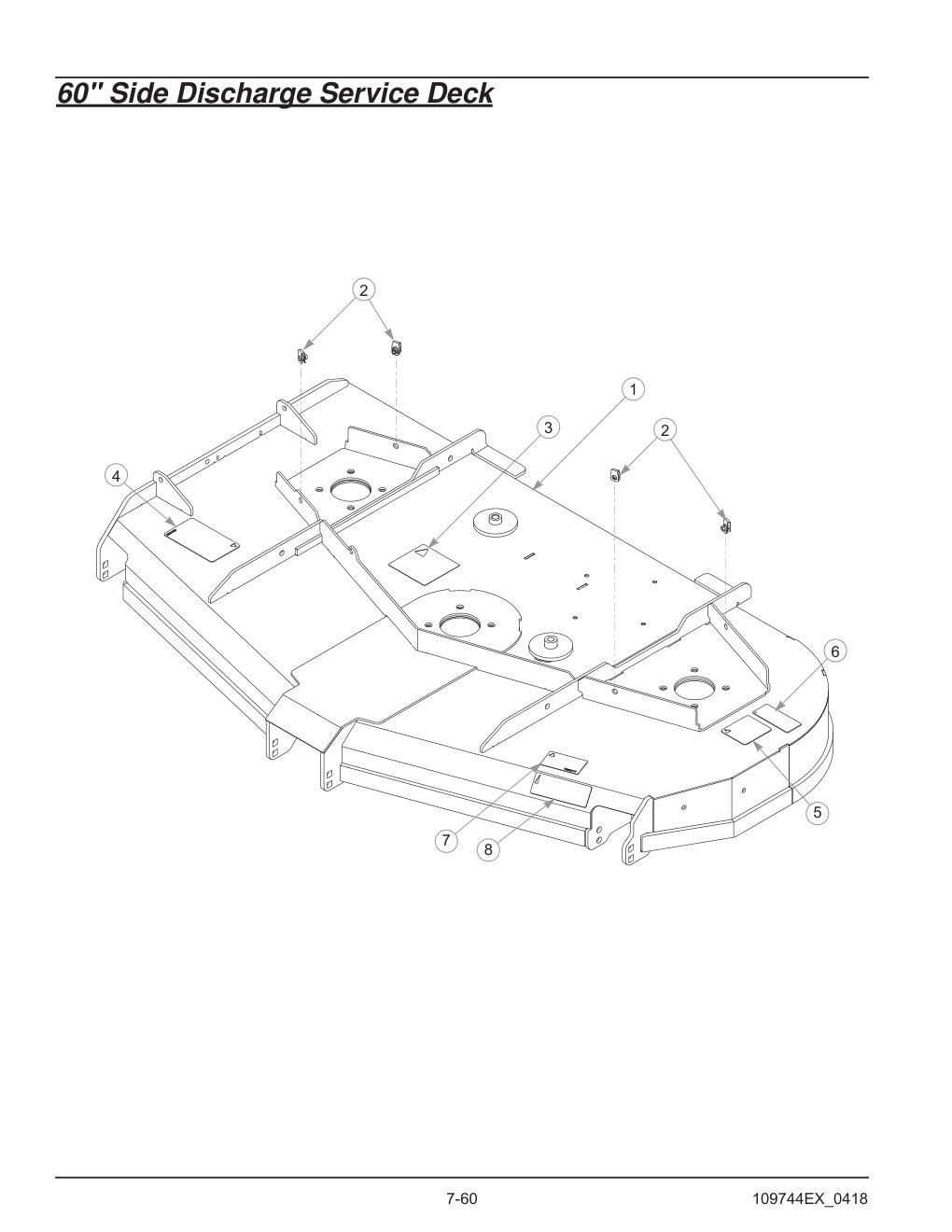

60" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" VX4 DECK (WITH DECALS & HARDWARE) | 550739 | 1 | 550739-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DANGER/CHUTE DECAL | 604221 | 1 | 604221-Online |
| 5 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | 60" SD DECK ID DECAL | 786277 | 1 | 786277-Online |
| 8 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |
60" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 2 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 2 | 603057-Online |
| 4 | IDLER PULLEY NHI 6.0" | 781385 | 2 | HT781385-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 12 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 13 | DECK DRIVE PULLEY | 770842 | 3 | HT770842-Online |
| 14 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 15 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 16 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 17 | IDLER 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 18 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 19 | NT .375-16 HX G5 NL | 086660 | 6 | HT086660-Online |
| 20 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 21 | PUSHER | 113340 | 1 | 113340-Online |
| 22 | FW .531 X 1.063 X .175 | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE CW(S/N 12100664& HIGHER) | 604255 | 3 | 604255-Online |
| 23 | BLADE SPINDLE CW (S/N PRIOR TO 12100664) | 601630 | 3 | 601630-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 27 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 28 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 29 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 31 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 32 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 33 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 34 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 35 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
60" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 112933 | 1 | 112933-Online |
| 2 | LS PULLEY COVER | 112934 | 1 | 112934-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | B-SEC BELT | 603688 | 1 | 603688-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 8 | NT .375-16 HX ZY NL | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X.06 Z | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | RS INNER WALL ADJ. | 113180 | 1 | HT113180-Online |
| 15 | CB .375-16 X 1.00 STD CD | 025395 | 6 | HT025395-Online |
| 16 | LS INNER WALL ADJ. | 113179 | 1 | HT113179-Online |
| 17 | BLADE, F20.50" EHN-F-CW | 602771 | 3 | 602771-Online |
| 17 | BLADE, 20.50"-L-F-CW | 793794 | 3 | HT793794-Online |
| 17 | BLADE, 20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| 17 | BLADE, 20.50"-GAT-F-CW | 794230 | 3 | HT794230-Online |
| 17 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 18 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
72" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 2 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 2 | 603057-Online |
| 4 | IDLER PULLEY, NHI 6.0" | 781385 | 2 | HT781385-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 13 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 14 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 15 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 16 | DRIVE PULLEY | 538850 | 3 | HT538850-Online |
| 17 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 18 | PUSHER | 113340 | 1 | 113340-Online |
| 19 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 20 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 21 | NT .375-16 HX G5 NL | 086660 | 6 | HT086660-Online |
| 22 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 23 | FW .531 X 1.063 X .175 | 767962 | 15 | HT767962-Online |
| 24 | BLADE SPINDLE CW (S/N 12100664 & HIGHER) | 604255 | 3 | 604255-Online |
| 24 | SPINDLE ASSY (S/N PRIOR TO 12100664) | 601630 | 3 | 601630-Online |
| 25 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 26 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 27 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 28 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 29 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 31 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 32 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 33 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 34 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 35 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
72" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 112935 | 1 | 112935-Online |
| 2 | LS PULLEY COVER | 112936 | 1 | 112936-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | B-SEC BELT | 603690 | 1 | 603690-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 8 | NT .375-16 HX ZY NL | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X.06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 15 | RS INNER WALL ADJ. | 112931 | 1 | HT112931-Online |
| 16 | LS INNER WALL ADJ. | 112932 | 1 | HT112932-Online |
| 17 | BLADE, F24.50" EHN-F-CW | 602857 | 3 | 602857-Online |
| 17 | BLADE, F24.50"-H-F-CW | 798702 | 3 | 798702-Online |
| 17 | BLADE, 24.50"-MUL-F-CW | 798710 | 3 | HT798710-Online |
| 17 | BLADE, 24.50"-GAT-F-CW | 798728 | 3 | HT798728-Online |
| 18 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
60" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" RD DECK (WITH DECALS & HARDWARE) | 550935 | 1 | 550935-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | 2 BELT ROUTING DECAL | 603349 | 1 | 603349-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 6 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 7 | 60" DECK ID DECAL | 786277 | 1 | 786277-Online |
| 8 | 5/16-18 THREAD HEX RIVET NUT | 792887 | 1 | 792887-Online |
60" Rear Discharge Deck Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 12 | HT028118-Online |
| 3 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 4 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 5 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 6 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 7 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 8 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 9 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 10 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 11 | DUST SHIELD WITH OFFSET | 603057 | 4 | 603057-Online |
| 12 | PULLEY V-IDLER HBB 5.0" | 602672 | 2 | 602672-Online |
| 13 | CHAIN, 21 LINK | 373191 | 2 | HT373191-Online |
| 14 | NT .500-13 NL | 781567 | 1 | HT781567-Online |
| 15 | FW .531 X 1.063 X .175 | 767962 | 13 | HT767962-Online |
| 16 | PLASTIC BUSHING .750 X 1 | 770867 | 2 | HT770867-Online |
| 17 | IDLER PIVOT BUSHING | 109549 | 1 | HT109549-Online |
| 18 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 19 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 20 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 25 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 26 | CS .625-11 X 2.00 HX G5 Z | 016642 | 3 | 016642-Online |
| 27 | 6" HB IDLER PULLEY | 796714 | 2 | HT796714-Online |
| 28 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 29 | NT .312-18 HX G5 ZY NL | 058776 | 6 | HT058776-Online |
| 30 | CW .631 X 2.25 X .187 | 782474 | 1 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 1 | HT783738-Online |
60" Rear Discharge Deck Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 | 705954 | 1 | HT705954-Online |
| 33 | CS .500-13 X 1.75 HX G5 | 017616 | 2 | HT017616-Online |
| 34 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 35 | DECK DRIVE PULLEY | 770842 | 2 | HT770842-Online |
| 36 | DOUBLE PULLEY 6.00 EFF | 524785 | 1 | HT524785-Online |
| 37 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 38 | FW 1.030 X 1.50 X .134 | 045765 | 2 | HT045765-Online |
| 39 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | BLADE SPINDLE CCW (S/N 12100664 & HIGHER) | 604256 | 1 | 604256-Online |
| 41 | BLADE SPINDLE CCW (S/N PRIOR TO 12100664) | 601819 | 1 | 601819-Online |
| 42 | BLADE SPINDLE CW (S/N 12100664 & HIGHER) | 604255 | 2 | 604255-Online |
| 42 | BLADE SPINDLE CW (S/N PRIOR TO 12100664) | 601630 | 2 | 601630-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS RD PULLEY COVER (WITH DECAL) | 550939 | 1 | 550939-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 5 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 114209 | 1 | 114209-Online |
| 5 | LS RD PULLEY COVER | 114210 | 1 | 114210-Online |
| 6 | BELT, B-SEC | 602854 | 1 | 602854-Online |
| 7 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 11 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 12 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 13 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | .375-16 X .75 HX G5 | 055822 | 6 CS | HT055822-Online |
| 17 | .406 X .812 X .060 SAE | 767954 | 6 FW | HT767954-Online |
| 18 | 60" ADJUSTABLE BAFFLE | 114205 | 1 LS | 114205-Online |
| 19 | 60" ADJUSTABLE BAFFLE | 114204 | 1 RS | 114204-Online |
| 20 | F20.50"-L-F-CCW | 795633 | 1 BLADE, | HT795633-Online |
| 20 | 20.50"-GAT-F-CCW | 601928 | 2 BLADE, | 601928-Online |
| 21 | .631 X 2.25 X .187 PNT | 782474 | 3 CW | HT782474-Online |
| 22 | .625-11 X 1.25 HX G5 LH THREAD | 604383 | 1 CS | 604383-Online |
| 23 | F20.50"-L-F-CW | 600901 | 2 BLADE, | HT600901-Online |
| 23 | 20.50"-GAT-F-CW | 794230 | 2 BLADE, | HT794230-Online |
| 24 | .625-11 X 1.25 HX G5 Z (S/N 12100664 & HIGHER) | 781872 | 2 CS | HT781872-Online |
| 24 | .625-11 X 2.25 HX G5 ZY (S/N PRIOR TO 12100664) | 601983 | 2 CS | 601983-Online |
60" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUSHER | 113340 | 1 | 113340-Online |
| 2 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 3 | CS .375-16 X 1.000 HX G5 | 036244 | 6 | HT036244-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 18 | HT767954-Online |
| 5 | NT .312-18 HXZY NL | 058776 | 10 | HT058776-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 8 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 9 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | CB .312-18 X 1.000 FULL ZN | 037887 | 6 | HT037887-Online |
| 13 | DISCHARGE CHUTE | 115533 | 1 | 115533-Online |
| 14 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 15 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 16 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 17 | NT .375-16 HXZY NL | 086660 | 12 | HT086660-Online |
| 18 | FLAP HOLD DOWN | 110182 | 2 | 110182-Online |
| 19 | RUBBER DISCHARGE FLAP | 601717 | 2 | 601717-Online |
| 20 | LS FLAP EXT | 110181 | 1 | 110181-Online |
| 21 | RS FLAP EXT (NOT SHOWN) | 110180 | 1 | 110180-Online |
| 22 | CB .375-16 X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |
72" Rear Discharge Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 14 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 5 | 603057-Online |
| 4 | PULLEY, V-IDLER HBB 5.0" | 602672 | 4 | 602672-Online |
| 5 | CHAIN | 373191 | 2 | HT373191-Online |
| 6 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 7 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 8 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .625-11 X 2.00 HX G5 Z | 016642 | 4 | 016642-Online |
| 11 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 12 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 13 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 14 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 15 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 16 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 17 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 18 | BUSHING | 770867 | 2 | HT770867-Online |
| 19 | BUSHING | 109549 | 1 | HT109549-Online |
| 20 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 25 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 26 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 27 | IDLER PULLEY, NHI 4.288" | 788364 | 1 | 788364-Online |
| 28 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 29 | CS .625-11 X 3.00 FULL HX | 783738 | 1 | HT783738-Online |
| 30 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 31 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
72" Rear Discharge Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | PULLEY, DRIVE 7.00 EFF | 602745 | 2 | 602745-Online |
| 35 | FW 1.030 X 1.50 X .134 ZN | 045765 | 2 | HT045765-Online |
| 36 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 37 | CS .500-13 X 1.75 HX G5 | 017616 | 1 | HT017616-Online |
| 38 | PULLEY | 770388 | 1 | 770388-Online |
| 39 | CS .500-13 X 1.50 HX G5 | 074252 | 1 | HT074252-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 42 | BLADE SPINDLE CCW (S/N 12100664 & HIGHER) | 604256 | 1 | 604256-Online |
| 42 | BLADE SPINDLE CCW (S/N PRIOR TO 12100664) | 601819 | 1 | 601819-Online |
| 43 | BLADE SPINDLE CW (S/N 12100664 & HIGHER) | 604255 | 2 | 604255-Online |
| 43 | BLADE SPINDLE CW (S/N PRIOR TO 12100664) | 601630 | 3 | 601630-Online |
72" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECAL) | 551050 | 1 | 551050-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | LS PULLEY COVER | 114490 | 1 | 114490-Online |
| 4 | KNOB 5/16-18 X 3/4" | 792002 | 6 | HT792002-Online |
| 5 | CENTER PULLEY COVER | 114209 | 1 | 114209-Online |
| 6 | FLEX TRIM | 111339 | 4 | 111339-Online |
| 7 | BELT, B-SEC 192.00" | 603522 | 1 | 603522-Online |
| 8 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 9 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 10 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 11 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 12 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 13 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 16 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
72" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUSHER | 113340 | 1 | 113340-Online |
| 2 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 3 | CS .375-16 X 1.000 HX G5 | 036244 | 6 | HT036244-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 18 | HT767954-Online |
| 5 | NT .312-18 HXZY NL | 058776 | 10 | HT058776-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 8 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 9 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | CB .312-18 X 1.000 FULL ZN | 037887 | 6 | HT037887-Online |
| 13 | DISCHARGE SHIELD | 115533 | 1 | 115533-Online |
| 14 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 15 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 16 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 17 | NT .375-16 HXZY NL | 086660 | 12 | HT086660-Online |
| 18 | CLAMP BRACKET | 110473 | 2 | 110473-Online |
| 19 | RUBBER DISCHARGE FLAP | 601697 | 2 | 601697-Online |
| 20 | RS EXTENSION BRACKET | 110471 | 1 | 110471-Online |
| 21 | LS EXTENSION BRACKET | 110472 | 1 | 110472-Online |
| 22 | CB .375-16 X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |
60" & 72" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING | 603184 | 2 | 603184-Online |
| 6 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 7 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 9 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11 X 1.25 HX G5 | 781872 | 1 | HT781872-Online |
| 12 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 13 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18 HX G5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18 X 1.50 HX G5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14 X 1.75 HX G5 | 781831 | 1 | HT781831-Online |
Seat, Suspension

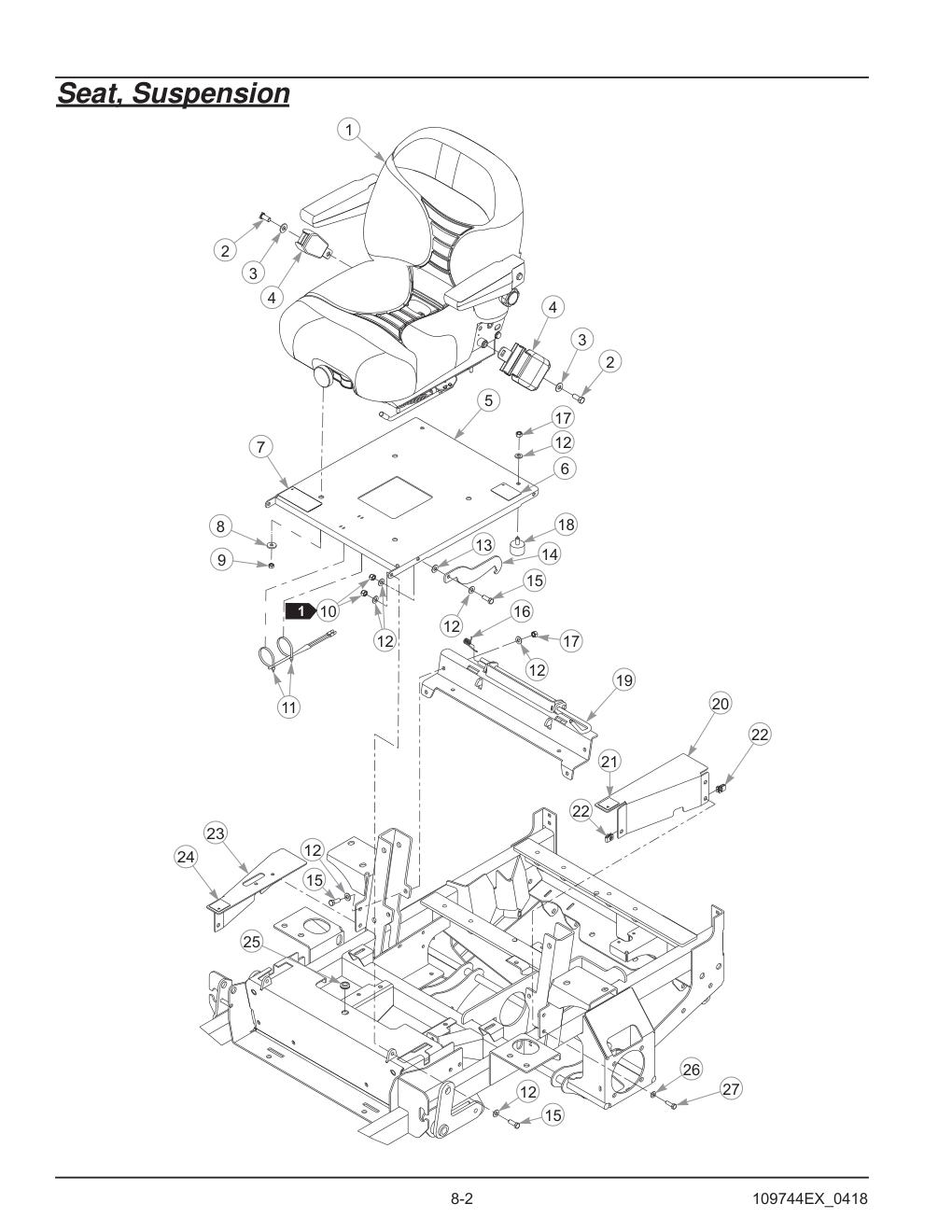

Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUSPENSION SEAT | 792051 | 1 | 792051-Online |
| 2 | CS .437-20 X 1.00 HX G8 ZNYC | 797076 | 2 | 797076-Online |
| 3 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 4 | SEAT BELT | 601444 | 1 | 601444-Online |
| 5 | SEAT PAN (WITH DECAL) | 551136 | 1 | 551136-Online |
| 6 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 7 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 8 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 9 | NT .312-18 HX G5 ZY NL | 058776 | 4 | HT058776-Online |
| 10 | NT .375-16 G5 NL | 086660 | 3 | HT086660-Online |
| 11 | WIRE TIE | 000331 | 2 | 000331-Online |
| 12 | FW .379 X .813 X .063 | 767954 | 16 | HT767954-Online |
| 13 | FIBER WASHER | 724716 | 1 | 724716-Online |
| 14 | SEAT PAN STOP | 350421 | 1 | 350421-Online |
| 15 | CS .375-16 X 1.00 HX G5 | 036244 | 7 | HT036244-Online |
| 16 | TORSION SPRING | 795583 | 1 | 795583-Online |
| 17 | NT .375-16 HX G5 | 054502 | 6 | HT054502-Online |
| 18 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 19 | SEAT CATCH | 109684 | 1 | 109684-Online |
| 20 | LS FRAME COVER (WITH DECAL) | 551138 | 1 | 551138-Online |
| 21 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 22 | CN .312-18 X .20 MAX THK | 601069 | 6 | HT601069-Online |
| 23 | RS FRAME COVER (WITH DECAL) | 551137 | 1 | 551137-Online |
| 24 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 25 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |
| 26 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 27 | CS .312-18 X 1.00 HX G5 | 036236 | 6 | 036236-Online |
Seat, Grammer
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 605696 | 1 | 605696-Online |
| 2 | SEAT PAN (WITH DECAL) | 551136 | 1 | 551136-Online |
| 3 | NT .375-16 HX G5 ZNY | 054502 | 6 | HT054502-Online |
| 4 | FW .379 X .813 X .063 | 767954 | 16 | HT767954-Online |
| 5 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 6 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 7 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 8 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 9 | NT .312-18 HX ZY NL | 058776 | 4 | HT058776-Online |
| 10 | WIRE HARNESS | 604439 | 1 | 604439-Online |
| 11 | WIRE TIE | 000331 | 4 | 000331-Online |
| 12 | NT .375-16 HX ZY NL | 086660 | 3 | HT086660-Online |
| 13 | FIBER WASHER | 724716 | 1 | 724716-Online |
| 14 | SEAT PAN STOP | 350421 | 1 | 350421-Online |
| 15 | CS .375-16 X 1.00 HX G5 | 036244 | 7 | HT036244-Online |
| 16 | TORSION SPRING | 795583 | 1 | 795583-Online |
| 17 | SEAT CATCH | 109684 | 1 | 109684-Online |
| 18 | LS FRAME COVER (WITH DECAL) | 551138 | 1 | 551138-Online |
| 19 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 20 | CN .312-18 X .20 MAX THK | 601069 | 6 | HT601069-Online |
| 21 | RS FRAME COVER (WITH DECAL) | 551137 | 1 | 551137-Online |
| 22 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 23 | GM .50 X 1.00 X .75 X .12 | 080358 | 2 | 080358-Online |
| 24 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 25 | CS .312-18 X 1.00 HX G5 | 036236 | 6 | 036236-Online |
