Husqvarna 365SP IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

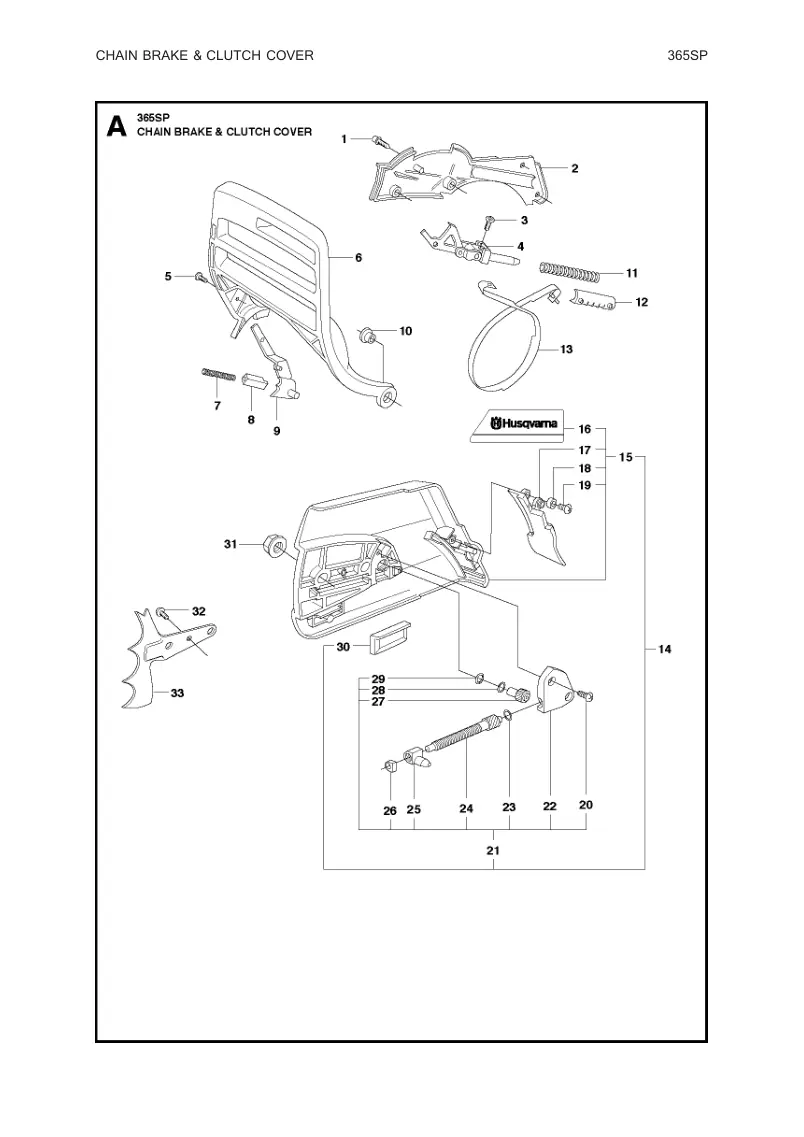

CHAIN BRAKE & CLUTCH COVER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCFM | 525 75 52-01 | 525755201-Online | 4 |
| 2 | HUB CAP | 503 75 11-03 | 503751103-Online | 1 |
| 3 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 1 |
| 4 | KNEE JOINT | 501 87 53-03 | 501875303-Online | 1 |
| 5 | SCREW ITXSCM | 586 43 85-01 | 586438501-Online | 1 |
| 6 | HAND GUARD | 503 76 49-03 | 503764903-Online | 1 |
| 7 | POSITION SPRING | 503 43 65-01 | 503436501-Online | 1 |
| 8 | LOCK | 503 83 81-02 | 503838102-Online | 1 |
| 9 | BRAKE LEVER From s/n 19991700001 - | 537 00 87-01 | 537008701-Online | 1 |
| 10 | BUSHING | 503 77 52-01 | 503775201-Online | 1 |
| 11 | BRAKE SPRING | 503 70 99-02 | 503709902-Online | 1 |
| 12 | SUPPORT | 503 79 27-02 | 503792702-Online | 1 |
| 13 | BRAKE BAND ASSY | 503 75 22-02 | 503752202-Online | 1 |
| 14 | CLUTCH COVER ASSY | 537 03 35-01 | 537033501-Online | 1 |
| 15 | CLUTCH COVER ASSY | 537 03 35-71 | 537033571-Online | 1 14 |
| 16 | LABEL | 537 03 38-03 | 537033803-Online | 1 14, 15 |
| 17 | CHIP GUARD | 503 76 29-02 | 503762902-Online | 1 14, 15 |
| 18 | SLEEVE | 503 89 70-01 | 503897001-Online | 1 14, 15 |
| 19 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 1 14, 15 |
| 20 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 2 21 |
| 21 | CHAIN TENSIONER | 537 04 41-02 | 537044102-Online | 1 14 |
| 22 | COVER | 537 01 68-01 | 537016801-Online | 1 14, 21 |
| 23 | WASHER | 503 23 00-66 | 503230066-Online | 1 14, 21 |
| 24 | WORM SCREW | 537 07 95-02 | 537079502-Online | 1 14, 21 |
| 25 | PAWL | 503 99 83-01 | 503998301-Online | 1 14, 21 |
| 26 | BEARING SLEEVE | 537 01 74-01 | 537017401-Online | 1 14, 21 |
| 27 | WORM WHEEL | 537 07 94-02 | 537079402-Online | 1 14, 21 |
| 28 | WASHER | 503 23 00-63 | 503230063-Online | 1 14, 21 |
| 29 | O-RING | 740 48 07-02 | 740480702-Online | 1 14, 21 |
| 30 | CHAIN GUIDE | 501 51 72-01 | 501517201-Online | 1 14 |
| 31 | HEXAGON NUT | 503 22 00-01 | 503220001-Online | 2 |
| 32 | SCREW CCRPANT | 503 21 28-10 | 503212810-Online | 1 |
| 33 | SPIKE | 503 71 97-01 | 503719701-Online | 1 |
CLUTCH & OIL PUMP
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | OIL PUMP ASSY | 503 52 13-03 | 503521303-Online | 1 |
| 2 | SEALING PLUG | 503 62 49-01 | 503624901-Online | 1 1 |
| 3 | PUMP PISTON | 503 52 15-01 | 503521501-Online | 1 1 |
| 4 | WASHER | 503 23 00-04 | 503230004-Online | 2 1 |
| 5 | SPRING | 501 61 58-01 | 501615801-Online | 1 1 |
| 6 | SPRING | 503 81 30-01 | 503813001-Online | 1 1 |
| 7 | SCREW | 503 81 13-01 | 503811301-Online | 1 1 |
| 8 | SCREW ITXSCM | 525 82 49-12 | 525824912-Online | 2 |
| 9 | GEAR WHEEL - up to s/n 20060699999 | 503 75 61-02 | 503756102-Online | 1 |
| 9 | PUMP PINION From s/n 20060700001 - | 537 20 78-07 | 537207807-Online | 1 |
| 10 | OIL PIPE | 503 77 43-01 | 503774301-Online | 1 |
| 11 | BUSHING | 503 64 47-01 | 503644701-Online | 1 |
| 11 | OIL PRESSURE HOSE | 587 29 18-01 | 587291801-Online | 1 |
| 12 | SEALING | 504 30 00-26 | 504300026-Online | 1 |
| 13 | OIL HOSE | 503 42 67-01 | 503426701-Online | 1 |
| 14 | OIL SCREEN | 501 54 41-02 | 501544102-Online | 1 |
| 15 | E-CLIP | 503 27 21-01 | 503272101-Online | 1 |
| 16 | WASHER | 503 75 24-01 | 503752401-Online | 1 |
| 17 | CLUTCH DRUM ASSY "3/8""x7T" | 586 98 06-01 | 586980601-Online | 1 |
| 17 | CLUTCH DRUM ASSY "3/8""x8T" | 586 98 06-02 | 586980602-Online | 1 |
| 18 | RIM "3/8""x7T" | 501 59 80-02 | 501598002-Online | 1 17 |
| 18 | RIM "3/8""x8T" | 505 30 36-61 | 505303661-Online | 1 17 |
| 19 | NEEDLE HOLDER | 503 43 20-01 | 503432001-Online | 1 17 |
| 20 | CLUTCH ASSY | 586 79 84-01 | 586798401-Online | 1 |
| 21 | CLUTCH SPRING | 537 36 06-01 | 537360601-Online | 3 |
| 22 | CLUTCH DRUM ASSY "3/8""x7T" | 503 86 17-03 | 503861703-Online | 1 |
| 23 | NEEDLE HOLDER | 503 43 20-01 | 503432001-Online | 1 |
| 24 | WASHER | 503 23 00-59 | 503230059-Online | 1 |
CYLINDER COVER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER ASSY Std | 503 62 78-07 | 503627807-Online | 1 |
| 1 | CYLINDER COVER ASSY HD | 503 62 78-08 | 503627808-Online | 1 |
| 2 | LABEL | 503 98 74-01 | 503987401-Online | 1 1 |
| 3 | SCREW CITXPANMO | 525 88 70-01 | 525887001-Online | 3 1 |
| 4 | FILTER COVER Std | 503 62 80-01 | 503628001-Online | 1 1 |
| 4 | FILTER COVER HD | 503 81 77-01 | 503817701-Online | 1 1 |
| 5 | SNAP LOCKING | 503 74 01-02 | 503740102-Online | 2 1 |
| 6 | SUPPORT | 537 01 65-01 | 537016501-Online | 1 |
| 7 | SLEEVE | 537 05 59-03 | 537055903-Online | 3 1 |
| CYLINDER COVER ASSY | 503 62 78-71 | 503627871-Online | 1 |
CYLINDER PISTON
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER ASSY | 503 93 90-07 | 503939007-Online | 1 |
| 2 | PISTON ASSY | 581 96 85-02 | 581968502-Online | 1 1 |
| 3 | PLUG | 503 55 22-01 | 503552201-Online | 1 1 |
| 4 | NEEDLE BEARING | 577 57 24-01 | 577572401-Online | 1 1 |
| 5 | DECOMPRESSION VALVE | 503 71 53-01 | 503715301-Online | 1 |
| 6 | SCREW IHSCM | 725 53 33-55 | 725533355-Online | 4 |
| 7 | SPARK PLUG BPMR7A | 503 23 51-11 | 503235111-Online | 1 |
| 8 | GASKET | 503 96 15-01 | 503961501-Online | 1 13 |
| 9 | PISTON RING | 503 28 90-15 | 503289015-Online | 1 1, 2 |
| 10 | SNAP RING | 737 43 12-00 | 737431200-Online | 2 1, 2 |
| 11 | GASKET | 503 77 59-01 | 503775901-Online | 1 13 |
| 12 | HEAT DEFLECTOR | 503 77 58-02 | 503775802-Online | 1 |
| 13 | GASKET KIT A = Set of gaskets | 503 64 72-01 | 503647201-Online | 1 |
| 14 | CYLINDER ASSY | 503 93 90-03 | 503939003-Online | 1 |
| 15 | PISTON ASSY | 503 69 13-03 | 503691303-Online | 1 14 |
| 16 | PISTON RING | 503 28 90-15 | 503289015-Online | 1 14,15 |
| 17 | SNAP RING | 737 43 12-00 | 737431200-Online | 1 14,15 |
| 18 | NEEDLE BEARING | 577 57 24-01 | 577572401-Online | 1 14 |
| 19 | INLET PIPE | 503 96 45-01 | 503964501-Online | 1 14 |
| 20 | HOSE CLAMP | 505 28 33-01 | 505283301-Online | 1 14 |
CRANKSHAFT
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 503 74 87-05 | 503748705-Online | 1 |
| 2 | CLUTCH ASSY | 586 79 84-01 | 586798401-Online | 1 1 |
| 3 | SLEEVE | 503 77 91-01 | 503779101-Online | 1 1 |
| 4 | O-RING | 503 26 30-19 | 503263019-Online | 1 1 |
| 5 | BALL BEARING | 585 97 50-01 | 585975001-Online | 2 1 |
| 6 | NEEDLE BEARING | 577 57 24-01 | 577572401-Online | 1 1 |
MUFFLER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY DF | 544 02 97-02 | 544029702-Online | 1 |
| 2 | SCREW CRPANM | 724 12 87-59 | 724128759-Online | 1 1 |
| 3 | SPARK ARRESTER SCREEN | 503 76 64-02 | 503766402-Online | 1 1 |
| 4 | SCREW ITXSCM | 525 82 51-01 | 525825101-Online | 2 |
| 5 | SUPPORT | 579 02 59-01 | 579025901-Online | 1 |
| 6 | SCREW ITXSCFM | 525 75 51-01 | 525755101-Online | 2 |
| 7 | SCREW ITXSCFM | 525 75 51-07 | 525755107-Online | 2 |
| 8 | MUFFLER ASSY Tube | 544 02 95-01 | 544029501-Online | 1 |
| 8 | MUFFLER ASSY Jungle | 544 02 95-02 | 544029502-Online | 1 |
CARBURETOR & AIR FILTER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER ASSY 80 | 575 26 91-01 | 575269101-Online | 1 |
| 1 | AIR FILTER ASSY 44 | 575 26 91-02 | 575269102-Online | 1 |
| 1 | AIR FILTER ASSY Felt | 575 26 91-03 | 575269103-Online | 1 |
| 2 | CLAMP | 503 73 54-01 | 503735401-Online | 1 |
| 3 | KNOB | 537 21 32-04 | 537213204-Online | 1 |
| 4 | AIR FILTER 80 | 503 81 80-05 | 503818005-Online | 1 |
| 4 | AIR FILTER 44 | 503 81 80-06 | 503818006-Online | 1 |
| 4 | AIR FILTER Felt | 503 81 80-04 | 503818004-Online | 1 |
| 5 | FILTER HOLDER | 503 81 78-01 | 503817801-Online | 1 |
| 6 | HEXAGON NUT | 731 23 14-01 | 731231401-Online | 1 |
| 7 | SCREW ITXSCM | 581 14 30-01 | 581143001-Online | 2 |
| 8 | TUBE | 503 70 11-01 | 503701101-Online | 2 |
| 9 | FILTER HOLDER | 503 62 75-02 | 503627502-Online | 1 |
| 10 | LEVER | 503 68 41-01 | 503684101-Online | 1 |
| 11 | GUIDE BUSHING Walbro HD-6B | 503 66 53-01 | 503665301-Online | 1 |
| 11 | GUIDE BUSHING Walbro HD-12B | 503 66 74-01 | 503667401-Online | 1 |
| 12 | CARBURETTOR Walbro HD-6B | 503 28 18-04 | 503281804-Online | 1 |
| 12 | CARBURETTOR Walbro HD-12B | 503 28 18-05 | 503281805-Online | 1 |
| 13 | IMPULSE HOSE | 503 40 06-06 | 503400606-Online | 1 |
| 14 | SUPPORT SLEEVE | 503 43 18-01 | 503431801-Online | 1 |
| 15 | FLANGE | 503 71 27-01 | 503712701-Online | 1 |
| 16 | SQUARE NUT | 503 22 65-03 | 503226503-Online | 2 |
| 17 | INLET PIPE For cold conditions | 503 96 45-02 | 503964502-Online | 1 |
| 17 | INLET PIPE | 503 96 45-01 | 503964501-Online | 1 |
| 18 | HOSE CLAMP | 505 28 33-09 | 505283309-Online | 1 |
CRANKCASE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE ASSY | 503 62 68-19 | 503626819-Online | 1 |
| 2 | BUSHING | 503 96 70-01 | 503967001-Online | 1 1 |
| 3 | SEALING RING | 503 26 03-01 | 503260301-Online | 1 |
| 4 | PIN | 503 75 18-01 | 503751801-Online | 1 1 |
| 5 | GUIDE BUSHING | 593 80 60-01 | 593806001-Online | 1 1 |
| 6 | GUIDE BUSHING | 593 80 60-01 | 593806001-Online | 1 1 |
| 7 | BAR BOLT | 537 05 13-01 | 537051301-Online | 2 1 |
| 8 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 1 1 |
| 9 | CHAIN GUIDE PLATE | 537 01 37-02 | 537013702-Online | 1 1 |
| 9 | KIT | 537 04 66-01 | 537046601-Online | 1 |
| 10 | SCREW ITXSCM | 586 44 54-01 | 586445401-Online | 1 |
| 11 | SCREW ITXSCFM | 525 75 52-01 | 525755201-Online | 4 |
| 12 | CARBURETTOR AREA BASE | 588 09 37-01 | 588093701-Online | 1 |
| 13 | GROMMET | 503 73 44-01 | 503734401-Online | 1 |
| 14 | CHOKE CONTROL | 503 62 77-01 | 503627701-Online | 1 |
| 15 | SUPPORT | 579 46 89-01 | 579468901-Online | 1 |
| 16 | GROMMET | 537 09 54-01 | 537095401-Online | 1 |
| 17 | SCREW ITXSCM | 525 82 49-13 | 525824913-Online | 2 |
| 18 | CHAIN CATCHER | 501 68 68-01 | 501686801-Online | 1 |
| 19 | GASKET | 503 62 72-01 | 503627201-Online | 1 39 |
| 20 | COVER | 503 85 73-01 | 503857301-Online | 1 |
| 21 | SEALING RING | 505 27 57-19 | 505275719-Online | 1 |
| 22 | AIR NOZZLE | 503 62 84-01 | 503628401-Online | 1 |
| 23 | SCREW ITXSCFM | 525 75 52-01 | 525755201-Online | 1 |
| 24 | BUFFER | 503 84 61-01 | 503846101-Online | 1 |
| 25 | TANK CAP ASSY | 537 21 52-07 | 537215207-Online | 1 |
| 26 | HOLDER | 503 57 89-01 | 503578901-Online | 1 25 |
| 27 | GASKET | 589 24 11-01 | 589241101-Online | 1 25 |
| 28 | SCREW ITXSCM | 575 79 12-02 | 575791202-Online | 6 |
| 29 | FILTER | 537 40 35-01 | 537403501-Online | 1 |
| 30 | CHECK VALVE | 530 02 61-19 | 530026119-Online | 1 |
| 31 | BUMPER | 537 04 29-01 | 537042901-Online | 1 |
| 32 | SCREW ITXSCFM | 525 75 51-03 | 525755103-Online | 1 |
| 33 | WEAR PROTECTION | 537 02 44-01 | 537024401-Online | 1 |
| 34 | CHAIN CATCHER | 537 08 92-01 | 537089201-Online | 1 |
| 35 | SCREW ITXPANM | 575 79 35-01 | 575793501-Online | 2 |
| 36 | SPIKE | 537 01 71-01 | 537017101-Online | 1 |
| 37 | LOCK NUT | 503 22 24-01 | 503222401-Online | 1 |
| 38 | SPIKE | 503 64 79-02 | 503647902-Online | 1 |
| 39 | GASKET KIT A = Set of gaskets | 503 64 72-01 | 503647201-Online | 1 |
| 40 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 1 |
| 41 | SPIKE | 503 92 27-01 | 503922701-Online | 1 |
| 42 | SPIKE | 537 01 72-01 | 537017201-Online | 1 |
FUEL TANK
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK | 544 11 40-13 | 544114013-Online | 1 |
| 2 | FUEL HOSE | 581 75 61-06 | 581756106-Online | 1 1 |
| 3 | CONNECTION BEND | 537 09 93-01 | 537099301-Online | 1 1 |
| 4 | TANK VENT ASSY | 501 15 29-01 | 501152901-Online | 1 |
| 4 | FILTER PLUG | 503 60 04-01 | 503600401-Online | 1 |
| 4 | TANK VENT ASSY | 537 09 22-01 | 537092201-Online | 1 1 |
| 5 | THROTTLE CABLE ASSY | 503 71 76-01 | 503717601-Online | 1 1 |
| 6 | PARALLEL PIN | 720 12 40-20 | 720124020-Online | 1 1 |
| 7 | THROTTLE LOCKOUT | 503 55 66-01 | 503556601-Online | 1 1 |
| 8 | SPRING | 503 73 64-01 | 503736401-Online | 1 1 |
| 9 | TRIGGER | 503 82 98-01 | 503829801-Online | 1 1 |
| 10 | PARALLEL PIN | 720 12 72-20 | 720127220-Online | 1 1 |
| 11 | ANTIVIBRATION ELEMENT Std | 503 89 56-01 | 503895601-Online | 1 |
| 11 | ANTIVIBRATION ELEMENT Hard | 503 89 56-02 | 503895602-Online | 1 |
| 12 | TANK CAP ASSY | 537 21 52-07 | 537215207-Online | 1 |
| 13 | HOLDER | 503 57 89-01 | 503578901-Online | 1 12 |
| 14 | GASKET | 589 24 11-01 | 589241101-Online | 1 12 |
| 15 | FUEL HOSE | 581 75 62-02 | 581756202-Online | 1 1 |
| 16 | FUEL FILTER | 503 44 32-01 | 503443201-Online | 1 |
| 17 | ANTIVIBRATION ELEMENT Std | 503 63 76-03 | 503637603-Online | 1 |
| 17 | ANTIVIBRATION ELEMENT Hard | 503 63 76-04 | 503637604-Online | 1 |
HANDLE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRONT HANDLE ASSY | 503 62 67-71 | 503626771-Online | 1 |
| 2 | SCREW ITXSCFT | 586 44 30-01 | 586443001-Online | 4 1 |
| 3 | SCREW ITXSCFT | 586 44 00-01 | 586440001-Online | 1 1 |
| 4 | ANTIVIBRATION ELEMENT Std | 503 63 75-04 | 503637504-Online | 1 1 |
| 4 | ANTIVIBRATION ELEMENT Hard | 503 63 75-05 | 503637505-Online | 1 |
| 5 | HANDLE WRAP | 503 62 86-71 | 503628671-Online | 1 |
| 6 | SCREW ITXSCFT | 586 44 30-01 | 586443001-Online | 5 5 |
| 7 | SCREW ITXSCFT | 586 44 00-01 | 586440001-Online | 1 5 |
| 8 | ANTIVIBRATION ELEMENT | 503 63 75-04 | 503637504-Online | 1 5 |
IGNITION SYSTEM
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SPARK PLUG CAP | 501 48 54-02 | 501485402-Online | 1 |
| 2 | IGNITION MODULE | 586 88 03-04 | 586880304-Online | 1 |
| 3 | SCREW ITXSCM | 582 02 97-01 | 582029701-Online | 2 |
| 4 | SWITCH | 503 71 82-01 | 503718201-Online | 1 |
| 5 | CABLE | 503 62 61-01 | 503626101-Online | 1 |
| 6 | CABLE | 503 89 76-01 | 503897601-Online | 1 |
| 7 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 1 |
| 8 | HEXAGON NUT | 503 22 10-11 | 503221011-Online | 1 |
| 9 | FLYWHEEL ASSY | 537 05 16-05 | 537051605-Online | 1 |
| 10 | SPRING | 501 67 35-01 | 501673501-Online | 2 9 |
| 11 | WASHER | 503 23 00-42 | 503230042-Online | 2 9 |
| 12 | STARTER PAWL | 537 01 55-01 | 537015501-Online | 2 9 |
| 13 | SCREW | 506 00 69-01 | 506006901-Online | 2 9 |
| 14 | WASHER | 503 23 01-01 | 503230101-Online | 1 |
STARTER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 503 62 81-71 | 503628171-Online | 1 |
| 2 | SCREW ITXSCFT | 586 44 31-01 | 586443101-Online | 1 1 |
| 3 | STARTER PULLEY | 503 85 96-01 | 503859601-Online | 1 1 |
| 4 | STARTER HANDLE | 522 03 73-01 | 522037301-Online | 1 1 |
| 5 | STARTER CORD | 503 43 29-02 | 503432902-Online | 1 1 |
| 6 | RECOIL SPRING | 537 28 36-02 | 537283602-Online | 1 1 |
| 7 | STARTER HOUSING | 503 62 82-02 | 503628202-Online | 1 1 |
| 8 | BUSHING | 537 08 67-01 | 537086701-Online | 1 1, 7 |
| 9 | SLEEVE | 501 63 06-01 | 501630601-Online | 1 1, 7 |
| 10 | SCREW CITXPANMO | 525 82 45-01 | 525824501-Online | 4 1, 7 |
| 11 | LABEL | 537 23 02-03 | 537230203-Online | 1 |
| 12 | AIR CONDUCTOR | 503 62 83-01 | 503628301-Online | 1 |
CARBURETOR
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR Walbro HD-6B | 503 28 18-04 | 503281804-Online | 1 |
| 1 | CARBURETTOR Walbro HD-12B | 503 28 18-05 | 503281805-Online | 1 |
| 2 | SCREW | 501 46 69-01 | 501466901-Online | 1 |
| 3 | COVER | 503 79 98-01 | 503799801-Online | 1 |
| 4 | GASKET | 501 66 69-01 | 501666901-Online | 1 1, 44 |
| 5 | DIAPHRAGM PUMP | 502 25 47-01 | 502254701-Online | 1 1, 44 |
| 6 | SCREEN | 501 66 61-01 | 501666101-Online | 1 |
| 7 | FITTING | 503 85 59-01 | 503855901-Online | 1 |
| 8 | FITTING | 503 80 14-01 | 503801401-Online | 1 |
| 9 | VALVE | 503 85 58-01 | 503855801-Online | 1 |
| 10 | SHAFT ASSY | 537 01 91-01 | 537019101-Online | 1 |
| 11 | LEVER | 537 01 89-01 | 537018901-Online | 1 1, 10 |
| 12 | SCREW | 501 46 87-01 | 501468701-Online | 1 |
| 13 | SPRING | 537 01 90-01 | 537019001-Online | 1 |
| 14 | BALL | 501 46 85-01 | 501468501-Online | 1 |
| 15 | SPRING | 501 46 84-01 | 501468401-Online | 1 |
| 16 | SCREW | 501 46 87-01 | 501468701-Online | 1 |
| 17 | LEVER | 503 79 96-01 | 503799601-Online | 1 |
| 18 | WASHER | 503 80 15-01 | 503801501-Online | 1 |
| 19 | VALVE | 503 80 00-01 | 503800001-Online | 1 |
| 20 | SPRING | 503 80 09-01 | 503800901-Online | 1 |
| 21 | SCREW | 530 03 50-15 | 530035015-Online | 1 |
| 22 | SHAFT | 503 79 99-01 | 503799901-Online | 1 |
| 23 | SPRING | 501 66 78-01 | 501667801-Online | 1 |
| 24 | SCREW | 503 80 08-01 | 503800801-Online | 1 |
| 25 | SPRING | 501 66 77-01 | 501667701-Online | 1 |
| 26 | NEEDLE H Walbro HD-6B | 503 80 11-01 | 503801101-Online | 1 |
| 26 | NEEDLE H Walbro HD-12B | 503 94 39-01 | 503943901-Online | 1 |
| 27 | LIMITER CAP Walbro HD-12B | 503 91 39-01 | 503913901-Online | 1 |
| 28 | SPRING | 501 66 77-01 | 501667701-Online | 1 |
| 29 | NEEDLE-IDLE SPEED L Walbro HD-6B | 504 02 72-13 | 504027213-Online | 1 |
| 29 | NEEDLE Walbro HD-12B | 503 94 38-01 | 503943801-Online | 1 |
| 30 | LIMITER CAP Walbro HD-12B | 503 91 40-01 | 503914001-Online | 1 |
| 31 | RETAINER Walbro HD-12B | 503 91 54-01 | 503915401-Online | 1 |
| 32 | PLUG | 503 57 42-01 | 503574201-Online | 1 |
| 33 | NOZZLE Walbro HD-6B | 503 80 04-01 | 503800401-Online | 1 |
| 33 | NOZZLE ASSY Walbro HD-12B | 503 94 36-01 | 503943601-Online | 1 |
| 34 | JET Walbro HD-6B | 503 68 82-01 | 503688201-Online | 1 |
| 34 | JET Walbro HD-12B | 537 00 33-01 | 537003301-Online | 1 |
| 35 | SPRING Walbro HD-6B | 503 56 24-01 | 503562401-Online | 1 |
| 35 | SPRING Walbro HD-12B | 503 94 37-01 | 503943701-Online | 1 |
| 36 | NEEDLE VALVE | 503 56 34-01 | 503563401-Online | 1 |
| 37 | LEVER | 501 66 83-01 | 501668301-Online | 1 |
| 38 | PIN | 505 52 01-25 | 505520125-Online | 1 |
| 39 | SCREW | 505 31 67-17 | 505316717-Online | 1 |
| 40 | GASKET | 504 13 09-05 | 504130905-Online | 1 1, 44 |
| 41 | DIAPHRAGM | 503 80 07-01 | 503800701-Online | 1 1, 44 |
| 42 | COVER | 537 07 76-01 | 537077601-Online | 1 |
| 43 | SCREW | 503 10 87-01 | 503108701-Online | 4 |
| 44 | REPAIR KIT B = Set of gaskets | 503 64 78-01 | 503647801-Online | 1 |
ACCESSORIES
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TOOL | 588 79 74-01 | 588797401-Online | 1 |
| 2 | COMBINATION WRENCH | 501 69 17-01 | 501691701-Online | 1 1 |
| 3 | SPANNER NV5 | 503 55 86-02 | 503558602-Online | 1 1 |
| 4 | SPANNER NV4 | 503 55 86-01 | 503558601-Online | 1 1 |
| 5 | GREASE | 503 62 12-01 | 503621201-Online | 1 |
| 6 | GREASE GUN | 501 91 14-01 | 501911401-Online | 1 |
| 7 | WINTER KIT | 503 96 90-11 | 503969011-Online | 1 |
| 8 | SCREW CITXPANT | 586 50 52-01 | 586505201-Online | 1 7 |
| 9 | WRENCH TORX T27/T20 | 575 88 07-01 | 575880701-Online | 1 1 |
SERVICE UPDATES
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER ASSY | 503 93 90-03 | 503939003-Online | 1 |
| 2 | PISTON ASSY | 503 69 13-03 | 503691303-Online | 1 1 |
| 3 | PISTON RING | 503 28 90-15 | 503289015-Online | 1 1, 2 |
| 4 | SNAP RING | 737 43 12-00 | 737431200-Online | 2 1, 2 |
| 5 | NEEDLE BEARING | 503 25 56-01 | 503255601-Online | 1 1 |
| 6 | INLET PIPE | 503 96 45-01 | 503964501-Online | 1 1 |
| 7 | HOSE CLAMP | 505 28 33-01 | 505283301-Online | 1 1 |
CYLINDER PISTON
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER KIT | 593 66 57-02 | 593665702-Online | 1 |
| 2 | PISTON ASSY | 581 96 85-02 | 581968502-Online | 1 1 |
| 3 | PLUG | 503 55 22-01 | 503552201-Online | 1 1 |
| 4 | NEEDLE BEARING | 577 57 24-01 | 577572401-Online | 1 1 |
| 5 | DECOMPRESSION VALVE | 503 71 53-01 | 503715301-Online | 1 |
| 6 | SCREW ITXSCM | 525 82 49-03 | 525824903-Online | 4 |
| 7 | SPARK PLUG BPMR7A | 503 23 51-11 | 503235111-Online | 1 |
| 8 | GASKET | 503 96 15-01 | 503961501-Online | 1 13 |
| 9 | PISTON RING | 503 28 90-15 | 503289015-Online | 1 1, 2 |
| 10 | SNAP RING | 737 43 12-00 | 737431200-Online | 2 1, 2 |
| 11 | GASKET | 503 77 59-01 | 503775901-Online | 1 13 |
| 12 | HEAT DEFLECTOR | 503 77 58-02 | 503775802-Online | 1 |
| 13 | GASKET KIT A = Set of gaskets | 503 64 72-01 | 503647201-Online | 1 |
| 14 | CYLINDER ASSY | 503 93 90-03 | 503939003-Online | 1 |
| 15 | PISTON ASSY | 503 69 13-03 | 503691303-Online | 1 14 |
| 16 | PISTON RING | 503 28 90-15 | 503289015-Online | 1 14,15 |
| 17 | SNAP RING | 737 43 12-00 | 737431200-Online | 1 14,15 |
| 18 | NEEDLE BEARING | 577 57 24-01 | 577572401-Online | 1 14 |
| 19 | INLET PIPE | 503 96 45-01 | 503964501-Online | 1 14 |
| 20 | HOSE CLAMP | 505 28 33-01 | 505283301-Online | 1 14 |
