Hyundai HPW275 Pressure Washer IPL / Parts List
Illustrated parts list for the Hyundai HPW275 pressure washer. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Each Cutsmart SKU is linked through the Cutsmart SKU resolver, so the link can work once the product has been imported or confirmed on the website.

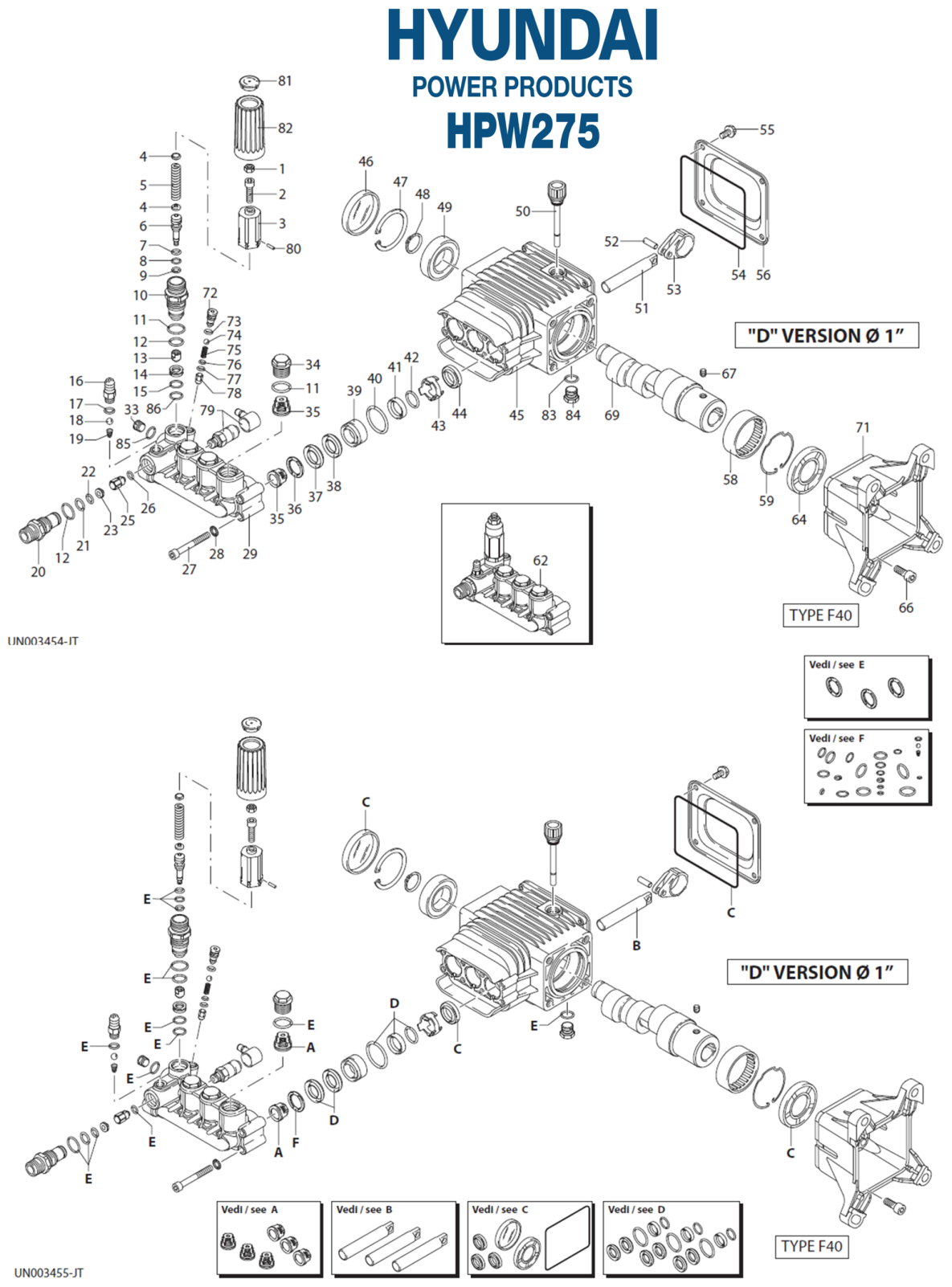

Repair Kits and Pump
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Nut | HP1060120 | HP1060120-Online |
| 2 | Screw | HP2840970 | HP2840970-Online |
| 3 | Handle Insert | HP1980390 | HP1980390-Online |
| 62 | Pump Head Pre-ass. | HP2769225 | HP2769225-Online |
| 80 | Pin | HP1080070 | HP1080070-Online |
| 81 | Knob Plug | HP1981770 | HP1981770-Online |
| 82 | Knob | HP1981780 | HP1981780-Online |
| A | Valves Kit | HPKIT 42666 | HPKIT42666-Online |
| B | Pistons Kit | HPKIT 2187 | HPAR2187-Online |
| C | Oil Seals Kit | HPKIT 2188 | HPAR2188-Online |
| D | Water Seals Kit | HPKIT 2189 | HPKIT2189-Online |
| E | O-Rings Kit | HPKIT 2190 | HPAR2190-Online |
| F | Support Rings Kit | HPKIT 2191 | HPAR2191-Online |
| H | Complete Pump | HPRSV4G40 | HPRSV4G40-Online |

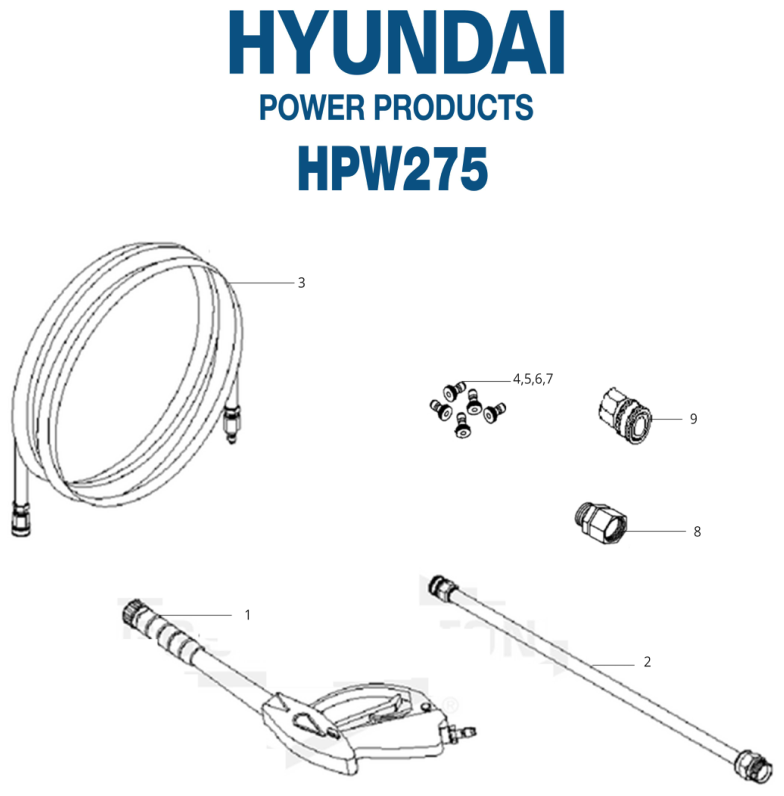

Gun, Wand, Hose and Nozzles
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Gun | HPAC7002 | HPAC7002-Online |
| 2 | Wand 36" Split | HP85.202.031 | HP85.202.031-Online |
| 3 | Hose | HP85.238.153 | HP85.238.153-Online |
| 4 | Nozzle Q/C 0 DEG - 030 | HP85.201.040 | HP85.201.040-Online |
| 5 | Nozzle Q/C 15 DEG - 030 | HP85.216.040 | HP85.216.040-Online |
| 6 | Nozzle Q/C 40 DEG - 030 | HP85.241.040 | HP85.241.040-Online |
| 7 | Nozzle Plastic Soap Black | HP85.266.400 | HP85.266.400-Online |
| 8 | Plug 3/8" MNPT Steel | HP85.300.105 | HP85.300.105-Online |
| 9 | Coupling 1/4" QD Female | HP85.300.102J | HP85.300.102J-Online |

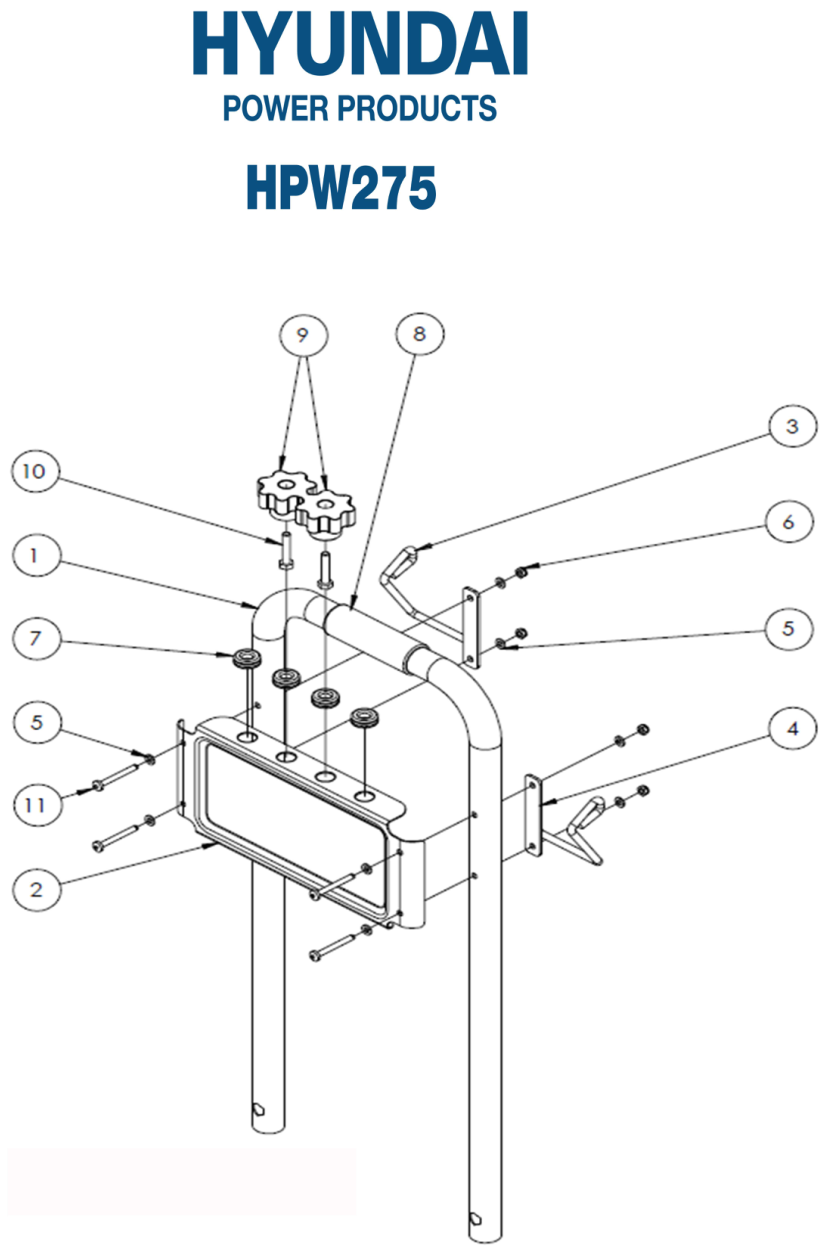

Handle Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Handle Tubing | HP85.600.125G-02.1 | HP85.600.125G-02.1-Online |
| 2 | Decal Plate Large | HP85.600.125G-02.2 | HP85.600.125G-02.2-Online |
| 3 | Gun Hook Assembly Left | HP85.600.124-02.3L | HP85.600.124-02.3L-Online |
| 4 | Gun Hook Assembly Right | HP85.600.124-02.3R | HP85.600.124-02.3R-Online |
| 5 | Washer Flat M6 | HP39.006.001 | HP39.006.001-Online |
| 6 | Nylock Nut M6-1.0 | HP09-006.002 | HP09-006.002-Online |
| 7 | Grommet Rubber | HP85.660.008 | HP85.660.008-Online |
| 8 | Handle Rubber Grip 32mm Tubing | HP85.660.009 | HP85.660.009-Online |
| 9 | Knuckle Nut Plastic 60mm | HP85.601.008 | HP85.601.008-Online |
| 10 | Hex Head Bolt M8x1.25 | HP01.008.040 | HP01.008.040-Online |
| 11 | Machine Screw Button | HP01.006.050.MB.Z | HP01.006.050.MB.Z-Online |

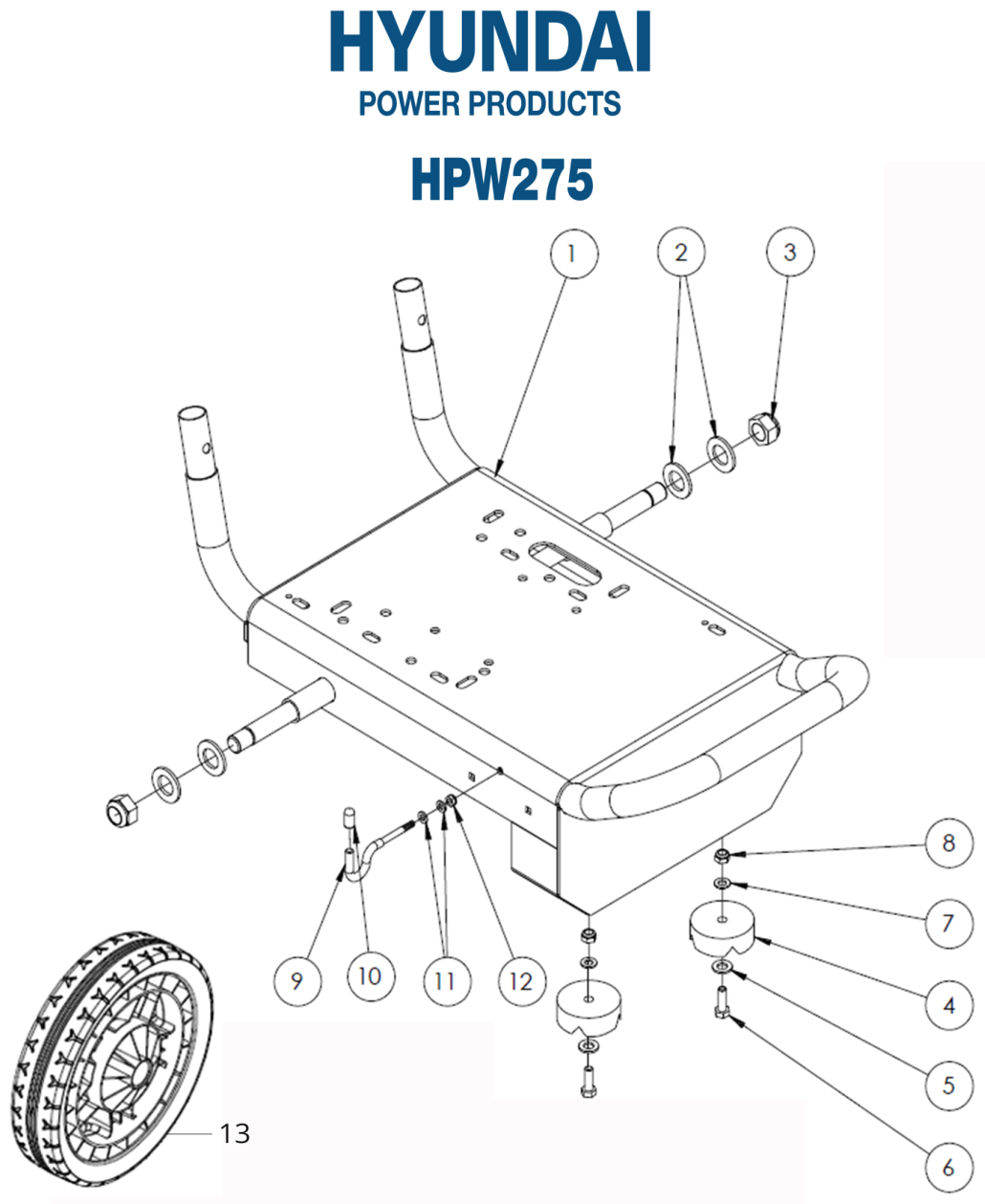

Frame Base Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Welded Frame Base | HP85.600.125G-01.1 | HP85.600.125G-01.1-Online |
| 2 | Washer Flat M20 | HP39.020.001 | HP39.020.001-Online |
| 3 | Nylock Nut M18-2.5 | HP09.018.002 | HP09.018.002-Online |
| 4 | Rubber Foot | HP85.60.007BT-01 | HP85.60.007BT-01-Online |
| 5 | Washer Flat M10 | HP39.010.001 | HP39.010.001-Online |
| 6 | Hex Head Bolt M8x1.25 25mm | HP01.008.025 | HP01.008.025-Online |
| 7 | Washer Flat M8 | HP85.600.122HE-12 | HP85.600.122HE-12-Online |
| 8 | Nylock Nut M8-1.25 | HP09.008.002 | HP09.008.002-Online |
| 9 | Lance Hook | HP85.600.124-01.2 | HP85.600.124-01.2-Online |
| 10 | Lance Hook Cap | HP85.600.124-01.3 | HP85.600.124-01.3-Online |
| 11 | Washer Flat M6 | HP39.006.001 | HP39.006.001-Online |
| 12 | Nylock Nut M6-1.0 | HP09.006.002 | HP09.006.002-Online |
| 13 | Wheel | HP85.660.050B | HP85.660.050B-Online |

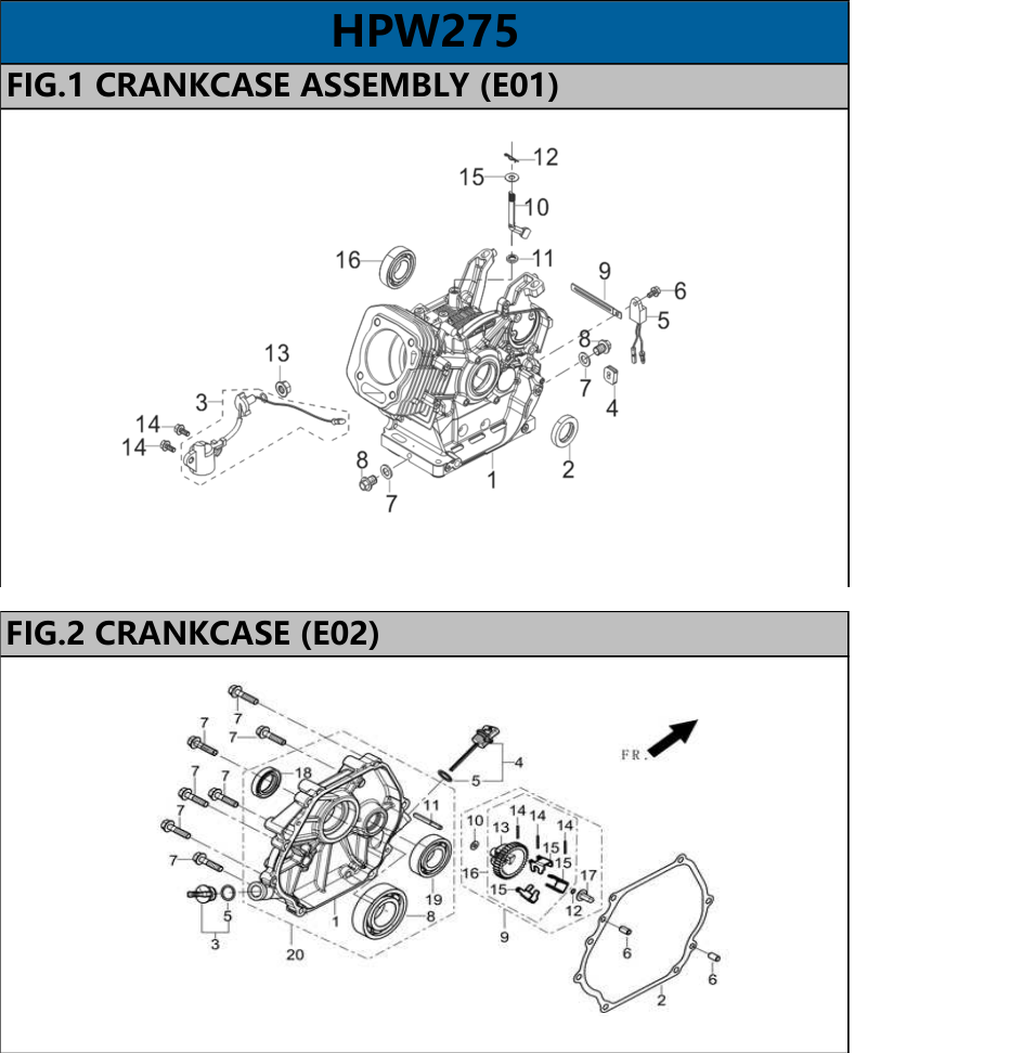

Crankcase Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E01-1 | Crankcase Subassembly | 11310-Z220910-0BA0 | 11310-Z220910-0BA0-Online |
| E01-2 | Seal, Oil | 90682-Z310110-00A0 | 90682-Z310110-00A0-Online |
| E01-3 | Sensor, Engine Oil | 37060-Z080120-00A0 | 37060-Z080120-00A0-Online |
| E01-4 | Plug, Rubber | 28101-Z080110-00A0 | 28101-Z080110-00A0-Online |
| E01-5 | Protector, Oil | 37050-Z010210-00A0 | 37050-Z010210-00A0-Online |
| E01-6 | Bolt | 90001-0612-01A0 | 90001-0612-01A0-Online |
| E01-7 | Washer, Flat | 90412-Z080110-00A0 | 90412-Z080110-00A0-Online |
| E01-8 | Bolt, Drain Plug | 11007-Z080110-00A0 | 11007-Z080110-00A0-Online |
| E01-9 | Clip | 90684-Z030120-00A0 | 90684-Z030120-00A0-Online |
| E01-10 | Arm, Governor | 16061-Z100110-00A0 | 16061-Z100110-00A0-Online |
| E01-11 | Seal, Oil | 90682-Z100210-00A0 | 90682-Z100210-00A0-Online |
| E01-12 | Pin | 90501-Z010110-00A0 | 90501-Z010110-00A0-Online |
| E01-13 | Nut | 90305-Z010210-01A0 | 90305-Z010210-01A0-Online |
| E01-14 | Bolt | 90001-0616-01A0 | 90001-0616-01A0-Online |
| E01-15 | Washer, Flat | 90412-Z080210-00A0 | 90412-Z080210-00A0-Online |
| E01-16 | Bearing, Deep Groove Ball | 90548-0202-CLA0 | 90548-0202-CLA0-Online |
Crankcase
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E02-1 | Cover, Crankcase | 11411-Z100510-0BA0 | 11411-Z100510-0BA0-Online |
| E02-2 | Gasket, Crankcase | 11001-Z100120-00A0 | 11001-Z100120-00A0-Online |
| E02-3 | Plug Subassembly, Engine Oil | 15030-Z080130-Q5A0 | 15030-Z080130-Q5A0-Online |
| E02-4 | Dipstick Subassembly, Oil | 15010-Z080130-Q5A0 | 15010-Z080130-Q5A0-Online |
| E02-6 | Pin | 90502-0812-00A0 | 90502-0812-00A0-Online |
| E02-7 | Bolt | 90001-0840-01A0 | 90001-0840-01A0-Online |
| E02-8 | Bearing, Deep Groove Ball | 90548-0207-CLA0 | 90548-0207-CLA0-Online |
| E02-9 | Gear Assy, Governor | 16400-Z100110-00A9 | 16400-Z100110-00A9-Online |
| E02-18 | Seal, Oil | 90682-Z310110-00A0 | 90682-Z310110-00A0-Online |
| E02-19 | Bearing, Deep Groove Ball | 90548-0202-CLA0 | 90548-0202-CLA0-Online |

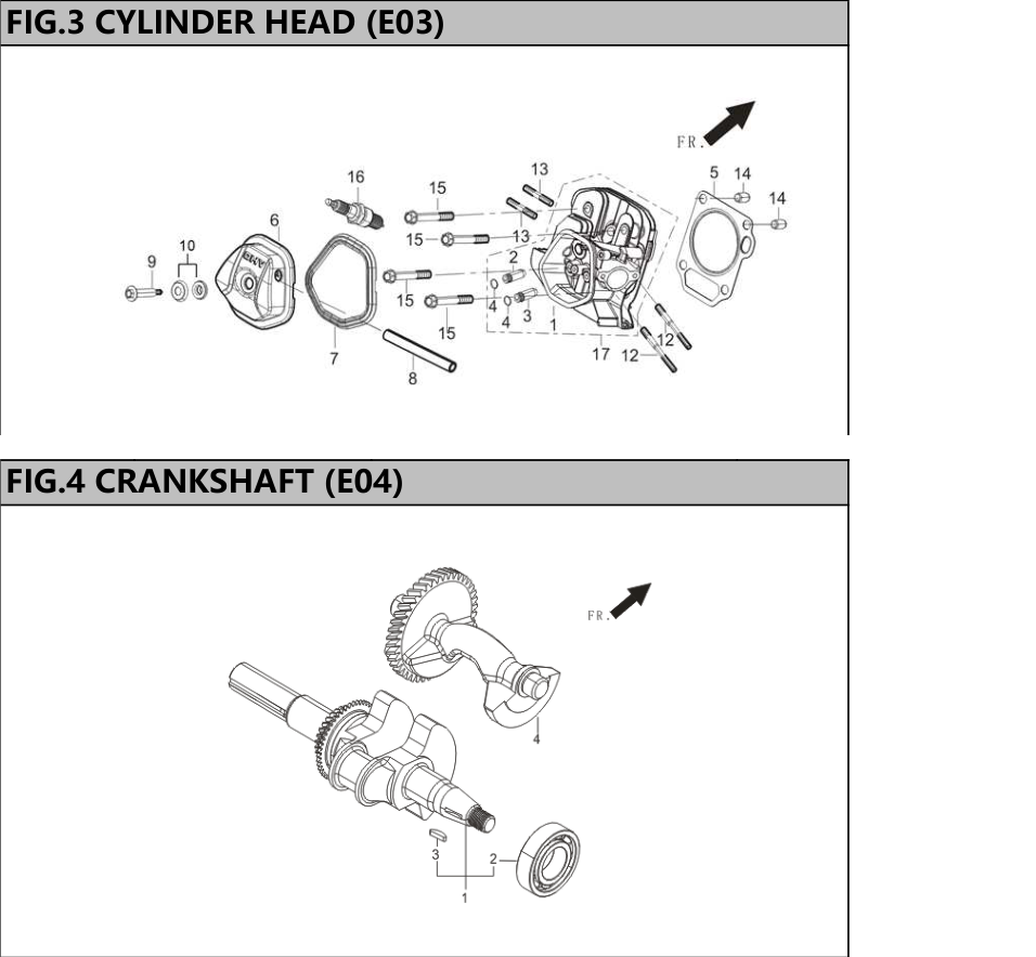

Cylinder Head
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E03-5 | Gasket, Cylinder Head | 12131-Z190410-00A0 | 12131-Z190410-00A0-Online |
| E03-6 | Cover Subassembly, Cylinder Head | 12410-Z310110-00A0 | 12410-Z310110-00A0-Online |
| E03-7 | Gasket, Cylinder Head Cover | 12004-Z080110-00A0 | 12004-Z080110-00A0-Online |
| E03-8 | Tube, Breather | 17004-Z100110-00A0 | 17004-Z100110-00A0-Online |
| E03-9 | Bolt, Cylinder Head | 12032-Z080110-01A0 | 12032-Z080110-01A0-Online |
| E03-10 | Gasket Of Bolt And Washer | 12034-Z080110-00A9 | 12034-Z080110-00A9-Online |
| E03-12 | Bolt | 90204-Z100210-01A0 | 90204-Z100210-01A0-Online |
| E03-13 | Bolt | 90204-Z100320-01A0 | 90204-Z100320-01A0-Online |
| E03-14 | Pin | 90502-1220-00A0 | 90502-1220-00A0-Online |
| E03-15 | Bolt, Cylinder Head | 12003-Z080110-00A0 | 12003-Z080110-00A0-Online |
| E03-16 | Plug, Spark | 30010-Z010110-00A0 | 30010-Z010110-00A0-Online |
| E03-17 | Head Subassembly, Cylinder | 12140-Z190150-0BA9 | 12140-Z190150-0BA9-Online |
Crankshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E04-1 | Crankshaft Assy | 13300-Z190630-00A0 | 13300-Z190630-00A0-Online |
| E04-4 | Shaft Assy, Balancing | 13400-Z190320-00A0 | 13400-Z190320-00A0-Online |

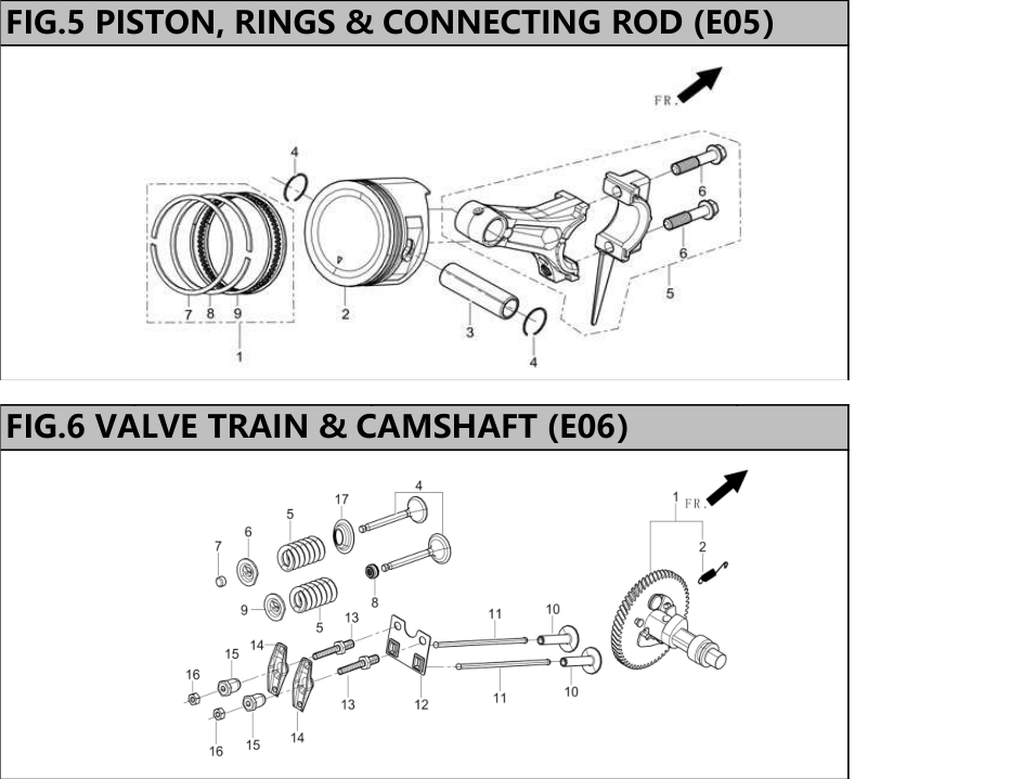

Piston, Rings and Connecting Rod
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E05-1 | Ring Assy, Piston | 13200-Z190210-00A9 | 13200-Z190210-00A9-Online |
| E05-2 | Piston | 13111-Z190310-00A9 | 13111-Z190310-00A9-Online |
| E05-3 | Pin, Piston | 13121-Z100110-00A0 | 13121-Z100110-00A0-Online |
| E05-4 | Clip, Piston Pin | 13122-Z100110-00A0 | 13122-Z100110-00A0-Online |
| E05-5 | Rod, Connecting | 13010-Z190120-00A0 | 13010-Z190120-00A0-Online |
Valve Train and Camshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E06-1 | Camshaft Assy | 14200-Z190620-00A9 | 14200-Z190620-00A9-Online |
| E06-4 | Valves Set | 12110-Z190110-00A9 | 12110-Z190110-00A9-Online |
| E06-5 | Spring, Valve | 12103-Z080110-00A0 | 12103-Z080110-00A0-Online |
| E06-6 | Retainer, Exhaust Valve | 12107-Z080110-00A0 | 12107-Z080110-00A0-Online |
| E06-7 | Rotator, Valve | 12104-Z080110-00A0 | 12104-Z080110-00A0-Online |
| E06-8 | Guide, Seal | 12101-Z080110-00A0 | 12101-Z080110-00A0-Online |
| E06-9 | Seat, Valve Spring | 12112-Z080110-00A0 | 12112-Z080110-00A0-Online |
| E06-10 | Tappet, Valve | 14081-Z080110-00A0 | 14081-Z080110-00A0-Online |
| E06-11 | Lifter Subassembly, Valve | 14070-Z100110-00A0 | 14070-Z100110-00A0-Online |
| E06-12 | Plate Subassembly, Lifter Stopper | 14090-Z080110-00A0 | 14090-Z080110-00A0-Online |
| E06-13 | Bolt, Rocker Shaft | 14313-Z010110-00A0 | 14313-Z010110-00A0-Online |
| E06-14 | Rocker, Valve | 14311-Z080110-00A0 | 14311-Z080110-00A0-Online |
| E06-15 | Nut, Valve Adjusting | 14314-Z010110-00A0 | 14314-Z010110-00A0-Online |
| E06-16 | Nut, Valve Lock | 14312-Z010110-00A0 | 14312-Z010110-00A0-Online |
| E06-17 | Retainer, Valve Spring | 12105-Z080110-00A0 | 12105-Z080110-00A0-Online |
Starter, Recoil
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E07-1 | Bolt | 90001-0608-01A0 | 90001-0608-01A0-Online |
| E07-2 | Starter Assy, Recoil | 28200-Z101210-H7A0 | 28200-Z101210-H7A0-Online |
Shroud
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E08-1 | Shroud | 28110-Z100120-H7A0 | 28110-Z100120-H7A0-Online |
| E08-2 | Shroud, Cylinder Body | 19304-Z100210-00A0 | 19304-Z100210-00A0-Online |
| E08-3 | Bolt | 90001-0612-01A0 | 90001-0612-01A0-Online |
| E08-4 | Switch Subassembly, Stop Engine | 35540-Z010110-00A0 | 35540-Z010110-00A0-Online |
| E08-5 | Bolt | 90001-0612-01A0 | 90001-0612-01A0-Online |
| E08-6 | Clip | 90684-Z080110-00A0 | 90684-Z080110-00A0-Online |
| E08-7 | Wire, Stop Engine Switch Ground | 35555-Z080110-00A0 | 35555-Z080110-00A0-Online |
| E08-8 | Wire, Stop Engine | 35541-Z080120-00A0 | 35541-Z080120-00A0-Online |

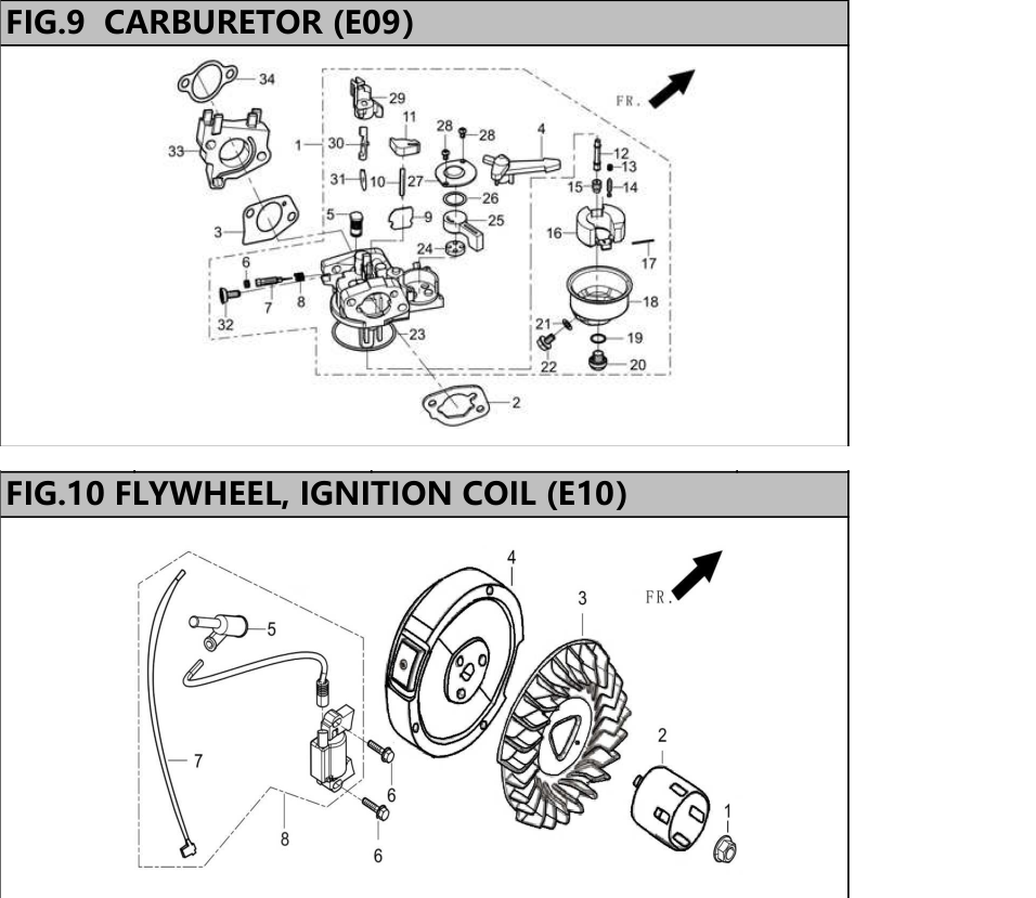

Carburetor
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E09-1 | Carburetor Assy | 16100-Z190810-00A1 | 16100-Z190810-00A1-Online |
| E09-2 | Gasket, Air Cleaner | 17001-Z080210-00A0 | 17001-Z080210-00A0-Online |
| E09-3 | Gasket, Carburetor | 16001-Z100110-00A0 | 16001-Z100110-00A0-Online |
| E09-33 | Plate, Carburetor Insulator | 16003-Z100110-00A0 | 16003-Z100110-00A0-Online |
| E09-34 | Gasket, Inlet | 17002-Z100110-00A0 | 17002-Z100110-00A0-Online |
Flywheel and Ignition Coil
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E10-1 | Nut, Flywheel | 13501-Z080110-00A0 | 13501-Z080110-00A0-Online |
| E10-2 | Pulley,Starter | 28002-Z100210-00A0 | 28002-Z100210-00A0-Online |
| E10-3 | Impeller | 19352-Z100120-00A0 | 19352-Z100120-00A0-Online |
| E10-4 | Flywheel Subassembly | 13510-Z220110-00A0 | 13510-Z220110-00A0-Online |
| E10-6 | Bolt | 90001-0628-01A0 | 90001-0628-01A0-Online |
| E10-8 | Coil, Ignition | 30400-Z190210-00A0 | 30400-Z190210-00A0-Online |

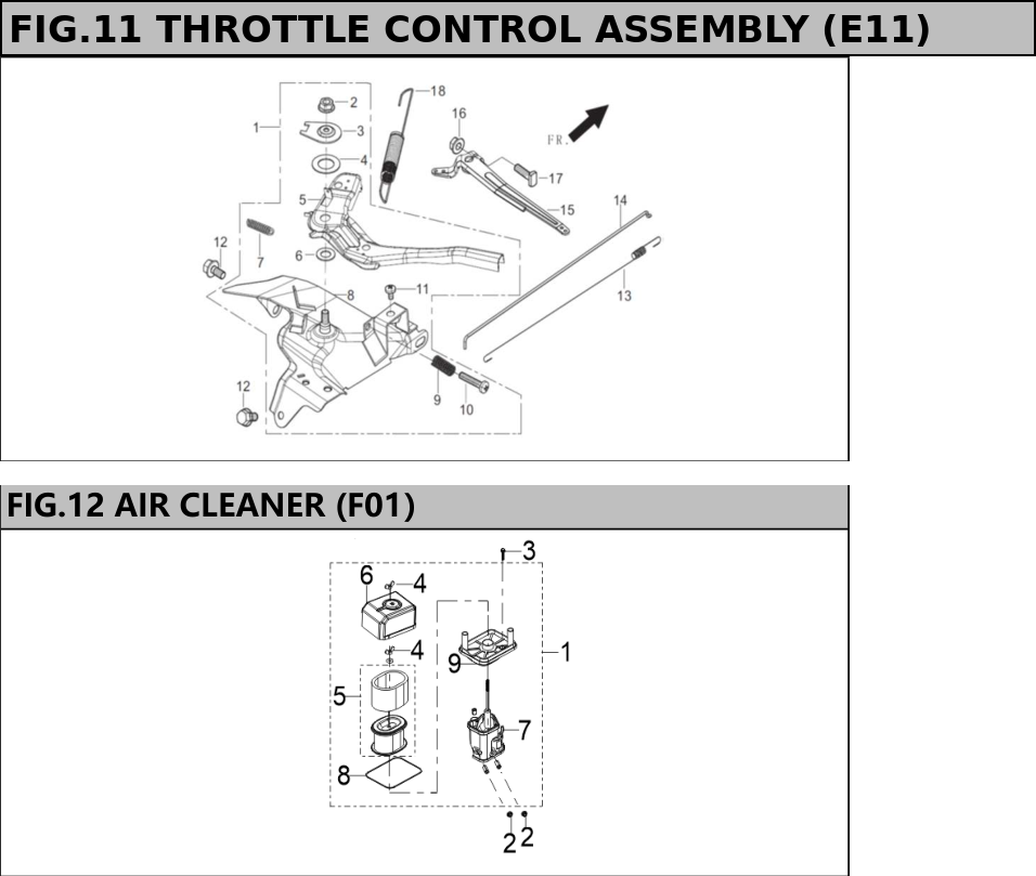

Throttle Control Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E11-1 | Control Assy, Throttle | 16520-Z100320-00A0 | 16520-Z100320-00A0-Online |
| E11-12 | Bolt | 90001-0612-01A0 | 90001-0612-01A0-Online |
| E11-13 | Spring, Throttle Valve Returning | 16012-Z080110-00A0 | 16012-Z080110-00A0-Online |
| E11-14 | Rod, Governor | 16062-Z100110-00A0 | 16062-Z100110-00A0-Online |
| E11-15 | Support Subassembly, Governor | 16070-Z100120-00A0 | 16070-Z100120-00A0-Online |
| E11-16 | Nut | 90305-0600-31A0 | 90305-0600-31A0-Online |
| E11-17 | Bolt, Governor Support | 16072-Z010110-00A0 | 16072-Z010110-00A0-Online |
| E11-18 | Spring, Governor | 16063-Z100710-00A0 | 16063-Z100710-00A0-Online |
Air Cleaner
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F01-1 | Cleaner, Air | 17100-Z100110-00A0 | 17100-Z100110-00A0-Online |
| F01-2 | Nut | 90305-0600-31A0 | 90305-0600-31A0-Online |
| F01-3 | Bolt | 90007-0620-A1A0 | 90007-0620-A1A0-Online |
| F01-4 | — | 90312-0600-00A0 | 90312-0600-00A0-Online |
| F01-5 | Element Subassembly, Air Cleaner | 17150-Z100110-00A0 | 17150-Z100110-00A0-Online |
| F01-6 | Cover, Air Cleaner Case | 17104-Z100120-00A0 | 17104-Z100120-00A0-Online |
| F01-7 | Elbow Subassembly, Air Cleaner | 17140-Z100110-00A0 | 17140-Z100110-00A0-Online |
| F01-8 | Gasket, Air Cleaner Case | 17107-Z010210-00A0 | 17107-Z010210-00A0-Online |
| F01-9 | Plate, Element Supporting | 17115-Z100110-00A0 | 17115-Z100110-00A0-Online |

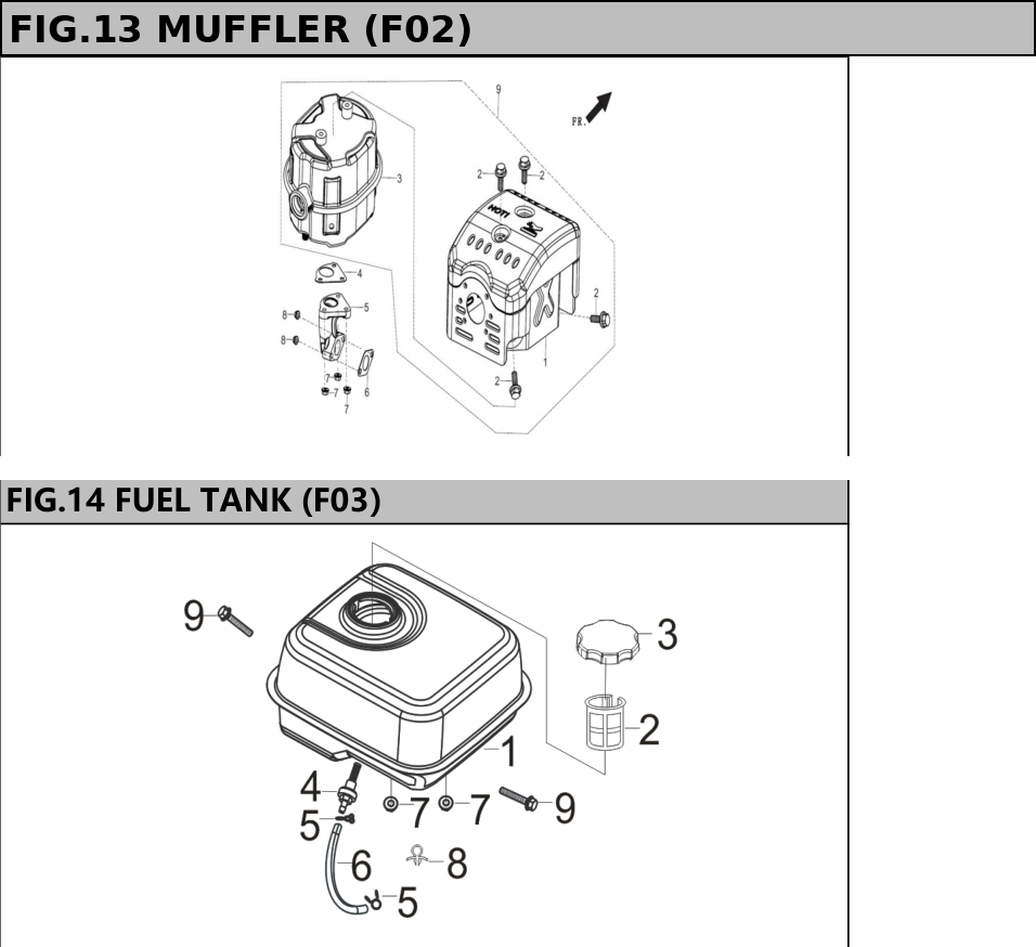

Muffler
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F02-4 | Gasket, Muffler | 18101-Z080110-00A0 | 18101-Z080110-00A0-Online |
| F02-5 | Pipe, Exhaust | 18150-Z080210-00A0 | 18150-Z080210-00A0-Online |
| F02-6 | Gasket, Exhaust Outlet | 18001-Z190110-00A0 | 18001-Z190110-00A0-Online |
| F02-7 | Nut | 90305-0800-31A0 | 90305-0800-31A0-Online |
| F02-8 | Nut | 90305-0800-31A0 | 90305-0800-31A0-Online |
| F02-9 | Muffler Assy | 18100-Z100110-00A0 | 18100-Z100110-00A0-Online |
Fuel Tank
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F03-1 | Tank, Fuel | 16620-Z080410-H7AP | 16620-Z080410-H7AP-Online |
| F03-2 | Strainer,Fuel | 16652-Z010610-00A0 | 16652-Z010610-00A0-Online |
| F03-3 | Cover, Fuel Tank | 16730-Z010820-QBA0 | 16730-Z010820-QBA0-Online |
| F03-4 | Outlet Subassembly, Fuel Tank Oil | 16680-Z010110-00A0 | 16680-Z010110-00A0-Online |
| F03-5 | Collar | 90740-Z010210-00A0 | 90740-Z010210-00A0-Online |
| F03-6 | Tube, Fuel | 90686-Z080910-00A0 | 90686-Z080910-00A0-Online |
| F03-7 | Nut | 90305-0800-31A0 | 90305-0800-31A0-Online |
| F03-8 | Clip | 90684-Z080110-00A0 | 90684-Z080110-00A0-Online |
| F03-9 | Bolt | 90001-0825-01A0 | 90001-0825-01A0-Online |
