STIHL HL145 IPL Parts Diagram

STIHL HL145 IPL Parts Diagram

STIHL HL145 IPL Parts Diagram

Use this IPL to identify replacement parts. Each section shows the exploded diagram first, followed by a clickable HTML parts list. Click a Cutsmart SKU to open the matching product by SKU.

Brand section: Stihl   |   Suggested machine SKU: HL145-Online

Open machine/store option

Drive tube assembly

STIHL HL145 IPL Parts Diagram Drive tube assembly diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Drive tube assembly Ø 25.4 mm / 1" — Contains: 3, 5 - 104243 710 71234243-710-7123-Online1
2Drive tube assembly Ø 25.4 mm / 1" — Contains: 4 - 10 | USA4243 710 71244243-710-7124-Online1
3Warning pictogram HL0000 967 72940000-967-7294-Online1
4Warning pictogram HL — Contains: USA0000 967 72950000-967-7295-Online1
5Plug4137 711 21014137-711-2101-Online1
6Handle hose 270 mm / 10 5/8"4230 791 20014230-791-2001-Online1
7Drive sha — Contains: 84140 710 32254140-710-3225-Online1
8Sleeve4140 711 25004140-711-2500-Online1
9Sleeve4140 791 72074140-791-7207-Online1
10Cap4133 717 20004133-717-2000-Online2
11Multipurpose grease 225 g0781 120 11100781-120-1110-Online1

Angle drive, adjustable thru 145°, 500 mm

STIHL HL145 IPL Parts Diagram Angle drive, adjustable thru 145°, 500 mm diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Gear housing — Contains: 2 - 9, 184243 640 05354243-640-0535-Online1
2Drive pinion — Contains: 3, 44243 640 25024243-640-2502-Online1
3Grooved ball bearing 609-2Z9503 003 98709503-003-9870-Online1
4Circlip 9x19455 621 07509455-621-0750-Online1
5Circlip 24x1.29456 621 26609456-621-2660-Online1
6Plug screw4226 641 65004226-641-6500-Online1
7Drive pinion4243 640 25034243-640-2503-Online1
8Pan head screw IS M5x209022 371 10209022-371-1020-Online1
9Ring4243 642 82014243-642-8201-Online1
10Ring4243 642 82004243-642-8200-Online1
11Set of mounting hardware — Contains: 12 - 174243 007 13004243-007-1300-Online1
12Cap4243 642 19004243-642-1900-Online1
13Screw4243 951 97004243-951-9700-Online1
14Cup spring 15x8,2x0,89486 648 10129486-648-1012-Online6
15Washer4243 642 78014243-642-7801-Online1
16Screw sleeve4243 642 90024243-642-9002-Online1
17Spline screw IS-M3x7-12.99022 373 03349022-373-0334-Online1
18Lock4243 640 45064243-640-4506-Online1
19Gear housing (145°, 500 mm) — Contains: 20 - 494243 640 05364243-640-0536-Online1
20Gear housing (145°, 500 mm) — Contains: 21 - 244243 640 05134243-640-0513-Online1
21Washer4243 641 26024243-641-2602-Online1
22Ball bearing4243 640 51004243-640-5100-Online2
23Circlips DIN472-19x19456 621 20009456-621-2000-Online1
24Warning pictogram0000 967 72990000-967-7299-Online1
25Perforated strip4243 642 46014243-642-4601-Online1
26Pan head self-tapping screw IS-D4x129075 478 30129075-478-3012-Online2
27Compression spring0000 997 20200000-997-2020-Online1

Angle drive, adjustable thru 145°, 500 mm

STIHL HL145 IPL Parts Diagram Angle drive, adjustable thru 145°, 500 mm diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Angle drive, adjustable thru 145°, 600 mm

STIHL HL145 IPL Parts Diagram Angle drive, adjustable thru 145°, 600 mm diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
28Locking pin4243 642 45004243-642-4500-Online1
29Snap ring DIN7993-B109458 621 14219458-621-1421-Online1
30Sha4243 704 09004243-704-0900-Online1
31Notched quadrant4243 708 62024243-708-6202-Online1
32Torsion spring4243 182 45014243-182-4501-Online1
33E-clip 3.29460 624 03209460-624-0320-Online1
34Adjusting lever4243 700 29014243-700-2901-Online1
35Pan head self-tapping screw IS-D5x209075 478 41369075-478-4136-Online1
36Cam4243 640 16004243-640-1600-Online1
37Hexagon nut M69210 319 09009210-319-0900-Online1
38Blade 600 mm / 24"4243 710 60044243-710-6004-Online1
39Gasket4243 649 03004243-649-0300-Online1
40Cover plate kit 600 mm4243 007 10044243-007-1004-Online1
41Gearbox cover — Contains: 22, 424243 640 58004243-640-5800-Online1
42Sleeve0000 988 86000000-988-8600-Online2
43Pan head self-tapping screw IS-D5x209075 478 41369075-478-4136-Online4
44Spline screw IS-M5x254237 716 04004237-716-0400-Online11
45Washer4237 958 05004237-958-0500-Online13
46Cover plate4243 717 31004243-717-3100-Online1
47Sleeve 4.4 mm4242 641 49004242-641-4900-Online11
48Hexagon nut M59216 263 07009216-263-0700-Online11
49Guide guard4237 792 90064237-792-9006-Online1
50Blade guard 600 mm / 24"0000 790 92010000-790-9201-Online1
51Multi-purpose grease (Multilub tube — 80 g)0781 120 11090781-120-1109-Online1

Tightening torques

STIHL HL145 IPL Parts Diagram Tightening torques diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Pan head self-tapping screw IS-D4x129075 478 30129075-478-3012-Online2
2Plug screw4226 641 65004226-641-6500-Online2
3Hexagon nut M69210 319 09009210-319-0900-Online1
4Spline screw IS-M3x7-12.99022 373 03349022-373-0334-Online1
5Spline screw IS-M5x254237 716 04004237-716-0400-Online10
6Pan head self-tapping screw IS-D5x209075 478 41369075-478-4136-Online4

Miscellaneous lubricants and greases

STIHL HL145 IPL Parts Diagram Miscellaneous lubricants and greases diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1STIHL Multilub 40g tube0781 120 10210781-120-1021-Online1
1Multi-purpose grease (Multilub tube — 80 g)0781 120 11090781-120-1109-Online1
1Multipurpose grease 225 g0781 120 11100781-120-1110-Online1

Miscellaneous lubricants and greases

STIHL HL145 IPL Parts Diagram Miscellaneous lubricants and greases diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1STIHL Multilub 40g tube0781 120 10210781-120-1021-Online1
1Multi-purpose grease (Multilub tube — 80 g)0781 120 11090781-120-1109-Online1
1Multipurpose grease 225 g0781 120 11100781-120-1110-Online1

Cleaning products

STIHL HL145 IPL Parts Diagram Cleaning products diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Multispray 50 ml0730 411 70020730-411-7002-Online1
1Multispray0730 411 70000730-411-7000-Online1
2VarioClean 500 ml0000 881 94000000-881-9400-Online1
2Special cleaner 5 l0000 881 94090000-881-9409-Online1
3SuperClean 50 ml0782 420 10010782-420-1001-Online1
3SuperClean 300 ml0782 420 10020782-420-1002-Online1
4Multioil Bio 50 ml0782 516 85000782-516-8500-Online1

Cleaning products

STIHL HL145 IPL Parts Diagram Cleaning products diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Carb & Choke Cleaner (11oz) - 6P7010 881 94007010-881-9400-Online1
2Heavy Duty Degreaser (28 oz) - 6P7010 881 94017010-881-9401-Online1
2Heavy Duty Degreaser - 1 gal.7010 871 02147010-871-0214-Online1
3General purpose oil 4 oz.7010 871 01987010-871-0198-Online1
4Multi Purpose Penetrating Oil (10oz) 6P7010 881 94027010-881-9402-Online1
5SuperClean 300 ml0782 420 10020782-420-1002-Online1
5HEDGE TRIMMER BLADE CLEANER 6 — PACK7010 871 01577010-871-0157-Online1

Socket, T27x125

STIHL HL145 IPL Parts Diagram Socket, T27x125 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Driver bit, 1/4" square drive, T27x1250812 542 21040812-542-2104-Online1

Press arbor

STIHL HL145 IPL Parts Diagram Press arbor diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Press arbor4119 893 72004119-893-7200-Online1

Torque wrench with optical/acoustic signal

STIHL HL145 IPL Parts Diagram Torque wrench with optical/acoustic signal diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Torque wrench with optical/acousticsig- — nal5910 890 03125910-890-0312-Online1

Torque wrench

STIHL HL145 IPL Parts Diagram Torque wrench diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Torque wrench5910 890 03115910-890-0311-Online1

Torque wrench with optical/acoustic signal

STIHL HL145 IPL Parts Diagram Torque wrench with optical/acoustic signal diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Torque wrench

STIHL HL145 IPL Parts Diagram Torque wrench diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Torque wrench5910 890 03015910-890-0301-Online1

Jaw (profile No. 1 and 2)

STIHL HL145 IPL Parts Diagram Jaw (profile No. 1 and 2) diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Jaw (profile No. 1 and 2)0000 893 37000000-893-3700-Online1

Puller

STIHL HL145 IPL Parts Diagram Puller diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Puller — Contains: 1-85910 890 44005910-890-4400-Online1
1Wing screw M5x169157 691 09809157-691-0980-Online2
2Pan head screw M5x169044 319 09809044-319-0980-Online2
3Jaw (profile No. 1 and 2)0000 893 37000000-893-3700-Online2
4Jaw (profile No. 3.1 and 4)0000 893 37060000-893-3706-Online2
5Jaw (profile No. 6)0000 893 37110000-893-3711-Online2
6Jaw (profile No. 7)0000 893 37030000-893-3703-Online2
7Jaw (profile No. 8)0000 893 37040000-893-3704-Online2
8Jaw (profile No. 9)0000 893 37070000-893-3707-Online2

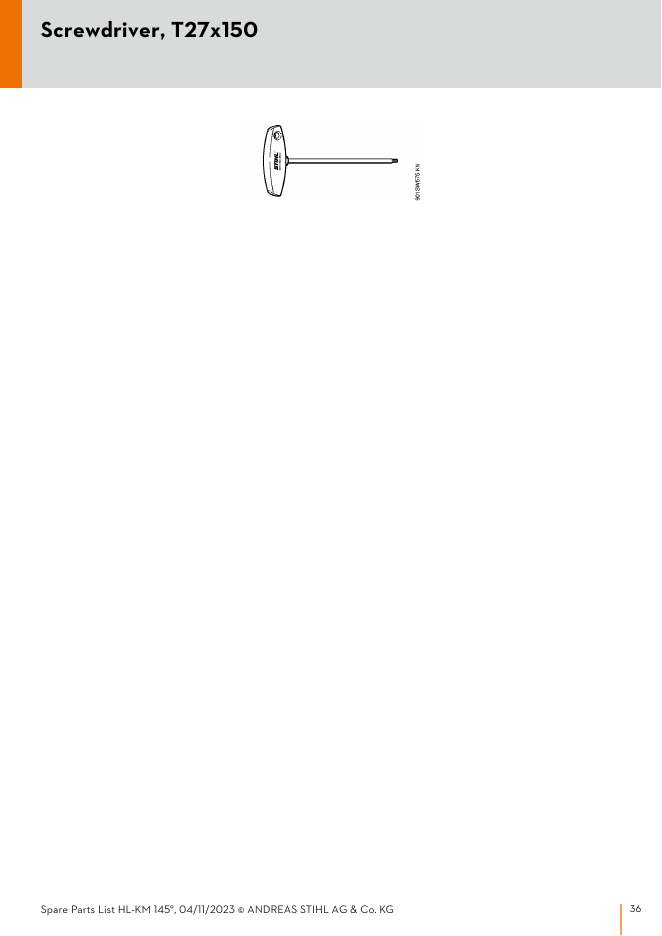

Screwdriver, T27x150

STIHL HL145 IPL Parts Diagram Screwdriver, T27x150 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Screwdriver, T27x1505910 890 24005910-890-2400-Online1
