STIHL HTA85 IPL Parts Diagram

STIHL HTA85 IPL Parts Diagram

STIHL HTA85 IPL Parts Diagram

Use this IPL to identify replacement parts. Each section shows the exploded diagram first, followed by a clickable HTML parts list. Click a Cutsmart SKU to open the matching product by SKU.

Brand section: Stihl   |   Suggested machine SKU: HTA85-Online

Open machine/store option

Handle housing, Cover

STIHL HTA85 IPL Parts Diagram Handle housing, Cover diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Handle housing — Contains: 2, 4, 54855 790 10514855-790-1051-Online1
2Trigger switch — Above Serial Number: 4358750114852 435 24024852-435-2402-Online1
3Trigger switch — Up to Serial Number: 4358281814852 435 24014852-435-2401-Online1
4Torsion spring0000 998 04060000-998-0406-Online1
5Trigger switch lockout — Above Serial Number: 4358281814852 435 63024852-435-6302-Online1
6Trigger switch lockout — Up to Serial Number: 4358281814852 435 63004852-435-6300-Online1
7Wiring harness4857 440 30014857-440-3001-Online1
8Contact plate4860 404 08004860-404-0800-Online1
9Plug housing1252 440 15001252-440-1500-Online1
10Switch4857 430 05024857-430-0502-Online1
11Detent lever4852 435 28004852-435-2800-Online1
12Spring4851 791 31004851-791-3100-Online1
13Locking lever4852 435 73014852-435-7301-Online2
14Torsion spring0000 998 04050000-998-0405-Online2
15Cover HTA 854857 600 35004857-600-3500-Online1
16Rating plate HTA 85 — Contains: Europe4857 967 18004857-967-1800-Online1
16Rating plate HTA 85 — Contains: Eastern Europe4857 967 18024857-967-1802-Online1
16Rating plate HTA 85 — Contains: CDN4857 967 18034857-967-1803-Online1
16Rating plate HTA 85 — Contains: BR, J4857 967 18044857-967-1804-Online1
17Pan head self-tapping screw IS-P5x189074 477 41329074-477-4132-Online10
18Cover — Contains: USA, CDN4850 602 09004850-602-0900-Online1
19Foot mounting kit — Contains: 20, 214857 007 10014857-007-1001-Online1
20Support foot4855 820 10004855-820-1000-Online1
21Pan head self-tapping screw IS-P5x189074 477 41329074-477-4132-Online4

Drive tube assembly

STIHL HTA85 IPL Parts Diagram Drive tube assembly diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Drive tube assembly Ø 38x1604 mm — Contains: 24857 710 71004857-710-7100-Online1
2Warning pictogram HTA4857 967 72004857-967-7200-Online1
3O-ring 40x49645 948 79959645-948-7995-Online1
4Clamp4857 716 65004857-716-6500-Online1
5Pan head screw M6x359041 424 13809041-424-1380-Online1
6Thrust washer4857 793 96004857-793-9600-Online1
7Clamping lever4859 740 53004859-740-5300-Online1
8Spline screw IS-M5x149022 341 09759022-341-0975-Online2
9Hexagon nut M59210 260 07009210-260-0700-Online2
10Drive tube4857 711 02014857-711-0201-Online1
11Clamp4857 716 65034857-716-6503-Online1
12Spline screw IS-M6x309022 341 13709022-341-1370-Online2
13Washer 6.49294 021 01409294-021-0140-Online2
14Hexagon nut M69210 319 09009210-319-0900-Online2
15Lead retainer4857 448 12024857-448-1202-Online1
16Sleeve4857 711 25004857-711-2500-Online1
17Sleeve4857 791 72004857-791-7200-Online1
18Tube4857 711 03004857-711-0300-Online1
19Plug4857 793 77004857-793-7700-Online1
20Pan head self-tapping screw IS-P6x199074 478 44359074-478-4435-Online1
21Hose clamp kit — Contains: 224140 007 10064140-007-1006-Online1
22Spline screw IS-M6x149022 341 12709022-341-1270-Online1
23Holding down block4857 792 99004857-792-9900-Online1

Motor housing, Electric motor, Oil tank

STIHL HTA85 IPL Parts Diagram Motor housing, Electric motor, Oil tank diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Motor housing HTA 854857 600 08044857-600-0804-Online1
2Electric motor1252 600 02001252-600-0200-Online1
3Fanwheel4857 607 30024857-607-3002-Online1
4E-clip 8x1.39460 624 08019460-624-0801-Online1
5Electronic module4857 430 14004857-430-1400-Online1
6Plug housing1252 440 15001252-440-1500-Online1
7Plug housing4857 440 15004857-440-1500-Online1
8Oil tank — Contains: 9 - 11, 14 - 161252 350 44001252-350-4400-Online1
9Grommet0000 989 08160000-989-0816-Online1
10Oil pump4857 640 32024857-640-3202-Online1
11Valve1128 640 91001128-640-9100-Online1
12Hose 3.1x5.7 mm x 1 m, R30000 930 28030000-930-2803-Online1
13Hose 3.1x5.7 mm x 10 m, R30712 923 80040712-923-8004-Online1
14Pickup body1123 640 38001123-640-3800-Online1
15Filler cap — Contains: 160000 350 05360000-350-0536-Online1
16O-ring 23x39645 948 24709645-948-2470-Online1
17Self-tapping screw P4x169104 003 87339104-003-8733-Online8
18Multipurpose grease 80 g0781 120 11090781-120-1109-Online1

Chain sprocket cover

STIHL HTA85 IPL Parts Diagram Chain sprocket cover diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Chain sprocket coverLA03 640 1700LA03-640-1700-Online1
2Mounting plate — Contains: 3, 4LA03 600 1600LA03-600-1600-Online1
3Collar screw M84857 664 24004857-664-2400-Online1
4Collar screw M51143 664 24021143-664-2402-Online1
5Pan head self-tapping screw IS-D5x189075 478 40859075-478-4085-Online3
6Pan head self-tapping screw IS-P6x199074 478 44359074-478-4435-Online2
7Chain sprocket 1/4" Picco 6T4857 642 12024857-642-1202-Online1
8E-clip 8x1.39460 624 08019460-624-0801-Online1
9Spur gear / chain adjusting screw kit1123 007 10041123-007-1004-Online1
10Thrust pad1123 664 14001123-664-1400-Online1
11Tensioner slide1123 640 19001123-640-1900-Online1
12Cover1123 664 22001123-664-2200-Online1
13Spline screw IS-M4x109022 341 06509022-341-0650-Online1
14Hook4857 716 10004857-716-1000-Online1
15Pan head self-tapping screw IS-D5x169075 478 41199075-478-4119-Online1
16Bumper strip1123 648 66001123-648-6600-Online2
1771PM3 chain Picco Micro3670 000 00563670-000-0056-Online1
18Guide bar 25 cm / 10" 1.1 mm / 0.043" / — 1/4" Picco3005 008 34033005-008-3403-Online1
1971PM3 chain Picco Micro3670 000 00643670-000-0064-Online1
20Guide bar 30cm/12" 1,1mm/0.043" 1/4"P3005 008 34053005-008-3405-Online1

Tools, Extras

STIHL HTA85 IPL Parts Diagram Tools, Extras diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Combination wrench1129 890 34011129-890-3401-Online1
2Safety glasses0000 884 03070000-884-0307-Online1
3Harness — Contains: 4-74119 710 90124119-710-9012-Online1
4Slide4203 792 72004203-792-7200-Online3
5Spring safety hook4119 710 69004119-710-6900-Online1
6Webbing 25 mm x 10 m / 1" x 33'0000 930 22410000-930-2241-Online1
7Slide4119 718 63204119-718-6320-Online1
8Rivet shank 4x8x6 — Contains: (quantity as re- | quired)9408 021 45309408-021-4530-Online1
9Rivet head 4x8 — Contains: (quantity as re- | quired)9409 021 44209409-021-4420-Online1

Serial number

STIHL HTA85 IPL Parts Diagram Serial number diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Position of serial number0000 I00 09190000-I00-0919-Online1

Tightening torques

STIHL HTA85 IPL Parts Diagram Tightening torques diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Pan head self-tapping screw IS-P5x189074 477 41329074-477-4132-Online2
2Pan head self-tapping screw IS-P5x189074 477 41329074-477-4132-Online7
3Spline screw IS-M6x14 — Contains: Binding thread9022 341 12709022-341-1270-Online1
4Spline screw IS-M6x30 — Contains: Binding thread9022 341 13709022-341-1370-Online2
5Spline screw IS-M5x14 — Contains: Binding thread9022 341 09759022-341-0975-Online2
6Pan head screw M6x359041 424 13809041-424-1380-Online1
7Pan head self-tapping screw IS-P6x199074 478 44359074-478-4435-Online1

Tightening torques

STIHL HTA85 IPL Parts Diagram Tightening torques diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Self-tapping screw P4x169104 003 87339104-003-8733-Online8
2Pan head self-tapping screw IS-D5x189075 478 40859075-478-4085-Online3
3Pan head self-tapping screw IS-P6x199074 478 44359074-478-4435-Online2
4Collar screw M8 — Contains: Medium-high | strength thread- locking adhesive4857 664 24004857-664-2400-Online1
5Collar screw M5 — Contains: Micro-encapsulat- | ed with binding thread1143 664 24021143-664-2402-Online1
6Spline screw IS-M4x10 — Contains: Micro-encapsulat- | ed with binding thread9022 341 06509022-341-0650-Online1
7Pan head self-tapping screw IS-D5x169075 478 41199075-478-4119-Online1

Miscellaneous lubricants and greases

STIHL HTA85 IPL Parts Diagram Miscellaneous lubricants and greases diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1STIHL Multilub 40g tube0781 120 10210781-120-1021-Online1
1Multipurpose grease 80 g0781 120 11090781-120-1109-Online1
1Multipurpose grease 225 g0781 120 11100781-120-1110-Online1
2Press fluid OH 7230781 957 90000781-957-9000-Online1

Cleaning products

STIHL HTA85 IPL Parts Diagram Cleaning products diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Multispray 50 ml0730 411 70020730-411-7002-Online1
1Multispray0730 411 70000730-411-7000-Online1
2Special cleaner0000 881 94000000-881-9400-Online1
2Special cleaner 5 l0000 881 94090000-881-9409-Online1
3Resin solvent 50 ml0782 420 10010782-420-1001-Online1
3Resin solvent 300 ml0782 420 10020782-420-1002-Online1
4Multioil Bio 50 ml0782 516 85000782-516-8500-Online1

Socket, T27x125

STIHL HTA85 IPL Parts Diagram Socket, T27x125 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Driver bit, 1/4" square drive, T27x1250812 542 21040812-542-2104-Online1

Stud puller, M8

STIHL HTA85 IPL Parts Diagram Stud puller, M8 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Stud puller, M85910 893 05015910-893-0501-Online1

Assembly hook

STIHL HTA85 IPL Parts Diagram Assembly hook diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Assembly hook5910 893 88005910-893-8800-Online1

Torque wrench with optical/acoustic signal

STIHL HTA85 IPL Parts Diagram Torque wrench with optical/acoustic signal diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Torque wrench with optical/acousticsig- — nal5910 890 03125910-890-0312-Online1

Torque wrench with optical/acoustic signal

STIHL HTA85 IPL Parts Diagram Torque wrench with optical/acoustic signal diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Torque wrench with optical/acousticsig- — nal5910 890 03025910-890-0302-Online1

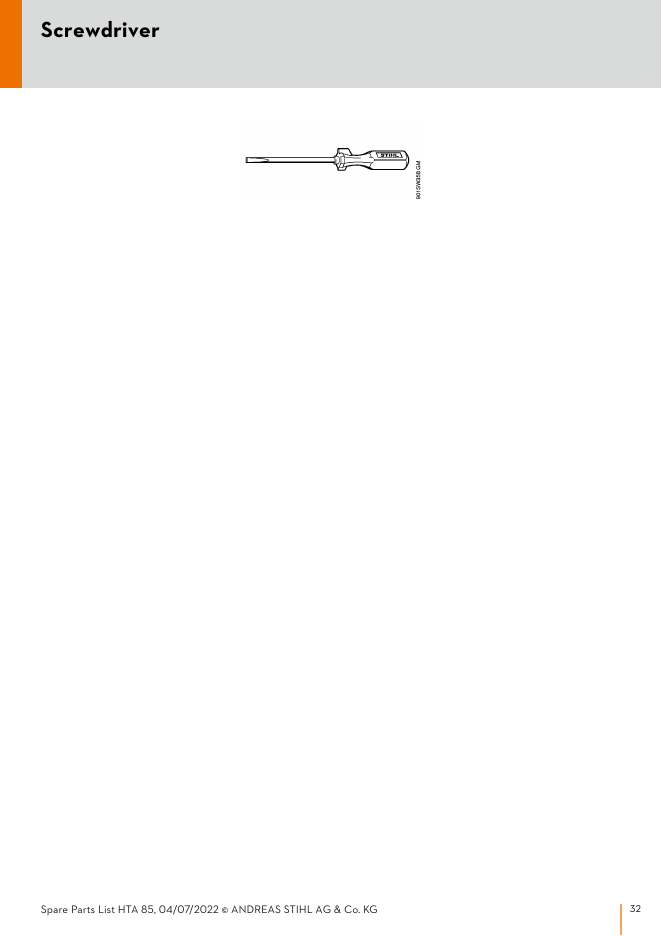

Screwdriver

STIHL HTA85 IPL Parts Diagram Screwdriver diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Screwdriver0000 890 23000000-890-2300-Online1

Puller

STIHL HTA85 IPL Parts Diagram Puller diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Puller — Contains: 1-85910 890 44005910-890-4400-Online1
1Wing screw M5x169157 691 09809157-691-0980-Online2
2Pan head screw M5x169044 319 09809044-319-0980-Online2
3Jaw (profile No. 1 and 2)0000 893 37000000-893-3700-Online2
4Jaw (profile No. 3.1 and 4)0000 893 37060000-893-3706-Online2
5Jaw (profile No. 6)0000 893 37110000-893-3711-Online2
6Jaw (profile No. 7)0000 893 37030000-893-3703-Online2
7Jaw (profile No. 8)0000 893 37040000-893-3704-Online2
8Jaw (profile No. 9)0000 893 37070000-893-3707-Online2

Punchdown tool

STIHL HTA85 IPL Parts Diagram Punchdown tool diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Punchdown tool5910 890 40005910-890-4000-Online1

Stud puller, M8-7,5

STIHL HTA85 IPL Parts Diagram Stud puller, M8-7,5 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Stud driver M8-7.55910 890 30005910-890-3000-Online1

Battery analyzer ADG 1 Europe

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 Europe diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 Europe — Contains: 14850 840 01004850-840-0100-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 GB

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 GB diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 GB — Contains: 14850 840 01014850-840-0101-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 USA

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 USA diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 USA — Contains: 14850 840 01024850-840-0102-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 AR

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 AR diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 AR — Contains: 14850 840 01104850-840-0110-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

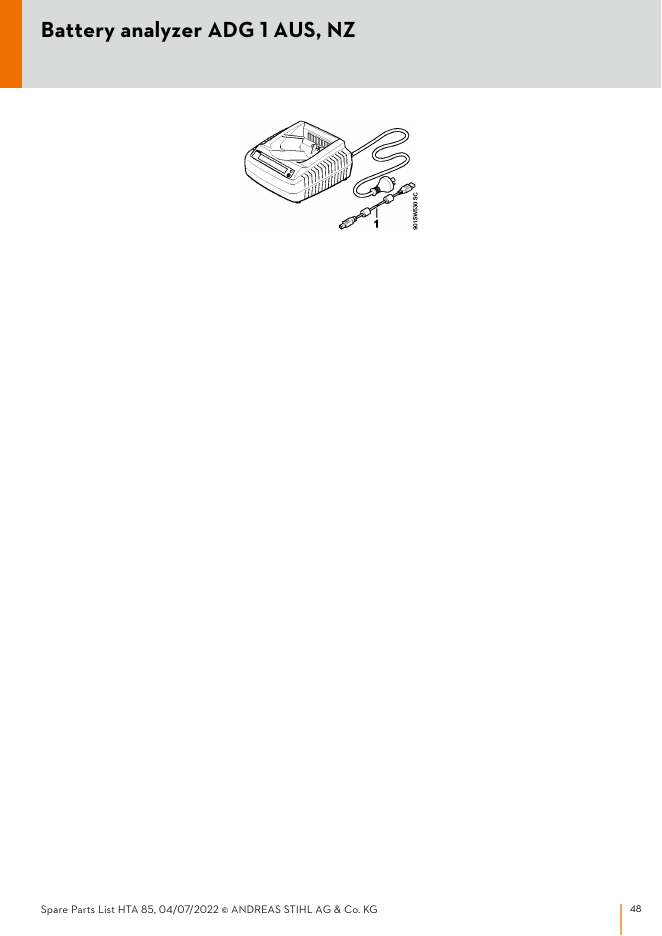

Battery analyzer ADG 1 AUS, NZ

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 AUS, NZ diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 AUS, NZ — Contains: 14850 840 01034850-840-0103-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 CDN

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 CDN diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 CDN — Contains: 14850 840 01044850-840-0104-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 J

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 J diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 J — Contains: 14850 840 01054850-840-0105-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 PRC

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 PRC diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 PRC — Contains: 14850 840 01064850-840-0106-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 BR 220 V

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 BR 220 V diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 BR 220 V — Contains: 14850 840 01074850-840-0107-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 1 BR 127 V

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 1 BR 127 V diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Battery analyzer ADG 1 BR 127 V — Contains: 14850 840 01084850-840-0108-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 Europe

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 Europe diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02404850-840-0240-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 GB

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 GB diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02414850-840-0241-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 USA

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 USA diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02424850-840-0242-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 AR

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 AR diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02504850-840-0250-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 AUS, NZ

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 AUS, NZ diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02434850-840-0243-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 CDN

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 CDN diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02444850-840-0244-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 Eastern Europe

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 Eastern Europe diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02454850-840-0245-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 J

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 J diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02464850-840-0246-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Diagnostic unit ADG 2 RUS

STIHL HTA85 IPL Parts Diagram Diagnostic unit ADG 2 RUS diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02474850-840-0247-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 2 PRC

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 2 PRC diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02284850-840-0228-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 2 BR 220 V

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 2 BR 220 V diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02294850-840-0229-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Battery analyzer ADG 2 BR 127 V

STIHL HTA85 IPL Parts Diagram Battery analyzer ADG 2 BR 127 V diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
ADG 2 Battery analyzer — Contains: 14850 840 02314850-840-0231-Online1
1USB 2.0 cable 1.8 m5910 840 05015910-840-0501-Online1

Screwdriver, T27x150

STIHL HTA85 IPL Parts Diagram Screwdriver, T27x150 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Screwdriver, T27x1505910 890 24005910-890-2400-Online1

Screwdriver, T27x200

STIHL HTA85 IPL Parts Diagram Screwdriver, T27x200 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Screwdriver, T27x2005910 890 24155910-890-2415-Online1

Jaw (profile No. 8)

STIHL HTA85 IPL Parts Diagram Jaw (profile No. 8) diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
Jaw (profile No. 8)0000 893 37040000-893-3704-Online1
\n
\n
