STIHL FS291 IPL Parts Diagram

STIHL FS291 IPL Parts Diagram

STIHL FS291 IPL Parts Diagram

Use this IPL to identify replacement parts. Each section shows the exploded diagram first, followed by a clickable HTML parts list. Click a Cutsmart SKU to open the matching product by SKU.

Brand section: Stihl   |   Suggested machine SKU: FS291-Online

Open machine/store option

A - Crankcase, Cylinder

STIHL FS291 IPL Parts Diagram A - Crankcase, Cylinder diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Crankcase, fan side β€” Contains: 2-44147 020 26094147-020-2609-Online1
2Grooved ball bearing 60029503 003 03109503-003-0310-Online1
3Sleeve0000 988 86000000-988-8600-Online4
4Oil seal 15x25x59639 003 15859639-003-1585-Online1
5Crankcase β€” Contains: 6, 74147 020 29044147-020-2904-Online1
6Grooved ball bearing 62019503 003 02429503-003-0242-Online1
7Oil seal 12x22x59640 003 11959640-003-1195-Online1
8Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online4
9Crankshaξ€€4147 030 04034147-030-0403-Online1
10Cylinder with piston Ø 42 mm β€” Contains: 12 - 154147 020 12074147-020-1207-Online1
12Piston Ø 42 mm β€” Contains: 13 - 154147 030 20114147-030-2011-Online1
13Piston ring Ø 42x1.2 mm4147 034 30044147-034-3004-Online2
14Snap ring 119463 650 11009463-650-1100-Online2
15Piston pin 11x7x284147 034 15014147-034-1501-Online1
16Needle cage 11x14x12,59512 003 23499512-003-2349-Online1
17Cylinder gasket4147 029 23004147-029-2300-Online1
18Pan head self-tapping screw IS-D5x32 β€” Contains: Binding thread9075 478 41679075-478-4167-Online4
19Sealant, Dirko HT red0783 830 20000783-830-2000-Online1
20Set of gaskets β€” Contains: 4, 7, 174147 007 16024147-007-1602-Online1

B - Rewind starter

STIHL FS291 IPL Parts Diagram B - Rewind starter diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Rewind starter β€” Contains: 2 - 114147 190 40034147-190-4003-Online1
2Starter cover β€” Contains: 34147 190 04044147-190-0404-Online1
3Bushing1110 084 91021110-084-9102-Online1
4Starter grip1121 195 34001121-195-3400-Online1
5Starter rope Ø 3x1010 mm4147 195 82004147-195-8200-Online1
6Rewind spring4147 190 06004147-190-0600-Online1
7Self-tapping screw P3x69104 003 04109104-003-0410-Online2
8Rope rotor4147 195 04014147-195-0401-Online1
9Pawl4116 195 72004116-195-7200-Online1
10Washer0000 958 08060000-958-0806-Online1
11Spring1118 195 35001118-195-3500-Online1
12Starter rope Ø 3 mm x 30.5 m0000 930 22980000-930-2298-Online1
13Model plate FS 2914147 967 15614147-967-1561-Online1
14Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online4
15Starter cup4147 195 06004147-195-0600-Online1
16Collar nut M8x10000 955 08020000-955-0802-Online1
17Cover plate kit β€” Contains: 18 - 204147 007 10134147-007-1013-Online1
18Cover4147 195 54004147-195-5400-Online1
19Pan head self-tapping screw IS-P4x149074 478 30059074-478-3005-Online2
20Air filter4147 140 44004147-140-4400-Online1
21Service kit β€” Contains: 4, 5, 8 - 114147 007 18004147-007-1800-Online1

C - Muffler, Shroud

STIHL FS291 IPL Parts Diagram C - Muffler, Shroud diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Muffler4147 140 06014147-140-0601-Online1
3Spline screw IS-M5x16 β€” Contains: Micro-encapsulat- | ed with binding thread9022 341 09839022-341-0983-Online3
4Muffler gasket4147 149 06014147-149-0601-Online1
5Cooling plate4147 141 32014147-141-3201-Online1
6Shroud4147 080 16134147-080-1613-Online1
7Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online2
8Shutter4147 084 41024147-084-4102-Online1
9Pan head self-tapping screw IS-P4x149074 478 30059074-478-3005-Online1
10Cover β€” Contains: 114147 080 04014147-080-0401-Online1
11Screw M5x120000 951 11140000-951-1114-Online1
12Set of gaskets β€” Contains: 44147 007 16024147-007-1602-Online1

D - Fuel tank

STIHL FS291 IPL Parts Diagram D - Fuel tank diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Fuel tank β€” Contains: 2 - 114147 350 04064147-350-0406-Online1
2Tank vent0000 350 58120000-350-5812-Online1
3Grommet4223 353 92014223-353-9201-Online1
4Hose4147 358 08004147-358-0800-Online1
5Elbow connector4224 122 39004224-122-3900-Online1
6Pickup body0000 350 35210000-350-3521-Online1
7Grommet1141 989 06001141-989-0600-Online1
8Connector4148 353 27004148-353-2700-Online1
9Filler cap β€” Contains: 10, 110000 350 05270000-350-0527-Online1
10O-ring 35x3-FPM 809645 951 38909645-951-3890-Online1
11Rope0000 350 09000000-350-0900-Online1
12Hose 3.1x5.7 mm x 1 m, R50000 937 50040000-937-5004-Online1
13Hose 3.1x5.7 mm x 1 m, R30000 930 28030000-930-2803-Online1
13Hose 3.1x5.7 mm x 10 m, R30712 923 80040712-923-8004-Online1
14Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online1
15Guard plate4147 350 66004147-350-6600-Online1
16Pan head self-tapping screw IS-D5x32 β€” Contains: Binding thread9075 478 41679075-478-4167-Online4

E - Spacer flange, Air filter

STIHL FS291 IPL Parts Diagram E - Spacer flange, Air filter diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Spacer flange4147 120 23014147-120-2301-Online1
2Gasket4147 129 09034147-129-0903-Online1
3Spline screw IS-M5x24 β€” Contains: micro-encapsulat- | ed9022 341 10459022-341-1045-Online3
4Lever4147 182 28004147-182-2800-Online1
5E-clip 49460 624 04009460-624-0400-Online1
6Throttle rod4147 182 15004147-182-1500-Online1
7Gasket4147 129 09014147-129-0901-Online1
8Carburetor 4147/34 β€” Contains: 10 - 124147 120 06344147-120-0634-Online1
10Compression spring0000 997 08420000-997-0842-Online1
11Lever4147 182 28034147-182-2803-Online1
12Lever4147 182 28024147-182-2802-Online1
13Grommet4147 141 98034147-141-9803-Online1
14Pan head self-tapping screw IS-P4x149074 478 30059074-478-3005-Online2
15Gasket4147 129 09024147-129-0902-Online1
16Filter housing β€” Contains: 174147 140 28024147-140-2802-Online1
17Grommet4134 123 75004134-123-7500-Online1
18Hexagon nut M59216 261 07009216-261-0700-Online2
19Air filter4147 141 03004147-141-0300-Online1
20Air filter4147 140 44004147-140-4400-Online1
21Filter cover β€” Contains: 224147 140 10044147-140-1004-Online1
22Screw IS-M5x219022 319 10279022-319-1027-Online2
23Set of gaskets β€” Contains: 2, 7, 154147 007 16024147-007-1602-Online1

F - Carburetor 4147/34

STIHL FS291 IPL Parts Diagram F - Carburetor 4147/34 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Carburetor 4147/34 β€” Contains: 2 - 304147 120 06344147-120-0634-Online1
1Carburetor 4147/44 β€” Contains: 3 - 304147 120 06444147-120-0644-Online1
2Fixed jet 0.401132 121 56401132-121-5640-Online1
3Inlet needleZ000 018 Z000Z000-018-Z000-Online1
3Inlet needleZ000 018 Z000Z000-018-Z000-Online1
4Spring4128 122 30004128-122-3000-Online1
4Spring4128 122 30004128-122-3000-Online1
5Inlet control lever4229 121 50004229-121-5000-Online1
5Inlet control lever4229 121 50004229-121-5000-Online1
6Spindle1120 121 92001120-121-9200-Online1
6Spindle1120 121 92001120-121-9200-Online1
7Screw0000 122 71010000-122-7101-Online1
7Screw0000 122 71010000-122-7101-Online1
8Gasket4147 129 09074147-129-0907-Online1
8Gasket4147 129 09074147-129-0907-Online1
9Metering diaphragm assyZ010 015 A006Z010-015-A006-Online1
9Metering diaphragm assyZ010 015 A006Z010-015-A006-Online1
10Base primer assyZ010 056 A011Z010-056-A011-Online1
10Base primer assyZ010 056 A011Z010-056-A011-Online1
11Cap4147 121 27024147-121-2702-Online1
11Cap4147 121 27024147-121-2702-Online1
12End cover4147 121 08004147-121-0800-Online1
12End cover4147 121 08004147-121-0800-Online1
13Screw4140 122 71004140-122-7100-Online4
13Screw4140 122 71004140-122-7100-Online4
14Strainer1120 121 78001120-121-7800-Online1
14Strainer1120 121 78001120-121-7800-Online1

F - Carburetor 4147/34

STIHL FS291 IPL Parts Diagram F - Carburetor 4147/34 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
28Compression spring0000 997 08420000-997-0842-Online1
29Lever4147 182 28034147-182-2803-Online1
29Lever4147 182 28034147-182-2803-Online1
30Lever4147 182 28024147-182-2802-Online1
30Lever4147 182 28024147-182-2802-Online1
31Gasket & diaphragm kit β€” Contains: 8, 9, 15, 16Z010 003 K008Z010-003-K008-Online1
31Gasket & diaphragm kit β€” Contains: 8, 9, 15, 16Z010 003 K008Z010-003-K008-Online1
32Carburetor Repair Kit RB-274 β€” Contains: 3 - 6, 8, 9, 14 - 16Z010 001 K009Z010-001-K009-Online1
32Carburetor Repair Kit RB-274 β€” Contains: 3 - 6, 8, 9, 14 - 16Z010 001 K009Z010-001-K009-Online1

H - Ignition system

STIHL FS291 IPL Parts Diagram H - Ignition system diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Ignition module β€” Contains: 2, 34147 400 13104147-400-1310-Online1
2Spark plug contact spring0000 998 06040000-998-0604-Online1
3Spark plug boot0000 405 10050000-405-1005-Online1
4Washer 4.39291 021 01009291-021-0100-Online2
5Pan head self-tapping screw IS-D4x18 β€” Contains: Binding thread9075 478 30199075-478-3019-Online2
6Flywheel4147 400 12024147-400-1202-Online1
7Collar nut M8x10000 955 08020000-955-0802-Online1
8Wiring harness4147 440 30074147-440-3007-Online1
9Pan head self-tapping screw IS-P4x109074 478 29709074-478-2970-Online1
10Lead retainer4147 448 12074147-448-1207-Online1
11Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online2
12Lead retainer4147 448 12024147-448-1202-Online1
13Spark plug NGK CMR6H0000 400 70110000-400-7011-Online1
13Spark plug STIHL ZK C 100000 400 70250000-400-7025-Online1
13Spark plug STIHL ZK C 10, pack of 400000 400 70260000-400-7026-Online1

I - Clutch, Clutch housing

STIHL FS291 IPL Parts Diagram I - Clutch, Clutch housing diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Clutch β€” Contains: 2-74147 160 20024147-160-2002-Online1
2Clutch β€” Contains: 34147 160 20004147-160-2000-Online1
3Tension spring0000 997 55190000-997-5519-Online2
4Cover washer4147 160 30004147-160-3000-Online1
5Washer 16x10x0.50000 958 10000000-958-1000-Online2
6Cover washer4128 162 10004128-162-1000-Online1
7Hexagon head screw M60000 951 06000000-951-0600-Online2
8Clutch housing β€” Contains: 9 - 114147 160 06144147-160-0614-Online1
9Grooved ball bearing 6202-2RS9503 003 74529503-003-7452-Online1
10Circlip 35x1.59456 621 38609456-621-3860-Online1
11Sleeve0000 988 86000000-988-8600-Online2
12Clutch drum4128 160 29004128-160-2900-Online1
13Circlips DIN471-15x19455 621 15209455-621-1520-Online1
14Rubber insert4147 791 93104147-791-9310-Online1
15Hose clamp4147 791 94104147-791-9410-Online1
16Washer 6.49291 021 01409291-021-0140-Online1
17Pan head self-tapping screw IS-D6x35 β€” Contains: Binding thread9075 478 47209075-478-4720-Online1
18Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online4
19Cover4147 161 12014147-161-1201-Online1
20Pan head self-tapping screw IS-D5x24 β€” Contains: Binding thread9075 478 41599075-478-4159-Online2
21Lead retainer4128 792 24004128-792-2400-Online1

J - Drive tube assembly

STIHL FS291 IPL Parts Diagram J - Drive tube assembly diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Drive tube assembly 28.0 mm x 1546 β€” Contains: 2, 3 | mm / 1 1/8 " x 60 7/8 "4147 710 71324147-710-7132-Online1
2Shakeproof washer 24x0.59451 621 29339451-621-2933-Online1
3Warning pictogram FS0000 967 72530000-967-7253-Online1
4Flexible liner 1425 mm / 56 1/8"4128 711 73014128-711-7301-Online1
5Drive shaξ€€4128 711 32024128-711-3202-Online1
6Carrying ring β€” Contains: 7, 80000 790 88060000-790-8806-Online1
7Pan head screw IS M5x16 β€” Contains: Binding thread9022 341 09809022-341-0980-Online1
8Hexagon nut M59210 261 07009210-261-0700-Online1
9Multi-purpose grease (tube 80 g)0781 120 11090781-120-1109-Online1
10Multipurpose grease 225 g0781 120 11100781-120-1110-Online1

K - Handlebar, Control handle

STIHL FS291 IPL Parts Diagram K - Handlebar, Control handle diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Handlebar β€” Contains: 24147 790 17114147-790-1711-Online1
2Handle4147 791 03014147-791-0301-Online1
3Support Ø 28 mm / 1 1/8"0000 182 21010000-182-2101-Online1
4Support4147 790 76024147-790-7602-Online1
5Clamp4147 791 09024147-791-0902-Online1
6Pan head screw IS M6x30 β€” Contains: Binding thread9022 341 13709022-341-1370-Online2
7Compression spring0000 997 17010000-997-1701-Online1
8Pan head screw IS M5x16 β€” Contains: Binding thread9022 341 09809022-341-0980-Online2
9Clamp4147 791 09014147-791-0901-Online1
10Clamp4147 791 09044147-791-0904-Online1
11Tommy screw4147 790 75044147-790-7504-Online1
12O-ring 7x1.59646 945 04909646-945-0490-Online1
13Control handle β€” Contains: 14 - 274147 790 13244147-790-1324-Online1
14Handle β€” Contains: 274147 790 03074147-790-0307-Online1
15Contact spring4147 442 16004147-442-1600-Online1
16Lever4147 182 28014147-182-2801-Online1
17Torsion spring4147 182 45024147-182-4502-Online1
18Cylindrical pin 5x289371 470 26839371-470-2683-Online1
19Throttle trigger β€” Contains: 204144 180 15014144-180-1501-Online1
20Stud0000 953 08080000-953-0808-Online1
21Lever4144 182 28014144-182-2801-Online1
22Torsion spring4144 182 45004144-182-4500-Online1
23Torsion spring4128 182 45014128-182-4501-Online1
24Lockout lever4144 182 08004144-182-0800-Online1
25Pan head screw IS P4x169074 478 30259074-478-3025-Online3
26Lock nut M59214 320 07009214-320-0700-Online1
27Pan head screw IS M5x40x25 β€” Contains: Binding thread9022 341 10909022-341-1090-Online1

K - Handlebar, Control handle

STIHL FS291 IPL Parts Diagram K - Handlebar, Control handle diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

L - Gear head

STIHL FS291 IPL Parts Diagram L - Gear head diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

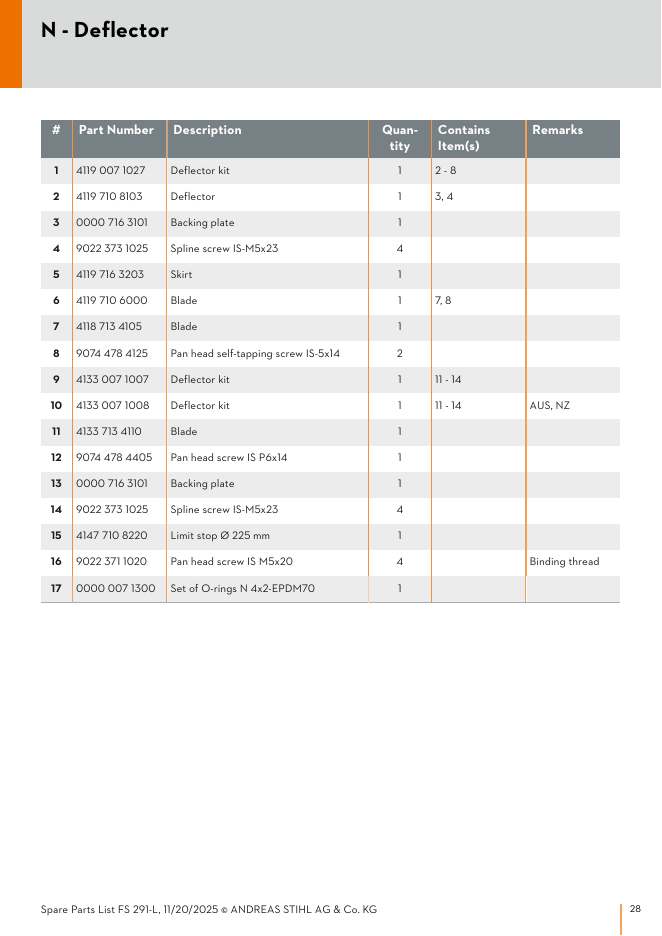

N - Deflector

STIHL FS291 IPL Parts Diagram N - Deflector diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

M - Transport guard

STIHL FS291 IPL Parts Diagram M - Transport guard diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

O - Tools, Full harness

STIHL FS291 IPL Parts Diagram O - Tools, Full harness diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
28Rivet shank 4x8x6 β€” Contains: (quantity as re- | quired)9408 021 45309408-021-4530-Online1
29Rivet head 4x8 β€” Contains: (quantity as re- | quired)9409 021 44209409-021-4420-Online1
30Harness β€” Contains: 31 - 344119 710 90124119-710-9012-Online1
31Spring safety hook4119 710 69004119-710-6900-Online1
32Slide4119 718 63204119-718-6320-Online1
33Slide4203 792 72004203-792-7200-Online1
34Webbing 25 mm x 10 m / 1" x 33'0000 930 22410000-930-2241-Online1
35Rivet shank 4x8x6 β€” Contains: (quantity as re- | quired)9408 021 45309408-021-4530-Online1
36Rivet head 4x8 β€” Contains: (quantity as re- | quired)9409 021 44209409-021-4420-Online1

P - Serial number

STIHL FS291 IPL Parts Diagram P - Serial number diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Position of serial number1

Q - Smart Connector 1.1

STIHL FS291 IPL Parts Diagram Q - Smart Connector 1.1 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.
\n
\n
