STIHL BG50 IPL Parts Diagram

STIHL BG50 IPL Parts Diagram

STIHL BG50 IPL Parts Diagram

Use this IPL to identify replacement parts. Each section shows the exploded diagram first, followed by a clickable HTML parts list. Click a Cutsmart SKU to open the matching product by SKU.

Brand section: Stihl   |   Suggested machine SKU: BG50-Online

Open machine/store option

Crankcase, Cylinder

STIHL BG50 IPL Parts Diagram Crankcase, Cylinder diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Crankcase4140 021 03004140-021-0300-Online1
2Oil seal 12x22x79639 003 12309639-003-1230-Online2
3Grooved ball bearing 62019503 003 02469503-003-0246-Online2
4Washer4140 036 03004140-036-0300-Online2
5Cranksha4229 030 04004229-030-0400-Online1
6Cylinder gasket4140 029 23004140-029-2300-Online1
7Engine pan4140 021 25004140-021-2500-Online1
8Cylinder with piston Ø 34 mm — Contains: 9 - 134140 020 12044140-020-1204-Online1
9Piston Ø 34 mm — Contains: 10 - 124140 030 20044140-030-2004-Online1
10Piston ring Ø 34x1.2 mm4144 034 30004144-034-3000-Online1
11Snap ring4140 021 23004140-021-2300-Online2
12Piston pin 8x5x224137 034 15004137-034-1500-Online1
13Pan head self-tapping screw IS-D5x609075 478 42689075-478-4268-Online4
1410000 400 7000 Spark plug NGK BPMR7A0000-400-7000-Spark-plug-NGK-BPMR7A-Online
15Spark plug Bosch WSR 6 F1110 400 70051110-400-7005-Online1
16Tube of sealant HT red0783 830 20000783-830-2000-Online1
17Set of gaskets — Contains: 2, 64229 007 10504229-007-1050-Online1

Ignition system, Muffler

STIHL BG50 IPL Parts Diagram Ignition system, Muffler diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Flywheel4140 400 12004140-400-1200-Online1
2Collar nut M8x10000 955 08020000-955-0802-Online1
3Ignition module4229 400 13004229-400-1300-Online1
4Connector tag4140 431 21004140-431-2100-Online1
5Pan head self-tapping screw IS-D4x229075 478 30239075-478-3023-Online2
6Lead retainer4229 448 12004229-448-1200-Online1
7Spiral housing4228 084 11024228-084-1102-Online1
8Pan head self-tapping screw IS-D5x249075 478 41599075-478-4159-Online3
9Muffler4229 140 06074229-140-0607-Online1
10Muffler gasket4140 149 06024140-149-0602-Online1
11Pan head self-tapping screw IS-D5x609075 478 42689075-478-4268-Online2
12Set of gaskets — Contains: 104229 007 10504229-007-1050-Online1

Carburetor, Air filter

STIHL BG50 IPL Parts Diagram Carburetor, Air filter diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Filter4229 120 18004229-120-1800-Online1
2Filter housing — Contains: 34229 140 28024229-140-2802-Online1
3Hollow rivet 7.5x1x6.89443 825 71309443-825-7130-Online2
4Hexagon nut M59210 261 07009210-261-0700-Online2
5Filter cover4229 141 05024229-141-0502-Online1
6Gasket4114 149 12054114-149-1205-Online1
7Carburetor 4229/104229 120 06504229-120-0650-Online1
8Gasket4140 129 09004140-129-0900-Online1
9Pan head self-tapping screw IS-D5x249075 478 41599075-478-4159-Online2
10Spacer flange4229 121 16014229-121-1601-Online1
11Hexagon head screw M5x659007 319 11359007-319-1135-Online2
12Gasket4229 129 09004229-129-0900-Online1
13Set of gaskets — Contains: 6, 8, 124229 007 10504229-007-1050-Online1

Carburetor

STIHL BG50 IPL Parts Diagram Carburetor diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1Carburetor 4229/10 — Contains: 3 - 13, 15 - 25, 29 -4229 120 06504229-120-0650-Online1
2Carburetor 4229/08 — Contains: 3 - 12, 14 - 22, 26 - | Up to Serial Number: 510569748 394229 120 06084229-120-0608-Online1
3Strainer1120 121 78001120-121-7800-Online1
4Throttle sha with lever4229 120 71034229-120-7103-Online1
5Spacer sleeve4134 122 50004134-122-5000-Online1
6Spring4229 122 30004229-122-3000-Online1
7Lever4229 123 73004229-123-7300-Online1
8Flat head screw M3x3.59079 319 02809079-319-0280-Online1
9Throttle shutter4229 121 33034229-121-3303-Online1
10Round head screw1125 122 74031125-122-7403-Online1
11Pump diaphragm1129 121 48001129-121-4800-Online1
12Pump gasket1123 129 09051123-129-0905-Online1
13End cover4229 121 08004229-121-0800-Online1
14End cover — Up to Serial Number: 5105697481123 121 08001123-121-0800-Online1
15Clamp1125 122 42001125-122-4200-Online1
16Idle speed screw4229 122 62004229-122-6200-Online1
17Oval head screw1120 122 78001120-122-7800-Online1
18Inlet needleZ000 018 Z000Z000-018-Z000-Online1
19Spring1123 122 30011123-122-3001-Online1
20Inlet control lever4229 121 50004229-121-5000-Online1
21Spindle1120 121 92001120-121-9200-Online1
22Collar screw1120 122 66001120-122-6600-Online1
23Metering gasket4241 129 09014241-129-0901-Online1
24Metering diaphragm4241 121 47024241-121-4702-Online1
25Flange4229 120 22074229-120-2207-Online1

Carburetor

STIHL BG50 IPL Parts Diagram Carburetor diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Rewind starter

STIHL BG50 IPL Parts Diagram Rewind starter diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

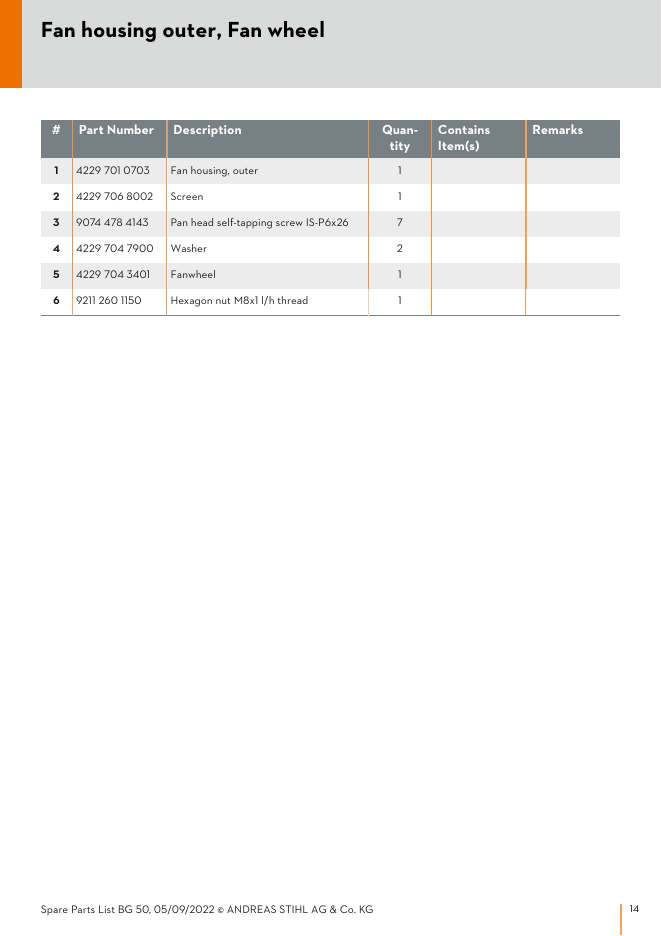

Fan housing outer, Fan wheel

STIHL BG50 IPL Parts Diagram Fan housing outer, Fan wheel diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Fan housing, inside

STIHL BG50 IPL Parts Diagram Fan housing, inside diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Blower tube

STIHL BG50 IPL Parts Diagram Blower tube diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Serial number

STIHL BG50 IPL Parts Diagram Serial number diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Smart Connector

STIHL BG50 IPL Parts Diagram Smart Connector diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Tightening torques

STIHL BG50 IPL Parts Diagram Tightening torques diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Tightening torques

STIHL BG50 IPL Parts Diagram Tightening torques diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Locking strip

STIHL BG50 IPL Parts Diagram Locking strip diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Installing sleeve

STIHL BG50 IPL Parts Diagram Installing sleeve diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Nipple

STIHL BG50 IPL Parts Diagram Nipple diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Clamping strap

STIHL BG50 IPL Parts Diagram Clamping strap diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Wooden assembly block

STIHL BG50 IPL Parts Diagram Wooden assembly block diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Threaded bushing

STIHL BG50 IPL Parts Diagram Threaded bushing diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Assembly dri

STIHL BG50 IPL Parts Diagram Assembly dri diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Press sleeve

STIHL BG50 IPL Parts Diagram Press sleeve diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Sealing plate

STIHL BG50 IPL Parts Diagram Sealing plate diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Socket, T27x125

STIHL BG50 IPL Parts Diagram Socket, T27x125 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Hose 135 mm / 5 5/16"

STIHL BG50 IPL Parts Diagram Hose 135 mm / 5 5/16" diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Installing sleeve

STIHL BG50 IPL Parts Diagram Installing sleeve diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Setting gauge

STIHL BG50 IPL Parts Diagram Setting gauge diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Flange

STIHL BG50 IPL Parts Diagram Flange diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Assembly hook

STIHL BG50 IPL Parts Diagram Assembly hook diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Ignition system tester, ZAT 3

STIHL BG50 IPL Parts Diagram Ignition system tester, ZAT 3 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Ignition system tester, ZAT 4

STIHL BG50 IPL Parts Diagram Ignition system tester, ZAT 4 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

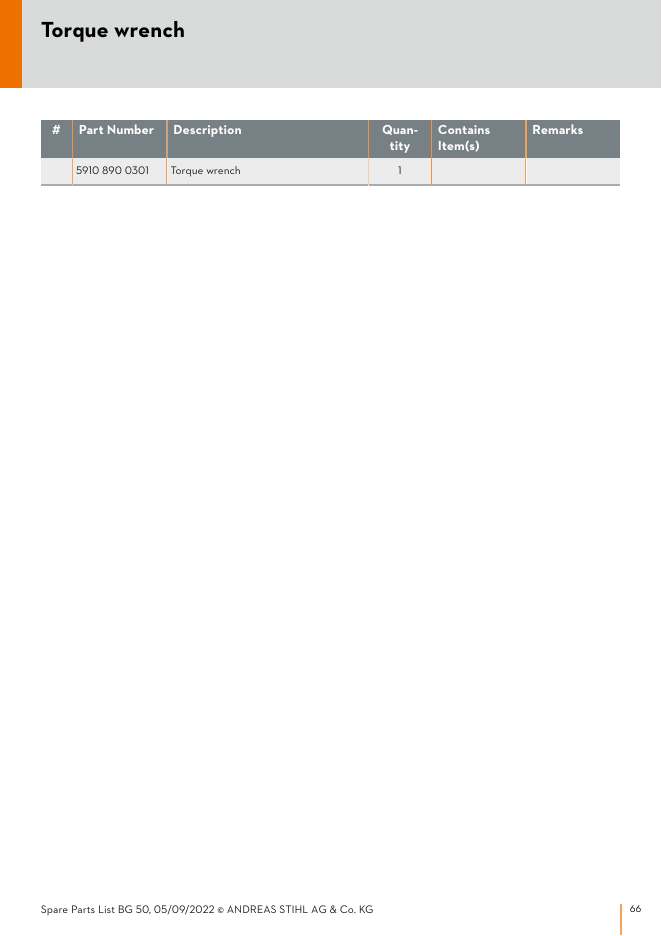

Torque wrench

STIHL BG50 IPL Parts Diagram Torque wrench diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Torque wrench with optical/acoustic signal

STIHL BG50 IPL Parts Diagram Torque wrench with optical/acoustic signal diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Torque wrench

STIHL BG50 IPL Parts Diagram Torque wrench diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Jaw (profile No. 1 and 2)

STIHL BG50 IPL Parts Diagram Jaw (profile No. 1 and 2) diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Jaw (profile No. 3.1 and 4)

STIHL BG50 IPL Parts Diagram Jaw (profile No. 3.1 and 4) diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Tachometer EDT 9

STIHL BG50 IPL Parts Diagram Tachometer EDT 9 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Puller

STIHL BG50 IPL Parts Diagram Puller diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Socket, T27x140

STIHL BG50 IPL Parts Diagram Socket, T27x140 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Nipple

STIHL BG50 IPL Parts Diagram Nipple diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Pump

STIHL BG50 IPL Parts Diagram Pump diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Adapter, battery-to-analyzer AAD 1

STIHL BG50 IPL Parts Diagram Adapter, battery-to-analyzer AAD 1 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Diagnostic unit MDG 1

STIHL BG50 IPL Parts Diagram Diagnostic unit MDG 1 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Screwdriver, T27x150

STIHL BG50 IPL Parts Diagram Screwdriver, T27x150 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Screwdriver, Q-SW 8x200

STIHL BG50 IPL Parts Diagram Screwdriver, Q-SW 8x200 diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

Socket, 8 mm, long reach

STIHL BG50 IPL Parts Diagram Socket, 8 mm, long reach diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.
\n
\n
