TECHNICAL DATA:
SPECIFICATIONS

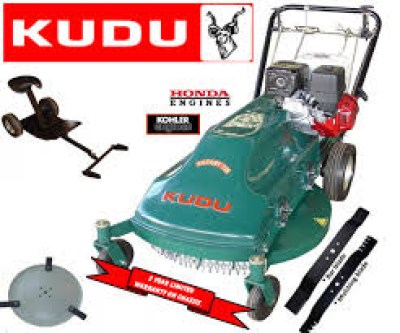

MODEL 750
GENERAL
CUTTING WIDTH 750mm Rotary
CUTTING HEIGHT 10mm – 100mm
HEIGHT AJUSTMENTS 4 positions
BLADES Disc with swing back blades;
3 Blades 360; Rotation for
safe brake away
DIMENSIONS H: 810mm L: 1600mm W: 225m
WEIGHT +/-170kg
ENGINE User option
GEARBOX Heavy duty 2 speed
TYRES Standard: solid rubber tyres
Optional: pneumatic turf saver tyres
OPTIONAL EXTRAS Removable discharge shoot
chains on discharge shoot safety
chains on front intake
CONSTRUCTION
CHASIS 5mm Rolled steel
CUTTER HOUSING 3mm former plate
CUTTER ASSEMBLY 3mm pressed steel (4mm also Available)
BLADES 3 hardened and tempered swing back
CUTTER SHAFT Steel running in sealed ball bearings
CUTTER DRIVE Heavy duty ‘wedge’ section V-belt drive
TRANSMISSION
TO WHEELS Chain to differential V-belt from engine
crankshaft to gearbox
FORWARD SPEED RANGE 0-6kp/h
WHEEL DRIVE CLUTCH Over – center action belt tensioner clutch
CUTTER DRIVE CLUTCH Over – center action to slide mounted
cutter housing
WHEELS
REAR Solid or turf tyres
FRONT Solid rubber with bearings
