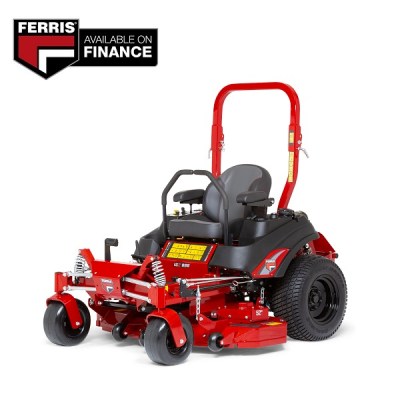

Ferris ISX��� 800 Commercial Zero Turn Mower with 52��� TRIPLE Deck

Landscape professionals that are looking to optimize their productivity and to mow faster without sacrificing cut quality and want to experience a smooth ride should look to the Ferris® ISX™ 800 commercial zero turn mower.

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® Commercial drive system and cutting speeds up to 16 km/h, the ISX™ 800 is engineered to increase efficiency and operator comfort.

The all-new “TRIPLE” mower deck offers unique versatility. Rear discharge, side discharge and two levels of mulching are available in one package! This revolutionary convertible mower deck makes it possible to adapt to every circumstance you encounter.

The ISX™ 800 is powered by the Briggs & Stratton® Commercial Series engine with its unique 5-step air filtration system and is paired with a 132 cm mower deck.

Features

ENGINE

Powered by a 27 HP* Briggs & Stratton Commercial Series™ 810cc V-Twin air-cooled petrol engine.
Patented 5 step debris management system with integrated cyclonic air cleaner.
Easy to use oil drain tube.
Rugged 21 litre fuel tank.

MOWER DECK

Available in 132 cm cutting width.
iCD™ Cutting deck technology.
Foot operated deck lift.
Cutting height: 3,8 – 12,7 cm
Features top greaseable aluminium spindles.
TRIPLE mowing technology: All-in-One mower deck comes with side discharge, rear discharge and mulching capabilities out of the box.
2-belt deck drive system improves belt life and is more dependable.

SUSPENSION & CHASSIS

ForeFront™ Suspension System – with four steel control rods for the ultimate in comfort and control.
Rear suspension system.
Heavy duty integrated rear bumper protects the engine compartment.
Independent, commercial grade Hydro-Gear® ZT-3400™ transaxles, featuring 18 cm cooling fans that also assist in repelling debris.

OPERATOR CONTROL & COMFORT SYSTEMS

Pedal lift and lower with single pin height of cut adjustment.
Folding Roll Over Protection Structure (ROPS) with retractable seat belt.
Adjustable contour seat with padded armrests.
Ergonomic control panel featuring a cup holder and fuel gauge for operator convenience.
Removable floor plate for easy maintenance access.

Specifications

ENGINE
Make Briggs & Stratton
Model Commercial Series™
Horsepower 27 HP
Cylinders 2 Cylinders V-Twin
Cooling Air-cooled
PTO Electric PTO clutch
Starting Electric
Fuel Capacity 21 Litres
MOWER
Cutting width 132 cm / 52” TRIPLE iCD™
Deck Configuration Side discharge, Rear discharge and Mulching
Cutting Height Range 3,8 – 12.7 cm
Deck Construction 3.4 mm fabricated construction with full width double top deck
9.5 mm scuff guards and overlap welded corners
Mower Spindles Cast aluminium 133 mm diameter housing
25,4 mm diameter shaft
Deck lift system Foot pedal, spring assisted
SUSPENSION & DRIVE TRAIN
Suspension ForeFront™ independent front Suspension
Rear wheel suspension
Transmission Independent Hydro-Gear® ZT-3400™ commercial transaxles
Drive Axles 28,6 mm Tapered with 4-bolt flange
Drive Tyres 23 x 10.50 – 12 (4 ply)
Caster Tyres 13 x 6.50 – 6 (4 ply)
GROUND SPEED
Speed-fwd. 0 – 16,0 km/h
Speed-rev. 0 – 8,0 km/h
DIMENSIONS
Overall length 211 cm
Overall width 135 cm
Dry weight 487 kg
OPERATOR CONTROL & COMFORT SYSTEMS
Roll-Over Protection Structure Standard, foldable with seat belt
Instrumentation Fuel gauge, hour meter
Controls Seat activated engine kill, PTO clutch safety switch,
neutral and parking brake safety circuit
Parking Brake / Safety Circuit Integrated transaxle brake
