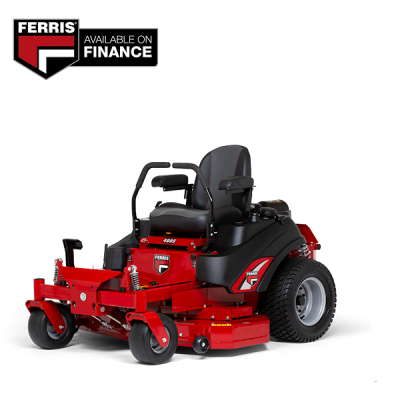

Ferris 400S ��� Semi-Professional Zero Turn Mower with 48��� TRIPLE Deck

The Ferris 400S zero turn mower is affordable, durable and has the commercial-grade power and maneuverability you need to get the job done. On a compact entry-level body, the 400S zero turn is able to navigate tight areas without sacrificing commercial grade attributes. A large fuel capacity, large drive tyres for added traction and a commercial drive system sets the 400S far above the competition. Its patented adjustable coil over shock suspension system and pivoting front axle with dampeners help you take on long days in comfort.

The all-new TRIPLE mower deck offers unique versatility. Rear discharge, side discharge and two levels of mulching are available in one package! This revolutionary convertible mower deck makes it possible to adapt to every circumstance you encounter.

ENGINE

Powered by Briggs & Stratton V-Twin Commercial Series™ air-cooled petrol engine.
Patented advanced 5 step debris management system with integrated cyclonic air cleaner.
Easy to use oil drain tube.
Rugged 21 litre fuel tank.
OPERATOR CONTROL & COMFORT SYSTEMS

Pedal lift and lower with single pin height of cut adjustment.
Adjustable contour seat with armrests.
Ergonomic control panel featuring a cup holder and fuel gauge for operator convenience.
Removable floor plate for easy maintenance access.
MOWER DECK

Available in 122 cm cutting width.
TRIPLE mowing technology: All-in-One concept supplied with side discharge, rear discharge and mulching capabilities.
Foot operated deck lift.
Cutting height: 3,8 – 11,4 cm.
Factory fitted half-height rear baffle insert and mulching blades combine rear discharge with mulching characteristics.
Full-height rear baffle insert used for full-featured mulching and components for side discharge are included separately.
SUSPENSION / CHASSIS

Patented suspension system enables you to mow rougher ground faster, allowing you to be more productive.
Heavy-duty integrated rear bumper protects the engine compartment.
Independent, commercial grade Hydro-Gear® ZT-3100™ transaxles, featuring 18 cm cooling fans that also assist in repelling debris.

ENGINE
Make Briggs & Stratton
Model Commercial Series™
Horsepower 23 HP
Cylinders 2 Cylinders V-Twin
Cooling Air-cooled
PTO Electric PTO clutch
Starting Electric
Fuel Capacity 21 Litres
MOWER
Cutting width 122 cm
Deck Configuration TRIPLE Deck
Cutting Height Range 3,8 – 11,4 cm
Deck Construction 3,4 mm fabricated construction with full width double top deck
9,5 mm scuff guards and overlap welded corners
Mower Spindles Cast aluminium 135 mm diameter housing
20,0 mm diameter shaft
Deck lift system Foot pedal, spring assisted
SUSPENSION & DRIVE TRAIN
Suspension Pivoting front axle with front ride dampening shocks
Rear wheel suspension
Transmission Independent Hydro-Gear® ZT-3400™ commercial transaxles
Drive Axles 25,4 mm Tapered with 4-bolt flange
Drive Tyres 20 x 10.00 – 12 (4 ply)
Caster Tyres 11 x 6.00 – 5 (4 ply)
GROUND SPEED
Speed-fwd. 0 – 12,8 km/h
Speed-rev. 0 – 6,4 km/h
DIMENSIONS
Overall length 180 cm
Overall width 126 cm / 155 cm (deflector down)
Dry weight 369 kg
OPERATOR CONTROL & COMFORT SYSTEMS
Roll-Over Protection Structure N/A
Instrumentation Fuel gauge, hour meter
Controls Seat activated engine kill, PTO clutch safety switch,
neutral and parking brake safety circuit
Parking Brake Lever
