Lawn Star LSM 4540 L Mower IPL

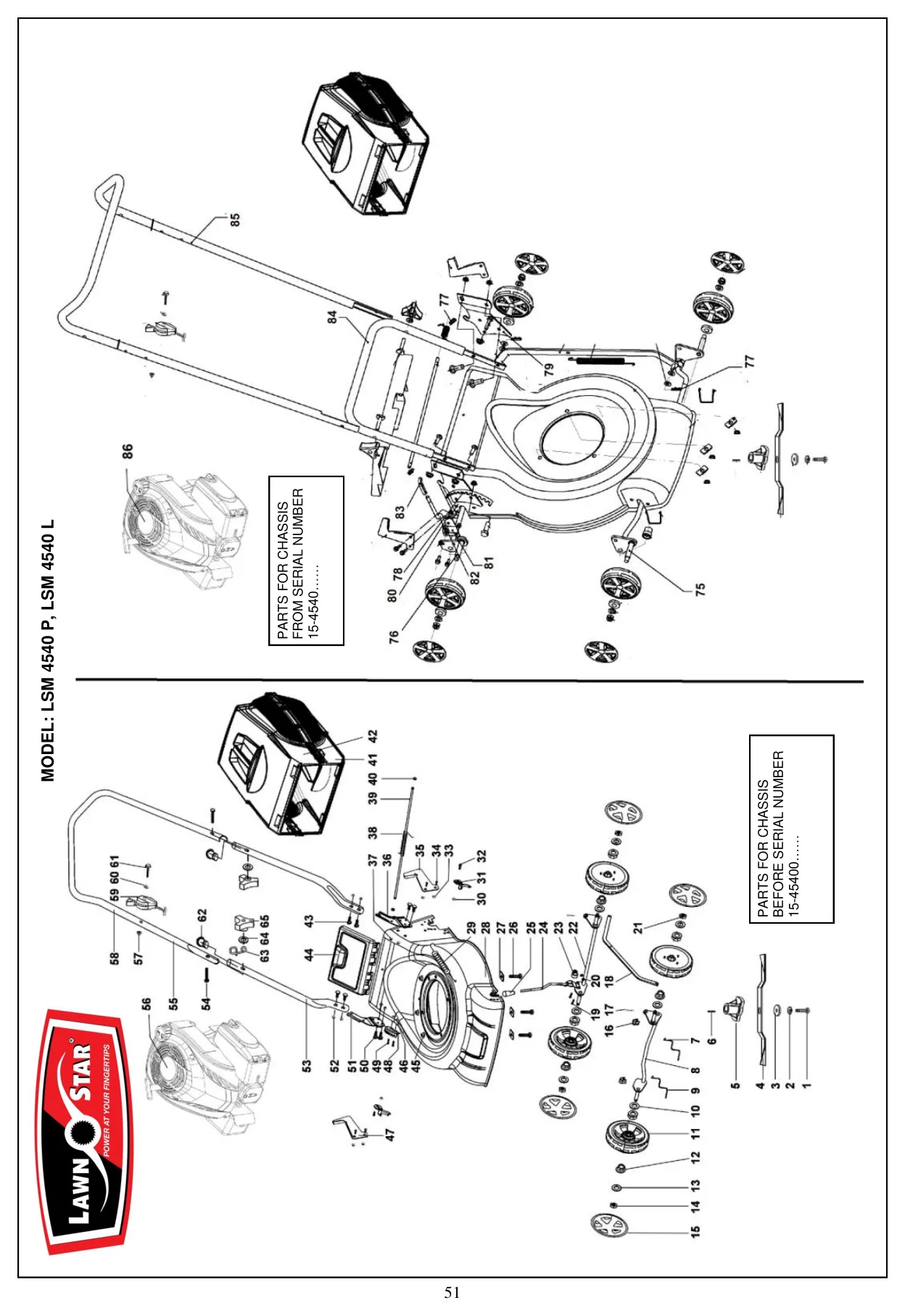

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Bolt, 3/8"UNF x 65mm | M-101-00 | M-101-00-Online | 1 |
| 2 | Spring Washer, disc bolt | M-100-00 | M-100-00-Online | 1 |
| 3 | Washer, Quadrablade disc bolt | M-253-00 | M-253-00-Online | 1 |
| 4 | Blade, 40cm, catchmo(M-256-00) | 80-02561 | 80-02561-Online | 1 |
| 5 | Coupling, B&S Engine shaft No 2, 66/33mm | M-250-00 | M-250-00-Online | 1 |
| 6 | Key, petrol engine | M-251-00 | M-251-00-Online | 1 |
| 7, 9 | Clip, front axle set(LHS+RHS) | M-201-40 | M-201-40-Online | 2 |
| 8 | Axle Assembly, front (to suit 40cm chassis) | M-203-40 | M-203-40-Online | 1 |
| 10 | Washer, 26 x 13 x 1.5mm, Axle/Wheel | M-131-00 | M-131-00-Online | 8 |
| 11 | Wheel 6", with plastic bush | M-360-40 | M-360-40-Online | 4 |
| 12 | Plastic bush, wheel | M-359-40 | M-359-40-Online | 8 |
| 13 | M8 Washer 17x8x1.0 | M-125-00 | M-125-00-Online | 4 |
| 14 | Nyloc nut M8, RH thread | M-113-00 | M-113-00-Online | 2 |
| 15 | Hubcap for 6" bushed wheel, colour silver | M-321-40 | M-321-40-Online | 4 |
| 16 | Bush, front axle | M-320-40 | M-320-40-Online | 2 |
| 17 | Split-pin | M-110-00 | M-110-00-Online | 2 |
| 18 | Height adjuster bar | M-206-40 | M-206-40-Online | 1 |
| 19 | Bolt M6x16 | T-110-20 | T-110-20-Online | 2 |
| 20 | Nyloc nut M6 | T-111-00 | T-111-00-Online | 2 |
| 21 | Nyloc nut M8, Left Hand thread | M-113-50 | M-113-50-Online | 2 |
| 22 | Axle Assembly, rear (to suit 40cm chassis) | M-204-40 | M-204-40-Online | 1 |
| 23 | Bush, rear axle | M-322-40 | M-322-40-Online | 2 |
| 24 | Height adjuster lever | M-220-40 | M-220-40-Online | 1 |
| 25 | Cover, height adjuster handle | M-323-40 | M-323-40-Online | 1 |
| 26 | Bolt M8 x 45 | M-126-00 | M-126-00-Online | 3 |
| 27 | Square Washer | M-112-00 | M-112-00-Online | 3 |
| 28 | Mower Deck, 40cm colour red RAL 3001 | M-200-16 | M-200-16-Online | 1 |
| 29 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 30 | Nyloc nut M6 | T-111-00 | T-111-00-Online | 2 |
| 31 | Bracket (support rear axle) | M-205-40 | M-205-40-Online | 2 |
| 32 | Bolt M6x16 | T-110-20 | T-110-20-Online | 2 |
| 33 | Nyloc nut M6 | T-111-00 | T-111-00-Online | 4 |
| 34 | Bolt M6x16 | T-110-20 | T-110-20-Online | 4 |
| 35 | Bracket, left - catcher | M-224-40 | M-224-40-Online | 1 |
| 36 | Bracket, left - handle lower | M-223-40 | M-223-40-Online | 1 |
| 37, 52 | Nyloc nut M8, RH thread | M-113-00 | M-113-00-Online | 8 |
| 38 | Spring, flap | M-210-40 | M-210-40-Online | 1 |
| 39 | Rod, flap | M-116-40 | M-116-40-Online | 1 |
| 40 | E-clip 5, flap rod | M-115-40 | M-115-40-Online | 2 |
| 41, 42 | Grass Catcher, lower & upper (same) | M-307-40 | M-307-40-Online | 2 |
| 43 | Bolt Coach M8 x 19 | M-119-00 | M-119-00-Online | 4 |
| 44 | Flap | M-308-40 | M-308-40-Online | 1 |
| 45 | Nyloc nut M8, RH thread | M-113-00 | M-113-00-Online | 3 |
| 46 | Nyloc nut, M5 | T-115-00 | T-115-00-Online | 2 |
| 47 | Bracket, right - catcher | M-225-40 | M-225-40-Online | 1 |
| 48 | Bracket, height adjuster | M-221-40 | M-221-40-Online | 1 |
| 49 | Bolt, M5x20mm | T-113-00 | T-113-00-Online | 2 |
| 50 | Bolt, M8x19 | M-119-53 | M-119-53-Online | 4 |
| 51 | Bracket, right - handle lower | M-222-40 | M-222-40-Online | 1 |
| 53 | Handle, lower | M-211-40 | M-211-40-Online | 2 |
| 54 | Bolt M8 x 46, upper handle | M-120-00 | M-120-00-Online | 2 |
| 55 | Handle Upper | M-212-10 | M-212-10-Online | 1 |
| 56 | Petrol Engine, Lawn Star 450OHV, 139cc | M-645-00 | M-645-00-Online | 1 |
| 56 | Petrol Engine, Lawn Star 140cc OHV | M-671-40 | M-671-40-Online | 1 |
| 57 | Nut M6 domed, throttle control bolt | M-122-00 | M-122-00-Online | 1 |
| 58 | Handle Upper, petrol | M-212-00 | M-212-00-Online | 1 |
| 59 | Throttle Control to suit Lawn Star engine | M-401-00 | M-401-00-Online | 1 |
| 60 | Washer M6 | T-131-00 | T-131-00-Online | 1 |
| 61 | Bolt M6, throttle control | M-121-00 | M-121-00-Online | 1 |
| 62 | Plug, lower handle | M-316-40 | M-316-40-Online | 2 |
| 63 | Guide, pull starter cord | M-213-00 | M-213-00-Online | 1 |
| 64 | M8 Washer 25x8x1.5 | M-124-00 | M-124-00-Online | 2 |
| 65 | Knob, upper handle, complete with nut | M-326-00 | M-326-00-Online | 2 |
| 75 | Axle Assembly, front (new) | M-203-41 | M-203-41-Online | 1 |
| 76 | Axle Assembly, rear | M-204-41 | M-204-41-Online | 1 |
| 77 | Split-pin | M-115-53 | M-115-53-Online | 3 |
| 78 | Bracket, right handle lower with height adjuster bracket | M-222-41 | M-222-41-Online | 1 |
| 79 | Bracket, left - handle lower | M-223-41 | M-223-41-Online | 1 |
| 80 | Bolt M6x16 | T-110-20 | T-110-20-Online | 2 |
| 81 | Height adjuster Lever assy(81,82,83) | M-220-48 | M-220-48-Online | 1 |
| 82 | Height adjuster lever | Refer to 81 Resolves to: M-220-48 | M-220-48-Online | 1 |
| 83 | Knob, height adjuster | Refer to 81 Resolves to: M-220-48 | M-220-48-Online | 1 |
| 84 | Handle lower | M-211-41 | M-211-41-Online | 1 |
| 85 | Handle Upper, electric with insulation– new chassis | M-212-11 | M-212-11-Online | 1 |
| 86 | Petrol Engine, Lawn Star 140cc OHV | M-671-40 | M-671-40-Online | 1 |
