Lawn Star LSMP 3248 ME Mower IPL

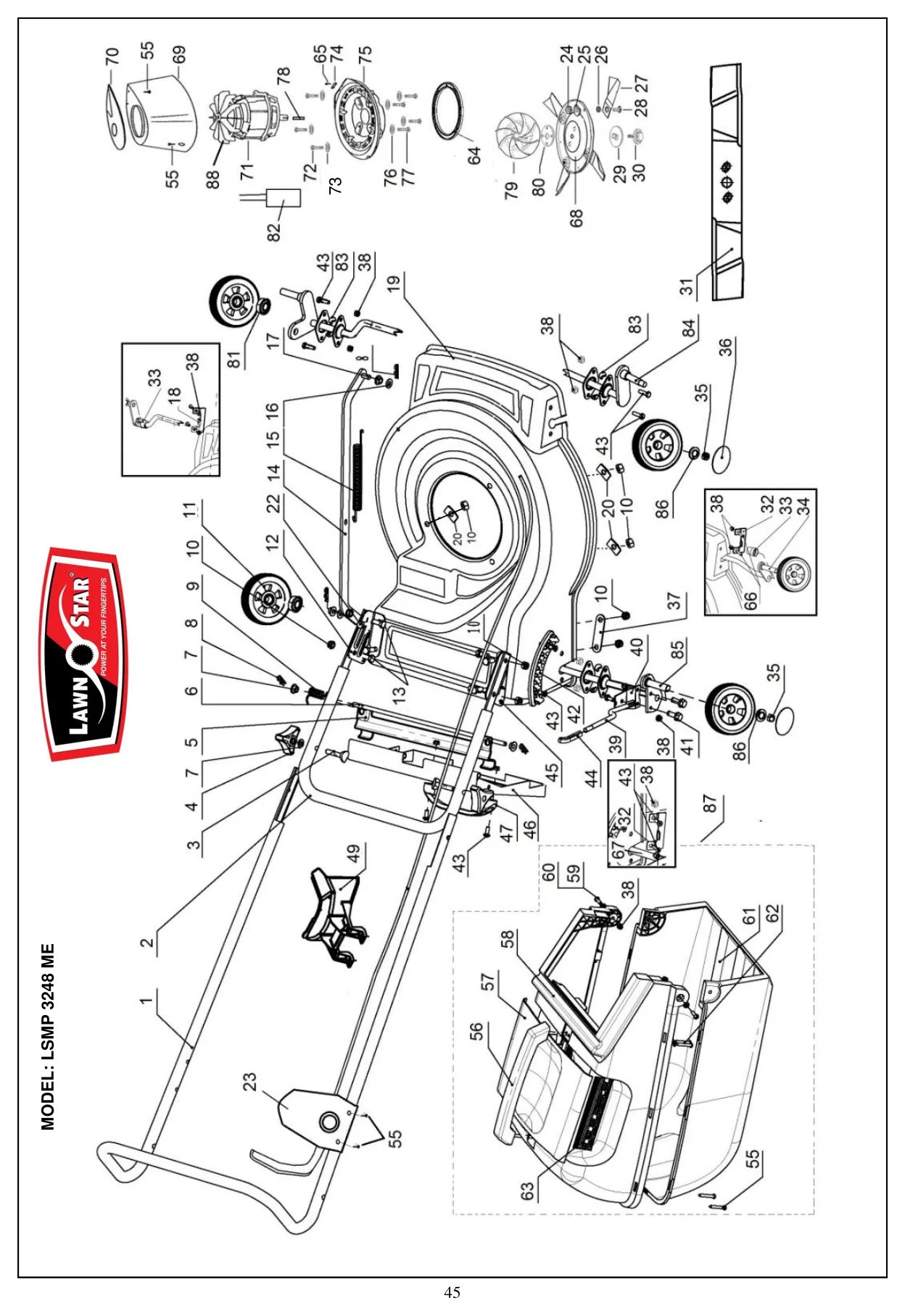

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Handle, upper insulated | M-212-48 | M-212-48-Online | 1 |
| 43 | Pan head screw M6X16 | T-110-20 | T-110-20-Online | 8 |
| 2 | Handle, lower | M-211-48 | M-211-48-Online | 1 |
| 44 | Knob, height adjuster | Refer to 39 Resolves to: M-220-48 | M-220-48-Online | 1 |
| 3 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 45 | Bracket, right - lower handle | M-222-48 | M-222-48-Online | 1 |
| 4 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 46 | Flap, steel | M-208-48 | M-208-48-Online | 1 |
| 5 | Hook, grass catcher | M-205-48 | M-205-48-Online | 1 |
| 47 | Handle, steel flap | M-315-48 | M-315-48-Online | 1 |
| 6 | Rod, flap | M-116-48 | M-116-48-Online | 1 |
| 7 | Washer, M8 | M-125-00 | M-125-00-Online | 4 |
| 49 | Mulch plug, Pro 48 | M-350-48 | M-350-48-Online | 1 |
| 8 | R-clip | M-115-53 | M-115-53-Online | 4 |
| 55 | Screw, HiLo Pan 4.8x22 | T-150-00 | T-150-00-Online | 6 |
| 9 | Spring, flap | M-210-48 | M-210-48-Online | 1 |
| 56 | Handle, grass catcher | M-306-48 | M-306-48-Online | 1 |
| 10 | Nut M8, nyloc | M-113-00 | M-113-00-Online | 11 |
| 57 | Cover, grass catcher | M-307-48 | M-307-48-Online | 1 |
| 11 | Wheel 8", front with dual ball bearings and hubcap (11,36,81) | M-360-53 | M-360-53-Online | 4 |
| 58 | Grass catcher, upper | M-307-47 | M-307-47-Online | 1 |
| 12 | Bracket, left - lower handle | M-223-48 | M-223-48-Online | 1 |
| 59 | Screw M6 x 20 | M-116-20 | M-116-20-Online | 2 |
| 13 | Bolt coach, M8X20 | M-119-00 | M-119-00-Online | 2 |
| 60 | Washer, M6 | T-131-00 | T-131-00-Online | 2 |
| 14 | Height adjuster bar | M-206-48 | M-206-48-Online | 1 |
| 61 | Grass catcher, lower | M-307-46 | M-307-46-Online | 1 |
| 15 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 62 | Screw ST4.8x50 | M-131-50 | M-131-50-Online | 4 |
| 16 | Nylon washer | M-329-00 | M-329-00-Online | 4 |
| 63 | Filter, grass | M-307-45 | M-307-45-Online | 1 |
| 17 | Nylon bush | M-329-10 | M-329-10-Online | 1 |
| 64 | Spacer ring, 8.5mm | M-315-00 | M-315-00-Online | 1 |
| 18 | Axle bracket left | M-201-48 | M-201-48-Online | 1 |
| 65 | Screw, self-tapper#2 3.5x16 | T-151-00 | T-151-00-Online | 2 |
| 19 | Mower deck 48 cm - colour red RAL 3001 | M-200-48 | M-200-48-Online | 2 |
| 67 | Axle assembly, rear | M-204-48 | M-204-48-Online | 1 |
| 20 | Washer | M-112-53 | M-112-53-Online | 4 |
| 68 | Disc | M-252-00 | M-252-00-Online | 1 |
| 22 | Bolt hex, M8X20 | M-119-00 | M-119-00-Online | 4 |
| 69 | Cowl, Lawnmower | M-300-00 | M-300-00-Online | 1 |
| 23 | Switch assembly 16amp | MA-501-16 | MA-501-16-Online | 1 |
| 70 | Lid, Lawnmower | M-301-00 | M-301-00-Online | 1 |
| 24 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 3 |
| 71 | Motor, 3200 watt | M-626-10 | M-626-10-Online | 1 |
| 25 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 3 |
| 72 | Bolt M8 x 55 | M-126-55 | M-126-55-Online | 3 |
| 26 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 1 |
| 73 | Washer 25x8x1.5 Base | M-124-00 | M-124-00-Online | 3 |
| 27 | Swing blade(M-254-00) | 80-02544 | 80-02544-Online | 1 |
| 74 | Cable Clamp, Base | M-303-00 | M-303-00-Online | 1 |
| 28 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 75 | Base, Lawnmower | M-302-00 | M-302-00-Online | 1 |
| 29 | Friction washer bolt | M-312-00 | M-312-00-Online | 1 |
| 76 | Washer 17x8x1.0 | M-125-00 | M-125-00-Online | 4 |
| 30 | Insulated blade bolt | MA-313-00 | MA-313-00-Online | 1 |
| 77 | M8 x 16 Motor Bolts | M-123-16 | M-123-16-Online | 4 |
| 31 | Mulch blade 46cm(M-255-10) | 80-02551 | 80-02551-Online | 4 |
| 78 | Key, electric motor | M-130-00 | M-130-00-Online | 1 |
| 32 | Axle bracket, right | M-202-48 | M-202-48-Online | 4 |
| 79 | Coupling / Fan 20mm, Black, Electric Motor | M-310-00 | M-310-00-Online | 1 |
| 33 | Bush axle (updated to 83) | M-320-53 | M-320-53-Online | 1 |
| 80 | Friction Washer, Coupling Fan | M-311-00 | M-311-00-Online | 1 |
| 34 | Axle assembly, Front(Updated to84) | M-203-48 | M-203-48-Online | 1 |
| 81 | Bearing Wheel 6001ZZ | M-150-12 | M-150-12-Online | 8 |
| 35 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 1 |
| 82 | Capacitor 40uF to suit LSQ 2848 ME and LSQ 3048 ME | M-621-40 | M-621-40-Online | 1 |
| 36 | Hubcap 8 inch | M-321-80 | M-321-80-Online | 2 |
| 83 | Bush Axle(upgraded part) | M-320-48 | M-320-48-Online | 8 |
| 37 | Support plate, handle bracket | M-226-00 | M-226-00-Online | 15 |
| 84 | Axle assembly front (upgraded part) | M-203-49 | M-203-49-Online | 1 |
| 38 | Nut M6, Nyloc | T-111-00 | T-111-00-Online | 2 |
| 85 | Axle assembly rear (upgraded part) | M-204-49 | M-204-49-Online | 1 |
| 39 | Height adjuster lever assembly (39,40,44) | M-220-48 | M-220-48-Online | 1 |
| 86 | Washer flat M10 | M-128-53 | M-128-53-Online | 4 |
| 40 | Spring, height adjuster lever | Refer to 39 Resolves to: M-220-48 | M-220-48-Online | 3 |
| 87 | Grass catcher assembly (38,56,57,58,59,60,61,62,63, 55) | MA-307-47 | MA-307-47-Online | 1 |
| 41 | Screw M6X16 | M-110-20 | M-110-20-Online | 1 |
| 88 | Fan for motor | M-626-11 | M-626-11-Online | 1 |
| 42 | Bracket, height adjuster | M-221-53 | M-221-53-Online |
