Lawn Star LSMP 8548 ML Mower IPL

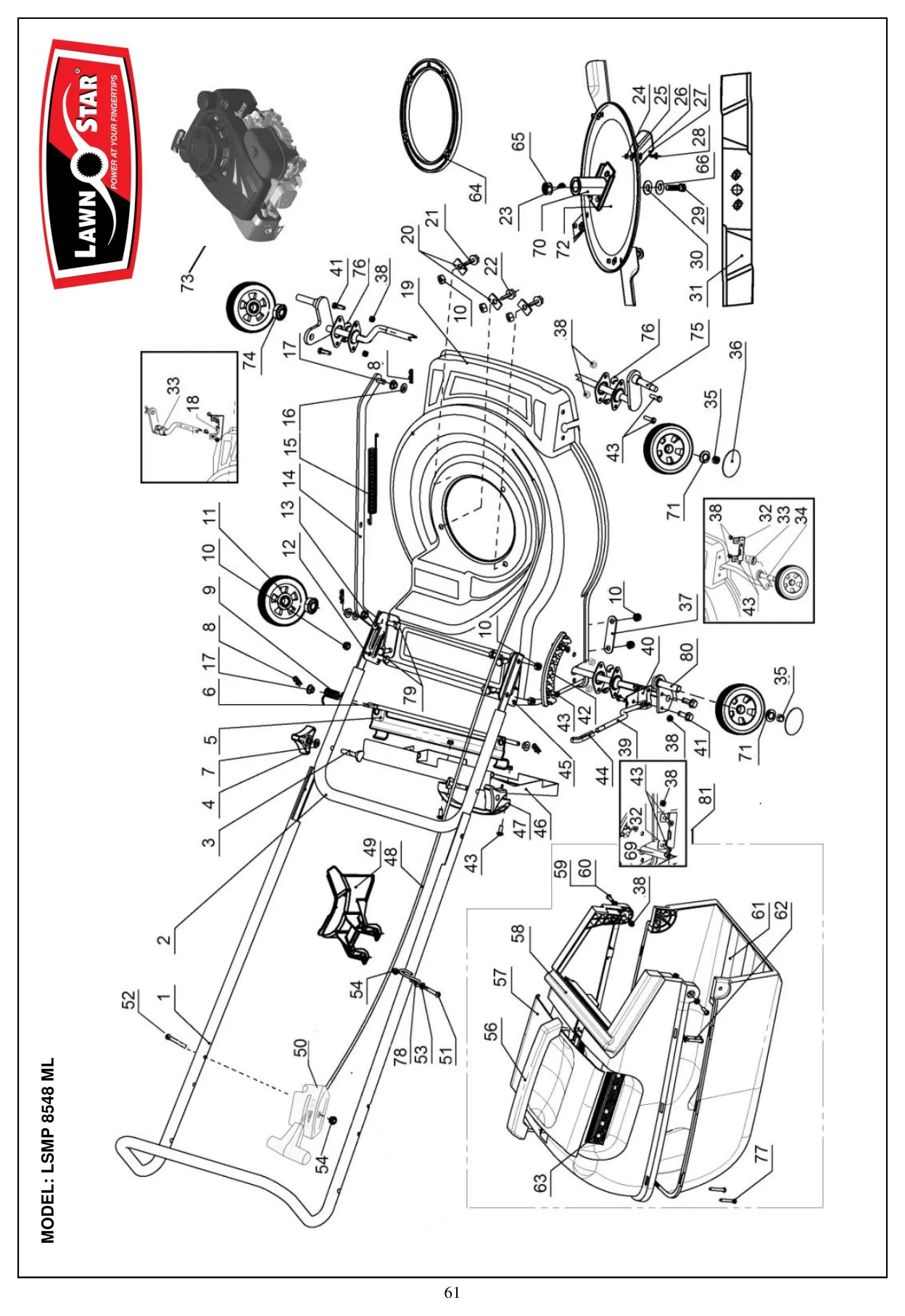

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Upper handle | M-215-48 | M-215-48-Online | 1 |
| 41 | Bolt, hex M6X16 | M-110-20 | M-110-20-Online | 3 |
| 2 | Handle, lower | M-211-48 | M-211-48-Online | 1 |
| 42 | Bracket, height adjuster | M-221-53 | M-221-53-Online | 1 |
| 3 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 43 | Pan head screw M6X16 | T-110-20 | T-110-20-Online | 4 |
| 4 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 44 | Knob, height adjuster | Refer to 39 Resolves to: M-220-48 | M-220-48-Online | 1 |
| 5 | Hook, grass catcher | M-205-48 | M-205-48-Online | 1 |
| 45 | Bracket, right - lower handle | M-222-48 | M-222-48-Online | 1 |
| 6 | Rod, flap | M-116-48 | M-116-48-Online | 1 |
| 46 | Flap, steel | M-208-48 | M-208-48-Online | 1 |
| 7 | Washer, M8 | M-125-00 | M-125-00-Online | 3 |
| 47 | Handle, steel flap | M-315-48 | M-315-48-Online | 1 |
| 8 | Split-pin | M-115-53 | M-115-53-Online | 3 |
| 48 | Throttle cable | Refer to 50 Resolves to: M-403-00 | M-403-00-Online | 1 |
| 9 | Spring, flap | M-210-48 | M-210-48-Online | 1 |
| 49 | Mulch plug, Pro 48 | M-350-48 | M-350-48-Online | 1 |
| 10 | Nut M8, nyloc | M-113-00 | M-113-00-Online | 11 |
| 50 | Pro throttle control assembly, (48, 50, 52, 54) | M-403-00 | M-403-00-Online | 1 |
| 11 | Wheel 8", with dual ball bearings and hubcap (11,74,36) | M-360-53 | M-360-53-Online | 4 |
| 51 | M6 x 30.0 Pan Head | Refer to 53 | 1 | |
| 12 | Bracket, left - lower handle | M-223-48 | M-223-48-Online | 1 |
| 52 | Pan head screw M6X50 | Refer to 50 Resolves to: M-403-00 | M-403-00-Online | 2 |
| 13 | Bolt, Flange M8 | M-119-53 | M-119-53-Online | 4 |
| 53 | washer M6 | Refer to 53 | 1 | |
| 14 | Height adjuster bar | M-206-48 | M-206-48-Online | 1 |
| 54 | M6 Nut | Refer to 50 Resolves to: M-403-00 | M-403-00-Online | 3 |
| 15 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 56 | Handle, grass catcher | M-306-48 | M-306-48-Online | 1 |
| 16 | Nylon washer | M-329-00 | M-329-00-Online | 2 |
| 57 | Cover, grass catcher | M-307-48 | M-307-48-Online | 1 |
| 17 | Nylon bush | M-329-10 | M-329-10-Online | 2 |
| 58 | Grass catcher, upper | M-307-47 | M-307-47-Online | 1 |
| 18 | Axle bracket, left | M-201-48 | M-201-48-Online | 2 |
| 59 | Screw M6 x 20 | M-116-20 | M-116-20-Online | 2 |
| 19 | Mower deck 48 cm - colour red RAL 3001 | M-200-48 | M-200-48-Online | 1 |
| 60 | Washer, M6 | T-131-00 | T-131-00-Online | 2 |
| 20 | Washer | M-112-53 | M-112-53-Online | 3 |
| 61 | Grass catcher, lower | M-307-46 | M-307-46-Online | 1 |
| 21 | Bolt M8x45 | M-126-00 | M-126-00-Online | 1 |
| 62 | Screw ST4.8x45 | M-131-45 | M-131-45-Online | 4 |
| 22 | Bolt M8x45 | M-126-00 | M-126-00-Online | 2 |
| 63 | Filter, grass | M-307-45 | M-307-45-Online | 1 |
| 23 | Key, petrol engine | M-251-00 | M-251-00-Online | 1 |
| 64 | Spacer ring, 8.5mm | M-315-00 | M-315-00-Online | 1 |
| 24 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 65 | Spacer, 30mm | Refer to 70 Resolves to: M-250-48 | M-250-48-Online | 1 |
| 25 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 4 |
| 66 | Washer, spring blade | M-100-00 | M-100-00-Online | 1 |
| 26 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 4 |
| 69 | Axle assembly, rear (to suit 38, 18) | M-204-48 | M-204-48-Online | 1 |
| 27 | Swing blade(M-254-00) | 80-02544 | 80-02544-Online | 4 |
| 70 | Coupling,Steel,shaft No 2,48/33mm | M-250-48 | M-250-48-Online | 1 |
| 28 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 71 | Washer M10 | M-128-53 | M-128-53-Online | 4 |
| 29 | Bolt, blade 3/8"UNF x 65mm | M-101-00 | M-101-00-Online | 1 |
| 72 | Disc quadra-blade | M-252-00 | M-252-00-Online | 1 |
| 30 | Washer, Quadrablade disc bolt | M-253-00 | M-253-00-Online | 1 |
| 31 | Mulch blade, 46cm(M-255-10) | 80-02551 | 80-02551-Online | 1 |
| 73 | LS 230 Petrol OHV 230cc 4-Stroke engine | M-673-00 | M-673-00-Online | 1 |
| 32 | Axle bracket, right | M-202-48 | M-202-48-Online | 2 |
| 74 | Bearing 6001-2RS | M-150-53 | M-150-53-Online | 8 |
| 33 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 75 | Axle assembly front (to suit 76) NEW | M-203-49 | M-203-49-Online | 1 |
| 34 | Axle assembly, front (To suit 32, 18) | M-203-48 | M-203-48-Online | 1 |
| 76 | Bush axle (new type) | M-320-48 | M-320-48-Online | 8 |
| 35 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 77 | Screw hilo pan 4.8x22 | T-150-00 | T-150-00-Online | 2 |
| 36 | Hubcap 8 inch | M-321-80 | M-321-80-Online | 4 |
| 78 | Guide, pull stat cord | M-213-48 | M-213-48-Online | 1 |
| 37 | Support plate, handle bracket | M-226-00 | M-226-00-Online | 2 |
| 79 | Bolt coach, M8x20 | M-119-00 | M-119-00-Online | 4 |
| 38 | Nut M6, nyloc | T-111-00 | T-111-00-Online | 15 |
| 80 | Axle assembly rear (to suit 76) NEW | M-204-49 | M-204-49-Online | 1 |
| 39 | Height adjuster lever(39,40,44) | M-220-48 | M-220-48-Online | 1 |
| 81 | Grass catcher assembly | MA-307-47 | MA-307-47-Online | 1 |
| 40 | Spring, height adjuster lever | Refer to 39 Resolves to: M-220-48 | M-220-48-Online | 1 |
