Lawn Star LSMP 6557 ML Mower IPL

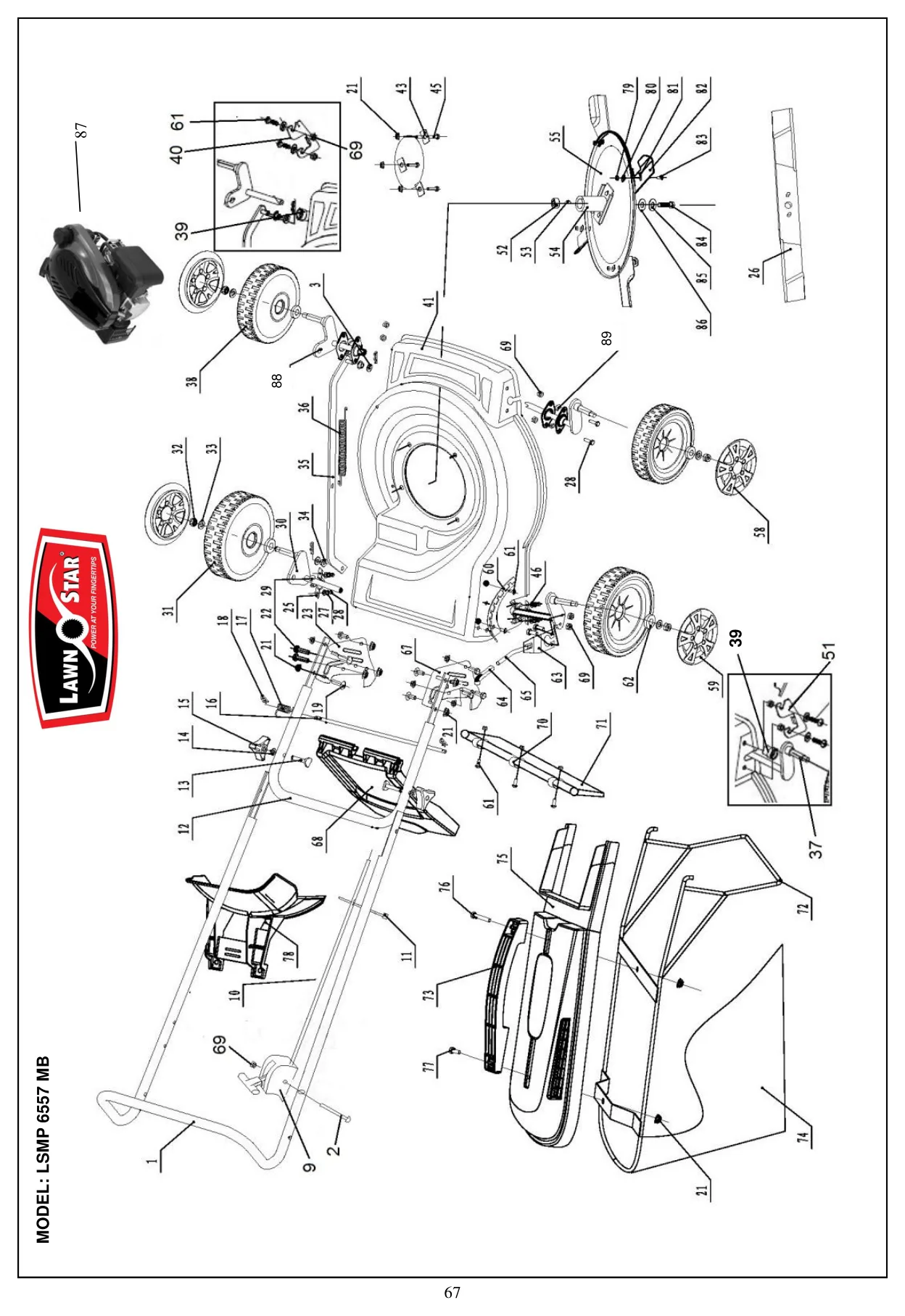

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Upper handle | M-215-00 | M-215-00-Online | 1 |
| 51 | Bracket front RHS Pro 57(To suit 37) | M-202-57 | M-202-57-Online | |
| 2 | Pan head screw M6X50 | T-110-10 | T-110-10-Online | |
| 52 | Spacer, 12mm | Refer to 54 Resolves to: M-250-10 | M-250-10-Online | 1 |
| 3 | Nylon washer | M-329-00 | M-329-00-Online | 4 |
| 53 | Woodruff Key, B&S and Honda petrol engine | M-251-53 | M-251-53-Online | 1 |
| 9 | Pro throttle control assembly, | M-403-00 | M-403-00-Online | 1 |
| 54 | Coupling, Steel, Long | M-250-10 | M-250-10-Online | 1 |
| 10 | Throttle cable | Refer to 9 Resolves to: M-403-00 | M-403-00-Online | 1 |
| 55 | Disc, Quadrablade | M-252-00 | M-252-00-Online | 1 |
| 11 | Cable Tie T30R | M-405-00 | M-405-00-Online | 1 |
| 58 | Hubcap 8", front | M-321-80 | M-321-80-Online | 2 |
| 12 | Handle, lower | M-211-53 | M-211-53-Online | 1 |
| 59 | Hubcap 9", rear | M-321-90 | M-321-90-Online | 2 |
| 13 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 60 | Bracket, height adjuster | M-221-53 | M-221-53-Online | 1 |
| 14 | Washer 17x8x1.0 | M-125-00 | M-125-00-Online | 18 |
| 61 | M6X16 Pan head screw | M-110-20 | M-110-20-Online | 9 |
| 15 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 62 | Bearing 6001-2RS | M-150-53 | M-150-53-Online | 8 |
| 16 | Rod, flap | M-116-53 | M-116-53-Online | 1 |
| 63 | Spring Height adjuster | Refer to 65 Resolves to: M-220-53 | M-220-53-Online | 1 |
| 17 | Spring, flap | M-210-53 | M-210-53-Online | 1 |
| 64 | Knob, height adjuster | Refer to 65 Resolves to: M-220-53 | M-220-53-Online | 1 |
| 18 | Split pin R type | M-115-53 | M-115-53-Online | 4 |
| 65 | Height adjuster assembly(63,64,65) | M-220-53 | M-220-53-Online | 1 |
| 19 | Bolt, M8 lower handle | M-119-00 | M-119-00-Online | 4 |
| 67 | Bracket, right - lower handle | M-222-53 | M-222-53-Online | 1 |
| 21 | Nut nyloc M8 | M-113-00 | M-113-00-Online | 12 |
| 68 | Flap | M-308-53 | M-308-53-Online | 1 |
| 22 | Bolt, Flange M8 | M-119-53 | M-119-53-Online | 6 |
| 69 | Nut M6 | T-111-00 | T-111-00-Online | 6 |
| 23 | Bracket, left - lower handle | M-223-53 | M-223-53-Online | 1 |
| 70 | Bracket, guard | Refer to 71 Resolves to: M-314-00 | M-314-00-Online | 3 |
| 25 | Bracket, lower rear axle | M-327-53 | M-327-53-Online | 2 |
| 71 | Guard assembly (61; 70; 71) | M-314-00 | M-314-00-Online | 1 |
| 26 | Mulch blade, Pro 57(M255-57) | 80-02557 | 80-02557-Online | 1 |
| 72 | Frame, grass catcher | M-209-53 | M-209-53-Online | 1 |
| 27 | Spring washer M6 | M-132-00 | M-132-00-Online | 4 |
| 73 | Handle, grass catcher | M-306-53 | M-306-53-Online | 1 |
| 28 | Bolt M6X16 | T-110-20 | T-110-20-Online | 4 |
| 74 | Grass bag | M-410-53 | M-410-53-Online | 1 |
| 29 | Bush, rear axle | M-322-53 | M-322-53-Online | 4 |
| 75 | Cover, grass bag | M-307-53 | M-307-53-Online | 1 |
| 30 | Axle assembly, rear | M-204-53 | M-204-53-Online | 1 |
| 76 | Bolt, M8x70 square shank (or M8x70 with square washer) | M-111-70 | M-111-70-Online | 1 |
| 31 | Wheel 9", rear assy(31,62,59) | M-370-53 | M-370-53-Online | 2 |
| 77 | Bolt, M8x40 square shank (or M8x45 with square washer) | M-111-40 | M-111-40-Online | 1 |
| 32 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 8 |
| 78 | Mulch plug, 21 inch | M-350-53 | M-350-53-Online | 1 |
| 33 | Washer M10 | M-128-53 | M-128-53-Online | 4 |
| 80 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 4 |
| 34 | Nylon bush | M-329-10 | M-329-10-Online | 2 |
| 81 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 4 |
| 35 | Height adjuster bar | M-206-53 | M-206-53-Online | 1 |
| 82 | Swing blade(M-254-57) | 80-02574 | 80-02574-Online | 4 |
| 36 | Spring, counterbalance | M-207-53 | M-207-53-Online | 1 |
| 83 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 37 | Axle assembly, front (To suit 39,40,51) | M-203-53 | M-203-53-Online | 1 |
| 84 | Bolt, blade 3/8"UNF x 65mm | M-101-00 | M-101-00-Online | 1 |
| 38 | Wheel 8", front assy(38,62,58) | M-360-53 | M-360-53-Online | 2 |
| 85 | Washer, spring | M-100-00 | M-100-00-Online | 1 |
| 39 | Bush, axle Pro 48/57(To suit 37) | M-320-53 | M-320-53-Online | 4 |
| 86 | Washer, Quadrablade disc bolt | M-253-00 | M-253-00-Online | 1 |
| 40 | Bracket front LHS Pro 57(To suit 37) | M-201-57 | M-201-57-Online | 1 |
| 87 | LS 200 Petrol OHV 196cc 4-Stroke en- gine | M-672-00 | M-672-00-Online | 1 |
| 41 | Mower deck 53 cm - colour red RAL 3001- bag | M-200-57 | M-200-57-Online | |
| 88 | Axle assembly, front (To suit 89) | M-203-57 | M-203-57-Online | 1 |
| 89 | Bush front axle (To suit 88) | M-320-48 | M-320-48-Online | |
| 43 | Washer | M-112-53 | M-112-53-Online | 3 |
| 45 | Bolt M8x40 | M-111-00 | M-111-00-Online | 3 |
| 46 | Washer M6 | T-131-00 | T-131-00-Online | 4 |
