Husqvarna 143R-II IPL

Husqvarna 143R-II IPL

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

PARTNO

Husqvarna 143R-II IPL PARTNO
PARTNO diagram
RefDescriptionPart NumberCutsmart SKUQty

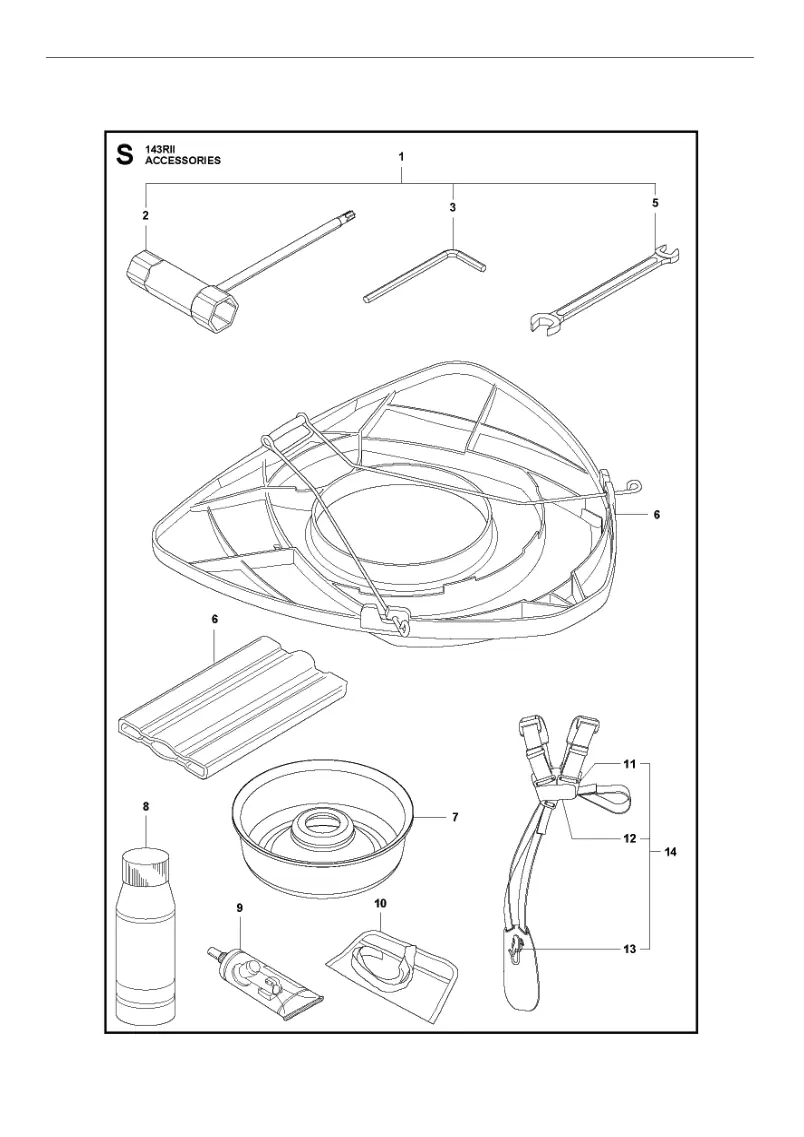

1TOOL KIT597747101597747101-Online1
2WRENCH529265501529265501-Online1
3WRENCH505311901505311901-Online1
5SPANNER506615001506615001-Online1
6BAR COVER ASIA, Latin America537129904537129904-Online2
6TRANSPORT GUARD EU544359101544359101-Online1
7SUPPORT CUP528818101528818101-Online1
8FILTER OIL531009248531009248-Online1
9GREASE503976401503976401-Online1
10TOOL501192201501192201-Online1
11FRONT PIECE503734001503734001-Online1
12BUCKLE503734102503734102-Online1
13WELT HOOK502022802502022802-Online1
14HARNESS537216301537216301-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1BLADE GUARD585293701585293701-Online1
2CLAMP585293801585293801-Online1
3ADAPTER581774501581774501-Online1
4GUARD585293901585293901-Online1
5SPLASH GUARD537331603537331603-Online1
6SPLASH GUARD537396303537396303-Online1
7SCREW IHSCFT503216825503216825-Online1
8BLADE503798802503798802-Online1
9SNAP LOCKING537387201537387201-Online4
10RETAINER544124501544124501-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1COVER505300501505300501-Online1
2SCREW505300601505300601-Online4
3GUARD505301101505301101-Online1
4GROMMET505301301505301301-Online1
5LABEL,COVER528753401528753401-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1MUFFLER505299301505299301-Online1
2BOLT505299401505299401-Online2
3BOLT505299501505299501-Online1
4GASKET526522801526522801-Online1
5PLATE.MUFFLER505299701505299701-Online1
6SCREW505299801505299801-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1STARTER s/n from 20162204746588541501588541501-Online1
2REEL s/n up to 20161404745504114701504114701-Online1
2REEL s/n from 20162204746501929802501929802-Online1
3SCREW s/n up to 20161404745515367101515367101-Online1
3SCREW s/n from 20162204746501932201501932201-Online1
4SPIRAL SPRING s/n up to 20161404745504115001504115001-Online1
4SPRING s/n from 20162204746501935201501935201-Online1
5COLLAR s/n up to 20161404745504114601504114601-Online1
5WASHER s/n from 20162204746501931701501931701-Online1
6ARM s/n up to 20161404745504114801504114801-Online1
7ROPE s/n up to 20161404745505302801505302801-Online1
7STARTER ROPE s/n from 20162204746501929901501929901-Online1
8KNOB s/n up to 20161404745505303401505303401-Online1
8STARTER HANDLE s/n from 20162204746501929201501929201-Online1
9STARTER HANDLE s/n up to 20161404745504114001504114001-Online1
9STOPPER s/n from 20162204746501938701501938701-Online1
10PULLEY s/n up to 20161404745504114401504114401-Online1
10PULLEY s/n from 20162204746528755401528755401-Online1
11SCREW505304401505304401-Online4
12COLLAR505304601505304601-Online1
13SPRING s/n from 20162204746501938901501938901-Online2
14CLIP s/n from 20162204746501939001501939001-Online2
15RATCHET s/n from 20162204746598656501598656501-Online1
16DECAL s/n from 20162204746577331804577331804-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1TANK586931501586931501-Online1
2CAP505309601505309601-Online1
3PACKING506744301506744301-Online1
4FUEL HOSE505310301505310301-Online1
5FUEL FILTER503443201503443201-Online1
6CLIP506707001506707001-Online1
7GUARD505310901505310901-Online1
8SCREW505311001505311001-Online4
9HOLDER515369401515369401-Online1
10FILTER506746801506746801-Online1
11STOPPER506745801506745801-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1INSULATOR526520501526520501-Online1
2GASKET505304901505304901-Online1
3GASKET505305001505305001-Online1
4SCREW505308701505308701-Online2
5BODY587017002587017002-Online1
6PLATE.CHOKE505308901505308901-Online1
7LEVER.CHOKE505309001505309001-Online1
8SCREW506614001506614001-Online1
9FILTER587930701587930701-Online1
10COVER575331105575331105-Online1
11KNOB575331401575331401-Online1
12CLAMP521525101521525101-Online1
13SCREW505304801505304801-Online2
14COVER506744201506744201-Online1
15CARBURETTOR587106701587106701-Online1
16AIR FILTER587287602587287602-Online1
17PLATE587088001587088001-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1INSULATOR526520501526520501-Online1
2GASKET505304901505304901-Online1
3GASKET505305001505305001-Online1
4SCREW505308701505308701-Online2
5FILTER HOLDER ASSY505308801505308801-Online1
6PLATE.CHOKE505308901505308901-Online1
7LEVER.CHOKE505309001505309001-Online1
8SCREW506614001506614001-Online1
9AIR FILTER505309201505309201-Online1
10COVER505309301505309301-Online1
11KNOB523071301523071301-Online1
12CLAMP521525101521525101-Online1
13SCREW505304801505304801-Online2
14COVER506744201506744201-Online1
15CARBURETTOR EU587822501587822501-Online1
15CARBURETTOR ASIA, Latin America587106701587106701-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1CYLINDER510064201510064201-Online1
2GASKET510064301510064301-Online1
3PISTON505296901505296901-Online1
4PISTON RING510917901510917901-Online2
5PIN505297101505297101-Online1
6RING516283001516283001-Online2
7BEARING505297301505297301-Online1
8WASHER513752401513752401-Online2
9BOLT513412501513412501-Online4
10SPARKPLUGBPMR7A515497401515497401-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1CRANKSHAFT585153001585153001-Online1
2BEARING597610701597610701-Online2
3KEY506689401506689401-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1CRANKCASE585565201585565201-Online1
2SEALING504121501504121501-Online1
3SEAL505296701505296701-Online1
4SNAP RING504121001504121001-Online1
5GASKET505296401505296401-Online1
6PIN505296101505296101-Online3
7GUARD505296202505296202-Online1
8SCREW505299801505299801-Online1
9COVER574721201574721201-Online1
10PIN505300001505300001-Online2
11BOLT505300201505300201-Online4
12PLATE505300401505300401-Online1
13BOLT506609401506609401-Online4

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1CARBURETOR-A EU528753801528753801-Online1
1CARBURETTOR ASIA, Latin America586931401586931401-Online1
2CARBURETTOR BODY502238401502238401-Online1
3SCREEN520957001520957001-Online1
4VALVE.INLET521085401521085401-Online1
5SPRING505306001505306001-Online1
6PIN520977401520977401-Online1
7SCREW505306101505306101-Online1
8LEVER520977201520977201-Online1
9BODY506740901506740901-Online1
10COVER506741001506741001-Online1
11PUMP505306701505306701-Online1
12DIAPHRAGM505056401505056401-Online1
13GASKET506740801506740801-Online1
14DIAPHRAGM506689801506689801-Online1
15GASKET506745101506745101-Online1
16JET EU505307401505307401-Online1
17O-RING EU505307501505307501-Online1
18RETAINER RING506738601506738601-Online1
19SWIVEL506741201506741201-Online1
20SCREW505307901505307901-Online2
21BRACKET506746001506746001-Online1
25RING505308401505308401-Online1
26SCREW506741101506741101-Online4
27WASHER506746101506746101-Online1
29NEEDLE ASIA, Latin America513285801513285801-Online1
30SPRING ASIA, Latin America513301501513301501-Online1
31O-RING ASIA, Latin America513437801513437801-Online1
32WASHER ASIA, Latin America513437701513437701-Online1
33VALVE ASIA, Latin America515368101515368101-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1GEAR CASE579076202579076202-Online1
2BOLT574710801574710801-Online1
3SCREW537189501537189501-Online1
4BRACKET528818501528818501-Online1
5BOLT521862001521862001-Online1
6BOLT521862401521862401-Online1
7PINION 20090100001- 20113100000528818001528818001-Online1
7PINION 20113100001-Current579076801579076801-Online1
8SNAP RING516124101516124101-Online1
9BEARING516127901516127901-Online1
10BEARING516130001516130001-Online1
11SNAP RING506609901506609901-Online1
12BOLT544362701544362701-Online1
13BEARING505170201505170201-Online1
14GEAR 20090100001- 20113100000528826201528826201-Online1
14GEAR 20113100001-Current579076701579076701-Online1
15SHAFT,GEAR 20090100001- 20113100000528815901528815901-Online1
15SHAFT 20113100001-Current579076601579076601-Online1
16BEARING516131701516131701-Online1
17SNAP RING502849301502849301-Online1
18SEAL521522201521522201-Online1
19HOLDER579076901579076901-Online1
20PLATE579077001579077001-Online1
21HOLDER579077101579077101-Online1
22NUT579076401579076401-Online1
23BRACKET EU575778801575778801-Online1
24LOCKWASHER EU575677301575677301-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1DRIVE SHAFT583943201583943201-Online1
2PIPE-COMP521806701521806701-Online1
3BUSHING514120101514120101-Online1
4HANGER ASSY505295301505295301-Online1
5HANGER505295401505295401-Online1
6CLAMP505295501505295501-Online1
7SCREW505295701505295701-Online1
8LABEL589295101589295101-Online1
9LABEL505295801505295801-Online2
10PROTECTION521538701521538701-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1DRIVE SHAFT583943201583943201-Online1
2PIPE-COMP s/n up to 20175099999521806701521806701-Online1
3BUSHING s/n up to 20175099999514120101514120101-Online1
4HANGER ASSY505295301505295301-Online1
5HANGER505295401505295401-Online1
6CLAMP505295501505295501-Online1
7SCREW505295701505295701-Online1
8LABEL589295101589295101-Online1
9PROTECTION521538701521538701-Online1
10TUBE ASSY s/n from 20175100101501919704501919704-Online1
11GUIDE s/n from 20175100101537313906537313906-Online1
12SPACER s/n from 20175100101537360201537360201-Online1
13SPACER s/n from 20175100101537360202537360202-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1HANDLE593069601593069601-Online1
2HANDLE593069701593069701-Online1
3BRACKET597716503597716503-Online1
4BOLT Screw M5x25516071001516071001-Online6
5CAP505294901505294901-Online1
6BRACKET 20200400001-Current598581201598581201-Online1
7BRACKET 20200400001-Current598581101598581101-Online1
8HANDLE537172802537172802-Online1
9COVER537172901537172901-Online1
10SCREW503207450503207450-Online1
11HEXAGON NUT731231401731231401-Online1
12HANDLE ASSY593352502593352502-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1THROTTLE CABLE ASSY522036601522036601-Online1
2THROTTLE CONTROL522520701522520701-Online1
3HANDLE HALF537160301537160301-Online1
4HANDLE HALF537160203537160203-Online1
5THROTTLE CONTROL506497701506497701-Online1
6THROTTLE LOCKOUT537160703537160703-Online1
7SWITCH503718201503718201-Online1
8SPRING537174201537174201-Online1
9SPRING537174301537174301-Online1
10HEXAGON NUT503221013503221013-Online1
11SCREW IHSCT503216674503216674-Online2
12SCREW IHSCFM503200782503200782-Online1

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1HOUSING505292901505292901-Online1
2HUB CAP505293001505293001-Online1
3JOINT505293201505293201-Online1
4ABSORBER505293301505293301-Online1
5ABSORBER505293401505293401-Online1
6BOLT506609401506609401-Online4
7BOLT522655401522655401-Online1
8BOLT505169901505169901-Online1
9DRUM591425801591425801-Online1
10BEARING516131701516131701-Online1
11SNAP RING510551301510551301-Online1
12SNAP RING516124201516124201-Online1
13BOLT505312401505312401-Online4
14CLUTCH599764701599764701-Online1
15SPRING599764801599764801-Online1
16SCREW505297801505297801-Online2
17WASHER505298001505298001-Online2
18WASHER505298101505298101-Online2

PARTNO

RefDescriptionPart NumberCutsmart SKUQty
1ROTOR505298201505298201-Online1
2COIL505298301505298301-Online1
3CORD.HIGH505298401505298401-Online1
4HUB CAP505042801505042801-Online1
5PIN505298601505298601-Online2
6GROMMET515415301515415301-Online1
7HUB CAP505298801505298801-Online1
8SPRING505298901505298901-Online1
9BOLT505299001505299001-Online2
10NUT504118001504118001-Online1
11CORD529252901529252901-Online1
\n
\n
