Husqvarna 143AE15, 2009-10 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

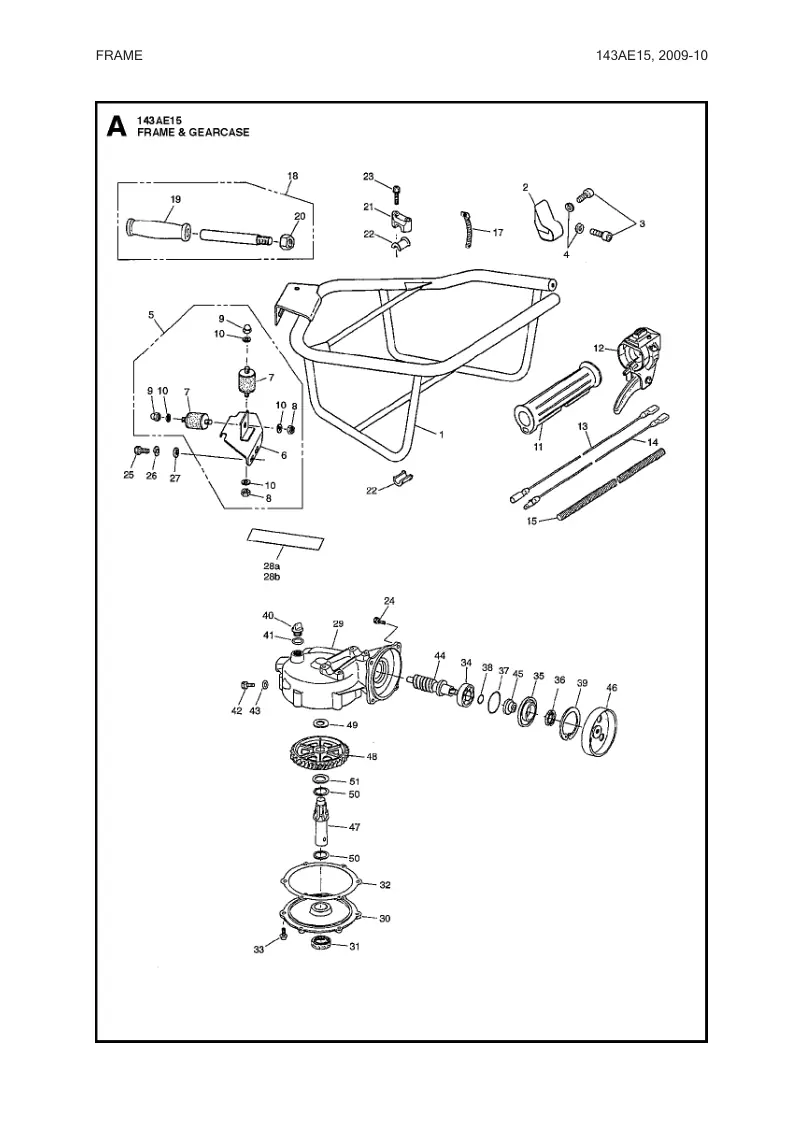

FRAME
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRAME | 512 75 84-01 | 512758401-Online | 1 |
| 2 | BRACKET | 521 84 59-01 | 521845901-Online | 1 |
| 3 | BOLT | 516 07 26-01 | 516072601-Online | 2 |
| 4 | SPRING WASHER | 516 07 68-01 | 516076801-Online | 2 |
| 5 | BRACKET | 526 42 88-01 | 526428801-Online | 1 |
| 6 | BRACKET | 514 13 85-01 | 514138501-Online | 1 5 |
| 7 | MOUNT | 514 13 86-01 | 514138601-Online | 2 5 |
| 8 | NUT | 510 48 61-01 | 510486101-Online | 2 5 |
| 9 | NUT | 513 16 31-01 | 513163101-Online | 2 5 |
| 10 | WASHER | 510 48 80-01 | 510488001-Online | 4 5 |
| 11 | GRIP | 514 39 43-01 | 514394301-Online | 1 |
| 12 | LEVER ASSY | 521 52 96-01 | 521529601-Online | 1 |
| 13 | CORD | 521 84 61-01 | 521846101-Online | 1 |
| 14 | CORD | 521 84 60-01 | 521846001-Online | 1 |
| 15 | TUBE | 521 84 62-01 | 521846201-Online | 1 |
| 17 | BAND | 514 36 40-01 | 514364001-Online | 1 |
| 18 | HANDLE | 514 13 63-01 | 514136301-Online | 1 |
| 19 | GRIP | 515 36 10-01 | 515361001-Online | 1 18 |
| 20 | NUT | 510 48 69-01 | 510486901-Online | 1 18 |
| 21 | HOLDER | 574 00 06-01 | 574000601-Online | 2 |
| 22 | SPACER | 514 13 80-01 | 514138001-Online | 4 |
| 23 | BOLT | 510 45 77-01 | 510457701-Online | 4 |
| 24 | BOLT | 505 31 24-01 | 505312401-Online | 4 |
| 25 | BOLT | 516 06 67-01 | 516066701-Online | 2 |
| 26 | WASHER | 510 48 80-01 | 510488001-Online | 2 |
| 27 | WASHER | 516 07 90-01 | 516079001-Online | 2 |
| 28 | LABEL | 574 43 49-01 | 574434901-Online | 1 |
| 29 | GEAR | 574 00 02-01 | 574000201-Online | 1 |
| 30 | COVER | 574 00 04-01 | 574000401-Online | 1 |
| 31 | SEAL | 513 41 11-01 | 513411101-Online | 1 |
| 32 | GASKET | 514 13 09-01 | 514130901-Online | 1 |
| 33 | SCREW | 510 47 07-01 | 510470701-Online | 6 |
| 34 | BEARING | 516 12 90-01 | 516129001-Online | 1 |
| 35 | RETAINER | 514 13 10-01 | 514131001-Online | 1 |
| 36 | SEAL | 514 13 12-01 | 514131201-Online | 1 |
| 37 | O-RING | 514 12 97-01 | 514129701-Online | 1 |
| 38 | O-RING | 516 13 47-01 | 516134701-Online | 1 |
| 39 | SNAP RING | 516 12 66-01 | 516126601-Online | 1 |
| 40 | PLUG | 514 13 17-01 | 514131701-Online | 1 |
| 41 | O-RING | 513 55 03-01 | 513550301-Online | 1 |
| 42 | BOLT | 510 44 75-01 | 510447501-Online | 1 |
| 43 | PACKING | 516 13 75-01 | 516137501-Online | 1 |
| 44 | WORM | 514 13 76-01 | 514137601-Online | 1 |
| 45 | COLLAR | 514 12 98-01 | 514129801-Online | 1 |
| 46 | DRUM | 576 24 52-01 | 576245201-Online | 1 |
| 47 | SHAFT | 514 13 79-01 | 514137901-Online | 1 |
| 48 | WHEEL | 514 13 77-01 | 514137701-Online | 1 |
| 49 | WASHER | 514 13 00-01 | 514130001-Online | 1 |
| 50 | WASHER | 514 13 24-01 | 514132401-Online | 2 |
| 51 | SHIM | 514 13 02-01 | 514130201-Online |
ENGINE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER | 510 06 42-01 | 510064201-Online | 1 |
| 2 | BOLT | 513 41 25-01 | 513412501-Online | 4 |
| 3 | GASKET | 510 06 43-01 | 510064301-Online | 1 |
| 4 | CRANKCASE | 505 29 60-01 | 505296001-Online | 1 |
| 5 | PIN | 505 29 61-01 | 505296101-Online | 3 4 |
| 6 | GASKET | 505 29 64-01 | 505296401-Online | 1 |
| 7 | BEARING | 505 29 65-01 | 505296501-Online | 2 |
| 8 | SEALING | 504 12 15-01 | 504121501-Online | 1 |
| 9 | SEAL | 505 29 67-01 | 505296701-Online | 1 |
| 10 | SNAP RING | 504 12 10-01 | 504121001-Online | 1 |
| 11 | BOLT | 506 60 94-01 | 506609401-Online | 4 |
| 12 | PISTON | 505 29 69-01 | 505296901-Online | 1 |
| 13 | PISTON RING | 510 91 79-01 | 510917901-Online | 2 |
| 14 | PIN | 505 29 71-01 | 505297101-Online | 1 |
| 15 | RING | 516 28 30-01 | 516283001-Online | 2 |
| 16 | BEARING | 505 29 73-01 | 505297301-Online | 1 |
| 17 | WASHER | 513 75 24-01 | 513752401-Online | 2 |
| 18 | GUARD | 505 29 62-01 | 505296201-Online | 1 |
| 19 | SCREW | 505 29 98-01 | 505299801-Online | 1 |
| 20 | CRANKSHAFT | 505 29 75-01 | 505297501-Online | 1 |
| 21 | MUFFLER | 505 29 93-01 | 505299301-Online | 1 |
| 21 | MUFFLER Australia (ANSI) | 574 00 22-01 | 574002201-Online | 1 |
| 22 | BOLT | 505 29 94-01 | 505299401-Online | 2 |
| 23 | BOLT | 505 29 95-01 | 505299501-Online | 1 |
| 24 | GASKET | 526 52 28-01 | 526522801-Online | 1 |
| 25 | PLATE.MUFFLER | 505 29 97-01 | 505299701-Online | 1 |
| 26 | SCREW | 505 29 98-01 | 505299801-Online | 1 |
| 27 | SPARKPLUGBPMR7A | 515 49 74-01 | 515497401-Online | 1 |
| 28 | COIL | 505 29 83-01 | 505298301-Online | 1 |
| 29 | CORD.HIGH | 505 29 84-01 | 505298401-Online | 1 28 |
| 30 | HUB CAP | 505 04 28-01 | 505042801-Online | 1 28 |
| 31 | PIN | 505 29 86-01 | 505298601-Online | 2 28 |
| 32 | GROMMET | 515 41 53-01 | 515415301-Online | 1 |
| 33 | HUB CAP | 505 29 88-01 | 505298801-Online | 1 |
| 34 | SPRING | 505 29 89-01 | 505298901-Online | 1 |
| 35 | BOLT | 505 29 90-01 | 505299001-Online | 2 |
| 36 | ROTOR | 505 29 82-01 | 505298201-Online | 1 |
| 37 | KEY | 506 68 94-01 | 506689401-Online | 1 |
| 38 | NUT | 504 11 80-01 | 504118001-Online | 1 |
| 39 | CLUTCH ASSY | 505 29 76-01 | 505297601-Online | 1 |
| 40 | SPRING | 505 29 77-01 | 505297701-Online | 1 |
| 41 | SCREW | 505 29 78-01 | 505297801-Online | 2 |
| 42 | WASHER | 505 29 80-01 | 505298001-Online | 2 |
| 43 | WASHER | 505 29 81-01 | 505298101-Online | 2 |
| 44 | COVER | 574 72 12-01 | 574721201-Online | 1 |
| 45 | PLATE | 505 30 04-01 | 505300401-Online | 1 |
| 46 | BOLT | 505 30 02-01 | 505300201-Online | 4 |
| 47 | COVER | 505 30 05-01 | 505300501-Online | 1 |
| 47 | COVER Autralia (ANSI) | 574 00 36-01 | 574003601-Online | 1 |
| 48 | SCREW | 505 30 06-01 | 505300601-Online | 4 |
| 49 | GUARD | 505 30 11-01 | 505301101-Online | 1 |
| 50 | CORD | 505 30 14-01 | 505301401-Online | 1 |
| 51 | GROMMET | 505 30 13-01 | 505301301-Online | 1 |
| 52 | CLAMP | 521 52 51-01 | 521525101-Online | 1 |
| 53 | FILTER HOLDER ASSY | 505 30 88-01 | 505308801-Online | 1 |
| 54 | PLATE.CHOKE | 505 30 89-01 | 505308901-Online | 1 54 |
| 55 | LEVER.CHOKE | 505 30 90-01 | 505309001-Online | 1 53 |
| 56 | SCREW | 506 61 40-01 | 506614001-Online | 1 53 |
| 57 | AIR FILTER | 505 30 92-01 | 505309201-Online | 1 |
| 59 | COVER | 505 30 93-01 | 505309301-Online | 1 |
| 60 | KNOB | 523 07 13-01 | 523071301-Online | 1 59 |
| 61 | CARBURETOR-A | 515 36 80-01 | 515368001-Online | 1 |
| 62 | SCREW | 505 30 87-01 | 505308701-Online | 2 |
| 63 | GASKET | 505 30 50-01 | 505305001-Online | 1 |
ENGINE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 64 | INSULATOR | 526 52 05-01 | 526520501-Online | 1 |
| 65 | SCREW | 505 30 48-01 | 505304801-Online | 2 |
| 66 | GASKET.INSU | 505 30 49-01 | 505304901-Online | 1 |
| 67 | TANK | 525 89 85-01 | 525898501-Online | 1 |
| 68 | CAP | 505 30 96-01 | 505309601-Online | 1 67 |
| 69 | FILTER | 506 74 68-01 | 506746801-Online | 1 67,68 |
| 70 | HOLDER | 515 36 94-01 | 515369401-Online | 1 67,68 |
| 71 | PACKING | 506 74 43-01 | 506744301-Online | 1 67,68 |
| 72 | STOPPER | 506 74 58-01 | 506745801-Online | 1 67,68 |
| 73 | FUEL HOSE | 505 31 03-01 | 505310301-Online | 1 67 |
| 74 | FILTER | 506 74 26-01 | 506742601-Online | 1 67 |
| 75 | CLIP | 506 70 70-01 | 506707001-Online | 1 67 |
| 76 | SCREW | 513 35 00-01 | 513350001-Online | 4 |
| 77 | CABLE | 521 84 63-01 | 521846301-Online | 1 |
| 78 | STARTER | 574 01 46-01 | 574014601-Online | 1 |
| 79 | REEL | 504 11 47-01 | 504114701-Online | 1 78 |
| 80 | SCREW | 515 36 71-01 | 515367101-Online | 1 78 |
| 81 | SPIRAL SPRING | 504 11 50-01 | 504115001-Online | 1 78 |
| 82 | COLLAR | 504 11 46-01 | 504114601-Online | 1 78 |
| 83 | ARM | 504 11 48-01 | 504114801-Online | 1 78 |
| 84 | ROPE | 505 30 28-01 | 505302801-Online | 1 78 |
| 85 | KNOB | 505 30 34-01 | 505303401-Online | 1 78 |
| 86 | STARTER HANDLE | 504 11 40-01 | 504114001-Online | 1 78 |
| 87 | ADAPTER | 513 25 37-01 | 513253701-Online | 1 78 |
| 88 | SCREW | 505 30 44-01 | 505304401-Online | 4 |
| 89 | PULLEY | 504 11 44-01 | 504114401-Online | 1 |
| 91 | COLLAR | 505 30 46-01 | 505304601-Online | 1 |
| 92 | LABEL | 574 00 49-01 | 574004901-Online | 1 |
| 93 | ARRESTER Australia (ANSI) | 513 35 15-01 | 513351501-Online | 1 |
CARBURETOR
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETOR-A | 515 36 80-01 | 515368001-Online | 1 |
| 2 | CARBURETTOR BODY | 502 23 84-01 | 502238401-Online | 1 1 |
| 3 | SCREEN | 520 95 70-01 | 520957001-Online | 1 1,2 |
| 4 | VALVE.INLET | 521 08 54-01 | 521085401-Online | 1 1,2 |
| 5 | SPRING | 505 30 60-01 | 505306001-Online | 1 1,2 |
| 6 | SCREW | 505 30 61-01 | 505306101-Online | 1 1,2 |
| 7 | PIN | 520 97 74-01 | 520977401-Online | 1 1,2 |
| 8 | LEVER | 520 97 72-01 | 520977201-Online | 1 1,2 |
| 9 | BODY | 506 74 09-01 | 506740901-Online | 1 1 |
| 10 | COVER | 506 74 10-01 | 506741001-Online | 1 1 |
| 11 | PUMP | 505 30 67-01 | 505306701-Online | 1 1 |
| 12 | DIAPHRAGM | 505 05 64-01 | 505056401-Online | 1 1 |
| 13 | GASKET | 506 74 08-01 | 506740801-Online | 1 |
| 14 | DIAPHRAGM | 506 68 98-01 | 506689801-Online | 1 |
| 15 | GASKET | 505 30 72-01 | 505307201-Online | 1 1 |
| 16 | WASHER | 506 74 61-01 | 506746101-Online | 1 1 |
| 17 | RETAINER RING | 506 73 86-01 | 506738601-Online | 1 1 |
| 18 | SWIVEL | 506 74 12-01 | 506741201-Online | 1 1 |
| 19 | VALVE | 515 36 81-01 | 515368101-Online | 1 1 |
| 20 | SCREW | 505 30 79-01 | 505307901-Online | 2 1 |
| 21 | BRACKET | 506 74 60-01 | 506746001-Online | 1 1 |
| 22 | NUT | 506 61 26-01 | 506612601-Online | 1 1 |
| 23 | SCREW | 515 46 61-01 | 515466101-Online | 1 1 |
| 24 | RING | 505 30 84-01 | 505308401-Online | 1 1 |
| 25 | SCREW | 506 74 11-01 | 506741101-Online | 4 1 |
| 26 | NEEDLE | 513 28 58-01 | 513285801-Online | 1 1 |
| 27 | SPRING | 513 30 15-01 | 513301501-Online | 1 1 |
| 28 | WASHER | 513 43 77-01 | 513437701-Online | 1 1 |
| 29 | O-RING | 513 43 78-01 | 513437801-Online | 1 1 |
ACCESSORIES
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 5 | JOINT | 574 88 43-01 | 574884301-Online | 1 |
| 7 | PEN | 514 13 03-01 | 514130301-Online | 1 |
| 8 | CLIP | 514 13 04-01 | 514130401-Online | 1 |
| 9 | ATTACHMENT | 966 42 19-01 | 966421901-Online | 1 |
| 12 | PEN | 514 13 03-01 | 514130301-Online | 1 9 |
| 13 | CLIP | 514 13 04-01 | 514130401-Online | 1 9 |
| 32 | ATTACHMENT | 966 42 20-01 | 966422001-Online | 1 |
| 34 | TIP.S90 | 514 14 04-01 | 514140401-Online | 1 32 |
| 35 | SCREW | 516 06 93-01 | 516069301-Online | 2 32 |
| 36 | NUT | 510 48 61-01 | 510486101-Online | 2 32 |
| 37 | WASHER | 510 48 80-01 | 510488001-Online | 2 32 |
| 38 | BIT | 514 14 10-01 | 514141001-Online | 1 32 |
| 39 | PEN | 514 13 03-01 | 514130301-Online | 1 32 |
| 40 | CLIP | 514 13 04-01 | 514130401-Online | 1 32 |
| 50 | ATTACHMENT | 966 42 21-01 | 966422101-Online | 1 |
| 52 | TIP.S150 | 514 14 09-01 | 514140901-Online | 1 50 |
| 53 | SCREW | 516 06 93-01 | 516069301-Online | 3 50 |
| 54 | NUT | 510 48 61-01 | 510486101-Online | 3 50 |
| 55 | WASHER | 510 48 80-01 | 510488001-Online | 3 50 |
| 56 | BIT | 514 14 10-01 | 514141001-Online | 1 50 |
| 57 | PEN | 514 13 03-01 | 514130301-Online | 1 50 |
| 58 | CLIP | 514 13 04-01 | 514130401-Online | 1 50 |
| 68 | ATTACHMENT | 966 51 16-01 | 966511601-Online | 1 |
| 70 | TIP.S250 | 514 13 46-01 | 514134601-Online | 1 68 |
| 71 | SCREW | 516 06 93-01 | 516069301-Online | 3 68 |
| 72 | NUT | 510 48 61-01 | 510486101-Online | 3 68 |
| 73 | WASHER | 510 48 80-01 | 510488001-Online | 3 68 |
| 74 | BIT | 514 14 10-01 | 514141001-Online | 1 68 |
| 75 | PEN | 514 13 03-01 | 514130301-Online | 1 68 |
| 76 | CLIP | 514 13 04-01 | 514130401-Online | 1 68 |
| 77 | ATTACHMENT | 966 51 17-01 | 966511701-Online | 1 |
| 79 | TIP.S300 | 514 13 55-01 | 514135501-Online | 1 77 |
| 80 | SCREW | 516 06 93-01 | 516069301-Online | 3 77 |
| 81 | NUT | 510 48 61-01 | 510486101-Online | 3 77 |
| 82 | WASHER | 510 48 80-01 | 510488001-Online | 3 77 |
| 83 | BIT | 514 14 10-01 | 514141001-Online | 1 77 |
| 84 | PEN | 514 13 03-01 | 514130301-Online | 1 77 |
| 85 | CLIP | 514 13 04-01 | 514130401-Online | 1 77 |
| 103 | TOOL SET | 514 14 60-01 | 514146001-Online | 1 |
| 104 | DRIVER | 506 68 95-01 | 506689501-Online | 1 103 |
| 105 | SOCKET | 514 15 67-01 | 514156701-Online | 1 103 |
| 106 | SPANNER | 506 61 50-01 | 506615001-Online | 1 103 |
