Husqvarna CHAIN SAWS: 136 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|

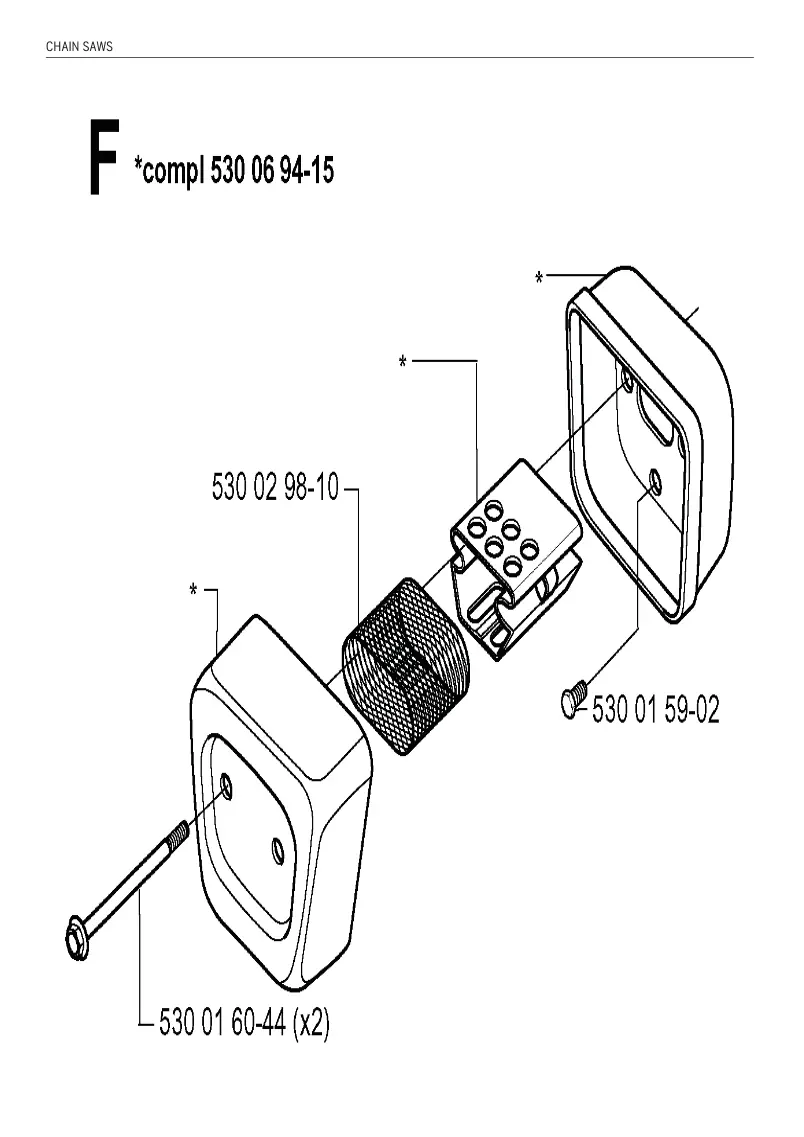

| 530 15 06 94- | MUFFLER | 530069415 | 530069415-Online | 1 |
| 530 10 02 98- | SCREEN | 530029810 | 530029810-Online | 1 |
| 530 44 01 60- | BOLT | 530016044 | 530016044-Online | 2 |
| 530 02 01 59- | SCREW | 530015902 | 530015902-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 71 79- | STOP SWITCH | 503717901 | 503717901-Online | 1 |
| 530 96 01 58- | SCREW | 530015896 | 530015896-Online | 1 |
| 530 57 40 32- | CABLE | 530403257 | 530403257-Online | 1 |
| 501 02 48 54- | SPARK PLUG CAP | 501485402 | 501485402-Online | 1 |
| 530 43 03 91- | IGNITION MODULE | 530039143 | 530039143-Online | 1 |
| 530 47 03 91- | FLYWHEEL ASSY | 530039147 | 530039147-Online | 1 |
| 530 26 01 52- | PEN | 530015226 | 530015226-Online | 1 |
| 530 84 02 37- | PAWL | 530023784 | 530023784-Online | 1 |
| 530 17 02 38- | SPRING | 530023817 | 530023817-Online | 1 |
| 530 95 01 58- | SCREW | 530015895 | 530015895-Online | 1 |
| 530 27 01 51- | WASHER | 530015127 | 530015127-Online | 1 |
| 530 71 01 60- | NUT | 530016071 | 530016071-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 11 01 56- | WASHER | 530015611 | 530015611-Online | 1 |
| 530 19 03 21- | BUSHING | 530032119 | 530032119-Online | 1 |
| 501 02 45 74- | RIM | 501457402 | 501457402-Online | 1 |
| 530 16 06 93- | CLUTCH DRUM .325X7 | 530069316 | 530069316-Online | 1 |
| 530 42 06 93- | CLUTCH DRUM .325X7 | 530069342 | 530069342-Online | 1 |
| 530 88 09 41- | SPRING | 530094188 | 530094188-Online | 1 |
| 530 49 01 49- | CLUTCH | 530014949 | 530014949-Online | 1 |
| 530 55 04 78- | PLATE | 530047855 | 530047855-Online | 1 |
| 530 96 01 58- | SCREW | 530015896 | 530015896-Online | 1 |
| 530 07 01 59- | WASHER | 530015907 | 530015907-Online | 1 |
| 530 74 01 91- | SEALING | 530019174 | 530019174-Online | 1 |
| 530 34 02 98- | BARREL | 530029834 | 530029834-Online | 1 |
| 530 76 01 47- | OIL PICK-UP | 530014776 | 530014776-Online | 1 |
| 530 33 02 98- | PUMP | 530029833 | 530029833-Online | 1 |
| 530 38 02 98- | PISTON | 530029838 | 530029838-Online | 1 |
| 530 35 02 98- | HOUSING | 530029835 | 530029835-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 506 02 02 39- | PUMP PISTON VEG.OIL | 506023902 | 506023902-Online | 1 |
| 530 81 01 43- | FELLING DOG CORRECTION: | 530014381 | 530014381-Online | 1 |
| 530 06 01 59- | SCREW CORRECTION: | 530015906 | 530015906-Online | 1 |
| 530 59 03 67- | PROTECTOR WINTER | 530036759 | 530036759-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 48 17- | VALVE | 503481701 | 503481701-Online | 1 |
| 503 01 48 18- | SCREW | 503481801 | 503481801-Online | 1 |
| 503 01 48 16- | LEVER | 503481601 | 503481601-Online | 1 |
| 503 01 48 15- | SPRING | 503481501 | 503481501-Online | 1 |
| 503 01 47 97- | VALVE REPAIR KIT 530 06 99-22 | 503479701 | 503479701-Online | 1 |
| 503 01 48 00- | PIN RETAINING SCREW REPAIR KIT 530 06 99-22 | 503480001 | 503480001-Online | 1 |
| 503 01 48 13- | STRAINER REPAIR KIT 530 06 99-22 | 503481301 | 503481301-Online | 1 |
| 503 01 75 53- | SCREW | 503755301 | 503755301-Online | 1 |
| 503 01 47 96- | SCREW | 503479601 | 503479601-Online | 1 |
| 503 01 47 91- | VALVE | 503479101 | 503479101-Online | 1 |
| 503 01 47 92- | SCREW | 503479201 | 503479201-Online | 1 |
| 531 27 00 45- | RETURN SPRING | 531004527 | 531004527-Online | 1 |
| 503 01 47 99- | SPRING REPAIR KIT 530 06 99-22 | 503479901 | 503479901-Online | 1 |
| 503 01 66 59- | LEVER REPAIR KIT 530 06 99-22 | 503665901 | 503665901-Online | 1 |
| 503 01 48 01- | SCREW | 503480101 | 503480101-Online | 1 |
| 503 01 47 90- | SCREW | 503479001 | 503479001-Online | 1 |
| 503 01 97 43- | COVER | 503974301 | 503974301-Online | 1 |
| 503 01 48 05- | SCREW | 503480501 | 503480501-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 46 05 24- | TANK | 530052446 | 530052446-Online | 1 |
| 530 47 06 92- | HOSE | 530069247 | 530069247-Online | 1 |
| 530 97 01 44- | FILTER | 530014497 | 530014497-Online | 1 |
| 530 84 02 99- | LIMITER | 530029984 | 530029984-Online | 2 |
| 501 01 62 87- | ANTIVIBRATION ELEMENT | 501628701 | 501628701-Online | 1 |
| 530 40 01 59- | SCREW | 530015940 | 530015940-Online | 1 |
| 530 39 05 24- | MOVEMENT LIMITER | 530052439 | 530052439-Online | 1 |
| 530 06 01 59- | SCREW | 530015906 | 530015906-Online | 1 |
| 530 76 04 98- | HANDLE | 530049876 | 530049876-Online | 1 |
| 501 02 81 96- | TANK CAP ASSY | 501819602 | 501819602-Online | 1 |
| 503 17 26 30- | O-RING | 503263017 | 503263017-Online | 1 |
| 503 01 57 89- | HOLDER | 503578901 | 503578901-Online | 1 |
| 530 68 02 98- | PLUG | 530029868 | 530029868-Online | 1 |
| 530 19 02 61- | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 530 63 02 98- | HUB CAP | 530029863 | 530029863-Online | 1 |
| 530 69 02 98- | THROTTLE ROD | 530029869 | 530029869-Online | 1 |
| 530 17 02 38- | SPRING | 530023817 | 530023817-Online | 1 |
| 530 60 02 98- | SCREW | 530029860 | 530029860-Online | 1 |
| 530 87 06 95- | THROTTLE TRIGGER | 530069587 | 530069587-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 91 03 84- | HANDLE | 530038491 | 530038491-Online | 1 |
| 530 32 06 92- | STARTER ROPE | 530069232 | 530069232-Online | 1 |
| 530 20 01 59- | SCREW | 530015920 | 530015920-Online | 1 |
| 530 80 01 60- | SCREW | 530016080 | 530016080-Online | 1 |
| 530 13 06 93- | STARTER PULLEY | 530069313 | 530069313-Online | 1 |
| 530 99 04 75- | STARTER HOUSING | 530047599 | 530047599-Online | 1 |
| 530 93 01 58- | SCREW | 530015893 | 530015893-Online | 1 |
| 530 60 05 34- | DECAL 141 | 530053460 | 530053460-Online | 1 |
| 530 59 05 34- | DECAL 136 | 530053459 | 530053459-Online | 1 |
| 530 92 01 58- | SCREW | 530015892 | 530015892-Online | 1 |
| 501 01 76 31- | SPRING CASSETTE ASSY | 501763101 | 501763101-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 42 06 99- | CHASSIS | 530069942 | 530069942-Online | 1 |
| 530 28 05 24- | COVER | 530052428 | 530052428-Online | 1 |
| 530 93 01 58- | SCREW | 530015893 | 530015893-Online | 1 |
| 530 40 05 24- | TUBE | 530052440 | 530052440-Online | 1 |
| 530 37 01 59- | SCREW | 530015937 | 530015937-Online | 1 |
| 530 50 02 98- | CHAIN CATCHER | 530029850 | 530029850-Online | 1 |
| 530 43 03 60- | SUPPORT | 530036043 | 530036043-Online | 1 |
| 530 28 01 92- | SEALING | 530019228 | 530019228-Online | 1 |
| 530 77 01 58- | BOLT | 530015877 | 530015877-Online | 1 |
| 501 02 76 56- | TANK CAP ASSY | 501765602 | 501765602-Online | 1 |
| 503 01 57 89- | HOLDER | 503578901 | 503578901-Online | 1 |
| 740 00 44 05- | O-RING | 740440500 | 740440500-Online | 1 |
| 530 37 01 60- | SCREW | 530016037 | 530016037-Online | 4 |
| 530 00 02 98- | AIR CONDUCTOR | 530029800 | 530029800-Online | 1 |
| 530 22 01 59- | NUT | 530015922 | 530015922-Online | 3 |
| 530 30 02 98- | GUIDE | 530029830 | 530029830-Online | 1 |
| 530 31 02 98- | CHOKE CONTROL | 530029831 | 530029831-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 40 06 99- | CYLINDER 136 | 530069940 | 530069940-Online | 1 |
| 503 08 23 51- | SPARK PLUG | 503235108 | 503235108-Online | 1 |
| 530 52 03 76- | DEFLECTOR | 530037652 | 530037652-Online | 1 |
| 530 40 03 76- | PLATE | 530037640 | 530037640-Online | 1 |
| 530 05 01 92- | GASKET | 530019205 | 530019205-Online | 1 |
| 503 01 41 41- | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
| 530 97 01 58- | SCREW | 530015897 | 530015897-Online | 4 |
| 530 44 06 99- | PISTON 136 | 530069944 | 530069944-Online | 1 |
| 530 97 01 56- | LOCKING RING | 530015697 | 530015697-Online | 1 |
| 530 05 02 98- | PISTON RING 136 | 530029805 | 530029805-Online | 1 |
| 530 96 01 56- | CABLE CLAMP | 530015696 | 530015696-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 69 17- | COMBINATION WRENCH | 501691701 | 501691701-Online | 1 |
| 503 01 26 72- | GLUE | 503267201 | 503267201-Online | 1 |
| 502 01 51 94- | MANDREL | 502519401 | 502519401-Online | 1 |
| 502 01 54 15- | PISTON STOP | 502541501 | 502541501-Online | 1 |
| 530 36 03 11- | PULLER | 530031136 | 530031136-Online | 1 |
| 530 12 03 11- | PULLER | 530031112 | 530031112-Online | 1 |
| 502 02 51 00- | SPANNER | 502510002 | 502510002-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 13 02 98- | JET | 530029813 | 530029813-Online | 1 |
| 530 14 01 58- | SCREW | 530015814 | 530015814-Online | 2 |
| 530 35 05 34- | HOSE | 530053435 | 530053435-Online | 1 |
| 530 14 02 98- | PIPE | 530029814 | 530029814-Online | 1 |
| 530 65 03 74- | ADAPTER | 530037465 | 530037465-Online | 1 |
| 530 03 01 92- | SEALING | 530019203 | 530019203-Online | 1 |
| 530 72 01 91- | GASKET | 530019172 | 530019172-Online | 1 |
| 530 29 06 96- | CARBURETTOR EPA | 530069629 | 530069629-Online | 1 |
| 530 82 03 54- | CARBURETTOR | 530035482 | 530035482-Online | 1 |
| 530 67 04 77- | SUPPORT | 530047767 | 530047767-Online | 1 |
| 530 96 01 58- | SCREW | 530015896 | 530015896-Online | 2 |
| 530 82 03 65- | HOLDER | 530036582 | 530036582-Online | 1 |
| 530 08 02 99- | AIR FILTER MEDIUM MESH | 530029908 | 530029908-Online | 1 |
| 530 11 02 98- | AIR FILTER FELT | 530029811 | 530029811-Online | 1 |
| 530 99 01 58- | SCREW | 530015899 | 530015899-Online | 2 |
| 530 08 01 60- | NUT | 530016008 | 530016008-Online | 1 |
| 530 68 01 59- | SCREW | 530015968 | 530015968-Online | 1 |
| 530 66 03 74- | GUIDE | 530037466 | 530037466-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 02 05 48- | CHAIN BRAKE ASSY | 530054802 | 530054802-Online | 1 |
| 530 48 07 13- | LEVER | 530071348 | 530071348-Online | 1 |
| 530 14 01 59- | SCREW | 530015914 | 530015914-Online | 1 |
| 501 01 76 80- | SHAFT | 501768001 | 501768001-Online | 1 |
| 501 01 76 81- | SHAFT | 501768101 | 501768101-Online | 1 |
| 530 10 01 59- | SPRING | 530015910 | 530015910-Online | 1 |
| 530 78 02 98- | SPRING | 530029878 | 530029878-Online | 1 |
| 530 17 01 59- | NUT | 530015917 | 530015917-Online | 1 |
| 530 26 01 58- | PEN | 530015826 | 530015826-Online | 1 |
| 530 93 03 85- | RETAINER | 530038593 | 530038593-Online | 1 |
| 530 10 01 61- | SCREW | 530016110 | 530016110-Online | 1 |
| 530 35 05 30- | COVER | 530053035 | 530053035-Online | 1 |
| 530 83 04 94- | CLUTCH COVER | 530049483 | 530049483-Online | 1 |
| 530 32-11 05- | DECAL | 530053211 | 530053211-Online | 1 |
| 530 32 05 22- | BRAKE BAND | 530052232 | 530052232-Online | 1 |
| 530 13 01 59- | PEN | 530015913 | 530015913-Online | 1 |
| 530 79 02 98- | SCREW | 530029879 | 530029879-Online | 1 |
| 530 15 01 59- | SCREW | 530015915 | 530015915-Online | 1 |
| 530 41 05 47- | KNEE LINK | 530054741 | 530054741-Online | 1 |
| 503 10 21 28- | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 501 01 87 54- | BRAKE SPRING | 501875401 | 501875401-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 09 04 76- | COVER | 530047609 | 530047609-Online | 1 |
| 530 54 01 61- | SCREW | 530016154 | 530016154-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 82 03 54- | CARBURETTOR WALBRO WT 542 | 530035482 | 530035482-Online | 1 |
| 530 29 06 96- | CARBURETTOR WALBRO WT 289 (EPA) | 530069629 | 530069629-Online | 1 |
| 530 88 03 51- | SPRING | 530035188 | 530035188-Online | 1 |
| 503 01 11 70- | NEEDLE VALVE | 503117001 | 503117001-Online | 1 |
| 505 27 52 01- | LEVER | 505520127 | 505520127-Online | 1 |
| 505 25 52 01- | PIN | 505520125 | 505520125-Online | 1 |
| 530 16 03 50- | SCREW | 530035016 | 530035016-Online | 1 |
| 530 65 03 51- | GASKET 530 GASKETS 06 98-44 SET OF | 530035165 | 530035165-Online | 1 |
| 503 01 89 67- | DIAPHRAGM 530 GASKETS 06 98-44 SET OF | 503896701 | 503896701-Online | 1 |
| 530 21 03 50- | SCREW | 530035021 | 530035021-Online | 1 |
| 504 10 10 00- | PLUG | 504100010 | 504100010-Online | 1 |
| 530 62 03 51- | PLUG | 530035162 | 530035162-Online | 1 |
| 530 29 04 91- | HUB CAP | 530049129 | 530049129-Online | 1 |
| 530 28 04 91- | HUB CAP | 530049128 | 530049128-Online | 1 |
| 531 26 00 39- | NEEDLE | 531003926 | 531003926-Online | 1 |
| 530 81 03 52- | LOW SPEED NEEDLE | 530035281 | 530035281-Online | 1 |
| 530 95 03 52- | SPRING | 530035295 | 530035295-Online | 1 |
| 530 93 03 52- | SPRING | 530035293 | 530035293-Online | 1 |
| 507 82 43 25- | SCREEN | 507432582 | 507432582-Online | 1 |
| 504 07 13 08- | DIAPHRAGM PUMP 530 GASKETS 06 98-44 SET OF | 504130807 | 504130807-Online | 1 |
| 504 06 13 09- | GASKET 530 GASKETS 06 98-44 SET OF | 504130906 | 504130906-Online | 1 |
| 530 96 03 52- | SCREW | 530035296 | 530035296-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 94 02 97- | CRANKSHAFT | 530029794 | 530029794-Online | 1 |
| 530 59 01 92- | BEARING | 530019259 | 530019259-Online | 2 |
| 530 17 03 21- | NEEDLE BEARING | 530032117 | 530032117-Online | 1 |
