Husqvarna CHAIN SAWS: 141 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
CHAIN SAWS

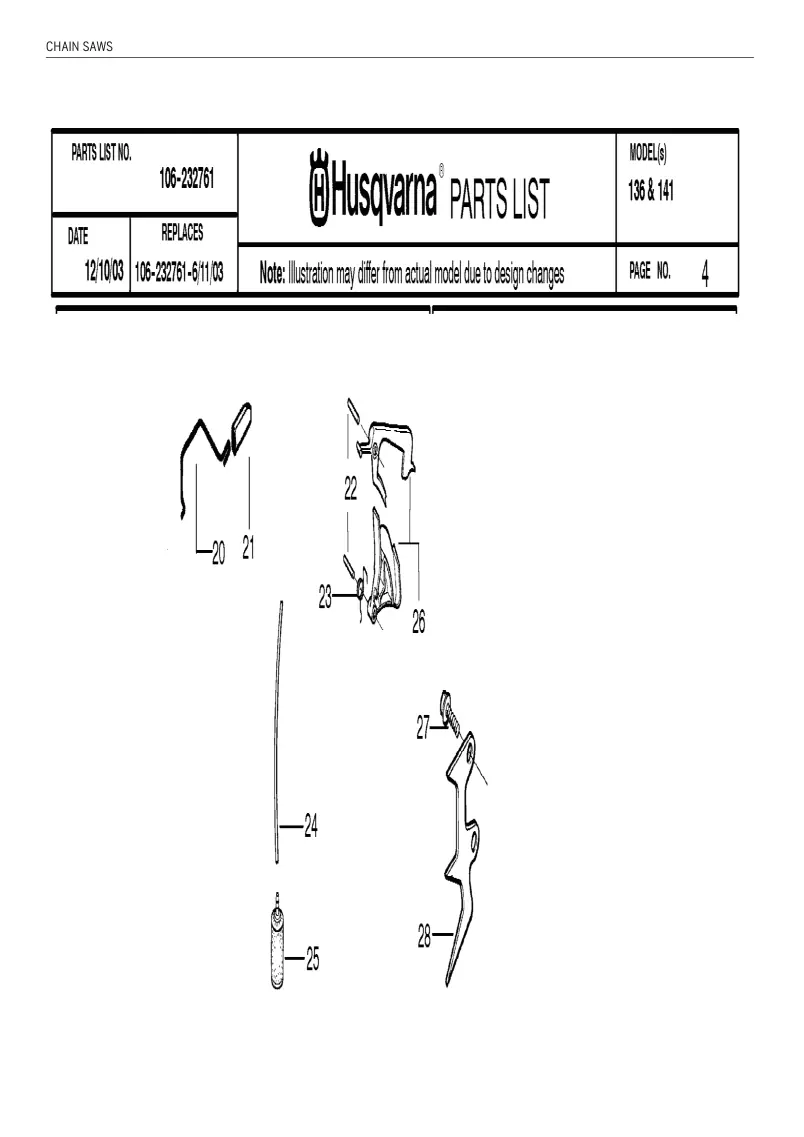

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 20 | THROTTLE ROD | 530029869 | 530029869-Online | 1 |
| 21 | HUB CAP | 530029863 | 530029863-Online | 1 |
| 22 | SCREW | 530029860 | 530029860-Online | 1 |
| 23 | SPRING | 530029861 | 530029861-Online | 1 |
| 24 | HOSE | 530069247 | 530069247-Online | 1 |
| 25 | FILTER | 530014497 | 530014497-Online | 1 |
| 26 | THROTTLE TRIGGER | 530069587 | 530069587-Online | 1 |
| 27 | SCREW | 530015805 | 530015805-Online | 1 |
| 28 | FELLING DOG | 530014381 | 530014381-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 29 | SCREW | 530015940 | 530015940-Online | 1 |
| 30 | INSULATOR | 530029870 | 530029870-Online | 1 |
| 31 | TANK | 530052446 | 530052446-Online | 1 |
| 32 | SCREW | 530015843 | 530015843-Online | 1 |
| 33 | HANDLE | 530049876 | 530049876-Online | 1 |
| 34 | MOVEMENT LIMITER | 530052439 | 530052439-Online | 1 |
| 35 | LIMITER | 530029984 | 530029984-Online | 1 |
| 36 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 37 | PLUG | 530038264 | 530038264-Online | 1 |
| 38 | FUEL CAP | 530071266 | 530071266-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 17 | CHASSIS | 530069942 | 530069942-Online | 1 |
| 4 | CLUTCH DRUM | 530069342 | 530069342-Online | 1 |
| 18 | TUBE | 530052440 | 530052440-Online | 1 |
| 19 | SCREW | 530015896 | 530015896-Online | 1 |
| 20 | PLATE | 530047855 | 530047855-Online | 1 |
| 21 | SCREW | 530015878 | 530015878-Online | 1 |
| 22 | CHAIN CATCHER | 530029850 | 530029850-Online | 1 |
| 23 | NUT | 530015917 | 530015917-Online | 1 |
| 24 | SEALING | 530019228 | 530019228-Online | 1 |
| 25 | SUPPORT | 530036043 | 530036043-Online | 1 |
| 26 | BOLT | 530015877 | 530015877-Online | 1 |
| 27 | SCREW | 530015893 | 530015893-Online | 1 |
| 28 | COVER | 530052428 | 530052428-Online | 1 |
| 29 | CHOKE CONTROL | 530029831 | 530029831-Online | 1 |
| 30 | GUIDE | 530029830 | 530029830-Online | 1 |
| 31 | NUT | 530015922 | 530015922-Online | 1 |
| 32 | AIR CONDUCTOR | 530029800 | 530029800-Online | 1 |
| 33 | SCREW | 530016037 | 530016037-Online | 1 |
| 34 | TANK CAP ASSY | 501765602 | 501765602-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 530035296 | 530035296-Online | 1 |
| 2 | LEVER | 530035031 | 530035031-Online | 1 |
| 3 | GASKET | 530035164 | 530035164-Online | 1 |
| 4 | DIAPHRAGM PUMP | 530035166 | 530035166-Online | 1 |
| 5 | SCREEN | 507432582 | 507432582-Online | 1 |
| 6 | SPRING | 530035293 | 530035293-Online | 1 |
| 7 | LOW SPEED NEEDLE | 530035281 | 530035281-Online | 1 |
| 8 | HI-SPEED NEEDLE | 530037259 | 530037259-Online | 1 |
| 9 | SPRING | 530035295 | 530035295-Online | 1 |
| 10 | PLUG | 530035162 | 530035162-Online | 1 |
| 11 | WELCH PLUG | 530035225 | 530035225-Online | 1 |
| 12 | GASKET | 530035165 | 530035165-Online | 1 |
| 13 | STYRMEMBRAN | 530035014 | 530035014-Online | 1 |
| 14 | PEN | 530035028 | 530035028-Online | 1 |
| 15 | SCREW | 530035016 | 530035016-Online | 1 |
| 16 | NEEDLE VALVE | 530035106 | 530035106-Online | 1 |
| 17 | HUB CAP | 530038479 | 530038479-Online | 1 |
| 18 | HUB CAP | 530038478 | 530038478-Online | 1 |
| 530069826 | REPAIR KIT | 530069826 | 530069826-Online | 1 |
| 530035269 | REPAIR KIT | 530035269 | 530035269-Online | 1 |
| 20 | SPRING | 530035188 | 530035188-Online | 1 |
| 530069844 | GASKET KIT | 530069844 | 530069844-Online | 1 |
| 530035270 | GASKET | 530035270 | 530035270-Online | 1 |
| 22 | SCREW | 530035021 | 530035021-Online | 1 |
| 530031157 | PULLER | 530031157 | 530031157-Online | 1 |
| 530031161 | TOOL | 530031161 | 530031161-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | JET | 530029813 | 530029813-Online | 1 |
| 2 | SEALING | 530019203 | 530019203-Online | 1 |
| 3 | PIPE | 530029814 | 530029814-Online | 1 |
| 4 | HOSE | 530053435 | 530053435-Online | 1 |
| 5 | SCREW | 530015814 | 530015814-Online | 1 |
| 6 | ADAPTER | 530037465 | 530037465-Online | 1 |
| 7 | GASKET | 530019172 | 530019172-Online | 1 |
| 530035482 | CARBURETTOR | 530035482 | 530035482-Online | 1 |
| 530069629 | CARBURETTOR | 530069629 | 530069629-Online | 1 |
| 530071510 | CARBURETTOR | 530071510 | 530071510-Online | 1 |
| 530071692 | CARBURETTOR | 530071692 | 530071692-Online | 1 |
| 530071704 | CARBURETTOR | 530071704 | 530071704-Online | 1 |
| 10 | SUPPORT | 530047767 | 530047767-Online | 1 |
| 11 | SCREW | 530015896 | 530015896-Online | 1 |
| 12 | HOLDER | 530036582 | 530036582-Online | 1 |
| 13 | SCREW | 530015968 | 530015968-Online | 1 |
| 14 | NUT | 530016008 | 530016008-Online | 1 |
| 15 | AIR FILTER | 530029811 | 530029811-Online | 1 |
| 16 | SCREW | 530015899 | 530015899-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 25 | CRANKSHAFT | 530029794 | 530029794-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | SPRING | 530094188 | 530094188-Online | 1 |
| 3 | WASHER | 530015611 | 530015611-Online | 1 |
| 4 | CLUTCH DRUM ASSY | 530047061 | 530047061-Online | 1 |
| 5 | CLUTCH DRUM | 530069316 | 530069316-Online | 1 |
| 6 | BUSHING | 530032119 | 530032119-Online | 1 |
| 7 | RIM SPROCKET | 530028650 | 530028650-Online | 1 |
| 8 | WASHER | 530015907 | 530015907-Online | 1 |
| 9 | SCREW | 530015896 | 530015896-Online | 1 |
| 10 | HOUSING | 530029835 | 530029835-Online | 1 |
| 11 | PISTON | 530029838 | 530029838-Online | 1 |
| 12 | PUMP | 530029833 | 530029833-Online | 1 |
| 13 | SEALING | 530019174 | 530019174-Online | 1 |
| 14 | BARREL | 530029834 | 530029834-Online | 1 |
| 15 | OIL PICK-UP | 530014776 | 530014776-Online | 1 |
| 16 | OIL PUMP | 530014410 | 530014410-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LEVER | 530071348 | 530071348-Online | 1 |
| 2 | SCREW | 530029879 | 530029879-Online | 1 |
| 3 | SCREW | 530015915 | 530015915-Online | 1 |
| 4 | SCREW | 530015911 | 530015911-Online | 1 |
| 5 | KNEE LINK | 530054741 | 530054741-Online | 1 |
| 6 | SPRING | 530016237 | 530016237-Online | 1 |
| 7 | RETAINER | 530038593 | 530038593-Online | 1 |
| 8 | SCREW | 530016384 | 530016384-Online | 1 |
| 9 | SHAFT PIVOT | 530056531 | 530056531-Online | 1 |
| 10 | SHAFT PIVOT | 530029881 | 530029881-Online | 1 |
| 11 | SPRING | 530015910 | 530015910-Online | 1 |
| 12 | PEN | 530015913 | 530015913-Online | 1 |
| 13 | BRAKE BAND | 530052232 | 530052232-Online | 1 |
| 14 | CHAIN BRAKE ASSY | 530054802 | 530054802-Online | 1 |
| 15 | SPRING | 530029878 | 530029878-Online | 1 |
| 16 | CLUTCH COVER | 530049483 | 530049483-Online | 1 |
| 17 | NUT | 530015917 | 530015917-Online | 1 |
| 18 | PEN | 530015826 | 530015826-Online | 1 |
| 19 | RETAINER | 530038593 | 530038593-Online | 1 |
| 20 | SCREW | 530016110 | 530016110-Online | 1 |
| 21 | COVER | 530053035 | 530053035-Online | 1 |
| 22 | SCREW | 530015911 | 530015911-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 17 | BOLT | 530016044 | 530016044-Online | 1 |
| 18 | MUFFLER | 530069415 | 530069415-Online | 1 |
| 19 | MUFFLER | 530037254 | 530037254-Online | 1 |
| 20 | SCREEN | 530029810 | 530029810-Online | 1 |
| 21 | FLAME PROTECTION | 530037246 | 530037246-Online | 1 |
| 22 | MUFFLER | 530037251 | 530037251-Online | 1 |
| 23 | SCREW | 530015902 | 530015902-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 23 | SCREW | 530016154 | 530016154-Online | 1 |
| 24 | COVER | 530047609 | 530047609-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 11 | CABLE | 530403257 | 530403257-Online | 1 |
| 12 | SCREW | 530015896 | 530015896-Online | 1 |
| 13 | STOP SWITCH | 503717901 | 503717901-Online | 1 |
| 14 | FLYWHEEL ASSY | 530039147 | 530039147-Online | 1 |
| 15 | WASHER | 530015127 | 530015127-Online | 1 |
| 16 | NUT | 530016071 | 530016071-Online | 1 |
| 17 | SPRING | 530023817 | 530023817-Online | 1 |
| 18 | SCREW | 530015895 | 530015895-Online | 1 |
| 19 | IGNITION MODULE | 530039143 | 530039143-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE | 530038491 | 530038491-Online | 1 |
| 2 | STARTER ROPE | 530069232 | 530069232-Online | 1 |
| 3 | SCREW | 530015920 | 530015920-Online | 1 |
| 4 | SCREW | 530016080 | 530016080-Online | 1 |
| 5 | STARTER PULLEY | 530069313 | 530069313-Online | 1 |
| 6 | RETURN SPRING | 530015891 | 530015891-Online | 1 |
| 7 | STARTER HOUSING | 530047599 | 530047599-Online | 1 |
| 8 | SCREW | 530015892 | 530015892-Online | 1 |
| 9 | SCREW | 530015893 | 530015893-Online | 1 |
| 530053459 | DECAL | 530053459 | 530053459-Online | 1 |
| 530053460 | DECAL | 530053460 | 530053460-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 25 | SPARK PLUG | 952030150 | 952030150-Online | 1 |
| 27 | DEFLECTOR | 530037652 | 530037652-Online | 1 |
| 28 | PLATE | 530037640 | 530037640-Online | 1 |
| 29 | GASKET | 530019205 | 530019205-Online | 1 |
| 530069944 | PISTON | 530069944 | 530069944-Online | 1 |
| 530069454 | PISTON | 530069454 | 530069454-Online | 1 |
| 530029805 | PISTON RING | 530029805 | 530029805-Online | 1 |
| 530029982 | PISTON RING | 530029982 | 530029982-Online | 1 |
| 32 | NEEDLE BEARING | 530032117 | 530032117-Online | 1 |
| 33 | LOCKING RING | 530015697 | 530015697-Online | 1 |
| 35 | SCREW | 530015897 | 530015897-Online | 1 |
| 530163874 | OPERATORS MANUAL | 530163874 | 530163874-Online | 1 |
| 530163872 | OPERATORS MANUAL | 530163872 | 530163872-Online | 1 |
| 530163873 | OPERATORS MANUAL | 530163873 | 530163873-Online | 1 |
| 530163871 | OPERATORS MANUAL | 530163871 | 530163871-Online | 1 |
| 530164305 | OPERATORS MANUAL NEW THIS IPL PART NUMBER FOR | 530164305 | 530164305-Online | 1 |
| 530031135 | WRENCH | 530031135 | 530031135-Online | 1 |
| 530031136 | PULLER | 530031136 | 530031136-Online | 1 |
| 530031112 | PULLER | 530031112 | 530031112-Online | 1 |
| 530047941 | DECAL | 530047941 | 530047941-Online | 1 |
| 530037912 | BAR COVER | 530037912 | 530037912-Online | 1 |
