Husqvarna 327HDA65X IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

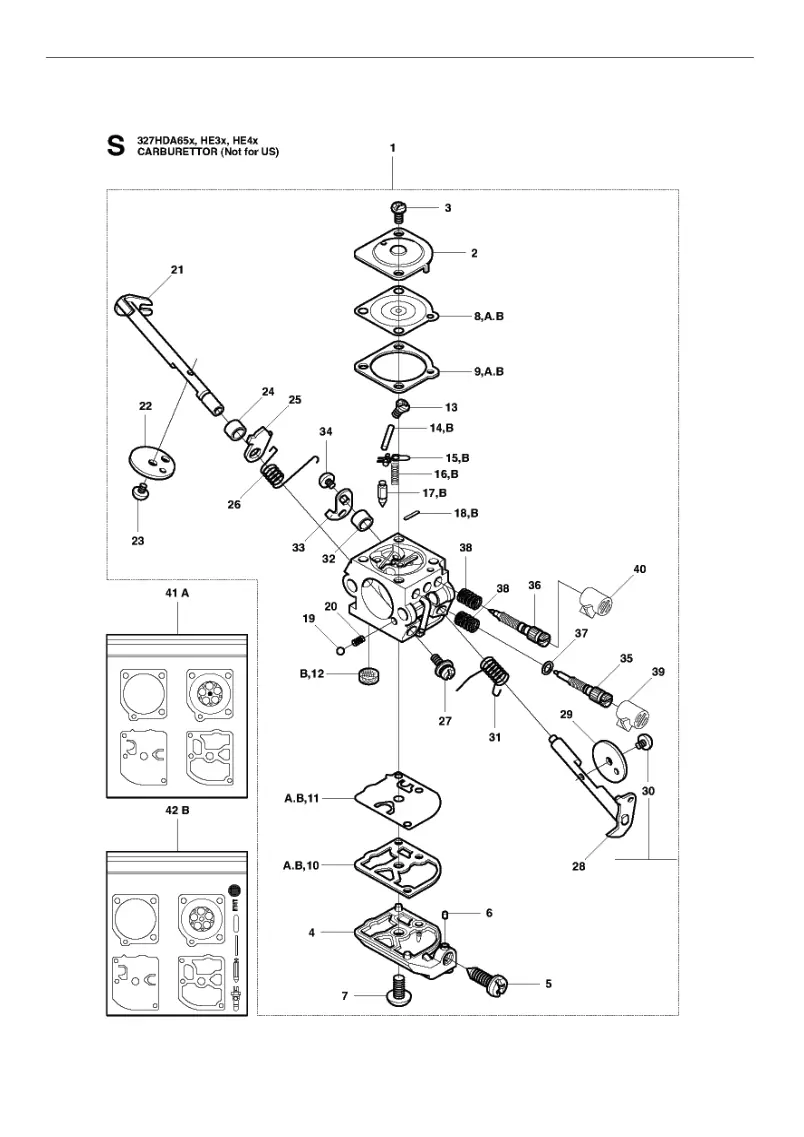

PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR ZAMA C1Q-EL14A | 503283113 | 503283113-Online | 1 |
| 2 | COVER | 503974301 | 503974301-Online | 1 |
| 3 | SCREW | 503480501 | 503480501-Online | 1 |
| 4 | COVER | 537020201 | 537020201-Online | 1 |
| 5 | SCREW | 537020701 | 537020701-Online | 1 |
| 6 | PIECE | 503481101 | 503481101-Online | 1 |
| 7 | SCREW | 503479601 | 503479601-Online | 1 |
| 8 | DIAPHRAGM | 537048901 | 537048901-Online | 1 |
| 9 | GASKET | 537020401 | 537020401-Online | 1 |
| 10 | GASKET | 537020101 | 537020101-Online | 1 |
| 11 | DIAPHRAGM PUMP | 537020001 | 537020001-Online | 1 |
| 12 | STRAINER | 503535701 | 503535701-Online | 1 |
| 13 | SCREW | 503480101 | 503480101-Online | 1 |
| 14 | PIN RETAINING SCREW | 503480001 | 503480001-Online | 1 |
| 15 | LEVER | 503665901 | 503665901-Online | 1 |
| 16 | SPRING | 537020301 | 537020301-Online | 1 |
| 17 | VALVE | 503479701 | 503479701-Online | 1 |
| 18 | PLUG | 537020801 | 537020801-Online | 1 |
| 19 | BALL | 537012501 | 537012501-Online | 1 |
| 20 | SPRING | 537012601 | 537012601-Online | 1 |
| 21 | SHAFT ASSY | 537020901 | 537020901-Online | 1 |
| 22 | VALVE | 537021101 | 537021101-Online | 1 |
| 23 | SCREW | 503481801 | 503481801-Online | 1 |
| 24 | COLLAR | 503481901 | 503481901-Online | 1 |
| 25 | LEVER | 537143401 | 537143401-Online | 1 |
| 26 | SPRING | 537021001 | 537021001-Online | 1 |
| 27 | SCREW | 503755301 | 503755301-Online | 1 |
| 28 | SHAFT ASSY | 537019601 | 537019601-Online | 1 |
| 29 | VALVE | 537019901 | 537019901-Online | 1 |
| 30 | SCREW | 503479201 | 503479201-Online | 1 |
| 31 | SPRING | 537019701 | 537019701-Online | 1 |
| 32 | COLLAR | 503478901 | 503478901-Online | 1 |
| 33 | LEVER | 537019801 | 537019801-Online | 1 |
| 34 | SCREW | 503479001 | 503479001-Online | 1 |
| 35 | SCREW | 537020601 | 537020601-Online | 1 |
| 36 | SCREW | 537127801 | 537127801-Online | 1 |
| 37 | WASHER | 503974001 | 503974001-Online | 1 |
| 38 | SPRING | 503480801 | 503480801-Online | 1 |
| 39 | LIMITER CAP | 537021601 | 537021601-Online | 1 |
| 40 | LIMITER CAP | 537021601 | 537021601-Online | 1 |
| 41, A | GASKET KIT | 531004552 | 531004552-Online | 1 |
| 42, B | GASKET KIT | 531004553 | 531004553-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SLEEVE | 537309601 | 537309601-Online | 1 |
| 2 | SCREW IHSCFT | 503216825 | 503216825-Online | 1 |
| 3 | CLUTCH COVER | 537041209 | 537041209-Online | 1 |
| 4 | PROTECTIVE PLATE | 537425001 | 537425001-Online | 1 |
| 6 | SPRING | 537073601 | 537073601-Online | 1 |
| 7 | BALL BEARING | 503250501 | 503250501-Online | 1 |
| 8 | CIRCLIP | 537336701 | 537336701-Online | 1 |
| 11 | GASKET | 537066901 | 537066901-Online | 1 |
| 12 | GASKET | 537088501 | 537088501-Online | 1 |
| 13 | INSERT CRANKCASE | 537066801 | 537066801-Online | 1 |
| 14 | SCREW IHSCT | 503216618 | 503216618-Online | 2 |
| 15 | SCREW IHSCT | 503217716 | 503217716-Online | 1 |
| 5 | SCREW IHSCFM M5X16 | 503200303 | 503200303-Online | 1 |
| 9 | CRANKCASE | 537085203 | 537085203-Online | 1 |
| 10 | SCREW IHSCFM M5X16 | 503200303 | 503200303-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 503852474 | 503852474-Online | 1 |
| 2 | BEARING CAGE | 503940203 | 503940203-Online | 1 |
| 3 | CUP | 503940501 | 503940501-Online | 1 |
| 4 | BEARING | 503712201 | 503712201-Online | 1 |
| 5 | CUP | 503940501 | 503940501-Online | 1 |
| 6 | BEARING CAGE | 503940203 | 503940203-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CUTTING DECK KIT 327HDA65X | 521919301 | 521919301-Online | 1 |
| 2 | CUTTING DECK KIT 327HE3X | 521919302 | 521919302-Online | 1 |
| 3 | CUTTING DECK KIT 327HE4X | 521919303 | 521919303-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CUTTING DECK | 505065701 | 505065701-Online | 1 |
| 2 | NUT | 503227502 | 503227502-Online | 5 |
| 3 | HEXAGON NUT | 503221012 | 503221012-Online | 2 |
| 4 | SCREW IHCSFM | 725633155 | 725633155-Online | 2 |
| 5 | WASHER | 503230024 | 503230024-Online | 5 |
| 6 | SCREW EHHM | 503201722 | 503201722-Online | 5 |
| 7 | TRANSPORT GUARD | 581259302 | 581259302-Online | 1 |
| 8 | BLADE | 505065001 | 505065001-Online | 1 |
| 9 | BLADE | 505065001 | 505065001-Online | 1 |
| 10 | BEAM | 544431301 | 544431301-Online | 1 |
| 11 | WASHER STEEL | 544462701 | 544462701-Online | 1 |
| 12 | COVER | 537372001 | 537372001-Online | 1 |
| 13 | PROTECTIVE PLATE | 537284401 | 537284401-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KNOB | 537213210 | 537213210-Online | 1 |
| 2 | FILTER COVER | 502481301 | 502481301-Online | 1 |
| 4 | SCREW CCRPANT | 503213512 | 503213512-Online | 1 |
| 5 | ARM PROTECTION | 502481601 | 502481601-Online | 1 |
| 6 | HEAT PROTECTOR | 544848101 | 544848101-Online | 1 |
| 7 | SCREW IHSCFT | 503217520 | 503217520-Online | 1 |
| 8 | LOCK NUT | 503222401 | 503222401-Online | 1 |
| 9 | CYLINDER COVER | 502481401 | 502481401-Online | 1 |
| 10 | SCREW | 503961301 | 503961301-Online | 2 |
| 11 | O-RING | 740420600 | 740420600-Online | 2 |
| 12 | COVER | 502481501 | 502481501-Online | 1 |
| 3 | SCREW IHSCFM M5 X 16 | 503200303 | 503200303-Online | 5 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER KIT CAT. | 504037801 | 504037801-Online | 1 |
| 2 | SPARK ARRESTER SCREEN | 537221801 | 537221801-Online | 1 |
| 3 | GASKET | 537014101 | 537014101-Online | 1 |
| 4 | SCREW EHHFM | 502078101 | 502078101-Online | 1 |
| 5 | CYLINDER DIA.=34MM | 537085103 | 537085103-Online | 1 |
| 6 | SCREW IHSCM | 725533755 | 725533755-Online | 4 |
| 7 | PISTON | 537405902 | 537405902-Online | 1 |
| 8 | PISTON RING | 537406201 | 537406201-Online | 2 |
| 9 | CIRCLIP | 737440800 | 737440800-Online | 1 |
| 10 | BEARING | 503712201 | 503712201-Online | 1 |
| 11 | CIRCLIP | 737440800 | 737440800-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK | 537068607 | 537068607-Online | 1 |
| 2 | FUEL HOSE | 544325001 | 544325001-Online | 1 |
| 3 | FUEL HOSE | 544977501 | 544977501-Online | 1 |
| 4 | BUSHING | 503735801 | 503735801-Online | 1 |
| 5 | HOSE CLAMP | 504022401 | 504022401-Online | 1 |
| 6 | FUEL FILTER | 503443201 | 503443201-Online | 1 |
| 7 | PURGE | 503936601 | 503936601-Online | 1 |
| 8 | O-RING | 537184901 | 537184901-Online | 1 |
| 9 | TANK CAP | 544889702 | 544889702-Online | 1 |
| 10 | SUSPENSION | 503911001 | 503911001-Online | 4 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHORT CIRCUIT CABLE | 502493601 | 502493601-Online | 1 |
| 2 | SPARK PLUG CAP | 537434301 | 537434301-Online | 1 |
| 3 | SPARK PLUG | 503235109 | 503235109-Online | 1 |
| 4 | IGNITION MODULE | 502493701 | 502493701-Online | 1 |
| 5 | SCREW IHSCT | 503216618 | 503216618-Online | 2 |
| 6 | SCREW | 503842902 | 503842902-Online | 2 |
| 7 | CLUTCH ASSY | 537040102 | 537040102-Online | 1 |
| 9 | CLUTCH SPRING | 503145101 | 503145101-Online | 1 |
| 10 | WASHER | 537046802 | 537046802-Online | 1 |
| 11 | CLUTCH HUB | 537242501 | 537242501-Online | 1 |
| 12 | FLYWHEEL | 537249602 | 537249602-Online | 1 |
| 8 | CLUTCH SHOE | 537040002 | 537040002-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER PAWL | 503873305 | 503873305-Online | 1 |
| 2 | E-CLIP | 735310820 | 735310820-Online | 1 |
| 3 | SPRING | 503873601 | 503873601-Online | 1 |
| 4 | STARTER PAWL | 503873502 | 503873502-Online | 1 |
| 5 | STARTER ASSY | 544071102 | 544071102-Online | 1 |
| 6 | SCREW IHSCT | 503217725 | 503217725-Online | 1 |
| 7 | DRIVER | 544038701 | 544038701-Online | 1 |
| 8 | SPRING | 544038801 | 544038801-Online | 1 |
| 9 | STARTER PULLEY ASSY | 544166501 | 544166501-Online | 1 |
| 10 | SPACING SLEEVE | 537379302 | 537379302-Online | 2 |
| 11 | STARTER ROPE | 503858901 | 503858901-Online | 1 |
| 12 | STARTER HANDLE | 537008401 | 537008401-Online | 1 |
| 13 | STARTER HOUSING | 537411601 | 537411601-Online | 1 |
| 14 | SPACING SLEEVE | 537379302 | 537379302-Online | 1 |
| 15 | STARTER PULLEY | 544038601 | 544038601-Online | 1 |
| 16 | RECOIL SPRING | 503859001 | 503859001-Online | 1 |
| 17 | SCREW IHSCFM M5X16 | 503200303 | 503200303-Online | 1 |
| 22 | LABEL 327HDA65x | 537353466 | 537353466-Online | 1 |
| 23 | LABEL 327HE3x | 537353467 | 537353467-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER PAWL | 503873305 | 503873305-Online | 1 |
| 2 | E-CLIP | 735310820 | 735310820-Online | 1 |
| 3 | SPRING | 503873601 | 503873601-Online | 1 |
| 4 | STARTER PAWL | 503873502 | 503873502-Online | 1 |
| 5 | STARTER ASSY | 503852806 | 503852806-Online | 1 |
| 6 | SCREW IHSCT | 503217716 | 503217716-Online | 1 |
| 7 | STARTER PULLEY | 503964901 | 503964901-Online | 1 |
| 8 | SPACING SLEEVE | 537379302 | 537379302-Online | 2 |
| 9 | STARTER ROPE | 503858901 | 503858901-Online | 1 |
| 10 | STARTER HANDLE | 537008401 | 537008401-Online | 1 |
| 11 | STARTER HOUSING | 503858702 | 503858702-Online | 1 |
| 12 | SPACING SLEEVE | 537379302 | 537379302-Online | 1 |
| 13 | SCREW IHSCFM | 503200316 | 503200316-Online | 1 |
| 14 | LABEL 327HDA65x | 537353466 | 537353466-Online | 1 |
| 15 | LABEL 327HE3x | 537353467 | 537353467-Online | 1 |
| 16 | LABEL 327HE4x | 537353468 | 537353468-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL | 544143604 | 544143604-Online | 1 |
| 2 | SWITCH | 537419001 | 537419001-Online | 1 |
| 3 | SCREW IHSCT | 503216618 | 503216618-Online | 1 |
| 4 | HANDLE HALF | 544100202 | 544100202-Online | 1 |
| 5 | THROTTLE LOCKOUT | 503878001 | 503878001-Online | 1 |
| 6 | THROTTLE LEVER | 503918101 | 503918101-Online | 1 |
| 7 | ABSORBER | 503961401 | 503961401-Online | 1 |
| 8 | HANDLE HALF | 544100302 | 544100302-Online | 1 |
| 9 | RECOIL SPRING | 544100801 | 544100801-Online | 1 |
| 10 | THROTTLE TRIGGER | 503877903 | 503877903-Online | 1 |
| 11 | DAMPER | 544101702 | 544101702-Online | 1 |
| 12 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 13 | RETAINER | 544112101 | 544112101-Online | 1 |
| 14 | SCREW IHSCFM | 503200320 | 503200320-Online | 1 |
| 15 | WIRING | 502651301 | 502651301-Online | 1 |
| 16 | SHORT CIRCUIT CABLE | 502531601 | 502531601-Online | 1 |
| 17 | THROTTLE CABLE ASSY | 544171703 | 544171703-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GEAR WHEEL | 544064001 | 544064001-Online | 1 |
| 2 | SEALING | 537232201 | 537232201-Online | 1 |
| 3 | BASEPLATE | 537232101 | 537232101-Online | 1 |
| 4 | HEXAGON NUT | 503221012 | 503221012-Online | 2 |
| 5 | WASHER | 734114601 | 734114601-Online | 2 |
| 6 | LUBRICATION NIPPLE | 738881001 | 738881001-Online | 1 |
| 7 | PLUG | 537416601 | 537416601-Online | 1 |
| 8 | WASHER | 734115201 | 734115201-Online | 1 |
| 9 | DISC SPRING | 737385200 | 737385200-Online | 2 |
| 10 | HEXAGON LOCKING NUT | 732251601 | 732251601-Online | 1 |
| 11 | GEAR HOUSING | 537231701 | 537231701-Online | 1 |
| 12 | PLUG | 544093101 | 544093101-Online | 1 |
| 13 | WASHER | 537294201 | 537294201-Online | 1 |
| 14 | NEEDLE BEARING | 537233601 | 537233601-Online | 2 |
| 15 | BALL BEARING | 738219804 | 738219804-Online | 1 |
| 16 | GEAR WHEEL | 537232801 | 537232801-Online | 1 |
| 17 | CONNECTING ROD | 537232001 | 537232001-Online | 2 |
| 18 | WASHER | 537404801 | 537404801-Online | 1 |
| 19 | WASHER | 503230302 | 503230302-Online | 1 |
| 20 | WASHER | 537341801 | 537341801-Online | 1 |
| 21 | BALL BEARING | 738219804 | 738219804-Online | 1 |
| 22 | SCREW IHSCM | 725532305 | 725532305-Online | 1 |
| 23 | BALL BEARING | 537406402 | 537406402-Online | 1 |
| 24 | CIRCLIP | 735313310 | 735313310-Online | 1 |
| 25 | CIRCLIP | 735311900 | 735311900-Online | 1 |
| 26 | BALL BEARING | 738219804 | 738219804-Online | 1 |
| 27 | SCREW IHSCM | 725529101 | 725529101-Online | 6 |
| 28 | GUIDE PLATE | 537341501 | 537341501-Online | 1 |
| 29 | SCREW IHSCM | 725528755 | 725528755-Online | 2 |
| 30 | SEALING | 537234201 | 537234201-Online | 1 |
| 31 | HUB CAP | 537231801 | 537231801-Online | 1 |
| 32 | CIRCLIP | 735312510 | 735312510-Online | 1 |
| 33 | CIRCLIP | 735311100 | 735311100-Online | 1 |
| 34 | SPACER | 537233701 | 537233701-Online | 1 |
| 35 | BALL BEARING | 738219904 | 738219904-Online | 2 |
| 36 | GEAR HOUSING | 537231601 | 537231601-Online | 1 |
| 37 | SCREW IHSCFM | 503200725 | 503200725-Online | 1 |
| 38 | SCREW IHSCFMO | 503201412 | 503201412-Online | 1 |
| 39 | HEXAGON LOCKING NUT | 732251601 | 732251601-Online | 1 |
| 40 | WASHER | 734115201 | 734115201-Online | 1 |
| 41 | WASHER | 537294201 | 537294201-Online | 1 |
| 42 | SHAFT | 537232601 | 537232601-Online | 1 |
| 43 | SEALING | 537394901 | 537394901-Online | 1 |
| 44 | KNOB | 537442301 | 537442301-Online | 1 |
| 45 | SPACER | 537233501 | 537233501-Online | 1 |
| 46 | SCREW IHSCM | 725532955 | 725532955-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER ASSY | 537143103 | 537143103-Online | 1 |
| 2 | CHOKE CONTROL | 503962501 | 503962501-Online | 1 |
| 3 | V-RING | 740681121 | 740681121-Online | 1 |
| 4 | BRACKET | 502499001 | 502499001-Online | 1 |
| 5 | SCREW IHSCFT | 503217550 | 503217550-Online | 2 |
| 6 | SCREW IHSCT | 503217716 | 503217716-Online | 1 |
| 7 | CARBURETTOR Zama US C1Q-EL24, NOT FOR | 503283113 | 503283113-Online | 1 |
| 7 | CARBURETTOR Hualong for US HQ-2, only option | 576019801 | 576019801-Online | 1 |
| 8 | GASKET | 503497101 | 503497101-Online | 1 |
| 9 | PURGE | 503936601 | 503936601-Online | 1 |
| 10 | SQUARE NUT | 503226504 | 503226504-Online | 2 |
| 11 | INSULATION WALL | 503910901 | 503910901-Online | 1 |
| 12 | INLET PIPE | 503942601 | 503942601-Online | 1 |
| 13 | SCREW IHSCFM | 503200325 | 503200325-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KIT | 576470601 | 576470601-Online | 1 |
| 2 | LABEL | 587113702 | 587113702-Online | 1 |
| 3 | TUBE | 537091101 | 537091101-Online | 1 |
| 4 | SCREW EHHM | 725237851 | 725237851-Online | 1 |
| 5 | WASHER | 734115201 | 734115201-Online | 1 |
| 6 | SCREW IHSCFT | 503217516 | 503217516-Online | 1 |
| 7 | DISTANCE | 503940301 | 503940301-Online | 1 |
| 8 | SQUARE NUT | 502197101 | 502197101-Online | 1 |
| 9 | HANDLE | 503871908 | 503871908-Online | 1 |
| 10 | CLUTCH DRUM ASSY | 537240001 | 537240001-Online | 1 |
| 11 | CIRCLIP | 735311200 | 735311200-Online | 1 |
| 12 | DRIVE SHAFT | 537234802 | 537234802-Online | 1 |
