Husqvarna 340IBT IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

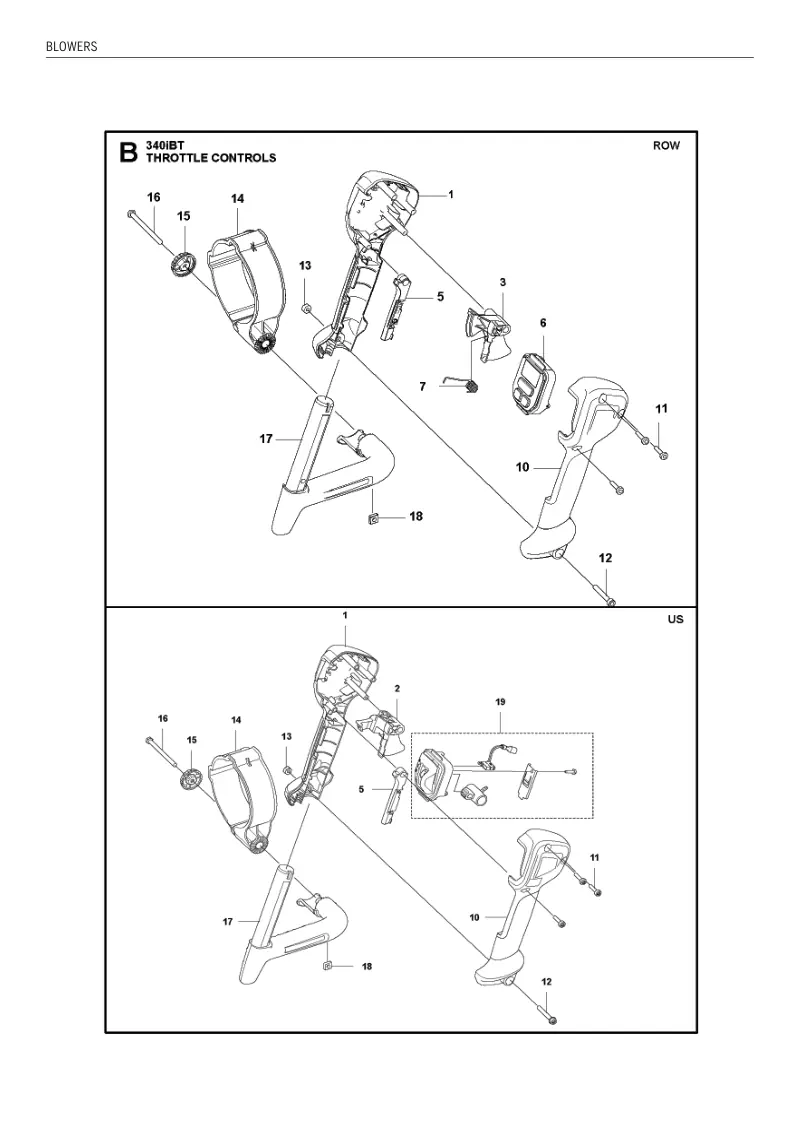

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE HALF | 593165401 | 593165401-Online | 1 |
| 2 | TRIGGER US | 593721701 | 593721701-Online | 1 |
| 3 | THROTTLE CONTROL ASSY ROW | 593044301 | 593044301-Online | 1 |
| 5 | COVER | 593913001 | 593913001-Online | 1 |
| 6 | CONTROL PANEL ROW | 597597501 | 597597501-Online | 1 |
| 7 | SPRING ROW | 593838601 | 593838601-Online | 1 |
| 10 | HANDLE HALF | 593165501 | 593165501-Online | 1 |
| 11 | SCREW ITXSCT | 580292901 | 580292901-Online | 3 |
| 12 | SCREW ITXSCFM | 525755109 | 525755109-Online | 1 |
| 13 | HEXAGON NUT | 503221012 | 503221012-Online | 1 |
| 14 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 15 | KNOB | 502204001 | 502204001-Online | 1 |
| 16 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
| 17 | HOLDER | 593734401 | 593734401-Online | 1 |
| 18 | SQUARE NUT | 503226504 | 503226504-Online | 1 |
| 19 | CONTROL PANEL US | 593722001 | 593722001-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NOZZLE | 582599601 | 582599601-Online | 1 |
| 2 | TUBE | 593785101 | 593785101-Online | 1 |
| 3 | JOINT | 576581401 | 576581401-Online | 1 |
| 4 | STRAP | 595338601 | 595338601-Online | 1 |
| 6 | CLAMP | 544274101 | 544274101-Online | 2 |
| 7 | HOSE | 587555301 | 587555301-Online | 1 |
| 8 | CLAMP | 502842801 | 502842801-Online | 1 |
| 9 | ELBOW | 576578301 | 576578301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SLEEVE | 594035001 | 594035001-Online | 1 |
| 2 | HANDLEBAR ASSY | 544400004 | 544400004-Online | 1 |
| 3 | PIPE | 576581801 | 576581801-Online | 1 |
| 4 | TUBE ASSY | 589811701 | 589811701-Online | 1 |
| 5 | NOZZLE | 579797501 | 579797501-Online | 1 |
| 6 | WRENCH | 575880701 | 575880701-Online | 1 |
| 7 | TUBE ASSY | 586106302 | 586106302-Online | 1 |
| 8 | TUBE ASSY | 586106301 | 586106301-Online | 1 |
| 9 | NOZZLE | 576582701 | 576582701-Online | 1 |
| 10 | PIPE | 576581701 | 576581701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL UNIT ROW | 597348002 | 597348002-Online | 1 |
| 1 | CONTROL UNIT US | 597347602 | 597347602-Online | 1 |
| 3 | SPRING PLATE | 594035301 | 594035301-Online | 1 |
| 5 | WIRING ASSY ROW | 593714601 | 593714601-Online | 1 |
| 5 | WIRING ASSY US | 593711801 | 593711801-Online | 1 |
| 6 | SWITCH US | 582050701 | 582050701-Online | 1 |
| 2 | SCREW ITXSCT | 580292901 | 580292901-Online | 6 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER | 594906401 | 594906401-Online | 1 |
| 2 | MOTOR ASSY | 597477202 | 597477202-Online | 1 |
| 3 | MUFFLER | 594906501 | 594906501-Online | 1 |
| 4 | ROTOR | 590818302 | 590818302-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PAD | 576579101 | 576579101-Online | 1 |
| 2 | SCREW ITXSCT | 576356601 | 576356601-Online | 5 |
| 3 | CLIP | 544270001 | 544270001-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCT | 580292901 | 580292901-Online | 16 |
| 2 | HOUSING | 593773701 | 593773701-Online | 1 |
| 3 | BACKPLATE | 590845402 | 590845402-Online | 1 |
| 4 | SCREW ITXSCT | 576356601 | 576356601-Online | 1 |
| 5 | STRAP | 594954101 | 594954101-Online | 1 |
| 6 | SPRING | 585480001 | 585480001-Online | 2 |
| 7 | PUSH BUTTON | 577996601 | 577996601-Online | 2 |
| 8 | AIR DUCT | 597606801 | 597606801-Online | 1 |
| 9 | COVER | 593773801 | 593773801-Online | 1 |
| 10 | INLET | 593894801 | 593894801-Online | 1 |
| 11 | CABLE CLAMP | 581472301 | 581472301-Online | 1 |
| 12 | LABEL | 503709701 | 503709701-Online | 1 |
