Husqvarna LTH2038 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

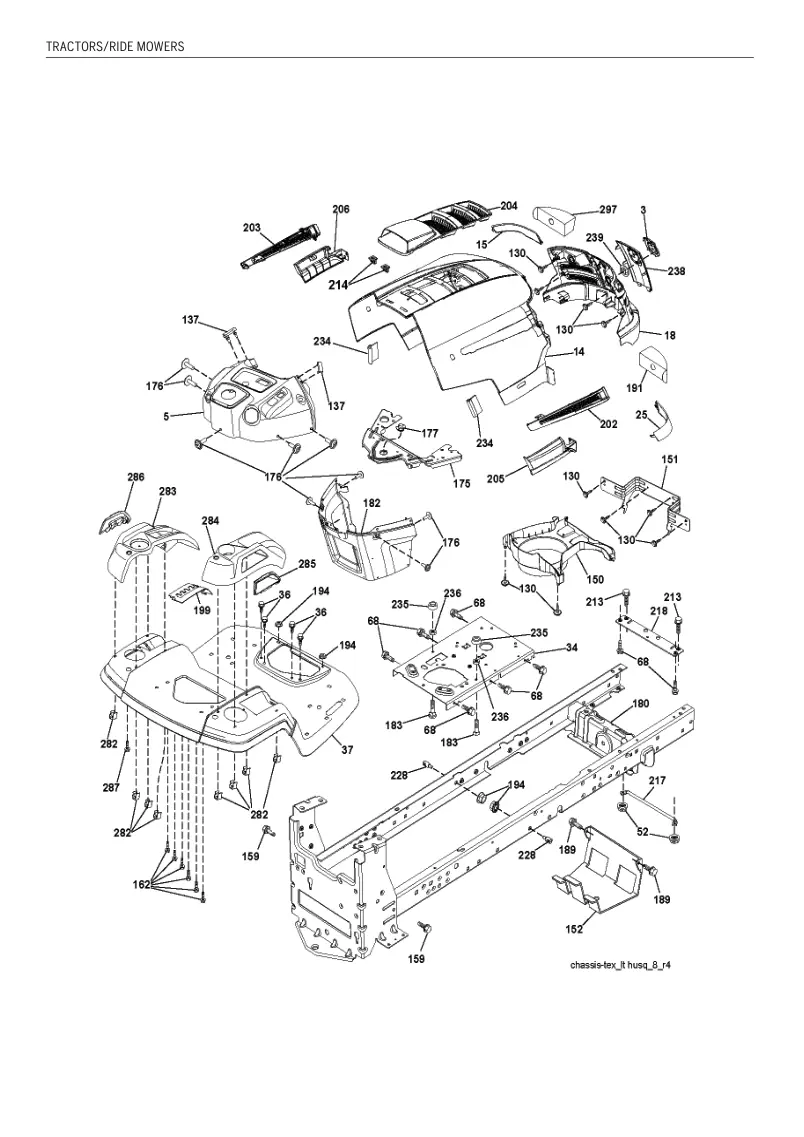

TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 3 | LOGOTYPE | 532405012 | 532405012-Online | 1 |
| 5 | PANEL | 532407592 | 532407592-Online | 1 |
| 14 | HOOD | 532441267 | 532441267-Online | 1 |
| 15 | LENS | 532411079 | 532411079-Online | 1 |
| 18 | GRILLE | 532426963 | 532426963-Online | 1 |
| 25 | LENS | 532411078 | 532411078-Online | 1 |
| 34 | PLATE | 532196125 | 532196125-Online | 1 |
| 36 | SCREW | 817060512 | 817060512-Online | 1 |
| 37 | FENDER | 532441266 | 532441266-Online | 1 |
| 52 | NUT | 873680500 | 873680500-Online | 1 |
| 68 | SCREW | 817490508 | 817490508-Online | 1 |
| 130 | SCREW | 532416358 | 532416358-Online | 1 |
| 137 | DAMPING PIECE | 532407590 | 532407590-Online | 1 |
| 150 | AIR CONDUCTOR | 532407537 | 532407537-Online | 1 |
| 151 | BRACKET | 532407807 | 532407807-Online | 1 |
| 152 | SHIELD | 532199535 | 532199535-Online | 1 |
| 159 | SCREW | 817000612 | 817000612-Online | 1 |
| 162 | SCREW | 532142432 | 532142432-Online | 1 |
| 175 | PLATE | 532199472 | 532199472-Online | 1 |
| 176 | SCREW | 532400776 | 532400776-Online | 1 |
| 177 | BUSHING | 532195228 | 532195228-Online | 1 |
| 180 | CHASSIS | 532195457 | 532195457-Online | 1 |
| 182 | DASH | 532407176 | 532407176-Online | 1 |
| 183 | BOLT | 874520520 | 874520520-Online | 1 |
| 189 | SCREW | 817000512 | 817000512-Online | 1 |
| 191 | INSERT | 532416500 | 532416500-Online | 1 |
| 194 | NUT | 873900500 | 873900500-Online | 1 |
| 199 | PLATE | 532413485 | 532413485-Online | 1 |
| 202 | AIR CONDUCTOR | 532411074 | 532411074-Online | 1 |
| 203 | AIR CONDUCTOR | 532411075 | 532411075-Online | 1 |
| 204 | AIR CONDUCTOR | 532411116 | 532411116-Online | 1 |
| 205 | FENDER | 532411076 | 532411076-Online | 1 |
| 206 | FENDER | 532411077 | 532411077-Online | 1 |
| 213 | BOLT | 874760512 | 874760512-Online | 1 |
| 214 | CLIP | 532199145 | 532199145-Online | 1 |
| 217 | ROD | 532409167 | 532409167-Online | 1 |
| 218 | PLATE | 532196395 | 532196395-Online | 1 |
| 228 | STUD | 532195161 | 532195161-Online | 1 |
| 234 | DAMPING PIECE | 532404742 | 532404742-Online | 1 |
| 235 | SPACER | 532406129 | 532406129-Online | 1 |
| 236 | NUT | 873930500 | 873930500-Online | 1 |
| 238 | FRONT COVER | 532411119 | 532411119-Online | 1 |
| 239 | CLIP | 532404883 | 532404883-Online | 1 |
| 282 | CLIP | 532414110 | 532414110-Online | 1 |
| 283 | CONSOLE | 532416316 | 532416316-Online | 1 |
| 284 | CONSOLE | 532417887 | 532417887-Online | 1 |
| 285 | CONSOLE | 532416315 | 532416315-Online | 1 |
| 286 | CONSOLE | 532416317 | 532416317-Online | 1 |
| 287 | SCREW | 817600406 | 817600406-Online | 1 |
| 297 | INSERT | 532406665 | 532406665-Online | 1 |
| - - | BUMPER | 532431883 | 532431883-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LABEL | 532400389 | 532400389-Online | 1 |
| 2 | DECAL | 532429196 | 532429196-Online | 1 |
| 3 | DECAL | 532196841 | 532196841-Online | 1 |
| 4 | DECAL | 532433988 | 532433988-Online | 1 |
| 5 | DECAL | 532159736 | 532159736-Online | 1 |
| 6 | DECAL | 532124433 | 532124433-Online | 1 |
| 7 | DECALC.DANGER DEFLECTEUR | 532196357 | 532196357-Online | 1 |
| 8 | DECAL | 532437095 | 532437095-Online | 1 |
| 9 | DECAL | 532145005 | 532145005-Online | 1 |
| 10 | DECAL | 532140837 | 532140837-Online | 1 |
| 11 | DECAL | 532182166 | 532182166-Online | 1 |
| 12 | DECALC.SCHEMA MONTAGE | 532194302 | 532194302-Online | 1 |
| 13 | DECAL | 532159737 | 532159737-Online | 1 |
| 18 | DECAL | 532168869 | 532168869-Online | 1 |
| 19 | DECAL | 532178302 | 532178302-Online | 1 |
| - - | DECAL | 532162598 | 532162598-Online | 1 |
| - - | DECAL | 532166960 | 532166960-Online | 1 |
| - - | PAD | 532410805 | 532410805-Online | 1 |
| - - | PAD, FOOTREST, RH | 532410806 | 532410806-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BATTERY | 532163465 | 532163465-Online | 1 |
| 2 | BOLT | 874760412 | 874760412-Online | 1 |
| 8 | BOX | 532193228 | 532193228-Online | 1 |
| 16 | MICRO SWITCH | 532176138 | 532176138-Online | 1 |
| 21 | HARNESS | 532400252 | 532400252-Online | 1 |
| 22 | BULB | 532004152 | 532004152-Online | 1 |
| 25 | CABLE.STARTER.6GA.BL/R*SUBS/2* | 532412894 | 532412894-Online | 1 |
| 26 | FUSE | 532175158 | 532175158-Online | 1 |
| 27 | NUT | 873510400 | 873510400-Online | 1 |
| 28 | CABLE | 532198885 | 532198885-Online | 1 |
| 29 | SWITCH | 532401545 | 532401545-Online | 1 |
| 30 | IGNITION MODULE | 532193350 | 532193350-Online | 1 |
| 33 | KEY | 532411933 | 532411933-Online | 1 |
| 34 | SWITCH | 532110712 | 532110712-Online | 1 |
| 40 | CABLE | 532401098 | 532401098-Online | 1 |
| 41 | SCREW | 817720408 | 817720408-Online | 1 |
| 42 | COVER | 532131563 | 532131563-Online | 1 |
| 43 | SOLENOID | 532192507 | 532192507-Online | 1 |
| 46 | DISPLAY | 532401763 | 532401763-Online | 1 |
| 55 | SCREW | 817060512 | 817060512-Online | 1 |
| 71 | CABLE | 532400449 | 532400449-Online | 1 |
| 79 | HOLDER | 532175242 | 532175242-Online | 1 |
| 87 | SWITCH | 532197802 | 532197802-Online | 1 |
| 90 | COVER | 532400725 | 532400725-Online | 1 |
| 102 | CABLE | 532404454 | 532404454-Online | 1 |
| 105 | SWITCH | 532407568 | 532407568-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CUTTING DECK | 532434567 | 532434567-Online | 1 |
| 6 | ARM | 532195186 | 532195186-Online | 1 |
| 7 | SCREW | 532416358 | 532416358-Online | 1 |
| 8 | SCREW | 532193003 | 532193003-Online | 1 |
| 11 | RIDE ON BLADE | 532193957 | 532193957-Online | 1 |
| 13 | SHAFT ASSY | 532192872 | 532192872-Online | 1 |
| 14 | BEARING HOUSING | 532187281 | 532187281-Online | 1 |
| 15 | BEARING | 532110485 | 532110485-Online | 1 |
| 19 | BOLT | 532196539 | 532196539-Online | 1 |
| 21 | NUT | 873680500 | 873680500-Online | 1 |
| 23 | HINGE | 532192557 | 532192557-Online | 1 |
| 24 | HUB CAP | 532105304 | 532105304-Online | 1 |
| 25 | TORSION SPRING | 532197026 | 532197026-Online | 1 |
| 26 | NUT | 532110452 | 532110452-Online | 1 |
| 27 | DEFLECTOR | 532193968 | 532193968-Online | 1 |
| 29 | SHAFT | 532131491 | 532131491-Online | 1 |
| 30 | SCREW | 532173984 | 532173984-Online | 1 |
| 31 | WASHER | 532187690 | 532187690-Online | 1 |
| 32 | PULLEY | 532199789 | 532199789-Online | 1 |
| 33 | NUT | 532400234 | 532400234-Online | 1 |
| 34 | BOLT | 872110612 | 872110612-Online | 1 |
| 37 | WASHER | 819131316 | 819131316-Online | 1 |
| 38 | BELT GUIDE | 532199541 | 532199541-Online | 1 |
| 40 | NUT | 873900600 | 873900600-Online | 1 |
| 42 | SPRING | 532198410 | 532198410-Online | 1 |
| 43 | SPRING | 532197256 | 532197256-Online | 1 |
| 46 | SCREW | 532137729 | 532137729-Online | 1 |
| 55 | ARM | 532197249 | 532197249-Online | 1 |
| 56 | SPACER | 532199092 | 532199092-Online | 1 |
| 57 | SCREW | 817000616 | 817000616-Online | 1 |
| 59 | GUARD | 532141043 | 532141043-Online | 1 |
| 60 | ARM | 532199471 | 532199471-Online | 1 |
| 63 | ARM | 532199470 | 532199470-Online | 1 |
| 64 | LINK | 532199790 | 532199790-Online | 1 |
| 67 | HANDLE | 532403012 | 532403012-Online | 1 |
| 68 | BELT | 532408381 | 532408381-Online | 1 |
| 69 | BOLT | 872140505 | 872140505-Online | 1 |
| 70 | CLUTCH | 532401246 | 532401246-Online | 1 |
| 115 | BOLT | 872110505 | 872110505-Online | 1 |
| 122 | BELT GUIDE | 532197258 | 532197258-Online | 1 |
| 123 | BELT GUIDE | 532197259 | 532197259-Online | 1 |
| 144 | BELT GUIDE | 532193414 | 532193414-Online | 1 |
| 145 | PULLEY | 532193197 | 532193197-Online | 1 |
| 147 | SPRING | 532401872 | 532401872-Online | 1 |
| 152 | CABLE | 532435111 | 532435111-Online | 1 |
| 188 | STUD | 532195161 | 532195161-Online | 1 |
| 189 | NUT | 873900500 | 873900500-Online | 1 |
| 195 | SCREW | 817000612 | 817000612-Online | 1 |
| 199 | BAFFLE | 532400095 | 532400095-Online | 1 |
| 209 | WASHER | 819133210 | 819133210-Online | 1 |
| 241 | SCREW | 532152927 | 532152927-Online | 1 |
| 242 | HOSE COUPLING | 532415598 | 532415598-Online | 1 |
| - - | SPINDLE | 532192870 | 532192870-Online | 1 |
| - - | CUTTING DECK | 532434467 | 532434467-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | KEY | 532123583 | 532123583-Online | 1 |
| 15 | WASHER | 819131316 | 819131316-Online | 1 |
| 17 | SRPING.BRAKE.K46.GREEN*SUBS/2* | 532413678 | 532413678-Online | 1 |
| 29 | ROD | 532403806 | 532403806-Online | 1 |
| 33 | RETAINER RING | 812000001 | 812000001-Online | 1 |
| 35 | ROD | 532401031 | 532401031-Online | 1 |
| 42 | PEDAL RUBBER | 532124872 | 532124872-Online | 1 |
| 49 | BOLT | 872110614 | 872110614-Online | 1 |
| 50 | PULLEY | 532194327 | 532194327-Online | 1 |
| 51 | NUT | 873900600 | 873900600-Online | 1 |
| 52 | PULLEY | 532194326 | 532194326-Online | 1 |
| 56 | BELT | 532130969 | 532130969-Online | 1 |
| 64 | SHAFT | 532197865 | 532197865-Online | 1 |
| 73 | SCREW | 874490544 | 874490544-Online | 1 |
| 80 | STRAP TORQUE | 532410024 | 532410024-Online | 1 |
| 99 | ROD | 532415742 | 532415742-Online | 1 |
| 116 | NUT | 873900500 | 873900500-Online | 1 |
| 125 | SCREW | 817000512 | 817000512-Online | 1 |
| 143 | SCREW | 817490508 | 817490508-Online | 1 |
| 153 | RETAINER RING | 532124788 | 532124788-Online | 1 |
| 159 | SPLIT PIN | 876020412 | 876020412-Online | 1 |
| 160 | PIN | 532169484 | 532169484-Online | 1 |
| 161 | SPRING | 532105709 | 532105709-Online | 1 |
| 163 | ROD | 532401034 | 532401034-Online | 1 |
| 166 | NUT | 532429164 | 532429164-Online | 1 |
| 167 | LATCH | 532405257 | 532405257-Online | 1 |
| 170 | KEEPER | 532194322 | 532194322-Online | 1 |
| 171 | BOLT | 872110616 | 872110616-Online | 1 |
| 183 | SPACER | 532137057 | 532137057-Online | 1 |
| 184 | KNOB | 532409747 | 532409747-Online | 1 |
| 185 | BOLT | 872110622 | 872110622-Online | 1 |
| 186 | SPACER | 532194321 | 532194321-Online | 1 |
| 187 | WASHER | 819133210 | 819133210-Online | 1 |
| 188 | LINK | 532194323 | 532194323-Online | 1 |
| 189 | PLATE | 532194317 | 532194317-Online | 1 |
| 190 | BELT GUIDE | 532194318 | 532194318-Online | 1 |
| 205 | WASHER | 532121748 | 532121748-Online | 1 |
| 210 | PEDAL ARM | 532400980 | 532400980-Online | 1 |
| 211 | BEARING | 532120183 | 532120183-Online | 1 |
| 214 | PAD | 532421263 | 532421263-Online | 1 |
| 215 | PEDAL | 532401723 | 532401723-Online | 1 |
| 216 | BRACKET | 532196131 | 532196131-Online | 1 |
| 221 | SPRING | 532403187 | 532403187-Online | 1 |
| 222 | WASHER | 879212010 | 879212010-Online | 1 |
| 225 | BELT GUIDE | 532403319 | 532403319-Online | 1 |
| 226 | BRACKET | 532401564 | 532401564-Online | 1 |
| 227 | SCREW | 817490512 | 817490512-Online | 1 |
| 230 | WASHER | 532188967 | 532188967-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | MUFFLER | 532188655 | 532188655-Online | 1 |
| 9 | BELT GUIDE | 532194320 | 532194320-Online | 1 |
| 12 | PULLEY | 532405471 | 532405471-Online | 1 |
| 15 | FUEL TANK | 532407545 | 532407545-Online | 1 |
| 18 | FUEL CAP | 532430220 | 532430220-Online | 1 |
| 20 | CONTROL | 532183897 | 532183897-Online | 1 |
| 21 | SCREW | 532416358 | 532416358-Online | 1 |
| 28 | HOSE | 532137040 | 532137040-Online | 1 |
| 29 | SPARK ARRESTER KIT | 532137180 | 532137180-Online | 1 |
| 37 | HOSE CLAMP | 532123487 | 532123487-Online | 1 |
| 42 | WASHER | 810040700 | 810040700-Online | 1 |
| 45 | NUT | 873510400 | 873510400-Online | 1 |
| 69 | GASKET | 532165291 | 532165291-Online | 1 |
| 79 | SCREW | 532192334 | 532192334-Online | 1 |
| 84 | SCREW | 817060620 | 817060620-Online | 1 |
| 85 | BOLT | 532173937 | 532173937-Online | 1 |
| 87 | BOLT | 532171877 | 532171877-Online | 1 |
| 90 | SCREW | 817000616 | 817000616-Online | 1 |
| 94 | EXHAUST.TUBE.B&S.28/31*SUBS/2* | 532405450 | 532405450-Online | 1 |
| 96 | WASHER | 819091416 | 819091416-Online | 1 |
| 97 | SCREW | 817670412 | 817670412-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | SHAFT | 532422027 | 532422027-Online | 1 |
| 3 | LEVER | 532195231 | 532195231-Online | 1 |
| 7 | GRIP | 532411555 | 532411555-Online | 1 |
| 10 | SPRING | 532196314 | 532196314-Online | 1 |
| 87 | SPRING | 532194209 | 532194209-Online | 1 |
| 88 | SPRING | 532410710 | 532410710-Online | 1 |
| 89 | WASHER | 819191912 | 819191912-Online | 1 |
| 90 | PIN | 532194208 | 532194208-Online | 1 |
| 91 | LINK | 532195181 | 532195181-Online | 1 |
| 97 | SCREW | 817000612 | 817000612-Online | 1 |
| 98 | LINK | 532195270 | 532195270-Online | 1 |
| 100 | NUT | 873930600 | 873930600-Online | 1 |
| 101 | LINK | 532407003 | 532407003-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STEERING WHEEL | 532416480 | 532416480-Online | 1 |
| 2 | LINK ARM | 532413591 | 532413591-Online | 1 |
| 4 | SPINDLE | 532403087 | 532403087-Online | 1 |
| 5 | SPINDLE | 532403088 | 532403088-Online | 1 |
| 6 | WASHER | 532124931 | 532124931-Online | 1 |
| 7 | WASHER | 532121748 | 532121748-Online | 1 |
| 8 | RETAINER RING | 812000029 | 812000029-Online | 1 |
| 9 | HUB CAP | 532121232 | 532121232-Online | 1 |
| 13 | WASHER | 532121749 | 532121749-Online | 1 |
| 14 | WASHER | 810040600 | 810040600-Online | 1 |
| 15 | NUT | 873540600 | 873540600-Online | 1 |
| 16 | SHAFT | 532429373 | 532429373-Online | 1 |
| 19 | PLATE | 532194729 | 532194729-Online | 1 |
| 20 | STEERING COLUMN TUBE | 532411139 | 532411139-Online | 1 |
| 21 | ADAPTER | 532186737 | 532186737-Online | 1 |
| 22 | SUPPORT | 532420537 | 532420537-Online | 1 |
| 26 | KNOB | 532415987 | 532415987-Online | 1 |
| 28 | SCREW | 817000612 | 817000612-Online | 1 |
| 33 | WASHER | 810040500 | 810040500-Online | 1 |
| 35 | PLATE | 532194732 | 532194732-Online | 1 |
| 45 | WASHER | 819113812 | 819113812-Online | 1 |
| 53 | WASHER | 532188967 | 532188967-Online | 1 |
| 57 | BRACKET | 532407465 | 532407465-Online | 1 |
| 58 | BOLT | 532194747 | 532194747-Online | 1 |
| 59 | WASHER | 532194748 | 532194748-Online | 1 |
| 60 | NUT | 873971000 | 873971000-Online | 1 |
| 61 | LINK | 532194740 | 532194740-Online | 1 |
| 62 | LINK | 532194741 | 532194741-Online | 1 |
| 63 | SCREW | 817000512 | 817000512-Online | 1 |
| 64 | SPRING RETAINER | 532199849 | 532199849-Online | 1 |
| 66 | BOLT | 871020748 | 871020748-Online | 1 |
| 67 | BUSHING | 532194737 | 532194737-Online | 1 |
| 68 | NUT | 873900700 | 873900700-Online | 1 |
| 69 | WASHER | 532199162 | 532199162-Online | 1 |
| 70 | BRACKET | 532196197 | 532196197-Online | 1 |
| 71 | SHAFT | 532190752 | 532190752-Online | 1 |
| 72 | BOLT | 532428982 | 532428982-Online | 1 |
| 118 | BEARING | 532406013 | 532406013-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CAP VALVE | 532059192 | 532059192-Online | 1 |
| 2 | NIPPLE | 532065139 | 532065139-Online | 1 |
| 3 | RIM Front 6 | 532138336 | 532138336-Online | 1 |
| 4 | HOSE Front (Service Item Only) | 532059904 | 532059904-Online | 1 |
| 5 | TIRE Front 15 x 6.0-6 | 532106222 | 532106222-Online | 1 |
| 6 | FITTING (Front Wheel Only) | 532124957 | 532124957-Online | 1 |
| 7 | BEARING (Front Wheel Only) | 532124959 | 532124959-Online | 1 |
| 8 | HUB CAP | 532175039 | 532175039-Online | 1 |
| 9 | TIRE Rear 20 x 10-8 | 532122082 | 532122082-Online | 1 |
| 10 | HOSE Rear (Service Item Only) | 532124926 | 532124926-Online | 1 |
| 11 | RIM SPROCKET Rear 8 | 532138337 | 532138337-Online | 1 |
| - - | SEALING FOAM | 532144334 | 532144334-Online | 1 |
