Husqvarna LC353 V, 967239101, 2015 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

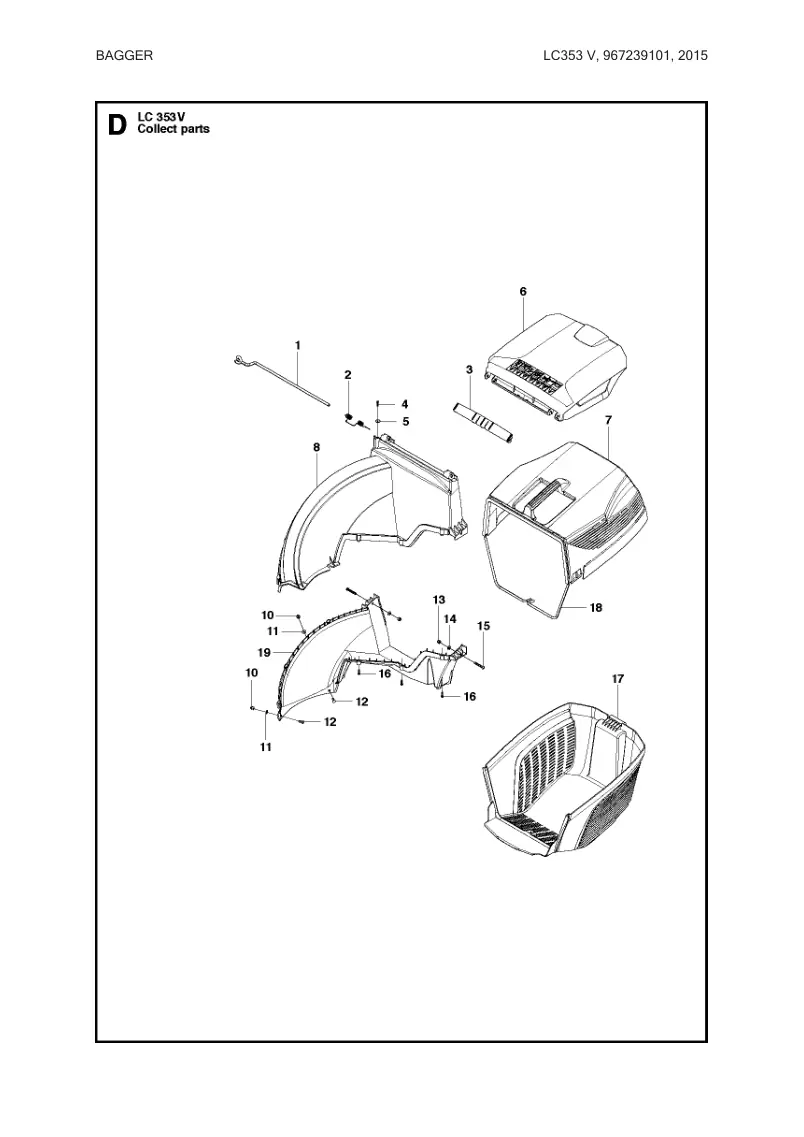

BAGGER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AXLE | 502 24 59-01 | 502245901-Online | 1 |
| 2 | SPRING | 502 24 47-01 | 502244701-Online | 1 |
| 3 | COVER LID | 504 59 81-01 | 504598101-Online | 1 |
| 4 | SCREW ITXPANT | 502 43 53-01 | 502435301-Online | 1 |
| 5 | WASHER | 575 88 55-01 | 575885501-Online | 1 |
| 6 | HATCH | 501 96 77-01 | 501967701-Online | 1 |
| 7 | GRASSBAG | 501 98 77-01 | 501987701-Online | 1 |
| 8 | CHUTE | 505 39 67-01 | 505396701-Online | 1 |
| 10 | CAP NUT | 502 30 50-01 | 502305001-Online | 2 |
| 11 | WASHER | 505 19 84-01 | 505198401-Online | 2 |
| 12 | SCREW | 505 15 61-01 | 505156101-Online | 2 |
| 13 | HEXAGON LOCKING NUT | 732 25 16-01 | 732251601-Online | 2 |
| 14 | WASHER | 505 19 84-01 | 505198401-Online | 2 |
| 15 | SCREW ITXPANTT | 505 55 77-01 | 505557701-Online | 2 |
| 16 | SCREW ITXPANT | 502 43 53-01 | 502435301-Online | 7 |
| 17 | GRASSBAG | 501 98 76-01 | 501987601-Online | 1 |
| 18 | GRASSBAG | 502 44 71-01 | 502447101-Online | 1 |
| 19 | CHUTE | 505 39 69-01 | 505396901-Online | 1 |
ENGINE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LABEL | 516 04 36-08 | 516043608-Online | 1 |
| 3 | SCREW | 531 21 28-51 | 531212851-Online | 3 |
| 4 | WOODRUF KEY | 504 46 05-01 | 504460501-Online | 1 |
| 5 | BLADE SUPPORT | 504 59 13-02 | 504591302-Online | 1 |
| 7 | BELT COVER | 501 96 81-01 | 501968101-Online | 1 |
| 8 | SCREW ITXPANTT | 505 52 46-01 | 505524601-Online | 2 |
| 9 | MOWER BLADE | 510 43 64-10 | 510436410-Online | 1 |
| 11 | WASHER | 531 20 72-37 | 531207237-Online | 1 |
| 12 | SCREW | 531 20 66-49 | 531206649-Online | 1 |
HANDLE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL | 584 86 14-01 | 584861401-Online | 1 |
| 2 | BAIL | 584 61 75-02 | 584617502-Online | 1 |
| 3 | HANDLE ASSY | 584 86 00-01 | 584860001-Online | 1 1 |
| 7 | CABLE | 585 40 20-07 | 585402007-Online | 1 |
| 8 | LEVER | 504 13 83-01 | 504138301-Online | 2 |
| 9 | PIN | 505 53 11-01 | 505531101-Online | 2 |
| 10 | ADJUSTING DISC | 580 77 62-01 | 580776201-Online | 2 |
| 11 | SCREW ITXPANTT | 502 43 52-03 | 502435203-Online | 4 |
| 12 | LOCKING NUT | 522 91 94-01 | 522919401-Online | 2 |
| 13 | SPRING | 504 63 81-01 | 504638101-Online | 2 |
| 14 | SCREW ITXPANTT | 505 52 46-01 | 505524601-Online | 2 |
| 16 | LABEL | 584 82 49-01 | 584824901-Online | 1 |
| 17 | BRACKET | 577 70 14-01 | 577701401-Online | 1 |
| 18 | SCREW ITXPANT | 574 39 14-01 | 574391401-Online | 2 |
| 19 | CABLE HOLDER | 584 21 12-01 | 584211201-Online | 1 |
| 20 | CABLE | 577 27 66-02 | 577276602-Online | 1 1 |
| 21 | PIN RETAINING SCREW | 531 20 51-69 | 531205169-Online | 1 |
| 22 | HEXAGON NUT | 731 23 16-01 | 731231601-Online | 1 |
| 23 | WASHER | 531 20 49-61 | 531204961-Online | 2 |
| 24 | CAP NUT | 502 30 50-01 | 502305001-Online | 1 |
MOWER DECK / CUTTING DECK
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXPANTT | 502 43 52-01 | 502435201-Online | 17 |
| 2 | NUT FLANGE | 504 05 56-01 | 504055601-Online | 1 |
| 3 | PULLEY | 504 05 33-01 | 504053301-Online | 1 |
| 4 | BELT | 501 98 66-05 | 501986605-Online | 1 |
| 5 | SPRING | 522 02 46-01 | 522024601-Online | 2 |
| 6 | LEVER | 504 04 83-01 | 504048301-Online | 1 |
| 7 | GEAR BOX | 504 04 80-01 | 504048001-Online | 1 |
| 8 | SCREW ITXPANT | 502 43 53-01 | 502435301-Online | 2 |
| 9 | NUT | 522 02 40-01 | 522024001-Online | 2 |
| 10 | SPRING | 504 04 87-01 | 504048701-Online | 1 |
| 11 | BRACKET | 504 04 86-01 | 504048601-Online | 1 |
| 13 | HANDLE SUPPORT | 504 00 00-04 | 504000004-Online | 1 |
| 14 | CONNECTOR | 531 20 58-48 | 531205848-Online | 1 |
| 15 | BELT GUIDE | 522 61 23-01 | 522612301-Online | 1 |
| 16 | SKID PLATE | 504 64 15-01 | 504641501-Online | 1 |
| 17 | HANDLE SUPPORT | 504 00 32-04 | 504003204-Online | 1 |
| 18 | SCREW EHHFT | 506 55 83-02 | 506558302-Online | 6 |
| 19 | E-CLIP | 735 31 09-21 | 735310921-Online | 2 |
| 21 | SHAFT | 504 62 50-01 | 504625001-Online | 2 |
| 22 | LOCK RING | 504 70 28-01 | 504702801-Online | 2 |
| 23 | WASHER | 505 22 14-01 | 505221401-Online | 4 |
| 24 | BALL BEARING | 738 21 01-04 | 738210104-Online | 8 25, 30 |
| 25 | WHEEL ASSY | 584 14 22-01 | 584142201-Online | 2 |
| 27 | SCREW | 574 25 94-01 | 574259401-Online | 4 |
| 28 | HUB CAP | 584 15 93-01 | 584159301-Online | 4 |
| 29 | NUT CAP | 584 15 94-01 | 584159401-Online | 4 |
| 30 | WHEEL ASSY | 584 61 16-01 | 584611601-Online | 2 |
| 31 | DUST COVER | 504 62 41-01 | 504624101-Online | 4 |
| 32 | PINION | 544 34 23-01 | 544342301-Online | 2 |
| 33 | LINK ARM ASSY | 504 70 98-04 | 504709804-Online | 2 |
| 35 | LINK ARM ASSY | 504 70 98-02 | 504709802-Online | 2 |
| 36 | BRACKET | 504 62 49-01 | 504624901-Online | 2 |
| 39 | NUT | 505 52 10-01 | 505521001-Online | 2 |
| 40 | FRONT COVER ASSY | 583 90 18-01 | 583901801-Online | 1 |
| 41 | SKID PLATE | 502 62 54-01 | 502625401-Online | 1 |
| 42 | ROD | 584 81 07-02 | 584810702-Online | 1 |
| 44 | TRANSVERSAL ROD | 574 40 60-01 | 574406001-Online | 2 |
| 46 | CHASSIS | 505 39 70-03 | 505397003-Online | 1 |
| 47 | LOCK WASHER | 735 31 36-21 | 735313621-Online | 1 |
| 48 | LEVER | 504 83 82-01 | 504838201-Online | 1 |
| 49 | KNOB | 522 59 85-01 | 522598501-Online | 1 |
| 50 | REAR COVER | 505 20 19-02 | 505201902-Online | 1 |
| 52 | HATCH | 505 20 21-01 | 505202101-Online | 1 |
| 53 | SCREW ITXPANTT | 502 43 52-01 | 502435201-Online | 2 |
